I NSTALLATION/OPERATION MANUAL

LS-100d

Ultra Short Throw, Full-HD LED Home Theater Projector

and Digital High Definition (DHD™) Controller/Scaler/Processor

RuncoCare™ Standard Two Year Limited

Warranty

Congratulations on your purchase of a Runco® product! With proper installation, setup and care, you should enjoy many years of unparalleled video performance.

This Limited Warranty is provided free of charge by Runco International, LLC (“Runco”) with the purchase of a covered Runco product. This Limited Warranty is applicable to all Runco projectors, processors, LCD display and plasma display products, with the exception of the following models: XP-103DHD, SC-1 and SC-1a covered Runco products occurring on or after June 1, 2011.

. This Limited Warranty applies to purchases of

RuncoCare™ Limited Warranty Coverage

Runco warrants its products to be free from defects in material and workmanship during the warranty period provided below. If a product proves to be defective in material or workmanship during the warranty period, Runco will repair the product, replace the product with a substantially similar new or like-new product, or refund a prorated share of the purchase price (calculated based on the remainder of the warranty period and the then-current, most-recent MSRP replacement of the product is determined by Runco to not be feasible.

Length of RuncoCare™ Warranty Period

Runco products are warranted for two (2) years from the date of shipment from Runco. Lamps are warranted six (6) months from the date of shipment or 1000 hours of use, whichever comes first. A replacement lamp is warranted for the remaining portion (if any) of the original warranty period or ninety (90) days from the date it was shipped to you, whichever is longer. All other accessories, which include but are not limited to cables, remotes, carrying cases, lens cap and other peripherals sold with the Runco product, are warranted for ninety (90) days from the date of shipment.

RuncoCare™ Eligibility

This Limited Warranty is valid only in the country where the Product was originally purchased and for the buyer who originally purchased the covered product from the authorized Runco dealer or distributor. This warranty is not transferable; it is not valid for any subsequent buyer (if any). You may be required to provide proof of purchase in order to receive warranty services.

PRE

IMINAR

of a similar product), if repair or

1. Runco may update this list of products excluded from this warranty from time to time at Runco’s sole discretion, but updates will not apply on a retroactive basis.

2. MSRP is defined as the most recent product price listed on Runco’s price list.

Lightstyle™ Series LS-100d Installation/Operation Manual iii

RuncoCare™ Standard Claim Procedure

• In the event of a product defect, please follow the claim procedure provided below: A. Register your product if you have not yet done so. Visit http://www.runco.com/support/product-registration/ to

register the product. B. Contact your original authorized dealer or distributor who sold the product. C. The dealer/distributor will contact Runco Technical Support via email at support@runco.com or via phone at 1-800-

23-RUNCO (1-800-237-8626).

• The dealer/distributor will provide to Runco proof of purchase, serial number, product model number, description of the problem and any troubleshooting steps already attempted.

• Runco’s technical support staff will attempt to assist the dealer/distributor in troubleshooting any technical issues that might be causing the product to malfunction. If Runco is unable to resolve the problem through troubleshooting, a Return Material Authorization (RMA) number will be issued for the exchange of the defective product if it is determined that the claim is covered by the warranty. Once an RMA has been created, RMA status is available at serviceorders@runco.com.

• If an RMA is issued, the dealer or customer will need to return the defective product to the Runco repair depot location specified by the Runco technical support representative. The dealer or customer will need to properly package the defective product in a suitable shipping container consisting of the product only, and not include any accessories (e.g., cables, remotes, carrying cases, lens, lens cap and other peripherals). Boxes may be purchased from a Runco technical support representative.

• The dealer or customer is responsible for paying freight charges and insurance to ship the defective product to the Runco repair depot location. If there are any shipping damages, the dealer or customer will need to address and resolve any shipping damage claims directly with the shipping company.

• Runco will not accept a returned product unless an RMA has been issued by Runco.

• For in-warranty repairs, Runco will pay freight charges to return the repaired/replacement product to the dealer/distributor from the Runco repair depot. For select countries or geographies Runco will ship via an economy express service. Return delivery time and availability may vary based on origin and destination, and Runco is unable to deliver to PO Box and FPO Box addresses.

• Note: in the 48 contiguous United States, other options for on-site service or advance exchange for the product may apply, if you purchased the Runco PremierCare™ Service Plan.

IMINAR

What to Include with Your Return

1. Return only the defective product with the lamp (if applicable).

2. Runco will not be responsible for returning or replacing any accessories (e.g., cables, remotes, carrying cases, lens, lens

cap and other peripherals sold with the Runco product) that are returned with the defective product.

3. Repaired or replacement products will be shipped with a lamp (if applicable) but without any accessories.

RuncoCare™ Warranty Exclusions

This Limited Warranty does not include and is limited by the following:

1. Products not purchased from an authorized Runco dealer

2. Rental costs incurred by the customer in the event of product defect or failure

3. Any product with a defaced, modified, or removed serial number

PRE

iv Lightstyle™ Series LS-100d Installation/Operation Manual

4. Damage, deterioration, or malfunction resulting from:

A. Accident, abuse, misuse, neglect, improper ventilation, fire, water, disaster, lightning, or other acts of nature, smoke

exposure (cigarette or otherwise), unauthorized product modification (including use of an unauthorized mount), or

failure to follow instructions supplied with the product B. Repair or attempted repair by anyone not authorized by Runco C. Any damage to the product due to shipment D. Removal or installation of the product E. Causes external to the product, such as electric power fluctuations or failure F. Use of supplies or parts (including lamps) that are not purchased from Runco or do not meet Runco’s specifications G. Normal wear and tear H. Expected lamp degradation and normal decrease in lamp output over a period of time or as the lamp is consumed I. Customer caused defects, including but not limited to, scratched/defaced/altered plastics J. Failure to follow maintenance procedures as outlined in the product’s user guide where a schedule is specified for

regular cleaning of the product K. Opening the product and/or tampering with internal circuitry L. Products lost, stolen or discarded M. Any damage or dissatisfaction associated with latent images, “burnin,” or any other damage determined by Runco to

be the result of customer use patterns N. Any other cause, which does not relate to a product defect in material or workmanship

5. Removal, installation, and set-up service charges are excluded from the warranty.

6. Black uniformity issues or other LCD issues associated with usage outside the Runco recommended guidelines and specifications for the product.

7. Bright or dark sub pixels that are characteristic of LCD technology and considered by Runco to be acceptable and within Runco’s manufacturing specifications.

Specifically, it is not uncommon for one or more sub pixels to become bright or dark during or after the manufacturing process. A bright sub pixel is one that remains in the on position, and a dark sub pixel is one that appears black or off. The sub pixels are usually hard to see and will not detract from the display quality or usability at normal viewing distance. The following are Runco’s criteria for identifying bright or dark sub pixels that would be considered unacceptable: a) the number of bright or dark sub pixels; b) the location of the bright or dark sub pixels; c) the color of the bright sub pixels; and d) the Runco model size. If sub pixels have been identified as unacceptable by Runco the LCD will be deemed faulty and will be replaced if reported within the warranty period.

PRE

IMINAR

Other Terms and Conditions

1. If the defective product is not properly packaged and is damaged in transit during its return to Runco, you may be invoiced for either the repair costs, if repairable, or the MSRP of a replacement product and shipping costs incurred by Runco.

2. The repaired or replaced product will assume the remainder of your original product’s warranty term or 90 days from the date the repaired or replaced product is shipped, whichever is longer.

3. If a replacement product is sent, the replacement becomes the property of the customer and the defective product becomes the property of Runco.

Lightstyle™ Series LS-100d Installation/Operation Manual v

RuncoCare™ Extended Service Options

Runco offers extended and expanded service plans. For information on additional product protection, please ask your authorized Runco dealer, email serviceorders@runco.com or call (toll free) (800) 23-RUNCO (800-237-8626).

Exclusion of Implied Warranties

RUNCO PROVIDES NO WARRANTIES, EXPRESS OR IMPLIED, EXCEPT THOSE EXPRESSLY PROVIDED IN THIS DOCUMENT. RUNCO EXPRESSLY DISCLAIMS AND EXCLUDES ALL OTHER WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF TITLE, NONINFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Limitation of Liability; Exclusion of Damages

RUNCO’S MAXIMUM AGGREGATE LIABILITY IS LIMITED TO THE COST OF REPAIR, REPLACEMENT OR REFUND OF THE PRODUCT.

RUNCO WILL NOT BE LIABLE FOR DAMAGE TO OTHER PROPERTY OR FOR DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL OR FINANCIAL LOSS, EVEN IF RUNCO IS AWARE OF THE POSSIBILITY OF SUCH DAMAGES AND EVEN IF A REMEDY HAS FAILED OF ITS ESSENTIAL PURPOSE.

RUNCO WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, INDIRECT, EXEMPLARY, SPECIAL, PUNITIVE OR ANY OTHER TYPE OF DAMAGES, WHETHER THE CLAIM IS BASED ON CONTRACT, TORT, PRODUCT LIABILITY, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER LEGAL OR EQUITABLE THEORY.

RUNCO WILL NOT BE LIABLE FOR ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

IMINAR

Effect of Local Law

This Limited Warranty gives you specific legal rights, and you may have other rights, which vary from locality to locality. Some localities do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

PRE

© Copyright 2011 Runco International, LLC (“Runco”). This document contains proprietary information protected by copyright, trademark and other intellectual property laws. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of Runco.

The trademarks reproduced in this Runco Owner’s Manual and used on the Runco Products are either owned by Runco or are licensed by Runco. You may not reproduce or use the trademarks without the prior written consent of Runco.

Runco Products are manufactured under one or more of the following patents: US. Patent 6755540 and Other Patents Pending.

vi Lightstyle™ Series LS-100d Installation/Operation Manual

Important Safety Instructions

Thank you for your purchase of this quality Runco video product! It has been designed to provide you with the quality of video that is expected in a home theater. For the best performance, please read this manual carefully as it is your guide through the menus and operation.

WARNING

CAUTION

RISK OFELECTRIC SHOCK

DO NOTOPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

CAUTION:

SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11. Only use the attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. The +12V trigger only outputs 12Vdc signal for triggering. Do not connect to any other power input or output. This could cause damage to this unit.

16. Keep the packing material in case the equipment should ever need to be shipped.

17. Never look directly into the lens when the projector is on.

PRE

IMINAR

Lightstyle™ Series LS-100d Installation/Operation Manual vii

Compliance Information

DECLARATION OF CONFORMITY:

Manufacturer’s Name: Runco International, LLC

Manufacturer’s Address: 1195 NW Compton Drive, Beaverton, OR 97006-1992

hereby declares that the Products’ Model Numbers:

LS-100d

conform with the provisions of:

Council Directive 2004/108/EC on Electromagnetic Compatibility;

EN 55022 “Limits and methods of measurements of radio interference characteristics of information technology equipment” 1998;

EN 55024 “Limits and methods of measurements of immunity characteristics of information technology equipment” 1998;

Including:

• EN 61000-4-2 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 2: Electrostatic discharge immunity test”

• EN 61000-4-3 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 3: Radiated, Radio-Frequency, Electromagnetic Field Immunity Test”

• EN 61000-4-4 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 4: Electrical fast transient/burst immunity test”

• EN 61000-4-5 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 5: Surge immunity test"

• EN 61000-4-6 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 6: Conducted disturbances induced by radio-frequency fields immunity test"

• EN 61000-4-8 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 8: Conducted disturbances induced by power frequency magnetic fields immunity test"

• EN 61000-4-11 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 11: Voltage dips, short interruptions and voltage variations immunity tests"

PRE

IMINAR

And:

• EN 61000-3-2 "Electromagnetic compatibility (EMC) Part 3, Section 2: Limits for harmonic current emissions (equipment input current up to and including 16 A per phase)" 2000;

• EN 61000-3-3 "Electromagnetic compatibility (EMC) Part 3, Section 3: Limitations of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current up to and including 16 A and not subject to conditional connection" 1995;

Council Directive 2006/95/EC and amended by M1 and C1 on Low Voltage Equipment Safety;

EN 60950 “Safety of information technology equipment, including electrical business equipment”

The Technical Construction file required by this Directive is maintained at the corporate headquarters of Runco International, LLC, located at 1195 NW Compton Drive, Beaverton, OR 97006-1992.

Date of Declaration: December 2011

viii Lightstyle™ Series LS-100d Installation/Operation Manual

FCC PART 15:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

INDUSTRY CANADA (ICES-003):

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

PRODUCT DISPOSAL:

IMINAR

The Product contains small amounts of tin, lead and/or mercury. Disposal of these materials may be regulated due to environmental considerations.

IMPORTANT RECYCLE INSTRUCTIONS

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws.

PRE

For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG.

For lamp specific disposal information check WWW.LAMPRECYCLE.ORG.

DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT (Applicable throughout the European Union and other European countries with separate collection programs)

This symbol found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve natural resources. This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Lightstyle™ Series LS-100d Installation/Operation Manual ix

Notes:

IMINAR

PRE

x Lightstyle™ Series LS-100d Installation/Operation Manual

1Table of Contents

RuncoCare™ Standard Two Year Limited Warranty ................................................... iii

Important Safety Instructions ....................................................................................... vii

Compliance Information .............................................................................................. viii

1. Introduction ............................................................................................................... 1

About This Manual .......................................................................................................1

Target Audience .....................................................................................................1

If You Have Comments About This Manual.............................................................1

Textual and Graphic Conventions ...........................................................................1

Using This Manual ........................................................................................................ 2

Description, Features and Benefits ...............................................................................3

Key Features and Benefits ......................................................................................3

Parts List ................................................................................................................3

2. Controls and Functions ............................................................................................5

LS-100d at a Glance .................................................................................................... 5

IMINAR

LS-100d Input Panel .................................................................................................... 6

DHD Controller Front Panel ..........................................................................................7

DHD Controller Rear Panel ...........................................................................................8

LS-100d Remote Control Unit ....................................................................................10

3. Installation ...............................................................................................................13

PRE

Remote Control ..........................................................................................................13

Notes on Batteries ................................................................................................ 13

Notes on Remote Control Operation .....................................................................13

Quick Setup ...............................................................................................................14

Installation Considerations ..........................................................................................15

Screen Requirements ...........................................................................................15

Ambient Light .......................................................................................................15

Rear Projection .....................................................................................................16

Projection Distance and Image Size ......................................................................16

Audio/Video Synchronization Issues...................................................................... 17

Other Considerations ............................................................................................17

Lightstyle™ Series LS-100d Installation/Operation Manual xi

Table of Contents

Mounting the LS-100d ...............................................................................................18

Floor Mounting (Upright) ....................................................................................... 18

Wall or Ceiling Mounting .......................................................................................18

Adjusting the Projection Angle ..............................................................................18

Connections to the LS-100d and DHD Controller .......................................................19

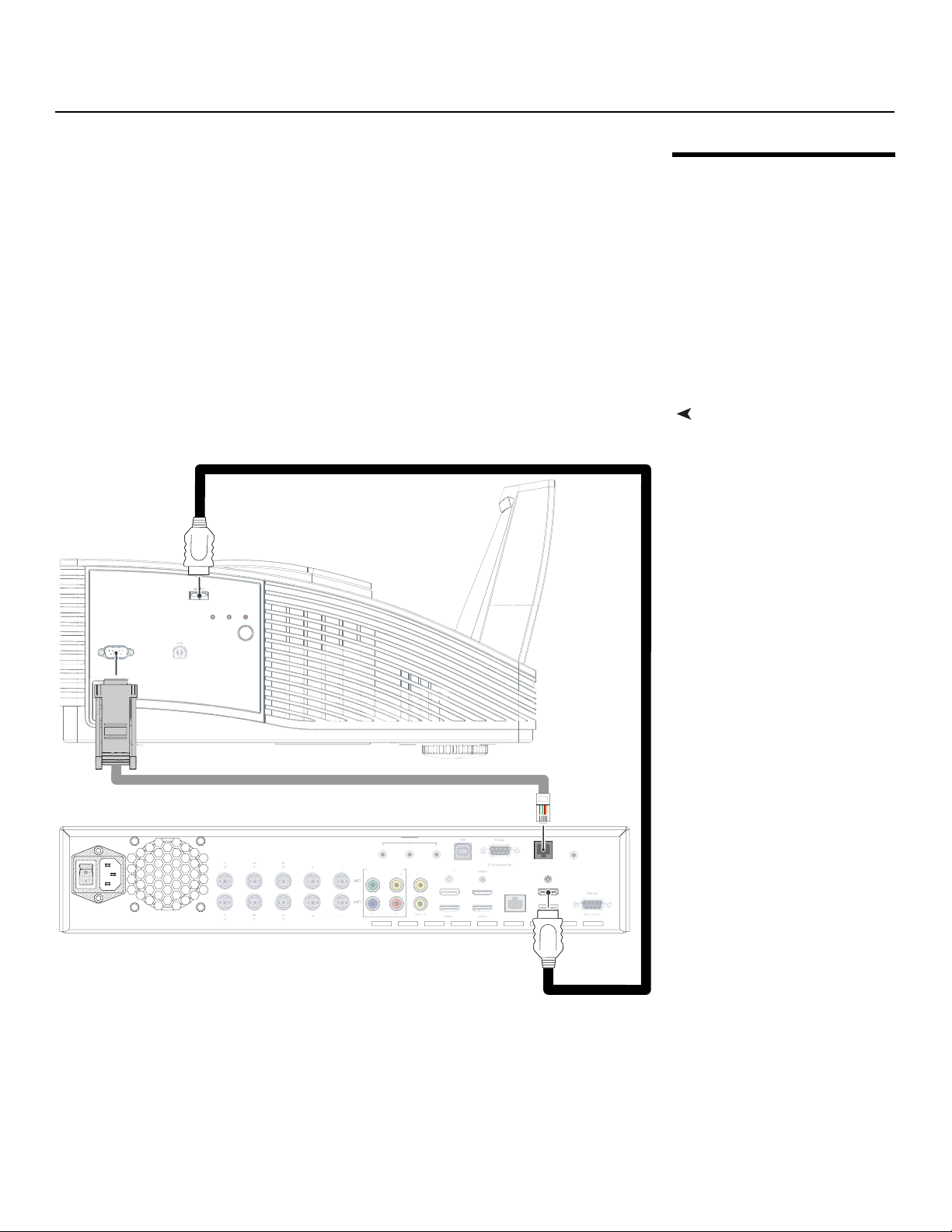

Connecting the DHD Controller to the LS-100d .................................................... 19

Connecting Source Components to the DHD Controller .......................................21

Connecting an Audio Processor or Secondary Display Device

to the DHD Controller (Optional)............................................................................ 26

Additional Connections to the DHD Controller (Optional) .......................................27

Connecting to AC Power ......................................................................................29

Turning on the Power ................................................................................................. 30

Lens Focus Adjustment .............................................................................................. 31

Adjusting the Picture Orientation ................................................................................31

Adjusting the Image Geometry ...................................................................................32

4. Operation .................................................................................................................35

Using the On-Screen Menus ......................................................................................35

Main Menu............................................................................................................37

Input Source.........................................................................................................37

Aspect Ratio......................................................................................................... 37

Screen..................................................................................................................40

Picture.................................................................................................................. 40

Input Position........................................................................................................44

Memory Presets .................................................................................................. 46

PRE

5. Maintenance and Troubleshooting ........................................................................ 67

Sleep Timer ..........................................................................................................47

Information ...........................................................................................................48

Calibration ............................................................................................................49

Service ................................................................................................................. 56

Maintenance......................................................................................................... 67

Troubleshooting....................................................................................................67

IMINAR

xii Lightstyle™ Series LS-100d Installation/Operation Manual

Table of Contents

6. External Control ......................................................................................................69

Serial Communications ...............................................................................................69

RS-232 Connection and Port Configuration ..........................................................69

Command Format ................................................................................................69

Response Format ................................................................................................. 70

Command and Response Examples .....................................................................71

Serial Command List.............................................................................................71

Using Discrete IR Codes ............................................................................................84

IR Command Protocol ..........................................................................................84

IR Command List..................................................................................................86

Using HDMI CEC Messages .......................................................................................88

CEC Command List.............................................................................................. 88

7. Specifications .......................................................................................................... 91

LS-100d Specifications ..............................................................................................91

DHD Controller Specifications .................................................................................... 93

Overall Dimensions – LS-100d ...................................................................................94

Supported Timings .....................................................................................................95

IMINAR

PRE

Lightstyle™ Series LS-100d Installation/Operation Manual xiii

Table of Contents

Notes:

IMINAR

PRE

xiv Lightstyle™ Series LS-100d Installation/Operation Manual

1List of Figures

2-1. LS-100d Rear/Side/Top View ....................................................................................... 5

2-2. LS-100d Input Panel ....................................................................................................6

2-3. DHD Controller Front Panel ..........................................................................................7

2-4. DHD Controller Rear Panel ...........................................................................................8

2-5. DHD Controller/LS-100d Remote Control...................................................................10

3-1. Connecting the LS-100d to the DHD Controller..........................................................19

3-2. RS-232 Connection from the DHD Controller to the LS-100d.....................................20

3-3. HDMI Source Connections .........................................................................................21

3-4. Component Video Source Connections...................................................................... 22

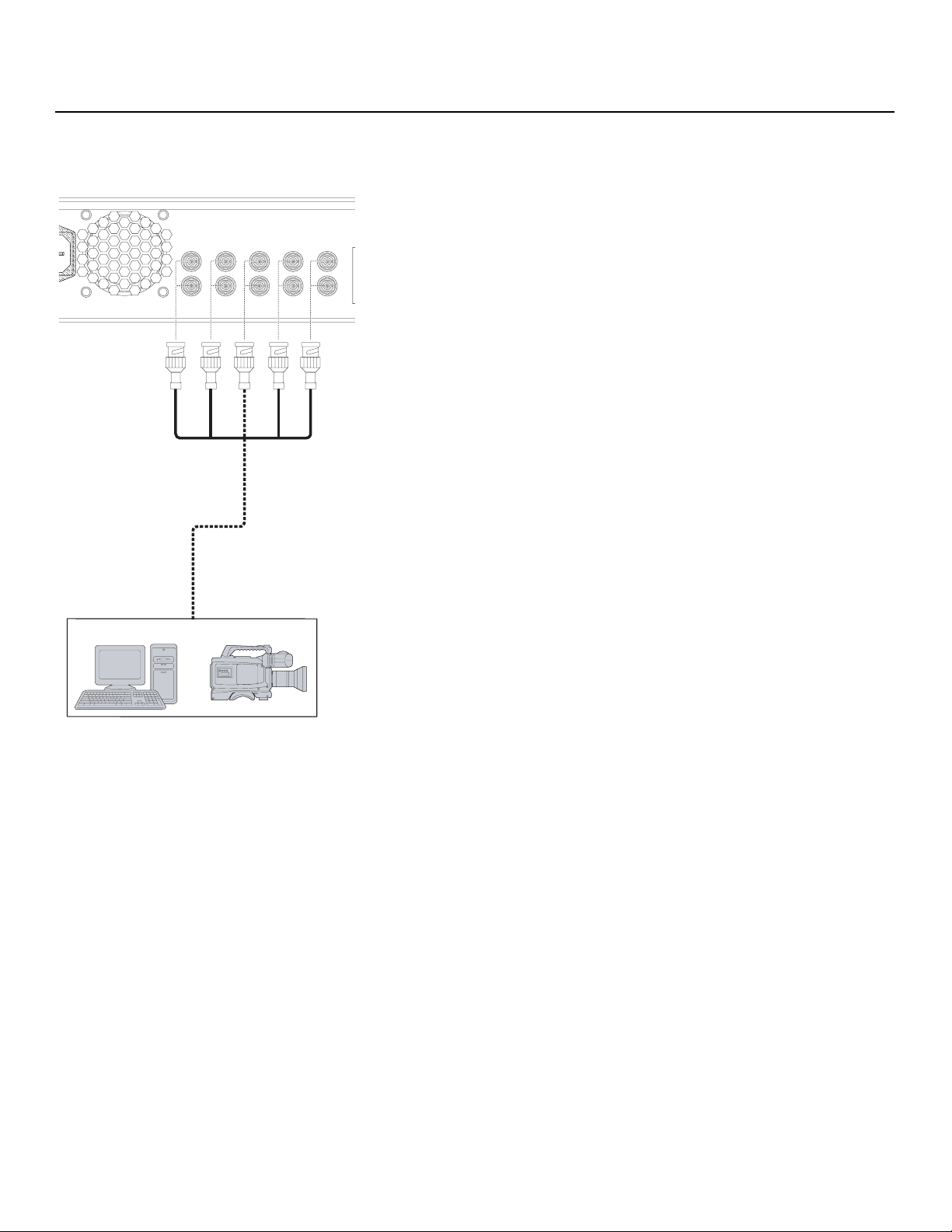

3-5. RGBHV Source Connections...................................................................................... 23

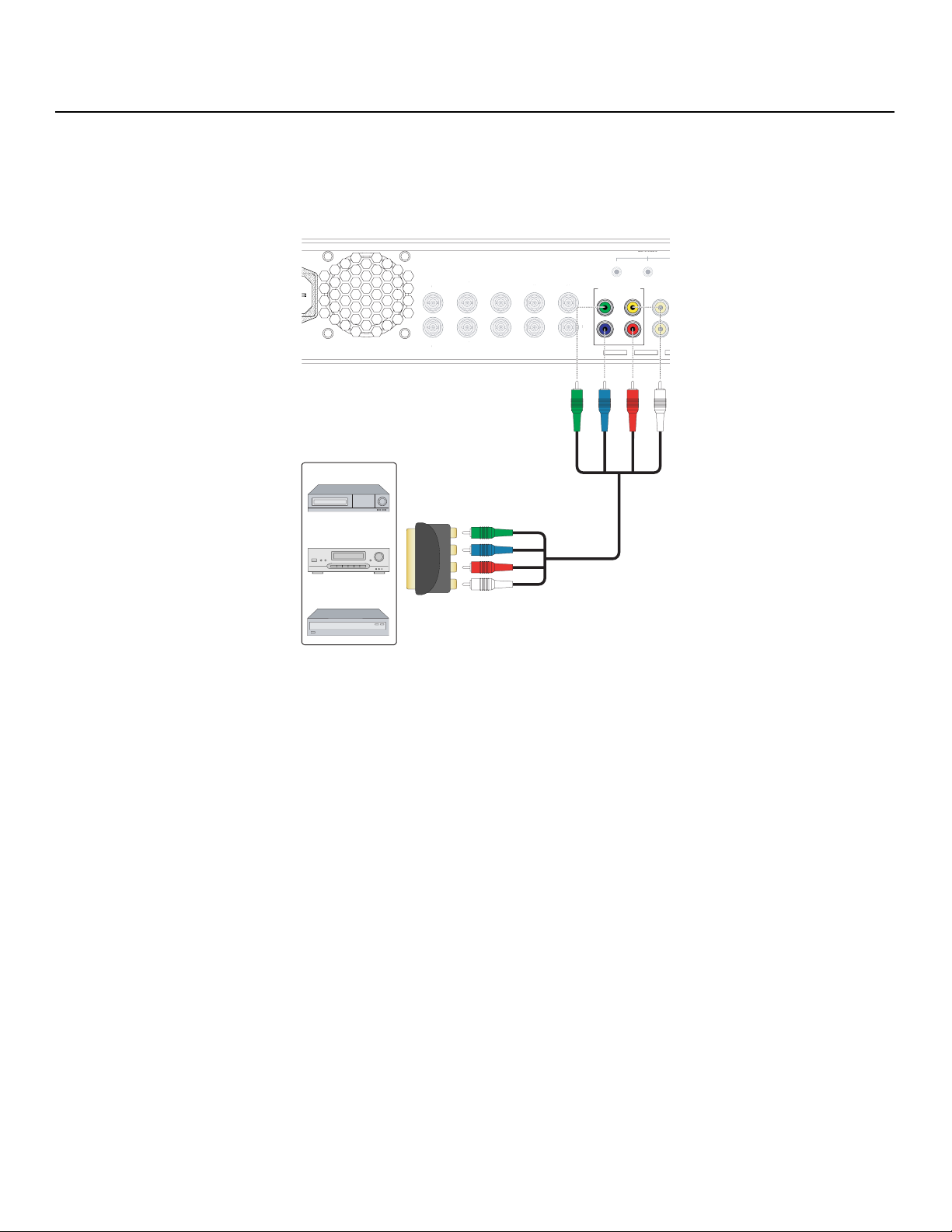

3-6. SCART RGBS Source Connections............................................................................24

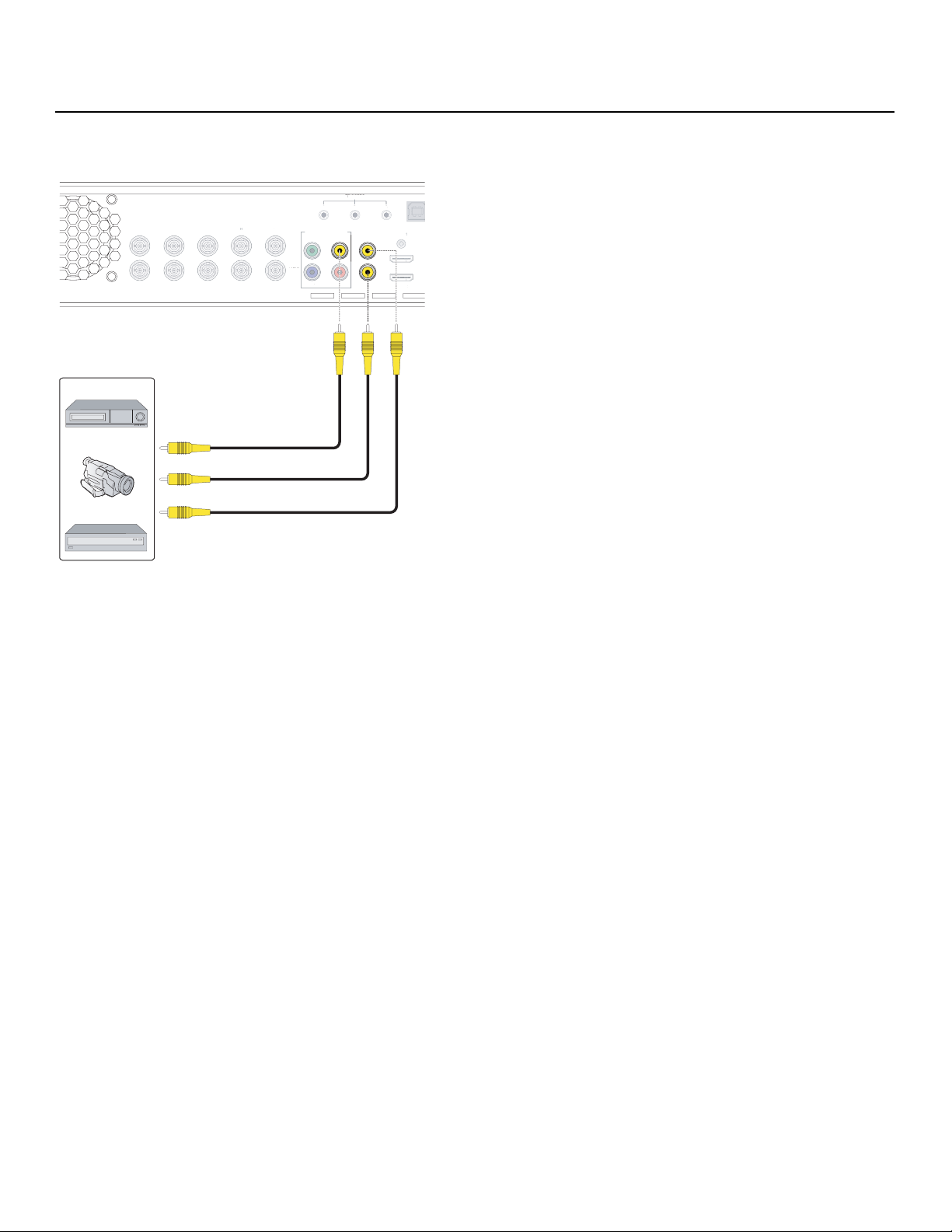

3-7. Composite Video Source Connections .......................................................................25

3-8. Audio Processor Connection to DHD Controller .........................................................26

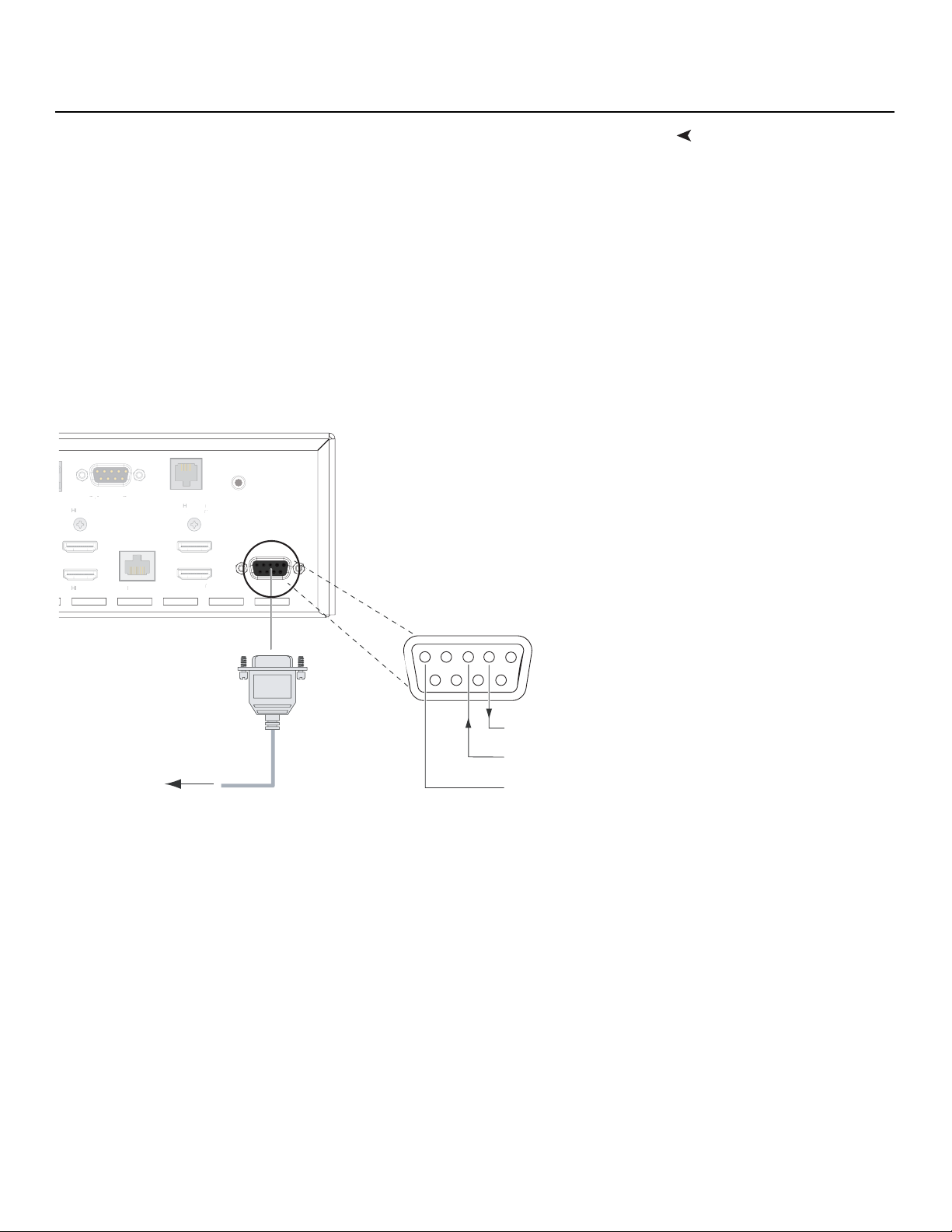

3-9. RS-232 Control System Connection to DHD Controller ..............................................27

3-10. Connecting 12-volt Trigger Outputs..........................................................................28

3-11. External IR Receiver Connection............................................................................... 28

3-12. Ethernet Network Connection to DHD Controller ...................................................... 29

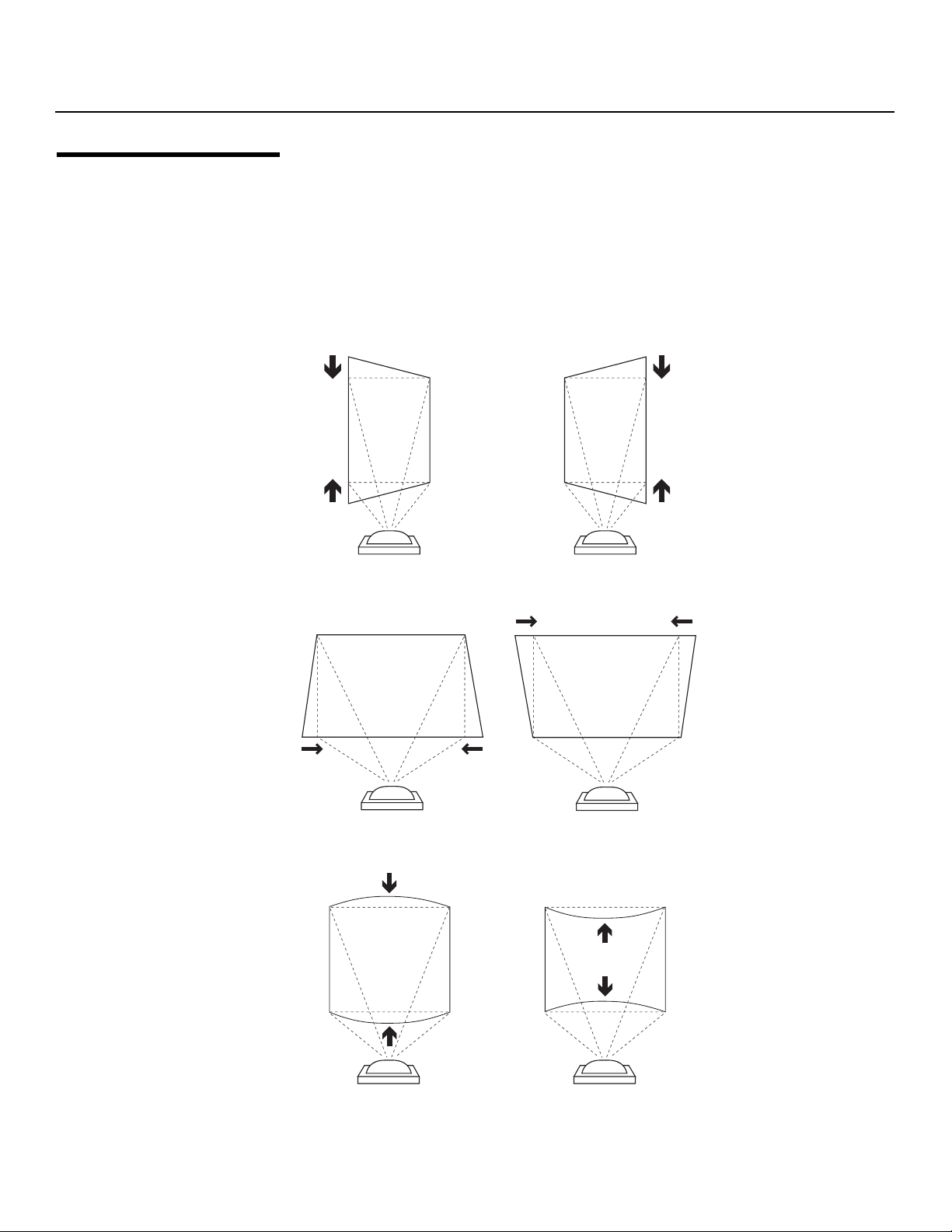

3-13. Keystone and Pincushion Distortion .........................................................................32

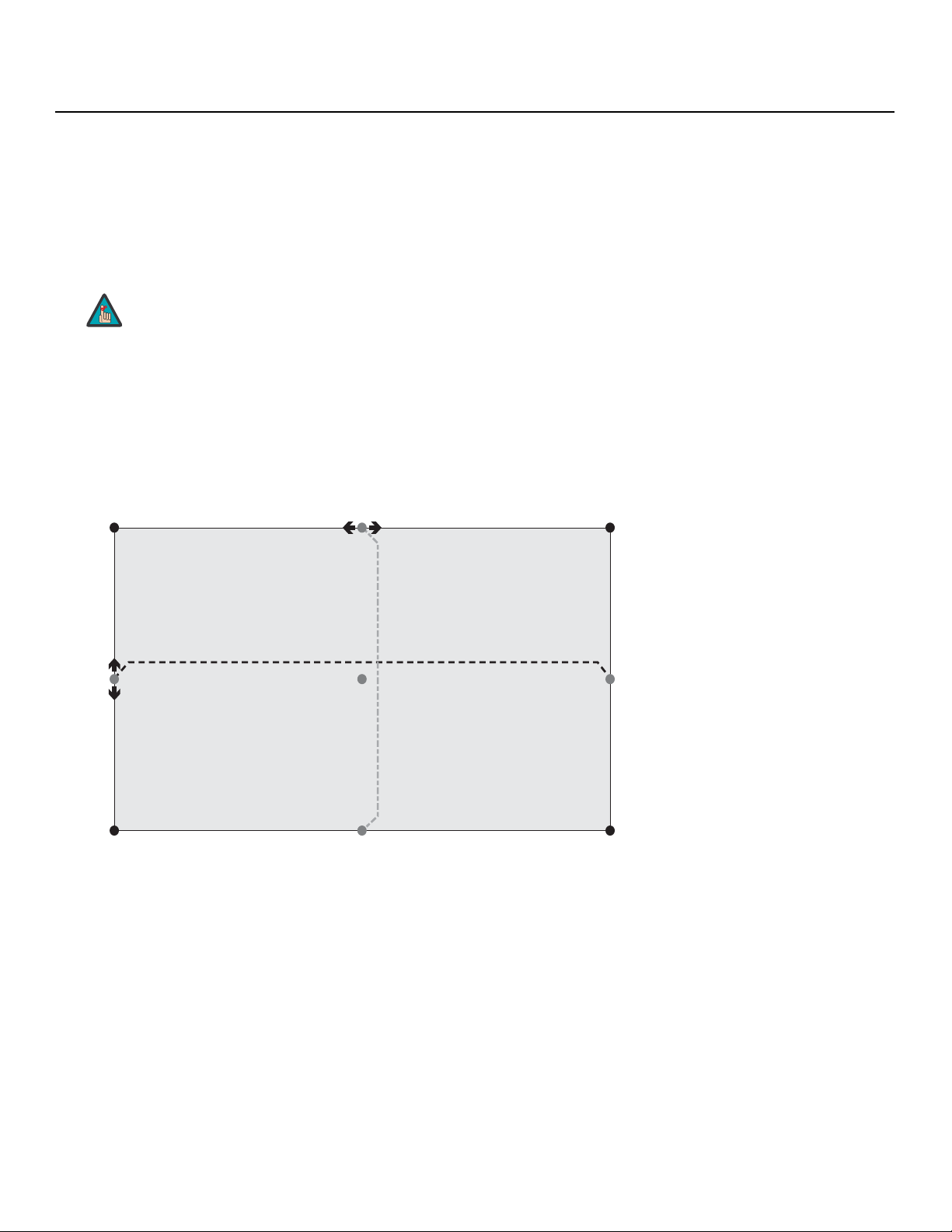

3-14. Image Alignment Controls ........................................................................................33

4-1. LS-100d OSD Menu Structure ................................................................................... 35

4-2. Typical PLUGE Pattern for Adjusting Brightness .........................................................41

PRE

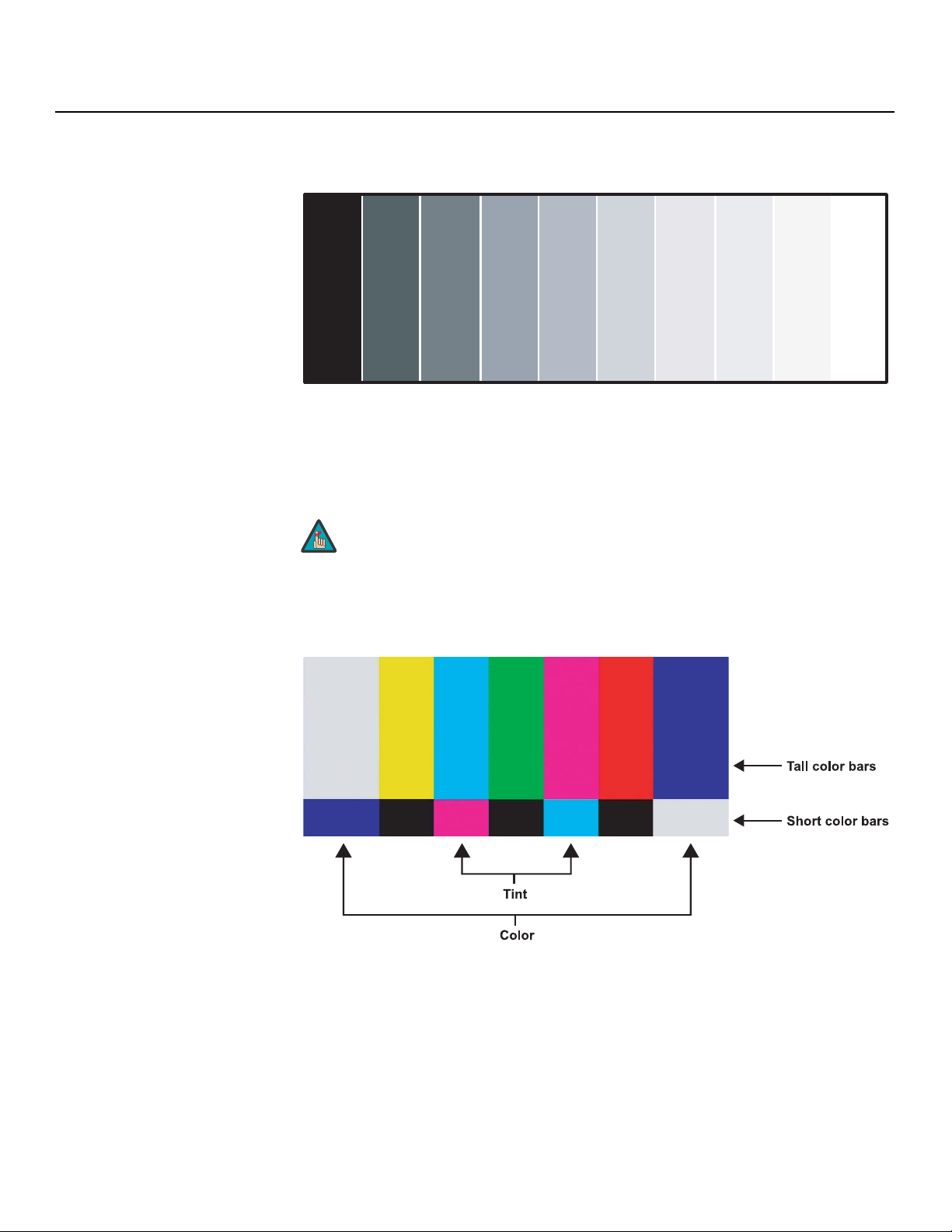

4-3. Typical Gray Bar Pattern for Adjusting Contrast .......................................................... 42

IMINAR

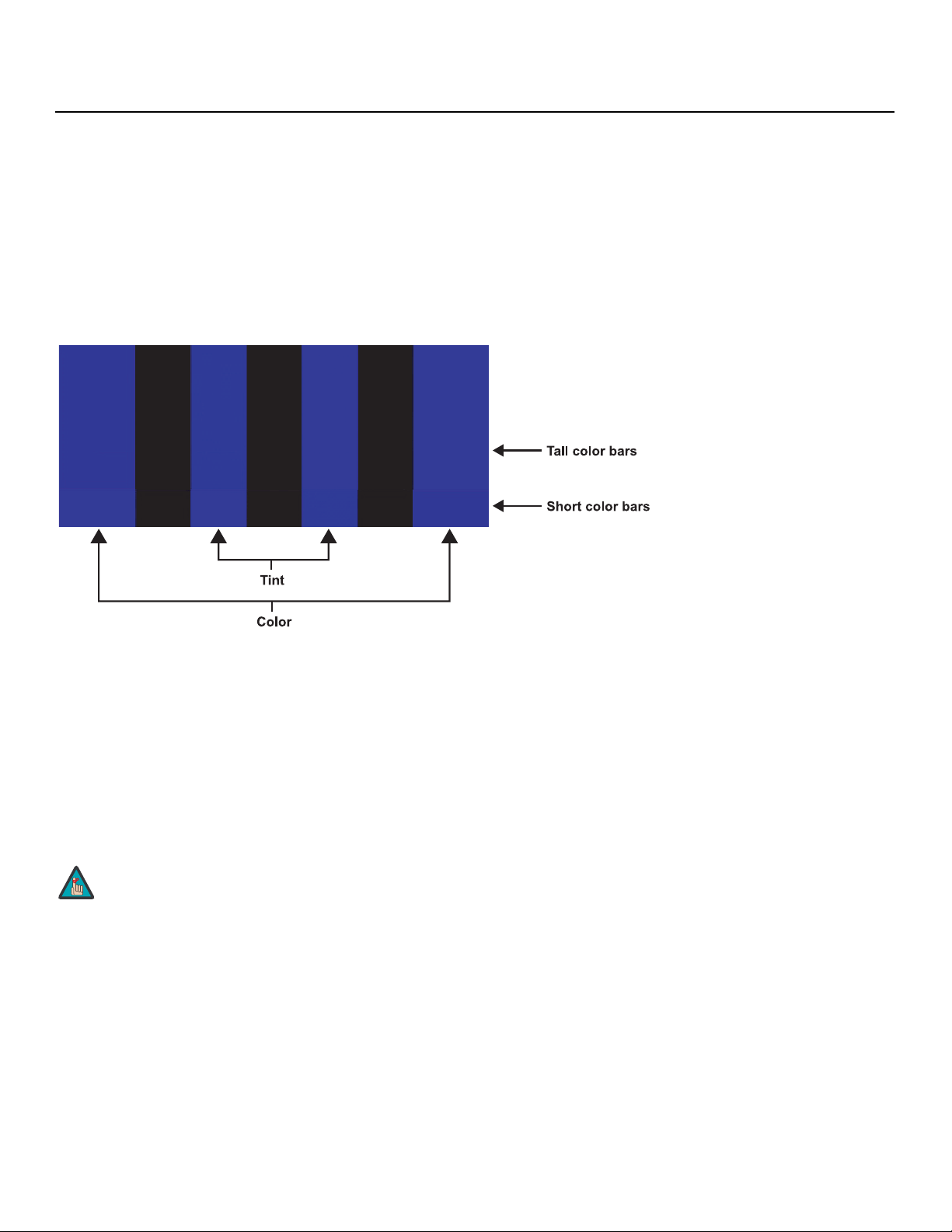

4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint................................42

4-5. Typical Test Pattern for Adjusting Sharpness..............................................................44

4-6. Overscan Modes ........................................................................................................45

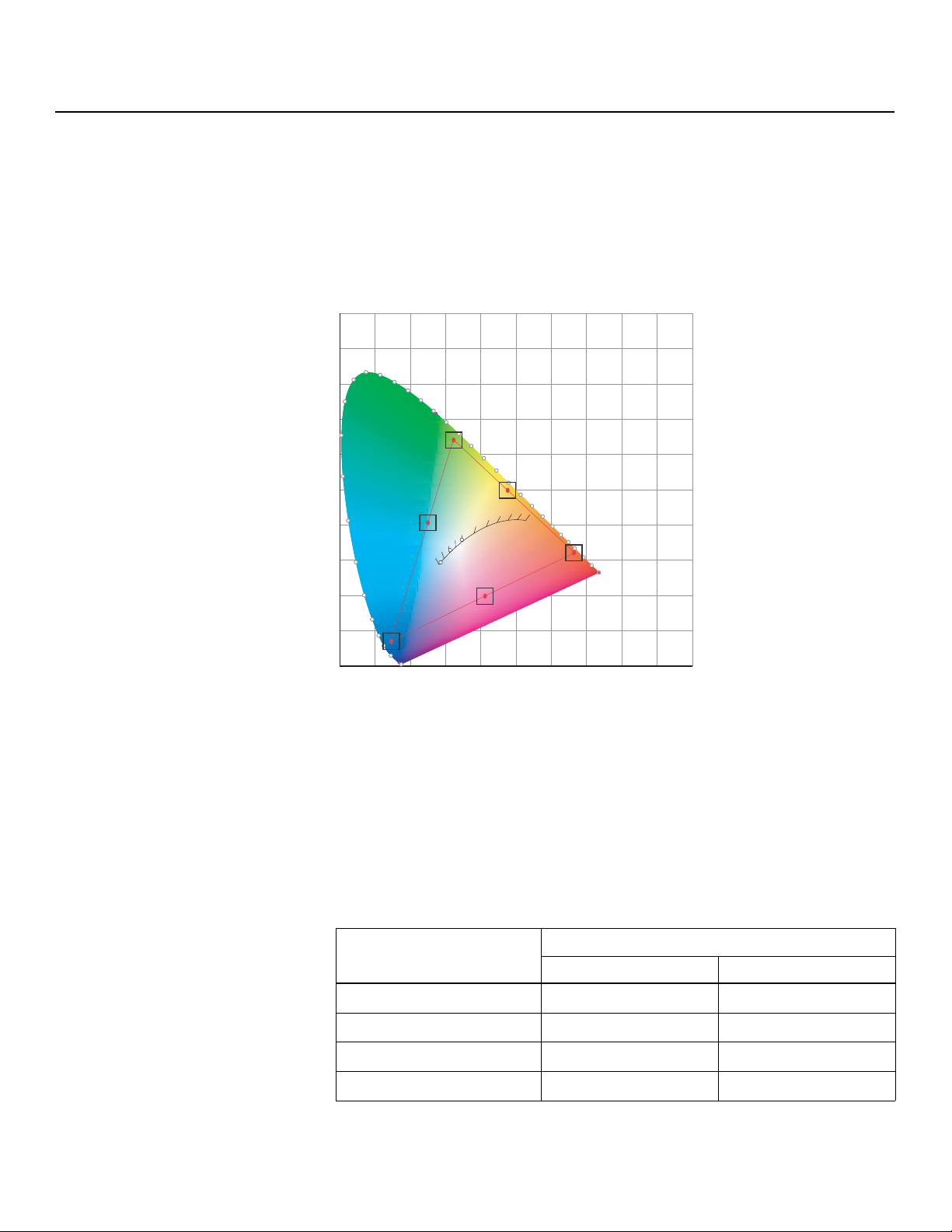

4-7. CIE 1931 Chromaticity Diagram .................................................................................50

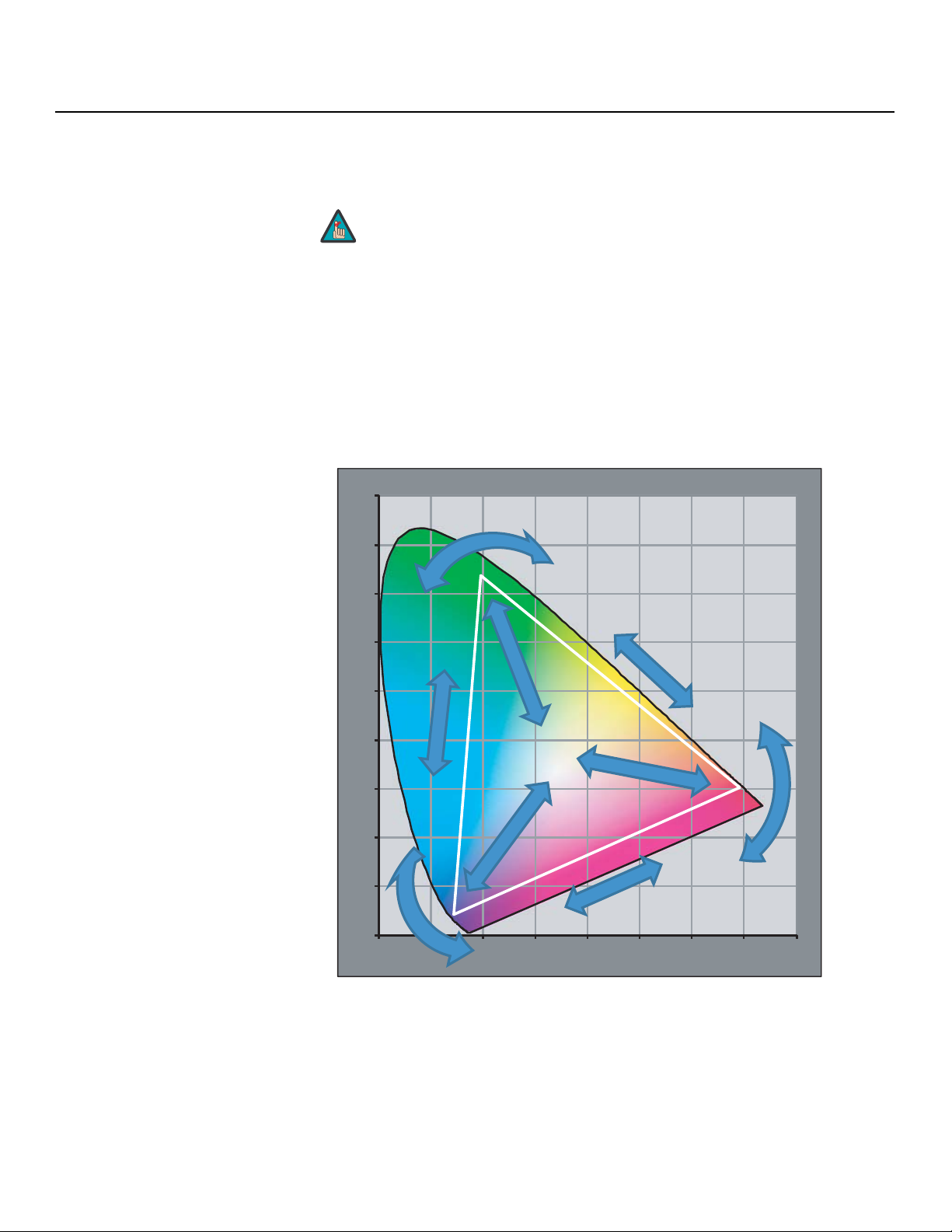

4-8. Effect of PCE Hue and Saturation Controls................................................................. 52

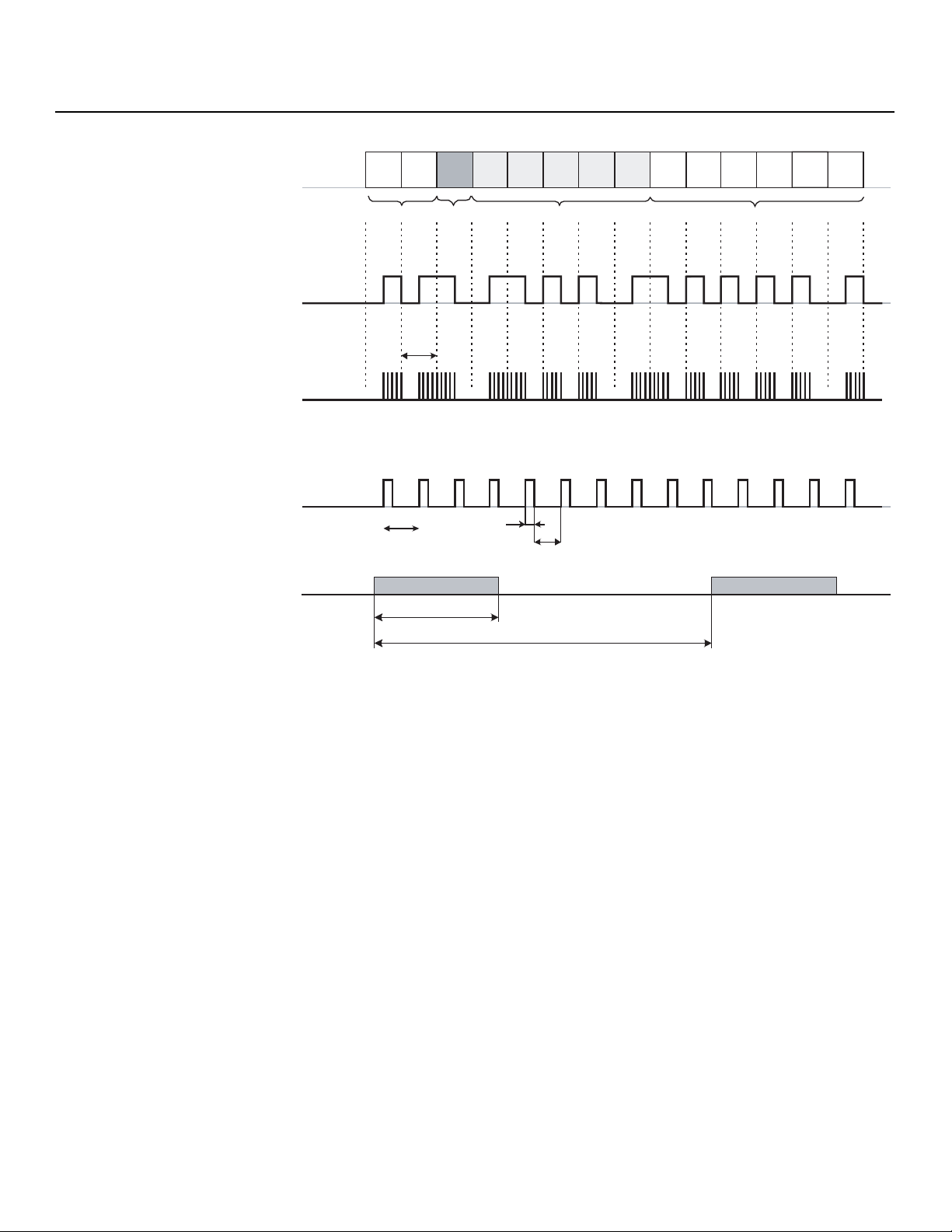

6-1. RC5 Message Format ................................................................................................85

7-1. Overall Dimensions – LS-100d ................................................................................... 94

Lightstyle™ Series LS-100d Installation/Operation Manual xv

List of Figures

Notes:

IMINAR

PRE

xvi Lightstyle™ Series LS-100d Installation/Operation Manual

1. Introduction

This Owner’s Manual describes how to install, set up and operate the Runco LS-100d Ultra Short-Throw LED Home Theater Projector and DHD Controller.

Throughout this manual, the Runco LS-100d Ultra Short-Throw LED Home Theater Projector and DHD Controller are referred to collectively as the “LS-100d.”

most out of the LS-100d.

Runco has made every effort to ensure that this manual is accurate as of the date it was printed. However, because of ongoing product improvements and customer feedback, it may require updating from time to time. You can always find the latest version of this and other Runco product manuals on-line, at www.runco.com.

Runco welcomes your comments about this manual. Send them to support@Runco.com.

Text Conventions: The following conventions are used in this manual, in order to clarify the information and instructions provided:

• Remote and built-in keypad button identifiers are set in upper-case bold type; for example, “Press EXIT to return to the previous menu.”

• Computer input (commands you type) and output (responses that appear on-screen) is shown in monospace (fixed-width) type; for example: “To change the aspect ratio to Letterbox, type LETTERBOX <Enter>.”

• All keys with functional names are initial-capped, set in bold type and enclosed in angle brackets. These keys are the following: <Enter>, <Spacebar>, <Control>, <Esc> and <Tab>.

• <Enter> indicates that you may press either the RETURN or ENTER key on your keyboard if it has both keys.

PRE

IMINAR

1.1 About This Manual

Target AudienceRunco has prepared this manual to help home theater installers and end users get the

If You Have Comments About This Manual...

Textual and Graphic Conventions

In addition to these conventions, underlining, boldface and/or italics are occasionally used to highlight important information, as in this example:

Note

Lightstyle™ Series LS-100d Installation/Operation Manual 1

A carriage return must be used after each command or string.

Introduction

Graphic Conventions: These symbols appear in numerous places throughout the manual, to emphasize points that you must keep in mind to avoid problems with your equipment or injury:

TIPS highlight time-saving short cuts and helpful guidelines for using

Tip

certain features.

1.2

Using This Manual

Note

Caution

NOTES emphasize text with unusual importance or special significance. They also provide supplemental information.

CAUTIONS alert users that a given action or omitted action can degrade performance or cause a malfunction.

WARNING

DANGER!

Use the following table to locate the specific information you need in this manual.

WARNINGS appear when a given action or omitted action can result in damage to the equipment, or possible non-fatal injury to the user.

DANGER appears when a given action can cause severe injury or death.

IMINAR

If you need... ... Turn to page:

Information about obtaining service iv

General information about the LS-100d Ultra Short-Throw LED Home Theater Projector and DHD Controller

Installation instructions 13

PRE

First-time configuration instructions 31

Advanced configuration instructions 49

Troubleshooting tips 67

Product specifications 91

2 Lightstyle™ Series LS-100d Installation/Operation Manual

Introduction

Runco is proud to expand its best-selling LightStyle™ Series projectors, with the new LS-100d with NEAR™ (Next-generation Extreme Aligned Reflection™). This ultra-short throw lens system boldly goes where no projector has ever gone, maximizing the benefits of Runco’s InfiniLight lampless LED illumination technology to provide an infinite light source that creates an energy-efficient projector with the widest color gamut ever available in home theater projection.

The LS-100d includes Runco’s proprietary Reflex™ Architecture Delivering a stunning 92-inch diagonal image that fits any setting. It combines Runco’s unsurpassed performance and a new, clever industrial design that allows installation flexibility with a depth of only 18 inches. The LS-100d mounts flush to the screen wall and can be mounted above or below the screen, with no lamps to replace.

Runco’s advanced Vivix™ digital video processing is included to enhance picture quality from standard video sources, as well as provide artifact-free scaling. Also included are discrete input source, aspect ratio, power on/off, HDMI™ input and an RS-232 interface for seamless integration with automation control systems.

• Full-HD Native Resolution: 1920 x 1080 (16:9 Native Aspect Ratio)

• InfiniLight™ lampless LED illumination technology provides an infinite, energy-efficient light source

• Fixed NEAR™ lens delivers the industry’s shortest throw distance

• Offering the largest color gamut and Runco’s Personal Color Equalizer™ proprietary color management for stunning realism

• Four (4) HDMI Inputs (on DHD Controller) with High-bandwidth Digital Content Protection (HDCP)

• HDTV Compatible

• Stylish design with Runco performance, the LightStyle series are designed for both performance and esthetics, that makes transportation and installation easy

IMINAR

1.3 Description, Features and Benefits

Key Features and BenefitsThe LS-100d offers these key features and benefits:

please contact your Runco dealer or Runco Customer Service at (800) 23-RUNCO.

• LS-100d Ultra Short-Throw LED Home Theater Projector and DHD Controller

• Remote Control Unit and two (2), AAA-size batteries

• AC Power Cords (2)

• Serial Port Adapter (null-modem), RJ-11 Female to DB-9 Female

• RJ-11 Telephone Cable, 50 feet (15.24 meters)

• HDMI-to-HDMI Cable, sold separately (refer to Optional Accessories, below)

• Rack-mount hardware for the DHD Controller

• Runco LS-100d Quick Setup Guide

Lightstyle™ Series LS-100d Installation/Operation Manual 3

PRE

Parts ListYour LS-100d is shipped with the following items. If any items are missing or damaged,

Introduction

Optional Accessories:

• Wall/Ceiling mount kit (part number 955-0294-00)

• HDMI-to-HDMI Cable, length specified at time of order:

• 16.4 feet (5.0 meters) (part number 903-1010-00)

• 24.6 feet (7.5 meters) (part number 903-1011-00)

• 32.8 feet (10.0 meters) (part number 903-1012-00)

• 49.2 feet (15.0 meters) (part number 903-1013-00)

• 65.6 feet (20.0 meters) (part number 903-1014-00)

IMINAR

PRE

4 Lightstyle™ Series LS-100d Installation/Operation Manual

2. Controls and Functions

Figure 2-1 shows the key LS-100d components.

Lens Focus Controls

(under door)

Exhaust Vent

(at front)

Input Panel

2.1 LS-100d at a Glance

Intake Vent

(on side)

IMINAR

PRE

Exhaust

Vent

Figure 2-1. LS-100d Rear/Side/Top View

• INTAKE VENT Internal fans draw cool air into the projector through this vent.

• PROJECTION LENS

• EXHAUST VENTS Warm air exits the projector through these vents. Ensure that they are not blocked.

• LENS FOCUS CONTROLS (under door) To access the lens focus controls, press down on the door edge closest to the mirror and open the door. For more information, refer to Lens Focus Adjustment on page 31.

• INPUT PANEL For more information, refer to LS-100d Input Panel on page 6.

Lightstyle™ Series LS-100d Installation/Operation Manual 5

Projection Lens

Exhaust Vent

(on bottom)

Controls and Functions

2.2

LS-100d Input Panel

PRE

Figure 2-2 shows the LS-100d input panel.

VIDEO

POWER ERROR TEMP

RS-232

USB

6 7 831 2 4 5

IMINAR

Figure 2-2. LS-100d Input Panel

1. RS-232C INPUT (9-pin, male D-Sub; null-modem connection) Connect the Display Control output on the DHD Controller to this input (see Figure 2-4).

2. MAIN POWER SWITCH Disconnects or applies power to the projector.

3. POWER INPUT (100 to 240 VAC) Connect the LS-100d to power here.

POWER ERROR TEMP

4. USB A standard, USB Series “B” connection to a personal computer, for performing software upgrades and other service procedures.

5. VIDEO Connect the HDMI Out (To Display) connector on the DHD Controller to this input.

6. POWER LED Indicates projector status as follows:

• Solid green = AC power present, ready to turn on

• Flashing green (0.5 seconds on, 0.5 seconds off) = projector is warming up; keypad functions not allowed

• Flashing green (1 second on, 1 second off) = projector is cooling down; keypad functions not allowed

• Off = Projector functioning normally

6 Lightstyle™ Series LS-100d Installation/Operation Manual

7. ERROR LED

• Solid orange = Error that requires servicing (fan fail, Power-on self-test fail etc.)

• Off = Projector functioning normally

8. TEMP LED

• Solid red = Over temperature, user intervention (clear vents, turn on AC) may fix problem

• Off = Projector functioning normally

Controls and Functions

Figure 2-3 shows the controls and indicators on the DHD Controller front panel; the paragraphs that follow describe them.

standby

LS-100d

HDMI 1

16:9/1 1080i/60

IMINAR

Figure 2-3. DHD Controller Front Panel

1. RUNCO ICON Lights blue to indicate that the controller is on or powering up.

2. IR SENSOR Receives IR commands from the remote control.

3. VACUUM FLUORESCENT DISPLAY Can be used instead of the On-Screen Display (OSD). Displays currently-selected menu or – if no menu is selected – the connected display device model, current source, input resolution and aspect ratio/screen.

PRE

2.3 DHD Controller Front Panel

91011

654 87

4. ON/STANDBY BUTTON Press once to toggle from standby mode to on mode. Press it again to return to standby mode. For a discrete on or off command, you can use the direct access buttons on the remote control.

5. LEFT BUTTON Used to direct-select inputs or move the menu cursor left in the OSD. When no menu is present on-screen, the LEFT button toggles through the different sources, in this order: HDMI 4 - HDMI 3 - HDMI 2 - HDMI 1 - SCART - HD 2 - HD 1 - Component Composite 3 - Composite 2 - Composite 1

Lightstyle™ Series LS-100d Installation/Operation Manual 7

Controls and Functions

HDMI2H

DMI 4

deo

nt / SCARTen

6. DOWN BUTTON Use to direct-select aspect ratios or move the menu cursor down in the OSD. When no menu is present on-screen, this button toggles through the different aspect ratios, in this order: 16:9 - 4:3 - Letterbox - VirtualWide - Cinema - Virtual Cinema - Native

Note

For more information about aspect ratios, refer to Table 4-1.

7. RIGHT BUTTON Used to direct-select inputs or move the menu cursor right in the OSD. When no menus are present on-screen, the RIGHT button toggles through the different sources, in this order: Composite 1 - Composite 2 - Composite 3 - Component - HD 1 - HD 2 - SCART HDMI 1 - HDMI 2 - HDMI 3 - HDMI 4

8. MENU BUTTON Press the MENU button to bring up the main menu, or to exit the current menu and return to the previous one.

9. UP BUTTON Use to direct-select aspect ratios or move the menu cursor up in the OSD. When no menus are present on-screen, the UP button toggles through aspect ratios in the following order: Native - Virtual Cinema - Cinema - VirtualWide - Letterbox - 4:3 - 16:9

10. ENTER BUTTON When an item is highlighted on the OSD, the ENTER button selects the item.

11. STANDBY LED Lights amber when the DHD Controller is in standby mode; otherwise it is off.

IMINAR

2.4

Figure 2-4 shows the rear connector panel on the DHD Controller.

DHD Controller Rear Panel

Figure 2-4. DHD Controller Rear Panel

PRE

Pr R

Ethernet

543

Display Control

HDMI Out To Display

HDMI Out Audio Only

RS-232

PC / Control

1512

TRIGGERS

123

Component / SCART

Video 1

9141310

Video 2

Video 3

HDMI 1

HDMI 2

USB

RS-232

To Accessory Box

HDMI 3

HDMI 4

8 Lightstyle™ Series LS-100d Installation/Operation Manual

1. MAIN POWER SWITCH Disconnects or applies power to the DHD Controller.

2. TRIGGERS Connection for up to three (3), 12-volt trigger-controlled devices such as retractable screens or screen masks. Output current is limited to 250 milliamperes (mA).

3. USB A standard, USB Series “B” connection to a personal computer, for performing software upgrades and other service procedures.

4. RS-232 (To Accessory Box) A male, 9-pin D-sub connector for interfacing with external equipment. (For future use.)

5. Display Control Connect this to the RS-232 input on the LS-100d projector, using the supplied communication cable and null-modem adapter (refer to Connecting the DHD Controller to the LS-100d on page 19).

6. IR Wired input from a Niles- or Xantech-compatible, infrared (IR) repeater system. It is a

3.5-mm, mini phono jack, wired as follows: Ring = No connection Tip = IR Input Sleeve = Ground

7. POWER INPUT (100 to 240 VAC) Connect the DHD Controller to power here.

8. HD1 / HD2 (5 x Analog BNCs) Two inputs (five BNCs per input) for connecting standard-definition (SD = 480i/576i), enhanced-definition (ED = 480p/576p) or high-definition (HD = 720p/1080i/1080p) component video sources, or RGBHV sources such as personal computers.

IMINAR

Controls and Functions

9. Component / SCART (3 x RCA connectors) SD/HD input for connecting SDTV, EDTV or HDTV component video sources. Also provides RGB input for SCART RGBS sources.

10. Video 1 / Video 2 / Video 3 Standard, composite video inputs for connecting a VCR, camcorder or other composite video source. The Video 1 input also provides composite sync input for SCART RGBS sources.

11. HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4 (Digital) HDCP-compliant digital video inputs for connecting an HDMI or DVI source.

12. Ethernet A female RJ-45 connector for wired network communications.

13. HDMI Out (Audio Only) Connect this output to an audio control system to pass through HDMI audio.

14. HDMI Out (To Display) Connect this to the DHD Input on the LS-100d (see Figure 2-2).

15. RS-232 (PC / Control) A female, 9-pin D-sub connector for interfacing with a PC or automation/control system.

PRE

Lightstyle™ Series LS-100d Installation/Operation Manual 9

Controls and Functions

2.5

LS-100d Remote Control Unit

Figure 2-5 shows the LS-100d remote control, and the paragraphs that follow describe its functionality.

LIGHT

N P U T

EXIT

ISF NT

IMINAR

RATIO

ISF

DAY

VID

123

456

OFF

CUST1CUST

VID

COMP

I N P U T

PRE

Figure 2-5. DHD Controller/LS-100d Remote Control

HDMI

16 : 9 4 : 3

V-WIDE CINEMA V-CINE

HDMI

7809

HDMI

SCART

NATIVE

LET

BOX

10 Lightstyle™ Series LS-100d Installation/Operation Manual

1. IR OUTPUT INDICATOR Lights when a button is pressed to indicate that an IR signal is being transmitted.

2. LIGHT Press to illuminate the buttons.

3. ON / OFF Press to turn the DHD Controller and projector on or off.

4. ENTER Press to select a highlighted menu item or confirm a changed setting.

5. Cursor Buttons ( , , , ) Use these buttons to select items or settings, adjust settings or switch display patterns.

Controls and Functions

When no menu is present on-screen, the UP and DOWN buttons toggle through the available aspect ratios, in this order:

UP Button = Native - Virtual Cinema - Cinema - VirtualWide - Letterbox - 4:3 - 16:9 DOWN Button = 16:9 - 4:3 - Letterbox - VirtualWide - Cinema - Virtual Cinema -

Native

Note

Likewise, the LEFT and RIGHT buttons toggle through the different source inputs, in this order: LEFT Button = HDMI 4 - HDMI 3 - HDMI 2 - HDMI 1 - SCART - HD 2 - HD 1 Component - Composite 3 - Composite 2 - Composite 1 RIGHT Button = Composite 1 - Composite 2 - Composite 3 - Component - HD 1 HD 2 - SCART - HDMI 1 - HDMI 2 - HDMI 3 - HDMI 4

6. EXIT Press this button to exit the current menu and return to the previous one.

7. MENU Press this button to access the OSD controls, or to exit the current menu and return to the previous one.

8. Memory Preset Buttons:

For more information about aspect ratios, refer to Table 4-1.

IMINAR

PRE

ISF NIGHT

Press to recall settings for the current input from the “ISF Night” memory preset.

ISF DAY

Press to recall settings for the current input from the “ISF Day” memory preset.

CUST 1

Press to recall settings for the current input from the “Custom 1” memory preset.

CUST 2

Press to recall settings for the current input from the “Custom 2” memory preset.

9. VID 1 (1) / VID 2 (2) / VID 3 (3) Press to select a composite video input as the source or to enter the numeric character “1,” “2” or “3.”

Lightstyle™ Series LS-100d Installation/Operation Manual 11

Controls and Functions

10. HD 1 (4) / HD 2 (5) Press to select a HD (RGBHV or YPbPr component) input or to enter the numeric character “4” or “5.”

11. COMP (Component) (6) Press to select the Component video input as the source or to enter the numeric character “6.”

12. HDMI 1 (7) / HDMI 2 (8) / HDMI 3 / HDMI 4 (0) Press to select an HDMI input as the source or to enter the numeric character “7,” “8” or “0.”

13. SCART (9) Press to select the SCART video input as the source or to enter the numeric character “9.”

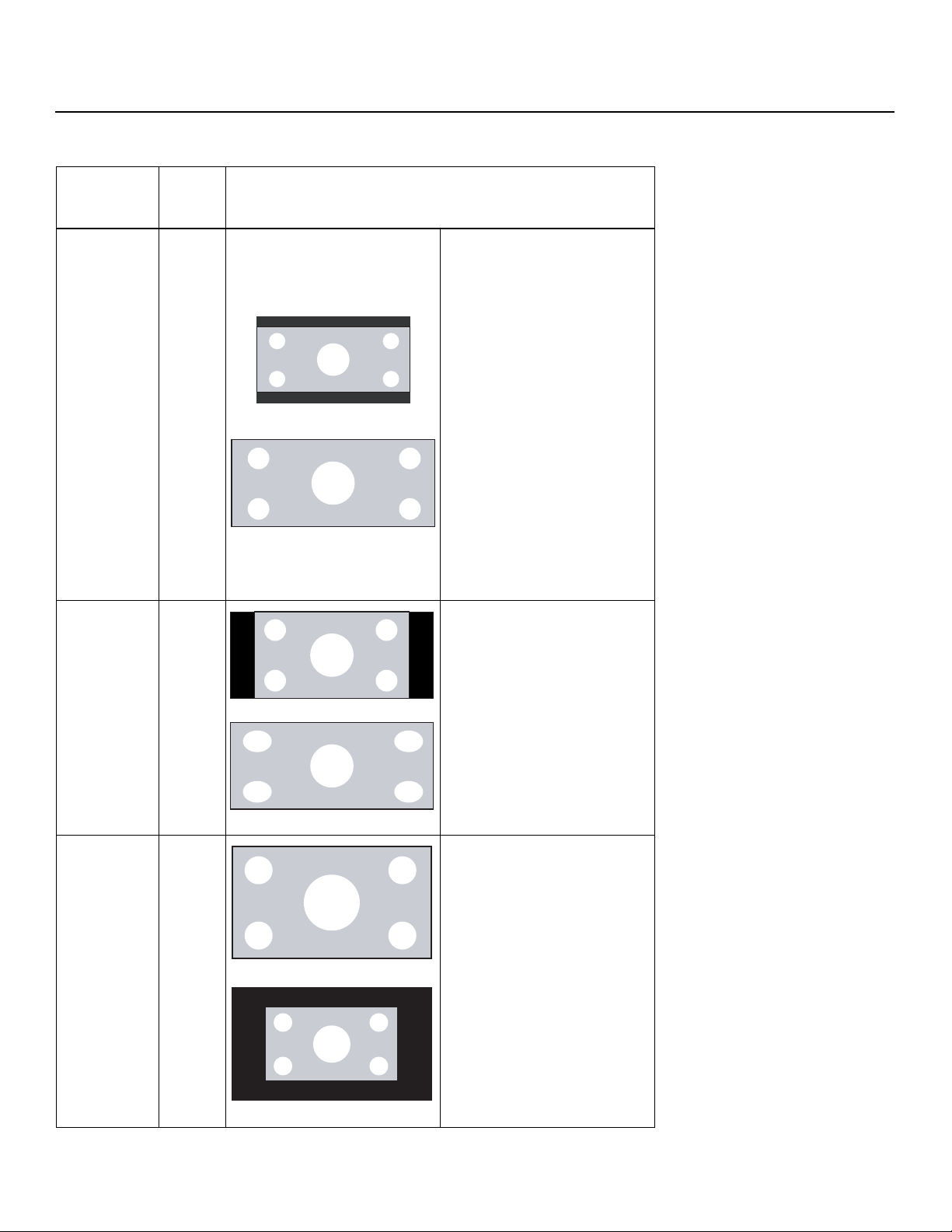

14. Aspect Ratio Selection Buttons Use these buttons to select an aspect ratio directly, as follows:

NATIVE

Displays the source signal in its native resolution, centered in the display area.

16:9

For viewing 16:9 DVDs or HDTV programs in their native aspect ratio.

4:3

Scales the input signal to fit 4:3 display mode in the center of the screen.

LETBOX (Letterbox)

For viewing non-anamorphic (“full-screen”) DVDs on a 16:9 screen.

V-WIDE (VirtualWide)

Enlarges a 4:3 image horizontally in a non-linear fashion to fit 16:9 full screen display.

CINEMA For viewing 2.35:1 source material.

PRE

V-CINE

Selects the Virtual Cinema aspect ratio, used for viewing 16:9 source material on a

2.35:1 screen.

IMINAR

12 Lightstyle™ Series LS-100d Installation/Operation Manual

3. Installation

Note

To install batteries in the remote control:

1. Press down the tab on the cover and pull the cover in the direction of the arrow.

2. Insert the included batteries. Ensure that the polarities correctly match the

and markings inside the battery

compartment.

3. Insert the lower tab of the cover into the opening, and press down the cover until it clicks in place.

Installation must be performed by a qualified custom video installation specialist.

IMINAR

3.1 Remote Control

• Do not mix an old battery with a new one or different types of batteries.

• If you will not use the remote control for a long time, remove the batteries to avoid

damage from battery leakage.

• Do not expose batteries to excessive heat such as from sunshine, fire or the like.

• Make sure that there is nothing obstructing the infrared beam between the remote

control and the IR receiver on the DHD Controller.

• If the effective range of the remote control decreases, or it stops working, replace the

batteries with new ones.

• The remote control may fail to operate if the infrared remote sensor is exposed to bright

sunlight or fluorescent lighting.

• Ambient conditions may possibly impede the operation of the remote control. If this

happens, point the remote control at the DHD Controller, and repeat the operation.

Lightstyle™ Series LS-100d Installation/Operation Manual 13

PRE

Notes on Batteries• Make sure that the battery polarities are correct when installing the batteries.

Notes on Remote Control Operation

Installation

3.2

Quick Setup

Table 3-1 gives a quick overview of the LS-100d installation process. The sections following this one provide detailed instructions.

Table 3-1. Installation Overview

Step Procedure

Choose a location for the projector 15

Mount the projector 18

Connect the DHD Controller to the projector 19

Connect signal sources to the DHD Controller 21

Connect other external equipment to DHD Controller (optional):

• Audio processor or secondary display device

• Automation/control system (RS-232)

• 12-volt trigger-activated equipment

• External IR repeater

• Network hub, router or gateway (Ethernet)

Connect projector and DHD Controller to AC power and

power up

For Details, Refer to

page...

IMINAR

Adjust lens focus 31

Select the proper picture orientation 31

Use the Image Alignment controls to fine-tune image

geometry

Display calibration: adjust the following for each input and

PRE

display mode (resolution and frame rate); save settings when finished:

• Aspect ratio

• Brightness

• Contrast

• Color level

• Tint

• Sharpness

• White Balance

14 Lightstyle™ Series LS-100d Installation/Operation Manual

Installation

Proper installation of your projector will ensure the quality of your display. Whether you are installing a projector temporarily or permanently, you should take the following into account to ensure your projector performs optimally.

meets the following requirements:

•Width: Must be between 77” (1.96 meters) and 86” (2.18 meters) in width.

•Must Be Flat: Roll-down screens will not work. The LS-100d throw ratio, which is

approximately 0.2:1, means that anything even slightly out of flat will cause major distortions in the image. For example, a depth change of 0.5 inches would mean the image would warp by 2.5 inches.

•Must Not Move: The structure between the projector and the screen needs to be very

stable to prevent the image from warping a lot. Since any fine adjustments should be done by the installer, this means that the screen cannot move relative to the projector.

•Must Be a Diffuse Surface (reflects in all directions equally): Typically this means

a white, 1.0 gain screen or something very close to this. Adding any gain makes the screen more reflective which in turn due to the steep angles results in the light from the projector hitting the ceiling, rather than the viewer. Adding gain makes the image dimmer.

•The Screen Frame Must Be Beveled: The steep angle of the projection could

vignette on some screen frames (such as square ones). Typical higher-end screens typically do work fine as they have a beveled edge.

IMINAR

images will be noticeably reduced if light directly strikes the screen, such as when a shaft of light from a window or floodlight falls on the image. Images may then appear washed out and less vibrant.

3.3 Installation Considerations

Screen RequirementsTo maximize image quality, ensure that the screen you intend to use with the LS-100d

Ambient LightIn general, minimize or eliminate light sources directed at the screen. Contrast ratio in your

PRE

Lightstyle™ Series LS-100d Installation/Operation Manual 15

Installation

➤

Rear Projection The LS-100d cannot be used in rear-projection applications.

Projection Distance and

Image Size

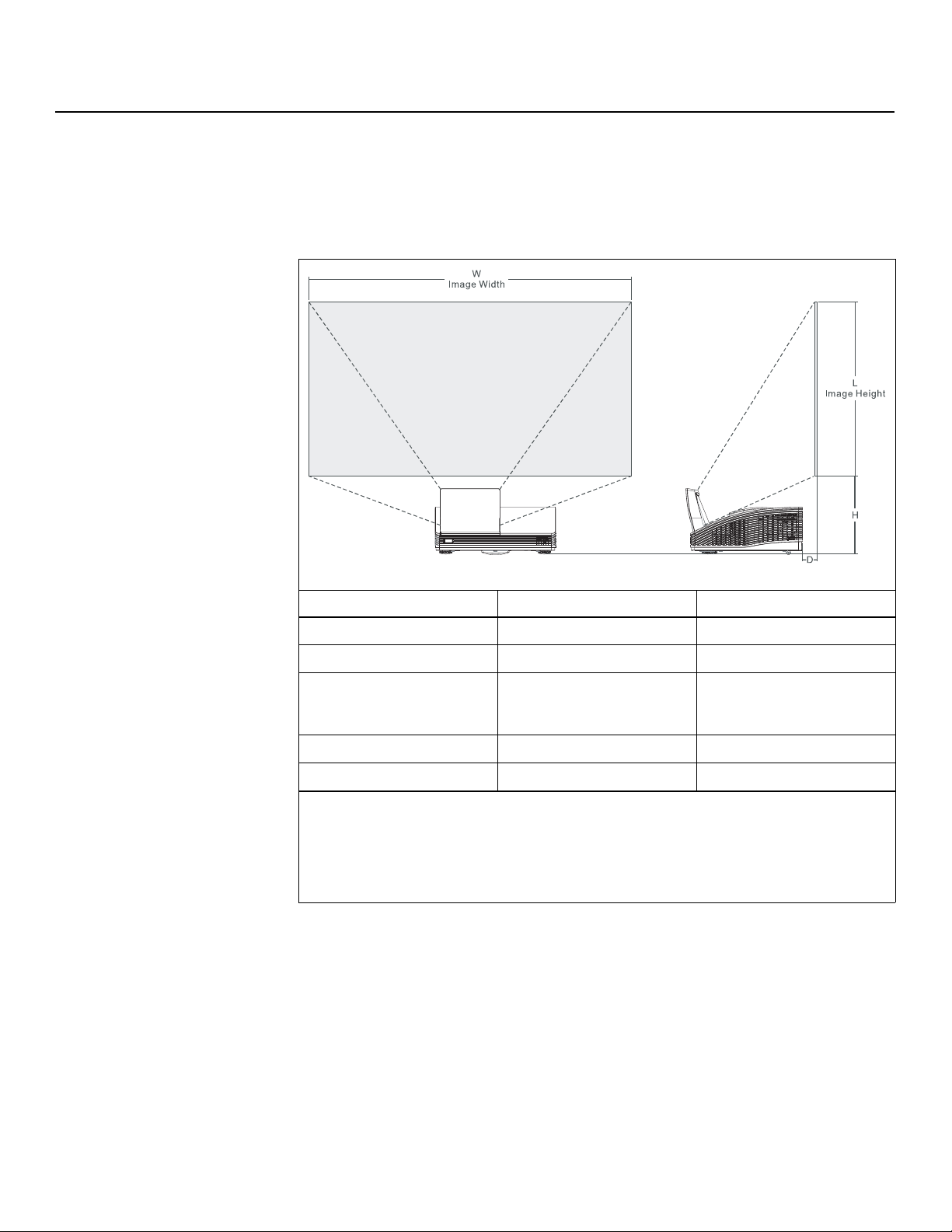

Table 3-2 gives the projection distance and image size ranges for the LS-100d.

Table 3-2. LS-100d Projection Distance and Image Size Ranges

Minimum Maximum

Projection Distance (D)

IMINAR

0.28 in. (7.2 mm) 1.87 in. (47.6 mm)

Image Height (L)

Distance from bottom of projector feet to bottom edge of image area (H)

Image Width (W)

Screen Diagonal Measure

PRE

Note: To precisely determine the correct projector location (H and D in the above diagram), based on the desired image height (L), use the following formula:

H = 0.3 * L + 2.54 in. (64.5 mm) to bottom of projector feet H = 0.3 * L + 2.00 in. (50.7 mm) to mount bosses D = 0.31 * L - 13.19 in. (335.1 mm)

To accommodate typical installation tolerances, Runco recommends the following procedure:

1. Take the screen size you're going to use and add 2.0 inches (50 mm) to the height and 3.56 inches (89 mm) to the width symmetrically about the center of the image.

2. Use the information in Table 3-2 to determine the installation requirements based on this larger screen size.

3. When the projector is installed and powered on, the image will appear "over-scanned" on the edges of your screen. Use the Image Alignment controls to bring the edges of the image in line with your screen; refer to Adjusting the Image Geometry on page 32 for detailed instructions.

43.44 in. (1103.3 mm) 48.56 in. (1233.5 mm)

15.55in. (395.0mm) 17.08in. (434.0mm)

77.22 in. (1961.4 mm) 86.33 in. (2193.0 mm)

88.50 in. (2247.9 mm) 99.00 in. (2514.6 mm)

16 Lightstyle™ Series LS-100d Installation/Operation Manual

Installation

Due to its extraordinarily high level of video processing performance, the DHD Controller may distribute video signals with a perceptible level of audio latency. In order to easily solve this issue, Runco recommends using the DHD Controller with a high-quality audio receiver that has the ability to effectively synchronize audio and video signals.

Most mainstream audio receiver/switchers have the ability to synchronize the audio and video to the Advanced Television Systems Committee (ATSC) prescribed tolerances. According to the ATSC, the sound program should never lead the video program by more than 15 milliseconds, and should never lag behind the video program by more than 45 milliseconds.

In addition, many video displays and A/V receivers introduce additional latency that needs to be compensated for during the installation. Table 3-3 shows the amount of possible audio latency given different signal input timings.

Table 3-3. Possible Audio Latency for Various Input Timings

Input Timing Possible Audio Latency (milliseconds)

480i 133

480p 83

576i 160

576p 100

720p/50 100

Audio/Video

Synchronization Issues

720p/60 83

1080i/25 160

1080i/30 133

1080p/24 125

1080p/50 80

1080p/60 67

IMINAR

PRE

• Keep the ambient temperature constant and below 35°C (95°F). Keep the projector away from heating and/or air conditioning vents. Changes in temperature may cause drifts in the projector circuitry, which may affect performance.

• Keep the projector away from devices that radiate electromagnetic energy such as motors and transformers. Common sources of these include slide projectors, speakers, power amplifiers and elevators.

Other ConsiderationsOther considerations and tips that can help improve your installation:

Lightstyle™ Series LS-100d Installation/Operation Manual 17

Installation

➤

3.4

Mounting the LS-100d

Floor Mounting (Upright) The projector can be placed on a secure, level surface such as a table or cart. Carts are

Wall or Ceiling Mounting For fixed installations, you can attach the LS-100d to the ceiling or nearest wall using a

Adjusting the Projection

Angle

There are several methods for mounting the projector. Depending on your chosen installation, one method may be more suitable than another.

useful when moving a projector during a presentation or from site to site. If possible, lock the wheels when it’s in position to prevent it from being moved during a presentation.

specially-designed mounting fixture.

Note

If the LS-100d is ceiling-mounted and the screen is significantly lower than the projector, you can tilt the projector at a slight angle by adjusting the ceiling mount.

If you do this, you may need to shift the image using the on-screen display (OSD) controls, to compensate. For detailed instructions, refer to Using the On-Screen Menus on page 35.

Use only the Runco-approved ceiling mount kit designed for this projector. Install the mount kit according to the instructions provided with it.

IMINAR

PRE

18 Lightstyle™ Series LS-100d Installation/Operation Manual

Installation

deo

RIGGERS

ERROR

Proceed as follows to connect the DHD Controller to the LS-100d, your video sources, external controller(s) – if present – and AC power.

When connecting your equipment:

• Turn off all equipment before making any connections.

• Use the correct signal cables for each source.

• For best performance and to minimize cable clutter, use high-quality cables that are only as long as necessary to connect two devices. (Don’t use a 20-foot cable when a 6-foot cable will suffice.)

• Ensure that the cables are securely connected. Tighten the thumbscrews on connectors that have them.

Digital Video Connection: Connect the HDMI Output of the DHD Controller to the DHD Input of the LS-100d as shown in Figure 3-1.

POWE

IMINAR

S-23

3.5 Connections to the LS-100d and DHD Controller

Connecting the DHD Controller to the LS-100d

PRE

TRIGGERS

123

Component / SCART

Component / SCA

Video 1Y

Figure 3-1. Connecting the LS-100d to the DHD Controller

Lightstyle™ Series LS-100d Installation/Operation Manual 19

HDMI 1

HDMI

Video 2

Display Control

HDMI Out To Display

HDMI Ou

HDMI O

Ethern

Ethernet

Audio Only

HDMI Out To Display

Installation

RS-232 Connection: Connect the Display Control output from the DHD Controller to the RS-232 input on the LS-100d. Use a standard, modular telephone cable with RJ11 plugs at both ends. On the LS-100d end, use the provided RJ11-to-DB9 null-modem adapter. This adapter is wired as shown in Figure 3-2.

RS-232

RCV DATA

XMT DATA

RS-232

To/From

DHD

Controller

1, 5, 6

XMT DATA

SIG GND

NO CONNECTION

RCV DATA

1, 4, 6, 7, 8, 9

6-position

RJ-11 Male

Figure 3-2. RS-232 Connection from the DHD Controller to the LS-100d

IMINAR

DB-9 Female

PRE

20 Lightstyle™ Series LS-100d Installation/Operation Manual

Installation

deo

Etherne

pla

RS-23

Connect your video sources to the DHD Controller as shown and described in the sections that follow.

HDMI Source Connections: See Figure 3-3.

Use the HDMI inputs whenever possible. This ensures the highest

Tip

video quality because the signal is carried in the digital domain throughout the entire signal path, from source component output into the projector.

You can also connect computers with DVI output to these inputs.

Note

Refer to Supported Timings on page 95 for a list of compatible input signals.

Display Contro

IGGERS

IGGER

HDMI 1

Video 2

Video 3

Video

HDMI 2

USB

To Accessory Box

ToAccessory Bo

HDMI 3

HDMI 4

RS-232

Display Control

Ethernet

HDMI Out

MI Ou

To Display

oDis

HDMI Out

DMI

Audio Only

Connecting Source Components to the DHD Controller

HDMI

AV OUT

HDMI

AV OUT

PRE

HDMI sources (BD, DVD, DTV Set-Top Box etc.)

Figure 3-3. HDMI Source Connections

IMINAR

HDMI

AV OUT

HDMI

AV OUT

Lightstyle™ Series LS-100d Installation/Operation Manual 21

Installation

HD1

HD2

Component Video Source Connections: Connect your component video sources to the HD1, HD2 and/or Component/SCART inputs as shown in Figure 3-4.

RIGGER

TRIGGERS

RCA-to-BNC adapter

YGPbBPr

Pr R

HD1

HD2

Component / SCART

Video 2

ideo

Video 1

deo

Video 3

IMINAR

COMPONEN T

VIDEO OUT

BD/DVD

PRE

Figure 3-4. Component Video Source Connections

Y PB PR

DTV-Set-Top Box

(DTV-STB)

22 Lightstyle™ Series LS-100d Installation/Operation Manual

RGBHV Source Connections: Connect personal computers and/or other RGB sources to the HD1 and/or HD2 inputs as shown in Figure 3-5.

Installation

Computer

YGPbBPr

Y G

Green

Blue

Red

H-Sync

RGB Camcorder

HD1

HD2

V-Sync

IMINAR

Figure 3-5. RGBHV Source Connections

PRE

Lightstyle™ Series LS-100d Installation/Operation Manual 23

Installation

deo

HD1

HD2

SCART RGBS Source Connections: Connect the green, blue and red outputs from your SCART source to the Component/SCART input on the DHD Controller. Connect the sync output from your SCART source to the Video 1 input on the DHD Controller. See Figure 3-6.

RIGGER

TRIGGERS

YGPbBPr

HD1

HD2

Component / SCART

Video 2

Video 1

Video 3

ideo

Green

Blue

Red

VCR

DVD/DTV STB

Gaming Console

SCART-to-RGBS

adapter

Green

Blue

Red

Sync

IMINAR

Figure 3-6. SCART RGBS Source Connections

PRE

24 Lightstyle™ Series LS-100d Installation/Operation Manual

Composite Source Connections: See Figure 3-7.

HDMI 1

HD1

HD2

RIGGER

TRIGGERS

123

GPbB

Y G

Pr R

HD1

HD2

Component / SCA

Component / SCART

HDMI 1

Video 2

Video 1

Video 3

HDMI 2

Installation

USB

DMI

VCR

Composite

Camcorder

Gaming Console

Composite

Figure 3-7. Composite Video Source Connections

IMINAR

PRE

Lightstyle™ Series LS-100d Installation/Operation Manual 25

Installation

➤

deo

Display Control 1HD

Etherne

RIGGERS

Connecting an Audio

Processor or Secondary

Display Device to the DHD

Controller (Optional)

The DHD Controller provides a second HDMI output (labeled HDMI Out (Audio Only)) for connection to an audio receiver/switching system or secondary display device for monitoring purposes. See Figure 3-8.

The DHD Controller does not transmit HDMI CEC control

Note

messages from the “HDMI Audio Out” connector. For more information about CEC, refer to Using HDMI CEC Messages on page 88.

Ethernet

Display Control

HDMI Out

DMI Ou

To Display

HDMI Out Audio Only

TRIGGERS

123

Component / SCART

Component / SCAR

Video 1

deo

Video 2

Video 3

Vdeo

HDMI 1

HDMI

HDMI 2

HDMI

USB

HDMI 3

HDMI 4

S-232

RS-232

To Accessory Box

To Accessory Bo

IMINAR

PRE

Figure 3-8. Audio Processor Connection to DHD Controller

Audio Processor/

Switcher

Secondary Display

26 Lightstyle™ Series LS-100d Installation/Operation Manual

Installation

l H

DMI

Etherne

The DHD Controller provides the following interfaces to external equipment that allow it to control or be controlled by that equipment:

• An RS-232 interface to a PC or control/automation system;

• Three (3), 12-volt trigger outputs;

• An infrared (IR) repeater input;

• An Ethernet network interface for firmware updates and maintenance notifications.

The following sections describe how to make these interface connections. For more information about using these connections, refer to Network on page 58 and External Control on page 69.

RS-232 Controller Connection: Use a straight-through, 9-pin RS-232 cable to connect a PC or control/automation system (if present) to the RS-232 port on the DHD Controller; see Figure 3-9.

RS-232

To Accessory Box

ToAccessory Bo

HDMI 3

HDMI 4

Ethernet

Display Control

Display Contro

HDMI Out

MI Ou

To Displ

To Display

HDMI

HDMI Out

Audio Onl

Audio Only

RS-232

PC / Control

Additional Connections to the DHD Controller (Optional)

IMINAR

345

to Automation/

Control System

or PC

Figure 3-9. RS-232 Control System Connection to DHD Controller

PRE

(none of the other pins are used)

2 Receive Data

(to ctrl. system)

3 Transmit Data

(from ctrl. system)

5 Ground

Lightstyle™ Series LS-100d Installation/Operation Manual 27

Installation

deo

HDMI

DMI

Comp

RS-232

Etherne

D 1

EXIT

123

456

LIGHT

Connecting 12-volt Trigger Outputs to External Equipment: If your home theater contains a screen mask or other 12-volt trigger-activated equipment, connect it to the 12-volt trigger outputs as shown in Figure 3-10.

Screen Mask or other 12-volt trigger-activated device

Sleeve = Ground

Tip = +12V

HD1

HD2

TRIGGERS

123

Component / SCART

onent / SCA

Video 1

Video 2

Video 3

HDMI 1

HDMI 2

DMI

USB

HDMI 3

HDMI 4

To Access

ToAccess

RS-23

Figure 3-10. Connecting 12-volt Trigger Outputs

Connecting an External IR Receiver to the DHD Controller: If infrared signals from

the remote control cannot reach the DHD Controller due to excessive distance or obstructions such as walls or cabinet doors, you can connect an external IR receiver to extend the range of the remote control. See Figure 3-11.

IMINAR

PRE

(3.5-mm, mini

phono plug)

Display Control

IR Sensor

Remote Control

IR Repeater

HDMI Out

Ethernet

Figure 3-11. External IR Receiver Connection

MI Ou

Displa

To Display

HDMI

HDMI Out

udio Onl

Audio Only

PC / Control

PC / Contr

28 Lightstyle™ Series LS-100d Installation/Operation Manual

Ethernet Network Connection: Use a standard, Category 5 network cable with an

Display Control

Audio Only

RJ-45 plug to connect a network hub, router or gateway to the Ethernet port on the DHD Controller; see Figure 3-12. For more information about configuring and using this connection, refer to Network on page 58.

Installation

Ethernet

Display Control

HDMI Out

HDMI Out ToDispl

To Display

HDMI Out

DMI

Audio Only

HDMI 3

HDMI

HDMI 4

RS-232

-23

To Accessory Box

ccessory Box

to Ethernet

Hub, Router

or Gateway

1 Transmit Data + 2 Transmit Data 3 Receive Data + 6 Receive Data -

Figure 3-12. Ethernet Network Connection to DHD Controller

receptacle on the rear of the LS-100d (AC 100V ~ 240V). Then, connect the other end to

IMINAR

your AC power source.

Similarly connect the DHD Controller to a nearby AC outlet.

Connecting to AC PowerProjector/DHD Controller: Plug the female end of one power cord into the AC

PRE

Lightstyle™ Series LS-100d Installation/Operation Manual 29

Installation

3.6 Turning on the Power

1. Turn on your source components.

2. Turn on the main power switch at the rear of the DHD Controller.

3. Press the ON button on the remote control (or the ON/STAN D B Y ( ) button on DHD Controller front panel) to turn on the system. The vacuum fluorescent display on the DHD Controller front panel briefly displays “Initializing System,” followed by “Starting LS-100d.” On the projector, the POWER LED rapidly flashes green to indicate that it is warming up.

4. When the projector is ready for use, the POWER LED lights solid green. On the DHD Controller, the fluorescent display indicates the active source, input resolution/frame rate and aspect ratio/screen; for example:

Current

Source

LS-100d

HDMI 1

16:9/1 1080i/60

Aspect Ratio/Screen

1080p/60

Input Resolution/Frame Rate

IMINAR

PRE

30 Lightstyle™ Series LS-100d Installation/Operation Manual

Installation

The LS-100d lens focus controls are located beneath a hinged door on the top of the projector. To access them, press down on the door edge closest to the mirror and open the door.

Use the Coarse Focus Adjust dial to adjust the focal length in large increments. Use the Fine Focus Adjust dial to adjust the focal length in small increments.

The two focus controls are interactive, so you may need to adjust

Note

each one multiple times to produce a fully-focused image.

3.7

Press Here to Open Door

Coarse Focus Adjust

Fine Focus Adjust

Lens Focus Adjustment

IMINAR

By default, the LS-100d is configured for a “floor/front” installation, in which the projector is installed upright and in front of the screen. If it is mounted on a ceiling, you must change the picture orientation. To do this:

1. On the DHD Controller remote control or front panel, press MENU.

2. Select Service from the Main Menu and enter the Service Menu passcode.

Note

3. Select Display Device from the Service Menu.

4. Select Configure from the Display Device menu, then select Installation.

5. Select Orientation, then choose Ceiling/Front, to match the installation method. Or, for front-projection installations, use the Auto setting to have the projector automatically determine the orientation (floor or ceiling) using an internal sensor.

PRE

You must enter a passcode to access the Service menu.

3.8 Adjusting the Picture Orientation

Lightstyle™ Series LS-100d Installation/Operation Manual 31

Installation

3.9

Adjusting the Image Geometry

Projector and/or screen placement — among other things — can cause geometric distortion in the projected image.

To correct this, the DHD Controller provides precise, nine-point control over the projected image geometry. Use these controls as (and only if) needed to re-position the image corners, mid-points and center to eliminate “keystoning” (mis-aligned corners) or “pincushion” distortion (mid-points not aligned with corners). See Figure 3-13.

Horizontal Keystoning

Vertical Keystoning

IMINAR

PRE

Pincushion Distortion

Figure 3-13. Keystone and Pincushion Distortion

32 Lightstyle™ Series LS-100d Installation/Operation Manual

“Keystoning” usually occurs when the projector is tilted relative to the screen. “Pincushion”

distortion can sometimes occur if the throw distance is very short and/or the projector is equipped with an anamorphic lens.

To correct keystoning or pincushion distortion:

1. On the DHD Controller remote control or front panel, press MENU.

2. Select Calibration from the Main Menu and enter the Calibration Menu passcode.

You must enter a passcode to access the Calibration menu.

Note

3. Select Image Alignment from the Calibration Menu.

4. Select Corner Alignment to correct a “keystoned” image by adjusting the image corner positions. Select Midpoint Alignment to correct pincushion distortion by adjusting the image edge mid-points. See Figure 3-14.

Installation

Left

Middle (x)

Left/Right

Middle (y)

Top/Bottom Middle (x)

Top Left (x, y)

Top Middle (y)

IMINAR

Center

(x, y)

PRE

Bottom Left (x, y)

Notes:

1. Smaller “x” values move a point to the left; larger values move it to the right.

2. Smaller “y” values move a point up; larger values move it down.

Bottom Middle (y)

Top Right (x, y)

Right Middl (x)

Bottom Right (x, y)

Figure 3-14. Image Alignment Controls

Lightstyle™ Series LS-100d Installation/Operation Manual 33

Installation

Notes:

IMINAR

PRE

34 Lightstyle™ Series LS-100d Installation/Operation Manual

4. Operation

To display the Main Menu, press the MENU button on the remote control (Figure 2-5) or DHD Controller front panel (Figure 2-3).

To select a menu item, use the and buttons on the remote control or DHD Controller front panel to highlight it. Then, to confirm your selection, press ENTER on the remote control or DHD Controller front panel.

The DHD Controller OSD menus are arranged hierarchically, as shown in Figure 4-1. Depending on the selected input source and signal characteristics, some menu options may not be available.

Composite 1 Composite 2 Composite 3 Component HD 1

Input Source

Aspect Ratio

Screen


Input Position

Memory Presets

Sleep Timer

Information

Note: Default settings appear in bold type.

HD 2 SCART HDMI 1 HDMI 2 HDMI 3 HDMI 4 16:9 4:3 Letterbox VirtualWide Cinema Virtual Cinema Native

Screen 1 / Screen 2 Brightness

Contrast Color Tint Sharpness Noise Filter Left/Right Up/Down Width Height Overscan Overscan Mode

(Zoom/Crop) Phase

(RGB/Component/SCART signals only)

Tracking (RGB/Component/SCART signals only)

Recall ISF Night or ISF Day Recall/Save Custom 1 or Custom 2 Reset Custom 1 and Custom 2 to

Factory Default Off, 30 Minutes, 60 Minutes, 90

Minutes, 2 Hours or 4 Hours Signal System Network Field Service Manufacturing

IMINAR

Calibration

PRE

Gain Offset

Gamma

Display Color Common Settings

Color Temp

Color Gamut Auto, REC709, SMPTE-C, EBU, Native DCI or PCE

PCE

Display Color Projector Settings

Input Image

Input Color

Save ISF Night Save ISF Day

Copy/Paste

Output Shift

Image Alignment

Splash Configure

OSD Position Hor. / Ver. 0

SatCo Off, Low or High

Brightness Contrast Color Tint Sharpness Gain Offset

Chroma Delay

Noise Filter 0, 1, 2 ... 63

Back / Confirm

Memory Preset

Aspect Ratio

Left/Right Up/Down Width Height

Screen Masking

Corner Alignment

Midpoint Alignment

Owner Name ISF Calibrated ISF Other Splash Timer 5, 6, 7 ... 15 ... 59, 60 Splash Enable On/Off

-100, -99... 0 ... 99, 100 (Red, Green, Blue)

Mode (Simple / Advanced)

Simple (1.8, 2.0, 2.2, 2.35, 2.5)

Advanced (0 (2.2 gamma curve), 1, 2, 3 ... 20 (custom gamma tables))

Simple (5500K, 6500K, 7500K or 9300K)

Hue (Red / Yellow / Green / Cyan / Blue / Magenta) Saturation (Red / Yellow / Green / Cyan / Blue / Magenta) Level (Red / Yellow / Green / Cyan / Blue / Magenta) White Balance (Red / Green / Blue Gain)

-50, -49 ... 0 ... 49, 50

-32, -31... 0 ... 31, 32 (HD 1, HD 2 and Component inputs only)

0, 1, 2 ... 7 (Composite inputs only)

Copy Settings Paste Settings Copy Settings Paste Settings

-50, -49 ... 0 ... 49, 50

-50, -49, 48 ... 0

0, 1, 2 ... 100 (Top / Bottom / Left / Right / Test Pattern Enable)

Top Left / Top Right / Bottom Left / Bottom Right / Test Pattern Enable

Center / Top Middle / Left Middle / Right Middle / Bottom Middle / Test Pattern Enable

4.1 Using the On-Screen Menus

, 1, 2 ... 100

Figure 4-1. LS-100d OSD Menu Structure

Lightstyle™ Series LS-100d Installation/Operation Manual 35

Operation

Service

Color Bars 1

Test Video

Input Names Rename/Restore

Display Device - Configure

Network

Color Space

Triggers 1 / 2 / 3

Miscellaneous

Sync Threshold 0, 1, 2 ... 15

HDMI

Front Panel Brightness

PRE

Auto Power Off

Standby Mode Low Power / Fast Startup

System Reset

Color Bars 2 Focus Grey Bars

Installation

Diagnostics

Altitude Auto / High

IP Configuration

Auto Firmware Upgrade

E-Mail Notification

Remote Network Control On / Off Auto, REC601, REC709,

RGB-PC or RGB-Video

Language

OSD Timer 0 (no timeout) or 5, 6, 7 ... 30 ... 60 sec. OSD Messages On / Off Blank Screen Color Sidebar Color Film Mode

(SD sources only) CUE

(Chroma Upsampling Error) Remote Code 00, 01, 02 ... 17 ... 31

HDMI EDID Extension On / Off (per HDMI input)

Audio Format

CEC On / Off HPD Toggle Rejection Auto / On / Off Logo LED 0 (off), 1, 2 ... 31 Standby LED On / Off LCD 0 (off), 1, 2, 3 or 4 Enable On / Off Hours 1, 2, 3, 4, ... 8 ... 23, 24

Picture Orientation: Auto, Floor Front, Ceiling Front, Floor Rear or Ceiling Rear

White, Red, Green, Blue, Yellow, Cyan, Magenta

DHCP (On / Off), IP Address, Subnet Mask, Default Gateway, Communication Test

Auto Check for New Firmware, Auto Perform Upgrade, Check for New Firmware

E-Mail Address, Error Notification, Error Notification to Runco, Periodic Service Notification, Lamp Life Notification, Customer Information, E-Mail Calibration Data

(Not available on Composite 1, Composite 2 or Composite 3 inputs)

English, Français, Deutsch, Italiano, Español, Svenska, (Simplified Chinese), (Traditional Chinese), Português, (Russian), (Japanese) or

(Korean)

Red/Green/Blue = 0, 1, 2, 3 ... 255

On / Off

IMINAR

On / Off

(HD 1, HD 2 and Component inputs only)

Combined / HDMI Out (To Display) /

HDMI Out (Audio Only)

Figure 4-1. LS-100d OSD Menu Structure (continued)

36 Lightstyle™ Series LS-100d Installation/Operation Manual

Operation

Main MenuThe Main Menu is the starting point for accessing all DHD Controller functions.

(You must enter a passcode to access the Calibration and Service menus.)

The active source is indicated by an arrow (Î) to its left; in this example, Composite is the active source.

IMINAR

Runco Video

Input Source Aspect Ratio Screen Picture Input Position Memory Presets Sleep Timer Information Calibration Service

Input SourceFrom the Main Menu, select Input Source to choose a video signal source.

Input Source

Composite 1 Composite 2 Composite 3 Component HD 1 HD 2 SCART HDMI 1 HDMI 2 HDMI 3 HDMI 4

from the Main Menu and press ENTER. Select the appropriate aspect ratio for your screen size and the type of program material being viewed; refer to Table 4-1.

The currently-selected aspect ratio is indicated by a “ selected.

Note that some aspect ratios are unavailable and/or not useful with certain types of source material. The optimal setting depends on a number of factors, such as:

• The aspect ratio of the source material, as broadcast or encoded on the playback

medium.

• The “display type” (16:9 or 4:3) and output resolution settings at the source

component. Most modern DVD/BD players and set-top boxes have such controls.

• Viewer preference (original aspect ratio with “black bars,” or a full-screen presentation

with some distortion or cropping).

Note

Lightstyle™ Series LS-100d Installation/Operation Manual 37

PRE

7” to its left; in this example, 16:9 is

The aspect ratio selection is automatically saved for each input and resolution.

Aspect RatioTo change the aspect ratio (size and shape) of the projected image, select Aspect Ratio

16:9

4:3



Letterbox



VirtualWide



Cinema



Virtual Cinema



Native



Aspect Ratio

Operation

Table 4-1. Aspect Ratio Settings

Remote

Aspect Ratio

16:9 16:9 Select 16:9 to view 16:9 DVDs

Control

Key

16:9 Image on

16:9 Screen (Display)

4:3 Image, stretched to fill

16:9 Screen (Display)

Description

and HDTV programs in their native aspect ratio.

4:3 images are stretched horizontally to fit a 16:9 screen.

4:3 4:3 Standard 4:3 scales the input

IMINAR

Letterbox LET

PRE

VirtualWide V-WIDE VirtualWide scales a 4:3 image

BOX

4:3 Image on

16:9 Screen (Display)

4:3 Image on

16:9 Display

(Letterbox aspect ratio)

4:3 Image on

16:9 Screen (Display)

4:3 Image on

16:9 Screen

with VirtualWide

signal to fit in the center of the 16:9 screen. 4:3 is the aspect ratio used by computer monitors, standard television programming and most VHS video cassettes.

Letterbox mode scales (zooms in on) a 4:3 image linearly (by the same amount on all sides) to fill a 16:9 display. Letterbox is best suited for viewing LaserDisc movies or non-anamorphic DVDs on a 16:9 screen.

NON-linearly (more on the sides than in the center) to fit a 16:9 screen.

4:3 Image on

2.35:1 Screen

with VirtualWide

38 Lightstyle™ Series LS-100d Installation/Operation Manual

On a 2.35:1 screen, the image is centered between black bars on either side.

Table 4-1. Aspect Ratio Settings (continued)

Remote

Aspect Ratio

Cinema CINEMA Select Cinema to view 2.35

Control

Key

2.35:1 Image on 16:9 Screen

(Cinema aspect ratio / no CineWide)

2.35:1 Image on

2.35:1 Screen

Cinema aspect ratio / CineWide)

(

Description

source material in its native aspect ratio.

With a 16:9 screen and a standard LS-100d (without an anamorphic lens), the upper and lower portions of the screen are masked, but the geometry of the active image area is unchanged.

With a 2.35:1 screen and an anamorphic lens, the DHD Controller scales the 2.35:1 image so that the active image area fills the 16:9 chip surface, eliminating the black bars. The secondary, anamorphic lens then restores the proper geometry to the 2.35:1 image.

Operation

Virtual Cinema V-CINE A 16:9 image is scaled

16:9 Image on

2.35:1 Screen

16:9 Image on

2.35:1 Screen with Virtual Cinema

IMINAR

NON-linearly (more on the sides

than in the center) to fit a 2.35:1 screen.

PRE

Native NATIVE Select Native to display the

source signal in its native resolution, centered in the

1080i HDTV Image

720p HDTV Image

display area with no re-sizing or overscan.

This means, for example, that 720p HDTV programs will display with unused pixels on all sides: 320 on the left and right sides and 180 above and below.

With SDTV and EDTV sources, the DHD Controller scales the image horizontally to achieve a 16:9 aspect ratio.

Lightstyle™ Series LS-100d Installation/Operation Manual 39

Operation

➤

Screen 1 Screen 2

Brightness Contrast Color Tint Sharpness Noise Filter

Screen


Screen The Screen Menu allows you to recall multiple sets of stored values for certain controls

(Output Shift and Image Alignment) that are saved for each aspect ratio. Such settings are also saved “per screen.” To recall the Output Shift and Image Alignment settings associated with “Screen 1” or “Screen 2,” make that selection here.

Picture Use the controls in the Picture Menu to calibrate each DHD Controller input to achieve

optimum picture quality.

The DHD Controller has been designed to incorporate setup and calibration standards established by the Imaging Science Foundation (ISF). The ISF has developed carefully crafted, industry-recognized standards for optimal video performance and has implemented a training program for technicians and installers to use these standards to obtain optimal picture quality from Runco video display devices. Accordingly, Runco recommends that setup and calibration be performed by an ISF certified installation technician.

All signal types require separate processing. Therefore, you need to calibrate each DHD Controller input separately.

Note

Although it may be possible to obtain satisfactory picture quality using the naked eye and regular program material, Runco recommends using an external test pattern source (Ovation Multimedia, Digital Video Essentials or AVIA test DVD or equivalent) for best results.

Connect your test pattern source to the input that you are calibrating and proceed as follows. Perform the adjustments in the order listed here.

IMINAR

PRE

When you change a picture quality setting, save the change to a preset afterwards. Otherwise, the change will be lost when a different input is selected. (Picture quality settings are saved for each input separately.) For information about saving settings, refer to Memory Presets on page 46.

40 Lightstyle™ Series LS-100d Installation/Operation Manual

Brightness: On your external test pattern source, select a PLUGE pattern. (PLUGE is an

acronym for “Picture Line-Up Generation Equipment.”) Figure 4-2 shows a typical PLUGE pattern.

Operation

Below Black

bove Black

Figure 4-2. Typical PLUGE Pattern for Adjusting Brightness

PLUGE patterns vary but generally consist of some combination of black, white and gray areas against a black background. The example above includes two vertical bars and four shaded boxes.

Select Brightness from the Picture menu and press ENTER. Adjust the brightness so that:

• The darkest black bars disappear into the background.

• The dark gray areas are barely visible.

• The lighter gray areas are clearly visible.

• The white areas are a comfortable level of true white.

• The image contains only black, gray and white (no color).

IMINAR

PRE

Lightstyle™ Series LS-100d Installation/Operation Manual 41

Operation

Contrast: On your external test pattern source, select a stepped, gray-bar pattern like the one shown in Figure 4-3.

Figure 4-3. Typical Gray Bar Pattern for Adjusting Contrast

Select Contrast and press ENTER. Adjust the contrast to a point just below which the white rectangle starts to increase in size.

Note

Color Saturation: On your external test pattern source, select a color bar pattern like the one shown in Figure 4-4.

IMINAR

gray

PRE

Brightness and contrast controls are interactive. A change to one may require a subtle change to the other in order to achieve the optimum setting.

yellow

cyan

green

red

magenta

blue

Figure 4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint

1. Press the MENU button on the remote control or DHD Controller front panel.

2. Select Service from the Main Menu and press ENTER.

3. Enter the Service menu passcode.

4. Select Display Device from the Service menu and press ENTER.

5. Press ENTER again to select Configure.

42 Lightstyle™ Series LS-100d Installation/Operation Manual

6. Select Diagnostics and press ENTER.

7. Select Blue from the Diagnostics menu, then press ENTER to display only the blue color channel.

8. Press EXIT (or MENU) repeatedly to return to the Main Menu.

9. Select Picture from the Main Menu and press ENTER.

10.Select Color from the Picture menu and press ENTER.

11.Adjust the color saturation level until the outermost (gray and blue) color bars appear to be a single shade of blue:

Operation

gray

yellow

cyan

green

red

magenta

blue

IMINAR

Tint: Tint or “hue” is essentially the ratio of red to green in the color portion of the image. When tint is decreased, the image appears redder; when it is increased the image appears greener.

To adjust the tint, enable “blue only” display mode in the Diagnostics menu, as you would for adjusting color saturation (refer to the previous section, Color Saturation).

Select Tint from the Picture menu and press ENTER. Adjust the tint level until the cyan and magenta color bars (on either side of the green bar) appear to be a single shade of blue.

Note

PRE

Like the brightness and contrast controls, the color and tint controls are interactive. A change to one may require a subtle change to the other in order to achieve the optimum setting.

Lightstyle™ Series LS-100d Installation/Operation Manual 43

Operation

➤

Sharpness: “Sharpness” is the amount of high-frequency detail in the image. To adjust sharpness, select Sharpness from the Picture menu and press ENTER. On your external test pattern source, select a pattern like the one shown in Figure 4-5. Adjust as needed, looking for white edges around the transitions from black to gray and differently-sized lines in the “sweep” patterns at the top and bottom. Lower the sharpness setting to eliminate them.

Input Position

Left/Right Up/Down Width Height Overscan Overscan Mode Phase Tracking

IMINAR

Figure 4-5. Typical Test Pattern for Adjusting Sharpness

Noise Filter: To apply noise filtering to the input signal, select Noise Filter from the Picture

menu. The Noise Filter is useful for clearing up noisy images from 480i video sources.

Use the left- or right-arrow buttons to select the desired amount of noise reduction, keeping in mind that higher settings (which reduce high frequencies) may also “soften” the

PRE

Input Position Use the controls in the Input Position Menu to fine-tune the aspect ratio and image

image.

position for the current source.

Left/Right: Select Left/Right from the Input Position menu to shift the projected image horizontally. Press to shift the image to the right; press to shift it to the left.

Up/Down: Select Up/Down from the Input Position menu to shift the projected image vertically. Press to shift the image upward; press to shift it downward.

Width: Select Width from the Input Position menu to change the projected image width. Press to increase the width; press to decrease it.

Note

The input position settings are automatically saved for each input and resolution.

44 Lightstyle™ Series LS-100d Installation/Operation Manual

Height: Select Height from the Input Position menu to change the projected image height. Press to increase the height; press to decrease it.

Overscan/Overscan Mode: Overscan pushes the outside edge of the active picture area of the video signal out beyond the edge of the display area.

Some television programs are produced based on the assumption that older television sets may not display the outer edges of the broadcast picture area. Overscan effectively trims away these inactive, outer edges and enlarges the remaining portion of the image to fill the display area.

For HDTV, DVDs and other video sources, Overscan is generally not necessary or desirable.

This control defines the amount of overscan applied to the image. The range is from 0 to 20. There are two overscan modes:

•In Crop mode, each increment adds a mask at the top, bottom, left and right edges of the source image equal to 0.5% of the displayed horizontal resolution (1% total). A setting of 10, for example, crops the image 5% on all sides or 10% total.

•In Zoom mode, each increment adds a factor to the scaling of the source image so that the vertical and horizontal resolutions are 100% plus 1% increments of the size determined by the aspect ratio function. A setting of 10, for example, zooms in on the image 5% on all sides or 10% total.

Operation

Figure 4-6 illustrates the effect of each overscan mode setting.

Off Crop Zoom

IMINAR

4:3

PRE

16:9

= Source Image Area

= Edge Noise

= Screen (16:9)

Figure 4-6. Overscan Modes

Lightstyle™ Series LS-100d Installation/Operation Manual 45

Operation

➤

Phase (RGB, Component or SCART sources): This control adjusts the phase of the pixel sampling clock relative to the incoming signal. Adjust the phase when an RGB, Component or SCART image still shows shimmer or “noise” after Tracking has been optimized.

Adjust the Phase after adjusting Tracking (see below).

Tip

For best results, use a good test pattern such as a smooth gray consisting of a clear pattern of black and white pixels, or a similar “half on, half off” graphic image. Adjust the slidebar until the image stabilizes and each pixel is clearly defined. You may notice that you can stabilize the image at more than one point. Use either setting in such cases.

Tracking (RGB, Component or SCART sources): Tracking determines the frequency of the pixel sampling clock, indicated by the number of incoming pixels per line, so that all pixels generated by a particular source are sampled.

Steady flickering or several soft vertical stripes or bands across the entire image indicates poor pixel tracking. Proper pixel tracking helps ensure that the image quality is consistent across the screen, that aspect ratio is maintained and that pixel phase (see above) can be optimized.

Memory Presets For each input, the DHD Controller lets you save image quality settings as presets that you

Memory Presets

ISF Night ISF Day Custom 1 Save Reset Custom 2 Save Reset

can recall at a later time. You can create up to four presets per input and display mode (resolution and frame rate).

The DHD Controller stores the following display modes in each memory preset:

•480i

•480p

•576i

•576p

• 720p/24 Hz

PRE

• 720p/25 Hz

• 720p/30 Hz

• 720p/50 Hz

• 720p/60 Hz

• 1080i/50 Hz

• 1080i/50 Hz (Australia)

• 1080i/60 Hz

• 1080p/24 Hz

• 1080p/25 Hz

• 1080p/30 Hz

• 1080p/50 Hz

• 1080p/60 Hz

IMINAR

Use the Memory Presets menu to recall saved image presets, or to save image settings in the “Custom 1” or “Custom 2” memory location. The currently-selected preset is indicated by a “Î” to its left; in the example shown here, ISF Night is selected.

46 Lightstyle™ Series LS-100d Installation/Operation Manual

You should save changes to any of the following settings to a preset; otherwise they will be lost when a new input source or resolution is selected:

• Brightness

•Contrast

• Color saturation

•Tint

• Sharpness

•Gamma

• Color temperature and white balance

To select a memory preset, press or to highlight it and press ENTER.

Operation

To save the settings for the current input and display mode to the Custom 1 or Custom 2 memory preset, select it, press or to highlight Save and press ENTER.

Note

To reset the Custom 1 or Custom 2 memory preset to its factory-default state, select it, press or to highlight Reset and press ENTER.

Press or to select Off, 30 Minutes, 60 Minutes, 90 Minutes, 2 Hours or 4 Hours. Then, press ENTER.

To save the settings for the current input and display mode to the ISF Night or ISF Day memory preset, select Save ISF Night or Save ISF Day from the Calibration menu (refer to Save ISF Night/Save ISF Day on page 53).

IMINAR

PRE

Sleep TimerSelect Sleep Timer from the Main Menu to turn off the LS-100d after a specified interval.

Sleep Timer

Off 30 Minutes 60 Minutes 90 Minutes 2Hours 4Hours

Lightstyle™ Series LS-100d Installation/Operation Manual 47

Operation

➤

Signal System Network Field Service Manufacturing

Information Signal / System: Select Information from the Main Menu, then choose either Signal or

System to display information about the current input signal (resolution, frequency, type et

Information

cetera) and installed firmware versions, as well as other information that uniquely identifies your DHD Controller and display device.

Should you ever need to contact Runco Technical Support, this information will help them answer your questions or resolve product performance issues.

Signal

Input Source HDMI 1 Signal Format 1080p/60 Input Resolution 1920x1080 Vertical Freq 59.94 Hz Horizontal Freq 67.500 kHz Pixel Clock 148.500 MHz Color Space REC709 Sync Type Separate Memory Preset ISF Night

Model DHD4 Display Name LS-100d Output Resolution 1920x1080 Serial Number 00000000 Boot Version 4.0

Firmware Version 4.0 Micro Version 4.0

System

Network

MAC Address 1A:2B:3C:4D:5E:6F IP Address 192.168.0.150 Subnet Mask 255.255.0.0 Default Gateway 192.168.1.1 DHCP Enabled Network Status Connected

PRE

Network: Select Information from the Main Menu, then choose Network to display information about the Ethernet network connection.

To enable network communication via Ethernet, refer to IP Configuration on page 58.

IMINAR

Field Service / Manufacturing: The Field Service and Manufacturing menus are password-protected and intended for use only by Runco service personnel and factory technicians.

48 Lightstyle™ Series LS-100d Installation/Operation Manual

should be used by ISF-certified technicians only.

Note

To recall the ISF Night or ISF Day settings, select “ISF Night” or “ISF Day” from the Memory Presets menu (see page 46) or use the corresponding remote control buttons.

Display Color - Common Settings: Use the Display Color - Common Settings settings to adjust the color balance at the DHD Controller output. These settings are saved independently for each input and display mode.

•Gain: Use the Gain controls to correct color imbalances in the bright areas of the image. A good way to do this is to use a test pattern consisting mostly of solid white areas, such as an 80 IRE “window” pattern. If the white areas contain traces of red (Pr), green (Y) or blue (Pr), decrease the Gain for that color.

•Offset: Use the Offset controls to correct color imbalances in the dark areas of the image. A good way to do this is to use a test pattern consisting mostly of dark gray areas, such as a 30 IRE “window” pattern. If the gray areas contain traces of red (Pr), green (Y) or blue (Pr), decrease the Offset for that color.

• Gamma: Select Gamma from the Display Color - Common Settings menu to choose a de-gamma curve. Used correctly, the Gamma control can improve contrast while maintaining good details for blacks and whites. If excess ambient light washes out the image and it becomes difficult or impossible to see details in dark areas, lower the gamma setting to compensate. This improves contrast while maintaining good details for blacks. Conversely, if the image is washed out and unnatural, with excessive detail in black areas, increase the setting.

• Mode: With the LS-100d, two Gamma adjustment modes are available: Simple or

Advanced. The two modes are mutually exclusive; when you select the Simple mode, the Advanced selection in the Gamma menu is grayed out. Likewise, when you select Advanced, the Simple selection is grayed out.

• Simple: Use the Simple Gamma control to perform gamma correction at the display

according to a simple power law gamma function. The value chosen here corresponds to the power variable in this equation:

You must enter a passcode to access the Calibration menu.

IMINAR

PRE

Operation

CalibrationUse the Calibration menu to perform advanced picture quality adjustments. This menu

Calibration

ISF Settings

Display Color Input Image

Input Color Save ISF Night Save ISF Day Copy/Paste Output Shift Image Alignment Splash Configure OSD Position

Output = Input

The DHD Controller applies this gamma curve to all three primary color channels (red, green and blue).

• Advanced: To select a custom gamma curve, select Mode from the Gamma menu and set it to Advanced. Then, select Advanced from the Gamma menu to select one of up to 20 pre-programmed gamma tables. Custom gamma tables provide the ability to perform complex, non-linear gamma correction on each primary color channel independently of the others.

Lightstyle™ Series LS-100d Installation/Operation Manual 49

Power

Operation

• Color Temp: Select Color Temp from the Display Color - Common Settings menu to adjust the color temperature. Color temperature establishes the “color of gray” by adjusting the 75% white point to various color points.

What are “color points?” A “color point” is an x/y coordinate pair that defines a color’s location on the standard CIE chromaticity graph, shown in Figure 4-7. (CIE stands for “Commission Internationale de l’Éclairage” (International Commission on Illumination), the organization responsible for color measurement and management standards.)

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0.0

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Figure 4-7. CIE 1931 Chromaticity Diagram

• Simple: Select Simple mode from the Color Temp menu (with the LS-100d, this is

the only choice) to choose one of four color temperature presets: 5500K, 6500K,

PRE

7500K and 9300K. The default setting, 6500K, is appropriate for most situations. Higher settings produce a “bluer” picture; lower ones impart a reddish hue to the image.

Cyan

IMINAR

Blue

Green

D93

Yellow

D50

D65

5000

5714

6667

8000

10000

4000

3333

2222

2500

2000

2857

Magenta

Red

Table 4-2 lists the x- and y-coordinates for each color temperature preset.

Table 4-2. Color Temperature Presets and Associated Color Points

Color Temperature Preset

5500K 0.332 0.348

6500K 0.313 0.329

7500K 0.299 0.315

9300K 0.284 0.298

50 Lightstyle™ Series LS-100d Installation/Operation Manual

Associated x/y Values

• Color Gamut: Select Color Gamut from the Display Color - Common Settings menu to

select a color gamut (range) that may be different from the default color gamut.

Each setting defines the precise hue of each primary (red, green and blue) and secondary (yellow, cyan and magenta) color component used to generate the millions of colors produced in displays. Changing this setting relocates the “triangle” for possible colors (see Figure 4-7). For example, changing the x/y coordinates for red moves the color closer to either orange or violet, which in turn affects all displayed colors having a red component.

Operation

Note

• Auto automatically chooses the appropriate color gamut:

• SMPTE C for NTSC, 480i and 480p sources.

• EBU for PAL, SECAM, 576i and 576p sources.

• REC709 for all other sources.

• Select REC709 to use the color gamut defined in ITU-R BT.709-5.

• Select SMPTE-C to use the color gamut defined in SMPTE 170M-1999.

• Select EBU to use the color gamut defined in EBU Tech. 3213-E.

• Select Native for Runco's recommended Personal Color Equalizer preset for typical video sources. It displays the fully saturated LED color gamut with appropriate color brightness and hue settings.

• Select DCI to use the color gamut defined in Digital Cinema System Specification Version 1.2.

• Select PCE to use the Personal Color Equalizer feature of the LS-100d. PCE lets you define a custom color gamut. Refer to the next section, PCE, for instructions on how to do this.

Table 4-3 lists the Color Gamut settings and associated x- and y-coordinates for each primary and secondary color component.

The DHD Controller uses the Color Gamut settings for all display modes on a given input.

IMINAR

Table 4-3. x/y Color Gamut Values

Color

Component

Red 0.640 0.330 0.635 0.340 0.640 0.330 0.680 0.320

Yellow 0.419 0.505 0.421 0.506 0.418 0.502 0.425 0.548

Green 0.300 0.600 0.305 0.595 0.290 0.600 0.265 0.690

Cyan 0.225 0.329 0.228 0.326 0.220 0.329 0.205 0.360

Blue 0.150 0.060 0.155 0.070 0.150 0.060 0.150 0.060

Magenta 0.321 0.154 0.318 0.162 0.328 0.158 0.342 0.154

Lightstyle™ Series LS-100d Installation/Operation Manual 51

REC709 SMPTE “C” EBU DCI

xyxyxyxy

PRE

Color Gamut Settings and Associated x/y Values

Operation

•PCE: To use the Personal Color Equalizer to define a custom color gamut, choose the “PCE” Color Gamut setting (refer to Color Gamut on page 51). Then, choose PCE from the Display Color - Common Settings menu and press ENTER.

Note

• Hue/Saturation/Level: PCE provides the ability to define a custom color gamut in

terms of primary (red, green and blue) and secondary (yellow, cyan and magenta) color hues, saturation and level (brightness).

Each control operates only on the color specified. Surrounding colors are linearly interpolated based on their distance from each of these colors. In the CIE 1931 Yxy coordinate system (see Figure 4-8), Hue rotates the color coordinates around the white point, Saturation adjusts the coordinate's distance from white and Level adjusts the luminance (Y) of the color relative to white.

0.9

0.8

0.7

0.6

The DHD Controller uses the PCE settings for all display modes on a given input.

Hue

IMINAR

Saturation

Hue

0.5

0.4

PRE

Figure 4-8. Effect of PCE Hue and Saturation Controls

0.3

0.2

0.1

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

• White Balance: To precisely adjust the white point associated with the custom

color gamut, choose White Balance from the PCE sub-menu. These controls operate identically to the Gain controls in the Display Color - Common Settings menu (described on page 49).

Hue

Saturation

Hue

52 Lightstyle™ Series LS-100d Installation/Operation Manual

Display Color - Projector Settings: These settings are also saved independently for each input and display mode.

• SatCo (BrilliantColor™): Select SatCo (BrilliantColor™) from the Display Color Projector Settings menu to enable (Low/High) or disable (Off) BrilliantColor processing, which improves brightness in grays and secondary colors. The default is

Off.

Input Image: The Input Image controls are functionally similar to those in the Picture

menu (refer to page 40), but are accessible only by entering the Calibration menu passcode.

Operation

Note

Input Color: The Input Color controls are similar to those in the Display Color menu (see above), but adjust the color balance of the incoming signal. These settings are also saved independently for each input and display mode.

•Gain/Offset (HD1, HD2 and Component/SCART inputs only): These controls operate similarly to those in the Display Color - Common Settings menu (described on page 49), but affect the Y, Pb and Pr signal components rather than the red, green and blue channels.

•Chroma Delay: use the Chroma Delay control to correct a mis-aligned image from a composite video source. Chroma delay in an image causes color shifts to occur to the left of the vertical edge transitions, producing artificial shadows or a “halo” effect. If necessary, adjust this setting to eliminate them.

•Noise Filter: To apply noise filtering to the input signal, select Noise Filter from the Input Color menu. The Noise Filter is useful for clearing up noisy images from 480i video sources.

Use the left- or right-arrow buttons to select the desired amount of noise reduction, keeping in mind that higher settings (which reduce high frequencies) may also “soften” the image.

The Input Image settings establish the “zero point” for the Picture menu settings, whose values represent offsets from the Input Image settings. For example, if you set Brightness to 10 in this menu, setting Brightness to 10 in the Picture menu results in an actual setting value of 20 (10+10).

IMINAR

PRE

Save ISF Night/Save ISF Day: Whenever you make a change to the ISF settings, you should always save it. Select Save ISF Night or Save ISF Day from the Calibration menu to do this.

Lightstyle™ Series LS-100d Installation/Operation Manual 53

Operation

Copy/Paste - Memory Preset: You can copy and paste settings from one memory

Copy/Paste

Memory Preset Aspect Ratio

Memory Preset

Copy Settings Paste Settings

preset to another. This gives you a convenient starting point for creating a new preset based on an existing one, to make the calibration process less time-consuming.

For example, you can use the Copy/Paste Memory Preset feature to:

• Apply settings from HDMI 1 to HDMI 2, or from HD1 to HD2.

• Calibrate an input for 720p source signals, then use those settings for 1080i sources.

• Duplicate ISF Night settings for a given source and signal format and save them in the Custom 1 memory preset.

Copied From: Input Source HDMI 1 Signal Format 1080p/60 Memory Preset ISF Night

Copy/Paste - Aspect Ratio: You can also copy and paste certain settings, such as

Copy/Paste

Memory Preset Aspect Ratio

Aspect Ratio

Copy Settings Paste Settings

PRE

To use this feature, select Copy/Paste from the Calibration menu, then select Memory Preset.

•Memory Preset - Copy Settings: Select Copy Settings from the Copy/Paste Memory Preset menu to place the settings for the current input source, signal format (resolution and frame rate) and memory preset onto a “clipboard,” which is a temporary memory location. When you do, the message “Settings Copied” briefly appears on-screen. The Copy/Paste menu then re-appears, indicating the source of the copied settings.

Note

•Memory Preset - Paste Settings: To apply the settings on the clipboard to a different input source, signal format and/or memory preset, do any or all of the following:

• Switch to another input (for example, from HD1 to HD2).

• Change the output signal format at the source (for example, from 720p/60 to

• Switch to another Memory Preset (for example, from ISF Night to Custom 1).

Then, select Paste Settings from the Copy/Paste Memory Preset menu. If you want

to keep these new settings, you must save them! (Refer to Save ISF Night/Save ISF Day on page 53 or Memory Presets on page 46.)

those for Output Shift and Image Alignment (refer to page 55) from one aspect ratio or “screen” (refer to Screen on page 40) to another.

To do this, select Copy/Paste from the Calibration menu, then select Aspect Ratio.

•Aspect Ratio - Copy Settings: Select Copy Settings from the Copy/Paste Aspect Ratio menu to place the Output Shift and Image Alignment settings for the current aspect ratio onto a “clipboard,” which is a temporary memory location. When you do, the message “Settings Copied” briefly appears on-screen. The Copy/Paste menu then re-appears, indicating the source of the copied settings.

1080i/60).

Copied settings are not retained after a power cycle.

IMINAR

Copied From: Aspect Ratio 16:9 Screen Screen 1

Note

Copied settings are not retained after a power cycle.

54 Lightstyle™ Series LS-100d Installation/Operation Manual

•Aspect Ratio - Paste Settings: To apply the Output Shift and Image Alignment settings on the clipboard to a different aspect ratio and/or screen, do either of the following:

• Switch to another aspect ratio (for example, from 16:9 to Cinema).

• Switch from Screen 1 to Screen 2 or vice versa.

Then, select Paste Settings from the Copy/Paste Aspect Ratio menu. The new settings are saved automatically.

Output Shift: The Left/Right, Up/Down, Width and Height controls in the Output Shift menu are similar to those in the Input Position menu, except that they change the characteristics of the output signal. These settings are saved independently for each

aspect ratio and screen selection (refer to Screen on page 40).

• Screen Masking: .This control adjusts the amount of cropping on each edge of the

output image. This differs from the regular Overscan control in two ways:

• It allows separate adjustments on each edge; and

• It is saved per aspect ratio, per screen (as opposed to per connector, per mode).

This is useful for installations where the aspect ratio of the screen doesn’t exactly match the aspect ratio of the display.

Operation

Image Alignment: Use the controls in the Image Alignment menu to ensure proper image geometry; that is, a perfectly rectangular projected image with no keystoning or pincushion. For detailed instructions, refer to Adjusting the Image Geometry on page 32.

Splash Configure: Use the Splash Configure menu to control the appearance and behavior of the “splash” screen that appears on the display upon power-up.

•Owner Name/ISF Calibrated/ISF Other: You can have the LS-100d display the owner’s name, your name, the phrase “ISF Calibrated” and/or any other string, up to 30 characters in length.

Use the up or down cursor button to select a character. Use the right and left cursor buttons to change the cursor position. Press MENU when you have finished entering text.

• Splash Timer: When you turn on the LS-100d, it projects a welcome screen with the Runco and ISF logos, along with the personalized information you enter as described above. Select Splash Timer from the Splash Configure menu to set the amount of time for which this screen appears. The range is from 5 to 60 seconds, in one-second increments. Press or to set the timer, then press MENU.

• Splash Enable: When you have finished customizing the splash screen, select Splash Enable from the Splash Configure menu. Then, select On and press ENTER.

OSD Position: To adjust the position of the OSD, select OSD Position from the Calibration menu and press ENTER.

PRE

IMINAR

Press or to select “Hor.” or “Ver.” Then, press or to change the position.

Lightstyle™ Series LS-100d Installation/Operation Manual 55

Operation

➤

Service

Test Video Input Names Display Device Network Color Space Triggers Miscellaneous Sync Threshold HDMI Front Panel Brightness Auto Power Off Standby Mode System Reset

Service Use the Service menu to access advanced projector configuration settings. This menu

should be used by ISF-certified technicians only.

Note

Test Video: Select Test Video from the Service Menu to access the internal test patterns on the DHD Controller. Table 4-4 lists the available test patterns and describes their suggested usage.

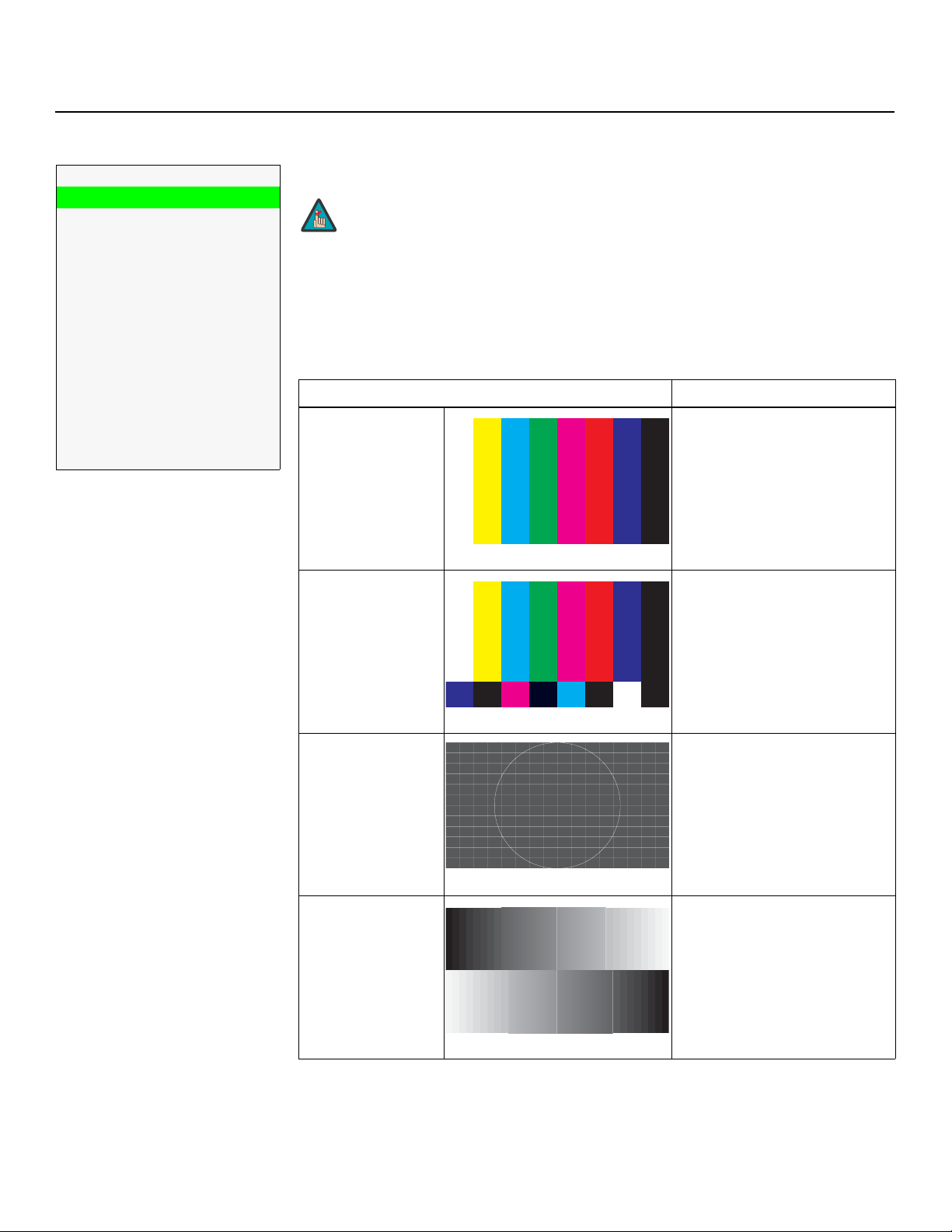

Table 4-4. Test Patterns and Their Suggested Usage

Color Bars 1

You must enter a passcode to access the Service menu.

Pattern Suggested Usage

Use this pattern when making color saturation and tint adjustments.

IMINAR

Color Bars 2

PRE

Focus

Grey Bars

Use this pattern when making color saturation and tint adjustments.

Use this pattern when adjusting the focus.

Use this pattern when making brightness, contrast or white balance (gain/offset) adjustments.

Press MENU to exit test pattern mode.

56 Lightstyle™ Series LS-100d Installation/Operation Manual

Input Names: You can give each DHD Controller input a descriptive name. For example, you may want to change the default input name to the type of source component connected to it: “VCR,” “DVD,” “Laptop” et cetera. Input names can be up to 12 characters long.

To edit an input name, select Input Names from the Service menu. Press or to select an input and press ENTER. Use the or buttons to change a character; press

or to select a character to change. When you have finished editing the input name,

press ENTER or MENU.

To restore the default input name, press repeatedly to highlight that input name in the “Restore” column. Then, press ENTER.

Display Device - Configure: The options in the Display Device - Configure menu allow you to change the picture orientation or access other, display-device specific functions.

•Installation – Orientation: Select Installation from the Display Device - Configure menu, then select Orientation to change the picture orientation to suit the method of installation (Floor Front, Floor Rear, Ceiling Front or Ceiling Rear). Or, for front-projection installations, use the Auto setting to have the projector automatically determine the orientation (floor or ceiling) using an internal sensor.

•Diagnostics: Select Diagnostics from the Display Device - Configure menu, then select Red, Green, Blue, Yellow, Cyan or Magenta to display only that color channel (simulating a filter of that color). This can be useful for calibration or measurement purposes.

IMINAR

To restore the normal picture (all colors), select White.

• Altitude: Select Altitude from the Display Device - Configure menu to control the operation of the projector’s cooling fan.

Input Names

C o mp o s i t e 1 C o mp o s i t e 2 C o mp o s i t e 3 C o mp o n e n t H D 1 H D 2 S CA R T H D M I 1 H D M I 2 H D M I 3 H D M I 4

Operation

Restore

Composite 1 Composite 2 Composite 3 Component HD 1 HD 2 SCART HDMI 1 HDMI 2 HDMI 3 HDMI 4

In most cases, the default setting (Auto) will maintain the correct operating temperature. If the projector frequently turns off due to overheating, or in certain high-altitude operating environments, you may need to change this setting to High.

Lightstyle™ Series LS-100d Installation/Operation Manual 57

PRE

Operation

Network: The options in the Network menu allow you to configure the network communication features.

• IP Configuration: Select IP Configuration from the Network menu to either set the IP address, subnet mask and default gateway of the DHD Controller manually or obtain these settings automatically, from a DHCP (Dynamic Host Configuration Protocol) server. (Most broadband routers and gateways support DHCP.) You can also test the network connection from this menu.

• DHCP: To enable the DHCP client in the DHD Controller, select DHCP from the IP

Configuration menu and set it to On. With this setting, the DHD Controller’s IP address, subnet mask and default gateway are assigned by the local DHCP server.

To manually configure these values, set DHCP to Off.

Note

• IP Address: Select IP Address from the IP Configuration menu to manually

configure the IP Address of the DHD Controller, as follows:

1. Press or to select the first, second, third or fourth byte of the address.

2. Press or to set the value of that byte. The range is from 0 to 255 inclusive.

3. Repeat Steps 1 and 2 for all four bytes of the address.

4. Press MENU when you have finished setting the address.

• Subnet Mask: Select Subnet Mask from the IP Configuration menu to manually

configure the IP subnet mask. The procedure is similar to that for setting the IP address.

• Default Gateway: Select Default Gateway from the IP Configuration menu to

manually configure the default IP gateway. The procedure is similar to that for setting the IP address.

• Communication Test: Select Communication Test from the IP Configuration menu

to verify proper operation of the network communication link.

PRE

To start the test, select Start Test from the Communication Test menu. The DHD Controller displays the message “Performing Communication Test.” When the test completes, the DHD Controller displays either “Failed” (along with the error that occurred) or “Succeeded.”

• Auto Firmware Upgrade: Select Auto Firmware Upgrade from the Network menu to enable automatic detection of a newer version of the DHD Controller firmware. If one is found, you can configure the DHD Controller to install it automatically. These features make it easier to keep your DHD Controller firmware up-to-date.

• Auto Check For New Firmware: To have the DHD Controller automatically check

for firmware updates at periodic intervals, select Auto Check for New Firmware from the Auto Firmware Upgrade menu and set it to On. If you prefer to do this manually, set it to Off and use the Check For New Firmware sub-menu (described below).

• Auto Perform Upgrade: If the “Auto Check For New Firmware” process

determines that a newer firmware version than the one currently installed is available, you can have the DHD Controller automatically download and install it. To do this, select Auto Perform Upgrade from the Auto Firmware Upgrade menu and set it to On. The upgrade will occur the next time the DHD Controller is “power-cycled” (powered off, then on again).

IMINAR

The IP Address, Subnet Mask and Default Gateway items in the IP Configuration menu are disabled (grayed out) when DHCP is enabled.

58 Lightstyle™ Series LS-100d Installation/Operation Manual

If you prefer to do this manually, set it to Off. The DHD Controller will ask if you want to perform the upgrade the next time it is power-cycled.

• Check For New Firmware: To have the DHD Controller check for new firmware on demand (and perform an upgrade if it finds a new version), select Check For New Firmware from the Auto Firmware Upgrade menu. If the DHD Controller finds a new firmware version, select Ye s to perform the upgrade or No to return to the previous menu.

• E-Mail Notification: Select E-Mail Notification from the Network menu to specify when and to whom the DHD Controller sends error and service notification messages via e-mail.

The notification messages are in the following format:

Operation

To: [E-Mail Address; see below] From: do-not-reply@runco.com Subject: [Type of notification] from Runco DHD4 Body:

This is an automated message sent from the Runco DHD4:

Notification: [One of the following:

“DHD Error” / “Display Error” “Periodic Service Notification” “Lamp Life Notification” / “Calibration Data”]

Detailed Description: [ If a DHD Error, one of the following:

“Fan Failure 1” / “Fan Failure 2” “Overtemp 1” / “Overtemp 2” “Initialization Failure”

If a Display Error, a device-specific error message such as “Lamp Door Open”

If a Periodic Service Notification, the elapsed time since the last notification

If a Lamp Life Notification, the number of hours

PRE

the lamp has been in service

If a Calibration Data message,

“See Attached File” ] Serial Number: [DHD Controller serial number] Customer Information: [From “Customer Information“ sub-menu;

see below]

IMINAR

Best Regards,

Runco International, LLC 1195 NW Compton Drive Beaverton, OR 97006 1-800-237-8262

• E-Mail Address: To specify the destination e-mail address for error and service

notifications, select E-Mail Address from the E-Mail Notification menu. The procedure is similar to that for setting the IP address (refer to IP Configuration on page 58). Enter up to 45 alphnumeric characters.

Lightstyle™ Series LS-100d Installation/Operation Manual 59

Operation

• Error Notification: To have the DHD Controller send a message to the destination e-mail address when a “DHD Error” or “Display Error” occurs, select Error Notification from the E-Mail Notification menu and set it to On.

• Error Notification to Runco: To have the DHD Controller send an e-mail message to Runco Customer Support when a “DHD Error” or “Display Error” occurs, select Error Notification to Runco from the E-Mail Notification menu and set it to On.

• Periodic Service Notification: You can have the the DHD Controller send periodic reminders via e-mail to perform regular maintenance tasks. To do this:

1. Select Periodic Service Notification from the E-Mail Notification menu.

2. Highlight Enable and press ENTER.

3. Highlight On and press ENTER.

4. Press MENU.

5. Highlight Timer and press ENTER.

6. Press or to set the notification interval in months. The range is from 1 to

255 inclusive; the default is 12 months.

7. Press MENU.

• Lamp Life Notification: To have the DHD Controller send a message to the destination e-mail address when the lamp hour counter reaches a certain threshold, select Lamp Life Notification from the E-Mail Notification menu. Then:

1. Highlight Enable and press ENTER.

2. Highlight On and press ENTER.

3. Press MENU.

4. Highlight Lamp Hours and press ENTER.

5. Press or to set the notification threshold in hours. The range is from 100 to

6. Press MENU.

• Customer Information: Select Customer Information from the E-Mail Notification menu to supply this information to the DHD Controller, which includes it in all e-mail

PRE

notification messages. Six lines (up to 30 characters per line) of text are provided; use them however you wish.

1. Press or repeatedly to select a line of text to edit.

2. Press ENTER.

3. Press or repeatedly to set the highlighted character.

IMINAR

10,000 hours; the default is 1,000 hours.

4. Press (or ) to select the next (or previous) character. Use the and

buttons to change it.

5. Press ENTER when you have finished editing that line of text.

6. Repeat Steps 1 through 5 for each line of text you want to edit.

7. Press MENU when you have finished entering customer information.

• E-Mail Calibration Data: To have the DHD Controller collect all calibration data, attach it to a message and send it to the destination e-mail address, select E-Mail Calibration Data from the E-Mail Notification menu. To confirm this action, select Ye and press ENTER.

To cancel and return to the previous menu, select No.

60 Lightstyle™ Series LS-100d Installation/Operation Manual

• Remote Network Control: Select Remote Network Control from the Network menu to enable or disable control of the DHD Controller via an IP connection (typically using a web browser). Set it to On to allow all incoming remote network connectivity. Set it to Off to disable any incoming network communication that was not initiated by the DHD Controller.

Operation

Note

Color Space: Select Color Space from the Service menu to choose the color space of the source signal for HDMI, RGB, and component connections.

• The default setting, Auto, functions as follows:

• HDMI: If the Auxiliary Video Information (AVI) infoframe contains color space and/or

range data, the DHD Controller uses that information. Otherwise, for RGB sources, the DHD Controller uses the RGB-Video color space. For component SDTV and EDTV resolutions, REC601 is used. For other component video resolutions, REC709 is used.

• RGB: If Hsync or Vsync signals are present, the DHD Controller uses the RGB-PC

color space. Otherwise, REC601 is used for SDTV and EDTV sources, and REC709 for all other sources.

• Component: For SDTV and EDTV resolutions, the DHD Controller uses the

REC601 color space. For all other resolutions, REC709 is used.

In most cases, the Auto setting determines the correct color space to use. If it does not, you can force the DHD Controller to use a specific color space. Choose one of the following:

• REC709 sets the color space matrix to that defined in ITU-R BT.709.

• REC601 sets the color space matrix to that defined in ITU-R BT.601.

• RGB-PC uses RGB color space and sets black at 0,0,0 RGB and white at 255,255,255 RGB, assuming an 8-bit image.

• RGB-Video uses RGB color space and sets black at 16,16,16 RGB and white at 235,235,235, assuming an 8-bit image, to correspond to the luminance values defined in digital component standards.

This setting has no effect on the E-Mail Notification or Auto Firmware Upgrade functions.

IMINAR

PRE

Triggers: Select Triggers from the Service menu to configure the 12-volt trigger outputs. You can assign one or more trigger outputs to each aspect ratio. Those triggers are then activated by selecting that aspect ratio.

If your LS-100d is equipped with an anamorphic lens, assign at least one trigger output (the same one to which the lens motor is connected) to the Cinema and Virtual Cinema aspect ratios.

Miscellaneous: Select Miscellaneous from the Service menu to set the following options:

• Language: Select Language from the Miscellaneous menu and press the up- or

down-arrows to select the OSD Language (English, Français, Deutsch, Italiano, Español, Svenska, (Simplified Chinese), (Traditional Chinese), Português, (Russian), (Japanese) or (Korean)).

•OSD Timer: Select OSD Timer from the Miscellaneous menu to set the OSD Timer, which controls how long the menus remain on-screen after selecting them. Select from 5 to 60 seconds, in one-second increments. Or, set the timer to 0 (disabled) if you want the menus to remain on-screen indefinitely.

Lightstyle™ Series LS-100d Installation/Operation Manual 61

Operation

•OSD Messages: When you select a new aspect ratio, input source or memory preset, the DHD Controller briefly displays an on-screen message confirming your new selection. To prevent the display of these messages, select OSD Messages from the Miscellaneous menu to and set it to Off.

•Blank Screen Color: Select Blank Screen Color from the Miscellaneous menu to select the color that appears when no incoming signal is present. The range is from 0 to 255 inclusive for each color component (red, green and blue).

• Sidebar Color: Select Sidebar Color from the Miscellaneous menu to change the color of the inactive image area. The range is from 0 to 255 inclusive for each color component (red, green and blue). The inactive image area is on either side of the active image area when using the 4:3 aspect ratio.

• Film Mode: Use Film Mode to smooth out moving images from interlaced, standard-definition (SD) sources. In most cases, the DHD Controller detects the proper “pull-down” rate and vertical frequency. However, if your source is jittery and/or tearing you may want to enable Film Mode to ensure stable processing for that source.

•CUE (Chroma Upsampling Error) Correction: Some DVD players use MPEG decoders that do not correctly “upsample” the 4:2:0 format chroma information on the DVD to the 4:2:2 or 4:4:4 format required by the video encoder of the display device.

This so-called “chroma bug” sometimes causes streaky or spiky horizontal lines running through the chroma channel. It is most noticeable in static, interlaced scenes and on diagonal edges (especially red ones). Set CUE to On to correct this issue.

• Remote Code: Select Remote Code from the Miscellaneous menu to set the infrared (IR) code set to which the DHD Controller will respond. By default, it is set to 17. You can change this setting if either:

• Another device in the theater (a DVD player, for example) is responding to

commands from the DHD Controller remote control (Figure 2-5) in ways that are unpredictable or undesirable.

• You have multiple DHD Controllers and want to control them independently, as

opposed to broadcasting commands from a single remote to all of them. In this scenario, you can use multiple remotes programmed to use different IR codes. Or, you can use a single remote and change the IR code as needed to address a specific DHD Controller.

IMINAR

PRE

Tip

When you change a remote code on the DHD Controller, you must re-program the DHD Controller remote control to send that same code. To do this:

1. Press and hold the LIGHT button on the remote control for approximately three seconds, or until the LED on the remote lights solid red.

Use the DHD Controller front-panel keypad to change the IR code to which the controller will respond. Then, change the code sent by the remote to match as described below.

LIGHT

2. Enter a new two-digit code between 00 and 31 inclusive. Include a leading zero for single-digit codes; for example, enter 9 as “09.”

3. The LED turns off to confirm the code change. If you enter an invalid code, the LED flashes for three or four seconds. Try again, entering a valid code.

62 Lightstyle™ Series LS-100d Installation/Operation Manual

Sync Threshold: Select Sync Threshold to adjust the threshold at which negative pulses on the component video green/luma channel are interpreted to be sync pulses.

Sync Threshold adjustment is occasionally necessary when a DVD player or HDTV source signal drops “below black” (for example, during scenes with explosions or when subtitles are present) and causes the projector to temporarily lose sync. If the sync level from the source is persistently too low, the display device won’t sync with the source at all.

The range is from 0 (approximately 60 millivolts (mV)) to 15 (approximately 300 mV).

HDMI: Select HDMI from the Service menu to set the following options affecting communication between HDMI sources, the DHD Controller and the LS-100d.

• HDMI EDID Extension: Extended display identification data (EDID) is a data structureprovided by a display device to describe its capabilities to a graphics card. It is what enables a modern personal computer to know what kind of monitor is connected.

Some modern display devices provide more information via EDID than others, in the form of “extensions.” Some computer graphics cards do recognize or properly interpret this extended EDID information.

Select HDMI EDID Extension from the HDMI menu to specify whether or not the EDID extensions from the display device are passed through to the sources connected to the HDMI 1, HDMI 2, HDMI 3 or HDMI 4 inputs. By default, the extensions are on. Change these settings only if HDMI EDID incompatibility issues arise.

•Audio Format: Select Audio Format from the HDMI menu to choose an option for routing the audio signal from an HDMI source. With the LS-100d, the recommended setting is HDMI Out (Audio Only). (This is the default setting.)

•CEC: This control chooses whether or not the DHD Controller responds to HDMI CEC control messages from a disc player, set-top box or other HDMI source. It also enables or disables CEC communication between the DHD Controller and projector.

IMINAR

Operation

The default (and recommended) setting is On. For more information about CEC, refer to Using HDMI CEC Messages on page 87.

Note

• HPD Toggle Rejection: Select HPD Toggle Rejection from the HDMI menu to specify whether or not the DHD Controller ignores extraneous Hot Plug Detect (HPD) signal state changes from a downstream HDMI device (third-party display or audio/video receiver).

The default setting, Auto, disables HPD toggle rejection on the LS-100d. Use the other settings to troubleshoot compatibility issues or reduce the amount of time needed to lock to an incoming signal.

1. Setting CEC to Off prevents communication between the DHD

Controller and projector, and should be done only for troubleshooting purposes.

PRE

2. The DHD Controller does not transmit HDMI CEC control messages from the “HDMI Audio Out” connector.

Lightstyle™ Series LS-100d Installation/Operation Manual 63

Operation

Front Panel Brightness: Select Front Panel Brightness from the Service menu to adjust the brightness of the front-panel LED and LCD status indicators.

Logo LED

• Logo LED: Select Logo LED from the Front Panel Brightness menu to adjust the brightness of the large, illuminated logo on the left side of the display. The range is from 0 (off) to 31.

Note

• Standby LED: Select Standby LED from the Front Panel Brightness menu to change the behavior of the front-panel STANDBY indicator LED. When set to ON, the LED lights amber when the system is in standby mode; otherwise, it is off. When set to OFF, the LED is always off.

Note

During a firmware upgrade, this LED lights at full brightness regardless of the Logo LED setting.

IMINAR

During a firmware upgrade, this LED lights at full brightness regardless of the Standby LED setting.

LCD

Standby LED

•LCD: Select LCD from the Front Panel Brightness menu to adjust the brightness of the front-panel LCD. The range is from 0 (off) to 4.

Auto Power Off: Select Auto Power Off from the Service menu to have the LS-100d turn itself off after a period of inactivity (no source signal present).

PRE

•Enable: By default, Auto Power Off is disabled. To enable it, select Enable from the Auto Power Off sub-menu and set it to On.

•Hours: The default time-out period is eight (8) hours; the range is from 1 to 24 hours.

64 Lightstyle™ Series LS-100d Installation/Operation Manual

Standby Mode: Select Standby Mode from the Service menu to control the DHD Controller’s power management feature.

•Choose Low Power (the default setting) to have the DHD Controller shut down completely when it is turned off. This conserves power but increases the amount of time required by the DHD Controller to start up when it is turned on.

• Fast Startup is a “quick-start” mode that keeps the DHD Controller running when it is turned off, even though it appears to be in standby mode. This results in much quicker startup times but consumes more power.

System Reset: To reset ALL controller settings (including image settings) back to their factory defaults, choose System Reset from the Service menu.

A confirmation message appears. Select Yes to continue with the reset or select No to cancel.

Caution

This action is not undoable. Proceed with caution! Before you

perform a System Reset, save your “Custom” Memory Presets (page 46) and ISF Day/Night Memory Presets (page 53).

Operation

IMINAR

PRE

Lightstyle™ Series LS-100d Installation/Operation Manual 65

Operation

Notes:

IMINAR

PRE

66 Lightstyle™ Series LS-100d Installation/Operation Manual

5. Maintenance and Troubleshooting

not require any routine maintenance. There are no user-serviceable or -replaceable parts. Unless you are a qualified, factory-trained Runco technician, do not attempt to repair or replace any system component yourself. You will void the product warranty if you do so.

encounter with the LS-100d Ultra Short-Throw LED Home Theater Projector and DHD Controller. If the suggested solutions fail to resolve the problem or if you encounter an issue not described here, please contact your Runco dealer or Runco Technical Support.

Table 5-1. Troubleshooting Chart

Symptom Possible Cause(s) Solution

MaintenanceThe LS-100d Ultra Short-Throw LED Home Theater Projector and DHD Controller does

TroubleshootingTable 5-1 provides some general guidelines for troubleshooting problems you may

The projector does not turn on.

The display and DHD Controller both turn on, but there is no picture and on-screen menus do not appear.

The display is on and menus appear, but there is no picture.

Image is too bright and/or lacks definition in the bright areas of the image.

• The projector is not plugged in or the AC outlet is not active.

• The DHD Controller is not plugged in or the AC outlet is not active.

• The remote control batteries have run out.

• Faulty or incorrect video connection from the DHD Controller to the display.

PRE

• Incorrect source selection.

• Source component is not turned on.

• Source component is connected incorrectly or not at all.

• Contrast is set too high. • Lower the contrast setting.

IMINAR

• Ensure that the projector is plugged in and that the AC outlet is active.

• Ensure that the DHD Controller is plugged in and that the AC outlet is active.

• Replace the batteries.

• Ensure that the HDMI output from the DHD Controller is properly connected to the display (see Figure 3-1).

• Try a known-good and/or shorter HDMI cable.

• Select the correct source.

• Turn on the source component.

• Check connections from the source component to the DHD Controller.

Image appears “washed out” and/or dark areas appear too bright.

Colors in the image are swapped; for example, reds appear blue or vice versa.

Lightstyle™ Series LS-100d Installation/Operation Manual 67

• Brightness is set too high. • Lower the brightness

• The Red/Pr, Green/Y or Blue/Pb outputs from the source are connected to the wrong inputs on the DHD Controller.

• Ensure that the source

setting.

outputs are connected to the correct DHD Controller input.

Maintenance and Troubleshooting

Table 5-1. Troubleshooting Chart (continued)

Symptom Possible Cause(s) Solution

RGB-HD or Component HD images appear “noisy” or drop out intermittently.

Computer images do not display correctly.

Images from an HDMI source do not display.

IMINAR

Video from an HDMI source lags behind audio.

• Tracking and Phase settings need adjustment.

• The DHD Controller is having difficulty detecting sync pulses from the source.

• The resolution and frequency of the video card in the computer are not compatible with the LS-100d.

• EDID compatibility issue.

• HDMI cable from source to DHD Controller is either defective or too long.

• Refer to Audio/Video

Synchronization Issues

on page 17.

• Adjust Tracking and Phase settings (refer to Input Position on page 44).

• Adjust the Sync Threshold setting (refer to Sync Threshold on page 63).

• Select a compatible resolution and vertical frequency (refer to Supported Timings on page 95).

• Set HDMI EDID Extension to “Off” (refer to HDMI EDID Extension on page 63).

• Try a known-good and/or shorter HDMI cable.

• Use an external A/V receiver with audio delay capability to synchronize the audio signal with the video signal.

The image is too large or too small.

PRE

• Image size needs adjusting. • Adjust the image size (refer to Input Position on page 44).

68 Lightstyle™ Series LS-100d Installation/Operation Manual

6. External Control

In addition to using the DHD Controller front-panel keypad or remote control unit, there are three methods of controlling the LS-100d and DHD Controller externally:

• Using a serial (RS-232) link to send ASCII commands and receive responses to those commands.

• Using discrete infrared (IR) codes to program a third-party remote control unit.

• Using an HDMI connection to send Consumer Electronics Control (CEC) commands from a BD player or other source component that supports CEC.

The following sections describe these methods.

The DHD Controller uses a simple text-based control protocol to take requests from control devices and to provide responses to such devices. This section describes how to send control messages over a serial link between the DHD Controller and an automation/control system or a PC running terminal emulation software.

Note

To interface the LS-100d with an automation/control system or a PC running terminal emulation software, connect it to the Display Control output of the DHD Controller as shown in Figure 3-1 and Figure 3-2. Connect your control system or PC to the RS-232 input of the DHD Controller as shown in Figure 3-9.

Configure the RS-232 controller or PC serial port as follows: no parity, 8 data bits, 1 stop bit and no flow control. Set the baud rate to 19200, to match that of the DHD Controller RS-232 port.

have the following format:

The serial communication protocol described here replaces the serial protocol used by legacy Runco products (manufactured prior to September 2011) that include the DHD Controller.

Runco recommends using this new protocol, as it is more concise and provides greater control than the old one. However, to maintain backward compatibility with existing automation/control system modules, the legacy Runco serial protocol is also supported.

IMINAR

PRE

6.1 Serial Communications

RS-232 Connection and Port Configuration

Command FormatCommands sent from an automation/control system or PC to the DHD Controller must

(www:xyz) [CR]

Where:

• ( and ) indicate the start and end of the command data. If these characters are present, the DHD Controller assumes that valid command data is present in the command string. Otherwise, the DHD Controller ignores the command.

• www indicates the command code. This field is case insensitive; for example, PWR, pwr and PwR are all equivalent.

• :x is the destination parameter. This is an optional parameter that indicates which memory the command is referencing. This parameter is reserved for future use.

Lightstyle™ Series LS-100d Installation/Operation Manual 69

External Control

➤

Response Format Responses sent from the follower to the initiator shall have the following format:

• y is the operand, which can have one of the following values:

? = “Get” operand + = “Increment” operand = = “Set” operand - = “Decrement” operand

• z is the value to set for this parameter. It can have one of two formats:

• Integer value: Any positive or negative number; for example, 100.

• String value: Any string surrounded by double quotes; for example, “This is a

string.”

• [CR] is the ASCII carriage return key (0x0D).

(u;www:x=z) [CR]

Where:

• ( and ) indicate the start and end of the command data. If these characters are

present, the DHD Controller assumes that valid command data is present in the command string. Otherwise, the DHD Controller ignores the command.

• “u;” indicates the response code. This is only used by followers responding to a valid CLI command received. For any response code other than 0, the follower echoes back the command received rather than filling in the fields listed below.

The response code can be one of the following:

• 0 = Command successfully processed

• 1 = Unknown command code

• 2 = Invalid operator

• 3 = Destination parameter not supported

• 4 = Setting not available

• 5 = Setting value not available

• 6 = Setting value not supported

• 7 = String too long

PRE

• 8 = Command not supported in standby mode

• 9 = Invalid parameter

• 10 = Error processing command

• 11 = Password not entered

• www indicates the command code. This field is case insensitive; for example, PWR, pwr and PwR are all equivalent.

• :x is the destination parameter. This is an optional parameter that indicates which memory the command is referencing. This parameter is reserved for future use.

• z is the new value (for Set, Increment or Decrement commands) or the current value (for Get commands) for this parameter. It can have one of two formats:

• Integer value: Any positive or negative number; for example, 100.

• String value: Any string surrounded by double quotes; for example, “This is a

string.”

• [CR] is the ASCII carriage return key (0x0D).

IMINAR

70 Lightstyle™ Series LS-100d Installation/Operation Manual

External Control

Here are some examples of serial commands and their responses:

Command Command Data Response

Power query when unit is powered on

Set power to 0 (off)

Increment brightness from 24 to 25

Invalid command

Invalid parameter (received string, expected integer)

Table 6-1. Serial Commands

Setting

Advanced Color Temp Auto Color Enable

(PWR?) [CR] (0;PWR=1) [CR]

(PWR=0) [CR] (0;PWR=0) [CR]

(BRT+) [CR] (0;BRT=25) [CR]

(ZZZ=0) [CR] (1;ZZZ=0) [CR]

(CON=”Some string”) [CR]

Command

Code

AAC R/W No 0 1 No 0 = Off; 1 = On

Read/

Write

(9;CON=”Some string”) [CR]

Inc/ Dec

Min

Value

Max

Value

Command and Response Examples

Serial Command ListTable 6-1 lists all supported commands.

String? Notes

Advanced Color Temp Diagnostic Color

Apply Image Alignment Values AIA R/W No 0 1 No 0 = Off; 1 = On

Altitude ALT R/W No 0 1 No 0 = Auto

PRE

Auto New Firmware Check ANF R/W No 0 1 No 0 = Off; 1 = On

Auto Power Off Enable APE R/W No 0 1 No 0 = Off; 1 = On

Auto Power Off Timer APT R/W Yes 1 24 No

Auto Perform Upgrade APU R/W No 0 1 No 0 = Off; 1 = On

Aspect Ratio Copy ARC W No N/A N/A No

Aspect Ratio Paste ARP W No N/A N/A No

Aspect Ratio ASP R/W No 0 6 No 0 = 4:3

AAD R/WNo06No0 = White

IMINAR

1 = Red 2 = Green 3 = Blue 4 = Yellow 5 = Cyan 6 = Magenta

1 = High

Action will be performed on any setting value

1 = 16:9 2 = Letterbox 3 = VirtualWide 4 = Cinema 5 = Virtual Cinema 6 = Native

Lightstyle™ Series LS-100d Installation/Operation Manual 71

External Control

Table 6-1. Serial Commands (continued)

Setting

Advanced Color Temp Test Pattern Enable

Image Alignment Bottom Left x BLX R/W Yes -100 100 No

Image Alignment Bottom Left y BLY R/W Yes -100 100 No

Image Alignment Bottom Middle y BMY R/W Yes -100 100 No

Brightness Offset BRO R/W Yes -50 50 No Picture menu

Brightness BRT R/W Yes -50 50 No Calibration -> Input Image menu

Image Alignment Bottom Right x BRX R/W Yes -100 100 No

Image Alignment Bottom Right y BRY R/W Yes -100 100 No

Blank Screen Blue BSB R/W Yes 0 255 No

Blank Screen Green BSG R/W Yes 0 255 No

Blank Screen Red BSR R/W Yes 0 255 No

CEC Enable CEC R/W No 0 1 No 0 = Off; 1 = On

Chroma Delay CHR R/WYes07No

Color Gamut CLG R/WYes06No0 = Auto

Command

Code

ATP R/W No 0 1 No 0 = Off; 1 = On

Read/

Write

Inc/ Dec

Min

Value

Max

Value

String? Notes

IMINAR

1 = REC709 2 = SMPTE C 3 = EBU 4 = Native 5 = DCI 6 = PCE

Color Offset CLO R/W Yes -50 50 No Picture menu

Color CLR R/W Yes -50 50 No Calibration -> Input Image menu

PRE

Color Space CLS R/W No 0 4 No 0 = REC601

1 = REC709 2 = RGB 3 = RGB Video 4 = Auto

Image Alignment Center x CNX R/W Yes -100 100 No

Image Alignment Center y CNY R/W Yes -100 100 No

Contrast CON R/W Yes -50 50 No Calibration -> Input Image menu

Contrast Offset COO R/W Yes -50 50 No Picture menu

Color Temp Simple CTS R/W No 0 4 No 1 = 5500K

2 = 6500K 3 = 7500K 4 = 9300K

CUE CUE R/W No 0 1 No 0 = Off; 1 = On

72 Lightstyle™ Series LS-100d Installation/Operation Manual

Table 6-1. Serial Commands (continued)

External Control

Setting

Display Blue Gain DBG R/W Yes -100 100 No

Display Blue Offset DBO R/W Yes -100 100 No

Default Gateway Byte 1 DE1 R/W Yes 0 255 No

Default Gateway Byte 2 DE2 R/W Yes 0 255 No

Default Gateway Byte 3 DE3 R/W Yes 0 255 No

Default Gateway Byte 4 DE4 R/W Yes 0 255 No

Diagnostic Color DGC R/W No 0 6 No 0 = White

Display Green Gain DGG R/W Yes -100 100 No

Display Green Offset DGO R/W Yes -100 100 No

DHCP DHC R/W No 0 1 No 0 = Off; 1 = On

Display Red Gain DRG R/W Yes -100 100 No

Command

Code

Read/

Write

Inc/ Dec

Min

Value

Max

Value

String? Notes

1 = Red 2 = Green 3 = Blue 4 = Yellow 5 = Cyan 6 = Magenta

IMINAR

Display Red Offset DRO R/W Yes -100 100 No

Error Notification ERN R/W No 0 1 No 0 = Off; 1 = On

Error Code ERR R No 0 No 0 = None

1 = Display Lamp Overtemp 2 = Display Ballast Overtemp 3 = Display Fan Init Failure 4 = Display Fan 1 Failure

PRE

Film Mode FLM R/W No 0 1 No 0 = Off; 1 = On

Fan 1 Speed FN1 R/W Yes 0 255 No

5 = Display Fan 2 Failure 6 = Display Fan 3 Failure 7 = Display Fan 4 Failure 8 = Display Fan 5 Failure 9 = Display Fan 6 Failure 10 = Display Fan 7 Failure 11 = Display Fan 8 Failure 12 = Display DMD Failure 16 = Display GPIO Failure 18 = Display Processor Failure 19 = Display Hardware I2C Failure 20 = Display Software I2C Failure 22 = Display Communication Error 25 = DHD Fan 1 Failure 26 = DHD Fan 2 Failure 27 = DHD Overtemp 1 28 = DHD Overtemp 2

Lightstyle™ Series LS-100d Installation/Operation Manual 73

External Control

Table 6-1. Serial Commands (continued)

Setting

Fan 2 Speed FN2 R/W Yes 0 255 No

Firmware Upgrade FWU W No N/A N/A No Action will be performed on any

Gamma Advanced GMA R/W Yes 0 20 No

Gamma Mode GMM R/W No 0 1 No 0 = Simple

Gamma Simple GMS R/W No 0 6 No 0 = 2.0

HDMI Audio Format HAF R/W No 0 2 No 0 = Combined

HDMI EDID Extension 1 HE1 R/W No 0 1 No

HDMI EDID Extension 2 HE2 R/W No 0 1 No

HDMI EDID Extension 3 HE3 R/W No 0 1 No

HDMI EDID Extension 4 HE4 R/W No 0 1 No

HPD Toggle Rejection HPD R/W No 0 1 No 0 = Off; 1 = On

Command

Code

Read/

Write

Inc/ Dec

Min

Value

Max

Value

String? Notes

IMINAR

setting value

1 = Advanced

1 = 1.8 2 = 2.2 3 = 2.35 4 = 2.5

1 = HDMI Out 1 2 = HDMI Out 2

0 = Off; 1 = On

Input Name 1 I01 R/W No N/A N/A Yes

Input Name 2 I02 R/W No N/A N/A Yes

Input Name 3 I03 R/W No N/A N/A Yes

Input Name 4 I04 R/W No N/A N/A Yes

Input Name 5 I05 R/W No N/A N/A Yes

Input Name 6 I06 R/W No N/A N/A Yes

Input Name 7 I07 R/W No N/A N/A Yes

Input Name 8 I08 R/W No N/A N/A Yes

Input Name 9 I09 R/W No N/A N/A Yes

Input Name 10 I10 R/W No N/A N/A Yes

Input Name 11 I11 R/W No N/A N/A Yes

Input Blue Gain IBG R/W Yes -32 32 No

Input Blue Offset IBO R/W Yes -32 32 No

Information Boot Version IBV R No N/A N/A Yes

Information Copied Aspect Ratio ICA R No N/A N/A Yes

PRE

12 characters maximum

74 Lightstyle™ Series LS-100d Installation/Operation Manual

Table 6-1. Serial Commands (continued)

External Control

Setting

Information Current Color Space ICC R No 0 3 Yes 0 = REC601

Information Copied Input Source ICI R No N/A N/A Yes

Information Copied Memory Preset

Information Copied Screen ICR R No N/A N/A Yes

Information Copied Signal Format ICS R No N/A N/A Yes

Information Display Name IDN R No N/A N/A Yes

Information Firmware Version IFV R No N/A N/A Yes

Input Green Gain IGG R/W Yes -32 32 No

Input Green Offset IGO R/W Yes -32 32 No

Information Horizontal Frequency IHF R No N/A N/A Yes

Information Input Resolution IIR R No N/A N/A Yes

information Micro Version IMV R No N/A N/A Yes

Input Source INS R/W No 0 10 No 0 = Composite 1

Command

Code

ICM R No N/A N/A Yes

PRE

Read/

Write

Inc/ Dec

Min

Value

Max

Value

String? Notes

IMINAR

1 = REC709 2 = RGB 3 = RGB Video

1 = Composite 2 2 = Composite 3 3 = Component 4 = HD 1 5 = HD 2 6 = SCART 7 = HDMI 1 8 = HDMI 2 9 = HDMI 3 10 = HDMI 4

Information Output Resolution IOR R No N/A N/A Yes

IP Address Byte 1 IP1 R/W Yes 0 255 No

IP Address Byte 2 IP2 R/W Yes 0 255 No

IP Address Byte 3 IP3 R/W Yes 0 255 No

IP Address Byte 4 IP4 R/W Yes 0 255 No

Information Pixel Clock IPC R No N/A N/A Yes

Input Position Height IPH R/W Yes 0 20 No

Input Position Left Right IPL R/W Yes -50 50 No

Input Position Up Down IPU R/W Yes -50 50 No

Input Position Width IPW R/W Yes 0 50 No

Lightstyle™ Series LS-100d Installation/Operation Manual 75

External Control

Table 6-1. Serial Commands (continued)

Setting

Input Red Gain IRG R/W Yes -32 32 No

Input Red Offset IRO R/W Yes -32 32 No

Information Signal Format ISF R No N/A N/A Yes

Information Serial Number ISN R No N/A N/A Yes

Information Sync Type IST R No 0 3 No 0 = None

Command

Code

Read/

Write

Inc/ Dec

Min

Value

Max

Value

String? Notes

1 = Separate 2 = Composite 3 = Sync-on-green

Information Vertical Frequency IVF R No N/A N/A Yes

Remote Key KEY W No 0 63 No 1 = On

Remote Key Repeat KRT W No 0 63 No

IMINAR

PRE

2 = Off 3 = Menu 4 = Enter 5 = Up 6 = Down 7 = Left 8 = Right 9 = 16:9 10 = 4:3 11 = Letterbox 12 = VirtualWide 13 = Video 1 14 = Component 17 = HD 1 18 = HD 2 19 = HDMI 1 20 = HDMI 2 21 = HDMI 3 22 = HDMI 4 23 = SCART 24 = Video 2 25 = Video 3 32 = Sleep Timer Off 33 = Sleep Timer 30 Mins 34 = Sleep Timer 60 Mins 35 = Sleep Timer 90 Mins 36 = Sleep Timer 2 Hours 37 = Sleep Timer 4 Hours 38 = Screen 1 39 = Screen 2 44 = Cinema 45 = Virtual Cinema 46 = Native 48 = ISF Night 49 = ISF Day 50 = Custom 1 51 = Custom 2 52 = Exit

76 Lightstyle™ Series LS-100d Installation/Operation Manual

Table 6-1. Serial Commands (continued)

External Control

Setting

Language LAN R/W No 0 9 No 0 = English

Image Alignment Left Middle x LMX R/W Yes -100 100 No

Image Alignment Left Middle y LMY R/W Yes -100 100 No

Lamp Life Notification Enable LNE R/W No 0 1 No 0 = Off; 1 = On

Lamp Life Notification Hours LNH R/W Yes 100 10,000 No

Logo LED Brightness LOG R/W Yes 0 31 No

Model Name MDL R No N/A N/A Yes

Memory Preset MMP R/W No 0 3 No 0 = ISF Night

Command

Code

Read/

Write

Inc/ Dec

Min

Value

Max

Value

String? Notes

IMINAR

1 = French 2 = German 3 = Italian 4 = Spanish 5 = Portuguese 6 = Simplified Chinese 7 = Traditional Chinese 8 = Swedish 9 = Russian 10 = Japanese 11 = Korean

1 = ISF Day 2 = Custom 1 3 = Custom 2

Memory Preset Copy MPC W No N/A N/A No

Memory Preset Paste MPP W No N/A N/A No

Memory Preset Reset MPR W No 0 3 No 0 = ISF Night

Memory Preset Save MPS W No 0 3 No

Noise Filter NFL R/W Yes 0 10 No

Noise Filter Offset NFO R/W Yes 0 10 No

Orientation ORI R/W No 0 4 No 0 = Floor Front

OSD Position Horizontal OSD R/W Yes 0 100 No

Output Shift Height OSH R/W Yes -50 0 No

Output Shift Left Right OSL R/W Yes -300 300 No

OSD Message Enable OSM R/W No 0 1 No 0 = Off; 1 = On

PRE

Action will be performed on any setting value

1 = ISF Day 2 = Custom 1 3 = Custom 2

1 = Ceiling Front 2 = Floor Rear 3 = Ceiling Rear 4 = Auto

Lightstyle™ Series LS-100d Installation/Operation Manual 77

External Control

Table 6-1. Serial Commands (continued)

Setting

OSD Timer OST R/W Yes 0 60 No Values from 1-4 are not allowed; if

Output Shift Up Down OSU R/W Yes -200 200 No

OSD Position Vertical OSV R/W Yes 0 100 No

Output Shift Width OSW R/W Yes -50 0 No

Overscan Mode OVM R/W No 0 1 No 0 = Zoom

Command

Code

Read/

Write

Inc/ Dec

Min

Value

Max

Value

String? Notes

increment or decrement is used, these values will be skipped.

1 = Crop

Overscan OVS R/W Yes 0 20 No

PCE Blue Hue PHB R/W Yes -100 100 No

PCE Cyan Hue PHC R/W Yes -100 100 No

PCE Green Hue PHG R/W Yes -100 100 No

PCE Magenta Hue PHM R/W Yes -100 100 No

PCE Red Hue PHR R/W Yes -100 100 No

Phase PHS R/W Yes 0 31 No

PCE Yellow Hue PHY R/W Yes -100 100 No

PCE Blue Level PLB R/W Yes -100 100 No

IMINAR

PCE Cyan Level PLC R/W Yes -100 100 No

PCE Green Level PLG R/W Yes -100 100 No

PCE Magenta Level PLM R/W Yes -100 100 No

PCE Red Level PLR R/W Yes -100 100 No

PCE Yellow Level PLY R/W Yes -100 100 No

Periodic Notification Enable PNE R/W No 0 1 No 0 = Off; 1 = On

Periodic Notification Months PNM R/W Yes 1 255 No

PCE Blue Saturation PSB R/W Yes -100 100 No

PCE Cyan Saturation PSC R/W Yes -100 100 No

PCE Green Saturation PSG R/W Yes -100 100 No

PCE Magenta Saturation PSM R/W Yes -100 100 No

PCE Red Saturation PSR R/W Yes -100 100 No

PCE Yellow Saturation PSY R/W Yes -100 100 No

PCE Blue White Balance Gain PWB R/W Yes -100 100 No

PRE

PCE Red White Balance Gain PWD R/W Yes -100 100 No

PCE Green White Balance Gain PWG R/W Yes -100 100 No

78 Lightstyle™ Series LS-100d Installation/Operation Manual

Table 6-1. Serial Commands (continued)

External Control

Setting

Power PWR R/W No 0 1 No 0 = Off; 1 = On

Input Name 1 Restore R01 W No N/A N/A No

Input Name 2 Restore R02 W No N/A N/A No

Input Name 3 Restore R03 W No N/A N/A No

Input Name 4 Restore R04 W No N/A N/A No

Input Name 5 Restore R05 W No N/A N/A No

Input Name 6 Restore R06 W No N/A N/A No

Input Name 7 Restore R07 W No N/A N/A No

Input Name 8 Restore R08 W No N/A N/A No

Input Name 9 Restore R09 W No N/A N/A No

Input Name 10 Restore R10 W No N/A N/A No

Input Name 11 Restore R11 W No N/A N/A No

Remote Code RMC R/W Yes 0 31 No

Image Alignment Right Middle x RMX R/W Yes -100 100 No

Command

Code

Read/

Write

Inc/ Dec

Min

Value

Max

Value

String? Notes

Action will be performed on any

setting value

Remote Network Control RNC R/W No 0 1 No 0 = Off; 1 = On

SatCo SAT R/W No 0 3 No 0 = Off; 2 = Low; 3 = High

Standby LED Enable SBL R/W No 0 1 No 0 = Off; 1 = On

Splash Configure String 1 SC1 R/W No N/A N/A Yes

Splash Configure String 3 SC3 R/W No N/A N/A Yes

IMINAR

30 characters maxSplash Configure String 2 SC2 R/W No N/A N/A Yes

PRE

Sidebar Color Blue SCB R/W Yes 0 255 No

Sidebar Color Green SCG R/W Yes 0 255 No

Screen SCN R/W No 0 1 No 0 = Screen 1

1 = Screen 2

Sidebar Color Red SCR R/W Yes 0 255 No

Send Errors to Runco SER R/W No 0 1 No 0 = Off; 1 = On

Sharpness Offset SHO R/W Yes -50 50 No Picture menu

Sharpness SHP R/W Yes -50 50 No Calibration -> Input Image menu

Screen Masking Bottom SMB R/W Yes 0 200 No

Screen Masking Test Pattern Enable

SME R/W No 0 1 No 0 = Off; 1 = On

Screen Masking Left SML R/W Yes 0 200 No

Lightstyle™ Series LS-100d Installation/Operation Manual 79

External Control

Table 6-1. Serial Commands (continued)

Setting

Screen Masking Test Pattern Mode Enable

Screen Masking Right SMR R/W Yes 0 200 No

Screen Masking Top SMT R/W Yes 0 200 No

Splash Enable SPE R/W No 0 1 No 0 = Off; 1 = On

Splash Timer SPT R/W Yes 5 60 No

Status STA RNo04No

Sync Threshold STH R/W Yes 0 15 No

Sleep Timer STM R/W No 0 5 No 0 = Off

Subnet Mask Byte 1 SU1 R/W Yes 0 255 No

Subnet Mask Byte 2 SU2 R/W Yes 0 255 No

Subnet Mask Byte 3 SU3 R/W Yes 0 255 No

Command

Code

SMM R/W No 0 1 No 0 = Off; 1 = On

Read/

Write

Inc/ Dec

Min

Value

Max

Value

String? Notes

1 = 30 Minutes 2 = 60 Minutes 3 = 90 Minutes 4 = 2 Hours 5 = 4 Hours

IMINAR

Subnet Mask Byte 4 SU4 R/W Yes 0 255 No

System Reset SYS W No N/A N/A No Action will be performed on any

setting value

PRE

80 Lightstyle™ Series LS-100d Installation/Operation Manual

Table 6-1. Serial Commands (continued)

External Control

Setting

Trigger 1 16:9 T11 R/W No 0 1 No

Trigger 1 4:3 T12 R/W No 0 1 No

Trigger 1 Letterbox T13 R/W No 0 1 No

Trigger 1 VirtualWide T14 R/W No 0 1 No

Trigger 1 Cinema T15 R/W No 0 1 No

Trigger 1 Virtual Cinema T16 R/W No 0 1 No

Trigger 1 Native T17 R/W No 0 1 No

Trigger 2 16:9 T21 R/W No 0 1 No

Trigger 2 4:3 T22 R/W No 0 1 No

Trigger 2 Letterbox T23 R/W No 0 1 No

Trigger 2 VirtualWide T24 R/W No 0 1 No

Trigger 2 Cinema T25 R/W No 0 1 No

Trigger 2 Virtual Cinema T26 R/W No 0 1 No

Trigger 2 Native T27 R/W No 0 1 No

Command

Code

Read/

Write

Inc/ Dec

Min

Value

Max

Value

String? Notes

0 = Off; 1 = On

Trigger 3 16:9 T31 R/W No 0 1 No

Trigger 3 4:3 T32 R/W No 0 1 No

Trigger 3 Letterbox T33 R/W No 0 1 No

Trigger 3 VirtualWide T34 R/W No 0 1 No

Trigger 3 Cinema T35 R/W No 0 1 No

Trigger 3 Virtual Cinema T36 R/W No 0 1 No

IMINAR

PRE

Trigger 3 Native T37 R/W No 0 1 No

Image Alignment Top Left x TLX R/W Yes -100 100 No

Image Alignment Top Left y TLY R/W Yes -100 100 No

Image Alignment Top Middle x TMX R/W Yes -100 100 No

Image Alignment Top Middle y TMY R/W Yes -100 100 No

Tint Offset TNO R/W Yes -50 50 No Picture menu

Tint TNT R/W Yes -50 50 No Calibration -> Input Image menu

Test Pattern Enable TPE R/W No 0 1 No 0 = Off; 1 = On

Primary Test Pattern TPP R/W No 0 1 No 0 = Off; 1 = On

Secondary Test Pattern TPS R/W No 0 1 No 0 = Off; 1 = On

Tracking TRK R/W Yes -100 100 No

Image Alignment Top Right x TRX R/W Yes -100 100 No

Lightstyle™ Series LS-100d Installation/Operation Manual 81

External Control

Table 6-1. Serial Commands (continued)

Setting

Image Alignment Top Right y TRY R/W Yes -100 100 No

Test Video TST R/W No 0 4 No 1 = Color Bars 1

VFD Brightness VFD R/W Yes 0 4 No 0 = 0%

Command

Code

Read/

Write

Inc/ Dec

Min

Value

Max

Value

String? Notes

11 = Color Bars 2 12 = Gray Bars 13 = Focus 14 = Off 15 = Off (Restore OSD)

1 = 25%

2 = 50% 3 = 75% 4 = 100%

IMINAR

PRE

82 Lightstyle™ Series LS-100d Installation/Operation Manual

External Control

➤

The DHD Controller accepts commands in the form of IR signals that conform to the Phillips RC5 protocol. Each DHD Controller remote control button has an RC5 control code associated with it.

You can use these codes to program a third-party, “universal” remote control unit to work with the DHD Controller. These third-party products usually come with a computer software application for this purpose. For more information, consult the documentation provided with the remote control unit.

• Each code consists of 14 bits:

• Two (2) start bits (always 1);

•A toggle bit. This bit is inverted every time a key is released and pressed again. This enables the DHD Controller to distinguish between a button that remains down and one that is pressed repeatedly.

• Five (5) address bits. The default address is 17 (binary 10001). To change it, select Remote Code from the Miscellaneous menu (in the Service menu) and follow the steps given on page 62.

• Six (6) data bits.

• The carrier frequency is 36 kHz, with the modulated pulses having a 25% duty cycle.

• Commands are sent at a maximum rate of 9 Hz.

For example, here is the RC5 control code for the ON button on the DHD Controller remote control unit (assuming the default address is used):

IMINAR

6.2 Using Discrete IR Codes

IR Command ProtocolThe IR control codes have the following characteristics:

With Toggle Bit = 0

Hex 3 4 4 1

Binary 11 0 10001000001

With Toggle Bit = 1

Hex 3 C 4 1

Binary 11 1 10001000001

Function

Figure 6-1 shows the pulse train for this command (with the toggle bit set to zero).

Start

Bits

PRE

Toggle

Bit

Address Command

Lightstyle™ Series LS-100d Installation/Operation Manual 83

External Control

Data Word

Encoded Data Word

Modulated Carrier

Zoom In of Carrier

RC5 Packet Transmission

S1S2TB A4A3A2A1A0C5C4C3C2C1C

Start Bits Toggle Bit

11010001000001

1.78 ms

Address Bits Command Bits

27.8 µs

First Packet Repeated Packet

14 cycles, 24.9 ms

IMINAR

64 cycles, 113.8 ms

Figure 6-1. RC5 Message Format

PRE

84 Lightstyle™ Series LS-100d Installation/Operation Manual

Runco LS-100d User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important Safety Instructions

Compliance Information

1. Introduction

1.1 About This Manual

Target AudienceRunco has prepared this manual to help home theater installers and end users get the

If You Have Comments About This Manual...

Textual and Graphic Conventions

Using This Manual

1.3 Description, Features and Benefits

Key Features and BenefitsThe LS-100d offers these key features and benefits:

Parts ListYour LS-100d is shipped with the following items. If any items are missing or damaged,

2. Controls and Functions

2.1 LS-100d at a Glance

LS-100d Input Panel

Figure 2-2. LS-100d Input Panel

Figure 2-3. DHD Controller Front Panel

2.3 DHD Controller Front Panel

DHD Controller Rear Panel

Figure 2-4. DHD Controller Rear Panel

LS-100d Remote Control Unit

Figure 2-5. DHD Controller/LS-100d Remote Control

3. Installation

3.1 Remote Control

Notes on Batteries• Make sure that the battery polarities are correct when installing the batteries.

Notes on Remote Control Operation

Quick Setup

Table 3-1. Installation Overview

3.3 Installation Considerations

Screen RequirementsTo maximize image quality, ensure that the screen you intend to use with the LS-100d

Ambient LightIn general, minimize or eliminate light sources directed at the screen. Contrast ratio in your

Rear Projection The LS-100d cannot be used in rear-projection applications.
