Runco LightStyle LS-12d Installation & Operation Manual

Download

I NSTALLATION/OPERATION MANUAL

LS-12d

Active 3D Home Theater Projection System

RuncoCare™ Standard Two Year Limited

Warranty

Congratulations on your purchase of a Runco® product! With proper installation, setup and care, you should enjoy many years of unparalleled video performance.

This Limited Warranty is provided free of charge by Runco International, LLC (“Runco”) with the purchase of a covered Runco product. This Limited Warranty is applicable to all Runco projectors, processors, LCD display and plasma display products, with the exception of the following models: XP-103DHD, SC-1 and SC-1a covered Runco products occurring on or after June 1, 2011.

. This Limited Warranty applies to purchases of

RuncoCare™ Limited Warranty Coverage

Runco warrants its products to be free from defects in material and workmanship during the warranty period provided below. If a product proves to be defective in material or workmanship during the warranty period, Runco will repair the product, replace the product with a substantially similar new or like-new product, or refund a prorated share of the purchase price (calculated based on the remainder of the warranty period and the then-current, most-recent MSRP replacement of the product is determined by Runco to not be feasible.

Length of RuncoCare™ Warranty Period

Runco products are warranted for two (2) years from the date of shipment from Runco. Lamps are warranted six (6) months from the date of shipment or 1000 hours of use, whichever comes first. A replacement lamp is warranted for the remaining portion (if any) of the original warranty period or ninety (90) days from the date it was shipped to you, whichever is longer. All other accessories, which include but are not limited to cables, remotes, carrying cases, lens cap and other peripherals sold with the Runco product, are warranted for ninety (90) days from the date of shipment.

RuncoCare™ Eligibility

This Limited Warranty is valid only in the country where the Product was originally purchased and for the buyer who originally purchased the covered product from the authorized Runco dealer or distributor. This warranty is not transferable; it is not valid for any subsequent buyer (if any). You may be required to provide proof of purchase in order to receive warranty services.

PRE

IMINAR

of a similar product), if repair or

1. Runco may update this list of products excluded from this warranty from time to time at Runco’s sole discretion, but updates will not apply on a retroactive basis.

2. MSRP is defined as the most recent product price listed on Runco’s price list.

LightStyle™ LS-12d Installation/Operation Manual iii

RuncoCare™ Standard Claim Procedure

• In the event of a product defect, please follow the claim procedure provided below: A. Register your product if you have not yet done so. Visit http://www.runco.com/support/product-registration/ to

register the product. B. Contact your original authorized dealer or distributor who sold the product. C. The dealer/distributor will contact Runco Technical Support via email at support@runco.com or via phone at 1-800-

23-RUNCO (1-800-237-8626).

• The dealer/distributor will provide to Runco proof of purchase, serial number, product model number, description of the problem and any troubleshooting steps already attempted.

• Runco’s technical support staff will attempt to assist the dealer/distributor in troubleshooting any technical issues that might be causing the product to malfunction. If Runco is unable to resolve the problem through troubleshooting, a Return Material Authorization (RMA) number will be issued for the exchange of the defective product if it is determined that the claim is covered by the warranty. Once an RMA has been created, RMA status is available at serviceorders@runco.com.

• If an RMA is issued, the dealer or customer will need to return the defective product to the Runco repair depot location specified by the Runco technical support representative. The dealer or customer will need to properly package the defective product in a suitable shipping container consisting of the product only, and not include any accessories (e.g., cables, remotes, carrying cases, lens, lens cap and other peripherals). Boxes may be purchased from a Runco technical support representative.

• The dealer or customer is responsible for paying freight charges and insurance to ship the defective product to the Runco repair depot location. If there are any shipping damages, the dealer or customer will need to address and resolve any shipping damage claims directly with the shipping company.

• Runco will not accept a returned product unless an RMA has been issued by Runco.

• For in-warranty repairs, Runco will pay freight charges to return the repaired/replacement product to the dealer/distributor from the Runco repair depot. For select countries or geographies Runco will ship via an economy express service. Return delivery time and availability may vary based on origin and destination, and Runco is unable to deliver to PO Box and FPO Box addresses.

• Note: in the 48 contiguous United States, other options for on-site service or advance exchange for the product may apply, if you purchased the Runco PremierCare™ Service Plan.

IMINAR

What to Include with Your Return

1. Return only the defective product with the lamp (if applicable).

2. Runco will not be responsible for returning or replacing any accessories (e.g., cables, remotes, carrying cases, lens, lens

cap and other peripherals sold with the Runco product) that are returned with the defective product.

3. Repaired or replacement products will be shipped with a lamp (if applicable) but without any accessories.

RuncoCare™ Warranty Exclusions

This Limited Warranty does not include and is limited by the following:

1. Products not purchased from an authorized Runco dealer

2. Rental costs incurred by the customer in the event of product defect or failure

3. Any product with a defaced, modified, or removed serial number

PRE

iv LightStyle™ LS-12d Installation/Operation Manual

4. Damage, deterioration, or malfunction resulting from:

A. Accident, abuse, misuse, neglect, improper ventilation, fire, water, disaster, lightning, or other acts of nature, smoke

exposure (cigarette or otherwise), unauthorized product modification (including use of an unauthorized mount), or

failure to follow instructions supplied with the product B. Repair or attempted repair by anyone not authorized by Runco C. Any damage to the product due to shipment D. Removal or installation of the product E. Causes external to the product, such as electric power fluctuations or failure F. Use of supplies or parts (including lamps) that are not purchased from Runco or do not meet Runco’s specifications G. Normal wear and tear H. Expected lamp degradation and normal decrease in lamp output over a period of time or as the lamp is consumed I. Customer caused defects, including but not limited to, scratched/defaced/altered plastics J. Failure to follow maintenance procedures as outlined in the product’s user guide where a schedule is specified for

regular cleaning of the product K. Opening the product and/or tampering with internal circuitry L. Products lost, stolen or discarded M. Any damage or dissatisfaction associated with latent images, “burnin,” or any other damage determined by Runco to

be the result of customer use patterns N. Any other cause, which does not relate to a product defect in material or workmanship

5. Removal, installation, and set-up service charges are excluded from the warranty.

6. Black uniformity issues or other LCD issues associated with usage outside the Runco recommended guidelines and specifications for the product.

7. Bright or dark sub pixels that are characteristic of LCD technology and considered by Runco to be acceptable and within Runco’s manufacturing specifications.

Specifically, it is not uncommon for one or more sub pixels to become bright or dark during or after the manufacturing process. A bright sub pixel is one that remains in the on position, and a dark sub pixel is one that appears black or off. The sub pixels are usually hard to see and will not detract from the display quality or usability at normal viewing distance. The following are Runco’s criteria for identifying bright or dark sub pixels that would be considered unacceptable: a) the number of bright or dark sub pixels; b) the location of the bright or dark sub pixels; c) the color of the bright sub pixels; and d) the Runco model size. If sub pixels have been identified as unacceptable by Runco the LCD will be deemed faulty and will be replaced if reported within the warranty period.

PRE

IMINAR

Other Terms and Conditions

1. If the defective product is not properly packaged and is damaged in transit during its return to Runco, you may be invoiced for either the repair costs, if repairable, or the MSRP of a replacement product and shipping costs incurred by Runco.

2. The repaired or replaced product will assume the remainder of your original product’s warranty term or 90 days from the date the repaired or replaced product is shipped, whichever is longer.

3. If a replacement product is sent, the replacement becomes the property of the customer and the defective product becomes the property of Runco.

LightStyle™ LS-12d Installation/Operation Manual v

RuncoCare™ Extended Service Options

Runco offers extended and expanded service plans. For information on additional product protection, please ask your authorized Runco dealer, email serviceorders@runco.com or call (toll free) (800) 23RUNCO (800-237-8626).

Exclusion of Implied Warranties

RUNCO PROVIDES NO WARRANTIES, EXPRESS OR IMPLIED, EXCEPT THOSE EXPRESSLY PROVIDED IN THIS DOCUMENT. RUNCO EXPRESSLY DISCLAIMS AND EXCLUDES ALL OTHER WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF TITLE, NONINFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Limitation of Liability; Exclusion of Damages

RUNCO’S MAXIMUM AGGREGATE LIABILITY IS LIMITED TO THE COST OF REPAIR, REPLACEMENT OR REFUND OF THE PRODUCT.

RUNCO WILL NOT BE LIABLE FOR DAMAGE TO OTHER PROPERTY OR FOR DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL OR FINANCIAL LOSS, EVEN IF RUNCO IS AWARE OF THE POSSIBILITY OF SUCH DAMAGES AND EVEN IF A REMEDY HAS FAILED OF ITS ESSENTIAL PURPOSE.

RUNCO WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, INDIRECT, EXEMPLARY, SPECIAL, PUNITIVE OR ANY OTHER TYPE OF DAMAGES, WHETHER THE CLAIM IS BASED ON CONTRACT, TORT, PRODUCT LIABILITY, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER LEGAL OR EQUITABLE THEORY.

RUNCO WILL NOT BE LIABLE FOR ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

IMINAR

Effect of Local Law

This Limited Warranty gives you specific legal rights, and you may have other rights, which vary from locality to locality. Some localities do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

PRE

© Copyright 2012 Runco International, LLC (“Runco”). This document contains proprietary information protected by copyright, trademark and other intellectual property laws. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of Runco.

The trademarks reproduced in this Runco Owner’s Manual and used on the Runco Products are either owned by Runco or are licensed by Runco. You may not reproduce or use the trademarks without the prior written consent of Runco.

Runco Products are manufactured under one or more of the following patents: US. Patent 6755540 and Other Patents Pending.

vi LightStyle™ LS-12d Installation/Operation Manual

Important Safety Instructions

Thank you for your purchase of this quality Runco video product! For the best performance, please read this manual carefully as it is your guide through the menus and operation.

WARNING

CAUTION

RISK OFELECTRIC SHOCK

DO NOTOPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

CAUTION:

SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11. Only use the attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. The +12V trigger only outputs 12Vdc signal for triggering. Do not connect to any other power input or output. This could cause damage to this unit.

16. Keep the packing material in case the equipment should ever need to be shipped.

17. The lamp becomes extremely hot during operation. Allow the projector to cool down for approximately 45 minutes prior to removing the lamp assembly for replacement.

18. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond rated life could cause them to explode in rare occasions.

PRE

IMINAR

19. Never look directly into the lens when the lamp is on.

LightStyle™ LS-12d Installation/Operation Manual vii

IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D VIEWING:

Please read and make sure you understand the following safety information before using the product for viewing 3D content. Provide this information to the end users of this product and ensure that they understand it.

WARNING

It is widely recognized that stereographic display devices can cause discomfort, including, without limitation, dizziness, nausea, headaches, eye fatigue and eye-strain, in some individuals. The 3D effect and experience will vary by individual, depending on a variety of factors, including his or her health and vision. Runco recommends that users take regular breaks when watching 3D video or playing games using stereoscopic displays. Discontinue use if any discomfort occurs. Parents of young children should ensure their children avoid extensive exposure to electronic stereographic entertainment.

The quality and appropriateness of the 3D screen materials onto which the image is projected and the quality of the 3D content being displayed both have a significant and noticeable impact on the overall 3D experience. A properly-calibrated projection system, including glasses and an optimized third-party screen, displaying high-quality 3D content is the best formula for immersive and comfortable 3D experiences in the home. Please refer to the remainder of this manual for proper projector installation and usage instructions.

The glasses that accompany this product are not safe to use as sunglasses, protective eyewear or any use outdoors or other than only in conjunction with the proper operation of the Runco product with which they are sold. It is common to dim the lights in a home theater. Using 3D glasses and the immersive imagery of stereoscopic imagery can increase the risk of tripping or falling the dark. Special care should be taken.

IMINAR

Do not tilt your head while using the 3D glasses.

PRE

viii LightStyle™ LS-12d Installation/Operation Manual

Compliance Information

DECLARATION OF CONFORMITY:

Manufacturer’s Name: Runco International, LLC

Manufacturer’s Address: 1195 NW Compton Drive, Beaverton, OR 97006-1992

hereby declares that the Products’ Model Numbers:

LS-12d

conform with the provisions of:

Council Directive 2004/108/EC on Electromagnetic Compatibility;

EN 55022 “Limits and methods of measurements of radio interference characteristics of information technology equipment” 1998;

EN 55024 “Limits and methods of measurements of immunity characteristics of information technology equipment” 1998;

Including:

• EN 61000-4-2 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 2: Electrostatic discharge immunity test”

• EN 61000-4-3 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 3: Radiated, Radio-Frequency, Electromagnetic Field Immunity Test”

• EN 61000-4-4 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 4: Electrical fast transient/burst immunity test”

• EN 61000-4-5 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 5: Surge immunity test"

• EN 61000-4-6 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 6: Conducted disturbances induced by radio-frequency fields immunity test"

• EN 61000-4-8 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 8: Conducted disturbances induced by power frequency magnetic fields immunity test"

• EN 61000-4-11 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 11: Voltage dips, short interruptions and voltage variations immunity tests"

PRE

IMINAR

And:

• EN 61000-3-2 "Electromagnetic compatibility (EMC) Part 3, Section 2: Limits for harmonic current emissions (equipment input current up to and including 16 A per phase)" 2000;

• EN 61000-3-3 "Electromagnetic compatibility (EMC) Part 3, Section 3: Limitations of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current up to and including 16 A and not subject to conditional connection" 1995;

Council Directive 2006/95/EC and amended by M1 and C1 on Low Voltage Equipment Safety;

EN 60950 “Safety of information technology equipment, including electrical business equipment”

The Technical Construction file required by this Directive is maintained at the corporate headquarters of Runco International, LLC, located at 1195 NW Compton Drive, Beaverton, OR 97006-1992.

Date of Declaration: May 2012

LightStyle™ LS-12d Installation/Operation Manual ix

FCC PART 15:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

INDUSTRY CANADA (ICES-003):

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

PRODUCT DISPOSAL:

IMINAR

The Product contains small amounts of tin, lead and/or mercury. Disposal of these materials may be regulated due to environmental considerations.

IMPORTANT RECYCLE INSTRUCTIONS

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws.

PRE

For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG.

For lamp specific disposal information check WWW.LAMPRECYCLE.ORG.

DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT (Applicable throughout the European Union and other European countries with separate collection programs)

This symbol found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve natural resources. This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

x LightStyle™ LS-12d Installation/Operation Manual

1Table of Contents

RuncoCare™ Standard Two Year Limited Warranty ................................................... iii

Important Safety Instructions ....................................................................................... vii

Compliance Information ................................................................................................ ix

1. Introduction ............................................................................................................... 1

About This Manual .......................................................................................................1

Target Audience .....................................................................................................1

If You Have Comments About This Manual.............................................................1

Textual and Graphic Conventions ...........................................................................1

Using This Manual ........................................................................................................ 2

Description, Features and Benefits ...............................................................................3

Key Features and Benefits ......................................................................................4

Parts List ................................................................................................................4

2. System Overview ....................................................................................................... 5

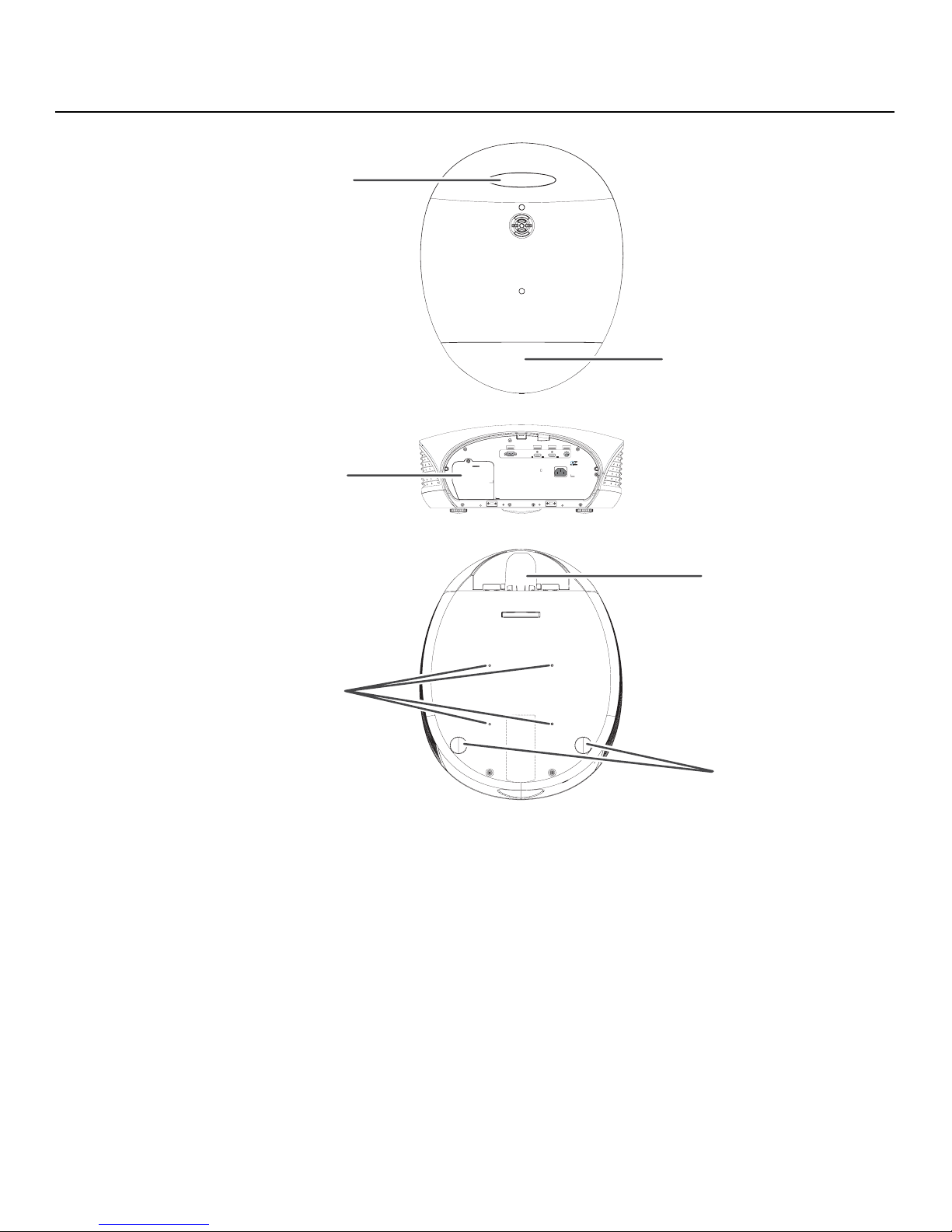

Projector ......................................................................................................................6

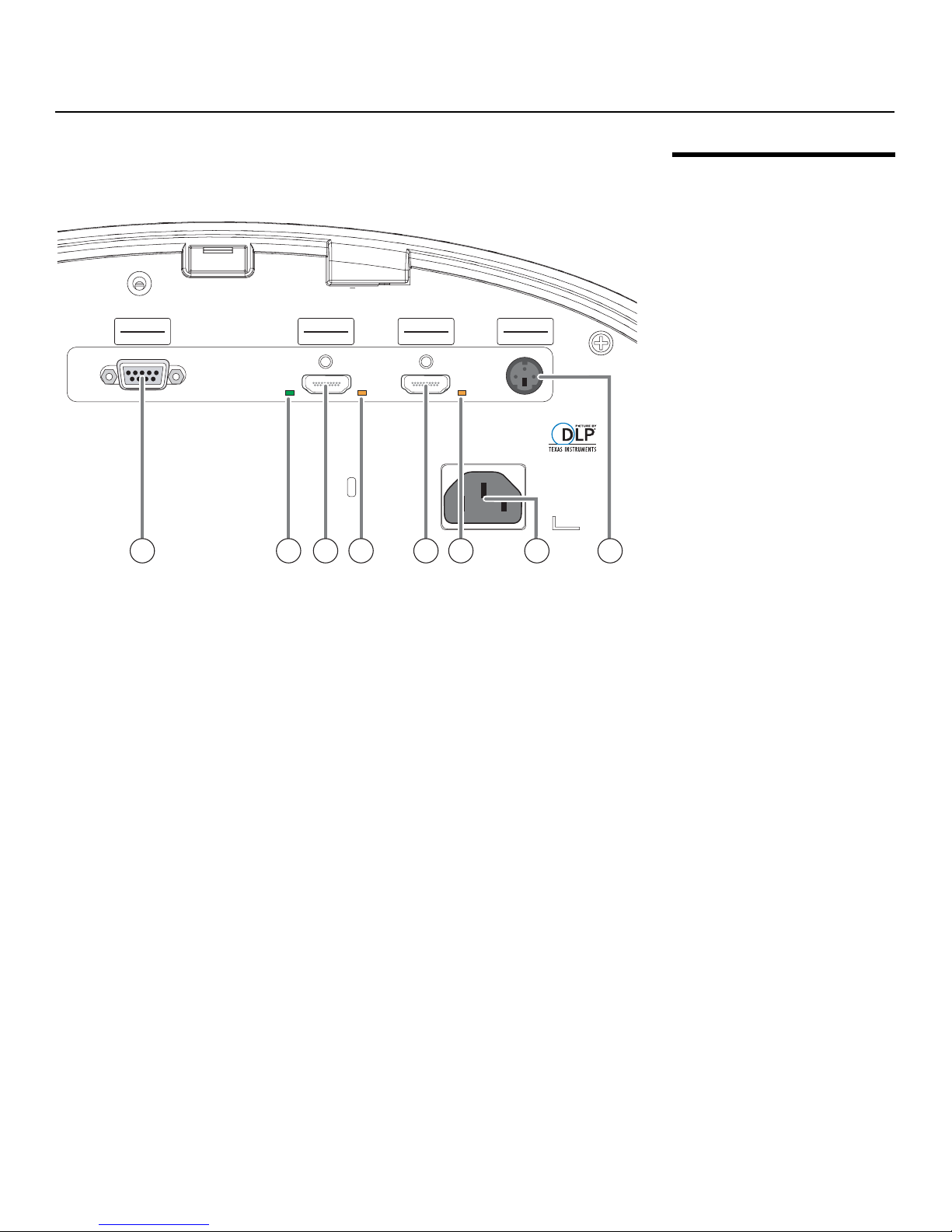

LS-12d Rear Panel .......................................................................................................9

DC-300 Dimension Digital Controller .......................................................................... 10

Front Panel Layout................................................................................................10

Rear Panel Layout ................................................................................................12

LS-12d Remote Control Unit ......................................................................................14

3. Installation ...............................................................................................................19

PRE

Remote Control ..........................................................................................................19

Notes on Batteries ................................................................................................ 19

IMINAR

Quick Setup ...............................................................................................................20

Installation Considerations ..........................................................................................21

LightStyle™ LS-12d Installation/Operation Manual xi

Notes on Remote Control Operation .....................................................................19

Pre-Wiring for 3D: Run Dual HDMI Cables ............................................................21

Installation Type .................................................................................................... 21

Ambient Light .......................................................................................................21

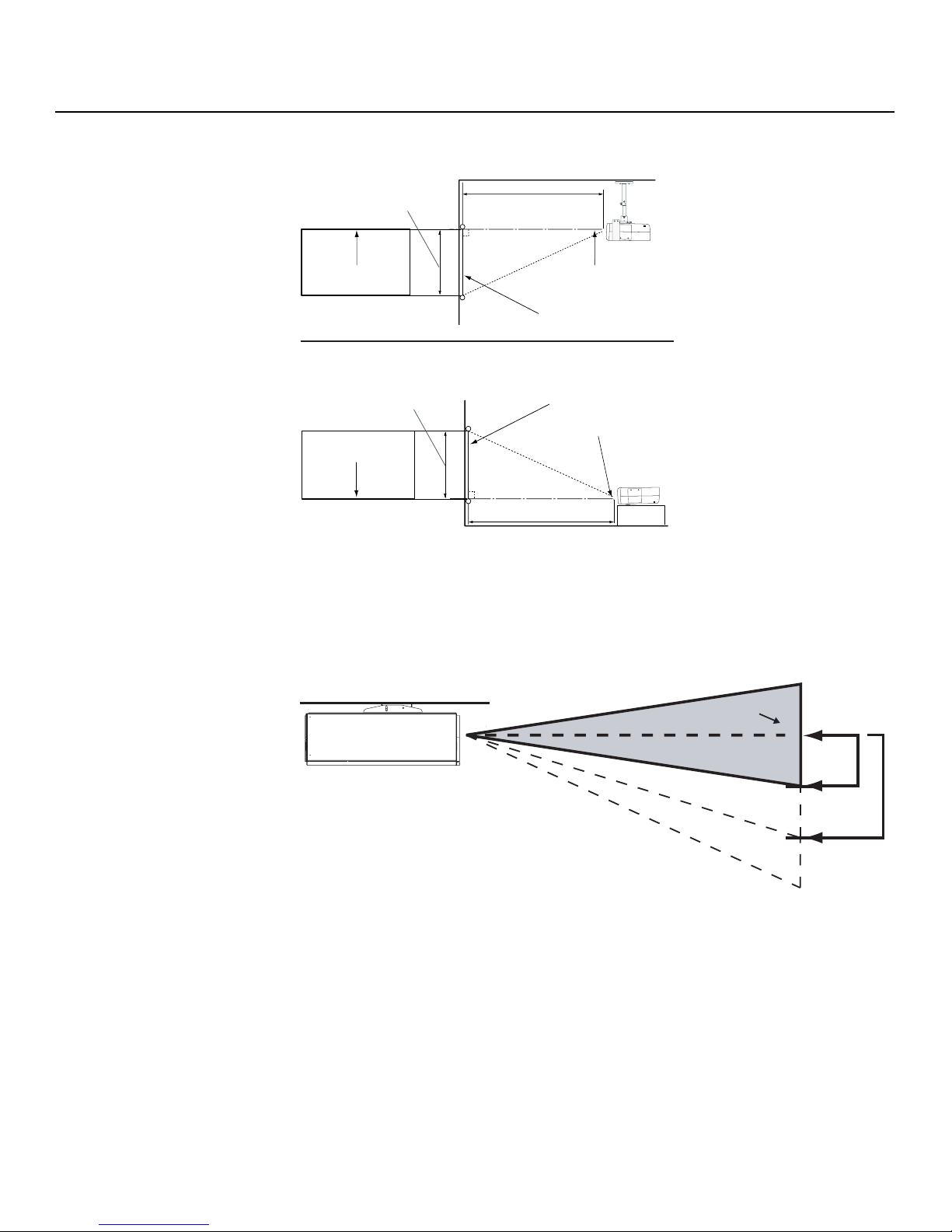

Throw Distance.....................................................................................................22

Vertical and Horizontal Position............................................................................. 23

Vertical and Horizontal Lens Shift..........................................................................24

Folded Optics .......................................................................................................26

Audio/Video Synchronization Issues...................................................................... 27

Table of Contents

Other Considerations ............................................................................................ 27

Installing the Optional Anamorphic Lens Mount ..........................................................28

Package Contents ................................................................................................28

Mounting the LS-12d .................................................................................................33

Floor Mounting (Upright) ....................................................................................... 33

Ceiling Mounting (Inverted)....................................................................................33

Installing the Projector in an Enclosure..................................................................33

Adjusting the Projection Angle ..............................................................................34

Mounting the Dimension Digital Controller ..................................................................35

System Interconnections ............................................................................................36

Connecting the Dimension Digital Controller to the Projector.................................36

Connecting an Audio Processor or Secondary Display Device to the

Dimension Digital Controller (Optional) ..................................................................38

Additional Connections to the Dimension Digital Controller (Optional)....................39

Connecting Source Components to the Dimension Digital Controller ....................43

Connecting the Active 3D Emitter to the Projector ................................................49

Connecting to AC Power ......................................................................................49

Turning on the Power ................................................................................................. 50

Primary Lens Adjustments: Focus, Zoom and Position ............................................... 51

Focus ...................................................................................................................51

Zoom....................................................................................................................51

Vertical and Horizontal Lens Shift..........................................................................51

Adjusting the Picture Orientation ................................................................................51

Adjusting the Image Geometry ...................................................................................52

PRE

Installing and Adjusting the Anamorphic Lens .............................................................54

4. Operation .................................................................................................................57

IMINAR

Using the On-Screen Menus ......................................................................................57

Main Menu............................................................................................................59

Input Source......................................................................................................... 59

Aspect Ratio......................................................................................................... 60

Screen..................................................................................................................62

Picture..................................................................................................................63

Input Position........................................................................................................68

Memory Presets .................................................................................................. 70

3D Processing ......................................................................................................71

Sleep Timer ..........................................................................................................72

Information ...........................................................................................................72

xii LightStyle™ LS-12d Installation/Operation Manual

Table of Contents

Calibration ............................................................................................................73

Service ................................................................................................................. 81

Using the Runco 3D Glasses ...................................................................................... 94

Key Features.........................................................................................................94

Battery Charging...................................................................................................94

Power Button and Battery Charge Indicator.......................................................... 95

Turning Off the 3D Glasses ...................................................................................95

Auto Power-Off..................................................................................................... 95

5. Maintenance and Troubleshooting ........................................................................ 97

Lamp Replacement ....................................................................................................97

Troubleshooting Tips ..................................................................................................98

6. External Control ....................................................................................................101

Serial Communications .............................................................................................101

RS-232 Connection and Port Configuration ........................................................101

Command Format ..............................................................................................101

Response Format ...............................................................................................102

Command and Response Examples ...................................................................103

Serial Command List...........................................................................................103

Using Discrete IR Codes ..........................................................................................117

IR Command Protocol ........................................................................................117

IR Command List (Standard Mode) ..................................................................... 118

IR Command List (Extended Mode) ....................................................................121

Using HDMI CEC Messages .....................................................................................122

CEC Command List............................................................................................ 122

PRE

7. Specifications ........................................................................................................ 125

LS-12d Projector Specifications ...............................................................................125

IMINAR

Dimension Digital Controller Specifications ...............................................................127

Supported Timings ...................................................................................................129

LS-12d Dimensions ..................................................................................................133

LightStyle™ LS-12d Installation/Operation Manual xiii

Table of Contents

Notes:

IMINAR

PRE

xiv LightStyle™ LS-12d Installation/Operation Manual

1List of Figures

2-1. LightStyle™ Series LS-12d Active 3D Projection System Block Diagram ...................... 5

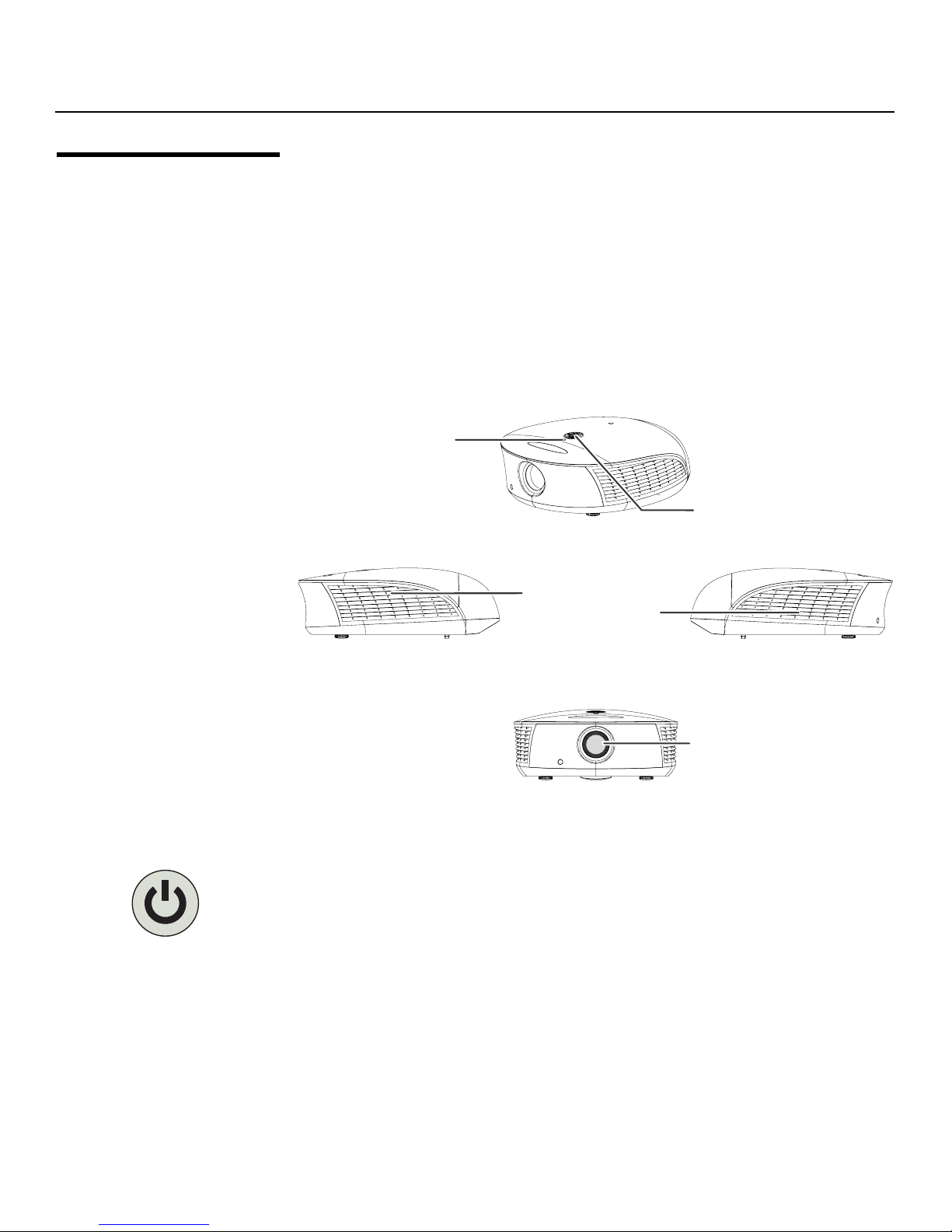

2-2. LS-12d Front/Side View ...............................................................................................6

2-3. LS-12d Rear/Bottom/Top View ....................................................................................8

2-4. LS-12d Rear Panel .......................................................................................................9

2-5. Dimension Digital Controller Front Panel .....................................................................10

2-6. DC-300 Dimension Digital Controller Rear Panel.........................................................12

2-7. Dimension Digital Controller Remote Control Unit for LS-12d .....................................14

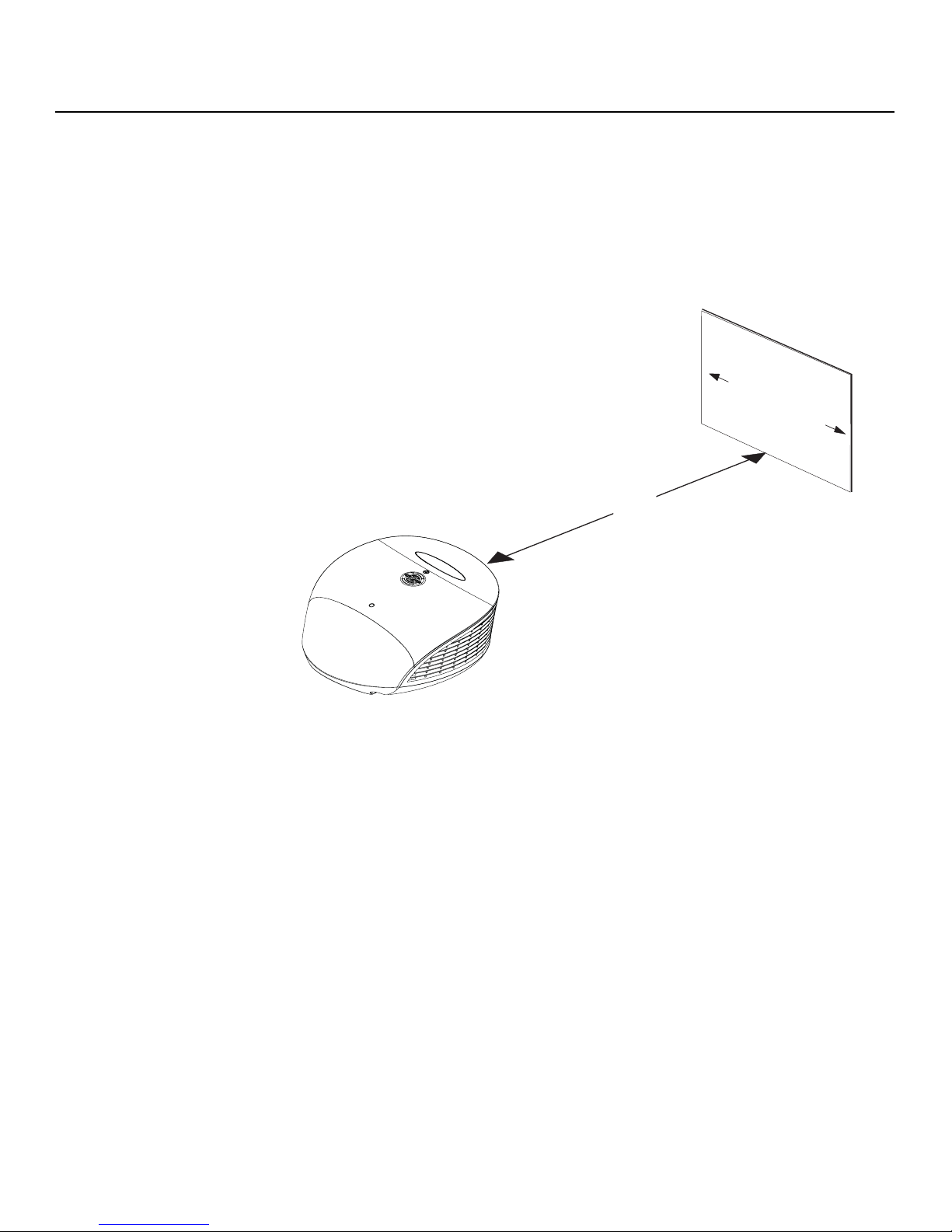

3-1. Estimating Throw Distance .........................................................................................22

3-2. Projector Placement ...................................................................................................24

3-3. Vertical Lens Shift (EXAMPLE ONLY) ..........................................................................24

3-4. Horizontal Lens Shift (EXAMPLE ONLY)......................................................................25

3-5. Folded Optics.............................................................................................................26

3-6. Mounting Angle Ranges (Front-to-Back and Side-to-Side).......................................... 34

3-7. Attaching the Rack Mounting Hardware .....................................................................35

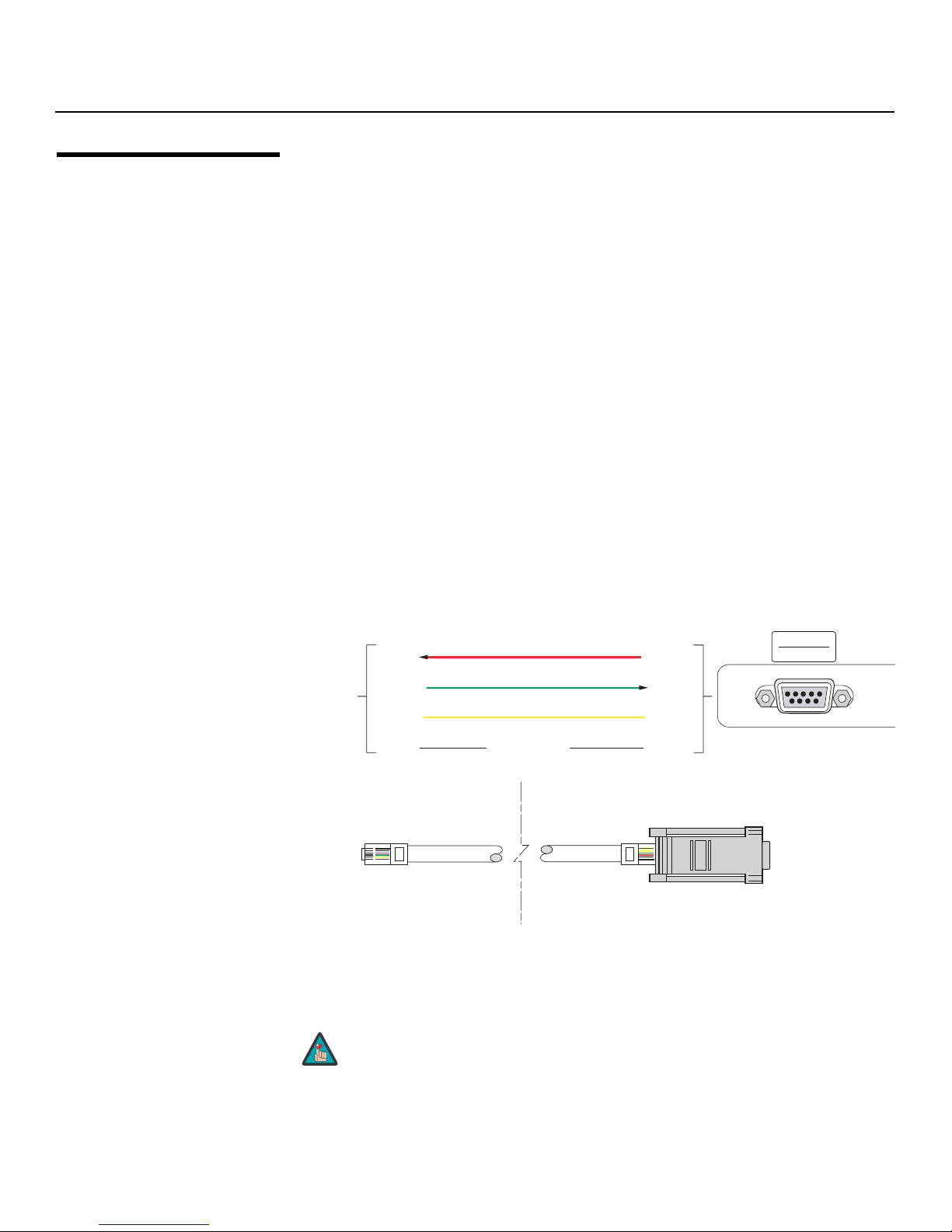

3-8. RS-232 Connection from the Dimension Digital Controller to the Projector .................36

3-9. Connecting the Dimension Digital Controller to the Projector ......................................37

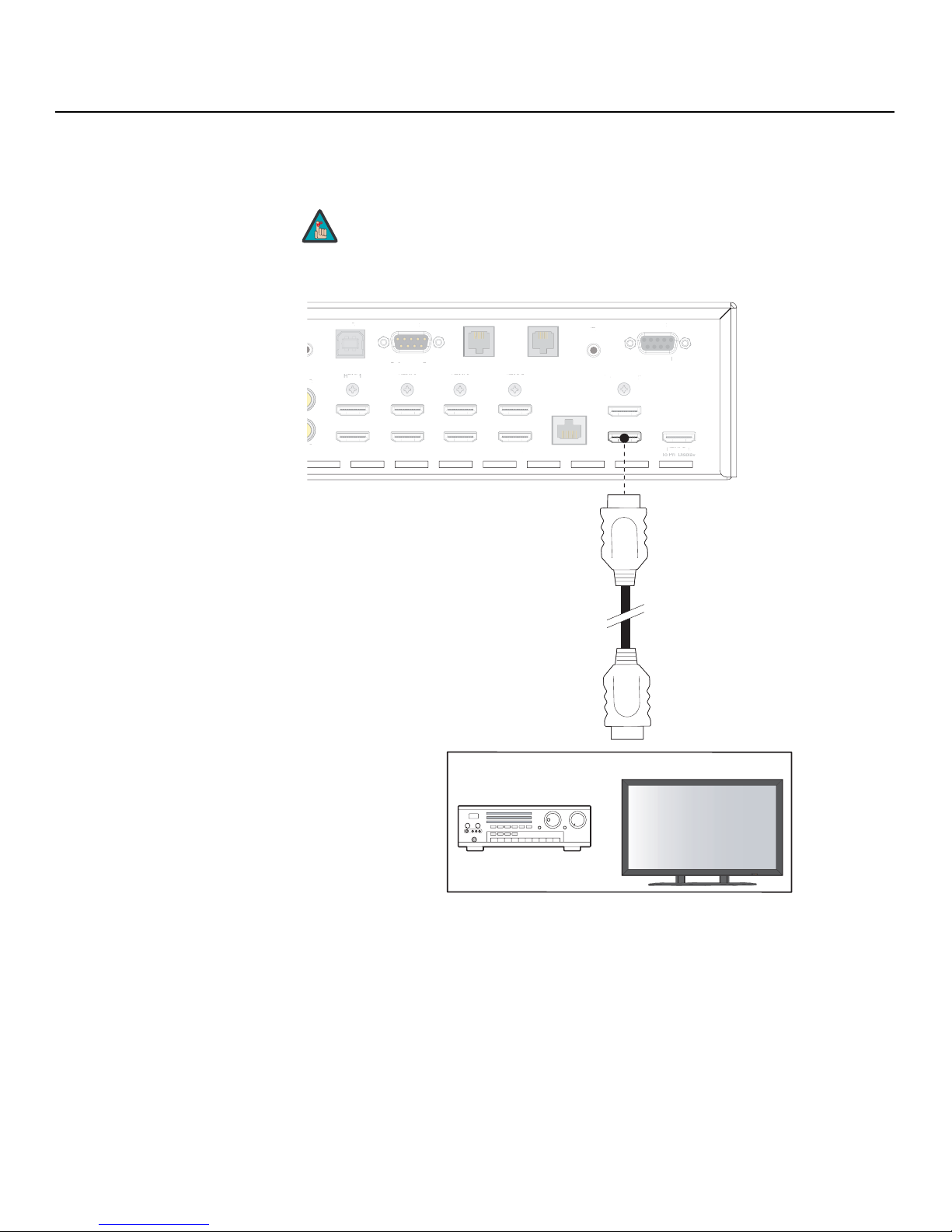

3-10. Audio Processor Connection to Dimension Digital Controller ....................................38

3-11. RS-232 Control System Connection to Dimension Digital Controller .........................39

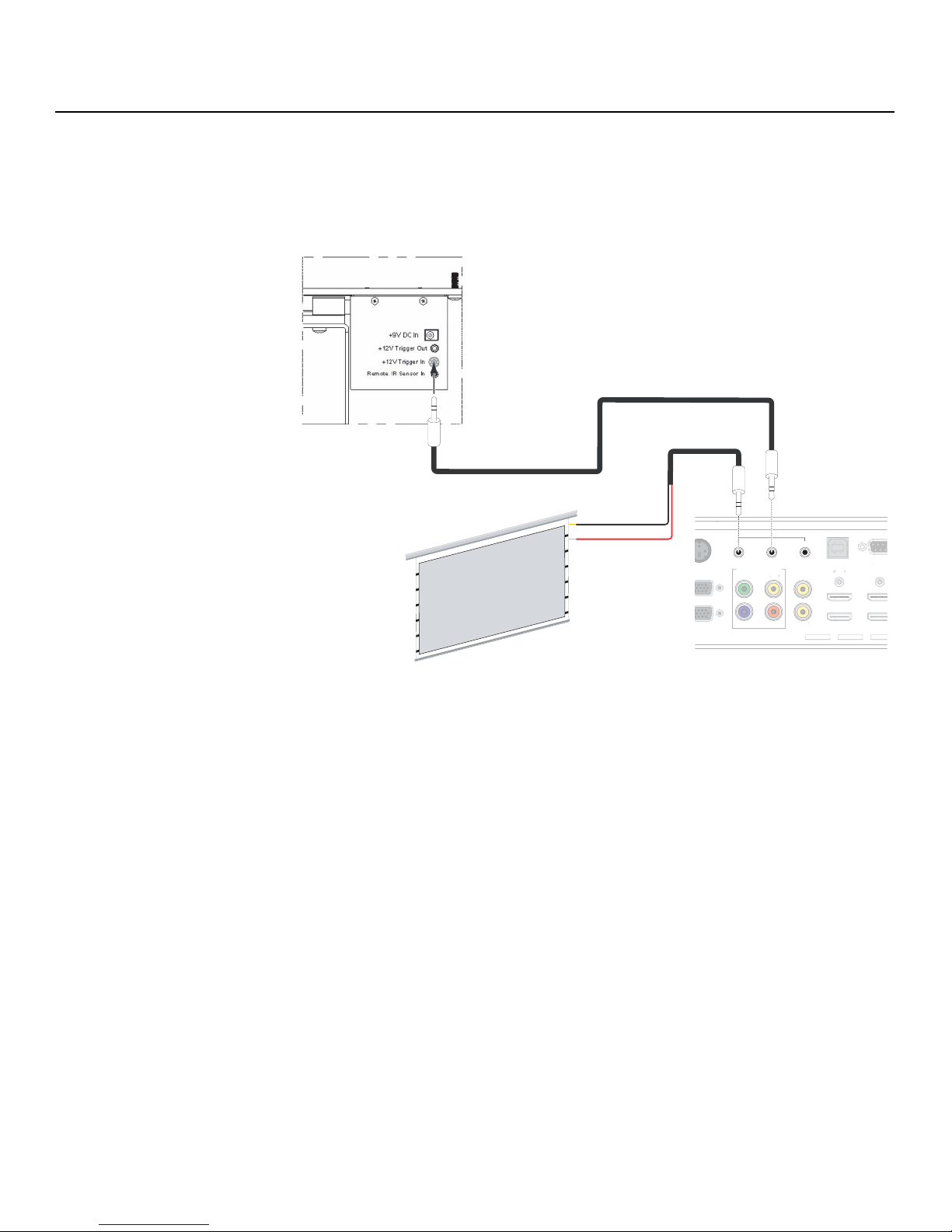

3-12. Connecting 12-volt Trigger Outputs..........................................................................40

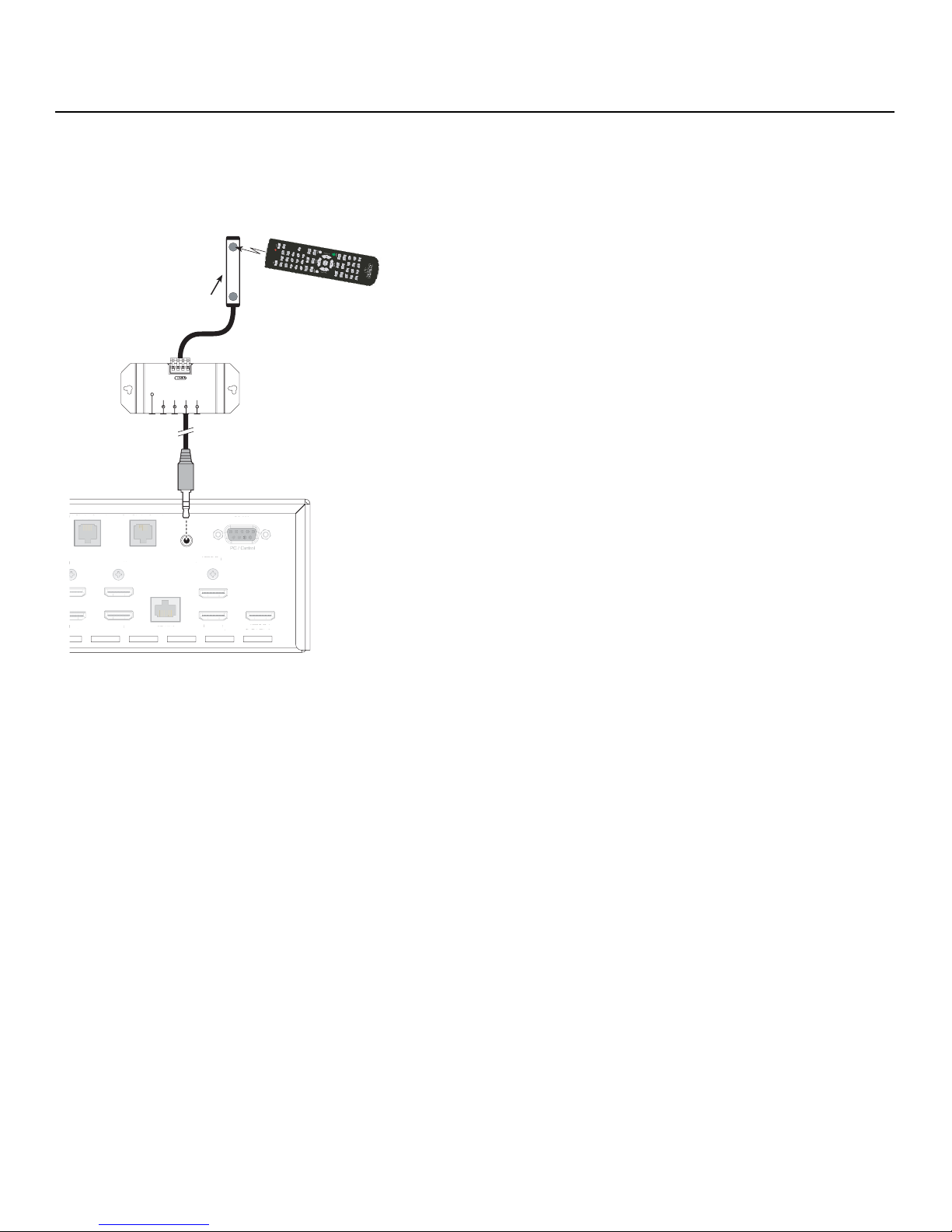

3-13. External IR Receiver Connection...............................................................................41

3-14. Ethernet Network Connection to Dimension Digital Controller ...................................42

PRE

3-15. DisplayPort Source Connection ................................................................................ 43

IMINAR

3-16. HDMI Source Connections .......................................................................................44

3-17. Component Video Source Connections.................................................................... 45

3-18. RGBHV Source Connections....................................................................................46

3-19. SCART RGBS Source Connections..........................................................................47

3-20. Composite Video Source Connections ..................................................................... 48

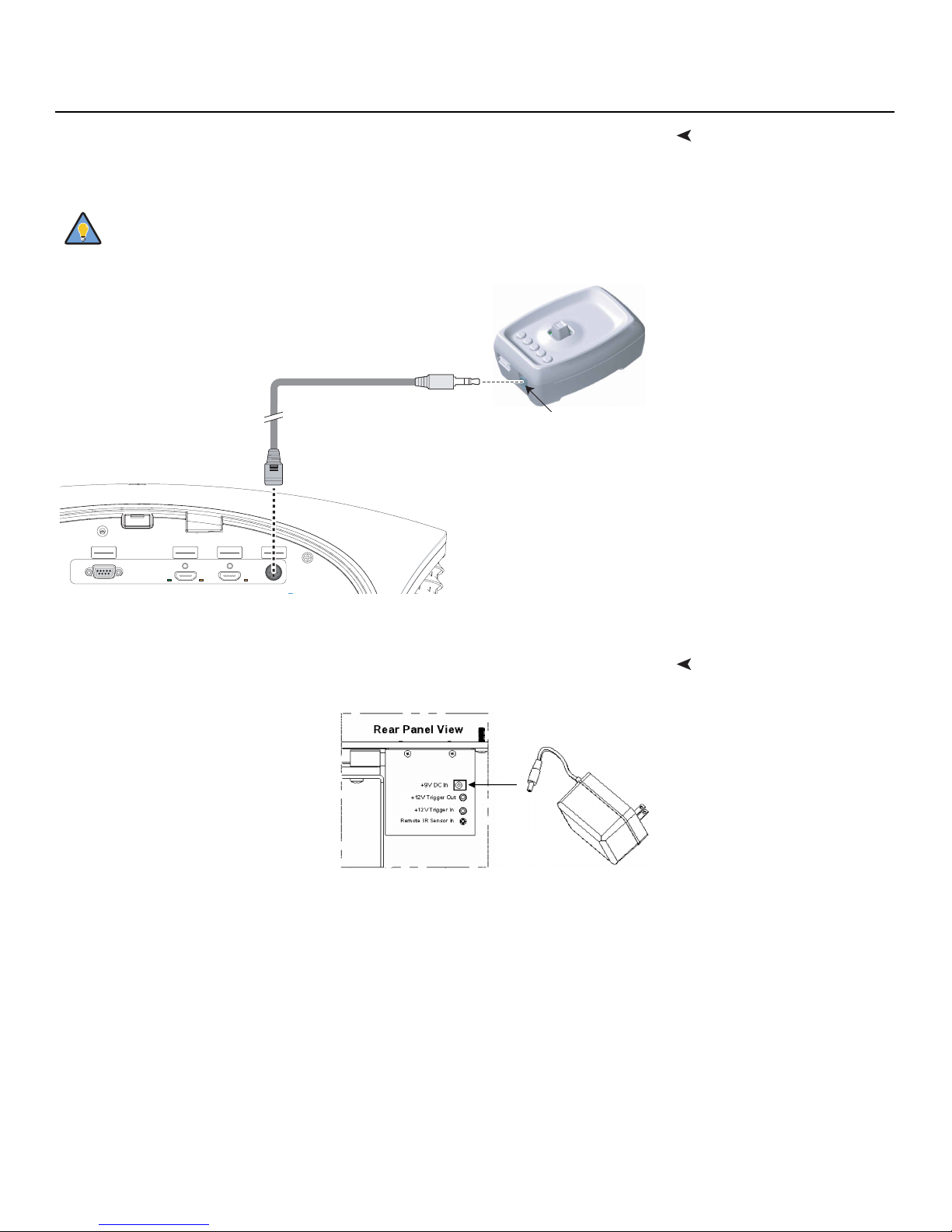

3-21. Active 3D Emitter Connection ...................................................................................49

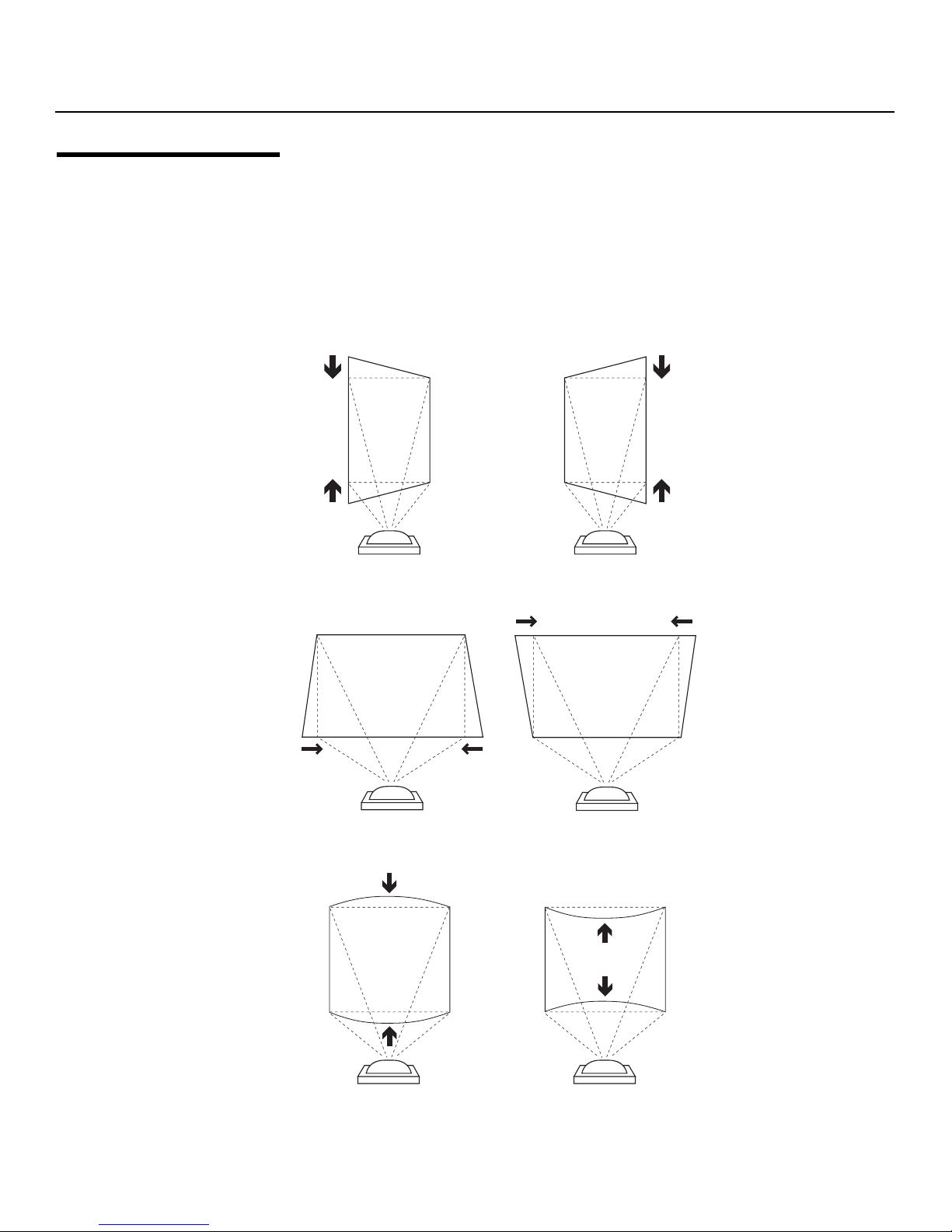

3-22. Keystone and Pincushion Distortion .........................................................................52

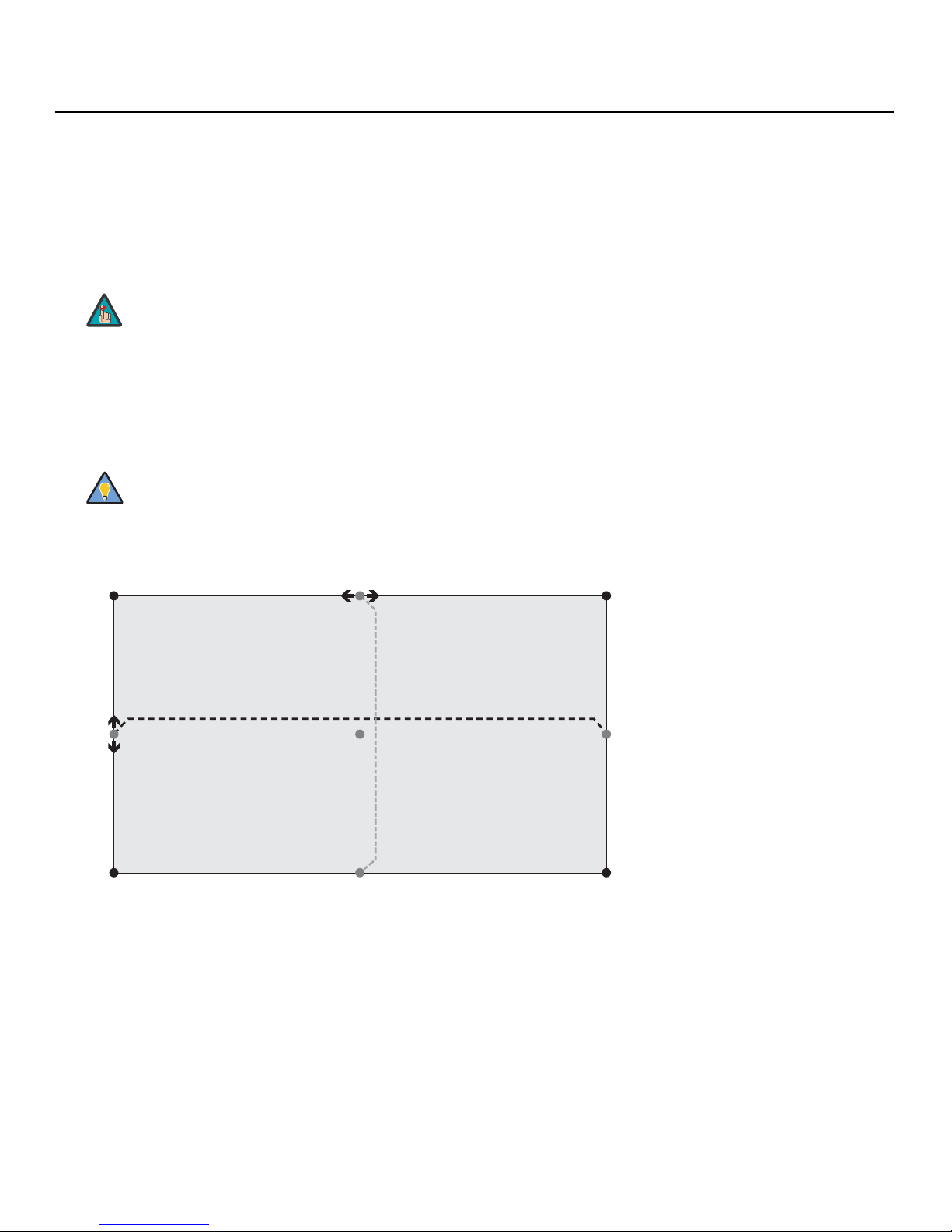

3-23. Image Alignment Controls ........................................................................................53

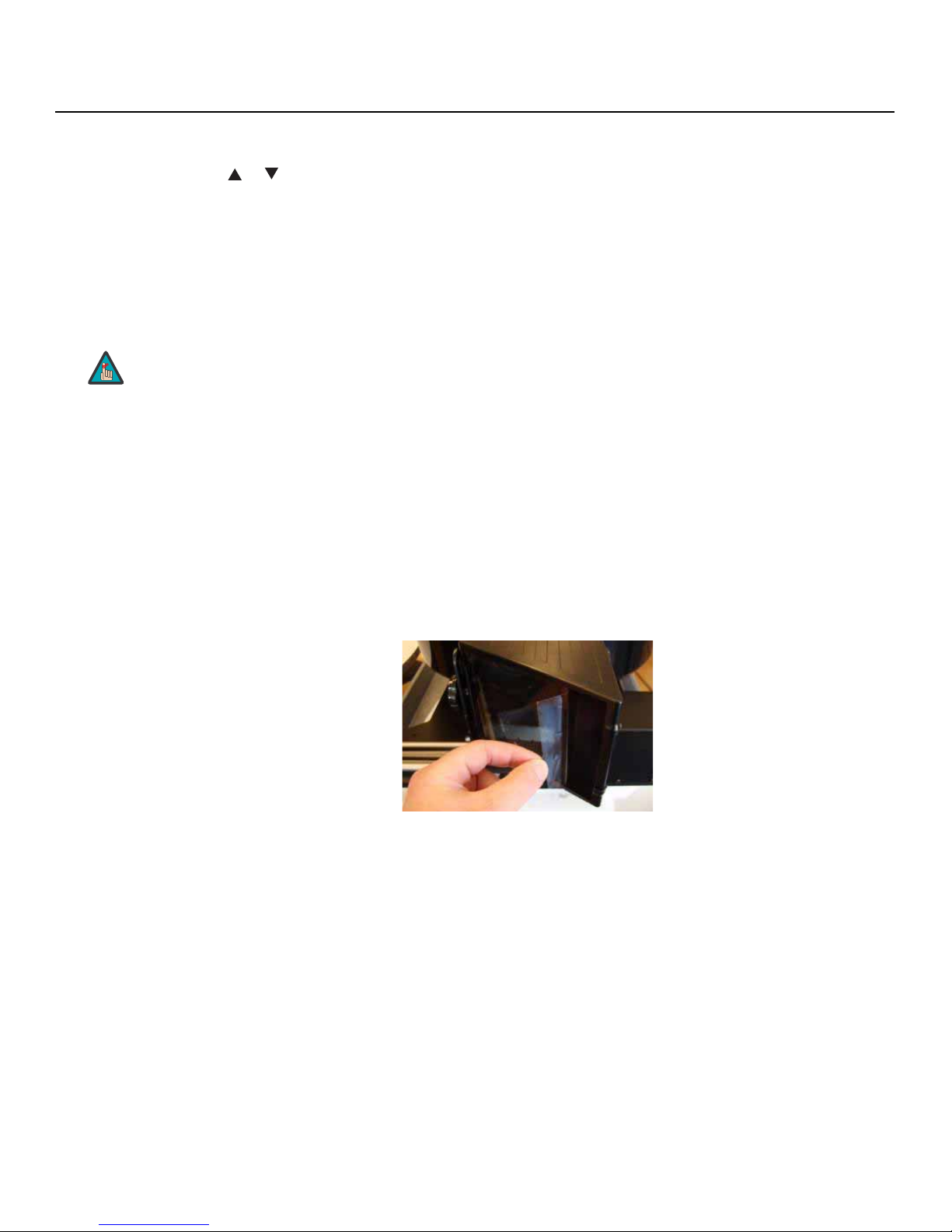

3-24. Attaching the Anamorphic Lens to the Lens Mount ..................................................54

4-1. LS-12d OSD Menu Structure ..................................................................................... 57

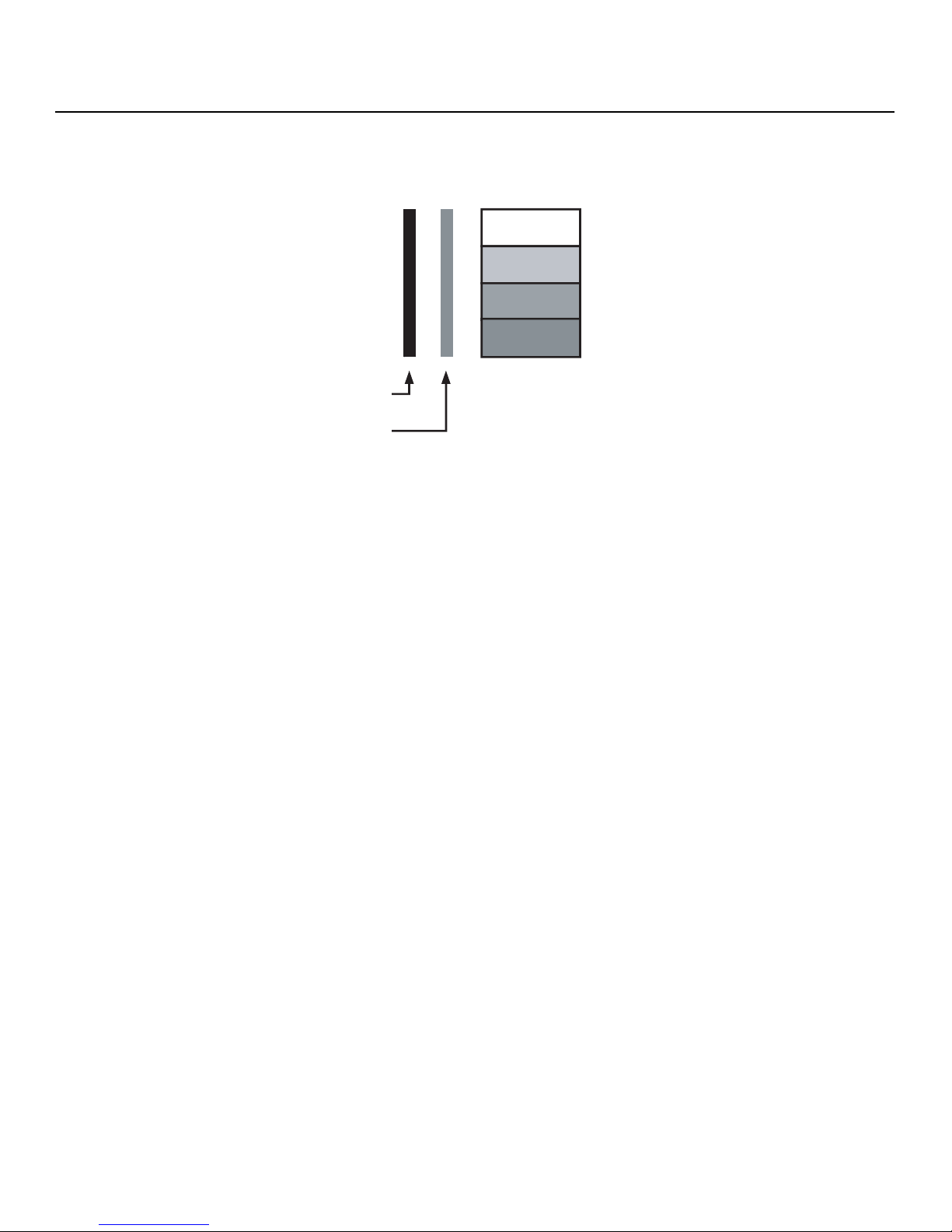

4-2. Typical PLUGE Pattern for Adjusting Brightness .........................................................64

4-3. Typical Gray Bar Pattern for Adjusting Contrast .......................................................... 65

LightStyle™ LS-12d Installation/Operation Manual xv

List of Figures

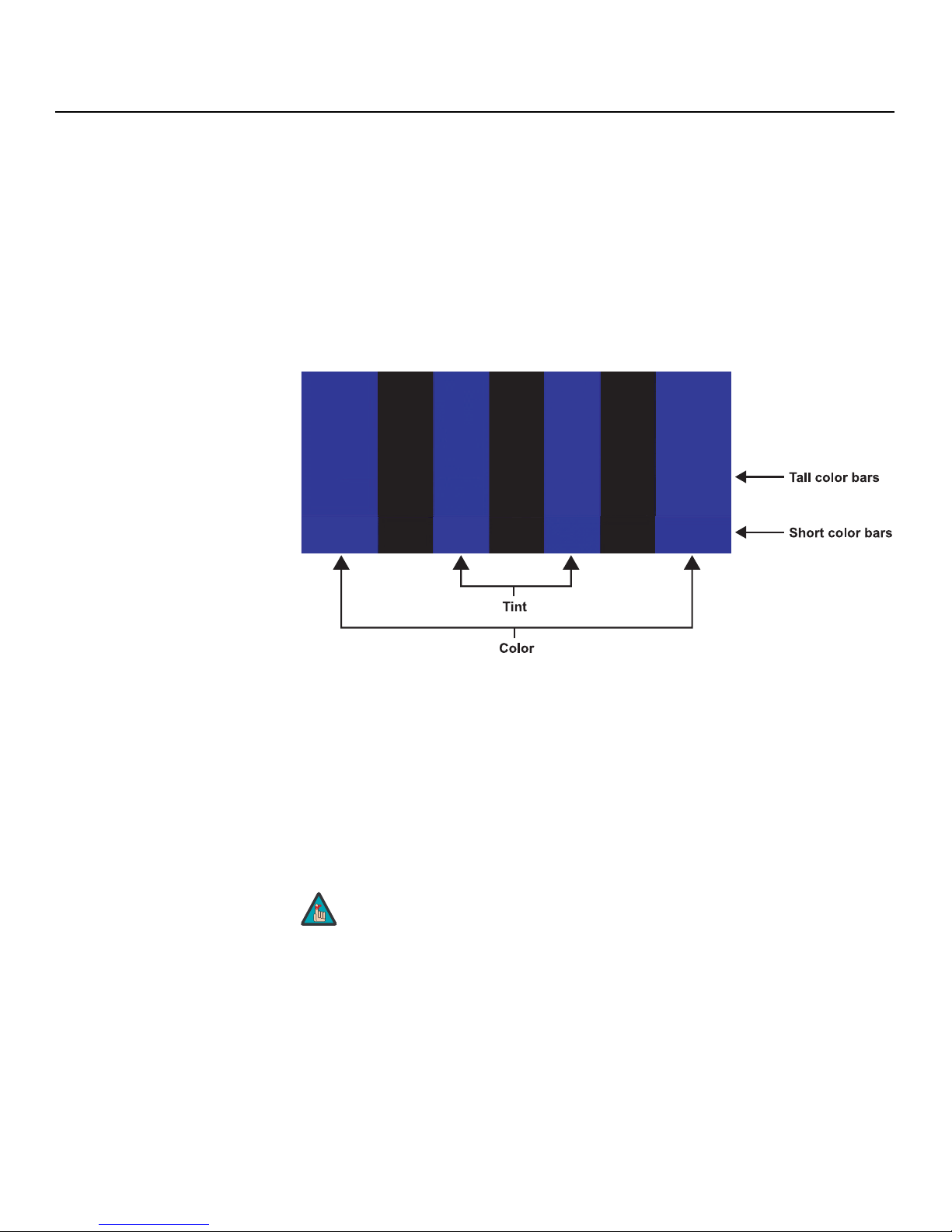

4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint................................65

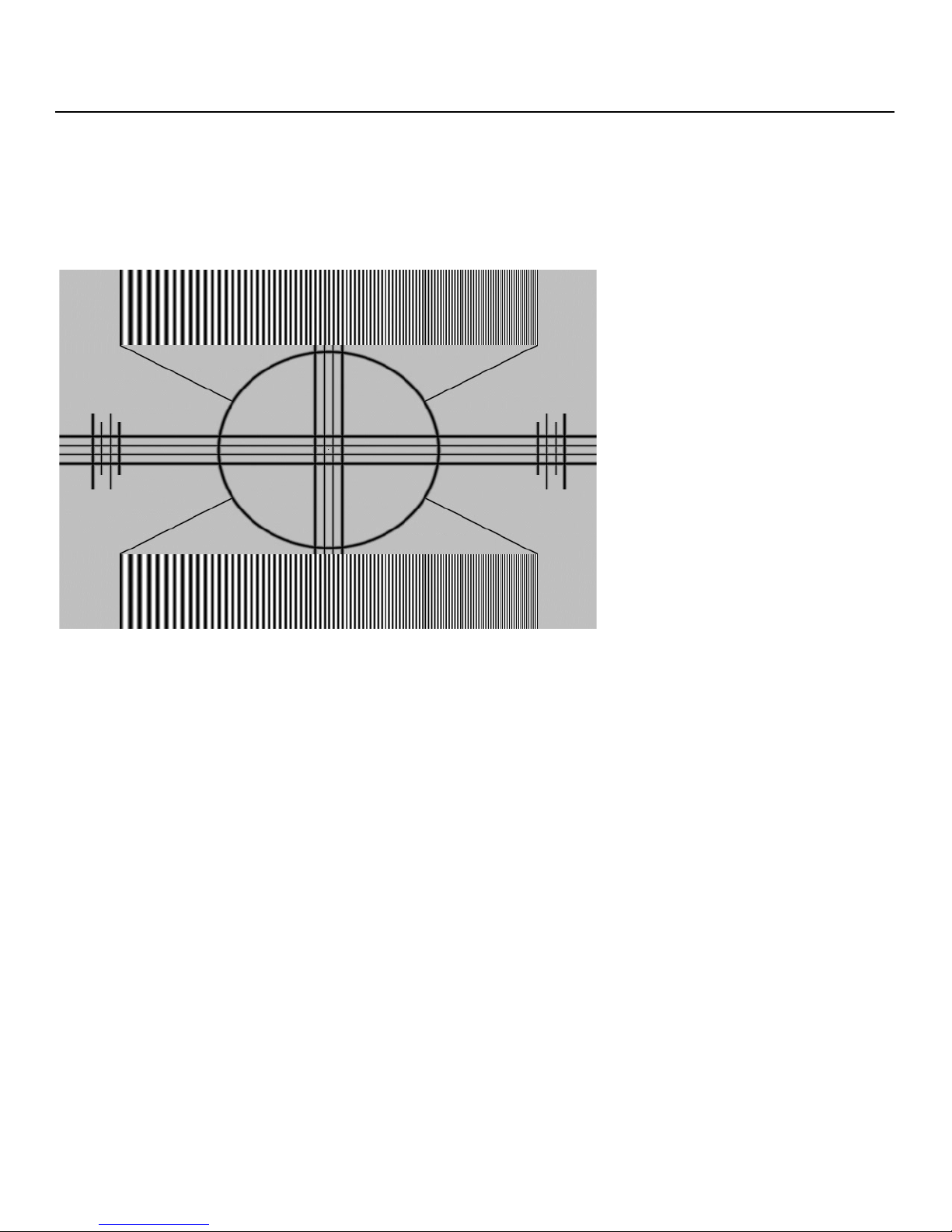

4-5. Typical Test Pattern for Adjusting Sharpness..............................................................67

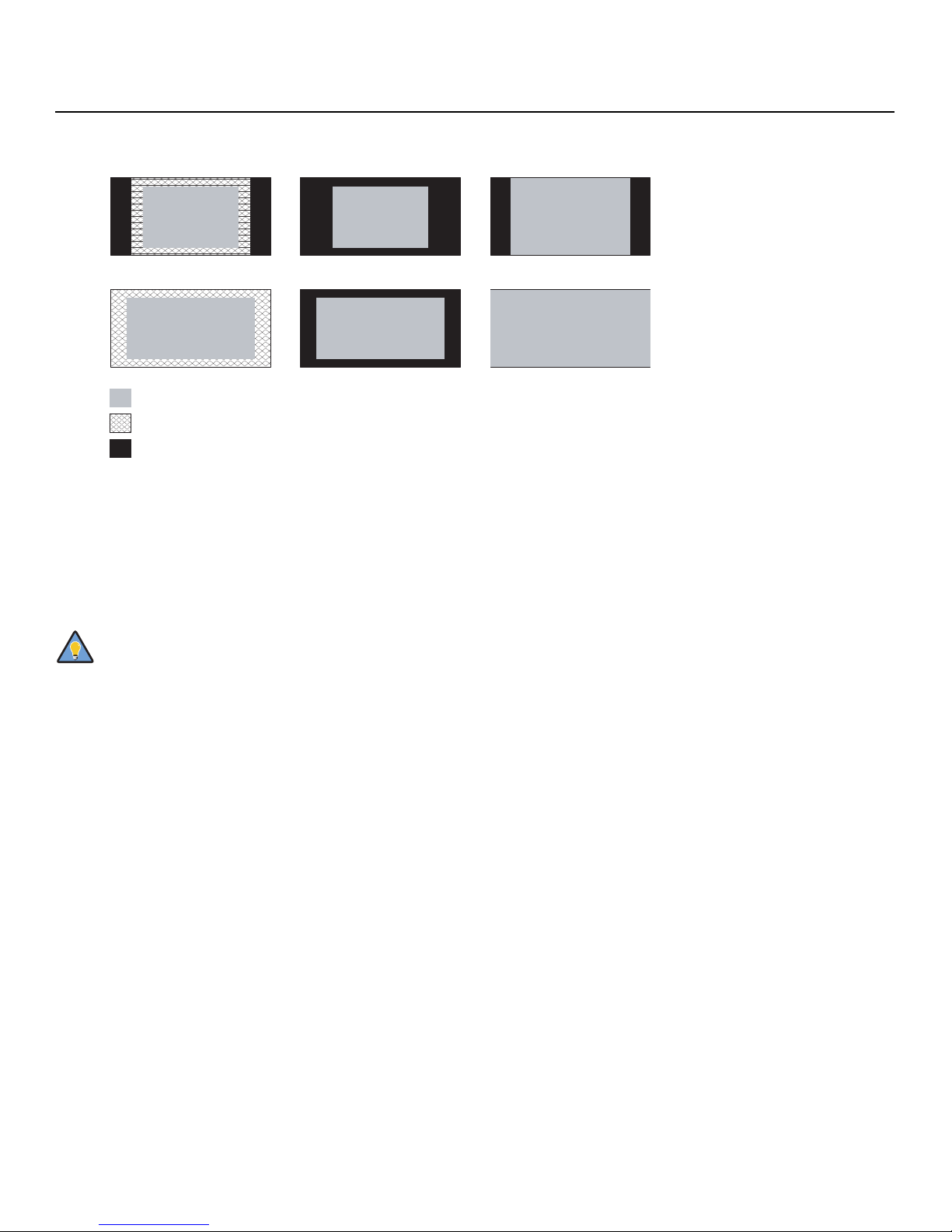

4-6. Overscan Modes ........................................................................................................69

4-7. CIE 1931 Chromaticity Diagram .................................................................................74

6-1. NEC Protocol Message Format ................................................................................ 117

7-1. LS-12d Dimensions..................................................................................................133

IMINAR

PRE

xvi LightStyle™ LS-12d Installation/Operation Manual

Introduction

1. Introduction

This Owner’s Manual describes how to install, set up and operate the Runco LightStyle™ Series LS-12d Active 3D Projection System.

Throughout this manual, the Runco LightStyle™ Series LS-12d Active 3D Projection System is referred to as the “LS-12d.”

out of the LS-12d.

Runco has made every effort to ensure that this manual is accurate as of the date it was printed. However, because of ongoing product improvements and customer feedback, it may require updating from time to time. You can always find the latest version of this and other Runco product manuals on-line, at www.Runco.com.

Runco welcomes your comments about this manual. Send them to support@Runco.com.

Text Conventions: The following conventions are used in this manual, in order to clarify the information and instructions provided:

• Remote and built-in keypad button identifiers are set in upper-case bold type; for example, “Press EXIT to return to the previous menu.”

• Computer input (commands you type) and output (responses that appear on-screen) is shown in monospace (fixed-width) type; for example: “To change the aspect ratio to Letterbox, type LETTERBOX <Enter>.”

• All keys with functional names are initial-capped, set in bold type and enclosed in angle brackets. These keys are the following: <Enter>, <Spacebar>, <Control>, <Esc> and <Tab>.

• <Enter> indicates that you may press either the RETURN or ENTER key on your keyboard if it has both keys.

In addition to these conventions, underlining, boldface and/or italics are occasionally used to highlight important information, as in this example:

PRE

IMINAR

1.1 About This Manual

Target AudienceRunco has prepared this manual to help installation personnel and end users get the most

If You Have Comments About This Manual...

Textual and Graphic Conventions

Note

LightStyle™ LS-12d Installation/Operation Manual 1

A carriage return must be used after each command or string.

Introduction

Graphic Conventions: These symbols appear in numerous places throughout the manual, to emphasize points that you must keep in mind to avoid problems with your equipment or injury:

TIPS highlight time-saving short cuts and helpful guidelines for using

Tip

certain features.

1.2

Using This Manual

Note

Caution

NOTES emphasize text with unusual importance or special significance. They also provide supplemental information.

CAUTIONS alert users that a given action or omitted action can degrade performance or cause a malfunction.

WARNING

DANGER!

Use the following table to locate the specific information you need in this manual.

WARNINGS appear when a given action or omitted action can result in damage to the equipment, or possible non-fatal injury to the user.

DANGER appears when a given action can cause severe injury or death.

IMINAR

If you need... ... Turn to page:

Information about obtaining service iv

General information about the LightStyle™ Series LS-12d Active 3D Projection System

Installation instructions 19

PRE

First-time configuration instructions 51

Advanced configuration instructions 73

Troubleshooting tips 98

Specifications for the LightStyle™ Series LS-12d Active 3D Projection System

125

2 LightStyle™ LS-12d Installation/Operation Manual

Introduction

Runco’s LightStyle™ Series LS-12d Active 3D Projection System delivers exceptional 3D and 2D performance, sharing many of the technical attributes of the award-winning LightStyle™ projector series. The LS-12d combines a powerful, three-chip DLP and a wide array of lens options with Runco’s elegant LightStyle chassis design. With the addition of the LS-12d to Runco’s 3D projection offerings, clients now have a variety of exceptional 3D options to choose from based on their individual needs.

Custom paint and print options with a myriad of color options are available with the LS-12d, including an option to design your own one-of-a-kind projector with Runco FinishPalette™. Beyond beautiful on the outside, the Runco LS-12d is feature-rich, including advanced connectivity and the latest-generation video processing and scaling. Rounding out this impressive projector are discrete input source, aspect ratio and power on/off, as well as an RS-232 interface for seamless integration with automation control systems.

Impressive and unique and unlike single-chip DLP implementations, no color wheel is used in the LS-12d projectors. Instead, it harnesses the power of three advanced full 1080p HD 16:9 DMD’s™ and 12-degree mirror tilt for the finest black level performance. The impressive brightness is further bolstered by the improved contrast capabilities of the stylish LS-12d. Designed to excel in both the dedicated theater as well “Flex-Theaters,” spaces where big screen entertainment is only a portion of the room’s purpose and aesthetics and placement are as crucial as video performance.

For uncompromised widescreen reproduction of movies originally filmed in the CinemaScope™ 2:35:1 format, the LS-12d can also be paired with one of Runco’s award-winning anamorphic lens solutions. Through an ingenious combination of software, electronics and precision anamorphic optics, the Runco anamorphic lens system maintains constant image height on the screen just as in a movie theater. When a viewer transitions from 1.78:1 (16:9) program material to superwide 2.35:1, the image simply gets wider while image height is maintained. The projection system is able to use the full pixel array, thereby producing a 2.35:1 image with enhanced resolution and increased brightness. No resolution or image area is lost to those black bars that contain no picture information.

IMINAR

engine

1.3 Description, Features and Benefits

Note

LightStyle™ LS-12d Installation/Operation Manual 3

An anamorphic lens requires the use of a 2.35:1 (or similar aspect ratio), “superwide” format screen.

PRE

Introduction

➤

Key Features and Benefits The LS-12d offers these key features and benefits:

• Native Resolution: 1920 x 1080 (16:9 Native Aspect Ratio)

• Three-chip Digital Light Processing (DLP™) system

• DisplayPort 1.1a Input (on Dimension Digital Controller) with High-bandwidth Digital Content Protection (HDCP)

• Eight (8) HDMI Inputs (on Dimension Digital Controller) with HDCP, 3D and Deep Color

•CinOptx™ Proteus lens options for stunning sharpness and throw distance flexibility

• Bundled with two years of Runco PremierCare™ service program providing on-site calibration and two years of ongoing support from Runco

Parts List Your LS-12d is shipped with the following items. If any items are missing or damaged,

please contact your Runco dealer or Runco Customer Service at (800) 23RUNCO.

• LightStyle™ Series LS-12d Active 3D Projection System:

• Projection Unit

• Dimension Digital Controller unit

• Remote Control Unit and batteries

• AC Power Cords (2)

• RJ-11 Telephone Cable, 50 feet (15.24 meters)

• Serial Port Adapter, RJ-11 Female to DB-9 Male

• Active 3D Emitter and projector interface cable, 3.28 feet (1.0 meters)

• Active 3D Glasses (3 pairs)

• HDMI-to-HDMI Cables (2), sold separately (refer to Optional Accessories, below)

• Rack-mount hardware for the Dimension Digital Controller

• Runco LS-12d Quick Setup Guide

IMINAR

Optional Accessories:

• Secondary anamorphic lens and lens mount

• Replacement Lamp (part number 997-5268-00)

PRE

• Ceiling mount kit (part number 997-4214-00)

• HDMI-to-HDMI Cable, length specified at time of order:

• 16.4 feet (5.0 meters) (part number 903-1010-00)

• 24.6 feet (7.5 meters) (part number 903-1011-00)

• 32.8 feet (10.0 meters) (part number 903-1012-00)

• 49.2 feet (15.0 meters) (part number 903-1013-00)

• 65.6 feet (20.0 meters) (part number 903-1014-00)

4 LightStyle™ LS-12d Installation/Operation Manual

2. System Overview

A LightStyle™ Series LS-12d Active 3D Projection System consists of the following components:

• The projector (equipped with dual digital video inputs) with optional anamorphic lens and lens transport assembly.

• The DC-300 Dimension Digital Controller™ unit that provides “left-eye” and “right-eye“ video signals and the on-screen display (OSD) menu to the projector. In addition, the Dimension Digital Controller controls the projector in response to user input via its infrared (IR) remote control unit or front-panel keypad, an external control system or HDMI Consumer Electronics Control (CEC) messages.

• An Active 3D Emitter that receives a left/right synchronization signal from the projector and transmits it to the Active 3D Glasses worn by the viewers. This signal precisely controls when left and right fields are visible through the glasses.

Figure 2-1 shows how these components connect to and interact with each other. The following sections describe each one in detail.

System Overview

Video

Sources

Remote Control

PRE

HDMI, DisplayPort,

Component, SCART,

RGB, Composite

Figure 2-1. LightStyle™ Series LS-12d Active 3D Projection System Block Diagram

HDMI Audio Out

DC-300

Dimension Digital Controller

Primary

Video

Scaler

Secondary

Video

Scaler

Primary Video/CEC (Control)

Secondary Video

2D/3D Video

Decoder/

Multiplexer

Anamorphic

Primary Video

IMINAR

(Left)

RS-232

Projector

Optical Engine

Lens

Trigger

Secondary Video

(Right)

L/R Stereo Sync

Active 3D

Emitter

Active 3D

Glasses

LightStyle™ LS-12d Installation/Operation Manual 5

System Overview

2.1

Projector

A LightStyle™ Series LS-12d Active 3D Projection System can display both traditional 2D and stereoscopic 3D video content.

An active 3D presentation requires a specialized video signal source configuration and content to be displayed correctly. Images from a stereo 3D video source consist of a series of images (called frames or fields) that alternate quickly between two slightly different view points, corresponding to a viewer’s left and right eyes.

When these frames are displayed fast enough and viewed with special stereo glasses synchronized to the left/right changes, the resulting image appears with the same depth and perspective that is sensed in the real world.

Figure 2-2 and Figure 2-3 show the key LS-12d components.

Power Button/

Status LED

Keypad

Exhaust

IMINAR

Vent

Intake

Vent

PRE

Figure 2-2. LS-12d Front/Side View

• POWER BUTTON/STATUS LED Indicates projector status as follows:

• Solid green = AC power present, ready to turn on (lamp not lit)

• Flashing green = lamp is warming up or cooling down; keypad functions not allowed

• Off = Lamp lit, projector functioning normally

• Alternating green/red = Lamp problem (door open, unable to strike, end of life), user

intervention likely to fix problem

• Flashing red = Over temperature, user intervention (clear vents, turn on AC) may fix

problem

• Solid red = Error that requires servicing (fan fail, Power-on self-test fail etc.)

Projection Lens

6 LightStyle™ LS-12d Installation/Operation Manual

•KEYPAD

System Overview

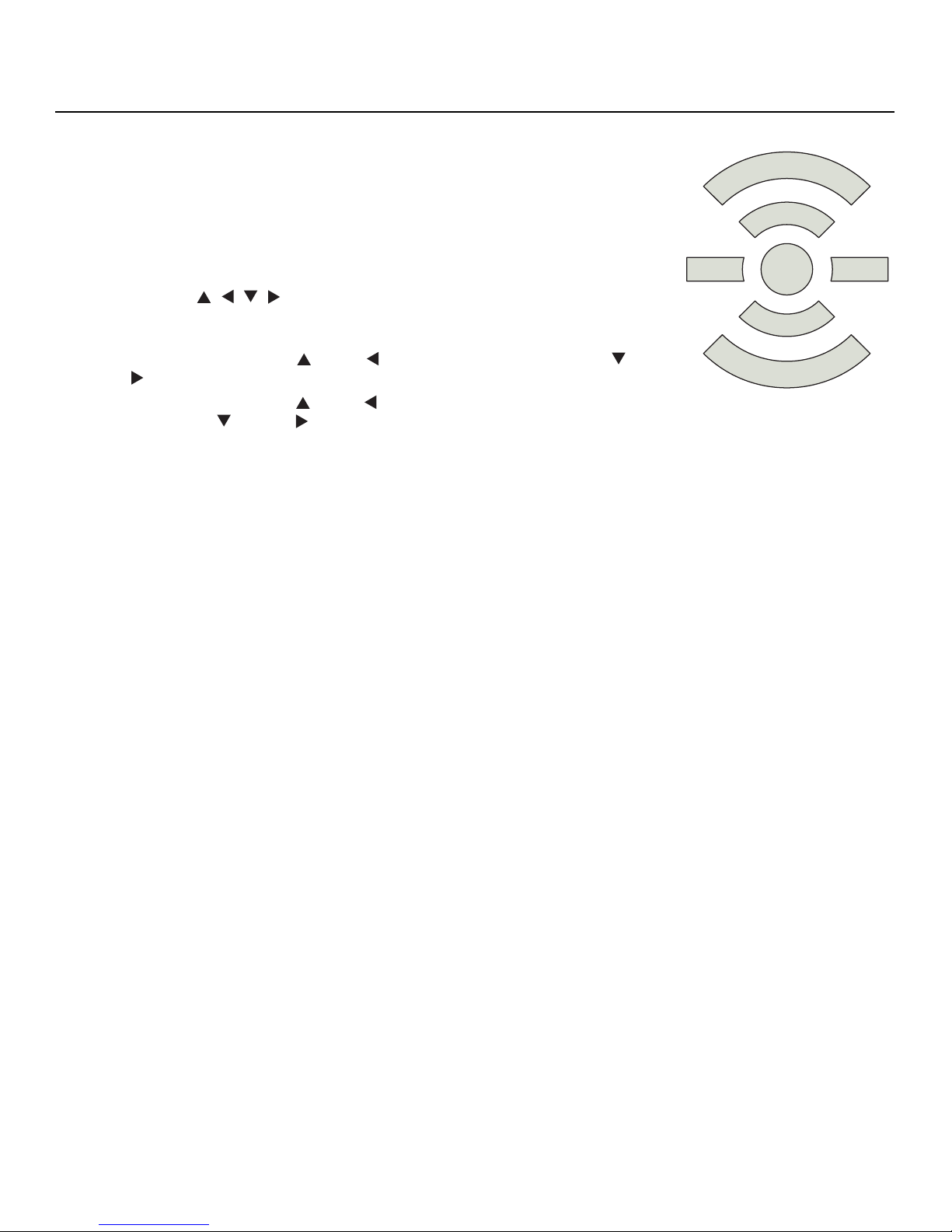

Provides an alternative to using the remote control unit to perform primary lens adjustments (focus, zoom and position).

FOCUS, H/V, ZOOM

Use these buttons to select the type of lens adjustment you wish to make. The default function (following a power cycle) is FOCUS.

Cursor Buttons ( , , , )

Use these buttons to perform the selected lens adjustment. These buttons operate as follows:

• When adjusting focus, the up ( ) or left ( ) button focuses closer; the down ( ) or right ( ) button focuses farther.

• When adjusting zoom, the up ( ) or left ( ) button zooms in (enlarges the projected image); the down ( ) or right ( ) button zooms out (makes the projected image smaller).

• When adjusting lens position (H/V), the cursor buttons move the image in the specified direction, assuming the projector is upright. If the projector is inverted (ceiling-mounted), the cursor button functions are reversed.

• EXHAUST VENT Warm air exits the projector through this vent. Ensure that it is not blocked.

• INTAKE VENT Internal fans draw cool air into the projector through this vent.

• PROJECTION LENS If needed, a light shield accessory is provided with the lens to minimize stray light emissions. (Use it only when the vertical offset is 50% of the screen height or greater.) The light shield attaches to the end of the lens.

IMINAR

FOCUS

▲

H/V

▲

ZOOM

►◄

PRE

LightStyle™ LS-12d Installation/Operation Manual 7

System Overview

Runco Logo Badge

Lamp Module Cover

Rear Cove

RS232

PRIMARY

SECONDARY

RS232

3D Sync Out

PRIMARY

SECONDARY

3D Sync Out

IMINAR

Ceiling Mount Holes

PRE

Figure 2-3. LS-12d Rear/Bottom/Top View

• RUNCO LOGO BADGE

• REAR COVER Remove to access connectors.

• LAMP MODULE COVER Remove this cover to access the lamp compartment.

• CABLE OPENING Pass cables through this opening.

• CEILING MOUNT HOLES Use these to attach the ceiling bracket to the projector. Use M4 screws with a maximum screw depth of 10 mm (0.39 inch).

• ADJUSTABLE FEET Use these when the projector is installed in a table-top configuration to level the image and/or adjust the projection angle.

Cable

Opening

Adjustable

Feet

8 LightStyle™ LS-12d Installation/Operation Manual

System Overview

Figure 2-4 shows the LS-12d rear panel.

RS232

PRIMARY

SECONDARY

3D Sync Out

1 2 3 4 65 7 8

Figure 2-4. LS-12d Rear Panel

IMINAR

1. RS232 (Control) A female, 9-pin D-sub connector that provides a serial communication link to the Dimension Digital Controller, via its Pri. Display Control output (see Figure 2-6).

2. 3D LED Lights green when the projector is displaying 3D content.

2.2 LS-12d Rear Panel

3. PRIMARY VIDEO INPUT Connect the HDMI Out To Primary Display connector from the Dimension Digital Controller to this input (see Figure 2-6).

4. PRIMARY SOURCE LED Lights amber when the projector detects a valid primary video signal from the Dimension Digital Controller.

5. SECONDARY VIDEO INPUT Connect the HDMI Out To Sec. Display connector from the Dimension Digital Controller to this input (see Figure 2-6).

6. SECONDARY SOURCE LED Lights amber when the projector detects a valid secondary video signal from the Dimension Digital Controller.

7. POWER INPUT (100 to 240 VAC) Connect the LS-12d to power here.

8. 3D Sync Out A 3-pin, VESA standard mini-DIN connector for connecting the Runco Active 3D Emitter to the projector (see Figure 3-21).

LightStyle™ LS-12d Installation/Operation Manual 9

PRE

System Overview

➤

2.3

DC-300 Dimension Digital Controller

Front Panel Layout Figure 2-5 shows the controls and indicators on the Dimension Digital Controller front

The Dimension Digital Controller provides “left-eye” and “right-eye” video signals and the OSD menu to the projector. It controls the other system components in response to user input via the following interfaces:

• Front-panel keypad

• IR remote control unit

• HDMI CEC messages

• RS-232 serial commands

•Ethernet

panel; the paragraphs that follow describe them.

LS-12d

HDMI 1

16:9/1 1080i/60

IMINAR

standby

91011

Figure 2-5. Dimension Digital Controller Front Panel

1. RUNCO ICON

PRE

Lights blue to indicate that the controller is on or powering up.

2. IR SENSOR Receives IR commands from the remote control.

3. VACUUM FLUORESCENT DISPLAY Can be used instead of the On-Screen Display (OSD). Displays currently-selected menu or – if no menu is selected – the connected display device model, current source, input resolution and aspect ratio/screen.

4. ON/STANDB Y BUTTON Press once to toggle from standby mode to on mode. Press it again to return to standby mode. For a discrete on or off command, you can use the direct access buttons on the remote control.

5. LEFT BUTTON Used to direct-select inputs or move the menu cursor left in the OSD. When no menu is present on-screen, the LEFT button toggles through the different sources, in this order: DisplayPort - HDMI 8 - HDMI 7 - HDMI 6 - HDMI 5 - HDMI 4 - HDMI 3 - HDMI 2 HDMI 1 - SCART - HD 2 - HD 1 - Component - Composite 3 - Composite 2 Composite 1

654 87

10 LightStyle™ LS-12d Installation/Operation Manual

6. DOWN BUTTON Use to direct-select aspect ratios or move the menu cursor down in the OSD. When no menu is present on-screen, this button toggles through aspect ratios in the following order: 16:9 - 4:3 - Letterbox - VirtualWide - Cinema - Virtual Cinema - Native

7. RIGHT BUTTON Used to direct-select inputs or move the menu cursor right in the OSD. When no menus are present on-screen, the RIGHT button toggles through the different sources, in this order: Composite 1 - Composite 2 - Composite 3 - Component - HD 1 - HD 2 - SCART HDMI 1 - HDMI 2 - HDMI 3 - HDMI 4 - HDMI 5 - HDMI 6 - HDMI 7 - HDMI 8 DisplayPort

8. MENU BUTTON Press the MENU button to bring up the main menu, or to exit the current menu and return to the previous one.

9. UP BUTTON Use to direct-select aspect ratios or move the menu cursor up in the OSD. When no menus are present on-screen, the UP button toggles through aspect ratios in the following order: Native - Virtual Cinema - Cinema - VirtualWide - Letterbox - 4:3 - 16:9

10. ENTER BUTTON When an item is highlighted on the OSD, the ENTER button selects the item.

System Overview

11. STANDB Y L ED Lights amber when the Dimension Digital Controller is in standby mode; otherwise it is off.

IMINAR

PRE

LightStyle™ LS-12d Installation/Operation Manual 11

System Overview

➤

Compone

HD2

Rear Panel Layout Figure 2-6 shows the rear connector panel on the Dimension Digital Controller.

1 2

3D SYNC

DisplayPort

HD2

TRIGGERS

123

Component / SCART

deo

Video 1

13 181714

Figure 2-6. DC-300 Dimension Digital Controller Rear Panel

1. MAIN POWER SWITCH Disconnects or applies power to the Dimension Digital Controller.

2. 3D Sync Out A 3-pin, VESA standard mini-DIN connector for connecting the Runco Active 3D Emitter to the Dimension Digital Controller.

IMINAR

3. TRIGGERS Connection for up to three (3), 12-volt trigger-controlled devices such as retractable

screens or screen masks. Output current is limited to 250 milliamperes (mA).

USB

Video 2

Video 3

deo

HDMI 2 HDMI 4 HDMI 6 HDMI 8

RS-232

To Accessory Box

Pri. Display Control Sec. Display Control

Ethernet

HDMI Out

To Sec. Display

HDMI Out

Audio Only

96 754

RS-232

PC / Control

HDMI Out

To Pri. Display

1916

4. USB A standard, USB Series “B” connection to a personal computer, for performing software upgrades and other service procedures.

5. RS-232 (To Accessory Box)

PRE

Reserved for future use.

6. Pri. Display Control Connect this to the RS-232 input on the projector.

7. Sec. Display Control Not used.

8. IR Wired input from a Niles- or Xantech-compatible, infrared (IR) repeater system. It is a

3.5-mm, mini phono jack, wired as follows: Ring = No connection Tip = IR Input Sleeve = Ground

9. RS-232 (PC / Control) A female, 9-pin D-sub connector for interfacing with a PC or automation/control system.

10. POWER INPUT (100 to 240 VAC) Connect the Dimension Digital Controller to power here.

12 LightStyle™ LS-12d Installation/Operation Manual

11. DisplayPort DisplayPort 1.1a and DisplayPort-HDCP 1.1 compliant, SD/HD input for connecting SDTV, EDTV or HDTV component video sources.

12. HD1 / HD2 In (15-pin VGA) Two inputs for connecting standard-definition (SD = 480i/576i), enhanced-definition (ED = 480p/576p) or high-definition (HD = 720p/1080i/1080p) component video sources, or RGBHV sources such as personal computers.

13. Component / SCART In (3 x RCA connectors) SD/HD input for connecting SDTV, EDTV or HDTV component video sources. Also provides RGB input for SCART RGBS sources.

14. Video 1 / Video 2 / Video 3 In Standard, composite video inputs for connecting a VCR, camcorder or other composite video source. The Video 1 input also provides composite sync input for SCART RGBS sources.

15. HDMI 1 ... HDMI 8 In (Digital) Eight (8), HDCP-compliant digital video inputs for connecting HDMI or DVI sources.

16. Ethernet A female RJ-45 connector for wired network communications.

17. HDMI Out (Audio Only) Connect this output to an audio control system to pass through HDMI audio.

System Overview

Note

The Dimension Digital Controller does not transmit HDMI CEC control messages from the “HDMI Audio Out” connector.

IMINAR

18. HDMI Out (To Secondary Display) Connect this to the SECONDARY video input on the projector.

19. HDMI Out (To Primary Display) Connect this to the PRIMARY video input on the projector.

PRE

LightStyle™ LS-12d Installation/Operation Manual 13

System Overview

2.4

LS-12d Remote Control Unit

Figure 2-7 shows the LS-12d remote control, and the paragraphs that follow describe its functionality.

Note

The LS-12d remote control unit supports an “extended” key code mode that allows certain buttons to perform alternate functions. The following list identifies those buttons that have both standard and extended-mode functions.

For more information, refer to Remote Control on page 83 and IR Command List (Extended Mode) on page 121.

IMINAR

PRE

Figure 2-7. Dimension Digital Controller Remote Control Unit for LS-12d

14 LightStyle™ LS-12d Installation/Operation Manual

1. IR OUTPUT INDICATOR Lights when a button is pressed to indicate that an IR signal is being transmitted.

2. OFF (Standard) / Sleep Timer = 30 Minutes (Extended) Press to turn off the Dimension Digital Controller and projector. In extended mode, press to set the Sleep Timer to 30 minutes.

3. ON (Standard) / Sleep Timer = Off (Extended) Press to turn on the Dimension Digital Controller and projector. In extended mode, press to disable the Sleep Timer.

4. Aspect Ratio Selection Buttons Use these buttons to select an aspect ratio directly, as follows:

16:9 (Standard) / Sleep Timer = 60 Minutes (Extended)

For viewing 16:9 DVDs or HDTV programs in their native aspect ratio. In extended mode, press to set the Sleep Timer to 60 minutes.

4:3 (Standard) / Sleep Timer = 90 Minutes (Extended)

Scales the input signal to fit 4:3 display mode in the center of the screen. In extended mode, press to set the Sleep Timer to 90 minutes.

System Overview

LETBOX (Letterbox - Standard) / Sleep Timer = 2 Hours (Extended)

For viewing non-anamorphic (“full-screen”) DVDs on a 16:9 screen. In extended mode, press to set the Sleep Timer to 2 hours.

V-WIDE (VirtualWide - Standard) / Sleep Timer = 4 Hours (Extended)

Enlarges a 4:3 image horizontally in a non-linear fashion to fit 16:9 full screen display. In extended mode, press to set the Sleep Timer to 4 hours.

CINEMA (Standard) / Video 1 Input (Extended) For viewing 2.35:1 source material. In extended mode, press to select the Video 1 (Composite 1) input.

V-CINE (Standard) / Component Input (Extended)

Selects the Virtual Cinema aspect ratio, used for viewing 16:9 source material on a

2.35:1 screen. In extended mode, press to select the Component input.

IMINAR

PRE

NATIVE (Standard) / HD 1 Input (Extended)

Displays the source signal in its native resolution, centered in the display area. In extended mode, press to select the HD 1 input.

LightStyle™ LS-12d Installation/Operation Manual 15

System Overview

5. Numeric Buttons (Standard) Use these buttons to enter numeric characters (0 ... 9), such as when changing remote control codes (refer to Remote Control on page 83).

Numeric Buttons (Extended)

In extended mode, press a numbered button to select a video source, as follows:

Remote Control Button Source Assignment in Extended Key Code Mode

6. SCREEN 1 (Standard) / Video 3 Input (Extended) SCREEN 2

Use these buttons to select a screen profile. For more information, refer to Screen on page 62.

In extended mode, press SCREEN 1 to select the Video 3 (Composite 3) input.

7. Memory Preset Buttons:

IMINAR

HD 2

HDMI 1

HDMI 2

HDMI 3

HDMI 4

HDMI 5

HDMI 6

HDMI 7

HDMI 8

DisplayPort

PRE

8. EXIT

9. MENU

ISF NIGHT (Standard) / SCART (Extended)

Press to recall settings for the current input from the “ISF Night” memory preset. In extended mode, press to select the SCART input.

ISF DAY (Standard) / Video 2 (Extended)

Press to recall settings for the current input from the “ISF Day” memory preset. In extended mode, press to select the Video 2 (Composite 2) input.

CUST 1 (Standard) / 3D Mode = Off (Extended)

Press to recall settings for the current input from the “Custom 1” memory preset. In extended mode, press to set the 3D Mode to Off (for 2D content).

CUST 2

Press to recall settings for the current input from the “Custom 2” memory preset.

Press this button to exit the current menu and return to the previous one.

Press this button to access the OSD controls, or to exit the current menu and return to the previous one.

16 LightStyle™ LS-12d Installation/Operation Manual

10. Cursor Buttons ( , , , ) Use these buttons to select items or settings, adjust settings or switch display patterns.

When no menu is present on-screen, the UP and DOWN buttons toggle through the available aspect ratios, in this order:

UP Button = Native - Virtual Cinema - Cinema - VirtualWide - Letterbox - 4:3 - 16:9 DOWN Button = 16:9 - 4:3 - Letterbox - VirtualWide - Cinema - Virtual Cinema -

Native

System Overview

Note

Likewise, the LEFT and RIGHT buttons toggle through the different source inputs, in this order: LEFT Button = DisplayPort - HDMI 8 - HDMI 7 - HDMI 6 - HDMI 5 - HDMI 4 - HDMI 3

- HDMI 2 - HDMI 1 - SCART - HD 2 - HD 1 - Component - Composite 3 Composite 2 - Composite 1 RIGHT Button = Composite 1 - Composite 2 - Composite 3 - Component - HD 1 HD 2 - SCART - HDMI 1 - HDMI 2 - HDMI 3 - HDMI 4 - HDMI 5 - HDMI 6 - HDMI 7 HDMI 8 - DisplayPort

11. ENTER Press to select a highlighted menu item or confirm a changed setting.

12. LIGHT Press to illuminate the buttons.

13. SRC 1, SRC 2 ... SRC 14 Use these buttons to select a video source. You can assign each button to any source you wish. By default, these buttons are assigned as follows:

Remote Control Button Default Source Assignment

SRC 1 ... SRC 8

For more information about aspect ratios, refer to Table 4-1.

IMINAR

HDMI 1 ... HDMI 8

SRC 9

SRC 10

SRC 11

SRC 12

SRC 13

SRC 14

For instructions on how to change these assignments, refer to SRC 1-7 Keys / SRC 8-14 Keys on page 84.

LightStyle™ LS-12d Installation/Operation Manual 17

PRE

DisplayPort

Component

HD 1

HD 2

Composite 1

Composite 2

System Overview

14. 3D Mode Selection Buttons:

3D AUTO Press to set the 3D Mode to Auto.

3D SBS (Side-by-Side) Press to set the 3D Mode to 3D Side-by-Side.

3D TAB (Top-and-Bottom) Press to set the 3D Mode to 3D Top-and-Bottom.

3D FP (Frame Packing) Press to set the 3D Mode to 3D Frame Packing.

Note

IMINAR

PRE

For more information about 3D modes, refer to 3D Mode on page 71.

18 LightStyle™ LS-12d Installation/Operation Manual

Installation

3. Installation

Note

To install batteries in the remote control:

1. Press down the tab on the cover and pull the cover in the direction of the arrow.

2. Insert the included batteries. Ensure that the polarities correctly match the and markings inside the battery compartment.

3. Insert the lower tab of the cover into the opening, and press down the cover until it clicks in place.

• Do not mix an old battery with a new one or different types of batteries.

• If you will not use the remote control for a long time, remove the batteries to avoid

damage from battery leakage.

• Do not expose batteries to excessive heat such as from sunshine, fire or the like.

• Make sure that there is nothing obstructing the infrared beam between the remote

control and the IR receiver on the Dimension Digital Controller.

• If the effective range of the remote control decreases, or it stops working, replace the

batteries with new ones.

• The remote control may fail to operate if the infrared remote sensor is exposed to bright

sunlight or fluorescent lighting.

• Ambient conditions may possibly impede the operation of the remote control. If this

happens, point the remote control at the Dimension Digital Controller, and repeat the operation.

Installation must be performed by a qualified custom video installation specialist.

IMINAR

PRE

3.1 Remote Control

Notes on Batteries• Make sure that the battery polarities are correct when installing the batteries.

Notes on Remote Control Operation

LightStyle™ LS-12d Installation/Operation Manual 19

Installation

3.2

Quick Setup

Table 3-1 gives a quick overview of the LS-12d installation process. The sections following this one provide detailed instructions.

Table 3-1. Installation Overview

Step Procedure

Choose a location for the projector 21

Install anamorphic lens mounting assembly (optional) 28, 40

Mount the projector 33

Mount the Dimension Digital Controller 35

Connect the Dimension Digital Controller to the projector 36

Connect other external equipment to Dimension Digital Controller (optional):

• Audio processor or secondary display device

• Control system interface (RS-232)

• 12-volt trigger-activated equipment (retractable screens or screen masking)

• External IR repeater

• Network hub, router or gateway (Ethernet)

Connect signal sources to the Dimension Digital Controller 43

For Details, Refer

to page...

IMINAR

Connect the Active 3D Emitter to the projector 49

Connect system components to AC power 49

Apply power to the projector 50

Adjust primary lens: projected image size (zoom), position (shift)

and focus

For rear-screen and/or ceiling-mount installations, select the

PRE

proper picture orientation

Use Image Alignment controls to fine-tune image geometry 52

Install and adjust secondary anamorphic lens (optional) 54

Display calibration: adjust the following for each Dimension Digital Controller input and display mode (resolution/frame rate); save settings when finished:

• Aspect ratio • Color level

• Brightness • Tint

• Contrast • Input position

• Color temperature and white balance

Prepare Runco Active 3D Glasses for use and test with 3D source

material

24, 51

60 through 79

20 LightStyle™ LS-12d Installation/Operation Manual

Installation

Proper installation of your projector will ensure the quality of your display. Whether you are installing a projector temporarily or permanently, you should take the following into account to ensure your projector performs optimally.

It is a common practice in custom audio/video installations to conceal cables by running them through walls.

If you plan to do this with your LS-12d installation, you will need to run three cables from the projector to the other projection system components: two (2) HDMI cables and a serial control cable (typically Category 5 or 4-wire telephone cable).

inverted mount. Table 3-2 compares these various installation methods.

Table 3-2. Projector Installation Options

Advantages Considerations

Front Screen, Floor Mount Installation

• Easy to set up

• Can be moved or changed quickly

• Easy to access

Front Screen, Inverted Mount (ceiling) Installation

• Does not take up audience space

• Projector is unobtrusive

• Projector cannot be accidentally moved

• Shares floor space with audience

IMINAR

• Installation is more permanent

• Projector access is more difficult

3.3 Installation Considerations

Pre-Wiring for 3D: Run Dual HDMI Cables

Installation TypeChoose the installation type that best suits your needs: front or rear screen, floor mount or

Rear Screen, Floor Mount Installation

• Projector is completely hidden

• Projector is easily accessed

• Usually good ambient light rejection

Rear Screen, Inverted Mount (ceiling) Installation

PRE

• Projector is completely hidden

• Usually good ambient light rejection

Rear Screen, Floor Mount with Mirror

• Projector is completely hidden

• Usually good ambient light rejection

• Requires less space behind screen than other rear screen installations

images will be noticeably reduced if light directly strikes the screen, such as when a shaft of light from a window or floodlight falls on the image. Images may then appear washed out and less vibrant.

• Requires separate room

• Installation cost is usually higher

• Requires separate room

• Installation cost is usually higher

• Requires separate room

• Installation cost is usually higher

Ambient LightIn general, minimize or eliminate light sources directed at the screen. Contrast ratio in your

LightStyle™ LS-12d Installation/Operation Manual 21

Installation

➤

Throw Distance Throw distance is the distance measured from the front of the projector to the screen.

This is an important calculation in any projector installation as it determines whether or not you have enough room to install your projector with a desired screen size and if your image will be the right size for your screen.

You can quickly estimate the throw distance by taking the width of the screen and multiplying it by the lens throw ratio; see Figure 3-1. The result of this calculation tells you roughly how far back the projector should be positioned from the screen in order to project a focused image large enough to fill the screen.

Estimating Throw Distance

Throw Distance (TD) = Screen Width (w) x Lens Throw Ratio

Screen width (w)

IMINAR

Figure 3-1. Estimating Throw Distance

PRE

22 LightStyle™ LS-12d Installation/Operation Manual

Table 3-3 lists the available lens options for the LS-12d and their associated throw ratios.

Table 3-3. LS-12d Lens Options and Throw Ratios (Note 1)

Installation

Throw Range in

Throw Ratio

Lens Option

Proteus 1

Proteus 2

Proteus 3

Proteus 4

Proteus 5

Proteus 6

Notes:

1. Due to normal manufacturing variances, throw distance can vary by up to +/- 5 percent from these specifications.

2. Only the Proteus 2, 3, 4, 5 and 6 lenses can be used with the optional anamorphic lens. Doing so affects the throw distances as shown here.

with Primary

Lens Only

0.77 (Fixed)

1.45 - 1.74 169.65 203.58 1.09 - 1.30 170.04 202.80

1.74 - 2.17 203.58 253.89 1.30 - 1.63 202.80 254.28

2.17 - 2.90 253.89 339.30 1.63 - 2.17 254.28 338.52

2.90 - 4.34 339.30 507.78 2.17 - 3.26 338.52 508.56

4.34 - 6.76 507.78 790.92 3.26 - 5.07 508.56 790.92

inches, with

117x65.8-inch (1.78:1)

Screen

Minimum Maximum Minimum Maximum

For rear-screen installa-

tions only. Contact

Runco Technical Support

for more information.

Throw Ratio

with Primary

Lens and

Anamorphic

Lens

IMINAR

Throw Range in

inches, with

156x65.8-inch (2.35:1)

Screen

Not Applicable

(Note 2)

Proper placement of the projector relative to the screen will yield a rectangular, perfectly-centered image that completely fills the screen.

Vertical and Horizontal Position

Ideally, the projector should be positioned perpendicular to the screen and in such a way that the lens center is aligned with either the top or bottom edge of the screen area, and centered horizontally. See Figure 3-2.

PRE

LightStyle™ LS-12d Installation/Operation Manual 23

Installation

➤

Ceiling Installation

Height

Floor Installation

Height

Lens Center

Figure 3-2. Projector Placement

Projection Distance

Screen

Projection Distance

Lens CenterLens Center

Screen

Lens Center

Ceiling

Floor

Vertical and Horizontal

Lens Shift

PRE

You can use the lens shift controls to center the image on the screen. Lens shift is generally expressed as a percentage of the screen height or width, as shown in Figure 3-3 and Figure 3-4.

Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular lens or projector is used in this example.

Figure 3-3. Vertical Lens Shift (EXAMPLE ONLY)

IMINAR

Screen Center

50% Height

Lens Shift

(0.5 x H)

100% Height

Lens Shift

(1.0 x H)

24 LightStyle™ LS-12d Installation/Operation Manual

100% Width Lens Shift

(1.0 x W)

50% Width Lens Shift

(0.5 x W)

Installation

Screen Center

Screen Width (W)

IMINAR

Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular lens or projector is used in this example.

Figure 3-4. Horizontal Lens Shift (EXAMPLE ONLY)

Vertical Lens Shift: The LS-12d zoom lenses (Proteus 2 through 6) provide up to 65% of

vertical lens shift in either direction (up or down). For example, with a 96 x 54-inch (16:9) screen, you can shift the image up to 35.10 inches (0.89 meters) below the screen center. (Vertical lens shift is not possible with the Proteus 1 lens.)

PRE

Horizontal Lens Shift: The LS-12d zoom lenses (Proteus 2 through 6) allow up to 30% of horizontal lens shift in either direction (left or right). For example, with a 96 x 54-inch (16:9) screen, you can shift the image up to 28.80 inches (73.15 cm) left or right of the screen center. (Horizontal lens shift is not possible with the Proteus 1 lens.)

LightStyle™ LS-12d Installation/Operation Manual 25

Installation

➤

Folded Optics In rear-screen applications where space behind the projector is limited, a mirror may be

used to fold the optical path, as shown in Figure 3-5. The position of the projector and mirror must be accurately set. If you are considering this type of installation, contact your dealer for assistance.

Screen

Figure 3-5. Folded Optics

For best performance, always use “first-surface” mirrors in your

Tip

rear-projection installation (as opposed to conventional, “second-surface” mirrors with the reflective surface behind a transparent substrate such as glass or acrylic).

IMINAR

First-surface mirrors provide a strict reflection without the “ghosting” effect seen with a second surface mirror, where a faint secondary reflection could be observed coming from the front surface of the glass.

Mirror

PRE

This is especially critical for 3D viewing; with a conventional second-surface mirror, the resulting image quality may be unacceptable.

26 LightStyle™ LS-12d Installation/Operation Manual

Installation

Due to its extraordinarily high level of video processing performance, the Dimension Digital Controller may distribute video signals with a perceptible level of audio latency. In order to easily solve this issue, Runco recommends using the Dimension Digital Controller with a high-quality audio receiver that has the ability to effectively synchronize audio and video signals.

Most mainstream audio receiver/switchers have the ability to synchronize the audio and video to the Advanced Television Systems Committee (ATSC) prescribed tolerances. According to the ATSC, the sound program should never lead the video program by more than 15 milliseconds, and should never lag behind the video program by more than 45 milliseconds.

In addition, many video displays and A/V receivers introduce additional latency that needs to be compensated for during the installation.

Table 3-4 shows the amount of possible audio latency given different signal input timings.

Table 3-4. Possible Audio Latency for Various Input Timings

Input Timing Possible Audio Latency (milliseconds)

480i 133

480p 83

576i 160

576p 100

720p/50 100

720p/60 83

IMINAR

Audio/Video Synchronization Issues

1080i/25 160

1080i/30 133

1080p/24 125

1080p/50 80

1080p/60 67

PRE

• Keep the ambient temperature constant and below 35°C (95°F). Keep the projector away from heating and/or air conditioning vents. Changes in temperature may cause drifts in the projector circuitry, which may affect performance.

• Keep the projector away from devices that radiate electromagnetic energy such as motors and transformers. Common sources of these include slide projectors, speakers, power amplifiers and elevators.

Other ConsiderationsOther considerations and tips that can help improve your installation:

LightStyle™ LS-12d Installation/Operation Manual 27

Installation

➤

3.4

Installing the Optional Anamorphic Lens Mount

Package Contents The LS-12d Anamorphic lens mount kit consists of the following items. Some

If you are installing a standard LS-12d (without an anamorphic lens), skip this step and proceed with Mounting the LS-12d (page 33).

If you are installing an LS-12d with an anamorphic lens, proceed as follows to install the lens mount and transport assembly.

1. Do not install the anamorphic lens yet, only the lens mount and

Note

transport assembly. You will install the anamorphic lens after you install the projector and adjust the primary lens.

2. Some components shipped with your projector may differ slightly from what is shown in these instructions.

components shipped with your projector may differ slightly from what is shown in these instructions. If any items are missing or damaged, please contact your Runco dealer or Runco Customer Service at (800) 23RUNCO.

• Transport Assembly Attachment Plate

• Attachment plate hardware (screws, washers and spacers)

• Attachment plate security hooks and related hardware (chain, chain ends, nuts and washers)

IMINAR

• Transport Assembly

PRE

• Transport mounting hardware

• Lens bracket mounting hardware

• Power supply

• Remote control unit and batteries

• Anamorphic lens and mounting bracket

28 LightStyle™ LS-12d Installation/Operation Manual

Attaching the Transport Assembly Attachment Plate:

1. Place the projector upside down on a blanket or other soft surface.

2. Position the attachment plate as shown here.

Attachment Points

for Security Hooks

Installation

IMINAR

Attachment Points

for Transport Assembly Attachment Plate

and Ceiling Mount Plate

PRE

3. If you are mounting the projector on a ceiling: Line up the holes on the Ceiling Mount Plate (included with the projector ceiling mount kit) with those on the bottom of the projector and attachment plate.

4. Secure the Transport Assembly Attachment Plate and Ceiling Mount Plate to the projector using the hardware provided with the attachment plate, as shown.

LightStyle™ LS-12d Installation/Operation Manual 29

Installation

Caution

1. Do not use the mounting screws provided with the ceiling mounting kit. Use only the hardware provided with the Transport

Assembly Attachment plate.

2. DO NOT OVER-TIGHTEN THE SCREWS.

Attachment Points

for Security Hooks

IMINAR

PRE

Installing the Anamorphic Lens Transport Assembly: After installing the Transport Assembly Attachment Plate and Ceiling Mount Plate, proceed as follows to install the Anamorphic Lens Transport Assembly.

Hardware for Attachment Plate and Ceiling Mount Plate (4 Places):

Screw, Phillips PH,

M4 x 30mm

Lock Washer

Flat Washer

5/8" Nylon Spacer

Ceiling Mount Plate

Attachment Plate

Projector (bottom)

30 LightStyle™ LS-12d Installation/Operation Manual

Installation

Install Transport Pivot Screw Here

Transport Assembly

Attachment Points

Hardware for Lens Transport Assembly:

Pivot Screw, Phillips PH,

#10-32 x 5/8" (1)

Nut, #10-32 (1)

Lock Washer, #10-32 (1)

Flat Washer, #10-32 (1)

Screw, Phillips PH, #6-32 x 3/8" (4)

Transport Assembly

Pivot Screw,

as assembled

Attachment

Plate

1. Position the flat side of the motorized transport against the bottom side of the Attachment Plate so that the center “M” hole in the Attachment Plate is aligned with the front recessed transport hole.

2. Insert the #10-32 pivot screw up through the transport and Attachment Plate and loosely complete the assembly with the corresponding washer, lock washer and nut.

3. Loosely insert the four small 3/8” screws through the four remaining “M” slots through the top of the Attachment Plate and down into the transport.

4. Separate the Anamorphic Lens and lens bracket. Locate the lens bracket mounting screws and use them to attach the bracket to the transport assembly. Observe the sticker on the plate showing the correct sequence for installing and tightening the screws.

IMINAR

PRE

LightStyle™ LS-12d Installation/Operation Manual 31

Installation

Attaching the Security Hooks: To help stabilize and support the added weight of the Anamorphic Lens and Lens Transport Assembly, the attachment plate includes two security hooks and related hardware for attaching the front part of the plate to the ceiling above.

Proceed as follows to attach the security hooks. This requires the following tools and materials:

•Pliers

• Scissors

• Ceiling Hooks (not supplied)

1. Install the Plate Hook Assemblies in the two “H” holes of the Attachment Plate (see diagram on page 29) with the hook ends on the ceiling side as shown above.

2. Use pliers to bend the closed hooks apart just enough to install a Chain End at a later time.

3. Attach the plate hooks to the ceiling as described in the section entitled Ceiling Mounting (Inverted), on the next page.

IMINAR

PRE

32 LightStyle™ LS-12d Installation/Operation Manual

Installation

There are several methods for mounting the projector. Depending on your chosen installation, one method may be more suitable than another.

level surface such as a table or cart. Carts are useful when moving a projector during a presentation or from site to site. If possible, lock the wheels when it’s in position to prevent it from being moved during a presentation.

For fixed installations, and for those that want the projector out of sight or have a limited space for projector and audience, you can invert the LS-12d and suspend it from the ceiling using a specially-designed ceiling mount fixture.

Use only the Runco-approved ceiling mount kit designed for your

Note

Install the ceiling mount kit according to the instructions provided with it.

If you are ceiling-mounting an LS-12d with an anamorphic lens, perform these additional steps to secure the plate Security Hooks to the ceiling (refer to Attaching the Security Hooks on the previous page).

1. Install ceiling hooks (not supplied) into the ceiling directly above the Plate Hooks. The ceiling hooks should be small enough to accept a Chain End but strong enough when installed to each support 40 pounds or more.

2. Attach a Chain End to the Chain and then connect it to one of the ceiling hooks.

3. Cut the Chain to a length equal to or slightly greater than the distance between the ceiling hook and the corresponding Plate Hook.

projector.

IMINAR

3.5 Mounting the LS-12d

Floor Mounting (Upright)In typical front and rear screen installations, the projector can be mounted to a secure and

Ceiling Mounting (Inverted)

4. Attach a Chain End to the other end of the Chain. Then, use the Chain to connect the ceiling hook and the Plate Hook.

5. Repeat Steps 2 through 4 for the other ceilling hook/Plate Hook pair.

The projector can also be inverted and placed in an enclosure above and behind the viewing area. Install four feet on the inside bottom surface of the enclosure on which the projector can rest. A variety of materials can be used for this purpose (for example, rubber crutch tips or turntable feet).

PRE

Installing the Projector in an Enclosure

LightStyle™ LS-12d Installation/Operation Manual 33

Installation

➤

Adjusting the Projection

Angle

If the LS-12d is ceiling-mounted and the screen is significantly lower than the projector, you can tilt the projector at a slight angle by adjusting the ceiling mount.

The projector can be rotated (side-to-side) up to 360 degrees and mounted without it affecting performance. However, to ensure optimal performance of the lamp, limit the front-to-back tilt of the projector to ±20 degrees; see Figure 3-6.

± 360º

Figure 3-6. Mounting Angle Ranges (Front-to-Back and Side-to-Side)

If you do this, you may need to shift the image using the on-screen display (OSD) controls, to compensate. For detailed instructions, refer to Primary Lens Adjustments: Focus, Zoom and Position on page 51.

IMINAR

± 20º

PRE

34 LightStyle™ LS-12d Installation/Operation Manual

Installation

The Dimension Digital Controller unit can be placed on any flat, stable surface such as a shelf or table, or it can be rack-mounted using the supplied mounting hardware. Place it in a location that provides easy access to the power connectors.

The Dimension Digital Controller unit requires 2U (3.5 inches) or more of vertical rack space.

To mount the Dimension Digital Controller in a standard, 19-inch equipment rack, install the mounting ears on either side of the chassis using the supplied screws; see Figure 3-7. Then, secure the mounting ears to the rack.

IMINAR

3.6 Mounting the Dimension Digital Controller

PRE

Figure 3-7. Attaching the Rack Mounting Hardware

LightStyle™ LS-12d Installation/Operation Manual 35

Installation

➤

3.7

System Interconnections

Connecting the Dimension

Digital Controller to the

Projector

Proceed as follows to connect the LS-12d system components to each other and to AC power.

When connecting your equipment:

• Turn off all equipment before making any connections.

• Use the correct signal cables for each source.

• For best performance and to minimize cable clutter, use high-quality cables that are only as long as necessary to connect two devices. (Don’t use a 20-foot cable when a 6-foot cable will suffice.)

• Ensure that the cables are securely connected. Tighten the thumbscrews on connectors that have them.

Digital Video Connection: Connect the HDMI Out To Pri. Display connector on the Dimension Digital Controller to the PRIMARY input on the projector. Similarly connect the

HDMI Out To Sec. Display connector on the Dimension Digital Controller to SECONDARY input on the projector.

RS-232 Connection: Connect the Pri. Display Control output from the Dimension Digital Controller to the RS232 input on the projector.

Use a standard, modular telephone cable with RJ11 plugs at both ends. On the projector end, use the provided RJ11-to-DB9 adapter. This adapter is wired as shown in Figure 3-8.

IMINAR

RS232

To/From

Dimension

Digital

Controller

RCV DATA

XMT DATA

SIG GND

XMT DATA

RCV DATA

1, 5, 6

PRE

6-position

RJ-11 Male

Figure 3-8. RS-232 Connection from the Dimension Digital Controller to the Projector

Note

NO CONNECTION

Runco recommends using the RS-232 communication link between the LS-12d projector and the Dimension Digital Controller. However, display control using HDMI CEC control messages is also possible. For more information on this capability, please contact Runco Technical Support.

36 LightStyle™ LS-12d Installation/Operation Manual

1, 4, 6, 7, 8, 9

DB-9 Male

Figure 3-9 shows how to connect the Dimension Digital Controller to the projector.

deo

HDMI2HDMI 4

HDMI6HDMI

Etherne

RIGGERS

3D SYNC

isplayPor

Dimension Digital Controller

Pri. Display Control Sec. Display Control

ec. Display Control

HDMI Out

To Sec. Display

HDMI Out

DMI

Audio Only

Audio Onl

HDMI Out

To Pri. Display

Ethernet

DisplayPort

3D SYNC

HD2

TRIGGERS

123

Component / SCART

Component / SCA

Video 2

Video 1

Video 3

HDMI 2 HDMI 4 HDMI 6 HDMI 8

Installation

RS232

PRIMARY

SECONDARY

PRIMARY

3D Sync Out

SECONDARY

3D Sync Out

IMINAR

Figure 3-9. Connecting the Dimension Digital Controller to the Projector

PRE

LightStyle™ LS-12d Installation/Operation Manual 37

Installation

➤

Bo x

PC / C

RS-23

P 3

Etherne

Connecting an Audio

Processor or Secondary

Display Device to the

Dimension Digital

Controller (Optional)

The Dimension Digital Controller provides a second HDMI output (labeled HDMI Out (Audio Only)) for connection to an audio receiver/switching system or secondary display

device for monitoring purposes. See Figure 3-10.

The Dimension Digital Controller does not transmit HDMI CEC

Note

RS-232

USB

HDMI 1

RS-23

To Accessory Box

ccessory

HDMI 3

control messages from the “HDMI Audio Out” connector.

ri. Display ControlSec. Display Control

Pri. Display Control Sec. Display Control

HDMI 5

HDMI 7

HDMI Out

To Sec. Display

To Sec. Displa

RS-232

ontro

PC / Control

HDMI 2

HDMI 4

HDMI 6

HDMI 8

Ethernet

HDMI Out

Audio Only

HDMI Out

To Pri. Display

IMINAR

PRE

Figure 3-10. Audio Processor Connection to Dimension Digital Controller

Audio Processor/

Switcher

Secondary Display

38 LightStyle™ LS-12d Installation/Operation Manual

Installation

l 5

HDMI 7

HDMI

The Dimension Digital Controller provides the following interfaces to external equipment that allow it to control or be controlled by that equipment:

• An RS-232 interface to a PC or control/automation system;

• Three (3), 12-volt trigger outputs;

• An infrared (IR) repeater input;

• An Ethernet network interface for firmware updates and maintenance notifications.

The following sections describe how to make these interface connections.

RS-232 Controller Connection: Use a straight-through, 9-pin RS-232 cable to connect a PC or control/automation system (if present) to the RS-232 port on the Dimension Digital Controller; see Figure 3-11.

Pri. Display ControlSec. Display Contro

Pri. Display Control Sec. Display Control

DMI 5

DMI 6

HDMI 7

HDMI 8

Ethernet

therne

HDMI Out

DMI O

To Sec. Display

Sec. Display

HDMI Out

DMI O

Audio Only

Audio Onl

RS-232

PC / Control

HDMI Out

DMI O

To Pri. Display

To Pri. Displ

345

Additional Connections to the Dimension Digital Controller (Optional)

2 Receive Data

to Automation/

Control System

or PC

IMINAR

(none of the other pins are used)

(to ctrl. system)

3 Transmit Data

(from ctrl. system)

5 Ground

Figure 3-11. RS-232 Control System Connection to Dimension Digital Controller

PRE

LightStyle™ LS-12d Installation/Operation Manual 39

Installation

deo

Comp

RS-232

Connecting 12-volt Trigger Outputs to External Equipment: If your LS-12d is equipped with an anamorphic lens, connect the +12V Trigger Input on the lens transport to a 12-volt trigger output on the Dimension Digital Controller; see Figure 3-12.

Similarly connect other 12-volt trigger-activated equipment (such as retractable screens or screen masks) to the other trigger outputs.

Anamorphic Lens Transport

(Rear View)

+12V Trigger Input

3.5-mm mini plug

Retractable Screen or other 12-volt trigger-activated device

Sleeve = Ground

Tip = +12V

SYNC

SYN

123

TRIGGERS

onent / SCA

Component / SCART

Video 1

RS-23

USB

To Access

ccess

HDMI 1

HDMI 3

Video 2

DMI

IMINAR

Figure 3-12. Connecting 12-volt Trigger Outputs

PRE

Video 3

HDMI 2

DMI

HDMI 4

40 LightStyle™ LS-12d Installation/Operation Manual

Connecting an External IR Receiver to the Dimension Digital Controller: If infrared

HDMI

Etherne

signals from the remote control cannot reach the Dimension Digital Controller due to excessive distance or obstructions such as walls or cabinet doors, you can connect an external IR receiver to extend the range of the remote control. See Figure 3-13.

Installation

Remote Control

(3.5-mm, mini

phono plug)

ri. Display Control Sec. Display Control

ri. Display ControlSec. Display Contro

HDMI 7

MI 5

MI 6

HDMI 8

Ethernet

IR Sensor

To Sec. Display

HDMI Ou

HDMI

ec. Displ

DMI Ou

HDMI Out

udio Onl

Audio Only

IR Repeater

RS-232

RS-23

HDMI

HDMI Out

oPri. Disp

To Pri. Display

Figure 3-13. External IR Receiver Connection

IMINAR

PRE

LightStyle™ LS-12d Installation/Operation Manual 41

Installation

PC / C

HDMI

Pri. Displa

Audio Only

Ethernet Network Connection: Use a standard, Category 5 network cable with an RJ-45 plug to connect a network hub, router or gateway to the Ethernet port on the Dimension Digital Controller; see Figure 3-14.

ontrol Sec. Display Control

ontrolSec. Display Contro

HDMI 7

HDMI 8

Ethernet

HDMI Out

DMI O

Sec. Displ

To Sec. Display

DMI

HDMI Out Audio Only

RS-232

RS-2

PC / Control

ontr

DMI O

HDMI Out

To Pri. Display

to Ethernet

Hub, Router

or Gateway

Figure 3-14. Ethernet Network Connection to Dimension Digital Controller

IMINAR

PRE

1 Transmit Data + 2 Transmit Data 3 Receive Data + 6 Receive Data -

42 LightStyle™ LS-12d Installation/Operation Manual

Installation

Comp

Connect your video sources to the Dimension Digital Controller as shown and described in the sections that follow.

DisplayPort Source Connection: See Figure 3-15.

TRIGGERS

RIGGER

12 3

onent / SCAR

Component / SCART

Video

Video 1

Video 2

deo

Video 3

USB

HDMI 1

HDMI 2

RS-232

RS-23

To Accessory

ccessory

HDMI

HDMI 3

HDMI 4

DisplayPort

3D SYNC

3D SYN

HD1

HD2

Connecting Source Components to the Dimension Digital Controller

Figure 3-15. DisplayPort Source Connection

PRE

IMINAR

Notebook Computer

or Other DisplayPort Source

LightStyle™ LS-12d Installation/Operation Manual 43

Installation

deo

PC / C

RS-232

HDMI Source Connections: See Figure 3-16.

Use the HDMI inputs whenever possible. This ensures the highest

Tip

video quality because the signal is carried in the digital domain throughout the entire signal path, from source component output into the projector.

You can also connect computers with DVI output to these inputs.

Note

Refer to Supported Timings on page 129 for a list of compatible input signals.

USB

Video 2

Video 3

HDMI 1

HDMI 2

IMINAR

PRE

HDMI

AV OUT

RS-232

To Accessory Bo

o Accessory B

HDMI 3

HDMI 4

ri. Display Contro

Pri. Display Control Sec. Display Control

HDMI 5

HDMI 6

ec. Display Contro

HDMI 7

HDMI 8

Ethernet

therne

HDMI Out

HDMI

ToSec. Displa

To Sec. Display

HDMI Ou

HDMI Out

Audio Onl

Audio Only

RS-232

ontr

PC / Contro

HDMI

Pri.

To Pri. D

(BD, DVD, DTV Set-Top Box etc.)

Figure 3-16. HDMI Source Connections

HDMI source

44 LightStyle™ LS-12d Installation/Operation Manual

Component Video Source Connections: Connect your component video sources to

deo

HDMI 23HDMI

RIGGERS

3D SYNC

isplayPor

the HD1, HD2 and/or Component/SCART inputs as shown in Figure 3-17.

Installation

DisplayPor

3D SYNC

HD1

HD2

TRIGGERS

123

Component / SCART

Video 1

Video 2

Video 3

deo

IMINAR

USB

HDMI 1

HDMI 2

RS-232

To Accessory Box

oAccessory Bo

HDMI 3

HDMI 4

COMPONEN T VIDEO OUT

Y PB PR

PRE

DTV-Set-Top Box

BD/DVD

(DTV-STB)

Figure 3-17. Component Video Source Connections

LightStyle™ LS-12d Installation/Operation Manual 45

Installation

deo

RIGGERS

3D SYNC

isplayPor

RGBHV Source Connections: Connect personal computers and/or other RGB sources to the HD1 and/or HD2 inputs as shown in Figure 3-18.

TRIGGERS

123

Component / SCART

Component / SCAR

Video 1

DisplayPor

3D SYNC

HD1

HD2

Computer

IMINAR

RGB Camcorder

Video 2

Video 3

Video

Figure 3-18. RGBHV Source Connections

PRE

46 LightStyle™ LS-12d Installation/Operation Manual

SCART RGBS Source Connections: Connect the green, blue and red outputs from

deo

isplayPor

3D SYNC

your SCART source to the Component/SCART input on the Dimension Digital Controller. Connect the sync output from your SCART source to the Video 1 input on the Dimension Digital Controller. See Figure 3-19.

RIGGER

3D SYNC

TRIGGERS

123

Installation

VCR

DVD/DTV STB

Gaming Console

SCART-to-RGBS

adapter

DisplayPor

Green

Component / SCART

Video 1

Blue

Red

Video 2

deo

Video 3

Sync

HD1

HD2

IMINAR

Green

Blue

Red

Sync

PRE

Figure 3-19. SCART RGBS Source Connections

LightStyle™ LS-12d Installation/Operation Manual 47

Installation

DMI

RIGGERS

isplayPor

Composite Source Connections: See Figure 3-20.

VCR

Camcorder

IMINAR

Gaming Console

DisplayPor

Composite

3D SYNC

HD1

HD2

TRIGGERS

123

Component / SCART

Video 1

Video 2

Video 3

Composite

USB

HDMI 1

HDMI 2

PRE

Figure 3-20. Composite Video Source Connections

48 LightStyle™ LS-12d Installation/Operation Manual

Installation

Connect the 3D SYNC Out port on the emitter to the 3D Sync Out connector on the projector, as shown in Figure 3-21. Mount the emitter in a location that provides a clear line of sight between it and the viewing area.

Secure the emitter in the desired location using double-sided tape or

RS232

Tip

RS232

a similar adhesive material.

PRIMARY

SECONDARY

PRIMARY

3D Sync Out

SECONDARY

3D Sync Out

3D SYNC OUT

Connecting the Active 3D Emitter to the Projector

Figure 3-21. Active 3D Emitter Connection

IMINAR

the LS-12d (AC 100V ~ 240V). Then, connect the other end to your AC power source.

Anamorphic Lens Transport: An AC-to-DC power adapter is provided for the lens transport. Connect the power adapter to the +9V DC In jack on the rear of the lens transport assembly. Connect the other end to an AC power source.

Similarly connect the Dimension Digital Controller to a nearby AC outlet.

PRE

Connecting to AC PowerProjector: Plug the female end of one power cord into the AC receptacle on the rear of

LightStyle™ LS-12d Installation/Operation Manual 49

Installation

3.8 Turning on the Power

1. Power up your source components.

2. Turn on the main power switch at the rear of the Dimension Digital Controller.

3. Press the ON button on the remote control (or the ON/STANDBY ( ) button on the Dimension Digital Controller front panel) to turn on the system. The vacuum fluorescent display on the Dimension Digital Controller front panel briefly displays “Initializing System,” followed by “Starting LS-12d.”

4. When the display is ready for use, the fluorescent display indicates the active source, input resolution/frame rate and aspect ratio/screen; for example:

Current

Source

LS-12d

HDMI 1

16:9/1 1080i/60

Aspect Ratio/Screen

5. When the projector is turned on, the Active 3D Emitter turns on as well. The LEDs display a red moving pattern while the emitter is attempting to acquire a 3D signal and until a signal is found.

IMINAR

1080p/60

Input Resolution/Frame Rate

Searching for 3D Sync Signal

If the emitter searches for a signal for longer than

60 seconds, a signal is assumed to not be present.

PRE

6. Upon finding a 3D signal, all LEDs will turn green. Once the LEDs indicate a 3D signal, the Runco 3D glasses can be used to experience 3D. For more information on using the Runco Active 3D Glasses, refer to Using the Runco 3D Glasses on page 94.

3D Sync Signal Found

50 LightStyle™ LS-12d Installation/Operation Manual

Installation

Lens zoom, focus and position are motorized adjustments that are adjustable using the remote control (Figure 2-7). This allows you to adjust the focus and image size while at the screen for more accurate results.

If you prefer, you can also perform lens adjustments from the

Note

To access the motorized lens controls:

1. On the Dimension Digital Controller remote control or front panel, press MENU.

2. Select Service from the Main Menu and enter the Service Menu passcode.

projector using the built-in keypad. For detailed instructions, refer to KEYPAD on page 7.

You must enter a passcode to access the Service menu.

Note

3. Select Display Device from the Service Menu.

4. Select Configure from the Display Device menu, then select Lens.

The Lens menu controls operate as described below.

press and hold the ENTER button.

(-). Then, press and hold the ENTER button.

To enlarge the picture (zoom in), use the cursor buttons to highlight the plus sign (+). Then, press and hold the ENTER button.

IMINAR

3.9 Primary Lens Adjustments: Focus, Zoom and Position

FocusTo focus the projected image, use the cursor buttons to highlight “In” or “Out.” Then,

ZoomTo make the picture smaller (zoom out), use the cursor buttons to highlight the minus sign

To change the lens position, use the cursor buttons to highlight “Left,” “Right,” “Up” or “Down” in the Lens menu. Then, press and hold the ENTER button to shift the lens in that direction.

To return the lens to its home position (no horizontal or vertical shift), use the cursor buttons to highlight “Home” in the Lens menu. Then, press the ENTER button.

By default, the LS-12d is configured for a “floor/front” installation, in which the projector is installed upright and in front of the screen. If it is installed behind the screen and/or mounted on a ceiling, you must change the picture orientation. To do this:

1. On the Dimension Digital Controller remote control or front panel, press MENU.

2. Select Service from the Main Menu and enter the Service Menu passcode.

Note

3. Select Display Device from the Service Menu.

4. Select Configure from the Display Device menu, then select Installation.

5. Select Orientation, then choose Floor/Rear, Ceiling/Front or Ceiling/Rear, to match the installation method.

LightStyle™ LS-12d Installation/Operation Manual 51

PRE

You must enter a passcode to access the Service menu.

Vertical and Horizontal Lens Shift

3.10 Adjusting the Picture Orientation

Installation

3.11

Adjusting the Image Geometry

Projector and/or screen placement — among other things — can cause geometric distortion in the projected image.

To correct this, the Dimension Digital Controller provides precise, nine-point control over the projected image geometry. Use these controls as (and only if) needed to re-position the image corners, mid-points and center to eliminate “keystoning” (mis-aligned corners) or “pincushion” distortion (mid-points not aligned with corners). See Figure 3-22.

Horizontal Keystoning

Vertical Keystoning

IMINAR

PRE

Pincushion Distortion

Figure 3-22. Keystone and Pincushion Distortion

52 LightStyle™ LS-12d Installation/Operation Manual

“Keystoning” usually occurs when the projector is tilted relative to the screen. “Pincushion”

distortion can sometimes occur if the throw distance is very short and/or the projector is equipped with an anamorphic lens.

To correct keystoning or pincushion distortion:

1. On the Dimension Digital Controller remote control or front panel, press MENU.

2. Select Calibration from the Main Menu and enter the Calibration Menu passcode.

You must enter a passcode to access the Calibration menu.

Note

3. Select Image Alignment from the Calibration Menu.

4. Select Corner Alignment to correct a “keystoned” image by adjusting the image corner positions. Select Midpoint Alignment to correct pincushion distortion by adjusting the image edge mid-points. See Figure 3-23.

Use the built-in test pattern when adjusting the image corners or

Tip

midpoints. To access it, check the Test Pattern box in the Corner Alignment or Midpoint Alignment menu.

Installation

Top/Bottom Middle (x)

Center

Left

Middle (x)

Left/Right

Middle (y)

Top Left (x, y)

PRE

Bottom Left (x, y)

Notes:

1. Smaller “x” values move a point to the left; larger values move it to the right.

2. Smaller “y” values move a point up; larger values move it down.

Figure 3-23. Image Alignment Controls

Bottom Middle (y)

Top Middle (y)

(x, y)

Top Right (x, y)

IMINAR

Right Middl (x)

Bottom Right (x, y)

LightStyle™ LS-12d Installation/Operation Manual 53

Installation

3.12

Installing and Adjusting the Anamorphic Lens

If you are installing an LS-12d with an anamorphic lens, proceed as follows to install and adjust the lens.

It is extremely important that the primary lens is properly

Note

Attach the anamorphic lens to the bracket using the plastic knobs supplied with the lens. See Figure 3-24.

adjusted before you install the anamorphic lens. Ensure that the image from the primary lens is perfectly centered on the screen.

IMINAR

Figure 3-24. Attaching the Anamorphic Lens to the Lens Mount

Configure Lens Motor Trigger on Dimension Digital Controller: The anamorphic

lens solution for the LS-12d maintains constant image height independent of the aspect ratio, while using the full display resolution of the projector. It accomplishes this by moving the anamorphic lens in front of the primary lens when widescreen material is being viewed.

PRE

When the viewer transitions back to 16:9 or 4:3 source material, the anamorphic lens moves out of the light path.

Proceed as follows to configure the 12-volt trigger output for proper operation.

1. Project a 2.35:1 aspect ratio test pattern or other image on the screen.

2. On the Dimension Digital Controller remote control or front panel, press MENU.

3. Select Service from the Main Menu and enter the Service Menu passcode.

Note

4. Select Tri gg er s from the Service menu.

5. Assign the trigger output to which the lens motor is connected to the Cinema and Virtual Cinema aspect ratios. This enables the lens motor to move the anamorphic lens into position (in front of the primary lens) when either aspect ratio is selected.

You must enter a passcode to access the Service menu for the first time after turning on the system.

54 LightStyle™ LS-12d Installation/Operation Manual

6. Select the Cinema aspect ratio to move the anamorphic lens into position, if it isn’t already. To do this, press CINEMA on the Dimension Digital Controller remote control (Figure 2-7), or press or repeatedly with no menus visible on-screen.

Adjusting the Lens Position:

1. Adjust the vertical position and tilt of the lens so that the projector beam is passing through the center of the lens and any residual pincushion distortion is about the same at the top and bottom of the image. This typically results in the anamorphic lens being below the center of the primary lens and tilted slightly downward.

2. Tighten the knobs.

There may be some pincushion distortion even after the lens is

Note

3. Adjust the rotation of the Lens Transport Assembly so that the left and right sides of the image are an equal distance from their respective screen borders.

4. Tighten the Pivot Screw and the four mounting screws holding the transport to the Attachment Plate.

5. For optimum multiple aspect ratio performance, adjust the projector’s zoom so that a

1.85:1 aspect ratio movie is just masked by the top and bottom of the screen border when the anamorphic lens is not in front of the primary lens. This way 1.85:1, 16:9 and 2.35-2.4:1 aspect ratio movies are all presented to fill the screen at a constant height.

6. Remove the protective film from the front of the anamorphic lens.

properly adjusted, especially at shorter throw distances. If this is the case, Runco recommends that you slightly over-scan the image into the screen frame area to mask the distortion.

IMINAR

Installation

PRE

LightStyle™ LS-12d Installation/Operation Manual 55

Installation

Notes:

IMINAR

PRE

56 LightStyle™ LS-12d Installation/Operation Manual

Operation

4. Operation

To display the Main Menu, press the MENU button on the remote control or Dimension Digital Controller front panel (Figure 2-5).

To select a menu item, use the and buttons on the remote control or Dimension Digital Controller front panel to highlight it. Then, to confirm your selection, press ENTER on the remote control or Dimension Digital Controller front panel.

The LS-12d OSD menus are arranged hierarchically, as shown in Figure 4-1. Some menu options apply only to certain input signal types. For example, Phase and Tracking can only be adjusted for RGB, Component video or SCART signals.

Composite 1 HDMI 1 Composite 2 HDMI 2 Composite 3 HDMI 3

Input Source

Aspect Ratio

Screen


Input Position

Memory Presets

3D Processing

Sleep Timer

Information

Component HDMI 4 HD 1 HDMI 5 HD 2 HDMI 6 SCART HDMI 7 DisplayPort HDMI 8 16:9 4:3 Letterbox VirtualWide Cinema Virtual Cinema Native

Screen 1 / Screen 2 Brightness

Contrast Color Tint Sharpness Noise Filter Left/Right Up/Down Width Height Overscan Overscan Mode

(Zoom/Crop) Phase

(RGB/Component/SCART signals only) Tracking

(RGB/Component/SCART signals only) Recall ISF Night or ISF Day Recall/Save Custom 1 or Custom 2 Reset Custom 1 and Custom 2 to Factory

Default 3D Mode

(Auto, Off, Side-by-Side, Top-and-Bottom or Frame Packing)

Reverse Eyes (On/Off)

Off, 30 Minutes, 60 Minutes, 90 Minutes, 2 Hours or 4 Hours

Signal System Network Field Service Manufacturing

PRE

IMINAR

Calibration

Note: Default settings appear in bold type. Settings marked with an asterisk (*) apply to 2D content only.

Gain Offset

Display Color Common Settings

Display Color Projector Settings

Input Image

Input Color

Save ISF Night Save ISF Day

Copy/Paste

Output Shift

Image Alignment

Adjustment Mode Both, Primary or Secondary

Splash Configure

OSD Position Hor. / Ver. 0, 1, 2 ... 100

Gamma

Color Temp Simple (5500K, 6500K, 7500K or 9300K)

Color Gamut*

PCE*

Lamp Power (230W or 260W) ConstantContrast* On / Off Brightness Contrast Color Tint Sharpness Gain Offset

Chroma Delay

Noise Filter 0, 1, 2 ... 63

Back / Confirm

Memory Preset

Aspect Ratio

Left/Right Up/Down Width Height

Screen Masking

Corner Alignment

Midpoint Alignment

Owner Name ISF Calibrated ISF Other Splash Timer 5, 6, 7 ... 15 Splash Enable On/Off

4.1 Using the On-Screen Menus

-100, -99... 0 ... 99, 100 (Red, Green, Blue)

Mode (Simple / Advanced)

Simple (1.8, 2.0, 2.2, 2.35, 2.5)

Advanced (0 (2.2 gamma curve), 1, 2, 3 ... 20 (custom gamma tables))

Auto, REC709, SMPTE-C, EBU, Native or PCE

Red x, y / Green x, y / Blue x, y / White x, y Yellow x, y / Cyan x, y / Magenta x, y

-50, -49 ... 0 ... 49, 50

-32, -31... 0 ... 31, 32 (HD 1, HD 2 and Component inputs only)

0, 1, 2 ... 7 (Composite inputs only)

Copy Settings Paste Settings Copy Settings Paste Settings

-50, -49 ... 0 ... 49, 50

-50, -49, 48 ... 0

0, 1, 2 ... 100 (Top / Bottom / Left / Right / Test Pattern Enable)

Top Left / Top Right / Bottom Left / Bottom Right / Test Pattern Enable

Center / Top Middle / Left Middle / Right Middle / Bottom Middle / Test Pattern Enable

... 59, 60

Figure 4-1. LS-12d OSD Menu Structure

LightStyle™ LS-12d Installation/Operation Manual 57

Operation

Service

Color Bars 1 Color Bars 2 Focus

Test Video

Input Names Rename/Restore

Remote Control

Display Device - Configure

Network

Color Space

Triggers 1 / 2 / 3

Miscellaneous

HDMI

Front Panel Brightness

Auto Power Off

Standby Mode Low Power / Fast Startup System Reset

PRE

Grey Bars Full White Primary / Secondary / Dual

Alignment 3D

Remote Code

SRC 1-7 Keys SRC 8-14 Keys Installation -

Picture Orientation

Lens

Display Info. (read-only)

Lamp Hours Reset Yes / No Diagnostics White, Red, Green, Blue, Yellow, Cyan, Magenta Altitude Au to / High

Display 3D Settings

Internal 3D Settings

24Hz 3D Mode 120 Hz 6:4 or 120 Hz 5:5

IP Configuration

Auto Firmware Upgrade

E-Mail Notification

Remote Network Control On / Off Auto, REC601, REC709,

RGB-PC or RGB-Video

Language

OSD Timer 0 (no timeout) or 5, 6, 7 ... 30 ... 60 sec. OSD Messages On / Off Blank Screen Color Sidebar Color Film Mode

(SD sources only) CUE

(Chroma Upsampling Error)

Sync Threshold

HDMI EDID Extension On / Off (per HDMI and DisplayPort input)

Audio Format

CEC On HPD Toggle Rejection Auto / On / Off Logo LED 0 (off), 1, 2 ... 31 Standby LED On / Off LCD 0 (off), 1, 2, 3 or 4 Enable On / Off / No Signal Hours 1, 2, 3, 4, ... 23, 24

IMINAR

00000 ... 08209 ... 65535 or 88999 (extended mode)

(select a key, then choose a source to assign to it)

Auto, Floor Front, Ceiling Front, Floor Rear or Ceiling Rear

Focus Zoom Shift Projector Serial Number

Lamp Hours

Dark Interval Sync Delay Invert Sync Test Pattern Enable Sync Delay Test Pattern Enable

DHCP (On / Off), IP Address, Subnet Mask, Default Gateway, Communication Test

Auto Check for New Firmware, Auto Perform Upgrade, Check for New Firmware

E-Mail Address, Error Notification, Error Notification to Runco, Periodic Service Notification, Lamp Life Notification, Customer Information, E-Mail Calibration Data

(Not available on Composite 1, Composite 2 or Composite 3 inputs)

English, Français, Deutsch, Italiano, Español, Svenska, (Simplified Chinese), (Traditional Chinese), Português, (Russian), (Japanese) or (Korean)

Red/Green/Blue = 0, 1, 2, 3 ... 255

On / Off

0, 1, 2 ... 15 (HD 1, HD 2 and Component inputs only)

Combined / HDMI Out (Pri. Display) / HDMI Out (Sec. Display) / HDMI Out (Audio Only)

/ Off

Figure 4-1. LS-12d OSD Menu Structure (continued)

58 LightStyle™ LS-12d Installation/Operation Manual

functions.

(You must enter a passcode to access the Calibration and Service menus.)

Operation

Main MenuThe Main Menu is the starting point for accessing all Dimension Digital Controller

Runco Video

Input Source Aspect Ratio Screen Picture Input Position Memory Presets 3D Processing Sleep Timer Information Calibration Service

Input SourceFrom the Main Menu, select Input Source to choose a video signal source.

The active source is indicated by an arrow (Î) to its left; in this example, Composite is the active source.

IMINAR

PRE

Input Source

Composite 1 Composite 2 Composite 3 Component HD 1 HD 2 SCART HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 HDMI 6 HDMI 7 HDMI 8 DisplayPort

LightStyle™ LS-12d Installation/Operation Manual 59

Operation

➤

7      

Aspect Ratio To change the aspect ratio (size and shape) of the projected image, select Aspect Ratio

Aspect Ratio

16:9 4:3 Letterbox VirtualWide Cinema Virtual Cinema Native

from the Main Menu and press ENTER. Select the appropriate aspect ratio for your screen size and the type of program material being viewed; refer to Table 4-1.

The currently-selected aspect ratio is indicated by a “ selected.

Note that some aspect ratios are unavailable and/or not useful with certain types of source material. The optimal setting depends on a number of factors, such as:

• The aspect ratio of the source material, as broadcast or encoded on the playback medium.

• The “display type” (16:9 or 4:3) and output resolution settings at the source component. Most modern DVD/BD players and set-top boxes have such controls.

• Viewer preference (original aspect ratio with “black bars,” or a full-screen presentation with some distortion or cropping).

The aspect ratio selection is automatically saved for each input and

Note

resolution.

7” to its left; in this example, 16:9 is

Table 4-1. Aspect Ratio Settings

Aspect Ratio

IMINAR

16:9 16:9 Select 16:9 to view 16:9 DVDs

PRE

4:3 4:3 Standard 4:3 scales the input

Remote

Control

Key

16:9 Image on

16:9 Screen (Display)

4:3 Image, stretched to fill

16:9 Screen (Display)

4:3 Image on

16:9 Screen (Display)

Description

and HDTV programs in their native aspect ratio.

4:3 images are stretched horizontally to fit a 16:9 screen.

signal to fit in the center of the 16:9 screen. 4:3 is the aspect ratio used by computer monitors, standard television programming and most VHS video cassettes.

60 LightStyle™ LS-12d Installation/Operation Manual

Table 4-1. Aspect Ratio Settings (continued)

Remote

Aspect Ratio

Control

Key

Operation

Description

Letterbox LET

BOX

4:3 Image on

16:9 Display

(Letterbox aspect ratio)

VirtualWide V-WIDE VirtualWide scales a 4:3 image

4:3 Image on

16:9 Screen (Display)

4:3 Image on

16:9 Screen

with VirtualWide

4:3 Image on

2.35:1 Screen

with VirtualWide

Letterbox mode scales (zooms in on) a 4:3 image linearly (by the same amount on all sides) to fill a 16:9 display. Letterbox is best suited for viewing LaserDisc movies or non-anamorphic DVDs on a 16:9 screen.

NON-linearly (more on the sides than in the center) to fit a 16:9 screen.

On a 2.35:1 screen, the image is

IMINAR

centered between black bars on either side.

Cinema CINEMA Select Cinema to view 2.35

source material in its native aspect ratio.

PRE

2.35:1 Image on 16:9 Screen

(Cinema aspect ratio / no CineWide)

2.35:1 Image on

2.35:1 Screen

Cinema aspect ratio / CineWide)

(

LightStyle™ LS-12d Installation/Operation Manual 61

With a 16:9 screen and a standard LS-12d (without an anamorphic lens), the upper and lower portions of the screen are masked, but the geometry of the active image area is unchanged.

With a 2.35:1 screen and an anamorphic lens, the Dimension Digital Controller scales the

2.35:1 image so that the active image area fills the 16:9 chip surface, eliminating the black bars. The secondary, anamorphic lens then restores the proper geometry to the

2.35:1 image.

Operation

➤

Table 4-1. Aspect Ratio Settings (continued)

Remote

Aspect Ratio

Virtual Cinema V-CINE A 16:9 image is scaled

Native NATIVE Select Native to display the

Control

Key

16:9 Image on

2.35:1 Screen

16:9 Image on

2.35:1 Screen with Virtual Cinema

1080i HDTV Image

Description

NON-linearly (more on the sides than in the center) to fit a 2.35:1 screen.

source signal in its native resolution, centered in the display area with no re-sizing or overscan.

Screen 1 Screen 2

Screen

This means, for example, that 720p HDTV programs will

IMINAR

PRE

Screen The Screen Menu allows you to recall multiple sets of stored values for certain controls

(Output Shift, Image Alignment and Screen Masking) that are saved for each aspect ratio. Such settings are also saved “per screen.” To recall the Output Shift and Image Alignment settings associated with “Screen 1” or “Screen 2,” make that selection here.

720p HDTV Image

display with unused pixels on all sides: 320 on the left and right sides and 180 above and below.

With SDTV and EDTV sources, the Dimension Digital Controller scales the image horizontally to achieve a 16:9 aspect ratio.

62 LightStyle™ LS-12d Installation/Operation Manual

achieve optimum picture quality.

The Dimension Digital Controller has been designed to incorporate setup and calibration standards established by the Imaging Science Foundation (ISF). The ISF has developed carefully crafted, industry-recognized standards for optimal video performance and has implemented a training program for technicians and installers to use these standards to obtain optimal picture quality from Runco video display devices. Accordingly, Runco recommends that setup and calibration be performed by an ISF certified installation technician.

All signal types require separate processing. Therefore, you need to calibrate each Dimension Digital Controller input separately.

Operation

PictureUse the controls in the Picture Menu to calibrate each Dimension Digital Controller input to


Brightness Contrast Color Tint Sharpness Noise Filter

Note

Although it may be possible to obtain satisfactory picture quality using the naked eye and regular program material, Runco recommends using an external test pattern source (Ovation Multimedia, Digital Video Essentials or AVIA test DVD or equivalent) for best results.

Connect your test pattern source to the input that you are calibrating and proceed as follows. Perform the adjustments in the order listed here.

1. When you change a picture quality setting, save the change to a preset afterwards. Otherwise, the change will be lost when a different input is selected. (Picture quality settings are saved for each input and display mode separately.) For information about saving settings, refer to Memory Presets on page 70.

2. For best results, Runco recommends that you set ConstantContrast to Off before adjusting Brightness, Contrast and other image quality settings in this menu (refer to ConstantContrast on page 78). After you have completed the initial calibration, set ConstantContrast to On if desired.

IMINAR

PRE

LightStyle™ LS-12d Installation/Operation Manual 63

Operation

Brightness: On your external test pattern source, select a PLUGE pattern. (PLUGE is an acronym for “Picture Line-Up Generation Equipment.”) Figure 4-2 shows a typical PLUGE pattern.

Below Black

bove Black

Figure 4-2. Typical PLUGE Pattern for Adjusting Brightness

PLUGE patterns vary but generally consist of some combination of black, white and gray areas against a black background. The example above includes two vertical bars and four shaded boxes.

Select Brightness from the Picture menu and press ENTER. Adjust the brightness so that:

• The darkest black bars disappear into the background.

• The dark gray areas are barely visible.

• The lighter gray areas are clearly visible.

• The white areas are a comfortable level of true white.

• The image contains only black, gray and white (no color).

IMINAR

PRE

64 LightStyle™ LS-12d Installation/Operation Manual

Contrast: On your external test pattern source, select a stepped, gray-bar pattern like the one shown in Figure 4-3.

Figure 4-3. Typical Gray Bar Pattern for Adjusting Contrast

Select Contrast and press ENTER. Adjust the contrast to a point just below which the white rectangle starts to increase in size.

Operation

Note

Color Saturation: On your external test pattern source, select a color bar pattern like the one shown in Figure 4-4.

Brightness and contrast controls are interactive. A change to one may require a subtle change to the other in order to achieve the optimum setting.

IMINAR

gray

yellow

cyan

green

red

magenta

blue

PRE

Figure 4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint

1. Press the MENU button on the remote control or Dimension Digital Controller front panel.

2. Select Service from the Main Menu and press ENTER.

3. Enter the Service menu passcode.

4. Select Display Device from the Service menu and press ENTER.

LightStyle™ LS-12d Installation/Operation Manual 65

Operation

5. Press ENTER again to select Configure.

6. Select Diagnostics and press ENTER.

7. Select Blue from the Diagnostics menu, then press ENTER to display only the blue color channel.

8. Press EXIT (or MENU) repeatedly to return to the Main Menu.

9. Select Picture from the Main Menu and press ENTER.

10.Select Color from the Picture menu and press ENTER.

11.Adjust the color saturation level until the outermost (gray and blue) color bars appear to be a single shade of blue:

gray

IMINAR

Tint: Tint or “hue” is essentially the ratio of red to green in the color portion of the image. When tint is decreased, the image appears redder; when it is increased the image appears greener.

To adjust the tint, enable “blue only” display mode in the Diagnostics menu, as you would

PRE

for adjusting color saturation (refer to the previous section, Color Saturation).

Select Tint from the Picture menu and press ENTER. Adjust the tint level until the cyan and magenta color bars (on either side of the green bar) appear to be a single shade of blue.

Note

yellow

cyan

Like the brightness and contrast controls, the color and tint controls are interactive. A change to one may require a subtle change to the other in order to achieve the optimum setting.

green

magenta

red

blue

66 LightStyle™ LS-12d Installation/Operation Manual

Sharpness: “Sharpness” is the amount of high-frequency detail in the image. To adjust sharpness, select Sharpness from the Picture menu and press ENTER. On your external test pattern source, select a pattern like the one shown in Figure 4-5. Adjust as needed, looking for white edges around the transitions from black to gray and differently-sized lines in the “sweep” patterns at the top and bottom. Lower the sharpness setting to eliminate them.

Operation

IMINAR

Figure 4-5. Typical Test Pattern for Adjusting Sharpness

Noise Filter: To apply noise filtering to the input signal, select Noise Filter from the Picture

menu. The Noise Filter is useful for clearing up noisy images from 480i video sources.

Use the left- or right-arrow buttons to select the desired amount of noise reduction, keeping in mind that higher settings (which reduce high frequencies) may also “soften” the image.

PRE

LightStyle™ LS-12d Installation/Operation Manual 67

Operation

➤

Input Position

Left/Right Up/Down Width Height Overscan Overscan Mode Phase Tracking

Input Position Use the controls in the Input Position Menu to fine-tune the aspect ratio and image

position for the current source.

The input position settings are automatically saved for each input

Note

Left/Right: Select Left/Right from the Input Position menu to shift the projected image horizontally. Press to shift the image to the right; press to shift it to the left.

Up/Down: Select Up/Down from the Input Position menu to shift the projected image vertically. Press to shift the image upward; press to shift it downward.

and resolution.

Width: Select Width from the Input Position menu to change the projected image width. Press to increase the width; press to decrease it.

Height: Select Height from the Input Position menu to change the projected image height. Press to increase the height; press to decrease it.

Overscan/Overscan Mode: Overscan pushes the outside edge of the active picture area of the video signal out beyond the edge of the display area.

Some television programs are produced based on the assumption that older television sets may not display the outer edges of the broadcast picture area. Overscan effectively trims away these inactive, outer edges and enlarges the remaining portion of the image to fill the display area.

For HDTV, DVDs and other video sources, Overscan is generally not necessary or desirable.

This control defines the amount of overscan applied to the image. The range is from 0 to 20. There are two overscan modes:

•In Crop mode, each increment adds a mask at the top, bottom, left and right edges of the source image equal to 0.5% of the displayed horizontal resolution (1% total). A setting of 10, for example, crops the image 5% on all sides or 10% total.

•In Zoom mode, each increment adds a factor to the scaling of the source image so

PRE

that the vertical and horizontal resolutions are 100% plus 1% increments of the size determined by the aspect ratio function. A setting of 10, for example, zooms in on the image 5% on all sides or 10% total.

IMINAR

Figure 4-6 illustrates the effect of each overscan mode setting.

68 LightStyle™ LS-12d Installation/Operation Manual

4:3

16:9

Operation

Off Crop Zoom

= Source Image Area

= Edge Noise

= Screen (16:9)

Figure 4-6. Overscan Modes

Phase (RGB, Component or SCART sources): This control adjusts the phase of the

pixel sampling clock relative to the incoming signal. Adjust the phase when an RGB, Component or SCART image still shows shimmer or “noise” after Tracking has been optimized.

Adjust the Phase after adjusting Tracking (see below).

Tip

IMINAR

For best results, use a good test pattern such as a smooth gray consisting of a clear pattern of black and white pixels, or a similar “half on, half off” graphic image. Adjust the slidebar until the image stabilizes and each pixel is clearly defined. You may notice that you can stabilize the image at more than one point. Use either setting in such cases.

Tracking (RGB, Component or SCART sources): Tracking determines the frequency of the pixel sampling clock, indicated by the number of incoming pixels per line, so that all pixels generated by a particular source are sampled.

PRE

Steady flickering or several soft vertical stripes or bands across the entire image indicates poor pixel tracking. Proper pixel tracking helps ensure that the image quality is consistent across the screen, that aspect ratio is maintained and that pixel phase (see above) can be optimized.

LightStyle™ LS-12d Installation/Operation Manual 69

Operation

➤

Memory Presets For each input, the Dimension Digital Controller lets you save image quality settings as

Memory Presets

ISF Night ISF Day Custom 1 Save Reset Custom 2 Save Reset

presets that you can recall at a later time. You can create up to four presets per input and display mode (resolution and frame rate).

The Dimension Digital Controller stores the following display modes in each memory preset:

•480i

•480p

•576i

•576p

• 720p/24 Hz

• 720p/25 Hz

• 720p/30 Hz

• 720p/50 Hz

• 720p/60 Hz

• 1080i/50 Hz

• 1080i/50 Hz (Australia)

• 1080i/60 Hz

• 1080p/24 Hz

• 1080p/25 Hz

• 1080p/30 Hz

• 1080p/50 Hz

• 1080p/60 Hz

IMINAR

Use the Memory Presets menu to recall saved image presets, or to save image settings in the “Custom 1” or “Custom 2” memory location. The currently-selected preset is indicated by a “Î” to its left; in the example shown here, ISF Night is selected.

You should save changes to any of the following settings to a preset; otherwise they will be lost when a new input source or resolution is selected:

PRE

•Brightness

•Contrast

• Color saturation

•Tint

• Sharpness

•Gamma

•Lamp Settings

• Color temperature and white balance

To select a memory preset, press or to highlight it and press ENTER.

To save the settings for the current input and display mode to the Custom 1 or Custom 2 memory preset, select it, press or to highlight Save and press ENTER.

70 LightStyle™ LS-12d Installation/Operation Manual

Operation

Note

To reset the Custom 1 or Custom 2 memory preset to its factory-default state, select it, press or to highlight Reset and press ENTER.

formatting and delivery of HDMI 3D content.

3D Mode: Select 3D Mode from the 3D Processing menu to specify how the Dimension Digital Controller processes the “left eye” and “right eye” image components respectively.

•Choose Auto to have the Dimension Digital Controller determine the appropriate 3D mode based on the HDMI vendor-specific InfoFrame data. This is the default setting.

•Choose Off for 2D content.

•Choose Side-by-Side to have the Dimension Digital Controller scale the left and right image halves respectively to fill the screen.

Side-by-Side multiplexing is used with 1080i source material.

To save the settings for the current input and display mode to the ISF Night or ISF Day memory preset, select Save ISF Night or Save ISF Day from the Calibration menu (refer to Save ISF Night/Save ISF Day on page 78).

3D ProcessingSelect 3D Processing from the Main Menu to set the following options related to

3D Processing

3D Mode Reverse Eyes

•Choose Top-and-Bottom to have the Dimension Digital Controller scale the top and bottom image halves respectively to fill the screen.

Top-and-Bottom multiplexing is used with 720p or 1080p source material.

•Choose Frame Packing to have the input FPGA decode frame packed data into left and right eye data.

Reverse Eyes: By default, the Primary and Secondary video scalers in the Dimension Digital Controller are dedicated to “left eye” and “right eye” image processing respectively. To reverse this relationship, choose Reverse Eyes from the 3D Processing menu and set it to On.

PRE

IMINAR

LightStyle™ LS-12d Installation/Operation Manual 71

Operation

➤

Off 30 Minutes 60 Minutes 90 Minutes 2Hours 4Hours

Signal System Network Field Service Manufacturing

Sleep Timer Select Sleep Timer from the Main Menu to turn off the LS-12d after a specified interval.

Press or to select Off, 30 Minutes, 60 Minutes, 90 Minutes, 2 Hours or 4 Hours.

Sleep Timer

Information Signal / System: Select Information from the Main Menu, then choose either Signal or

Information

Then, press ENTER.

System to display information about the current input signal (resolution, frequency, type et cetera) and installed firmware versions, as well as other information that uniquely identifies your Dimension Digital Controller and display device.

Should you ever need to contact Runco Technical Support, this information will help them answer your questions or resolve product performance issues.

Signal

Input Source HDMI 1 Signal Format 1080p/60 Input Resolution 1920x1080 Vertical Freq 59.94 Hz Horizontal Freq 67.500 kHz Pixel Clock 148.500 MHz Color Space REC709 Sync Type Separate 3D Mode Side-by-Side Memory Preset ISF Night

IMINAR

System

Model DC-300 Display Name LS-12d Output Resolution 1920x1080 Serial Number 00000000 Boot Version 1.0 Firmware Version 1.5 Micro Version 1.2 Input FPGA Version 1.0 Output FPGA Version 1.0

Network: Select Information from the Main Menu, then choose Network to display

Network

MAC Address 1A:2B:3C:4D:5E:6F IP Address 192.168.0.150 Subnet Mask 255.255.0.0 Default Gateway 192.168.1.1 DHCP Enabled Network Status Connected

PRE

information about the Ethernet network connection.

To enable network communication via Ethernet, refer to IP Configuration on page 86.

Field Service / Manufacturing: The Field Service and Manufacturing menus are password-protected and intended for use only by Runco service personnel and factory technicians.

72 LightStyle™ LS-12d Installation/Operation Manual

should be used by ISF-certified technicians only.

Note

To recall the ISF Night or ISF Day settings, select “ISF Night” or “ISF Day” from the Memory Presets menu (see page 70) or use the corresponding remote control buttons.

Display Color - Common Settings: Use the Display Color - Common Settings settings to adjust the color balance at the Dimension Digital Controller output. These settings are saved independently for each input and display mode.

•Gain: Use the Gain controls to correct color imbalances in the bright areas of the image. A good way to do this is to use a test pattern consisting mostly of solid white areas, such as an 80 IRE “window” pattern. If the white areas contain traces of red (Pr), green (Y) or blue (Pr), decrease the Gain for that color.

•Offset: Use the Offset controls to correct color imbalances in the dark areas of the image. A good way to do this is to use a test pattern consisting mostly of dark gray areas, such as a 30 IRE “window” pattern. If the gray areas contain traces of red (Pr), green (Y) or blue (Pr), decrease the Offset for that color.

• Gamma: Select Gamma from the Display Color - Common Settings menu to choose a de-gamma curve. Used correctly, the Gamma control can improve contrast while maintaining good details for blacks and whites. If excess ambient light washes out the image and it becomes difficult or impossible to see details in dark areas, lower the gamma setting to compensate. This improves contrast while maintaining good details for blacks. Conversely, if the image is washed out and unnatural, with excessive detail in black areas, increase the setting.

• Mode: With the LS-12d, two Gamma adjustment modes are available: Simple or

Advanced. The two modes are mutually exclusive; when you select the Simple mode, the Advanced selection in the Gamma menu is grayed out. Likewise, when you select Advanced, the Simple selection is grayed out.

• Simple: Use the Simple Gamma control to perform gamma correction at the display

according to a simple power law gamma function. The value chosen here corresponds to the power variable in this equation:

You must enter a passcode to access the Calibration menu.

IMINAR

PRE

Operation

CalibrationUse the Calibration menu to perform advanced picture quality adjustments. This menu

Calibration

ISF Settings

Display Color Input Image

Input Color Save ISF Night Save ISF Day Copy/Paste Output Shift Image Alignment Adjustment Mode Splash Configure OSD Position

Output = Input

The Dimension Digital Controller applies this gamma curve to all three primary color channels (red, green and blue).

• Advanced: To select a custom gamma curve, select Mode from the Gamma menu and set it to Advanced. Then, select Advanced from the Gamma menu to select one of up to 20 pre-programmed gamma tables. Custom gamma tables provide the ability to perform complex, non-linear gamma correction on each primary color channel independently of the others.

LightStyle™ LS-12d Installation/Operation Manual 73

Power

Operation

• Color Temp: Select Color Temp from the Display Color - Common Settings menu to adjust the color temperature. Color temperature establishes the “color of gray” by adjusting the 75% white point to various color points.

What are “color points?” A “color point” is an x/y coordinate pair that defines a color’s location on the standard CIE chromaticity graph, shown in Figure 4-7. (CIE stands for “Commission Internationale de l’Éclairage” (International Commission on Illumination), the organization responsible for color measurement and management standards.)

1.0

0.9

0.8

0.7

Green

0.6

0.5

0.4

0.3

Cyan

IMINAR

0.2

0.1

Blue

0.0

PRE

0.00.10.20.30.40.50.60.70.80.91.0

Figure 4-7. CIE 1931 Chromaticity Diagram

• Simple: Select Simple mode from the Color Temp menu (with the LS-12d, this is

the only choice) to choose one of five color temperature presets: 3200K, 5500K, 6500K, 7500K and 9300K. The default setting, 6500K, is appropriate for most situations. Higher settings produce a “bluer” picture; lower ones impart a reddish hue to the image.

D93

D65

8000

10000

D50

6667

5714

5000

4000

3333

Yellow

2222

2500

2000

2857

Magenta

Red

74 LightStyle™ LS-12d Installation/Operation Manual

Table 4-2 lists the x- and y-coordinates for each color temperature preset in “Simple” mode.

Table 4-2. Color Temperature Presets and Associated Color Points

Operation

Color Temperature Preset

3200K 0.423 0.404

5500K 0.332 0.348

6500K 0.313 0.329

7500K 0.299 0.315

9300K 0.284 0.298

• Color Gamut: Select Color Gamut from the Display Color - Common Settings menu to select a color gamut (range) that may be different from the default color gamut.

Each setting defines the precise hue of each primary (red, green and blue) and secondary (yellow, cyan and magenta) color component used to generate the millions of colors produced in displays. Changing this setting relocates the “triangle” for possible colors (see Figure 4-7). For example, changing the x/y coordinates for red moves the color closer to either orange or violet, which in turn affects all displayed colors having a red component.

Associated x/y Values

IMINAR

Note

• The default setting, Auto, automatically chooses the appropriate color gamut:

• SMPTE C for NTSC, 480i and 480p sources.

• EBU for PAL, SECAM, 576i and 576p sources.

• REC709 for all other sources.

• Select REC709 to use the color gamut defined in ITU-R BT.709-5.

• Select SMPTE-C to use the color gamut defined in SMPTE 170M-1999.

• Select EBU to use the color gamut defined in EBU Tech. 3213-E.

• Select Native to use REC709 for cyan, magenta, and yellow and uncorrected values for red, green, and blue.

• Select PCE to use the Personal Color Equalizer feature of the LS-12d. PCE lets you define a custom color gamut. Refer to the next section, PCE, for instructions on how to do this.

1. The Color Gamut setting only affects 2D content.

2. The Dimension Digital Controller uses the Color Gamut settings for all display modes on a given input.

PRE

LightStyle™ LS-12d Installation/Operation Manual 75

Operation

Table 4-3 lists the Color Gamut settings and associated x- and y-coordinates for each primary and secondary color component.

Table 4-3. x/y Color Gamut Values

Color Gamut Settings and Associated x/y Values

Primary

Color

Red 0.640 0.330 0.635 0.340 0.640 0.330

Yellow 0.419 0.505 0.421 0.506 0.418 0.502

Green 0.300 0.600 0.305 0.595 0.290 0.600

Cyan 0.225 0.329 0.228 0.326 0.220 0.329

Blue 0.150 0.060 0.155 0.070 0.150 0.060

Magenta 0.321 0.154 0.318 0.162 0.328 0.158

REC709 SMPTE “C” EBU

xyxyxy

Display Color

RGBW

Red x 0.640

Red y 0.330

Green x 0.300

Green y 0.600

Blue x 0.150

Blue y 0.060

White x 0.313

White y 0.329

7 Auto Color Enable 7 Test Pattern Enable

•PCE: To use the Personal Color Equalizer to define a custom color gamut, choose the “PCE” Color Gamut setting (refer to Color Gamut on page 75). Then, choose PCE from the Display Color - Common Settings menu and press ENTER.

Note

IMINAR

PCE provides the ability to define a custom color gamut in terms of a “white point” and primary (red, green, blue) color points; see Figure 4-7.

• RGBW (Red, Green, Blue, White): To precisely adjust the primary color points and white point associated with the custom color gamut, choose RGBW from the PCE sub-menu. Each control operates only on the color specified. Surrounding colors are linearly interpolated based on their distance from each of these colors.

PRE

1. The PCE setting only affects 2D content.

2. The Dimension Digital Controller uses the PCE settings for all display modes on a given input.

76 LightStyle™ LS-12d Installation/Operation Manual

The Auto Color Enable and Te st Pattern Enable checkboxes let you choose what to display on-screen while making these adjustments. These controls work together as follows:

Auto Color Enable

Setting

Off Off When both boxes are unchecked, the input

Off On When only the Test Pattern Enable box is

Test Pattern Enable

Setting

Description

signal (normal picture) appears on the display.

checked, a white “curtain” test pattern appears instead of the input signal.

Operation

On Off When only the Auto Color Enable box is

checked, the input signal appears on the display.

When you select a red, green, blue, yellow, cyan or magenta color point to adjust, the Dimension Digital Controller displays only that color channel. When you select a white point x- or y-value, all colors are visible (normal picture).

On On When both boxes are checked, the

Dimension Digital Controller automatically displays a red, green, blue, yellow, cyan, magenta or white “curtain” test pattern

IMINAR

when you select an x- or y-value for that color point to adjust.

• YCM (Yellow, Cyan, Magenta): To precisely adjust the secondary color points associated with the custom color gamut, choose YCM from the PCE sub-menu. Each control operates only on the color specified. Surrounding colors are linearly interpolated based on their distance from each of these colors.

PRE

Display Color

YCM

Yellow x 0.419

Yellow y 0.505

Cyan x 0.225

Cyan y 0.329

Magenta x 0.321

Magenta y 0.154

7 Auto Color Enable 7 Test Pattern Enable

•Lamp: Select Lamp from the Display Color - Projector Settings menu to adjust the projector lamp brightness.

• Power (230W or 260W): To supply a constant wattage to the lamp, select Power

(230W or 260W) from the Lamp menu to set the lamp power level. You can choose to run the lamp as bright as possible (this is the default setting) or you can choose a lower setting. Generally, lower lamp output prolongs the life of a lamp, but decreases brightness.

LightStyle™ LS-12d Installation/Operation Manual 77

Operation

•ConstantContrast: Select ConstantContrast from the Display Color - Projector Settings menu to enable (On) or disable (Off) ConstantContrast in the optical engine. ConstantContrast uses a dynamic iris that modulates light to the DMD based on the actual content of the video material. Runco recommends that you disable ConstantContrast before adjusting Brightness, Contrast or other image settings.

Note

Input Image: The Input Image controls are functionally similar to those in the Picture menu (refer to page 63), but are accessible only by entering the Calibration menu passcode.

Note

Input Color: The Input Color controls are similar to those in the Display Color menu (see above), but adjust the color balance of the incoming signal. These settings are also saved independently for each input and display mode.

•Gain/Offset (HD1, HD2 and Component/SCART inputs only): These controls operate similarly to those in the Display Color - Common Settings menu (described on page 73), but affect the Y, Pb and Pr signal components rather than the red, green and blue channels.

• Chroma Delay: use the Chroma Delay control to correct a mis-aligned image from a composite video source. Chroma delay in an image causes color shifts to occur to the left of the vertical edge transitions, producing artificial shadows or a “halo” effect. If necessary, adjust this setting to eliminate them.

•Noise Filter: To apply noise filtering to the input signal, select Noise Filter from the Input Color menu. The Noise Filter is useful for clearing up noisy images from 480i video sources.

IMINAR

PRE

Use the left- or right-arrow buttons to select the desired amount of noise reduction, keeping in mind that higher settings (which reduce high frequencies) may also “soften” the image.

ConstantContrast is disabled when the LS-12d is displaying 3D content, regardless of this setting.

The Input Image settings establish the “zero point” for the Picture menu settings, whose values represent offsets from the Input Image settings. For example, if you set Brightness to 10 in this menu, setting Brightness to 10 in the Picture menu results in an actual setting value of 20 (10+10).

Save ISF Night/Save ISF Day: Whenever you make a change to the ISF settings, you should always save it. Select Save ISF Night or Save ISF Day from the Calibration menu to do this.

78 LightStyle™ LS-12d Installation/Operation Manual

preset to another. This gives you a convenient starting point for creating a new preset based on an existing one, to make the calibration process less time-consuming.

For example, you can use the Copy/Paste Memory Preset feature to:

• Apply settings from HDMI 1 to HDMI 2, or from HD1 to HD2.

• Calibrate an input for 720p source signals, then use those settings for 1080i sources.

• Duplicate ISF Night settings for a given source and signal format and save them in the Custom 1 memory preset.

Operation

Copy/Paste - Memory Preset: You can copy and paste settings from one memory

Copy/Paste

Memory Preset Aspect Ratio

Memory Preset

Copy Settings Paste Settings

To use this feature, select Copy/Paste from the Calibration menu, then select Memory Preset.

•Memory Preset - Copy Settings: Select Copy Settings from the Copy/Paste Memory Preset menu to place the settings for the current input source, signal format (resolution and frame rate) and memory preset onto a “clipboard,” which is a temporary memory location. When you do, the message “Settings Copied” briefly appears on-screen. The Copy/Paste menu then re-appears, indicating the source of the copied settings.

Note

•Memory Preset - Paste Settings: To apply the settings on the clipboard to a different input source, signal format and/or memory preset, do any or all of the following:

• Switch to another input (for example, from HD1 to HD2).

• Change the output signal format at the source (for example, from 720p/60 to

1080i/60).

• Switch to another Memory Preset (for example, from ISF Night to Custom 1).

Then, select Paste Settings from the Copy/Paste Memory Preset menu. If you want

to keep these new settings, you must save them! (Refer to Save ISF Night/Save ISF Day on page 78 or Memory Presets on page 70.)

Copied settings are not retained after a power cycle.

IMINAR

PRE

those for Output Shift, Image Alignment (refer to page 80) or Screen Masking (refer to page 80) from one aspect ratio or “screen” (refer to Screen on page 62) to another.

To do this, select Copy/Paste from the Calibration menu, then select Aspect Ratio.

•Aspect Ratio - Copy Settings: Select Copy Settings from the Copy/Paste Aspect Ratio menu to place the Output Shift, Image Alignment and Screen Masking settings for the current aspect ratio onto a “clipboard,” which is a temporary memory location. When you do, the message “Settings Copied” briefly appears on-screen. The Copy/Paste menu then re-appears, indicating the source of the copied settings.

Copied From: Input Source HDMI 1 Signal Format 1080p/60

Memory Preset ISF Night

Copy/Paste - Aspect Ratio: You can also copy and paste certain settings, such as

Copy/Paste

Memory Preset Aspect Ratio

Aspect Ratio

Copy Settings Paste Settings

Note

Copied settings are not retained after a power cycle.

LightStyle™ LS-12d Installation/Operation Manual 79

Copied From: Aspect Ratio 16:9 Screen Screen 1

Operation

•Aspect Ratio - Paste Settings: To apply the Output Shift, Image Alignment and Screen Masking settings on the clipboard to a different aspect ratio and/or screen, do either of the following:

• Switch to another aspect ratio (for example, from 16:9 to Cinema).

• Switch from Screen 1 to Screen 2 or vice versa.

Then, select Paste Settings from the Copy/Paste Aspect Ratio menu. The new settings are saved automatically.

Output Shift: The Left/Right, Up/Down, Width and Height controls in the Output Shift menu are similar to those in the Input Position menu, except that they change the characteristics of the output signal. These settings are saved independently for each

aspect ratio and screen selection (refer to Screen on page 62).

• Screen Masking: This control adjusts the amount of cropping on each edge of the

output image. This differs from the regular Overscan control in two ways:

• It allows separate adjustments on each edge; and

• It is saved per aspect ratio, per screen (as opposed to per connector, per mode).

This is useful for installations where the aspect ratio of the screen doesn’t exactly match the aspect ratio of the display.

Image Alignment: Use the controls in the Image Alignment menu to ensure proper image geometry; that is, a perfectly rectangular projected image with no keystoning or pincushion. For detailed instructions, refer to Adjusting the Image Geometry on page 52.

Adjustment Mode (during 3D Operation): By default, any command or control message you send using the remote control, front-panel keypad or RS-232 interface is acted upon by both the Primary and Secondary scalers in the Dimension Digital Controller. In some cases — for example, when using the lens controls or aligning the “left eye” or “right eye” output images — you may need to address a command to only the Primary or Secondary scaler. To do this, select Adjustment Mode from the Calibration menu and set it to Primary or Secondary. The Main Menu title changes to “Runco Video (Pri.)” or “Runco Video (Sec.)” when you do this.

PRE

Note

Splash Configure: Use the Splash Configure menu to control the appearance and behavior of the “splash” screen that appears on the display upon power-up.

•Owner Name/ISF Calibrated/ISF Other: You can have the LS-12d display the owner’s name, your name, the phrase “ISF Calibrated” and/or any other string, up to 30 characters in length.

IMINAR

The Secondary OSD menus are only visible during 3D operation. In 2D mode, you will only see the image from the Primary scaler, regardless of this setting. If you want to adjust the Secondary scaler while in 2D mode, you must use the built-in keypad and VFD on the Dimension Digital Controller.

Use the up or down cursor button to select a character. Use the right and left cursor buttons to change the cursor position. Press MENU when you have finished entering text.

• Splash Timer: When you turn on the LS-12d, it projects a welcome screen with the Runco and ISF logos, along with the personalized information you enter as described above. Select Splash Timer from the Splash Configure menu to set the amount of time for which this screen appears. The range is from 5 to 60 seconds, in one-second increments. Press or to set the timer, then press MENU.

80 LightStyle™ LS-12d Installation/Operation Manual

• Splash Enable: When you have finished customizing the splash screen, select Splash Enable from the Splash Configure menu. Then, select On and press ENTER.

OSD Position: To adjust the position of the OSD, select OSD Position from the Calibration menu and press ENTER.

Press or to select “Hor.” or “Ver.” Then, press or to change the position.

should be used by ISF-certified technicians only.

You must enter a passcode to access the Service menu.

Note

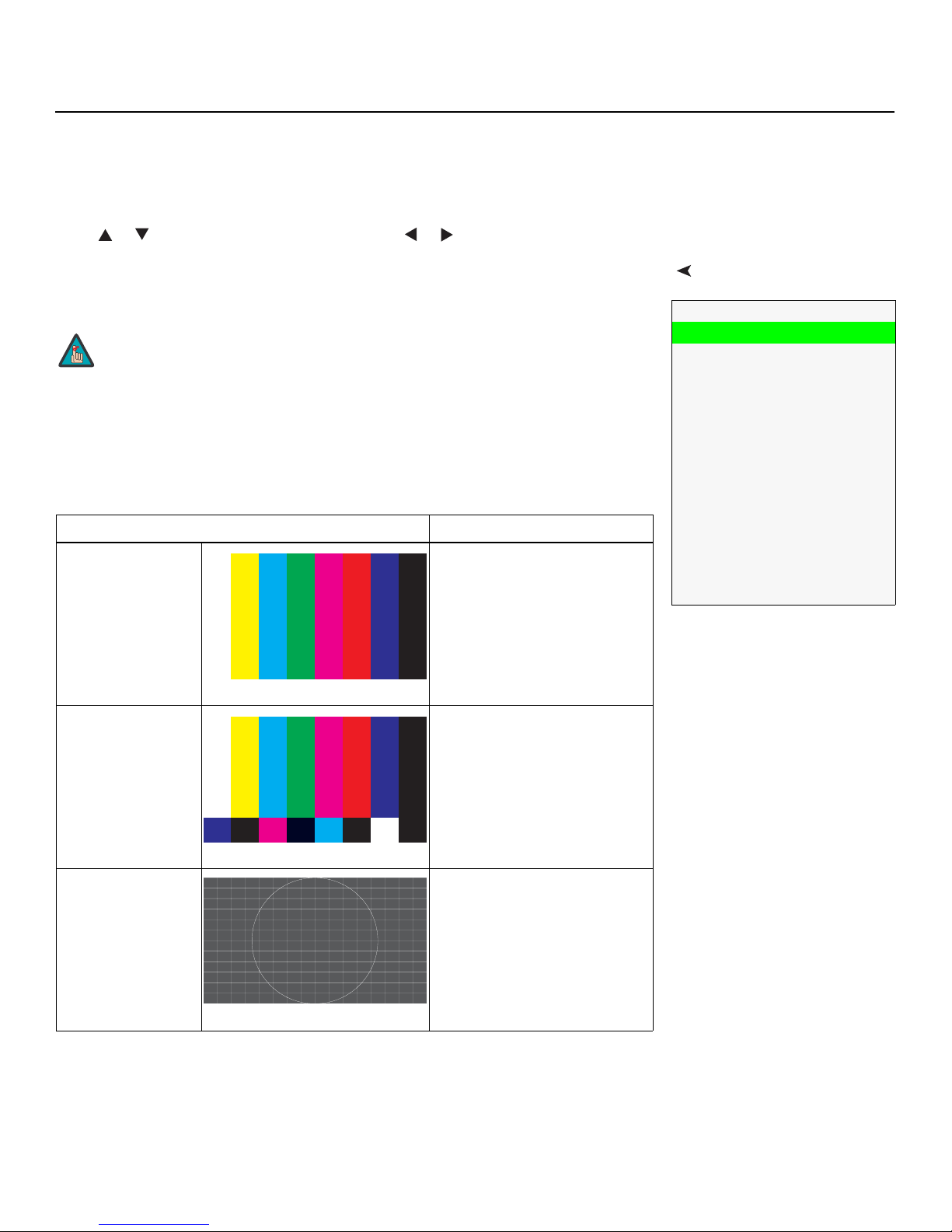

Test Video: Select Test Video from the Service Menu to access the internal test patterns on the Dimension Digital Controller. Table 4-4 lists the available test patterns and describes their suggested usage.

Table 4-4. Test Patterns and Their Suggested Usage

Pattern Suggested Usage

Use this pattern when making color saturation and tint adjustments.

Operation

ServiceUse the Service menu to access advanced projector configuration settings. This menu

Service

Test Video Input Names Remote Control Display Device Network Color Space Triggers Miscellaneous HDMI Front Panel Brightness Auto Power Off Standby Mode System Reset

Color Bars 1

Color Bars 2

Focus

IMINAR

Use this pattern when making color saturation and tint adjustments.

PRE

Use this pattern when adjusting the focus.

LightStyle™ LS-12d Installation/Operation Manual 81

Operation

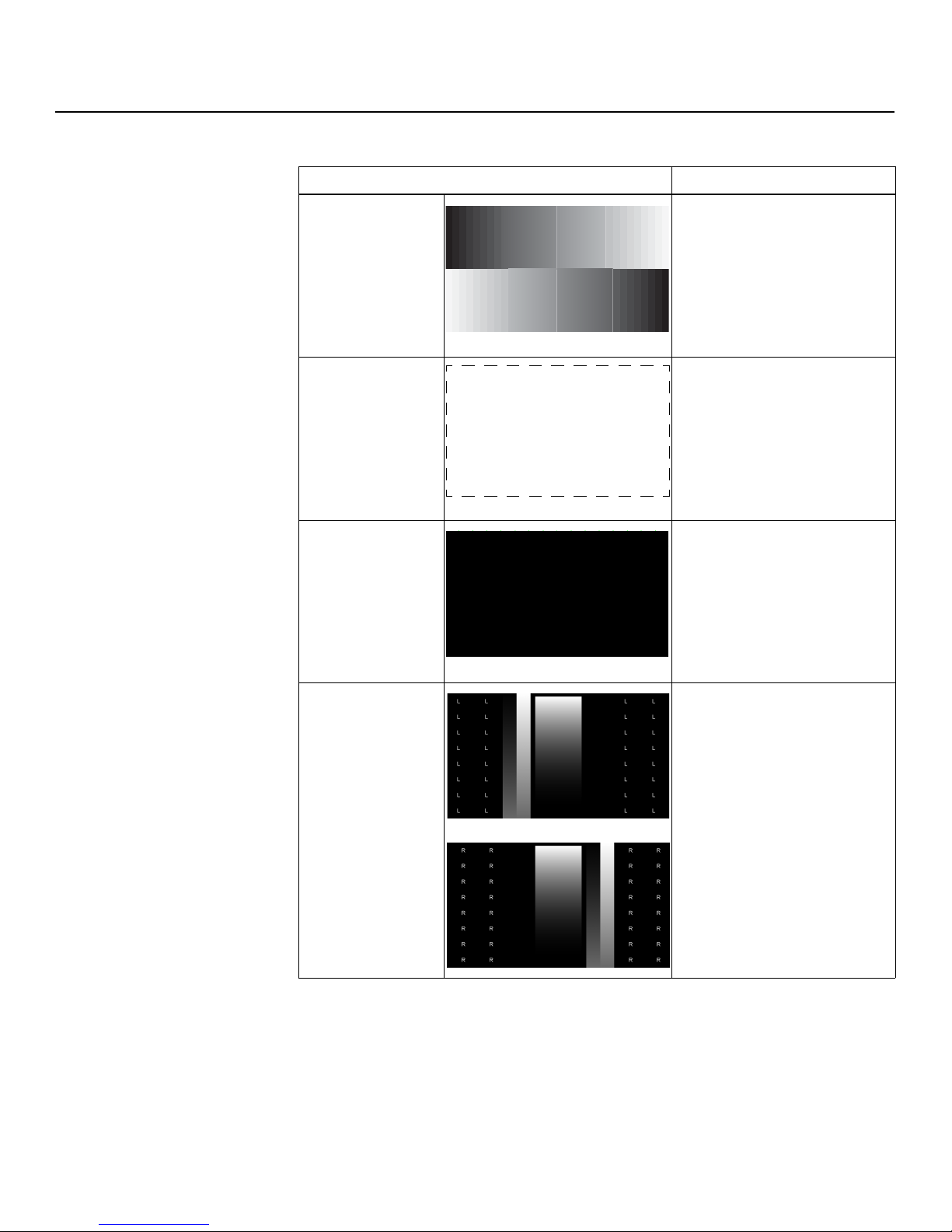

Table 4-4. Test Patterns and Their Suggested Usage (continued)

Pattern Suggested Usage

Use this pattern when making brightness, contrast or white balance (gain/offset) adjustments.

Grey Bars

Use this pattern when measuring

Full White

or adjusting brightness, contrast or white balance (gain/offset).

Primary Alignment

Secondary

Alignment

Dual Alignment

IMINAR

PRE

Use this pattern when aligning the output from the projector’s primary or secondary optical engines (refer to Adjusting the Image Geometry on page 52). Select Dual Alignment to have both optical engines output this pattern.

Use these patterns to confirm that the left-eye and right eye images are being processed correctly. To do this, close your right eye while viewing this test pattern through the 3D glasses. If you see only the left-eye portion, then the system is correctly configured for 3D.

Normally, the Primary scaler processes the left-eye image; the Secondary, the right-eye image. To change this, use the Reverse Eyes control in the 3D Processing menu (refer to Reverse Eyes on page 71).

Press MENU to exit test pattern mode.

82 LightStyle™ LS-12d Installation/Operation Manual

Input Names: You can give each input a descriptive name. For example, you may want to change the default input name to the type of source component connected to it: “VCR,” “DVD,” “Laptop” et cetera. Input names can be up to 12 characters long.

To edit an input name, select Input Names from the Service menu. Press or to select an input and press ENTER. Use the or buttons to change a character; press

or to select a character to change. When you have finished editing the input name,

press ENTER or MENU.

To restore the default input name, press repeatedly to highlight that input name in the “Restore” column. Then, press ENTER.

Input Names

C o mp o s i t e 1 C o mp o s i t e 2 C o mp o s i t e 3 C o mp o n e n t H D 1 H D 2 S CA R T H D M I 1 H D M I 2 H D M I 3 H D M I 4 H D M I 5 H D M I 6 H D M I 7 H D M I 8 D i s p l a y P o r t

Operation

Restore

Composite 1 Composite 2 Composite 3 Component HD 1 HD 2 SCART HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 HDMI 6 HDMI 7 HDMI 8 DisplayPort

Remote Control: Select Remote Control from the Service menu to set the following options:

• Remote Code: Select Remote Code from the Remote Control menu to set the infrared (IR) custom code (address) that the Dimension Digital Controller will accept as valid IR data. By default, it is set to 08209 (0x2011). You can change this setting if:

• Another device in the theater (a DVD player, for example) is responding to

commands from the Dimension Digital Controller remote control (Figure 2-7) in ways that are unpredictable or undesirable; or

• You have multiple Dimension Digital Controllers and want to control them

independently, as opposed to broadcasting commands from a single remote to all of them. In this scenario, you can use multiple remotes programmed to use different IR codes. Or, you can use a single remote and change the IR code as needed to address a specific Dimension Digital Controller.

Tip

After changing the Remote Code, press EXIT to have the new code take effect.

PRE

Use the Dimension Digital Controller front-panel keypad to change the IR code to which the controller will respond. Then, change the code sent by the remote to match as described below.

IMINAR

LightStyle™ LS-12d Installation/Operation Manual 83

Operation

When you change the Remote Code on the Dimension Digital Controller, you must re-program the Dimension Digital Controller remote control to send that same code. To enable “extended” key code mode, you must re-program the Dimension Digital Controller remote control with a special five-digit code reserved for that purpose.

To do this:

1. Press and hold the LIGHT button on the remote control for approximately five seconds, or until the LED on the remote lights solid red.

2. Enter a new five-digit code between 00000 and 65535 inclusive;

— OR —

To enable extended key code mode, enter 88999. This mode allows certain buttons to perform alternate functions; refer to LS-12d Remote Control Unit on page 14. (To switch from extended mode back to standard mode, enter any valid code other than 88999.)

Include leading zeros for codes with four or fewer digits; for example, enter 255 as

00255.

3. The LED turns off to confirm the code change. If you enter an invalid code, the LED flashes for three or four seconds. Try again, entering a valid code.

For more information on using standard and extended remote control key codes, refer to Using Discrete IR Codes on page 117.

• SRC 1-7 Keys / SRC 8-14 Keys: Select SRC 1-7 Keys or SRC 8-14 Keys from the Remote Control menu to assign the source selection buttons to the source inputs on the Dimension Digital Controller (refer to SRC 1, SRC 2 ... SRC 14 on page 17). By default, these buttons are assigned as follows:

Remote Control Button Default Source Assignment

IMINAR

SRC 1 ... SRC 8

PRE

SRC 10

SRC 9

HDMI 1 ... HDMI 8

DisplayPort

Component

SRC 11

SRC 12

SRC 13

SRC 14

HD 1

HD 2

Composite 1

Composite 2

84 LightStyle™ LS-12d Installation/Operation Manual
