Runco CW-95DHD User Manual

CineWall™ CW-95DHD

Full-HD, 2.35:1 In-Wall Display

and Digital High Definition (DHD™) Controller/Scaler/Processor

I NSTALLER/INTEGRATOR MANUAL

Online Product Registration and Warranty

To register your Runco product and obtain information about warranty and service offerings, please visit
http://www.runco.com/info.html.

COPYRIGHT AND TRADEMARKS:

© Copyright 2009 Runco International, LLC (“Runco”). This document contains proprietary information protected by copyright,
trademark and other intellectual property laws. All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic or other means, in any form, without prior written permission of Runco.

The trademarks reproduced in this Runco Owner’s Manual and used on the Runco Products are either owned by Runco or are
licensed by Runco. You may not reproduce or use the trademarks without the prior written consent of Runco.

Runco Products are manufactured under one or more of the following patents: US. Patent 6755540 and Other Patents
Pending.

Important Safety Instructions

Thank you for your purchase of this quality Runco video product! It has been designed to provide you with the quality of video
that is expected in a home theater. For the best performance, please read this manual carefully as it is your guide through the
menus and operation.

WARNING

CAUTION

RISK OFELECTRIC SHOCK

DO NOTOPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

CAUTION:

SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock.

This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

Y

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for the replacement of
the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point
where they exit from the apparatus.

11. Only use the attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Keep the packing material in case the equipment should ever need to be shipped.

16. The lamp becomes extremely hot during operation. Allow the display to cool down for approximately 45 minutes prior to
removing the lamp assembly for replacement.

17. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond rated life could cause them to
explode in rare occasions.

PRE

IMINAR

L

18. Never look directly into the lens when the lamp is on.

CineWall™ Installer/Integrator Manual iii

Compliance Information

Note

DECLARATION OF CONFORMITY:

Manufacturer’s Name: Runco International, LLC

Manufacturer’s Address: 1195 NW Compton Drive, Beaverton, OR 97006-1992

hereby declares that the Products’ Model Numbers:

CineWall™ CW-95DHD

conform with the provisions of:

Council Directive 2004/108/EC on Electromagnetic Compatibility;

EN 55022 “Limits and methods of measurements of radio interference characteristics of information technology equipment”
1998;

EN 55024 “Limits and methods of measurements of immunity characteristics of information technology equipment” 1998;

Including:

• EN 61000-4-2 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 2:
Electrostatic discharge immunity test”

• EN 61000-4-3 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 3: Radiated,
Radio-Frequency, Electromagnetic Field Immunity Test”

• EN 61000-4-4 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 4: Electrical
fast transient/burst immunity test”

• EN 61000-4-5 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 5: Surge
immunity test”

During high-voltage spikes in AC power, this product's surge protection circuit may require
re-starting the unit. This behavior is normal.

IMINAR

L

Y

PRE

• EN 61000-4-6 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 6: Conducted
disturbances induced by radio-frequency fields immunity test”

• EN 61000-4-8 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 8: Conducted
disturbances induced by power frequency magnetic fields immunity test”

• EN 61000-4-11 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 11: Voltage
dips, short interruptions and voltage variations immunity tests”

iv CineWall™ Installer/Integrator Manual

And:

• EN 61000-3-2 “Electromagnetic compatibility (EMC) Part 3, Section 2: Limits for harmonic current emissions (equipment
input current up to and including 16 A per phase)” 2000;

• EN 61000-3-3 “Electromagnetic compatibility (EMC) Part 3, Section 3: Limitations of voltage changes, voltage
fluctuations and flicker in public low-voltage supply systems, for equipment with rated current up to and including 16 A
and not subject to conditional connection” 1995;

Council Directive 2006/95/EC and amended by M1 and C1 on Low Voltage Equipment Safety;

EN 60950 “Safety of information technology equipment, including electrical business equipment”

The Technical Construction file required by this Directive is maintained at the corporate headquarters of Runco International,
LLC, located at 1195 NW Compton Drive, Beaverton, OR 97006-1992.

Date of Declaration: March 2009

Y

FCC PART 15:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

IMINAR

L

INDUSTRY CANADA (ICES-003):

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CineWall™ Installer/Integrator Manual v

PRE

PRODUCT DISPOSAL:

The Product contains small amounts of tin, lead and/or mercury. Disposal of these materials may be regulated due to
environmental considerations.

IMPORTANT RECYCLE INSTRUCTIONS

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be
hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws.

For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG.

For lamp specific disposal information check WWW.LAMPRECYCLE.ORG.

DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT (Applicable throughout the European
Union and other European countries with separate collection programs)

This symbol found on your product or on its packaging, indicates that this product should not be treated as
household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences to the environment and human health, which could
otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve
natural resources. This symbol is only valid in the European Union. If you wish to discard this product, please
contact your local authorities or dealer and ask for the correct method of disposal.

IMINAR

Y

L

PRE

vi CineWall™ Installer/Integrator Manual

1Table of Contents

Important Safety Instructions ........................................................................................ iii

Compliance Information ................................................................................................ iv

1. Introduction ...............................................................................................................1

About This Manual .......................................................................................................1

Target Audience .....................................................................................................1

If You Have Comments About This Manual.............................................................1

Textual and Graphic Conventions ...........................................................................1

Using This Manual ........................................................................................................2

Description, Features and Benefits ...............................................................................3

Key Features and Benefits ......................................................................................4

Parts List ................................................................................................................4

Required Personnel, Tools and Materials ......................................................................4

2. System Description ................................................................................................... 5

Chassis Assembly ........................................................................................................5

Input Connectors and LEDs....................................................................................6

Screen Assembly .........................................................................................................6

Chassis Installation Brackets ........................................................................................7

Other System Components .......................................................................................... 8

DHD Controller Front Panel ..........................................................................................8

PRE

DHD Controller Rear Panel .........................................................................................10

Outputs ................................................................................................................10

Inputs ...................................................................................................................10

IMINAR

L

Y

CineWall Remote Control Unit ....................................................................................11

3. Installation Preparation .......................................................................................... 15

Site Requirements ......................................................................................................15

Infrastructure ........................................................................................................ 15

Power Requirements ............................................................................................16

Site Access...........................................................................................................16

Audio/Video Synchronization Issues...................................................................... 17

Additional Considerations ..................................................................................... 18

Unpacking and Inspecting .......................................................................................... 19

Site Preparation ..........................................................................................................21

CineWall™ Installer/Integrator Manual vii

Table of Contents

4. Installation ...............................................................................................................25

Overview ....................................................................................................................25

Mounting the CineWall Chassis ..................................................................................26

Install Top Flange and Bottom Brackets on Chassis Assembly .............................26

Install Chassis Assembly into Wall.........................................................................27

Secure Chassis to Wall .........................................................................................27

Installing the Screen ...................................................................................................30

Powering Up the CineWall ..........................................................................................33

Connecting the CineWall to AC Power ..................................................................33

Aligning the Image ...................................................................................................... 34

Connections to the CineWall ......................................................................................35

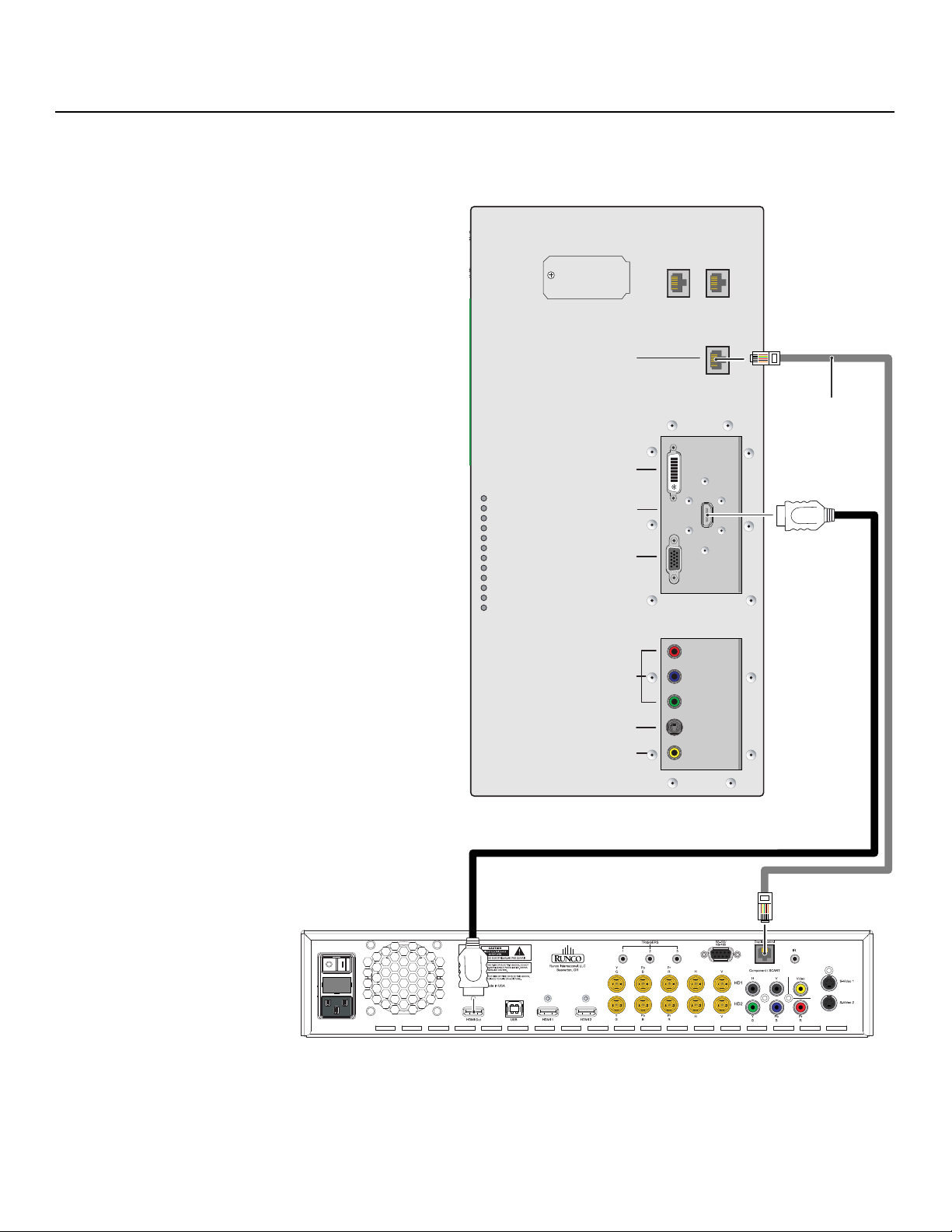

Connecting the CineWall to the DHD Controller ....................................................36

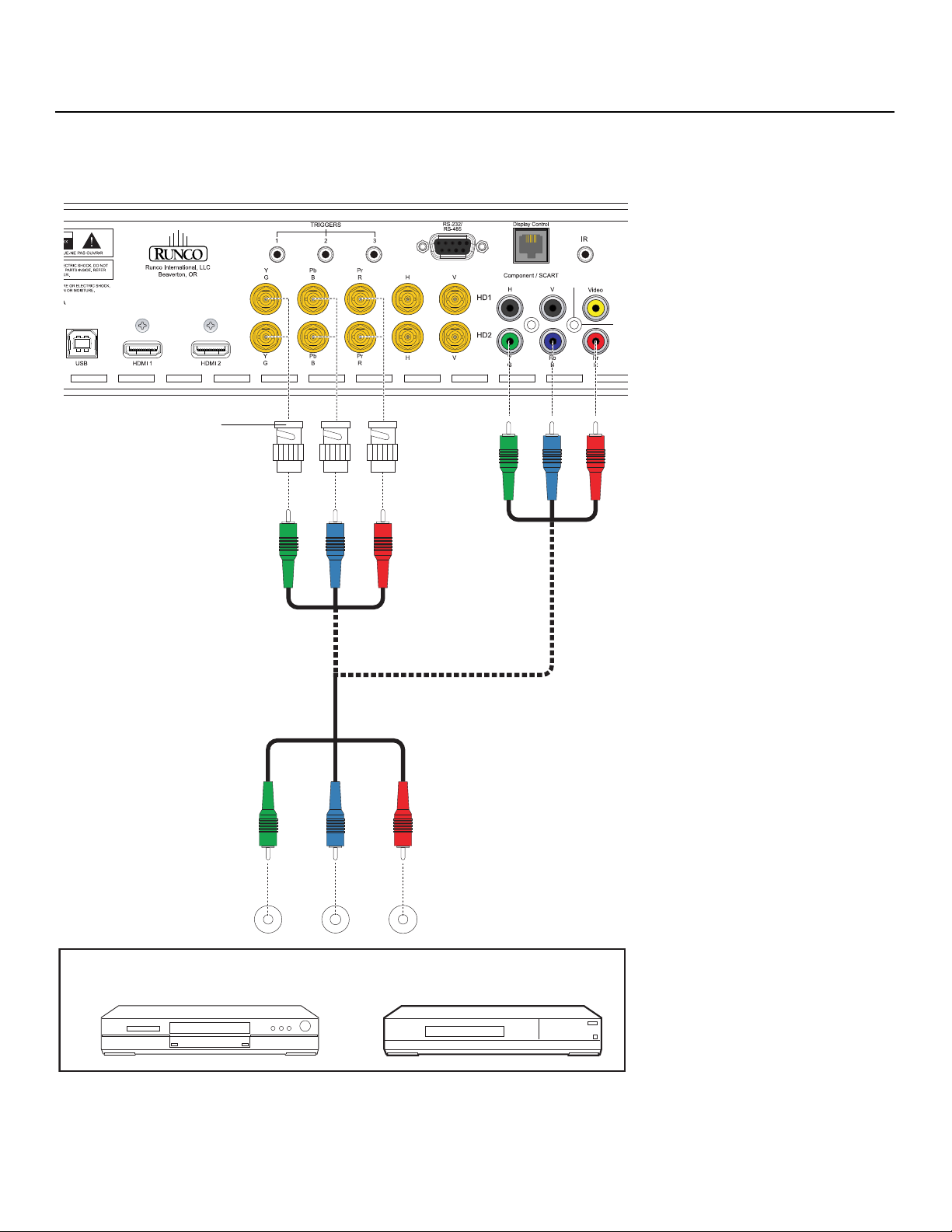

Connecting Source Components to the DHD Controller .......................................38

RS-232 Controller Connection ..............................................................................43

Connecting 12-volt Trigger Outputs to External Equipment...................................44

Connecting an External IR Receiver to the DHD Controller....................................45

Installing Batteries in the DHD Controller Remote Control ........................................... 46

Notes on Batteries ................................................................................................46

Notes on Remote Control Operation .....................................................................46

Powering Up the CineWall and DHD Controller ...........................................................47

Connecting the DHD Controller to AC Power........................................................ 47

5. Operation .................................................................................................................49

On-Screen Display (OSD) Menus ................................................................................49

Main Menu............................................................................................................50

PRE

Input Source......................................................................................................... 51

Aspect Ratio.........................................................................................................51

Picture..................................................................................................................56

IMINAR

L

Y

Input Position........................................................................................................61

Memory Presets .................................................................................................. 63

Information ...........................................................................................................64

Calibration ............................................................................................................64

Service ................................................................................................................. 68

6. Maintenance and Troubleshooting ........................................................................ 73

Cleaning .....................................................................................................................73

Cleaning the Screen, Mirrors and Lens .................................................................73

Where is the dirt?..................................................................................................74

viii CineWall™ Installer/Integrator Manual

Table of Contents

Lamp Replacement ....................................................................................................75

Removing the Old Lamp .......................................................................................75

Installing the New Lamp........................................................................................76

Resetting Lamp Hours ..........................................................................................76

How to Maintain Lamp Life ...................................................................................76

Filter Replacement ..................................................................................................... 76

Determining a Changing Schedule ........................................................................ 76

Removing the Air Filter ..........................................................................................77

Troubleshooting Tips ..................................................................................................77

Status LEDs..........................................................................................................77

Y

Isolating Faulty Parts .............................................................................................78

7. Serial Communications ..........................................................................................81

RS-232 Connection and Port Configuration ...............................................................81

Serial Command Syntax .............................................................................................81

8. Specifications .......................................................................................................... 87

CineWall Specifications ..............................................................................................87

DHD Controller Specifications .................................................................................... 88

Dimensions ................................................................................................................89

Supported Timings .....................................................................................................90

IMINAR

L

PRE

CineWall™ Installer/Integrator Manual ix

Table of Contents

Notes:

Y

IMINAR

L

PRE

x CineWall™ Installer/Integrator Manual

1List of Figures

2-1. Chassis Installation Brackets ........................................................................................7

2-2. DHD Controller Front Panel ..........................................................................................8

2-3. DHD Controller Rear Panel .........................................................................................10

2-4. DHD Controller/CineWall Remote Control................................................................... 11

4-1. Installing the Top Flange and Bottom Brackets...........................................................26

4-2. CineWall Screen Assembly – Rear View......................................................................30

4-3. Connecting the CineWall to the DHD Controller..........................................................36

4-4. RS-232 Connection from the DHD Controller to the CineWall .....................................37

4-5. HDMI Source Connections .........................................................................................38

4-6. Component Video Source Connections...................................................................... 39

4-7. RGBHV Source Connections......................................................................................40

4-8. SCART RGBS Source Connections............................................................................41

4-9. S-Video and Composite Video Source Connections ...................................................42

4-10. RS-232 Control System Connection.........................................................................43

4-11. Connecting 12-volt Trigger Outputs..........................................................................44

4-12. External IR Receiver Connection...............................................................................45

4-13. Available Range of the Remote Control ....................................................................46

5-1. CineWall OSD Menu Structure....................................................................................49

5-2. Typical PLUGE Pattern for Adjusting Brightness .........................................................56

5-3. Typical Gray Bar Pattern for Adjusting Contrast ..........................................................57

PRE

5-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint................................58

5-5. Typical Test Pattern for Adjusting Sharpness..............................................................60

IMINAR

L

Y

5-6. Overscan Modes ........................................................................................................62

5-7. CIE 1931 Chromaticity Diagram .................................................................................65

8-1. CineWall CW-95HD Dimensions .................................................................................89

CineWall™ Installer/Integrator Manual xi

List of Figures

Notes:

Y

IMINAR

L

PRE

xii CineWall™ Installer/Integrator Manual

1. Introduction

Note

This Owner’s Manual describes how to install, set up and operate a Runco CineWall™ Full
HD, In-Wall Display and DHD Controller.

Throughout this manual, the Runco CineWall™ Full HD, In-Wall Display and DHD
Controller is referred to as the “CineWall.”

and optimize the performance of the CineWall.

Runco has made every effort to ensure that this manual is accurate as of the date it was
printed. However, because of ongoing product improvements and customer feedback, it
may require updating from time to time. You can always find the latest version of this and
other Runco product manuals on-line, at www.Runco.com.

Runco welcomes your comments about this manual. Send them to [e-mail].

Text Conventions: The following conventions are used in this manual, in order to clarify
the information and instructions provided:

• Remote control button identifiers are set in upper-case bold type; for example, “Press
EXIT to return to the previous menu.”

• Computer input (commands you type) and output (responses that appear on-screen) is
shown in monospace (fixed-width) type; for example: “To change the aspect ratio to
Letterbox, type LETTERBOX <Enter>.”

• All keys with functional names are initial-capped, set in bold type and enclosed in angle
brackets. These keys are the following: <Enter>, <Spacebar>, <Control>, <Esc>
and <Tab>.

• <Enter> indicates that you may press either the RETURN or ENTER key on your
computer keyboard if it has both keys.

PRE

IMINAR

L

Y

1.1 About This Manual

Target AudienceRunco has prepared this manual to help home theater installer/integrators safely install

If You Have Comments About This Manual...

Textual and Graphic Conventions

In addition to these conventions, underlining, boldface and/or italics are occasionally used
to highlight important information, as in this example:

A carriage return must be used after each command or string.

CineWall™ Installer/Integrator Manual 1

Introduction

Note

Caution

WARNING

DANGER!

Graphic Conventions: These symbols appear in numerous places throughout the
manual, to emphasize points that you must keep in mind to avoid problems with your
equipment or injury:

TIPS highlight time-saving short cuts and helpful guidelines for using

Tip

certain features.

NOTES emphasize text with unusual importance or special
significance. They also provide supplemental information.

CAUTIONS alert users that a given action or omitted action can
degrade performance or cause a malfunction.

Y

WARNINGS appear when a given action or omitted action can result
in damage to the equipment, or possible non-fatal injury to the user.

DANGER appears when a given action can cause severe injury or
death.

1.2

Using This Manual

Use the following table to locate the specific information you need in this manual.

IMINAR

General information about the CineWall™ Full HD, In-Wall Display
and DHD Controller

Installation preparation guidelines 15

Installation instructions 25

PRE

First-time configuration instructions 49

Instructions for using the on-screen menus 61

Maintenance and troubleshooting and information 73

Information on using serial commands 81

Specifications for the CineWall™ Full HD, In-Wall Display and
DHD Controllers

L

If you need... ... Turn to page:

3

86

2 CineWall™ Installer/Integrator Manual

Introduction

Runco, the leading brand in luxury video solutions, proudly announces its new CineWall™
CW-95DHD in-wall video display, which offers custom home theater design and
installation professionals new levels of installation versatility and convenience while
achieving full-HD imagery perfection.

Combining the best of front projection’s exceptional image with the aesthetic of a giant
flat-screen display, the CineWall provides a high-performance, in-wall display solution for
rooms of distinction where high ambient lighting conditions exist, but nothing less than an
exceptional Runco cinema experience will suffice.

The CineWall combines an advanced, high-contrast ambient light-rejecting screen with
cinema-grade optics and a powerful display engine in a single, self-contained system. It is
designed for quick and easy installation into a dedicated, framed wall with a large opening.

Y

Designed exclusively for discriminating tastes, the CineWall is offered with Runco’s
proprietary external DHD™ video controller/processor/scaler. The DHD not only
incorporates Runco’s exclusive advanced Vivix III™ digital video processing technology to
achieve the highest level of image fidelity, but it also enhances standard-definition digital
and NTSC content to near high-definition quality.

The CineWall features Runco’s SuperOnyx™ DMD™ chipset with ConstantContrast™
frame-by-frame contrast correction to provide stellar black levels and rich color saturation
even in bright ambient light viewing. Runco’s exclusive CinOptx™ lens system
incorporates O-Path™ light path enhancement for sharp-looking video.

In addition to wider viewing angles with increased brightness and colorimetry
consistencies, the CineWall provides significant technology and video quality
enhancements when compared to like-sized plasma or LCD products. The system’s
passive cooling allows for virtually silent operation and uses 80 per cent less energy than
comparably-sized flat panels.

IMINAR

L

1.3 Description, Features and Benefits

The CineWall has been engineered to comply with Imaging Science Foundation™ (ISF)
standards for maximum home theater image quality. Runco's sophisticated parameters
for white balance and color gamut control have also been implemented for precise
balance of gray scale and color. The CineWall incorporates Runco-proprietary
de-interlacing technology that provides exceptional scaling and film-to-video (3:2
pulldown) conversion for the most artifact-free images possible.

Discrete IR and RS-232 control make custom installation seamless, while discrete source
and aspect ratio selection accommodate any automation control system.

PRE

CineWall™ Installer/Integrator Manual 3

Introduction

➤

➤

Key Features and Benefits The CineWall offers these key features and benefits:

• Native Resolution: 1920 x 817 (2.35:1 Native Aspect Ratio)

• Screen Size: 95-inch diagonal measure (approximately 88.75 inches wide by

37.88

inches high)

• 156/180W UHP-type Lamp, 6000-hour median life

• ConstantContrast™ provides for infinitely variable adjustment of the light path through
the optics, enabling the perfect balance of black and white levels for any type of video
source material

Parts List Your CineWall is shipped with the following items. If any items are missing or damaged,

please contact your Runco dealer or Runco Customer Service at (800) 23-RUNCO.

• CineWall™ Full HD, In-Wall Display and DHD Controller:

• Chassis Assembly

• Screen Assembly

• Controller

• DHD Controller Remote Control Unit and two (2), AAA-size batteries

• Setup Remote Control Unit and two (2), AAA-size batteries

• Two (2) AC Power Cords (North America), 1.83 meters (6.0 feet)

• Communication Cable, RJ-11 Male to RJ-45 Male, 20 feet (part number 175-0686-00)

• Rack-mount hardware for the DHD Controller

• CineWall™ Installer/Integrator Manual (this document)

Y

1.4 Required Personnel, Tools and Materials

PRE

IMINAR

Installing the CineWall requires the following personnel, tools and materials:

• Two or more people familiar with complex mechanical installations. Only authorized,

Runco Academy-trained dealers should install the CineWall.

• Circular saw

• Drywall saw (if the wall is finished with drywall)

• Drill with ¼” bit

• Screwdrivers

• Socket and crescent wrenches (various sizes)

•Level

• Tape measure

•Stud sensor

• Wood screws, bolts, nails, washers and other hardware, as dictated by the installation
method

• AVIA or Digital Video Essentials test DVD (or equivalent), for calibrating individual
inputs/sources

L

4 CineWall™ Installer/Integrator Manual

2. System Description

This section briefly describes the various CineWall system components.

The Chassis Assembly is a sheet metal assembly that contains all of the active
components of the CineWall, as shown below.

IMINAR

L

2.1 Chassis Assembly

Y

PRE

The lower middle section of the chassis assembly contains all of the active components
described below. A fold mirror mounted at the rear of the chassis reflects light from the
display engine. Several sets of handles are provided on the chassis to aid installation. The
outer handles are for carrying the unit to the installation wall; the inner handles are for
lifting the unit up and into the wall opening.

Display Engine: The display engine mounts directly to a shelf in the center bottom of the
chassis that makes up a plenum for intake air.

CineWall™ Installer/Integrator Manual 5

System Description

➤

Input Connectors and

LEDs

The CineWall interface board is equipped with the following input connectors and LED
indicators:

1. RS-232 (RJ-45)

Connect the Display Control
output on the DHD Controller to
this input (see

2. DIGITAL (DVI)

Not used.

3. DIGITAL (HDMI)

HDCP-compliant digital video
input. Connect the HDMI output
from the DHD Controller to this
input.

4. ANALOG (RGB)

Not used.

5. STATUS LEDs

These provide information about
the current state of various
CineWall system components.
For information on how to
interpret them, refer to
LEDs on page 77.

6. COMPONENT

Not used.

7. S-VIDEO

Not used.

L

8. COMPOSITE

Not used.

Figure 2-3).

IMINAR

Status

DVI TO ENGINE

POWER +5V OUT IR SENSOR CUBE CONTROL

Fan - System

Fan - DMD

Fan - Lamp

Ballast Status

Engine Status

Lamp Saver

Serial Cmd

Serial Data

Remote IR

Lamp

Source

Ready

Y

Option Key

DIGITAL HDMI

COMPONENT

RS-232

DIGITAL DVI

ANALOG

S-VIDEO

COMPOSITE

ICP AUX

INPUT

RS-232

1

2

3

4

5

6

7

8

2.2 Screen Assembly

PRE

The Screen Assembly comprises all of the components associated with the screen which
is attached on the outer side of the installation wall. The Screen Assembly is packaged
separately from the Chassis Assembly, to facilitate unpacking and installation.
Southco-type latches at the bottom of the screen secure the screen in the closed
position.

A hinge system is provided at the top of the screen assembly that interfaces to the top
flange of the chassis assembly. This hinge allows the screen assembly to be “hooked”
from the top during initial installation. Two, small retaining brackets attach to the top rear
of the screen frame. These prevent the screen from “hopping” out of the hinge hook and
thus secure the screen.

6 CineWall™ Installer/Integrator Manual

System Description

Top Flange

Bottom Brackets (4)

Side Light
Block, Left

Bottom
Light
Blocks,
Left Side
(2)

Bottom Light
Blocks, Right
Side (2)

Side Light
Block,
Right

To reduce the overall depth of the chassis assembly for shipping, the installation brackets
that secure the chassis and screen to the wall are packaged separately. These brackets
are installed at the customer site right before installing the chassis assembly into the wall
opening:

Y

IMINAR

2.3 Chassis Installation Brackets

Figure 2-1. Chassis Installation Brackets

Bottom Brackets: The bottom brackets support all of the weight of the chassis

assembly, and provide a pivot point while the chassis is “rotated into” the wall opening.
Once installed, these can be screwed into the wall opening with sheet rock screws.

Top Flange: The top flange locks the top of the chassis into position and stops the
rotation of the chassis as it is being installed. An installation tool is provided to set the
exact distance between the bottom brackets and the top flange, as this is a critical
dimension. Shims can be used along the top of the flange if necessary to compensate for
any wall irregularities.

Bottom and Side Light Blocks: Light blocks at the bottom and sides of the screen
complete the chassis-wall-screen interface. These are installed right before installing the
screen, and minimize stray light leakage from behind the screen.

L

PRE

CineWall™ Installer/Integrator Manual 7

System Description

CW-95DHD

2.4 Other System Components

Power Supply: The Power Supply converts incoming 100-240 VAC power to the internal
working voltages required by the lamp ballast, video processor and other system
components. A switch is provided to connect or disconnect the system from the AC
power source.

Cooling Fans: Cooling of the CineWall is accomplished by a combination of forced air
and radiant cooling. The power supply is cooled by its own integral fans.

Cover: The center chamber of the chassis where all the active components are housed is
covered by an interlocked sheet metal cover, secured by several quarter-turn screws.
Removing this cover exposes all the serviceable parts, including the display engine, the
lamp system, the power supply and the interface electronics. This cover is electrically
interlocked so that the lamp and 380V supply cannot be activated while the cover is open.

Y

Air Filter: As mentioned above, the air filter is installed in the plenum at the bottom center
of the chassis. This filter can be accessed and replaced by a service person by opening
the screen and reaching in to replace it. The air filter is Runco part number 379-0012-00.

Fold Mirror: The fold mirror reflects light from the display engine and directs it towards
the screen. This fold mirror is mounted using a three-point mount system. Three large
(5”x5”) mirror mounts and adhesive pads are used along with springs to provide an
adjustable mounting scheme. Four safety catches secure the fold mirror in place, in case
of adhesive failure of the mirror mounts.

The fold mirror is mounted to hat sections on the slant back wall of the chassis. The mirror
is calibrated at the factory, and is not intended to be adjusted in the field.

IMINAR

2.5
DHD Controller Front

Figure 2-2 shows the controls and indicators on the DHD Controller front panel; the
paragraphs that follow describe them.

Panel

PRE

3

HDMI 1

16:9 1080i/60

1

Figure 2-2. DHD Controller Front Panel

2

L

3

standby

91011

t

i

o

a

r

t

e

n

i

e

n

p

u

t

r

a

654 87

i

r

o

i

t

m

n

e

p

n

u

u

t

8 CineWall™ Installer/Integrator Manual

1. RUNCO ICON

Lights blue to indicate that the controller is on or powering up.

2. IR SENSOR

Receives IR commands from the remote control.

3. VACUUM FLUORESCENT DISPLAY

Can be used instead of the On-Screen Display (OSD). Displays currently-selected
menu or – if no menu is selected – the connected display device model, current
source, input resolution and aspect ratio.

4. ON/STANDBY BUTTON

Press once to toggle from standby mode to on mode. Press it again to return to
standby mode. For a discrete on or off command, you can use the direct access
buttons on the remote control.

5. LEFT BUTTON

Used to direct-select inputs or move the menu cursor left in the OSD. When no menu
is present on-screen, the LEFT button toggles through the different sources, in this
order:
HDMI 2 - HDMI 1 - SCART - HD 2 - HD 1 - Component - S-Video 2 - S-Video 1 ­Composite

6. DOWN BUTTON

Use to direct-select aspect ratios or move the menu cursor down in the OSD. When
no menu is present on-screen, this button toggles through the different aspect ratios,
in this order:
16:9 - 4:3 - Letterbox - VirtualWide - Cinema - Virtual Cinema - Native

7. RIGHT BUTTON

Used to direct-select inputs or move the menu cursor right in the OSD. When no
menus are present on-screen, the RIGHT button toggles through the different
sources, in this order:
Composite Video - S-Video 1 - S-Video 2 - Component - HD 1 - HD 2 - SCART ­HDMI

8. MENU BUTTON

Press the MENU button to bring up the main menu, or to exit the current menu and
return to the previous one.

9. UP BUTTON

Use to direct-select aspect ratios or move the menu cursor up in the OSD. When no
menus are present on-screen, the UP button toggles through aspect ratios in the
following order:
Native - Virtual Cinema - Cinema - VirtualWide - Letterbox - 4:3 - 16:9

10. ENTER BUTTON

When an item is highlighted on the OSD, the ENTER button selects the item.

Video

1 - HDMI 2

IMINAR

L

PRE

System Description

Y

11. STANDBY L E D

Lights amber when the DHD Controller is in standby mode; otherwise it is off.

CineWall™ Installer/Integrator Manual 9

System Description

1

5 6

414

2

3

1011

789

1213

➤

➤

2.6 DHD Controller Rear Panel

Figure 2-3. DHD Controller Rear Panel

Outputs 1. HDMI Out

Figure 2-3 shows the rear connector panel on the DHD Controller.

2. Display Control

Y

Connect this to the HDMI connector on the CineWall (see Input Connectors and
LEDs on page 6).

Connect this to the RS-232 input on the CineWall, using the provided communication
cable.

IMINAR

L

3. TRIGGERS

Connection for up to three (3), 12-volt trigger-controlled devices. Output current is
limited to 250 milliamperes (mA).

PRE

Inputs 4. USB

A standard, USB Series “B” connection to a personal computer. (For future use.)

5. HDMI 1 / HDMI 2 (Digital)

HDCP-compliant digital video inputs for connecting an HDMI or DVI source.

6. HD1 / HD2 (5 x Analog BNCs)

Two inputs (five BNCs per input) for connecting standard-definition (SD = 480i/576i),
enhanced-definition (ED = 480p/576p) or high-definition (HD = 720p/1080i/1080p)
component video sources, or RGBHV sources such as personal computers.

7. Component / SCART (5 x RCA connectors)

SD/HD input for connecting SDTV, EDTV or HDTV component video sources, or
RGBHV sources. Also provides RGB input for SCART RGBS sources.

8. Video

Standard, composite video input for connecting a VCR, camcorder or other
composite video source. Also provides composite sync input for SCART RGBS
sources.

10 CineWall™ Installer/Integrator Manual

9. S-Video 1 / S-Video 2

Two, standard S-Video inputs for connecting a DVD player, satellite receiver or Super
VHS (S-VHS) VCR.

10. IR

Wired input from a Niles- or Xantech-compatible, infrared (IR) repeater system. It is a

3.5-mm, mini phono jack, wired as follows:
Ring = +5V (current limited to 100mA)
Tip = IR Input
Sleeve = Ground

11. RS-232 / RS-485

A female, 9-pin D-sub connector for interfacing with a PC or automation/control
system. (Currently, only RS-232 interface is supported.)

12. MAIN AC FUSE

This is the main AC input fuse (5mm x 20mm, 500 mA, 250V slow-blow).

13. MAIN POWER SWITCH

Disconnects or applies power to the DHD Controller.

14. POWER INPUT (100 to 240 VAC)
Connect the DHD Controller to power here.

System Description

Y

Figure 2-4 shows the CineWall remote control, and the paragraphs that follow describe its
functionality.

2

IMINAR

(not available on
some models)

1

4

11

12

13

14

RETURN

5

EXIT

6
8

HDMI

1

CUST

1

PRE

16 : 9

4 : 3

HDMI

2

CUST

SVC

2

L

3

7

9

10

2.7 CineWall Remote Control Unit

Figure 2-4. DHD Controller/CineWall Remote Control

CineWall™ Installer/Integrator Manual 11

System Description

Note

1. IR OUTPUT INDICATOR

Lights when a button is pressed to indicate that an IR signal is being transmitted.

2. ON / OFF

Press to turn the display on or off.

3. ENTER

Press to select a highlighted menu item or confirm a changed setting.

4. Cursor Buttons ( , , , )

Use these buttons to select items or settings, adjust settings or switch display
patterns.

When no menu is present on-screen, the UP and DOWN buttons toggle through the
available aspect ratios, in this order:

UP Button = Native - Virtual Cinema - Cinema - VirtualWide - Letterbox - 4:3 - 16:9
DOWN Button = 16:9 - 4:3 - Letterbox - VirtualWide - Cinema - Virtual Cinema -

Native

Likewise, the LEFT and RIGHT buttons toggle through the different source inputs, in
this order:
LEFT Button = HDMI 2 - HDMI 1 - SCART - HD 2 - HD 1 - Component - S-Video 2 ­S-Video 1 - Composite
RIGHT Button = Composite Video - S-Video 1 - S-Video 2 - Component - HD 1 -
HD

5. RETURN / EXIT
Press this button to exit the current menu and return to the previous one.

Y

Video

2 - SCART - HDMI 1 - HDMI 2

IMINAR

L

6. LIGHT
Press to illuminate the buttons.

7. MENU
Press this button to access the OSD controls, or to exit the current menu and return

PRE

to the previous one.

8. VIDEO (1)
Press to select Composite video input as the source or to enter the numeric
character

9. COMP (Component) (2)
Press to select Component/SCART video input as the source or to enter the numeric
character “2.”

“1.”

Not all remote control units have this button. If yours does not, use
the MENU button (see below) to exit the current menu.

12 CineWall™ Installer/Integrator Manual

10. Aspect Ratio Selection Buttons

Use the red buttons to select an aspect ratio directly or to enter numeric characters,
as follows:

16:9 (3)

For viewing 16:9 DVDs or HDTV programs in their native aspect ratio.

4:3 (6)

Scales the input signal to fit 4:3 display mode in the center of the screen.

LETBOX (Letterbox) (9)

For viewing LaserDisc movies or non-anamorphic DVDs on a 16:9 screen.

V-WIDE (VirtualWide)

Enlarges a 4:3 image horizontally in a NON-linear fashion to fit 16:9 full screen display.

CINEMA
For viewing 2.35:1 source material. The upper and lower portions are masked.

SVC

Selects the Virtual Cinema aspect ratio, which enlarges a 16:9 image horizontally in a
NON-linear fashion to fit 2.35:1 full-screen display.

11. S-VID 1 (4) / S-VID 2 (5) (S-Video)

Press to select an S-Video input or to enter the numeric character “4” or “5.”

System Description

Y

12. HD 1 (7) / HD 2 (8)

Press to select a HD (RGBHV or YPbPr component) input or to enter the numeric
character “7” or “8.”

13. HDMI 1 / HDMI 2 (0)

Press to select a Digital Video input. Press HDMI 2 to enter the numeric character
“0.”

14. Memory Preset Buttons:

ISF NIGHT

Press to recall settings for the current input from the “ISF Night” memory preset.

ISF DAY

Press to recall settings for the current input from the “ISF Day” memory preset.

CUST 1

Press to recall settings for the current input from the “Custom 1” memory preset.

CUST 2

Press to recall settings for the current input from the “Custom 2” memory preset.

PRE

IMINAR

L

CineWall™ Installer/Integrator Manual 13

System Description

Notes:

Y

IMINAR

L

PRE

14 CineWall™ Installer/Integrator Manual

3. Installation Preparation

32.50” minimum

30.75”

AC Outlet

48”

MAXIM

UM

Prior to installing the CineWall, confirm that the installation site meets the requirements
described in this section.

with at least 32.50 inches (826
wall and anything immediately behind the open framed area. The chassis protrudes
approximately 30.75

inches (781 mm) from the front of the dedicated wall into the cavity.

mm) of distance between the user-viewable surface of this

IMINAR

L

3.1 Site Requirements

InfrastructureThe CineWall is designed for installation into a dedicated, framed, structurally capable wall

Y

PRE

CineWall™ Installer/Integrator Manual 15

Installation Preparation

➤

➤

Power Requirements The CineWall requires clean, noise-free AC power. The power cord provided with the

CineWall is 6 feet (1.83 meters) long. In order to use it, the power outlet must be no more
than 48 inches (1.22 meters) from the cable openings on the right side of the chassis. If
the outlet is farther away, substitute a longer power cord for the one provided with the
CineWall; do not use a power strip or extension cord. If you use a substitute power cord,
ensure that it is a UL- or CSA-approved, three-conductor (18
cord rated at 10 amps minimum.

Site Access The CineWall is shipped in two containers: one for the screen assembly and one for the

chassis and related hardware. The shipping container dimensions are as shown below.

Chassis/HardwareScreen

AWG or heavier), shielded

101.13 in. (2,568 mm)

IMINAR

L

Ensure that the site has a “carry-in” path with sufficient clearances leading to the
installation location. This is particularly important in corners in stairways, landings and
hallways.

PRE

B

Y

86.25 in. (2,191 mm)

(1,562 mm)

61.5 in.

7.5 in.

(190 mm)

Minimum Stair/Landing Clearances

C

(1,486 mm)

30.0 in.

(762 mm)

58.5 in.

A

A

A 2,000 mm
B 4,000 mm
C 1,900 mm

F

DED

D 1,200 mm
E 2,400 mm
F 3,700 mm

16 CineWall™ Installer/Integrator Manual

Also confirm that doorways and elevators (if used) provide sufficient clearances:

min. 2,000 mm

min. 900 mm

Depth

Height

Width

900

2,000

2,800

900

1,700

2,700

900

2,700

1,700

900

2,800

2,000

Minimum Doorway/Elevator Clearances

WARNING

Installation Preparation

Y

Due to its extraordinarily high level of video processing performance, the DHD Controller
may distribute video signals with a perceptible level of audio latency. In order to easily
solve this issue, Runco recommends using the DHD Controller with a high-quality audio
receiver that has the ability to effectively synchronize audio and video signals.

Most mainstream audio receiver/switchers have the ability to synchronize the audio and
video to the Advanced Television Systems Committee (ATSC) prescribed tolerances.
According to the ATSC, the sound program should never lead the video program by more
than 15 milliseconds, and should never lag behind the video program by more than 45
milliseconds.

In addition, many A/V receivers introduce additional latency that needs to be
compensated for during the installation.
latency given different signal input timings.

Table 3-1. Possible Audio Latency for Various Input/Output Timings

Do not store or transport the CineWall on its side! It should only
be placed on its side if absolutely necessary during loading and
unloading.

IMINAR

L

PRE

Table 3-1 shows the amount of possible audio

Input Timing Possible Audio Latency (milliseconds)

480i 133

480p 83

576i 160

576p 100

720p/50 100

720p/60 83

Audio/Video Synchronization Issues

CineWall™ Installer/Integrator Manual 17

Installation Preparation

➤

Table 3-1. Possible Audio Latency for Various Input/Output Timings

Input Timing Possible Audio Latency (milliseconds)

1080i/25 160

1080i/30 133

1080p/24 67

1080p/50 80

1080p/60 67

Additional Considerations Here are some other considerations and tips that can help improve your installation, avoid

damage, prevent personal injury and prolong operating life:

• Keep the ambient temperature constant and below 35°C (95°F). Keep the display away

from heating and/or air conditioning vents. Changes in temperature may cause drifts in
the display circuitry, which may affect performance.

• Keep the CineWall away from devices that radiate electromagnetic energy such as

motors and transformers. Common sources of these include slide projectors,
speakers, power amplifiers and elevators.

• Handle the unit carefully when installing or carrying it. Use the built-in handles; DO NOT

touch or hold the screen face.

• Set the unit away from heat, excessive dust, and direct sunlight.

• Protect the inside of the unit from liquids and small metal objects.

• Do not hit or scratch the screen surface as this causes flaws on the surface of the

screen.

• DO NOT spray liquid of any kind on the screen. It can drip down the screen and

wick up between the layers. When liquid gets between the screen layers, it is
impossible to remove and the screen is ruined!

IMINAR

L

Y

PRE

18 CineWall™ Installer/Integrator Manual

Installation Preparation

Hardware Box

Foam Inserts

When you receive your CineWall shipment, check the shipping containers for damage. If
there are signs of damage or rough handling, it is recommended that you have an agent of
the carrier present when the equipment is unpacked. If the shipping containers do not
appear to be damaged, move them to the installation site before opening them.

As you unpack each container, check all parts against the shipping documents. The
CineWall is protected in the shipping containers. Unpack them carefully, inspecting the
chassis and screen for scratches, dents or other signs of damage. If the equipment is
damaged, save all packing materials and notify both Runco and the carrier immediately.

Proceed as follows to unpack your CineWall:

1. Remove the top of the shipping container for
the chassis and associated hardware.

2. Lift the box containing the hardware up off of
the foam inserts and set it aside.

Y

IMINAR

3.2 Unpacking and Inspecting

3. Remove the foam inserts on
the top corners of the chassis
and set them aside.

PRE

L

CineWall™ Installer/Integrator Manual 19

Installation Preparation

Handles

1

6

7

2

345

4. With the help of your assistant, grasp the chassis
by the handles on either side and lift it straight up
and out of the shipping container.

Y

5. Carefully unpack the screen by opening one end of the shipping container and sliding
the screen out of the box.

6. Unpack the chassis hardware and verify that you have received all of the parts listed
and shown below.

IMINAR

L

PRE

Item Number Description Quantity

1 Top Flange 1

2 Light Blocks (Left/Right Sides) 2

3 Bottom Brackets (Left Center, Right Center) 2

4 Bottom Brackets (Left, Right) 2

5 Light Blocks (Bottom Left Center/Bottom Right Center) 2

6 Center Light Block/Strut Catch 1

7 Light Blocks (Bottom Left/Bottom Right) 2

(not shown) Mounting Screws (various)

20 CineWall™ Installer/Integrator Manual

Installation Preparation

48.000" (1219.2 mm) 48.000" (1219.2 mm)

144.000" (3657.6 mm)

94.750" (2406.7 mm)

Screen Area (2.35:1)

Caution

Because every home theater installation is unique, it is impossible to provide detailed,
step-by-step instructions that are applicable to every situation. Instead, this section
provides general guidelines for site construction and product installation. Review this
information carefully and adapt it as needed to your installation requirements.

The instructions in this section describe how to prepare a dedicated home theater for a
CineWall installation. Throughout these instructions, the following “typical” conditions are
assumed:

• Wall thickness: 3 inches (76.2 mm) minimum, 7 inches (177.8 mm) maximum

• Stud spacing: 24 inches (609.6 mm)

• Wall finishing material: Sheetrock or other suitable material

• Screen position: Centered horizontally between two studs 96 inches (2438.4 mm)

apart

Shown below is a typical wall. It is 12 feet wide, with the studs spaced 24 inches apart.
The shaded area represents the opening you will need to create for the CineWall.

Y

IMINAR

3.3 Site Preparation

PRE

Consult a qualified structural engineer or architect before
making any modifications to a load-bearing wall.

L

CineWall™ Installer/Integrator Manual 21

Installation Preparation

Create wall opening:

1. Locate the screen center based on the desired screen height.

2. From this point, measure/mark 44.375 inches to the left and to the right and 19.25
inches above and below.

3. Using a laser level, determine and mark the locations of the opening corners.

4. Double-check your measurements. “Measure twice, cut once” is always a great
rule of thumb to follow.

5. Using the marks as a guide, cut a rectangular opening 88.75 inches wide and 38.5
inches tall.

Y

88.750" (2254.3 mm)

38.500"
(977.9 mm)

IMINAR

L

PRE

22 CineWall™ Installer/Integrator Manual

6. Frame the wall opening in a manner similar to this example.

88.750" (2254.3 mm)

Installation Preparation

38.500" (977.9 mm)

PRE

Y

IMINAR

L

CineWall™ Installer/Integrator Manual 23

Installation Preparation

Notes:

Y

IMINAR

L

PRE

24 CineWall™ Installer/Integrator Manual

4. Installation

Table 4-1 gives a quick overview of the CineWall installation process. The sections
following this one provide detailed instructions.

Table 4-1. Installation Overview

Step Procedure

1 Install Top Flange and Bottom Brackets on Chassis Assembly 26

2 Place Chassis Assembly with brackets installed into opening in

dedicated wall

3 Secure Chassis Assembly to wall 27

4 Install Screen Assembly:

• Fix screen in open position using fold-out strut

• Secure top of screen frame to hinge with safety catches

5 Power up the CineWall:

• Connect AC power to the CineWall

• Set main power switch on CineWall to ON

• Close screen

•Press ON on CineWall Setup remote control to turn on display

6 Align image corners with screen corners 34

IMINAR

For Details,

Refer to page...

27

30

33

L

7 Power down the CineWall:

•Press OFF on CineWall Setup remote control to turn off display

•Open screen

34

4.1 Overview

Y

8 Connect the DHD Controller to the CineWall 36

9 Connect signal sources to the DHD Controller 38

10 Connect PC or control system to DHD Controller via RS-232 43

11 Power up the CineWall and DHD Controller:

• Connect AC power to the DHD Controller

• Turn on source components

• Close screen

• Set DHD Controller main power switch to ON

• Use remote control or ON/STANDBY ( ) button on DHD
Controller front panel to turn on system

12 Display calibration: adjust the following for each input and display

mode (resolution and frame rate); save settings when finished:

• Aspect ratio

• Brightness

• Contrast

• Color level

• Tint

• Sharpness

• White Balance

CineWall™ Installer/Integrator Manual 25

PRE

47

51

Installation

➤

4.2 Mounting the CineWall Chassis

Install Top Flange and

Bottom Brackets on

Chassis Assembly

This section provides detailed instructions for installing the CineWall chassis.

Install the Top Flange as shown in Figure 4-1. Then, install the Left and Right Bottom
Brackets (the ones with the latches on them) at the bottom corners of the chassis, and
install the Left Center and Right Center Bottom Brackets in the two intermediate locations.

Screw, Phillips Pan-Head,

0.164-32 x 0.25 x 0.25 (5x)

Y

Flange

Self-cliching

Screw, Phillips

Pan-Head,
1/4-20 x 0.5 x 0.5
(2 per bracket)

L

To p

Nut (5x)

IMINAR

Bottom
Bracket,
Left

PRE

Bottom Brackets,

Left Center/

Right Center

Figure 4-1. Installing the Top Flange and Bottom Brackets

Bottom

Bracket, Right

26 CineWall™ Installer/Integrator Manual

Installation

Caution

With the help of your assistant(s), lift the Chassis Assembly by the handles.

While tilting the Chassis Assembly downward, carefully move the Chassis Assembly into
the wall opening. Allow the bottom brackets to come to rest on the bottom of the wall
opening. Then, rotate the chassis into the opening until the top flange makes contact with
the top of the opening.

Y

Install Chassis Assembly into Wall

IMINAR

L

Before you secure the CineWall chassis to the wall, it is absolutely
critical that the Top Flange be perfectly level and properly
positioned relative to the Bottom Brackets. If it is not, the

screen – when installed – won’t open and close properly.

PRE

Secure Chassis to WallOnce the chassis is correctly positioned in the wall opening, you are ready to secure it.

CineWall™ Installer/Integrator Manual 27

Installation

Spacing
Tool

90°

Top Flange

Hinge
Barrel

The CineWall includes a special
spacing tool to make it easier to
level the Top Flange and ensure
that it is the correct distance from
the Bottom Brackets.

1. Place the Spacing Tool on
either the Left Center or Right
Center Bottom Bracket, as
shown.

2. Engage the slot at the top of
the spacing tool with the hinge
barrel on the Top Flange.

Ensure that the spacing tool
is perpendicular to the top
and bottom of the wall
opening.

Y

3. Using wood screws of the appropriate size –
two for each bottom bracket (8 total) –
secure the bottom of the CineWall Chassis
Assembly to the opening frame.

PRE

4. Secure the Top Flange to the opening frame,
using five wood screws. (Use the Spacing
Tool at each attachment point, as described
above.)

IMINAR

L

28 CineWall™ Installer/Integrator Manual

5. Secure the Left and Right Side Light Blocks

Light Block,
Bottom Left

Light Block,
Bottom Right

Light Block,

Bottom Left Center

Center Light Block/

Strut Catch

Light Block,
Bottom Right Center

to the chassis and the opening frame.

Installation

Y

6. Secure the Bottom Center Light Block/Strut Catch to the opening frame, between the
two Center Bottom Brackets.

7. Install the other Bottom Light Blocks (left, left center, right center, right) as shown
below.

IMINAR

L

PRE

CineWall™ Installer/Integrator Manual 29

Installation

4.3

Installing the Screen

Figure 4-2 shows the CineWall screen assembly. The screen attaches to the hinge on the
top flange of the Chassis Assembly via six hooks along the top of the frame.

Two latches at the bottom of the frame secure the screen in the closed position. A strut at
the bottom of the frame opens out and holds the screen in the open position during
installation or maintenance.

Y

Hooks

Latch

Latch

IMINAR

Bottom Strut

L

PRE

Figure 4-2. CineWall Screen Assembly – Rear View

30 CineWall™ Installer/Integrator Manual

To install the screen:

1. Remove the Spacing Tool (used to install the chassis; see page 28).

2. With the help of your assistant(s), lift the screen and position it in front of the Chassis
Assembly.

Y

Installation

IMINAR

L

PRE

CineWall™ Installer/Integrator Manual 31

Installation

3. Use the hooks to hang the
frame on the hinge at the
top of the chassis.

Y

IMINAR

4. Use the strut at the bottom of the frame to prop the screen in the open position.

L

PRE

32 CineWall™ Installer/Integrator Manual

5. Install the safety catches at the

Safety
Catch

Remove this nut,
install Safety Catch
and replace

Hinge Wing

ON

OFF

CPONENTANALOG

SVIDEO

HDMI DVI

CPOSITE

top rear corners of the screen.
These prevent the screen from
separating from the hinge
when the screen is opened or
closed.

a Remove the nut at one end

b Place the safety catch on

c Secure the catch using the nut that you removed in Step 5a.
d Repeat Steps 5a through 5c to install the other safety catch.

of the hinge wing on the
back of the screen.

the exposed screw shaft
where you removed the nut.

Installation

Y

4.4 Powering Up the CineWall

Plug the female end of the power cord into the
AC receptacle on the right side of the CineWall
display engine, next to the power switch. Then,
connect the other end to your AC power
source (AC 100V ~ 240V).

IMINAR

L

PRE

1. Set the main power switch (next to the AC receptacle) on the CineWall to the ON
position.

2. Return the strut to the closed position and close the screen.

3. Gently press on the bottom left and right corners to engage the latches at the bottom
of the screen.

4. Install two, AAA-size batteries (supplied) in the CineWall Setup remote control unit.

5. Press the ON button on the CineWall Setup
remote control unit to turn on the display.

Connecting the CineWall to AC Power

CineWall™ Installer/Integrator Manual 33

Installation

Caution

PREVMENU ENTER

ISF DAY

CINEMA V CINE

4.5

Aligning the Image

The CineWall optical engine was perfectly adjusted when it left the factory. However,
vibration in transit may have moved it. Before connecting the DHD Controller to the display
or performing any other installation tasks, proceed as follows to confirm proper image
alignment. You need only perform this procedure once.

You must use the CineWall Setup remote control unit – not the DHD
Controller remote control – to perform this procedure. Use the

CineWall Setup remote control unit ONLY as described in this
section. It will not function when the display is connected to the

DHD Controller.

To align the optical engine:

1. Press MENU on the CineWall Setup remote
control unit.

2. Use the or button to select Program Information from the Main Menu. Then,
press ENTER or .

3. Press ENTER, , . , , ENTER, in sequence. Then, press MENU twice.

4. Select Advanced Options from the Main Menu.

5. Select Image Alignment from the Advanced Options menu.

IMINAR

L

Y

6. Highlight Test Pattern in the
Image Alignment menu and
choose Grid. This pattern
shows all the pixels in the
optical engine.

PRE

7. Highlight Adjust Corners in the Image Alignment menu and press ENTER or .

8. Use the , , and buttons to precisely position the upper-left corner of the
displayed grid pattern in the upper-left corner of the screen.

9. Press ENTER and repeat Step 8 for the other three corners.

10. Press PREV to save the corner position settings and exit the Adjust Corners menu.

11. Press PREV again to turn off the test pattern and exit the Image Alignment menu.

12. Press MENU to exit the menu system.

When you have completed the Image Alignment procedure, press OFF on the CineWall
Setup remote control unit to turn off the display. Then, open the screen and proceed with
the next section.

34 CineWall™ Installer/Integrator Manual

Installation

ROUTE CABLES
THROUGH THESE
OPENINGS

Proceed as follows to connect the CineWall to your video sources, external controller(s) –
if present – and AC power.

When connecting your equipment:

• Turn off all equipment before making any connections.

• Use the correct signal cables for each source.

• Ensure that the cables are securely connected. Tighten the thumbscrews on
connectors that have them.

Route all cables through the cable
openings on the right side of the
CineWall chassis.

Y

IMINAR

4.6 Connections to the CineWall

L

PRE

CineWall™ Installer/Integrator Manual 35

Installation

➤

Connecting the CineWall

to the DHD Controller

Connect the DHD Controller to the CineWall as shown in Figure 4-3 and described in the
sections that follow.

DVI TO ENGINE

Option Key

POWER +5V OUT IR SENSOR CUBE CONTROL

RS-232

DIGITAL DVI

Fan - System

Fan - DMD

Fan - Lamp

Ballast Status

Engine Status

Lamp Saver

Serial Cmd

Serial Data

Remote IR

Lamp

Source

Ready

DIGITAL HDMI

ANALOG

IMINAR

ICP AUX

Y

INPUT

RS-232

RS-232

Communication

Cable

(provided)

L

PRE

Figure 4-3. Connecting the CineWall to the DHD Controller

COMPONENT

S-VIDEO

COMPOSITE

HDMI OUT

RS-232 OUT

36 CineWall™ Installer/Integrator Manual

Digital Video Connection: Connect the HDMI output from the DHD Controller to the

3

4

5

White/Green*

White/Blue*

3

6

5

Green*

* - CAT5 wire colors, as defined in EIA/TIA-568B

NO CONNECTION

1, 2, 6

1, 2, 4, 7, 8

To/From

DHD

Controller

To/From
CW-95DHD

6-position

RJ-11 Male RJ-45 Male

6

1

HDMI input on the CineWall, using an HDMI-to-HDMI cable.

RS-232 Connection: Connect the Display Control output from the DHD Controller to

the RS-232 input on the CineWall. Use a cable with an RJ11 plug at the DHD Controller
end and an RJ-45 plug at the CineWall end. (The CineWall accessory kit includes such a
cable.)

If you make your own cable, it must be wired as shown in Figure 4-4.

Y

Installation

IMINAR

L

Figure 4-4. RS-232 Connection from the DHD Controller to the CineWall

PRE

CineWall™ Installer/Integrator Manual 37

Installation

➤

Note

Connecting Source

Components to the DHD

Controller

Connect your video sources to the DHD Controller as shown and described in the
sections that follow.

HDMI Source Connections: See Figure 4-5.

Use the HDMI inputs whenever possible. This ensures the highest

Tip

video quality because the signal is carried in the digital domain
throughout the entire signal path, from source component output
into the display.

You can also connect computers with DVI output to these inputs.
Refer to
input signals.

Supported Timings on page 90 for a list of compatible

Y

IMINAR

L

PRE

AV OUT

HDMI sources (BD, DVD, DTV Set-Top Box etc.)

HDMI

HDMI

AV OUT

Figure 4-5. HDMI Source Connections

38 CineWall™ Installer/Integrator Manual

Component Video Source Connections: Connect your component video sources to

Y PB PR

COMPONEN T
VIDEO OUT

BD/DVD

DTV-Set-Top Box

(DTV-STB)

RCA-to-BNC
adapter

the HD1, HD2 and/or Component/SCART inputs as shown in

Figure 4-6.

Installation

Y

IMINAR

L

PRE

Figure 4-6. Component Video Source Connections

CineWall™ Installer/Integrator Manual 39

Installation

RGBHV Source Connections: Connect personal computers and/or other RGB sources
to the HD1, HD2 and/or Component/SCART inputs as shown in

Figure 4-7.

Y

IMINAR

L

PRE

Computer

Green

or

Blue

Red

H-Sync

BNC-to-RCA
adapter

RGB Camcorder

V-Sync

Green

H-Sync

Blue

V-Sync

Red

Figure 4-7. RGBHV Source Connections

40 CineWall™ Installer/Integrator Manual

SCART RGBS Source Connections: Connect the green, blue and red outputs from
your SCART source to the Component/SCART input on the DHD Controller. Connect the
sync output from your SCART source to the Video input on the DHD Controller. See
Figure 4-8.

Y

Installation

VCR

SCART-to-RGBS

adapter

DVD/DTV STB

Gaming Console

Figure 4-8. SCART RGBS Source Connections

PRE

L

Green

Blue

Red

Sync

IMINAR

Green

Blue

Red

Sync

CineWall™ Installer/Integrator Manual 41

Installation

Composite and S-Video Source Connections: See Figure 4-9.

Y

VCR

Camcorder

IMINAR

L

Gaming Console

PRE

Figure 4-9. S-Video and Composite Video Source Connections

Composite

S-Video

S-Video

Composite

S-Video

S-Video

42 CineWall™ Installer/Integrator Manual

Installation

Use a straight-through, 9-pin RS-232 cable to connect a PC or control/automation
system (if present) to the RS-232 port on the DHD Controller; see

For more information about using this connection, refer to Serial Communications on
page 81.

to Automation/

Control System

or PC

IMINAR

Figure 4-10.

1

345

2

89

(none of the other pins are used)

6

7

2 Receive Data
3 Transmit Data
5 Ground

RS-232 Controller Connection

Y

L

Figure 4-10. RS-232 Control System Connection

PRE

CineWall™ Installer/Integrator Manual 43

Installation

➤

Connecting 12-volt

Trigger Outputs to

External Equipment

If your installation includes equipment that responds to 12-volt triggers, connect it to the
12-volt trigger outputs as shown in

To 12-volt

trigger-activated

device

Figure 4-11. Connecting 12-volt Trigger Outputs

Sleeve = Ground

Figure 4-11.

Tip = +12V

Y

IMINAR

L

PRE

44 CineWall™ Installer/Integrator Manual

Installation

CUST

1

CUST

2

SVC

HDMI

1

HDMI

2

EXIT

RETURN

16 : 9

4 : 3

(3.5-mm, mini

phono plug)

IR Sensor

IR Repeater

Remote Control

If infrared signals from the remote control cannot reach the DHD Controller due to
excessive distance or obstructions such as walls or cabinet doors, you can connect an
external IR receiver to the DHD Controller to extend the range of the remote control. See
Figure 4-12.

Y

Connecting an External IR Receiver to the DHD Controller

L

PRE

Figure 4-12. External IR Receiver Connection

IMINAR

CineWall™ Installer/Integrator Manual 45

Installation

➤

➤

4.7

Installing Batteries in the DHD Controller Remote Control

Notes on Batteries • When installing batteries, make sure that the battery polarities are correct.

Notes on Remote Control

Operation

To install batteries in the DHD Controller remote control:

1. Press down the tab on the cover and
pull the cover in the direction of the
arrow.

2. Insert the included batteries. Ensure
that the polarities correctly match the

and markings inside the battery

compartment.

Y

3. Insert the lower tab of the cover into the
opening, and press down the cover until
it clicks in place.

• Do not mix an old battery with a new one or different types of batteries.

• If you will not use the remote control for a long time, remove the batteries to avoid

damage from battery leakage.

The remote control can be used to control the CineWall within the ranges shown in Figure
4-13.

IMINAR

L

3

HDMI 1

16:9 1080i/60

PRE

Approx.

Figure 4-13. Available Range of the Remote Control

• Do not drop the remote control or expose it to moisture or high temperature.

• The remote control may malfunction under a fluorescent lamp. If that occurs, move the

plasma display away from the fluorescent lamp.

30º

RETURN

EXIT

HDMI

1

CUST

1

Approx.

16 : 9

4 : 3

HDMI

2

CUST

SVC

2

30º

standby

Approx.

40 feet

(12.2 meters)

t

i

o

a

r

t

e

n

i

i

n

p

u

t

m

r

e

n

e

p

n

u

u

t

r

a

o

i

t

46 CineWall™ Installer/Integrator Manual

• Make sure that there is nothing obstructing the infrared beam between the remote

Note

control and the IR receiver on the plasma display.

The signal from the remote control can be reflected by walls or
other surfaces.

• If the effective range of the remote control decreases, or it stops working, replace the
batteries with new ones.

• Ambient conditions may possibly impede the operation of the remote control. If this
happens, point the remote control at the plasma display and repeat the operation.

Y

Installation

4.8 Powering Up the CineWall and DHD Controller

Plug the female end of the power cord into the AC receptacle
on the rear of the DHD Controller. Then, connect the other
end to your AC power source (AC 100V ~ 240V).

IMINAR

L

1. Turn on your source components.

2. Return the strut to the closed position and close the screen.

3. Gently press on the bottom left and right corners to engage the latches at the bottom

of the screen.

4. Set the main power switch on the DHD Controller to the ON position.

5. Press the ON button on the remote control (or the ON/STAN DBY ( ) button on

DHD Controller front panel) to turn on the system. The vacuum fluorescent display on
the DHD Controller front panel briefly displays “Starting Display.”

6. When the CineWall is ready for use, the fluorescent display indicates the active

source, input resolution/frame rate and aspect ratio; for example:

PRE

Current
Source

Connecting the DHD Controller to AC Power

CW-95DHD HDMI 1

16:9 1080i/60

Aspect Ratio

CineWall™ Installer/Integrator Manual 47

Input Resolution/Frame Rate

Installation

Notes:

Y

IMINAR

L

PRE

48 CineWall™ Installer/Integrator Manual

5. Operation

Input Source

Composite
S-Video 1
S-Video 2
Component
HD1
HD2
SCART
HDMI 1
HDMI 2

Aspect Ratio

16:9
4:3
Letterbox
VirtualWide
Cinema
Virtual Cinema
Native


Brightness
Contrast
Color
Tint
Sharpness
Noise Filter

Input Position

Left/Right
Up/Down
Width
Height
Overscan
Overscan Mode

(Zoom/Crop)
Phase

(RGB/Component signals only)
Tracking

(RGB/Component signals only)

Memory
Presets

Recall ISF Night
Recall ISF Day
Recall/Save Custom 1
Recall/Save Custom 2
Reset Custom 1 or Custom 2 to

Factory Default

Information

Signal
System
Field Service
Manufacturing

Calibration

Display Color

Gain

-100, -99... 0 ... 99, 100
(Red, Green, Blue or All)

Offset
Gamma 2.2 or 2.5

Lamp

Power
(156, 157, 158 ...180 watts)

Color Temp

Simple
(3200K, 5500K or 6500K)

ConstantContrast On/Off

Input Image

Brightness

-50, -49 ... 0 ... 49, 50

Contrast
Color
Tint
Sharpness

Input Color

Gain -32, -31... 0 ... 31, 32

(HD 1, HD 2 and
Component inputs only)

Offset

Chroma Delay

0, 1, 2 ... 7
(S-Video 1, S-Video 2 and
Composite inputs only)

Noise Filter 0, 1, 2 ... 63

Save ISF Night

Back / Confirm

Save ISF Day

Copy/Paste

Copy Settings
Paste Settings

Output Shift

Left/Right

-50, -49 ... 0 ... 49, 50

Up/Down
Width

-50, -49, 48 ... 0

Height

Splash Configure

Owner Name
ISF Calibrated
ISF Other
Splash Timer 5, 6, 7 ... 15 ... 59, 60
Splash Enable On/Off

OSD Position Hor. / Ver. 0, 1, 2 ... 100

To display the Main Menu, press the MENU button on the remote control (Figure 2-4) or
DHD Controller front panel (Figure 2-2).

To select a menu item, use the and buttons on the remote control or DHD Controller
front panel to highlight it. Then, to confirm your selection, press ENTER on the remote
control or DHD Controller front panel.

The CineWall OSD menus are arranged hierarchically, as shown in Figure 5-1. Depending
on the selected input source and signal characteristics, some menu options may not be
available.

Figure 5-1. CineWall OSD Menu Structure

CineWall™ Installer/Integrator Manual 49

PRE

L

5.1 On-Screen Display (OSD) Menus

Y

IMINAR

Operation

Service

Test Video

Color Bars 1
Color Bars 2
Focus
Grey Bars

Input Names Rename/Restore

Remote Control

Remote Code 00, 01, 02 ... 17 ... 31
COMP Key Source Component or SCART

Display Device - Configure

Installation

Picture Orientation: Floor Front, Ceiling
Front, Floor Rear or Ceiling Rear

Lamp Info
(read-only)

Serial Number, Hours

Lamp Hours Reset Yes / No

Diagnostics

White, Red, Green, Blue, Yellow, Cyan,
Magenta

Color Space

Auto, REC601, REC709,
RGB-PC or RGB-Video

(Not available on S-Video or Composite
video inputs)

Triggers 1 / 2 / 3

Miscellaneous

Language

English, Français, Deutsch, Italiano.
Español, Svenska, Traditional Chinese,
Simplified Chinese, Português or

Russian
OSD Timer 0 (no timeout) or 5, 6, 7 ... 15 ... 60 sec.
OSD Messages On / Off
Blank Screen Color

Red/Green/Blue = 0, 1, 2, 3 ... 255
Sidebar Color

Film Mode
(SD sources only)

On / Off

CUE
(Chroma Upsampling Error)

On / Off

HDMI EDID Extension HDMI 1 / HDMI 2 On / Off

Front Panel Brightness

Logo LED 0 (off), 1, 2 ... 31
Standby LED On / Off
LCD 0 (off), 1, 2, 3 or 4

System Reset

➤

Y

IMINAR

Figure 4-1. CineWall OSD Menu Structure (continued)

Main Menu The Main Menu is the starting point for accessing all CineWall functions.

Runco Video

Input Source
Aspect Ratio
Input Position
Memory Presets
Information
Calibration
Service

PRE

(You must enter a passcode to access the Calibration and Service menus. To obtain this
passcode, contact Runco Technical Support.)

L

50 CineWall™ Installer/Integrator Manual

Operation

Note

Input SourceFrom the Main Menu, select Input Source to choose a video signal source.

The active source is indicated by an arrow (➡) to its left; in this example, Composite is the
active source.

Y

from the Main Menu and press ENTER. Select the appropriate aspect ratio for your
screen size and the type of program material being viewed; refer to

The currently-selected aspect ratio is indicated by a “7” to its left; in this example, 16:9 is
selected.

Note that some aspect ratios are unavailable and/or not useful with certain types of
source material. The optimal setting depends on a number of factors, such as:

• The aspect ratio of the source material, as broadcast or encoded on the playback
medium.

• The “display type” (16:9 or 4:3) and output resolution settings at the source
component. Most modern DVD/BD players and set-top boxes have such controls.

• Viewer preference (original aspect ratio with “black bars,” or a full-screen presentation
with some distortion or cropping).

IMINAR

L

Table 5-1.

Input Source

➡ Composite

S-Video 1
S-Video 2
Component
HD1
HD2
SCART
HDMI 1
HDMI 2

Aspect RatioTo change the aspect ratio (size and shape) of the projected image, select Aspect Ratio

Aspect Ratio

16:9

7

4:3



Letterbox



VirtualWide



Cinema



Virtual Cinema



Native



The aspect ratio selection is automatically saved for each input and
resolution.

PRE

CineWall™ Installer/Integrator Manual 51

Operation

Table 5-1. Aspect Ratio Settings

Aspect Ratio

16:9 16:9

Remote

Control

Key

Aspect

Ratio of

Source

Signal

16:9

4:3

16:9

Description

Select 16:9 to view 16:9 DVDs and HDTV
programs in their native aspect ratio.

Y

4:3 images are stretched horizontally to fit
a 16:9 screen.

4:3 scales the input signal to fit in the
center of the 16:9 screen. 4:3 is the

IMINAR

aspect ratio used by computer monitors,
standard television programming and
most VHS video cassettes.

L

4:3 4:3

PRE

4:3

52 CineWall™ Installer/Integrator Manual

Table 5-1. Aspect Ratio Settings (continued)

Operation

Remote

Aspect Ratio

Letterbox LBOX

Control

Key

Aspect

Ratio of

Source

Signal

16:9

4:3

16:9

Description

Letterbox mode scales (zooms in on) a 4:3
image linearly (by the same amount on all
sides) to fill a 16:9 display.
Letterbox is best suited for viewing
LaserDisc movies or non-anamorphic
DVDs on a 16:9 screen.

Y

VirtualWide scales a 4:3 image
NON-linearly (more on the sides than in the
center) to fit a 16:9 screen. The image is

IMINAR

centered between black bars on either
side.

L

VirtualWide VWIDE

4:3

PRE

CineWall™ Installer/Integrator Manual 53

Operation

Table 5-1. Aspect Ratio Settings (continued)

Remote

Aspect Ratio

Cinema CINEMA

Control

Key

Aspect

Ratio of

Source

Signal

2.35:1

16:9

4:3

Description

Select Cinema to view 2.35:1 source
material in its native aspect ratio.

Cinema masks the upper and lower por­tions of the screen to create a viewable
area with a 2.35:1 aspect ratio.

With 2.35:1 source material, the geometry
of the active image area is unchanged.

Y

With 16:9 or 4:3 source material, the
image area is enlarged on all sides to
match the screen width.

IMINAR

Virtual Cinema SVC

L

16:9

PRE

4:3

Virtual Cinema scales a 16:9 image
NON-linearly (more on the sides than in the
center) to fit a 2.35:1 screen.

54 CineWall™ Installer/Integrator Manual

Table 5-1. Aspect Ratio Settings (continued)

1080i HDTV Image

720p HDTV Image

Operation

Aspect Ratio

Native (none)

Remote

Control

Key

Aspect

Ratio of

Source

Signal

16:9

Description

Y

Select One to One to display the source
signal in its native resolution, with no
re-sizing or overscan.

This means, for example, that 720p HDTV
programs will display with unused pixels
on all sides: 320 on the left and right sides

480i SDTV Image

and 48 above and below.

IMINAR

L

4:3

1024x768 PC Image

PRE

CineWall™ Installer/Integrator Manual 55

Operation

➤

Note

A

Brightness
Contrast
Color
Tint
Sharpness
Noise Filter


Picture Use the controls in the Picture Menu to calibrate your CineWall for optimum picture

quality.

The CineWall has been designed to incorporate setup and calibration standards
established by the Imaging Science Foundation (ISF). The ISF has developed carefully
crafted, industry-recognized standards for optimal video performance and has
implemented a training program for technicians and installers to use these standards to
obtain optimal picture quality from Runco video display devices. Accordingly, Runco
recommends that setup and calibration be performed by an ISF certified installation
technician.

All signal types require separate processing. Therefore, you need to calibrate each DHD
Controller input separately.

Although it may be possible to obtain satisfactory picture quality using the naked eye and
regular program material, Runco recommends using an external test pattern source
(Ovation Multimedia, Digital Video Essentials or AVIA test DVD or equivalent) for best
results.

Connect your test pattern source to the input that you are calibrating and proceed as
follows. Perform the adjustments in the order listed here.

Brightness: On your external test pattern source, select a PLUGE pattern. (PLUGE is an
acronym for “Picture Line-Up Generation Equipment.”)

PRE

pattern.

IMINAR

L

1. When you change a picture quality setting, save the change to a
preset afterwards. Otherwise, the change will be lost when a
different input is selected. (Picture quality settings are saved for
each input separately.) For information about saving settings,
refer to

2. For best results, Runco recommends that you set
ConstantContrast to Off before adjusting Brightness, Contrast
and other image quality settings in this menu (refer to
ConstantContrast on page 66). After you have completed the
initial calibration, set ConstantContrast to On if desired.

Memory Presets on page 63.

Y

Figure 5-2 shows a typical PLUGE

Below Black

bove Black

Figure 5-2. Typical PLUGE Pattern for Adjusting Brightness

56 CineWall™ Installer/Integrator Manual

PLUGE patterns vary but generally consist of some combination of black, white and gray

Note

areas against a black background. The example above includes two vertical bars and four
shaded boxes.

Select Brightness from the Picture menu and press ENTER. Adjust the brightness so that:

• The darkest black bars disappear into the background.

• The dark gray areas are barely visible.

• The lighter gray areas are clearly visible.

• The white areas are a comfortable level of true white.

• The image contains only black, gray and white (no color).

Contrast: On your external test pattern source, select a stepped, gray-bar pattern like the
one shown in

Figure 5-3.

Y

Operation

IMINAR

Figure 5-3. Typical Gray Bar Pattern for Adjusting Contrast

L

Select Contrast and press ENTER. Adjust the contrast to a point just below which the
white rectangle starts to increase in size.

Brightness and contrast controls are interactive. A change to one
may require a subtle change to the other in order to achieve the
optimum setting.

PRE

CineWall™ Installer/Integrator Manual 57

Operation

Color Saturation: On your external test pattern source, select a color bar pattern like the
one shown in

Figure 5-4.

gray

yellow

cyan

green

red

magenta

blue

Y

Figure 5-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint

1. Press the MENU button on the remote control or DHD Controller front panel.

2. Select Service from the Main Menu and press ENTER.

3. Enter the Service menu passcode.

4. Select Display Device from the Service menu and press ENTER.

5. Press ENTER again to select Configure.

6. Select Diagnostics and press ENTER.

7. Select Blue from the Diagnostics menu, then press ENTER to display only the blue
color channel.

8. Press MENU repeatedly to return to the Main Menu.

IMINAR

L

PRE

9. Select Picture from the Main Menu and press ENTER.

10.Select Color from the Picture menu and press ENTER.

58 CineWall™ Installer/Integrator Manual

11.Adjust the color saturation level until the outermost (gray and blue) color bars appear to

Note

be a single shade of blue:

Operation

gray

yellow

cyan

green

red

magenta

blue

Y

Tint: Tint or “hue” is essentially the ratio of red to green in the color portion of the image.
When tint is decreased, the image appears redder; when it is increased the image
appears greener.

To adjust the tint, enable “blue only” display mode in the Diagnostics menu, as you would
for adjusting color saturation (refer to the previous section, Color Saturation).

Select Tint from the Picture menu and press ENTER. Adjust the tint level until the cyan
and magenta color bars (on either side of the green bar) appear to be a single shade of
blue.

Like the brightness and contrast controls, the color and tint controls
are interactive. A change to one may require a subtle change to the
other in order to achieve the optimum setting.

IMINAR

L

PRE

CineWall™ Installer/Integrator Manual 59

Operation

Sharpness: “Sharpness” is the amount of high-frequency detail in the image. To adjust
sharpness, select Sharpness from the Picture menu and press ENTER. On your external
test pattern source, select a pattern like the one shown in
looking for white edges around the transitions from black to gray and differently-sized lines
in the “sweep” patterns at the top and bottom. Lower the sharpness setting to eliminate
them.

Figure 5-5. Adjust as needed,

Y

IMINAR

Figure 5-5. Typical Test Pattern for Adjusting Sharpness

Noise Filter: To apply noise filtering to the input signal, select Noise Filter from the Picture

menu. The Noise Filter is useful for clearing up noisy images from 480i video sources.

Use the left- or right-arrow buttons to select the desired amount of noise reduction,
keeping in mind that higher settings (which reduce high frequencies) may also “soften” the

PRE

image.

L

60 CineWall™ Installer/Integrator Manual

position for the current source.

Note

The input position settings are automatically saved for each input
and resolution.

Left/Right: Select Left/Right from the Input Position menu to shift the projected image
horizontally. Press

Up/Down: Select Up/Down from the Input Position menu to shift the projected image
vertically. Press

Width: Select Width from the Input Position menu to change the projected image width.
Press

Height: Select Height from the Input Position menu to change the projected image
height. Press

Overscan/Overscan Mode: Overscan pushes the outside edge of the active picture
area of the video signal out beyond the edge of the display area.

to increase the width; press to decrease it.

to shift the image to the right; press to shift it to the left.

to shift the image upward; press to shift it downward.

Y

to increase the height; press to decrease it.

Operation

Input PositionUse the controls in the Input Position Menu to fine-tune the aspect ratio and image

Input Position

Left/Right
Up/Down
Width
Height
Overscan
Overscan Mode
Phase
Tracking

Some television programs are produced based on the assumption that older television
sets may not display the outer edges of the broadcast picture area. Overscan effectively
trims away these inactive, outer edges and enlarges the remaining portion of the image to
fill the display area.

For HDTV, DVDs and other video sources, Overscan is generally not necessary or
desirable.

This control defines the amount of overscan applied to the image. The range is from
0

to 20. There are two overscan modes:

•In Crop mode, each increment adds a mask at the top, bottom, left and right edges of
the source image equal to 0.5% of the displayed horizontal resolution (1% total). A
setting of 10, for example, crops the image 5% on all sides or 10% total.

•In Zoom mode, each increment adds a factor to the scaling of the source image so
that the vertical and horizontal resolutions are 100% plus 1% increments of the size
determined by the aspect ratio function. A setting of 10, for example, zooms in on the
image 5% on all sides or 10% total.

Figure 5-6 illustrates the effect of each overscan mode setting.

PRE

IMINAR

L

CineWall™ Installer/Integrator Manual 61

Operation

No Overscan Crop Zoom

4:3

16:9

Y

= Source Image Area = Mask (Crop) Area = Screen (16:9)

Figure 5-6. Overscan Modes

Phase (RGB or Component sources): This control adjusts the phase of the pixel

sampling clock relative to the incoming signal. Adjust the phase when an RGB or
Component image still shows shimmer or “noise” after

IMINAR

Tip

L

For best results, use a good test pattern such as a smooth gray consisting of a clear
pattern of black and white pixels, or a similar “half on, half off” graphic image. Adjust the
slidebar until the image stabilizes and each pixel is clearly defined. You may notice that
you can stabilize the image at more than one point. Use either setting in such cases.

PRE

Tracking (RGB or Component sources): Tracking determines the frequency of the
pixel sampling clock, indicated by the number of incoming pixels per line, so that all pixels
generated by a particular source are sampled.

Steady flickering or several soft vertical stripes or bands across the entire image indicates
poor pixel tracking. Proper pixel tracking helps ensure that the image quality is consistent
across the screen, that aspect ratio is maintained and that pixel phase (see above) can be
optimized.

Tracking has been optimized.

Adjust the Phase after adjusting Tracking (see below).

62 CineWall™ Installer/Integrator Manual

recall at a later time. You can create up to four presets per input and display mode

Note

(resolution and frame rate).

The DHD Controller stores the following display modes in each memory preset:

• 480i

• 480p

• 576i

• 576p

• 720p/24 Hz

• 720p/25 Hz

• 720p/30 Hz

• 720p/50 Hz

• 720p/60 Hz

• 1080i/50 Hz

• 1080i/50 Hz (Australia)

• 1080i/60 Hz

• 1080p/24 Hz

• 1080p/25 Hz

• 1080p/30 Hz

• 1080p/50 Hz

• 1080p/60 Hz

IMINAR

Y

Memory Presets For each input, the CineWall lets you save image quality settings as presets that you can

Memory Presets

ISF Night

➡

ISF Day
Custom 1 Save Reset
Custom 2 Save Reset

Operation

Use the Memory Presets menu to recall saved image presets, or to save image settings in
the “Custom 1” or “Custom 2” memory location. The currently-selected preset is indicated
by a “

➡” to its left; in the example shown here, ISF Night is selected.

You should save changes to any of the following settings to a preset; otherwise they will
be lost when a new input source or resolution is selected:

• Brightness

• Contrast

• Color Saturation

• Tint

• Sharpness

• Gamma

• Lamp settings

• Color Temp and white balance (Gain, Offset)

To select a memory preset, press or to highlight it and press ENTER.

To save the settings for the current input and display mode to the Custom 1 or Custom 2
memory preset, select it, press

PRE

or to highlight Save and press ENTER.

To save the settings for the current input and display mode to the
ISF

Night or ISF Day memory preset, select Save ISF Night or Save

ISF Day from the Calibration menu (refer to Save ISF Night/Save
ISF Day on page 67).

L

CineWall™ Installer/Integrator Manual 63

Operation

➤

Signal

Input Source HDMI 1
Signal Format 1080p/60
Input Resolution 1920x1080
Vertical Freq 59.94 Hz
Horizontal Freq 67.500 kHz
Pixel Clock 148.500 MHz
Color Space REC709
Sync Type Separate
Memory Preset ISF Night

System

Model DHD3
Display Name CW-95DHD
Output Resolution 1920x817
Serial Number 00000000
Boot Version 1.0
Firmware Version 1.0
Micro Version 1.0

➤

Note

Signal
System
Field Service
Manufacturing

To reset the Custom 1 or Custom 2 memory preset to its factory-default state, select it,
press

Information Signal / System: Select Information from the Main Menu, then choose either Signal or

System to display information about the current input signal (resolution, frequency, type et

Information

cetera) and installed firmware versions, as well as other information that uniquely identifies
your DHD Controller and display device.

Should you ever need to contact Runco Technical Support, this information will help them
answer your questions or resolve product performance issues.

or to highlight Reset and press ENTER.

Y

Calibration Use the Calibration menu to perform advanced picture quality adjustments. This menu

Calibration

ISF Settings

Display Color
Input Image
Input Color
Save ISF Night
Save ISF Day
Copy/Paste
Output Shift
Splash Configure
OSD Position

Field Service / Manufacturing: The Field Service and Manufacturing menus are
password-protected and intended for use only by Runco service personnel and factory
technicians.

IMINAR

L

should be used by ISF-certified technicians only.

PRE

To recall the ISF Night or ISF Day settings, select “ISF Night” or “ISF Day” from the
Memory Presets menu (see page 63) or use the corresponding remote control buttons.

Display Color: Use the Display Color settings to adjust the color balance at the DHD
Controller output. These settings are saved independently for each input and display
mode.

• Gain: Use the Gain controls to correct color imbalances in the bright areas of the
image. A good way to do this is to use a test pattern consisting mostly of solid white
areas, such as an 80 IRE “window” pattern. If the white areas contain traces of red (Pr),
green (Y) or blue (Pr), decrease the Gain for that color.

•Offset: Use the Offset controls to correct color imbalances in the dark areas of the
image. A good way to do this is to use a test pattern consisting mostly of dark gray
areas, such as a 30 IRE “window” pattern. If the gray areas contain traces of red (Pr),
green (Y) or blue (Pr), decrease the Offset for that color.

You must enter a passcode to access the Calibration menu.

64 CineWall™ Installer/Integrator Manual

• Gamma: Select Gamma from the Display Color menu to choose a de-gamma curve.

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

x

y

2000

2222

2500

2857

3333

4000

5000

5714

6667

8000

10000

D50

D65

D93

Used correctly, the Gamma control can improve contrast while maintaining good
details for blacks and whites. If excess ambient light washes out the image and it
becomes difficult or impossible to see details in dark areas, lower the gamma setting to
compensate. This improves contrast while maintaining good details for blacks.
Conversely, if the image is washed out and unnatural, with excessive detail in black
areas, increase the setting.

• Lamp: Select Lamp from the Display Color menu to adjust the projector lamp
brightness.

• Power: To supply a constant wattage to the lamp, select Power from the Lamp

menu to set the lamp power level. You can choose to run the lamp as bright as
possible (this is the default setting) or you can choose a lower setting. The range is
from 156 to 180
the life of the lamp, but decreases brightness.

• Color Temp: Select Color Temp from the Display Color menu to adjust the color
temperature. Color temperature establishes the “color of gray” by adjusting the 75%
white point to various color points.

What are “color points?” A “color point” is an x/y coordinate pair that defines a
color’s location on the standard CIE chromaticity graph, shown in
stands for “Commission Internationale de l’Éclairage” (International Commission on
Illumination), the organization responsible for color measurement and management
standards.)

watts, in 1-watt increments. Generally, lower lamp output prolongs

Y

Figure 5-7. (CIE

Operation

IMINAR

L

PRE

Figure 5-7. CIE 1931 Chromaticity Diagram

CineWall™ Installer/Integrator Manual 65

Operation

Note

• Simple: Select Simple mode from the Color Temp menu (with the CineWall, this is
the only choice) to choose one of three color temperature presets: 3200K, 5500K or
6500K. The default setting, 6500K, is appropriate for most situations. Higher
settings produce a “bluer” picture; lower ones impart a reddish hue to the image.

Table 5-2 lists the x- and y-coordinates for each color temperature preset in
“Simple” mode.

Table 5-2. Color Temperature Presets and Associated Color Points

Color Temperature Preset

3200K 0.423 0.404

Associated x/y Values

x y

Y

5500K 0.332 0.348

6500K 0.313 0.329

• ConstantContrast: Select ConstantContrast from the Display Color menu to enable
(On) or disable (Off) ConstantContrast in the optical engine. ConstantContrast uses a
dynamic iris that modulates light to the DMD based on the actual content of the video
material. Runco recommends that you disable
Brightness, Contrast or other image settings.

Input Image: The Input Image controls are functionally similar to those in the Picture
menu (refer to page 56), but are accessible only by entering the Calibration menu
passcode.

IMINAR

ConstantContrast before adjusting

L

The Input Image settings establish the “zero point” for the Picture
menu settings, whose values represent offsets from the Input
Image settings. For example, if you set Brightness to 10 in this
menu, setting Brightness to 10 in the Picture menu results in an
actual setting value of 20 (10+10).

PRE

Input Color: The Input Color controls are similar to those in the Display Color menu (see
above), but adjust the color balance of the incoming signal. These settings are also saved
independently for each input and display mode.

• Gain/Offset (HD1, HD2 and Component/SCART inputs only): These controls
operate similarly to those in the
the Y, Pb and Pr signal components rather than the red, green and blue channels.

• Chroma Delay: use the Chroma Delay control to correct a mis-aligned image from a
Composite or S-Video source. Chroma delay in an image causes color shifts to occur
to the left of the vertical edge transitions, producing artificial shadows or a “halo” effect.
If necessary, adjust this setting to eliminate them.

•Noise Filter: To apply noise filtering to the input signal, select Noise Filter from the
Input Color menu. The Noise Filter is useful for clearing up noisy images from 480i
video sources.

Use the left- or right-arrow buttons to select the desired amount of noise reduction,
keeping in mind that higher settings (which reduce high frequencies) may also “soften”
the image.

Display Color menu (described on page 64), but affect

66 CineWall™ Installer/Integrator Manual

Save ISF Night/Save ISF Day: Whenever you make a change to the ISF settings, you

Note

should always save it. Select
do this.

Copy/Paste: You can copy and paste settings from one memory location to another.
This gives you a convenient starting point for creating a new preset based on an existing
one, to make the calibration process less time-consuming.

For example, you can use the Copy/Paste feature to:

• Apply settings from HDMI 1 to HDMI 2, or from HD1 to HD2.

• Calibrate an input for 720p source signals, then use those settings for 1080i sources.

• Duplicate ISF Night settings for a given source and signal format and save them in the
Custom

To use this feature, select Copy/Paste from the Calibration menu.

• Copy Settings: Select Copy Settings from the Copy/Paste menu to place the settings
for the current input source, signal format (resolution and frame rate) and memory
preset onto a “clipboard,” which is a temporary memory location. When you do, the
message “Settings Copied” briefly appears on-screen. The
re-appears, indicating the source of the copied settings.

1 memory preset.

Save ISF Night or Save ISF Day from the Calibration menu to

Y

Copy/Paste menu then

Operation

Copy/Paste

Copy Settings
Paste Settings

Copied From:
Input Source HDMI 1
Signal Format 1080p/60
Memory Preset ISF Night

Copied settings are not retained after a power cycle.

• Paste Settings: To apply the settings on the clipboard to a different input source,
signal format and/or memory preset, do any or all of the following:

• Switch to another DHD Controller input (for example, from HD1 to HD2).

• Change the output signal format at the source (for example, from 720p/60 to

1080i/60).

• Switch to another Memory Preset (for example, from ISF Night to Custom 1).

Then, select Paste Settings from the Copy/Paste menu. If you want to keep these new settings, you must save them! (Refer to Save ISF Night/Save ISF Day on page 67 or Memory Presets on page 63.)

Output Shift: The controls in the Output Shift menu are similar to those in the Input
Position menu, except that they change the characteristics of the output signal. These
settings are saved independently for each aspect ratio.

Splash Configure: Use the Splash Configure menu to control the appearance and
behavior of the “splash” screen that appears on the display upon power-up.

• Owner Name/ISF Calibrated/ISF Other: You can have the CineWall display the
owner’s name, your name, the phrase “ISF Calibrated” and/or any other string, up to
30 characters in length.

PRE

IMINAR

L

Use the up or down cursor button to select a character. Use the right and left cursor
buttons to change the cursor position. Press MENU when you have finished entering
text.

• Splash Timer: When you turn on the CineWall, it projects a welcome screen with the
Runco and ISF logos, along with the personalized information you enter as described
above. Select
for which this screen appears. The range is from 5 to 60 seconds, in one-second
increments. Press

CineWall™ Installer/Integrator Manual 67

Splash Timer from the Splash Configure menu to set the amount of time

or to set the timer, then press MENU.

Operation

➤

Note

Service

Test Video
Input Names
Remote Control
Display Device
Color Space
Triggers
Miscellaneous
HDMI EDID Extension
Front Panel Brightness
System Reset

• Splash Enable: When you have finished customizing the splash screen, select Splash
Enable from the Splash Configure menu. Then, select On and press ENTER.

OSD Position: To adjust the position of the OSD, select OSD Position from the
Calibration menu and press ENTER.

Press or to select “Hor.” or “Ver.” Then, press or to change the position.

Service Use the Service menu to access advanced display configuration settings. This menu

should be used by ISF-certified technicians only.

You must enter a passcode to access the Service menu.

Y

Test Video: Select Test Video from the Service Menu to access the internal test patterns
on the CineWall. Four patterns are available: Horizontal Ramp, Vertical Ramp, Color Bars
1 (solid bars) and Color Bars 2 (SMPTE “checkerboard” pattern).

Press MENU to exit test pattern mode.

Input Names

C o m p o s i t e
S - V i d e o 1
S - V i d e o 2
C o m p o n e n t
H D 1
H D 2
S C A R T
H D M I 1
H D M I 2

Input Names: You can give each DHD Controller input a descriptive name. For example,
you may want to change the default input name to the type of source component

Restore

Composite
S-Video 1
S-Video 2
Component
HD 1
HD 2
SCART
HDMI 1
HDMI 2

PRE

connected to it: “VCR,” “DVD,” “Laptop” et cetera. Input names can be up to 12
characters long.

To edit an input name, select Input Names from the Service menu. Press or to select
an input and press ENTER. Use the or buttons to change a character; press

or to select a character to change. When you have finished editing the input name,

press ENTER or MENU.

To restore the default input name, press repeatedly to highlight that input name in the
“Restore” column. Then, press ENTER.

IMINAR

L

68 CineWall™ Installer/Integrator Manual

Remote Control: Select Remote Control from the Service menu to change the following

Tip

EXIT

RETURN

settings related to remote control operation.

• Remote Code: Select Remote Code from the Remote Control menu to set the
infrared (IR) code set to which the CineWall will respond. By default, it is set to 17. You
can change this setting if either:

• Another device in the theater (a DVD player, for example) is responding to

commands from the DHD Controller remote control (
unpredictable or undesirable.

• You have multiple DHD Controllers and want to control them independently, as

opposed to broadcasting commands from a single remote to all of them. In this
scenario, you can use multiple remotes programmed to use different IR codes. Or,
you can use a single remote and change the IR code as needed to address a
specific DHD Controller.

Figure 2-4) in ways that are

Y

Use the DHD Controller front-panel keypad to change the IR code to
which the controller will respond. Then, change the code sent by the
remote to match as described below.

When you change a remote code on the CineWall, you must re-program the CineWall
remote control to send that same code. To do this:

1. Press and hold the LIGHT button on the
remote control for approximately three
seconds, or until the LED on the remote lights
solid red.

2. Enter a new two-digit code between 00 and 31
inclusive. Include a leading zero for single-digit
codes; for example, enter 9 as “09.”

3. The LED turns off to confirm the code change. If you enter an invalid code, the LED
flashes for three or four seconds. Try again, entering a valid code.

• COMP Key Source: Select COMP Key Source from the Remote Control menu to
assign the COMP remote control button to either the Component or SCART input.

IMINAR

L

Operation

Display Device - Configure: The options in the Display Device - Configure menu allow
you to change the picture orientation and access other, display-device specific functions.

•Installation – Orientation: Select Installation from the Display Device - Configure
menu, then select Orientation to change the picture orientation to suit the method of
installation (Floor Front, Floor Rear, Ceiling Front or Ceiling Rear).

• Lamp Info: Select Lamp Info from the Display Device - Configure menu to obtain
information about the currently-installed lamp: its serial number and number of hours in
use.

• Lamp Hours Reset: When you replace the projector lamp (refer to Lamp
Replacement on page 75), you should also reset the lamp hour counter to zero so

that the lamp usage information in the Lamp Info window is accurate. To do this, select
Lamp Hours Reset from the Display Device - Configure menu. A confirmation dialog
box appears. Select “Yes” to continue with the reset or “No” to cancel the operation.

• Diagnostics: Select Diagnostics from the Display Device - Configure menu, then
select Red, Green, Blue, Yellow, Cyan or Magenta to display only that color channel
(simulating a filter of that color). This can be useful for calibration or measurement
purposes.

To restore the normal picture (all colors), select White.

CineWall™ Installer/Integrator Manual 69

PRE

Operation

Color Space: Select Color Space from the Service menu to choose the color space of
the source signal for HDMI, RGB, and component connections.

• The default setting, Auto, functions as follows:

• HDMI: If the Auxiliary Video Information (AVI) infoframe contains color space and/or
range data, the CineWall uses that information. Otherwise, for RGB sources, the
CineWall uses the RGB-Video color space. For component SDTV and EDTV
resolutions, REC601 is used. For other component video resolutions, REC709 is
used.

• RGB: If Hsync or Vsync signals are present, the CineWall uses the RGB-PC color
space. Otherwise, REC601 is used for SDTV and EDTV sources, and REC709 for
all other sources.

• Component: For SDTV and EDTV resolutions, the CineWall uses the REC601 color
space. For all other resolutions, REC709 is used.

In most cases, the Auto setting determines the correct color space to use. If it does not,
you can force the CineWall to use a specific color space. Choose one of the following:

• REC709 sets the color space matrix to that defined in ITU-R BT.709.

• REC601 sets the color space matrix to that defined in ITU-R BT.601.

• RGB-PC uses RGB color space and sets black at 0,0,0 RGB and white at
255,255,255 RGB, assuming an 8-bit image.

• RGB-Video uses RGB color space and sets black at 16,16,16 RGB and white at
235,235,235, assuming an 8-bit image, to correspond to the luminance values defined
in digital component standards.

Y

Triggers: Select Triggers from the Service menu to configure the 12-volt trigger outputs.
You can assign one or more trigger outputs to each aspect ratio. Those triggers are then
activated by selecting that aspect ratio.

Miscellaneous: Select Miscellaneous from the Service menu to set the following options:

• Language: Select Language from the Miscellaneous menu and press the up- or

down-arrows to select the OSD Language (English, Français, Deutsch, Italiano,
Español, Svenska, Traditional Chinese, Simplified Chinese, Português or Russian).

PRE

• OSD Timer: Select OSD Timer from the Miscellaneous menu to set the OSD Timer,
which controls how long the menus remain on-screen after selecting them. Select from
5 to 60 seconds, in one-second increments. Or, set the timer to 0 (disabled) if you want
the menus to remain on-screen indefinitely.

• OSD Messages: When you select a new aspect ratio, input source or memory preset,
the DHD Controller briefly displays an on-screen message confirming your new
selection. To prevent the display of these messages, select
Miscellaneous menu to and set it to Off.

• Blank Screen Color: Select Blank Screen Color from the Miscellaneous menu to
select the color that appears when no incoming signal is present. The range is from 0
to 255 inclusive for each color component (red, green and blue).

• Sidebar Color: Select Sidebar Color from the Miscellaneous menu to change the
color of the inactive image area. The range is from 0 to 255 inclusive for each color
component (red, green and blue). The inactive image area is on either side of the active
image area when using the 4:3 aspect ratio.

• Film Mode: Use Film Mode to smooth out moving images from interlaced,
standard-definition (SD) sources. In most cases, the CineWall detects the proper
“pull-down” rate and vertical frequency. However, if your source is jittery and/or tearing
you may want to enable

IMINAR

L

OSD Messages from the

Film Mode to ensure stable processing for that source.

70 CineWall™ Installer/Integrator Manual

• CUE (Chroma Upsampling Error) Correction: Some DVD players use MPEG

Logo LED

LCD

Standby LED

Caution

decoders that do not correctly “upsample” the 4:2:0 format chroma information on the
DVD to the 4:2:2 or 4:4:4 format required by the video encoder of the display device.

This so-called “chroma bug” sometimes causes streaky or spiky horizontal lines
running through the chroma channel. It is most noticeable in static, interlaced scenes
and on diagonal edges (especially red ones). Set

HDMI EDID Extension: Extended display identification data (EDID) is a data structure
provided by a display device to describe its capabilities to a graphics card. It is what
enables a modern personal computer to know what kind of monitor is connected.

Some modern display devices provide more information via EDID than others, in the form
of “extensions.” Some computer graphics cards do recognize or properly interpret this
extended EDID information.

Select HDMI EDID Extension from the Service menu to specify whether or not the EDID
extensions from the display device are passed through to the sources connected to the
HDMI

1 or HDMI 2 inputs. By default, the extensions are on. Change these settings only if

HDMI EDID incompatibility issues arise.

Front Panel Brightness: Select Front Panel Brightness from the Service menu to adjust
the brightness of the front-panel LED and LCD status indicators.

CUE to On to correct this issue.

Y

Operation

IMINAR

L

• Logo LED: Select Logo LED from the Front Panel Brightness menu to adjust the
brightness of the large, illuminated logo on the left side of the display. The range is from
0 (off) to 31.

• Standby LED: Select Standby LED from the Front Panel Brightness menu to change
the behavior of the front-panel STANDBY indicator LED. When set to ON, the LED
lights amber when the system is in standby mode; otherwise, it is off. When set to OFF,
the LED is always off.

• LCD: Select LCD from the Front Panel Brightness menu to adjust the brightness of the
front-panel LCD. The range is from 0 (off) to 4.

System Reset: To reset ALL controller settings (including image settings) back to their
factory defaults, choose System Reset from the Service menu.

A confirmation message appears. Select Yes to continue with the reset or select No to
cancel.

This action is not undoable. Proceed with caution! Before you
perform a System Reset, save your “Custom” Memory Presets
(

page 63) and ISF Day/Night Memory Presets (page 67).

PRE

CineWall™ Installer/Integrator Manual 71

Operation

Notes:

Y

IMINAR

L

PRE

72 CineWall™ Installer/Integrator Manual

6. Maintenance and Troubleshooting

WARNING

WARNING

6.1 Cleaning

Dirt is everywhere, and unless the CineWall is in a super-clean room, from time to time you
will need to clean the screens, mirrors and/or lens.

Cleaning products and how to use them: For mirrors and screens, a foam spray
cleaner works well. It is sold under different names in different parts of the world. It is
available from many janitor supply companies or building maintenance supply companies.
Ask for Claire #50 glass cleaner, or Sprayway #50 glass cleaner. It is probably sold under
a local name, but it all comes from one company. If you ask for either of the two names
above (it is sold under both), you will get this cleaner under the local name.

This cleaner contains no ammonia and works well on glass (screens, lenses, mirrors) and
acrylic (screens). Spray it on the mirror, but not on the screen. For screens, spray it on

the cloth, not the screen.

DO NOT spray liquid of any kind on the screen. It can drip down

the screen and wick up between the layers. When liquid gets
between the screen layers, it is impossible to remove, and the screen
is ruined!

DO NOT wipe the inside of the screen for any reason. This can
cause immediate and permanent damage to the screen.

Wipe the mirror or screen gently with a lint-free cloth or lint-free paper (refer to Cloth to use, below). Turn the cloth over to the dry side and continue wiping to take up the haze.

• Glass Wax™ is another good cleaner for mirrors and glass screens, but it does not
work well on acrylic screens. It is a liquid in a can. You spread it on, let it dry, then wipe
it off.

• Windex™ works well, too. Just don’t spray it on the screen.

IMINAR

L

PRE

Y

Cleaning the Screen, Mirrors and Lens

Cloth to use: White cotton cloth is better for cleaning than colored cloth. The dyes in
some colored cloth tend to make it less absorbent.

Paper towels tend to leave lint and are therefore not recommended for cleaning lenses. A
better paper towel for cleaning is Scott® Shop Towels. These blue, lint free, paper towels
are widely available at auto parts stores, home improvement stores and hardware stores.

Cheesecloth is another good choice. This open-weave cotton material is light and
absorbent.

CineWall™ Installer/Integrator Manual 73

Maintenance and Troubleshooting

➤

Where is the dirt? When you see dirt in the picture, you can sometimes tell where it is by its focus. Use a

Removing dry dust: Often the cleaning problem is just dust, not fingerprints or other oily
dirt. If it’s just dust, wiping with a dry cheesecloth or a dry Shop Towel will usually do the
job.

Or use one of the cleaning products designed specifically for picking up dust.

• Pledge Grab-It™, from Johnson

• Swiffer™, from Proctor and Gamble.

These are synthetic wipes that have a static charge that holds onto dust. They do a very
good job of picking up dust and leaving no lint behind. However, they will not wipe away
grease or oil, such as fingerprints, and they can’t be used with liquid cleaners.

Cleaning lenses: Clean lenses as you would the glass mirrors. Use a soft, absorbent
cotton cloth rather than a paper towel. Because the lens is small, it is easier to spray the
cleaner (if you use one) on the cloth, not the lens itself.

white test pattern to see the dirt most easily.

Small specs of dirt or dust that are in very sharp focus are on the screen itself.

If the dirt is in soft focus, it is probably a smudge on the large mirror.

Y

Dirt on the output lens cannot be seen in the picture. However, that does not mean you
should not clean this lens. Dirt here will reduce the brightness of the picture, but it won’t
show up as specs in the picture.

IMINAR

L

PRE

74 CineWall™ Installer/Integrator Manual

Maintenance and Troubleshooting

Change the lamp after 6,000 hours of use, or sooner if you notice a significant
decrease in brightness.

2. Turn off the AC power switch and remove the power cord.

3. Loosen the six screws holding

the display engine
compartment cover in place.
Then, remove the cover.

4. Loosen the lamp screw to the

right rear of the lamp.

IMINAR

L

6.2 Lamp Replacement

Removing the Old Lamp 1. Open the screen.

Y

5. Disconnect the lamp cable.

6. Pull the lamp away from you,

then straight up.

CineWall™ Installer/Integrator Manual 75

PRE

Maintenance and Troubleshooting

➤

WARNING

➤

➤

➤

Installing the New Lamp 1. Re-connect the lamp cable you disconnected in Step 5 above. Make sure it is fully

seated.

If the lamp cable is not fully seated on the lamp plug, the lamp will
not operate properly. Overheating may occur.

2. Mount the lamp in its place. Note the two pins opposite the lamp screw. These fit into
holes in the optical engine.

3. Tighten the screw you loosened in Step 4 above.

4. Replace the display engine compartment cover.

5. Re-connect the AC power cord and set the main power switch to the “on” position.

6. Close the screen.

Resetting Lamp Hours ALWAYS reset the lamp hours to zero when you install a new lamp. To do this:

1. Turn on the CineWall.

2. Press MENU on the remote control and select Service from the Main Menu
(passcode required).

3. Select Display Device - Configure from the Service menu.

4. Select Lamp Hours Reset, highlight “Yes” and press ENTER.

How to Maintain Lamp

Life

6.3 Filter Replacement

PRE

There are some actions that can shorten lamp life:

• Turning off AC power when the lamp is on. (Turn off the lamp with the remote and let it

cool until the fans stop; then turn off AC.)

• Turning a lamp on and off rapidly. (The lamp should be allowed to heat up fully before

turning it off, at least three minutes.)

Clean, cool air is essential for proper CineWall operation.

When the air filter gets dirty, change it. Unfortunately, there is no absolute rule about
when to change an air filter. For some installations the environment has clean, dust-free
air, in which case the air filter may be good for a year or more.

In other environments, the air full of dust and dirt all the time. The air filter might have to be
changed every month. Of course, it also depends on how many hours per day or per
week the lamp is on.

IMINAR

L

Y

Determining a Changing

Schedule

Remove and inspect the air filter after three months of operation. Make a note of the air
filter’s condition. Check it again after six months of operation.

These two inspections will give you some idea of how often the filter needs changing. If it
doesn’t need changing after six months, inspect it again in a year. As long as the
environment doesn’t change, you can build an appropriate schedule in this way.

If new construction occurs in the vicinity of the CineWall, beware; new construction usually
means DUST.

76 CineWall™ Installer/Integrator Manual

2. Turn off the AC power switch and remove the power cord.

Fan - System

Fan - DMD

Fan - Lamp

Ballast Status

Engine Status

Lamp Saver

Serial Cmd

Serial Data

Remote IR

Lamp

Source

Ready

DIGITAL DVI

DIGITAL HDMI

ANALOG

INPUT

3. Lift the air filter up and toward you. Then, replace it with a new one (Runco part
number 379-0012-00).

Maintenance and Troubleshooting

Removing the Air Filter 1. Open the screen.

The CineWall provides several features for identifying and resolving product performance
issues. If the solutions suggested here fail to resolve your issue or if you encounter an
issue not described, please contact Runco Technical Support.

you more detailed information about the current
operational state of the CineWall. To see them,
open the screen.

Table 6-1 describes the CineWall LED status indications.

Table 6-1. CineWall Status LED Indications

LED Name

Ready Lamp is on (or

IMINAR

When the LED is...

L

Off Green Amber Red

no power)

Y

6.4 Troubleshooting Tips

Status LEDs The LEDs on the electronics module can give

Source Source absent Valid source

PRE

Lamp Lamp off Lamp on Lamp striking Lamp failed

Remote IR Not receiving IR

now

Serial Data

No command

Serial Cmd Received com-

Lamp Saver Lamp Saver not

CineWall™ Installer/Integrator Manual 77

received

active or lamp is
off

present

Receiving IR sig­nal

Received any
command

mand addressed
to “this” unit

Lamp Saver
active
Source present
Lamp on

Active
Lamp is cooling
Source present
Lamp will come
on when cooled

Source absent
or not valid

Active
Source absent
Lamp off

Maintenance and Troubleshooting

➤

WARNING

Table 6-1. CineWall Status LED Indications (continued)

When the LED is...

LED Name

Off Green Amber Red

Engine Status Optical engine

OK

Ballast Status Lamp off Lamp on Ballast fault or

Fan-Lamp

Fan failed

Fan off Fan is running

Fan-System

Isolating Faulty Parts If you suspect that a part may be faulty, replace it with a known-good one if available. This

is a very effective way to find a problem. If the problem goes away, the original part was at
fault.

If the problem persists, you haven’t found the problem yet, but you have learned
something: the original part was not the problem. Re-install it and try something else.

If the Lamp Won’t Light: Check to make sure the lamp is actually not lit. If the lamp is
lit, you can usually see light come through spaces between parts if you look carefully.

Many things can make the screen black, even though the lamp is lit:

• The Curtain may be on. If the curtain is black and it is on, the screen will be black.

• There is no source picture. With no valid picture coming in, the display will be black.

• There is something blocking the light to the screen. Is the lens cap on?

• There are parts missing in the optical path. If someone was working on the display,
maybe he or she forgot to put something back in.

IMINAR

L

Y

recently but is
now running

Optical engine
fault or commu­nication failure

communication
failure

Fan failedFan-DMD

PRE

If the lamp is not lit:

• The CineWall may not be receiving AC power. Check the main AC switch on the
display. It should be lit.

• The lamp ballast may not be receiving power. Some displays have a green LED near
the main AC switch that lights when the 380-volt part of the power supply is working. It
should be lit. Other displays may have an LED on the electronics module to show when
this high voltage power is available.

Always turn off the AC power and remove the power cord before
working inside the display and before removing a lamp.

• If the lamp is OK, try swapping the ballast in the same way. The lamp ballast provides
power to the lamp. It is an electronic part, and all electronic parts are eventually subject
to failure.

78 CineWall™ Installer/Integrator Manual

• A fan may have failed. Most fans are sensed. That means the electronics module

Note

knows whether they are running or not. If they don’t run when they should, the
electronics module turns off the lamp and prevents it from striking (turning on) again.

Swapping other parts: You can swap electronics modules or fans in the same way to
see if one is bad.

When you swap fans, always exchange fans of the same size.

Why not use a new part out of the box? It may seem like a good idea to take a new
part out of the box and substitute it for a suspected part in the display. However, there is
a small chance that the part in the box doesn’t work. If you test a part by putting in a
known good part, you get better information.

Y

Maintenance and Troubleshooting

IMINAR

L

PRE

CineWall™ Installer/Integrator Manual 79

Maintenance and Troubleshooting

Notes:

Y

IMINAR

L

PRE

80 CineWall™ Installer/Integrator Manual

7. Serial Communications

Note

To interface the CineWall with an automation/control system or a PC running terminal
emulation software, connect it to the Display Control output of the DHD Controller as
shown in
input of the DHD Controller as shown in Figure 4-10.

Configure the RS-232 controller or PC serial port as follows: no parity, eight (8) data bits,
one (1) stop bit and no flow control. Set the baud rate to 19200, to match that of the DHD
Controller RS-232 port.

Figure 4-3 and Figure 4-4. Connect your control system or PC to the RS-232

Y

Serial commands to the DHD Controller take the following form:

• Commands are not case-sensitive.

• For a single command that takes no parameters, type the command followed by a
carriage return; for example, to set the aspect ratio to Letterbox, type

LETTERBOX

• For a single command that takes a parameter, type the command, a space or a
comma and the desired value followed by a carriage return; for example, to set the
brightness to -10, type BRIGHTNESS

BRIGHTNESS,-10

• You can also send a string of multiple commands on a single line, separated by
commas. For example, COMPOSITE,BRIGHTNESS
the Composite video input, sets the brightness to 50 and sets the aspect ratio to 16:9.
Command strings can be up to 255 characters long.

<Enter>.

-10 <Enter> or

<Enter>.

IMINAR

50,16:9<Enter> switches to

L

7.1 RS-232 Connection and Port Configuration

7.2 Serial Command Syntax

Avoid combining the ON or POWER 1 commands with other commands
on a single line. After sending ON or POWER 1, allow at least five (5)
seconds for the DHD
ISF splash screen (refer to
seconds for the DHD Controller to power up.

Once it does, it will accept and properly execute multiple serial
commands.

CineWall™ Installer/Integrator Manual 81

PRE

Controller to power up. If you have enabled the

Splash Configure on page 67), allow 15

Serial Communications

Table 7-1 lists the RS-232 command set. The “Parameter (min/max)” column shows the
valid parameter ranges, or “NA” for commands that take no parameters.

When you enter a valid command, the DHD Controller executes it and acknowledges it
with a plus sign on the command line (+ >). When you enter an invalid command – one
that is misspelled or followed by values outside the valid range for that command – the
DHD Controller ignores it and returns a minus sign (- >).

Table 7-1. Serial Commands

Command

OFF NA NA Turns display off

ON NA NA Turns display on

POWER 0/1 NA Turns display on and off

POWER? NA NA Returns power status

COMPONENT NA YES Selects the Component input

COMPOSITE NA YES Selects the Composite video input

HDMI1 NA YES Selects the HDMI 1 input

HDMI2 NA YES Selects the HDMI 2 input

HD1 NA YES Selects the RGB HD 1 input

HD2 NA YES Selects the RGB HD 2 input

INPUT? NA NA Returns active input

SCART NA YES Selects the SCART input

IMINAR

L

Parameter

(min/max)

Power On/Off Commands

Input Selection Commands

Value

Stored?

Description

Y

PRE

SVIDEO1 NA YES Selects the S-Video 1 input

SVIDEO2 NA YES Selects the S-Video 2 input

82 CineWall™ Installer/Integrator Manual

Table 7-1. Serial Commands (continued)

Serial Communications

Command

16:9 NA YES Selects the 16:9 aspect ratio

4:3 NA YES Selects the 4:3 aspect ratio

ASPECT? NA NA Returns current aspect ratio

CINEMA NA YES Selects the Cinema aspect ratio

LETTERBOX NA YES Selects the Letterbox aspect ratio

NATIVE NA YES Selects the Native aspect ratio

VIRTUALWIDE NA YES Selects the VirtualWide aspect ratio

VIRTUALCINEMA NA YES Selects the Virtual Cinema aspect ratio

BRIGHTNESS -50/50 YES Sets a value for brightness

BRIGHTNESS? NA NA Returns brightness setting value

CHROMADELAY -7/7 YES Sets a value for input color chroma delay

CHROMADELAY? NA NA Returns input color chroma delay setting

COLOR -50/50 YES Sets a value for color

COLOR? NA NA Returns color setting value

Parameter

(min/max)

Aspect Ratio Commands

Picture Adjust Commands

Value

Stored?

Description

IMINAR

L

Y

CONTRAST -50/50 YES Sets a value for contrast

CONTRAST? NA NA Returns contrast setting value

FILMMODE 0/1 YES Sets Film Mode off (0) or on (1)

FILMMODE? NA NA Returns Film Mode setting

FILTER 0/10 YES Sets a value for input color noise filter

FILTER? NA NA Returns input color noise filter setting

PHASE 0/31 YES Adjusts phase

PHASE? NA NA Returns phase setting value

SHARPNESS -50/50 YES Sets a value for sharpness

SHARPNESS? NA NA Returns sharpness setting value

TINT -50/50 YES Sets a value for tint

TINT? NA NA Returns tint setting value

PRE

(0 = off; 1 = on)

CineWall™ Installer/Integrator Manual 83

Serial Communications

Table 7-1. Serial Commands (continued)

Command

CUSTOM1 NA YES Loads “Custom 1” image preset

CUSTOM2 NA YES Loads “Custom 2” image preset

DAY NA YES Loads “ISF Day” image preset

NIGHT NA YES Loads “ISF Night” image preset

PRESET? NA NA Returns currently-selected preset

IHEIGHT 0/20 YES Sets the value for input height

IHEIGHT? NA NA Returns input height value

IHPOS -50/50 YES Sets a value for horizontal input position

IHPOS? NA NA Returns input horizontal position value

IVPOS -50/50 YES Sets a value for vertical input position

IVPOS? NA NA Returns input vertical position value

Parameter

(min/max)

Image Preset Commands

Input Position Commands

Value

Stored?

Description

(ISF Day, ISF Night, Custom 1 or Cus-

Y

tom 2)

IMINAR

IWIDTH 0/50 YES Sets the value for input width

IWIDTH? NA NA Returns input horizontal width value

L

OVERSCAN 0/20 YES Sets the overscan percentage

OVERSCAN? NA NA Returns overscan percentage

OVERSCANMODE 0/1 YES Sets the overscan mode (0=zoom;

PRE

OVERSCANMODE? NA NA Returns the overscan mode (0=zoom;

OHEIGHT -50/50 YES Sets the value for output height

OHEIGHT? NA NA Returns output height value

OHPOS -50/50 YES Sets the value for output horizontal posi-

OHPOS? NA NA Returns output horizontal position value

OVPOS -50/50 YES Sets the value for output vertical position

OVPOS? NA NA Returns output vertical position value

OWIDTH -50/50 YES Sets the value for output width

OWIDTH? NA NA Returns output horizontal width value

1=crop)

1=crop)

Output Shift Commands

tion

84 CineWall™ Installer/Integrator Manual

Table 7-1. Serial Commands (continued)

Serial Communications

Command

DISPLAY? NA NA Returns display device input source

INRES? NA NA Returns input resolution

SERNUM? NA NA Returns DHD Controller serial number

SWVER? NA NA Returns software version number

TRIGGER 1/3 YES Assigns trigger to currently-selected

The following serial commands are meant to emulate buttons on the remote control or DHD Con­troller front panel. Each button has its own serial command, so effectively it is as if you were using
the IR remote only you’ll be doing so via serial commands. These commands provide active OSD
responses just like the IR remote.

DOWN NA NA Down-Arrow ( ) key

ENTER NA NA ENTER key

EXIT NA NA EXIT (RETURN) key

Parameter

(min/max)

Miscellaneous Commands

Value

Stored?

Description

value, as follows:
1 = Auto
36 = CW-95DHD

aspect ratio

IMINAR

LEFT NA NA Left-Arrow ( ) key

MENU NA NA MENU

L

Y

RIGHT NA NA Right-Arrow ( ) key

UP NA NA Up-Arrow ( ) key

PRE

CineWall™ Installer/Integrator Manual 85

Serial Communications

Notes:

Y

IMINAR

L

PRE

86 CineWall™ Installer/Integrator Manual

8. Specifications

Table 8-1 lists the CineWall specifications.

Table 8-1. CineWall Specifications

Native Resolution: 1920 x 817 (2.35:1)

Aspect Ratios: Refer to Table 8-2

Video Standards: NTSC, PAL, ATSC

Video Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Picture Size (16:9 Screen): 95 inches (2413 mm), diagonal

Lamp: 156/180W P-VIP UHP type, with 3AC Lamp Driver

Estimated Lamp Life: 6000 hours, median

Inputs (from DHD
Controller):

Control Options: - Discrete IR remote

Power Requirements: 100 to 240 VAC (auto-sensing), 47 to 63 Hz

Operating Environment: 41°F to 95°F (5°C to 35°C), 20% to 80% humidity

(1) Digital Video (HDMI) with HDCP
(1) RS-232 (8-pin, RJ-45 female)

- Serial commands via RS-232

IMINAR

L

290 Watts (989.8 BTUs/hour)

(non-condensing)

8.1 CineWall Specifications

Y

Dimensions: See Figure 8-1

Weight (approximate): Chassis and Mounting Hardware: 165 lbs. (74.84 kg)

Regulatory Approvals: Complies with FCC Class B, CE, C-Tick, cTUV-US

Specifications are subject to change without notice.

CineWall™ Installer/Integrator Manual 87

PRE

Screen: 95 lbs. (43.09 kg)
Shipping Container and Packaging: 255 lbs. (115.67 kg)

Specifications

8.2

DHD Controller Specifications

Table 8-2 lists the DHD Controller specifications.

Table 8-2. DHD Controller Specifications

Aspect Ratios: 4:3, Letterbox, 16:9, VirtualWide, Cinema, Virtual Cinema,

Native

Video Standards: NTSC, PAL, SECAM

Inputs: (1) Composite

(2) S-Video
(1) Component/RGBHV/SCART (5 x RCA)
(2) Component/RGBHV (5 x BNC)
(2) HDMI 1.3 with HDCP
(1) Serial Control (RS-232, 9-pin D-sub)

Outputs: (1) HDMI 1.3 with HDCP

(1) Display Control (RS-232, RJ-11)

Control Options: - Discrete infrared remote

- Serial commands via RS-232

- Front-panel controls

RS-232 Communication
Parameters:

Trigger Outputs: (3) +12 VDC, each rated at 250 mA and thermal

IMINAR

Bandwidth: 150 Mega Samples per Second (MSPS)

19200 bps, no parity, 8 data bits, 1 stop bit, no flow control

fuse-protected

Y

L

Power Requirements: 100 to 240 VAC (auto-sensing), 50/60 Hz, 160 Watts

Operating Environment: 41°F to 95°F (5°C to 35°C), 0% to 90% humidity

Dimensions: Width = 17.50 inches (444.5 mm)

PRE

Weight: 13.0 lbs. (5.90 kg)

Regulatory Approvals: Complies with FCC, CE C-Tick

Limited Warranty: Two (2) years parts and labor from the date of delivery to

Specifications are subject to change without notice.

(non-condensing)

Depth = 11.19 inches (284.1 mm)
Height = 3.75 inches (95.3 mm)

the end user.

88 CineWall™ Installer/Integrator Manual
