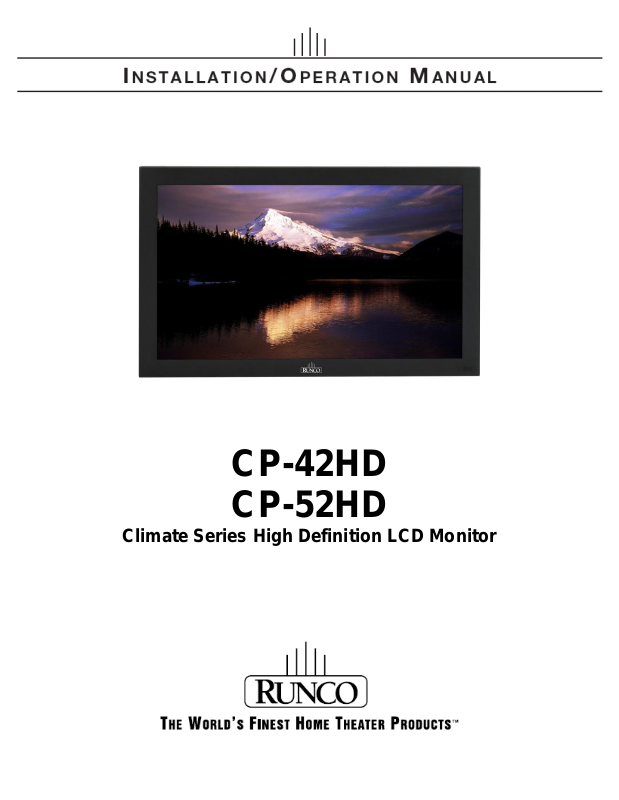

Runco CP-52HD, CP-42HD User Manual

CP-42HD
CP-52HD

Climate Series High Definition LCD Monitor

Runco CP-42HD/CP-52HD Owner’s Operating Manual i

ii Runco CP-42HD/CP-52HD Owner’s Operating Manual

RuncoCare 1 Year Limited Warranty Features

Warranty Coverage

Length of Warranty

Eligibility

TM

RuncoCare

Congratulations on your purchase of a Runco® product! With proper installation, setup and care, you should enjoy many
years of unparalleled video performance.

This RuncoCare One Year Limited Warranty is provided free of charge by Runco International, LLC (“Runco”) with the
purchase of a covered Runco product.

The following terms and conditions of the RuncoCare One Year Limited Warranty represent a contract between us,
Runco, and you, the customer, who has purchased a Runco product. This contract applies to purchases of covered
Runco products occurring on or after the effective date printed at the bottom of this document. Runco reserves the right
to change the terms of this contract, and such changes shall apply to purchases of covered Runco products that occur on
or after any future effective date.

1-Year protection from defects in material and workmanship
Access to 24x7 phone support
Complimentary, 2nd day one-way shipping

One Year Limited Warranty

For North America

Runco warrants its products to be free from defects in material and workmanship during the warranty period provided
below. If, in Runco‟s sole determination, a product proves to be defective in material or workmanship during the warranty
period, Runco will repair the product, replace the product with a substantially similar new or like new product, or refund a
prorata share of the purchase price (calculated based on the remainder of the warranty period and the then-current
MSRP2 of a similar product), if repair or replacement of the product is determined by Runco to not be feasible. Runco has
sole discretion in determining whether a same or like model is offered, and what constitutes as „substantially similar
model‟.

Runco products are warranted for one (1)-year from the date of shipment from Runco. Lamps are warranted six (6)
months from the date of shipment or 1000 hours of use, whichever comes first. All other accessories, which include but
are not limited to, cables, remotes, carrying cases, lens cap and other peripherals sold with the Runco product, are
warranted for ninety (90) days from the date of the original shipment of the accessory.

This RuncoCare One Year Limited Warranty is valid only for the first customer who purchases the covered product from
an authorized Runco dealer or distributor. This warranty is not transferable. You may be required to provide proof of
purchase in order to receive warranty services.

1. Runco may update this list of products excluded from this warranty from time to time at Runco’s sole discretion, but updates to the list of
covered products will not apply on a retroactive basis.

2. MSRP is defined as the most recent product price listed on Runco’s price list.

Runco CP-42HD/CP-52HD Owner’s Operating Manual iii

RuncoCare Claim Procedure

Warranty Exclusions

In the event of a product defect, please follow the warranty claim procedure provided below:

The customer is required to contact a Runco dealer or Runco Technical Support via email at [e-mail] or

via phone at (toll free) 800-23-RUNCO (800-237-8626). If the customer is located outside North America, call +3589
4200 554 in Europe for product service.

Be prepared to provide the date of purchase, the place of purchase, serial number, product model number,

description of the problem and troubleshooting steps already attempted.

Runco Technical Support staff will attempt to correct any minor issues that may be causing the problem. If Runco is

unable to resolve the problem through troubleshooting, a Return Material Authorization (RMA) number will be issued
for the exchange of the defective product if it is determined that the claim was made within the coverage period of the
Standard Limited Warranty.

If it is determined that the Standard Limited Warranty applies to the claim, the customer will need to return the

defective product to the Runco repair depot location specified by the Runco technical support representative. The
customer will need to properly package the defective product, consisting of the product only, and not include any
accessories (e.g., cables, remotes, carrying cases, lens, lens cap and other peripherals) and return it to the Runco
repair depot specified by the technical support representative. It is the customer‟s responsibility to properly package
the hardware, include all appropriate materials, and return it to the location specified by the Runco technical support
department. The customer will need to address and resolve any shipping damage claims directly with the shipping
company.

The customer is responsible for providing a suitable box to ship the defective product to an authorized Runco repair

depot. Boxes may be purchased from a Runco technical support representative.

The customer is responsible for paying freight charges to ship the defective product to an authorized Runco repair

depot.

For in-warranty repairs, Runco will pay freight charges to return the repaired/replacement product (which shall not

include accessories--e.g., cables, remotes, carrying cases, lens cap and other peripherals sold with the Runco
product) to the customer from the Runco repair depot.

Once an RMA has been created, the customer may contact [e-mail] for follow-up questions or

confirmation status of the claim process.

This RuncoCare Standard Limited Warranty does not include or is limited by the following:

1. Products not purchased from an authorized Runco dealer

2. Rental costs incurred by the customer in the event of product defect or failure

3. Any product with a defaced, modified, or removed serial number

4. Damage, deterioration, or malfunction resulting from:
a. Accident, abuse, misuse, neglect, improper ventilation, fire, water, disaster, lightning, or other acts of nature,

smoke exposure (cigarette or otherwise), unauthorized product modification (including use of an unauthorized

mount), or failure to follow instructions supplied with the product
b. Repair or attempted repair by anyone not authorized by Runco
c. Any damage to the product due to shipment
d. Removal or installation of the product
e. Causes external to the product, such as electric power fluctuations or failure
f. Use of supplies or parts (including lamps) that are not purchased from Runco or do not meet Runco‟s

specifications
g. Normal wear and tear
h. Expected lamp degradation and normal decrease in lamp output over a period of time or as the lamp is consumed
i. Customer caused defects, including but not limited to, scratched/defaced/altered plastics
j. Failure to follow maintenance procedures as outlined in the product‟s user guide where a schedule is specified for

regular cleaning of the product
k. Opening the product and/or tampering with internal circuitry
l. Products lost, stolen or discarded

iv Runco CP-42HD/CP-52HD Owner’s Operating Manual

Extended Service Options

Sub Pixel Policy

Other Terms and Conditions

Online Product Registration

Limitation of Implied Warranties

m. Any damage or dissatisfaction associated with latent images, “burn-in,” or any other damage determined by

Runco to be the result of customer use patterns
n. Any other cause, which does not relate to a product defect in material or workmanship

5. Removal, installation, and set-up service charges are excluded from this Standard Limited warranty

6. Black uniformity issues or other LCD issues associated with usage outside the Runco recommended guidelines and
specifications for the product

7. Bright or dark sub pixels that are characteristic of LCD technology and considered by Runco to be acceptable and
within Runco‟s manufacturing specifications. (See Sub Pixel Policy below)

8. Second day shipment delivery time and availability may vary based on origin and destination and Runco is unable to
deliver to PO Box and FPO Box addresses

It is not uncommon for one or more sub pixels to become bright or dark during or after the manufacturing process. A
bright sub pixel is one that remains in the on position, and a dark sub pixel is one that appears black or off. The sub
pixels are usually hard to see and will not detract from the display quality or usability at normal viewing distance. The
following are Runco‟s criteria for identifying bright or dark sub pixels that would be considered unacceptable: a) the
number of bright or dark sub pixels; b) the location of the bright or dark sub pixels; c) the color of the bright sub pixels; and
d) the Runco model size. If sub pixels have been identified as unacceptable by Runco the LCD will be deemed faulty and
will be replaced if reported within the warranty period. If there are issues with bright or dark sub pixels, gather the
information listed above and call or email [e-mail].

1. Runco will not accept returned Product unless an RMA number has been issued by Runco.

2. If an Advance Exchange return occurs, it is the customer‟s responsibility to properly package the defective product
and ship it to the address provided by the Runco technical support representative with the RMA number prominently
displayed. If the defective product is not properly packaged and is damaged in transit during its return to Runco, you
may be invoiced for either the repair costs, if repairable, or the MSRP of a replacement product and shipping costs
incurred by Runco.

3. The repaired or replaced product will assume the remainder of your original product‟s RuncoCare Service Plan term
or 90 days from the date the repaired unit is shipped, whichever is longer.

4. If a replacement product is sent, the customer agrees to retain the replacement for the product you purchased and
your defective product becomes the property of Runco.

Runco offers extended and expanded service plans. For information on additional product protection, please email
[e-mail] or call (toll free) 800-23-RUNCO (800-237-8626).

Please visit http://www.runco.com/support/product-registration/ to register product.

RUNCO PROVIDES NO WARRANTIES, EXPRESS OR IMPLIED, EXCEPT THOSE EXPRESSLY PROVIDED HEREIN.
RUNCO EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Runco CP-42HD/CP-52HD Owner’s Operating Manual v

Exclusion of Damages

Effect of Local Law

COPYRIGHT AND TRADEMARKS

RUNCO‟S MAXIMUM AGGREGATE LIABILITY HEREUNDER IS LIMITED TO THE COST OF REPAIR OR
REPLACEMENT OF THE PRODUCT.

1. RUNCO SHALL NOT BE LIABLE FOR DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECT IN THE

PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME,
LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH
BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF THE CUSTOMER HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

2. RUNCO SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, INDIRECT, SPECIAL, OR

PUNITIVE DAMAGES ANY OTHER DAMAGES, WHETHER INCIDENTAL, INDIRECT, CONSEQUENTIAL OR
OTHERWISE.

3. RUNCO SHALL NOT BE LIABLE FOR ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

This warranty gives you specific legal rights, and you may have other rights, which vary from locality to locality. Some
localities do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential
damages, so the above limitations and exclusions may not apply to you.

© Copyright 2009 Runco International, LLC (“Runco”). This document contains proprietary information protected by
copyright, trademark and other intellectual property laws. All rights are reserved. No part of this manual may be
reproduced by any mechanical, electronic or other means, in any form, without prior written permission of Runco.

The trademarks reproduced in this Runco Owner‟s Manual and used on the Runco Products are either owned by Runco
or are licensed by Runco. You may not reproduce or use the trademarks without the prior written consent of Runco.

Runco Products are manufactured under one or more of the following patents: US. Patent 6755540 and Other Patents

Pending.

vi Runco CP-42HD/CP-52HD Owner’s Operating Manual

Important Safety Instructions

Thank you for your purchase of this quality Runco video product! For the best performance, please read this manual
carefully as it is your guide through the menus and operation.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not block any of the ventilation openings. Install in accordance with the manufacturer‟s instructions.

6. Do not place your LCD monitor on an unstable stand, shelf or table. Serious bodily injury and/or damage to the LCD
monitor may result if it should fall. Your sales person can recommend an approved wall mounting kit. A special wall
mounting kit is available for this model. To prevent injury, the LCD monitor must be securely attached to the wall in
accordance with the installation instructions provided with the mounting kit. Always mount using recommended and
substantial fixture and fittings.

7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat. Do not mount near an open flame source. Open flames must never be used near this LCD
monitor.

8. This monitor surpasses IP56 weatherproof standards. It is not protected against temporary or continuous immersion
in liquid. Do not submerge this monitor in liquid.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for the
replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point
where they exit from the apparatus. Do not allow anything to rest on the power cord and do not locate this LCD
monitor where the cord will be damaged by people walking on it.

11. Only use the attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus to avoid
injury from tip-over.

13. This LCD monitor should be operated only from the type of power source indicated on the
monitor or as indicated in the Operating Instructions. If you are not sure of the type of power supply, consult your
sales person or your local power company.

14. Unplug this apparatus during lightning storms or when unused for long periods of time.

15. Do not use immediately after moving the LCD monitor from a low temperature to a high temperature environment, as
this causes condensation, which may result in fire, electric shock, or other hazards.

16. Before cleaning, be sure to unplug the power cord from the power outlet.

17. Do not apply liquid cleaners or aerosol cleaners directly onto the LCD monitor. Use a damp cloth for cleaning.

Runco CP-42HD/CP-52HD Owner’s Operating Manual vii

18. This LCD monitor should have a minimum
distance of 5cm away from the wall and the
monitor should have 10cm distance around the
top and sides.

19. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in an way, such
as power supply cord or plug is damaged,
objects have fallen into the apparatus, the
apparatus does not operate normally, or has been dropped.

20. Keep the packing material in case the equipment should ever need to be shipped.

viii Runco CP-42HD/CP-52HD Owner’s Operating Manual

FCC PART 15:

DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT (Applicable throughout
the European Union and other European countries with separate collection programs)

INDUSTRY CANADA (ICES-003)

IMPORTANT RECYCLE INSTRUCTIONS

Compliance Information

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be
hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws.

For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG.
For lamp specific disposal information check WWW.LAMPRECYCLE.ORG.

This symbol found on your product or on its packaging, indicates that this product should not be
treated as household waste when you wish to dispose of it. Instead, it should be handed over to an
applicable collection point for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential negative consequences to the
environment and human health, which could otherwise be caused by inappropriate disposal of this
product. The recycling of materials will help to conserve natural resources. This symbol is only valid in
the European Union. If you wish to discard this product, please contact your local authorities or dealer
and ask for the correct method of disposal.

Runco CP-42HD/CP-52HD Owner’s Operating Manual ix

x Runco CP-42HD/CP-52HD Owner’s Operating Manual

Table of Contents

RuncoCare™ Standard One Year Limited Warranty ........................................ iii

Important Safety Instructions ........................................................................... vii

Compliance Information .................................................................................... ix

1. Introduction .................................................................................................... 1

About This Manual ........................................................................................... 1

Target Audience ......................................................................................... 1

If You Have Comments About This Manual ............................................... 1

Textual and Graphic Conventions .............................................................. 1

Using This Manual ........................................................................................... 2

Description, Features and Benefits .................................................................. 3

Key Features and Benefits ......................................................................... 4

Parts List .................................................................................................... 4

2. Controls & Functions .................................................................................... 5

Climate Series LCD at a Glance ...................................................................... 5

Controls and Indicators .............................................................................. 5

Climate Series LCD Inputs and Outputs .................................................... 7

Climate Series LCD Remote Control ............................................................... 9

3. Installation .................................................................................................... 12

Remote Control .............................................................................................. 12

PET Film Removal ................................................................................... 12

Battery Installation ................................................................................... 12

Notes on Remote Control Operation ........................................................ 12

Quick Setup ................................................................................................... 13

Installation Considerations ............................................................................. 14

Wall-Mounting the Climate Series LCD ................................................... 14

Connections to the Climate Series LCD ........................................................ 14

Input/Output Connection Panel Access ................................................... 14

Connecting the Climate Series LCD to Source Components .................. 15

Connecting External Speakers (Optional) ................................................ 18

RS-232 Controller Connection (Optional) ................................................ 18

Runco CP-42HD/CP-52HD Owner’s Operating Manual xi

Table of Contents

4. Operations .................................................................................................... 20

Turning on the Power .................................................................................... 20

Changing the OSD Language ........................................................................ 20

Setting the PC Display Properties ................................................................. 21

Using the On-Screen Menus ......................................................................... 22

Picture ...................................................................................................... 24

Audio ........................................................................................................ 25

Time ......................................................................................................... 26

Setup ........................................................................................................ 27

Lock ......................................................................................................... 28

Channel .................................................................................................... 29

Stereo Sound/SAP ......................................................................................... 30

5. Maintenance and Troubleshooting ............................................................ 31

Cleaning ......................................................................................................... 31

Cleaning the Display, Panel Body and Remote Control .......................... 31

Cleaning the Air Filters and Vents ........................................................... 31

Trouble Shooting Tips .................................................................................... 31

6. Serial Communications ............................................................................... 33

RS-232 Connection and Port Configuration .................................................. 33

Serial Command Syntax ................................................................................ 33

7. Specifications .............................................................................................. 36

Climate Series LCD Specifications ................................................................ 36

Climate Series LCD Dimensions ................................................................... 37

Supported Timings ......................................................................................... 39

xii Runco CP-42HD/CP-52HD Owner’s Operating Manual

List of Figures

2-1. Climate Series LCD Controls and Indicators ................................. 5

2-2. Climate Series LCD Inputs and Output Interfaces ......................... 7

2-3. Climate Series LCD Remote Control ............................................. 9

3-1. HDMI Connections ...................................................................... 15

3-2. Analog RGB Connections ............................................................ 16

3-3. Component Video Connections ................................................... 17

3-4. Composite and S-Video Connections .......................................... 17

3-5. External Speaker Connection ...................................................... 18

3-6. RS-232 Control System Connection ............................................ 18

4-1. Climate Series LCD OSD Menu Structure ................................... 23

7-1. CP-42HD Dimensions (Front/Side/Rear) ..................................... 37

7-2. CP-52HD Dimensions (Front/Side/Rear) ..................................... 38

Runco CP-42HD/CP-52HD Owner’s Operating Manual xiii

xiv Runco CP-42HD/CP-52HD Owner’s Operating Manual

1.1
About This Manual

Target Audience

If You Have Comments
About This Manual…

Textual and Graphic
Conventions

1. Introduction

This Owner‟s Manual describes how to Install, set up and operate a
Runco Climate Series Model CP-42HD and CP-52HD Weatherproof Flat­Panel LCD. Throughout this manual, the Runco CP-42HD and CP-52HD
are referred to collectively as the “Climate Series LCD.” The information
in this manual applies to both products, except where otherwise indicated.

Runco has prepared this manual to help home theater installers and end
users get the most out of the Climate Series LCD.

Runco has made every effort to ensure that this manual is accurate as of
the date it was printed. However, because of ongoing product
improvements and customer feedback, it may require updating from time
to time. You can always find the latest version of this and other Runco
product manuals on-line, at www.Runco.com.

Runco welcomes your comments about this manual. Send them to
[e-mail].

Text Conventions: The following conventions are used in this manual.
In order to clarify the information and instructions provided:

Remote and built-in keypad button identifiers are set in upper-case

bold type; for example, “Press EXIT to return to the previous menus.”

Computer Input (commands you type) and output (responses that

appear on-screen) is shown in monospace (fixed-width) type; for
example:
“To change the aspect ratio to Letterbox, type op aspect = 1

<Enter>.”

All keys with functional names are initial-capped, set in bold type and

enclosed in angle brackets. These keys are the following: <Enter>,
<Spacebar>, <Control>, <Esc> and <Tab>.

<Enter> indicates that you may press either the RETURN or ENTER

key on your keyboard if it has both keys.

In addition to these conventions, underlining, boldface and/or italics are
occasionally used to highlight important information, as in this example:

Runco CP-42HD/CP-52HD Owner’s Operating Manual 1

A carriage return must be used after each command or string.

If you need…

…Turn to page:

Information about obtaining service

iv

General information about the CP-42HD and CP­52HD Flat-Panel LCDs

3

Installation instructions

12

First-time configuration instructions

20

Troubleshooting Tips

31

Specifications for the CP-42HD and CP-52HD Flat­Panel LCDs

37

1.2
Using This Manual

Introduction

Graphic Conventions: These symbols appear in numerous places throughout

the manual, to emphasize points that you must keep in mind to avoid problems

with your equipment or injury:

TIPS highlight time-saving short cuts and helpful guidelines
for using certain features.

NOTES emphasize text with unusual importance or special
significance. They also provide supplemental information.

CAUTIONS alert users that a given action or omitted action
can degrade performance or cause a malfunction.

WARNINGS appear when a given action or omitted action
can result in damage to the equipment, or possible non-fatal
injury to the user.

DANGER appears when a given action can cause severe
injury or death

Use the following table to locate the specific information you need in this manual.

2 Runco CP-42HD/CP-52HD Owner’s Operating Manual

1.3
Description, Features
and Benefits

Introduction

The Climate™ Series LCD offers legendary Runco® product quality and
attention to detail housed inside a slim, yet rugged, weatherproof cabinet.
Best of all, this display is finished with the same clean and elegant look
and style that distinguishes all Runco flat panels.

Rain or shine, the Climate Series LCD will enhance your luxury outdoor
lifestyle. This full high-definition widescreen flat-panel monitor utilizes
advanced LCD technology in an enclosure designed to withstand the
elements. Featuring 1920 x 1080 native resolution and reflection-rejection
glass, the Climate Series LCD‟s image quality is impressive.

The enclosure has been engineered for maximum durability. We have
gone to great lengths to ensure protection from adverse environmental
conditions including temperature, exposure to moisture, dust, oils, and
even intermittent direct water spray.

Engineered into the monitor is an internal setting that allows operation in
colder temperatures (down to 0º F) so you can enjoy viewing year round.
The aluminum cabinet is sealed to ensure protection from the elements
and features a specially-designed internal ventilation system to provide
adequate cooling when needed. The ThermoCare™ internal thermostat
activates a cooling system regardless of whether the TV is on or off, to
avoid damage to the display in hot weather. As a result, the Runco
Climate Series LCD surpasses IP56 weatherproof standards, which
accommodates leaving it outdoors 365 days a year, without worry.

Installation options are limited only by the imagination. Patios, barbeques,
gazebos, pools, hot tubs, gardens, tennis courts, putting greens – literally
anywhere you want amazing video in a sleek flat-panel design.

The Climate Series LCD is a Runco, offering all the user-friendly features
you‟ve come to expect from the brand that prides itself in providing the
world‟s finest home theater products. Custom installation capabilities
include an RS-232 automation interface with discrete on/off, input
selection and aspect ratio control. These models also features Runco‟s
exclusive Vivix® video processing for outstanding imagery, artifact-free
scaling and superb reproduction of both native film and native video
formats.

A wide variety of inputs include two HDMI signals and a range of video
inputs for gaming, internet surfing and other computer activities. The
Climate Series LCD has an exceptionally wide viewing angle of 176
degrees to make enjoyment possible for a large number of viewers with
widely dispersed seating positions.

Runco invites you to enjoy the world of true luxury outdoor living with the
Climate Series LCD.

Runco CP-42HD/CP-52HD Owner’s Operating Manual 3

Key Features and Benefits

Parts List

Introduction

The Climate Series LCD offers these key feathers and benefits:

Full HD Native Resolution: 1920 x 1080
Anti-Reflective Glass that helps to reduce glare and reflection for easy

viewing in direct sunlight as well as protect the LCD from being
damaged by sunlight.

Engineered into the monitor is an internal setting that allows operation

in colder temperatures (down to 0º F) so you can enjoy viewing year
round.

The ThermoCare™ internal thermostat activates a cooling system

regardless of whether the TV is on or off, to avoid damage to the
display in hot weather.

The Runco Climate Series LCD surpasses IP56 weatherproof

standards, which accommodates leaving it outdoors 365 days a year,
without worry.

Includes an RS-232 automation interface with discrete on/off, input

selection and aspect ratio control.

Features Runco‟s exclusive Vivix® video processing for outstanding

imagery, artifact-free scaling and superb reproduction of both native
film and native video formats.

Has a wide variety of inputs including two HDMI signals and a range

of video inputs for gaming, internet surfing and other computer
activities.

Has an exceptionally wide viewing angle of 176 degrees to make

enjoyment possible for a large number of viewers with widely
dispersed seating positions.

Comes with a waterproof remote that is able to float.

Your Climate Series LCD is shipped with the following items. If any items

are missing or damaged, please contact your Runco dealer or Runco

Customer Service rep at (800) 23-RUNCO.

Climate Series LCD Panel: Model CP-42HD (part number 997-6156-

00) or CP-52HD (part number 997-6157-00)

Remote Control unit and (1) Lithium CR2032 battery
AC Power Cord
CP-42HD/CP-52HD Installation/Operation Manual (this document)

Optional Accessories:

Outdoor Wall Mount Kit
Table Stand
ColourPalette Outdoor

4 Runco CP-42HD/CP-52HD Owner’s Operating Manual

Figure 2-1 shows the locations of the Climate Series LCD controls and indicators
(shown with stand).

2.1
Climate Series LCD at a
Glance

Controls and Indicators

2. Controls & Functions

Figure 2-1 shows the Climate Series LCD Side/Front/Back/Bottom View

Runco CP-42HD/CP-52HD Owner’s Operating Manual 5

Controls and Functions

1. HANDLES

Always use the handles when carrying the display. DO NOT touch or

hold the screen face.

2. KEYPAD

You can use the keypad instead of the remote control unit to operate the on­screen display (OSD) controls. The keypad operates as follows:

VOLUME DOWN / MENU LEFT

Use this button to increase sound volume. When a menu is
visible on-screen, this button operates identically to the Left Key
on the Climate Series remote control unit.

VOLUME UP / MENU RIGHT

Use this button to increase sound volume. When a menu is
visible on-screen, this button operates identically to the Right
Key on the Climate Series remote control unit.

CHANNEL DOWN / MENU DOWN

Use this button to adjust the channel up. When a menu is
visible on-screen, this button operates identically to the Down
Key on the Climate Series remote control unit.

CHANNEL UP / MENU UP

Use this button to adjust the channel down. When a menu is
visible on-screen, this button operates identically to the Up Key
on the Climate Series remote control unit.

SOURCE

To select a source, press the SOURCE button repeatedly (with
no menu available on-screen).

MENU

Press this button to access the on-screen display (OSD), or to
exit the current menu and return to the previous one.

POWER

Use this button to turn the unit on and off.

3. IR SENSOR / STATUS LED

Infrared (IR) Sensor that receives signals from the remote control. Status
LED lights red to indicate that the Climate Series LCD is in standby mode or
if the main power switch is set to off; green during normal operation.

4. INTAKE VENTS

Internal fans draw cool air into the monitor through these vents.

5. BACK PANEL INPUT/OUTPUT COVER

Input/Output connections are recessed in the back of the monitor and have a
cover engineered to keep connections dry.

6. EXHAUST VENT

Warm air exits the monitor through these vents. Ensure that they are not
blocked.

6 Runco CP-42HD/CP-52HD Owner’s Operating Manual

Climate Series LCD Inputs
and Outputs

Controls and Functions

Figure 2-2 shows the Climate series Input and Output Interfaces.

Figure 2-2. Climate Series LCD Input/Output Interfaces

1. HDMI 1 (Digital)
HDCP-compliant digital video inputs for connecting an HDMI or DVI source.

2. HDMI 2 (Digital)
HDCP-compliant digital video inputs for connecting an HDMI or DVI source.

3. RS-232
A female, 9-pin D-sub connector for interfacing with a PC or home theater
automation/control system.

4. PC LINE
Connect the audio output from a personal computer here.

5. RGB/VGA P.C.
Provides a standard, 15-pin VGA-style connection to either an RGB or
component high-definition source, or to a personal computer.

6. COMPONENT 2
Standard- or high-definition (up to 1080p), YPrPb component video and stereo
audio input.

7. COMPONENT 1
Standard- or high-definition (up to 1080p), YPrPb component video and stereo
audio input. Also provides RGB input for RGBS sources.

Runco CP-42HD/CP-52HD Owner’s Operating Manual 7

Controls and Functions

8. VIDEO INPUT (Composite or S-Video + Stereo Audio)
Standard, composite or S-video input and stereo audio input for connecting a
VCR, camcorder, laser disc player, Super VHS (S-VHS) VCR or other
composite or S-video source.

9. DIGITAL AUDIO OUTPUT
Connects the TV audio out to the digital audio input of an amplifier.

10. SPEAKER OUTPUT (LEFT + RIGHT)
For connecting external speakers with an impedance of 4 ohms.

8 Runco CP-42HD/CP-52HD Owner’s Operating Manual

2.2
Climate Series LCD
Remote Control

Controls and Functions

Figure 2-3 shows the Climate Series LCD remote control, and the paragraphs
that follow describe its functionality.

Figure 2-3. Climate Series LCD Remote Control

Runco CP-42HD/CP-52HD Owner’s Operating Manual 9

Controls and Functions

1. REMOTE SENSOR

2. SOUND MODE
Press this button to select sound mode, Standard, Music, Movie, or Personal.

3. DISPLAY INFORMATION
Press this button to view input signal information (source and resolution).

4. MUTE ON/OFF
Press this button to mute the audio output to the speakers.

5. MTS
Press this button to scroll through the available MTS settings.

6. VOLUME UP
Use this button to increase sound volume.

7. DOT
Press this button when entering the channel number for direct tuning to a
digital TV channel.

8. 0 - 9
Use these keys to enter numeric characters.

9. CHANNEL UP
Use this button to adjust channel up.

10. VOLUME DOWN
Use this button to decrease sound volume.

11. C.C. KEY
Press this button to activate Closed Caption function. Supports CEA608B
and CEA708B.

12. CHANNEL RETURN
Press this button to return to the previous channel selected.

13. CHANNEL DOWN
Use this button to adjust channel down.

14. SOURCE INPUT
Press this button to select the input you would like. Use the Up/Down Keys
to highlight the input source and then press OK. / ENTER.

15. LEFT KEY
Use this button to select items or settings.

16. MENU / EXIT
Press this button to show or hide the OSD controls, to save menu item
setting(s) or exit the current menu and return to the previous one.

17. AUTO FUNCTION
Press this button to auto-scan input sources.

18. PICTURE MODE
Press this button to select picture mode, Standard/Dynamic/Personal.

19. UP KEY
Use this button to select items or settings.

20. RIGHT KEY
Use this button to select items or settings.

21. DOWN KEY
Use this button to select items or settings.

22. O.K. / ENTER
Press to select a highlighted menu item or confirm a changed setting.

23. HDMI 1 & 2
Press to select an HDMI input.

24. COMPONENT 1 & 2
Press to select a Component input.

10 Runco CP-42HD/CP-52HD Owner’s Operating Manual

Controls and Functions

25. COMPOSITE
Press to select the Composite input as the source.

26. T.V
Press this button to switch to the antenna/DTV/CATV input.

27. S-VIDEO BUTTON
Press to select the S-Video input as the source.

28. VGA BUTTON
Press to select the VGA input as the source.

29. DIGITAL BUTTON
Press this button to switch to the Digital Video input.

30. ASPECT BUTTON
Use this button to select Normal, Wide, Zoom, or Cinema.

31. NC
Reserved button

32. SLEEP BUTTON
Press this button to set the sleep mode function.

33. EPG
Switches the Electronic Program Guide (EPG) on/off.

34. NC
Reserved button

35. POWER ON
Use this button to turn the display on.

36. FAV
Use this button to select stored favorite channel. To store favorite channel,
select Favorite from the Channel menu (see page 30).

37. POWER OFF
Use this button to turn the display off.

Runco CP-42HD/CP-52HD Owner’s Operating Manual 11

3.1
Remote Control

Battery Installation

Notes on Remote Control
Operation

Battery Installation

PET Film Removal

3. Installation

For the first time use of the remote control, please pull out the PET Film.

To change the battery in the remote control:

1. Remove the six screws on the back of the remote.

2. Remove the battery and replace with another Lithium CR2032 Battery.

3. Please follow the drawing to remove the screws and replace the battery.

Make sure that there is nothing obstructing the infrared beam between the

remote control and the IR receiver on the projector.

If the effective rage of the remote control decreases, or it stops working,

replace the battery with a new one.

Ambient conditions may possibly impede the operation of the remote control.

If this happens, point the remote control at the monitor, and repeat the
operation.

This remote control is waterproof and floats.

12 Runco CP-42HD/CP-52HD Owner’s Operating Manual

Step

Procedure

For Details, Refer

to page…

1

Mount the Climate Series LCD on a wall
(optional)

14

2

Connect signal sources to the Climate Series
LCD

14

3

Connect external controller to RS-232 port
(optional)

18

4

Apply power to the Climate Series LCD

20

5

Change the OSD language

20

6

If using the Climate Series LCD with a PC,
adjust PC display properties

21

7

Display calibration: adjust the following for
each input; save settings when finished:

Contrast
Brightness
Color level
Tint
Sharpness

24

3.2
Quick Setup

Installation

Table 3-1 gives a quick overview of the Climate Series LCD installation process.
The sections following this one provide detailed instructions.

Installation should be performed by a qualified custom video
installation specialist.

Table 3-1. Installation Overview

Runco CP-42HD/CP-52HD Owner’s Operating Manual 13

3.3
Installation
Considerations

Wall-Mounting the Climate

Series LCD

3.4
Connections to the
Climate Series LCD

Input/Output Connection
Panel Access

Installation

Proper installation of your Climate Series LCD will ensure the highest possible
picture quality. Whether you are installing the Climate Series LCD temporarily or
permanently, you should take the following into account to ensure that it performs
optimally.

You can either place the Climate Series LCD on a table or in an entertainment
center, or mount it on a wall.

If you do decide to wall-mount the Climate Series LCD, ensure that the wall­mount bracket is installed according to the instructions included with it. The wall
must be capable of supporting a redundant weight factor three (3) times the
weight of the display, or be reinforced.

Runco recommends that this be done by a customer installation specialist.

Use only the Runco-approved wall-mount kit designed for your
display.

Other considerations and tips that can help improve your installation:

Keep the Climate Series LCD away from devices that radiate

electromagnetic energy such as motors and transformers. Common sources
of these include slide projectors, speakers, power amplifiers and elevators.

Proceed as follows to connect the Climate Series LCD to your video sources,
external controller(s) – if present – and AC power.

When connecting your equipment:

Turn off all equipment before making any connections.
Use the correct signal cables for each source.
Ensure that the cables are securely connected. Tighten the thumbscrews on

connectors that have them.

Use the left audio input when connecting mono audio sources.

To access the rear input/output connectors, loosen the two captive screws on the
input/output cover and remove the input/output connector cover.

14 Runco CP-42HD/CP-52HD Owner’s Operating Manual

Connecting the Climate
Series LCD to Source
Components

Installation

Connect your video sources to the Climate Series LCD as shown and described
in the sections that follow.

HDMI Connections: The Climate Series LCD has two HDMI inputs for
connecting a BD/HD-DVD/DVD player, DTV decoder, personal computer or any
other device with an HDMI or DVI output. Connect such devices as shown in
Figure 3-1.

Use the HDMI inputs whenever possible. This ensures the
highest video quality because the signal is carried in the digital
domain throughout the entire signal path, from source component
output into the display.

This Climate Series LCD supports the VESA Display Data
Channel (DDC) standard. This standard provides “Plug and Play”
capability; the display and a VESA DDC-compatible computer
communicate their setting requirements, allowing for quick and
easy set-up.

In order for Plug and Play to work correctly, you must turn on the display before
you turn on the connected computer.

Figure 3-1. HDMI Connections

Runco CP-42HD/CP-52HD Owner’s Operating Manual 15

Installation

RGB Connections: The Climate Series LCD has an RGB input and a stereo
audio input for connecting a personal computer; see Figure 3-2.

Figure 3-2. Analog RGB Connections

1. Refer to Supported Timings on page xx for a list of computer signals compatible
with the Climate Series LCD. Use with signals other than those listed may cause
some functions not to work.

2. Some Macintosh computers may require a Macintosh video adapter. Contact
your nearest authorized service center or dealer.

3. This Climate Series LCD may not be able to display images from notebook
computers in simultaneous (CRT/LCD) mode. Should this occur, switch the
notebook computer to “CRT only” mode. If you are unsure how to do this, refer to
your notebook computer’s user manual.

16 Runco CP-42HD/CP-52HD Owner’s Operating Manual

Component Video Connections: If you have a DVD player, DTV decoder with a
component (YPbPR) output or other component video source, connect it to the
COMPONENT 1 or COMPONENT 2 input as shown in Figure 3-3.

Figure 3-3. Component Video Connections

Installation

Composite/S-Video Connections: The Climate Series LCD has one (1)
Composite video input and an S-Video input for connecting a VCR, camcorder,
laser disc player or DVD player; see Figure 3-4.

If you connect an S-Video source to the Video 2 input, the Composite input on
Video 2 is inactive.

Figure 3-4. Composite and S-Video Connections

Runco CP-42HD/CP-52HD Owner’s Operating Manual 17

Connecting External

Speakers (Optional)

RS-232 Controller

Connection (Optional)

Installation

Connect the (positive) and (negative) speaker wires to the SPEAKER-R
and SPEAKER-R terminals; see figure 3-5. Maintain the correct polarity. For
more information, refer to the owner‟s manual for your speakers.

Figure 3-5. External Speaker Connection

Use a straight-through RS-232 cable with a 9-pin make connector to connect a PC
or home theater control/automation system (if present) to the RS-232 port on the
Climate Series LCD; see Figure 3-6.

Figure 3-6. RS-232 Control System Connection.

18 Runco CP-42HD/CP-52HD Owner’s Operating Manual

Runco CP-42HD/CP-52HD Owner’s Operating Manual 19

4.1
Turning on the Power

4.2
Changing the OSD
Language

4. Operations

1. Turn on your source components.

2. Plug the female end of the supplied
power cord into the AC receptacle inside
the back input panel of the Climate
Series LCD (AC 100V ~ 240 V).

3. Connect the other end to your AC power
source.

4. Press the ON button ( ) on the
remote control to turn on the display (or

press the power button ( ) on the
side of the display).

5. After a brief warm-up period
(approximately 10 seconds), the Climate
Series LCD will display an image.

The Climate Series LCD OSD language
is initially set to English, but can also
display the menus in French or Spanish.
To change the OSD language:

1. Press MENU.

2. Select Setup from the Main Menu.

3. Select Menu Language from the Setup
Menu.

4. Press or to highlight the desired
language and press O.K. The change
takes effect immediately.

20 Runco CP-42HD/CP-52HD Owner’s Operating Manual

4.3
Setting the PC Display
Properties

Operations

To maximize image quality when using the Climate Series LCD with a personal
computer, you may need to adjust the display properties of your PC Video Card.
To do this:

1. Choose Settings from the Windows Start
menu and click on “Control Panel.”

2. Double click on the Display icon.

3. Click the Settings tab on the display dialog
box.

4. Set the Screen area to 1400x1050 pixels.

5. Click the Advanced button and click the
Monitor tab on the dialog box. Set the
Refresh Frequency to 60 Hz and click OK.

Runco CP-42HD/CP-52HD Owner’s Operating Manual 21

4.4
Using the On-Screen
Menus

Operations

1. The maximum available resolution and vertical frequency is
1920x1200/60Hz or the maximum supported by your video card,
whichever is lower.

2. The Climate Series LCD supports 8-bit color (16,777,216
possible colors).

Many functions are controlled through the menu function, using the remote
control handset or keypad on the side of the display.

To use the on-screen menus:

1. Press MENU to display the Main Menu.

2. To select a menu item, use the left- or right-arrow buttons ( , ) on the remote
to control to highlight it.

3. Press the down-arrow button ( ) to access that menu.

4. Use the up- or down-arrow buttons ( , ) to select the setting you want to
change. Then, press the right-arrow button ( ).

5. Press the right- or left-arrow button ( , ) to change that setting.

6. To return to the previous menu, press MENU or ( ).
The Climate Series LCD OSD menus are arranged hierarchically, as shown in

Figure 4-1. Depending on the selected input source and/or signal characteristics,
some menu options may not be available.

22 Runco CP-42HD/CP-52HD Owner’s Operating Manual


Picture Mode
Standard

Setup

Menu
Language

English

Dynamic

French

Personal

Spanish

Contrast

0~100
Transparency

Off / On

Brightness

Zoom Mode
Normal

Color

Wide

Tint

-50~+50

Zoom

Sharpness

0~100

Cinema

Color Mode
Normal

Noise
Reduction

Off

Warm

Weak

Cool

Middle

Audio

Sound Mode
Standard

Strong

Music

Advanced

Movie

Closed Caption

CC Mode
On

Personal

Off

Bass

0~100
CC on

mute

Treble

Basic
Selection

CC1

Balance

CC

Surround

Off / On

Advanced
Selection

Service 1

AVC

Off / On

Option

SPDIF Type

PCM / RAW

MISC Setup

XVS On / Off

Audio Language
English

Restore Default

Reset to
Factory Setup
default

French

Lock

Enter Password

Spanish

Channel

Air/Cable

Air / Cable

Time

Sleep Timer

Off, 5 min ~ 240
min

Auto Scan
Auto

Time Zone

Pacific

STD

Alaska

IRC

Hawaii

HRC

Eastern

Favorite

FAV channel

Central

Show/Hide

Channel On /
Off

Mountain

Channel No.

Daylight Savings
Time

Off / On

Channel Label

Clock

Auto

DTV Signal

Operations

Figure 4-1. Climate Series LCD OSD Menu Structure

Runco CP-42HD/CP-52HD Owner’s Operating Manual 23


Operations

Use the controls in the Picture Menu to calibrate your Climate Series LCD for
optimum picture quality.

Picture Mode: To set the Picture Mode, select Picture Mode from the Picture
menu and press the left- or right- arrow buttons to select Standard, Dynamic or
Personal. Press O.K. or MENU to confirm your selection.

Contrast: To adjust the Contrast, select Contrast from the Picture menu and
press the left- or right- arrow buttons to adjust. Press O.K. or MENU to confirm
your selection.

Brightness: To adjust the Brightness, select Brightness from the Picture menu
and press the left- or right- arrow buttons to adjust. Press O.K. or MENU to
confirm your selection.

Color: To adjust the Color, select Color from the Picture menu and press the left­or right- arrow buttons to adjust. Press O.K. or MENU to confirm your selection.

Tint: To adjust the Tint, select Tint from the Picture menu and press the left- or
right- arrow buttons to adjust. Press O.K. or MENU to confirm your selection.

Sharpness: To adjust the Sharpness, select Sharpness from the Picture menu
and press the left- or right- arrow buttons to adjust. Press O.K. or MENU to
confirm your selection.

Color Mode: To set the Color Mode, select Color Mode from the Picture menu
and press the left- or right- arrow buttons to select Normal, Warm or Cool. Press
O.K. or MENU to confirm your selection.

24 Runco CP-42HD/CP-52HD Owner’s Operating Manual

Audio

Operations

To adjust the Climate Series LCD audio setting, select Audio from the Main Menu
and press the up- or down-button to select the setting you want to change.

Sounds Mode: To set the Sound Mode, select Sound Mode from the Audio
menu and press the left- or right- arrow buttons to select Standard, Music, Movie
or Personal. Press O.K. or MENU to confirm your selection.

Bass: To adjust the Bass, select Bass from the Audio menu and press the left- or
right- arrow buttons to adjust. Press O.K. or MENU to confirm your selection.

Treble: To adjust the Treble, select Treble from the Audio menu and press the
left- or right- arrow buttons to adjust. Press O.K. or MENU to confirm your
selection.

Balance: To adjust the left/right speaker balance, select Balance from the Audio
Menu and press the left- or right- arrow buttons to make one channel louder than
the other.

Surround: To turn the Surround Sound on or off, select Surround from the Audio
Menu and press the left- or right- arrow buttons to change setting. When finished,
press O.K. or MENU.

AVC: To turn the AVC on or off, select AVC from the Audio Menu and press the
left- or right- arrow buttons to change setting. When finished, press O.K. or

MENU to confirm your selection.
SPDIF Type: To set the SPDIF Type, select SPDIF Type from the Audio menu

and press the left- or right- arrow buttons to select PCM or RAW. Press O.K. or
MENU to confirm your selection.

Audio Language: To change the Audio Language, select Audio Language from

the Audio menu and press the left- or right- arrow buttons to select English,
French or Spanish. Press O.K. or MENU to confirm your selection.

Runco CP-42HD/CP-52HD Owner’s Operating Manual 25

Time

Operations

To set the Climate Series LCD Time functions, select Time from the Main Menu
and press the up- or down-button to select the setting you want to change.

Sleep Timer: Use the Sleep Timer to turn off the Climate Series LCD after a
specified interval.

To set the Sleep Timer:

Select Sleep Timer from the Time menu and press the left- or right- arrow

buttons to change setting.

-OR-

Press the SLEEP button on the remote control.

Use the left- or right- arrow buttons to turn Sleep Timer off or select 5min ~
240min. Then, press O.K. or MENU.

Time Zone: To set the local (North American) time zone, select Time Zone from
the Time menu and press the left- or right- arrow buttons to select Pacific,
Alaska, Hawaii, Eastern, Central or Mountain. Press O.K. or MENU to confirm
your selection.

Daylight Saving Time: To turn the Daylight Saving Time setting on or off, select
Time Zone from the Time menu and press the left- or right- arrow buttons to
change setting. When finished, press O.K. or MENU.

Clock: To set the Climate Series LCD internal clock, select Clock from the Time
menu and press ENTER. Clock should automatically update based on the digital
channel‟s time source. When finished, press O.K. or MENU.

26 Runco CP-42HD/CP-52HD Owner’s Operating Manual

Setup

Operations

Use the controls in the Setup menu to perform advanced image quality
adjustments and access various other Climate Series LCD Display functions.

Menu Language: Select Menu Language from the Setup menu and press the
left- or right- arrow buttons to select English, French or Spanish. Press O.K. or

MENU to confirm your selection.
Transparency: To turn the Transparency of the Menu on or off, select

Transparency from the Setup Menu and press the left- or right- arrow buttons to
change setting. When finished, press O.K. or MENU.

Zoom Mode: Select Zoom Mode from the Setup menu and press the left- or
right- arrow buttons to select Normal, Wide, Zoom or Cinema. Press O.K. or

MENU to confirm your selection.
Noise Reduction: Select Noise Reduction from the Setup menu and press the

left- or right- arrow buttons to select Off, Weak, Middle or Strong. Press O.K. or
MENU to confirm your selection.

Closed Caption: Select Closed Caption from the Setup menu to control the

display of closed captions when watching programs that contain them.
Restore Default: Restore Default setting returns your Climate Series LCD to the

original Factory Default setting.

Runco CP-42HD/CP-52HD Owner’s Operating Manual 27

Operations

Lock

Use the Lock Menu to set your own password and use this password to lock your
Climate Series LCD. Password default is set to 0000.

28 Runco CP-42HD/CP-52HD Owner’s Operating Manual

Channel

Use the controls in the Channel menu to adjust Channel settings and access
various other Climate Series LCD Display functions.

Air/Cable: Use the Air/Cable setting in the Channel menu to select Air or Cable.
Auto Scan: Use the Auto Scan to select the Cable system. Press the left- or

right- arrow buttons to select Auto, STD, IRC or HRC.
Favorite: Select Favorite from the Channel menu to set the favorite channel

associated with the FAV button on the Climate Series remote control.
Show/Hide: Select the Show/Hide from the Channel menu to show or hide a

specific channel.
Channel No.: Allows you to tune up and down through various channels to

select channel options.
Channel Label: Select this Channel setting to enter customer names for

individual channels.

Operations

DTV Signal: Shows the format of the currently tuned channel.

Runco CP-42HD/CP-52HD Owner’s Operating Manual 29

4.5
Stereo Sound/SAP

Operations

The Climate Series LCD supports Multichannel Television Sound (MTS), the
broadcast audio standard that allows transmission of both stereo and Secondary
Audio Program (SAP) content.

The SAP is usually a foreign-language translation. However, it can also be used
for other purposes such as Described Video Services (DVS0, which provide
descriptive narration of key visual elements in programs for the benefit of the
visually impaired.

You can select sound options depending
on the broadcast signal by pressing the
MTS button on the remote control.

30 Runco CP-42HD/CP-52HD Owner’s Operating Manual

Symptom

Possible Cause(s)

Solution

The display does not turn
on after initial installation.

The Climate Series LCD is

not plugged in or the AC
outlet is not active.

The remote control battery

has run out.

Ensure that the

Climate Series
LCD is plugged in
and that the AC
outlet is active.

Replace the

battery.

The display is on, but there
is no picture.

Incorrect source selection.
Source component is not

turned on.

Source component is

connected incorrectly or not
at all.

Select the correct

source.

Turn on the source

component.

Check video

connections to the
source component.

5.1
Cleaning

5.2
Troubleshooting Tips

5.1
Cleaning

Cleaning the Display,
Panel Body and Remote
Control

Cleaning the Air Filters
and Vents

5. Maintenance and Troubleshooting

Regular cleaning will extend the life and performance of the Climate Series LCD.
Before cleaning, be sure to unplug the power cord from the power outlet.

Do not under any circumstances use solvents such as benzene or thinner to
clean the Climate Series LCD. Doing so may cause deterioration or peeling of
paint from the display or remote control unit.

For cleaning the weatherproof protective front glass or remote control, use a mild
household glass cleaner with a non abrasive soft cloth. If using a cleaner for the
first time, we suggest using a test spot in a corner before cleaning the entire
surface.

For cleaning the body, use a mild household cleaner with a non abrasive with a
soft cloth. If using a cleaner for the first time, we suggest using a test spot on the
back of the TV before cleaning the entire surface.

It is recommended that you clean the air filters located at the bottom of the
Climate Series LCD every six (6) months. To remove the filters, simply unscrew
the two (2) screws. Wash the filter with warm water. Do not use chemicals of any
sort. Allow to dry before reinstalling.

As a general rule, use a vacuum cleaner about once a month to clean the vents
on the rear panel of the display of dust buildup (set the vacuum cleaner to its
weakest setting when doing this). If not removed, accumulated dust can cause
the internal temperature to increase, resulting in possible breakdown or fire.

Table 5-1. Troubleshooting Chart

Runco CP-42HD/CP-52HD Owner’s Operating Manual 31

Symptom

Possible Cause(s)

Solution

Picture is okay, but there
is no sound.

Audio output is muted.

Volume setting is too low.
Source component is

connected incorrectly or not
at all.

Speakers are connected

incorrectly or not at all.

Audio settings are incorrect

Press the MUTE

button on the
remote control.

Turn up the

volume.

Check audio

connections to
source component.

Check speaker

connections
(Figure 3-5).

Check the setting

for SPDIF Type
(page 26). For
HDMI audio
sources, ensure
that the SPDIF type
is “PCM” (refer to
the manual for the
source
component).

Image is too bright and/or
lacks definition in the
bright areas of the image.

Contrast is set too high.

Lower the contrast

setting.

Image appears “washed
out” and/or dark areas
appear too bright.

Brightness is set too high.

Lower the

brightness setting.

Colors in the image are
swapped; for example,
reds appear blue or vice
versa.

The Red/Pr, Green/Y, or

Blue/Pb outputs from the
source are connected to the
wrong inputs on the Climate
Series LCD.

Ensure that the

source outputs are
connected to the
correct Climate
Series LCD input.

The image is too large or
too small.

Image size needs adjusting.

Adjust the image

size (refer to the
Zoom Mode on
page 28).

Troubleshooting

Table 5-1. Troubleshooting Chart (continued)

32 Runco CP-42HD/CP-52HD Owner’s Operating Manual

COMMAND

DATA 1

ID

DATA 2

0X69

0X90 : SOURCE

0x00

0X00

0X91 : SLEEP

0x00

0X00

0X92 : 1

0x00

0X00

0X93 : 4

0x00

0X00

0X94 : 7

0x00

0X00

0X95 : 0

0x00

0X00

0X96 : ENTER

0x00

0X00

6.1
RS-232 Connection
and Port
Configuration

6.2
Serial Command
Syntax

6. Serial Communications

To Interface the Climate Portfolio Series LCD with a home theater
automation/control system or a PC running terminal emulation software (such as
TeraTerm Open Source project at http://ttssh2.sourceforge.jp/), connect it to your
control system or PC as shown in Figure 3-6. Use a straight-through cable.

Configure the RS-232 controller or PC serial port as follows: no parity, 8 data
bits, 1 stop but and no flow control. Set the baud rate to 38400

Commands are in four-byte raw HEX format in the form of Command + Data

1 + ID + Data 2. The Command byte is always 0x69, Data byte 1 defines
which command is to be executed, ID byte is always 0x00; Data byte 2 is
always 0x00, except in the case of the discrete volume command, in which
case it is a value between 0x00 and 0x64.

To send a command from a PC running terminal emulation software, create

either a separate script file for each command or a single script file
containing all the commands along with logic to determine which command is
to be sent. You cannot type commands in by hand because the Climate
Portfolio Series LCD expects the bytes to be sent faster than a human can
type, and also many of the HEX values for Data byte 1 are outside the range
one can enter using the keys on a keyboard.

When you send a valid command, the Climate Portfolio Series LCD executes

it and acknowledges it with “OK” (0x4F followed by 0x4B). Depending upon
the command, it may also return additional strings having to do with
execution of that command.

When you send an invalid or unrecognized command the Climate Portfolio

Series LCD ignores it and returns “NG” (0x4E followed by 0x47).

Table 6-1 lists the RS-232 command set.

Table 6-1. Serial Commands

Runco CP-42HD/CP-52HD Owner’s Operating Manual 33

COMMAND

DATA 1

ID

DATA 2

0X97 : MENU

0x00

0X00

0X98 : CHRTN

0x00

0X00

0XA1 : DISPLAY

0x00

0X00

0XA2 : 2

0x00

0X00

0XA3 : 5

0x00

0X00

0XA4 : 8

0x00

0X00

0XA5 : . (DOT)

0x00

0X00

0XA7 : LEFT

0x00

0X00

0XB1 : MTS

0x00

0X00

0XB2 : 3

0x00

0X00

0XB3 : 6

0x00

0X00

0XB4 : 9

0x00

0X00

0XB5 : CC

0x00

0X00

0XB6 : ASPECT

0x00

0X00

0XB7 : RIGHT

0x00

0X00

0XC0 : MUTE OFF

0x00

0X00

0XC1 : MUTE ON

0x00

0X00

0XC2 : VOL+

0x00

0X00

0XC3 : VOL-

0x00

0X00

0XC4 : CH+

0x00

0X00

0XC5 : CH-

0x00

0X00

0XC6 : PICTURE

0x00

0X00

0XC7 : DOWN

0x00

0X00

0XD0 : POWER OFF

0x00

0X00

0XD1 : POWER ON

0x00

0X00

0XD2 : FAV

0x00

0X00

0XD3 : SOUND

0x00

0X00

0XD5 : EPG

0x00

0X00

0XD6 : EXIT

0x00

0X00

0XD7 : UP

0x00

0X00

0XD8 : AUTO

0x00

0X00

0XC9 : COMPONENT 1,2

0x00

0X00

0XCA : HDMI 1,2

0x00

0X00

OXCB : COMPOSITE

0x00

0X00

0XCC : TV

0x00

0X00

Serial Communications

Table 6-1. Serial Commands (continued)

34 Runco CP-42HD/CP-52HD Owner’s Operating Manual

COMMAND

DATA 1

ID

DATA 2

0XCD : S-VIDEO

0x00

0X00

0XBA : DIGITAL

0x00

0X00

0XDA : VGA

0x00

0X00

0X60 : CLEAR EEPROM

0x00

0X00

0X61 : DIRECTLY CONTROL VOLUME

0x00

0x00-0x64

0X64 : BLACKLIGHT OFF

0x00

0X00

0X65 : BLACKLIGHT ON

0x00

0X00

0X67 : HDMI 1

0x00

0X00

0X68 : HDMI 2

0x00

0X00

0X69 : COMPONENT 1

0x00

0X00

0X6A : COMPONENT 2

0x00

0X00

Table 6-1. Serial Commands (continued)

Serial Communications

Example code fragment from a TeraTerm v4.66 script:

inputbox "Enter Command " "Command"

strcompare inputstr "power off"
if result == 0 then
send $69 $D0 $00 $00
endif

strcompare inputstr "power on"
if result == 0 then
send $69 $D1 $00 $00
endif

strcompare inputstr "hdmi1"
if result == 0 then
send $69 $67 $00 $00
endif

Runco CP-42HD/CP-52HD Owner’s Operating Manual 35

Native Resolution:

1920 x 1080 (full high definition)

Screen Size:

CP-42HD = 42 in. (diagonal)
CP-52HD = 52 in. (diagonal)

Screen Aspect Ratio:

16:9

Available Aspect Ratios:

4:3, Letterbox, 16:9, Anamorphic

DTV Compatibility:

480i, 480p, 720p, 1080i, 1080p

Contrast Ratio:

2,000:1

Data/Graphics
Compatibility:

Up to 1920x1200 at 60 Hz

Response Time (typical):

CP-42HD = 6.5 ms
CP-52HD = 6 ms

Vivix Processing:

RTR™: Real Time Refresh 60Hz panel and
processing, Vivix 3:2 pull down

Video/Audio Inputs:

(1) Composite, (1) S-video, (2) component, (2)HDMI,
(1) VGA (15-pin D-sub)

Outputs:

(1) Digital Audio RCA, (1) Speakers out (amplifier
recommended)

Discrete IR Control:

Source, power and aspect ratios via RS-232 or
remote

Power Requirements:

AC 100~240V 50~60Hz 5A max

Power Consumption
(typical):

CP-42HD = 350W
CP-52HD = 500W

Operating Environment:

Operation temperature 0 degrees C to 40 degree C.

Dimensions (w/o stand):

CP-42HD = 40.9" (1,040mm) x 4.6" (116.5mm) x

25.2" (640mm)
CP-52HD = 50.4" (1,280mm) x 5.3" (135mm) x

30.5" (775mm)

Weight (w/o stand):

CP-42HD = 73.1 lbs (33.2 Kg)
CP-52HD = 121 Lbs (55 Kg)

Limited Warranty:

(1) One year RuncoCare parts and labor from the
date of delivery to the end user. RuncoCare™ and
Runco RedCarpet™ plans are also available.

Specifications are subject to change without notice.

7.1
Climate Series LCD
Specifications

7. Specifications

Table 7-1 lists the Climate Series LCD specifications.

Table 7-1. Climate Series LCD Specifications

36 Runco CP-42HD/CP-52HD Owner’s Operating Manual

7.2
Climate Series LCD
Dimensions

Figure 7-1 shows the CP-42HD dimensions (all dimensions are in millimeters).

Specifications

Figure 7-1. CP-42HD Dimensions (Front/Side/Rear)

Runco CP-42HD/CP-52HD Owner’s Operating Manual 37

Specifications

Figure 7-2 shows the CP-52HD dimensions (all dimensions are in millimeters).

Figure 7-2. CP-52HD Dimensions (Front/Side/Rear)

38 Runco CP-42HD/CP-52HD Owner’s Operating Manual

Format

Resolution

Refresh

Rate (Hz)

Horizontal

Frequency

(kHz)

Pixel

Frequency

(MHz)

Supported? ( = Yes, - = No)

RGB

Component 1
Component 2

HDMI

1

HDMI

2

Composite

S-Video

640x480

640x480

60.00

31.469

25.175

-

-

72.00

37.861

31.500

-

-

75.00

37.500

31.500

-

-

85.00

43.269

36.000

- - -

-

800x600

800x600

60.00

37.879

40.000

-

-

72.00

48.077

50.000

-

-

75.00

46.875

49.500

-

-

85.00

53.674

56.250

- - -

-

1024x768

1024x768

60.00

48.363

65.000

-

-

70.00

56.476

75.000

-

-

75.00

60.023

78.750

-

-

85.00

68.677

94.500

- - -

-

1152x864

1152x864

75.00

67.500

108.000

- - -

-

1280x768

1280x768

60.00

47.700

68.250

-

-

60.00

47.776

79.500

-

-

75.00

60.289

102.250

-

-

85.00

68.633

117.500

- - -

-

1280x960

1280x960

60.00

60.000

108.000

- - -

-

85.00

85.938

148.500

- - -

-

1280x1024

1280x1024

75.00

79.976

135.000

-

-

1366x768

1366x768

60.00

47.720

84.750

-

-

1400x1050

1400x1050

60.00

64.700

101.000

-

-

60.00

65.317

121.750

-

-

75.00

82.300

156.000

- - -

-

1600x1200

1600x1200

60.00

75.000

162.000

-

-

1920x1200

1920x1200

60.00

74.000

154.000

-

-

7.3
Supported Timings

Specifications

Table 7-2 lists the signal types supported by each input on the Climate Portfolio
Series LCD.

Table 7-2. Supported Signal Timings by Input

Runco CP-42HD/CP-52HD Owner’s Operating Manual 39

Format

Resolution

Refresh

Rate (Hz)

Horizontal
Frequency

(kHz)

Pixel

Frequency

(MHz)

Supported? ( = Yes, - = No)

RGB

Component 1
Component 2

HDMI

1

HDMI

2

Composite

S-Video

480/60i

720x487

60.00

15.734

13.500

480/60p

720x483

60.00

31.469

27.000

-

576/50i

720x576

50.00

15.625

13.500

-

576/50p

720x576

50.00

31.250

74.250

-

720/50p

1280x720

50.00

37.500

74.250

-

720/60p

1280x720

60.00

45.000

74.250

-

1080/24i

1920x1080

24.00

26.997

74.250

-

1080/25i

1920x1080

25.00

28.125

74.250

-

1080/30i

1920x1080

30.00

33.749

74.250

-

1080/24p

1920x1080

24.00

26.990

74.250

- - -

1080/25p

1920x1080

25.00

28.200

74.250

-

1080/30p

1920x1080

30.00

33.750

74.250

-

NTSC 3.58

-

60.00

15.734

3.580

- - -

NTSC 4.43

-

60.00

15.734

4.430

- - -

PAL

702x574

50.00

15.625

13.500

SECAM

-

50.00

15.625

13.500

- - -

Specifications

Table 7-2. Supported Signal Timings by Input (continued)

40 Runco CP-42HD/CP-52HD Owner’s Operating Manual

SERIAL NUMBER

020-1065-00 Rev. B

January 2011

Runco International 1195 NW Compton Drive Beaverton, OR 97006 Ph [phone] / (800) 23-RUNCO / Fax [phone]

www.runco.com

Runco CP-42HD/CP-52HD Owner’s Operating Manual 41
