VX-6000d

1080p Digital Light ProcessingTM Projector

and Digital High Definition (DHD™) Controller/Scaler/Processor

VX-6000d

VX-6000d/CineWide™

VX-6000d/CineWide with AutoScope™

I NSTALLATION/OPERATION MANUAL

RuncoCare™ Standard Two Year Limited

Warranty

Congratulations on your purchase of a Runco® product! With proper installation, setup and care, you should enjoy many years of unparalleled video performance.

This RuncoCare Standard Limited Warranty is provided free of charge by Runco International with the purchase of a covered Runco product. The following sets forth Runco’s Standard Limited Warranty applicable to all Runco projectors, processors, LCD and plasma display products, with the exception of the following models: XP-103DHD, SC-1, SC-1a and VW-100HD1.

The following terms and conditions of the RuncoCare Standard Limited Warranty represent a contract between us, Runco International and you, the customer who has purchased a Runco product. This contract applies to purchases of covered Runco products occurring on or after September 1, 2008. Runco reserves the right to change the terms of this contract, and such changes shall apply to purchases of covered Runco products that occur on or after any future effective date.

RuncoCare Standard Features

• Two-year protection from defects in material and workmanship

• Access to 24x7 phone support

• Complimentary, second-day one-way shipping

Warranty Coverage

Runco warrants its products to be free from defects in material and workmanship during the warranty period provided below. If, in Runco’s determination, a product proves to be defective in material or workmanship during the warranty period, Runco will repair the product, replace the product with a similar new or like new product, or refund a prorata share of the purchase price (calculated based on the remainder of the warranty period and the thencurrent MSRP2 of a similar product), if repair or replacement of the product is determined by Runco to not be feasible.

Length of Warranty

Runco products are warranted for two (2) years from the date of shipment from Runco. Lamps are warranted six (6) months from the date of shipment or 1000 hours, whichever comes first. All other accessories, which includes, but is not limited to, cables, remotes, carrying cases, lens cap and other peripherals sold with the Runco product, are warranted for ninety (90) days from the date of shipment. Repaired product or replacement lamp is subsequently warranted for the remaining portion (if any) of the original warranty term or 90 days from the date the product was shipped to you, whichever is longer.

Eligibility

This RuncoCare Standard Limited Warranty is valid only for the first customer who purchases the covered product from an authorized Runco dealer or distributor. This warranty is not transferable. You may be required to provide proof of purchase in order to receive warranty services.

PRE

IMINAR

1. Runco may update this list of products excluded from this warranty from time to time at Runco’s sole discretion, but updates to the list of covered products will not apply on a retroactive basis.

2. MSRP is defined as the most recent product price listed on Runco’s price list.

Runco VX-6000d Installation/Operation Manual iii

RuncoCare Claim Procedure

In the event of a product defect, please follow the warranty claim procedure provided below:

1. The Customer is required to contact a Runco dealer or Runco Technical Support via email at support@runco.com or via phone at (toll free) 800-23RUNCO (800-237-8626). If the customer is located outside North America, call +3589 4200 554 in Europe for product service.

2. Be prepared to provide the date of purchase, the place of purchase, serial number, product model number, description of the problem and troubleshooting steps already attempted.

3. Runco Technical Support staff will attempt to correct any minor issues that may be causing the problem. If Runco is unable to fix the problem to the customer’s satisfaction, Runco will issue a Return Material Authorization (RMA) if it is determined that the claim was made within the coverage period of the Standard Limited Warranty.

4. The customer will need to return the defective product to the Runco repair depot location specified by the Runco technical support representative. The customer will need to properly package the defective product, consisting of the product only, and not include any accessories (e.g., cables, remotes, carrying cases, lens, lens cap and other peripherals) and return it to the Runco repair depot specified by the technical support representative. It is the customer’s responsibility to properly package the hardware, include all appropriate materials, and return it to the location specified by the Runco technical support department. The customer will need to address and resolve any shipping damage claims directly with the shipping company.

5. The customer is responsible for providing a suitable box to ship the defective product to an authorized Runco repair depot. Boxes may be purchased from a Runco technical support representative.

6. The customer is responsible for paying freight charges to ship the defective product to an authorized Runco repair depot.

7. Runco will pay freight charges to return the repaired/replacement product to the customer from the Runco repair depot.

8. Once an RMA has been created, the customer may contact serviceorders@runco.com for followup questions or confirmation status of the claim process.

IMINAR

Warranty Exclusions

This RuncoCare Standard Limited Warranty does not include or is limited by the following:

1. Products not purchased from an authorized Runco dealer

2. Rental costs incurred by the customer in the event of product defect or failure

3. Any product with a defaced, modified, or removed serial number

4. Damage, deterioration, or malfunction resulting from: a Accident, abuse, misuse, neglect, improper ventilation, fire, water, disaster, lightning, or other acts of nature, smoke

exposure (cigarette or otherwise), unauthorized product modification (including use of an unauthorized mount), or failure

to follow instructions supplied with the product b Repair or attempted repair by anyone not authorized by Runco c Any damage to the product due to shipment d Removal or installation of the product e Causes external to the product, such as electric power fluctuations or failure f Use of supplies or parts not meeting Runco’s specifications g Normal wear and tear h Expected lamp degradation and normal decrease in lamp output over a period of time or as the lamp is consumed i Customer caused defects, including but not limited to, scratched/defaced/altered plastics

PRE

iv Runco VX-6000d Installation/Operation Manual

j Failure to follow maintenance procedures as outlined in the product’s user guide where a schedule is specified for

regular cleaning of the product k Opening the product and/or tampering with internal circuitry l Products lost, stolen or discarded m Any damage or dissatisfaction associated with latent images, “burnin,” or any other damage determined by Runco to be

the result of customer use patterns n Any other cause, which does not relate to a product defect in material or workmanship

5. Removal, installation, and setup service charges are excluded from this Standard Limited warranty

6. Runco’s warranty does not cover black uniformity issues or other LCD issues associated with usage outside the Runco recommended guidelines and specifications for the product

7. Second day shipment delivery time and availability may vary based on origin and destination and Runco is unable to deliver to PO Box and FPO Box addresses

Extended Service Options

Runco offers extended and expanded service plans. For information on additional product protection, please email serviceorders@runco.com or call (toll free) 800-23RUNCO (800-237-8626).

Online Product Registration

Please visit http://www.runco.com/info.html to register product.

IMINAR

Limitation of Implied Warranties

RUNCO PROVIDES NO WARRANTIES, EXPRESS OR IMPLIED, EXCEPT THOSE EXPRESSLY PROVIDED HEREIN. RUNCO EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

PRE

Runco VX-6000d Installation/Operation Manual v

Exclusion of Damages

RUNCO’S MAXIMUM AGGREGATE LIABILITY HEREUNDER IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT.

1. RUNCO SHALL NOT BE LIABLE FOR DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECT IN THE PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF THE CUSTOMER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

2. RUNCO SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES ANY OTHER DAMAGES, WHETHER INCIDENTAL, INDIRECT, CONSEQUENTIAL OR OTHERWISE.

3. RUNCO SHALL NOT BE LIABLE FOR ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

Effect of Local Law

This warranty gives you specific legal rights, and you may have other rights, which vary from locality to locality. Some localities do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

© Copyright 2009 Runco International, LLC (“Runco”). This document contains proprietary information protected by copyright, trademark and other intellectual property laws. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of Runco.

IMINAR

The trademarks reporduced in this Runco Owner’s Manual and used on the Runco Products are either owned by Runco or are licensed by Runco. You may not reproduce or use the trademarks without the prior written consent of Runco.

Runco Products are manufactured under one or more of the following patents: US. Patent 6755540 and Other Patents Pending.

PRE

vi Runco VX-6000d Installation/Operation Manual

Important Safety Instructions

Thank you for your purchase of this quality Runco video product! For the best performance, please read this manual carefully as it is your guide through the menus and operation.

WARNING

CAUTION

RISK OFELECTRIC SHOCK

DO NOTOPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

CAUTION:

SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMINAR

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11. Only use the attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. The +12V trigger only outputs 12Vdc signal for triggering. Do not connect to any other power input or output. This could cause damage to this unit.

16. Keep the packing material in case the equipment should ever need to be shipped.

17. The lamp becomes extremely hot during operation. Allow the projector to cool down for approximately 45 minutes prior to removing the lamp assembly for replacement.

18. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond rated life could cause them to explode in rare occasions.

PRE

Runco VX-6000d Installation/Operation Manual vii

19. Never look directly into the lens when the lamp is on.

Compliance Information

DECLARATION OF CONFORMITY:

Manufacturer’s Name: Runco International, LLC

Manufacturer’s Address: 1195 NW Compton Drive, Beaverton, OR 97006-1992

hereby declares that the Products’ Model Numbers:

VX-6000d, VX-6000d/CineWide™ and VX-6000d/CineWide with AutoScope™

conform with the provisions of:

Council Directive 2004/108/EC on Electromagnetic Compatibility;

EN 55022 “Limits and methods of measurements of radio interference characteristics of information technology equipment” 1998;

EN 55024 “Limits and methods of measurements of immunity characteristics of information technology equipment” 1998;

Including:

• EN 61000-4-2 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 2: Electrostatic discharge immunity test”

• EN 61000-4-3 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 3: Radiated, Radio-Frequency, Electromagnetic Field Immunity Test”

• EN 61000-4-4 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 4: Electrical fast transient/burst immunity test”

• EN 61000-4-5 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 5: Surge immunity test"

• EN 61000-4-6 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 6: Conducted disturbances induced by radio-frequency fields immunity test"

• EN 61000-4-8 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 8: Conducted disturbances induced by power frequency magnetic fields immunity test"

• EN 61000-4-11 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 11: Voltage dips, short interruptions and voltage variations immunity tests"

PRE

IMINAR

And:

• EN 61000-3-2 "Electromagnetic compatibility (EMC) Part 3, Section 2: Limits for harmonic current emissions (equipment input current up to and including 16 A per phase)" 2000;

• EN 61000-3-3 "Electromagnetic compatibility (EMC) Part 3, Section 3: Limitations of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current up to and including 16 A and not subject to conditional connection" 1995;

Council Directive 2006/95/EC and amended by M1 and C1 on Low Voltage Equipment Safety;

EN 60950 “Safety of information technology equipment, including electrical business equipment”

The Technical Construction file required by this Directive is maintained at the corporate headquarters of Runco International, LLC, located at 1195 NW Compton Drive, Beaverton, OR 97006-1992.

Date of Declaration: March 2009

viii Runco VX-6000d Installation/Operation Manual

FCC PART 15:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

INDUSTRY CANADA (ICES-003):

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

PRODUCT DISPOSAL:

IMINAR

The Product contains small amounts of tin, lead and/or mercury. Disposal of these materials may be regulated due to environmental considerations.

IMPORTANT RECYCLE INSTRUCTIONS

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws.

PRE

For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG.

For lamp specific disposal information check WWW.LAMPRECYCLE.ORG.

DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT (Applicable throughout the European Union and other European countries with separate collection programs)

This symbol found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve natural resources. This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Runco VX-6000d Installation/Operation Manual ix

Notes:

IMINAR

PRE

x Runco VX-6000d Installation/Operation Manual

1Table of Contents

RuncoCare™ Standard Two Year Limited Warranty ................................................... iii

Important Safety Instructions ....................................................................................... vii

Compliance Information .............................................................................................. viii

1. Introduction ............................................................................................................... 1

About This Manual .......................................................................................................1

Target Audience .....................................................................................................1

If You Have Comments About This Manual.............................................................1

Textual and Graphic Conventions ...........................................................................1

Using This Manual ........................................................................................................ 2

Description, Features and Benefits ...............................................................................3

Key Features and Benefits ......................................................................................4

Parts List ................................................................................................................4

2. Controls and Functions ............................................................................................5

VX-6000d at a Glance ..................................................................................................5

VX-6000d Rear Panel ...................................................................................................7

DHD Controller Front Panel ..........................................................................................8

DHD Controller Rear Panel ...........................................................................................9

Outputs ..................................................................................................................9

Inputs ...................................................................................................................10

VX-6000d Remote Control Units ................................................................................ 11

PRE

Standard DHD Remote Control............................................................................. 11

Setup Remote Control ..........................................................................................14

IMINAR

3. Installation ...............................................................................................................17

Remote Control ..........................................................................................................17

Quick Setup ...............................................................................................................19

Runco VX-6000d Installation/Operation Manual xi

Setup Remote Control Functions ..........................................................................15

Battery Installation ................................................................................................ 17

Notes on Remote Control Operation .....................................................................18

Table of Contents

Installation Considerations ..........................................................................................20

Installation Type ....................................................................................................20

Ambient Light .......................................................................................................20

Throw Distance.....................................................................................................21

Vertical and Horizontal Position............................................................................. 22

Vertical and Horizontal Lens Shift..........................................................................22

Folded Optics .......................................................................................................25

Audio/Video Synchronization Issues...................................................................... 25

Other Considerations ............................................................................................26

Installing the Optional CineWide Lens Mount ..............................................................26

Installing the AutoScope Lens Motor (VX-6000d/CineWide with AutoScope).........27

Installing the Fixed CineWide Base Plate (VX-6000d/CineWide) ............................30

Mounting the VX-6000d ............................................................................................. 31

Floor Mounting (Upright) ....................................................................................... 31

Ceiling Mounting (Inverted)....................................................................................31

Adjusting the Projection Angle ..............................................................................31

Connections to the VX-6000d and DHD Controller .....................................................31

Connecting the DHD Controller to the VX-6000d .................................................. 31

Connecting Source Components to the DHD Controller .......................................33

RS-232 Controller Connection ..............................................................................38

Connecting 12-volt Trigger Outputs to External Equipment...................................39

Connecting an External IR Receiver to the DHD Controller....................................41

Connecting to AC Power ......................................................................................42

Turning on the Power ................................................................................................. 42

PRE

Primary Lens Adjustments ..........................................................................................43

Focus ...................................................................................................................43

IMINAR

Adjusting the Picture Orientation ................................................................................44

Installing and Adjusting the CineWide Anamorphic Lens .............................................45

Zoom....................................................................................................................43

Iris ........................................................................................................................43

Vertical and Horizontal Lens Shift..........................................................................43

Attach Lens Mounting Assembly to Lens Motor Carriage Plate

(CineWide with AutoScope) or Base Plate (fixed CineWide) ...................................45

Configure Lens Motor Trigger (CineWide with AutoScope) ....................................47

Adjust the Anamorphic Lens ................................................................................. 47

xii Runco VX-6000d Installation/Operation Manual

Table of Contents

4. Operation .................................................................................................................51

Using the On-Screen Menus ......................................................................................51

Main Menu............................................................................................................52

Input Source.........................................................................................................53

Aspect Ratio......................................................................................................... 53

Picture.................................................................................................................. 56

Input Position........................................................................................................61

Memory Presets .................................................................................................. 63

Information ...........................................................................................................64

Calibration ............................................................................................................64

Service ................................................................................................................. 68

5. Maintenance and Troubleshooting ........................................................................ 73

Lamp Replacement .................................................................................................... 73

Lens Replacement .....................................................................................................74

Troubleshooting Tips ..................................................................................................76

6. External Control ......................................................................................................79

Serial Communications ...............................................................................................79

RS-232 Connection and Port Configuration ..........................................................79

Serial Command Syntax .......................................................................................79

Using Discrete IR Codes ............................................................................................84

IR Command Protocol ..........................................................................................84

IR Command List..................................................................................................85

7. Specifications .......................................................................................................... 87

VX-6000d Specifications ............................................................................................ 87

PRE

DHD Controller Specifications .................................................................................... 89

VX-6000d Dimensions ................................................................................................90

Supported Timings .....................................................................................................91

IMINAR

Runco VX-6000d Installation/Operation Manual xiii

Table of Contents

Notes:

IMINAR

PRE

xiv Runco VX-6000d Installation/Operation Manual

1List of Figures

2-1. VX-6000d Front/Top/Side/Bottom/Rear View...............................................................5

2-2. VX-6000d Rear Panel ...................................................................................................7

2-3. DHD Controller Front Panel ..........................................................................................8

2-4. DHD Controller Rear Panel ...........................................................................................9

2-5. Standard DHD Remote Control ..................................................................................11

2-6. TheaterMaster Remote Control for VX-6000d.............................................................14

3-1. Available Range of the Remote Control ......................................................................18

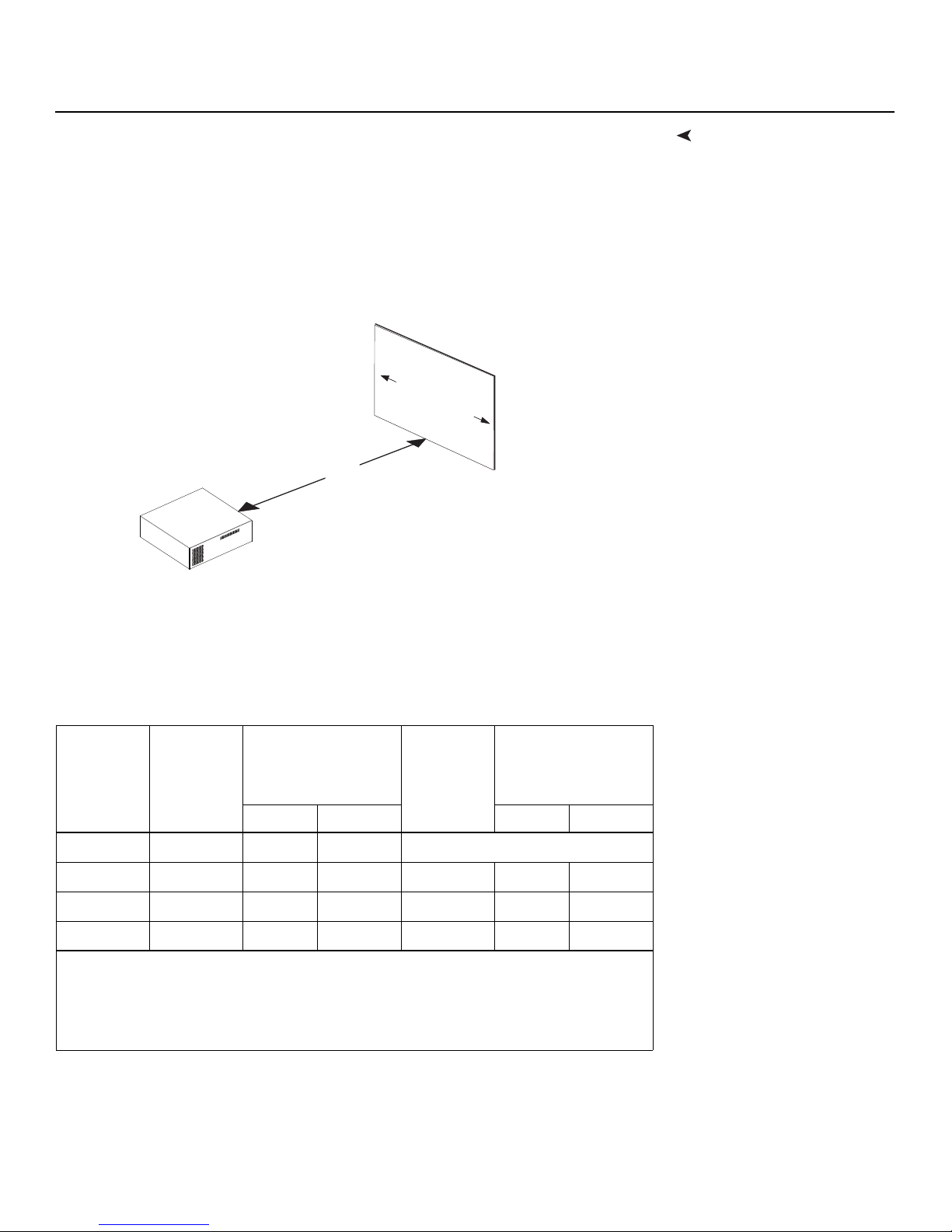

3-2. Estimating Throw Distance .........................................................................................21

3-3. Projector Placement ...................................................................................................22

3-4. Vertical Lens Shift (Example Only) ............................................................................... 22

3-5. Horizontal Lens Shift (Example Only)...........................................................................23

3-6. Folded Optics.............................................................................................................25

3-7. VX-6000d/CineWide with AutoScope Motor Assembly – Exploded View ....................27

3-8. VX-6000d with Ceiling Mount Adapters/Projector Stands ...........................................28

3-9. AutoScope Lens Motor Installation .............................................................................29

3-10. Connecting the VX-6000d to the DHD Controller......................................................32

3-11. HDMI Source Connections .......................................................................................33

3-12. Component Video Source Connections.................................................................... 34

3-13. RGBHV Source Connections....................................................................................35

3-14. SCART RGBS Source Connections..........................................................................36

3-15. S-Video and Composite Video Source Connections .................................................37

3-16. RS-232 Control System Connection.........................................................................38

3-17. 12-volt Trigger Output Connections (from DHD Controller) .......................................39

REL

3-18. 12-volt Trigger Output Connection (from Projector)...................................................40

3-19. External IR Receiver Connection...............................................................................41

3-20. Vertical and Horizontal Lens Shift Adjustments .........................................................44

3-21. VX-6000d Anamorphic Lens Mounting Assembly - Exploded View...........................45

3-22. Attaching the Anamorphic Lens to the Lens Adapter Ring ........................................46

4-1. VX-6000d OSD Menu Structure .................................................................................51

4-2. Typical PLUGE Pattern for Adjusting Brightness ......................................................... 56

4-3. Typical Gray Bar Pattern for Adjusting Contrast .......................................................... 57

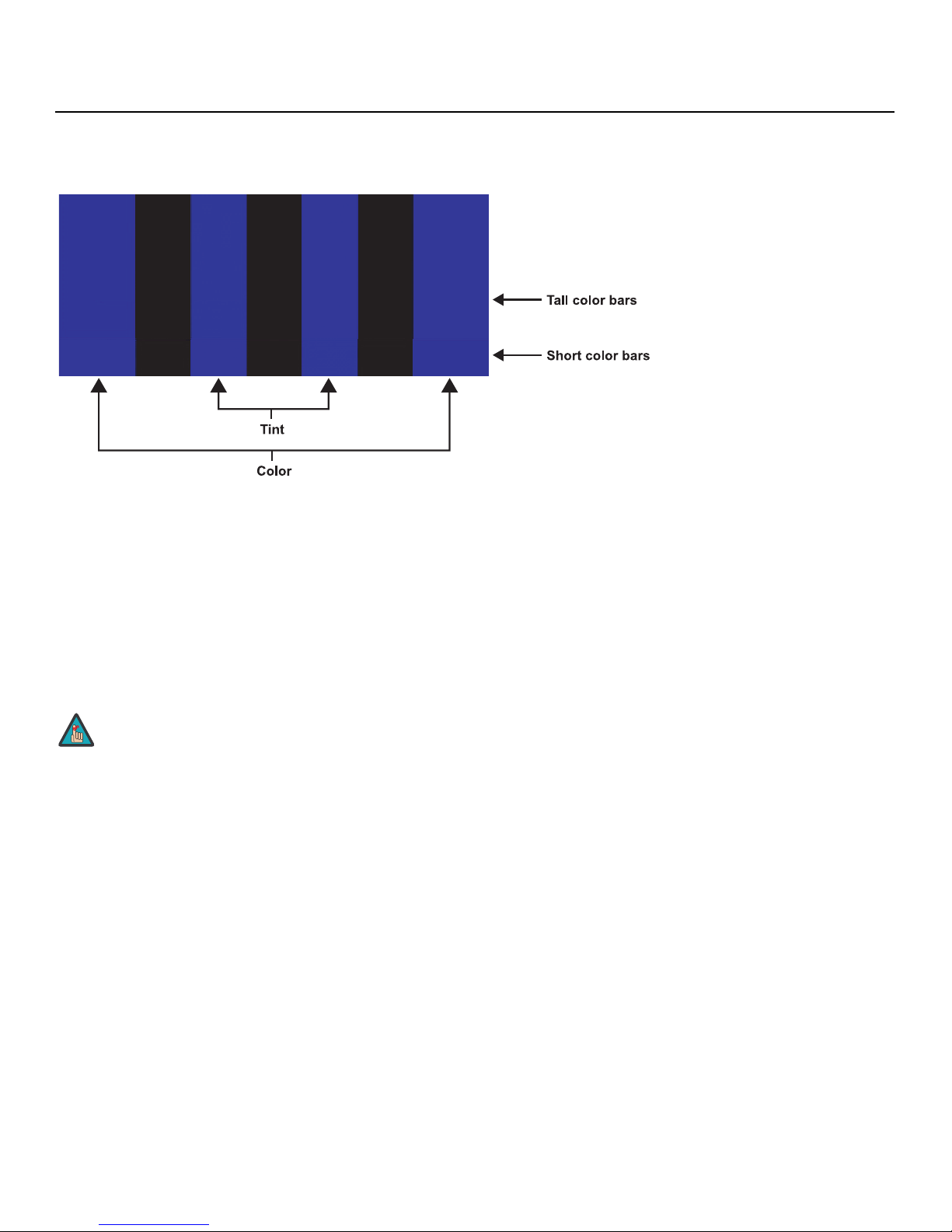

4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint................................58

INAR

Runco VX-6000d Installation/Operation Manual xv

List of Figures

4-5. Typical Test Pattern for Adjusting Sharpness..............................................................60

4-6. Overscan Modes ........................................................................................................62

4-7. CIE 1931 Chromaticity Diagram .................................................................................65

5-1. VX-6000d Lens Assembly Exploded View ..................................................................74

6-1. RC5 Message Format ................................................................................................ 85

7-1. VX-6000d/CineWide Dimensions (with Optional Ceiling Mount)...................................90

IMINAR

PRE

xvi Runco VX-6000d Installation/Operation Manual

1. Introduction

Note

This Owner’s Manual describes how to install, set up and operate the Runco Video Extreme™ VX-6000d DLP™ Projector and DHD Controller. Throughout this manual, the Runco VX-6000d DLP Projector and DHD Controller/Scaler/Processor are referred to collectively as the “VX-6000d.”

most out of the VX-6000d.

Runco has made every effort to ensure that this manual is accurate as of the date it was printed. However, because of ongoing product improvements and customer feedback, it may require updating from time to time. You can always find the latest version of this and other Runco product manuals on-line, at www.runco.com.

Runco welcomes your comments about this manual. Send them to techpub@runco.com.

Text Conventions: The following conventions are used in this manual, in order to clarify the information and instructions provided:

• Remote and built-in keypad button identifiers are set in upper-case bold type; for example, “Press EXIT to return to the previous menu.”

• Computer input (commands you type) and output (responses that appear on-screen) is shown in monospace (fixed-width) type; for example: “To change the aspect ratio to Letterbox, type LETTERBOX <Enter>.”

• All keys with functional names are initial-capped, set in bold type and enclosed in angle brackets. These keys are the following: <Enter>, <Spacebar>, <Control>, <Esc> and <Tab>.

• <Enter> indicates that you may press either the RETURN or ENTER key on your keyboard if it has both keys.

PRE

IMINAR

1.1 About This Manual

Target AudienceRunco has prepared this manual to help home theater installers and end users get the

If You Have Comments About This Manual...

Textual and Graphic Conventions

In addition to these conventions, underlining, boldface and/or italics are occasionally used to highlight important information, as in this example:

A carriage return must be used after each command or string.

Runco VX-6000d Installation/Operation Manual 1

Introduction

Note

Caution

WARNING

DANGER!

Graphic Conventions: These symbols appear in numerous places throughout the manual, to emphasize points that you must keep in mind to avoid problems with your equipment or injury:

TIPS highlight time-saving short cuts and helpful guidelines for using

Tip

certain features.

NOTES emphasize text with unusual importance or special significance. They also provide supplemental information.

CAUTIONS alert users that a given action or omitted action can degrade performance or cause a malfunction.

WARNINGS appear when a given action or omitted action can result in damage to the equipment, or possible non-fatal injury to the user.

DANGER appears when a given action can cause severe injury or death.

1.2

Using This Manual

Use the following table to locate the specific information you need in this manual.

IMINAR

Information about obtaining service iv

General information about the VX-6000d DLP Projector and DHD Controller/Scaler/Processor

Installation instructions 17

First-time configuration instructions 44

PRE

Advanced configuration instructions 64

Troubleshooting tips 76

Product specifications 87

If you need... ... Turn to page:

2 Runco VX-6000d Installation/Operation Manual

Introduction

Note

The Runco Video Extreme™ VX-6000d follows in the footsteps of its renowned predecessor, the VX-5000d by offering extraordinary performance, state of the art optics, impressive custom installation flexibility and today’s most advanced DLP technology with 1920 x 1080 SuperOnyx™ resolution.

Its performance is so extraordinary, in fact, that the VX-6000d has earned its place in our exclusive, Video Xtreme™ family of products — our top of the line and the world’s first video products to earn prestigious THX

The VX-6000d incorporates Runco’s exclusive Enhanced GEN 3™ engineering advancements to make more efficient use of optical light engine design. This results in greater light output and dramatically increases contrast ratio.

Among the advances Runco has developed are a sophisticated color balancing system and Reflectance Volume Regulation™ (RVR™), which provides the perfect balance of black and white levels. These engineering achievements are combined with lens choices featuring world-class optics and lens shift versatility. The resulting images are superb. In fact, the VX-6000d can easily surpass the black levels of film projectors!

The VX-6000d is supplied with Runco’s next-generation, Digital High Definition (DHD™) Controller/Scaler/Processor, featuring advanced Vivix III™ video processing and superb scaling. In addition, Runco’s multiple aspect ratio control includes its unique VirtualWide™ mode for viewing standard video formats in widescreen without loss of image quality. The DHD provides for a pure digital signal path from input to light engine.

The VX-6000d produces an impressive 1750 ANSI lumens of light output (CSMS light output of 17.3 to 29.8 ft-Lamberts).

For uncompromising widescreen reproduction of movies originally filmed in the “scope” (2.35:1) format, the VX-6000d can be equipped with Runco’s patent-pending CineWide™ technology, a combination of software, electronics and high-quality anamorphic optics. CineWide maintains constant vertical height on the screen just as in a movie theater. When a viewer transitions from 1.78:1 (16:9) program material to 2.35:1, the image simply gets wider while full height is maintained. Also available with the VX-6000d is CineWide with AutoScope™, an enhanced, remote-controlled motorized version of CineWide.

certification.

IMINAR

1.3 Description, Features and Benefits

CineWide requires the use of a 2.35:1 or similar aspect ratio superwide format screen.

Discrete IR and RS-232 control make custom installation seamless, while discrete source and aspect ratio selection accommodate any automation control system.

Runco VX-6000d Installation/Operation Manual 3

PRE

Introduction

➤

Key Features and Benefits The VX-6000d offers these key features and benefits:

• Runco-engineered, Enhanced GEN 3 Technology™ with RVR

• Native Resolution: 1920 x 1080 (16:9 Native Aspect Ratio)

• Two HDMI Inputs (on DHD Controller) with High-bandwidth Digital Content Protection (HDCP)

• HDTV Compatible

•CinOptx™ Telesto lens options for stunning sharpness and throw distance flexibility

Parts List Your VX-6000d is shipped with the following items. If any items are missing or damaged,

please contact your Runco dealer or Runco Customer Service at (800)

• VX-6000d DLP Projector and DHD Controller/Scaler/Processor

• Setup Remote Control Unit and four (4), AAA-size batteries (for adjusting lens zoom and focus)

• DHD Controller Remote Control Unit and two (2), AAA-size batteries

• AC Power Cords (2)

• RJ-11 Telephone Cable, 50 feet (15.24 meters)

• 3/16” Hex Wrench (for adjusting lens position)

• Rack-mount hardware for the DHD Controller

• Runco VX-6000d Installation/Operation Manual (this document)

• VX-6000d Quick Setup Guide

23-RUNCO.

Optional Accessories:

• CineWide™ technology (fixed, secondary anamorphic lens)

• CineWide™ with AutoScope™ system (secondary anamorphic lens and motorized mount)

• Ceiling mount kit (part number 956-0074-00)

IMINAR

PRE

4 Runco VX-6000d Installation/Operation Manual

2. Controls and Functions

Figure 2-1 shows the key VX-6000d components.

12 11

2.1 VX-6000d at a Glance

456789

IMINAR

PRE

713

Figure 2-1. VX-6000d Front/Top/Side/Bottom/Rear View

Runco VX-6000d Installation/Operation Manual 5

Controls and Functions

1. VERTICAL LENS SHIFT

Using a 3/16” hex wrench, turn this to move the lens up or down.

2. POWER LED

Lights red to indicate that the projector is in standby; lights blue to indicate normal operation.

3. TEMP LED

Lights red to indicate that the projector has overheated and shut down.

4. INTAKE VENTS

Cool air enters the projector through these vents. To prevent overheating, ensure that these vents are never blocked.

5. LAMP LED

Lights blue to indicate normal lamp operation; off when the lamp has failed or the projector is off.

6. EXHAUST VENTS

Hot air exits the projector through these vents. This air can be quite hot. Ensure that there are no heat-sensitive objects near them and that they are never blocked.

7. RUNCO LOGO / LENS CONTROL INFRARED (IR) RECEIVER

During initial installation, rotate the logo plate one quarter-turn (90 degrees) to uncover the lens control IR receiver. This enables you to use the motorized focus and zoom (image

size) controls.

When you have finished adjusting the zoom and focus, you can rotate the logo to match the projector orientation: inverted (ceiling-mounted) or upright. To rotate the logo, grip it at the sides, pull it away from the projector and turn it.

8. PRIMARY PROJECTION LENS

9. JEWELRY RETAINING SCREW

Loosen this screw to remove the front jewelry, should you ever need to replace the lens.

10. CABLE OPENING

Pass cables through this opening.

IMINAR

PRE

11. HORIZONTAL LENS SHIFT

12. LAMP COVER

13. REAR PANEL ACCESS DOOR

Using a 3/16” hex wrench, turn this to move the lens left or right.

Remove this cover to access the lamp compartment.

Open this door to access the rear-panel connectors and built-in keypad. To open the door, push on the left side of the lever and rotate it 90 degrees clockwise. Then, pull the lever toward you and down slightly.

12 3

6 Runco VX-6000d Installation/Operation Manual

Controls and Functions

Figure 2-2 shows the VX-6000d rear connector panel.

RS-232 OUT

ASPECT

RATIO

ASPECT

RS-232 OUT

STANDBY

RETURNENTERDOWNUPLEFTRIGHT

HDMI

AC IN 100-240V 50-60Hz

Figure 2-2. VX-6000d Rear Panel

1. POWER INPUT (100 to 240 VAC)

Connect the VX-6000d to power here.

2. HDMI INPUT

An HDCP-compliant, digital video input for connecting the HDMI output from the DHD Controller.

2 3456

RETURN ENTER DOWN UP LEFT RIGHT

TRIGGER

IMINAR

TRIGGERIRIR

2.2 VX-6000d Rear Panel

STANDBY

3. BUILT-IN KEYPAD

Used for maintenance and troubleshooting purposes only.

4. 12-VOLT (200 mA) TRIGGER OUTPUT (cylindrical, DC power supply-type jack)

Connection for a retractable screen, screen masking or other, 12-volt trigger-activated equipment. Outputs +12 volts/200 mA when the projector is turned on.

5. WIRED IR (3.5-mm, mini phono jack)

Not used. To use an external infrared receiver or wired remote control with this projector, connect it to the IR input on the DHD Controller (see

6. RS-232C (RJ-11 female connector)

Connect the Display Control (RS-232) output from the DHD Controller here, using the provided communication cable.

PRE

Figure 2-4).

Runco VX-6000d Installation/Operation Manual 7

Controls and Functions

VX-2000/6000

2.3 DHD Controller Front

Figure 2-3 shows the controls and indicators on the DHD Controller front panel; the paragraphs that follow describe them.

Panel

HDMI 1

16:9 1080i/60

Figure 2-3. DHD Controller Front Panel

1. RUNCO ICON

Lights blue to indicate that the controller is on or powering up.

2. IR SENSOR

Receives IR commands from the remote control.

3. VACUUM FLUORESCENT DISPLAY

Can be used instead of the On-Screen Display (OSD). Displays currently-selected menu or – if no menu is selected – the connected display device model, current source, input resolution and aspect ratio.

4. ON/STANDB Y B UTTON

PRE

Press once to toggle from standby mode to on mode. Press it again to return to standby mode. For a discrete on or off command, you can use the direct access buttons on the remote control.

5. LEFT BUTTON

Used to direct-select inputs or move the menu cursor left in the OSD. When no menu is present on-screen, the LEFT button toggles through the different sources, in this order: HDMI 2 - HDMI 1 - SCART - HD 2 - HD 1 - Component - S-Video 2 - S-Video 1 Composite

91011

standby

654 87

IMINAR

Video

m e n u

6. DOWN BUTTON

Use to direct-select aspect ratios or move the menu cursor down in the OSD. When no menu is present on-screen, this button toggles through the different aspect ratios, in this order: 16:9 - 4:3 - Letterbox - VirtualWide - Cinema - Virtual Cinema - Native

8 Runco VX-6000d Installation/Operation Manual

7. RIGHT BUTTON

5 6

414

1011

789

1213

Used to direct-select inputs or move the menu cursor right in the OSD. When no menus are present on-screen, the RIGHT button toggles through the different sources, in this order: Composite Video - S-Video 1 - S-Video 2 - Component - HD 1 - HD 2 - SCART HDMI

1 - HDMI 2

8. MENU BUTTON

Press the MENU button to bring up the main menu, or to exit the current menu and return to the previous one.

9. UP BUTTON

Use to direct-select aspect ratios or move the menu cursor up in the OSD. When no menus are present on-screen, the UP button toggles through aspect ratios in the following order: Native - Virtual Cinema - Cinema - VirtualWide - Letterbox - 4:3 - 16:9

10. ENTER BUTTON

When an item is highlighted on the OSD, the ENTER button selects the item.

11. STA N DBY LE D

Lights amber when the DHD Controller is in standby mode; otherwise it is off.

Controls and Functions

Figure 2-4 shows the rear connector panel on the DHD Controller.

IMINAR

PRE

Figure 2-4. DHD Controller Rear Panel

Connect this to the HDMI connector on the VX-6000d (see Figure 2-2).

2. Display Control

Connect this to the RS-232 port on the VX-6000d, using the provided communication cable.

3. TRIGGERS

Connection for up to three (3), 12-volt trigger-controlled devices. Output current is limited to 250 milliamperes (mA).

2.4 DHD Controller Rear Panel

Outputs1. HDMI Out

Runco VX-6000d Installation/Operation Manual 9

Controls and Functions

➤

Inputs 4. USB

A standard, USB Series “B” connection to a personal computer. (For future use.)

5. HDMI 1 / HDMI 2 (Digital)

HDCP-compliant digital video inputs for connecting an HDMI or DVI source.

6. HD1 / HD2 (5 x Analog BNCs)

Two inputs (five BNCs per input) for connecting standard-definition (SD = 480i/576i), enhanced-definition (ED = 480p/576p) or high-definition (HD = 720p/1080i/1080p) component video sources, or RGBHV sources such as personal computers.

7. Component / SCART (5 x RCA connectors)

SD/HD input for connecting SDTV, EDTV or HDTV component video sources, or RGBHV sources. Also provides RGB input for SCART RGBS sources.

8. Video

Standard, composite video input for connecting a VCR, camcorder or other composite video source. Also provides composite sync input for SCART RGBS sources.

9. S-Video 1 / S-Video 2

Two, standard S-Video inputs for connecting a DVD player, satellite receiver or Super VHS (S-VHS) VCR.

10. IR

Wired input from a Niles- or Xantech-compatible, infrared (IR) repeater system. It is a

3.5-mm, mini phono jack, wired as follows: Ring = No connection Tip = IR Input Sleeve = Ground

11. RS-232 / RS-485

A female, 9-pin D-sub connector for interfacing with a PC or automation/control system. (Currently, only RS-232 interface is supported.)

IMINAR

12. MAIN AC FUSE

This is the main AC input fuse (5mm x 20mm, 500 mA, 250V slow-blow).

13. MAIN POWER SWITCH

Disconnects or applies power to the DHD Controller.

PRE

14. POWER INPUT (100 to 240 VAC)

Connect the DHD Controller to power here.

10 Runco VX-6000d Installation/Operation Manual

Controls and Functions

(not available on some models)

(“CUST 2” on some models)

The VX-6000d ships with two remote control units:

• A standard Runco DHD Controller remote control unit; and

• A universal, “setup” remote control unit that can be used with other home theater equipment.

Only the setup remote control can be used to perform zoom and focus adjustments. For this reason, you must use it to complete the initial VX-6000d installation

and setup. After you have completed the installation, only the standard DHD Controller remote control is needed to access all projector and controller functions.

Figure 2-5 shows the standard DHD remote control, and the paragraphs that follow describe its functionality.

IMINAR

RETURN

EXIT

2.5 VX-6000d Remote Control Units

Standard DHD Remote Control

Figure 2-5. Standard DHD Remote Control

Runco VX-6000d Installation/Operation Manual 11

16 : 9

4 : 3

PRE

HDMI

CUST

HDMI

THX

SVC

Controls and Functions

Note

1. IR OUTPUT INDICATOR

Lights when a button is pressed to indicate that an IR signal is being transmitted.

2. ON / OFF

Press to turn the display on or off.

3. ENTER

Press to select a highlighted menu item or confirm a changed setting.

4. Cursor Buttons ( , , , )

Use these buttons to select items or settings, adjust settings or switch display patterns.

When no menu is present on-screen, the UP and DOWN buttons toggle through the available aspect ratios, in this order:

UP Button = Native - Virtual Cinema - Cinema - VirtualWide - Letterbox - 4:3 - 16:9 DOWN Button = 16:9 - 4:3 - Letterbox - VirtualWide - Cinema - Virtual Cinema -

Native

Likewise, the LEFT and RIGHT buttons toggle through the different source inputs, in this order: LEFT Button = HDMI 2 - HDMI 1 - SCART - HD 2 - HD 1 - Component - S-Video 2 S-Video 1 - Composite RIGHT Button = Composite Video - S-Video 1 - S-Video 2 - Component - HD 1 HD

5. RETURN / EXIT Press this button to exit the current menu and return to the previous one.

Video

2 - SCART - HDMI 1 - HDMI 2

IMINAR

6. LIGHT Press to illuminate the buttons.

7. MENU Press this button to access the OSD controls, or to exit the current menu and return

PRE

to the previous one.

8. VIDEO (1) Press to select Composite video input as the source or to enter the numeric character

9. COMP (Component) (2) Press to select Component/SCART video input as the source or to enter the numeric character “2.”

“1.”

Not all remote control units have this button. If yours does not, use the MENU button (see below) to exit the current menu.

12 Runco VX-6000d Installation/Operation Manual

10. Aspect Ratio Selection Buttons

Use the red buttons to select an aspect ratio directly or to enter numeric characters, as follows:

16:9 (3)

For viewing 16:9 DVDs or HDTV programs in their native aspect ratio.

4:3 (6)

Scales the input signal to fit 4:3 display mode in the center of the screen.

LETBOX (Letterbox) (9)

For viewing LaserDisc movies or non-anamorphic DVDs on a 16:9 screen.

V-WIDE (VirtualWide)

Enlarges a 4:3 image horizontally in a NON-linear fashion to fit 16:9 full screen display.

CINEMA For viewing 2.35:1 source material. The upper and lower portions are masked.

SVC

Selects the Virtual Cinema aspect ratio.

11. S-VID 1 (4) / S-VID 2 (5) (S-Video)

Press to select an S-Video input or to enter the numeric character “4” or “5.”

Controls and Functions

12. HD 1 (7) / HD 2 (8)

Press to select a HD (RGBHV or YPbPr component) input or to enter the numeric character “7” or “8.”

13. HDMI 1 / HDMI 2 (0)

Press to select a Digital Video input. Press HDMI 2 to enter the numeric character “0.”

14. Memory Preset Buttons:

ISF NIGHT

Press to recall settings for the current input from the “ISF Night” memory preset.

ISF DAY

Press to recall settings for the current input from the “ISF Day” memory preset.

CUST 1

Press to recall settings for the current input from the “Custom” memory preset.

THX (CUST 2)

Press to recall settings for the current input from the “THX” memory preset.

PRE

IMINAR

Runco VX-6000d Installation/Operation Manual 13

Controls and Functions

➤

GUIDE

EXIT

INFO

DIS

Setup Remote Control The setup remote control unit furnished with the VX-6000d gives you access to the

motorized lens controls (focus and zoom) and can be programmed to control other, non-Runco home theater components. (For detailed programming instructions, refer to the manual provided with the remote control.)

Figure 2-6 shows the setup remote control, and the paragraphs that follow describe its functionality.

SYSTEM

VX6K

IRIS

FCUS+ ZOOM+

FCUS- ZOOM-

IMINAR

GUIDE

PRE

Figure 2-6. TheaterMaster Remote Control for VX-6000d

14 Runco VX-6000d Installation/Operation Manual

Controls and Functions

1. IRIS Button

Press repeatedly to change the iris size (small or large).

2. Liquid Crystal Display

Displays currently-selected LCD Menu page.

3. FCUS+ Button

Press and hold to adjust the focus.

4. ZOOM+ Button

Press and hold to zoom in (enlarge the image).

5. FCUS- Button

Press and hold to adjust the focus.

6. ZOOM- Button

Press and hold to zoom out (make the image smaller).

7. MAIN Button

Displays the Main LCD Menu page.

Setup Remote Control Functions

IMINAR

PRE

Runco VX-6000d Installation/Operation Manual 15

Controls and Functions

Notes:

IMINAR

PRE

16 Runco VX-6000d Installation/Operation Manual

1. Remove the battery cover from the back of the remote control.

Setup Remote Standard DHD Remote

Note

2. Insert the batteries included with the remote control. Ensure that the polarities correctly match the

3. Replace the battery cover.

and markings inside the battery compartment.

3. Installation

3.1 Remote Control

Battery InstallationTo install batteries in the remote control:

IMINAR

PRE

1. Do not mix an old battery with a new one or different types of batteries.

2. If you will not use the remote control for a long time, remove the batteries to avoid damage from battery leakage.

Runco VX-6000d Installation/Operation Manual 17

Installation

➤

GUIDE

EXIT

INFO

DIS

PREV CH

+-+

Note

Notes on Remote Control

Operation

The remote control can be used to control the VX-6000d within the ranges shown in Figure 3-1.

standby

Approx. 100 feet

(30.5 meters)

SYSTEM

MAIN

VX6K

PREV CH

GUIDE

Approx.

30º

HDMI 1

16:9 1080i/60

Approx.

30º

RETURN

EXIT

16 : 9

4 : 3

HDMI

CUST

SVC

Approx.

40 feet

(12.2 meters)

Figure 3-1. Available Range of the Remote Control

• Do not drop the remote control or expose it to moisture or high temperature.

• The remote control may malfunction under a fluorescent lamp. If that occurs, move the DHD Controller away from the fluorescent lamp.

IMINAR

• Make sure that there is nothing obstructing the infrared beam between the remote control and the IR receiver on the DHD Controller or projector.

PRE

• If the effective range of the remote control decreases, or it stops working, replace the batteries with new ones.

• Ambient conditions may possibly impede the operation of the remote control. If this happens, point the remote control at the DHD Controller or projector and repeat the operation.

The signal from the remote control can be reflected by walls or other surfaces.

18 Runco VX-6000d Installation/Operation Manual

Installation

Note

Table 3-1 gives a quick overview of the VX-6000d installation process. The sections following this one provide detailed instructions.

Installation should be performed by a qualified custom video installation specialist.

Table 3-1. Installation Overview

Step Procedure

Choose a location for the projector 20

If installing a VX-6000d/CineWide or VX-6000d/CineWide with AutoScope: Install AutoScope

lens motor or fixed CineWide base plate

Mount the projector 31

Connect the DHD Controller to the projector 31

Connect signal sources to the DHD Controller 33

Connect external controller to RS-232 port (optional) 38

IMINAR

For Details, Refer to

page...

3.2 Quick Setup

Connect 12-volt trigger outputs to AutoScope lens motor

and/or other equipment (optional)

Connect projector, DHD Controller and lens motor (if

present) to AC power and power up

Primary Lens adjustments: projected image size (zoom),

position (shift) and focus

For rear-screen and/or ceiling-mount installations, select

the proper picture orientation

Install CineWide anamorphic lens (optional) 45

CineWide lens adjustments: position, pitch (angle),

geometry and focus

Projector calibration: adjust the following for each input; save settings when finished:

• Aspect ratio

• Brightness

• Contrast

• Color level

• Tint

• Input position

PRE

22, 43

53 through 67

Runco VX-6000d Installation/Operation Manual 19

Installation

➤

3.3 Installation Considerations

Installation Type Choose the installation type that best suits your needs: front or rear screen, floor mount or

Proper installation of your projector will ensure the quality of your display. Whether you are installing a projector temporarily or permanently, you should take the following into account to ensure your projector performs optimally.

inverted mount.

Table 3-2. Projector Installation Options

• Easy to set up

• Can be moved or changed quickly

• Easy to access

• Does not take up audience space

• Projector is unobtrusive

• Projector cannot be accidentally moved

• Projector is completely hidden

• Projector is easily accessed

• Usually good ambient light rejection

Table 3-2 compares these various installation methods.

Advantages Considerations

Front Screen, Floor Mount Installation

Front Screen, Inverted Mount (ceiling) Installation

Rear Screen, Floor Mount Installation

IMINAR

• Shares floor space with audience

• Installation is more permanent

• Projector access is more difficult

• Requires separate room

• Installation cost is usually higher

Rear Screen, Inverted Mount (ceiling) Installation

• Projector is completely hidden

• Usually good ambient light rejection

Rear Screen, Floor Mount with Mirror

PRE

Ambient Light In general, minimize or eliminate light sources directed at the screen. Contrast ratio in your

• Projector is completely hidden

• Usually good ambient light rejection

• Requires less space behind screen than other rear screen installations

images will be noticeably reduced if light directly strikes the screen, such as when a shaft of light from a window or floodlight falls on the image. Images may then appear washed out and less vibrant.

• Requires separate room

• Installation cost is usually higher

• Requires separate room

• Installation cost is usually higher

20 Runco VX-6000d Installation/Operation Manual

This is an important calculation in any projector installation as it determines whether or not you have enough room to install your projector with a desired screen size and if your image will be the right size for your screen.

You can quickly estimate the throw distance by taking the width of the screen and multiplying it by the lens throw ratio; see roughly how far back the projector should be positioned from the screen in order to project a focused image large enough to fill the screen.

Estimating Throw Distance

Throw Distance (TD) = Screen Width (w) x Lens Throw Ratio

Figure 3-2. The result of this calculation tells you

Installation

Throw DistanceThrow distance is the distance measured from the front of the projector to the screen.

Screen width (w)

Figure 3-2. Estimating Throw Distance

IMINAR

Table 3-3 lists the available lens options for the VX-6000d and their associated throw ratios.

Table 3-3. VX-6000d Lens Options and Throw Ratios

Throw Range in

Lens Option

(Note 2)

Throw Ratio with Primary

Lens Only

inches, with

96x54-inch (1.78:1)

PRE

Minimum Maximum Minimum Maximum

Screen

with Primary

Throw Ratio

Lens and

Anamorphic

Lens

Throw Range in

inches, with

126.9x54-inch (2.35:1) Screen

Telesto B

Telesto C

Telesto D

Telesto E

Notes:

1. Throw distance does not affect image quality, provided these ranges are taken into account.

2. Only the Telesto C, D and E lenses can be used with the optional CineWide (secondary anamorphic) lens. Doing so affects the throw distances as shown here.

Runco VX-6000d Installation/Operation Manual 21

1.39 - 1.66 133.44 159.36 Not Applicable (Note 2)

1.70 - 2.27 163.20 217.92 1.60 - 1.74 203.04 220.81

2.40 - 4.10 230.40 393.60 1.81 - 3.18 229.69 403.54

4.20 - 6.65 403.20 638.40 3.16 - 5.00 401.00 634.50

Installation

➤

Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular lens or projector is used in this example.

Vertical and Horizontal

Position

Proper placement of the projector relative to the screen will yield a rectangular, perfectly-centered image that completely fills the screen.

Ideally, the projector should be positioned perpendicular to the screen and in such a way that the lens center is aligned with either the top or bottom edge of the screen area, and centered horizontally. See

Ceiling Installation

Height

Lens Center

Floor Installation

Height

Lens Center

Figure 3-3.

Projection Distance

Lens Center

Screen

Lens Center

Ceiling

Vertical and Horizontal

Lens Shift

PRE

Figure 3-3. Projector Placement

If it is not possible to align the projector and screen as shown in Figure 3-3, you can use the lens shift controls to center the image on the screen. Lens shift is generally expressed as a percentage of the screen height or width, as shown in

IMINAR

Projection Distance

Floor

Base plate

to lens center =

approx. 5-6" (depending

on the amount of lens shift)

Figure 3-4 and Figure 3-5.

Screen Center

50% Height

Lens Shift

(0.5 x H)

100% Height

Lens Shift

(1.0 x H)

Figure 3-4. Vertical Lens Shift (Example Only)

22 Runco VX-6000d Installation/Operation Manual

100% Width Lens Shift

Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular lens or projector is used in this example.

(1.0 x W)

50% Width Lens Shift

(0.5 x W)

Installation

Screen Center

Screen Width (W)

Figure 3-5. Horizontal Lens Shift (Example Only)

PRE

IMINAR

Runco VX-6000d Installation/Operation Manual 23

Installation

Table 3-4 lists the lens shift limits for each available VX-6000d lens, as percentages and absolute measurements with a 100 x 56 inch (1.78:1) screen.

Table 3-4. Vertical and Horizontal Lens Shift Limits

Lens Option

Telesto B Telesto C Telesto D Telesto E

Lens Shift Limits, as Percentages of Screen Height or Width (Notes 1, 2 and 3)

Vertical

(Notes 2 and

Horizontal

(Note 2)

Lens Shift Limits in Inches, with a 100-by-56 inch (1.78:1) Screen

Vertical

Horizontal

Notes:

1. With no vertical or horizontal lens shift, the lens center and screen center are aligned with each other.

2. Vertical shift limits are percentages of the screen height. Horizontal shift limits are percentages of the screen width.

3. Vertical lens shift figures are for ceiling mount configurations. For floor installations (where the projector is upright), reverse the up/down vertical lens shift percentages.

Up 60% 61% 63% 38%

Down 67% 75% 60% 67%

Left 20% 25% 22% 38%

Right 20% 25% 22% 38%

Up 33.60 34.16 35.28 21.28

Down 37.52 42.00 33.60 37.52

Left 20.00 25.00 22.00 38.00

Right 20.00 25.00 22.00 38.00

IMINAR

PRE

24 Runco VX-6000d Installation/Operation Manual

used to fold the optical path, as shown in mirror must be accurately set. If you are considering this type of installation, contact your dealer for assistance.

Figure 3-6. The position of the projector and

Installation

Folded OpticsIn rear screen applications where space behind the projector is limited, a mirror may be

Screen

Mirror

Figure 3-6. Folded Optics

Due to its extraordinarily high level of video processing performance, the DHD Controller may distribute video signals with a perceptible level of audio latency. In order to easily solve this issue, Runco recommends using the DHD Controller with a high-quality audio receiver that has the ability to effectively synchronize audio and video signals.

Most mainstream audio receiver/switchers have the ability to synchronize the audio and video to the Advanced Television Systems Committee (ATSC) prescribed tolerances. According to the ATSC, the sound program should never lead the video program by more than 15 milliseconds, and should never lag behind the video program by more than 45 milliseconds.

IMINAR

Audio/Video Synchronization Issues

In addition, many A/V receivers introduce additional latency that needs to be compensated for during the installation. latency given different signal input timings.

Table 3-5. Possible Audio Latency for Various Input/Output Timings

Input Timing Possible Audio Latency (milliseconds)

480i 133

480p 83

576i 160

576p 100

720p/50 100

720p/60 83

1080i/25 160

1080i/30 133

1080p/24 125

1080p/50 80

1080p/60 67

PRE

Table 3-5 shows the amount of possible audio

Runco VX-6000d Installation/Operation Manual 25

Installation

➤

Note

Other Considerations Other considerations and tips that can help improve your installation:

• Keep the ambient temperature constant and below 35°C (95°F). Keep the projector away from heating or air conditioning vents. Changes in temperature may cause drifts in the projector circuitry, which may affect performance.

• Keep the projector away from devices that radiate electromagnetic energy such as motors and transformers. Common sources of these include slide projectors, speakers, power amplifiers and elevators.

3.4 Installing the Optional CineWide Lens Mount

If you are installing a standard (non-CineWide) VX-6000d, skip this step and proceed with Mounting the VX-6000d (page 31).

If you are installing a VX-6000d/CineWide, proceed with Installing the Fixed CineWide Base Plate (VX-6000d/CineWide) (page 30).

If you are installing a VX-6000d/CineWide with AutoScope, proceed as follows to install the AutoScope lens motor.

1. Do not install the CineWide lens yet, only the fixed CineWide base plate or AutoScope lens motor. You will install the CineWide lens after you install the projector and adjust the primary lens.

2. Some components shipped with your projector may differ slightly from what is shown in these instructions.

IMINAR

PRE

26 Runco VX-6000d Installation/Operation Manual

Installation

Screw, Phillips

Pan-Head,

10-32 x 1/2”

(10x)

AutoScope

Lens

Motor

CineWide with AutoScope Ceiling Mt. Adapter/ Projector Stand, Right

CineWide with AutoScope Ceiling Mt. Adapter/Projector Stand, Left

Figure 3-7 shows the VX-6000d/CineWide with AutoScope motor assembly.

Installing the AutoScope Lens Motor (VX-6000d/CineWide with AutoScope)

IMINAR

PRE

Figure 3-7. VX-6000d/CineWide with AutoScope Motor Assembly – Exploded View

Remove Projector Front Feet: Place the projector upside down on a blanket or other

soft surface. Loosen and remove the two front feet on the projector using a Phillips screwdriver.

Runco VX-6000d Installation/Operation Manual 27

Installation

Caution

Install Ceiling Mount Adapters/Projector Stands: For ceiling installations, the adapters bring the attachment points for the projector mounting rails (included with the projector ceiling mount kit) from the bottom of the projector up and around the AutoScope lens motor housing. For floor installations (where the projector is upright), the adapters allow the projector to lie flat on the mounting surface.

Using six (6) each of the supplied, 10-32 x 1/2” Pan-Head Phillips screws (item #2), attach the AutoScope Ceiling Mount Adapters/Projector Stands (items #3 and projector as shown in

Figure 3-8.

#4) to the

IMINAR

PRE

Figure 3-8. VX-6000d with Ceiling Mount Adapters/Projector Stands

DO NOT OVER-TIGHTEN THE SCREWS.

28 Runco VX-6000d Installation/Operation Manual

Install Lens Motor: Position the AutoScope Lens Motor (item #1) as shown in Figure 3-9. Line up the mounting holes on the lens motor housing with those on the underside of the projector. Secure the motor to the projector with the four remaining 10-32 x 1/2” Pan-Head Phillips screws (item

#2).

Installation

IMINAR

Figure 3-9. AutoScope Lens Motor Installation

After you have installed the AutoScope lens motor, proceed with Mounting the VX-6000d (page 31).

PRE

Runco VX-6000d Installation/Operation Manual 29

Installation

➤

Installing the Fixed

CineWide Base Plate

(VX-6000d/CineWide)

To install the fixed CineWide base plate on a VX-6000d/CineWide:

1. Place the projector upside down on a blanket or other soft surface.

2. Line up the mounting holes on the lens mount base plate with those on the bottom of the projector, directly below the primary lens.

3. Secure the base plate to the projector with the screws provided for this purpose.

IMINAR

PRE

30 Runco VX-6000d Installation/Operation Manual

Installation

Note

There are several methods for mounting the projector. Depending on your chosen installation, one method may be more suitable than another.

level surface such as a table or cart. Carts are useful when moving a projector during a presentation or from site to site. If possible, lock the wheels when it’s in position to prevent it from being moved during a presentation.

For fixed installations, and for those that want the projector out of sight or have a limited space for projector and audience, you can invert the VX-6000d and suspend it from the ceiling using a specially-designed ceiling mount fixture.

Use only the Runco-approved ceiling mount kit (part number 956-0074-00) designed for your projector. Install the mount kit according to the instructions provided with it.

The projector can also be inverted and placed in an enclosure above and behind the viewing area. Install four feet on the inside bottom surface of the enclosure on which the projector can rest. A variety of materials can be used for this purpose (for example, rubber crutch tips or turntable feet).

If the VX-6000d is ceiling-mounted and the screen is significantly lower than the projector, you can tilt the projector at a slight angle by adjusting the ceiling mount.

If you do this, you may need to shift the image using the OSD controls, to compensate. For detailed instructions, refer to

Using the On-Screen Menus on page 51.

IMINAR

3.5 Mounting the VX-6000d

Floor Mounting (Upright)In typical front and rear screen installations, the projector can be mounted to a secure and

Ceiling Mounting (Inverted)

Adjusting the Projection Angle

Proceed as follows to connect the DHD Controller to the VX-6000d, your video sources, external controller(s) – if present – and AC power.

When connecting your equipment:

• Turn off all equipment before making any connections.

• Use the correct signal cables for each source.

• Route all cables through the cable opening at the bottom rear of the projector (see Figure 2-1).

• Ensure that the cables are securely connected. Tighten the thumbscrews on connectors that have them.

The VX-6000d is designed to receive only video input signals directly from the companion DHD Controller/Scaler/Processor. Connect all signal sources to the appropriate inputs on the rear panel of the DHD Controller. The signal from the DHD Controller is then output to the VX-6000d projector through an HDMI cable.

Runco VX-6000d Installation/Operation Manual 31

PRE

You CANNOT connect signal sources directly to the VX-6000d. They MUST be routed through the DHD Controller for proper operation.

3.6 Connections to the VX-6000d and DHD Controller

Connecting the DHD Controller to the VX-6000d

Installation

Connect the HDMI and Display Control (RS-232) outputs of the DHD Controller to the corresponding inputs of the VX-6000d; see

Figure 3-10.

RATIO

STANDBY

ASPECT

STANDBY

RATIO

RS-232 OUT

AC IN 100-240V 50-60Hz

HDMI

AC IN 100-240V 50-60Hz

ENTERDOWNUPLEFTRIGHT

RETURN

ENTER DOWN UP LEFT RIGHT

RETURN

TRIGGERIRIR

TRIGGER

RS-232

Communication

Cable (provided)

HDMI OUT

IMINAR

Figure 3-10. Connecting the VX-6000d to the DHD Controller

Display Control (RS-232 OUT)

PRE

32 Runco VX-6000d Installation/Operation Manual

Installation

Note

Connect your video sources to the DHD Controller as shown and described in the sections that follow.

HDMI Source Connections: See Figure 3-11.

Use the HDMI inputs whenever possible. This ensures the highest video quality because the signal is carried in the digital domain throughout the entire signal path, from source component output into the projector.

You can also connect computers with DVI output to these inputs. Refer to input signals.

Supported Timings on page 91 for a list of compatible

Connecting Source Components to the DHD Controller

IMINAR

PRE

HDMI

AV OUT

HDMI sources (BD, DVD, DTV Set-Top Box etc.)

HDMI

AV OUT

Figure 3-11. HDMI Source Connections

Runco VX-6000d Installation/Operation Manual 33

Installation

Component Video Source Connections: Connect your component video sources to the HD1, HD2 and/or Component/SCART inputs as shown in

Figure 3-12.

RCA-to-BNC adapter

IMINAR

PRE

COMPONEN T VIDEO OUT

BD/DVD

Y PB PR

DTV-Set-Top Box

(DTV-STB)

Figure 3-12. Component Video Source Connections

34 Runco VX-6000d Installation/Operation Manual

RGBHV Source Connections: Connect personal computers and/or other RGB sources to the HD1, HD2 and/or Component/SCART inputs as shown in

Figure 3-13.

Installation

Computer

Green

Blue

Red

H-Sync

BNC-to-RCA adapter

PRE

RGB Camcorder

V-Sync

IMINAR

Green

H-Sync

Blue

V-Sync

Red

Figure 3-13. RGBHV Source Connections

Runco VX-6000d Installation/Operation Manual 35

Installation

SCART RGBS Source Connections: Connect the green, blue and red outputs from your SCART source to the Component/SCART input on the DHD Controller. Connect the sync output from your SCART source to the Video input on the DHD Controller. See Figure 3-14.

VCR

IMINAR

DVD/DTV STB

PRE

Gaming Console

Figure 3-14. SCART RGBS Source Connections

SCART-to-RGBS

adapter

Green

Blue

Red

Sync

Green

Blue

Red

Sync

36 Runco VX-6000d Installation/Operation Manual

Composite and S-Video Source Connections: See Figure 3-15.

VCR

Installation

Composite

Camcorder

Composite

S-Video

IMINAR

Gaming Console

S-Video

PRE

Figure 3-15. S-Video and Composite Video Source Connections

S-Video

Runco VX-6000d Installation/Operation Manual 37

Installation

➤

RS-232 Controller

Connection

Use a straight-through, 9-pin RS-232 cable to connect a PC or control/automation system (if present) to the RS-232 port on the DHD Controller; see

For more information about using this connection, refer to External Control on page 79.

Figure 3-16.

345

to Automation/

Control System

or PC

IMINAR

(none of the other pins are used)

2 Receive Data 3 Transmit Data 5 Ground

Figure 3-16. RS-232 Control System Connection

PRE

38 Runco VX-6000d Installation/Operation Manual

Installation

Tip = +12V

Sleeve = Ground

AutoScope Lens Motor

3.5-mm

mini plug

AC Input

Power

Switch

Retractable Screen or other 12-volt trigger-activated device

DHD Controller: If your VX-6000d is equipped with a CineWide with AutoScope system, connect the AutoScope lens motor to a 12-volt trigger output on the DHD Controller; see Figure 3-17.

Similarly connect other 12-volt trigger-activated equipment (such as retractable screens or screen masks) to the other trigger outputs.

For more information on using the DHD Controller triggers, refer to Triggers on page 70.

Connecting 12-volt Trigger Outputs to External Equipment

IMINAR

PRE

Figure 3-17. 12-volt Trigger Output Connections (from DHD Controller)

Runco VX-6000d Installation/Operation Manual 39

Installation

Projector: The projector is equipped with an additional 12-volt trigger output. This trigger activates when the projector is turned on. Connect it to your retractable screen or other, 12-volt trigger-activated equipment as shown in

(cylindrical,

DC power

supply-type

to retractable screen

or other, 12-volt trigger-activated

equipment

Sleeve = Ground

Figure 3-18.

plug)

Tip = +12V

Figure 3-18. 12-volt Trigger Output Connection (from Projector)

IMINAR

PRE

40 Runco VX-6000d Installation/Operation Manual

Installation

CUST

SVC

HDMI

EXIT

RETURN

16 : 9

4 : 3

(3.5-mm, mini

phono plug)

IR Sensor

IR Repeater

Remote Control

If infrared signals from the remote control cannot reach the DHD Controller due to excessive distance or obstructions such as walls or cabinet doors, you can connect an external IR receiver to the DHD Controller to extend the range of the remote control. See Figure 3-19.

Connecting an External IR Receiver to the DHD Controller

PRE

Figure 3-19. External IR Receiver Connection

IMINAR

Runco VX-6000d Installation/Operation Manual 41

Installation

➤

Caution

Connecting to AC Power Projector/DHD Controller: The VX-6000d system includes two (2) AC power cords

(one each for the projector and DHD Controller).

Plug the female end of one power cord into the AC receptacle on the rear of the VX-6000d (AC 100V ~ 240V). Then, connect the other end to your AC power source. Similarly connect the DHD Controller to a nearby AC outlet.

AutoScope Lens Motor: With AutoScope-equipped projectors, a third power cord is provided for the lens motor. Plug the female end of the AC power cord into the AC input on the rear of the lens motor assembly. Connect the other end to a 110 source.

The input voltage to the AutoScope lens motor must be between 100 and 120 VAC. Do not connect the AutoScope lens motor

to a 200-240

VAC power source!

VAC power

3.7

Turning on the Power

PRE

1. Turn on your source components.

2. Turn on the main power switch at the rear of the DHD Controller.

3. If this is an AutoScope-equipped projector, turn on the main power switch at the rear of the AutoScope lens motor. The lens motor power switch is located next to the AC input (see

4. Press the ON button on the remote control – or the ON/STANDBY ( ) button on the DHD Controller front panel – to turn on the system. The vacuum fluorescent display on the DHD Controller front panel briefly displays “Initializing System,” followed by “Starting VX-2000/6000.”

5. When the projector has completed its initialization and is ready for use, the fluorescent display on the DHD Controller indicates the active source, input resolution/frame rate and aspect ratio; for example:

Figure 3-17).

IMINAR

Current

Source

VX2000/6000 HDMI 1

16:9 1080i/60

Aspect Ratio

Input Resolution/Frame Rate

42 Runco VX-6000d Installation/Operation Manual

Installation

Lens zoom and focus are motorized adjustments that are adjustable using the Setup remote control ( screen for more accurate results. The remote control has a range of approximately 100

feet (30.5 meters) for long throw distances.

The IR receiver for the lens motor assembly is located on the projector behind the front Runco logo cover. Rotate the logo cover 90 degrees as shown to reveal the IR receiver opening.

Figure 2-6). This allows you to adjust the focus and image size while at the

the Setup remote control to display the Lens Control menu page.

2. Point the remote directly at the projector for maximum range.

3. To focus the projected image, press and hold the FCUS+ or FCUS- button.

the picture (zoom in), press and hold the ZOOM+ button.

To change the projected image position, use a 3/16” hex driver to shift the lens in the desired direction; see projector; the horizontal lens shift control is on the same side of the projector as the lamp compartment cover. (The tool will automatically center on top of the adjustment nut when inserted into the access hole.)

Figure 3-20. The vertical lens shift control is at the top of the

IMINAR

3.8 Primary Lens Adjustments

Focus1. With the IR receiver revealed on the front of the projector, press the VX6K button on

ZoomTo make the picture smaller (zoom out), press and hold the ZOOM- button. To enlarge

IrisPress the IRIS button repeatedly to select an optical aperture or iris size (large or small).

Vertical and Horizontal Lens Shift

PRE

Runco VX-6000d Installation/Operation Manual 43

Installation

Vertical

Horizontal

Note

3.9 Adjusting the Picture Orientation

Figure 3-20. Vertical and Horizontal Lens Shift Adjustments

IMINAR

By default, the VX-6000d is configured for a “floor/front” installation, in which the projector is installed upright and in front of the screen. If it is installed behind the screen and/or mounted on a ceiling, you must change the picture orientation. To do this:

1. On the DHD Controller remote control or front panel, press MENU.

PRE

2. Select Service from the Main Menu and enter the Service Menu passcode.

3. Select Display Device from the Service Menu.

4. Select Configure from the Display Device menu, then select Installation.

5. Select Orientation, then choose Floor/Rear, Ceiling/Front or Ceiling/Rear, to match the installation method.

You must enter a passcode to access the Service menu for the first time after turning on the system.

44 Runco VX-6000d Installation/Operation Manual

Installation

Note

If you are installing a CineWide-equipped projector, proceed as follows to install and adjust the anamorphic lens.

It is extremely important that the primary lens is properly adjusted before you install the anamorphic lens. Ensure that the image from the primary lens is perfectly centered on the screen.

The VX-6000d Anamorphic lens mount kit consists of everything shown in Figure 3-21. Some components shipped with your projector may differ slightly from what is shown in these instructions. If any items are missing or damaged, please contact your Runco dealer or Runco Customer Service at (800)

Lens Adapter Ring and

Mounting Screws (3x)

Anamorphic Lens

Set Screw

Pitch Adjustment

T-Nut (2x)

23-RUNCO.

IMINAR

Pitch Adjustment Yoke for Lens

Height/Y Adjustment

T-Screw and Washer (2x)

3.10 Installing and Adjusting the CineWide Anamorphic Lens

Attach Lens Mounting Assembly to Lens Motor Carriage Plate (CineWide with AutoScope) or Base Plate (fixed CineWide)

Pitch Adjustment

T-Screw and Washer (2x)

PRE

Anamorphic Lens

Yaw/X Adjustment

Lever (2x)

AutoScope Carriage Plate or

Fixed CineWide Base Plate

Figure 3-21. VX-6000d Anamorphic Lens Mounting Assembly - Exploded View

Runco VX-6000d Installation/Operation Manual 45

Holder

1/4-20 Hex Bolt (2x) and Washer (2x)

Installation

1. Remove the two Yaw/X Adjustment Levers (item #8) from the bottom of the Anamorphic Lens Holder (item #5).

2. Place the Anamorphic Lens Holder on top of the AutoScope Carriage Plate or fixed CineWide base plate (item #7). Position the bracket so that the long slot at the bottom of the lens holder is perpendicular to the corresponding slots on the carriage plate or base plate.

3. Secure the Anamorphic Lens Holder to the plate using the Hex Bolts/Washers (item

#6) and Yaw/X Adjustment Levers that you removed in Step 1.

4. Use the Lens Mounting Screws to attach the Lens Adapter Ring (item #1) to the Pitch Adjustment Yoke (item #2); see yoke.)

5. Use the Height/Y Adjustment T-Screws (item #3), Pitch Adjustment T-Screws (item

#4) and T-Nuts (item #9) to attach the Pitch Adjustment Yoke and Lens Adapter

Ring to the Anamorphic Lens Holder. The Yoke should be as close to the primary

lens as possible.

6. Attach the lens to the Lens Adapter Ring by threading it clockwise.

Lens threads into ring

Figure 3-22. (Use the round, threaded holes on the

IMINAR

PRE

Figure 3-22. Attaching the Anamorphic Lens to the Lens Adapter Ring

46 Runco VX-6000d Installation/Operation Manual

Installation

Note

Too Far Right

Too Far Left

Correct position

(Skip this step if you are installing a fixed CineWide anamorphic lens.)

CineWide with AutoScope maintains constant image height independent of the aspect ratio, while using the full display resolution of the projector. It accomplishes this by moving the anamorphic lens in front of the primary lens when widescreen material is being viewed. When the viewer transitions back to 16:9 or 4:3 source material, the anamorphic lens moves out of the light path.

To configure the lens motor trigger on the DHD Controller for proper AutoScope operation:

1. Project a 2.35:1 aspect ratio test pattern or other image on the screen.

2. On the DHD Controller remote control or front panel, press MENU.

3. Select Service from the Main Menu and enter the Service Menu passcode.

You must enter a passcode to access the Service menu for the first time after turning on the system.

4. Select Tri gg er s from the Service menu.

5. Assign the trigger output to which the lens motor is connected to the Cinema and Virtual Cinema aspect ratios. This enables the lens motor to move the anamorphic lens into position (in front of the primary lens) when either aspect ratio is selected.

6. Select the Cinema aspect ratio to move the anamorphic lens into position, if it isn’t already. To do this, press CINEMA on the DHD Controller remote control ( or press or repeatedly with no menus visible on-screen.

IMINAR

Figure 2-5),

Configure Lens Motor Trigger (CineWide with AutoScope)

Adjusting the Horizontal (X) Lens Position:

1. Project a white field on the screen.

2. Loosen the Yaw/X-Adjustment Levers underneath the lens.

3. Slowly move the anamorphic lens into place so that there are no shadows on either

side of the screen:

PRE

4. When the horizontal position is properly set, tighten the Yaw/X-Adjustment Levers to

secure the lens in place.

Adjust the Anamorphic Lens

Runco VX-6000d Installation/Operation Manual 47

Installation

Note

Adjusting the Height (Y): With the white field still on-screen, loosen the Height/Y anamorphic lens into place so that there are no shadows on the top or bottom of the screen:

Adjustment T-Screws on either side of the lens. Then, slowly move the

Too Low

Correct position

Too High

When the height is properly set, tighten the Height Adjustment T-Screws to secure the lens in place.

Pitch (Angle): Next, angle the lens to even out any top-to-bottom pincushion distortion. To do this, loosen the Pitch Adjustment T-Screws (directly below the Height/Y T-Screws) on either side of the lens to allow it to pivot freely. Then, adjust the anamorphic lens angle so that the projected image is rectangular:

IMINAR

PRE

Incorrect Lens Angle

The anamorphic lens will almost always be angled with respect to the projector; this is normal.

Adjustment

Correct Lens Angle

Once the proper lens angle has been set, firmly tighten the Pitch Adjustment T-Screws to secure the lens in place.

There may be some pincushion distortion even after the lens is properly adjusted, especially at shorter throw distances. If this is the case, Runco recommends that you slightly over-scan the image into the screen frame area to mask the distortion.

48 Runco VX-6000d Installation/Operation Manual

Adjusting the Yaw: Loosen the Yaw/X-Adjustment Levers to allow the lens to pivot freely

Wrong Position Correct Position

from side to side. Then, angle the lens to even out any left-right pincushion distortion:

Anamorphic Lens (Top View)

Installation

Correct Position

IMINAR

Wrong Position

Once the proper lens angle has been set, firmly tighten the Yaw/X-Adjustment Levers to secure the lens in place.

Adjusting the Geometry:

1. Input an anamorphic cross-hatch test pattern to the projector.

2. Unscrew the Anamorphic Lens just enough to allow it to rotate freely.

3. Grasp the lens by the center ring and rotate the lens until the image is properly anamorphic:

4. When the image geometry appears correct, tighten the Anamorphic Lens Set Screw (item #10) to secure the lens in place. (When viewed from the front, the rear opening on the anamorphic lens should appear as a tall, narrow oval.)

PRE

Runco VX-6000d Installation/Operation Manual 49

Installation

Focus: Finally, rotate the Focus Ring on the anamorphic lens to fine-tune the optical focus.

IMINAR

PRE

50 Runco VX-6000d Installation/Operation Manual

4. Operation

Input Source

Composite S-Video 1 S-Video 2 Component HD1 HD2 SCART HDMI 1 HDMI 2

Aspect Ratio

16:9 4:3 Letterbox VirtualWide Cinema Virtual Cinema Native


Brightness Contrast Color Tint Sharpness Noise Filter

Input Position

Left/Right Up/Down Width Height Overscan Overscan Mode

(Zoom/Crop) Phase

(RGB/Component/SCART signals only)

Tracking (RGB/Component/SCART signals only)

Memory Presets

Recall ISF Night Recall ISF Day Recall/Save Custom Recall/Save THX Reset Custom or THX to Factory

Default

Information

Signal System Field Service Manufacturing

Calibration

Display Color

Gain

-100, -99... 0 ... 99, 100 (Red, Green, Blue)

Offset Gamma -30, -29... 0 ... 29, 30

Lamp

Power (180W or 220W)

Color Temp.

Simple (5500K, 6500K, 7500K or

9300K) SatCo (BrilliantColor™) On/Off RVR 0 (fully open) or 1

Input Image

Brightness

-50, -49 ... 0 ... 49, 50

Contrast Color Tint Sharpness

Input Color

Gain -32, -31... 0 ... 31, 32

(HD 1, HD 2 and

Component inputs only)

Offset

Chroma Delay

0, 1, 2 ... 7

(S-Video 1, S-Video 2 and

Composite inputs only) Noise Filter 0, 1, 2 ... 63

Save ISF Night

Back / Confirm

Save ISF Day

Copy/Paste

Copy Settings Paste Settings

Output Shift

Left/Right

-50, -49 ... 0 ... 49, 50

Up/Down Width

-50, -49, 48 ... 0

Height

Splash Configure

Owner Name ISF Calibrated ISF Other Splash Timer 5, 6, 7 ... 15 ... 59, 60 Splash Enable On/Off

OSD Position Hor. / Ver. 0, 1, 2 ... 100

Note: Default settings appear in bold type.

To display the Main Menu, press the MENU button on the remote control (Figure 2-5) or DHD Controller front panel (Figure 2-3).

To select a menu item, use the and buttons on the remote control or DHD Controller front panel to highlight it. Then, to confirm your selection, press ENTER on the remote control or DHD Controller front panel.

The VX-6000d OSD menus are arranged hierarchically, as shown in Figure 4-1. Depending on the selected input source and signal characteristics, some menu options may not be available.

Figure 4-1. VX-6000d OSD Menu Structure

Runco VX-6000d Installation/Operation Manual 51

PRE

IMINAR

4.1 Using the On-Screen Menus

Operation

Service

Test Video

Color Bars 1 Color Bars 2 Focus Grey Bars

Input Names Rename/Restore

Remote Control

Remote Code 00, 01, 02 ... 17 ... 31 COMP Key Source Component or SCART

Display Device - Configure

Installation

Picture Orientation: Floor Front, Ceiling Front, Floor Rear or Ceiling Rear

Lamp Info. (read-only)

Serial Number, Hours

Diagnostics

White, Red, Green, Blue, Yellow, Cyan, Magenta

Altitude Auto / High

Color Space

Auto, REC601, REC709, RGB-PC or RGB-Video

(Not available on S-Video or Composite video inputs)

Triggers 1 / 2 / 3

Miscellaneous

Language

English, Français, Deutsch, Italiano. Español, Svenska, Traditional Chinese, Simplified Chinese, Português or

Russian OSD Timer 0 (no timeout) or 5, 6, 7 ... 15 ... 60 sec. OSD Messages On / Off Blank Screen Color

Red/Green/Blue = 0, 1, 2, 3 ... 255 Sidebar Color

Film Mode (SD sources only)

On / Off

CUE (Chroma Upsampling Error)

On / Off

Sync Threshold 0, 1, 2, 3, 4 ... 15

(HD 1, HD 2 and Component inputs

only)

HDMI EDID Extension HDMI 1 / HDMI 2 On / Off

Front Panel Brightness

Logo LED 0 (off), 1, 2 ... 31 Standby LED On / Off LCD 0 (off), 1, 2, 3 or 4

System Reset

Note: Default settings appear in bold type.

➤

IMINAR

Figure 4-1. VX-6000d OSD Menu Structure (continued)

Main Menu The Main Menu is the starting point for accessing all VX-6000d functions.

Runco Video

Input Source Aspect Ratio Picture Input Position Memory Presets Information Calibration Service

PRE

(You must enter a passcode to access the Calibration and Service menus.)

52 Runco VX-6000d Installation/Operation Manual

Operation

Note

Input SourceFrom the Main Menu, select Input Source to choose a video signal source.

The active source is indicated by an arrow (➡) to its left; in this example, Composite is the active source.

from the Main Menu and press ENTER. Select the appropriate aspect ratio for your screen size and the type of program material being viewed; refer to

The currently-selected aspect ratio is indicated by a “7” to its left; in this example, 16:9 is selected.

Note that some aspect ratios are unavailable and/or not useful with certain types of source material. The optimal setting depends on a number of factors, such as:

• The aspect ratio of the source material, as broadcast or encoded on the playback medium.

• The “display type” (16:9 or 4:3) and output resolution settings at the source component. Most modern DVD/BD players and set-top boxes have such controls.

• Viewer preference (original aspect ratio with “black bars,” or a full-screen presentation with some distortion or cropping).

IMINAR

Table 4-1.

Input Source

➡ Composite

S-Video 1 S-Video 2 Component HD1 HD2 SCART HDMI 1 HDMI 2

Aspect RatioTo change the aspect ratio (size and shape) of the projected image, select Aspect Ratio

Aspect Ratio

16:9

4:3



Letterbox



VirtualWide



Cinema



Virtual Cinema



Native



The aspect ratio selection is automatically saved for each input and resolution.

PRE

Runco VX-6000d Installation/Operation Manual 53

Operation

4:3 Image on

2.35:1 Screen

with VirtualWide

4:3 Image on

16:9 Screen

with VirtualWide

Table 4-1. Aspect Ratio Settings

Remote

Aspect Ratio

16:9 16:9 Select 16:9 to view 16:9 DVDs

Control

Button

16:9 Image on

16:9 Screen (Display)

4:3 Image, stretched to fill

16:9 Screen (Display)

Description

and HDTV programs in their native aspect ratio.

4:3 images are stretched horizontally to fit a 16:9 screen.

4:3 4:3 Standard 4:3 scales the input

IMINAR

Letterbox LBOX Letterbox mode scales (zooms

PRE

VirtualWide VWIDE VirtualWide scales a 4:3 image

4:3 Image on

16:9 Screen (Display)

4:3 Image on

16:9 Display

(Letterbox aspect ratio)

4:3 Image on

16:9 Screen (Display)

signal to fit in the center of the 16:9 screen. 4:3 is the aspect ratio used by computer monitors, standard television programming and most VHS video cassettes.

in on) a 4:3 image linearly (by the same amount on all sides) to fill a 16:9 display. Letterbox is best suited for viewing LaserDisc movies or non-anamorphic DVDs on a 16:9 screen.

NON-linearly (more on the sides than in the center) to fit a 16:9 screen.

On a 2.35:1 screen, the image is centered between black bars on either side.

54 Runco VX-6000d Installation/Operation Manual

Table 4-1. Aspect Ratio Settings (continued)

Remote

Aspect Ratio

Cinema CINEMA Select Cinema to view 2.35

Virtual Cinema SVC A 16:9 image is scaled

Control

Button

2.35:1 Image on 16:9 Screen

(Cinema aspect ratio / no CineWide)

2.35:1 Image on

2.35:1 Screen

Cinema aspect ratio / CineWide)

(

16:9 Image on

2.35:1 Screen

Description

source material in its native aspect ratio.

With a 16:9 screen and a non-CineWide projector (no anamorphic lens), the upper and lower portions of the screen are masked, but the geometry of the active image area is unchanged.

With a 2.35:1 screen and a CineWide-equipped projector, the DHD Controller scales the

2.35:1 image so that the active image area fills the 16:9 chip surface, eliminating the black bars. The secondary, anamorphic lens then restores the proper geometry to the

2.35:1 image.

IMINAR

NON-linearly (more on the sides than in the center) to fit a 2.35:1 screen.

Operation

Virtual Cinema is available only on CineWide-equipped projectors.

16:9 Image on

PRE

Native (none) Select Native to display the

2.35:1 Screen with Virtual Cinema

1080i HDTV Image

720p HDTV Image

source signal in its native resolution, centered in the display area with no re-sizing or overscan.

This means, for example, that 720p HDTV programs will display with unused pixels on all sides: 320 on the left and right sides and 180 above and below.

With SDTV and EDTV sources, the VX-6000d scales the image horizontally to achieve a 16:9 aspect ratio.

Runco VX-6000d Installation/Operation Manual 55

Operation

➤

Note

Brightness Contrast Color Tint Sharpness Noise Filter


Picture Use the controls in the Picture Menu to calibrate your VX-6000d for optimum picture

quality.

The VX-6000d has been designed to incorporate setup and calibration standards established by the Imaging Science Foundation (ISF). The ISF has developed carefully crafted, industry-recognized standards for optimal video performance and has implemented a training program for technicians and installers to use these standards to obtain optimal picture quality from Runco video display devices. Accordingly, Runco recommends that setup and calibration be performed by an ISF certified installation technician.

All signal types require separate processing. Therefore, you need to calibrate each DHD Controller input separately.

Although it may be possible to obtain satisfactory picture quality using the naked eye and regular program material, Runco recommends using an external test pattern source (Ovation Multimedia, Digital Video Essentials or AVIA test DVD or equivalent) for best results.

Connect your test pattern source to the input that you are calibrating and proceed as follows. Perform the adjustments in the order listed here.

Brightness: On your external test pattern source, select a PLUGE pattern. (PLUGE is an acronym for “Picture Line-Up Generation Equipment.”) pattern.

IMINAR

PRE

When you change a picture quality setting, save the change to a preset afterwards. Otherwise, the change will be lost when a different input is selected. (Picture quality settings are saved for each input separately.) For information about saving settings, refer to Memory Presets on page 63.

Figure 4-2 shows a typical PLUGE

Below Black

Figure 4-2. Typical PLUGE Pattern for Adjusting Brightness

bove Black

56 Runco VX-6000d Installation/Operation Manual

PLUGE patterns vary but generally consist of some combination of black, white and gray

Note

areas against a black background. The example above includes two vertical bars and four shaded boxes.

Select Brightness from the Picture menu and press ENTER. Adjust the brightness so that:

• The darkest black bars disappear into the background.

• The dark gray areas are barely visible.

• The lighter gray areas are clearly visible.

• The white areas are a comfortable level of true white.

• The image contains only black, gray and white (no color).

Contrast: On your external test pattern source, select a stepped, gray-bar pattern like the one shown in

Figure 4-3.

Operation

IMINAR

Figure 4-3. Typical Gray Bar Pattern for Adjusting Contrast

Select Contrast and press ENTER. Adjust the contrast to a point just below which the white rectangle starts to increase in size.

Brightness and contrast controls are interactive. A change to one may require a subtle change to the other in order to achieve the optimum setting.

PRE

Runco VX-6000d Installation/Operation Manual 57

Operation

Color Saturation: On your external test pattern source, select a color bar pattern like the one shown in

Figure 4-4.

gray

yellow

cyan

green

red

magenta

blue

Figure 4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint

1. Press the MENU button on the remote control or DHD Controller front panel.

2. Select Service from the Main Menu and press ENTER.

3. Enter the Service menu passcode.

4. Select Display Device from the Service menu and press ENTER.

5. Press ENTER again to select Configure.

6. Select Diagnostics and press ENTER.

7. Select Blue from the Diagnostics menu, then press ENTER to display only the blue color channel.

8. Press RETURN (or MENU) repeatedly to return to the Main Menu.

IMINAR

PRE

9. Select Picture from the Main Menu and press ENTER.

10.Select Color from the Picture menu and press ENTER.

58 Runco VX-6000d Installation/Operation Manual

11.Adjust the color saturation level until the outermost (gray and blue) color bars appear to

Note

be a single shade of blue:

Operation

gray

yellow

cyan

green

red

magenta

blue

Tint: Tint or “hue” is essentially the ratio of red to green in the color portion of the image. When tint is decreased, the image appears redder; when it is increased the image appears greener.

To adjust the tint, enable “blue only” display mode in the Diagnostics menu, as you would for adjusting color saturation (refer to the previous section, Color Saturation).

Select Tint from the Picture menu and press ENTER. Adjust the tint level until the cyan and magenta color bars (on either side of the green bar) appear to be a single shade of blue.

Like the brightness and contrast controls, the color and tint controls are interactive. A change to one may require a subtle change to the other in order to achieve the optimum setting.

IMINAR

PRE

Runco VX-6000d Installation/Operation Manual 59

Operation

Sharpness: “Sharpness” is the amount of high-frequency detail in the image. To adjust sharpness, select Sharpness from the Picture menu and press ENTER. On your external test pattern source, select a pattern like the one shown in looking for white edges around the transitions from black to gray and differently-sized lines in the “sweep” patterns at the top and bottom. Lower the sharpness setting to eliminate them.

Figure 4-5. Adjust as needed,

IMINAR

Figure 4-5. Typical Test Pattern for Adjusting Sharpness

Noise Filter: To apply noise filtering to the input signal, select Noise Filter from the Picture

menu. The Noise Filter is useful for clearing up noisy images from 480i video sources.

Use the left- or right-arrow buttons to select the desired amount of noise reduction, keeping in mind that higher settings (which reduce high frequencies) may also “soften” the

PRE

image.

60 Runco VX-6000d Installation/Operation Manual

position for the current source.

Note

The input position settings are automatically saved for each input and resolution.

Left/Right: Select Left/Right from the Input Position menu to shift the projected image horizontally. Press

Up/Down: Select Up/Down from the Input Position menu to shift the projected image vertically. Press

Width: Select Width from the Input Position menu to change the projected image width. Press

Height: Select Height from the Input Position menu to change the projected image height. Press

Overscan/Overscan Mode: Overscan pushes the outside edge of the active picture area of the video signal out beyond the edge of the display area.

to increase the width; press to decrease it.

to shift the image to the right; press to shift it to the left.

to shift the image upward; press to shift it downward.

to increase the height; press to decrease it.

Operation

Input PositionUse the controls in the Input Position Menu to fine-tune the aspect ratio and image

Input Position

Left/Right Up/Down Width Height Overscan Overscan Mode Phase Tracking

Some television programs are produced based on the assumption that older television sets may not display the outer edges of the broadcast picture area. Overscan effectively trims away these inactive, outer edges and enlarges the remaining portion of the image to fill the display area.

For HDTV, DVDs and other video sources, Overscan is generally not necessary or desirable.

This control defines the amount of overscan applied to the image. The range is from 0

to 20. There are two overscan modes:

•In Crop mode, each increment adds a mask at the top, bottom, left and right edges of the source image equal to 0.5% of the displayed horizontal resolution (1% total). A setting of 10, for example, crops the image 5% on all sides or 10% total.

•In Zoom mode, each increment adds a factor to the scaling of the source image so that the vertical and horizontal resolutions are 100% plus 1% increments of the size determined by the aspect ratio function. A setting of 10, for example, zooms in on the image 5% on all sides or 10% total.

Figure 4-6 illustrates the effect of each overscan mode setting.

PRE

IMINAR

Runco VX-6000d Installation/Operation Manual 61

Operation

No Overscan Crop Zoom

4:3

16:9

= Source Image Area = Mask (Crop) Area = Screen (16:9)

Figure 4-6. Overscan Modes

Phase (RGB, Component or SCART sources): This control adjusts the phase of the

pixel sampling clock relative to the incoming signal. Adjust the phase when an RGB, Component or SCART image still shows shimmer or “noise” after optimized.

IMINAR

Tip

For best results, use a good test pattern such as a smooth gray consisting of a clear pattern of black and white pixels, or a similar “half on, half off” graphic image. Adjust the slidebar until the image stabilizes and each pixel is clearly defined. You may notice that you can stabilize the image at more than one point. Use either setting in such cases.

PRE

Tracking (RGB, Component or SCART sources): Tracking determines the frequency of the pixel sampling clock, indicated by the number of incoming pixels per line, so that all pixels generated by a particular source are sampled.

Steady flickering or several soft vertical stripes or bands across the entire image indicates poor pixel tracking. Proper pixel tracking helps ensure that the image quality is consistent across the screen, that aspect ratio is maintained and that pixel phase (see above) can be optimized.

Tracking has been

Adjust the Phase after adjusting Tracking (see below).

62 Runco VX-6000d Installation/Operation Manual

recall at a later time. You can create up to four presets per input and display mode

Note

(resolution and frame rate).

The DHD Controller stores the following display modes in each memory preset:

• 480i

• 480p

• 576i

• 576p

• 720p/24 Hz

• 720p/25 Hz

• 720p/30 Hz

• 720p/50 Hz

• 720p/60 Hz

• 1080i/50 Hz

• 1080i/50 Hz (Australia)

• 1080i/60 Hz

• 1080p/24 Hz

• 1080p/25 Hz

• 1080p/30 Hz

• 1080p/50 Hz

• 1080p/60 Hz

IMINAR

Memory Presets For each input, the VX-6000d lets you save image quality settings as presets that you can

Memory Presets

ISF Night

➡

ISF Day Custom Save Reset THX Save Reset

Operation

Use the Memory Presets menu to recall saved image presets, or to save image settings in the “Custom” or “THX” memory location. The currently-selected preset is indicated by a “

➡” to its left; in the example shown here, ISF Night is selected.

You should save changes to any of the following settings to a preset; otherwise they will be lost when a new input source or resolution is selected:

• Brightness

•Contrast

• Color saturation

•Tint

• Sharpness

•Gamma

• Lamp Settings

• Color temperature and white balance

To select a memory preset, press or to highlight it and press ENTER.

To save the settings for the current input and display mode to the Custom or THX memory preset, select it, press

PRE

or to highlight Save and press ENTER.

To save the settings for the current input and display mode to the ISF

Night or ISF Day memory preset, select Save ISF Night or Save

ISF Day from the Calibration menu (refer to Save ISF Night/Save ISF Day on page 67).

Runco VX-6000d Installation/Operation Manual 63

Operation

➤

Signal

Input Source HDMI 1 Signal Format 1080p/60 Input Resolution 1920x1080 Vertical Freq 59.94 Hz Horizontal Freq 67.500 kHz Pixel Clock 148.500 MHz Color Space REC709 Sync Type Separate Memory Preset ISF Night

System

Model DHD3 Display Name VX-6000d Output Resolution 1920x1080 Serial Number 00000000 Boot Version 3.0 Firmware Version 3.4 Micro Version 3.3

➤

Note

Signal System Field Service Manufacturing

To reset the Custom or THX memory preset to its factory-default state, select it, press

or to highlight Reset and press ENTER.

Information Signal / System: Select Information from the Main Menu, then choose either Signal or

System to display information about the current input signal (resolution, frequency, type et

Information

cetera) and installed firmware versions, as well as other information that uniquely identifies your DHD Controller and display device.

Should you ever need to contact Runco Technical Support, this information will help them answer your questions or resolve product performance issues.

Field Service / Manufacturing: The Field Service and Manufacturing menus are password-protected and intended for use only by Runco service personnel and factory technicians.

Calibration Use the Calibration menu to perform advanced picture quality adjustments. This menu

should be used by ISF-certified technicians only.

Calibration

ISF Settings

Display Color Input Image Input Color Save ISF Night Save ISF Day Copy/Paste Output Shift Splash Configure OSD Position

PRE

To recall the ISF Night or ISF Day settings, select “ISF Night” or “ISF Day” from the Memory Presets menu (see page 63) or use the corresponding remote control buttons.

Display Color: Use the Display Color settings to adjust the color balance at the DHD Controller output. These settings are saved independently for each input and display mode.

•Gain: Use the Gain controls to correct color imbalances in the bright areas of the

•Offset: Use the Offset controls to correct color imbalances in the dark areas of the

IMINAR

You must enter a passcode to access the Calibration menu for the first time after turning on the system.

image. A good way to do this is to use a test pattern consisting mostly of solid white areas, such as an 80 IRE “window” pattern. If the white areas contain traces of red (Pr), green (Y) or blue (Pr), decrease the Gain for that color.

image. A good way to do this is to use a test pattern consisting mostly of dark gray areas, such as a 30 IRE “window” pattern. If the gray areas contain traces of red (Pr), green (Y) or blue (Pr), decrease the Offset for that color.

64 Runco VX-6000d Installation/Operation Manual

• Gamma: Select Gamma from the Display Color menu to choose a de-gamma curve.

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

2000

2222

2500

2857

3333

4000

5000

5714

6667

8000

10000

D50

D65

D93

Used correctly, the Gamma control can improve contrast while maintaining good details for blacks and whites. If excess ambient light washes out the image and it becomes difficult or impossible to see details in dark areas, lower the gamma setting to compensate. This improves contrast while maintaining good details for blacks. Conversely, if the image is washed out and unnatural, with excessive detail in black areas, increase the setting.

• Lamp: Select Lamp from the Display Color menu to adjust the projector lamp brightness.

• Power (180W or 220W): To supply a constant wattage to the lamp, select Power

from the Lamp menu to set the lamp power level. You can choose to run the lamp as bright as possible (220 watts; this is the default setting) or you can choose a lower setting (180 but decreases brightness.

• Color Temp.: Select Color Temp. from the Display Color menu to adjust the color temperature. Color temperature establishes the “color of gray” by adjusting the 75% white point to various color points.

What are “color points?” A “color point” is an x/y coordinate pair that defines a color’s location on the standard CIE chromaticity graph, shown in stands for “Commission Internationale de l’Éclairage” (International Commission on Illumination), the organization responsible for color measurement and management standards.)

watts). Generally, lower lamp output prolongs the life of the lamp,

Figure 4-7. (CIE

Operation

IMINAR

PRE

Figure 4-7. CIE 1931 Chromaticity Diagram

• Simple: Select Simple mode from the Color Temp. menu (with the VX-6000d, this is

the only choice) to choose one of four color temperature presets: 5500K, 6500K, 7500K and 9300K. The default setting, 6500K, is appropriate for most situations. Higher settings produce a “bluer” picture; lower ones impart a reddish hue to the image.

Runco VX-6000d Installation/Operation Manual 65

Operation

Note

Table 4-2 lists the x- and y-coordinates for each color temperature preset.

Table 4-2. Color Temperature Presets and Associated Color Points

Color Temperature Preset

5500K 0.332 0.348

6500K 0.313 0.329

7500K 0.299 0.315

9300K 0.284 0.298

Associated x/y Values

x y

• SatCo (BrilliantColor™): Select SatCo (BrilliantColor™) from the Display Color menu to enable (On) or disable (Off) BrilliantColor processing, which improves brightness in grays and secondary colors.

• RVR: Use the RVR control to increase or decrease the Reflectance Volume Regulation setting. RVR lets you control the aperture or iris size (the physical opening through the lens; similar to an “f-stop” on a camera). Doing so allows you to optimize brightness and contrast according to the amount of ambient light in the viewing area.

Use the lower setting (0 = fully open) for rooms with a lot of ambient light. Use the higher setting for more “theater-like” viewing conditions (little or no ambient light).

Input Image: The Input Image controls are functionally similar to those in the Picture menu (refer to page 56), but are accessible only by entering the Calibration menu passcode.

IMINAR

PRE

Input Color: The Input Color controls are similar to those in the Display Color menu (see above), but adjust the color balance of the incoming signal. These settings are also saved independently for each input and display mode.

•Gain/Offset (HD1, HD2 and Component/SCART inputs only): These controls operate similarly to those in the the Y, Pb and Pr signal components rather than the red, green and blue channels.

• Chroma Delay: use the Chroma Delay control to correct a mis-aligned image from a Composite or S-Video source. Chroma delay in an image causes color shifts to occur to the left of the vertical edge transitions, producing artificial shadows or a “halo” effect. If necessary, adjust this setting to eliminate them.

•Noise Filter: To apply noise filtering to the input signal, select Noise Filter from the Input Color menu. The Noise Filter is useful for clearing up noisy images from 480i video sources.

Use the left- or right-arrow buttons to select the desired amount of noise reduction, keeping in mind that higher settings (which reduce high frequencies) may also “soften” the image.

The Input Image settings establish the “zero point” for the Picture menu settings, whose values represent offsets from the Input Image settings. For example, if you set Brightness to 10 in this menu, setting Brightness to 10 in the Picture menu results in an actual setting value of 20 (10+10).

Display Color menu (described on page 64), but affect

66 Runco VX-6000d Installation/Operation Manual

Save ISF Night/Save ISF Day: Whenever you make a change to the ISF settings, you

Note

should always save it. Select do this.

Copy/Paste: You can copy and paste settings from one memory location to another. This gives you a convenient starting point for creating a new preset based on an existing one, to make the calibration process less time-consuming.

For example, you can use the Copy/Paste feature to:

• Apply settings from HDMI 1 to HDMI 2, or from HD1 to HD2.

• Calibrate an input for 720p source signals, then use those settings for 1080i sources.

• Duplicate ISF Night settings for a given source and signal format and save them in the Custom memory preset.

To use this feature, select Copy/Paste from the Calibration menu.

• Copy Settings: Select Copy Settings from the Copy/Paste menu to place the settings for the current input source, signal format (resolution and frame rate) and memory preset onto a “clipboard,” which is a temporary memory location. When you do, the message “Settings Copied” briefly appears on-screen. The re-appears, indicating the source of the copied settings.

Save ISF Night or Save ISF Day from the Calibration menu to

Copy/Paste menu then

Operation

Copy/Paste

Copy Settings Paste Settings

Copied From: Input Source HDMI 1 Signal Format 1080p/60 Memory Preset ISF Night

Copied settings are not retained after a power cycle.

• Paste Settings: To apply the settings on the clipboard to a different input source, signal format and/or memory preset, do any or all of the following:

• Switch to another DHD Controller input (for example, from HD1 to HD2).

• Change the output signal format at the source (for example, from 720p/60 to

1080i/60).

• Switch to another Memory Preset (for example, from ISF Night to Custom).

Then, select Paste Settings from the Copy/Paste menu. If you want to keep these new settings, you must save them! (Refer to Save ISF Night/Save ISF Day on page 67 or Memory Presets on page 63.)

Output Shift: The controls in the Output Shift menu are similar to those in the Input Position menu, except that they change the characteristics of the output signal. These settings are saved independently for each aspect ratio.

Splash Configure: Use the Splash Configure menu to control the appearance and behavior of the “splash” screen that appears on the display upon power-up.

• Owner Name/ISF Calibrated/ISF Other: You can have the VX-6000d display the owner’s name, your name, the phrase “ISF Calibrated” and/or any other string, up to 30 characters in length.

PRE

IMINAR

Use the up or down cursor button to select a character. Use the right and left cursor buttons to change the cursor position. Press MENU when you have finished entering text.

• Splash Timer: When you turn on the VX-6000d, it projects a welcome screen with the Runco and ISF logos, along with the personalized information you enter as described above. Select for which this screen appears. The range is from 5 to 60 seconds, in one-second increments. Press

Runco VX-6000d Installation/Operation Manual 67

Splash Timer from the Splash Configure menu to set the amount of time

or to set the timer, then press MENU.

Operation

➤

Note

Service

Test Video Input Names Remote Control Display Device Color Space Triggers Miscellaneous Sync Threshold HDMI EDID Extension Front Panel Brightness System Reset

• Splash Enable: When you have finished customizing the splash screen, select Splash Enable from the Splash Configure menu. Then, select On and press ENTER.

OSD Position: To adjust the position of the OSD, select OSD Position from the Calibration menu and press ENTER.

Press or to select “Hor.” or “Ver.” Then, press or to change the position.

Service Use the Service menu to access advanced display configuration settings. This menu

should be used by ISF-certified technicians only.

You must enter a passcode to access the Service menu for the first time after turning on the system.

Test Video: Select Test Video from the Service Menu to access the internal test patterns on the VX-6000d. Four patterns are available: Horizontal Ramp, Vertical Ramp, Color

Bars 1 (solid bars) and Color Bars 2 (SMPTE “checkerboard” pattern).

Press MENU to exit test pattern mode.

Input Names

C o m p o s i t e S - V i d e o 1 S - V i d e o 2 C o m p o n e n t H D 1 H D 2 S C A R T H D M I 1 H D M I 2

Input Names: You can give each DHD Controller input a descriptive name. For example, you may want to change the default input name to the type of source component

Restore

Composite S-Video 1 S-Video 2 Component HD 1 HD 2 SCART HDMI 1

PRE

HDMI 2

connected to it: “VCR,” “DVD,” “Laptop” et cetera. Input names can be up to 12 characters long.

To edit an input name, select Input Names from the Service menu. Press or to select an input and press ENTER. Use the or buttons to change a character; press

or to select a character to change. When you have finished editing the input name,

press ENTER or MENU.

To restore the default input name, press repeatedly to highlight that input name in the “Restore” column. Then, press ENTER.

IMINAR

68 Runco VX-6000d Installation/Operation Manual

Remote Control: Select Remote Control from the Service menu to change the following

Tip

EXIT

RETURN

settings related to remote control operation.

• Remote Code: Select Remote Code from the Remote Control menu to set the infrared (IR) code set to which the VX-6000d will respond. By default, it is set to 17. You can change this setting if either:

• Another device in the theater (a DVD player, for example) is responding to

commands from the VX-6000d remote control ( unpredictable or undesirable.

• You have multiple DHD Controllers and want to control them independently, as

opposed to broadcasting commands from a single remote to all of them. In this scenario, you can use multiple remotes programmed to use different IR codes. Or, you can use a single remote and change the IR code as needed to address a specific DHD Controller.

Figure 2-5) in ways that are

Use the DHD Controller front-panel keypad to change the IR code to which the controller will respond. Then, change the code sent by the remote to match as described below.

When you change a remote code on the VX-6000d, you must re-program the VX-6000d remote control to send that same code. To do this:

1. Press and hold the LIGHT button on the remote control for approximately three seconds, or until the LED on the remote lights solid red.

2. Enter a new two-digit code between 00 and 31 inclusive. Include a leading zero for single-digit codes; for example, enter 9 as “09.”

3. The LED turns off to confirm the code change. If you enter an invalid code, the LED flashes for three or four seconds. Try again, entering a valid code.

• COMP Key Source: Select COMP Key Source from the Remote Control menu to assign the COMP remote control button to either the Component or SCART input.

IMINAR

Operation

Display Device - Configure: The options in the Display Device - Configure menu allow you to change the picture orientation, perform lens adjustments or access other, display-device specific functions.

•Installation – Orientation: Select Installation from the Display Device - Configure menu, then select Orientation to change the picture orientation to suit the method of installation (Floor Front, Floor Rear, Ceiling Front or Ceiling Rear).

• Lamp Info.: Select Lamp Info. from the Display Device - Configure menu to obtain information about the currently-installed lamp: its serial number and number of hours in use.

• Diagnostics: Select Diagnostics from the Display Device - Configure menu, then select Red, Green, Blue, Yellow, Cyan or Magenta to display only that color channel (simulating a filter of that color). This can be useful for calibration or measurement purposes.

To restore the normal picture (all colors), select White.

Runco VX-6000d Installation/Operation Manual 69

PRE

Operation

• Altitude: Select Altitude from the Display Device - Configure menu to control the operation of the projector’s cooling fan.

In most cases, the default setting (Auto) will maintain the correct operating temperature. If the lamp frequently turns off due to overheating, or in certain high-altitude operating environments, you may need to change this setting to High.

Color Space: Select Color Space from the Service menu to choose the color space of the source signal for HDMI, RGB, and component connections.

• The default setting, Auto, functions as follows:

• HDMI: If the Auxiliary Video Information (AVI) infoframe contains color space and/or

range data, the VX-6000d uses that information. Otherwise, for RGB sources, the VX-6000d uses the RGB-Video color space. For component SDTV and EDTV resolutions, REC601 is used. For other component video resolutions, REC709 is used.

• RGB: If Hsync or Vsync signals are present, the VX-6000d uses the RGB-PC color

space. Otherwise, REC601 is used for SDTV and EDTV sources, and REC709 for all other sources.

• Component: For SDTV and EDTV resolutions, the VX-6000d uses the REC601

color space. For all other resolutions, REC709 is used.

In most cases, the Auto setting determines the correct color space to use. If it does not, you can force the VX-6000d to use a specific color space. Choose one of the following:

• REC709 sets the color space matrix to that defined in ITU-R BT.709.

• REC601 sets the color space matrix to that defined in ITU-R BT.601.

• RGB-PC uses RGB color space and sets black at 0,0,0 RGB and white at 255,255,255 RGB, assuming an 8-bit image.

• RGB-Video uses RGB color space and sets black at 16,16,16 RGB and white at 235,235,235, assuming an 8-bit image, to correspond to the luminance values defined in digital component standards.

Triggers: Select Triggers from the Service menu to configure the 12-volt trigger outputs. You can assign one or more trigger outputs to each aspect ratio. Those triggers are then activated by selecting that aspect ratio.

IMINAR

PRE

If you are using the VX-6000d with a projector is equipped with the Runco CineWide with AutoScope system, assign at least one trigger output (the same one to which the lens motor is connected) to the Cinema and Virtual Cinema aspect ratios.

70 Runco VX-6000d Installation/Operation Manual

Miscellaneous: Select Miscellaneous from the Service menu to set the following options:

• Language: Select Language from the Miscellaneous menu and press the up- or

down-arrows to select the OSD Language (English, Français, Deutsch, Italiano, Español, Svenska, Traditional Chinese, Simplified Chinese, Português or Russian).

• OSD Timer: Select OSD Timer from the Miscellaneous menu to set the OSD Timer, which controls how long the menus remain on-screen after selecting them. Select from 5 to 60 seconds, in one-second increments. Or, set the timer to 0 (disabled) if you want the menus to remain on-screen indefinitely.

• OSD Messages: When you select a new aspect ratio, input source or memory preset, the DHD Controller briefly displays an on-screen message confirming your new selection. To prevent the display of these messages, select Miscellaneous menu to and set it to Off.

• Blank Screen Color: Select Blank Screen Color from the Miscellaneous menu to select the color that appears when no incoming signal is present. The range is from 0 to 255 inclusive for each color component (red, green and blue).

• Sidebar Color: Select Sidebar Color from the Miscellaneous menu to change the color of the inactive image area. The range is from 0 to 255 inclusive for each color component (red, green and blue). The inactive image area is on either side of the active image area when using the 4:3 aspect ratio.

• Film Mode: Use Film Mode to smooth out moving images from interlaced, standard-definition (SD) sources. In most cases, the VX-6000d detects the proper “pull-down” rate and vertical frequency. However, if your source is jittery and/or tearing you may want to enable

• CUE (Chroma Upsampling Error) Correction: Some DVD players use MPEG decoders that do not correctly “upsample” the 4:2:0 format chroma information on the DVD to the 4:2:2 or 4:4:4 format required by the video encoder of the display device.

Film Mode to ensure stable processing for that source.

IMINAR

OSD Messages from the

This so-called “chroma bug” sometimes causes streaky or spiky horizontal lines running through the chroma channel. It is most noticeable in static, interlaced scenes and on diagonal edges (especially red ones). Set

CUE to On to correct this issue.

Operation

Sync Threshold: Select Sync Threshold to adjust the threshold at which negative pulses on the component video green/luma channel are interpreted to be sync pulses.

Sync Threshold adjustment is occasionally necessary when a DVD player or HDTV source signal drops “below black” (for example, during scenes with explosions or when subtitles are present) and causes the display device to temporarily lose sync. If the sync level from the source is persistently too low, the display device won’t sync with the source at all.

The range is from 0 (approximately 60 millivolts (mV)) to 15 (approximately 256 mV).

HDMI EDID Extension: Extended display identification data (EDID) is a data structure provided by a display device to describe its capabilities to a graphics card. It is what enables a modern personal computer to know what kind of monitor is connected.

Some modern display devices provide more information via EDID than others, in the form of “extensions.” Some computer graphics cards do recognize or properly interpret this extended EDID information.

Select HDMI EDID Extension from the Service menu to specify whether or not the EDID extensions from the display device are passed through to the sources connected to the HDMI

1 or HDMI 2 inputs. By default, the extensions are on. Change these settings only if

HDMI EDID incompatibility issues arise.

Runco VX-6000d Installation/Operation Manual 71

PRE

Operation

Logo LED

LCD

Standby LED

Caution

Front Panel Brightness: Select Front Panel Brightness from the Service menu to adjust the brightness of the front-panel LED and LCD status indicators.

• Logo LED: Select Logo LED from the Front Panel Brightness menu to adjust the brightness of the large, illuminated logo on the left side of the display. The range is from 0 (off) to 31.

• Standby LED: Select Standby LED from the Front Panel Brightness menu to change the behavior of the front-panel STANDBY indicator LED. When set to ON, the LED lights amber when the system is in standby mode; otherwise, it is off. When set to OFF, the LED is always off.

• LCD: Select LCD from the Front Panel Brightness menu to adjust the brightness of the front-panel LCD. The range is from 0 (off) to 4.

System Reset: To reset ALL controller settings (including image settings) back to their factory defaults, choose System Reset from the Service menu.

A confirmation message appears. Select Yes to continue with the reset or select No to cancel.

IMINAR

PRE

This action is not undoable. Proceed with caution! Before you perform a System Reset, save your “Custom” Memory Presets (

page 63) and ISF Day/Night Memory Presets (page 67).

72 Runco VX-6000d Installation/Operation Manual

5. Maintenance and Troubleshooting

REMOVE

THESE SCREWS

Lamp Mounting Screws

Note

The lamp should be replaced when it reaches the end of its life (typically 2000 hours), or sooner if a noticeable degradation in brightness occurs. Contact your Runco dealer to obtain a replacement lamp.

1. Turn off the projector and unplug the power cord. Allow the projector to cool down for approximately 45 minutes prior to removing the lamp assembly for replacement.

2. Loosen the two captive Lamp Cover screws on the side of the projector and remove the cover.

3. Remove the three Phillips round-head lamp assembly mounting screws. These are identified by arrows pointing to them on the lamp housing.

4. Grasp the lamp assembly handle and pull gently, removing the lamp module from the projector housing.

IMINAR

5.1 Lamp Replacement

5. Install the new lamp module. Secure it in place with the three screws that you removed in Step 3.

6. Replace the lamp cover and re-tighten the two Lamp Cover screws.

7. Re-connect the AC power cord to the projector.

8. Reset the Lamp Hour counter. To do this, press and hold the ENTER, DOWN and RIGHT buttons on the projector rear-panel keypad (see Then, press the ON button. When you do, “LAMP 0000H” appears on-screen to confirm the counter reset.

Runco VX-6000d Installation/Operation Manual 73

PRE

Always reset the Lamp Hour counter when you replace the lamp. Do this only if you have just installed a new lamp. This will ensure that number of hours logged on the lamp is accurate.

Figure 2-2) simultaneously.

Maintenance and Troubleshooting

Front of Lens

Motor Assembly Electrical Connector and Harness

Projector Front Jewelry

Motor Assembly

9/64” Hex Screw (6x)

for Mounting Lens

Note

5.2

Lens Replacement

Figure 5-1 shows the VX-6000d lens assembly.

IMINAR

Figure 5-1. VX-6000d Lens Assembly Exploded View

PRE

1. Remove the Projector Front Jewelry by loosening the captive #2 Phillips screw below the lens.

Only trained, authorized Runco dealers should attempt to remove or replace a lens. Please read this procedure carefully before doing so.

Lens replacement is normally performed at the Runco factory. Field replacement of lenses is generally only required if the projector is re-installed in a new location or the lens has been damaged.

74 Runco VX-6000d Installation/Operation Manual

2. Locate and unplug the Motor Assembly

Caution

Connector. Note the connector orientation for when you install the new lens.

3. Locate the six 9/64” Hex Mounting Screws (two each at 12 9

o'clock and 6 o'clock).

o'clock,

Maintenance and Troubleshooting

4. Remove the six Mounting Screws while supporting the Lens Assembly; Lens and Motor Assembly are now free.

5. Remove the Lens and Motor Assembly by pulling forward and to the left in order to clear the Projector chassis with the Motor Assembly.

6. Install New Lens Assembly: Repeat Steps 1 through 5 in reverse order.

PRE

IMINAR

Make sure to route the wire harness in its original position and away from the moving lens stages and Motor Assembly, to prevent unexpected disconnection or lens damage.

Runco VX-6000d Installation/Operation Manual 75

Maintenance and Troubleshooting

5.3

Troubleshooting Tips

Table 5-1 provides some general guidelines for troubleshooting problems you may encounter with the VX-6000d.

If you encounter an issue not described here or in Section 3 (refer to Installation Considerations on page 20), or if the suggested solutions fail to resolve the problem, please contact your Runco dealer or Runco Technical Support.

Table 5-1. Troubleshooting Chart

Symptom Possible Cause(s) Solution

The projector does not turn on after initial installation. The power LED on the front of the DHD Controller lights red after you press the power button.

The projector and DHD Controller are both on, but there is no picture and on-screen menus do not appear.

IMINAR

• The VX-6000d is not plugged in or the AC outlet is not active.

• The serial connection from the DHD Controller to the VX-6000d is incorrect.

•The remote control batteries have run out.

• Faulty or incorrect video connection between the DHD Controller and the VX-6000d.

• Ensure that the VX-6000d is plugged in and that the AC outlet is active.

• Ensure that the Display Control (RS-232) output from the DHD Controller is properly connected to the RS-232 port on the VX-6000d (see 3-10).

• Replace the batteries.

• Ensure that the HDMI output from the DHD Controller is properly connected to the HDMI input on the VX-6000d

Figure 3-10).

(see

Figure

The projector and DHD Controller are both on and menus appear on-screen, but there is no picture.

PRE

A projected image from a DVD is split or otherwise scrambled.

Image is too bright and/or lacks definition in the bright areas of the image.

Image appears “washed out” and/or dark areas appear too bright.

Colors in the image are swapped (for example, reds appear blue or vice versa) on one or more sources.

• Incorrect source selection.

• Source component is not turned on.

• Source component is connected incorrectly or not at all.

• DVD player is connected to the Component input and set to progressive scan mode.

• Contrast is set too high. • Lower the contrast setting.

• Brightness is set too high. • Lower the brightness

• The Red/Pr, Green/Y or Blue/Pb outputs from the source are connected to the wrong inputs on the DHD Controller.

• Select the correct source.

• Turn on the source.

• Check video connections to source component.

• Turn off progressive scan on the DVD player. Or, connect the DVD player to the HD1 or HD2 input.

setting.

• Ensure that the source outputs are connected to the correct DHD Controller input.

76 Runco VX-6000d Installation/Operation Manual

Table 5-1. Troubleshooting Chart (continued)

Symptom Possible Cause(s) Solution

Maintenance and Troubleshooting

Image geometry is incorrect. • Incorrect aspect ratio

The projected image is trapezoidal in shape.

The projector will not turn back on after it was powered down, or the image disappears during operation.

selection.

• Image height may need adjusting (VX-6000d/CineWide only).

• The projector is not perpendicular to the screen.

• The projector will not turn on for two minutes after power-down, to protect the lamp.

• The lamp has failed or reached its usage limit of 2000 hours.

• Select the aspect ratio that best matches the source image and screen size (refer to

• Adjust displayed image height (refer to Output Shift on page 67).

• Adjust the projection angle.

• Wait two minutes until the LED at the front of the DHD Controller turns red.

• Replace the lamp.

Table 4-1).

IMINAR

PRE

Runco VX-6000d Installation/Operation Manual 77

Maintenance and Troubleshooting

Notes:

IMINAR

PRE

78 Runco VX-6000d Installation/Operation Manual

6. External Control

Note

In addition to using the DHD Controller front-panel keypad or remote control unit, there are two methods of controlling the VX-6000d and DHD Controller externally:

• Using a serial (RS-232) link to send ASCII commands and receive responses to those commands.

• Using discrete infrared (IR) codes to program a third-party remote control unit.

The following sections describe both of these methods.

The DHD Controller uses a simple text-based control protocol to take requests from control devices and to provide responses to such devices. This section describes how to send control messages over a serial link between the DHD Controller and an automation/control system or a PC running terminal emulation software.

To interface the DHD Controller with a home theater automation/control system or a PC running terminal emulation software, connect it to your control system or PC as shown in Figure 3-16.

Configure the RS-232 controller or PC serial port as follows: no parity, 8 data bits, 1 stop bit and no flow control. Set the baud rate to 19200, to match that of the DHD Controller RS-232 port.

IMINAR

• Commands are not case-sensitive.

• For a single command that takes no parameters, type the command followed by a carriage return; for example, to set the aspect ratio to Letterbox, type

LETTERBOX

• For a single command that takes a parameter, type the command, a space or a comma and the desired value followed by a carriage return; for example, to set the brightness to -10, type BRIGHTNESS

BRIGHTNESS,-10

• You can also send a string of multiple commands on a single line, separated by commas. For example, COMPOSITE,BRIGHTNESS the Composite video input, sets the brightness to 50 and sets the aspect ratio to 16:9. Command strings can be up to 255 characters long.

<Enter>.

PRE

-10 <Enter> or

<Enter>.

50,16:9<Enter> switches to

6.1 Serial Communications

RS-232 Connection and Port Configuration

Serial Command SyntaxSerial commands to the DHD Controller take the following form:

Avoid combining the ON or POWER 1 commands with other commands on a single line. After sending ON or POWER 1, allow at least five (5) seconds for the DHD ISF splash screen (refer to seconds for the DHD Controller to power up.

Once it does, it will accept and properly execute multiple serial commands.

Runco VX-6000d Installation/Operation Manual 79

Controller to power up. If you have enabled the

Splash Configure on page 67), allow 15

External Control

Table 6-1 lists the RS-232 command set. The “Parameter (min/max)” column shows the valid parameter ranges, or “NA” for commands that take no parameters.

When you enter a valid command, the DHD Controller executes it and acknowledges it with a plus sign on the command line (+ >). When you enter an invalid command – one that is misspelled or followed by values outside the valid range for that command – the DHD Controller ignores it and returns a minus sign (- >).

Table 6-1. Serial Commands

Command

OFF NA NA Turns display off

ON NA NA Turns display on

POWER 0/1 NA Turns display on and off

POWER? NA NA Returns power status

COMPONENT NA YES Selects the Component input

COMPOSITE NA YES Selects the Composite video input

HDMI1 NA YES Selects the HDMI 1 input

HDMI2 NA YES Selects the HDMI 2 input

HD1 NA YES Selects the RGB HD 1 input

HD2 NA YES Selects the RGB HD 2 input

INPUT? NA NA Returns active input

SCART NA YES Selects the SCART input

IMINAR

Parameter

(min/max)

Power On/Off Commands

Input Selection Commands

Value

Stored?

Description

PRE

SVIDEO1 NA YES Selects the S-Video 1 input

SVIDEO2 NA YES Selects the S-Video 2 input

80 Runco VX-6000d Installation/Operation Manual

Table 6-1. Serial Commands (continued)

External Control

Command

16:9 NA YES Selects the 16:9 aspect ratio

4:3 NA YES Selects the 4:3 aspect ratio

ASPECT? NA NA Returns current aspect ratio

CINEMA NA YES Selects the Cinema aspect ratio

LETTERBOX NA YES Selects the Letterbox aspect ratio

NATIVE NA YES Selects the Native aspect ratio

VIRTUALWIDE NA YES Selects the VirtualWide aspect ratio

VIRTUALCINEMA NA YES Selects the Virtual Cinema aspect ratio

BRIGHTNESS -50/50 YES Sets a value for brightness

BRIGHTNESS? NA NA Returns brightness setting value

CHROMADELAY -7/7 YES Sets a value for input color chroma delay

CHROMADELAY? NA NA Returns input color chroma delay setting

COLOR -50/50 YES Sets a value for color

COLOR? NA NA Returns color setting value

Parameter (min/max)

Aspect Ratio Commands

Picture Adjust Commands

Value

Stored?

Description

IMINAR

CONTRAST -50/50 YES Sets a value for contrast

CONTRAST? NA NA Returns contrast setting value

FILMMODE 0/1 YES Sets Film Mode off (0) or on (1)

FILMMODE? NA NA Returns Film Mode setting

FILTER 0/10 YES Sets a value for input color noise filter

FILTER? NA NA Returns input color noise filter setting

PHASE 0/31 YES Adjusts phase

PHASE? NA NA Returns phase setting value

SHARPNESS -50/50 YES Sets a value for sharpness

SHARPNESS? NA NA Returns sharpness setting value

TINT -50/50 YES Sets a value for tint

TINT? NA NA Returns tint setting value

PRE

(0 = off; 1 = on)

Runco VX-6000d Installation/Operation Manual 81

External Control

Table 6-1. Serial Commands (continued)

Command

CUSTOM1 NA YES Loads “Custom” image preset

CUSTOM2 NA YES Loads “THX” (“Custom 2”) image preset

DAY NA YES Loads “ISF Day” image preset

NIGHT NA YES Loads “ISF Night” image preset

PRESET? NA NA Returns currently-selected preset

IHEIGHT 0/20 YES Sets the value for input height

IHEIGHT? NA NA Returns input height value

IHPOS -50/50 YES Sets a value for horizontal input position

IHPOS? NA NA Returns input horizontal position value

IVPOS -50/50 YES Sets a value for vertical input position

IVPOS? NA NA Returns input vertical position value

IWIDTH 0/50 YES Sets the value for input width

IMINAR

Parameter

(min/max)

Image Preset Commands

Input Position Commands

Value

Stored?

Description

(ISF Day, ISF Night, Custom or THX)

IWIDTH? NA NA Returns input horizontal width value

OVERSCAN 0/20 YES Sets the overscan percentage

OVERSCAN? NA NA Returns overscan percentage

OVERSCANMODE 0/1 YES Sets the overscan mode (0=zoom;

PRE

OVERSCANMODE? NA NA Returns the overscan mode (0=zoom;

OHEIGHT -50/50 YES Sets the value for output height

OHEIGHT? NA NA Returns output height value

OHPOS -50/50 YES Sets the value for output horizontal posi-

OHPOS? NA NA Returns output horizontal position value

OVPOS -50/50 YES Sets the value for output vertical position

OVPOS? NA NA Returns output vertical position value

OWIDTH -50/50 YES Sets the value for output width

OWIDTH? NA NA Returns output horizontal width value

1=crop)

Output Shift Commands

tion

82 Runco VX-6000d Installation/Operation Manual

Table 6-1. Serial Commands (continued)

External Control

Command

DISPLAY? NA NA Returns display device input source

INRES? NA NA Returns input resolution

MODEL? NA NA Returns product model name

OUTRES? NA NA Returns output resolution

SERNUM? NA NA Returns DHD Controller serial number

SWVER? NA NA Returns software version number

SYSSTATE? 0/4 NA Returns current system state

TRIGGER 1/3 YES Assigns trigger to currently-selected

The following serial commands are meant to emulate buttons on the remote control or DHD Controller front panel. Each button has its own serial command, so effectively it is as if you were using the IR remote only you’ll be doing so via serial commands. These commands provide active OSD responses just like the IR remote.

Parameter (min/max)

Miscellaneous Commands

Value

Stored?

Description

value, as follows: 1 = Auto 32 = VX-6000d

0 = Off 1 = Initializing 2 = On 3 = Powering Down 4 = Error

aspect ratio

IMINAR

DOWN NA NA Down-Arrow ( ) key

ENTER NA NA ENTER key

EXIT NA NA EXIT (RETURN) key

LEFT NA NA Left-Arrow ( ) key

MENU NA NA MENU

RIGHT NA NA Right-Arrow ( ) key

UP NA NA Up-Arrow ( ) key

Runco VX-6000d Installation/Operation Manual 83

PRE

External Control

➤

6.2

Using Discrete IR Codes

IR Command Protocol The IR control codes have the following characteristics:

The DHD Controller accepts commands in the form of IR signals that conform to the Phillips RC5 protocol. Each DHD Controller remote control button has an RC5 control code associated with it.

You can use these codes to program a third-party, “universal” remote control unit to work with the DHD Controller. These third-party products usually come with a computer software application for this purpose. For more information, consult the documentation provided with the remote control unit.

• Each code consists of 14 bits:

• Two (2) start bits (always 1);

•A toggle bit. This bit is inverted every time a key is released and pressed again. This allows the DHD Controller to distinguish between a button that remains down and one that is pressed repeatedly.

• Five (5) address bits. The default address is 17 (binary 10001). To change it, select Remote Control from the Service menu and follow the steps given on page 69.

• Six (6) data bits.

• The carrier frequency is 36 kHz, with the modulated pulses having a 25% duty cycle.

• Commands are sent at a maximum rate of 9 Hz.

For example, here is the RC5 control code for the ON button on the DHD Controller remote control unit (assuming the default address is used):

IMINAR

Hex 3 4 4 1

Binary 1 1 0 1 0 0 0 1 0 0 0 0 0 1

Hex 3 C 4 1

PRE

Binary 1 1 1 1 0 0 0 1 0 0 0 0 0 1

Function

Start

Bits

Toggle

Bit

With Toggle Bit = 0

With Toggle Bit = 1

Address Command

84 Runco VX-6000d Installation/Operation Manual
