RuggON VM-521 User Manual
Hardware Installation

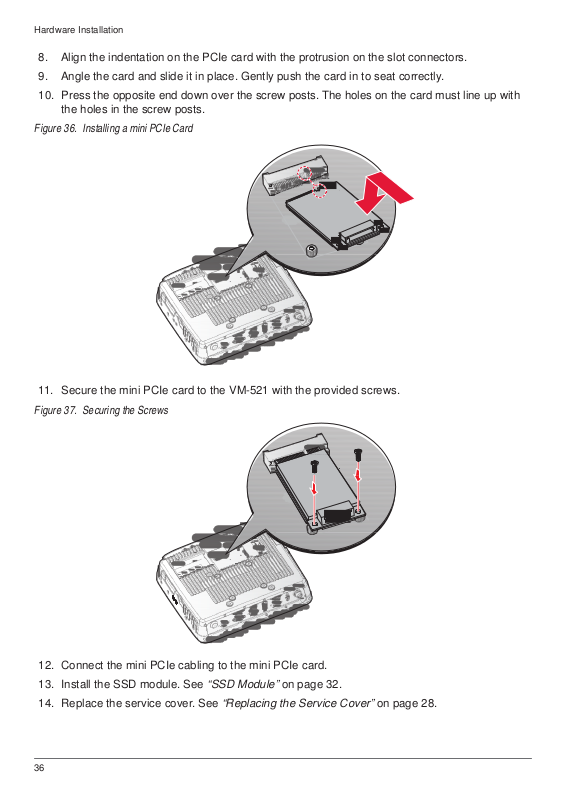

8. Align the indentation on the PCIe card with the protrusion on the slot connectors.
9. Angle the card and slide it in place. Gently push the card in to seat correctly.
10. Press the opposite end down over the screw posts. The holes on the card must line up with
the holes in the screw posts.
Figure 36. Installing a mini PCIe Card
11. Secure the mini PCIe card to the VM-521 with the provided screws.
Figure 37. Securing the Screws
12. Connect the mini PCIe cabling to the mini PCIe card.
13. Install the SSD module. See “SSD Module” on page 32.
14. Replace the service cover. See “Replacing the Service Cover” on page 28.
36
Removing a mini PCIe Card
1. Power down the device and disconnect from all the power source.
2. Unmount the device from the mounting apparatus.
3. Place the device display side down on a clean work surface.
4. Open the service cover. See “Removing the Service Cover” on page 27.
5. Remove the SSD module. See “Removing an SSD Module” on page 34.
6. Disconnect mini PCIe cabling from the mini PCIe card.
7. Remove the screws securing the mini PCIe card to the VM-521.
Figure 38. Removing the Screws
8. Disconnect the mini PCIe card from the VM-521.
Figure 39. Removing a mini PCIe Card
Hardware Installation
37
Hardware Installation
9. Install the SSD module. See “SSD Module” on page 32.
10. Replace the service cover. See “Replacing the Service Cover” on page 28.
38
Hardware Installation
39
Hardware Installation
40
Hardware Installation
Removing the Communications Cover
The communications bay is located on the left rear side of the device. For further information see
“Device Overview” on page 11.
1. Power down the device and disconnect from all the power source.
2. Unmount the device from the mounting apparatus.
3. Place the device display side down on a clean work surface.
4. Locate the communications cover.
Figure 45. Rear View: Locating the Communications Cover
5. Remove the screws securing the cover.
Figure 46. Removing the Screws
41
Hardware Installation
6. Open the cover as shown in the following image.
Figure 47. Removing the Communications Cover
Once the communications cover is removed, you can install or remove the following items:
„
SD card
Replacing the Communications Cover
The communications bay is located on the left rear side of the device. For further information see
“Device Overview” on page 11.
1. Power down the device and disconnect from all the power source.
2. Unmount the device from the mounting apparatus.
3. Place the device display side down on a clean work surface.
4. Locate the communications cover.
Figure 48. Rear View: Locating the Communications Cover
5. Align the tabs on the bottom of the cover with the indentations in the bay.
6. Angle the bottom of the device and insert the tabs in the protrusions. See the following
image.
42
7. Slide the remaining part of the cover in place.
Gently press it in place to seat it properly. If installed correctly, there should be no gaps
between the cover and the chassis.
Figure 49. Inserting the Communications Cover
8. Secure the communications cover and the VM-521 with screws.
Figure 50. Securing the Screws
9. Return the device to the mounting apparatus and install.
Hardware Installation
43
Hardware Installation
44
Hardware Installation
45
Hardware Installation

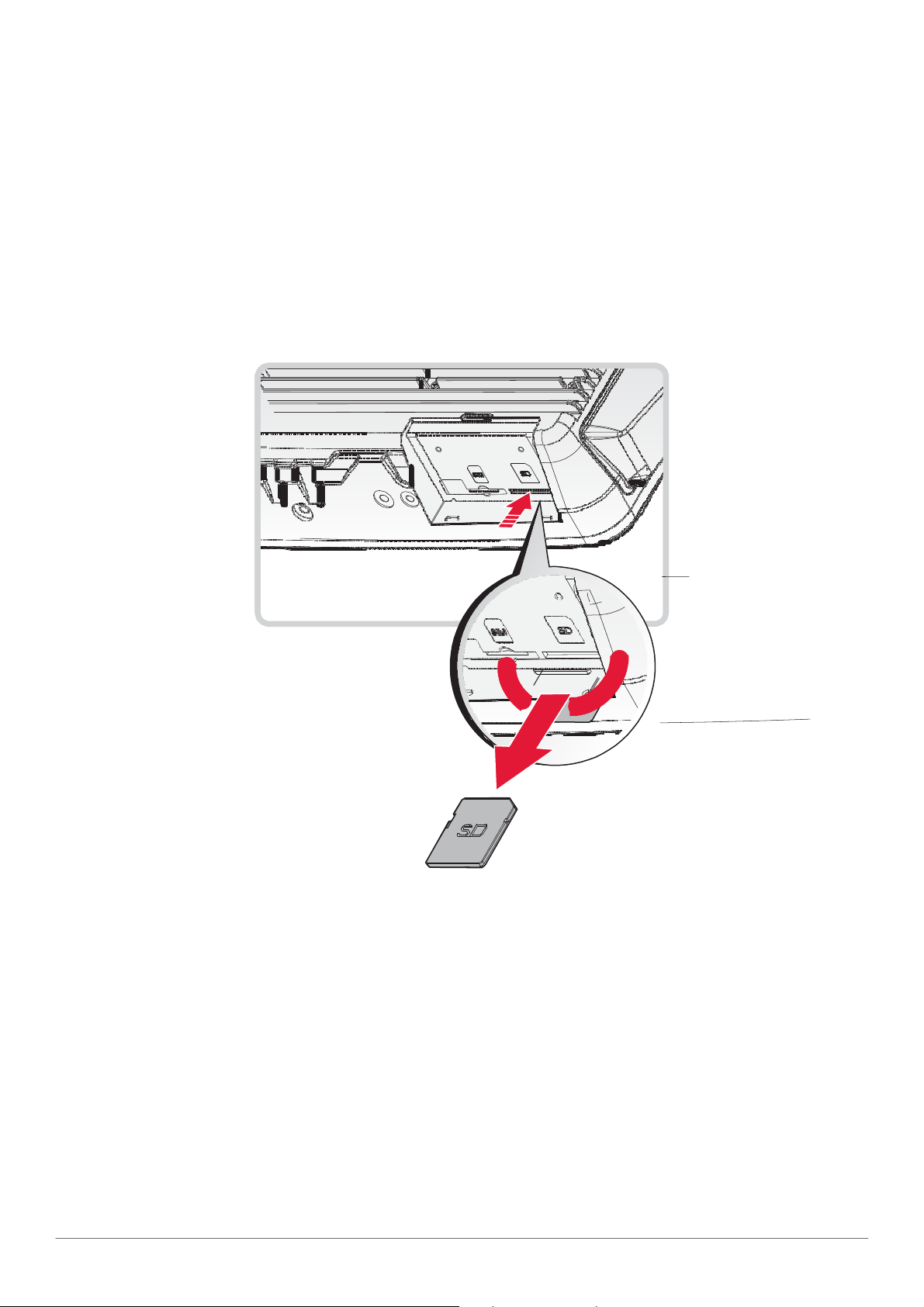

Installing an SD Card
The device supports different types of memory cards for easier data storage. The supported types
for SD cards are as follows:
„
SD card
„
SDHC card
„
Mini-SD card (with adapter)
1. Power down the device and disconnect from all power sources.
2. Unmount the device from the mounting apparatus.
3. Place the device display side down on a clean work surface.
4. Remove the communications cover. See “Removing the Communications Cover” on page
41.
5. Locate the SD slot in the communications bay.
6. Take the SD card from its packaging.
7. The SD card has a corner missing. Align the SD card with the slot making sure that the
corners match.
8. Insert the SD card and press it in until an audible click sounds.
Figure 53. Installing an SD Card
9. Replace the communications cover. See “Replacing the Communications Cover” on page
42.
46
