Rugged Computing
Users Manual Rugged Tablet PCs
ID90 Rugged Tablet PC
(Intel® Atom Duo Core N2600 Based Tablet PC)
USERS MANUAL
Version: 1.0
R09ID9M-RTL1 9.7” Compact Rugged Tablet PC
Rugged Computing
Users Manual Rugged Table PCs
2
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions carefully before using the product and
save for later reference.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Clean the
product with a damp soft cloth. Do not use liquid or aerosol cleaners
as it may cause permanent damage to the screen.
Do not use this product near water.
Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
This product should be operated from the type of power indicated on
the marking label. If you are not sure of the type of power available,
consult your dealer or local power company.
This product is equipped with a 3-wire grounding type plug, a plug
having a third (grounding) pin. This plug will only fit into a
grounding-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to
replace your obsolete outlet. (For AC version only)
Do not defeat the purpose of the grounding-type plug.
Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
Never push objects of any kind into this product through cabinet slots
as they may touch dangerous voltage points or short out parts that
could result in a risk of fire or electric shock. Never spill liquid of any
kind on the product.
Do not attempt to service this product by yourself, as opening or
removing covers may expose you to dangerous voltage points or
other risks and will void the warranty. Refer all servicing to qualified
service personnel.
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
When the power cord or plug is damaged or frayed.
If liquid has been spilled into the product.
If rainy or water has been exposed to the product.
If the product does not operate normally that the operating
instructions are followed. Adjust only those controls that are covered
by the operating instructions since improper adjustment of other
controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal operation.
If the product has been dropped or the cabinet has been damaged.
If the product exhibited a distinct change in the performance, that
indicates a need for service.
Rugged Computing
Users Manual Rugged Table PCs
3
Copyright Notice
Copyright © 2012 Winmate Communication Inc., ALL RIGHTS RESERVED. No
part of this document may be reproduced, copied, translated, or transmitted in any
form or by any means, electronic or mechanical, for any purpose, without the prior
written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their
respective owners.
Disclaimer
Winmate Communication Inc. reserves the right to make any product changes
without notice, including circuits and/or software described or contained in this
manual in order to improve design and/or performance. Winmate Communication
assumes no responsibility or liability for the use of the described product(s),
conveys no license or title under any patent, copyright, or masks work rights to
these products, and makes no representations or warranties that these products
are free from patent, copyright, or mask work right infringement, unless otherwise
specified. Applications that are described in this manual are for illustration
purposes only. Winmate Communication Inc. makes no representation or warranty
that such application will be suitable for the specified use without further testing or
modification.
Warranty
Winmate warrants that each of its products will be free from material and
workmanship defects for a period of one year from the invoice date. If the customer
discovers a defect, Winmate will, at its option, repair or replace the defective
product at no charge to the customer, provided it is returned during the warranty
period of one year, with transportation charges prepaid. The returned product must
be properly packaged in it’s original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made according to the shipping date. In the serial
numbers the third and fourth two digits give the year of manufacture, and the fifth
digit means the month (e. g., with A for October, B for November and C for
December).
For example, the serial number 1W08Axxxxxxxx means October of year 2008.
Rugged Computing
Users Manual Rugged Table PCs
4
Customer Service
We provide service guide for any problem as follow steps：First, visit the website
at http://www.winmate.com.tw to find the update information about the product.
Second, contact with your distributor, sales representative, or our customer service
center for technical support if you need additional assistance. You may have the
following information ready before you call：
Ø Product serial number
Ø Peripheral attachments
Ø Software (OS, version, application software, etc.)
Ø Description of complete problem
Ø The exact wording of any error messages
In addition, free technical support is available from our engineers every
business day. We are always ready to give advice on application requirements or
specific information on the installation and operation of any of our products. Please
do not hesitate to call or e-mail us.
Notice
1. Do not touch the LCD panel surface with sharp or hard objects.
2. Do not use abrasive cleaners, waxes or solvents for cleaning, use only a dry or
damp, soft cloth.
3. Use only with a high quality, safety-approved, AC/DC power adapter.
Rugged Computing
Users Manual Rugged Table PCs
5
Safety Precautions
l Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not make
connections while the power is on. Sensitive electronic
components can be damaged by sudden power surges. Only
experienced electronics personnel should open the PC chassis.
l Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded bag
when they are not in the chassis.
Rugged Computing
Users Manual Rugged Table PCs
6
Packaging List
This product is shipped with the items list below. Please make sure that all are in
your package.
Item Description Note
Default Packing Accessories
1
1 piece of Rugged Tablet PC Quick Start
Guide.
2
1 piece of CD for Recovery CD for Operation
System (Windows embedded standard 7).
3
1 piece of 12V Adapter w/ Standard Power
Cord.
(Euro / U.S. Std type, 1.8m)
4
1 piece of Windows embedded standard 7
Recovery Users Guide.
5
6
Optional Accessories
1 Docking Adapter
2 HDMI (female) Adapter cable
3 LAN (female) Adapter cable
4
5
Rugged Computing
Users Manual Rugged Table PCs
7
Contents
IMPORTANT SAFETY INSTRUCTIONS............................................................2
PACKAGING LIST ..................................................................................................6
CHAPTER 1 GETTING STARTED........................................................................9
1.1 CONNECTING THE AC POWER..................................................................................9
1.2 TURNING ON AND OFF THE TABLET PC.....................................................................10
1.2.1 TURNING ON THE TABLET PC........................................................................10
1.2.2 TURNING OFF THE TABLET PC.......................................................................10
1.3 THE OPTIMIZED USE FOR SUNLIGHT READABLE TOUCHSCREEN........................................11
1.4 TAKING A LOOK AT I/O FUNCTIONS (FOR 9.7 INCH TABLET PC).......................................12
1.5 PRODUCT FEATURES AND SPECIFICATION ..................................................................16
1.5.2 Product Features ..................................................................................................................16
1.5.2 Product Specification...........................................................................................................17
CHAPTER 2 OPERATING TABLET PC AND HOTTAB HOTKEY UTILITY
...................................................................................................................................20
2.2 STARTING AND STOPPING THE TABLET PC.................................................................20
2.2 QUICK TO KNOW MENU AND HOTTAB HOTKEY FUNCTION ...............................................21
2.2.1 How to use Menu Function ................................................................................................21
2.2.2 How to use Hotkey Function.............................................................................................23
2.2.3 Connecting to a Wireless Network..................................................................................26
2.2.4 Using the Bluetooth Wireless Feature............................................................................27
2.2.4 Using the 3G Feature (Optional).....................................................................................29
2.2.6 Using the Camera Feature.................................................................................................32
CHAPTER 3 TABLET PC POWER MANAGEMENT........................................34
3.1 ABOUT AC ADAPTER ..........................................................................................34
3.2 CHARGING AND CHECKING CHARGING STATUS ...........................................................35
3.2.1 Charging the Battery Pack.................................................................................................35
3.2.3 Charging Approaches..........................................................................................................35
3.2.3 Checking the Battery Level ...............................................................................................36
3.2.4 Battery Low Signals and Actions.....................................................................................36
3.3 POWER MANAGEMENT.........................................................................................36
FOR DETAILED INFORMATION ON POWER MANAGEMENT, SEE WINDOWS’ HELP..............................37
CHAPTER 4 EXPANDING YOUR TABLET PC................................................39
4.1 HOW AND WHEN TO USE BIOS SETUP ....................................................................39
4.2 BIOS FUNCTIONS.............................................................................................40
4.2.1 Main Menu..............................................................................................................................40
4.2.2 Advanced Menu.....................................................................................................................40
4.2.3 Chipset Menu.........................................................................................................................43
4.2.4 Boot Menu..............................................................................................................................44
4.2.5 Security Menu .......................................................................................................................44
4.2.6 Save & Exit Menu.................................................................................................................45
Rugged Computing
Users Manual Rugged Table PCs
8
CHAPTER 1
Getting Started
Rugged Computing
Users Manual Rugged Table PCs
9
CHAPTER 1 GETTING STARTED
This chapter guides you to get the Rugged Tablet PC ready for operating.
1.1 Connecting the AC Power
Our tablet PC can operate either on the external AC power adapter or internal
battery power. It is suggested that you use AC power when you start up the
tablet PC first time.
**Caution
Use only the AC adapter included with your tablet PC. Using other AC adapters
may damage the tablet PC.
1. Plug the DC cord of the AC adapter to the power connector of the tablet PC.
2. Plug the female end of the AC power cord to the AC adapter and the male end to
the power electrical outlet.

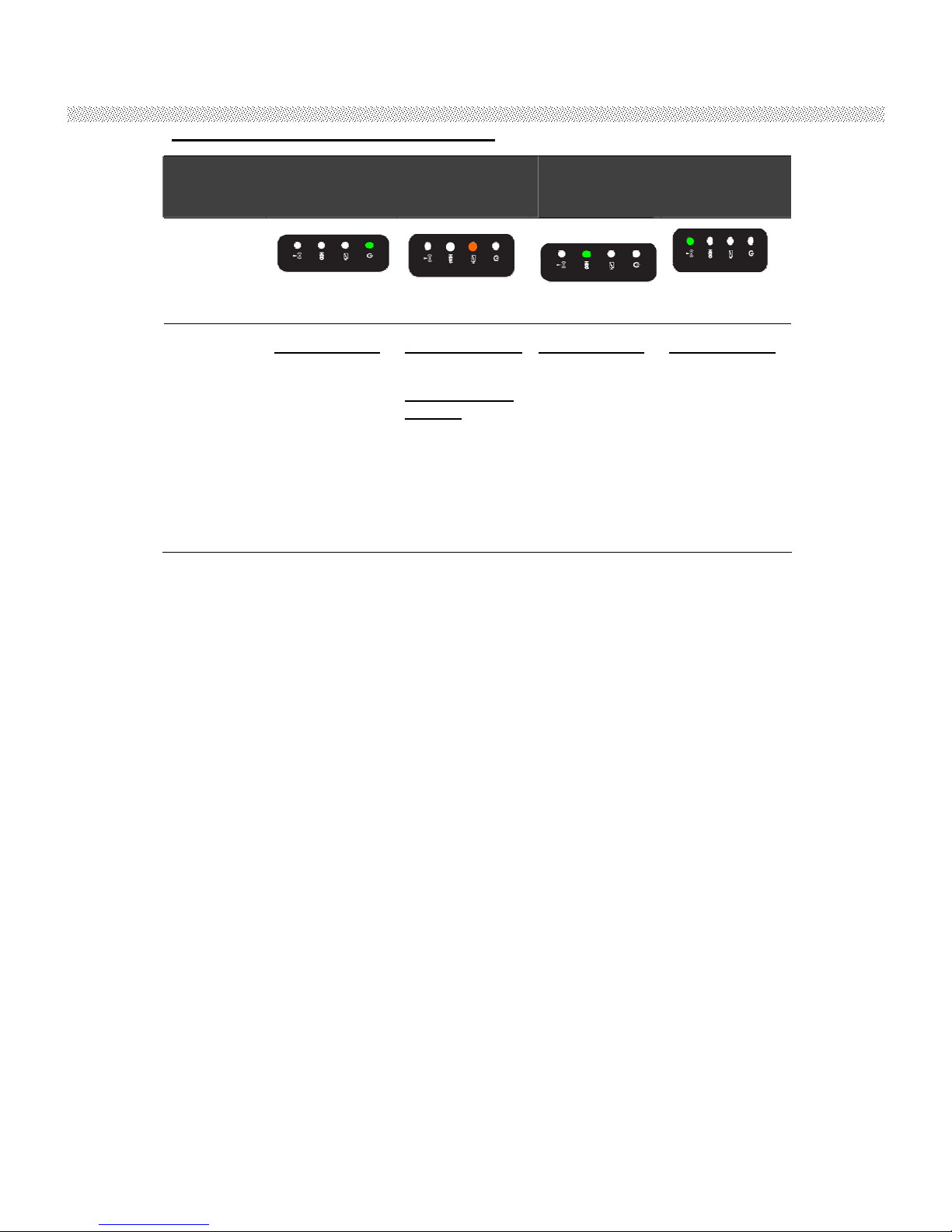

3. When the AC adapter is connected, the Battery Pack is also under charging. You
can check the Battery Status LED indicator to see the currently progress. The
indicator turns to green when is fully charged.
(For information on using battery power, see “Chapter 3 The Power Management”)
**Caution
When you disconnect the AC adapter, disconnect from the electrical outlet first
and then from the tablet PC. A reverse procedure may damage the AC adapter
or the tablet PC.
When unplugging the connector, always hold the plug head. Never pull on the
cord.
Rugged Computing
Users Manual Rugged Table PCs
10
1.2 Turning On and Off the Tablet PC
1.2.1 Turning on the Tablet PC
1. Place your tablet PC on a flat and stable surface or holding the tablet PC on your
hand.
2. Make sure that the tablet PC is either connected to AC power or the battery pack
with power.
3. Press the power button on the right side by 4 seconds to start it.
1.2.2 Turning off the Tablet PC
To turn off the tablet PC power, use the “Shut Down” command of your
operating system.
**Caution
If you have to turn the tablet PC on again immediately after turning it
off, wait for at least five seconds. Turning the tablet PC off and on
rapidly can damage it.
Rugged Computing
Users Manual Rugged Table PCs
11
1.3 The Optimized Use for Sunlight Readable Touchscreen.
With the imposed reflective function, the modified LCD can reflect the ambient light
passing the LCD cell and utilize the reflected light beams as its illumination. The
stronger the ambient light is, the brighter the LCD will appear. As a result, the modified
LCD is viewable under lighting conditions. The optimized angle of view is fourty-five
degree. And the optimized distance of view is 30cm.
**Caution
Although transflective LCD is mainly used in outdoor environment and it may
increase the reflective lights under sunlight, it is suggested that you should keep
the LCD in appropriate temperature for operation and storage, and avoid direct
sunlight if possible. To ensure the transflective LCD work stably, 0~50°C
(32-121°F) operation and storage temperature is suitable.
Light Source
Rugged Computing
Users Manual Rugged Table PCs
12
1.4 Taking a Look at I/O Functions (for 9.7 inch Tablet PC)
This section we will show the Tablet PC external connection parts and their
functions.
Front side Control Functions
# Components Function Description See Other
Intro.
1 Power Button Press 2 seconds continuous to
turn-on the PC.
Press once to turn off backlight when PC
is on.
Press once to tune on backlight when
backlight is off
Need 4 seconds continuous push to
force the Tablet PC turn-off
immediately.
2 LED Indicator From right to left shows the status
about Power mode, Battery mode,
Storage and WiFi status mode.
3 Menu Push Menu function to show Brightness,
Volume,Battery status and WiFi/
Bluetooth on/off.
Chapter 2.2.1
4 Hotkey 1 programmable Hot-key for user to
define by application, default first short
push key (Func. short) will turn-on Hot
TAB AP Utility.
Chapter 2.2.2
Hot Key:
Vol-, Vol+, Func.
Menu
LED Indicator
WiFi, HDD, Battery, power
Power Button
Rugged Computing
Users Manual Rugged Table PCs
13
LED Indicator Status Description
LED Term Power mode Battery Status
Storage
Status
Wi-Fi Status
LED
Indicator
Indicator
Status
Description
Green light：
when Power
On.
No light when
Power Off.
Orange Light：
Under charging
Red Blinking
Light：Low
Battery
Check Chapter
3.2.3/ 2.4 for
low battery and
replacing
battery
Green light：
when storage
under
operation.
No light when
storage stop
operation.
Green light：
when Wi-Fi
under
operation.
No light when
Wi-Fi stop
operation.
Rugged Computing
Users Manual Rugged Table PCs
14
Mic-in /
Line
-
Out
DC-Jack
Docking
Connector
USB
Bottom Side
LAN / HDMI
Right side Input
# Components Function Description See Other Intro.
1 DC-in Connect with power adapter for
power charging
2 SIM card slot
Bottom side Input/ Output
# Components Function Description See Other Intro.
1 Docking
Connector
Connect to the optional docking
adapter
2 USB Standard USB2.0 port
SIM card slot
DC-in
Rugged Computing
Users Manual Rugged Table PCs
15
3 LAN/HDMI LAN & HDMI Out combo connecter.
Connect with the optional LAN &
HDMI cable.
4 Mic-in/Line-Out Mic-in for microphone. Line-Out for
the external speaker or handset.
Our Tablet PC can support one Multi-functional Desktop Docking Station for optional
accessory. The Desktop Docking Station have one charger for other battery packs.
Through the first Chapter 1.1 to 1.4, you can understand the basic information when you own
the machine, in next Chapter you will understand more detail about how to operate the tablet
PC. Between this, you can check our product function and specification.
Rugged Computing
Users Manual Rugged Table PCs
16
1.5 Product Features and Specification
1.5.2 Product Features
Our Rugged Tablet PCs are designed with state of the art industrial use,
versatile functionality and solid products. With great mobility support and
battery management. The 9.7” rugged tablet provides an alternative solution
for those between general consumer and extremely rugged application.
l 9.7” 1024x768 Resolution LED Panel
l Low-power system with Intel® Atom N2600 processor
l 2GB SODIMM DDR3-800 memory
l Built-in Wi-Fi/ Bluetooth Module
l Support 3G function (optional)
l Standard Battery 5300 mAh
l Semi- Shock, Vibration, and transit drop
l Projective-capacity touch
Rugged Computing
Users Manual Rugged Table PCs
17
1.5.2 Product Specification
The product specification as the following table description:
System Specification
System
Processor Intel® Atom N2600 Dual core 1.6GHz
BIOS AMI System BIOS
System Chipset Intel® NM10 Chipset
System Memory 2GB SODIMM DDR3-800
LAN Controller Realtek RTL811B GigaLAN Controller
Storage 16GB SATA SSD
Audio Audio out for headset, Micro-in for microphone jack,
1.0W Speaker (Internal)
I/O Connectors
Bottom I/O Port Docking Connector x1, Standard USB2.0 port x1, LAN & HDMI
Out combo connecter x1, Mic-in/Line-Out x1
Right I/O Port
SIM card slot x1, DC-in jack x1
Upper side button
Volume up x1, Volume down x1, Hotkey x1 , Menu key x1
In Front Control
LED indicator From right to left shows the status about Power mode, Battery
mode, Storage and WiFi status mode
Display Specification
Size 9.7 inch
Resolution 1024x768 pixels
Touch Projective Capacitive (2 points)
Rugged Computing
Users Manual Rugged Table PCs
18
System Specification (continues)
Mechanical and Environment
Weight 2979 g (w/o accessories)
Operating
Temperature
0 deg.C to 50 deg.C
Operating Humidity
30% to 90% (non condensing）
IP Proof IP54
Mounting Optional table stand
Shock Semi-shock
Vibration Semi-vibration
Drop* 4 feets
Certifications CE, FCC
Power Management
Power Input 12V DC
Battery Standard battery 5300mAh
Operating time 4 Hours
Adapter 100-240V AC in , 50-60Hz, 12VDC output
Wireless Communication
WLAN built-in 802.11b/g
Bluetooth built-in Bluetooth
3G Optional built-in 3G Module
Rugged Computing
Users Manual Rugged Table PCs
19
CHAPTER 2
Operating Tablet PC and
HotTab Hotkey Utility
Rugged Computing
Users Manual Rugged Table PCs
20
CHAPTER 2 OPERATING TABLET PC AND HOTTAB HOTKEY UTILITY
This Chapter will guide you how to operate the Tablet PC, including start /
stop the PC, and how to use menu function including basic hardware function
adjustment and the HotTab hotkey utility software that is very easy & helpful
for operating the computer.
2.2 Starting and Stopping the Tablet PC
Starting the Tablet PC
You always start the tablet PC using the power button, push the Power
Button continuously by 4 second to turn on the Tablet PC.
Our Tablet PC will starts up with an operating system (OS) existing on the
storage device like the hard disk. The computer will automatically load the OS
after you turn it on. This is normal booting process.
NOTE: The operating system is the platform for all software application
programs to run on. The Tablet computer is recommended to use the
Microsoft Windows XP embedded operating system for default solution.
Stopping the Tablet PC
When you finish your work, you can stop the tablet PC by turning off the
power or leaving the tablet PC in Standby mode:
# Stop mode How to do Start or
Resume
again
1 Power Off Following the shutdown process during
operating system. The standard
process can prevent unsave data loss or
damage your software programs.
2 Sleep (S3) Under normal operating system, Push
the Power Button 0.5 second to go
to sleeo mode.
If you choose to stop in Standby mode, you can return to where you left off
the next time you start up the tablet PC. (See “Power Management” in
Chapter 3 for more information.)
Rugged Computing
Users Manual Rugged Table PCs
21
2.2 Quick to Know Menu and HotTab Hotkey Function
This section will introduce you about our easy-of-use function buttons. Our
Tablet PC function buttons support very easy way and useful function to
adjust Brightness, Volume and watch Battery current status. For
programmable Hotkey function can also be defined by user to control by their
common use application.
2.2.1 How to use Menu Function
Menu Function Adjustment
# Action Function
Description
Funtion Adjustment
1
Push
“Menu”
button
1st Time
Show Current Brightness Click “Vol+” button to
increase brightness (Or Drag
by Touch)
Click ”Vol-” to decrease
brightness(Or Drag by
Touch)
2
Push
“Menu”
button
2nd Time
Show current Volume Click “Vol+” button to
increase volume(Or Drag by
Touch)
Click ” Vol-” to decrease
volume(Or Drag by
Touch)
3
Push
“Menu”
button
3rd Time
Show current Battery status
Rugged Computing
Users Manual Rugged Table PCs
22
Menu Function Adjustment
#
Action Function Description Funtion Adjustment
4
Push “Menu”
button
4th Time
Show current on/off of
Wireless\ Bluetooth \
Camera and 3G mode.
1. WiFi on/off
2. Bluetooth on/off
3. Camera on/off
4. 3G on/off
5
Push “Menu”
button
continuously
5 seconds
Lock/Unlock all button function Push 5
seconds to
Lock all
button**(no
t including
Touch)
Push 5 seconds to
Unlock back to normal
operation
**NOTICE
If you shutdown the Tablet PC during operating system(By Touch) under Lock
condition, you CAN NOT turn on the Tablet PC by Power Button; you should
push “Menu“ button 4 seconds to Unlock the system and back to normal
operation then you can turn on by power button.
Action
Push Power button
Under Lock status
Push “Menu” button
5 seconds
Under Unluck status
LED Indicator
Indicator
Status
Description
Quick Blinking Red Light：
On Lock Status, you can not
control the Power button.
Quick Blinking Red Light：
Action
Push “Menu” button 5
seconds to Unluck back
Lock all button function
We strongly recommend you to check Lock/ Unlock condition before turn off
PC.
Rugged Computing
Users Manual Rugged Table PCs
23
2.2.2 How to use Hotkey Function
From the operation system installation, we will provide you Hotkey software
utility. After installation, you can see the shortcut on desktop of computer.
Click the shortcut and you can see the software application at center of
desktop.
The Hotkey software program is the programmable application software for
the Hotkey; we choose some usual applied function for default setup. For
example, User can choose his own application program very easy by setting
up the function from the setup window.
Hotkey Function
Use the HotTab software utility to make it easy to program and define hot key
by customer’s usual application.
Rugged Computing
Users Manual Rugged Table PCs
24
F1 Hot TAB functions will show four functions
A. The first is virtual mouse
B. Screen rotation
C. Onscreen Keyboard
Rugged Computing
Users Manual Rugged Table PCs
25
2. F2 to F3 function key
You can use “Browse” and choose the execution program file.
3. Power Manage function
4. System Information
When you press menu 5th time, you can see the system information.
5. Low battery warning:
When the battery under 10%, system will show the battery low to remind you to change
the new battery or insert adapter to charge.
Rugged Computing
Users Manual Rugged Table PCs
26
2.2.3 Connecting to a Wireless Network
To connect to a wireless network:
1. Push Menu function 4 times and making sure the Wireless function is “On”.
2. Please using the defult Windows Wireless Network Connection utility.
Rugged Computing
Users Manual Rugged Table PCs
27
2.2.4 Using the Bluetooth Wireless Feature
We apply Bluetooth 2.1+ EDR module for default function of the Tablet PC
series. Depending on your application, the Bluetooth module can give you
capability for short-range wireless communicaitons between devices without
requiring a cable connection. The transmission can go through walls, pockets
and briefcases as long as two devices are within range around 10 meters.
Following the easy step to connect to the Bluetooth communication.
1. Push Menu function 4 times and making sure the Bluetooth function is “On”.
2. Double click the Bluetooth shortcut and it will search any bluetooth device automatically.
Or double click “Search Devices” to search again.
Rugged Computing
Users Manual Rugged Table PCs
28

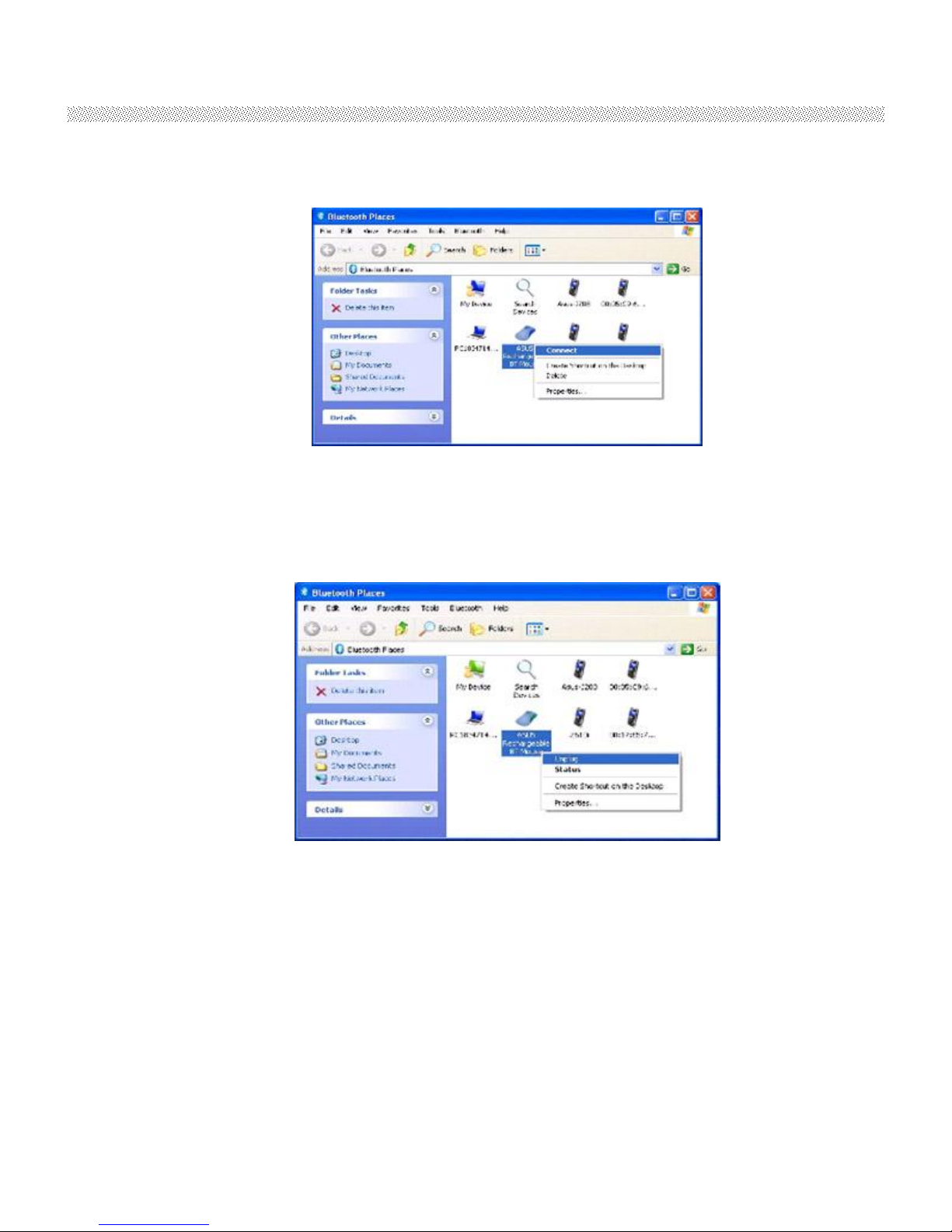

3. Choose the bluetooth device you want to connect, and left click to choose “Connect”.
Then the device will be connected to the module.
4. When under connecting, left click to check the connection status, or choose “Unplug” to
remove the connection.
Rugged Computing
Users Manual Rugged Table PCs
29
2.2.4 Using the 3G Feature (Optional)
We apply a PCI Express® full size 3G module for optional function of the
Tablet PC series. Depending on your application, the 3G module can datacard
and host PC software combination deliver multiband CDMA2000®
1xEV-DO, UMTS, and GSM wireless wide area network (WWAN) connectivity
in a single hardware configuration.
1. Push Menu function 4 times and making sure the 3G Module is “On”.
2. The shortcut of 3G application program shown on screen, then to executive Mobile
Partner Internet connection management application.
Rugged Computing
Users Manual Rugged Table PCs
30

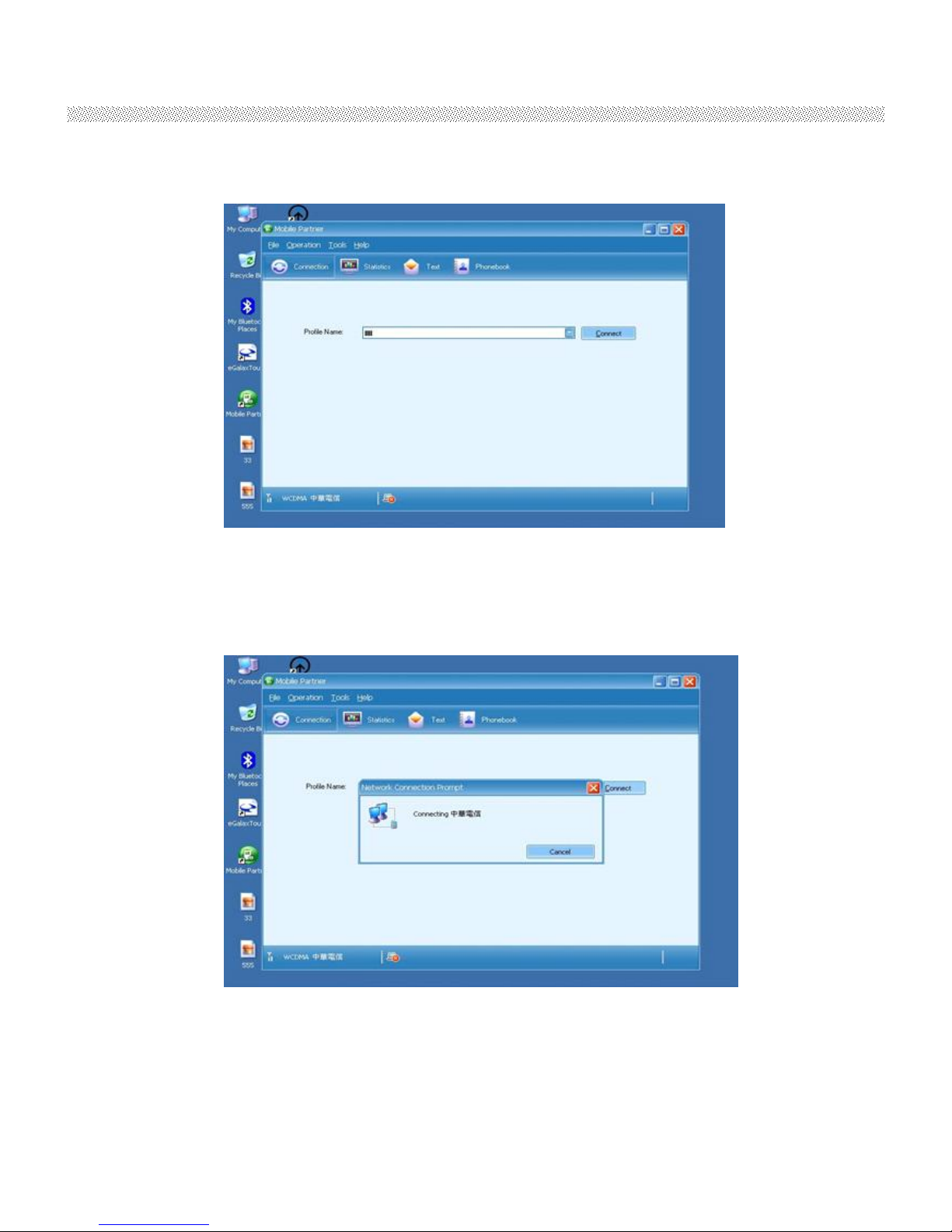

3. Confirm whether to detect the telecommunications system operators, then press the
“Connect” connect to 3G networks.
Rugged Computing
Users Manual Rugged Table PCs
31
4. After initialization is completed, it will automatically connect to 3G networks.
Note: No additional driver installation is required for 3G module.
Rugged Computing
Users Manual Rugged Table PCs
32
2.2.6 Using the Camera Feature
We apply a internal 2M Pixels Web Camera module for default function of the
Tablet PC series.
1. Choose HotTab AP Menu function and making sure the Camera Module is “On”.
2. Press F1 button to into the functional hot key setting. You can choose any functional key
as a shortcut to open the camera function. For example,you can set “F2 Short” as the
camera function.
3. Click the icon to take a picture.
Rugged Computing
Users Manual Rugged Table PCs
33
CHAPTER 3
Tablet PC Power
Management
Rugged Computing
Users Manual Rugged Table PCs
34
CHAPTER 3 TABLET PC POWER MANAGEMENT
3.1 About AC Adapter
Our Tablet PC support one set of AC adapter and power cord by country area.
Please contact with your dealer for appropriate power cord if necessary.
**Caution
1. When you disconnect the AC adapter, disconnect from the electrical
outlet first and then from the tablet PC. A reverse procedure may
damage the AC adapter or tablet PC.
2. Always hold the plug head when you unplug the connector, never pull
out the cord.
3. The AC adapter is designed for use with your tablet PC only. Connecting
the AC adapter to another device can damage the adapter.
The adapter operates on any voltage in the range of 100~240 V AC. The AC
adapter serves as a converter from AC (Alternating Current) to DC (Direct
Current) power because the tablet PC runs on DC power input, but an
electrical outlet usually provides AC power.
Rugged Computing
Users Manual Rugged Table PCs
35
3.2 Charging and Checking Charging Status
3.2.1 Charging the Battery Pack
The battery pack is the internal power source for the tablet PC. It is
rechargeable using the AC adapter. The operating time of a fully charged
battery pack depends on how you are using the tablet PC. When your
applications often access peripherals, you will experience a shorter operating
time.
NOTE:
1. Charging will not start if the battery’s temperature is below 0 °C (32 °F).
It is also recommended not to charge the battery when temperature is
above 45 °C (113 °F)
2. To prevent damage, the charging process may stop and the Battery
Charge Indicator flashes red when the environmental temperature gets
above 55 °C (131°F)
3.2.3 Charging Approaches
There is one way recommended to charge the battery pack. By connecting
the AC adapter to the tablet PC and an electrical outlet, the Battery Charge
Indicator on the tablet PC glowed orange to indicate that charging is in
progress. You are advised to keep the tablet PC power off while the battery is
being charged. When the battery is fully charged, the Battery Charge
Indicator glows green.
CAUTION:
1. After the tablet PC has been fully recharged, do not immediately
disconnect and reconnect the AC adapter to charge it again. The
above-mentioned may damage the battery.
2. During charging, do not disconnect the AC adapter before the battery
has been fully charged; otherwise you will get a prematurely charged
battery.
Rugged Computing
Users Manual Rugged Table PCs
36
3.2.3 Checking the Battery Level
Any battery level indication is an estimated result. The actual operating time
can be different from the estimated time, depending on how you are using
the tablet PC.
In Windows operating system, you can check the approximate battery level
using the battery meter function. To read the battery level in Windows, click
the icon on the taskbar. (Click the icon if the tablet PC is using AC power.)
3.2.4 Battery Low Signals and Actions
Battery Low occurs when the battery has approximately 10 % (Windows
default setting) of its charge remaining. The tablet PC’s Battery Charge
Indicator ( ) blinks red to alert you take actions.
NOTICE:
You can set up the Battery Low threshold and signals under Windows.
Immediately save your data upon Battery Low. The remaining operating
time depends on how you are using the tablet PC. If you are using the
audio subsystem, hard or USB flash disk, the battery might run out of
charge very quickly.
CAUTION:
1. If you do not take any action, the tablet PC will automatically hibernate
and turn off.
2. If you fail to save your data when the battery completely runs out of
charge, then you will lose your data.
3.3 Power Management
The Tablet PC supports ACPI (Advanced Configuration and Power Interface)
for power management. The power management feature allows you to
reduce the power consumption for energy saving. With an ACPI-compliant
operating system such as Windows XP, power supply to different tablet PC
components is controlled on an as-needed basis. This allows maximum power
conservation and performance at the same time. In general, Windows’ power
management works in following state:
Rugged Computing
Users Manual Rugged Table PCs
37
Occurrence Condition
Power to the hard disk is turned off
When the hard disk has been idle for a
set period.
Power to the display is turned off
When the display has been idle for a set
period.
When the entire system has been idle
for a set period.
The tablet PC enters the Standby mode.
The hard disk and display are turned off
and the entire system consumes less
power.
When the display has been idle for a set
period.
When you press the power button. *
The tablet PC enters the Hibernation
mode.
When the entire system has been idle
for a set period
When you press the power button. *
* Depends on your settings in Windows.
For detailed information on power management, see Windows’ Help.
Rugged Computing
Users Manual Rugged Table PCs
38
CHAPTER 4
Expanding Your Tablet PC
Rugged Computing
Users Manual Rugged Table PCs
39
CHAPTER 4 EXPANDING YOUR TABLET PC
4.1 How and When to Use BIOS Setup
For enter to the Tablet PC BIOS setup, you need to connect with an external
USB keyboard, press “Del” key when the prompt appears on the screen
during start up. The prompt screen shows only few seconds so need press Del
key quickly.
**NOTICE
Updated BIOS version may be published after the manual is released.
Check with the latest version of BIOS on website.
You may need to run BIOS setup utility when the below status.
1. Error message on sreen indicate to check BIOS setup.
2. Restoring the factory default settings.
3. Modifing the specific hardware specification
4. Want to optimize the specification.
In order to control the keyboard to select BIOS utility setup, you need
Keyboard Icon Function Description
Selects a menu title.
Selects an item or option.
Enter
Go to the sub-menu when available.
Opens or closes the option window when an item is
selected.
Esc To leave sub-menu and return to main menu.
**NOTICE
You can press the F1, F2, F3, F4, –/+, and Esc keys by connecting a USB keyboard
to your tablet PC. Make sure that the item “Legacy USB Support” under the Main
menu is set at Enabled (default).
Rugged Computing
Users Manual Rugged Table PCs
40
4.2 BIOS Functions

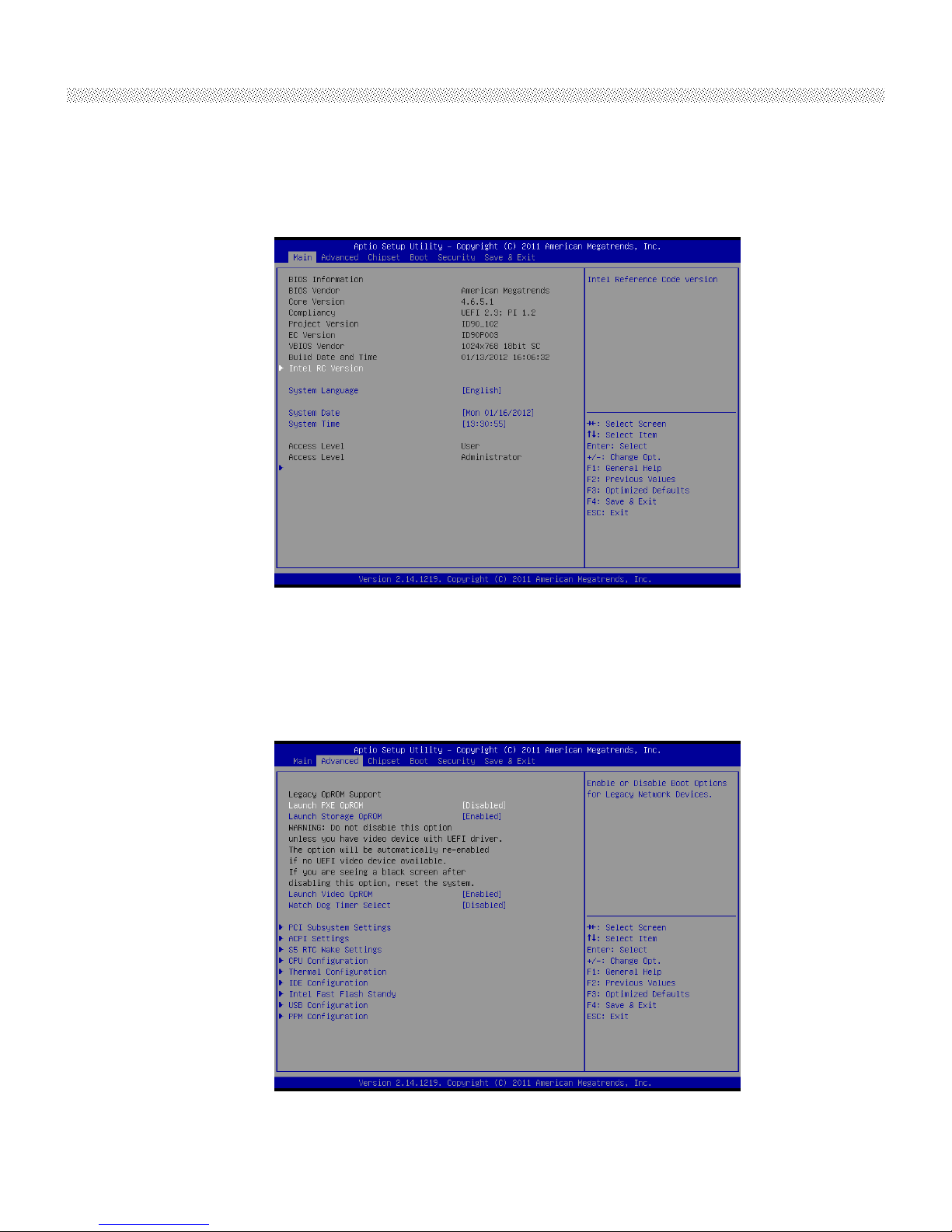

4.2.1 Main Menu
The Main menu contains the information of the Tablet system including BIOS
version, processor RC version, system language, time, and date.
4.2.2 Advanced Menu
The Advanced menu contains the selections of PXE OpROM and Watch Dog
Timer, and the settings of PCI Subsystem, ACPI, and S5 RTC Wake. Besides,
it also contains the configuration information of CPU, Thermal, IDE/SATA,
USB, and PPM Configuration.
Rugged Computing
Users Manual Rugged Table PCs
41
1. CPU Configuration
2. Thermal Configuration
Rugged Computing
Users Manual Rugged Table PCs
42

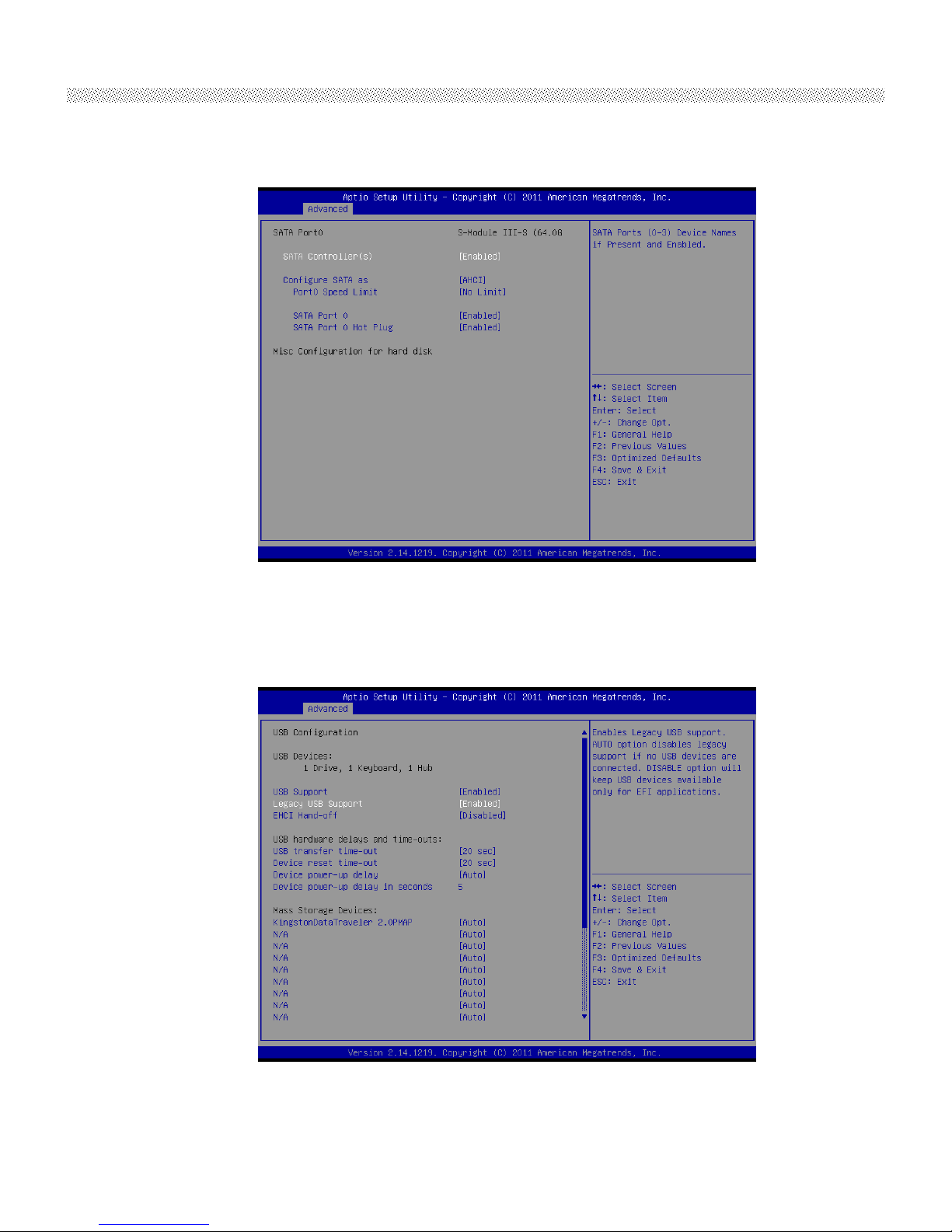

3. IDE / SATA Configuration
4. USB Configuration
Rugged Computing
Users Manual Rugged Table PCs
43
5. PPM Configuration
4.2.3 Chipset Menu
The Chipset menu contains the information of Host Bridge and South Bridge.
Rugged Computing
Users Manual Rugged Table PCs
44
4.2.4 Boot Menu
The Boot menu sets the sequence of the devices to be searched for the
operating system.
The bootable devices will be automatically detected during POST and shown
here, allowing you to set the sequence that the BIOS uses to look for a boot
device from which to load the operating system. A brief description of button
usage is listed next:
4.2.5 Security Menu
In the Security menu, users can set Administrator Password, User Passwaord,
and HDD Security Configuration.
Rugged Computing
Users Manual Rugged Table PCs
45

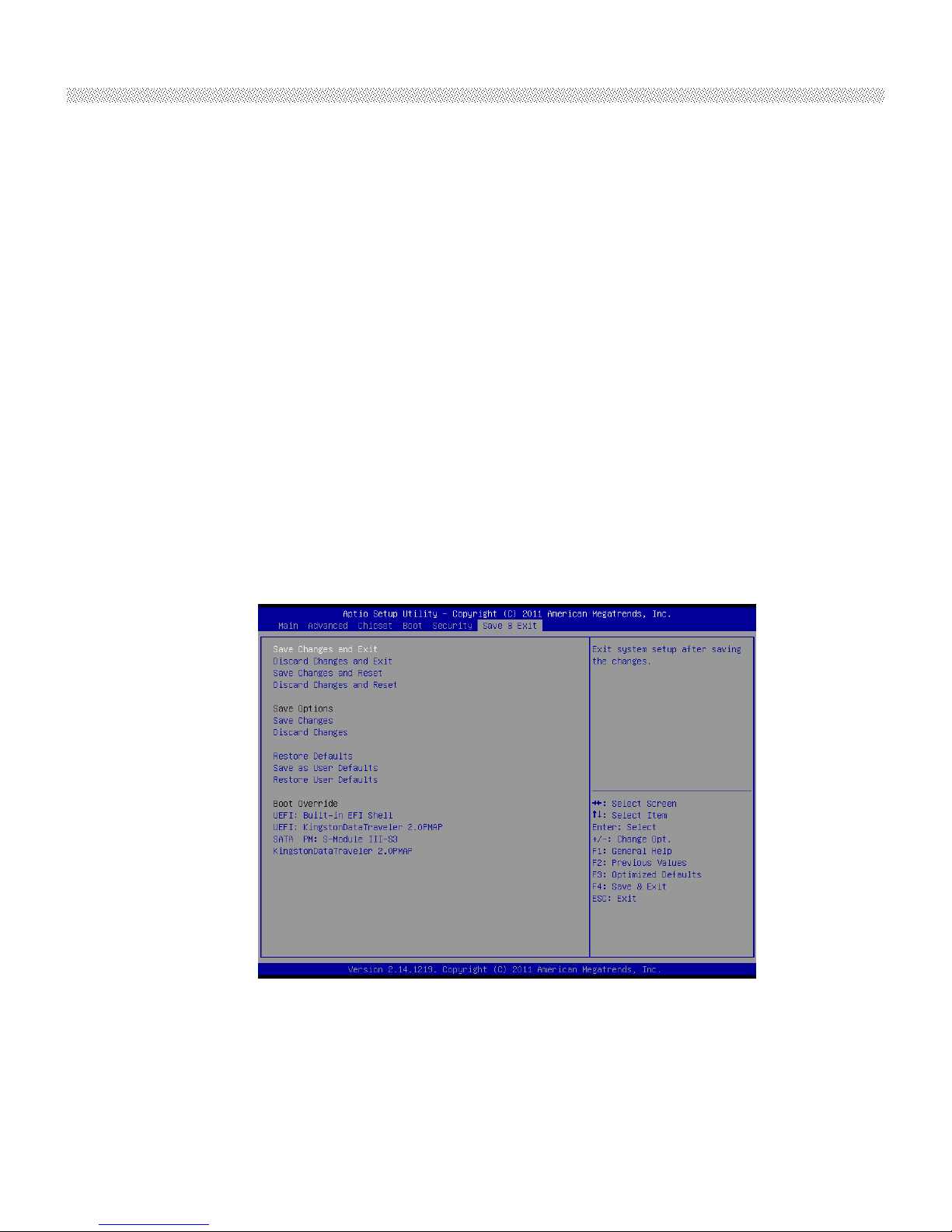

4.2.6 Save & Exit Menu
The Exit menu displays ways of exiting BIOS Setup utility. After finishing with
your settings, you must save and exit so that the changes can take effect.
Save Canges and Exit saves the changes you have made and exits BIOS
Setup utility.
Discarding Changes and Exit exits BIOS Setup utility without saving the
changes you have made.
Save Canges and Rest saves the changes you have made and resets BIOS
system.
Discarding Changes and Reset resets BIOS system without saving the
changes you have made.
Save Changes done so far to any of the setup options.
Discard Changes done so far to any of the setup options.
Resotre Defaults loads/restore the factory default values for all the items.
Save as User Defaults saves the changes one so far as User Defaults.
Restore User Defaults loads/restore the User default values for all the
items.
Loading...
