Rudd 10 Gallons Installation Manual

®
LISTED
786H

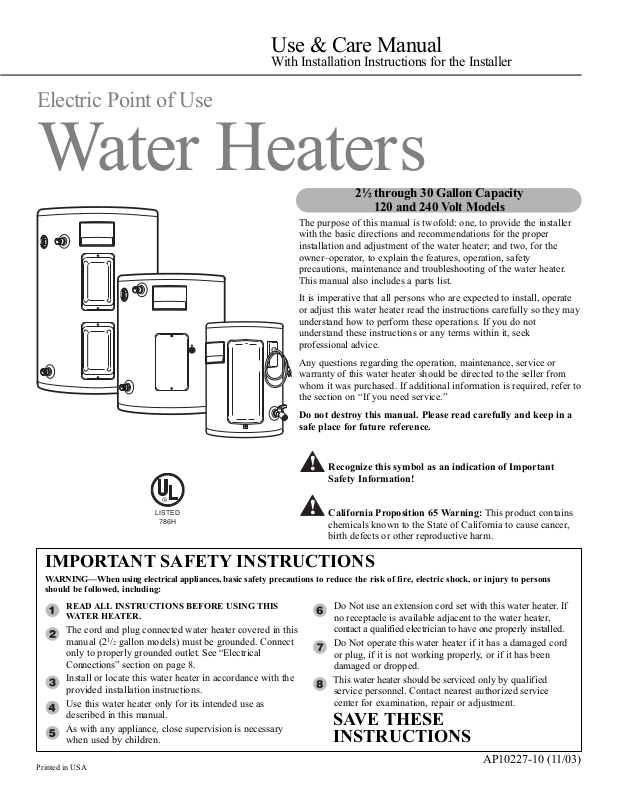

Use & Care Manual
With Installation Instructions for the Installer
Electric Point of Use
Water Heaters
2½ through 30 Gallon Capacity
120 and 240 Volt Models
The purpose of this manual is twofold: one, to provide the installer with the basic directions and recommendations for the proper installation and adjustment of the water heater; and two, for the owner–operator, to explain the features, operation, safety precautions, maintenance and troubleshooting of the water heater. This manual also includes a parts list.
Any questions regarding the operation, maintenance, service or warranty of this water heater should be directed to the seller from whom it was purchased. If additional information is required, refer to the section on “If you need service.”
Do not destroy this manual. Please read carefully and keep in a safe place for future reference.
Recognize this symbol as an indication of Important
!
Safety Information!
!
California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
IMPORTANT SAFETY INSTRUCTIONS
WARNING—When using electrical appliances, basic safety precautions to reduce the risk of fire, electric shock, or injury to persons should be followed, including:
READ ALL INSTRUCTIONS BEFORE USING THIS WATER HEATER.
The cord and plug connected water heater covered in this manual (2 only to properly grounded outlet. See “Electrical Connections” section on page 8.
Install or locate this water heater in accordance with the provided installation instructions.
Use this water heater only for its intended use as described in this manual.
As with any appliance, close supervision is necessary when used by children.
1
/2 gallon models) must be grounded. Connect
Do Not use an extension cord set with this water heater. If no receptacle is available adjacent to the water heater, contact a qualified electrician to have one properly installed.
Do Not operate this water heater if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
This water heater should be serviced only by qualified service personnel. Contact nearest authorized service center for examination, repair or adjustment.
SAVE THESE INSTRUCTIONS
Printed in USA
AP10227-10 (11/03)
Safety Information
Safety Precautions . . . . . . 3, 4
FOR YOUR RECORDS
Write the model and serial numbers here:
#
#
You can find them on a label on the appliance.
Staple sales slip or cancelled check here.
Installation Instructions
Location . . . . . . . . . . . . . . . . 5
Water Connections. . . . . . . . . 6
Electrical Connections. . . . . . 8
Operating Instructions
Safety Controls . . . . . . . . . . 12
Water Temperature . . . . . . . 13
Care and Cleaning
Draining . . . . . . . . . . . . . . . 14
Maintenance . . . . . . . . . . . . 14
Extended Shut-Down . . . . . 14
Proof of the original purchase date is needed to obtain service under the warranty.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and maintain your water heater properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your water heater.
You’ll find many answers to common problems in the Before You Call For Service section. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.
READ THE SAFETY INFORMATION
Your safety and the safety of others are very important. There are many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol. Recognize this symbol as an indication of Important Safety Information! This symbol alerts you to potential hazards that can
!
kill or hurt you and others.
Troubleshooting Tips
Before You Call
For Service . . . . . . . . . . . . . 15
Customer Service
Parts List . . . . . . . . . . . . 16-18
If You Need Service . . . . . . 19
Wiring Diagram. . . . . . . . . 20
2
All safety messages will follow the safety alert symbol and either the word “DANGER”, “WARNING”, “CAUTION” or “NOTICE”.
These words mean:
!
DANGER
!
WARNING
!
CAUTION A potentially hazardous situation that
Notice:
An imminently hazardous situation that will result in death or serious injury.
A potentially hazardous situation that could result in death or serious injury and/or damage to property.
may result in minor or moderate injury.
Attention is called to observe a specified procedure or maintain a specific condition.
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
WATER TEMPERATURE ADJUSTMENT
Safety and energy conservation are factors to be considered when selecting the water temperature setting of water heater’s thermostat. Water temperatures above 125°F can cause severe burns or death from scalding. Be sure to read and follow the warnings outlined on the label pictured below. This label is also located on the water heater near the thermostat access panel.
Time/Temperature Relationship in Scalds
!
DANGER
HOT
BURN
Water temperature over 125° F can cause severe burns instantly or death from scalds.
Children, disabled and elderly are at highest risk of being scalded.
See instruction manual before setting temperature at water heater.
Feel water before bathing or showering.
Temperature limiting valves are available, see manual.
NOTICE: Mixing valves are available for reducing point of use water temperature by mixing hot and cold water in branch water lines. Contact a licensed plumber or the local plumbing authority for further information.
Temperature Time To Produce a Serious Burn
120°F More than 5 minutes 125°F 11/2 to 2 minutes 130°F About 30 seconds 135°F About 10 seconds 140°F Less than 5 seconds 145°F Less than 3 seconds 150°F About 11/2 seconds 155°F About 1 second
Table courtesy of Shriners Burn Institute
The chart shown above may be used as a guide in determining the proper water temperature for your home.
NOTICE: Households with small children, disabled, or elderly persons may require a 120°F or lower thermostat setting to prevent contact with “HOT” water.
The temperature of the water in the heater is regulated by the adjustable surface mounted thermostat(s) located behind the jacket access panel(s). Dual element heaters have two thermostats. To comply with safety regulations the thermostat(s) were set at 120°F before the water heater was shipped from the factory.
The illustration at the left
R
T
E
Reset button
E
S
E
T
R
shows the temperature
S
E
adjustment dial used for setting the water
Thermostat dial pointer
125°F
TURN OFF
POWER BEFORE
Thermostat
protective
cover
DANGER:
SERVICING
Hotter water increases the potential for
Hot Water SCALDS
temperature.
Refer to the Operating
90°F150°F
Instructions in this manual for detailed instructions in how to adjust the thermostat(s).
.
3
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
Be sure to read and understand the entire Use and Care Manual before attempting to install or operate this water heater. It may save you time and cost. Pay particular attention to the Safety Instructions. Failure to follow these warnings could result in serious bodily injury or death. Should you have problems understanding the instructions in this manual, or have any questions, STOP, and get help from a qualified service technician, or the local electric utility.
FOR INSTALLATIONS IN THE STATE OF CALIFORNIA
California Law requires that residential water heaters must be braced, anchored or strapped to resist falling or horizontal displacement due to earthquake motions. For residential water heaters up to 52 gallon capacity, a brochure with generic earthquake bracing instructions can be obtained from: Office of the State Architect, 400 P Street, Sacramento, CA 95814 or you may call 916-324-5315 or ask a water heater dealer.
However, applicable local codes shall govern installation. For residential water heaters of a capacity greater than 52 gallons, consult the local building jurisdiction for acceptable bracing procedures.
SAFETY PRECAUTIONS
Have the installer show you the location of the circuit breaker and how to shut it off if necessary. Turn off the circuit breaker if the water heater has been subjected to overheating, fire, flood, physical damage or if the ECO fails to shut off.
● Read this manual entirely before installing
or operating the water heater.
● Use this appliance only for its intended
purpose as described in this Use and Care Manual.
● Be sure your appliance is properly installed
in accordance with local codes and the provided installation instructions.
● Do not attempt to repair or replace any part
of your water heater unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
4
SAVE THESE INSTRUCTIONS
Installing the water heater.
The location chosen for the water heater must take into consideration the following:
Local Installation Regulations
This water heater must be installed in accordance with these instructions, local codes, utility codes, utility company requirements or, in the absence of local codes, the latest edition of the National
Location
This water heater is designed to meet a wide range of applications. It fulfills a demand for a small water heater that can be installed in a limited space such as under countertops, in cabinets or in a closet.
Locate the water heater in a clean dry area as near as practical to hot water fixtures, or close to the water faucet most frequently used.
Locate the water heater in a clean dry area as near as practical to the area of greatest heated water demand. Long uninsulated hot water lines can waste energy and water.
Place the water heater in such a manner that the thermostat and element access panels can be removed to permit inspection and servicing such as removal of elements or checking controls.
Electrical Code. It is available from some local libraries or can be purchased from the National Fire Protection Association, Batterymarch Park, Quincy, MA 02269 as booklet ANSI/NFPA 70.
The water heater and water lines should be protected from freezing temperatures. Do not install the water heater in outdoor, unprotected areas.
Make certain the floor underneath the water heater is strong enough to sufficiently support the weight of the water heater once it is filled with water.
CAUTION: The water heater should not be located in an area where leakage of the tank or connections will result in damage to the area adjacent to it or to lower floors of the structure. Where such areas cannot be avoided, it is recommended that a suitable catch pan, adequately drained, be installed under the water heater.
A—Diameter of water
heater plus 2″ min.
B—Maximum 2″
NOTICE: Auxiliary catch pan MUST conform to local codes.
Catch Pan Kits are available from the store where the water heater was purchased, or any water heater distributor.
B
To open drain, line should be at least 3/4″ ID and pitched for proper drainage.
A
Inspect Shipment
Inspect the water heater for possible damage. Check the markings on the rating plate of the water heater to be certain the power supply corresponds to the water heater requirements.
5
Installing the water heater.
Thermal Expansion
Determine if a check valve exists in the inlet water line.
cold water line as a separate back flow preventer, or it may be part of a pressure reducing valve, water meter or water softener. A check valve located in the cold water inlet line can cause what is referred to as a
water system.”
check valve or back flow prevention device is referred to as an “open” water system.
As water is heated, it expands in volume and creates an increase in pressure within the water system. This action is referred to as
expansion.”
expanding water which exceeds the capacity of the water heater flows back into the city main where the pressure is easily dissipated.
It may have been installed in the
“closed
A cold water inlet line with no
“thermal
In an “open” water system,
A “closed water system,” however, prevents the
expanding water from flowing back into the main supply line, and the result of
expansion”
pressure increase in the water heater and the system piping. This rapid pressure increase can quickly reach the safety setting of the relief
can create a rapid and dangerous
“thermal
valve, causing it to operate during each heating cycle. Thermal expansion, and the resulting rapid and repeated expansion and contraction of components in the water heater and piping system can cause premature failure of the relief valve, and possibly the heater itself. Replacing the relief valve will not correct the problem.
The suggested method of controlling thermal expansion is to install an expansion tank in the cold water line between the water heater and the check valve. The expansion tank is designed with an air cushion built in that compresses as the system pressure increases, thereby relieving the over pressure condition and eliminating the repeated operation of the relief valve. Other methods of controlling thermal expansion are also available. Contact your installing contractor, water supplier, or plumbing inspector for additional information regarding this subject.
NOTICE: Do not apply heat to the HOT or COLD water connections. If sweat connections are used, sweat tubing to adapter before fitting adapter to the water connections on heater. Any heat applied to the water supply fittings will permanently damage the dip tube and/or heat traps.
Water Supply Connections
Refer to the illustrations on the following page for suggested typical installation. The installation of unions or flexible copper connectors is recommended on the hot and cold water connections so that the water heater may be easily disconnected for servicing. Connect cold water supply line to 3/4” pipe connection near bottom of water heater on the 6 gallon and 20 gallon models. Install a shut-off valve and a drain valve (not supplied with heater, except 2 1/2 gal.
models) in cold water line near water heater. Connect hot water line to 3/4” pipe connection marked HOT on side near top of water heater. On the 2 1/2 gallon models, the hot and cold water connections are 1/2” pipe connections and are located on top of the heater. Local codes may require an anti­siphon device on the water inlet of a side connect water heater.
6
