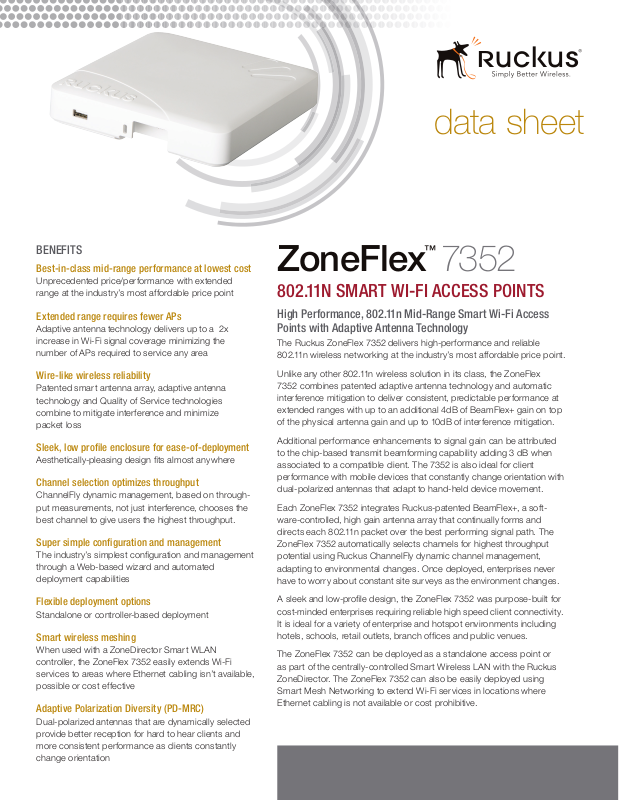

Page 1
BENEFITS
data sheet
Best-in-class mid-range performance at lowest cost
Unprecedented price/performance with extended
range at the industry’s most affordable price point
Extended range requires fewer APs
Adaptive antenna technology delivers up to a 2x
increase in Wi-Fi signal coverage minimizing the
number of APs required to service any area
Wire-like wireless reliability
Patented smart antenna array, adaptive antenna
technology and Quality of Service technologies
combine to mitigate interference and minimize
packet loss
Sleek, low prole enclosure for ease-of-deployment
Aesthetically-pleasing design ts almost anywhere
Channel selection optimizes throughput
ChannelFly dynamic management, based on throughput measurements, not just interference, chooses the
best channel to give users the highest throughput.
Super simple conguration and management
The industry’s simplest conguration and management
through a Web-based wizard and automated
deployment capabilities
ZoneFlex™ 7352
802.11N SMART WI-FI ACCESS POINTS
High Performance, 802.11n Mid-Range Smart Wi-Fi Access
Points with Adaptive Antenna Technology
The Ruckus ZoneFlex 7352 delivers high-performance and reliable
802.11n wireless networking at the industry’s most affordable price point.
Unlike any other 802.11n wireless solution in its class, the ZoneFlex
7352 combines patented adaptive antenna technology and automatic
interference mitigation to deliver consistent, predictable performance at
extended ranges with up to an additional 4dB of BeamFlex+ gain on top
of the physical antenna gain and up to 10dB of interference mitigation.
Additional performance enhancements to signal gain can be attributed
to the chip-based transmit beamforming capability adding 3 dB when
associated to a compatible client. The 7352 is also ideal for client
performance with mobile devices that constantly change orientation with
dual-polarized antennas that adapt to hand-held device movement.
Each ZoneFlex 7352 integrates Ruckus-patented BeamFlex+, a software-controlled, high gain antenna array that continually forms and
directs each 802.11n packet over the best performing signal path. The
ZoneFlex 7352 automatically selects channels for highest throughput
potential using Ruckus ChannelFly dynamic channel management,
adapting to environmental changes. Once deployed, enterprises never
have to worry about constant site surveys as the environment changes.
Flexible deployment options
Standalone or controller-based deployment
Smart wireless meshing
When used with a ZoneDirector Smart WLAN
controller, the ZoneFlex 7352 easily extends Wi-Fi
services to areas where Ethernet cabling isn’t available,
possible or cost effective
Adaptive Polarization Diversity (PD-MRC)
Dual-polarized antennas that are dynamically selected
provide better reception for hard to hear clients and
more consistent performance as clients constantly
change orientation
A sleek and low-prole design, the ZoneFlex 7352 was purpose-built for
cost-minded enterprises requiring reliable high speed client connectivity.
It is ideal for a variety of enterprise and hotspot environments including
hotels, schools, retail outlets, branch ofces and public venues.
The ZoneFlex 7352 can be deployed as a standalone access point or
as part of the centrally-controlled Smart Wireless LAN with the Ruckus
ZoneDirector. The ZoneFlex 7352 can also be easily deployed using
Smart Mesh Networking to extend Wi-Fi services in locations where
Ethernet cabling is not available or cost prohibitive.
Page 2
ZoneFlex™ 7352
802.11N SMART WI-FI
ACCESS POINTS
Patented BeamFlex+™ Technology Extends Signal Range,
Improves Stability of Client Connections
All ZoneFlex 7352 Smart Wi-Fi access points integrate a
software-controlled smart antenna array that delivers up to an
additional 4dB of BeamFlex+ gain and 10dB of interference
mitigation. This allows up to a 2x improvement in signal range
and a reduction in packet loss from the ability to automatically
mitigate interference and avoid obstacles.
Advanced WLAN Applications
with Smart/OS
When used with the Ruckus
ZoneDirector Smart WLAN controller,
each ZoneFlex 7352 supports a wide
range of value-added applications such
as guest networking, Smart Wireless
Meshing, Dynamic PSK, hotspot
authentication, wireless intrusion
detection and many more. With
Smart/OS, WLANs can be created and
mapped to the same or different APs or VLANs. In a centrally
managed conguration, the ZoneFlex 7352 works with a wide
range of authentication servers including Microsoft’s Active
Directory, LDAP, and RADIUS.
Complete Local and
Remote Management
Each ZoneFlex 7352 can be
managed as a standalone AP
through a Web-based GUI,
using SNMP or through the
Ruckus FlexMaster Wi-Fi
remote management system.
Local management can also
be performed using the
ZoneDirector Smart WLAN
controller. FlexMaster is a
LINUX-based software platform
that uses industry-standard
protocols to perform bulk
conguration, fault detection,
monitoring and a wide range of troubleshooting capabilities
over a wire area connection. The ZoneDirector enables local
management and control of APs, adding value-added services
such as transmit power control, guest networking and meshing.
Flexible Deployment Options
ZoneFlex 7352 APs can be deployed as a standalone AP or as
part of a centrally managed wireless LAN using ZoneDirector
Smart WLAN controllers. ZoneFlex 7352 can be deployed across
any L2/L3 network and can bridge trafc onto the local network,
tunnel to a central location using L2TP or PPPoE, or route
between the WAN and NAT’ed private subnets. It can be wired
to the network or connect wirelessly by meshing to another AP
when Ethernet cabling is unavailable. When used with the
ZoneDirector, each ZoneFlex 7352 is automatically congured
through the network making deployment quick and easy.
One 10/100 Mbps and one
80 2.3af Po E 10/100/10 00
Mbps Ethernet port support
Many potential antenna
combinations can
be chosen for high
availability of Wi-Fi
High-gain directional
antenna elements not
only delivers signal gain
but also interference
mitigation for range
extension, reliability
and high data rates
page 2
Page 3
ZoneFlex™ 7352
802.11N SMART WI-FI
ACCESS POINTS
AFFORDABLE PERFORMANCE FOR ENTERPRISES
The ZoneFlex 7352 integrates seamlessly with your existing network infrastructure, delivering best-in-class 802.11n performance
and reliability at the industry’s most affordable price - making it the ideal wireless solution for mid-range enterprise and branch ofce
applications.
Enterprise
Branch Ofce
2.4GHz
802.11n
Corp
SSID
2.4GHz
802.11n
802.11g
802.11g
ZoneDirector
Voice
ZF 7352
SSID
2.4GHz
Internet
Firewall
FEATURES
• 2.4GHz
• Adaptive antenna technology and advanced RF management
• Up to an additional 4dB BeamFlex+ gain / 10dB interference
mitigation / 3 dBi physical antenna gain
• Automatic interference mitigation, optimized for high-
density environments
ZF 7352
Corp
802.11a
SSID
802.11n
802.11n
802.11g
Corp
SSID
2.4GHz
Router
RADIUS/AD/LDAP
• WPA-PSK (AES), 802.1X support for RADIUS and
Active Directory**
• Ethernet 802.1x port-based authentication (authenticator
and supplicant)
• BYOD, Zero-IT and Dynamic PSK**
• Admission control/load balancing**
ZF 7352
Voice
2.4GHz
Guest
SSID
2.4GHz
SSID
802.11g
• Integrated smart antenna technology
• Standard 802.3af Power over Ethernet (PoE)
• Router mode with NAT and DHCP services
• up to 2 times extended range and coverage
• IP multicast video streaming support
• Up to 32 BSSIDs per radio with unique QoS and
security policies
• Advanced QoS packet classication and automatic priority
for latency-sensitive trafc
• Dynamic, pre-user rate-limiting for hotspot WLANs
page 3
• Band steering and airtime fairness
• Captive portal and guest accounts **
• Application recognition and control**
• SecureHotspot**
• SPOT location services**
• Band balancing**
• Captive portal and guest accounts **
• Wall, desktop or ceiling mountable
• Limited lifetime warranty
** when used with Ruckus ZoneDirector controller.
Page 4
ZoneFlex™ 7352
ZoneFlex
7352
802.11N SMART WI-FI
ACCESS POINTS
IN-ROOM DEPLOYMENT FOR HOTELS
The ZoneFlex 7352 is ideal for deployment in hotel guest
rooms to provide wireless connection to high quality video and
data access, as well as wired connections to IP phone and
guest devices.
ZoneFlex
7352
Allows for concurrent
Internet and IP-based
video services
Sleek, elegant design
easily concealed
Wired ports for connecting IP
devices such as laptops and
VoIP phones
Multiple SSIDs for highspeed Internet access and
other services
DEPLOYMENT FOR RETAIL / BRANCH OFFICES
The ZoneFlex 7352 is ideal for deployment in retail stores to
provide inconspicuous wireless connection to high quality
video, wireless IP phones and data access for handheld PoS
bar code scanners.
Smart antenna
Wired ports
to connect
devices such as
cash registers,
printers, etc.
Multiple SSIDs
for differentiated
user services (e.g.,
guest Wi-Fi, point
of sale, voice)
Reliable Wi-Fi connectivity
for point of sale devices
system ideal for
wireless meshing
between A Ps
page 4
Page 5
Specications
PHYSICAL CHARACTERISTICS
POWER •DC Input: 12 VDC 1.0A
•Power over Ethernet 802.3 af
PHYSICAL SIZE •15.8 cm x 15.8 cm x 4 cm
(6.2 in x 6.2 in x 1.57 in)
WEIGHT •350 g (0.77 lb.)
ETHERNET PORTS •1 auto MDX, auto-sensing
10/10 0/10 00 Mbps , RJ-45,
POE port
•1 auto MDX, auto-sensing
10/100 Mbps, RJ-45 ports
LOCK OPTIONS •Hidden latching mechanism
•Kensington Lock Hole
•T- ba r Tor x
•Bracket (902-0108-0000)
Torx screw & padlock
ENVIRONMENTAL
CONDITIONS
POWER DRAW •DC Input
•Operating Temperature: 0°C - 50°C
•Operating Humidity: 10% - 95%
non-condensing
•Idl e: 1.5 W
•Typical: 2.3W
•Peak: 4.3W
•Power over Ethernet Input
•Idl e: 1.5 W
•Typical: 2.3W
•Peak: 4.3W
PERFORMANCE AND CAPACITY
CONCURRENT STATIONS •Up to 250 per AP
SIMULTANEOUS VoIP CLIENTS •Up to 12
MANAGEMENT
DEPLOYMENT OPTIONS •Standalone (individually managed)
•Managed by ZoneDirector
•Managed by FlexMaster
•Managed by SmartCell™
Gateway 200
CONFIGURATION •Web User Interface (HTTP/S)
•CLI (Telnet/SSH), SNMP v1, 2, 3
•TR-069 vis FlexMaster
AUTO AP SOFTWARE UPDATES •FTP or TFTP, remote auto available
WI-FI
STANDARDS •I E EE 8 02 .11b /g/n
•2.4G Hz
SUPPORTED
DATA R ATES
•802.11n: 6.5Mbps – 130Mbps (20MHz)
6.5Mbps – 300Mbps (40MHz)
•802.11b: 11, 5.5, 2 and 1 Mbps
•802.11g: 54, 48, 36, 24, 18, 12, 9 and 6
Mbps
RADIO CHAINS •2 x 2
SPATIAL STREAMS •2
RF POWER OUTPUT
PER CHAIN
CHANNELIZATION •20MHz and/or 40MHz
FREQUENCY BAND •IEEE 802.11 b/g/n: 2.4 – 2.484 GHz
OPERATING
CHANNELS
BSSID •Up to 32
POWER SAVE •Supported
WIRELESS SECURITY •WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
•26 dBm for 2.4GHz †
•US/Canada: 1-11, Europe ( ETSI X30):
1-13, J ap an X41: 1-13
•Authentication via 802.1X with the
ZoneDirector, local authentication
database, support for RADIUS, LDAP,
and ActiveDirectory
CERTIFICATIONS* •U.S., Europe, Australia, Brazil, Canada,
Chile, China, Colombia, Costa Rica, Hong
Kong, India, Indonesia, Israel, Japan, Korea,
Malaysia, Mexico, New Zealand, Peru,
Philippines, Saudi Arabia, Singapore, South
Africa, Taiwan, Thailand, UAE, Vietnam
•WEEE/RoHS compliance
•EN-60 601-1-2
•Wi-Fi Alliance
* Please see price list for latest certic ation list
† Maximum power varies by country
Product Ordering Information
MODEL DESCRIPTION
ZoneFlex 7352 Smar t Wi-Fi 802.11n Access Point
901-7352-XX00 802.11n AP, no power adapter
Copyright © 2014, Rucku s Wireless, I nc. All right s reserve d. Ruckus Wir eless and Ruc kus Wireles s design are
registered in the U.S. P atent and Tradema rk Offic e. Ruckus Wir eless, the R uckus Wirele ss logo, Bea mFlex+,
ZoneFlex, MediaF lex, FlexMa ster, ZoneDir ector, Speed Flex, Smar tCast, a nd Dynamic P SK are trade marks of
Ruckus W ireless, In c. in the Unite d States and o ther countr ies. All othe r trademark s mentione d in this document
or websit e are the prope rty of their respecti ve owners. Re v 04
Optional Accessories
902-0108-0000 Spare, Accessory Mounting Bracket
90 2-0173 -X XY Y Power Adapter, AC/DC wall plug,
100-240Vac 50/60Hz
902-0162-XXYY PoE injector (sold in quantities of 10 or 100)
PLEAS E NOTE: When ordering ZoneFlex Indoor APs, you must specif y the
destination region by indicating -US, -IL, or -WW instead of XX. Whe n ordering
PoE injectors or power supplies, you must specify the destination region by indicating -US, -EU, -AU, -BR, -CN, -IN, -JP, -KR, -SA, -UK, or -UN instead of -XX.
Ruckus Wireless, Inc.
350 West Java Drive
Sunnyvale, CA 94089 USA
(650) 265-4200 Ph \ (408) 738-2065 Fx
www.ruckuswireless.com
Loading...
