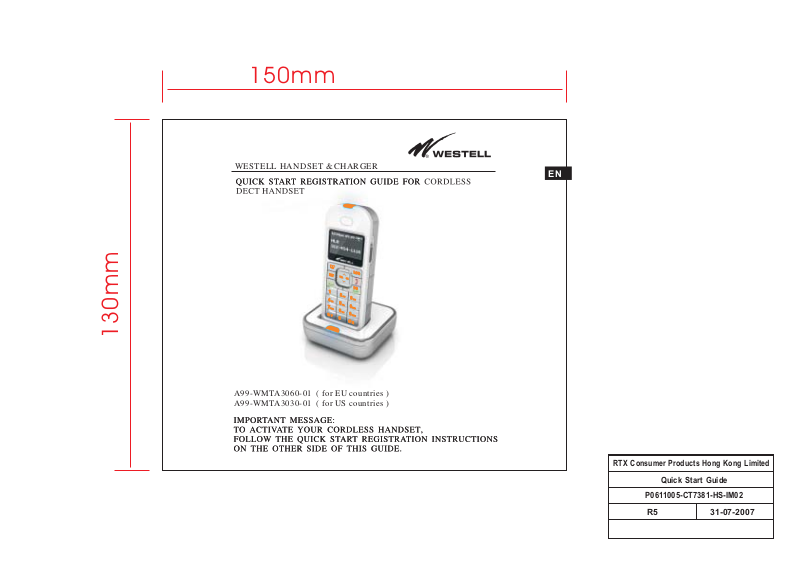

RTX WMTAV30 01 User Manual

150mm

130mm

WESTELL HANDSET & CHARGER

LOG

INT

DEL

OK

PC

1

2

A

ABC

B

C

3

D

DEF

E

F

4

G

GHI

H

I

5

J

JKL

K

L

6

7

MNO

P

PORS

ORS

8

T

TUV

U

V

9

W

WXYZ

XYZ

P

0

*

#

R

A99-WMTA3060-01 ( for EU countries )
A99-WMTA3030-01 ( for US countries )

EN

RTX Consumer Products Hong Kong Limited

Quick Start Guide

P0611005-CT7381-HS-IM02

R5

31-07-2007

GETTING STARTED

Inserting rechargeable batteries into handset

1.

On the handset,gently pull off the battery cover and insert the rechargeable batteries which come with the package. MAKING SURE BATTERIESFOLLOW THE
POLARITY INDICATIONMARKED INSIDE BATTERY COMPARTMENT.Replace battery cover onto handset. LCD screen will turn up. Press the red
button as soon as battery is installed.

Safety Instructions For Batteries

1. Use only the battery in the handset of your cordless phone.
For Handset Unit: 3 X 1.2V AAA size NiMH Rechargeable Battery
Brand name: Lexel Battery (Shenzhen) Co. Ltd.
Type No: LH060-3AH45

2. Do not dispose of the battery in a fire as it may explode. Check with local codes for possible special instructions.

3. Do not open or mutilate the battery. Released elect rolyte is corrosive and may cause damage to the eyes and skin. It may be toxic if swallowed.

4. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or
conduction material may overheat and cause burns.

5. Charge the battery (ies) provided with or identified for use with this product only in accordance with the instructions and limitations specified in
this manual.

6. Observe proper polarity orientation between the battery pack and the battery charger.

Connecting power

2.

On the charger unit connect the power adaptor to the AC power outlet.

Place the handset in the charging cradle

3.

The charging LED will light up if the handset is correctly.placed

IMPORTANT - Charge the battery for 5 hours before first use

4.

Before using the handset, it is strongly recommended to charge the handset for at least 5 hours before first usage. For future use, whenever the
handset shows a low battery indication, please place the handset into the charging cradle.

OFF

Registration:

5.

The Handset must be registered to the base unit prior to first use. Prior to registering handset, please turn on Base Screen unit. The charger
unit is not the base unit.

1. An unregistered handset display shows "Press OK to register".

2. Presses "OK". A 30-second timer is set on handset for registration.

3. "Select" (press) the Register Key on Base Screen unit.

4. Selects (presses once) the Register softkey on the LCD. A 30-second timer is set on base for registration.

5. Handset registers with base.

6. Handset display indicates that registration is completed, and solicits a handset name.

7. Use keypad to type name of handset. When complete press "OK".

Handset is now ready to use with base unit.

6.

The handset can be powered ON and OFF by pressing and holding for 5 seconds the red OFF button. The LCD screen and button back light
will illuminate when on. The button back lights will remain ON for 10 seconds after the release of any button pressing and then will turn off.
