July 2006 Rev E
Br eakout Panel
Resour ce Guide
includes:
XCP-955
XCP-32-DB9
XCP-16-DB9-T
XCP-48-RJ45
XCP-48-TELCO
XCP-40-DB9
XCP-40-RJ11
XCP-24
XCP-24-USOC
XCP-ADAM-MC
LIT000061000
Table
of
Contents
Breakout Panel Introduction ...................................................................................................................... 1
XCP-955 - 8800303674 .............................................................................................................................. 3
XCP-32-DB9 - 9000-7810-000 ................................................................................................................... 7
XCP-16-DB9-T - 9000-7837-000 ............................................................................................................... 9
XCP-48-RJ45 - 9000-7809-000 ................................................................................................................ 11
XCP-48-Telco - 9000-7822-000 ............................................................................................................... 13
XCP-40-DB9 - 9000-7515-000 ................................................................................................................. 19
XCP-40-RJ11 - 9000-7494-000 ................................................................................................................ 21
XCP-24 - 9000-7559-000 .......................................................................................................................... 23
XCP-24-USOC - 9000-7559-001 .............................................................................................................. 27
XCP-ADAM-MC - 9002-7514-100 ........................................................................................................... 31
1
CHAPTER 1
Br eakout Panel Intr oduction
Breakout Panels provide a convenient way of expanding the port capacity of an ADAM intercom system. Currently, there are
seven breakout panels for use with the AIO cards: XCP-32-DB9, XCP-16-DB9-T,XCP-48-RJ45, XCP-48-Telco, XCP-40DB9, XCP-40-RJ11, XCP-955, XCP-24, and the XCP-24-USOC.
Installation
Requirements
• Have the new ADAM power supply installed (p/n - 9020-7515-001).
• In a single frame system, have the Master Controller firmware 9.22.0 or higher installed.
• In a multi-frame system have:
the Peripheral Controller firmware 10.13.x or higher installed
the DBX firmware 1.13.0 or higher installed.
IMPORTANT!!! Use the following instructions for you initial setup of an AIO-16 card. If you do not follow these directions,
the AIO-16 card may not work properly.
Breakout Panel Introduction
2
To install the AIO-16 card for the first time, do the following:
1. Gently insert the AIO-16 card into the appropriate ADAM slot.
2. Lightly tighten down the AIO-16 card.
3. Carefully attach the backcard (MDR or SCSI,) to the AIO-16 card from the back of the ADAM. Verify it is properly seated
against the AIO-16 card and is sitting firmly in the system.
4. Tight the backcard to the frame
5. Fully tighten down the AIO-16 from the front of the system.
NOTE: Once you have done this, you do not have to repeat this everytime.
6. Attach the desired breakout panel to the AIO-16’s backcard connector.
TABLE 1. MDR backcard and connector.
TABLE 2. SCSI backcard and connector
3
CHAPTER 2
XCP-955
8800303674
The XCP-955 is the 25-port RJ-11 breakout panel with SCSI
connector for the ADAM.
Specifications
Dimensions:
18.98” (482mm) L x 1.69” (43mm) H x 0.55” (104mm) D
Weight:
1.6 lb (.725 kg)
J28
DATA
J27
AUDIO DESTINATION
J26
AUDIO SOURCE
XCP-955
XCP-955
RTS SYSTEMS
RJ-12 Connector
Pin 1 Keypanel Data Pin 2 Audio Out +
Pin 3 Audio In +
Pin 4 Audio In Pin 5 Audio Out Pin 6 Keypanel Data +
XCP-955 8800303674
4
Telco Backcard - Telco Connector - J26
Pin
Number
Port Function
1 1 Audio From Matrix +
26 1 Audio From Matrix -
2 2 Audio From Matrix +
27 2 Audio From Matrix -
3 3 Audio From Matrix +
28 3 Audio From Matrix -
4 4 Audio From Matrix +
29 4 Audio From Matrix -
5 5 Audio From Matrix +
30 5 Audio From Matrix -
6 6 Audio From Matrix +
31 6 Audio From Matrix -
7 7 Audio From Matrix +
32 7 Audio From Matrix -
8 8 Audio From Matrix +
33 8 Audio From Matrix -
9 9 Audio From Matrix +
34 9 Audio From Matrix -
10 10 Audio From Matrix +
35 10 Audio From Matrix -
11 11 Audio From Matrix +
36 11 Audio From Matrix -
12 12 Audio From Matrix +
37 12 Audio From Matrix -
13 13 Audio From Matrix +
38 13 Audio From Matrix -
14 14 Audio From Matrix +
39 14 Audio From Matrix -
15 15 Audio From Matrix +
40 15 Audio From Matrix -
16 16 Audio From Matrix +
41 16 Audio From Matrix -
17 17 Audio From Matrix +
42 17 Audio From Matrix -
18 18 Audio From Matrix +
43 18 Audio From Matrix -
19 19 Audio From Matrix +
44 19 Audio From Matrix -
20 20 Audio From Matrix +
45 20 Audio From Matrix -
21 21 Audio From Matrix +
46 21 Audio From Matrix -
22 22 Audio From Matrix +
47 22 Audio From Matrix -
23 23 Audio From Matrix +
48 23 Audio From Matrix -
24 24 Audio From Matrix +
49 24 Audio From Matrix -
Telco Backcard - Telco Connector - J27
Pin
Number
Port Function
11Audio To Matrix +
26 1 Audio To Matrix -
22Audio To Matrix +
27 2 Audio To Matrix -
33Audio To Matrix +
28 3 Audio To Matrix -
44Audio To Matrix +
Telco Backcard - Telco Connector - J26
Pin
Number
Port Function
5
Specifications
29 4 Audio To Matrix -
5 5 Audio To Matr ix +
30 5 Audio To Matrix -
6 6 Audio To Matr ix +
31 6 Audio To Matrix -
7 7 Audio To Matr ix +
32 7 Audio To Matrix -
8 8 Audio To Matr ix +
33 8 Audio To Matrix -
9 9 Audio To Matr ix +
34 9 Audio To Matrix -
10 10 Audio To Matr ix +
35 10 Audio To Matr ix -
11 11 Audio To Matrix +
36 11 Audio To Matrix -
12 12 Audio To Matr ix +
37 12 Audio To Matr ix -
13 13 Audio To Matr ix +
38 13 Audio To Matr ix -
14 14 Audio To Matr ix +
39 14 Audio To Matr ix -
15 15 Audio To Matr ix +
40 15 Audio To Matr ix -
16 16 Audio To Matr ix +
41 16 Audio To Matr ix -
17 17 Audio To Matr ix +
42 17 Audio To Matr ix -
18 18 Audio To Matr ix +
43 18 Audio To Matr ix -
Telco Backcard - Telco Connector - J27
Pin
Number
Port Function
19 19 Audio To Matrix +
44 19 Audio To Matrix -
20 20 Audio To Matrix +
45 20 Audio To Matrix -
21 21 Audio To Matrix +
46 21 Audio To Matrix -
22 22 Audio To Matrix +
47 22 Audio To Matrix -
23 23 Audio To Matrix +
48 23 Audio To Matrix -
24 24 Audio To Matrix +
49 24 Audio To Matrix -
Telco Backcard - Telco Connector - J28
Pin
Number
Port Function
1-8 1-8 Data +
25-33 1-8 Data -
9-16 9-16 Data +
34-41 9-16 Data -
17-24 17-24 Data +
42-49 17-24 Data -
Telco Backcard - Telco Connector - J27
Pin
Number
Port Function
XCP-955 8800303674
6
7
CHAPTER 3
XCP-32-DB9
9000-7810-000
The XCP-32-DB9 is the newly created 32-port DB9
breakout panel with MDR connector for the ADAM with an
AIO-16 card and Cronus. It allows you to expand the
number of DB-9 serial ports. The XCP-32-DB9 is backward
compatible with the AIO-8 card.
Specifications
Dimensions:
19” (482.6mm) W x 3.5” (88.9mm) H x 1” (25.4mm) D
Weight:
1.7 lb. (0.77 kg)
NOTE: When using the 32-port DB-9 breakout panel, you
MUST use the MDR backcard for both the AIO-16 and
Cronus.
J400
J300
J200
J100
TELEX COMMUNICATIONS, INC.
MADE IN U.S.A.
XCP-32-DB9
TM
R
1
3
7
5
8
6
4
2
1
3
7
5
8
6
4
2
1
3
7
5
8
6
4
2
1
3
7
5
8
6
4
2
The arrows represent the MDR to DB-9 connector responsiblity
9-pin Male D-sub
Pin 1 Keypanel Data +
Pin 2 Keypanel Data Pin 3 Gnd
Pin 4 Audio to Matrix +
Pin 5 Audio to Matrix Pin 6 Gnd
Pin 7 Audio from Matrix Pin 8 Audio from Matrix +
Pin 9 Gnd
XCP-32-DB9 9000-7810-000
8
NOTE: There are 4 MDR connectors on the XCP-32-DB9
Breakout panel.
MDR Connector
Pin
Number
Port Function
81Data +
33 1 Data 24 1 Audio To Matrix +
49 1 Audio To Matrix 25 1 Audio From Matrix +
50 1 Audio From Matrix -
72Data +
32 2 Data 22 2 Audio To Matrix +
47 2 Audio To Matrix 23 2 Audio From Matrix +
48 2 Audio From Matrix -
63Data +
31 3 Data 20 3 Au dio To Matrix +
45 3 Audio To Matrix 21 3 Audio From Matrix +
46 3 Audio From Matrix -
54Data +
30 4 Data +
18 4 Audio To Matrix +
43 4 Audio To Matrix 19 4 Audio From Matrix +
44 4 Audio From Matrix -
45Data +
29 5 Data +
16 5 Audio To Matrix +
41 5 Audio To Matrix 17 5 Audio From Matrix +
42 5 Audio From Matrix -
36Data +
28 6 Data +
14 6 Audio To Matrix +
39 6 Audio To Matrix 15 6 Audio From Matrix +
40 6 Audio From Matrix -
27Data +
27 7 Data +
12 7 Audio To Matrix +
37 7 Audio To Matrix 13 7 Audio From Matrix +
38 7 Audio From Matrix -
18Data +
26 8 Data +
10 8 Audio To Matrix +
35 8 Audio To Matrix 11 8 Audio From Matrix +
36 8 Audio From Matrix -
MDR Connector Port
J1 1-8
J2 9-16
J3 17-24
J4 25-32
MDR Connector
Pin
Number
Port Function
9
CHAPTER 4
XCP-16-DB9-T
9000-7837-000
The XCP-16-DB9-T is the newly created 16-port DB9
breakout panel with MDR connector and an audio
transformer for the Cronus and AIO-16. It allows you to
expand the number of DB-9 serial ports in the Intercom
system.
Specifications
Dimensions:
18.98” (482mm) W x 1.69” (43mm) H x 3.11” (79mm) D
Weight:
2.2 lb. (1.0 kg)
NOTE: When using the 32-port DB-9 breakout panel, you
MUST use the MDR backcard for both the AIO-16 and
Cronus.
.
91007837-000 REV A
91007837-000 REV A
J1
J2
TELEX COMMUNICATIONS, INC.
MADE IN U.S.A.
XCP-16-DB9-T
TM
1234
5678
1234
5678
9-pin Male D-sub
Pin 1 Keypanel Data +
Pin 2 Keypanel Data Pin 3 Gnd
Pin 4 Audio to Matrix +
Pin 5 Audio to Matrix Pin 6 Gnd
Pin 7 Audio from Matrix Pin 8 Audio from Matrix +
Pin 9 Gnd
MDR Connector
Pin
Number
Port Function
81 Data +
33 1 Data 24 1 Audio To Matrix +
49 1 Audio To Matrix 25 1 Audio From Matrix +
XCP-16-DB9-T 9000-7837-000
10
NOTE: There are 2 MDR connectors on the XCP-32-DB9-T
Breakout panel.
50 1 Audio From Matrix -
72 Data +
32 2 Data 22 2 Audio To Matrix +
47 2 Audio To Matrix 23 2 Audio From Matrix +
48 2 Audio From Matrix -
63 Data +
31 3 Data 20 3 Audio To Matrix +
45 3 Audio To Matrix 21 3 Audio From Matrix +
46 3 Audio From Matrix -
54 Data +
30 4 Data +
18 4 Audio To Matrix +
43 4 Audio To Matrix 19 4 Audio From Matrix +
44 4 Audio From Matrix -
45 Data +
29 5 Data +
16 5 Audio To Matrix +
41 5 Audio To Matrix 17 5 Audio From Matrix +
42 5 Audio From Matrix -
36 Data +
28 6 Data +
14 6 Audio To Matrix +
39 6 Audio To Matrix 15 6 Audio From Matrix +
40 6 Audio From Matrix -
27 Data +
27 7 Data +
12 7 Audio To Matrix +
37 7 Audio To Matrix 13 7 Audio From Matrix +
38 7 Audio From Matrix -
MDR Connector
Pin
Number
Port Function
18 Data +
26 8 Data +
10 8 Audio To Matrix +
35 8 Audio To Matrix 11 8 Audio From Matrix +
36 8 Audio From Matrix -
MDR Connector Port
J1 1-8
J2 9-16
MDR Connector
Pin
Number
Port Function
11
CHAPTER 5
XCP-48-RJ45
9000-7809-000
The XCP-48-RJ45 is the newly created 48-port RJ-45
breakout panel with MDR connector for the AIO-16 and
Cronus. It allow you to expand the number of RJ-45 ports on
the Intercom system.
Specifications
Dimensions:
18.98” (482mm) W x 1.69” (43mm) H x 2.95” (75mm) D
Weight:
3.5 lb. (1.59 kg)
NOTE: When using the 48-port RJ-45 breakout panel, you
MUST use the MDR backcard for both the AIO-16 and
Cronus.
J6
J5
J4
J3
J2
J1
TELEX COMMUNICATIONS, INC.
MADE IN U.S.A.
XCP-48-RJ45
14
5
67
8
23
14
5
67
8
23
14
5
67
8
23
14
5
67
8
23
14
5
67
8
23
14
5
67
8
23
The arrows represent the MDR to RJ-45 connection responsibility
RJ-45
Pin 1 N/A
Pin 2 Keypanel Data Pin 3 Audio Out +
Pin 4 Audio In +
Pin 5 Audio In Pin 6 Audio Out Pin 7 Keypanel Data +
Pin 8 N/A
MDR Connector
Pin
Number Port Function
81Data +
33 1 Data 24 1 Audio To Matrix +
XCP-48-RJ45 9000-7809-000
12
NOTE: There are 6 MDR connectors on the XCP-48 RJ-45
Breakout panel.
49 1 Audio To Matrix 25 1 Audio From Matrix +
50 1 Audio From Matrix -
72Data +
32 2 Data 22 2 Audio To Matrix +
47 2 Audio To Matrix 23 2 Audio From Matrix +
48 2 Audio From Matrix -
63Data +
31 3 Data 20 3 Audio To Matrix +
45 3 Audio To Matrix 21 3 Audio From Matrix +
46 3 Audio From Matrix -
54Data +
30 4 Data +
18 4 Audio To Matrix +
43 4 Audio To Matrix 19 4 Audio From Matrix +
44 4 Audio From Matrix -
45Data +
29 5 Data +
16 5 Audio To Matrix +
41 5 Audio To Matrix 17 5 Audio From Matrix +
42 5 Audio From Matrix -
36Data +
28 6 Data +
14 6 Audio To Matrix +
39 6 Audio To Matrix 15 6 Audio From Matrix +
40 6 Audio From Matrix -
27Data +
27 7 Data +
12 7 Audio To Matrix +
37 7 Audio To Matrix -
MDR Connector
Pin
Number
Port Function
13 7 Audio From Matrix +
38 7 Audio From Matrix -
18Data +
26 8 Data +
10 8 Audio To Matrix +
35 8 Audio To Matrix 11 8 Audio From Matrix +
36 8 Audio From Matrix -
MDR Connector Port
J1 1-8
J2 9-16
J3 17-24
J4 25-32
J5 33-40
J6 41-48
MDR Connector
Pin
Number
Port Function
13
CHAPTER 6
XCP-48-Telco
9000-7822-000

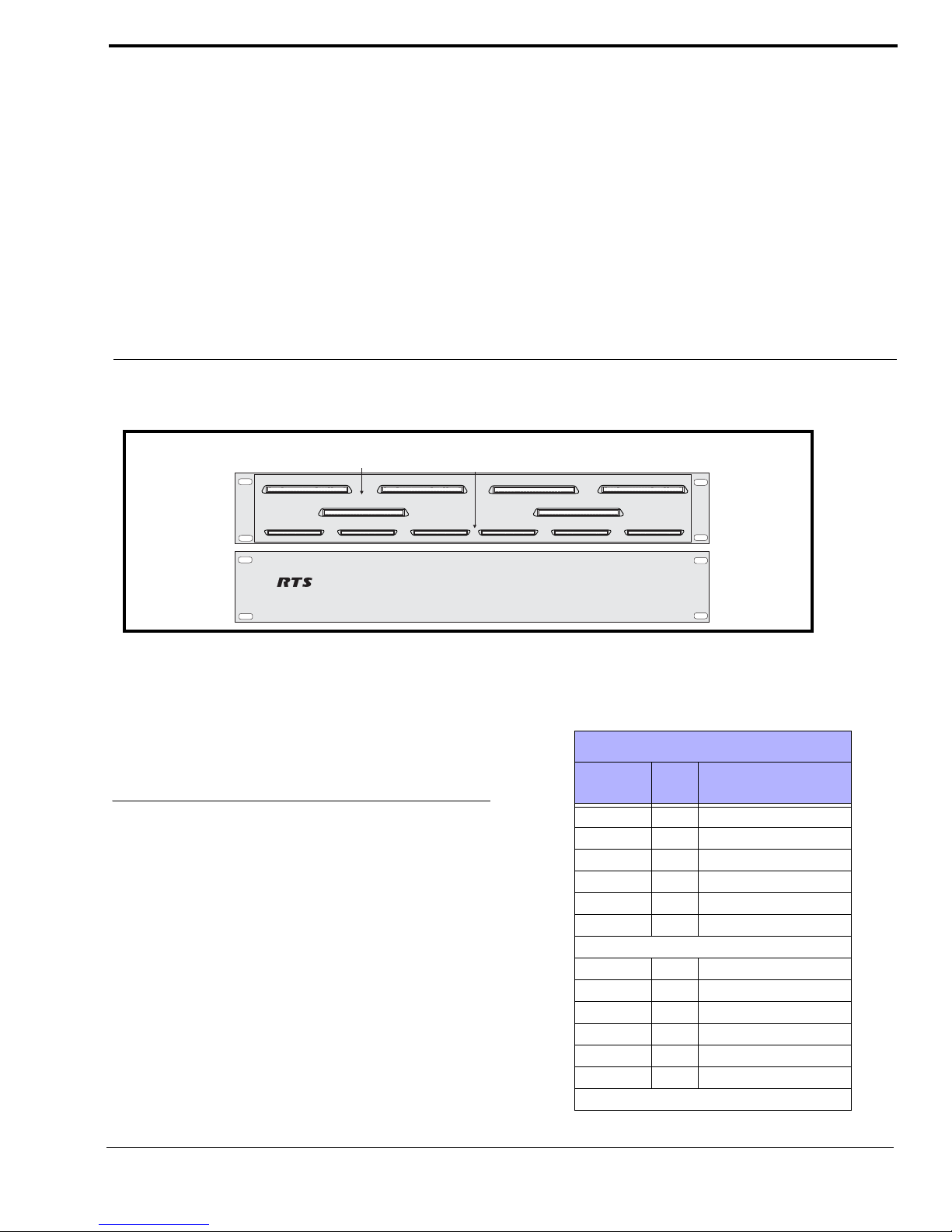

The XCP-48-Telco is the newly created breakout panel with
MDR connector for the AIO-16 and Cronus. It combines the
audio to matrix, audio from matrix, and data pairs. It then
routes them on individual Telco connectors. It allows you to
connect to 48 ports on the Intercom system.
Specifications
Dimensions:
18.98” (482mm) W x 3.39” (86mm) H x 2.95” (75mm) D
Weight:
2 lb. (.907 kg)
NOTE: When using the 48-port Telco breakout panel, you
MUST use the MDR backcard for both the AIO-16 and
Cronus.
J1
J2
J3
J4 J5
J6
J100 J200 J300
J400 J500
J600
TelcoConnector (J1 - J6)
MDR Connector (J100 - J600)
TM
XCP48-TELCO
MDR Connector
Pin
Number Port Function
81Data +
33 1 Data 24 1 Audio To Matrix +
49 1 Audio To Matrix 25 1 Audio From Matrix +
50 1 Audio From Matrix -
72Data +
32 2 Data 22 2 Audio To Matrix +
47 2 Audio To Matrix 23 2 Audio From Matrix +
48 2 Audio From Matrix -
XCP-48-Telco 9000-7822-000
14
NOTE: There are 6 MDR connectors on the XCP-48-
TELCO Breakout Panel.
63Data +
31 3 Data 20 3 Audio To Matrix +
45 3 Audio To Matrix 21 3 Audio From Matrix +
46 3 Audio From Matrix -
54Data +
30 4 Data +
18 4 Audio To Matrix +
43 4 Audio To Matrix 19 4 Audio From Matrix +
44 4 Audio From Matrix -
45Data +
29 5 Data +
16 5 Audio To Matrix +
41 5 Audio To Matrix 17 5 Audio From Matrix +
42 5 Audio From Matrix -
36Data +
28 6 Data +
14 6 Audio To Matrix +
39 6 Audio To Matrix 15 6 Audio From Matrix +
40 6 Audio From Matrix -
27Data +
27 7 Data +
12 7 Audio To Matrix +
37 7 Audio To Matrix 13 7 Audio From Matrix +
38 7 Audio From Matrix -
18Data +
26 8 Data +
10 8 Audio To Matrix +
35 8 Audio To Matrix 11 8 Audio From Matrix +
36 8 Audio From Matrix -
MDR Connector
Pin
Number
Port Function
MDR Connector Port
J100 1-8
J200 9-16
J300 17-24
J400 25-32
J500 33-40
J600 41-48
Telco Connector - J1, J4
Pin
Number
Port Function
1 1 Audio to Matrix +
26 1 Audio to Matrix -
2 2 Audio to Matrix +
27 2 Audio to Matrix -
3 3 Audio to Matrix +
28 3 Audio to Matrix -
4 4 Audio to Matrix +
29 4 Audio to Matrix -
5 5 Audio to Matrix +
30 5 Audio to Matrix -
6 6 Audio to Matrix +
31 6 Audio to Matrix -
7 7 Audio to Matrix +
32 7 Audio to Matrix -
8 8 Audio to Matrix +
33 8 Audio to Matrix -
9 9 Audio to Matrix +
34 9 Audio to Matrix -
10 10 Audio to Matrix +
35 10 Audio to Matrix -
11 11 Audio to Matrix +
36 11 Audio to Matrix -
XCP-48-Telco 9000-7822-000
15
12 12 Audio to Matrix +
37 12 Audio to Matrix -
13 13 Audio to Matrix +
38 13 Audio to Matrix 14 14 Audio to Matrix +
39 14 Audio to Matrix -
15 15 Audio to Matrix +
40 15 Audio to Matrix -
16 16 Audio to Matrix +
41 16 Audio to Matrix -
17 17 Audio to Matrix +
42 17 Audio to Matrix -
18 18 Audio to Matrix +
43 18 Audio to Matrix -
19 19 Audio to Matrix +
44 19 Audio to Matrix -
20 20 Audio to Matrix +
45 20 Audio to Matrix -
21 21 Audio to Matrix +
46 21 Audio to Matrix -
22 22 Audio to Matrix +
47 22 Audio to Matrix -
23 23 Audio to Matrix +
48 23 Audio to Matrix -
24 24 Audio to Matrix +
49 24 Audio to Matrix -
Telco Connector - J1, J4
Pin
Number
Port Function
Telco Connector - J2, J5
Pin
Number
Port Function
1 1 Audio from Matrix +
26 1 Audio from Matrix -
2 2 Audio from Matrix +
27 2 Audio from Matrix -
3 3 Audio from Matrix +
28 3 Audio from Matrix -
4 4 Audio from Matrix +
29 4 Audio from Matrix -
5 5 Audio from Matrix +
30 5 Audio from Matrix -
6 6 Audio from Matrix +
31 6 Audio from Matrix -
7 7 Audio from Matrix +
32 7 Audio from Matrix -
8 8 Audio from Matrix +
33 8 Audio from Matrix -
9 9 Audio from Matrix +
34 9 Audio from Matrix -
10 10 Audio from Matrix +
35 10 Audio from Matrix -
11 11 Audio from Matrix +
36 11 Audio from Matrix -
12 12 Audio from Matrix +
37 12 Audio from Matrix -
13 13 Audio from Matrix +
38 13 Audio from Matrix -
14 14 Audio from Matrix +
39 14 Audio from Matrix -
15 15 Audio from Matrix +
XCP-48-Telco 9000-7822-000
16
40 15 Audio from Matrix -
16 16 Audio from Matrix +
41 16 Audio from Matrix -
17 17 Audio from Matrix +
42 17 Audio from Matrix -
18 18 Audio from Matrix +
43 18 Audio from Matrix -
19 19 Audio from Matrix +
44 19 Audio from Matrix -
20 20 Audio from Matrix +
45 20 Audio from Matrix -
21 21 Audio from Matrix +
46 21 Audio from Matrix -
22 22 Audio from Matrix +
47 22 Audio from Matrix -
23 23 Audio from Matrix +
48 23 Audio from Matrix -
24 24 Audio from Matrix +
49 24 Audio from Matrix -
Telco Connector - J3, J6
Pin
Number Port Function
11Data +
26 1 Data -
22Data +
27 2 Data -
33Data +
28 3 Data -
44Data +
29 4 Data -
Telco Connector - J2, J5
Pin
Number
Port Function
55Data +
30 5 Data -
66Data +
31 6 Data -
77Data +
32 7 Data -
88Data +
33 8 Data -
99Data +
34 9 Data -
10 10 Data +
35 10 Datax -
11 11 Data +
36 11 Data -
12 12 Data +
37 12 Data -
13 13 Data +
38 13 Data -
14 14 Data +
39 14 Data -
15 15 Data +
40 15 Data -
16 16 Data +
41 16 Data -
17 17 Data +
42 17 Data -
18 18 Data +
43 18 Data -
Telco Connector - J3, J6
Pin
Number
Port Function
XCP-48-Telco 9000-7822-000
17
19 19 Data +
44 19 Data -
20 20 Data +
45 20 Data -
21 21 Data +
46 21 Data -
22 22 Data +
47 22 Data -
23 23 Data +
48 23 Data -
24 24 Data +
49 24 Data -
Telco Connector - J3, J6
Pin
Number
Port Function
XCP-48-Telco 9000-7822-000
18
19
CHAPTER 7

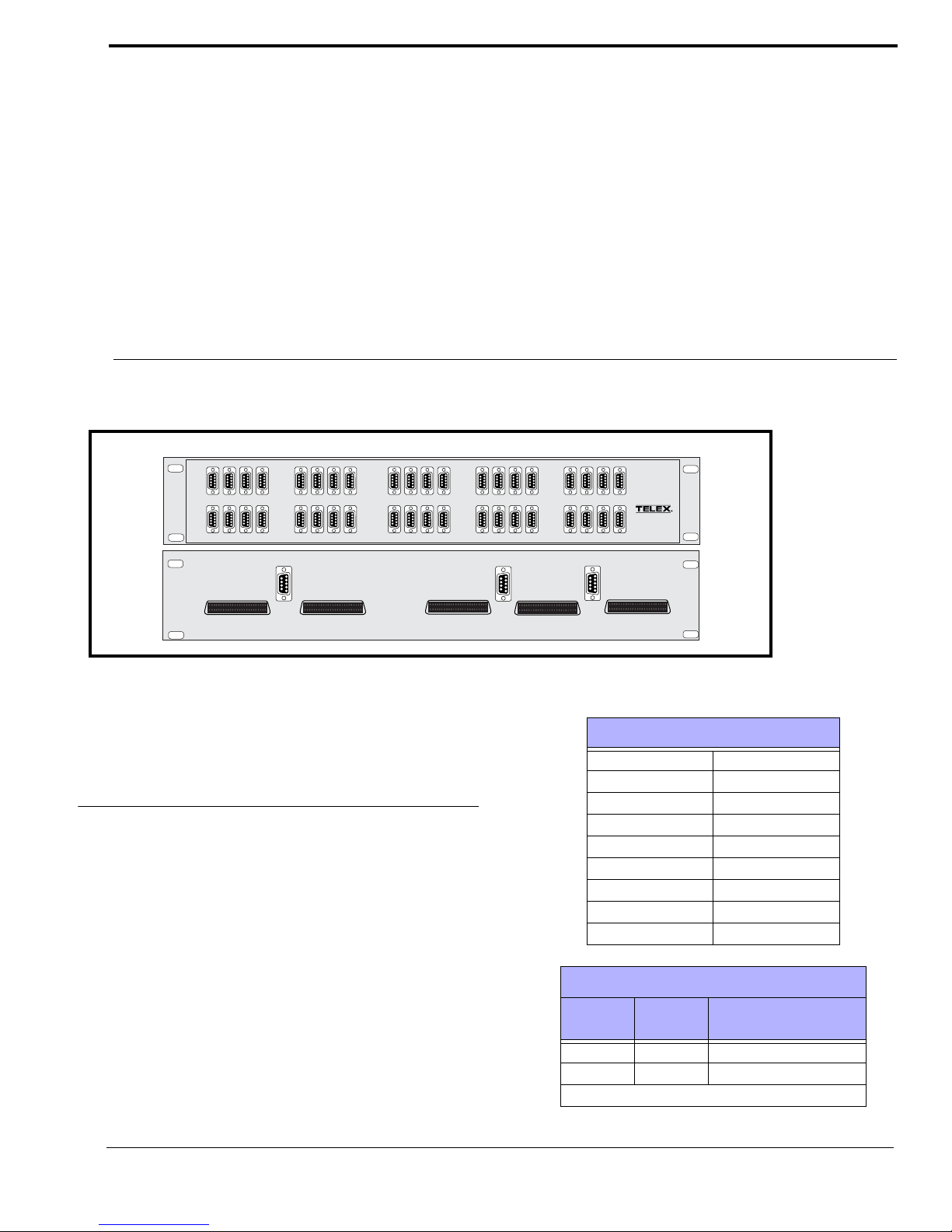

XCP-40-DB9
9000-7515-000
The XCP-40-DB9 breakout panel allows for the expansion of
the ADAM frame at 40+, 80+, and 120+. When using the 40port DB-9 breakout panel, you must use the SCSI backcard with
the AIO-16 card.
Specifications
Dimensions:
19” (482.6mm) W x 3.5” (88.9mm) H x 1.25” (31.75mm) D
Weight:
1.95 lb. (0.88 kg)
TelexCommunications, Inc.
Made in U.S.A.
J1 J2 J3 J4 J9 J10
J11
J12 J17 J18
J19 J20
J25 J26 J27 J28 J33 J34
J35
J36
J5 J6 J7 J8 J13 J14
J15
J16
J21
J22 J23 J24 J29
J30
J31
J32
J37 J38 J39
J40
J1
J2 J3
J4
J5
9-pin Male D-sub
Pin 1 Keypanel Data +
Pin 2 Keypanel Data Pin 3 Gnd
Pin 4 Audio to Matrix +
Pin 5 Audio to Matrix Pin 6 Gnd
Pin 7 Audio from Matrix Pin 8 Audio from Matrix +
Pin 9 Gnd
SCSI Connector - J1, J2, J3, J4, J5
Pin
Number
Port Function
2Data +
27 Data -
XCP-40-DB9 9000-7515-000
20
34 1 Audio To Matrix +
9 1 Audio To Matrix 35 1 Audio From Matrix +
10 1 Audio From Matrix -
36 2 Audio To Matrix +
11 2 Audio To Matrix 37 2 Audio From Matrix +
12 2 Audio From Matrix -
38 3 Audio To Matrix +
13 3 Audio To Matrix 39 3 Audio From Matrix +
14 3 Audio From Matrix -
40 4 Audio To Matrix +
15 4 Audio To Matrix 41 4 Audio From Matrix +
16 4 Audio From Matrix -
42 5 Audio To Matrix +
17 5 Audio To Matrix 43 5 Audio From Matrix +
18 5 Audio From Matrix -
44 6 Audio To Matrix +
19 6 Audio To Matrix 45 6 Audio From Matrix +
20 6 Audio From Matrix -
46 7 Audio To Matrix +
21 7 Audio To Matrix 47 7 Audio From Matrix +
22 7 Audio From Matrix -
48 8 Audio To Matrix +
23 8 Audio To Matrix 49 8 Audio From Matrix +
24 8 Audio From Matrix -
SCSI Connector - J1, J2, J3, J4, J5
Pin
Number
Port Function
21
CHAPTER 8

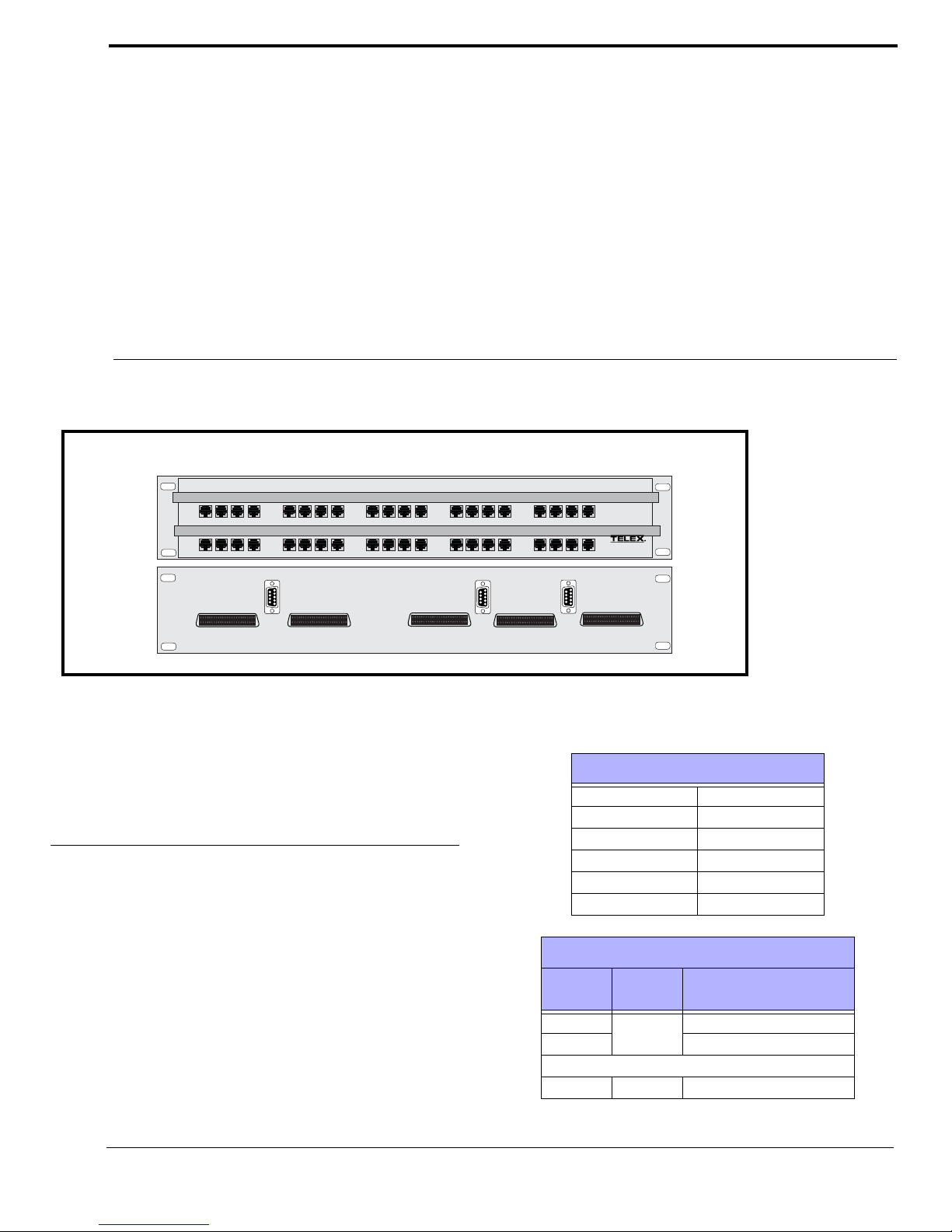

XCP-40-RJ11
9000-7494-000
The XCP-40-RJ-12 Breakout Panel allows for the expansion of
the ADAM frame using RJ-12 connectors. When using the 40port RJ-12 breakout panel, you MUST use the SCSI backcard
with the AIO-16 card.
Specifications
Dimensions:
19” (482.6mm) W x 3.5” (88.9mm) H x 1.25” (31.75mm) D
Weight:
1.75 lb. (0.79 kg)
Figure 3.
TelexCommunications, Inc.
Made in U.S.A.
J1 J2 J3 J4 J9 J10
J11
J12
J17 J18
J19 J20
J25
J26 J27 J28 J33
J34
J35
J36
J5 J6 J7 J8
J13
J14
J15
J16
J21 J22
J23 J24
J29 J30 J31 J32 J37
J38
J39
J40
J1 J2 J3 J4 J5
RJ-12 Connector
Pin 1 Keypanel Data Pin 2 Audio Out +
Pin 3 Audio In +
Pin 4 Audio In Pin 5 Audio Out Pin 6 Keypanel Data +
SCSI Connector - J1, J2, J3, J4, J5
Pin
Number Port Function
2 Data +
27 Data -
34 1 Audio To Matrix +
XCP-40-RJ11 9000-7494-000
22
9 1 Audio To Matrix 35 1 Audio From Matrix +
10 1 Audio From Matrix -
36 2 Audio To Matrix +
11 2 Audio To Matrix 37 2 Audio From Matrix +
12 2 Audio From Matrix -
38 3 Audio To Matrix +
13 3 Audio To Matrix 39 3 Audio From Matrix +
14 3 Audio From Matrix -
40 4 Audio To Matrix +
15 4 Audio To Matrix 41 4 Audio From Matrix +
16 4 Audio From Matrix -
42 5 Audio To Matrix +
17 5 Audio To Matrix 43 5 Audio From Matrix +
18 5 Audio From Matrix -
44 6 Audio To Matrix +
19 6 Audio To Matrix 45 6 Audio From Matrix +
20 6 Audio From Matrix -
46 7 Audio To Matrix +
21 7 Audio To Matrix 47 7 Audio From Matrix +
22 7 Audio From Matrix -
48 8 Audio To Matrix +
23 8 Audio To Matrix 49 8 Audio From Matrix +
24 8 Audio From Matrix -
SCSI Connector - J1, J2, J3, J4, J5
Pin
Number
Port Function
23
CHAPTER 9
XCP-24
9000-7559-000
The XCP-24 Breakout Panel allows for the expansion of the
ADAM frame using TELCO connectors. When using the
XCP-24 breakout panel, you must use the SCSI backcard
with the AIO-16 card.
Specifications
Dimensions:
18.98” (482mm) W x 1.69” (43mm) H x.354” (9mm) D
Weight:
1 lb. (.4535924 kg)
Figure 4.
J2
J1
J3
TelcoConnector (J1 - J3)
SCSI Connector (J4 - J6)
TM
XCP-24
J4
J5
J6
SCSI Connector - J1, J2, J3, J4, J5
Pin
Number
Port Function
2 Data +
27 Data -
34 1 Audio To Matrix +
9 1 Audio To Matrix 35 1 Audio From Matrix +
10 1 Audio From Matrix -
36 2 Audio To Matrix +
11 2 Audio To Matrix 37 2 Audio From Matrix +
12 2 Audio From Matrix -
38 3 Audio To Matrix +
13 3 Audio To Matrix 39 3 Audio From Matrix +
XCP-24 9000-7559-000
24
14 3 Audio From Matrix -
40 4 Audio To Matrix +
15 4 Audio To Matrix 41 4 Audio From Matrix +
16 4 Audio From Matrix -
42 5 Audio To Matrix +
17 5 Audio To Matrix 43 5 Audio From Matrix +
18 5 Audio From Matrix -
44 6 Audio To Matrix +
19 6 Audio To Matrix 45 6 Audio From Matrix +
20 6 Audio From Matrix -
46 7 Audio To Matrix +
21 7 Audio To Matrix 47 7 Audio From Matrix +
22 7 Audio From Matrix -
48 8 Audio To Matrix +
23 8 Audio To Matrix 49 8 Audio From Matrix +
24 8 Audio From Matrix -
Telco Backcard - Telco Connector - J1
Pin
Number Port Function
1 1 Audio To Matr ix +
26 1 Audio To Matrix -
2 2 Audio To Matr ix +
27 2 Audio To Matrix -
3 3 Audio To Matr ix +
28 3 Audio To Matrix -
4 4 Audio To Matr ix +
29 4 Audio To Matrix -
5 5 Audio To Matr ix +
SCSI Connector - J1, J2, J3, J4, J5
Pin
Number
Port Function
30 5 Audio To Matrix -
6 6 Audio To Matrix +
31 6 Audio To Matrix -
7 7 Audio To Matrix +
32 7 Audio To Matrix -
8 8 Audio To Matrix +
33 8 Audio To Matrix -
9 9 Audio To Matrix +
34 9 Audio To Matrix -
10 10 Audio To Matrix +
35 10 Audio To Matrix -
11 11 Audio To Matrix +
36 11 Audio T o Matrix -
12 12 Audio To Matrix +
37 12 Audio To Matrix -
13 13 Audio To Matrix +
38 13 Audio To Matrix -
14 14 Audio To Matrix +
39 14 Audio To Matrix -
15 15 Audio To Matrix +
40 15 Audio To Matrix -
16 16 Audio To Matrix +
41 16 Audio To Matrix -
17 17 Audio To Matrix +
42 17 Audio To Matrix -
18 18 Audio To Matrix +
43 18 Audio To Matrix -
19 19 Audio To Matrix +
44 19 Audio To Matrix -
Telco Backcard - Telco Connector - J1
Pin
Number
Port Function
XCP-24 9000-7559-000
25
20 20 Audio To Matrix +
45 20 Audio To Matrix -
21 21 Audio To Matrix +
46 21 Audio To Matrix -
22 22 Audio To Matrix +
47 22 Audio To Matrix -
23 23 Audio To Matrix +
48 23 Audio To Matrix -
24 24 Audio To Matrix +
49 24 Audio To Matrix -
Telco Backcard - Telco Connector - J2
Pin
Number
Port Function
1 1 Audio From Matrix +
26 1 Audio From Matrix -
2 2 Audio From Matrix +
27 2 Audio From Matrix -
3 3 Audio From Matrix +
28 3 Audio From Matrix -
4 4 Audio From Matrix +
29 4 Audio From Matrix -
5 5 Audio From Matrix +
30 5 Audio From Matrix -
6 6 Audio From Matrix +
31 6 Audio From Matrix -
7 7 Audio From Matrix +
32 7 Audio From Matrix -
8 8 Audio From Matrix +
33 8 Audio From Matrix -
Telco Backcard - Telco Connector - J1
Pin
Number
Port Function
9 9 Audio From Matrix +
34 9 Audio From Matrix -
10 10 Audio From Matrix +
35 10 Audio From Matrix -
11 11 Audio From Matrix +
36 11 Audio From Matrix -
12 12 Audio From Matrix +
37 12 Audio From Matrix -
13 13 Audio From Matrix +
38 13 Audio From Matrix -
14 14 Audio From Matrix +
39 14 Audio From Matrix -
15 15 Audio From Matrix +
40 15 Audio From Matrix -
16 16 Audio From Matrix +
41 16 Audio From Matrix -
17 17 Audio From Matrix +
42 17 Audio From Matrix -
18 18 Audio From Matrix +
43 18 Audio From Matrix -
19 19 Audio From Matrix +
44 19 Audio From Matrix -
20 20 Audio From Matrix +
45 20 Audio From Matrix -
21 21 Audio From Matrix +
46 21 Audio From Matrix -
22 22 Audio From Matrix +
47 22 Audio From Matrix -
Telco Backcard - Telco Connector - J2
Pin
Number
Port Function
XCP-24 9000-7559-000
26
23 23 Audio From Matrix +
48 23 Audio From Matrix -
24 24 Audio From Matrix +
49 24 Audio From Matrix -
Telco Backcard - Telco Connector - J3
Pin
Number
Port Function
1-8 1-8 Data +
25-33 1-8 Data -
9-16 9-16 Data +
34-41 9-16 Data -
17-24 17-24 Data +
42-49 17-24 Data -
Telco Backcard - Telco Connector - J2
Pin
Number
Port Function
27
CHAPTER 10
XCP-24-USOC
9000-7559-001
The XCP-24-USOC Breakout Panel allows for the
expansion of the ADAM frame using Telco connectors.
When using the XCP-24-USOC breakout panel, you MUST
use the SCSI backcard with the AIO-16 card
Specifications
Dimensions:
18.98” (482mm) W x 1.69” (43mm) H x.354” (9mm) D
Weight:
1 lb. (.4535924 kg)
J2
J1
J3
TelcoConnector (J1 - J3)
SCSI Connector (J4 - J6)
TM
XCP-24
J4
J5
J6
SCSI Connector - J4, J5, J6
Pin
Number
Port Function
2 Data +
27 Data -
34 1 Audio To Matrix +
9 1 Audio To Matrix 35 1 Audio From Matrix +
10 1 Audio From Matrix -
36 2 Audio To Matrix +
11 2 Audio To Matrix 37 2 Audio From Matrix +
12 2 Audio From Matrix -
38 3 Audio To Matrix +
13 3 Audio To Matrix 39 3 Audio From Matrix +
14 3 Audio From Matrix -
40 4 Audio To Matrix +
15 4 Audio To Matrix 41 4 Audio From Matrix +
SCSI Connector - J4, J5, J6
Pin
Number
Port Function
XCP-24-USOC 9000-7559-001
28
16 4 Audio From Matrix -
42 5 Audio To Matrix +
17 5 Audio To Matrix 43 5 Audio From Matrix +
18 5 Audio From Matrix -
44 6 Audio To Matrix +
19 6 Audio To Matrix 45 6 Audio From Matrix +
20 6 Audio From Matrix -
46 7 Audio To Matrix +
21 7 Audio To Matrix 47 7 Audio From Matrix +
22 7 Audio From Matrix -
48 8 Audio To Matrix +
23 8 Audio To Matrix 49 8 Audio From Matrix +
24 8 Audio From Matrix -
Telco Connector - J1
Pin
Number
Port Function
1 1 Audio To Matrix 26 1 Audio To Matrix +
2 1 Audio From Matrix 27 1 Audio From Matrix +
31Data 28 1 Data +
4 2 Audio To Matrix 29 2 Audio To Matrix +
5 2 Audio From Matrix 30 2 Audio From Matrix +
62Data 31 2 Data +
7 3 Audio To Matrix 32 3 Audio To Matrix +
SCSI Connector - J4, J5, J6
Pin
Number
Port Function
8 3 Audio From Matrix 33 3 Audio From Matrix +
9 3 Data 34 3 Data +
10 4 Audio To Matrix 35 4 Audio To Matrix +
11 4 Audio From Matrix 36 4 Audio From Matrix +
12 4 Data 37 4 Data +
13 5 Audio To Matrix 38 5 Audio To Matrix +
14 5 Audio From Matrix 39 5 Audio From Matrix +
15 5 Data 40 5 Data +
16 6 Audio To Matrix 41 6 Audio To Matrix +
17 6 Audio From Matrix 42 6 Audio From Matrix +
18 6 Data 43 6 Data +
19 7 Audio To Matrix 44 7 Audio To Matrix +
20 7 Audio From Matrix 45 7 Audio From Matrix +
21 7 Data 46 7 Data +
22 8 Audio To Matrix 47 8 Audio To Matrix +
Telco Connector - J1
Pin
Number
Port Function
29
Specifications
23 8 Audio From Matrix 48 8 Audio From Matrix +
24 8 Data 49 8 Data +
Telco Connector Port
J2 9-16
J3 17-24
Telco Connector - J1
Pin
Number
Port Function
XCP-24-USOC 9000-7559-001
30
31

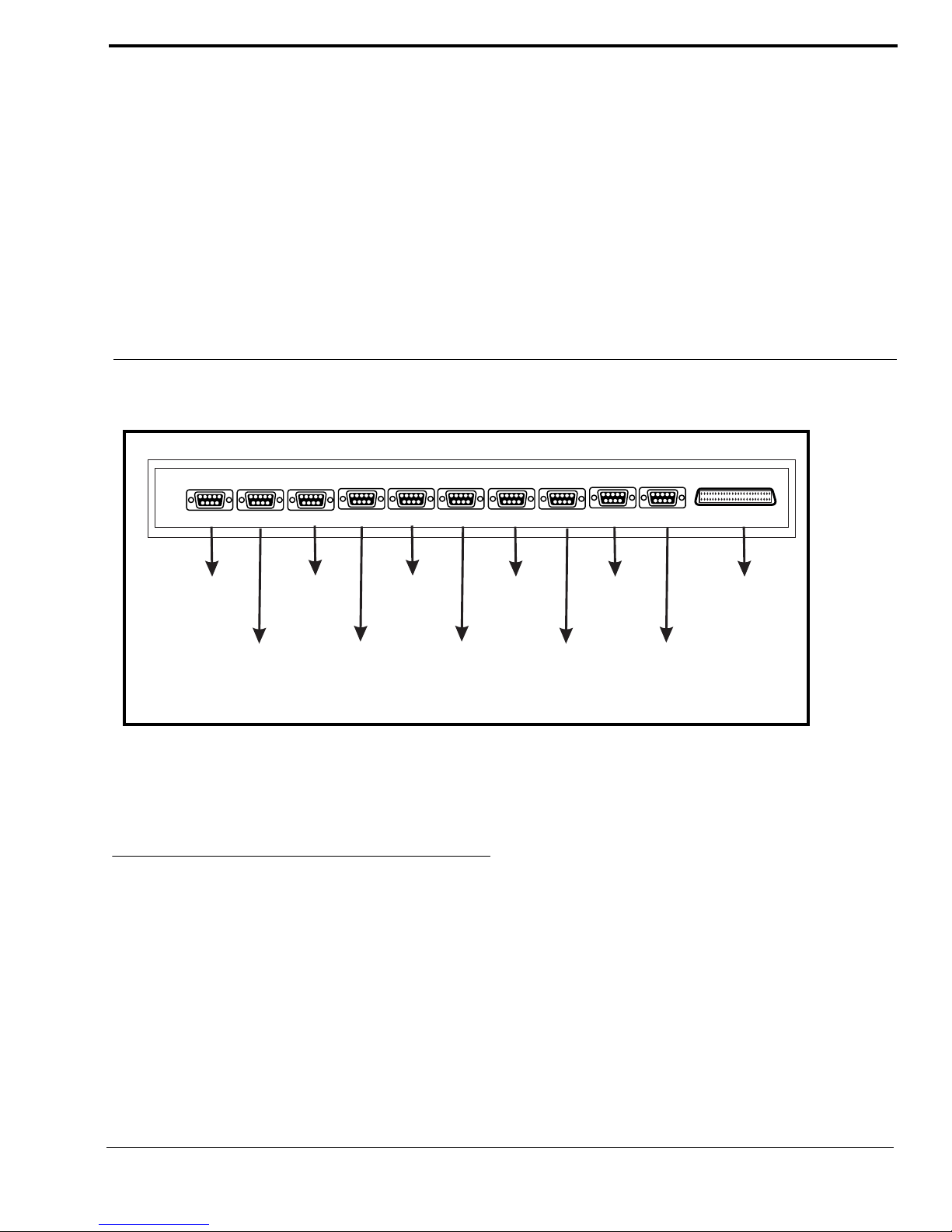

CHAPTER 11
XCP-ADAM-MC
9002-7514-100
The XCP-ADAM-MC Breakout Panel affords the ADAM
more connections to frame accessories without losing the
connections to AZedit, and the ability to Trunk systems.
Specifications
Dimensions:
18.98” (482mm) W x 1.69” (43mm) H x.472” (12mm) D
Weight:
1 lb. (.4535924 kg)
XCP-ADAM-MC
J1 J2 J3 J4 J5 J6 J7 J8 J9 J10 J11
AZedit #1
Trunking
System
GPI
UIO/PAP/
LCP
General
Purpose
General
Purpose
General
Purpose/
Bus Exp.
General
Purpose/
Bus Exp.
General
Purpose/
Bus Exp.
General
Purpose/
A edit #2Z
Debug/
A edit #3Z
XCP-ADAM-MC 9002-7514-100
32
AZedit #1
68-pin
Master
Controller
J-1 of
XCP-ADAM-MCAssignment
2W
11RS485 TX/
RX3 2 RS232C RX
37 3 RS232C TX
44RS422 TX25Ground
26Ground
38 7 RS422 TX+
35 8 RS485 TX/
RX+
9
Trunking System
68-pin
Master
Controller
J-2 of
XCP-
ADAM-MC
Assignment
2W
51RS485 TX/
RX36 2 Ground
6 3 RS232C RX
4Not Used
41 5 RS422 TX+
39 6 RS485 TX/
RX+
36 7 Ground
40 8 RS232C TX
79RS422 TX-
UIO-256/PAP/LCP
68-pin
Master
Controller
J-3 of
XCP-
ADAM-MC
Assignment
2W
8 1 RS485 TX/
RX-
9 2 Ground
3Not Used
4Not Used
44 5 RS422 TX+
42 6 RS485 TX/
RX+
9 7 Ground
8Not Used
10 9 RS422 TX-
General Purpose
68-pin
Master
Controller
J-4 of
XCP-ADAM-
MC
Assignment
2W
11 1 RS485 TX/
RX-
43 2 Ground
3Not Used
4Not Used
46 5 RS422 TX+
45 6 RS485 TX/
RX+
43 7 Ground
8Not Used
12 9 RS422 TX-
General Purpose
68-pin Master
Controller
J-5 of
XCP-ADAM-
MC
Assignment
2W
11 1 RS485 TX/RX14 2 Ground
3Not Used
4Not Used
5Not Used
47 6 RS485 TX/RX+
14 7 Ground
8Not Used
9Not Used
UIO-256/PAP/LCP
68-pin
Master
Controller
J-3 of
XCP-
ADAM-MC
Assignment
2W
XCP-ADAM-MC 9002-7514-100
33
General Purpose / Bus Exp.
68-pin Master
Controller
J-6 of
XCP-ADAM-
MC
Assignment
2W
15 1 RS485 TX/
RX-
48 2 Ground
3Not Used
4Not Used
5Not Used
49 6 RS485 TX/
RX+
48 7 Ground
8Not Used
9Not Used
General Purpose / Bus Exp.
68-pin Master
Controller
J-7 of
XCP-ADAM-
MC
Assignment
2W
16 1 RS485 TX/RX17 2 Ground
3Not Used
4Not Used
5Not Used
50 6 RS485 TX/
RX+
17 7 Ground
8Not Used
9Not Used
General Purpose / Bus Exp.
68-pin Master
Controller
J-8 of
XCP-ADAM-
MC
Assignment 2W
18 1 RS485 TX/RX51 2 Ground
3Not Used
4Not Used
5Not Used
52 6 RS485 TX/RX+
51 7 Ground
8Not Used
9Not Used
AZedit #2
68-pin Master
Controller
J-9 of
XCP-ADAM-
MC
Assignment 2W
1Not Used
19 2 Ground
20 3 RS232C RX
4Not Used
5Not Used
6Not Used
19 7 Ground
53 8 RS232C TX
9Not Used
AZedit #3
68-pin Master
Controller
J-10 of
XCP-ADAM-
MC
Assignment 2W
1Not Used
67 2 Ground
21 3 RS232C RX
4Not Used
5Not Used
6Not Used
67 7 Ground
54 8 RS232C TX
9Not Used
General Purpose / Bus Exp.
68-pin Master
Controller
J-8 of
XCP-ADAM-
MC Assignment 2W
XCP-ADAM-MC 9002-7514-100
34
General Purpose
68-pin Master
Controller
J-11 of
XCP-ADAM-MC
Assignment Signal
22 1 MI (0) Logical Input (0)
23 2 MI (1) Logical Input (1)
24 3 MI (2) Logical Input (2)
25 4 MI (3) Logical Input (3)
26 5 MI (4) Logical Input (4)
27 6 MI (5) Logical Input (5)
28 7 MI (6) Logical Input (6)
29 8 MI (7) Logical Input (7)
30 9 Ground Ground
31 10 Ground Ground
32 11 Ground Ground
33 12 Ground Ground
34 13 Ground Ground
55 14 MO (0) Logical Output (0)
56 15 MO (1) Logical Output (1)
57 16 MO (2) Logical Output (2)
58 17 MO (3) Logical Output (3)
59 18 MO (4) Logical Output (4)
60 19 MO (5) Logical Output (5)
61 20 MO (6) Logical Output (6)
62 21 MO (7) Logical Output (7)
63 22 Ground Ground
64 23 Ground Ground
65 24 Ground Ground
66 25 Ground Ground
Loading...
