XCP-24-USCO
Breakout Panel Technical Guide
38110-514
1
CHAPTER 14
XCP-24-USCO
9000-7559-001

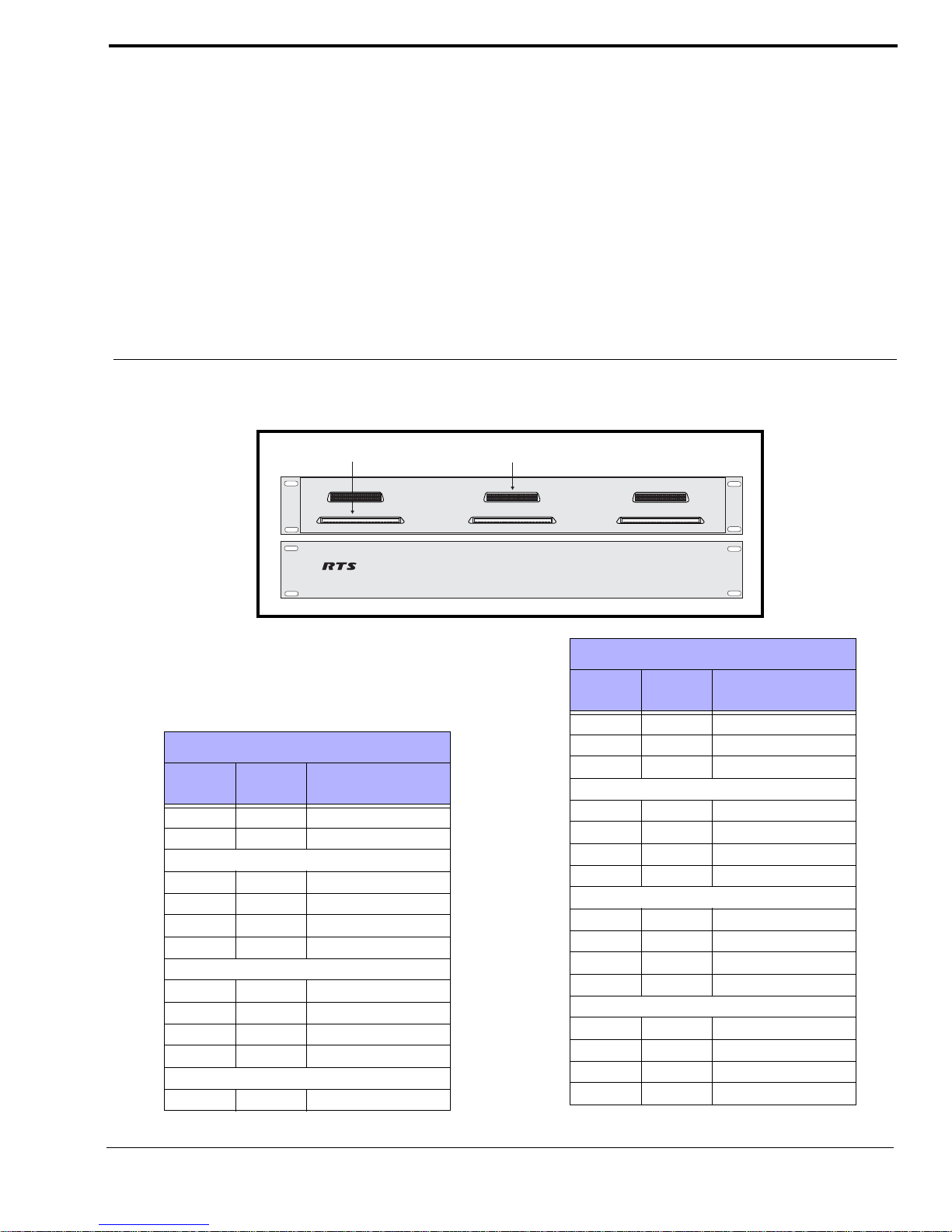

The XCP-24-USCO Breakout Panel allows for the
expansion of the ADAM frame using Telco connectors.
When using the XCP-24-USCO breakout panel, you MUST
use the SCSI backcard with the AIO-16 card
J2
J1
J3
TelcoConnector (J1 - J3)
SCSI Connector (J4 - J6)
TM
XCP-24
J4
J5
J6
SCSI Connector - J4, J5, J6
Pin
Number
Port Function
2 Data +
27 Data -
34 1 Audio To Matrix +
9 1 Audio To Matrix 35 1 Audio From Matrix +
10 1 Audio From Matrix -
36 2 Audio To Matrix +
11 2 Audio To Matrix 37 2 Audio From Matrix +
12 2 Audio From Matrix -
38 3 Audio To Matrix +
13 3 Audio To Matrix 39 3 Audio From Matrix +
14 3 Audio From Matrix -
40 4 Audio To Matrix +
15 4 Audio To Matrix 41 4 Audio From Matrix +
16 4 Audio From Matrix -
42 5 Audio To Matrix +
17 5 Audio To Matrix 43 5 Audio From Matrix +
18 5 Audio From Matrix -
44 6 Audio To Matrix +
19 6 Audio To Matrix 45 6 Audio From Matrix +
20 6 Audio From Matrix -
SCSI Connector - J4, J5, J6
Pin
Number
Port Function
XCP-24-USCO 9000-7559-001
2
46 7 Audio To Matrix +
21 7 Audio To Matrix 47 7 Audio From Matrix +
22 7 Audio From Matrix -
48 8 Audio To Matrix +
23 8 Audio To Matrix 49 8 Audio From Matrix +
24 8 Audio From Matrix -
Telco Connector - J1
Pin
Number
Port Function
1 1 Audio To Matrix 26 1 Audio To Matrix +
2 1 Audio From Matrix 27 1 Audio From Matrix +
31Data 28 1 Data +
4 2 Audio To Matrix 29 2 Audio To Matrix +
5 2 Audio From Matrix 30 2 Audio From Matrix +
62Data 31 2 Data +
7 3 Audio To Matrix 32 3 Audio To Matrix +
8 3 Audio From Matrix 33 3 Audio From Matrix +
93Data 34 3 Data +
10 4 Audio To Matrix 35 4 Audio To Matrix +
11 4 Audio From Matrix 36 4 Audio From Matrix +
SCSI Connector - J4, J5, J6
Pin
Number Port Function
12 4 Data 37 4 Data +
13 5 Audio To Matrix 38 5 Audio To Matrix +
14 5 Audio From Matrix 39 5 Audio From Matrix +
15 5 Data 40 5 Data +
16 6 Audio To Matrix 41 6 Audio To Matrix +
17 6 Audio From Matrix 42 6 Audio From Matrix +
18 6 Data 43 6 Data +
19 7 Audio To Matrix 44 7 Audio To Matrix +
20 7 Audio From Matrix 45 7 Audio From Matrix +
21 7 Data 46 7 Data +
22 8 Audio To Matrix 47 8 Audio To Matrix +
23 8 Audio From Matrix 48 8 Audio From Matrix +
24 8 Data 49 8 Data +
Telco Connector Port
J2 9-16
J3 17-24
Telco Connector - J1
Pin
Number Port Function
