RTS BTR-80N, TR-82N, TR-80N Operating Instructions Manual

Download

BTR-80N, TR-80N, TR-82N

Professional Wireless Intercom System

Operating Instructions

F.01U.195.915

Rev. 09

JUNE / 2019

2 BTR-80N, TR-80N, TR-82N

PROPRIETARY NOTICE

The product information and design disclosed herein were originated by and are the property of Bosch Security Systems, Inc. Bosch reserves all patent, proprietary design, manufacturing, repro duction, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are expressly granted to others.

*All other trademarks are property of their respective owners.

WARRANTY AND SERVICE INFORMATION

For warranty and service information, refer to the appropriate web site below:

RTS Intercoms .............................. www.rtsintercoms.com/warranty

RTS Digital RTS TW AudioCom RadioCom

Intercom Headsets

CUSTOMER SUPPORT

Technical questions should be directed to:

THE LIGHTNING FLASH AND ARROWHEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF “DANGEROUS VOLTAGE” INSIDE THE PRODUCT.

MARKING DEFINTION IF ON PRODUCT.

WARNING: APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

WARNING: THE MAIN POWER PLUG MUST REMAIN READILY OPERABLE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, GROUNDING OF THE CENTER PIN OF THIS PLUG MUST BE MAINTAINED.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPRATUS TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USERSERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYI NG THE PRODUCT.

Customer Service Department Bosch Security Systems, Inc. www.telex.com

TECHNICAL QUESTIONS EMEA

Bosch Security Systems Technical Support EMEA

http://www.rtsintercoms.com/contact_main.php

DISCLAIMER

The manufacturer of the equipment described herein makes no expressed or implied warranty with respect to anything contained in this manual and shall not be held liable for any implied warranties of fitness for a particular application or for any indirect, special, or consequential damages. The information contained herein is subject to change without prior notice and shall not be construed as an expressed or implied commitment on the part of the manufacturer.

WARNING: TO PREVENT INJURY, THIS APPARATUS MUST BE SECURELY ATTACHED TO THE FLOOR/WALL/RACK IN ACCORDANCE WITH THE INSTALLATION INSTRUCTIONS.

This product is AC  or DC powered.

BTR-80N, TR-80N, TR-82N 3

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required if the apparatus is damaged in any way, such as: the power supply cord or plug is damaged, liquid is spilled or objects fall into the apparatus, the apparatus is exposed to rain or moisture, the apparatus is dropped, or the apparatus does not operate normally.

4 BTR-80N, TR-80N, TR-82N

Table of Contents

Important Safety Instructions ....................................3



INTRODUCTION .............................................9

General Description .............................................. 9

System Features .................................................... 9

Controls and Connections ................................... 10

BTR-80N – Front Panel ..........................................10

BTR-80N – Rear Panel ...........................................11

Specifications .......................................................... 12

TR-80N - Top Panel ................................................ 14

Specifications .......................................................... 16

TR-82N – Top Panel ............................................... 18

Specifications .......................................................... 20



INSTALLATION ............................................19

Unpacking ........................................................... 19

Antenna Connection ........................................... 20

Antenna Polarization ...........................................20

Distance between Antennas ................................ 21

Antenna Placement ............................................. 21

Improving Reception and Increasing Range ....... 23



OPERATION ..................................................25

BTR-80N ............................................................ 25

Operation .................................................................25

Basic Operational Description ................................ 25

System Quick Start .................................................. 25

Transmit and Receive Antennas .............................. 26

2-Wire Intercom Ports ............................................. 26

4-Wire Intercom Ports ............................................. 28

Auxiliary Input/Output ............................................ 28

Base Station Link .................................................... 29

Stage Announce (SA)/Relay ...................................29

Base Station Link Jack ............................................ 30

Program Jack ........................................................... 30

Powering the Base Station .......................................31

Start Up Screen ........................................................ 31

Status Screen ........................................................... 31

RSSI Screen ............................................................. 32

Group/Channel Select Screen .................................. 32

Group/Channel Screen ......................................... 32

Group/Frequency Screen ...................................... 32

Frequency Edit (User-Defined Groups Only) ...... 33

Base Main Settings .................................................. 33

TALK Button .......................................................33

Channel Select Button ..........................................33

Local Headset Volume and Gain .........................34

Base Transmitter Power ....................................... 34

Squelch Settings ................................................... 34

Stage Announce Level .........................................35

Antenna Power ..................................................... 35

CAN Bus Number ................................................36

Intercom Settings ..................................................36

2-Wire Intercom ...................................................37

4-Wire Intercom ...................................................37

Auxiliary Settings .................................................38

ClearScan .............................................................38

Lockout .................................................................39

Copy .....................................................................39

1st Use Defaults ....................................................39

Factory Default .....................................................39

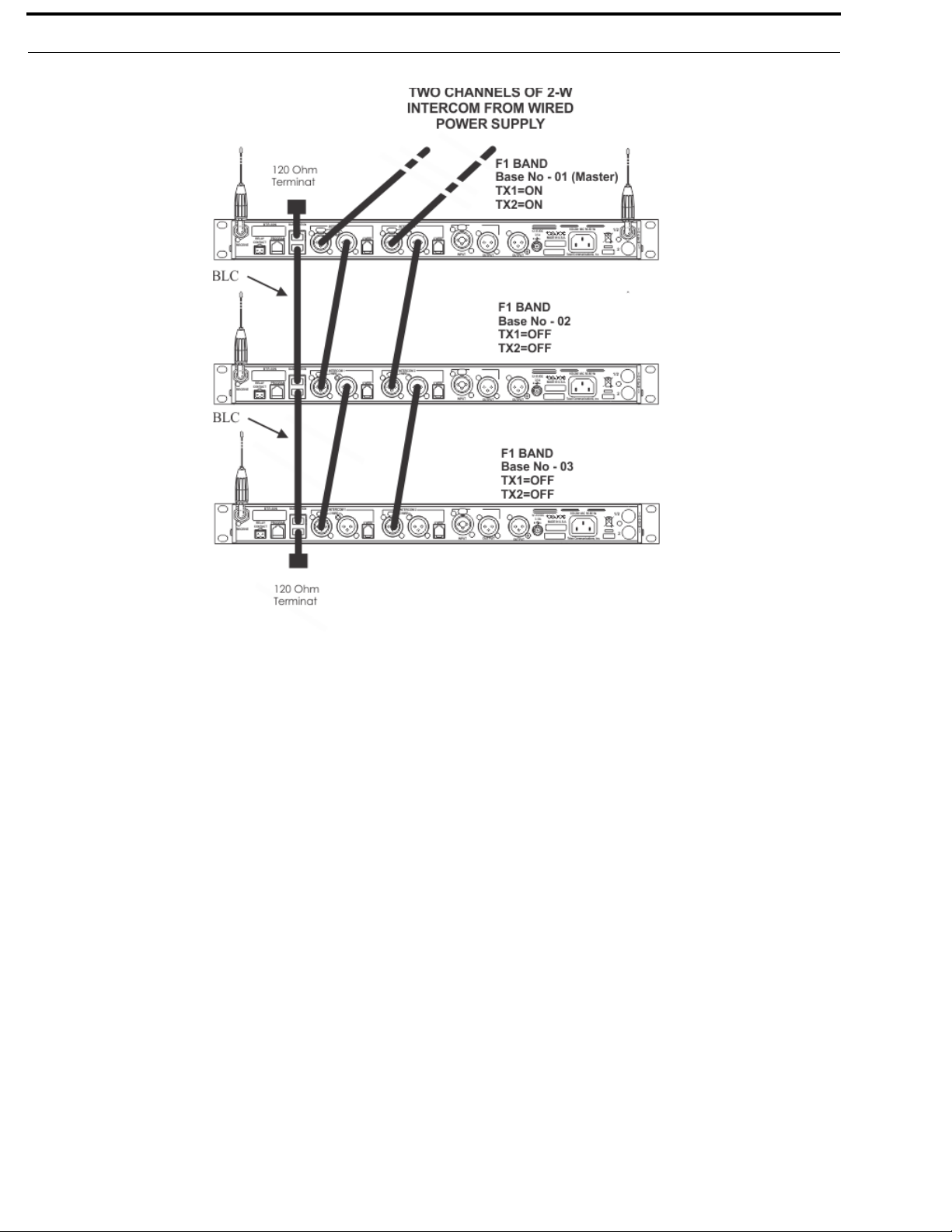

Connection of Multiple Base Stations with the Link

Cables ......................................................................40

Over-the-Air Data Links .........................................41

Master and Servant Base Stations ...........................43

CAN bus ..................................................................43

Base Station Link Configurations ........................45

Wireless Talk-Around Audio Only .........................46

Link Overview ......................................................46

Setup .....................................................................47

WTA and a SINGLE CAN Bus Network ................47

Link Overview ......................................................47

Setup .....................................................................48

WTA and Several CAN Bus Networks ...................49

Link Overview ......................................................49

Setup .....................................................................49

TR-80N/82N ........................................................52

Basic Operational Description .................................52

System Quick Start ..................................................52

Battery Installation ..................................................53

Headset Connection .................................................54

Sidetone ...................................................................54

Antenna Connection ................................................54

On/Off and Volume Control ....................................55

TALK Button ...........................................................55

Audio Channel Select Button ..................................55

Stage Announce (SA) ..............................................56

Wireless Talk Around (WTA) .................................56

Groups and Channels ...............................................57

Transmit Frequency .................................................57

Receive Frequency ..................................................58

Microphone Gain .....................................................58

Battery Display ........................................................58

Low Battery Alert Tone ...........................................59

Transmit Power ........................................................59

Changing the Transmit Power Setting .....................59

Squelch Screen ........................................................60

Transmit Mode Screen .............................................60

LEDs Off/On ...........................................................60

Software Version/Band ............................................61

ClearScan™ .............................................................61

Lock Out ..................................................................61

First Use Default ......................................................61

Factory Reset ...........................................................61

6 BTR-80N, TR-80N, TR-82N

RF Monitor Screen .................................................. 62

Setting Beltpack ID ................................................. 62

On/Off and Volume Control ................................... 63

TALK Button .......................................................... 63

Stage Announce (SA) ............................................. 63

Wireless Talk-Around (WTA) ................................ 64

Groups and Channels .............................................. 65

Transmit Frequency ................................................ 65

Receive Frequency .................................................. 66

Microphone Gain .................................................... 66

Battery Display ....................................................... 66

Low Battery Alert Tone .......................................... 67

Transmit Power ....................................................... 67

Squelch Screen ........................................................ 68

Headphone Options: ................................................ 68

Auxiliary Input: ....................................................... 68

Transmit Mode Screen ............................................ 68

LEDs Off/On ........................................................... 69

Software Version/Band ........................................... 69

ClearScan™ ............................................................ 69

Lock Out ................................................................. 69

First Use Default ..................................................... 69

Factory Reset .......................................................... 70

RF Monitor Screen .................................................. 70

Setting Beltpack ID ................................................. 70



ADDITIONAL RESOURCES ........................ 71

BTR-80N Menu Structure ....................................... 72

TR-80N Beltpack Screen Flowchart ....................... 73

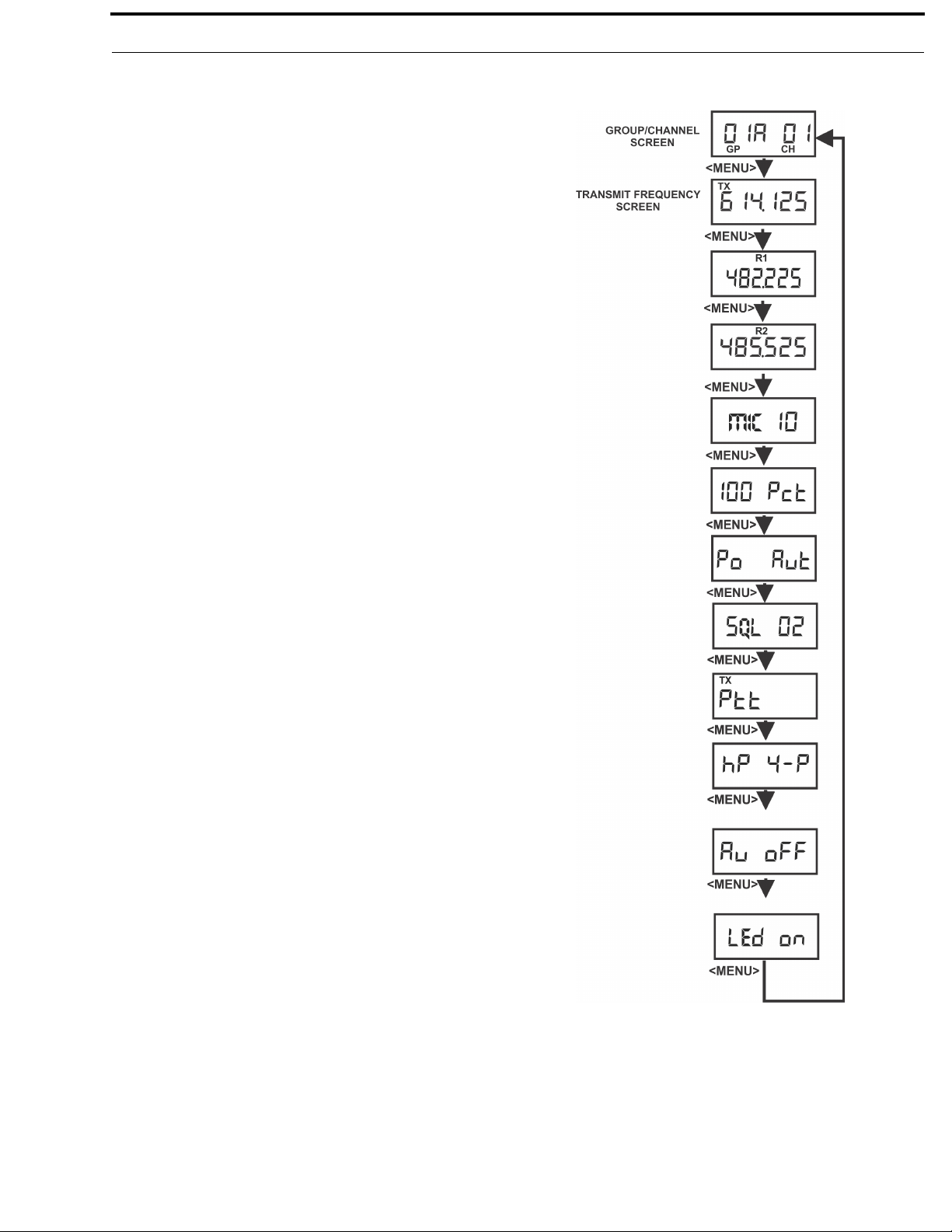

TR-82N Beltpack Screen Flowchart ....................... 74

Frequency Bands ................................................. 75

North America ..................................................... 75

Europe .................................................................. 75

Band Pairing for Systems ........................................ 75

Frequency Plan ........................................................ 76

Troubleshooting .................................................. 77

Battery Information ............................................. 78

Battery Warnings .................................................... 78

Battery Life ............................................................. 78

Cold Temperatures and Batteries ............................ 78

2-Wire Systems Specification ............................. 79

Certificate Information .......................................80

Accessories and Replacement Parts .................... 83

Three (3) Band Base Stations .............................86

Identifying a Three (3) Band Unit .......................... 86

Regulatory Changes and the Three Band ................ 86

Changing Channel Maps ......................................... 86

CHAPTER 1

Introduction

General Description

RTS Wireless BTR-80N UHF Synthesized Wireless Intercom system offers reliable, high-performance, high-fidelity fullduplex communications delivered with minimum spectrum usage.

The BTN-80N system includes the BTR-80N frequency agile base station and up to four (4) TR-80N or TR-82N frequency agile beltpacks operating in full-duplex communications. An almost unlimited number of beltpacks may be used with a base station if the beltpacks are in Push-To TX mode (half- duplex).

The BTR-80N system incorporates two (2) audio channel operation, permitting the beltpack operator to choose between two (2) separate audio channels of communication, with the base station tracking the beltpack selection. This allows the user the flexibility to create a party line and a private line within the same beltpack.

The BTR-80N system is perfectly suited for standalone operation and can also interface with other RTS wired intercom systems. In addition to the external intercom systems interfaces, the system provides connections for auxiliary balanced audio input and output, as well as wireless talk-around (WTA) and stage announce (SA) features.

The BTR-80N system has been designed for reliable, efficient operation. Operating in the 482 to 722MHz range, the units perform reliably at line-of-sight distances of 1000 feet. With available antenna systems from RTS, the effective operating range can be extended. The high-efficiency beltpacks provide between 8 and 11 hours of uninterrupted operation using NiMH rechargeable battery packs.

System Features

• Frequency-agile base station and beltpacks. No external

computer/device required to select frequencies.

• Backlit base-station LCD allows the user to easily monitor

the beltpack’s status and change base station frequencies.

• Squelch adjust on the BTR-80N, TR-80N, and TR-82N

beltpacks.

• Beltpack’s battery level displayed on the base station and in

beltpack’s menus.

• ClearScan function on base station and beltpack to

automatically find the best channels on which to operate.

• Full-duplex (simultaneous talk and listen) or Push-to-Tx

(half duplex) operation.

• Compatible with Audiocom (Telex), RTS TW and Clear-

Com wired intercoms.

• Two (2) independent channels of intercom audio with the

ability to operate party line and RTS matrix on the same intercom channel at the same time.

• WTA (Wireless Talk-Around) beltpack control. This feature

allows beltpacks to talk to each other, but their audio is lifted from any wired system connected to the base station.

• SA (Stage Announce) beltpack control. Allows the user to

direct their audio to a jack on the back of the base for P.A. systems or other external audio systems.

• Relay contact closure on the base when the SA button is

pressed.

• TR-82N features two (2) audio channel binaural operation in

either stereo or mono mode.

• TR-82N has a 1/8-inch (3.5mm) jack for auxiliary input

from another audio source, such as an IFB, iPod, or other similar device.

• Beltpack units contained in a weather and shock resistant die

cast magnesium case.

• Convenient IEC power connector on the base station so the

unit can plug directly to outlets. No in-line or wall plug power supply.

• Dark mode configurable on TR-80N and TR-82N beltpacks.

This shuts down all LEDs.

10 Introduction BTR-80N, TR-80N, TR-82N

Controls and Connections

BTR-80N – Front Panel

FIGURE 1. BTR-80N - Front Panel

1. Power Switch - Do not power up a base station within three

(3) seconds of the unit being turned off. Voltages within the unit need to drop below a threshold before being repowered. If powered-up in less than three (3) seconds, the unit may boot as the wrong frequency band. Even with the unit powered down via the power switch, some circuits within the base remain energized. To completely remove power to the unit, disconnect the power cord.

2. [MENU] and [SET] buttons - Use to select menus and set

options on the LCD.

3. Backlit Graphics LCD (Liquid Crystal Display)

4. [UP] and [DOWN] buttons - Use to select base station

options on the LCD.

5. Portable Station Connect - Use buttons to enable or

disable the respective receiver’s audio. GREEN LED Audio enabled, LED OFF - Audio disabled.

6. 4-wire Selection/Peak Input Indicators - Displays when

4-wire intercoms are active with green indication. A red indication means the intercom input level is too high.

7. 2-wire Selection/Peak Input Indicators - Displays which

2-wire intercoms are active with a green indication. A red indication means the intercom input level is too high.

8. Auxiliary Selection/Peak Input Indicator - Displays if

auxiliary input is on with a green indicator. A red indicator means the intercom input level is too high.

9. Headset Intercom Select - Controls the intercom to which

the local headset is connected. Each press of the button changes the connection to channel 1, channel 2, or both.

10. Talk/Peak Light - LED is green when talk button #11 is

active. A normal mic gain setting causes the LED to flash red on the loudest speech levels. If the gain is too high, the LED is red at normal speech volumes.

11. Talk B utt on - Press to enable the audio path from the local

handset. LED #10 turns green when enabled. A quick press and release latches button on. If the talk function is latched on, pressing the talk button again turns it off.

12. Local Headset Connector - Male XLR connector or

female XLR connector. A dynamic electret headset

microphone is automatically detected. Microphone gain and volume are configured in the software menus.

FIGURE 2. Local Headset Wiring

BTR-80N, TR-80N, TR-82N Introduction 11

BTR-80N – Rear Panel

FIGURE 3. BTR-80N - Rear Panel

1. Receive Antenna - Female “TNC” Connector. Color band

on antenna must match color dot on base station.

2. Relay Contact - A dry contact closure which activates

when a beltpack user presses the stage announce (SA) button. Normally Open (NO). The rating is one amp at 24V maximum.

3. Program Connector - Used to update software in unit.

4. Base Station Link Jacks - When multiple base stations are

connected through this jack, it allows wireless talk around (WTA) audio from the beltpacks to be routed from system to system. Also allows CAN bus data to be passed between base stations.

5. Intercom 1 - Interface to wired intercom channel 1.

2-Wire

- Male and female 3-pin XLR connectors wired in parallel. The connectors are switched to the appropriate intercom configuration via software.

4-Wire - An

RJ-11 type jack compatible with Matrix

type intercom systems.

6. Intercom 2 - Interface to wired intercom channel 2.

2-Wire

- Male and female 3-pin XLR connectors wired in parallel. The connectors are switched to the appropriate intercom configuration via software.

4-Wire - An

RJ-11 type jack compatible with Matrix

type intercom systems.

7. Auxiliary Input/Output - One 3-pin female XLR / 1/4-

inch combination input connector and one 3-pin male XLR output connector.

8. Stage Announce Output - Passes the audio from any of the

base station’s beltpacks that have selected Stage Announce (SA).

9. DC Input Jack - Accepts 12-15 VDC (5.5mm by 2.5mm

screw on plug), 3.5 Amps to power the base station from a DC source. Base may be connected to DC and AC source at the same time. If AC source fails the base automatically switches to DC power. Inside the base there is a user replaceable fuse in-line with the DC input jack. This fuse is a 5A, 250V, 5x20mm, fast acting ceramic cartridge.

10. Power - IEC receptacle. Accepts 100–240 VAC, 1A

maximum, 50–60Hz.

11. Transm it Ant enna - Female TNC Connector. Color band

on antenna must match color dot on base station.

12 Introduction BTR-80N, TR-80N, TR-82N

Specifications

Overall

RF Frequency

TX Range

482 - 608 MHz in 18 MHz TX bands

RX Range

US/Canada

572 - 608 MHz in 18 MHz RX bands 653 - 663 MHz for 3 band

Rest of the World

572 - 608, 614 - 722 MHz in 18 MHz RX bands

Power Requirements

100 - 240 VAC, 50 - 60 Hz 1 Amp Max,, IEC receptacle

DC Only

12 - 15 VDC, 3.5 Amps

Temperature Range

-4° F to 130° F (-20° C to 55° C)

Dimensions

19.00” W x 1.72” H x 14.00” D (48.3cm x 4.4cm x 35.6cm)

Weight

7lbs 2oz (3.24kg)

TX Antenna

1/2 Wave (supplied), TNC Male Connector

RX Antenna

1/2 Wave (supplied), TNC Male Connector

FCC ID

B5DM528

Frequency Response

200Hz–4kHz

Four Wire Input

Level Adjustable (2Vrms typical)

Two Wire Input

Level Adjustable (2Vrms typical)

Telex Intercom

Input/Output Level Adjustable (1Vrms typical), Line Impedance 300Ω

RTS Intercom

Input/Output Level Adjustable (0.775Vrms typical), Line Impedance 200Ω

Clear-Com

Input/Output Level Adjustable (1Vrms typical), Line Impedance 200Ω

Auxiliary Input

Adjustable (2Vrms typical)

Auxiliary Output

Adjustable (2Vrms typical into 600Ω)

Stage Announce Output

Internally Adjustable (2Vrms typical at rated deviation into 600Ω)

BTR-80N, TR-80N, TR-82N Introduction 13

Stage Announce Relay

Dry contact, rated at 1 Amp, 24V Max

Microphone Input Sensitivity

9mV

Local Headset Output

40mW output into 600Ω (1% Distortion)

Transmitter

Type

Two Synthesized Transmitters

Transmit Power (each transmitter)

Selectable: off, 10mW, 50mW, 100mW, 249mW

Modulation Type

Deviation

4kHz

RF Frequency Stability

2.5PPM

Modulation Limiter

Peak-Responding Compressor

Radiated Harmonics & Spurious

Exceeds FCC specifications

Receiver

Type

Triple Conversion Superheterodyne, four Independent IFs, FM

RF Sensitivity

<0.6V for 12dB SINAD

Squelch Threshold

adjustable - 12/20/24dB SINAD

IF Selectivity

6dB at 30kHz bandwidth

Image Rejection

70dB or better

Squelch Quieting

90 dB

RF Frequency Stability

2.5 PPM

14 Introduction BTR-80N, TR-80N, TR-82N

TR-80N - Top Panel

FIGURE 4. TR-80N Top Panel

1. On/Off Volume Control - Turns the beltpack power on.

2. Wireless Talk-Around (WTA) - When pressed, the user’s

audio disconnects from the wired intercom, auxiliary input/ output and the base station’s local headset. Other beltpack users on the audio channel can hear the user as normal. The button activates the nearby red LED and the TALK button.

3. Stage Announce (SA) - When pressed, the user’s audio

routes to the stage announce connector on the back of the base station. The user also loses their sidetone, indicating that stage announce is active. The other wireless beltpacks and wired users do not hear the user’s audio. The button is non-latching and activates the nearby red LED and TALK button.

4. Audio Channel Select Button - Allows user to select

either audio channel 1 or audio channel 2.

5. Bat/Peak Light (BAT/PK) Light flashes once when unit

turns on if the battery is good. If the light stays on, the battery is low. If the light does not flash, the battery is dead. A normal microphone gain setting causes the LED to flash for some of the words at normal speech levels. If the gain is too high, the LED displays a continuous red during all words at normal speech levels.

6. Talk Light - LED is on when the talk button, SA, or WTA

is active.

7. Talk B utt on - Press to enable the audio path from the local

headset microphone. The “TALK” LED, #6, turns red when enabled. A quick press and release latches the talk function, unless latching has been disabled. Holding the button for over a half-second causes the audio path to be enabled only for as long as the button is held. If the talk function is latched on, pressing the talk button again turns it off.

BTR-80N, TR-80N, TR-82N Introduction 15

FIGURE 5. TR-80N Rear Panel/Connector/Antennas

1. MENU and SET buttons- Use to select menus and set

options on the LCD.

2. LCD (Liquid Crystal Display)

3. UP and DOWN buttons - Use to select beltpack options

on the LCD.

4. Programming Connector - Use to update software in unit.

5. Headset Connector - Male XLR or female XLR connector.

A dynamic or electret headset microphone is automatically

FIGURE 6. Headset Jack Wiring

detected by the beltpack and a bias voltage supplied, if needed.

6. Battery Latch - Press down to release the battery pack.

IMPORTANT: Microphone gain and transmit mode is

set via software menus. While holding the latch down, slide the battery pack about 1/8 inch back toward the latch until it stops, then lift it out.

7. Receive Antenna - Screw type 1/4-wave replaceable

antenna. The color dot on the screw end of the antenna must match color dot on the antenna receptacle.

8. Transm it Ant enna - Screw type 1/4-wave replaceable

antenna. Color dot on the screw end of the antenna must match color dot on antenna receptacle.

16 Introduction BTR-80N, TR-80N, TR-82N

Specifications

Overall

RF Frequency

TX Range

US/Canada

572 - 608 MHz in 18 MHz TX bands 653 - 663 MHz for 3 band

Rest of the World

572 - 608, 614 - 722 MHz in 18 MHz TX bands

RX Range

482 - 608 MHz in 18 MHz RX bands

Power Requirements

6 “AA” Cells Alkaline (NiHM Optional)

Current Draw

200mA (Push-To-Talk, Talk On)

Temperature Range

-4°F to 130°F (-20°C to 55°C)

Dimensions

3.75” W x 5.05” H x 1.65” D (9.5cm x 12.8cm x 4.2cm)

Weight

16oz (454g)with alkaline batteries

TX Antenna

1/4 Wave (supplied), Screw Type, Replaceable

RX Antenna

1/4 Wave (supplied), Screw Type, Replaceable

FCC ID

B5DM530 B5DM538

Frequency Response

200Hz–4kHz

Microphone input sensitivity

7mV

Local Headset Output

40mW output into 600Ω (1% Distortion)

Transmitter

Type

Synthesized

Transmit Power

Selectable: auto, 5, 50, and 100mW US 3 Band:, Selectable: auto, 5, 20 mW

Modulation Type

Deviation

4kHz

BTR-80N, TR-80N, TR-82N Introduction 17

RF Frequency Stability

2.5PPM

Modulation Limiter

Peak-Responding Compressor

Radiated Harmonics &Spurious

Exceeds FCC specifications

Receiver

Type

Triple Conversion Superheterodyne, Synthesized FM

RF Sensitivity

<0.6V for 12dB SINAD

Squelch Threshold

adjustable - 12/20/24dB SINAD (about 1.0 μV)

IF Selectivity

6dB at 30kHz bandwidth

Image Rejection

70dB or better

Squelch Quieting

90dB

RF Frequency Stability

2.5 PPM

18 Introduction BTR-80N, TR-80N, TR-82N

TR-82N – Top Panel

FIGURE 7. TR-82N Top Panel

1. On/Off and Volume Control - Turns beltpack power on

and controls headset volume for intercom channels “1” and “2”. Either knob, “1” or “2”, turns the beltpack on. Both knobs must be off to turn the beltpack off. If only one knob is on, the intercom channel “1” or “2” is on for both transmit and receive.

2. Wireless Talk-Around (WTA) - When pressed, the user’s

audio disconnects from the wired intercom, auxiliary input/ output, and the base station’s local headset. Other beltpack users on that audio channel can hear the user as normal. The software can select which intercom channel(s)—1, 2, 1+2, or the currently selected channel—is activated with the WTA button. The WTA button activates the nearby red LED as well as the software-selected intercom channels TALK LED if not already active.

3. Stage Announce (SA) - When pressed, the user’s audio

routes to the stage announce connector on the back of the base station. The user also loses their sidetone, indicating stage announce is active. The other wireless beltpacks and wired users do not hear the user’s audio. The button is nonlatching and activates the nearby red LED and TALK button.

4. Talk Bu tt on - Press to enable the audio path to intercom

channels 1, 2, or 1+2, from the local headset microphone. The associated TALK LED #6 turns red when enabled. A quick press and release latches the talk function, unless latching has been disabled., Holding the button for over 1/2 second causes the audio path to be enabled only for as long as the button is held. If the talk function is latched on, pressing the talk button again and it turns off.

5. Low Battery/Peak (BAT/PK) Light - Light flashes once

when unit is turned on if the battery is good. If the light stays on, the battery is low. If the light does not flash, the battery is dead. A normal microphone gain setting causes the LED to flash for some words at normal speech levels. If the gain is too high, the LED displays red during all words at normal speech levels.

6. Talk Light - Turns red when enabled by associated TALK

or WTA button.

BTR-80N, TR-80N, TR-82N Introduction 19

FIGURE 8. TR-82N Rear Panel/ Connector/Antennas

1. MENU and SET buttons - Used to select menus and set

options on the LCD.

2. LCD (Liquid Crystal Display)

3. UP and DOWN buttons - Used to select beltpack options

on the LCD.

4. Programming Connector - Used to update software in

unit.

5. Auxiliary Input Audio Jack - 1/85” (3.5mm) mono input

jack. Local only to beltpack.

6. Headset Connector - Male XLR connector or female

XLR. A dynamic or electret headset microphone is automatically detected by the beltpack and a bias voltage supplied, if needed. 4-pin Telex/RTS units are monaural. 5-

FIGURE 9. Handset Jack Wiring

IMPORTANT: Microphone gain and transmit mode is

set via software menus.

pin Telex/RTS units have a software setup to select if XLR pin 3 or 5 is the channel 2 output and if pin 3 is ground.

7. Battery Latch - Press down to release the battery pack.

While the latch is held down, slide the battery pack about 1/ 8 inch back, toward the latch, until it stops, then lift it out.

8. Receive Antenna - Screw type 1/4-wave replaceable

antenna. The color dot on the screw end of the antenna must match color dot on the antenna receptacle.

9. Transm it Ant enna - Screw type 1/4-wave replaceable

antenna. The color dot on the screw end of the antenna must match color dot on the antenna receptacle.

20 Introduction BTR-80N, TR-80N, TR-82N

Specifications

Overall

RF Frequency

TX Range

US/Canada

572 - 608 MHz in 18 MHz TX bands 653 - 663 MHz for 3 band

Rest of the World

572 - 608, 614 - 722 MHz in 18 MHz TX bands

RX Range

482 - 608 MHz in 18 MHz RX bands

Power Requirements

6 “AA” Cells Alkaline (NiHM Optional)

Temperature Range

-4° F to 130° F (-20° C to 55° C)

Dimensions

3.75” W x 5.35” H x 2.02” D (9.5cm x 13.5cm x 5.1cm)

Weight

21 oz (595 g) with alkaline batteries

TX Antenna

1/4 Wave (supplied), Screw Type, Replaceable

RX Antenna

1/4 Wave (supplied), Screw Type, Replaceable

FCC ID

B5DM531 B5DM539

Frequency Response

200 Hz–4 kHz

Microphone input sensitivity

7 mV

Local Headset Output

40 mW output into 600 Ω (1% Distortion)

Transmitted

Type

Synthesized

Transmit Power

Selectable: auto, 5, 50, and 100 mW US 3 Band:, Selectable: auto, 5, 20 mW

Modulation Type

Deviation

4kHz

RF Frequency Stability

2.5 PPM

Modulation Limiter

BTR-80N, TR-80N, TR-82N Introduction 21

Peak-Responding Compressor

Radiated Harmonics &Spurious

Exceeds FCC specifications

Receiver

Type

Two, Triple Conversion Superheterodyne Receivers, Synthesized, FM

RF Sensitivity

<0.6 V for 12 dB SINAD

Squelch Threshold

adjustable - 12/20/24 dB SINAD

IF Selectivity

6 dB at 30 kHz bandwidth

Image Rejection

70 dB or better

Squelch Quieting

90 dB

RF Frequency Stability

2.5 PPM

22 Introduction BTR-80N, TR-80N, TR-82N

Unpacking

CHAPTER 2

Installation

Unpack your RTS System. Below are the items that should come with your base station and each beltpack.

Quantity Description

1 BTR-80N Base Station

1 Operating Instructions

1 Power Cord

BTR-80 N

TR-80N,

TR-82N

2 Antennas (one Transmit and one Receive)

1 Warranty and Website Information Card

1 2 terminal plug (for SA Relay)

4 Rubber feet

1 Packaging Checklist

1 Simplified Declaration of Conformity

Quantity Description

1 TR-80N or TR-82N with Antennas

1 Battery Pack

1 Quick Start Card

1 Warranty and Website Information Card

1 Belt Clip

1LCD Cover

1 Packaging Checklist

1 Simplified Declaration of Conformity for non-US/

Contact the shipper or your dealer immediately if anything is damaged or missing.

Canada Units

20 Installation BTR-80N, TR-80N, TR-82N

Antenna Connection

The base station is supplied with two (2) antennas. One 1/2wave antenna for transmit and one 1/2-wave for receive. The antennas have TNC male connectors.

The frequency range of the antennas should match the receiver and transmitter of the base station. Match the color code on the antenna with the color code on the base station.

Attach the transmit 1/2-wave antenna to the antenna input receptacle labeled Transmit on the right side of the rear panel. The antenna should be vertically aligned.

Attach the receive 1/2-wave antenna to the antenna input receptacle labeled Receive on the left side of the rear panel. The antenna should be vertically aligned.

FIGURE 10. Attaching Transmit 1/2-Wave Antenna

FIGURE 11. Attaching Receive 1/2-Wave Antenna

Antenna Polarization

The RTS Wireless Intercom System is vertically polarized. This means both the transmitting and receiving antennas should operate in the vertical position.

FIGURE 12. Vertically Polarized Antennas

BTR-80N, TR-80N, TR-82N Installation 21

Distance between Antennas

The distance between the base station’s receive and transmit antennas is not adjustable when the antennas are connected directly on the back of the unit.

The antennas can be remotely mounted An RTS coax assembly with remote antennas may be required. See “Accessory” section for ordering information.

NOTE: If you

r base station is to be located in a shielded rack mount enclosure or other poor RF locations, you must remotely mount the 1/2-wave antennas with coax assemblies. See “Accessories and Replacement Parts, for remote mounting hardware.

for a better signal path.

Antenna Placement

Proper antenna placement probably has the most effect on your RTS Wireless Intercom System’s overall performance. The following suggestions result in optimum performance.

Proper placement of the beltpack can be critical. The antennas should be in the open. Bending the antennas up and placing the beltpack in a pocket, etc., reduces the system’s distance. The unit should be worn on the belt with both antennas vertical for best operating range and performance.

FIGURE 14. Distance Between Base Station and Beltpack

FIGURE 13. Proper Dressing of the Antenna

Keep the distance between the base station and the beltpacks as short as possible. The greater the distance, the weaker the signal. Make sure the “signal paths” between the base station and beltpacks are unobstructed. You should be able to visibly locate the base station antennas at all times for best performance.

FIGURE 15. Keeping Site Clear to Antenna

22 Installation BTR-80N, TR-80N, TR-82N

Attempting to operate the wireless intercom system through or around walls, ceilings, metal objects, etc. reduces system range and performance.

FIGURE 16. Operating System Near Obstructions

IMPORTANT: DO NOT mount the base station 1/2-

wave antennas on or next to: metal, such as beams; walls with metal studs; or equipment racks, etc. This also applies to antennas assembled directly to the Base Station. Mounting antennas near metal detunes the antennas, which can result in noise or loss of RF signal at the Base Station. See Figure 17.

BTR-80N, TR-80N, TR-82N Installation 23

FIGURE 17. Antenna Placement

Improving Reception and Increasing Range

Keeping the distance from the base station and beltpack as short and unobstructed as possible produces the most reliable antenna performance.

The base station is supplied with two (2) antennas. This provides satisfactory system performance in most applications. System range can be enhanced by remotely mounting the 1/2-wave antennas. The 1/2-wave antennas are ground plane independent, so a ground plane is not required for good performance.

24 Installation BTR-80N, TR-80N, TR-82N

CHAPTER 3

Operation

BTR-80N

Operation

This section discusses the operation and features of the BTR80N base station, opening with base operation and quick system setup. It then discusses basic interfacing and setup of a base station, then ends with the connection of multiple base stations and discussion of the links between them.

Basic Operational Description

The BTR-80N narrow band wireless intercom system offers the most comprehensive, user-friendly, and versatile set of features available in wireless intercom systems anywhere in the world.

The base station accommodates up to four (4) full-duplex TR80N or TR-82N beltpacks, and can be used with an unlimited number of beltpacks in push-to-TX (half-duplex) operation. In push-to-TX mode, the unit provides a First On Latch Out feature which allows only one beltpack transmitter to be active at a time when multiple users are on a single base receive channel.

The base station, via the beltpacks or it’s local headset, allows communications with other wireless or wired users. The  2-wire and 4-wire intercoms may even be used at the same time. The wired audio interfaces to the base are:

• 2-Wire (Telex, RTS, Clear-Com) - 2 intercom channels

• 4-Wire - 2 audio channels

• Auxiliary (both input and output)

• SA (Stage Announce) (output)

• WTA (Wireless Talk-Around)/ 2 channels of private 

2-wire intercom among TR-80N and TR-82N beltpacks

• Local base station headset

The base station also features:

• A relay closure activated when the SA button is pressed at

any beltpack

• Four (4) easily accessible portable connect buttons on the

front panel. Use the buttons to turn off the audio from any of the four (4) base receivers while at the same time killing the talk/transmitter at the associated beltpack

• 36 engineering selected, intermodulation avoiding, factory-

defined groups

• The ability for users to enter frequencies of their own via 12

user-defined groups

System Quick Start

The following is a list to quickly get a base station and beltpacks operating.

1. Unpack the base.

2. Connect the power cord and antennas.

3. Connect the base to audio interfaces, such as: 2-wire, 

4-wire, SA, Auxiliary, or local headset.

4. Press and hold MENU while powering up the base station.

5. When the base station displays FACTORY SETUP, release

MENU.

6. Unpack the beltpacks.

7. Press MENU while powering up the beltpack(s).

8. Using the UP and DOWN arrow buttons, change the

beltpack channel to an unoccupied receive channel on the base station.

9. Press SET twice to set channel and group.

The base should now display the audio channel of the beltpack and a battery symbol appears shortly.

10. Plug a headset into each beltpack.

11. Adjust the microphone gain in the software menu so the

overmodulation light flashes only on some of the words at normal speech levels.

26 Operation BTR-80N, TR-80N, TR-82N

FIGURE 18. BTR-80N Rear View

Transmit and Receive Antennas

The TNC transmit jack and receiver jack are both labeled on the rear of the unit. The base station comes with two (2)  1/2-wave antennas. Always match the color dot on the rear

of the base station with the colored band on the antenna.

panel

2-Wire Intercom Ports

The base station has the ability to interface with two (2)  2-wire external audio intercom systems. These XLR jacks designated intercom 1 and 2 on the rear panel.

They accept Telex, RTS, and Clear-Com types of intercom systems. The pinouts of these standard types of intercom are shown in Figure 19.

are

The base station does not require wet intercom lines for operation. Wet intercom lines are those with D.C. voltages on them for powering 2-wire devices. The base loops through wet intercom lines with currents up to two (2) Amps.

WA R NI N G : Do not loop through more than two (2) Amps

of current. Damage to the base station may result.

FIGURE 19. Pinouts of RTS, Telex, and Clear-Com

Intercoms

BTR-80N, TR-80N, TR-82N Operation 27

FIGURE 20. Loop-through of two base stations connected with

Telex/Audiocom or Clear-Com Intercoms

If multiple base stations are connected via 2 -wire intercom and no 2-wire power supply is involved to terminate the  2-wire, then termination plugs for the type of 2-wire system used must be at one end of each intercom line.

Since RTS-TW carries both channels of audio on one (1) cable, the four (4) intercom XLR connectors are connected in parallel when RTS is selected. Thus any one (1) of the four (4) intercom XLRs may be used for RTS input. Looping through of the audio, shown in Figure 21, may also be accomplished via any of the rear panel XLRs when in FTS mode. For a description of how to set up the 2-wire ports, refer to Intercom Settings in this section. The 2-wire intercom may be used at the same time as the 4-wire intercom.

FIGURE 21. Loop-through of two base stations connected with

RTS Intercoms

28 Operation BTR-80N, TR-80N, TR-82N

FIGURE 22. BTR-80N Rear View

4-Wire Intercom Ports

The BTR-80N can connect to two (2) 4-wire audio intercom systems. These 6-pin modular jacks (RJ-11) are designated 4wire under intercom 1 and 2 titles on the rear panel. (See Figure 22). The jack’s pinout is shown in Figure 23.

FIGURE 23. Pinout of the 4-Wire Jack

The 4-wire intercom may be used at the same time as the  2-wire intercom.

Auxiliary Input/Output

The auxiliary input jack is a combination jack. It accepts either a 3-pin XLR or a 1/4” (6.3mm) plug. The expected input is a balanced line level input. Shown in Figure 24, the XLR plug and 1/4” plug are wired in parallel

The auxiliary output jack is a 3-pin XLR jack. It produces a line level balanced output. Please refer to Figure 25.

FIGURE 25. Pinout of the Auxiliary Output Jack

The auxiliary input/output can be set to local, global, or off. (See the Aux Settings menu in the base). The output level is configured in the software.

• Local Aux Input - The input audio is only heard at the base

station’s local headset and beltpacks.

• Local Aux Output - The output audio is only heard at the

base station’s local headset and beltpacks.

• Global Aux Input - The input audio is heard at the base

station’s local headset and beltpacks and is placed on the 2wire/4-wire intercom.

• Global Aux Output - The output audio is heard at the base

station’s local headset and beltpacks and is placed on the 2wire/4-wire intercom.

• Off - the auxiliary input and output is off.

FIGURE 24. Auxiliary Input XLR and 6.3mm Jack Pinouts

BTR-80N, TR-80N, TR-82N Operation 29

FIGURE 26. BTR-80N Rear View

Base Station Link

This pair of RJ-45 jacks allow the passage of WTA, WTA termination control voltage, and CAN bus data between multiple base stations. Up to eight (8) base stations may be connected with the base station link. If just using WTA between bases, up to 16 base stations can be connected together. The pinout of the IN jack and OUT jack may be seen in Figure 27

and Figure 28

FIGURE 27. Base Station Link IN RJ-45 Jack Pinout

Stage Announce (SA)/Relay

The Stage Announce 3-pin XLR connector (see Figure 26) is where audio exits the base when a beltpack user pres button. The pinout of the plug connector is shown in Figure 29.

FIGURE 29. Stage Announce Pinouts

The stage announce output is balanced audio at line level. The output level is configured in the software.

A relay contact closure also activates when a beltpack user presses the SA button. The contacts are normally open (N.O.). The relay schematic is shown in Figure 30. The rating of the relay is 1 Amp at 24 volts AC or DC maximum.

ses the SA

FIGURE 28. Base Station Link OUT RJ-45 Jack Pinout

FIGURE 30. Relay Output Schematic (Normally Open)

oenix type connector (supplied) plugs into the relay

A Ph contact port on the rear of the base station. This connector provides a screw-type closure for an easy connection to wires. See Figure 31.

FIGURE 31. Screw Terminal Adapter

30 Operation BTR-80N, TR-80N, TR-82N

FIGURE 32. BTR-80N Base Station Link Jack and Program Jack

Base Station Link Jack

WTA 1 and WTA 2 in the BTR-80N are two (2) independent 2wire intercom channels. Up to 16 base stations may be connected together to share WTA audio. Do not confuse WTA audio with CAN bus data, as only eight (8) bases may be connected to share CAN bus data. Not only does the WTA Link cable pass both channels of WTA audio, it passes a logic level so the 1st base station in the chain is the only one providing a termination of the WTA intercom channels. Care must be taken to connect cables between base stations from the OUT of base one (1) to the IN of base two (2) and so forth. If the WTA link cable is passed from OUT to OUT or IN to IN, the WTA audio may terminate in multiple places and cause the WTA audio level to be greatly reduced.

The base station link jacks can interface with other base stations via two (2) different types of cables:

• Base Link Cable (BLC)

– Straight through cable. Passes CAN data, WTA

audio, and WTA termination signal.

• CAN Bus Termination Cable (CTC)

– Passes WTA audio and WTA termination signal, but

does not pass CAN data. Acts as a termination of the CAN networks on either side of it.

Detailed information on the pinout and operation of these cables can be foun Link Cables” on page 40.

d in “Connection of Multiple Base Stations with the

Program Jack

This jack is only used for updating the internal software of the base station. It is typically used only by the manufacturer and service centers.

FIGURE 33. Multiple Base Stations Connected via

2-Wire Cables Sharing WTA Audio

BTR-80N, TR-80N, TR-82N Operation 31

FIGURE 34. BTR-80N - Front Panel

Powering the Base Station

The base station may be powered two (2) different ways:

• Line power at the IEC receptacle. Accepts 100–240VAC, 1A

max., 50 or 60Hz.

• 12–15VDC Power. Accepts a 5.5mm by 2.5mm screw on

plug. Source must supply at least 3.5 Amps.

To power on the base station, do th

e following:

> Press the POWER button located on the far left of the

base station front panel.

ower off the base station, do the following:

To p

> Press and hold the POWER button.

Both line power and DC power can connect to the base station at the same time. If AC line voltage drops, the base draws power from the DC input automatically. When the AC line power is restored, the base automatically switches back to AC power. There is no interruption in the base operation during these transitions.

CAUTION: Do not power up a base station within three (3)

seconds of the unit being turned off. Voltages within the unit need time to drop below a threshold. If powered up within the above time, the unit may boot as the wrong frequency band.

FIGURE 35. Start Up Screen

After three (3) seconds the status screen appears.

NOTE: A

complete screen flowchart of the base station is

available in Additional Resources.

Status Screen

The Status screen is the main information screen of the base station. It displays a number of system items:

• Frequency Group

• Band of Base Station

• Mode of Base Station

• Transmitter 1 Power Setting

• Transmitter 2 Power Setting

• Beltpack Current Activity

• Battery Life

• Base Receiver Status

WARNING: Even with the unit powered down via the

power switch, some circuits within the base remain energized. To completely remove power to the unit, disconnect the power cord.

Start Up Screen

When the BTR-80N powers up, the first screen displayed is the Start Up splash screen. It displays for about three (3) seconds. This screen contains both the software version number and band ID of the base. Figure 35 shows a screen indicating software version sb4010C and a F1 band unit.

FIGURE 36. Status Screen

32 Operation BTR-80N, TR-80N, TR-82N

RSSI Screen

RSSI stands for Received Signal Strength Indicator. This screen

displays the detected signal strength of each of the four (4) receivers in the base.

FIGURE 37. RSSI Screen

The following are the approximate receive levels indicated by the bars after each receiver.

User-defined groups 18u to 30u may be changed

by the user to

any frequency within range of the base.

Group/Channel Screen

To select

1. From the status screen, press MENU.

the group and channel, do the following:

GP_CH select, Base Main, Intercom Settings, and Aux

tings appear in the main selection screen.

Set

2. Using the UP/DOWN arrow buttons, select GP_CH Select.

3. Press SET.

The Group/Channel Select screen appears. The Group

ashes.

4. Using the UP/DOWN arrows, select a group.

5. Press SET.

The change is accepted and Channel starts to flash.

6. Using the UP/DOWN arrows, select a channel.

7. Press SET.

The change is accepted and the

focus moves to the next receiver. After the last receiver channel is set, the unit changes to the group and channels selected, and then returns to the main screen.

FIGURE 38. Receive levels indicated by bars.

If no beltpacks are operating, an RSSI level of two (2) bars or above may indicate interference on that frequency. A different receive channel should be selected.

To access the RSSI screen, do the following:

> From the status screen, press and hold MENU for two

(2) seconds.

To exit the RSSI scr

een, do the following:

> press MENU to arrive back at the status screen.

Group/Channel Select Screen

The group/channel, group/frequency, and frequency edit screens allow the user to set the frequencies of the base station. Each screen has a slightly different way to set frequencies.

FIGURE 39. Group/Channel Screen

The Group/Channel screen displays the group number and the channel assigned to each of the four (4) receivers. Each channel is a unique base receive frequency. The frequencies of factory defined groups 1A to 18 can only be selected from a set number of predetermined channels.

Group/Frequency Screen

The Gr

oup Frequency screen displays the group number and

frequencies assigned to each of the four (4) receivers. It is just like the Group/Channel screen except the receive channels are displayed as frequencies. Also, the transmit frequencies are displayed.

FIGURE 40. Group/Frequencies Screen

To select the group and frequency, do the following:

1. From the status screen, press MENU.

GP_CH select, Base Main, Intercom Settings, and Aux

tings appear in the main selection screen.

Set

2. Using the UP/DOWN arrow buttons, select GP_CH Select.

3. Press MENU again in the Group/Channel screen.

The Group/Frequency Select scr

een appears. The Group

flashes.

4. Using the UP/DOWN arrows, select a group.

5. Press SET.

The change is accepted and Frequency starts to

6. Using the UP/DOWN arrows, select a frequency for the

flash.

channel.

7. Press SET.

The change is accepted and the

focus moves to the next frequency. After the last receive frequency is set, the unit

BTR-80N, TR-80N, TR-82N Operation 33

displays the group and frequencies selected, and then returns to the main screen.

Frequency Edit (User-Defined Groups Only)

The Fr

equency Edit screen is similar to the Group Frequency

Select screen, but allows the complete editing of each transmit and receive frequency.

FIGURE 41. Frequency Edit Screen

To edit the frequency screen, do the following:

1. From the status screen, press MENU.

GP_CH select, Base Main, Intercom Settings, and Aux

ings appear in the main selection screen.

Sett

2. Using the UP/DOWN arrow buttons, select GP_CH Select.

3. Press the MENU button twice.

The Frequency Edit screen app

4. Using the UP/DOWN arrow buttons, select a frequency.

5. Press SET.

ears. The Group flashes.

The changes are accepted and the focus moves to the next

smitter. After transmitter 2 is set, the channel 1 receiver

tran frequency begins to flash.

6. Using the UP/DOWN arrow buttons, select a frequency.

7. Press SET.

The change is accepted and the focus moves to the next

nel. After the last receive channel frequency is set, the

chan unit sets itself to the frequencies and returns to the main selection screen.

NOTE: Press MENU at anytime and the unit changes to

the group and frequencie

s selected.

Base Main Settings

Settings contained in the base main menu are the following:

• Local headset microphone gain

• Local headset volume

• Transmit power level

• Squelch setting for each receiver

• Stage Announce (SA) audio level setting

• Receive antenna bias T power

• Base Number...Master or Servant

FIGURE 42. Local Headset Area of Front Panel

TALK Button

To enable

the audio path from the headset microphone, do

the following:

> Press the TAL K bu tton. 

The talk light activates when the TALK button is active.

This light has two (2) functions:

Green - In

Red or flashing red -

Light flashes on loudest speech Light flashes on all speech Light never flashes on normal speech

dicates activation of the TALK button.

Indicates input audio too strong (Peak)

Peak Light Microphone Gain

Okay

Too high

Too low

Channel Select Button

The Chan

nel Select button selects the intercom channel for the

local headset. Each press of the button cycles through the options: intercom one, intercom two, or both, and then back to intercom one (1). The LEDs above the button indicate what channel is currently connected to the local headset.

34 Operation BTR-80N, TR-80N, TR-82N

Local Headset Volume and Gain

The L

ocal Headset Volume and Microphone Gain are set in

the following software screen.

FIGURE 43. Microphone Gain/Volume

To access the microphone gain and volume level, do the following:

1. From the status screen, press MENU.

2. Using the UP/DOWN arrow buttons, select Base Main.

3. Using the UP/DOWN arrow buttons, select Local Headset.

4. Press SET.

The microphone gain flashes.

5. Using the UP/DOWN arrow buttons, adjust the gain.

NOTE: Each press of t

he button is about a 3dB step

increase or decrease in gain.

6. Press SET.

The volume flashes.

7. Using the UP/DOWN arrows, adjust the volume.

NOTE: Each press of t

he button is about a 3dB step

increase or decrease in volume.

To access the transmit power settings, do the following:

1. From the main status screen, press MENU.

2. Using the UP/DOWN arrow buttons, select Base Main.

3. Press SET.

4. Using the UP/DOWN arrow buttons, select TX-Power.

5. Press SET.

The transmit power level starts flashing.

6. Using the UP/DOWN arrow buttons, adjust the level.

7. When finished, press SET.

The transmitter’s on/off indicators flash.

8. Using the UP/DOWN arrows buttons, select ON or OFF.

9. When finished, press SET.

The Base Main select menu screen appears.

10. Press MENU twice.

The base menu select menu screen appears.

NOTE: The

base defaults back to the status screen if no

action is taken after five (5) minutes.

Squelch Settings

Each of the four (4) receivers

of the base station has four (4) adjustable squelch levels. These levels are equivalent to a SINAD level to open squelch for a receiver. The higher the squelch level number, the quieter the receiver is before it squelches; however, the RF range is slightly less than a receiver with a lower number.

00 = OPEN (for testing only, do not use)

8. Press SET.

The base menu selection menu screen appears.

9. Press MENU twice to go back to the status screen.

NOTE: The base defaults back to the status screen if no

actio

n is taken after five (5) minutes.

Base Transmitter Power

The base station has the following

transmit power settings for

both transmitters:

• Off

• 10mW

• 50mW (Default)

• 100mW

• 249mW

The user may also set which transmitter is on or off. The default is both transmitters on

FIGURE 44. TX Power

01 = 12dB SINAD

02 = 20dB SINAD (Default)

03 = 24dB SINAD

CAUTION: Do not use Squelch Setting 00! A squelch level of

00 turns off all squelch gating. This can allow loud white noise into the audio of a base station if no transmitter is on the RF frequency or the portable select button is on. This setting is for test purposes only.

FIGURE 45. Squelch Setting

To set the squelch setting, do the following:

1. From the status screen, press MENU.

2. Using the UP/DOWN arrow buttons, select Base Main.

3. Press SET.

4. Using the UP/DOWN arrow butts, select Squelch Settings.

BTR-80N, TR-80N, TR-82N Operation 35

5. Press SET.

The receiver 1 squelch setting starts flashing.

6. Using the UP/DOWN arrow buttons, adjust the setting.

7. When finished, press SET.

8. Repeat steps six (6) and seven (7) to set the remaining

receivers.

9. When finished, press SET.

The Base Main selection menu appears.

10. Press MENU twice.

The base menu select menu screen appears.

NOTE: The base defaults back to the status screen if no

action is taken after f

The base employs two (2) different types

ive (5) minutes.

of squelches. A fast acting noise type squelch and a slower data squelch. For audio to be received by the base, both a good signal-to-noise audio signal (with a noise threshold set via the user squelch settings above) and a valid data stream must be detected.

Stage Announce Level

tage Announce software option allows the user to adjust

The S the audio output level of the rear panel stage announce jack.

To set the stage announce level, do the following:

1. From the status screen, press MENU.

2. Using the UP/DOWN arrow buttons, select Base Main.

3. Press SET.

4. Using the UP/DOWN arrow buttons, select MORE... .

5. Press the DOWN arrow button.

The stage announce level flashes.

6. Using the UP/DOWN arrow buttons, adjust the setting.

NOTE: Each press of the but

ton is a 6dB step increase or

decrease of volume.

7. When finished, press SET.

8. Step through the other settings in the screen by pressing

SET.

After the last option on the screen, the base main selection

enu appears.

9. Press MENU twice to go back to the status screen.

NOTE: The base defaults back to the status s

creen if no

action is taken after five (5) minutes.

Antenna Power

can be enabled or disabled. If antenna power is enabled, 9VDC is placed on the center pin of the receive antenna. The purpose of this voltage is to power in-line low noise amplifiers on the receive coaxial cable in order to compensate for excessive RF signal loss due to long cable runs.

FIGURE 46. Stage Announce

Specifications of the power

on the antenna jack:

Options: On/Off (Off=Default)

Voltage: 9VDC

Current: 100mA max.

Protection: Current is limited to 100mA

Base can withstand a continuous short to ground without damage.

FIGURE 47. Antenna Power

36 Operation BTR-80N, TR-80N, TR-82N

To enable or disable the antenna power, do the following:

1. From the status screen, press MENU.

2. Using the UP/DOWN arrow buttons, select Base Main.

3. Press SET.

4. Using the UP/DOWN arrow buttons, select MORE... .

5. Press the DOWN arrow button.

The stage announce level starts flashing.

6. Press SET until Antenna Power flashes.

7. Using the UP/DOWN arrows, adjust the setting.

8. When finished, press SET.

9. Step through the other settings in the screen by pressing

SET.

After the last option on the screen, the base main selection

appears.

10. Press MENU twice to go back to the status screen.

NOTE: The base defaults back to the status screen if no

actio

n is taken after five (5) minutes.

CAN Bus Number

The C

AN Bus Number for a base station must be set only in

multiple base station configuration and only if the operator wishes to have the following features shared among multiple base stations:

1. From the status screen press MENU.

2. Using the UP/DOWN arrow buttons select More...

3. Press the DOWN arrow button.

4. Press SET until the Base Number option flashes.

5. Using the UP/DOWN arrow buttons, set the number.

6. When finished, press SET.

7. Step through the other settings in the screen by pressing

SET.

After the last option on the screen, the base main selection

appears.

8. Press MENU twice to go back to the status screen.

NOTE: The

base defaults back to the status screen if no

action is taken after five (5) minutes.

Intercom Settings

There are multiple parameters to set in the In

tercom Setting

menu:

• 2-wire intercom type: Telex, RTS, Clear-Com, Off

• Only intercom 1 active, only intercom 2 active, both

• 2-wire intercom input/output levels

• 4-wire intercom on/off

• 4-wire intercom input/output levels

• First-On-Latch – Out of receiver channels (Push to transmit)

• Automatic beltpack TX power control

• Automatic beltpack user ID assignment

• Beltpack TX and Talk shutdown via the base front panel

Table 1 lists valid base number settings. Please see “Connection of Multiple Base Stations with the Link Cables” on page 40.

TABLE 1. Valid Base Number Settings

Base Number Function

01 Master 02 Servant 03 Servant 04 Servant 05 Servant 06 Servant 07 Servant 08 Servant 09 Unassigned (Default)

FIGURE 48. Base Number

To set the CAN bus number, do the following:

BTR-80N, TR-80N, TR-82N Operation 37

2-Wire Intercom

The screens below show the pro

gression of setting 2-wire

parameters.

FIGURE 49. 2-Wire Intercoms

To adjust the 2-wire intercom settings, do the following:

1. From the status screen, press the MENU button.

2. Using the UP/DOWN arrow buttons, select Intercom

Settings.

3. Press SET.

4. Using the UP /DOWN arrow buttons, select 2-W.

5. Press SET.

The 2-wire intercom type flashes.

6. Using the UP/DOWN arrow buttons, set the intercom type.

7. When finished, press SET.

The intercom channel flashes.

4-Wire Intercom

The screens below show the progressi

on of setting 4-wire

parameters.

FIGURE 50. 4-Wire Intercoms

To adjust the 4-wire intercom settings, do the following:

1. From the status screen, press the MENU button.

2. Using the UP/DOWN arrow buttons, select Intercom

Settings.

3. Press SET.

4. Using the UP /DOWN arrow buttons, select 4-W.

5. Press SET.

The intercom one 4-wire on/off selection flashes.

6. Using the UP/DOWN arrow buttons, select on or off.

7. When finished, press SET.

The intercom input level flashes.

NOTE: If of

f is selected, the 2-W/4-W menu options

appear.

8. Using the UP/DOWN arrow buttons, select the intercom

setup–intercom 1, intercom 2, or both.

9. Press SET.

The intercom input level flashes.

10. Using the UP/DOWN arrow buttons, select the input level.

11. When finished, press SET.

12. Proceed through the intercom settings.

Once finished, the screen displa

y returns to the 2-W/4-W

selection menu.

13. Press MENU twice to go back to the status screen.

NOTE: The base defaults back to the status screen if no

action is taken after f

ive (5) minutes.

NOTE: If of

f is selected, the screen skips to the intercom

two screen.

8. Using the UP/DOWN arrow buttons, select the intercom

setup–intercom 1, intercom 2, or both.

9. Press SET.

The intercom input level flashes.

10. Using the UP/DOWN arrow buttons, select the input level.

11. When finished, press SET.

12. Proceed through the intercom output settings in a similar

manner.

Once finished, the intercom two 4-wire on/off selection

ashes.

13. Repeat steps 6-12 for intercom two.

Once finished, the screen displa

y returns to the 2-W/4-W

selection menu.

14. Press MENU twice to return to the status screen.

NOTE: The base defaults back to the status s

creen if no

action is taken after five (5) minutes.

38 Operation BTR-80N, TR-80N, TR-82N

Auxiliary Settings

The parameters to configure in the auxiliary setting menu are as fo

llows:

• Intercom 1 Auxiliary mode: Local, Global, or Off

• Intercom 2 Auxiliary mode: Local, Global, or Off

• Auxiliary input/output levels

The auxiliary sett the following:

Local Any

Global Any

ing for Local, Global, and Off are defined as

audio placed into the auxiliary input port is routed only to the base’s local headset and beltpack(s). Any audio heard out of the auxiliary output port is only from the base’s local headset and beltpack(s).

audio placed into the auxiliary input port is routed not only to the base’s local headset and beltpack, but also to any wired 2-wire or 4-wire system connected to the base station. Any audio heard from the auxiliary output is not only from the base’s local headset and beltpack, but also from any wired 2-wire or 4wire system connected to the base station.

NOTE: The

base defaults back to the status screen if no

action is taken after five (5) minutes.

ClearScan

When ClearScan

activates, the base shuts down its transmitters and begins scanning receive frequencies. The frequencies scanned are those in its factory-defined groups and any userdefined groups with at least one (1) frequency defined. The result is a screen like the one shown in Figure 52. The scan groups appear in order from the

highest number of clear receive channels available to the least number of clear channels available.

To start ClearScan, d

o the following:

> Press and hold MENU + SET for three (3) seconds.

NOTE: This process can take u

complete. It depends on how many user-defined groups are configured. The more groups, the longer the scan takes.

p to 12 seconds to

Off The au

xiliary input and output for the

intercom channels is disabled.

FIGURE 51. Auxiliary Input/Output

To configure the auxiliary settings, do the following:

1. From the status screen, press the MENU button.

2. Using the UP/DOWN arrow buttons, select Aux Settings.

3. Press SET.

The Intercom 1 auxiliary local, global, or off selections

ashing.

start fl

4. Using the UP/DOWN arrow buttons, select the option you

desire.

5. When finished, press SET.

6. Repeat steps 1 through 5 for Intercom 2.

7. When finished, press SET.

The auxiliary input level flas

hes.This level is applied to

both intercom channels.

8. Using the UP/DOWN arrow buttons, set the input level.

9. When finished, press SET.

The auxiliary output level flashes.

10. Using the UP/DOWN arrow buttons, set the output level.

11. When finished, press SET.

12. Press MENU twice to go back to the status screen.

FIGURE 52. Clear Scan Results Screen

NOTE: The base is not set to the displayed ClearScan

result if the user presses the MENU button to abort.

BTR-80N, TR-80N, TR-82N Operation 39

Lockout

Lockout i

s used to keep a user from changing any options at the

base station, except local headset microphone gain and volume.

able Lockout, do the following:

To en

> Press and hold UP+DOWN for two (2) seconds to lock

or unlock the base station.

A padlock appears on the status screen if the base is locked out.

FIGURE 53. Status Screen with Lockout Active

Copy

allows the user to select a factory-defined group and copy it to a user-programmed group. This allows a user to edit the group if desired.

1st Use Defaults

is used to set the base station to Group 01A, channels 1, 2, 3, 4, and RETAIN any user-defined groups in memory. It sets the unit to factory-defined parameters.

the base station to 1st Use Defaults, do the following:

To set

1. Press and hold the MENU button while turning on the base

station.

2. When Factory Setup displays on the screen, release

MENU.

Factory Default

Factory Default is

used to set the base station to Group 01A, channels 1, 2, 3, 4, and ERASES any user-defined groups in memory. it sets the unit to factory-defined parameters.

To set th

e base station to Factory Default, do the following:

> Press and hold MENU + SET + UP+ DOWN for two

(2) seconds. 

The screen in Figure 55 displays before the unit reboots.

FIGURE 54. Copy Screen

To use Copy, do the following:

> Press and hold the SET+DOWN buttons for 2 seconds

in the group/channel select screen (see Figure 54).

FIGURE 55. FACTORY SETUP Display

40 Operation BTR-80N, TR-80N, TR-82N

Connection of Multiple Base Stations with the Link Cables

This section discusses various configurations of multiple base stations using link cables. Multiple base stations may be

connected via standard 2-wire and 4-wire intercoms without additional link cables between them. They still transmit and receive intercom 1 and intercom 2 audio normally from the beltpacks.

FIGURE 56. Multiple base stations with only 2-wire intercom

channels 1 and 2 connected between them

However, by connecting multiple bases together via link cables, in addition to any 2-wire or 4-wire audio connections in use, the feature set of a single base becomes available to the whole system. This feature set also includes base stations that have their transmitters off in order to conserve RF spectrum.

These features are:

• (WTA) Wireless talk-around channels 1 and 2 shared

between base stations.

• First-On-Latch-Out of beltpacks extended to base stations

with their TXs off (when beltpacks are in push-to-transmit mode).

• Automatic beltpack TX power control extended to base

station with their TXs off.

• Automatic beltpack user ID assignment extending to base

stations with their TXs off.

• Beltpack TX and Talk shutdown via the base front panel

extended to base stations with their TXs off (when beltpacks are in push-to-transmit mode).

• Beltpack Talk shutdown via the base front panel extended to

base stations with their TXs off (when beltpacks are in pushto-talk mode).

BTR-80N, TR-80N, TR-82N Operation 41

Before presenting the configurations, we believe an explanation of RF data links plus master and servant base stations helps in understanding the multiple base arrangements.

Over-the-Air Data Links

There are two (2) RF data communication links within a BTR80N system.

• Beltpack-to-base conveys:

– Current button(s) selected

– Battery level

– Beltpack ID set confirmation

• Base-to-beltpack conveys

– Beltpack User ID

– Beltpack TX power level

– Beltpack TX and/or Talk Shutdown

– First-On-Latch-Out

FIGURE 57. Base-To-Beltpack and Beltpack-To-Base RF Data Links

These two (2) data paths are intact when there is only one (1) base communicating to beltpacks. They are also intact when many base stations on different TX and RX frequencies are communicating to their beltpacks.

However, in a system with one (1) or more base stations with their transmitters off, the base-to-beltpack data link is lost for those beltpacks

A wired data link is needed to communicate the base-tobeltpack information from the base stations with their transmitters off to the base with its transmitters on.

42 Operation BTR-80N, TR-80N, TR-82N

FIGURE 58. Three (3) base stations connected via 2-wire intercom only

wo (2) bases have their transmitter off; one has its transmitters on

BTR-80N, TR-80N, TR-82N Operation 43

Master and Servant Base Stations

A master base station is one that the user has set its base number to 01(Master) and has its transmitters on. A master base conveys base-to-beltpack data to its beltpacks and via a base station link cable, relays the base-to-beltpack data from

base stations that have their base transmitters off. A master may support up to seven (7) additional base stations with their transmitters off.

IMPORTANT: There can be only one (1) master base

station in a network of base stations.

A master base automatically sets a 09 (default) base to a unique 02 to 08 servant number. If a base is already a servant the master leaves it at that same number.

TAB LE 2. Valid Base Number Settings

Base Number Function

01 Master

02 Servant

03 Servant

04 Servant

05 Servant

06 Servant

07 Servant

08 Servant

09 Unassigned (Default)

There can be up to seven (7) servants working with one (1) master.

FIGURE 60. Status Screen of the Servant Base Station

A servant or master base is set via the Base Main menu screen in the base station.

FIGURE 61. How to get to the master/servant

selection screen

FIGURE 59. Status screen of a master designated base

station

NOTE: An

y time base stations are changed to be a master base station, it must be power cycled for the change to take affect.

A servant base station is one that

has its transmitters off and is connected to a master base. Since servant base stations have their transmitters off, base-to-beltpack information can only get to beltpacks via link cables connected to a master base station.

From the factory, base station are set to base number

09. This is an unassigned base. The base can be left as 09 if not in a linked system. It works as normal with all features.

If the unassigned base is connected to a master base station, the master automatically assign a valid, unique, servant ID to it the first time the networked system is powered-up.

The master base must always power-up after the servant bases in order to detect servant units to control. If all the units are on a common power strip, this is controlled by a built in delay on master base station. The master base station always boots slower than servant units.

CAN bus

A CAN (Controlled Area Network) bus is the data protocol used over the BTR-80N’s base station link cable. This balanced protocol is a robust standard used the world over in high noise, extreme environments. It requires the use of 120 Ohm terminators at the beginning and end of a CAN bus network.

44 Operation BTR-80N, TR-80N, TR-82N

FIGURE 62. CAN Bus 120 Ohm termination (CAN-T) and

base pin functions. Part Number: PRD000223002 (not supplied)

FIGURE 63. A base link cable connected system with terminators on both ends

BTR-80N, TR-80N, TR-82N Operation 45

Base Station Link Configurations

Multiple base station networks may be connected in dif ways. Using the rear panel base station link jacks, a user has three (3) different connection options.

These options are:

ferent

• WTA (Wireless Talk-Around) Audio Only

– Bases connected via 2-wire and/or 4-wire audio

links

– All bases share WTA audio

– They do NOT share CAN bus data

• WTA and a SINGLE CAN Bus Network

– Bases connected via 2-wire and/or 4-wire audio

links

– All bases share WTA audio

– All bases are ON A SINGLE CAN BUS

NETWORK

• WTA and Several CAN Bus Networks

– Bases connected via 2-wire and/or 4-wire audio

links

– All bases share WTA audio

– There is MORE THAN ONE CAN BUS

FIGURE 64. Base station link input and output jacks 

on the rear of the BTR-80N

NETWORK

46 Operation BTR-80N, TR-80N, TR-82N

Wireless Talk-Around Audio Only

These base stations are connected to share WTA channel 1 and WTA channel 2 audio but do not share the CAN bus data.

Link Overview

WTA 1 and WTA 2 in the BTR-80N a wire intercom channels. The WTA intercom channels are very similar to AudioCom types of intercom channels except they are dry and are meant to only pass audio between BTR-80N base stations.

Up to 16 base stations may be connected together with base link cables (BLC) d

epending on cable length and conductor size. The BLC passes both channels of WTA audio. It also passes a logic level so the 1st base station in the chain is the only one that provides a termination of the WTA intercom channels. This pin is labeled “TERM CONT” on the RJ-45 plug pinouts in this section.

Care must be taken to connect cables between base stations from the OUT of base one (1) to the IN of base two (2) and so forth, unit to unit.

re two (2) independent 2-

If the WTA link cable passes from OUT to OUT or IN to IN, the WTA audio terminates in multiple places and causes the WTA audio levels to be greatly reduced/distorted.

FIGURE 65. BLC (Base Link Cable) and pin functions.

Part Number PRD000223000 (Not Supplied)

If base stations are farther apart than the 12” (30.48cm) BLC, then 568-A or 568-B Ethernet cables of CAT-5E or above may be used to connect base stations up to 300 feet apart. These Ethernet cables contain four (4) twisted pairs like the BLC cable.

FIGURE 66. Multiple base stations connected via 2-wire

audio cable and WTA through via BLCs

BTR-80N, TR-80N, TR-82N Operation 47

Do not set base stations to the base number 01 (Master), because CAN bus is connected to the other base stations with a BLC, as seen in Figure 66. If there are no masters on the CAN bus system, there is no activity on the CAN bus line and no need for terminations.

IMPORTANT: The master base must always 

power-up after the servant bases 

in order to detect servant units to control. If all units are on a common power strip, this is controlled by a



built in delay on the master base station. The master base station always boots slower than servant units.

Setup

1. Connect the power cords to the base stations.

IMPORTANT: Do not power up the base stations.

2. Connect the transmit and receive antennas to the base

stations.

NOTE: The color dots on the rear of the base should match

the color rings of the antennas.

3. Connect the main intercom audio channel(s) to the base

stations.

NOTE: This may be 2-wire intercom. This could also be 4-

wire intercom via a matrix type wired system.

4. Connect the Base Link Cable between base stations.

NOTE: Verify the OUT of the first base station connects to

the IN of second base station and follow the same connection pattern forward.

5. Power-up all the base stations.

Finally, a normal battery symbol is displayed, indicated the beltpack has been assigned its ID number.

9. Once the beltpack has an ID number, turn the beltpack

off.

10. Turn on the next beltpack.

11. Repeat steps 8-9 for each additional beltpack.

12. Power up the beltpacks.

WTA and a SINGLE CAN Bus Network

These base stations connect via 2-wire and/or 4-wire audio links and also by the Base Link Cable (BLC). The BLC cable passes WTA audio and CAN bus data information. The CAN bus connected base stations form a Network.

Link Overview

There are two (2) RF data communication links with a BTR80N system. The beltpack-to-base links convey information such as current button(s) selected, battery level, etc. The baseto-beltpack links convey beltpack user ID, beltpack TX shutdown, beltpack talk shutdown, and other information.

The two (2) paths are intact when there is only one (1) base communicating to beltpacks and when many base stations on different TX and RX frequencies communicate to the beltpacks. However, when one (1) or more base stations with their transmitters off are connected to a base station with its transmitters on, the base-to-beltpack data link is lost for those beltpacks.

Care must be taken to connect cables between base stations from the Out of base one (1) to the IN of base two (2) and so forth.If the WTA link cable is passed from OUT to OUT or IN to IN, the WTA audio terminates in multiple places and causes the WTA levels to be greatly reduced/distorted.

NOTE: The base stations should be set to all unique

transmit and receive frequencies.

6. Setup via the BTR-80N software menus the intercom, local

headset, auxiliary, stage announce, etc. as detailed in

BTR-80N Operation.

NOTE: All the base station numbers should be left as 09

(default).

7. Turn on only one (1) beltpack.

NOTE: Try to keep the beltpack at least 6’ (2 meters) away

from the base’s antennas.

8. Set the beltpack on the appropriate group and channel

for its base station.



IMPORTANT: The master base must always power-up

after the servant bases in order to detect

servant units to control. If all units are on a common power strip, this is controlled by a built in delay on the master base station. The master base station always boots slower than servant units.

48 Operation BTR-80N, TR-80N, TR-82N

FIGURE 67. Multiple base stations connected via 2-wire audio cable

and WTA plus CAN through via BLCs

Setup

1. Connect the power cords to the base stations.

IMPORTANT: Do

2. Connect the transmit and receive antennas to the base

not power up the base stations.

stations.

NOTE: The

color dots on the rear of the base should match

the color rings of the antennas.

3. Connect the main intercom audio channel(s) to the base

stations.

NOTE: This

may be 2-wire intercom. This could also be 4-

wire intercom via a matrix type wired system.

4. Connect the Base Link Cable between base stations.

NOTE: V

erify the OUT of the first base station connects to the IN of second base station and follow the same connection pattern forward.

5. Place CAN bus termination plugs (CAN-T) at the

beginning and end of the networked base stations.

6. Power-up all base stations.

7. Set all base stations to factory defaults via a four-button

reset; MENU + SET + UP + DOWN.

8. Power-down all the base stations.

9. Power-up the first

10. Set the servant base station to all unique receive

servant base station.

frequencies. 

The transmitters switch off automatically

when the master

base station takes control of them.

NOTE: Leave the base number at the default of 09.

11. Setup via the BTR-80N software menus the intercom, local

headset, auxiliary, stage announce, etc. as detailed in

BTR-80N Operation.

NOTE: Leave the base station powered-up.

12. Power-up the master base station.

13. Set the master base station to all unique transmit

frequencies.

14. Setup via the BTR-80N software menus the intercoms,

local headset, auxiliary, stage announce, etc., as detailed

in BTR-80N Operation.

15. Set the master base station with its transmitters on to

master base number 01.

BTR-80N, TR-80N, TR-82N Operation 49

16. Cycle the power of the master base while leaving the

single servant base powered-up.

The master base, on boot, takes control of the servant base

assign it the base ID of 02 and turn its transmitters off.

and

17. If there are additional servant base stations to configure,

turn off the master base station.

18. Power-up the next servant base station.

19. Repeat steps 10-12 and 16-18 for each additional servant

base.

NOTE:

• Always leave the previously assigned servant base

stations powered-up when going on to the next base.

• The master base must always power up after the

servant bases in order to detect servant units to

control.

• If all the units are on a common power strip, this is

controlled by a built in delay in the master station. The master station always boots slower than servant units.

20. Repeat steps 9-19 for each additional network.

21. Turn on only one (1) beltpack.

NOTE: T

ry to keep the beltpack at least 6’ (2 meters) away

from the base’s antennas.

WTA and Several CAN Bus Networks

These base stations may be connected via 2-wire and/or 4-wire audio links. They are also connected together via the Base Link Cable (BLC) and a new cable called the CAN Bus Termination Cable (CTC).

FIGURE 68. CAN Bus Termination Cable (CTC).

Part number: PRD000223001 (Not Supplied)

Link Overview

Multiple masters on the same C two different cables solve this issue. The BLC passes WTA audio and CAN bus data information. The CTC passes WTA audio and also functions to terminate the CAN network on either side of it. This allows many separate CAN networks to share the same two (2) WTA audio channels.

AN bus are not allowed. The

22. Set the beltpack on the appropriate group and channel for

its base station.

As each beltpack is set to its group and channel, an

rglass symbol appears on the base display in the

hou location normally occupied by the battery symbol. A beltpack is assigned an ID number by the base in this time. Finally, a normal battery symbol displays, indicating the beltpack has been assigned its ID number.

23. Once the beltpack has an ID number, turn the beltpack off.

24. Turn on the next beltpack.

25. Repeat steps 22-23 for each additional beltpack.

26. Power up the beltpacks.

Care must be taken to connect cables

between base stations from the OUT of base one (1) to the IN of base two (2) and so forth, unit to unit. If the WTA link cable passes from OUT to OUT or IN to IN, the WTA link cable terminates in multiple places and cause the WTA audio levels to be greatly reduced/ distorted.

The master base must always power-up after the servant bases in order to detect servant units to control. If all units are on a common power strip, this is controlled by a built in delay in the master base station. The master base station always boots slower than servant units.

Setup

Setup is the same as the previous “WTA and a SINGLE CAN Bus Netw

ork” section, with the exception of a CTC cable

between the two CAN networks.

1. Connect the power cords to the base stations.

IMPORTANT: Do

2. Connect the transmit and receive antennas to the base

not power up the base stations.

stations.

NOTE: The

the color rings of the antennas.

color dots on the rear of the base should match

50 Operation BTR-80N, TR-80N, TR-82N

3. Connect the main intercom audio channel(s) to the base

stations.

NOTE:

• This may be 2-wire intercom. This could also be 4-

wire intercom via a matrix type wired system.

• If using a party line to connect audio channels, the

party line needs to be terminated by a connected PSU or a load XLR plug (P.N. TP-3 or TP-3R). See Figure 69.

4. Connect the (BLC) Base Link Cable between base

stations within a CAN network.

NOTE: Verify the OUT of the first base station connects to

the IN of second base station and follow the same connection pattern forward.

5. Connect the CAN Bus Termination Cable (CTC)

BETWEEN the CAN networks.

NOTE: Remember to connect from the OUT of the base

station to the IN of the next base station.

6. Place CAN bus termination plugs (CAN-T) at the

beginning and end of the networked base stations.

7. Power-up all base stations.

8. Set all base stations to factory defaults via a four-button

reset; MENU + SET + UP + DOWN.

9. Power-down all the base stations.

10. For the first network of base stations, power-up the first

servant base station.

11. Set the servant base station to all unique frequencies. The

transmitters switches OFF automatically when the master base takes control of them.

20. Repeat steps 11-13 and 17-18 for each additional servant

base.



Always leave the previously assigned servant base stations powered-up when going on to the next base.

IMPORTANT: The master base must always power-up

after the servant bases in order to detect

servant units to control. If all units are on a common power strip, this is controlled by a built in delay in the master base station. The master base station always boots slower than servant units.

21. Repeat steps 10-20 for each additional network.

22. Turn on only one (1) beltpack on the

system.



first network

Try to keep the beltpack at least 6’ (2 meters) away from the base’s antennas.

23. Set the beltpack on the appropriate group and channel for

its base station.



As each beltpack is set to its group and channel, an hourglass symbol appears on the base display in the location normally occupied by the battery symbol. A beltpack is assigned an ID number by the base in this time. Finally, a normal battery symbol displays, indicating the beltpack has been assigned its ID number.

24. Once this first beltpack has an ID number, turn off the

beltpack.

25. Turn on the next beltpack.

26. Repeat steps 23-24 for each additional beltpack.

27. Power up the beltpacks.

•

NOTE: Leave the base number at the default of 09.

12. Setup via the BTR-80N software menus the intercoms,

local headset, auxiliary, stage announce, etc., as detailed

in BTR-80N Operation.

NOTE: Leave the servant base station powered-up.

13. Power-up the master base station.

14. Set the master base station to all unique transmit and

receive frequencies.

15. Setup via the BTR-80N software menus the intercoms,

local headset, auxiliary, stage announce, etc., as detailed

in BTR-80N Operation.

16. Set the master base station with its transmitters on to the

master base number 01.

17. Cycle the power of the master base, while leaving the

single servant base powered-up.



The master base, on boot, takes control of the servant base and assign it the base ID of 02 and turn its transmitters off.

18. If there are additional servant base stations to configure,

turn off the master base station.

19. Power-up the next servant base station.

BTR-80N, TR-80N, TR-82N Operation 51

FIGURE 69. Multiple base stations connected via 2-wire

audio cable and two CAN Bus networks.

52 Operation BTR-80N, TR-80N, TR-82N

TR-80N/82N

FIGURE 70. Controls and Connections

Basic Operational Description

The TR-80N/82N is a full-duplex (simultaneous talk and listen) beltpack. It works in conjunction with a BTR-80N base station. The beltpack allows a user, via a headset attached to the beltpack, to communicate with other wireless or wired users. Other base stations and/or wired systems connect to the beltpack’s base station. The base station allows the audio path interconnections for the beltpack audio.

The TALK, WTA (wireless talk-around), and SA (stage

unce) buttons on a beltpack turn the beltpack’s

anno microphone input on or off. They also select the audio paths for the beltpack’s audio in the base.

1. On/Off & Volume Control

2. BAT/PK Light

3. Talk Light

4. TALK Button

5. Channel 1 & 2 Lights

6. Wireless Talk-Around (WTA)

7. Stage Announce (SA)

8. Audio Channel Select

9. MENU and SET Buttons

10. LCD Display

11. UP and DOWN Buttons

12. Headset Connector

13. Battery Latch

14. Receive & Transmit Antenna

System Quick Start

The following is a list to quickly get a base station and beltpacks operating.

1. Unpack the base.

2. Connect the power cord and antennas to the base.

3. Connect the base to audio interfaces, such as: 2-wire, 4-

wire, SA, Auxiliary, or local headset.

4. Press and hold the MENU button, while powering-up the

base station.

5. When the base station displays...FACTORY SETUP...,

release the MENU button.

6. Press and hold the MENU button, while powering-up the

beltpack(s).

7. On the base station, use the UP and DOWN arrow buttons

to change the channel to an unoccupied receive channel.

8. Press SET twice to set channel and group.

The base should now display the audio channel of the

tpack and a battery symbol appears shortly.

bel

9. Plug a headset into each beltpack.

10. Adjust the software menu for microphone gain so the over

modulation light flashes only on some of the words at normal speech levels.

BTR-80N, TR-80N, TR-82N Operation 53

Battery Installation

Ensure the On/Off volume control knob is turned off. Press

down and hold down the battery release latch, then slide the battery pack about 1/8 inch back toward the latch until it stops.

Lift the battery pack out. Replace batteries as follows:

1. Open the battery pack by inserting  fingernail and lifting

2. Pull battery strap to remove low  or dead batteries.

3. Load new batteries following the polarity shown in the battery case.

NOTE:

• Start loading at the end of the case 

where the strap is attached to the cas

• Be sure strap goes under batteries.

4. Tuck end of strap under door

when placing the battery cover

back on the case.

WARNING:

Do not place an alkaline TR battery pack in any battery charger. Severe charger and battery pack damage may result.

FIGURE 71. Battery Installation

54 Operation BTR-80N, TR-80N, TR-82N

FIGURE 72.

TR-80N/82N Controls

Headset Connection

The Headset Connector is a XLR type connector. Four (4) or five (5) pin headset connectors may be installed in the unit. See the TR-80N/82N Controls and Connectors section for more information on the pinouts. A dynamic or electret headset microphone is automatically detected by the beltpack and a bias voltage supplied if needed.

Sidetone

Sidetone is the amount of the user’s voice fed back to

their headphone. The sidetone level in the beltpack and base station is fixed. It cannot be adjusted.

Antenna Connection

The beltpack comes with two detachable, screw type 1/4 wave antennas. Attach the two (2) antennas by screwing the antennas into the receptacles at the bottom of the beltpack. The color dot on the screw end of the antenna must match the color dot on the antenna receptacle.

BTR-80N, TR-80N, TR-82N Operation 55

FIGURE 73.

TR-80N Top Panel Controls

On/Off and Volume Control

To turn the beltpack power on, do the following:

> Rotate the On/Off Volume Control knob(s) CW.

ust the volume to the headset, do the following:

To adj

> Rotate the On/Off Volume Control knob as required

for a comfortable listening volume.

Batt/PK LED Status

Battery Light flashes on power up =Battery OK

Light on continuously =Battery Low Light does not flash/power on =Battery Dead

Over modulation

Light flashes on some speech =Gain OK

Light flashes on all speech =Gain too high Light never flashes on speech =Gain too low

TALK Button

To enable the audio path from the headset microphone, do the following:

> Press the TALK button. 

The talk light activates when the TALK button is active.The T selectable modes that can be seen via the LCD display of the beltpack.

ALK button has three (3) software

To select

1. Press and hold SET while pressing the TALK but ton. 

the TALK button mode, do the following:

The current mode of the TALK but

ton displays the first time the TALK button is hit. Pressing the TALK button a second time changes the mode of the button.

2. Release SET to accept the currently displayed setting.

Selectable Modes: TAL K

tb off Talk disabled

tb Ptt Push-to-talk

tb LAt Push-to-latch

Audio Channel Select Button

To select which intercom system the headset connects to, do the following:

1. Press and hold SET while pressing the CHANNEL select

button. 

The current mode of the CHANNEL select button displays

e first time the button is hit. Pressing the button a second

th time changes the mode of the button.

2. Release SET to accept the currently displayed setting.

Selectable Modes: Audio CHANNEL Bu

tton 12 on Channels 1 and 2

1 on Only channel 1

2 on Only channel 2

avai

lable

56 Operation BTR-80N, TR-80N, TR-82N

Stage Announce (SA)

To route audio from the beltpack directly to the stage announce connector on the back of the base station, do the

following:

> Press the SA button. 

The base station’s SA relay is also closed. The beltpack sidetone is lost as an indication that stage announce is activated. The other beltpacks and wired users do not hear this beltpack’s audio when SA is pressed. The button is non-latching and activates the nearby red LED when pressed.

To enable or disable Stage Announce, do the following:

1. Press and hold SET while pressing the SA button. 

The current mode of the SA button displays.

2. Still holding SET, press the SA button again to turn SA on

or off.

3. Release SET to accept the displayed setting.

Wireless Talk Around (WTA)

To disconnect the beltpack audio from the wired intercom, auxiliary input/output, and the base station’s local headset,

do the following:

> Press the WTA button.

Other beltpack users on that audio channel can hear the user as normal. The WTA button activates the nearby red LED as well as the appropriate talk LED when pressed.

To enable or disable Wireless Talk-Around options, do the following:

1. Press and hold SET while pressing the WTA button. 

The current WTA mode displays. Pressing WTA a second time changes modes. Available options are: Off, On, and Lon (Latch on).

2. Release SET to accept the displayed setting.

BTR-80N, TR-80N, TR-82N Operation 57

Groups and Channels

The first LCD screen the beltpack displays is the Group/ Channel screen. This screen shows the currently selected receive group followed by the beltpack transmit channels.

it groups and channels, do the following:

To ed

1. Push SET to edit the transmit channel. 

The channel number flashes.

2. Using the UP/DOWN arrow buttons, select the desired

transmit channel.

3. Push SET to accept the channel. 

The receive group flashes.

4. Using the UP/DOWN arrow buttons, select the desired

receive group.

5. Push SET to accept the receive group.

The new group containing the selected channel is now set.

NOTE:

• To escape out of the editing without any changes,

Press MENU.

• Factory group frequencies cannot be changed.

User group frequencies (Group changed.

19u to 30u) can be

Transmit Frequency

The Transmit Frequency screen displays the beltpack transmitter frequency in MHz. The frequency is not changeable in factory-determined groups, but it is changeable in userdefined groups.

it the TX frequency (User Groups Only), do the

To ed following:

1. Set the unit to the desired user-defined group and channels.

See Groups and Channels Instructions. The menu structure in Figure 74 indicates how to get to the transmit frequency screen.

2. Push SET to edit the TX frequency. 

The frequency flashes.

3. Using the UP/DOWN arrow buttons, select the desired

frequency. 

The frequency can be changed in 25 kHz steps.

4. Push SET to place the unit on the new transmit frequency.

Group/Channel & Transmit

FIGURE 74.

Frequency Screen

58 Operation BTR-80N, TR-80N, TR-82N

Receive Frequency

The Receive Frequency screen displays the beltpack receiver frequencies in MHz. The frequency cannot be changed in factory-defined groups, but can be changed in user-defined groups.

it the RX frequency (User Groups Only), do the

To ed following:

1. Set the unit to the desired user-defined group and channels. 

See Groups and Channels Instructions. The menu structure in Figure 75 indicates how to get to

the receive frequency

screen.

2. Push SET to edit the RX frequency. 

The frequency flashes.

3. Using the UP/DOWN arrow buttons, select the desired

frequency. 

frequency can be changed in 25 kHz steps.

The

4. Push SET to place the unit on the new receive frequency.

Microphone Gain

The Microphone Gain screen displays the beltpack microphone gain setting. There are 16 possible settings. The number zero (0) indicates minimum microphone gain, the number 15 is maximum. Each step is about three (3) dB.

To adjust the mi

1. Push SET at the microphone gain screen. 

crophone gain, do the following:

The number flashes.

2. Using the UP/DOWN arrow buttons, select the desired

gain.

3. Push SET to place the unit at the indicated microphone

gain.

Battery Display

The Battery Display screen indicates the current percentage of battery remaining.

Battery Percentages

100 Pct. = Fresh Battery

75 Pct. = 75% Life Left

50 Pct. = 50% Life Left

25 Pct. = 25% Life Left

10 Pct. = 10% Life Left. Low Battery Light

0 Pct. =

Battery Dead. Unit will lose communication at any time

FIGURE 75. Receive Frequencies

Microphone Gain/Battery Percentages Screen

BTR-80N, TR-80N, TR-82N Operation 59

Low Battery Alert Tone

The beltpack sends an audio alert tone to the headset if battery life reaches 10%. The 1 kHz tone is heard for 0.5 seconds, every 30 seconds. The tone is only heard and set at the beltpack.

To set the low battery alert tone, do

1. Press SET at the battery percentage screen. 

A screen appears displaying Lb The low battery tone option also flashes

2. Using the UP/DOWN arrow buttons, turn the low battery

tone option on or off.

3. Press SET to accept the change. 

The screen now displays with AL or ni flashing.

the following:

t oFF.



Changing the Transmit Power Setting

To change the transmit power setting, do the following:

1. Push SET at the transmit power screen.

2. Using the UP/DOWN arrow buttons, select the power

setting.

3. Push SET to place the unit at the indicated setting.

4. Using the UP/DOWN arrow buttons, select AL or ni for

Alkaline/NiMH battery gauge calibration.

5. Press SET to return to the battery gauge screen.

Transmit Power

The Transm it Pow er screen displays the current setting of the beltpack transmitter’s output power level. There are four (4) settings.

Transmit Power Settings

Auto

(Default)

5 The beltpack transmits at 5 mW

50 or 20

100 or 20

The beltpack’s transmitter adjusts its output level according to information sent to the beltpack from the base station. It adjusts between tow (2) levels: 5mW or 50 mW, 5 mW or 20 mW for US 3 band units.

The transmitter is at 50 mW (20 mW for US 3 band units)

The transmitter is at 100 mW (20 mW for US 3 band units)

When the unit is set to auto, base station information tells the beltpack the appropriate power settings to use based upon the received signal strength level at the base station. By reducing the transmit power when possible, the battery life of the beltpack can be slightly extended and intermodulation products can be reduced.

FIGURE 76.

Transmit Power, Squelch,

Push-to-Talk/Push-to-Transmit Screen

(20 mW for US 3 band units)

60 Operation BTR-80N, TR-80N, TR-82N

Squelch Screen

The Squelch screen allows the user to adjust the beltpack squelch level.

To select the beltpack squelch level, do th

1. Push SET at the squelch screen. 

The squelch setting flashes.

2. Using the UP/DOWN arrow buttons, select the squelch

setting. 

A setting of 00 holds the squelch open for testing.

WARNING: Do not set the squelch to 00 while wearing

headphones with the volume turned up. White noise with no signal can be uncomfortably loud.

3. Push SET to save the new squelch setting.

Squelch

Lvl

Appr

SINAD

ox.

00 NA Open 01 12 02 20 Default 03 24 04 NA RSSI Lvl Squelch

NOTE: The belt

pack employs two (2) different types of squelches. A fast acting noise-type squelch and a slower data squelch. For audio to be received by the beltpack, both a good signal-to-noise audio signal (with a noise threshold set via the user squelch settings above) and a valid data stream must be detected.

e following:

Notes

Transmit Mode Screen

The Transmit Mode screen is used to select the following modes:

Transmit  Mode

Ptt Push-to-Talk. The transmitter is always on.

Pt tr Push-to-Transmit. The transmitter is off and audio

Pt trl Push-to-Transmit Lockout Enabled. The

Pt trn Push-to-Transmit Lockout Enabled but no busy

Description

Pressing the T The beltpack responds to the base audio mute commands.  When a user disables the beltpack Portable Station Connect button, the beltpack T off.

ted until the TALK button is on. The beltpack

mu will ignore lockout or shutdown commands from the base.

nsmitter is off and audio muted until the TALK

tra button is on. The beltpack will respond to lockout commands from the base, such as First-On-Latch Out and Portable Station Connect disable.

e. This mode is the same as Pt trL but no

ton “busy” tone heard in beltpack if channel is occupied.

ALK button un-mutes the audio.

ALK button turns

To change the transmit mode setting, do the following:

1. Push SET at the transmit mode screen. 

The screen flashes.

2. Using the UP/DOWN arrow buttons, select the transmit

mode.

3. Push SET to save the mode change.

LEDs Off/On

The LED off/on screen is used to disable all LEDs. This function is useful for users who do not wish to show LEDs in the dark.

urn LEDs on or off, do the following:

To t

1. Push SET at the LED off/on screen.

2. Using the UP/DOWN arrow buttons, select the desired

mode.

3. Push SET to save the mode change.

BTR-80N, TR-80N, TR-82N Operation 61

Software Version/Band

The software revision and frequency band of the beltpack may be displayed from any of the main beltpack screens.

To view

the software revision and frequency band, do the

following:

>In any of the beltpack main screens, press and hold

DOWN for two (2) seconds.

• The first screen indicates the frequency band of the

beltpack.

• The second screen indicates the software revision.

After displaying the information, the main screen.

The screens below indicate an E5 band 80E052 version software.

the screen reverts back to

beltpack with

The degree of interference found for R1 and R2 displays on the far-right two (2) positions on the screen.

Interference Level Right Half of LCD Display

None Blank

Weak Single Bar

Moderate Double Bar

Strong Triple Bar

Lock Out

This function allows the user to lock the top panel and menu options. The top panel buttons still work, but the TALK button options cannot be changed. Likewise, values on the LCD screen in the beltpack can be viewed but not changed.

To enable/disable Lock O

1. Press and hold the UP and DOWN buttons for two (2)

seconds.



The words Loc on appear on the screen when lock out is active.

2. Press and hold the UP and DOWN buttons for two (2)

seconds again to disable lock out. 

The words Loc of

ut, do the following:

f appear.

ClearScan™

ClearScan™ helps you find clear RF frequencies in your area. The beltpack’s receiver scans all the factory-defined groups and any set user-defined groups. The result is a list of beltpack receive groups, clear of interference.

To enter ClearScan

1. Press and hold MENU + SET for two (2) seconds to start

ClearScan

TM.

The beltpack display changes to ClrScn and the GP icon flashes. After about 12 seconds, the beltpack displays the first clear group. The group number flashes.

2. Using the UP/DOWN buttons, display clear groups.

3. Press SET to select a group.

4. Press MENU to bail out without selecting a group.

Clear groups are displayed first. They can scroll down through groups using the DOWN button. The left-half of the screen gives you an indication of interference levels as you scroll through the groups.

do the following:



are in group order. You

First Use Default

This function sets the beltpack to Group 1A, channel 1 and leaves any user-programmed groups in memory. It sets units to factory-defined menu settings. It also sets the TALK buttons to their default modes.

To activa

te the First Use Default, do the following:

> Press and hold MENU while powering-up the

beltpack.

Factory Reset

This function sets the beltpack to Group 1A, channel 1 and ERASES any user-defined groups in memory. It sets a unit to factory settings. It also sets the TALK buttons to their default modes.

To activa

te factory reset, do the following:

> Press and hold MENU + SET + UP + DOWN for

three (3) seconds.

User-defined groups without a defined frequency for one of the receive channels display a u to indicate undefined.

62 Operation BTR-80N, TR-80N, TR-82N

RF Monitor Screen

The RF monitor screen displays beltpack RF status.

splay the beltpack RF status, do the following:

To di

1. Press and hold MENU for two (2) seconds to display

beltpack RF status.

• If the channel button is set to 1, then signal strength

displays for R1 frequency.

• If the channel button is set to 2, then signal strength

displays for R2 frequency.

TX Power Signal Strength

5mW

Lo =

hi = 5

0mW

Hi =

100 mW

2. Press MENU again to exit RF Monitor Screen.

0= NO

1= Very Weak

2= Weak

3= Moderate

4= Strong

5= Very Strong

Setting Beltpack ID

Several functions require the beltpack to know which base and channel it is associated with.

• Auto Power Setting: The beltpack reduces its TX

power when close to the base. Beltpack transmit power must be set to Auto.

• Portable Station Deselect: The base can disable the

TALK button of a beltpack. This shuts off the mic in PTT mode and turns off the transmitter in PT TR mode.

• First-On-Latch-Out: This locks a base receive

channel so only one beltpack can transmit on the frequency at a time. A beltpack user attempting to talk on top of another beltpack on the same frequency hears a double beep in their headset.

A beltpack tries to establish its ID automatically when its group channel changes. The base must be on for this to work.

To check or set beltpack ID manually, do the following:

1. Press and hold UP for two (2) seconds. 

The LCD displays ID Base# - Receiver#.

For example: ID 1-3 means Base

1, Receiver 3.

If the LCD displays ID--- or does not match the base and receiver, the beltpack is assigned to, Auto Power, Portable Station Deselect, and First-On-Latch Out will not work correctly.

2. If the beltpack ID is correct, press MENU to exit.

3. If the beltpack ID is not correct, press SET.

ID numbers flash.

The

4. Using the UP/DOWN buttons, select a new ID.

5. Press SET to apply the new ID.

Bases with transmitters enabled are always base #1. A second base using

the first base transmitters instead of its own, and properly connected to the first base through CAN bus link cables becomes base #2, etc.

BTR-80N, TR-80N, TR-82N Operation 63

FIGURE 77. TR-82N Top Panel Controls

On/Off and Volume Control

To turn the beltpack power on, do the following:

> Rotate the On/Off Volume Control knob(s) CW.

ust the volume to the headset, do the following:

To adj

> Rotate the On/Off Volume Control knob as required

for a comfortable listening volume. Left control = chan

nel one (1)

Right control = channel tow (2)

TALK Button

To enable the audio path from the headset microphone, do the following:

> Press the TALK button. 

The talk light activates when the TALK button is active.The T selectable modes that can be seen via the LCD display of the beltpack.

To select the T

1. Press and hold SET while pressing the TALK button. 

The current mode of the TALK button displays the first time

ALK button is hit. Pressing the TALK button a second

the T time changes the mode of the button.

2. Release SET to accept the currently displayed setting.

Selectable Modes: TAL K

ALK button has three (3) software

ALK button mode, do the following:

1 or 2 off TALK disabled

1 or 2 on Push-to-talk

1 or 2 Lon Push-to-latch

he battery/peak lights indicate battery condition and audio

modulation status.

Battery Light flashes on power up = Battery OK

Light on continuously = Battery Low

Light does ot flash or come on = Battery Dead

Over modulation Light flashes on some speech = Gain OK

Light flashes on all speech = Gain too High

Light never flashes on speech = Gain too Low

Stage Announce (SA)

To route audio from the beltpack to the stage announce connector, do the following:

> Press the SA button. 

The base station’s SA relay closes. The beltpack

detone is lost as an indication that stage announce is

si activated. The other beltpacks and wired users do not hear this beltpack’s audio when SA is pressed. The button is non-latching and activates the nearby red LED when pressed.

To enable or disable S

1. Press and hold SET while pressing the SA button. 

The current mode of the SA button displays.

2. Still holding SET, press the SA button again to turn SA on

or off.

3. Release SET to accept the displayed setting.

tage Announce, do the following:

Battery/Peak Light

64 Operation BTR-80N, TR-80N, TR-82N

Wireless Talk-Around (WTA)

To disconnect the beltpack audio from the wired intercom, auxiliary input/output, and the base station’s local headset,

do the following:

>Press the WTA button.

Other beltpack users on that audio channel can hear

he user as normal. The WTA button activates the

t nearby red LED as well as the appropriate talk LED when pressed.

able or disable Wireless Talk-Around options, do the

To en following:

1. Press and hold SET while pressing the WTA button. 

The current WTA mode displays. Pressing WTA a second

e changes modes. Options followed by an L = latch.

tim

2. Release SET to accept the displayed setting.

tA Pb WTA of currently selected talk button

tA 1L WTA Channel 1 only-Latching

tA 2L WTA Channel 2 only-Latching

tA 12L WTA Channel 1 & 2-Latching

tA PbL WTA of currently selected talk button-Latching

tA off WTA Disabled

tA1 WTA Channel 1

tA2 WTA Channel 2

tA12 WTA Channel 1 & 2

BTR-80N, TR-80N, TR-82N Operation 65

Groups and Channels

The first LCD screen the beltpack displays is the Group/ Channel screen. This screen shows the currently selected receive group followed by the beltpack transmit channels.

it groups and channels, do the following:

To ed

1. Push SET to edit the transmit channel. 

The channel number flashes.

2. Using the UP/DOWN arrow buttons, select the desired

transmit channel.

3. Push SET to accept the channel. 

The receive group flashes.

4. Using the UP/DOWN arrow buttons, select the desired

receive group.

5. Push SET to accept the receive group.

The new group containing the selected channel is now set.

NOTE:

• To escape out of the editing without any changes,

Press MENU.

• Factory group frequencies cannot be changed.

User group frequencies (Group changed.

19u to 30u) can be

Transmit Frequency

The Transmit Frequency screen displays the beltpack transmitter frequency in MHz. The frequency is not changeable in factory-determined groups, but it is changeable in userdefined groups.

it the TX frequency (User Groups Only), do the

To ed following:

1. Set the unit to the desired user-defined group and channels.

See Groups and Channels Instructions. The menu structure in Figure 78 indicates how to get to the transmit frequency screen.

2. Push SET to edit the TX frequency. 

The frequency flashes.

3. Using the UP/DOWN arrow buttons, select the desired

frequency. 

The frequency can be changed in 25 kHz steps.

4. Push SET to place the unit on the new transmit frequency.

FIGURE 78. Group/Channel and Transmit Screen

66 Operation BTR-80N, TR-80N, TR-82N

Receive Frequency

The Receive Frequency screen displays the beltpack receiver frequency in MHz. The frequency cannot be changed in factorydefined groups, but can be changed in user-defined groups.

To edit the RX frequency (User Groups Only), do the following:

1. Set the unit to the desired user-defined group and channels. 

See Groups and Channels Instructions. The menu structure in

Figure 79 indicates how to get to the receive frequency

screen.

2. Push SET to edit the RX frequency. 

The frequency flashes.

3. Using the UP/DOWN arrow buttons, select the desired

frequency.



The frequency can be changed in 25 kHz steps.

4. Push SET to place the unit on the new receive frequency.

Microphone Gain

To adjust the microphone gain, do the following:

1. Push SET at the microphone gain screen. 

The number flashes.

2. Using the UP/DOWN arrow buttons, to select the desired

gain.

3. Push SET to place the unit at the indicated microphone

gain.

Battery Display

The Battery Display screen indicates the current percentage of battery remaining.

Battery Percentages

100 Pct. = Fresh Battery

75 Pct. = 75% Life Left

50 Pct. = 50% Life Left

25 Pct. = 25% Life Left

10 Pct. = 10% Life Left. Low Battery Light.

0 Pct. =

Battery Dead. Unit will lose communication at any time.

FIGURE 79.

Receive frequencies/Microphone Gain

Battery Percentage Screen

BTR-80N, TR-80N, TR-82N Operation 67

Low Battery Alert Tone

The beltpack sends an audio alert tone to the headset if battery life reaches 10%. The 1 kHz tone is heard for 0.5 seconds, every 30 seconds. The tone is only heard and set at the beltpack.

To set the low battery alert tone, do

1. Press SET at the battery percentage screen. 

A screen appears displaying Lb The low battery tone option also flashes

2. Using the UP/DOWN arrow buttons, turn the low battery

tone option on or off.

3. Press SET to accept the change. 

The screen now displays with AL or ni flashing.

the following:

t oFF.



To change the transmit power setting, do the following:

1. Push SET at the transmit power screen.

2. Using the UP/DOWN arrow buttons, select the power

setting.

3. Push SET to place the unit at the indicated setting.

4. Using the UP/DOWN arrow buttons, select AL or ni for

Alkaline/NiMH battery gauge calibration.

5. Press SET to return to the battery gauge screen.

Transmit Power

The Transm it Pow er screen displays the current setting of the beltpack transmitter’s output power level. There are four (4) settings.

Transmit Power Settings

Auto

(Default)

5 The beltpack transmits at 5 mW

50 The transmitter is at 50 mW

100 The transmitter is at 100 mW

The beltpack’s transmitter adjusts its output level according to information sent to the beltpack from the base station. It adjusts between tow (2) levels: 5mW or 50 mW.

FIGURE 80.

Transmit Power/Squelch Screen

68 Operation BTR-80N, TR-80N, TR-82N

Squelch Screen

The Squelch screen allows the user to adjust the beltpack squelch level.

To adjust the squelch level, do

1. Push SET at the squelch screen. 

the following:

The squelch setting flashes.

2. Using the UP/DOWN arrow buttons, select the squelch

setting. 

A setting of 00 holds the squelch open for testing.

WARNING: Do not set the squelch to 00 while wearing

headphones with the volume turned up. White noise with no signal can be uncomfortably loud.

3. Push SET to save the new squelch setting.

Squelch

Lvl

Appr

SINAD

ox.

Notes

00 NA Open 01 12 02 20 Default 03 24 04 NA RSSI Lvl Squelch

NOTE: The belt

Headphone Options:

•

If the TR-82N has a 4-pin headset connector, the headphone should be set to hP 4-P (4-pin).

• When supplied with a 5-pin (stereo) headset

connector, the settings hP Add should be used for Mono or hP SEP for channel 1 in left earpiece and channel 2 in right earpiece.

• A 5-pin single-sided headset should be set to 

hP 4-P.

Auxiliary Input:

The TR-82N has a 3.5 mm mono auxiliary input jack. Audio from this jack is heard only in the beltpack headset.

Setting Auxiliary Input Function

Off Aux input disabled

1 Aux heard with Ch 1 2 Aux heard with Ch 2

12 Aux heard with Ch 1 & 2

3. Press SET to accept the screen setting. 

If Aux is not Off, the next scr

een displays Au NN where NN

is a two (2) digit number between 0 and 15. This is the volume level setting for the aux input.

4. Press SET. 

The two (2) digits will flash.

5. Using the UP/DOWN arrow buttons, select the AUX

volume.

6. Press SET to accept the gain setting.

Transmit Mode Screen

The Transmit Mode screen is used to select the following modes:

Transmit  Mode

Ptt

Pt tr

Pt trl

Pt trn

To change the transmit mode setting, do the following:

1. Push SET at the transmit mode screen. 

The screen flashes.

2. Using the UP/DOWN arrow buttons, select the transmit

mode.

3. Push SET to save the mode change.

Description

Push-to-Talk. The transmitter is always on. Pressing the TALK button un-mutes the audio. The beltpack responds to the base audio mute commands.  When a user disables the beltpack Portable Station Connect button, the beltpack T off.

Push-to-Transmit. The transmitter is off and audio muted until the TALK button is on. The beltpack will ignore lockout or shutdown commands from the base.

Push-to-Transmit Lockout Enabled. The transmitter is off and audio muted until the TALK button is on. The beltpack will respond to lockout commands from the base, such as First-On-Latch Out and Portable Station Connect disable.

Push-to-Transmit Lockout Enabled but no busy tone. This mode is the same as Pt trL but no “busy” tone heard in beltpack if channel is occupied.

ALK button turns

To set th

1. Press SET.

2. Using the UP/DOWN arrow buttons, select the AUX mode

e Auxiliary mode, do the following:

setting.

BTR-80N, TR-80N, TR-82N Operation 69

LEDs Off/On

The LED Off/On screen is used to disable all LEDs. This function is useful for users who do not wish to show LEDs in the dark.

To turn LEDs on or off, do the following:

1. Push SET at the LED off/on screen.

2. Using the UP/DOWN arrow buttons, select the desired

mode.

Software Version/Band

The Software Revision and Frequency Band of the beltpack may be displayed from any of the main beltpack screens.

To view the software revision and frequency band, do the following:

> In any of the beltpack main screens, press and hold

DOWN for two (2) seconds.

• The first screen indicates the frequency band of the

beltpack.

• The second screen indicates the software revision.

Clear groups are displayed first. They are in group order. You can scroll down through groups using the DOWN button. The left-half of the screen gives you an indication of interference levels as you scroll through the groups.

User-defined groups without a defined frequency for one of the receive channels display a u to indicate undefined.

The degree of interference found for R1 and R2 displays on the far-right two (2) positions on the screen.

Interference Level Right Half of LCD Display

None Blank

Weak Single Bar

Moderate Double Bar

Strong Triple Bar

Lock Out

Lock Out allows the user to lock the top panel and menu

options. The top panel buttons still work, but the TALK button options cannot be changed. Likewise, values on the LCD screen in the beltpack can be viewed but not changed.

After displaying the information, the screen reverts back to the main screen.

The screens below indicate an E5 band beltpack with 80E052 version software.

ClearScan™

ClearScan™ helps you find clear RF frequencies in your area.

The beltpack’s receiver scans all the factory-defined groups and any set user-defined groups. The result is a list of beltpack receive groups, clear of interference.

To enter ClearScanTM, do the following:

1. Press and hold MENU + SET for two (2) seconds to start

TM.

ClearScan

The beltpack display changes to ClrScn and the GP icon flashes. After about 12 seconds, the beltpack displays the first clear group. The group number flashes.

2. Using the UP/DOWN arrow buttons, display the clear

groups.

3. Press SET to select a group.

4. Press MENU to bail out without selecting a group.



To enable/disable Lock Out, do the following:

1. Press and hold the UP and DOWN buttons for two (2)

seconds.



The words Loc on appear on the screen when lock out is active.

2. Press and hold the UP and DOWN buttons for two (2)

seconds again to disable lock out.



The words Loc off appear.

First Use Default

First Use Default sets the beltpack to Group 1A, channel 1 and

leaves any user-programmed groups in memory. It sets units to factory-defined menu settings. It also sets the TALK buttons to their default modes.

To activate the 1st Use Default, do the following:

> Press and hold MENU while powering-up the

beltpack.

70 Operation BTR-80N, TR-80N, TR-82N

Factory Reset

Factory Reset sets the beltpack to Group 1A, channel 1 and

ERASES any user-defined groups in memory. It sets a unit to factory settings. It also sets the TALK buttons to their default modes.

To activate factory r

eset, do the following:

> Press and hold MENU + SET + UP + DOWN for two

(2) seconds.

RF Monitor Screen

The RF Monitor Screen displays beltpack RF status.

splay the beltpack RF status, do the following:

To di

1. Press and hold MENU for two (2) seconds to display

beltpack RF status.

• If the channel button is set to 1, then signal strength

displays for R1 frequency.

• If the channel button is set to 2, then signal strength

displays for R2 frequency.

TX Power Signal Strength

5mW 0= NO

Lo =

hi = 50mW 1= Very Weak

100 mW 2= Weak

Hi =

3= Moderate

4= Strong

5= Very Strong

2. Press MENU again to exit RF Monitor Screen.

Setting Beltpack ID

Several functions require the beltpack to know which base and channel it is associated with.

1. Auto Power Setting: The beltpack reduces its TX power

when close to the base. Beltpack transmit power must be set to Auto.

2. Portable Station Deselect: The base can disable the TALK

button of a beltpack. This shuts off the mic in PTT mode and turns off the transmitter in PT TR mode.

3. First-On-Latch-Out: This locks a base receive channel so

only one beltpack can transmit on the frequency at a time. A beltpack user attempting to talk on top of another beltpack on the same frequency hears a double beep in their headset.

A beltpack tries to establish its ID automatically when its group channel changes. The base must be on for this to work.

To check or set beltpack ID manually, do the following:

1. Press and hold UP for two (2) seconds. 

The LCD displays ID Base# - Receiver#.

For example: ID 1-3 means Base

If the LCD displays ID--- or does not match the base and receiver, the beltpack is assigned to, Auto Power, Portable Station Deselect, and First-On-Latch Out will not work correctly.

2. If the beltpack ID is correct, press MENU to exit.

3. If the beltpack ID is not correct, press SET.

ID numbers flash.

The

4. Using the UP/DOWN buttons, select a new ID.

5. Press SET to apply the new ID.

1, Receiver 3.

Bases with transmitters enabled are always base #1. A second base using

the first base transmitters instead of its own, and properly connected to the first base through CAN bus link cables becomes base #2, etc.

BTR-80N Menu Structure

APPENDIX A

Additional Resources

72 BTR-80N, TR-80N, TR-82N

BTR-80N, TR-80N, TR-82N 73

TR-80N Beltpack Screen Flowchart

74 BTR-80N, TR-80N, TR-82N

TR-82N Beltpack Screen Flowchart

BTR-80N, TR-80N, TR-82N 75

Frequency Bands

The BTR-80N system operates over the following frequency ranges:

North America

– Base TX: 482-608 MHz

– Base RX: 572-608 MHz, US 3 Band: 653-663 MHz

Europe

– Base TX: 482-608 MHz

– Base RX: 572-608, 614-722 MHz

The bands, US TV channels, and frequencies are shown in Figure 81. Most bands are 18 MHz wide.

Bands F to C are always base transmit bands (beltpack receive bands). Bands 1-6 are always base receive bands (beltpack transmit bands). Bands D and E can be both a base transmit or receive band, depending on the unit ordered. Thus an A2 base station is comprised of an A band transmitter and a two (2) band receiver.

Band Pairing for Systems

All band pairs cannot be made into a system. Table 3 show the available band pairings.

Base TX Bands Base RX Bands

TABLE 3. Available band pairings

In Table 3, it can be seen that a C base station transmit band can be paired with 3, 4, 5, or 6 receive bands. However, a C2 unit cannot be made.This is because a certain amount of frequency separation between transmit nad receive bands is required for good transmit and receive operation. If they are too close the RF performance of the system is reduced.

D, E, 1, 2, 3, 4, 5, 6

E, 1, 2, 3, 4, 5, 6

1, 2, 3, 4, 5, 6

2, 3, 4, 5, 6

3, 4, 5, 6

4, 5, 6

5, 6

FIGURE 81. Band Names Frequencies and US TV Channels

Band US TV Freq.

16 482 488 16

1 EURO ONLY

2 EURO ONLY

3 EURO

ONLY & US

(10MHz)

4 EURO ONLY

5 EURO ONLY

6 EURO ONLY

17 488 494 17

18 494 500 18

19 500 506 19

20 506 512 20

21 512 518 21

22 518 524 22

23 524 530 23

24 560 536 24

25 536 542 25

26 542 548 26

27 548 554 27

28 554 560 28

29 560 566 29

30 566 572 30

31 572 578 31

32 578 584 32

33 584 590 33

34 590 596 34

35 596 602 35

36 602 608 36

37 608 614 37

38 614 620 38

39 620 626 39

40 626 632 40

41 632 638 41

42 638 644 42

43 644 650 43

44 650 656 44

45 656 662 45

46 662 668 46

41 668 674 47

48 674 680 48

49 680 686 49

50 686 692 50

51 692 698 51

52 698 704 52

53 704 710 53

54 710 716 54

55 716 722 55

Start

Freq.

End

US TV

76 BTR-80N, TR-80N, TR-82N

Frequency Plan

There are 48 groups in a BTR-80N system. The 48 groups are divided up into 36 factory-defined groups and 12 user-defined groups. A group referenced to a base station is comprised of two TX channels and up to 12 RX channels.

User-defined groups are bl enter their own frequencies.

Factory-defined groups are composed of frequencies that cannot be modified by the user. The 36 groups are composed of the following:

Nine (9) Triplet Groups

ank initially and allow the user to

– Groups 1a to 9c

Nine (9) Single Groups

– Groups 10-18

The factory groups are or flexibility to the user on selecting frequencies. A groups is composed of intermodulation free frequencies. The triplet groups may be used together for up to three (3) systems that are intermodulation coordinated. For example, three intermodulation coordinated systems may be set up by using the following groups and channels:

ganized in different ways to provide

• System A = Group 1a, channels: 1, 2, 3, 4

• System B = Groups 1b, channels: 5, 6, 7, 8

• System C = Group 1c, channels: 9, 10, 11, 12

A group also contains frequencies within different combinations of the TV channels. The user can select a group clear of broadcast Tv channels in the area by selecting a group(s) not using those channels.

Figure 82 indicates how the factory-defined groups used the three (3) TV channels for TX and three (3) TV channels for receive. These plans are based upon US broadcast TV channels. A darkened TV channel indicates the group has frequencies in the channel. The white TV channel indicates the group has no frequencies in the channel. For example, Group 1A uses at least one (1) frequency from each of the three (3) TV channels for RX and only the 1st TV channel for TX. However, group 18 uses only the 3rd TV channel for TX and RX.

Three band base stations and beltpacks used in the US have a reduced channel map offering due to regulatory changes that reduce the size of the three bands.

For more information, see “Three (3) Band Base Stations” on page 86.

FIGURE 82.

Groups and Tv Channels Used

Dark = TV used

Light = TV not used

BTR-80N, TR-80N, TR-82N 77

Troubleshooting

PROBLEM SOLUTION

DISTORTION - System’s audio quality seems distorted at

medium to high input levels

HISS - System seems to produce a hiss which is undesirable.

LOW OUTPUT - System produces a low output level. Check the gain setting on both the beltpacks and the base.

FEEDBACK - Moving around are of use produces squeal

or howl in various locations using the ext. speakers.

DROPUOUTS - When moving around the area of use there seem to be locations where the signal swooshes or completely disappears.

INTERFERENCE - System picks up signals other than wireless intercoms.

NO AUDIO - from base of beltpack headsets. Check transmitter setting on base and beltpack. Check talk

BASE and BELTPACK’S Frequencies Don’t Match - In

the display frequencies screen of the base and the menu of the beltpack the frequencies don’t match.

Reduce microphone gain by adjusting microphone gain control in software.

Check the gain setting on all beltpacks and the base. They may be too low or too high. Check to make sure you are still well within range of the base station.

They may be too low.

Reduce the gain settings on both the beltpacks and the base. They may be too high. If in 2-wire mode, the intercom channel you are on may be unloaded.

Make sure both antennas on the base and beltpack are connected and follow the location suggestions. Change the location of the base unit and antennas or avoid the bad areas with the remote beltpacks.

Make sure the Telex beltpack(s) are on. If there are any unused receivers at the base, turn the audio off from those receivers by deselecting the appropriate Portable Station Connect button.

If problems persist with the beltpack on, you will probably need to change the group. Make sure the base and beltpack match after any Group/Channel change.

LED to ensure it is on. Make sure beltpack batteries are OK.

Ensure the units are on the correct Group and Channels. If three (3) band base and beltpack units and in the US, make sure you have switched the base station to the US channel map. See “Three (3) Band Base Stations” on page 86.

IMPORTANT: Reread the sections of this manual to make sure you completed system set-up properly.

If you are unable to solve the problem, contact the dealer from assistance

whom you purchased the system for

78 BTR-80N, TR-80N, TR-82N

Battery Information

Improper battery selection, use, installation, and care are the cause of numerous wireless systems failures.

Alkaline Batteries: Alkaline batteries such as Eveready’s ENERGIZER and ENERGIZER INDUSTRIAL provide the most reliable operation in wireless transceivers.

The use of low cost carbon-zinc batteries is NOT recommended.

Nickel-Metal Hydride Batteries: These batteries can save you

money in the long run, as they can be recharged. Typical battery life is a little less than the length of time alkaline batteries last.

Battery Warnings

• Do not place alkaline battery packs in any battery charger.

Severe charger and battery pack damage may occur!

• Batteries that have been dropped, or otherwise damaged,

should not be used and should be discarded properly. Dropping batteries can crack the internal casing causing leakage or rupture resulting in personal injury or property damage!

• Insert batteries properly, with the plus (+) and minus (-)

terminals aligned correctly!

• Do not mix old and new batteries, batteries of different

types, or batteries of different brands. This can cause leakage or rupture, resulting in personal injury or property damage!

• Immediately remove exhausted batteries from the battery

pack and dispose of properly.

• Replace all used batteries in your device at the same time.

• Do not put batteries or battery-powered devices in very

warm places. Extreme temperatures reduce battery performance and may also lead to leakage.

• Use only high quality AA sized alkaline batteries in the

battery packs.

• When not in use, disconnect battery pack, remove and store

batteries in a cool, dry place at normal room temperature until ready to use.

• Keep battery contact surfaces clean by gently rubbing with a

clean pencil eraser or cloth.

Battery Life

TR-80N

Alkaline, 11-13 hours typical

Nickel-Metal Hybrid, 10-12 hours typical

TR-82N

Alkaline, 8-10 hours typical

Nickel-Metal Hybrid, 7-9 hours typical

Energizer® is a registered trademark of Union Carbide Corporation

Cold Temperatures and Batteries

The battery life times listed in this section are at room temperature. Alkaline and Nickel-Metal Hydride battery service hours fall off significantly at low temperature due to battery chemistry. Alkaline batteries typically have less than half their room temperature service life if used at freezing 32° F (0° C). If you use Alkaline and Nickel-Metal Hybrid batteries at low temperatures, you need to change them more often.

Another solution is using Lithium AA cells if beltpacks are to be used in very cold temperatures. Lithium batteries, like the Energizer ultimate Lithium AA cells, are excellent batteries for cold temperatures. At 15° F (-9° C), Lithium AA cells will last about seven (7) times longer than Alkaline batteries. This equates to two (2) hours for Alkaline vs. 14 hours for Lithium. However, the trade off is Lithium batteries cost more and are less environmentally-friendly than Alkaline batteries.



BTR-80N, TR-80N, TR-82N 79

2-Wire Systems Specification

80 BTR-80N, TR-80N, TR-82N

Certificate Information

FCC

The RTS BTR-80N, TR-80N, and TR-82N Transmitter/receiver are type accepted under United States (FCC) Federal Communications Commission Part 74, Licensing of this equipment is the user’s responsibility and licensability depends on the user's classification, user’s application, and frequency selected. RTS strongly urges the user to contact the appropriate telecommunications authority for any clarification.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This wireless microphone system can be configured for both FCC Part 15 (unlicensed) and FCC Part 74 (licensed) operation. When shipped from the factory, this wireless microphone system is configured for unlicensed operation, and will operate at a power level not to exceed 50 milliwatts, which meets FCC Part 15 requirements. If unlicensed users operate this device in excess of 50 milliwatts, harmful interference may result and the unlicensed user will be subject to substantial monetary forfeitures and other FCC sanctions. The wireless microphone system may be operated by holders of a valid FCC license in the Low Power Auxiliary Radio Service under Part 74 of FCC Rules, at power levels between 50 milliwatts and 250 milliwatts.

CAUTION: Changes or modification of equipment made by

the user could void the user’s authority to operate this equipment.

The beltpack is intended to be worn on the belt of the user with both antennas vertical for best operating range and performance. Placing the beltpack in other locations on the body may reduce performance and void the user’s authority by the FCC to operate the equipment.

Mandatory Safety Instructions

to Base Station Installers and Users.

1. Use only a manufacturer or dealer-supplied antenna.

Antenna minimum safe distance, for a base station, as set by the FCC is 20cm. Antenna gain: zero (0) dBd referenced to a dipole.

2. The FCC has adopted a safety standard for human exposure

to RF (Radio Frequency) energy, which is below the OSHA (Occupational Safety and Health Act) limits.

3. To comply with current FCC RF Exposure limits, the

antenna must be installed at or exceeding the minimum safe distance (20cm) and in accordance with the requirements of the antenna manufacturer or supplier.

4. Antenna substitution: do Not substitute any antenna for the

one supplied by or recommended by the manufacturer or radio dealer. You might expose people to harmful radio frequency radiation. You can contact your radio dealer or manufacturer for further information.

WARNING: Maintain a separation distance from the

antenna to person(s) of at least 20cm.

You, as the qualified end-user of this radio device, must ensure the minimum separation distance of 20cm between the antenna and nearby people to satisfy RF Exposure compliance.The operation of the transmitter must satisfy the requirements of the General Population/Uncontrolled Exposure Environment for work-related use. Transmit only when people are at least the minimum distance from the properly installed, externally mounted antenna.

BTR-80N, TR-80N, TR-82N 81

Industry Canada

The BTR-80N, TR-80N, and TR-82N Transmitter/receiver are certified to Industry Canada RSS-123 rules.

Licensing of this equipment is the user’s responsibility and licensibility depends on the user's classification, user’s application, and frequency selected. RTS strongly urges the user to contact the appropriate telecommunications authority for any clarification.

Pour se conformer aux exigences FCC et Industrie Canada l'exposition aux RF sur une distance de séparation d'au moins 20 cm (7,9 pouces) doit être maintenue entre les antennes de la station de base BTR-80N et toutes les personnes.

CAUTION: Any changes or modifications to the equipment could void the user’s authority to operate the

equipment.

ATTENTION: Tout changement ou modification non expressément approuvée par la partie responsable de

la conformité pourraient annuler l'autorité de l'utilisateur à utiliser cet équipement.

Europe

This equipment is in compliance with the following directives:

2015/863 RoHS Directive 2012/19/EU WEEE Directive 2014/53/EU RED Directive

Please dispose of the base station and beltpacks at the end of their operational life  by taking them to your closest collection point or recycling center.

DO NOT throw in the trash.

82 BTR-80N, TR-80N, TR-82N

This equipment is intended for use in professional audio intercom applications.

Some countries in the EEA (European Economic Area) have restrictions placed on this equipment. Listed below are these restrictions:

The equipment requires a license in the following countries: AT, BE, BG, HR, CZ, EE, FI, DE, EL, IS, IE, IT, LV, LI, LT, LU, MT, PL, PT, SK, SE, CH, UK.

The BTR-80N, TR-80N and TR-82N must be set to meet the 50 mW ERP maximum output power in the following countries: AT, BE, CY, CZ, DK, EE, FL, FR, DE, EL, HU, IS, IT, LV, LI, LT, LU, MT, NL, NO, PL, RO, SK, SI, ES, SE, UK.

France (FR): The use of the equipment requires a license if not a professional user.

Austria (AT), Belgium (BE), and Germany (DE): Equipment may only be used in the 470-703 MHz band.

Czech Republic (CZ), Finland (FI) and Iceland (IS): Equipment may only be used in the 470-694 MHz band.

Netherlands (NL): Equipment may NOT be used in the 556-558 MHz band.

Norway (CO): Equipment may only be used in the 510-790 MHz band.

Always consult your national authority before placing equipment into operation as requirements and spectrum usage can change.

The full EC Declaration of Conformity for the BTR-80N, TR-80N and TR-82N products may be found at the following website: www.rtsintercoms.com.

BTR-80N, TR-80N, TR-82N 83

Accessories and Replacement Parts

ALP-700

450-760 MHz Bi-directional Log Periodic Antenna

Model (CTN) No. ALP-700

ALP-450

450-900 MHz Log Periodic Antenna Includes mounting hardware and 10 feet (3 meters) coaxial cable with TNC connectors

Model (CTN) No. ALP-450

ALP-600

520-760 MHz Bi-directional Log Periodic Antenna  Includes mounting hardware and 10 feet (3 meters)  coaxial cable with TNC connectors

Model (CTN) No. ALP-600

Antenna Cables

Special low loss antenna cables with TNC Connectors

Model No. Length

CXU-10 10 ft. (3 m)

CXU-25 25 ft. (7.6 m)

CXU-50 50 ft. (15 m)

CXU-75 75 ft. (23 m)

CXU-100 100 ft.(30 m)

APS1 COMB_SPLT

AB-2

Model (CTN) No. APS1 COMB_SPLT

Bracket for 1/2 wave antenna wi

Model (CTN) No. AB-2

th 10 ft. of coax

84 BTR-80N, TR-80N, TR-82N

BTR Power Cords

North America Model (CTN) No.

PC-USA

U.K. Model (CTN) No.

CTC, BTR-80N CAN BUS Termination Cable

CTC, BTR-80N CAN BUS  120  Termination

Model (CTN) No.

CTC

Model (CTN) No.

CAN-T

PC-UK

European Model (CTN) No.

URO

PC-E

BP-700 TR Battery pack, alkaline (batteries not included)

Model (CTN) No.

BP-700

BTR Intercom  Dummy

Load

Telex type Model (CTN) No.

RTS type Model (CTN) No.

2TX80N Dual  transmit connector  kit for BTR-80N

SA Relay plug  adapter

-3

-3R

Model (CTN) No.

2TX80N-KIT

CONN, PCB 2-PIN

2MM, BLK, Printed 1-2

2862046

BP-800NM Rechargeable 2200mAhr Nickel-Metal hydride battery pack

BC-800 NM4 4-Slot Smart Charger with four (4)  BP-800NM battery packs

North America

Euro

BC-800NM Single-slot Smart Charger with 

Model (CTN) No.

BP800NM

Model (CTN) No.

BC800NM4

el (CTN) No.

Mod

BC800NM4E

BP-800NM battery pack

DC-LP Locking  D.C. plug

Plug D.C. 5.5 X 2.5

650102

North America

Model (CTN) No.

BC800NM

BLC, BTR-80N  Link Cable

Beltpack: 1/4 - Wave Antenna

Model

(CTN)

No.

BPA-1 Violet 425.0 - 488.0 MHz

BPA-2 Black 485.0 - 553.9 MHz X X X X

BPA-3 Ye ll o w 554.0 - 635.9 MHz X X X X

BPA-4 Green 636.0 - 725.9 MHz X X X X X

BPA-5 Red 726.0 - 826.0 MHz

BPA-6 Blue 826.0 - 930.0 MHz

Band Color

Model (CTN) No.

Frequency

Coverage of

Antenna

BLC

Euro

Frequency Band Designators

F H A B C D E 1 2 3 4 5 6

Model (CTN) No.

BC800NME

BTR-80N, TR-80N, TR-82N 85

Base Station: Flexible Ground Independent Dipole Antenna

Model

(CTN) No.

FA- RW-R S

FA- YW- RS

FA- GW- RS

FA- BW- RS

Band Color

Red/ White

Yellow/ White

Green/ White

Blue/ White

Frequency Coverage o Antenna

470 - 550 MHz

525 - 610 MHz

610 - 710 MHz

710 - 880 MHz

Frequency Band Designators

F H A B C D E 1 2 3 4 5 6

X X X

X X X X

X X X X X

86 BTR-80N, TR-80N, TR-82N

Three (3) Band Base Stations

Identifying a Three (3) Band Unit

Three (3) band base station normally have an 18MHz wide receive range of 650-668MHz. These three (3) band base stations are designated by having a “3” in the second digit of the two digit band code that is on a label on the rear panel of the unit.

Regulatory Changes and the Three Band

There are two channel map configurations in a three band base station. One for the US/Canada and one for the rest of the world. At one time (before October, 2018) there was only one channel map for a three band unit. but due to regulatory changes in the US/Canada an additional map was produced and installed in three band base stations. The result of the FCC incentive auction in regard to wireless intercom was the following:

• Only 10MHz (653-663MHz) may be used for

wireless intercom in the range 616MHz to 698MHz.

• Three band beltpack transmit power must be

reduced to 20mW EiRP for US and Canadian units.

Changing Channel Maps

A three band base station may be changed from a normal channel map to a US channel map and back again with the press of a couple of buttons. The current channel map setting is remembered by the unit even if power is removed.

1. At the base station’s main operating screen press and hold

[SET]+[UP] buttons until the switching band text is displayed. The three band map the unit is switching to will be displayed.

2. Release the buttons when switching three band text is

shown. Unit will reboot and display one of the following channel map versions on boot:

X30001 = Normal three band channel map

X3U001 = US three band channel map

(where X is the current transmit band of the base station.)



Since the three band units are made for worldwide customers, the 18MHz range is the default shipped, therefore a US or Canadian user must set a base station to the new US channel map in order for the base’s channel map to match the US three band beltpack’s channel map. The US three band beltpacks only have the new US channel map in them.

NOTE: Only Canadian users of the three band base station

needs to change the channel map of the base station to the US channel map!

BTR-80N, TR-80N, TR-82N 87
