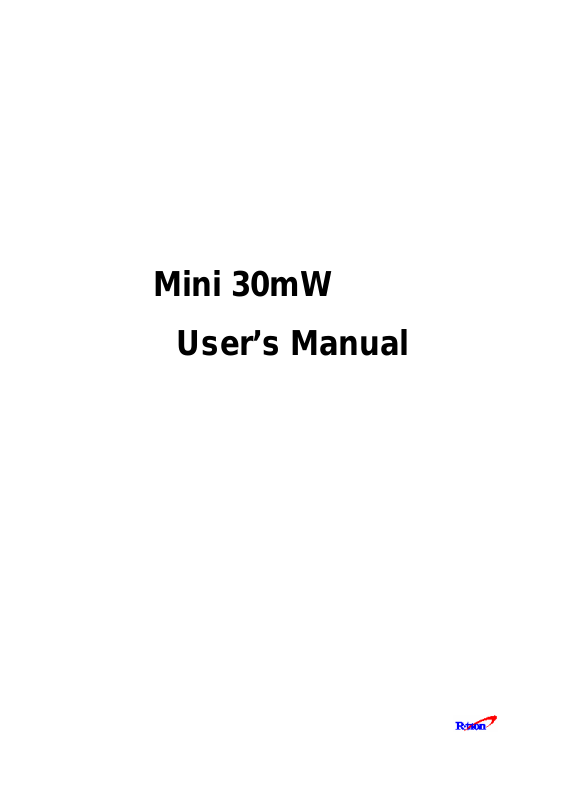

Page 1
Mini 30mW
User’s Manual
Page 2
Mini 30mW
User’s Manual
Copyright
Copyright of this manual belongs to R-TRON, Inc.
Reproduction, distribution or revision of part or all of contents in this manual in any form without written
permission of R-TRON, Inc. is prohibited.
Registered Trademark
R-TRON are registered trademarks of R-TRON, Inc.
Other products and company names mentioned herein this manual might be trade marks
or trade names of their respective owners.
RF Repeater
Band Selective Type
Sprint PCS
The results of using the information not mentioned in this manual or the risk of
misunderstanding this document remain with the user.
The information in this manual is subject to change due to function enhancement, change
of design, etc. If you want the modified manual or have any question on this manual,
please contact us with information below:
Address : Customer Support Center, Jisan IT Venture Bldg., 2/3F, 1004-9/10, Doksan-
Dong, Gumcheon-Gu, Seoul 153-829 , South Korea
Tel : +82-2-896-4101
Copyright © 2005 R-TRON, Inc. All Rights Reserved
R-Tron., Inc. 2/15 page
Page 3
Revision History
Mini 30mW
User’s Manual
Version Date of revision Reason for revision
V0.1 Agust.11, 2005
Revision Description
RF EXPOSURE INFORMATION
The antenna used for this transmitter must not exceed 12dBi and must be installed to
provide a minimum separation distance of 20cm from all persons.
R-Tron., Inc. 3/15 page
Page 4
Mini 30mW
User’s Manual
Contents
1. Overview -----------------------------------------------------------------------6
2. Repeater Design ----------------------------------------------------------7
2.1 System specifications --------------------------------------------------7
1. Mechanical and Environmental conditions --------------------------7
2. System Electrical Specifications ---------------------------------------7
A. Mini 30 (30mW) Repeater ------------------------------------------------7
B. Mini 30 (30mW) Antenna -------------------------------------------------9
3. Repeater Configurations -----------------------------------------10
3.1 Body
3.2 Antenna Unit -------------------------------------------------------------11
1. Donor Antenna (Yagi Antenna) -----------------------------------11
2. Distribution Antenna -------------------------------------------------11
A. Internal Patch Antenna ------------------------------------------------11
B. External Omni Antenna (Optional) -----------------------------------12
3.3 AC to DC SMPS Adapter -------------------------------------------12
-------------------------------------------------------------------------10
4. Block Diagram -----------------------------------------------------------13
4.1 Downlink signal path ------------------------------------------------13
4.2 Uplink signal path
R-Tron., Inc. 4/15 page
-----------------------------------------------------13
Page 5
Mini 30mW
User’s Manual
1. Overview
Mini 30 will bring in those weak cellular phone signals reducing dropped calls and allowing you to use
cell phones ...even deep inside a building.
At the heart of all of our systems is a Mini 30 designed to improve coverage for wireless products
within a facility. Combined with interior ceiling mounted low profile antennas, and an exterior mounted
Yagi or Patch Antenna, the Mini 30 boosts the signal level for distribution within the interior areas,
reducing the problem of dropped calls and signal fades. The Mini 30 can also be used in mobile
applications, improving voice quality and range in areas of poor coverage.
Figure 2.1 Fundamental configuration of Mini 30
All of our packages are engineered using only FCC approved amplified components. They are
designed not to disrupt local wireless communication but to add service to areas that otherwise would
not have the coverage that the customer requires. All of Mini 30 is easily installed.
R-Tron., Inc. 5/15 page
Page 6
Mini 30mW
User’s Manual
2 Repeater Design
The Mini 30 is housed in an aluminum chassis that is waterproof for indoor use. The chassis has a
design suited for indoor use.
The Mini 30 has several RF amplifiers and components on a board with an aluminum body.
Furthermore, the RF components are implemented within RF CMOS IC or MMIC technologies. A
board that contains several RF amplifiers and components is shielded under a metal cover. This
amplifier board is different types depending on the supported system.
The followings are the Technical Specification of Mini 30.
2.1 System specification
2.1.1 Mechanical and Environmental conditions
Parameter Specification
Power supply AC 100~240V ; 50/60Hz ±5%
Operating temperature
Humidity 10% ~ 85%
Consumption power < 24W
RF connector N-female
Size(W X L X H) 160 X 252 X 80(mm) / 6.29 X 9.92 X 3.15(Inch)
Weight 3.7(kg) / 8.16 (lbs)
Table 2-1. Mechanical & Environmental Conditions
0 ~ +50℃
R-Tron., Inc. 6/15 page
Page 7
2.1.2 Electrical Specifications
A. Mini 30 Repeater
Parameter Specification Remark
Mini 30mW
User’s Manual
Frequency Band
Down Link 1930 – 1990 MHz Total 60 MHz
Up Link 1850 – 1910 MHz Total 60 MHz
Transmit
Down Link
+14.8 dBm (30mW) Total Power on CDMA
Maximum Power
Up Link
Output Power on Coupled
MAX. 5 dBm Total Power on CDMA
Service Port
Gain
70dB ± 1 dB
Gain Range 60 ~ 70dB
Gain Step 10 dB (1 dB Step)
Noise Figure < 5 dB
Bandwidth(Type 1) 5 MHz BW(Max. 3FA)
Bandwidth(Type 2) 10 MHz BW(Max. 7FA)
Any 5MHz of Total 60MHz
(A1,A2,A3,D,B1,B2,B3,E,F,C1,C2,C3)
Any 10MHz of Total 60MHz
(A1A2,A2A3,A3D,DB1,B1B2,B2B3,
B3E,EF,FC1,C1C2,C2C3)
Any 15MHz of Total 60MHz
Bandwidth(Type 3) 15 MHz BW(Max. 7FA)
(A,A2A3D,A3DB1,DB1B2,B,B2B3E,
B3EF,EFC1,FC1C2,C)
Any 20MHz of Total 60MHz
Bandwidth(Type 4) 20 MHz BW(Max. 7FA)
(AD,A2A3DB1,A3DB1B2,DB,BE,B2
B3EF,B3EFC1,EFC1C2,FC1C2C3)
Passband Ripple < 2.5 dB P-P Operating Bandwidth
Delay < 12 microseconds
VSWR ≤1.5
Fc±885kHz ≥ -45 dBc
In-band Nosie
Fc±1.98MHz ≥ -50 dBc
Spurious Emissions < -13 dBm (Fc ± 2.25 MHz) RBW = 1 MHz
Table 2-2. Repeater Features
RBW = 30 kHz
RBW = 30 kHz
R-Tron., Inc. 7/15 page
Page 8
B. Mini 30 (30mW) Antenna
Ω
Mini 30mW
User’s Manual
Specification
Parameter
Frequency range 1850 - 1990MHz
Frequency bandwidth 140MHz
Antenna gain Min. 12dBi 2dBi 8dBi 2dBi
Horizontal Min. 28° 70° 70° 360°
Beam width
Vertical Min. 28° 70° 70° 70°
Polarization Vertical
VSWR Max. 1: 1.5 Max. 1 : 1.3 Max. 1 : 1.3 Max. 1 : 1.5
Power Capability 50Watts 10Watts 10Watts 10Watts
Antenna Connector
Port Type
670 / 1.48 670 / 1.48 50 / 0.11 225 / 0.5 270 / 0.6
Dimension
(W x H x D)(inch)
Donor
Yagi Patch Patch Omni
N-Female
19.7x4.21x3.23 4.25x3.34x0.35 5.04x4.06x1.54 Φ 4.49 x 1.85
Internal
Distribution
-
External Distribution
(Optional)
N-Female
(-10dB Coupling)
N-Female
(-10dB Coupling)
Impedance
50
Table 2-3 Antenna Features
R-Tron., Inc. 8/15 page
Page 9
Mini 30mW
User’s Manual
3. Repeater Configurations
The Mini 30 consists largely of a body and an AC to DC SMPS Adapter. The body of the Mini 30 has
an RF unit, and a main control unit.
3.1 Body
The following is the picture of the body of Mini 30.
Figure 3.1 A body of the Mini 30
R-Tron., Inc. 9/15 page
Page 10
Mini 30mW
User’s Manual
3.2 Antenna Unit
The Mini 30 has two antennas, a donor antenna and a distribution antenna, to provide a good
communication service.
3.2.1 Donor Antenna (Yagi Antenna)
A donor antenna is used for receiving the transmitted signal from a base station.
Figure 3.2 A Yagi antenna (Donor antenna)
R-Tron., Inc. 10/15 page
Page 11
Mini 30mW
User’s Manual
3.2.2 Distribution Antenna
A distribution antenna serves to transmit the amplified signal to individual mobile station in the shaded
area.
A. Internal Patch Antenna
a. Rear view b. Front view
Figure 3.3 Internal Patch Antenna
B. External Patch Antenna (Optional)
Figure 3.4 External Patch Antenna
R-Tron., Inc. 11/15 page
Page 12
C. External Omni Antenna (Optional)
Mini 30mW
User’s Manual
Figure 3.5 External Omni Antenna
R-Tron., Inc. 12/15 page
Page 13
3.3 AC to DC SMPS Adapter
A SMPS Adapter supply DC power to an Mini 30.
Mini 30mW
User’s Manual
A. Specification overview
Item Input Output
AC to DC
Efficiency 75% Min. at full load
Power 36Watts
Table 3.1 The specification of AC to DC SMPS Adapter
Figure 3.6 AC to DC SMPS Adapter
Voltage
Current 3.0A
AC 90 to 264V
Output Voltage Variation
50/60Hz ±5%
Ratio: less than ±5%
DC 12V
R-Tron., Inc. 13/15 page
Page 14
4. Block Diagram
RF Input
-55dBm/Total
Mini 30mW
User’s Manual
RF Output
15dBm/Total
SAW
Duplexer
SAW
Duplexer
SAW
SAW
PLL:Variable
SAW
Attenuator
PLL:Variable
PLL:VariablePLL:Variable
SAW
Attenuator
Figure 4.1 Block Diagram of Band Selective Repeater
Figure 4.1 shows a block diagram of a band selective repeater. This diagram is applicable to
repeaters for CDMA systems.
4.1 Downlink signal path
The downlink signal path, i.e. from the base station through the repeater to the mobile station, is
described for Mini 30 in the above block diagrams.
4.2 Uplink signal path
The uplink signal path, i.e. from the mobile station through the repeater to the base station, is identical
to the downlink path but the other way round. Only some levels and component values differ.
R-Tron., Inc. 14/15 page
Page 15
Mini 30mW
User’s Manual
Mini 30 Repeater System User’s Manual
Copyright © 2005 R-TRON, Inc.
All Rights Reserved
Copyright of this manual belongs to R-TRON, Inc.
Reproduction, distribution or revision of part or all of contents in this
manual in any form without written permission of R-TRON, Inc. is
prohibited.
The information in this manual is subject to change for the reason of
function improvement, design alteration, etc. without any prior
notification.
R-Tron., Inc. 15/15 page
