R tron SPAPE030M User Manual
User’s Manual
of
Advanced MINI 30
RSP-APE-030M
User’s Manual
Contents
1. Overview ------------------------------------------------------------------------ 3
2. Specifications
2.1 System specifications ------------------------------------------------------- 4

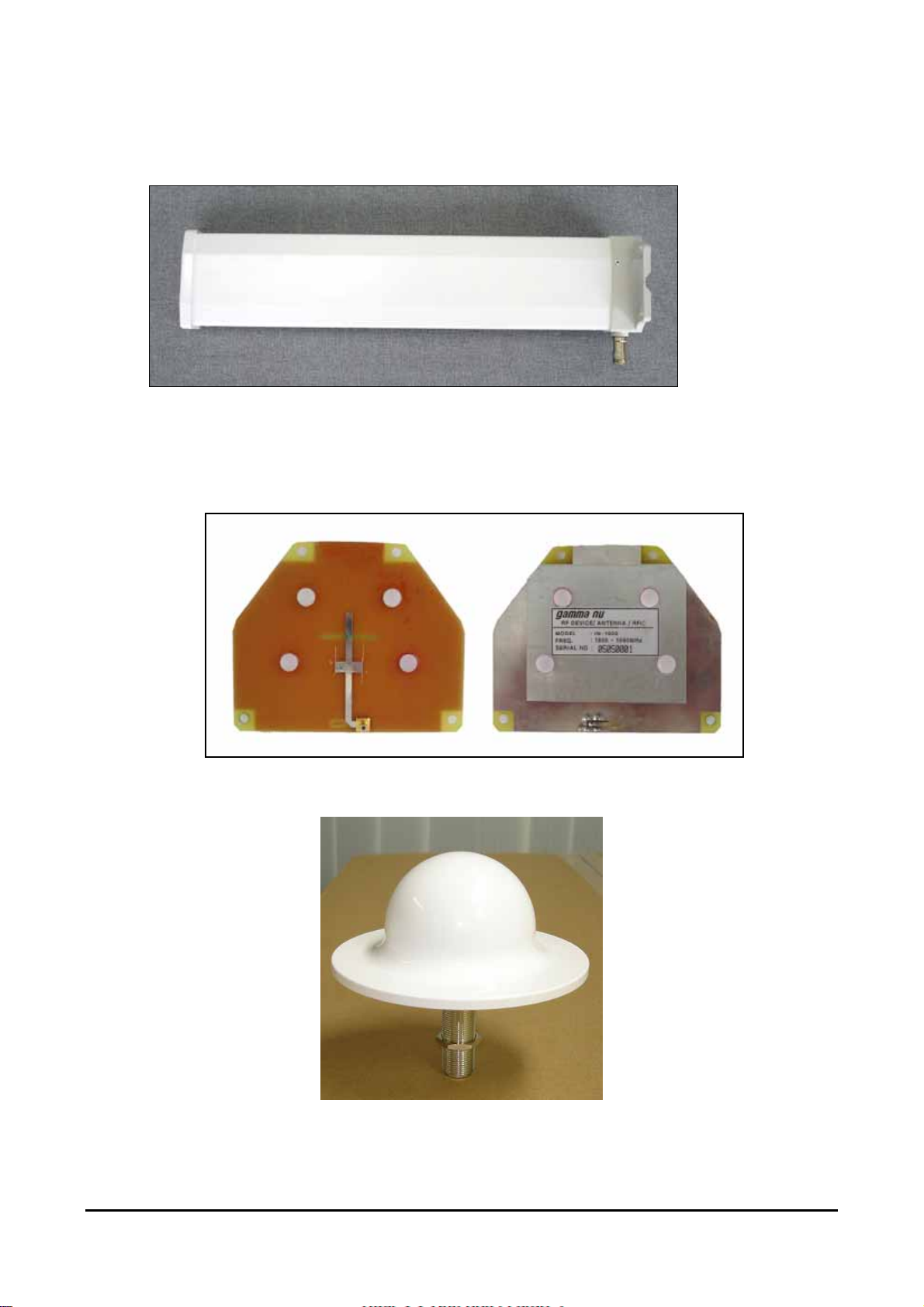

2.2 Antenna specifications ------------------------------------------------------ 5
2.3 Donor Antenna Diagrams -------------------------------------------------- 6
2.4 Distributor Antenna Diagrams -------------------------------------------- 6
---------------------------------------------------------------- 4
3. System Configuration ---------------------------------------------------- 7

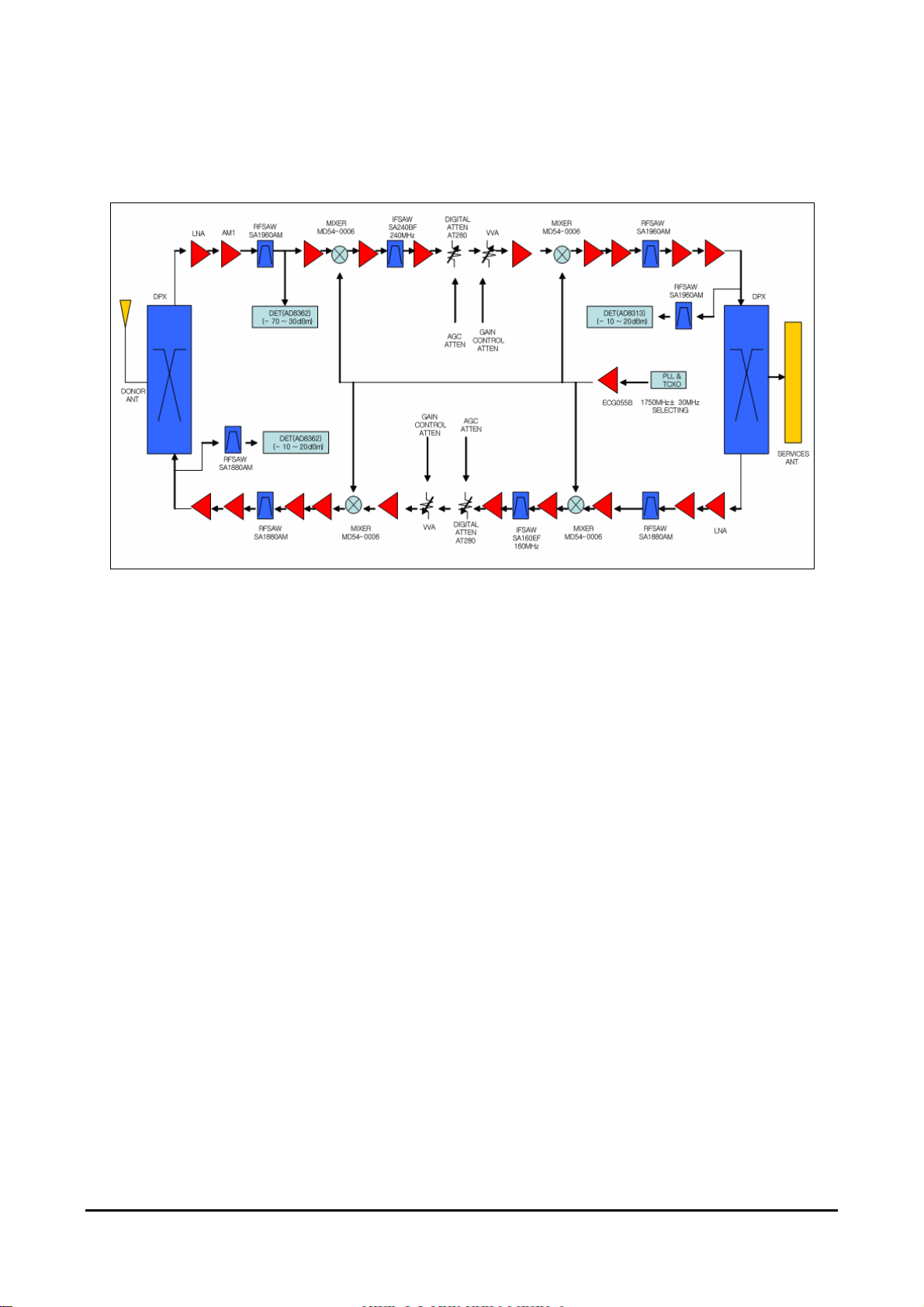

3.1 Block Diagram -----------------------------------------------------------------7
4. Installation ----------------------------------------------------------------------8
4.1 Installation Overview --------------------------------------------------------8
4.2 Safety ------------------------------------------------------------------------8

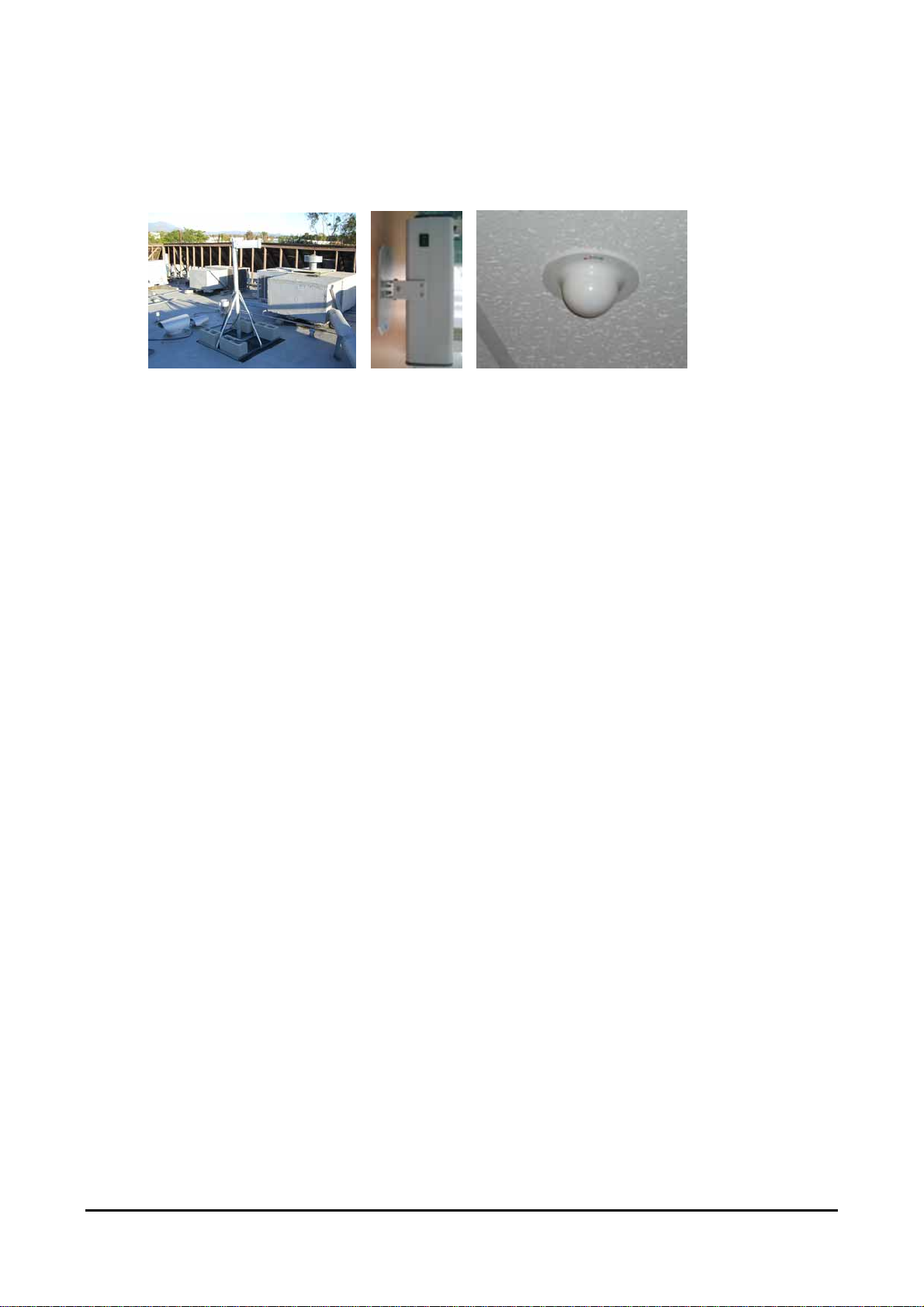

4.3 Installation information-1 ---------------------------------------------------9
4.4 Installation information-2 ---------------------------------------------------9
5. Graphic User Interface (for maintenance) ------------------- 10

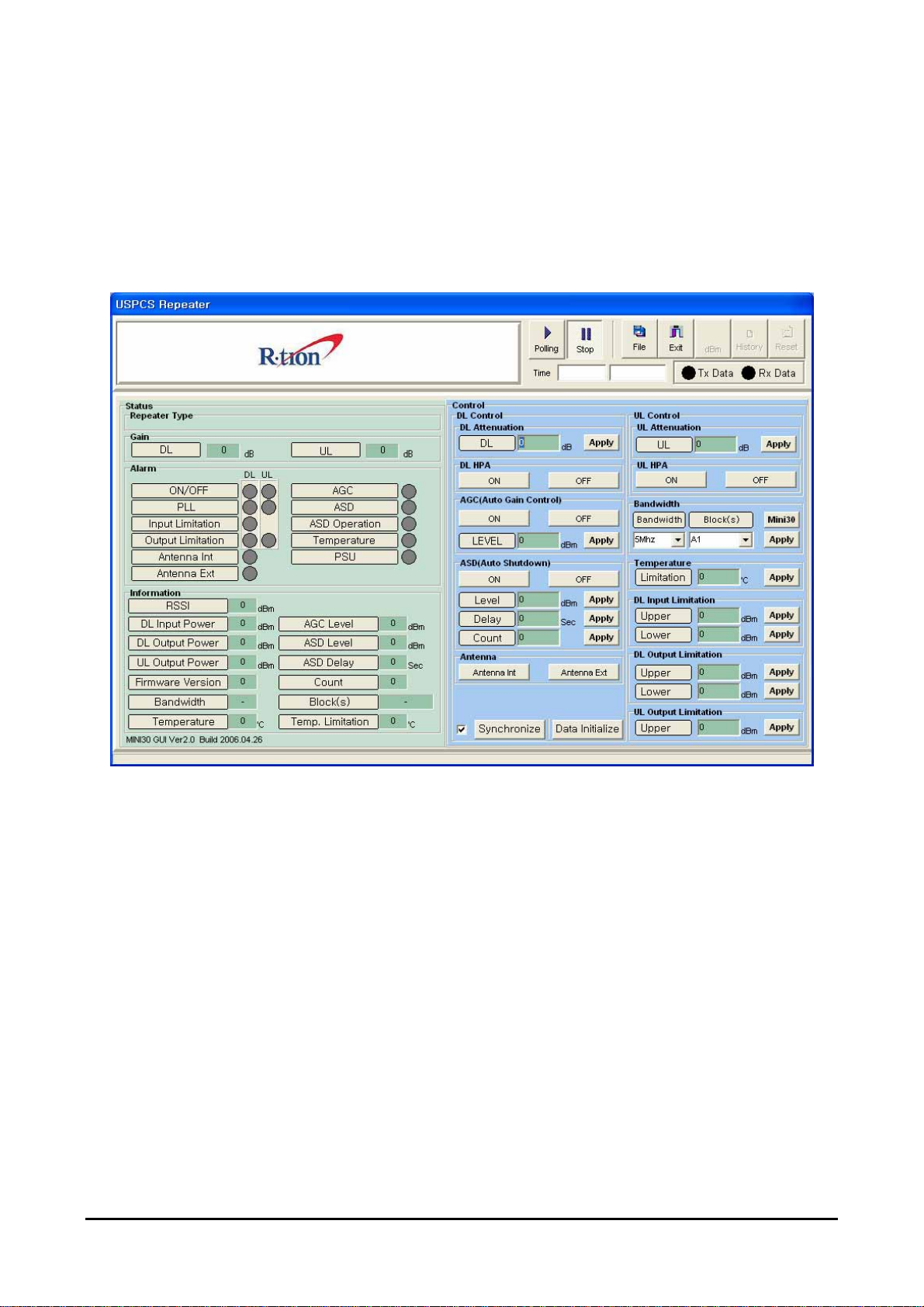

5.1 GUI Overview --------------------------------------------------------------- 10
5.2 Preliminary steps for GUI Execution & Maintenance ------------- 11
5.3 How to operate GUI & Functions -------------------------------------- 12
R-tron., Inc. 2/15 page
1. Overview
RSP-APE-030M
User’s Manual
Figure 1.1 RSP-APE-030M Repeater
R-tron RSP-APE-030M Repeater can be used in CDMA service hole spots like in-buildings,
underground and tunnels to cover its service area. This repeater system designed for dual and
simultaneous service, namely, it receives signals from the base station through donor antenna,
amplifies the signals and re-transmits it to one or other mobile terminals. Also, it amplifies the signals
which comes from mobile terminals through distributor antenna and re-amplifies it to base station.
Using local OMT(Operation and Maintenance Terminal) which is connected between repeater
control board and personal or laptop computer, it is possible to check or to control repeater status.
R-tron., Inc. 3/15 page
2. Specifications
2.1 System specifications
Parameter Specifications Remark
RSP-APE-030M
User’s Manual
Frequency Band
Transmit Power
Operating Bandwidth 5 or 10 or 15 MHz
Gain Adjustment Range 30dB in steps of 1dB 1 dB Step
Spurious
Emissions
Ripple < 3.5dB
Freq. Selectivity -40dB ≤ 16.0MHz
Delay
VSWR ≤ 1.5
Waveform Quality Factor > 0.912
Noise Figure
Down Link 1930 ~ 1995 MHz
Up Link 1850 ~ 1915 MHz
Down Link Maximum
Up Link
Gain 70dB
±885 kHz < -45 dBc
±1.98 MHz < -50 dBc
± 2.25 MHz < -13 dBm RBW = 1 MHz
Table 2.1 Repeater Specification
+15 dBm Max. 7 channels
< 5
㎲
≤ 5.0dB
65MHz Bandwidth
RBW = 30 kHz
Within operating bandwidth
Figure 2.1 A body of the RSP-APE-030M
R-tron., Inc. 4/15 page
