2. Description
Specifications
Item Specifications
Operating Temp
Environmental
Frequency
Leakage Current
Humidity
Cooling method
Voltage
Current
Û&aÛ&Û)aÛ)
a5+
Convection
$&a9
6A Max / 6V, 12V, 27VDC
a+]W\SLFDO
0.5mA max.@110V AC
2.2.3 UDC (Up Down Converter)
The UDC (Up Down Converter) is basically a bi-directional amplifier that sharply
filters out unwanted noise.
800MHz
Uplink
Output
Port
900MHz
Downlink
Input Port
800MHz
Downlink
Input Port
Uplink
Input Port
900MHz
Uplink
Input Port
Downlink
Output
Port
8
2.2.4 MCU (Main Control Unit)
The MCU (Main Control Unit) is the control unit of iDEN MINI. It controls and
monitors operational parameters. It is also responsible for generating an alarm, an
event log and many other functions of the iDEN MINI.
J1 J2
J3
J4
2. Description
Pin Map
Port
J1
J2
J3
J4
J5
J6
J5
J6
Connected to
iDEN 800 PLL, B/S, OUT DET, DL(Tx)/UL(Rx) HPA
iDEN 900 PLL, B/S, OUT DET
Alarms, LEDs
MCU Vcc (+12V)
Local Port
Remote Port
User’s Manual
9
2. Description
2.2.5 HPAs (High Power Amplifiers)
The HPAs (High Power Amplifiers) amplifies the transmitted signal from a base
station at the final stage of the repeater and vice versa.
RF Input
RF Output
RF Output
2.2.6 Multiplexer
A multiplexer is a device that combines two or more signals onto a common
channel or medium to increase its transmission efficiency.
Downlink Port Uplink Port Downlink Port Uplink Port
RF Input
900MHz
800MHz
Donor Antenna Port
800MHz
900MHz
Sever Antenna Port
10
3. Hardware Installation
The installation procedure is as follows:
• Check List of Items
• Mounting
• Grounding
• RF Cable Connection
• Power On
3.1 Check List of Items
Index
1
2
3
4
5
6
7
Repeater
AC Cord
Anchor Bolts
Wall Mounting Template
UTP Cross LAN Cable
Quick Guide
User’s Manual
Items
2. Description
Quantity
1
1
4
1
1
1
1
3.1.1 Items
Repeater
Wall Mounting Template UTP Cross LAN Cable
AC Cord Anchor Bolts
Quick GuideUser’s Manual
User’s Manual
11
3. Hardware Installation
3.2 Mounting
iDEN MINI is easy to mount using the assembled mounting bracket, which has 9
holes for the provided 5/16” fixing screws.
Step 1
Step 2
Remove the cover of double-coated foam tape squares at each corner
on the back side of the template.
Stick the provided template to the wall using the tape squares while
adjusting the horizon.
Mark the position for 4 screws depending on the installation location.
12
Step 3
Drill holes directly through the template.
Step 4
Install the set anchor bolts or the plastic anchor bolts on the holes.
3. Hardware Installation
Step 5
Attach the mounting bracket to the wall using provided bolts or extra
screws.
User’s Manual
13
3. Hardware Installation

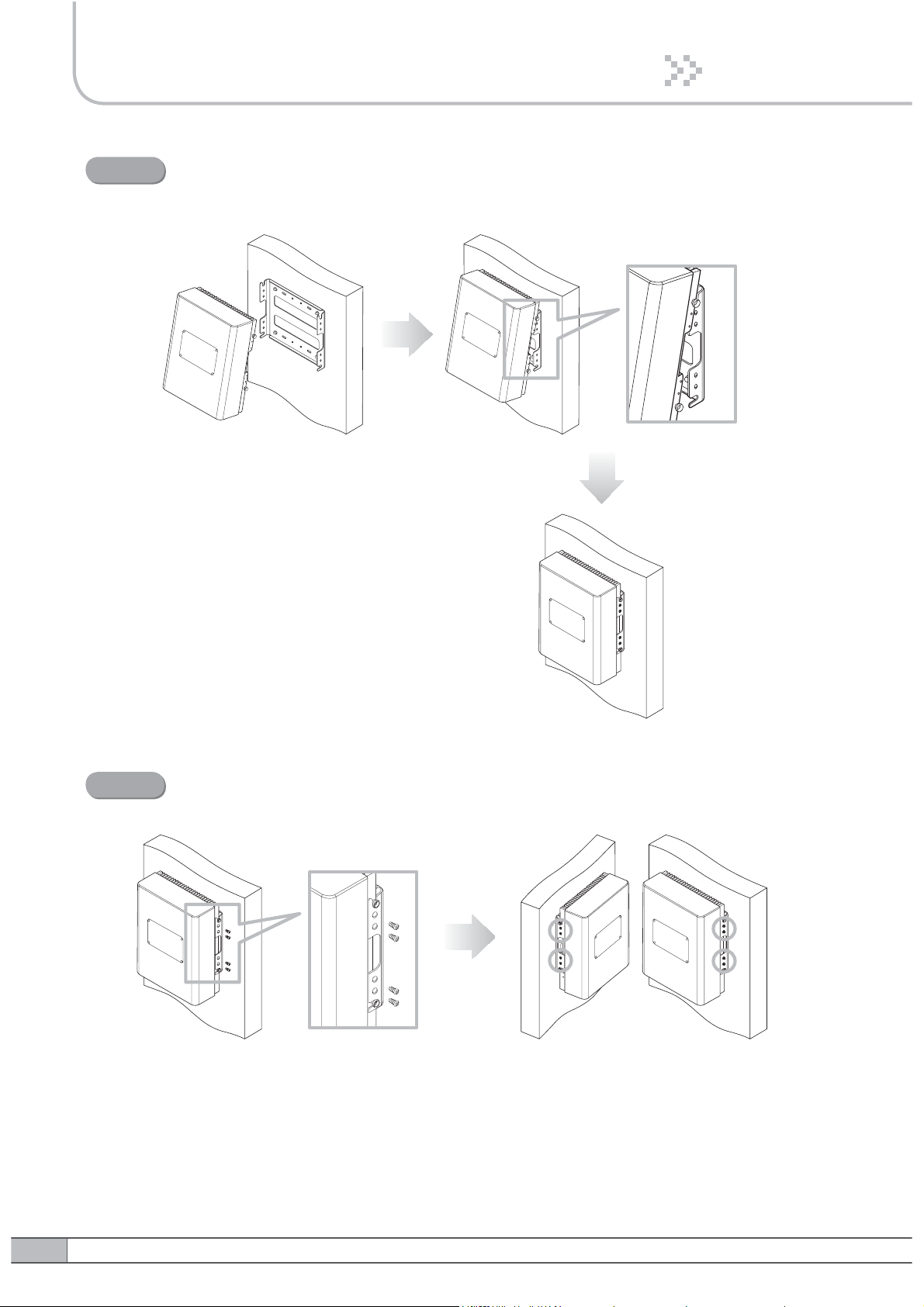

Step 6
Lean the iDEN MINI to hang the topside of the Guide Ring on the
mounting bracket, and push toward the wall to mount.
Step 7
Fix the iDEN MINI using 8 screws provided.
14
3.3 Grounding
A rod on the left side is intended for a building ground.
Connect the ground cable to the rod.
3. Hardware Installation
Dangerously high voltages may occur and damage the equipment if
Warning
the equipment is not grounded properly.
3.4 RF Cable Connection
Step 1
Step 2
Warning
Note
Connect a cable from a donor antenna to the DONOR ANTENNA Port.
Connect a cable from a repeater’s service antenna to the SERVER
ANTENNA Port.
DO NOT connect or disconnect the coaxial cable while the
power is on.
Enough isolation?
Antenna isolation = Path loss between the server antenna port and the donor
antenna port
Antenna isolation
If antenna isolation < Repeater max. gain +15dB ĺ System oscillation or Low gain
Repeater max. gain +15dB
User’s Manual
15
3. Hardware Installation
Model Max Gain
Donor
Antenna
Base Station
3.5 Power On
Step 1
Connect the power cord.
65dBRSN-iDEN-25-C
Plugged in an
AC outlet
Minimum required isolation
Repeater
Donor
Server
Server
Antenna
Mobile Station
Step 2
Step 3
Step 4
Plug the power cord into a wall outlet.
Power Switch turns on.
Check if the green LED at the bottom turns on.
16
4. Operation
4.1 Connections
The remote port allows remote users to access the repeater through an external
monitoring device.
4. Operation
Power on the switch to “I”
The switch is located on the
bottom of the main body.
Local port provides on-site access to the repeater.
Connect UTP Cross LAN Cable to
a PC and the iDEN MINI.
User’s Manual
17
4. Operation
4.2 System Requirements
iDEN MINI operates on a customer provided PC based platform with the following
system requirements :
• Windows® 2000, Windows® XP or Windows® Vista
• Internet Explorer 6.0(Recommended) or higher
• 128 MB RAM or higher
• Pentium Ɉ processor or higher
• RJ-45 jack required
4.3 Network Setup
4.3.1 Windows XP
Step 1
Click the Start button and My Network Places.
18
4. Operation

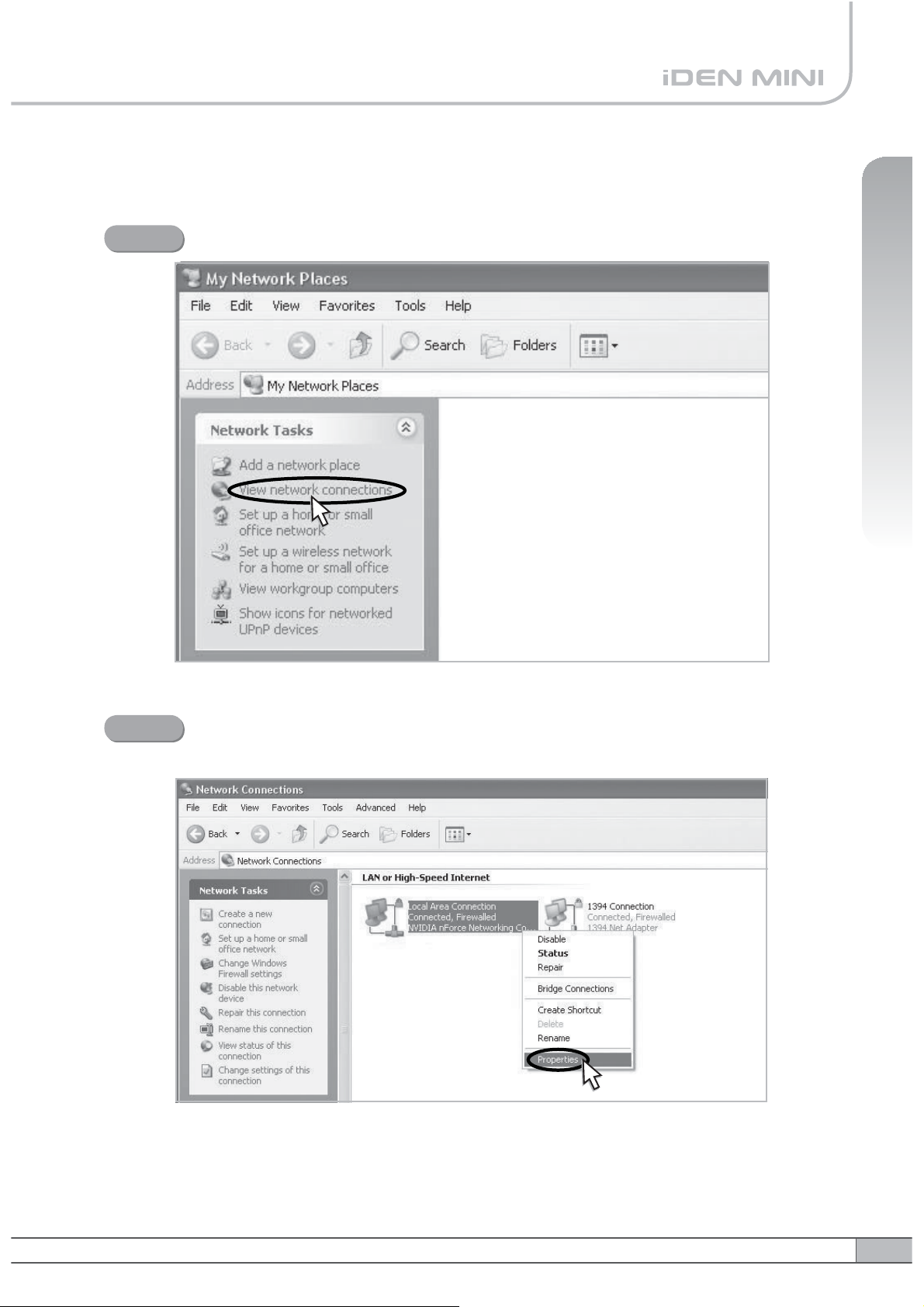

Step 2
Click View network connections.
Step 3
Right-click Local Area Connection to see a shortcut menu
and click Properties.
User’s Manual
19
4. Operation
Step 4
Select Internet Protocol (TCP/IP) and click Properties.
Step 5
Step 6
Check Obtain an IP address automatically and click OK.
Close all windows.
20
4.3.2 Windows 2000
4. Operation
Step 1
Step 2
Click the Start button, point to Settings, and then click Network and
Dial-up Connections.
Right-click Local Area Connection to see a shortcut menu and click
Properties.
User’s Manual
21
4. Operation
Step 3
Select Internet Protocol (TCP/IP) and click Properties.
Step 4
Step 5
Check Obtain an IP address automatically and click OK.
Close all windows.
22

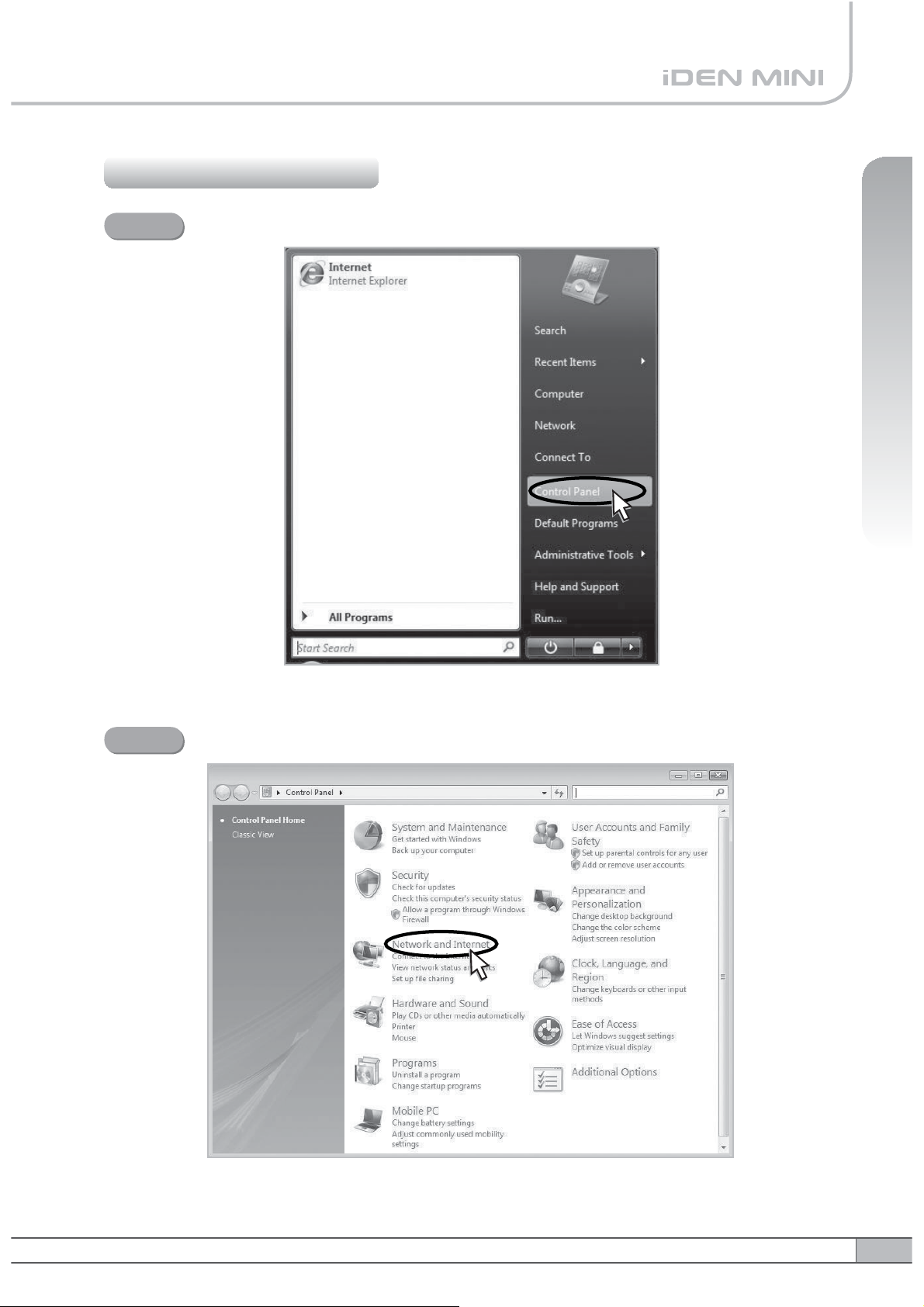

4.3.3 Windows Vista
4. Operation
Step 1
Click the Start button and Control Panel.
Step 2
Click Network and Internet.
User’s Manual
23
4. Operation
Step 3
Click Network and Sharing Center.
Step 4
Click View status of Local Area Connection.
24
Step 5
Click Properties and a caution pop-up window will appear. Click OK.
4. Operation
Step 6
Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
User’s Manual
25
4. Operation
Step 7
Check Obtain an IP address automatically and click OK.
Step 8
Close all windows.
4.4 System Login
Step 1
Open your Web browser and type “192.168.0.1:83” into the URL
address box. Then press the Enter key.
26
Step 2
The logon screen will appear. Type “operator” for the ID and “rtron” for
the password and then click OK.
4. Operation
Step 3
The pop-up message for the login success will appear. Click OK.
User’s Manual
27
