Page 1
iDEN MINI

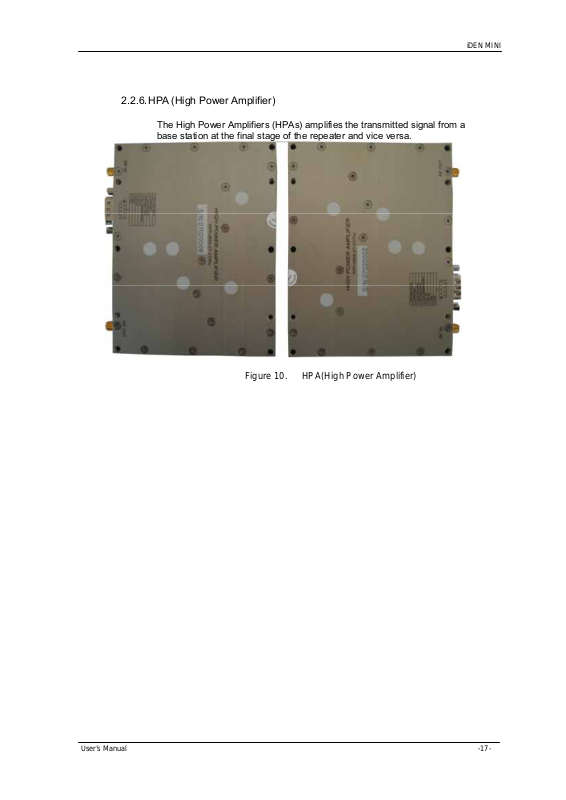

2.2.6. HPA (High Power Amplifier)
The High Power Amplifiers (HPAs) amplifies the transmitted signal from a
base station at the final stage of the repeater and vice versa.
Figure 10. HPA(High Power Amplifier)
User’s Manual -17-
Page 2
iDEN MINI
3. Hardware Installation
The installation procedure is as follows:
Check List of Items
Mounting
Grounding
RF Connection
Power up
3.1 Check List of Items
Index Items Q’ty
1 iDEN MINI 1
2 Power Cord 1
3 Screws for Mounting 4
Items
1 2 3
Figure 11. Items
User’s Manual -18-
Page 3
iDEN MINI
3.2 Mounting
iDEN MINI is easy to mount using the assembled mounting bracket,
which has Ø9 holes for the provided 5/16" fixing screws.
Figure 12. Mounting
CAUTION
Firmly affix the equipment on the wall of a building and Check necessary.
User’s Manual -19-
Page 4
iDEN MINI
quip
3.3 Grounding
WARNING
Dangerously high voltages may occur and damage the equipment if the
A rod on the left side is intended for a building ground. Connect the
ground cable to the rod.
ment is not groundedproperly.
e
3.4 RF Cable Connection
a. Connect a cable from a donor antenna to the DONOR ANTENNA
Port.
b. Connect a cable from the SERVICE ANTENNA Port to a repeater’s
service antenna.
Figure 13. Grounding
User’s Manual -20-
Page 5
iDEN MINI
Figure 14. Configuration: RF Cable Connection
3.5 Power Up
a. Connect the power cord.
b. Plug the power cord into a wall outlet.
c. Switch on.
d. Check if the green LED at the bottom turns on.
Figure 15. Power Cord Connection
User’s Manual -21-
Page 6
iDEN MINI
4. Command and Control through the Hyper Terminal
4.1 Setting for Command and Control through the Hyper Terminal
Figure 16. Local connection to the iDEN MINI
Step 1 Open My Network Places.
Step 2 Push the right button of mouse and select the properties.
User’s Manual -22-
Page 7
iDEN MINI
Step 3 Click the properties of TCP/IP.
Step 4 Set the values and OK as the following. Close all windows.
User’s Manual -23-
