R tron SNIDEN15DC Users Manual

System Manual RSN-iDEN-15-DC

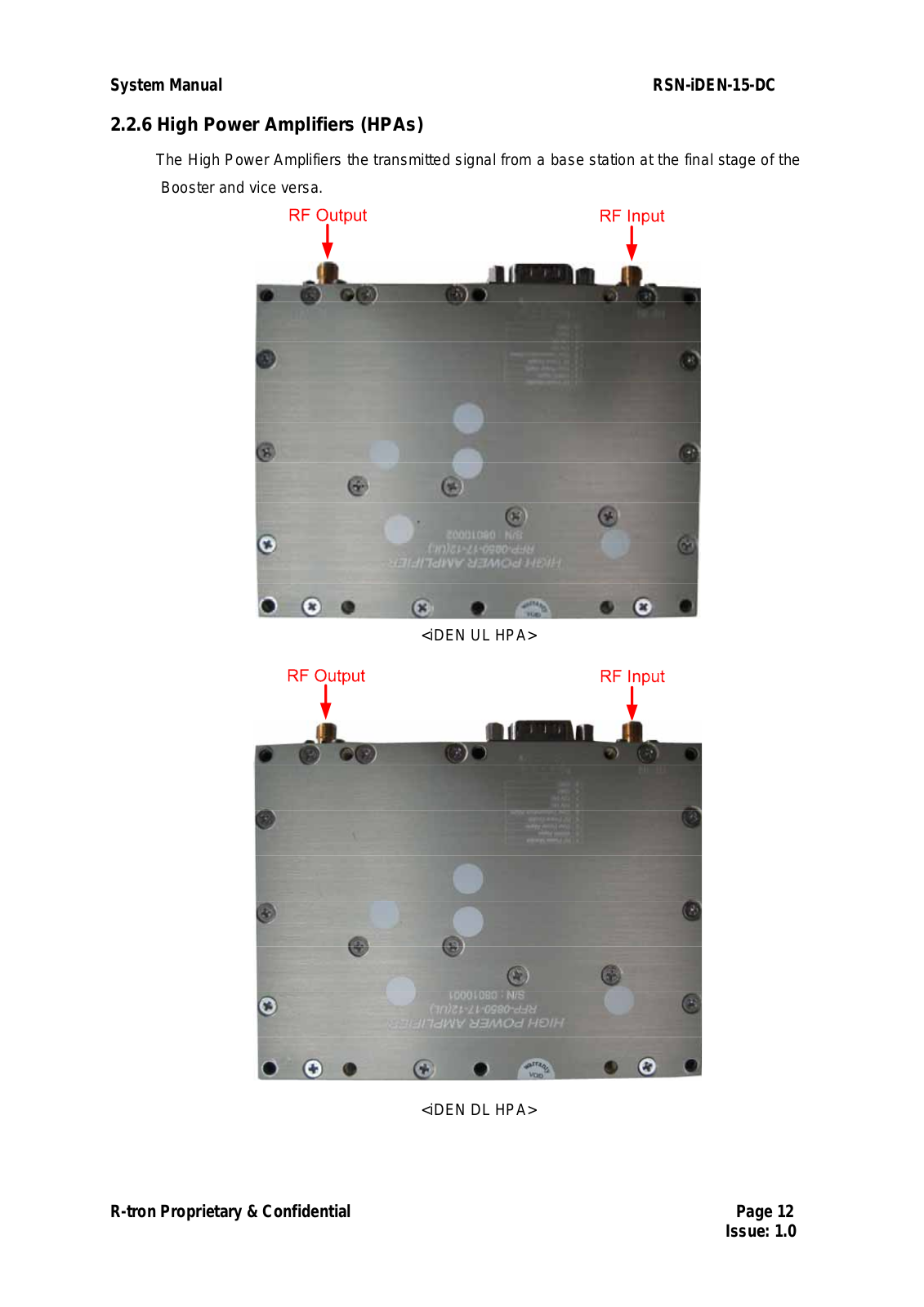

2.2.6 High Power Amplifiers (HPAs)

The High Power Amplifiers the transmitted signal from a base station at the final stage of the
Booster and vice versa.

<iDEN UL HPA>

<iDEN DL HPA>

R-tron Proprietary & Confidential Page 12
Issue: 1.0

System Manual RSN-iDEN-15-DC

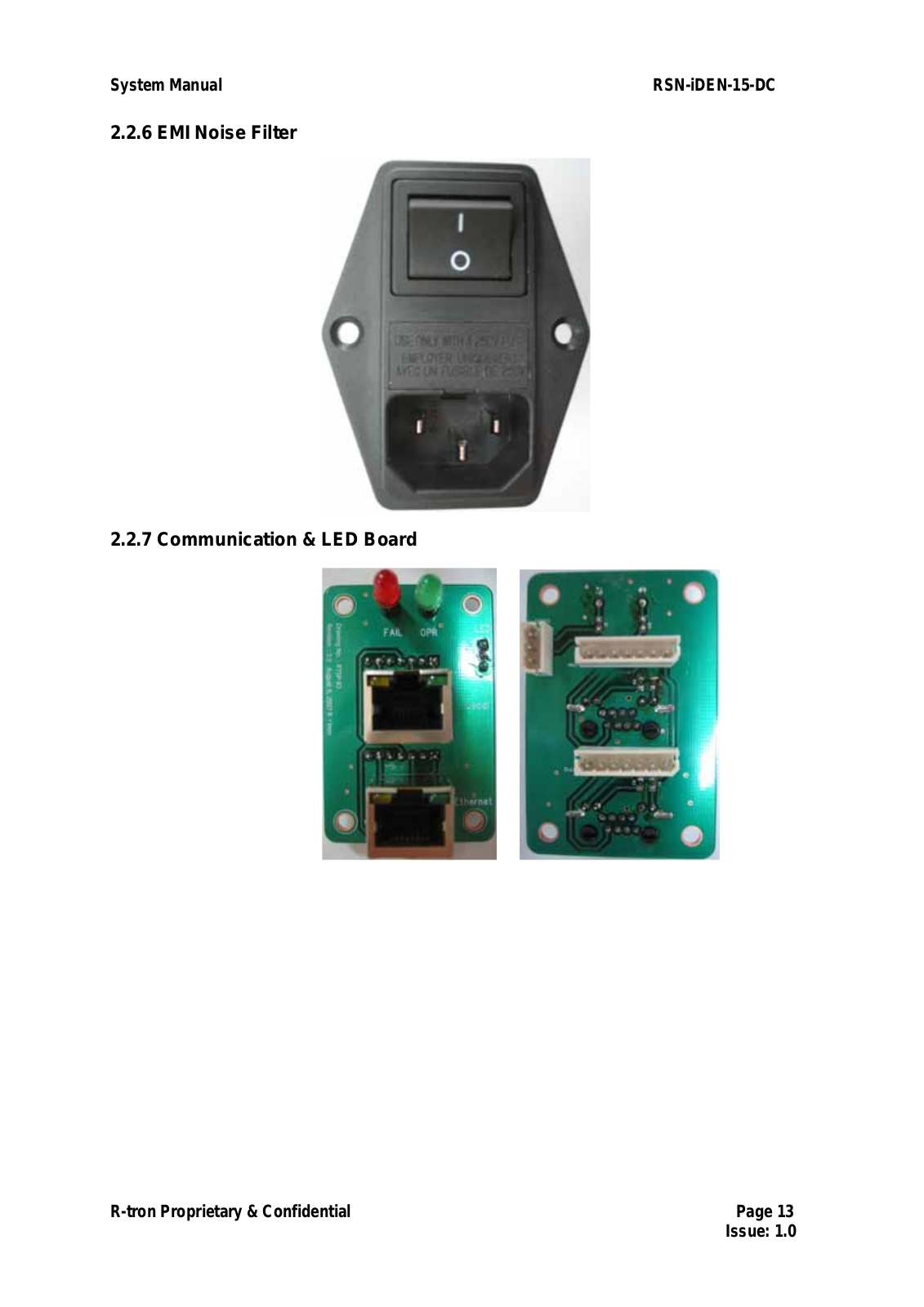

2.2.6 EMI Noise Filter

2.2.7 Communication & LED Board

R-tron Proprietary & Confidential Page 13
Issue: 1.0

System Manual RSN-iDEN-15-DC

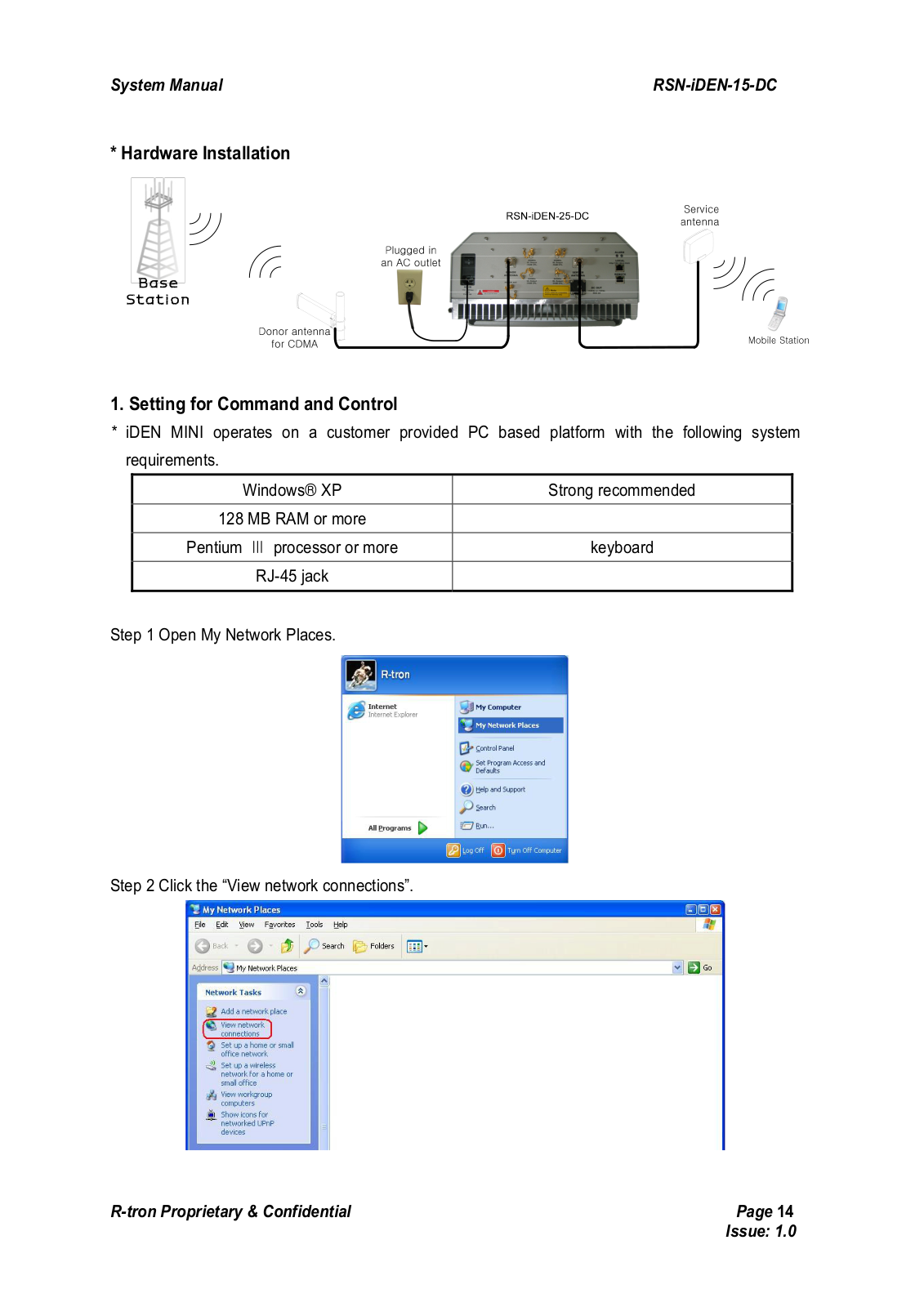

* Hardware Installation

1. Setting for Command and Control

* iDEN MINI operates on a customer provided PC based platform with the following system

requirements.

Windows

128 MB RAM or more

Pentium Ⅲ processor or more

RJ-45 jack

Step 1 Open My Network Places.

Step 2 Click the “View network connections”.

®

XP

Strong recommended

keyboard

R-tron Proprietary & Confidential Page 14
Issue: 1.0

System Manual RSN-iDEN-15-DC

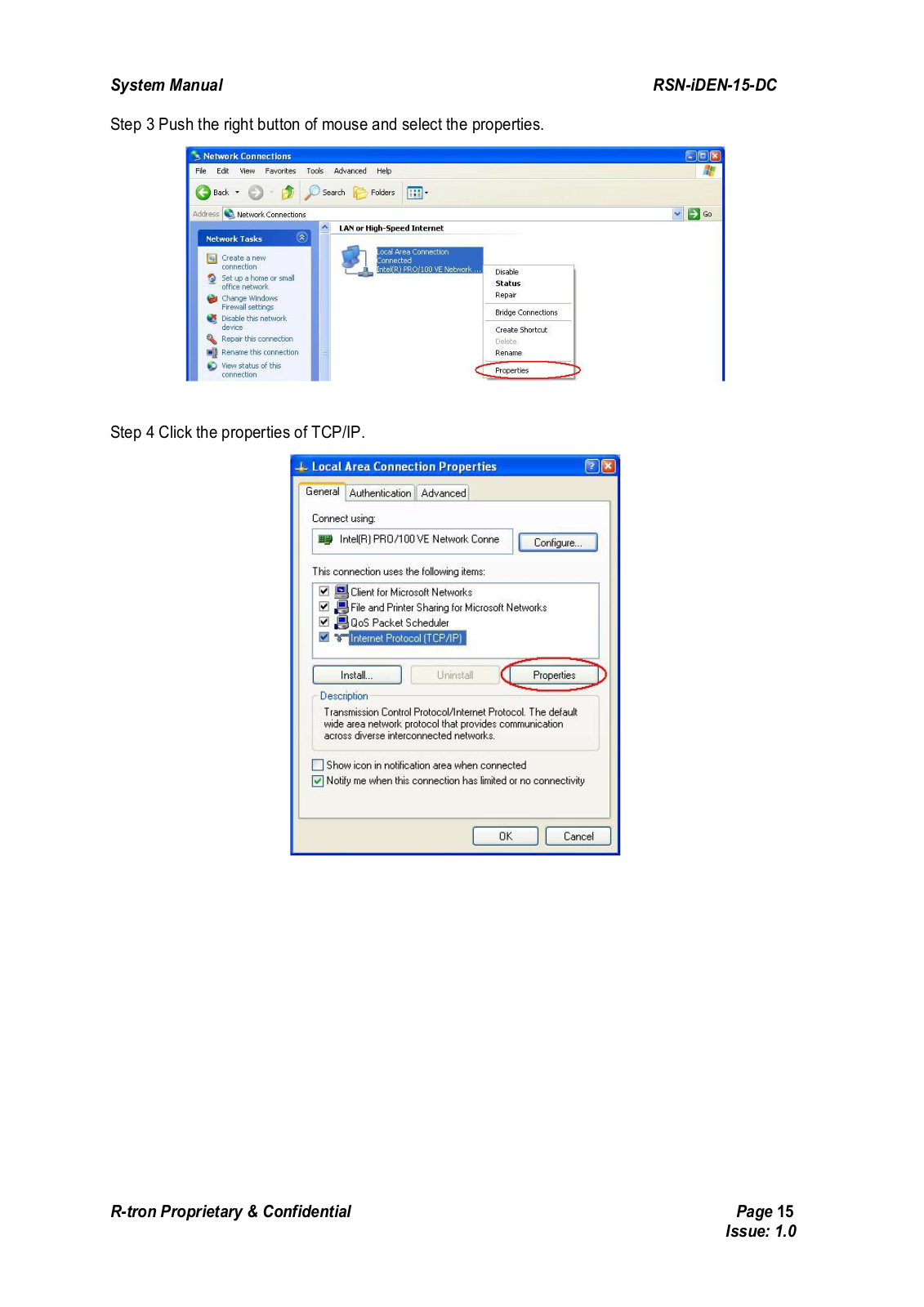

Step 3 Push the right button of mouse and select the properties.

Step 4 Click the properties of TCP/IP.

R-tron Proprietary & Confidential Page 15
Issue: 1.0
