GateOne
Manual
GateOne
Page 2
Contents
1. Configuration and Hardware connections .......................................................... 3
2. Setting for Command and Control ....................................................................... 4
3. Web GUI pages. ...................................................................................................... 8
4. Specifications ....................................................................................................... 14
2
Page 3
Safety Precautions
Warning
Opening the Tri MINI could result in electric shock and may cause severe injury.
Warning
Connect the equipment frame ground to building ground.
Warning
Operating the Tri MINI with antennas in very close proximity facing each other
could lead to severe damage to the repeater.
Caution
RF EXPOSURE INFORMATION
A minimum separation distance of 7.9 inches (20cm) must be maintained between
the user and the external antenna of repeater to satisfy FCC RF exposure
requirements. For more information about RF exposure, please visit the FCC
website at www.fcc.gov
Caution
This equipment is for indoor use and enables the communication wiring to
communicate only inside the building.
Safety Precautions
User’s Manual
1
Page 4
1. Configuration and Hardware connections
* Overall configuration
* Hardware connections
UL Output
MON.
DONOR
AN TEN NA
AC IN
110 -1 25Vac
DANGER
RISK O F EL ECTRIC SHO CK
DL Output
MON.
Note
Power o utlet f or compatible
external devices only
SERVI CE
ANTENNA
DC OUT
+12V dc o r -12 Vdc
MAX 2A
REMOTE
GateOne
AC IN
110 -125Vac
RISK OF ELECTRIC SHOCK
110 -125Vac
110 -125Vac
ALARM
LOCAL
DL Output
UL Output
MON.
MON.
DONOR
SERVICE
REMOTE
ANTENNA
ANTENNA
Note
DC OUT
Power outlet for compatible
DANGER
+12Vdc or -12Vdc
external devices only
MAX 2A
ALARM
LOCAL
DL Output
UL Output
MON.
MON.
DONOR
SERVICE
REMOTE
ANTENNA
ANTENNA
AC IN
Note
DC OUT
Power outlet for compatible
DANGER
+12Vdc or -12Vdc
external devices only
RISK OF ELECTRIC SHOCK
MAX 2A
ALARM
LOCAL
DL Output
UL Output
MON.
MON.
DONOR
SERVICE
ANTENNA
ANTENNA
REMOTE
AC IN
Note
DC OUT
Power outlet for compatible
DANGER
+12Vdc or -12Vdc
external devices only
MAX 2A
RISK OF ELECTRIC SHOCK
ALARM
LOCAL
RSN-GATE-SGL
DL Output
UL Output
MON.
MON.
AC IN
110 -1 25Vac
RISK O F EL ECTRIC SHO CK
DONOR
AN TEN NA
DANGER
Note
Power o utlet f or compatible
external devices only
SERVI CE
ANTENNA
DC OUT
+12V dc o r -12 Vdc
MAX 2A
ALARM
REMOTE
LOCAL
RSN-GATE-MLT
* GateOne backwards compatibility with HB1900.
3
Page 5
2. Setting for Command and Control
* GateOne operates on a customer provided PC based platform with the following system
requirements.
Windows® XP
128 MB RAM or more
Pentium Ⅲ processor or more
RJ-45 jack
Step 1 Open My Network Places.
Step 2 Click the “View network connections”.
Strong recommended
keyboard
4
Page 6

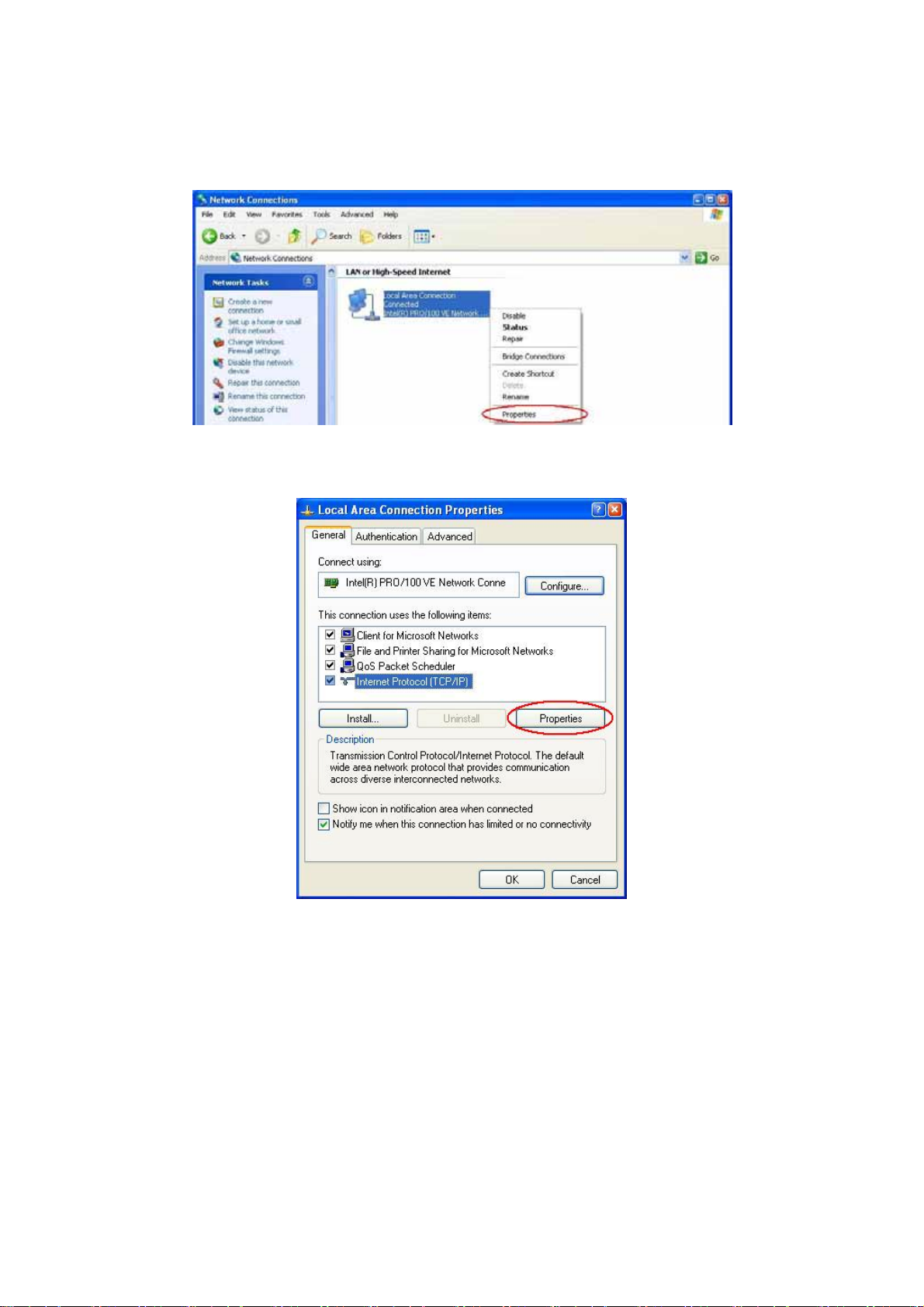

Step 3 Push the right button of mouse and select the properties.
Step 4 Click the properties of TCP/IP.
5
Page 7

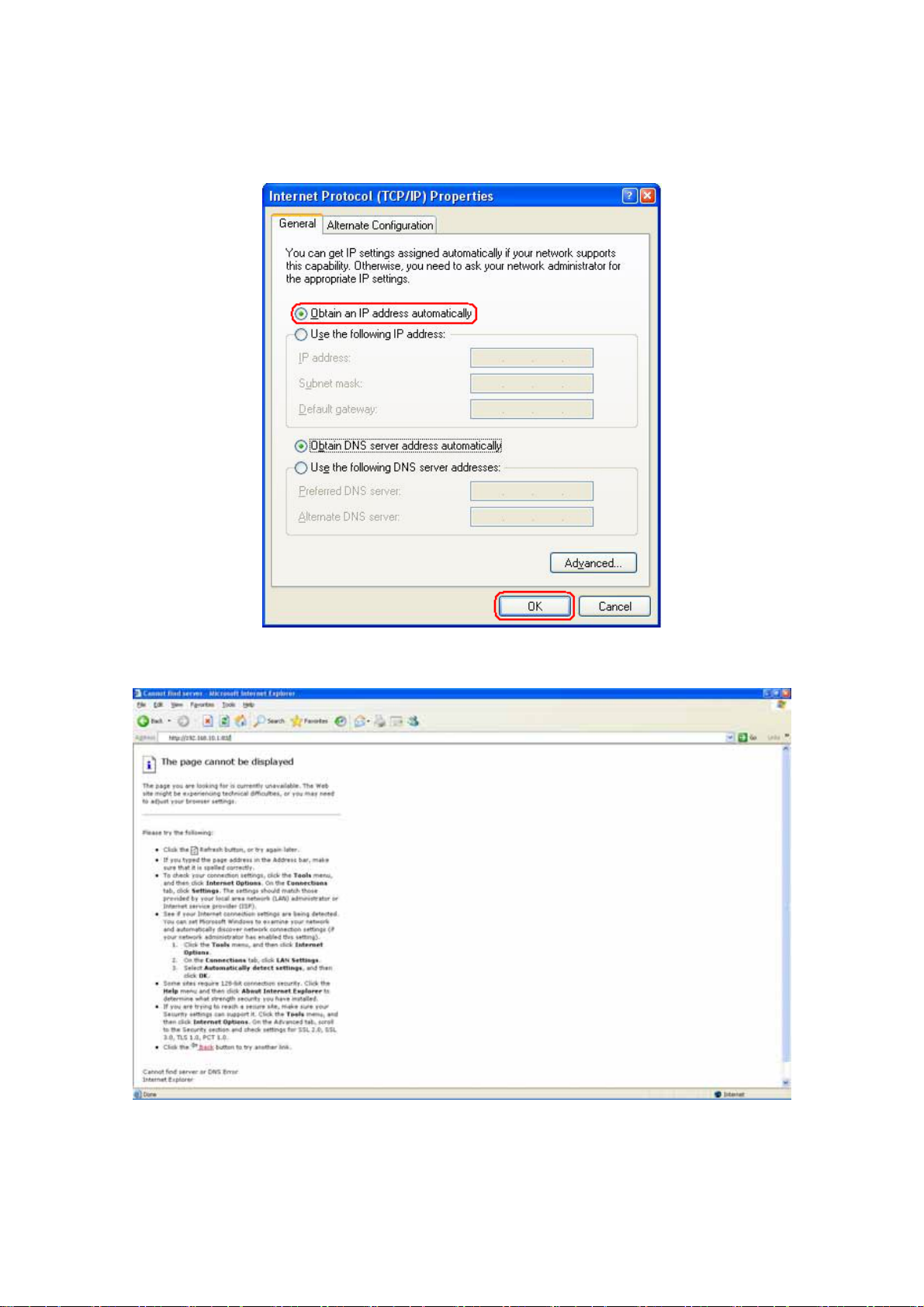

Step 5 Set the values and OK as the followin g. Close all windows.
Step 6 Open a new explorer window.
6
Page 8
Step 7 Type http://192.168.10.1:83
in the address box and press “Enter” key.

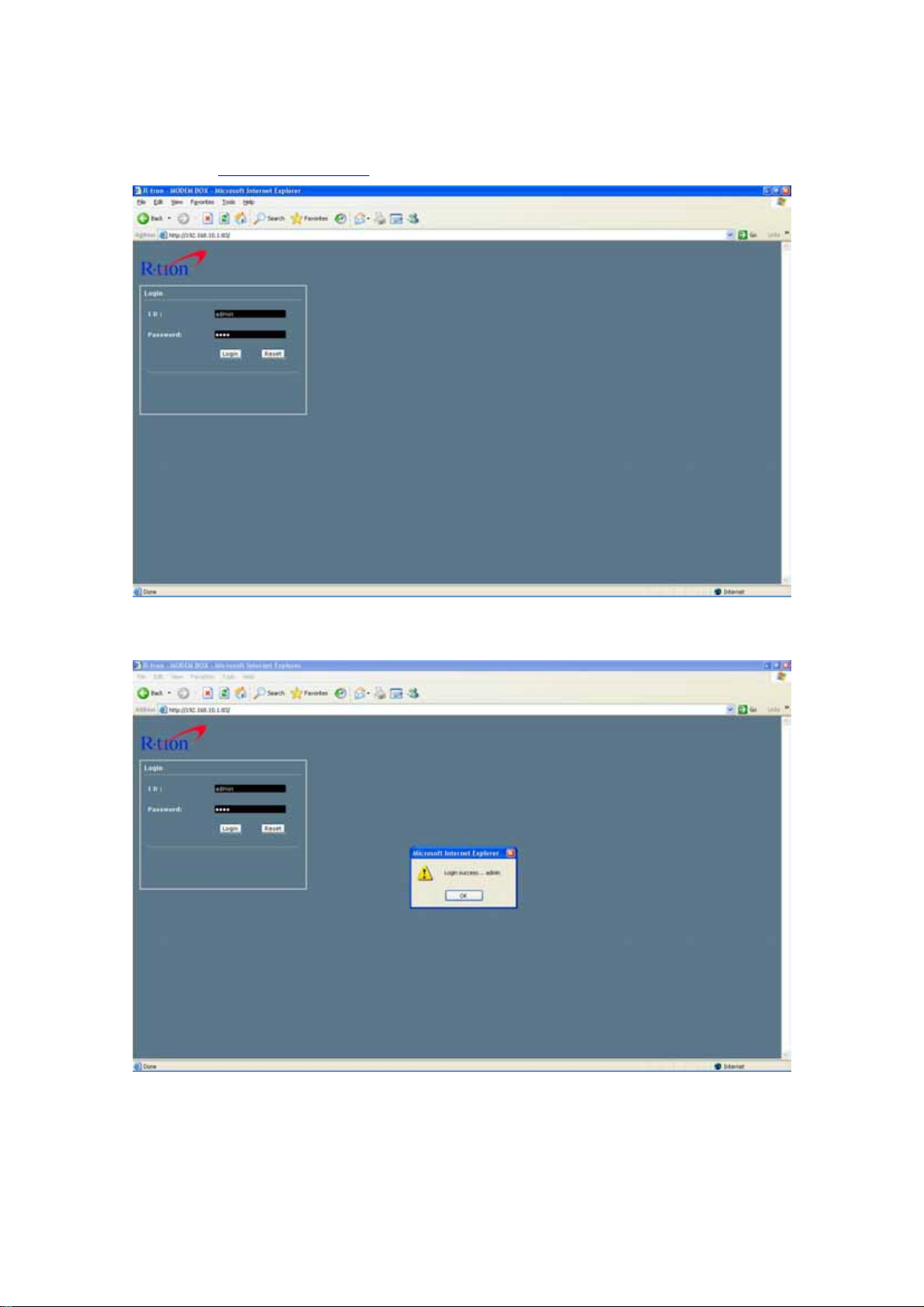

Step 8 Login with “admin” of ID and “1234” of password and “OK”.
7
Page 9
3. Web GUI pages.

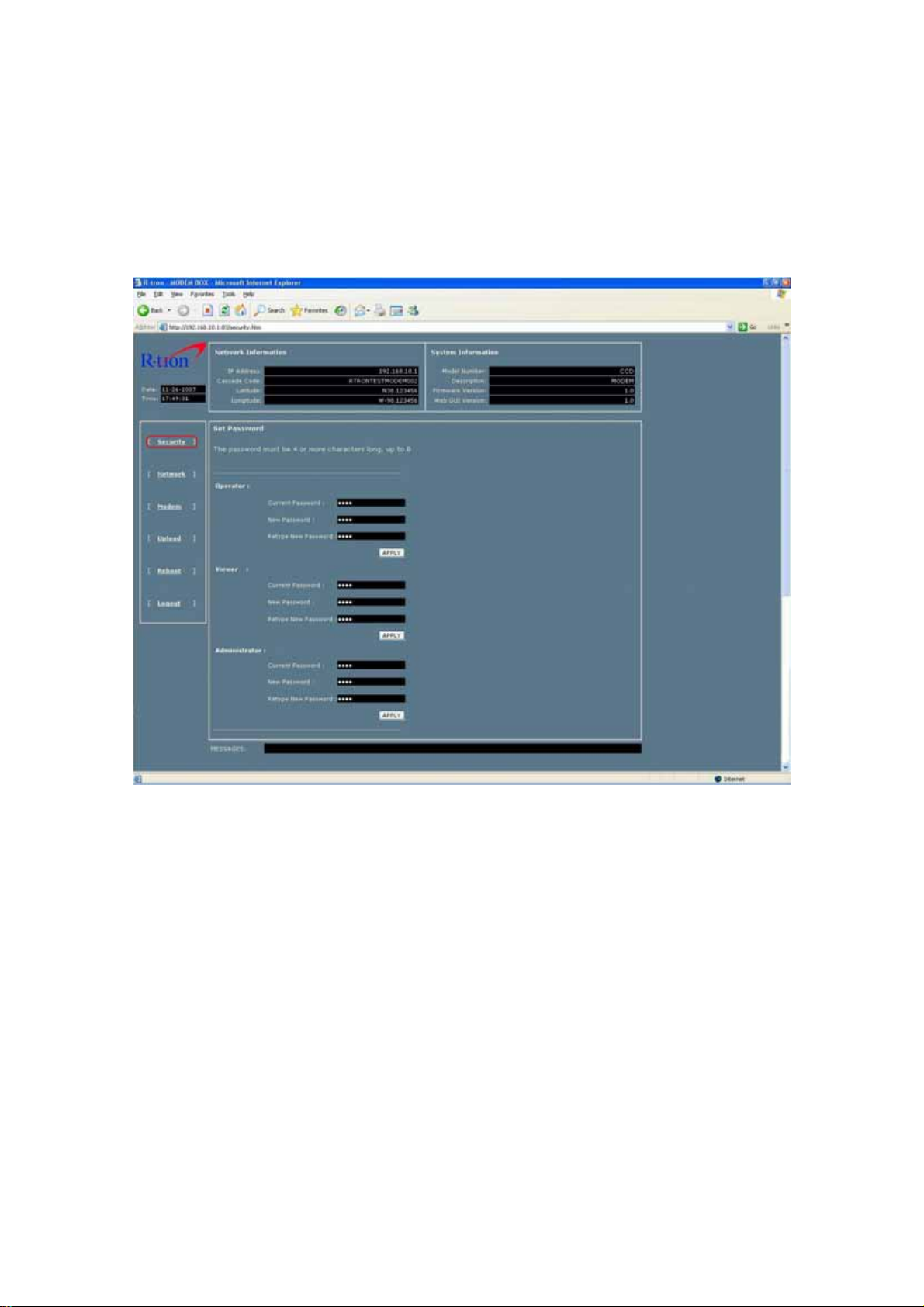

A. Security page
Three logon passwords; Operator, Viewer, and Administrator, can be authorized on the security
page.
* Logon as Operator: An operator has all authorization of changing, monitoring, and controlling
except parameters on the Security page.
* Logon as Viewer: Viewer is able to show the information of MODEM box only.
* Logon as Administrator: Administrator has all authorization of changing, monitoring, and
controlling.
8
Page 10
B. Network page
a. Cascade Code: Type in the pre-assigned code. Otherwise, you cannot access system
setup.
b. Location Information: Takes the latitude and longitude, otherwise you cannot access
system setup.
[Example]
(‘Ν/S’ | ‘Ε/W’) (+|-) ddd.dddddd: (Latitude: N 39.006597 Longitude: W 122.152390)
c. Product Information: This is for manufacturer used only. Do not change this value.
d. NMC Server IP: Do not change the value. Otherwise Remote Access may not work.
9
Page 11

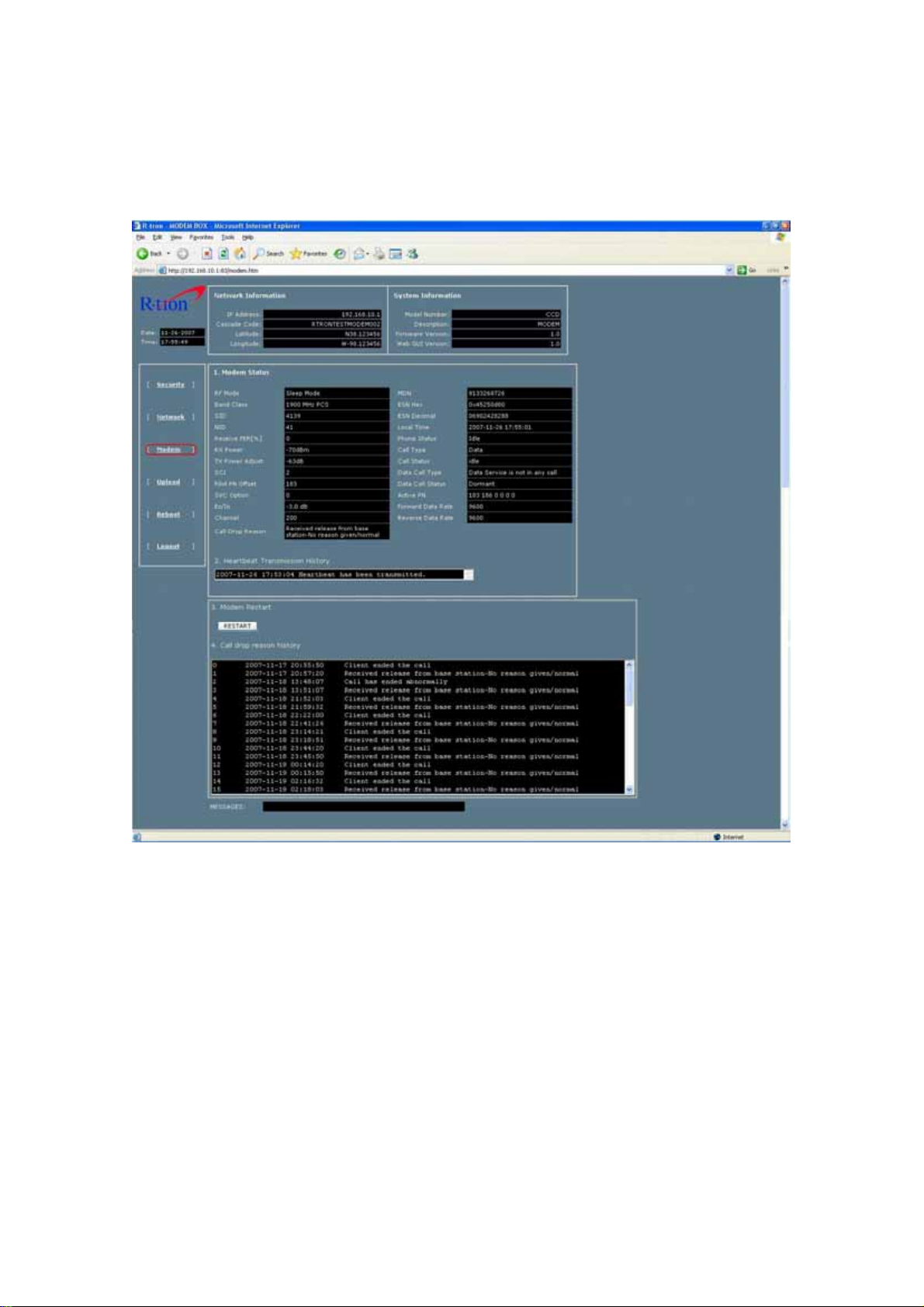

C. Modem page
The Modem Page shows totally all information related with repeater and other devices.
10
Page 12

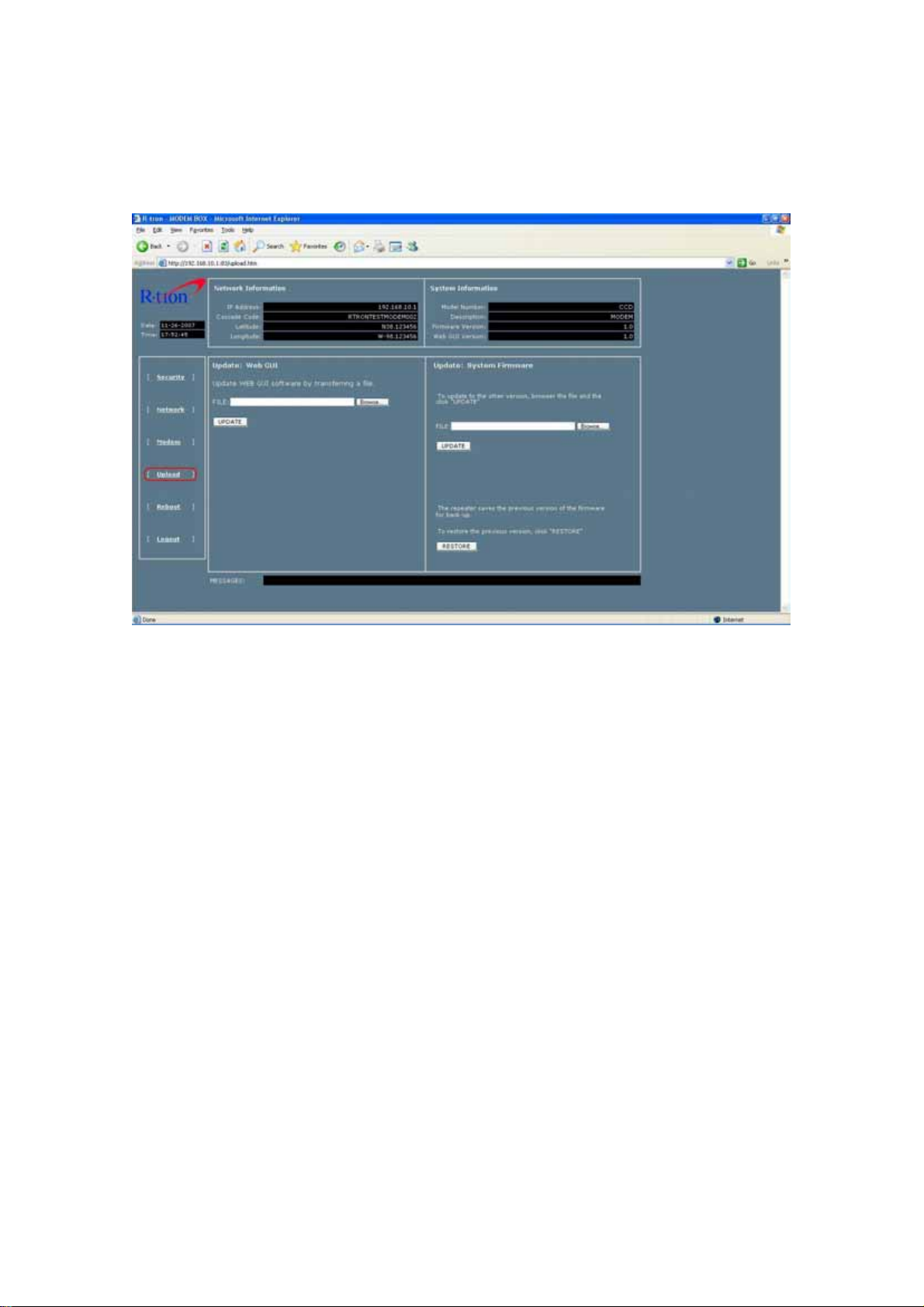

D. Upload page
The newest Web GUI and System firmware are able to be updated on this page.
11
Page 13

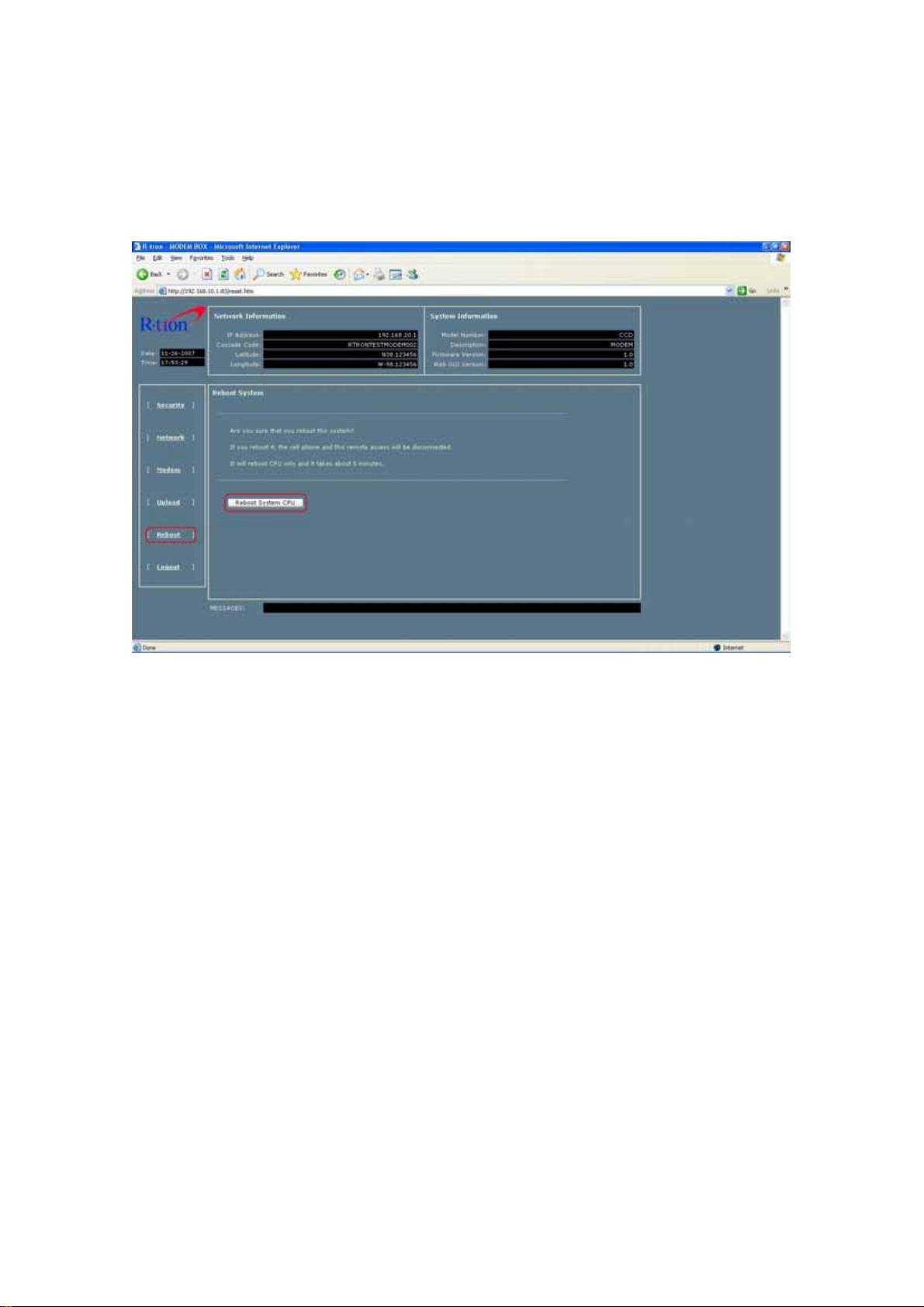

E. Reboot page
Clicking “Reboot System CPU” makes restart up the operating system on the Micro Processor
Unit.
12
Page 14
F. Lo go u t
Click the “Logout” and press the “OK” to exit current logon.
13
Page 15
4. Specifications
a. Electrical Specification
Item Specifications Remark
CPU S3c2410A: 16/32-bit RICS
NOR Flash: 4M byte Boot Loader, Linux Kernel
Memory
Local Craft Port RJ-45
External Repeater port RJ-45 8port HUB IEEE 802.3 10Base-T
Modem Kyocera M200
Power supply DC +12V / Max 1A
Operating temperature -10℃ ~ 50℃
Storage temperature -20℃~60℃
Humidity 95 %
b. Mechanical Specification
Item Specification Remark
Dimension
Weight 2kg (4.4lbs)
Power Supply Connector 4 pin AMP connector (female Type) AMP 206430
NAND Flash: 32M byte Ram disk, Application Program
SDRAM: 32M byte
180(W)x230(D)x80(H)_mm
7.08(W)x9.05(D)x3.15(H)_inch
Not commercial
product
14
