System Manual RSN-CDMA-37-C
RSN-CDMA-37-C
Manual
R-tron Inc.
Proprietary & Confidential Page 1
Issue: 1.0
System Manual RSN-CDMA-37-C
CAUTION
This equipment is indoor use and all the communication
Proprietary & Confidential Page 2
Issue: 1.0
System Manual RSN-CDMA-37-C
Abbreviations
Abbreviations used in this manual, in RSN-CDMA-37-C.
AC Alternating Current
ANT Antenna
CDMA Code Division Multiple Access
DC Direct Current
GND Grounding
GUI Graphic User Interface
LED Light Emitting Diode
PSU Power Supply Unit
MCU Main Control Unit
UDC Up Down Converter
RF Radio Frequency
TEMP Temperature
VSWR Voltage Standing Wave Ratio
Proprietary & Confidential Page 3
Issue: 1.0
System Manual RSN-CDMA-37-C
1. Introduction
Ground contact
Donor antenna port
AC in and Switch
UL and DL output monitoring port
Server antenna port
Alarm LEDs
Local port
Remote port
DC Outlet for external device
RSN-CDMA-37-C is used to fill out areas in CDMA mobile systems, such as base station fringe
areas, business and industrial buildings, etc.
RSN-CDMA-37-C receives signals from a base station, amplifies and retransmits the signals to
mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction. Both
directions are served simultaneously with the following features:
65MHz bandwidth service
Band Selection (5MHz , 10MHz , 15MHz , 20MHz , 5MHz+5MHz , 10MHz+5MHz,
15MHz+5MHz, 20MHz+5MHz, 5MHz+5MHz+5MHz) service
Roll Offs: 50dBc at 1 MHz outside pass-band
The RSN-CDMA-37-C is controlled by powerful microprocessors. Operational status LEDs are
visible on the bottom of the repeater.
The repeater works with convection cooling without fan because it has a radiator behind the
body of RSN-CDMA-37-C.
Proprietary & Confidential Page 4
Issue: 1.0
System Manual RSN-CDMA-37-C
Operational parameters, such as gain, power levels, alarm condition, Automatic Gain Control
condition, etc. are set using a desktop or notebook and the remote access is capable of control
the RSN-CDMA-37-C.
Proprietary & Confidential Page 5
Issue: 1.0
System Manual RSN-CDMA-37-C
2. Description
2.1 System Specifications
2.1.1 Electrical Specifications
Parameter Down Link Up Link
Operating Frequency 1930MHz~1995MHz 1850MHz~1915MHz
Gain 45dB to 95dB
Roll off ≤50dBc @Fedge+/-1MHz
Gain ripple ±1.5dB
Delay 5.0uS Max
VSWR 1.5Max
Input Range -45dBm ~ -58dBm
Power supply 85V~264V, 50/60Hz typ.
Operating temperature -10℃~-50℃
Storage temperature -20℃~ 60℃
Consumption power ≤100W
5MHz , 10MHz , 15MHz , 20MHz
Band Selection
5+5MHz , 10+5MHz , 15+5MHz , 20+5MHz
5+5+5MHz
Proprietary & Confidential Page 6
Issue: 1.0
System Manual RSN-CDMA-37-C
2.1.2 Mechanical Specifications
Parameter Specification
RF connectors N-female x 2, SMA-female x 2
Size
14.49 X17.52 X 9.33(Inch), 368 X 445 X
237(mm)
Weight 27kg (59.5lbs)
I.T.E
31CY
E258109
MADE IN KOREA
RSN-CDMA-37-C
R-tron lnc.MAKER :
110 -125Vac , 60Hz , 4A
: STESNCDMA37C
:POWER
SERIAL NO. / DATE :
FCC REG. NO.
PRODUCT PART NUMBER:
COMPLIES WITH PART 24, FCC RULES.
UL Output
-30dB CPL.
DONOR
ANTENNA
AC IN
DANGER
110 -125Vac
RISK OF ELECTRIC SHOCK
-30dB CPL.
Power outlet for compatible
external devices only
http://192.168.0.1:83
SERVER
ANTENNA
REMOTE
Note
DC OUT
+12Vdc or -12Vdc
MAX 2A
ALARM
LOCAL
DL Output
Proprietary & Confidential Page 7
Issue: 1.0
System Manual RSN-CDMA-37-C

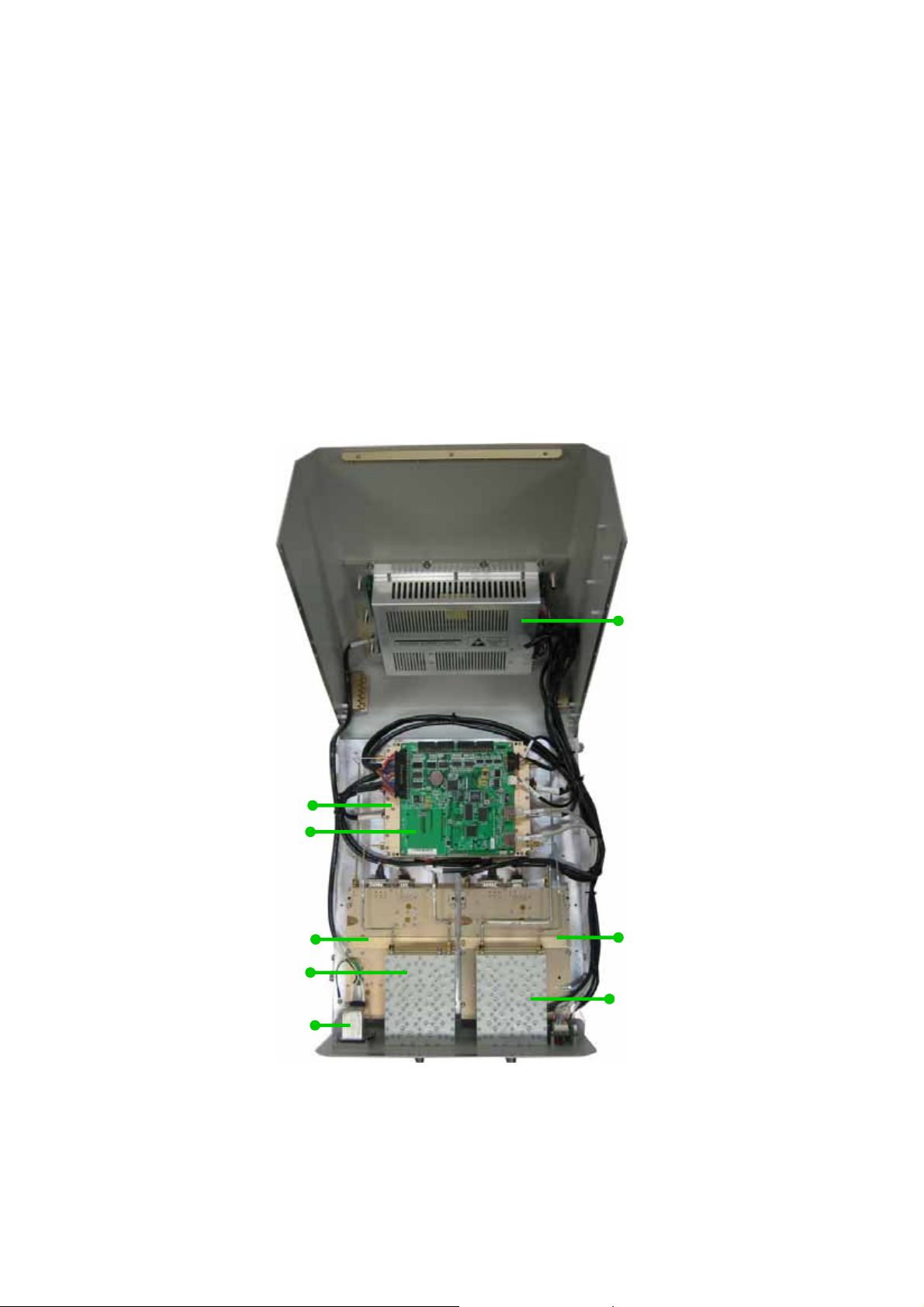

2.2 Sub Unit Overview
RSN-CDMA-37-C is composed of the following sub units:
UDC(Up Down Converter)
HPAs(High Power Amplifiers)
Duplexers
Main Control Unit (MCU)
Power Supply Unit (PSU)
EMI Filter
UDC
MCU
UL HPA
Duplexer
EMI Filter
PSU
DL HPA
Duplexer
Proprietary & Confidential Page 8
Issue: 1.0
System Manual RSN-CDMA-37-C
2.2.1 Block diagram
The following, Figure explains how the RSN-CDMA-37-C serves signals.
Donor
antenna
Duplexer
S/W
AMP
3-Way
S/W
3-Way
S/W
3-Way
S/W
AMP
3-Way
Duplexer
Service
antenna
Proprietary & Confidential Page 9
Issue: 1.0
System Manual RSN-CDMA-37-C
2.2.2 UDCs
The UDC Module is basically a bi-directional amplifier that sharply filters out
unwanted noise.
<DL UDC>
<UL UDC>
Proprietary & Confidential Page 10
Issue: 1.0
System Manual RSN-CDMA-37-C
2.2.3 Duplexers
A multiplexer is a device that combines two or more signals onto a common
channel or medium to increase its transmission efficiency.
Proprietary & Confidential Page 11
Issue: 1.0
System Manual RSN-CDMA-37-C
2.2.4 Main Control Unit (MCU)
MCU is the control unit of RSN-CDMA-37-C. It controls and monitors operational
parameters. It also generates alarms, an event log and many other functions of the
RSN-CDMA-37-C.
*Pin Map*
Port Connected to
J6 MCU Vcc(+12V)
J7 CDMA DL,UL Control Pin
J8 PSU Alarms / Status LEDs
P1 Local
P2 Remote
Proprietary & Confidential Page 12
Issue: 1.0
System Manual RSN-CDMA-37-C
2.2.5 Power Supply
The Power Supply Unit (PSU) supplies a steady DC power to RSN-CDMA-37-C by
drawing power from the general in-wall AC outlets
*Specification*
Item Specifications
Environmental
Operating Temp
Humidity 20%~90%RH
-10℃~50℃
Cooling method Natural air
Voltage AC115V
6V, 5A / 12V, 5A / -12V, 5A / 27V,
Rated Output(DC)
10A DC
Frequency 60Hz typ
Leakage Current 0.5mA max.@110V AC
Proprietary & Confidential Page 13
Issue: 1.0
System Manual RSN-CDMA-37-C

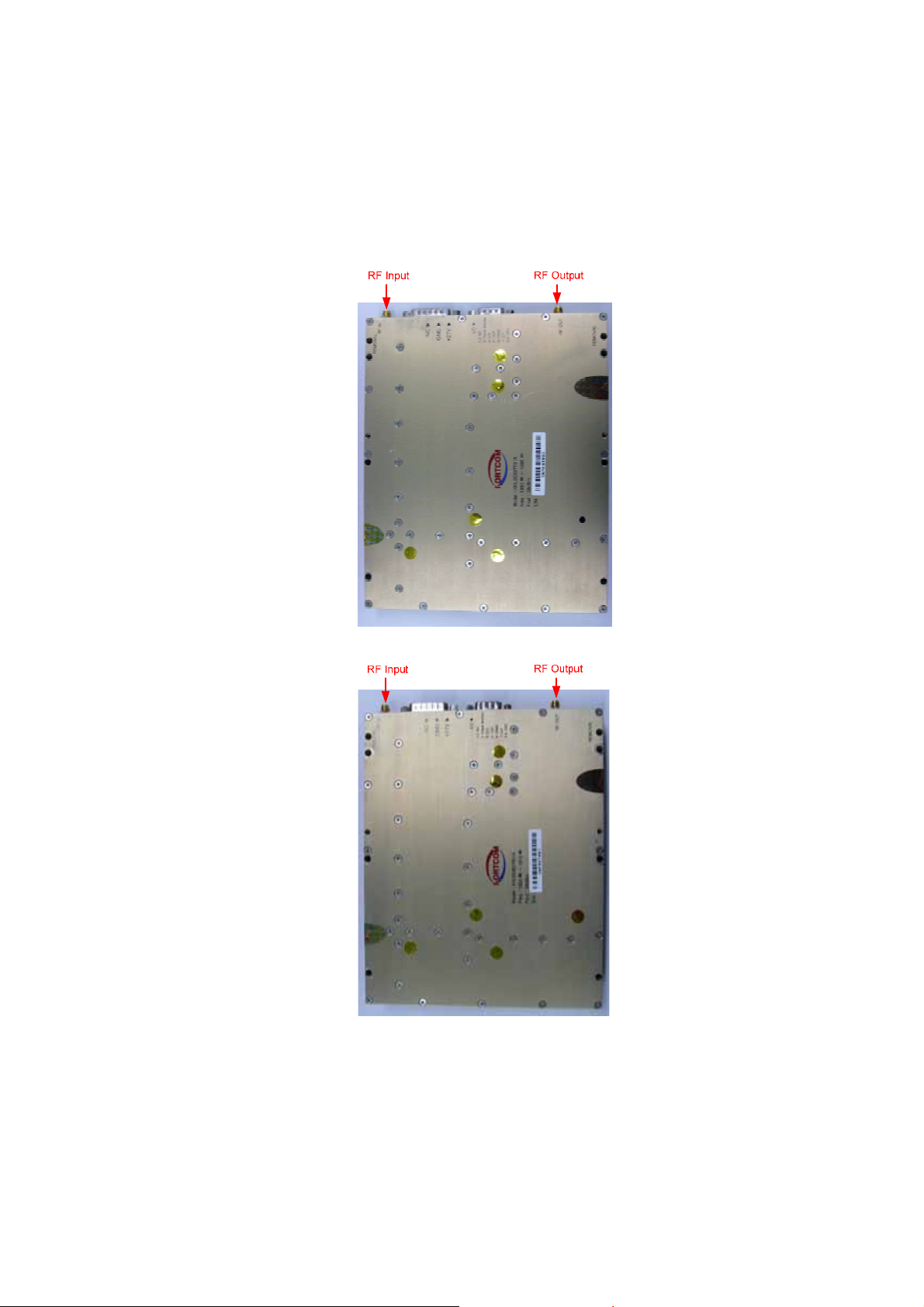

2.2.6 High Power Amplifier (HPA)
The High Power Amplifiers the transmitted signal from a base station at the final
stage of the repeater and vice versa.
<DL HPA>
<UL HPA>
Proprietary & Confidential Page 14
Issue: 1.0
System Manual RSN-CDMA-37-C
2.2.7 Noise(EMI) Filter
2.2.8 Communication & LED Board
Proprietary & Confidential Page 15
Issue: 1.0
