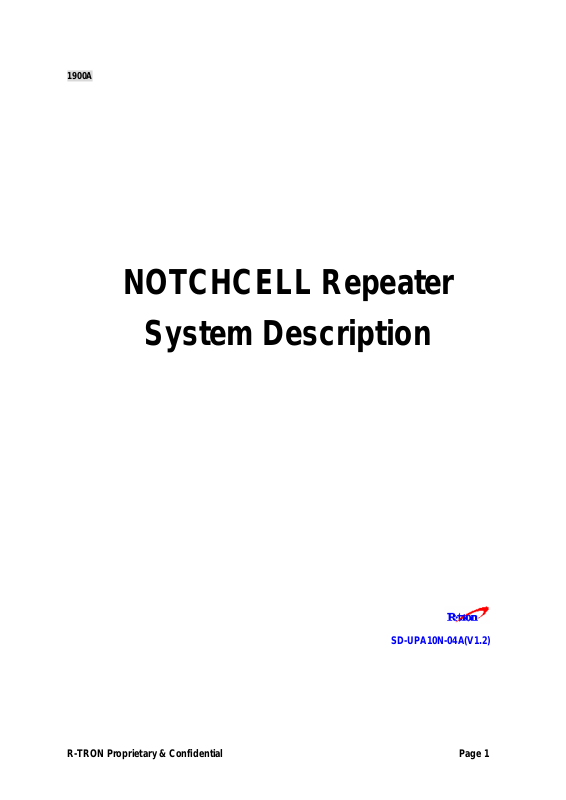

R tron NRPCS10A Manual revised

1900A

NOTCHCELL Repeater

System Description

SD-UPA10N-04A(V1.2)

R-TRON Proprietary & Confidential Page 1

System Description NOTCHCELL Repeater

Copyright of this manual belongs to R-TRON, Inc. Reproduction, distribution or revision of part or all of contents in this manual in any form without written permission of R-TRON, Inc. is prohibited.

Registered Trademark

R-TRON are registered trademarks of R-TRON, lnc.

Other products and company names mentioned herein this manual might be trade marks or trade names of their respective owners.

RF Repeater

Band Selective Type

Sprint PCS

English

The results of using the information not mentioned in this manual or the risk of misunderstanding this document remain with the user. The information in this manual is subject to change due to function enhancement, change of design, etc. If you want the modified manual or have any question on this manual, please contact us with information below:

Address : Customer Support Center, Jisan IT Venture Bldg., 2/3F, 1004-9/10, Doksan-

Tel : +82-2-896-4101

Dong, Gumcheon-Gu, Seoul 153-829 , South Korea

R-TRON Proprietary & Confidential Page 2

System Description NOTCHCELL Repeater

Revision History

Version Date of revision Reason for revision

V1.0 Dec.01.2004 First Edition

V1.1 Dec.17.2004 Second Edition

V1.2 JAN.11.2005 Third Edition

Revision Description

2.1 System specification

5.12 Connection Ports

2.1.2 System Features

Caution fact addition

R-TRON Proprietary & Confidential Page 3

System Description NOTCHCELL Repeater

CONTENTS

1. Overview ----------------------------------------------------------------------------------------------------- 5

2. Repeater Design -------------------------------------------------------------------------------------------- 7

2.1 System specification

2.1.1 Environmental conditions

2.1.2 System features

-----------------------------------------------------------------------------------

----------------------------------------------------------------------

----------------------------------------------------------------------------------

3. Repeater Configurations --------------------------------------------------------------------------------- 9

3.1 Main Box

3.2 PSU Box

3.3 Sub Unit Overview

3.3.1 UDC(Up-Down Converter unit) with LNA

3.3.2 MCPA(Multi Carrier Power Amplifier unit)

3.3.3 ARCU(Advanced Repeater Control Unit board)

3.3.4 DPX(Duplexer)

3.3.5 PSU(Power Supply Unit)

3.3.6 Heat Module

3.3.7 ARIU(Advanced Repeater Interface Unit board)

3.3.8 Arrestor

3.3.9 EMI/EMC Filter

------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------

-------------------------------------------------

-----------------------------------------------

------------------------------------------

---------------------------------------------------------------------------------

---------------------------------------------------------------------

------------------------------------------------------------------------------------

------------------------------------------

------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------

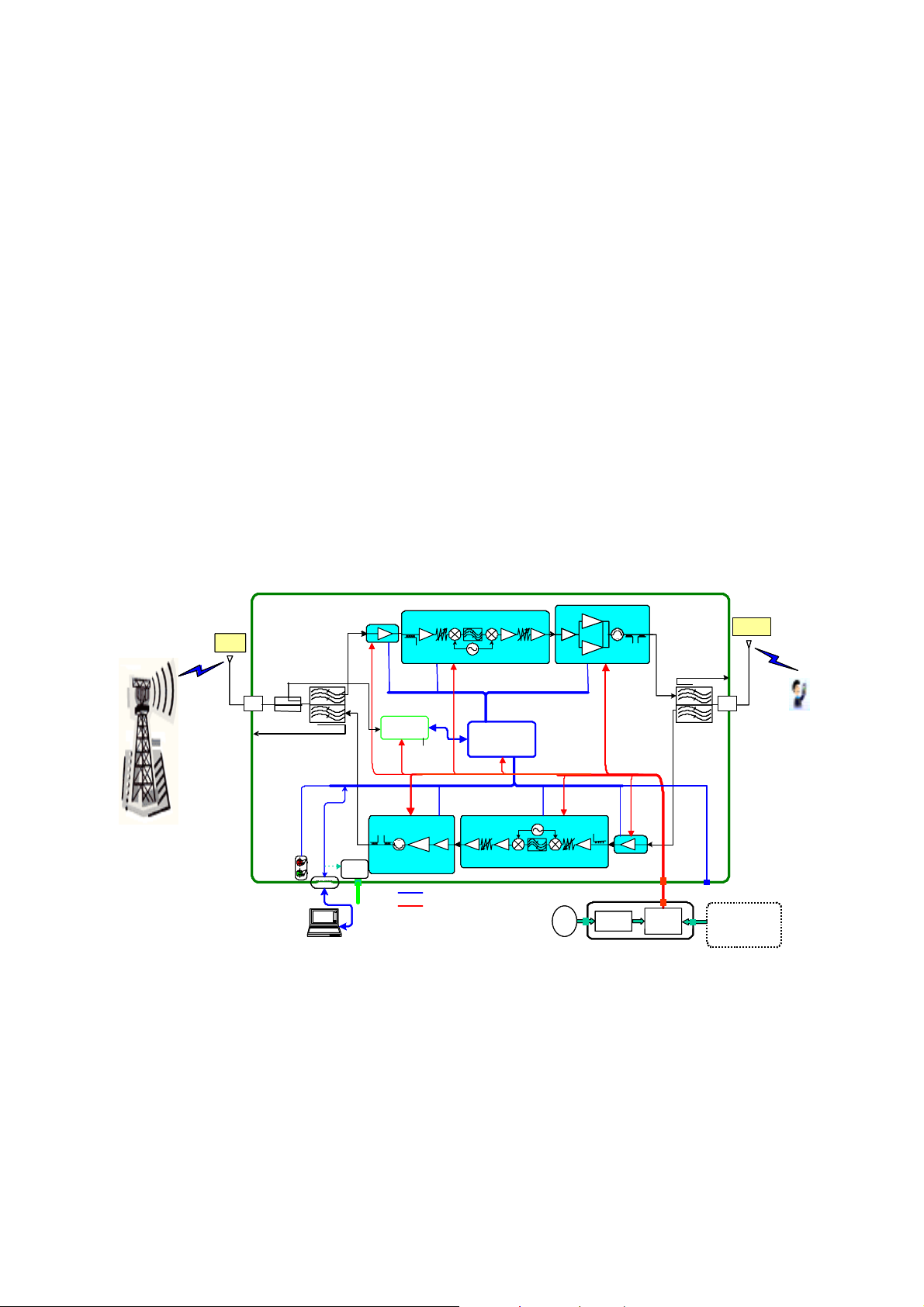

4. Block Diagram --------------------------------------------------------------------------------------------- 15

4.1 Downlink signal path

4.2 Uplink signal path

4.3 Band Selective Repeater

4.4 Repeater Setup

--------------------------------------------------------------------------------

------------------------------------------------------------------------------------

----------------------------------------------------------------------------

----------------------------------------------------------------------------------------

5. Board and Unit Descriptions --------------------------------------------------------------------------- 16

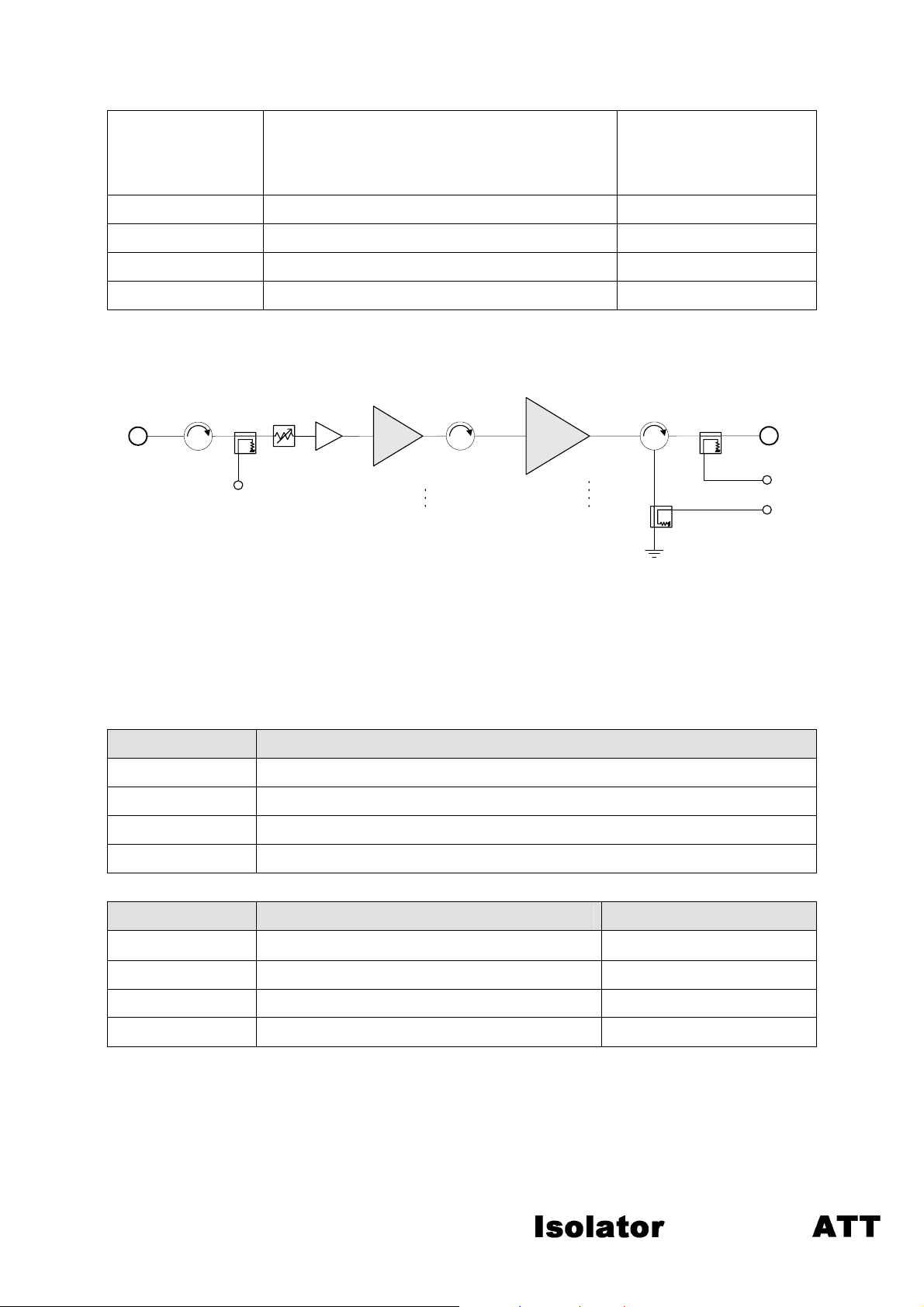

5.1 MCPA for downlink

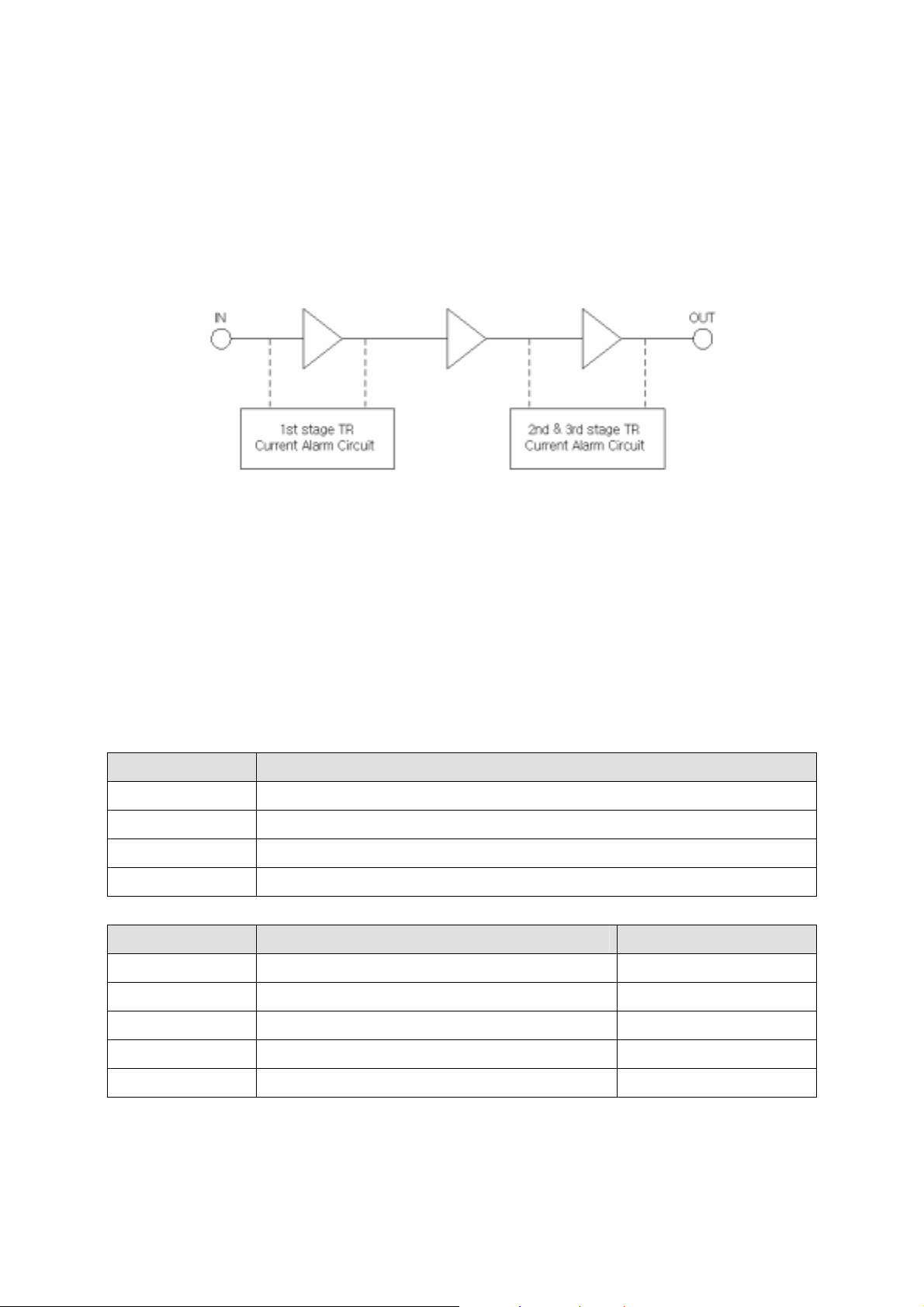

5.2 PA for uplink

------------------------------------------------------------------------------------------

5.3 UDC for downlink

5.4 UDC for uplink

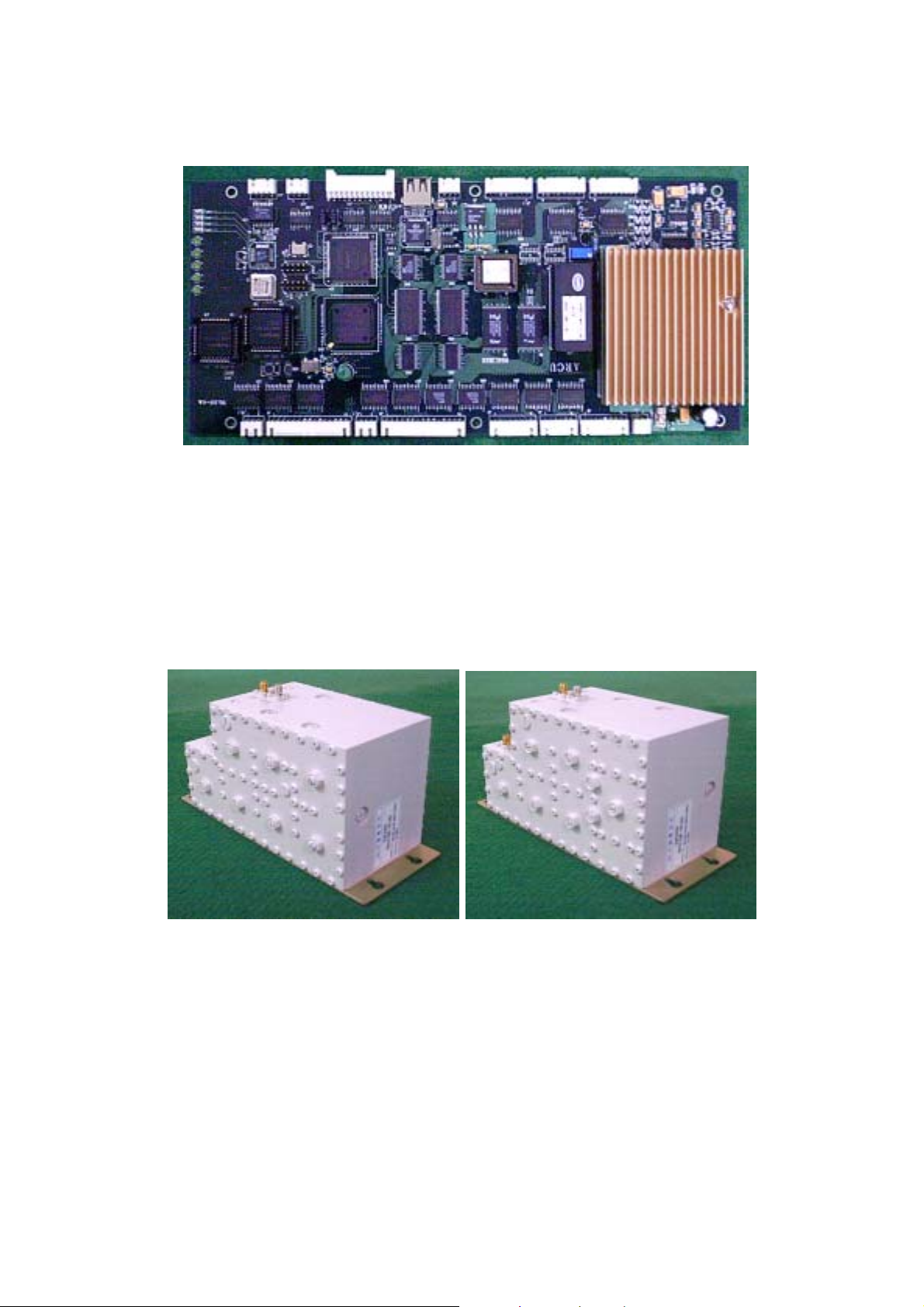

5.5 ARCU

5.6 ARIU

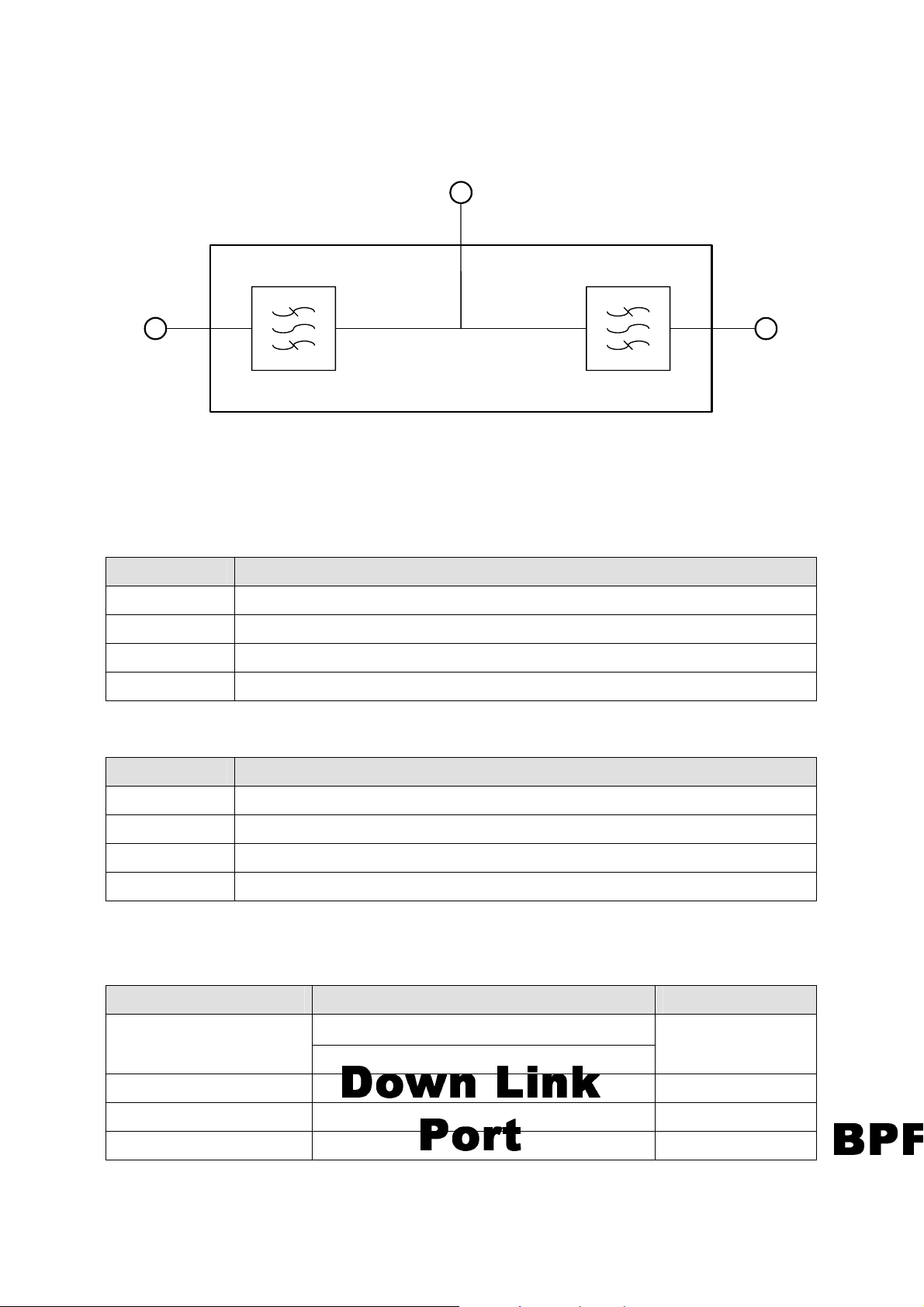

5.7 DPX

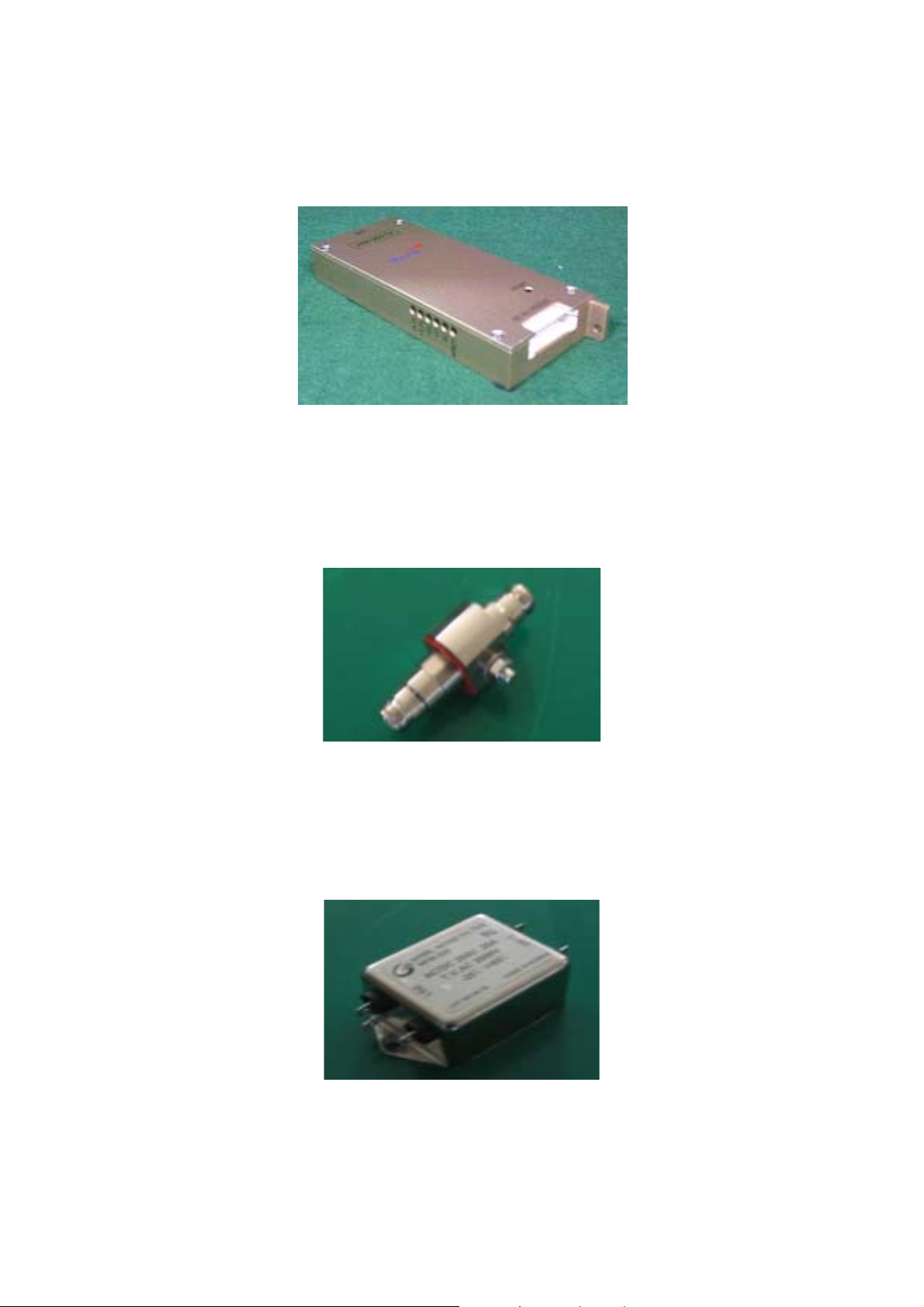

5.8 Arrester

5.9 PSU

--------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------

5.10 EMI/EMS Filter

5.11 Heater Module

5.12 Connector Ports

5.12.1 Local OMT port ; Main Box

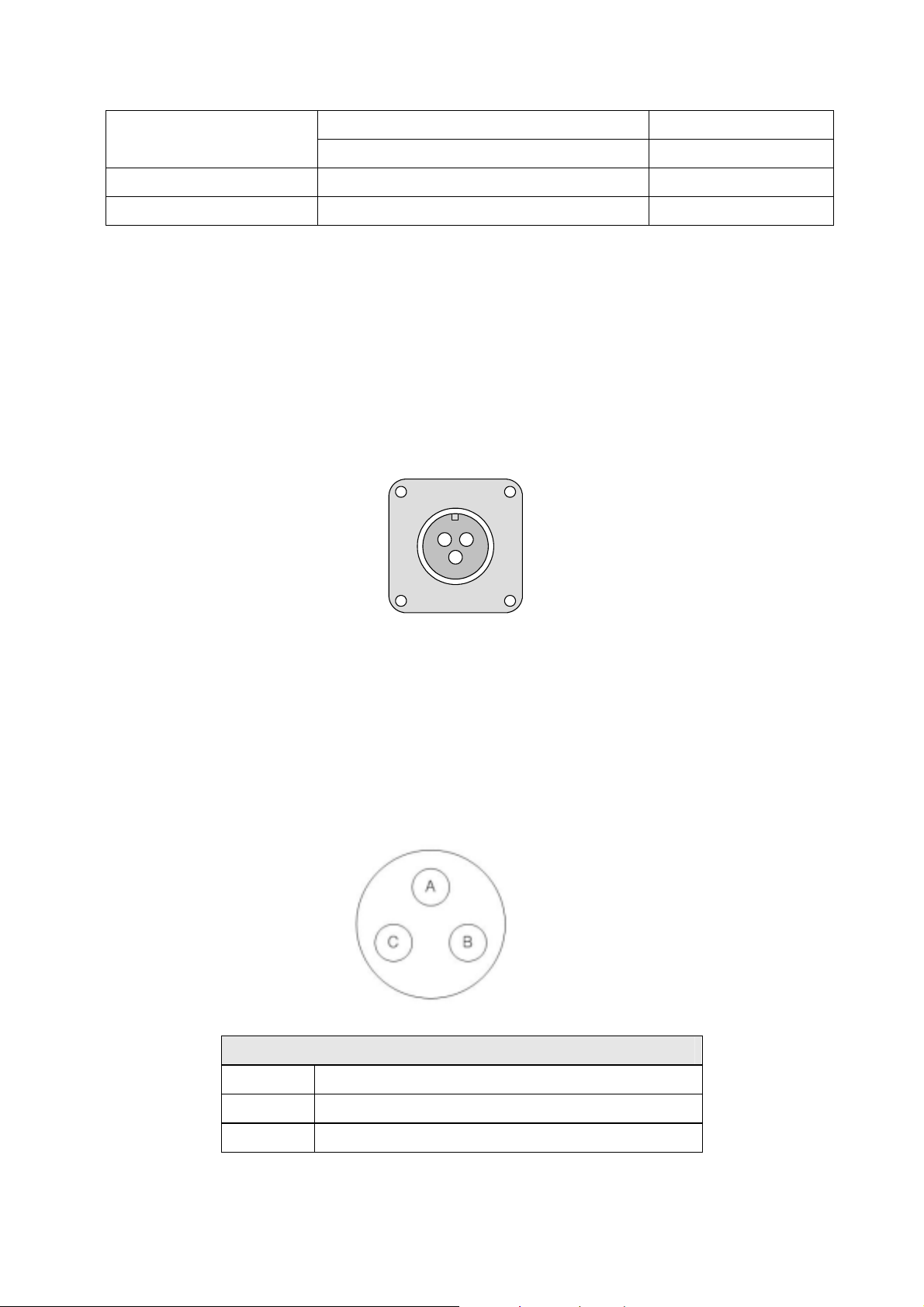

5.12.2 AC IN; Main Box

5.12.3 AC IN; PSU Box

5.12.4 DC IN 24V; PSU Box

---------------------------------------------------------------------------------

-----------------------------------------------------------------------------------

---------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------

----------------------------------------------------------------

----------------------------------------------------------------------------

-----------------------------------------------------------------------------

------------------------------------------------------------------------

7 7 7

9 10 10

13 14 14

17 18 20

22 23

24 26

29 29

30 30

R-TRON Proprietary & Confidential Page 4

System Description NOTCHCELL Repeater

1 Overview

Installation of antenna

Feeder Line

Installation of Repeater

DC Power Cable

R-TRON NOTCHCELL repeaters are used to fill out uncovered areas in CDMA1900 mobile systems, such as base station fringe areas, road tunnels, business and industrial buildings, etc.

A NOTCHCELL repeater receives signals from a base station, amplifies and retransmits the signals t o mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction. Both directions are served simultaneously.

To be able to receive and transmit signals in both directions, the repeater is connected to a donor antenna directed towards the base station and to a service antenna directed towards the area to be covered.

Control of the repeaters is performed using a desktop or notebook loaded with the R-TRON OMT, Operation and Maintenance Terminal, which can communicate with the repeaters either locally or remotely via wireless

R-TRON Proprietary & Confidential Page 5

System Description NOTCHCELL Repeater

data modem. Remote operation can be performed either via CDMA net.

To be able to control many R-TRON NOTCHCELL repeaters in common, there is a Sprint EMS center.

R-TRON NOTCHCELL Repeaters work as bi-directional amplifiers.

A repeater receives, amplifies, and retransmits signals downlink and uplink simultaneously, i.e. from the base station via the repeater to the mobile stations and from the mobile stations via the repeater to the base station.

The repeater can be connected to a donor antenna directed towards the base station, and to a distributor antenna directed towards the area to be covered. These antennas are c onnected to the repeater with type-N connectors.

To prevent instability due to poor antenna isolation, R-TR ON has developed NOTCHCELL Repeater. R-TRON NOTCHCELL Repeaters become clear of having superiority over the other RF repeaters in the world.

The R-TRON NOTCHCELL Repeaters are controlled by powerful microprocessors. Alarm and operational status LEDs are visible on the bottom of the repeater.

The repeater works with convection cooling without fan.

Operational parameters, such as gain, power levels, alarm condition, Automatic Level Control condition, etc. are set using a desktop or notebook and R-TRON OMT, which communic ate, locally via RS-232C cable, with the repeater. Remote operation is performed via CDMA net.

R-TRON Proprietary & Confidential Page 6

System Description NOTCHCELL Repeater

2 Repeater Design

2.1 System specification

2.1.1 Environmental conditions

Item Standard Remark

Power supply AC110V±20%, 50/60Hz±5%

or +24Vdc battery backup available

Operating temperature - 40 ~ +55 ℃ Storage temperature - 40 ~ +70 ℃ Humidity 95 % Consumption power 400 W(Normal),

1200W(Max. In case of the Heater acts at

lower temperature) Rainfall 100 mm/Hr Water proof NEMA 4x Wind pressure 60m/s

<Table 2-1> Environmental Conditions

2.1.2 System features

A. NOTCHCELL repeater

Item SPEC Remark

Frequency bandwidth 15MHz Toward Handset (Down Link) Toward BTS (Up Link)

Input range (dBm)

Max. Output power Gain range (dB) 70 ~ 95dB Max. gain ±0.5dB

Gain control / Interval (dB) 25dB / 1dB Noise figure In band flatness 2dB max.

Absolute group delay 5㎲ max. Interface RS-232 and Modem VSWR 1:1.5 max. Impedance 50Ω RF connector (Antenna Port) N-Female

Size (W x H x D)

Weight

DL 40dBm (10W) / Total UL 25dBm (0.31W) / Total

Maximum Gain 4dB max. Minimum Gain 8dB max.

Main Box 450*635*243mm PSU Box 450*384*265mm Main Box Less than 43Kg(95lbs) PSU Box Less than 25Kg(55lbs)

1930 ~1945MHz 1850 ~1865MHz

-55 ~ -30dBm(DL),

-70 ~ -45dBm(UL)

<Table 2-2> Repeater Features

Based on 11 carriers

R-TRON Proprietary & Confidential Page 7

System Description NOTCHCELL Repeater

B. NOTCHCELL Antenna

Item

Donor ANT Service ANT

Frequency Range 1850 ～1910 MHz, 1930 ~ 1990 MHz Band Width 60MHz, 60MHz V.S.W.R 1:1.5

Gain 17 dBd Half-Beam width (H) 20 Half-Beam width (V) 20 Front-to-back ratio First-to-side ratio

Isolation Impedance 50

Polarization Vertical Vertical Max Power 200 W 200 W

RF connector 7/16” DIN-female 7/16” DIN-female Size (W*H*D) 700*1000*150 mm

Rated Wind Velocity 60 m/sec 60 m/sec Weight Less than 20 kg(44lbs) Less than 17 kg(38lbs) Radiator Material Copper Copper Radome Material Fiberglass Fiberglass Tilt 0˚~ 15˚ 0

이하 ±

1 dB 17 dBd ±1 dB

˚±3˚ ˚±3˚

≥

45 dB

≥

13 dB

ANT Distance (Horizontal)

Ω

<Table 2-3> Antenna Features

SPEC

1:1.5

≥

13 dB (Upper)

≥

100 dB

310*1500*120 mm

이하

˚±5˚

˚± 2˚

≥

45 dB @180deg

≥

1.5m

Ω

~ 15˚

Remark

@180

90deg

The repeater is housed in a cast aluminum chassis that is waterproof, class NEMA 4x, for outdoor use. The chassis has a design suited for outdoor use as well as indoor use.

The chassis consists of a cabinet and a cover joined with hinges. The cabinet contains the repeater circuitry. Inside the repeater, a number of amplifier boards are individually shielded and located under a metal cover that can be folded out. These amplifier boards are different types depending on the supported system.

The followings are the Technical Specification of NOTCHCELL Repeater.

CAUTION: The antenna used for this transmitter must not exceed 20.15dBi and must be installed to provide a minimum separation distance of 3 meters from all persons.

R-TRON Proprietary & Confidential Page 8

System Description NOTCHCELL Repeater

3 Repeater Configurations

The repeater system consists largely of the Main Box and PSU Box. The main modules or units of repeater are as follows:

DPX (Duplexer), MC PA (Multi Carrier Power Amplifier unit), ARCU (Advanced Repeater Control Unit board), ARIU (Advance Repeater Control Unit board), UDC (Up-Down Converter unit, with LNA), Arrestor, PSU (Power Supply Unit), Heater Module, EMI/EMC Filter.

3.1 Main Box

The following is the picture of Main Box.

MCPA-UL

UDC-UL UDC-DL

ARIU

DPX-BS DPX-MS

DL-MCPA

Heat Module

Arrestor Arrestor

Figure 1 Sub units in a band selective repeater (Main Box)

ARCU

A cabinet for a band selective repeater is equipped with two pair of UDC (with LNA) and PA units, one pair for downlink (DL) and one pair for uplink (UL). The described cabinet is equipped for bi-directional band selective operation.

R-TRON Proprietary & Confidential Page 9

System Description NOTCHCELL Repeater

3.2 PSU Box

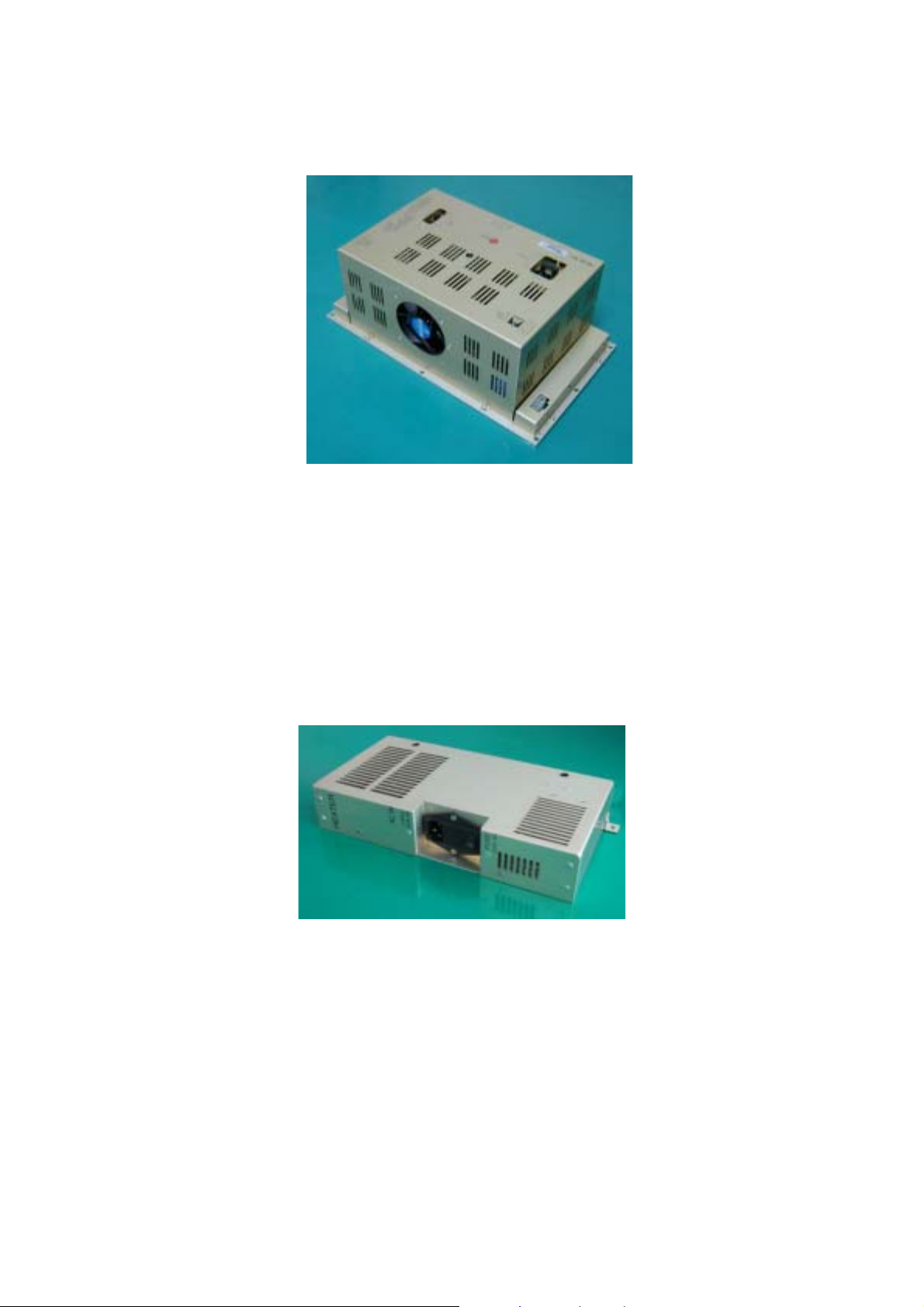

Heat Module

EMI/EMC EMI/EMC

PSU

Figure 2 PSU Box

3.3 Sub Unit Overview

Functionally, repeaters are built up with several sub units. The sub units of main repeater are as follows:

Band selective repeaters can handle multi-carriers over a wide band. The bandwidth is adjustable. A band selective repeater requires two UDC (with LNA) units and two PA units in the repeater. One pair of UDC (with LNA)/PA units is for uplink signaling and one pair is for downlink signaling.

3.3.1 UDC (Up-Down Converter unit) with LNA

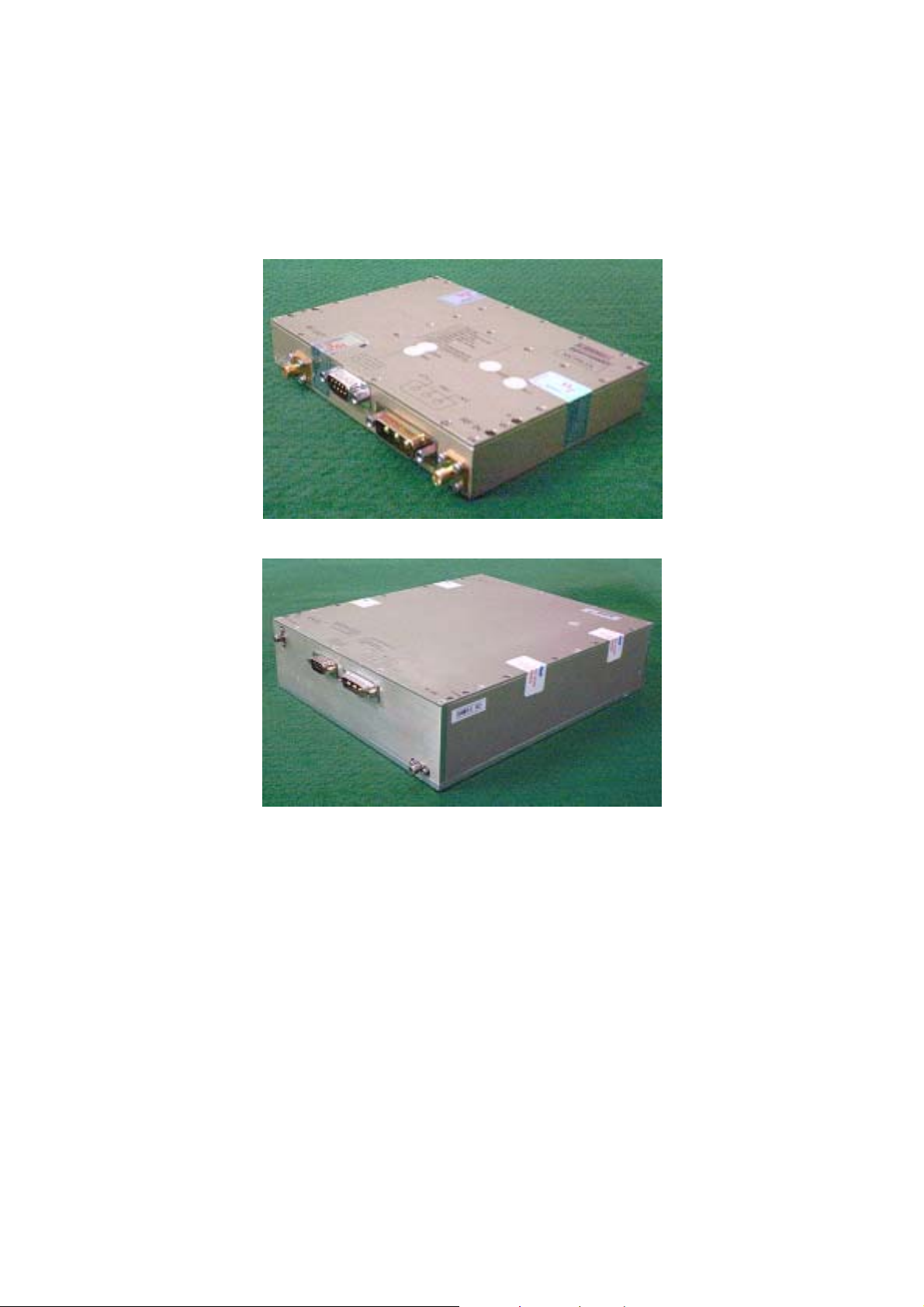

Figure 3 UDC-UL Figure 4 UDC -DL

R-TRON Proprietary & Confidential Page 10
