R-tron APEX 1900-24 User Manual
APEX 1924
User’s Manual
Please read this manual before operating this product.
After you finish reading this manual, store it in a safe place for future reference.
Notice
Trademark
R-tron is a registered trademark of R-tron Inc.
Other products and company names mentioned here in this manual might be trademarks or trade names
of their respective owners.
Copyright
Copyright © R-tron Inc. 2000-2010
All Rights Reserved
Any reproduction, distribution, or revisions of any or all portions of this manual is prohibited without
written permission from R-tron Inc.
Notice
This document describes the specifications, installation, and operation of the APEX 1900-24 repeater.
Hardware and software mentioned in this document are subject to continuous development and
improvement. Consequently, there may be minor discrepancies between the information in the document,
performance, and design of the product.
Specifications, dimensions, and other statements mentioned in this document are subject to change
without notice.
Questions or Comments
Address: R-tron Inc. 6402 College Boulevard, Overland Park, KS 66211
Phone: +1-913-344-9977, 1-888-317-8766
Fax: +1-913-344-9988
e-mail: info@r-tronamerica.com
Website: www.rtronamerica.com
APEX 1900-24 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766
1
Safety Precautions
Opening the APEX 1900-24 equipment could result in electric shock and may cause severe injury.
Connect the equipment frame ground to the building ground.
Operating the APEX 1900-24 with antennas in very close proximity facing each other can lead to
severe damage to the repeater.
RF EXPOSURE INFORMATION
A minimum separation distance of 7.9 inches (20cm) must be maintained between the user and the
external antenna of the repeater to satisfy FCC RF exposure requirements. For more information
about RF exposure, please visit the FCC website at www.fcc.gov
This equipment is for indoor use only and enables the communication wiring to communicate inside
the building.
APEX 1900-24 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766
2
Manual Version History List
Revision History
Approval Ver. Issue Ver.
Date Item/Description Reason
Firmware Version History List
Revision History
Approval Ver. Issue Ver.
Date Item/Description Reason
WEB GUI Version History List
Revision History
Approval Ver. Issue Ver.
Date Item/Description Reason
APEX 1900-24 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766
3
Contents
Glossary ...............................................................................................................................................4
1. Introduction..................................................................................................................................4
2. Description....................................................................................................................................5
2.1 Main Unit Overview............................................................................................................ 5
2.2 Internal Configuration.......................................................................................................... 6
2.2.1 RFU (RF Unit)……………………………………………………………………………...7
2.2.2 Duplexer…………………………………………………………………………………….8
2.2.3 PSU (Power Supply Unit)…………………………………………………………………..8
2.2.4 MCU (Main Control Unit)………………………………………………………………….8
3. Hardware Installation ...................................................................................................................8
3.1 Check List of Items ............................................................................................................. 9
3.2 Mounting............................................................................................................................ 9
3.3 Grounding ........................................................................................................................ 12
3.4 Cable Connection.............................................................................................................. 12
3.5 Power On……………..…….....……………….…..…...…………………………………………13
4. Operation....................................................................................................................................14
4.1 System Requirements ........................................................................................................ 14
4.2 Network Setup .................................................................................................................. 14

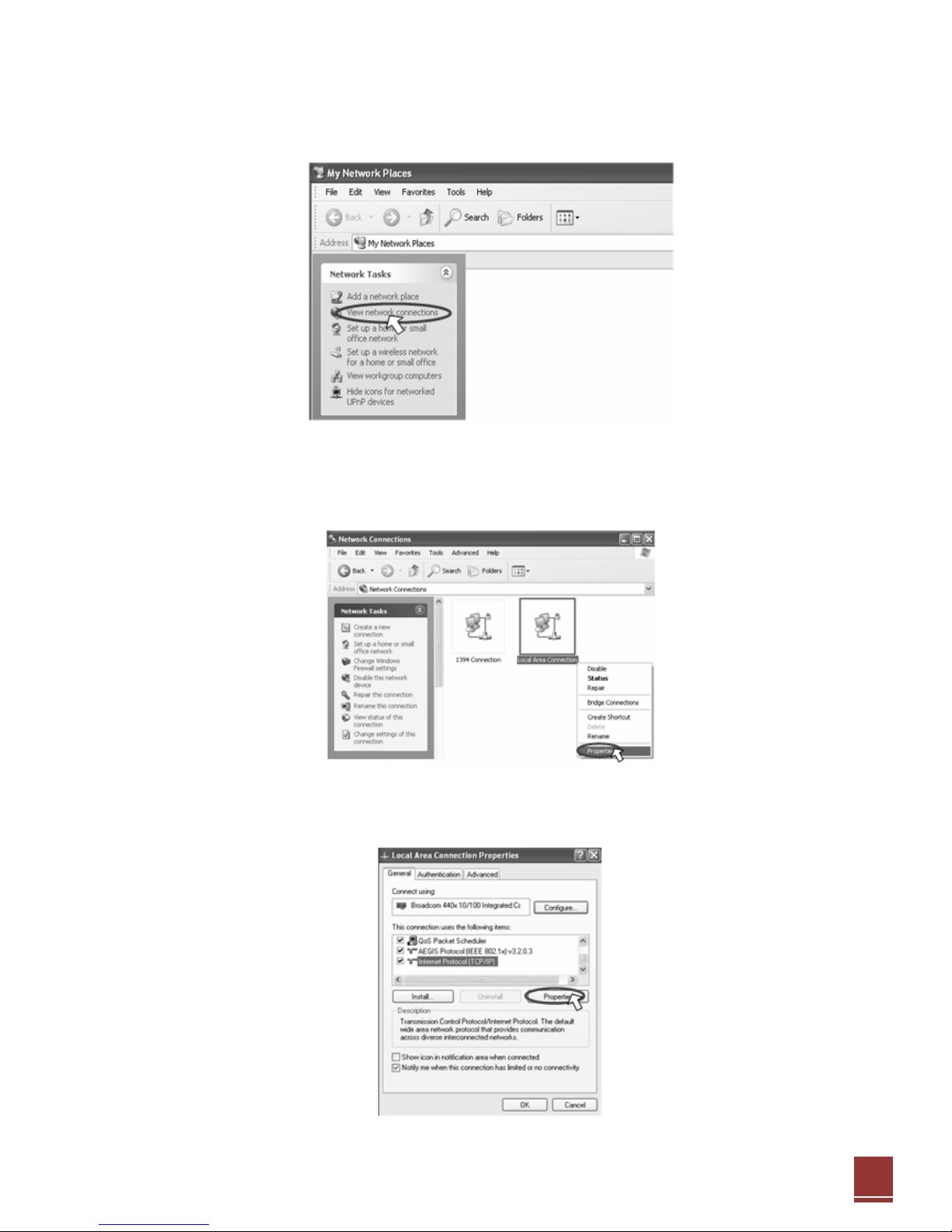

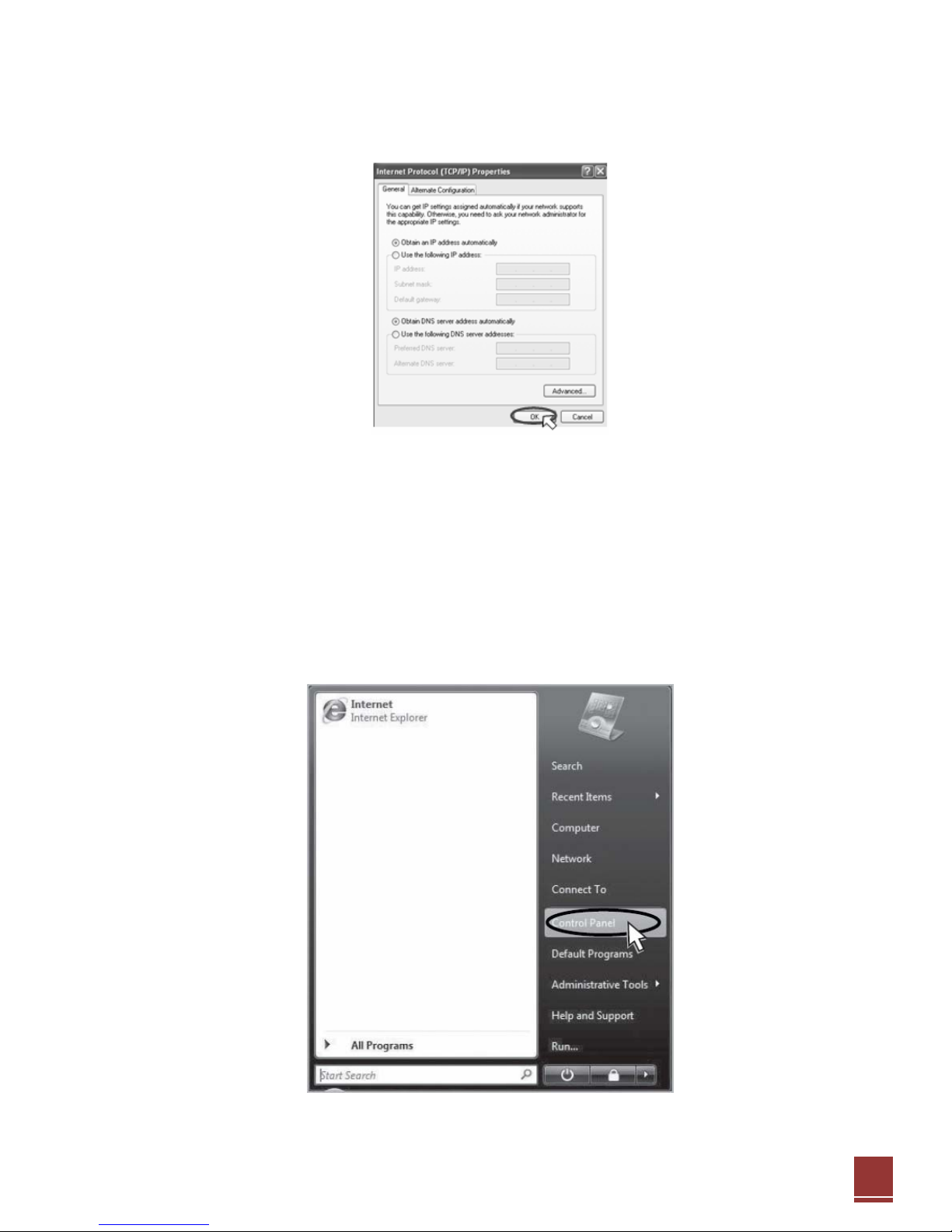

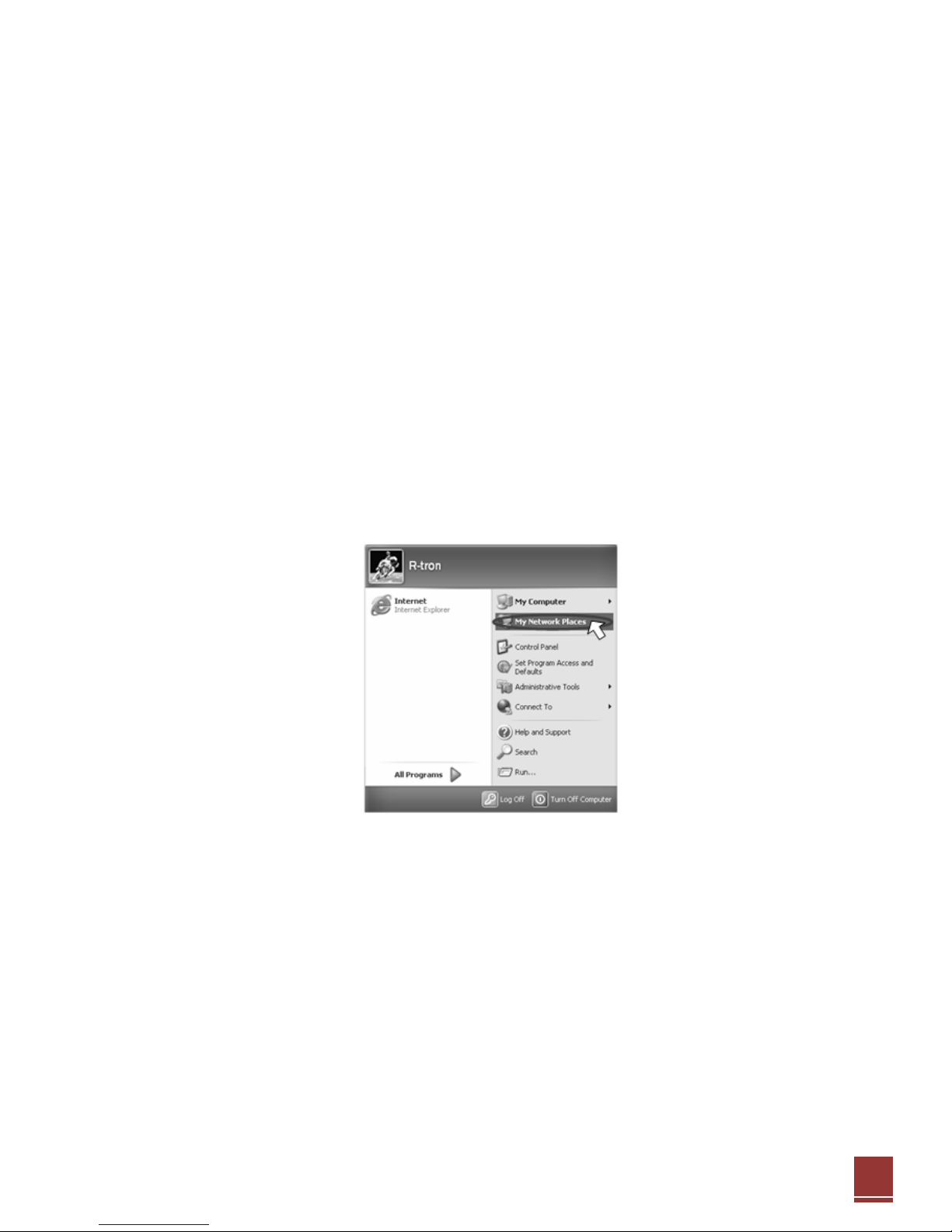

4.2.1 Windows XP……………………………………………………………………………….14

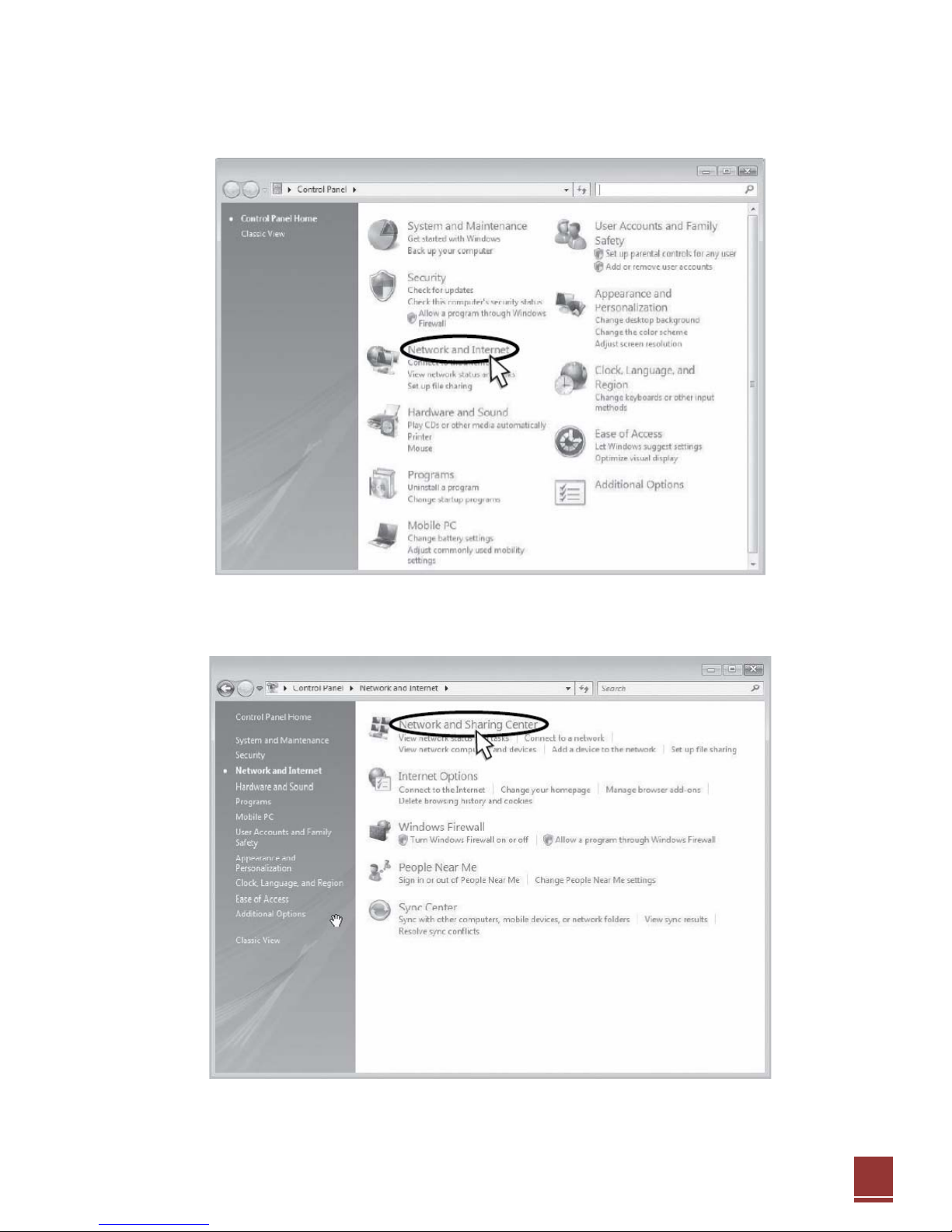

4.2.2 Windows Vista……………………………………………………………………………..16

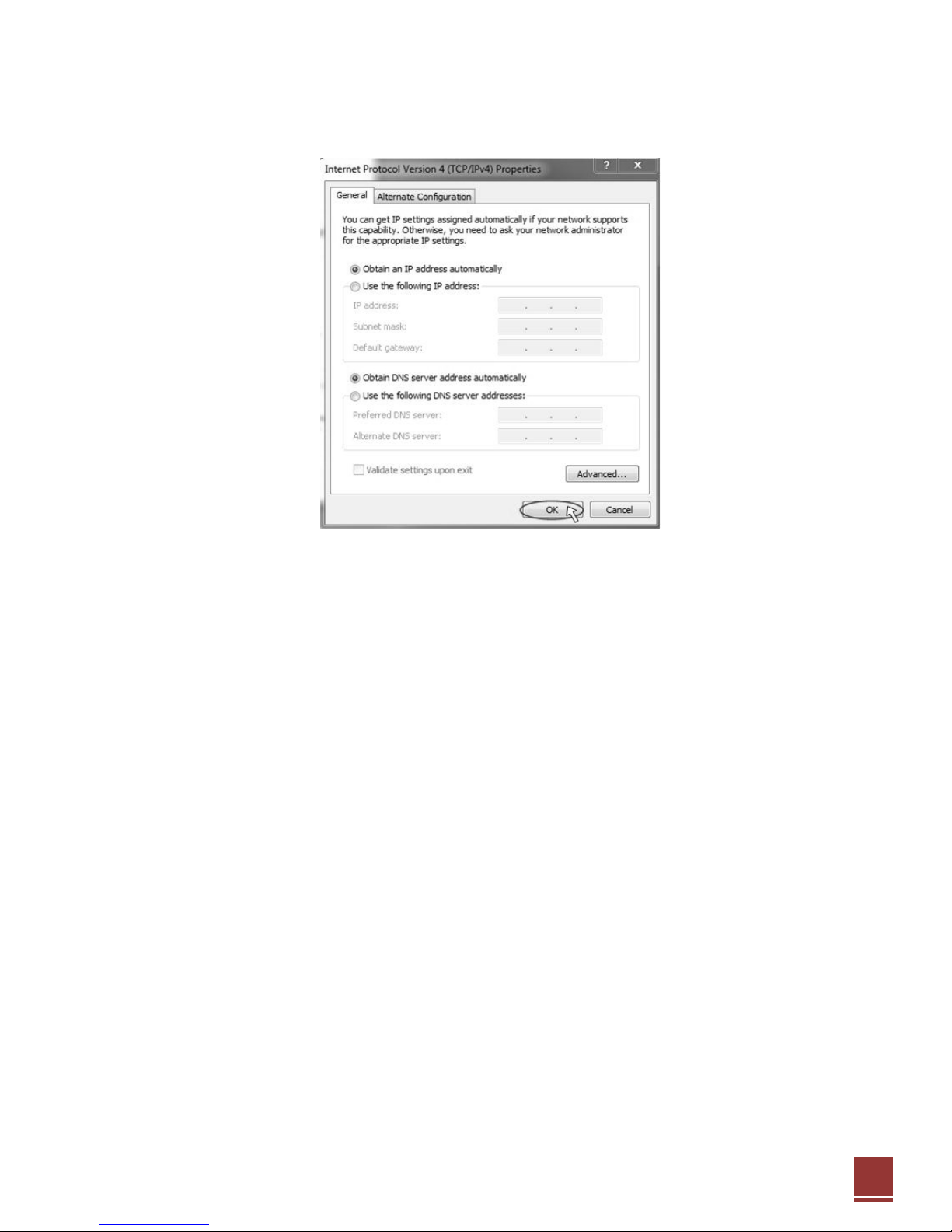

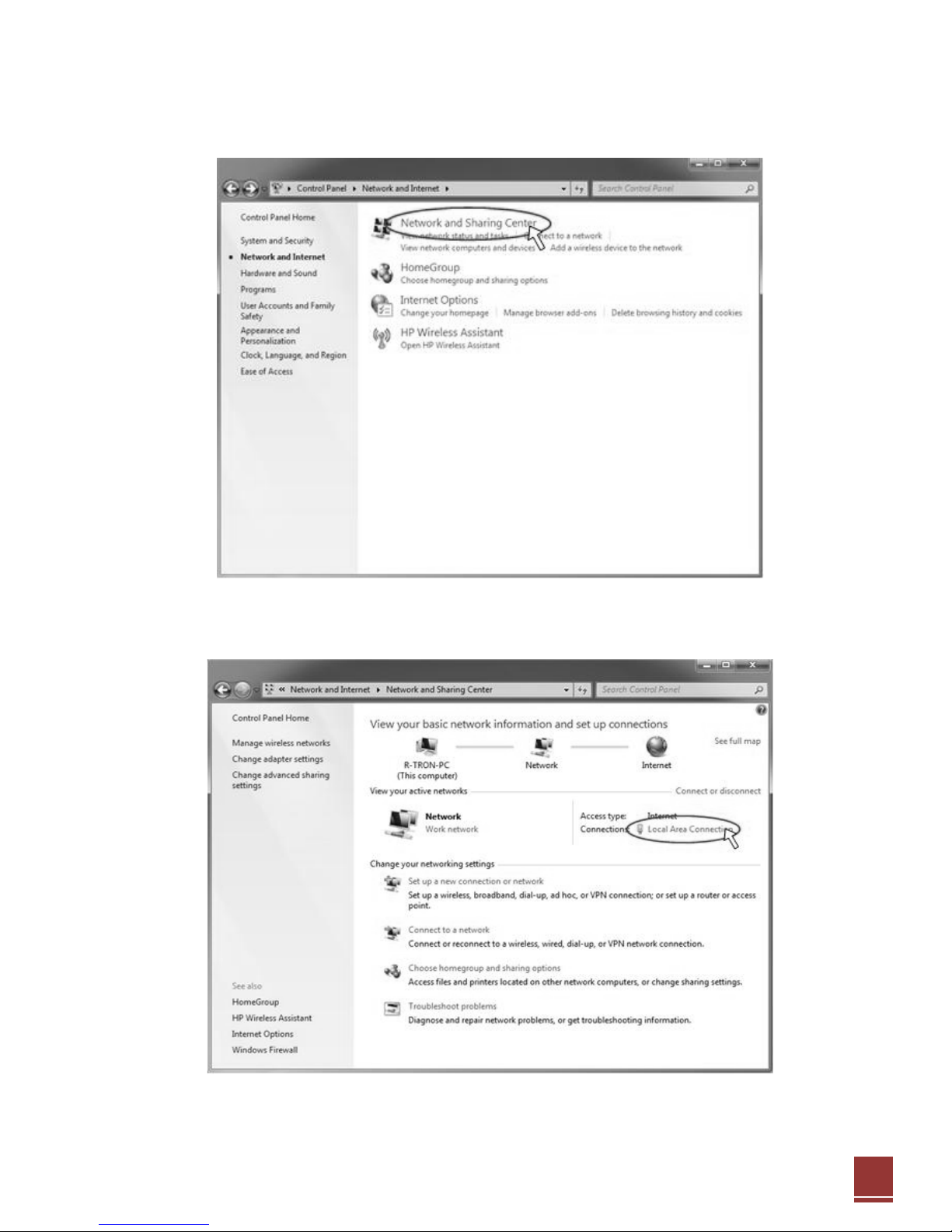

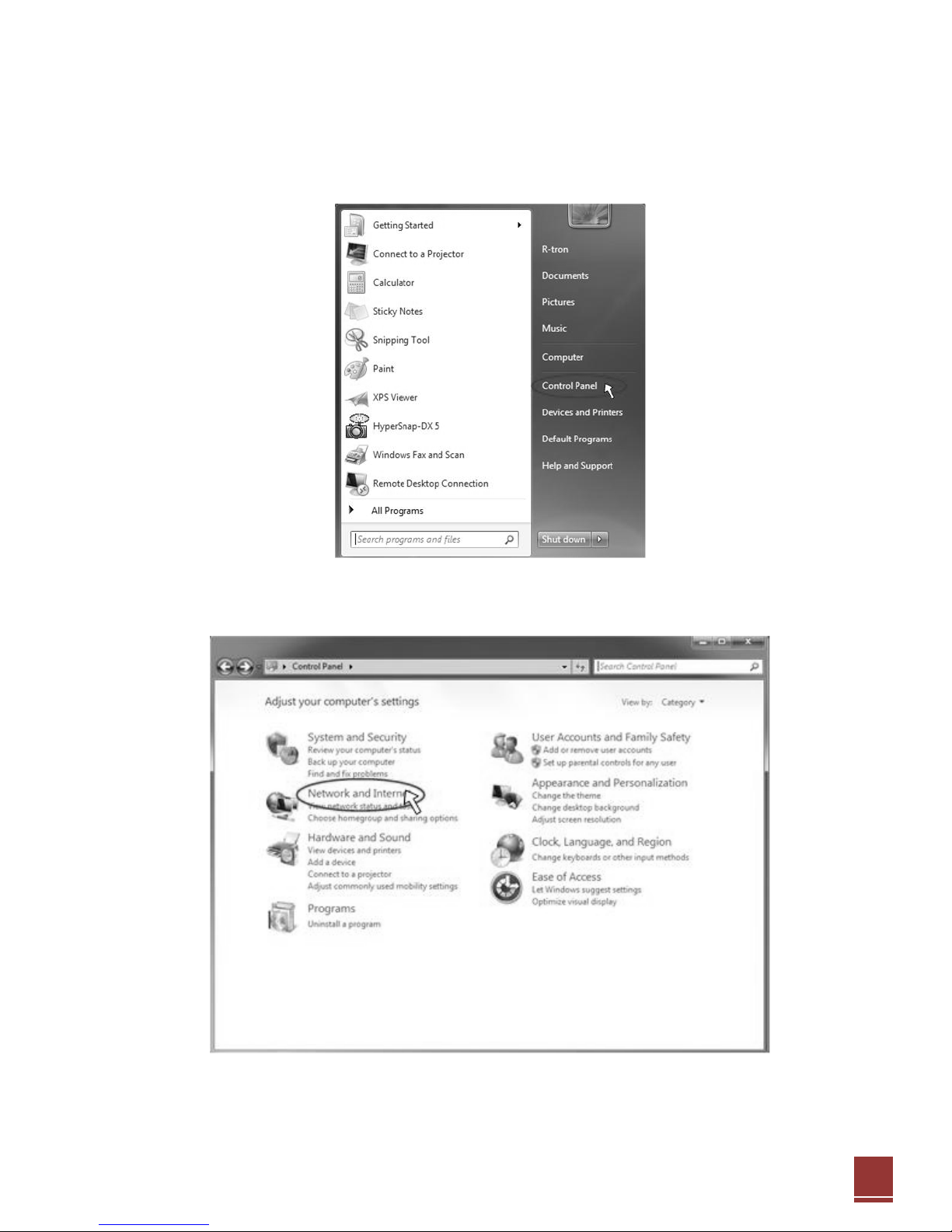

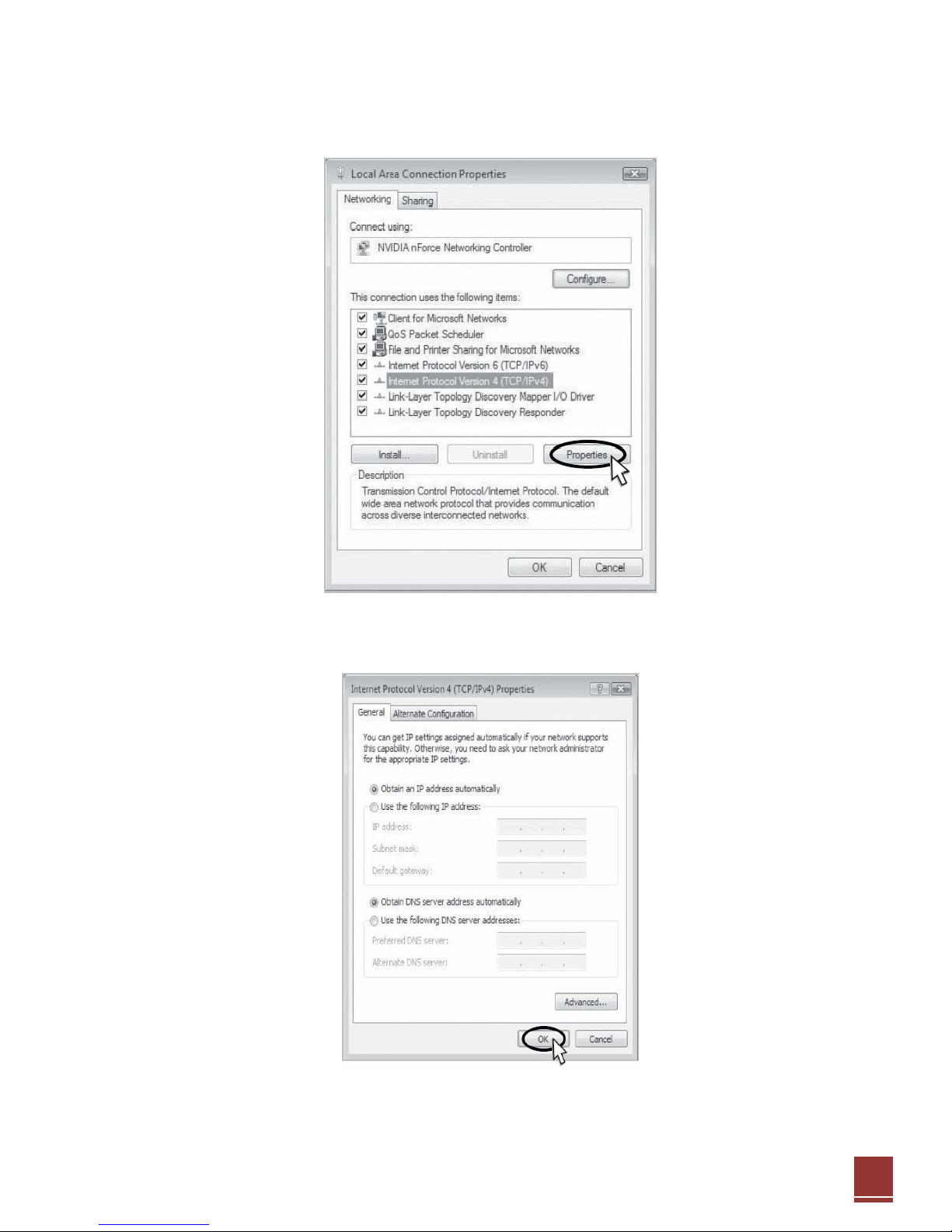

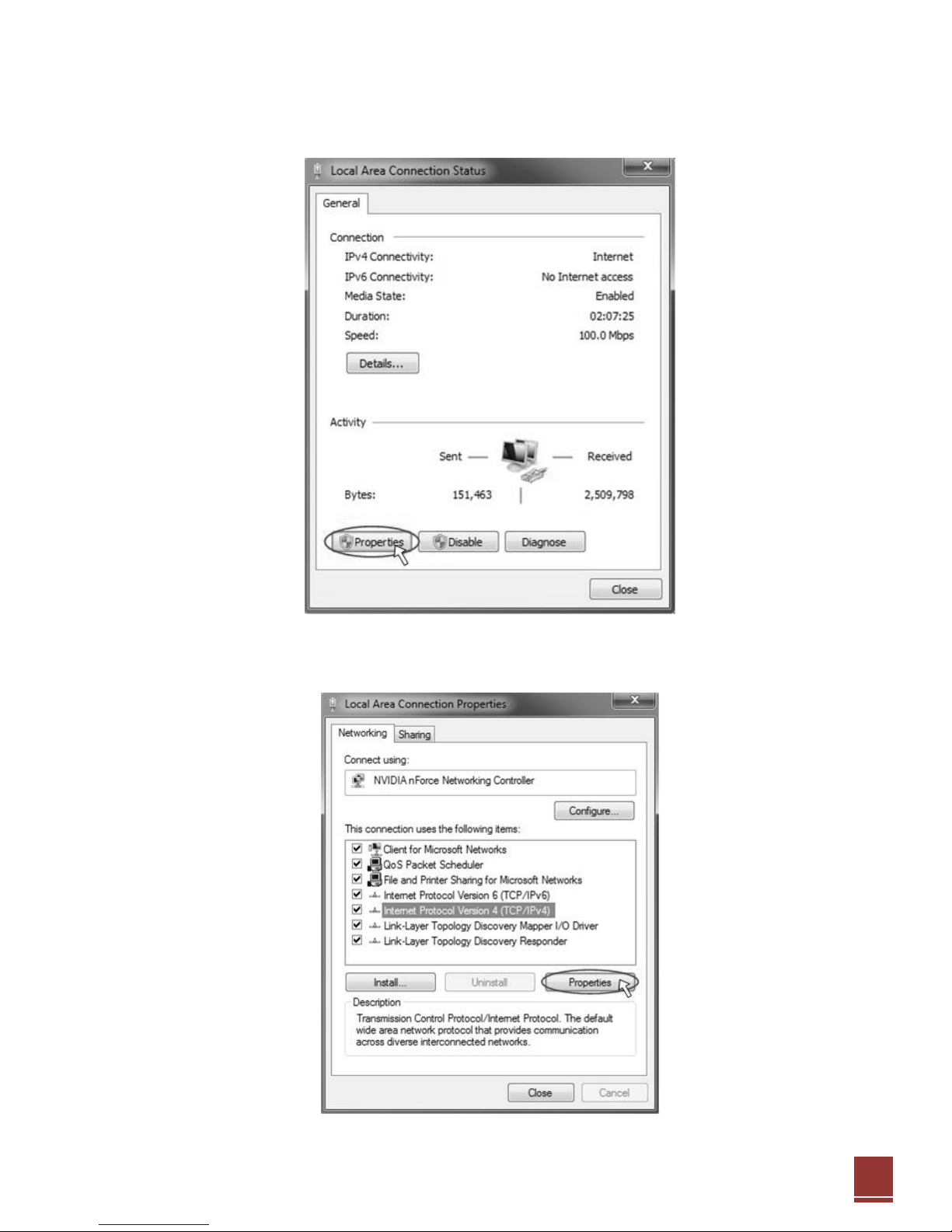

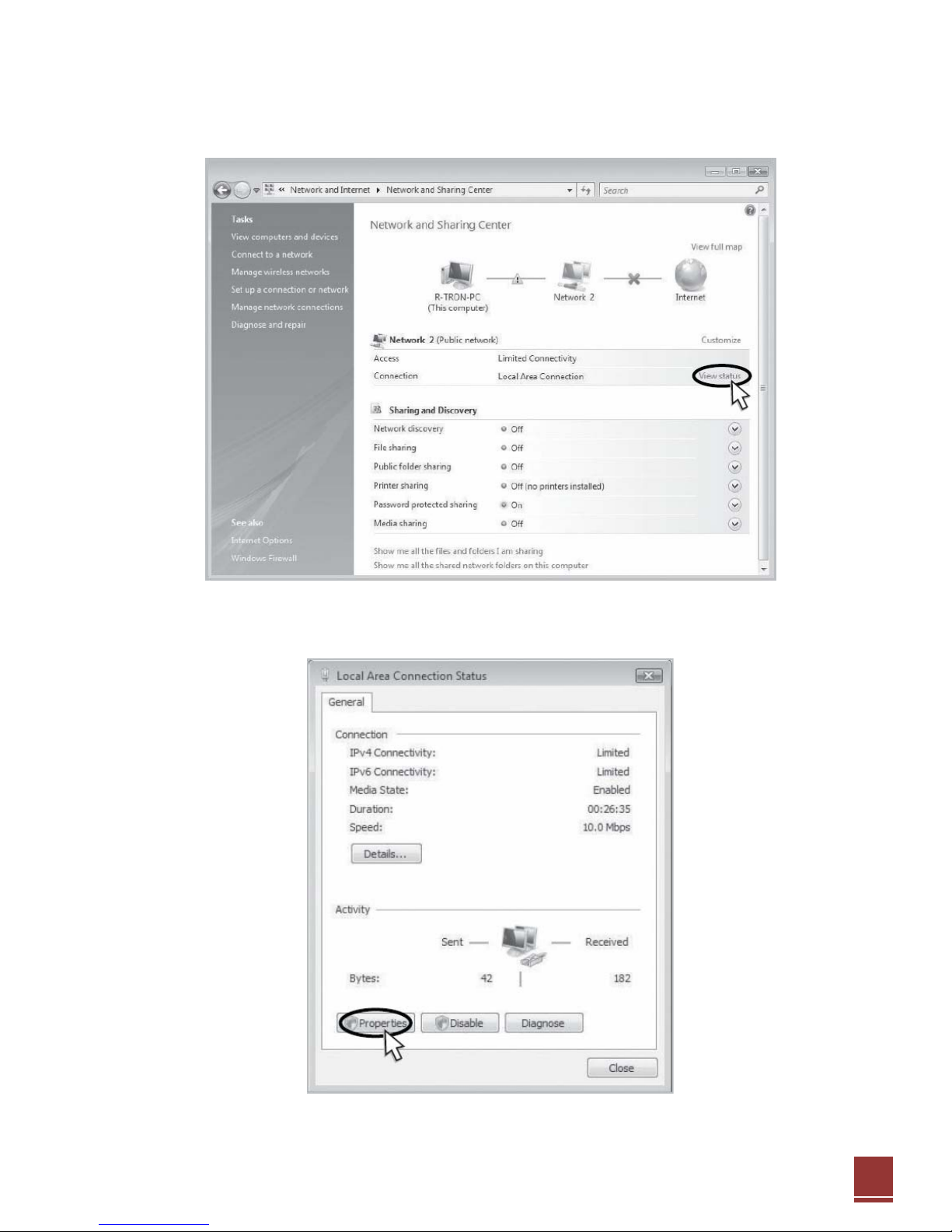

4.2.3 Windows 7…………………………………………………………………………………20
4.3 System Login.................................................................................................................... 24

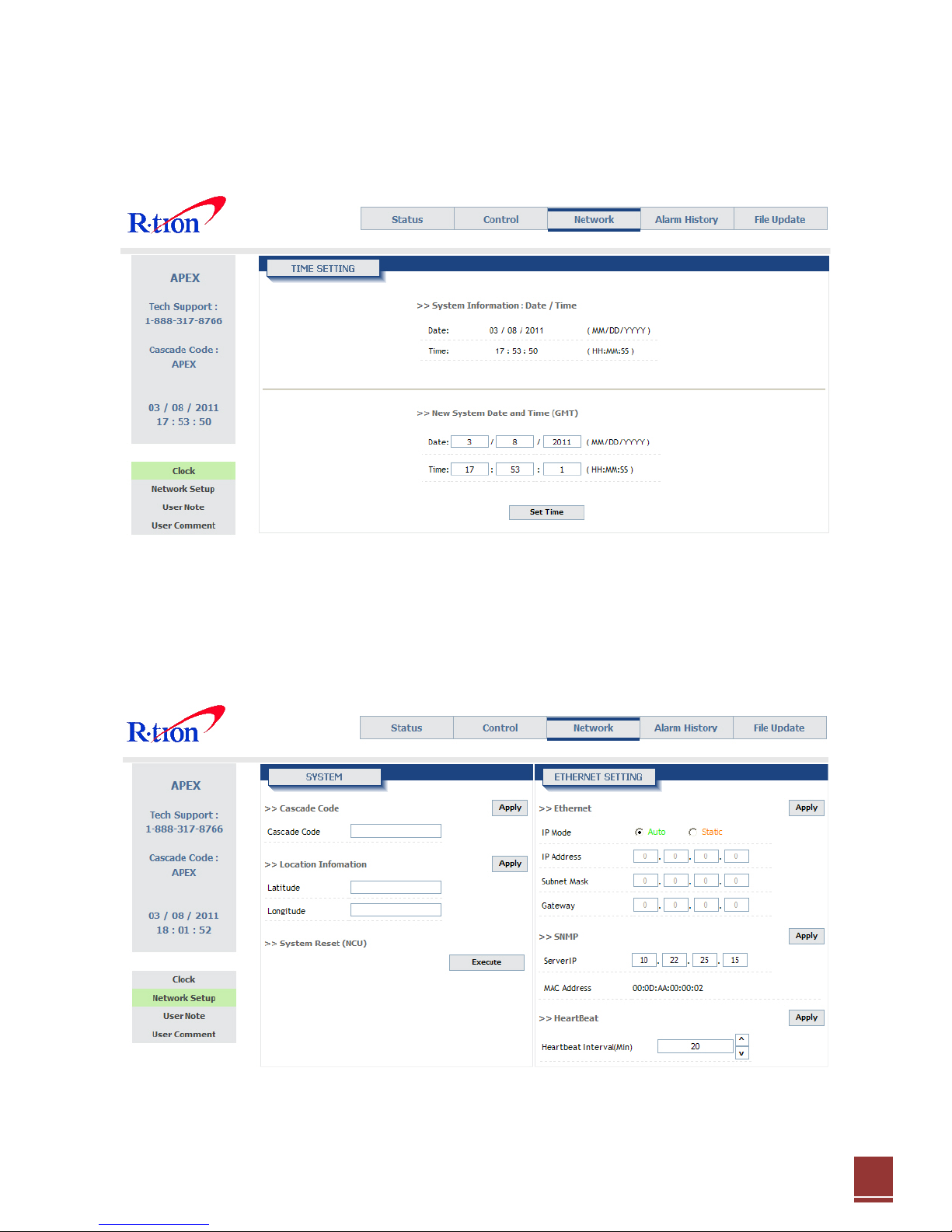

4.3.1 Network……………………………………………………………………………………..28
4.3.2 Status……………………………………………………………………………………….28
4.3.3 Control……………………………………………………………………………………...28
4.3.4 File Update…………………………………………………………………………………29
4.3.5 Alarm History………………………………………………………………………………29

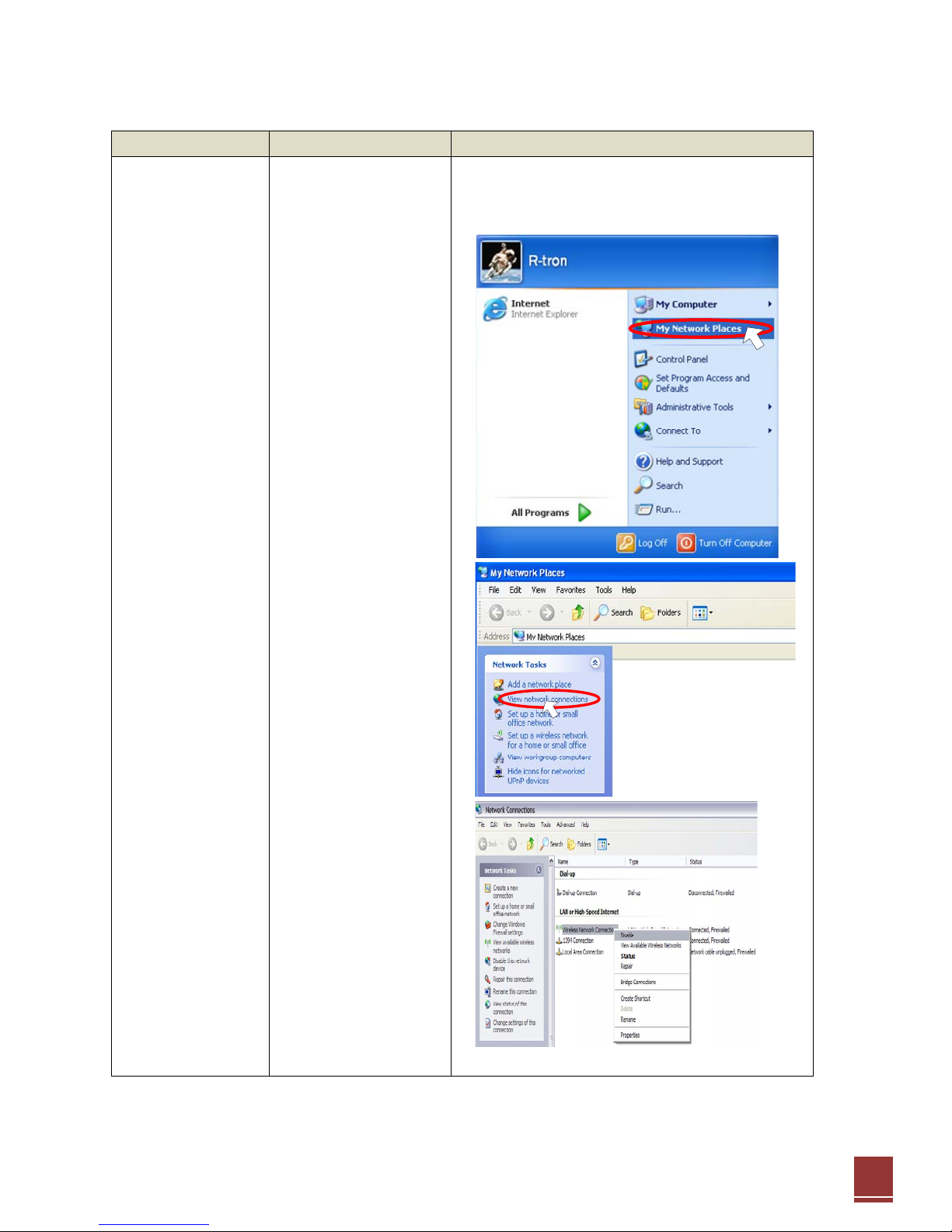

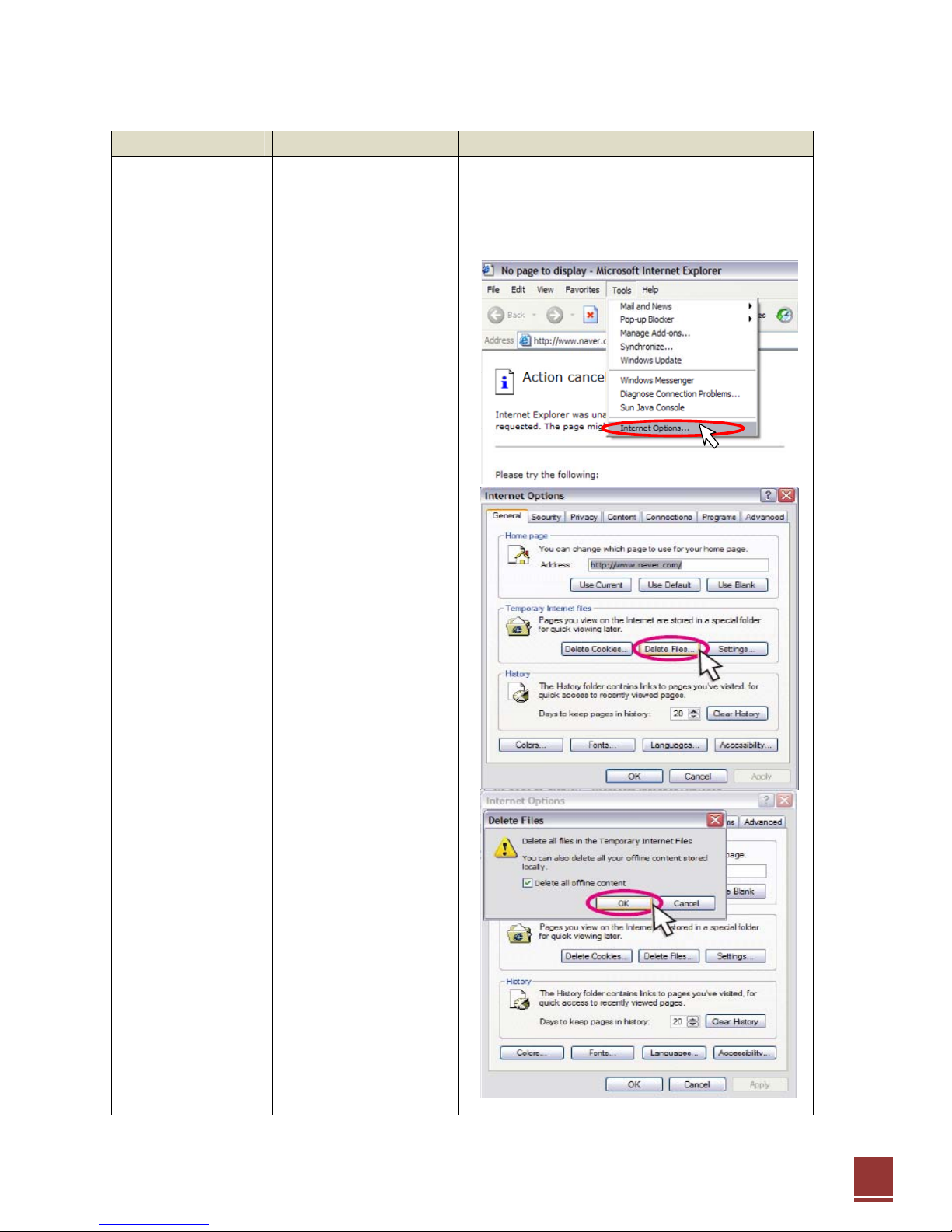

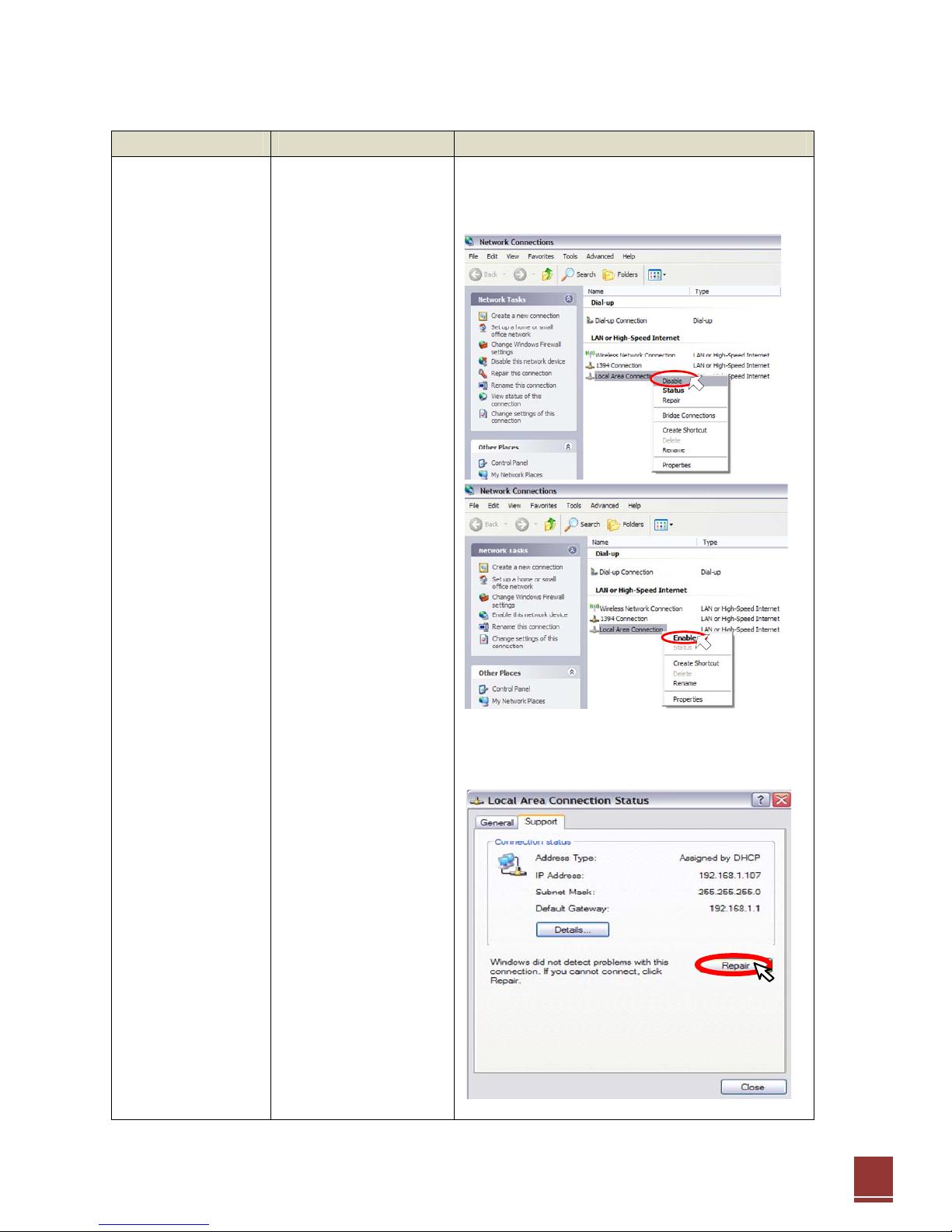

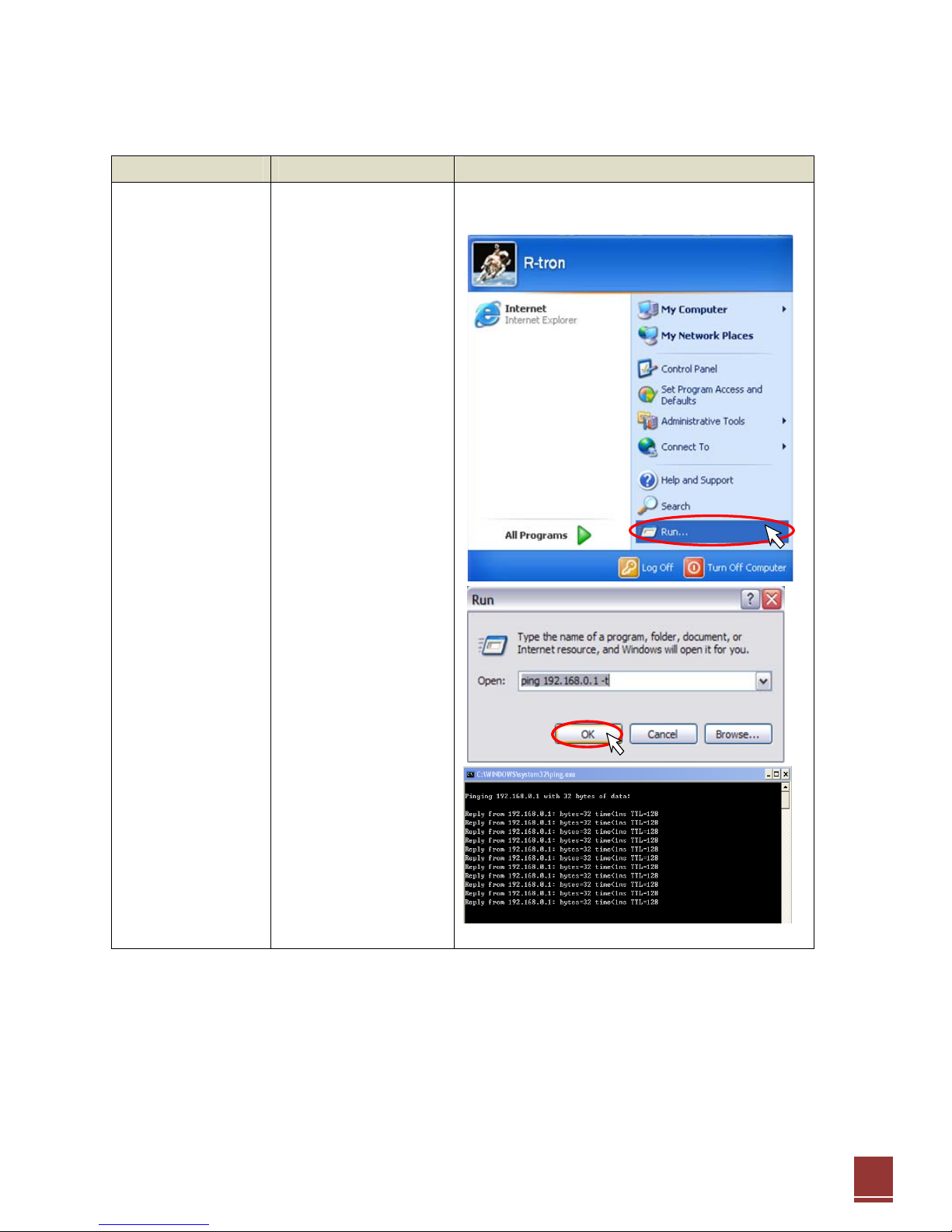

5. Troubleshooting ..........................................................................................................................30
6. Specifications...............................................................................................................................35
6.1 RF Characteristics.................................................................................................................. 35

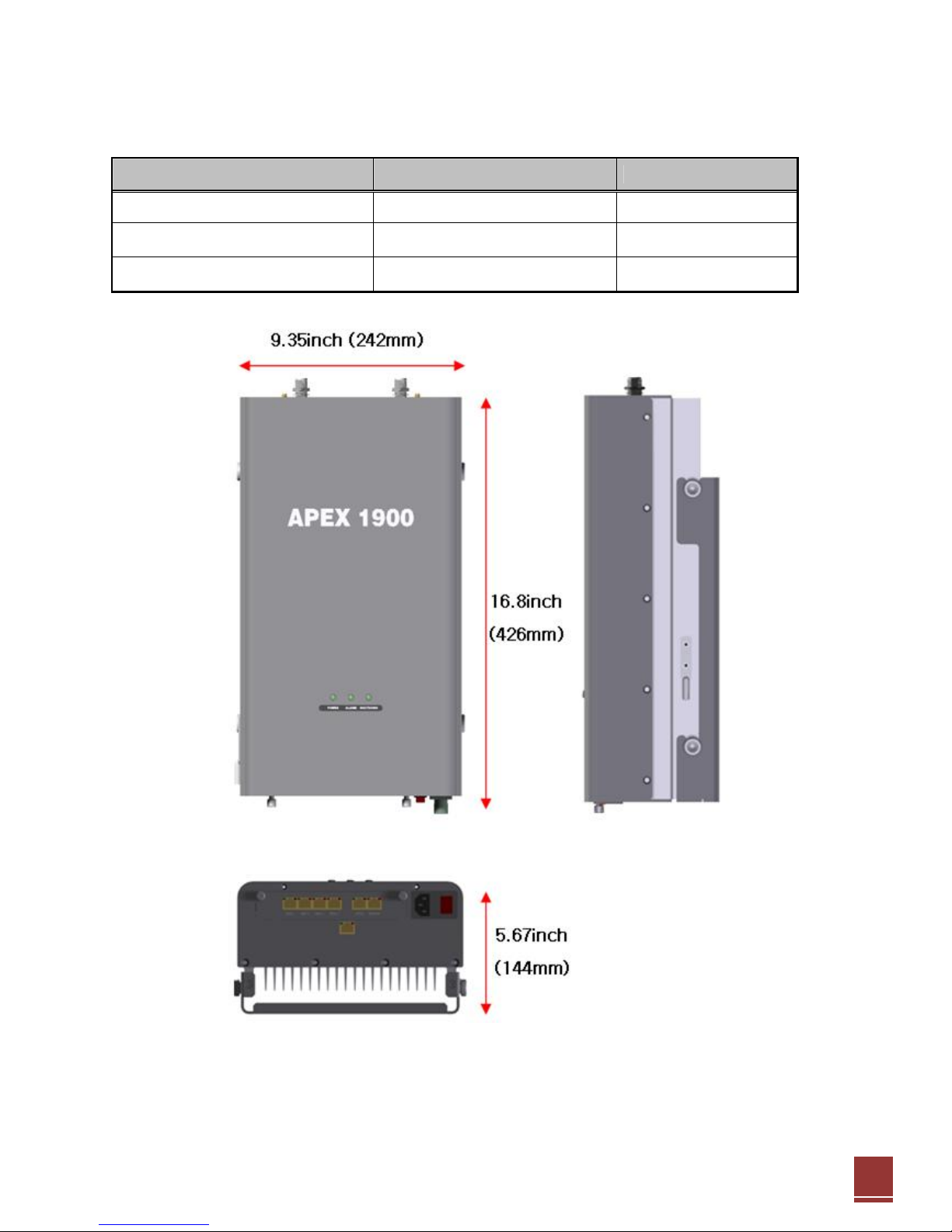

6.2 Mechanical Specification........................................................................................................ 36

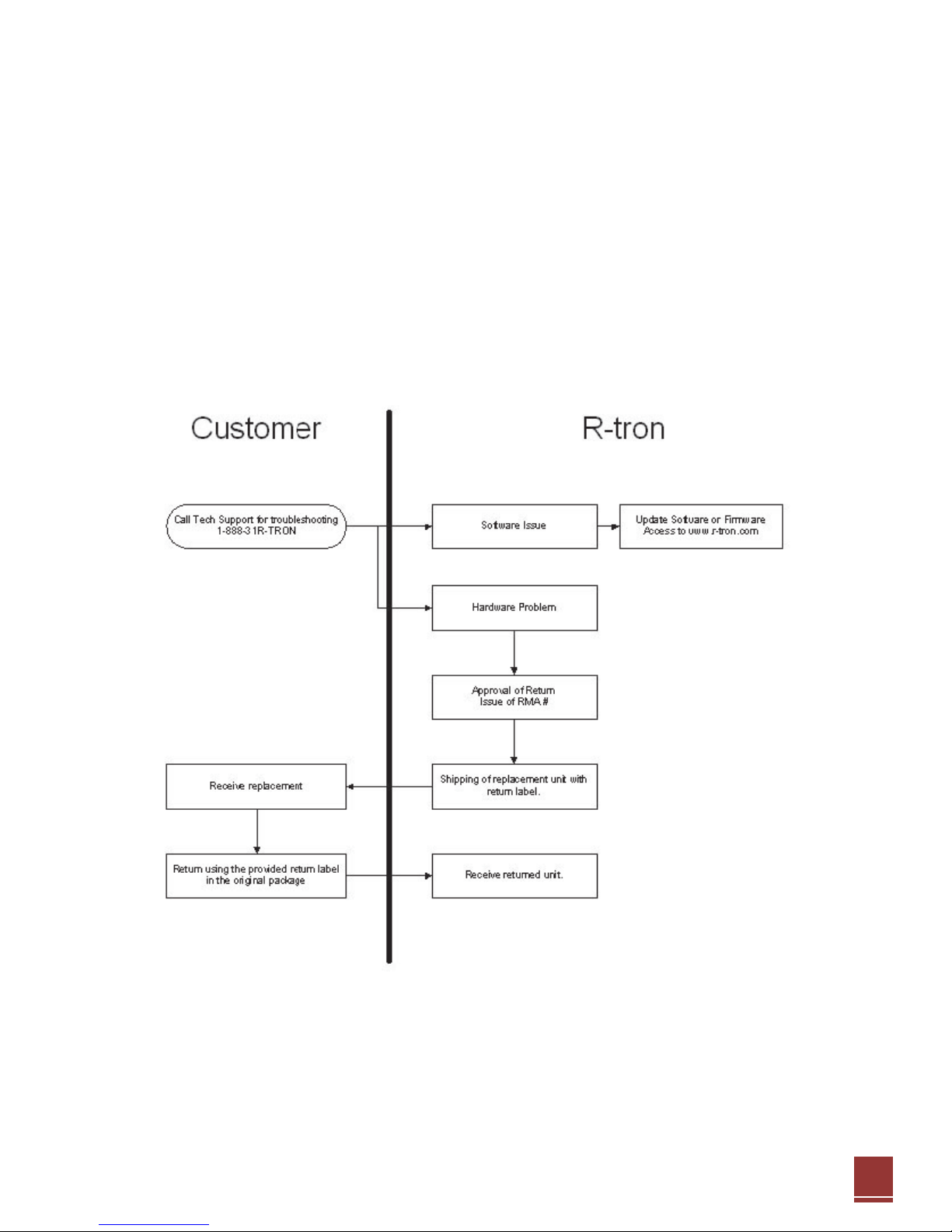

7. Appendix.....................................................................................................................................37
APEX 1900-24 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766
4
Glossary
The following is a list of abbreviations and terms used in this manual.
Abbreviation Definition
AC Alternating Current
ANT Antenna
ATT Attenuator / Attenuation
CDMA Code Division Multiple Access
DC Direct Current
DL Downlink
GND Grounding
GUI Graphic User Interface
LED Light Emitting Diode
PLL Phase-locked loop
PSU Power Supply Unit
RF Radio Frequency
RSSI Received Signal Strength Indication
TEMP Temperature
UL Uplink
VSWR Voltage Standing Wave Ratio
AGC (Automatic Gain Control)
AGC feature prevents the repeater from exceeding its maximum output power by reducing the gain
automatically. AGC is used to adjust the gain to an appropriate level for a range of input signal
levels
.
ASD (Automatic Shutdown)
ASD does not:
1. prevent oscillation
2. protect from excessive input.
ASD helps protect the amplifier from over load. ASD helps protect the network by preventing
excessive signal output power.
There are three parameters: ASD Level, ASD Time, and ASD Iteration.
If the output power exceeds higher than the “ASD LEVEL”, the repeater will shut down for “ASD
TIME” seconds and it will turn the amp back on to measure the output power again. If this repeats at
“Iteration” times, the repeater will shut down completely.
1. Introduction
APEX1900-24 is used to fill out areas in APEX1900-24 systems, such as base station fringe areas,
business and industrial building, etc.
APEX1900-24 receives signals from a base station, amplifies and retransmits the signals to the
mobile stations. It also receives, amplifies and retransmits signals in the opposite direction. Both
directions are served simultaneously with the following features:
APEX 1900-24 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766
5
< Basic Organization >
APEX1924 Key Features

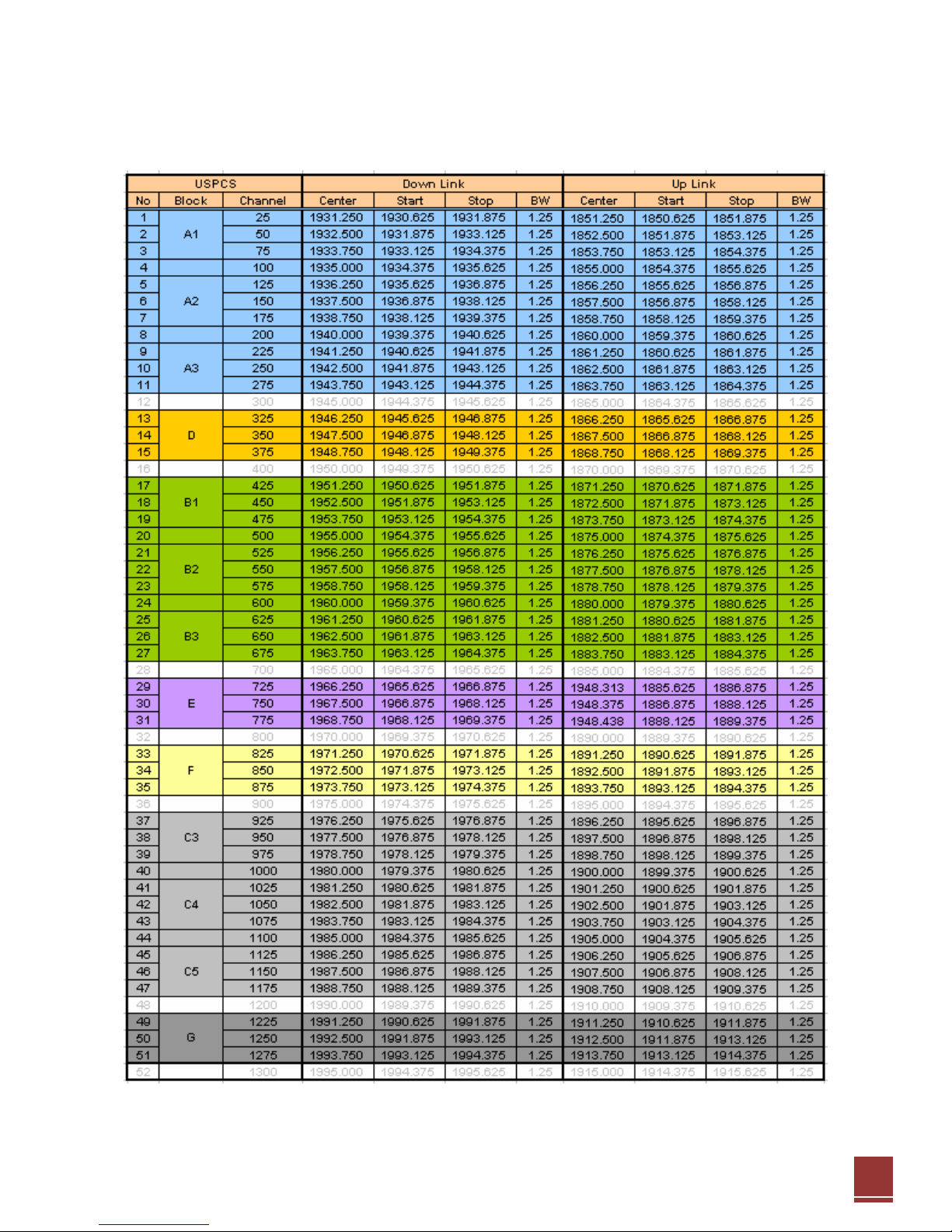

◈ Design(Each BDA is possible to service selected channels by the user within a band.)
- Possible to select any channel combination within a band caused by the Digital Filter.
- Using the Digital Filter: High quality, out of band rejection, high performance
◈ User friendly design.
- Local monitoring and control through the Web GUI interface
- Remote monitoring and control through the Remote Access and Control
- Reports the status of connection as a function of SNMP regularly and reports an alarm if the
event occurred.
◈ Protection function
- Isolation Check
- Auto Gain Control
- Auto Shutdown
2. Description
2.1 Main Unit Overview
APEX 1900-24 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766
6
2.2 Internal Configuration
APEX 1900-24 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766
7
2.2.1 RFU (RF Unit)
The RFU (RF Unit) is a bi-directional amplifier that sharply filters out unwanted noise.
APEX 1900-24 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766
8
2.2.2 Duplexer
A duplexer is a device that combines two or more signals onto a common channel or
medium to increase its transmission efficiency.
2.2.3 PSU (Power Supply Unit)
The AC-DC adaptor supplies a steady DC power to the APEX1924 equipment by drawing
power from the general in-wall AC outlets.
Specification
Item Specification
Operating Temp
-10˚C~50˚C (14˚F~122˚F)
Humidity 20%~90%RH
Environmental
Cooling method Convection.
Vol ta ge
AC 85-264V
Current +24V/6.5A (150W)
Frequency
50/60(47-63)
2.2.4 MCU (Main Control Unit)
The MCU (Main Control Unit) is the control unit of a APEX1924. It controls and monitors
operational parameters. It is also responsible alarms, keeping event logs and performing
many other functions of the APEX1924.
3. Hardware Installation
The installation procedure is as follows:
• Confirm Items from List
APEX 1900-24 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766
9
• Mounting
• Grounding
• RF Cable Connection
• Power On
3.1 Check List of Items
Index Items Quantity
1 Repeater 1
2 AC Cable 1
3 LAN Cable 1
4 Anchor Bolt 4
5 Quick Installation Guide 1
6 User’s Manual 1
3.2 Mounting
Step 1: Drill holes directly through the template. and attach the mounting bracket to the wall
using provided bolts or extra screws.
APEX 1900-24 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766
10
Step 2: Lean the APEX1924 to hang the topside of the Guide Ring on the mounting bracket, and
push toward the wall to mount.
APEX 1900-24 USER MANUAL V1.0.00 Tech Support: 1-888-317-8766
11
Step 3: Fix the APEX1924 using the 4 screws provided.

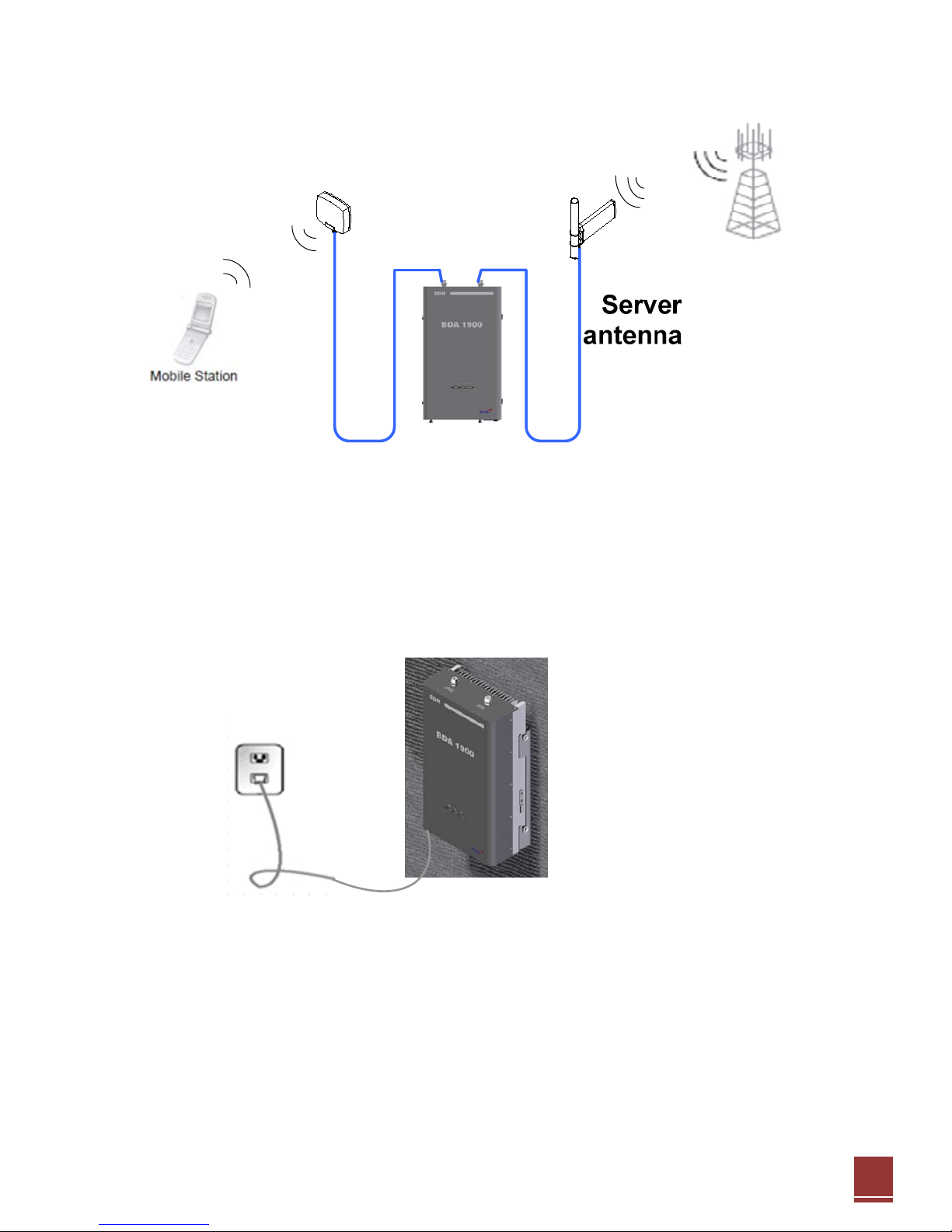

Step 4: Example
