RTI T2+ Operation Manual
T2+
Operation Guide
v1.0
T2+
IR-PRO
Universal System Controller
Professional Infrared Code Capture System
FEDERAL COMMUNICATIONS COMMISSION NOTICE
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the
receiver.
•
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
FCC ID: MMURTI0200
CAN: 31661032251
i
T2+ Universal System Controller
BATTERY DISPOSAL
For environmental reasons, your T2+ universal system
controller uses “environmentally sound” Lithium-ion
rechargeable batteries. These batteries do not contain
any poisonous heavy metals that can damage the
Li-ion
environment.
In the interest of recycling, please do not dispose of these batteries
in the household waste at the end of their useful life. Instead,
dispose of them
at an appropriate collection site.
SAFETY SUGGESTIONS
Read Instructions. Read all safety and operating instructions
before operating the unit.
Heat. Keep the unit away from heat sources such as radiators,
heat registers, stoves, etc., including amplifiers that produce heat.
Power Sources. Connect the docking station only to the power
supply that was included with the unit. Recharge the battery only
with the docking station that was included with the unit.
Power Cord Protection. Route power supply cords so that they
are not likely to be walked on or pinched by items placed on or
against them, paying particular attention to the cords at power
receptacles and at the point at which they exit from the unit.
Nonuse Periods. Unplug the power supply from the outlet when
the unit is to be left unused for a long period.
Water and Moisture. Do not use the unit near water—for
example, near a sink, in a wet basement, near a swimming pool,
near an open window, etc.
Object and Liquid Entry. Do not allow objects to fall or liquids to
be spilled into the enclosure through openings.
Cleaning. The unit should be cleaned only as recommended in the
operating guide.
ii
Servicing. Do not attempt any service beyond that described in
the operating guide. Refer all other service needs to qualified
service personnel.
Damage Requiring Service. The unit should be serviced by
qualified service personnel when:
•
The power supply cord or the plug has been damaged.
•
Objects have fallen or liquid has been spilled into the unit.
•
The unit does not appear to operate normally or exhibits a
marked change in performance.
LIMITED WARRANTY
Remote Technologies Incorporated warrants its products for a
period of one (1) year from the date of purchase from Remote
Technologies Incorporated or an authorized Remote Technologies
Incorporated distributor.
This warranty may be enforced by the original purchaser and
subsequent owners during the warranty period, so long as the
original dated sales receipt or other proof of warranty coverage is
presented when warranty service is required.
Except as specified below, this warranty covers all defects in
material and workmanship in this product. The following are not
covered by the warranty:
Damage resulting from:
1. Accident, misuse, abuse, or neglect.
2. Failure to follow instructions contained in this Guide.
3. Repair or attempted repair by anyone other than Remote
Technologies Incorporated.
4. Causes other than product defects, including lack of skill,
competence or experience of user.
5. Shipment of this product (claims must be made to carrier).
6. Being altered or which the serial number has been defaced,
modified or removed.
iii
T2+ Universal System Controller
Remote Technologies Incorporated is not liable for any damages
caused by its products or for its failure of its products to perform,
including any lost profits, lost savings, incidental damages, or
consequential damages.
Remote Technologies Incorporated is not liable for damages based
upon inconvenience, loss of use of the product, loss of time,
interrupted operation, commercial loss, any claim made by a third
party or made by you for a third party.
Remote Technologies Incorporated’s liability for any defective
product is limited to repair or replacement of the product, at our
option.
If your T2+ needs service, please contact Remote Technologies
Incorporated by telephone, fax or e-mail for return information.
Please do not return products to RTI without return
authorization.
DISCLAIMER
All rights are reserved. No part of this document may be
photocopied, reproduced, or translated without the prior written
notice of Remote Technologies Incorporated.
The information contained in this document is subject to change
without notice. Remote Technologies Incorporated shall not be
liable for errors or omissions contained herein or for consequential
damages in connection with the furnishing, performance, or use of
this guide.
Microsoft and Windows are registered trademarks of Microsoft
Corporation. Other brands and their products are trademarks or
registered trademarks of their respective holders.
T2+, It’s Under Control, TheaterTouch, and the RTI logo are
trademarks of Remote Technologies Incorporated.
iv
Contents
Federal Communications Commission Notice----------------------- i
Battery Disposal ------------------------------------------------------------ii
Safety Suggestions --------------------------------------------------------ii
Limited Warranty----------------------------------------------------------- iii
Disclaimer ------------------------------------------------------------------- iv
Contents ----------------------------------------------------------------------- v
Chapter 1. Welcome-------------------------------------------------------- 1
Compatibility Note--------------------------------------------------------- 1
Unpacking and Inspection ----------------------------------------------- 2
Product Contents ---------------------------------------------------------- 2
Software Requirements-------------------------------------------------- 2
Chapter 2. Introduction --------------------------------------------------- 3
Features --------------------------------------------------------------------- 3
Important Notes------------------------------------------------------------ 4
Cleaning --------------------------------------------------------------------- 5

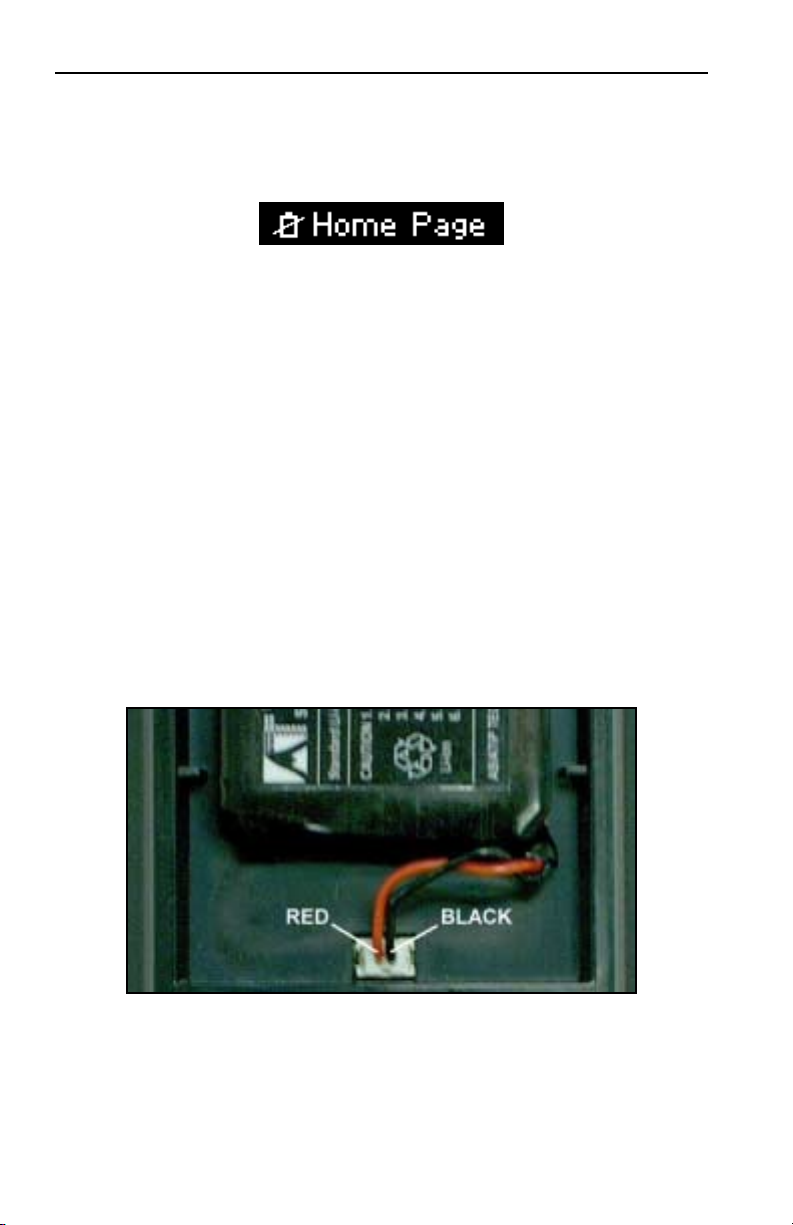

Battery and Docking Station -------------------------------------------- 5
Getting Started ------------------------------------------------------------- 6
Remote Reference -------------------------------------------------------- 7
Docking Station Reference---------------------------------------------- 8
Chapter 3. Operation------------------------------------------------------- 9
The Touchscreen Display ----------------------------------------------- 9

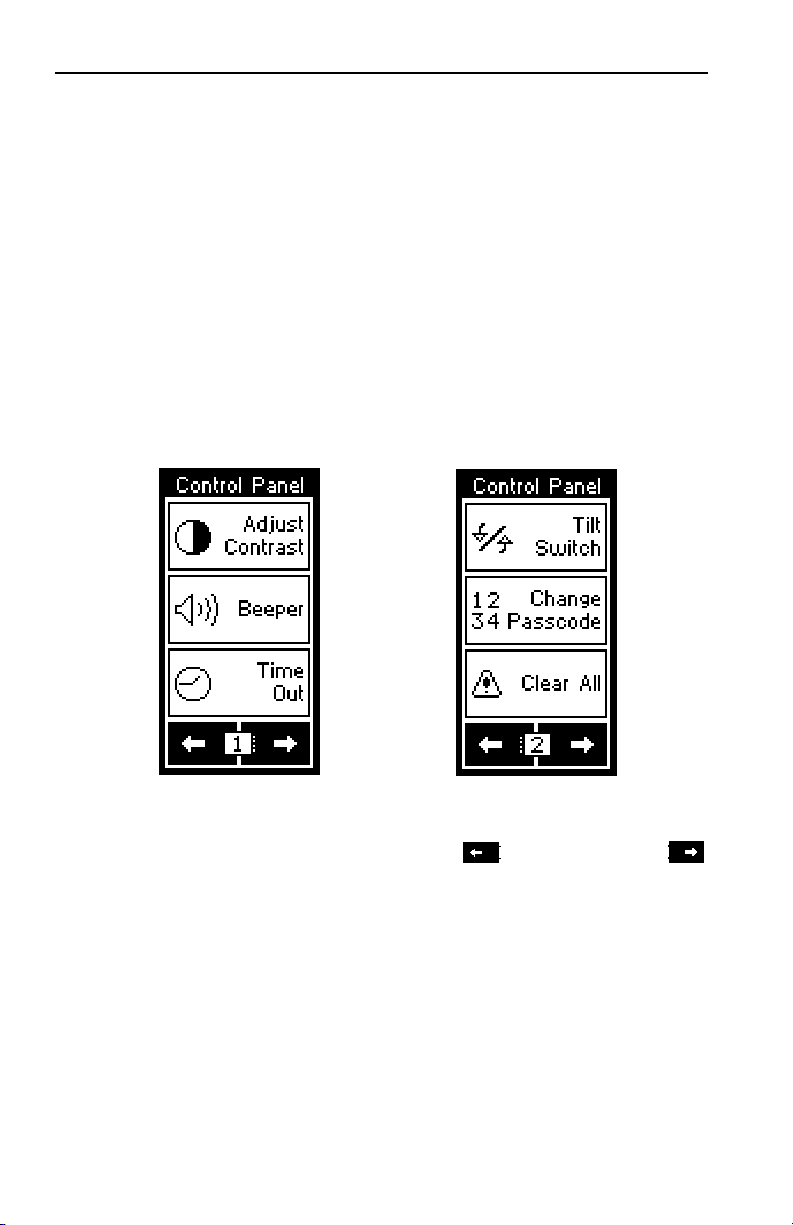

The Control Panel Page ------------------------------------------------10

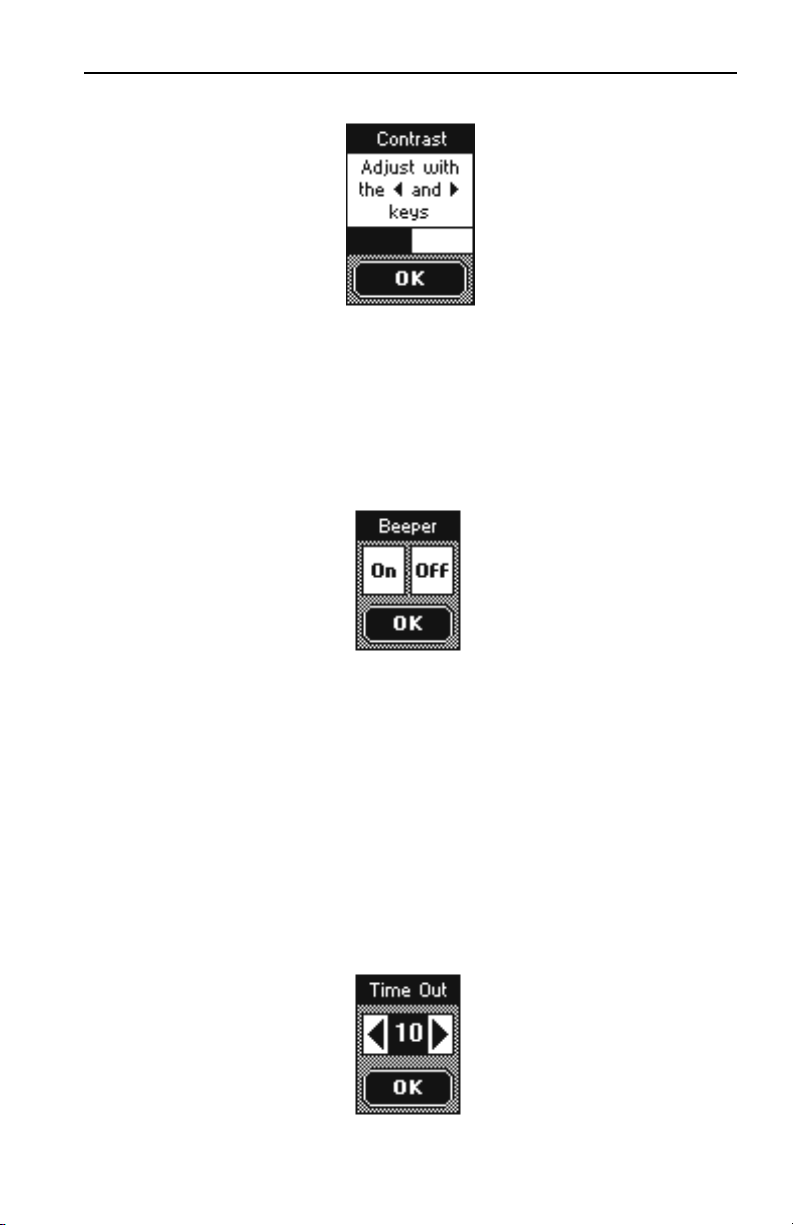

Adjust Contrast---------------------------------------------------------10
Beeper ------------------------------------------------------------------- 11
Time Out-----------------------------------------------------------------11
Tilt switch---------------------------------------------------------------- 12
Change passcode ----------------------------------------------------- 12
v
T2+ Universal System Controller
Clear all ------------------------------------------------------------------ 14
Programming The T2+ -------------------------------------------------- 14
Chapter 4. Troubleshooting -------------------------------------------- 15
Display is Dim, Blank or Unreadable -------------------------------- 15
USB Communication Problems --------------------------------------- 15
IR Code Problems-------------------------------------------------------- 15
Chapter 5. Service and Support--------------------------------------- 17
Updates and New Products-------------------------------------------- 17
Contacting Remote Technologies Incorporated-------------------17
RTI Technical Support -------------------------------------------------- 17
Specifications--------------------------------------------------------------- 19
vi
Chapter 1. Welcome
Thank you for purchasing the T2+ universal system controller.
The T2+ combines the power and flexibility of a graphic LCD
touchscreen with an ergonomic design that permits effortless onehanded operation. This design overcomes the need for a
compromise between form and function. Sleek and perfectly
balanced, the T2+ is infinitely flexible and expandable.
The T2+ takes complete control of the home theater, replacing all

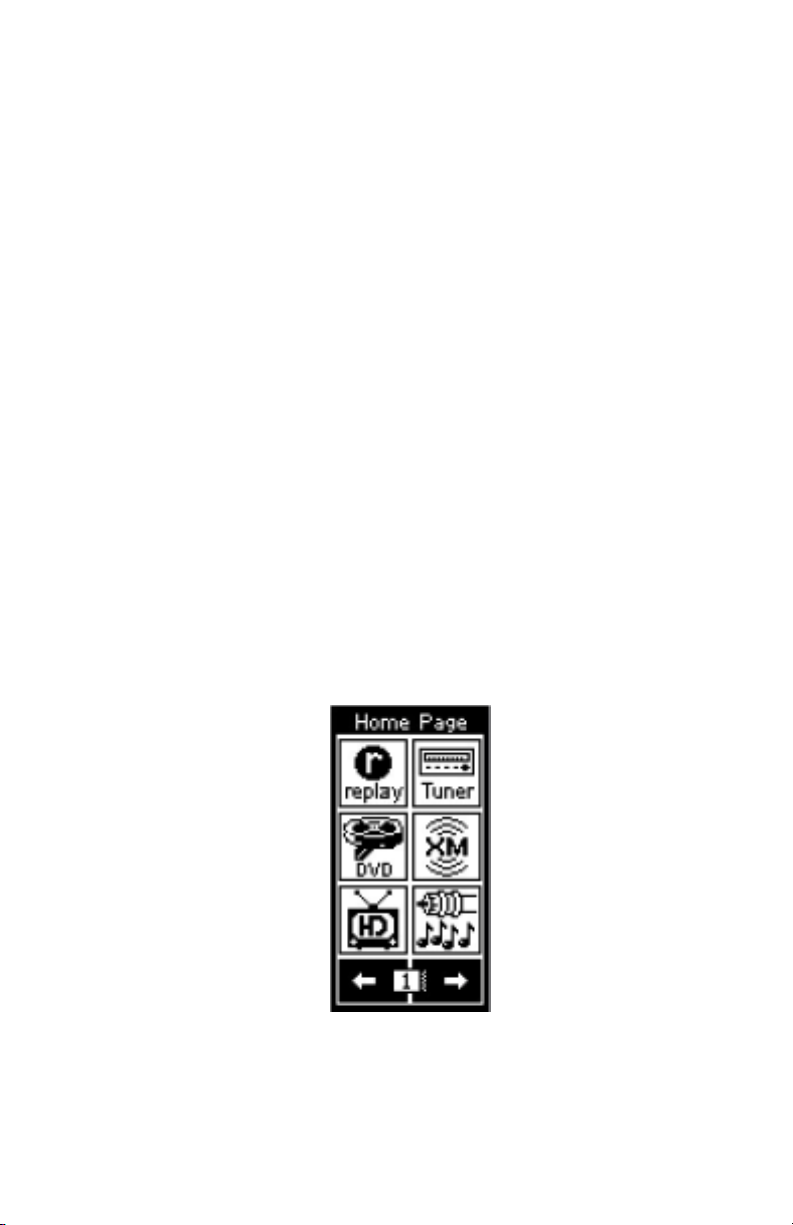

other remotes. It features an intuitive, easy to read LCD that can
display custom buttons, text, graphics, symbols, and scrolling
lists. In addition to the backlit display, 33 “Hard” keypad buttons
allow easy access to frequently used functions.
Programming is easy and convenient thanks to the Windows®
based TheaterTouch Designer
control products are sold only through professional
installers/programmers, and never directly to consumers, it is our
philosophy to not incorporate programming capability directly
into our products. Instead, we are committed to providing our
dealers with the hardware and software tools that allow them to
create re-usable programming databases and templates in the
most efficient and reliable way possible.
™
software. Because RTI’s remote
The T2+ is capable of both infrared and radio frequency output.
Optional RF receivers are available for transmission through walls
and cabinets. The RF receivers connect to an RTI control system
for the ultimate in control reliability and flexibility. RTI control
systems provide many advanced features such as IR routing, local
macro execution, power sensing, and RS-232 control.
COMPATIBILITY NOTE
The T2+ and TheaterTouch Designer software are compatible with
infrared (IR) commands with carrier frequencies between 15KhZ
and 460KhZ, as well as those commands that do not use a carrier.
This covers virtually all of the remotes that exist to date.
1
T2+ Universal System Controller
UNPACKING AND INSPECTION
After unpacking your new T2+ universal system controller, save
all of the packing materials in case you ever have to ship the unit.
Thoroughly inspect the T2+ and packing materials for signs of
damage. Report any damage to the carrier immediately. Report
any equipment malfunctions to Remote Technologies
Incorporated or an authorized Remote Technologies Incorporated
distributor.
PRODUCT CONTENTS
Contents within the box include the following items:
! One (1) T2+ universal system controller
! One (1) Docking station.
! One (1) Universal power supply for docking station
! One (1) Operation guide.
SOFTWARE REQUIREMENTS
The minimum system requirements needed to run the
TheaterTouch Designer software are as follows:
! Windows 98SE
®
XP
or later version.
®
, Windows ME®, Windows 2000®, Windows
! A free USB port.
! At least 20 Megabytes of free disk storage.
! Screen resolution of 800x600 with 256 colors.
! A mouse is required.
! Optional printer for printing reports.
2
Loading...
