It’s Under Control
It’s Under Control
RKM-1
Multi-Room Audio Keypad
®
Installation and Operation Guide
70-210041-15 V1.0
1
RKM-1
Multi-Room Audio Keypad
Copyright © 2008
Remote Technologies Incorporated
All rights reserved.
2
It’s Under Control
FEDERAL COMMUNICATIONS COMMISSION NOTICE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received including
interference that may cause undesired operation.
®
117 612 914
DECLARATION OF CONFORMITY (DOC)
The Declaration of Conformity for this product can be found on the RTI
website at: www.rticorp.com/declaration
3
RKM-1
Multi-Room Audio Keypad
SAFETY SUGGESTIONS
Read Instructions. Read all safety and operating instructions before
operating the unit.
Retain Instructions. Keep the safety and operating instructions for
future reference.
Heed Warnings. Adhere to all warnings on the unit and in the
operating instructions.
Follow Instructions. Follow operating instructions and instructions
for use.
Heat. Keep the unit away from heat sources such as radiators, heat
registers, stoves, etc., including ampliers that produce heat.
Power Sources. Connect the unit only to a power supply of the type
described in the operating instructions, or as marked on the unit.
Power Cord Protection. Route power supply cords so that they are
not likely to be walked on or pinched by items placed on or against
them, paying particular attention to the cords at plugs, at convenient
receptacles, and at the point at which they exit from the unit.
Water and Moisture. Do not use the unit near water—for example,
near a sink, in a wet basement, near a swimming pool, near an open
window, etc.
Object and Liquid Entry. Do not allow objects to fall or liquids to be
spilled into the enclosure through openings.
Servicing. Do not attempt any service beyond that described in
the operating instructions. Refer all other service needs to qualied
service personnel.
Damage Requiring Service. The unit should be serviced by qualied
service personnel when:
Objects have fallen or liquid has been spilled into the unit.
The unit has been exposed to rain.
The unit does not appear to operate normally or exhibits a
marked change in performance.
The unit has been dropped or the enclosure has been damaged.
WARNING!
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE.
4
It’s Under Control
LIMITED WARRANTY AND DISCLAIMER
Remote Technologies Incorporated warrants its products for a period of one
(1) year from the date of purchase from Remote Technologies Incorporated
or an authorized Remote Technologies Incorporated distributor.
This warranty may be enforced by the original purchaser and subsequent
owners during the warranty period, so long as the original dated sales
receipt or other proof of warranty coverage is presented when warranty
service is required. Except as specied below, this warranty covers all
defects in material and workmanship in this product. The following are not
covered by the warranty:
Damage resulting from:
1. Accident, misuse, abuse, or neglect.
2. Failure to follow instructions contained in this Guide.
3. Repair or attempted repair by anyone other than Remote Technologies
Incorporated.
4. Failure to perform recommended periodic maintenance.
5. Causes other than product defects, including lack of skill, competence
or experience of user.
6. Shipment of this product (claims must be made to the carrier).
7. Being altered or which the serial number has been defaced, modied
or removed.
Remote Technologies Incorporated is not liable for any damages caused by
its products or for its failure of its products to perform, including any lost
prots, lost savings, incidental damages, or consequential damages.
Remote Technologies Incorporated is not liable for damages based upon
inconvenience, loss of use of the product, loss of time, interrupted
operation, commercial loss, any claim made by a third party or made by
you for a third party.
Remote Technologies Incorporated’s liability for any defective product is
limited to repair or replacement of the product, at our option.
If your RKM-1 Multi-Room Audio Keypad needs service, please contact
Remote Technologies Incorporated by telephone, fax or E-mail for return
information. Please do not return products to Remote Technologies
Incorporated without return authorization.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated without the prior written notice of Remote
Technologies Incorporated.
The information contained in this document is subject to change without
notice. Remote Technologies Incorporated shall not be liable for errors or
omissions contained herein or for consequential damages in connection
with the furnishing, performance, or use of this guide.
RKM-1 and the RTI logo are registered trademarks of Remote Technologies
Incorporated.
®
5
RKM-1
Multi-Room Audio Keypad
6
It’s Under Control
TABLE OF CONTENTS
Federal Communications Commission Notice ...............3
Safety Suggestions ...................................................... 4
Limited Warranty and Disclaimer ...............................5
Contents ...................................................................... 7
Chapter 1 - Welcome ...................................................9
Important Notes ...................................................... 9
Product Contents .................................................... 10
Chapter 2 - Features ................................................... 11
Chapter 3 - Installation and Operation ....................... 13
Chapter 4 - Specications ........................................... 17
Chapter 5 - Troubleshooting .......................................19
®
Chapter 6 - Service and Support .................................21
Index .........................................................................23
7
RKM-1
Multi-Room Audio Keypad
8
It’s Under Control
CHAPTER 1 | WELCOME
Thank you for using the RKM-1 Multi-Room Audio Keypad.
Perfect for multi-room audio control, the RKM-1 is designed to have a
clean, elegant style. Sized for a single gang electrical box, the RKM-1
incorporates eight fully-programmable hard buttons and a customizable
display lm which provides feedback of power status, selected source, and
volume level.
The RKM-1 can directly control almost any audio/video component up to
1000 feet away using its infrared output port. When used with the available
RTI automation devices, the RKM-1 is capable of infrared routing, relay
control, power sensing and RS-232 communications for advanced control.
Using the available software drivers from RTI, the RKM-1 can communicate
bidirectionally with many popular multi-zone receivers (when used together
with two-way enabled RTI control processors).
Because RTI’s remote control products are sold only through professional
installers/programmers, and never directly to consumers, it is our
philosophy to not incorporate programming capability directly into our
products. Instead, we are committed to providing our dealers with
the hardware and software tools that allow them to create reusable
programming databases and templates in the most efcient and reliable
way possible.
IMPORTANT NOTES
Please read these important notes about the RKM-1:
The RKM-1 should be placed in an area where it is around normal
room temperature (between 60°F to 90°F).
Avoid installing the RKM-1 in a location where it can come in contact
with direct sunlight.
Do not install the RKM-1 directly adjacent to thermostats. Heat
generated by the RKM-1 may affect temperature measurement.
Do not use sharp objects on the buttons. It is designed to operate with
a touch of your nger.
Do not let the RKM-1 get wet. It should not be handled with wet hands
or placed in an area where it could get wet.
Do not subject the RKM-1 to smoke, dust, or vibrations. The display
may be damaged from excessive shock or vibration.
Only use the power supply that is specied for the RKM-1. Using the
wrong type of power supply may result in damage.
Do not disassemble the unit. Service of the RKM-1 should be
performed by authorized personnel only.
®
9
RKM-1
Multi-Room Audio Keypad
CHAPTER 1 | PRODUCT CONTENTS
Contents within the box include the following items:
One (1) RKM-1 Multi-Room Audio Keypad
One (1) Operation Guide
One (1) Display Film Sheet
One (1) Display Lens
UNPACKING AND INSPECTION
After unpacking your new RKM-1 Multi-Room Audio Keypad, save all of the
packing materials in case you ever have to ship the unit.
Thoroughly inspect the RKM-1 and packing materials for signs of damage.
Report any damage to the carrier immediately. Report any equipment
malfunctions to RTI or an authorized RTI distributor.
COMPATIBILITY
The RKM-1 and Integration Designer™ software are compatible with
infrared (IR) commands with carrier frequencies between 15KhZ and
460KhZ, as well as those commands that do not use a carrier. This covers
virtually all of the remotes that exist to date.
SOFTWARE REQUIREMENTS
The recommended minimum system requirements needed to run the
Integration Designer™ software are as follows:
Windows 2000®, Windows XP® or later version.
A free USB port.
At least 256 Megabytes of RAM.
At least 250 Megabytes of free disk storage.
Screen resolution of 800x600 with 16-bit color.
Optional printer for printing reports.
10
It’s Under Control
CHAPTER 2 | FEATURES
The RKM-1 provides superior quality and reliability as well as these specic
features:
Provides feedback from many popular multi-zone receivers (when used
together with two-way enabled RTI control processors).
Use any standard Decora® type faceplate.
Fits in single gang electrical box.
Eight selectable sources.
Backlit volume level indicator.
Open architecture allows control of virtually any audio/video
component.
Non-volatile Flash memory stores your system conguration even
when power is lost.
IR output port drives up to 1,000 feet of wire for standalone control.
Optional modules for voltage and video sensing (to monitor power
status of equipment).
Optional RTI accessory modules enable RS-232 control.
Field upgradable rmware.
USB Programming.
®
11
RKM-1
Multi-Room Audio Keypad
CHAPTER 2 | FEATURES

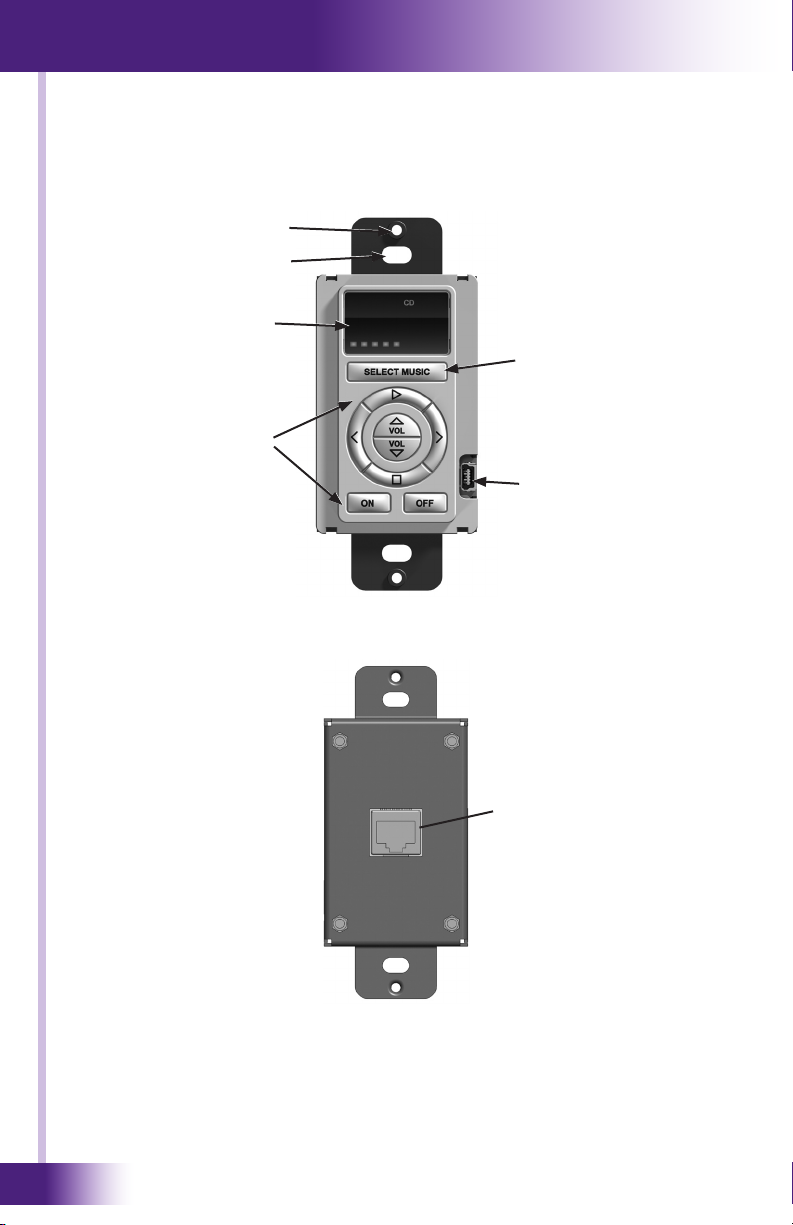

KEYPAD REFERENCE
Cover Plate
Threaded Holes
Electrical Box
Mounting Holes
Display
Programmable Function
Buttons
Source Select Button
USB Port
12
Control Port
It’s Under Control
CHAPTER 3 | INSTALLATION AND OPERATION
MOUNTING
The RKM-1 is designed for ush-mount installations in walls or cabinets.
It requires an available mounting depth of 1.5 inches (38mm), including
cables, from the front surface of the wall. Normally, the RKM-1 is mounted
in a standard single-gang electrical box or mud ring.
POWER
The RKM-1 is turned-on by simply applying power to it.
RTI provides two power supply solutions which are sold separately:
PS16-1 Power Supply
16VDC, 1.6Amp
Provides power for up to six RKM-1 keypads
Part Number: 40-210285-22
MRP-64 Multi-Room Control Processor
Includes 12VDC, 4.0Amp power supply
Provides power for up to six RKM-1 keypads
Provides a convenient connection hub
Part Number: 10-210177-19
®
13
RKM-1
Multi-Room Audio Keypad
CHAPTER 3 | INSTALLATION AND OPERATION
DISPLAY LENS FILM INSTALLATION
The display can be altered to closely match the audio sources that
will be controlled by changing the lens lm that is used. A sheet with
ten lens lms are included with the RKM-1, each with different source
congurations.
NOTE: The RKM-1 ships with the Display Lens uninstalled. For rst-time
installation, skip to step 3.
1. Remove front plate by pressing a screwdriver into slots at bottom of
RKM-1 to release tabs:
Slots
2. Place screwdriver in groove on backside of front plate and press down
to pry display lens off:
Display Lens
Front Plate (Backside)
3. Choose lens lm that most closely matches the
audio sources in your system.
4. Align lm inside the raised edge on backside of
display lens (letters appear to be reversed from
the backside so they appear correct once the lens
is installed).
5. Once aligned - press lm rmly into place.
6. Snap display lens into front plate, paying attention
to the correct orientation.
7. Snap front plate on to RKM-1 enclosure.
14
Groove
Lens Film
Display Lens (Backside)
It’s Under Control
CHAPTER 3 | INSTALLATION AND OPERATION
WIRING DIAGRAM
Control Port Pin Out
Pin 8 Ground
Pin 7 Ground
Pin 6 Infrared
Pin 5 +16VDC
Pin 4 +16VDC
Pin 3 Infrared
Pin 2 RS-485+
Pin 1 RS-485-
Use Cat-5 Cable
Use Full
Cat-5 Pairs
Stand-Alone
Operation
®
Infrared
Ground
Power
ECB-5 IR
Connecting Block
To Source Equipment,
Surround Processors,
etc.
Power
Supply
Power
Supply
Control System
Operation
MRP-64
Multi-Room Control Processor
15
RKM-1
Multi-Room Audio Keypad
CHAPTER 3 | INSTALLATION AND OPERATION
PROGRAMMING
Display
The RKM-1 has a exible, programmable interface. Once the display
lens lm has been chosen and installed contains the audio sources that
will be controlled, the display backlights are enabled/disabled within the
Integration Designer™ software to match the sources that will be used.
Using the available software drivers from RTI, the RKM-1 can communicate
bidirectionally with many popular multi-zone receivers providing feedback
of power status, selected source, and volume level (when used together
with two-way enabled RTI control processors).
Function Buttons
The function buttons can be programmed using Integration Designer™ to
control each music source discretely. In the most basic conguration, the
buttons can be used to execute a single function or if needed they can be
programmed to execute complex multi-step macros. When the RKM-1 is
used with a control processor, it is capable of control via IR or RS-232.
OPERATION
Music Source Selection
Click the Select Music button to scroll through the sources that have been
enabled in Integration Designer™. Once the source has been selected, the
backlight will ash for two seconds and a command or macro will be sent
to turn on the selected music source or. The display backlight will be lit for
the source that is active.
On/Off Buttons
- The On button will send a command or macro to turn on the last music
source that was selected prior to turning it off.
- The Off button will send a command or macro to turn off the music
for this zone and Off will be lit on the display. When Off is selected, no
commands can be sent from the function buttons.
CLEANING
Occasional cleaning may be required, depending on use.
To clean your RKM-1, lightly dampen a lint-free cloth with a glass cleaner
or mild detergent, and wipe the buttons, surrounding bezel, and faceplate.
16
It’s Under Control
CHAPTER 4 | SPECIFICATIONS
Power Supply +9VDC to +16VDC, 350mA max
Backlights Blue LED - Eight sources; Nine step volume level
indicator.
Infrared Output Port 200mA output, Drives up to 1000 ft (300 m)
of wire.
Operating
Temperature
Operating Humidity 5% to 95% Non-condensing
Device Capability Total number of devices is limited only by
Macro Capability Unlimited steps in a single macro.
Communications USB programming port
Enclosure Formed Steel, black powder coat
Front Plate High-impact molded ABS plastic - white, metallic
Mounting Mounts into single gang box.
Front Plate
Dimensions (H x W)
Dimensions
(H x W x D)
Installation Cut-Out
(H x W)
Total Depth in Wall .75 in (19mm) Plus Cables
Weight 4 oz (284 g)
Warranty One Year (Parts & Labor)
+32°F to +122°F (0°C to +50°C)
memory.
Total number of macros is limited only by
memory. Macro capability on every button.
gray or black.
Purchased separately (Decora® Type).
4.1 in (104mm) x 1.8 in (46mm) x 1.0 in (25mm)
2.8 in (71mm) x 1.8in (46mm)
®
Decora® is a registered trademark of Leviton Manufacturing Co. Inc.
All specications subject to change without notice.
17
RKM-1
Multi-Room Audio Keypad
18
It’s Under Control
CHAPTER 5 | TROUBLESHOOTING
If you are having problems with your RKM-1 Multi-Room Audio Keypad,
please read the information below before contacting technical support.
If you continue to have problems, see Chapter 7 for more information on
contacting RTI technical support.
UNIT DOES NOT POWER ON
Make sure the external power supply is properly connected to the
RKM-1, and it is functioning properly.
Make sure the RJ-45 plug is attached properly to the Cat-5 cable.
USB COMMUNICATION PROBLEMS
Verify that the RKM-1 is present in the Human Interface Devices
section of the Device Manager within the Windows® Control Panel.
Make sure you are using the programming cable that was supplied by
RTI and that both ends are connected securely.
Make sure the PC detects the presence of the RKM-1. If it doesn’t,
unplug the USB cable, wait for about ten seconds, and plug it in again.
Make sure both ends of the USB cable are connected securely.
If the download fails after some data has been transferred, try
resending the program.
®
IR CODE PROBLEMS
If you are using an IR repeater system, make sure it is working
correctly with the original OEM remote. If not, you will need to
troubleshoot the IR repeater system.
If you are still having problems, try adjusting the IR code “Minimum
Repeats” value in the Integration Designer™ programming software.
19
RKM-1
Multi-Room Audio Keypad
20
It’s Under Control
CHAPTER 6 | SERVICE AND SUPPORT
For news about the latest updates, new product information, and new
accessories, please visit our web site at:
www.rticorp.com
CONTACTING RTI
For general info, you can contact RTI at:
Tel. (952) 253-3100
Fax (952) 253-3131
info@rticorp.com
RTI TECHNICAL SUPPORT
At RTI, customer service and satisfaction is an utmost priority. If you are
encountering any problems or have a question about your RTI product,
please contact RTI Technical Support for assistance.
RTI provides technical support by telephone, fax or e-mail. For the highest
quality service, please have the following information ready, or provide it in
your fax or e-mail.
Your Name
Company Name
Telephone Number
E-mail Address
Product model and serial number (if applicable)
If you are having a problem with hardware, please note the equipment in
your system, a description of the problem, and any troubleshooting you
have already tried.
If you are having a problem with software, please note what version you
have installed, the operating system on your PC, a description of the
problem, and any troubleshooting you have already tried.
If you are calling about a software or programming question or problem,
please be at you computer when you place your call. This will considerably
speed up the troubleshooting process.
For technical support or assistance with your RKM-1, software, or
accessories, contact RTI at:
(952) 253-3137
support@rticorp.com
www.rticorp.com
For questions regarding service or repair of your RKM-1, contact RTI at:
(952) 253-3136
service@rticorp.com
www.rticorp.com
Please do not return products to RTI without return authorization.
®
21
RKM-1
Multi-Room Audio Keypad
CHAPTER 6 | SERVICE AND SUPPORT
Shipment of RKM-1 for Service
RTI will pay all labor and material expenses for all repairs covered by this
product’s warranty. If necessary repairs are not covered by warranty, or if
a unit is examined which is not in need of repair, you may be charged for
the repairs or examination.
If it is necessary to ship the RKM-1 for service:
Please pack it securely (we suggest that it be insured).
Do not include accessories such as power cords or manuals unless
instructed to do so.
You must pay any shipping charges incurred in getting your RKM-1 to RTI.
RTI will pay reasonable return shipping charges via a carrier of our choice
to any destination within the United States if the repairs are covered under
warranty.
A copy of the original dated sales receipt must be provided whenever
warranty service is required. You will need this receipt to establish the date
of purchase.
22
It’s Under Control
INDEX
Contents ...........................................................................7
Features .......................................................................... 11
Federal Communications Commission Notice ..........................3
Installation ...................................................................... 13
Mounting/Power ............................................................ 13
Lens Display Film Sheet ................................................. 14
Wiring Diagram ............................................................. 15
Programming/Operation .....................................................
Keypad Reference ............................................................. 12
Limited Warranty/Disclaimer ................................................ 5
Operation ........................................................................ 15
Product Contents .............................................................. 10
Safety Suggestions ............................................................. 4
Service and Support ......................................................... 21
Contact RTI .................................................................. 21
Shipment for Service ..................................................... 22
Technical Support .......................................................... 21
Specications ................................................................... 17
Troubleshooting ................................................................ 19
®
23
RKM-1
Multi-Room Audio Keypad
It’s Under Control
Remote Technologies Incorporated
5775 12th Avenue East, Suite 180
Shakopee, MN 55379
Tel: 952-253-3100
Fax: 952-523-3131
www.rticorp.com
®
24
© 2008 Remote Technologies Inc. All rights reserved. Printed in Taiwan.
Loading...
