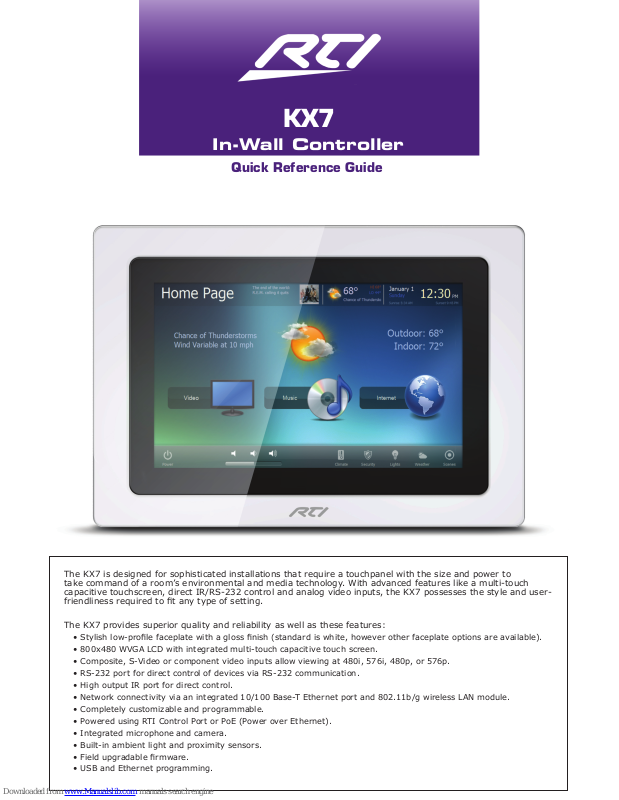

KX7
In-Wall Controller
Quick Reference Guide
The KX7 is designed for sophisticated installations that require a touchpanel with the size and power to
take command of a room’s environmental and media technology. With advanced features like a multi-touch
capacitive touchscreen, direct IR/RS-232 control and analog video inputs, the KX7 possesses the style and user-
friendliness required to t any type of setting.
The KX7 provides superior quality and reliability as well as these features:
• Stylish low-prole faceplate with a gloss nish (standard is white, however other faceplate options are available).
• 800x480 WVGA LCD with integrated multi-touch capacitive touch screen.
• Composite, S-Video or component video inputs allow viewing at 480i, 576i, 480p, or 576p.
• RS-232 port for direct control of devices via RS-232 communication.
• High output IR port for direct control.
• Network connectivity via an integrated 10/100 Base-T Ethernet port and 802.11b/g wireless LAN module.
• Completely customizable and programmable.
• Powered using RTI Control Port or PoE (Power over Ethernet).
• Integrated microphone and camera.
• Built-in ambient light and proximity sensors.
• Field upgradable rmware.
• USB and Ethernet programming.
Touchscreen Control Panel
RESET
ETHERNET
EXPANSION
PORT 1 PORT 2 PORT 3
PORT 4
PORT 5
PORT 6
+
+ +
+ +
+
USB
RTI COM
POWER
STATUS
RS-232
POWER / IR
+12VDC TRIGGER
+3-24VDC SENSE
RELAYS (+30VDC, 5A MAX)
IR OUTPUT LEVEL
1
2
Model XP-6
Advanced Control Processor
Connection Options
The following diagram shows a “control system operation” of the KX7, which utilizes an RTI control processor (RTI XP-6 shown) and an RTI
connecting block (RTI CB-8 shown).
Mounting Wings (2)
- One located on bottom of KX7 also.
Video Projector
RJ-45>DB-9
Adapter
Security Camera
Video 1 (Y)
Video 2 (Pb/C)
Video 3 (Pr)
RS-232 Control
(Cat-5 cable)
Cat-5 cable
CB-8 Connecting Block
RS-485+
RS-485-
Infrared
+12 to +16 VDC
+12 to +16 VDC
Infrared
Ground
Ground
KX7 (Rear)
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Cat-5 cable
XP-6 Control Processor
Ambient and Proximity Sensors
LAN
KX7 Front (Bezel removed)
Mounting Wing Screws
Camera
Reset Button
MicrophoneUSB Port
It’s Under Control
Installation & Operation
MOUNTING
The KX7 is designed for ush-mount, in-wall installations. It requires an available mounting depth of 2 inches (52.5mm) from the surface of the wall.
IMPORTANT NOTE: There is little margin for error when tting the KX7 into the wall opening.
Make sure to use the included cardboard cut-out template to create the correct size opening in the wall. Additionally, carefully double-check that all
measurements taken using the cardboard cut-out template are accurate.
MOUNTING HEIGHT
The recommended mounting height for the KX7 is between 54 inches (1.37m) and 60 inches (1.52m) from the bottom of the faceplate.
MOUNTING WINGS
Two mounting wings are located on the top and bottom of the KX7, which can be used to secure the KX7 to drywall in retrot installations. Place KX7 in the
opening in the wall and tighten the mounting wing screws located on the front of the KX7 (bezel removed).
CONDUIT BOX
For new construction installations a conduit box may be purchased separately from an RTI distributor. For mounting instructions, refer to the conduit box
installation guide
CONNECTIONS
VIDEO INPUTS
The KX7 supports 1 Component video source, up to 2 S-Video sources, or up to 3 Composite video sources.
• VIDEO 1
This BNC jack functions as an S-Video (Y), Component (Y), or Composite video input.
• VIDEO 2
This BNC jack functions as an S-Video (C), Component, or Composite video input.
• VIDEO 3
This BNC jack functions as a Component (PR) or Composite input video input.
®
CONTROL PORT
The Control Port on the KX7 uses a Cat-5 cable with RJ-45 termination. When used in conjunction with an RTI control processor (e.g. RTI XP-6) and an
RTI connecting block (e.g. RTI CB-8), this port serves as the power source for the KX7 in addition to infrared and RS-485 communication.
ETHERNET PORT
The KX7 is designed for connection to a LAN via Cat-5 cabling with RJ-45 termination. Additionally, the KX7 can be optionally powered using Power-Over-
Ethernet, allowing the power to be extended to the KX7 over the same Cat-5 cable that carries Ethernet communication. When powering the KX7 using
PoE, a class 3 PoE router or PoE injector must be used.
RS-232
The KX7 is capable of direct RS-232 communication using a Cat-5 cable with RJ-45 termination. A DB9 - RJ45 adaptor is included with the KX7.
NOTE: RS-232 communication should be limited to 50 feet (16m) depending on baud rate.
DB-9
Pin Signal Signal
Name Description
1 DCD Carrier Detect
2 RXD Receive Data
3 TXD Transmit Data
4 DTR Data Terminal Ready
5 GND Signal Ground/Common
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 NC Not Connected
FERRITE RING INSTALLATION
In order to comply with regulatory agency standards for EMI
emissions, the included ferrite ring must be installed on any cable
attached to the KX7 Ethernet Port, Control Port, RS232 Port or
Video Input.
• To open the ferrite ring enclosure pry open the plastic latch.
• Insert cables into the ferrite ring at the end of the cables as
close to the KX7 enclosure as possible.
• Close ferrite ring enclosure until the latch snaps in place.
DB9 - RJ45 ADAPTOR PINOUT
RJ-45 (KX7 RS-232 Output)
Pin Signal Signal
Name Description
1 DSR Data Set Ready
2 DCD Carrier Detect
3 DTR Data Terminal Ready
4 GND Signal Ground/Common
5 RXD Receive Data
6 TXD Transmit Data
7 CTS Clear To Send
8 RTS Request To Send
Ferrite ring open Ferrite ring closed - with cables
PROGRAMMING
THE TOUCHSCREEN DISPLAY
The KX7 touchscreen display is programmed using the RTI Integration Designer Programming Software. Normally it is organized into a series of pages
containing objects (buttons, text, graphics, etc.) that are related to each other. For example, they may all display information necessary for controlling a
particular music server.
UPDATING FIRMWARE
It is highly recommended that this and all RTI products have the latest rmware installed. The rmware can be found in the Dealer section of the RTI
website (www.rticorp.com). Install the rmware using a USB cable (USB A to Mini B).
UPDATING SOFTWARE
RTI’s Integration Designer data les can be downloaded to the KX7 using a USB cable (USB A to Mini B), or via hard-wired or wireless Ethernet. If the KX7 is
hard-wired to a LAN and the router has DHCP enabled, the initial data le can be made over Ethernet.
It’s Under Control
®
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. Any changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the device.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received including interference that may cause undesired operation.
Contains FCC ID: MMURTI1600
Contains IC (Canada): 3166A-RTI1600
DECLARATION OF CONFORMITY (DOC)
The Declaration of Conformity for this product can be found on the RTI website at: www.rticorp.com/declaration
N27917
Safety Suggestions
Read and Follow Instructions. Read all safety and operating instructions before operating the unit.
Retain Instructions. Keep the safety and operating instructions for future reference.
Heed Warnings. Adhere to all warnings on the unit and in the operating instructions.
Heat. Keep the unit away from heat sources such as radiators, heat registers, stoves, etc., including ampliers that produce heat.
Power Sources. Connect the unit only to a power supply of the type described in the operating instructions, or as marked on the unit.
Power Cord Protection. Route power supply cords so that they are not likely to be walked on or pinched by items placed on or against them, paying particular attention to the
cord plugs at power receptacles and at the point at which they exit from the unit.
Water and Moisture. Do not use the unit near water—for example, near a sink, in a wet basement, near a swimming pool, near an open window, etc.
Object and Liquid Entry. Do not allow objects to fall or liquids to be spilled into the enclosure through openings.
Servicing. Do not attempt any service beyond that described in the operating instructions. Refer all other service needs to qualied service personnel.
Damage Requiring Service. The unit should be serviced by qualied service personnel when:
The power supply cord or the plug has been damaged.
Objects have fallen or liquid has been spilled into the unit.
The unit has been exposed to rain.
The unit does not appear to operate normally or exhibits a marked change in performance.
The unit has been dropped or the enclosure has been damaged.
Limited Warranty
RTI warrants its products for a period of one (1) year (90 days only for included battery packs); or for a period of time compliant with local laws when applicable from the date
of purchase from RTI or an authorized RTI distributor.
This warranty may be enforced by the original purchaser and subsequent owners during the warranty period, so long as the original dated sales receipt or other proof of
warranty coverage is presented when warranty service is required.
Except as specied below, this warranty covers all defects in material and workmanship in this product. The following are not covered by the warranty:
Damage resulting from:
1. Accident, misuse, abuse, or neglect.
2. Failure to follow instructions contained in this Guide.
3. Repair or attempted repair by anyone other than Remote Technologies Incorporated.
4. Failure to perform recommended periodic maintenance.
5. Causes other than product defects, including lack of skill, competence or experience of user.
6. Shipment of this product (claims must be made to the carrier).
7. Being altered or which the serial number has been defaced, modied or removed.
Contacting RTI
For news about the latest updates, new product information,
and new accessories, please visit our web site at:
www.rticorp.com
For general information, you can contact RTI at:
Remote Technologies Incorporated
5775 12th Ave. E Suite 180
Shakopee, MN 55379
Tel. (952) 253-3100
Fax (952) 253-3131
info@rticorp.com
Service & Support
If you are encountering any problems or have a question about your RTI product, please contact RTI
Technical Support for assistance (see the Contacting RTI section of this guide for contact details).
RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have
the following information ready, or provide it in your fax or e-mail.
• Your Name
• Company Name
• Telephone Number
• E-mail Address
• Product model and serial number (if applicable)
If you are having a problem with hardware, please note the equipment in your system, a description of
the problem, and any troubleshooting you have already tried.
Please do not return products to RTI without a return authorization.
