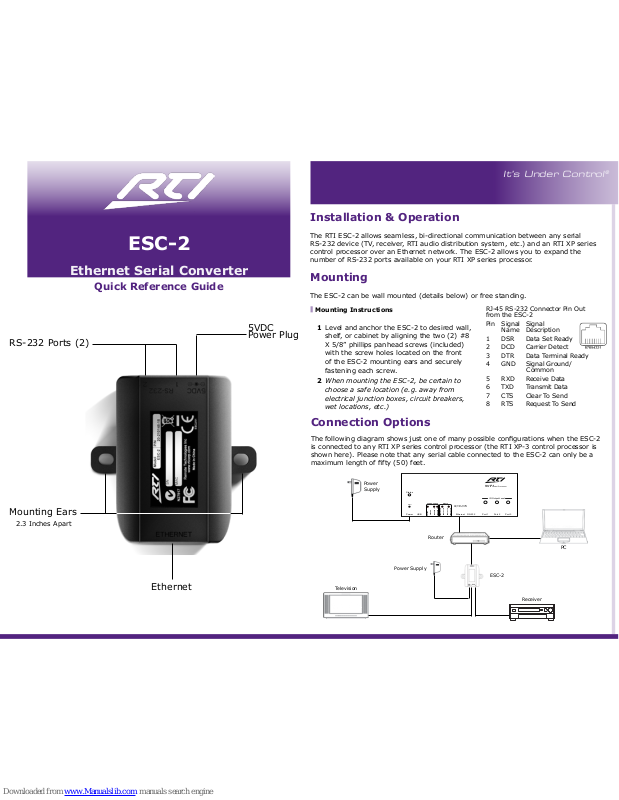

RTI ESC-2 Quick Reference Manual

Installation & Operation

It’s Under Control

®

ESC-2

Connection Options

The RTI ESC-2 allows seamless, bi-directional communication between any serial
RS-232 device (TV, receiver, RTI audio distribution system, etc.) and an RTI XP series
control processor over an Ethernet network. The ESC-2 allows you to expand the
number of RS-232 ports available on your RTI XP series processor.

Ethernet

RS-232 Ports (2)

5VDC
Power Plug

Mounting

The ESC-2 can be wall mounted (details below) or free standing.

Mounting Instructions

1 Level and anchor the ESC-2 to desired wall,

shelf, or cabinet by aligning the two (2) #8
X 5/8” phillips panhead screws (included)
with the screw holes located on the front
of the ESC-2 mounting ears and securely
fastening each screw.

2 When mounting the ESC-2, be certain to

choose a safe location (e.g. away from
electrical junction boxes, circuit breakers,
wet locations, etc.)

RJ-45 RS-232 Connector Pin Out
from the ESC-2

Pin Signal Signal
Name Description

1 DSR Data Set Ready
2 DCD Carrier Detect
3 DTR Data Terminal Ready
4 GND Signal Ground/

Common
5 RXD Receive Data
6 TXD Transmit Data
7 CTS Clear To Send
8 RTS Request To Send

Mounting Ears

The following diagram shows just one of many possible congurations when the ESC-2

is connected to any RTI XP series control processor (the RTI XP-3 control processor is
shown here). Please note that any serial cable connected to the ESC-2 can only be a

maximum length of fty (50) feet.

Router

Television

Power
Supply

Receiver

ESC-2

PC

TOP

Power

IR Output Level

Port 1 Port 2

~3.0in.

Status

Model XP-3
Remote Control Processor

+12VDC

GROUND

SENSE IN 1

SENSE IN 2

CONTACT A

CONTACT B

CONTACT A

CONTACT B

POWER / SENSE RELAYS

Port 3

BACK

USB Ethernet

Reset

RS-232

12

Sense Inputs: +3-24VDC
Relays: +30VDC, 5A max

2.3 Inches Apart

Quick Reference Guide

Ethernet Serial Converter

Power Supply

If you are encountering any problems or have a question about your RTI product, please contact RTI
Technical Support for assistance (see the Contacting RTI section of this guide for contact details).

RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the
following information ready, or provide it in your fax or e-mail.

• Your Name

• Company Name

• Telephone Number

• E-mail Address

• Product model and serial number (if applicable)

If you are having a problem with hardware, please note the equipment in your system, a description of the
problem, and any troubleshooting you have already tried.

If you are having a problem with software, please note what version you have installed, the operating
system on your PC, a description of the problem, and any troubleshooting you have already tried. If you
are calling about a software or programming question or problem, please be at you computer when you
place your call. This will considerably speed up the troubleshooting process.

Please do not return products to RTI without return authorization.

F

or news about the latest updates, new product

information, and new accessories, please visit our

web site at:

www.rticorp.com

For general information, you can contact RTI at:

Remote Technologies Incorporated

5775 12th Ave. E Suite 180

Shakopee, MN 55379

Tel. [phone]

Fax [phone]

[e-mail]

Contacting RTI

70-210104-15 V1.1

Safety Suggestions

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority

to operate the device.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received including interference that may cause undesired operation.

Read and Follow Instructions. Read all safety and operating instructions before operating the unit.

Retain Instructions. Keep the safety and operating instructions for future reference.

Heed Warnings. Adhere to all warnings on the unit and in the operating instructions.

Heat. Keep the unit away from heat sources such as radiators, heat registers, stoves, etc., including

ampliers that produce heat.

Power Sources. Connect the unit only to a power supply of the type described in the operating instructions,
or as marked on the unit.

Power Cord Protection. Route power supply cords so that they are not likely to be walked on or pinched
by items placed on or against them, paying particular attention to the cord plugs at power receptacles and at
the point at which they exit from the unit.

Water and Moisture. Do not use the unit near water—for example, near a sink, in a wet basement, near a
swimming pool, near an open window, etc.

Object and Liquid Entry. Do not allow objects to fall or liquids to be spilled into the enclosure through
openings.

Servicing. Do not attempt any service beyond that described in the operating instructions. Refer all other

service needs to qualied service personnel.

Damage Requiring Service. The unit should be serviced by qualied service personnel when:

The power supply cord or the plug has been damaged.

Objects have fallen or liquid has been spilled into the unit.

The unit has been exposed to rain.

The unit does not appear to operate normally or exhibits a marked change in performance.

The unit has been dropped or the enclosure has been damaged.

N27917

Limited Warranty

RTI warrants its products for a period of one (1) year (90 days

only for included battery packs); or for a period of time compliant
with local laws when applicable from the date of purchase from
RTI or an authorized RTI distributor.

This warranty may be enforced by the original purchaser and
subsequent owners during the warranty period, so long as the
original dated sales receipt or other proof of warranty coverage is
presented when warranty service is required.

Except as specied below, this warranty covers all defects in

material and workmanship in this product. The following are not
covered by the warranty:

Damage resulting from:

1. Accident, misuse, abuse, or neglect.

2. Failure to follow instructions contained in this Guide.

3. Repair or attempted repair by anyone other than Remote
Technologies Incorporated.

4. Failure to perform recommended periodic maintenance.

5. Causes other than product defects, including lack of skill,
competence or experience of user.

6. Shipment of this product (claims must be made to the
carrier).

7. Being altered or which the serial number has been defaced,

modied or removed.

Service & Support

DECLARATION OF CONFORMITY (DOC)

The Declaration of Conformity for this product can be found on the RTI website at: www.rticorp.com/declaration
