AMV-340
40 Watt Power Amplifier
All Rights Reserved
Version: AMV-340_2017V1.0
User Manual
40W Power Amplifier
Preface
Read this user manual carefully before using the product. Pictures shown in this
manual is for reference only, different model and specifications are subject to real
product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till November 3, 2017. In the constant
effort to improve our product, we reserve the right to make functions or parameters
changes without notice or obligation. Please refer to the dealers for the latest details.
Trademarks
Product model, and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.
40W Power Amplifier
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
40W Power Amplifier
Table of Contents
1. Introduction ................................................................................................................. 1
1.1 Introduction to AMV-340 .................................................................................... 1
1.2 Features ............................................................................................................ 1
1.3 Package List ...................................................................................................... 2
2. Panel Description ........................................................................................................ 3
2.1 Front Panel ........................................................................................................ 3
2.2 Rear Panel ......................................................................................................... 4
3. System Connection ..................................................................................................... 5
3.1 Usage Precaution .............................................................................................. 5
3.2 System Diagram ................................................................................................ 5
3.3 Audio Signal Connection .................................................................................... 5
3.3.1 Audio Output ................................ ................................ ............................ 5
3.3.2 Audio Input............................................................................................... 6
3.4 System Application ............................................................................................ 7
4. System Operations ..................................................................................................... 8

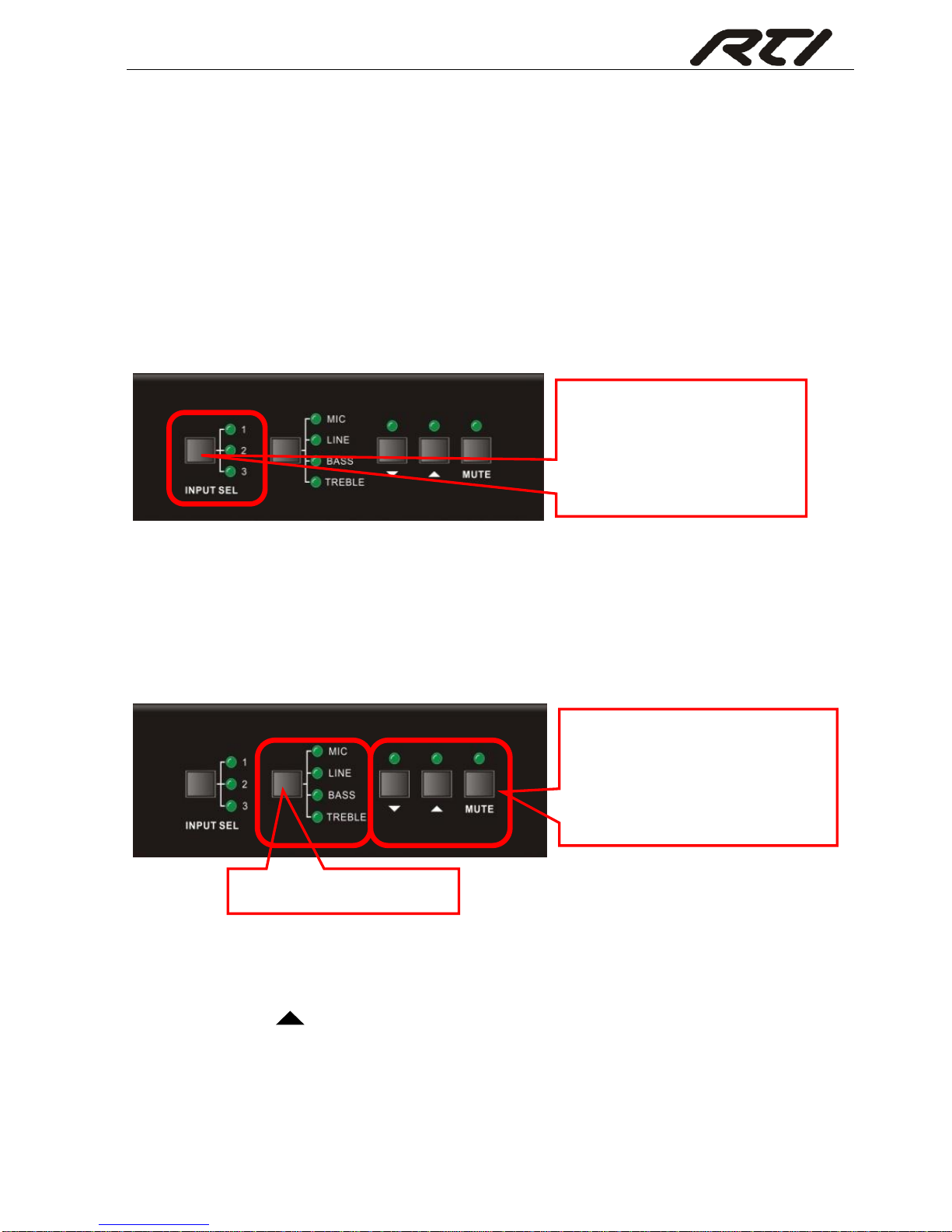

4.1 Operations of Front Panel .................................................................................. 8
4.1.1 Audio Switching ................................ ................................ ....................... 8
4.1.2 Volume/EQ Controlling ............................................................................ 8

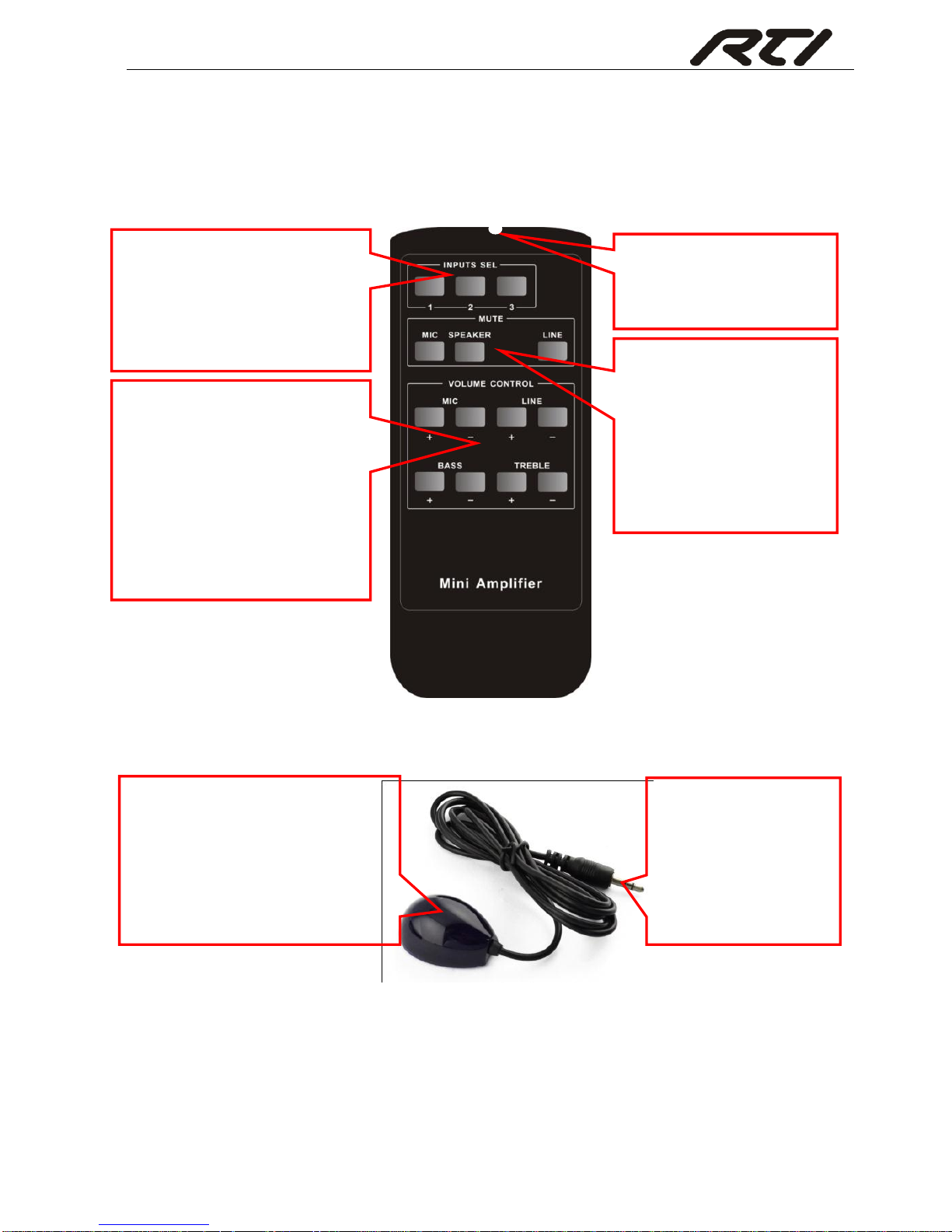

4.2 Operations of IR Remote ................................................................................... 9
4.3 Operations of Control Software ....................................................................... 10

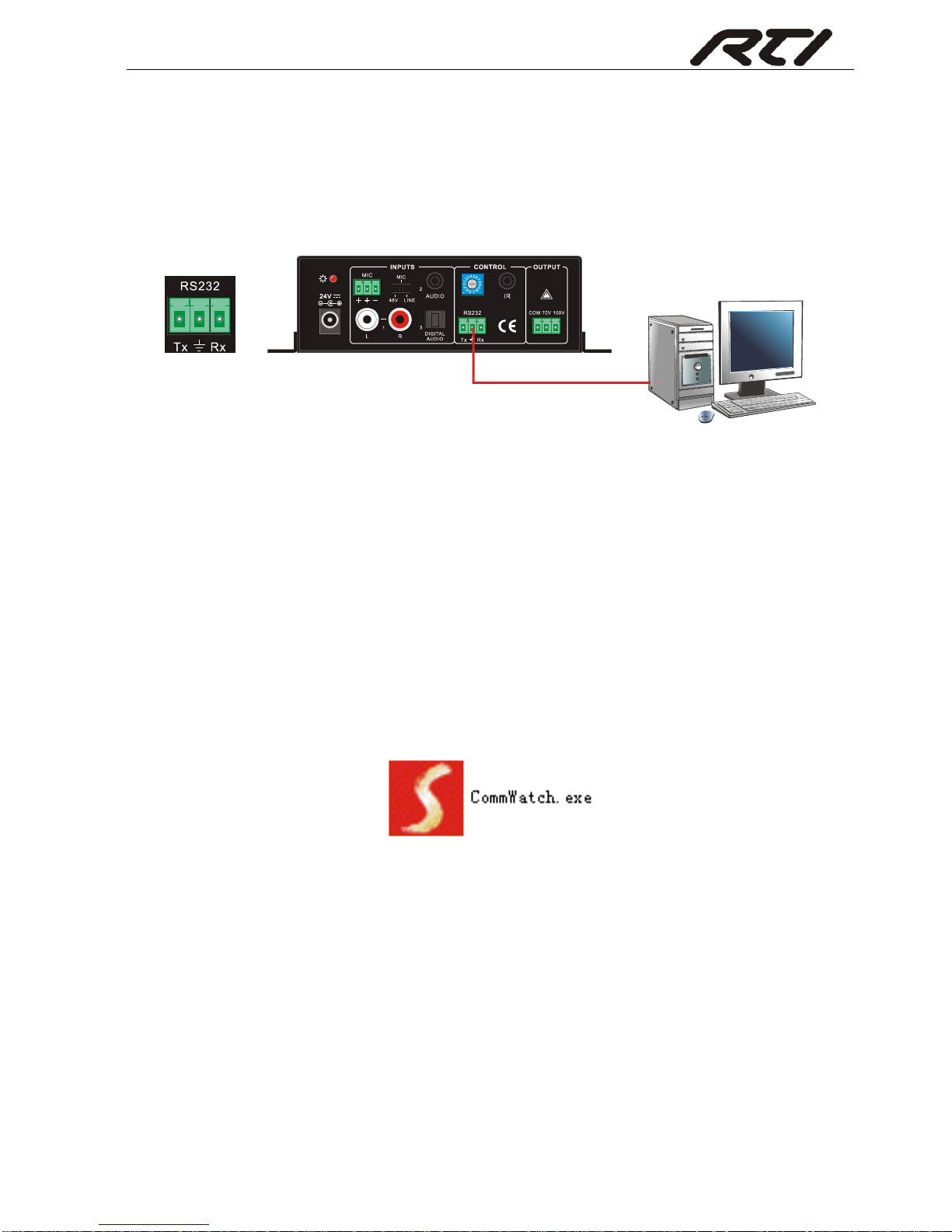

4.3.1 Connection with Computer .................................................................... 10

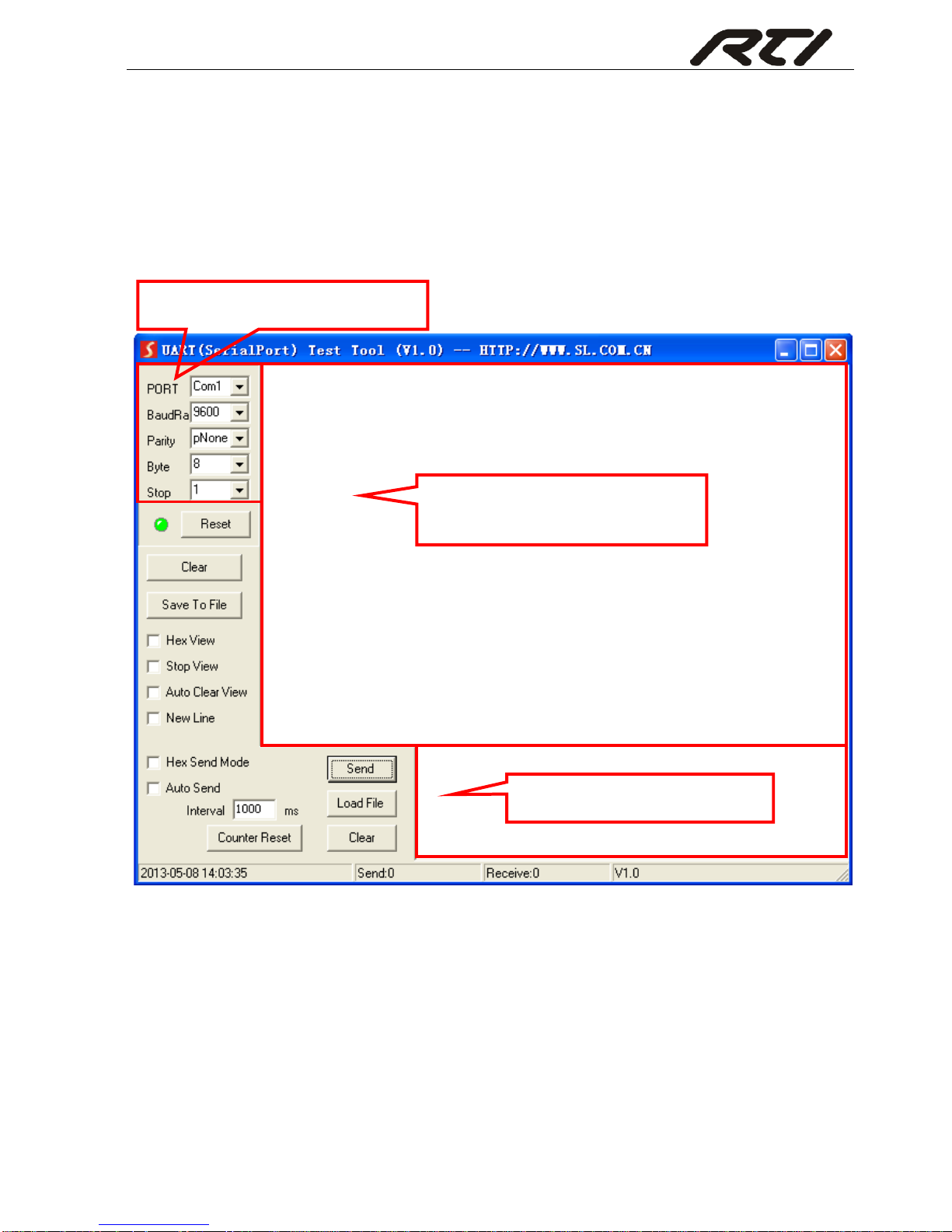

4.3.2 RS232 Control Software ........................................................................ 10
4.3.3 Running Environment ............................................................................ 10
4.3.4 Function Setting ..................................................................................... 11
4.3.5 RS232 Command .................................................................................. 12
5. Specifications ............................................................................................................ 14

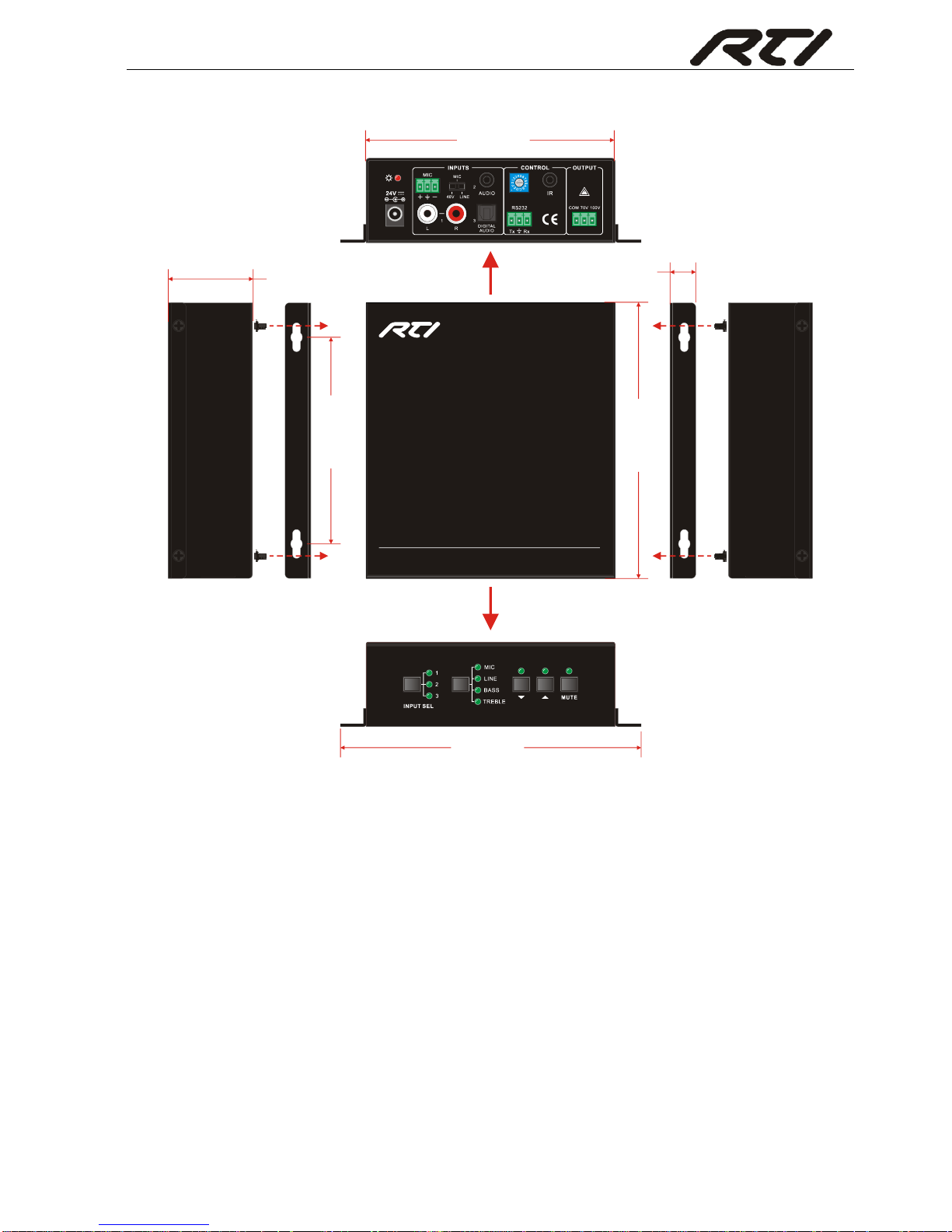

6. Panel Drawing .......................................................................................................... 15
7. Troubleshooting and Maintenance ............................................................................ 16
8. Customer Service ..................................................................................................... 17
40W Power Amplifier
1
1. Introduction
1.1 Introduction to AMV-340
AMV-340 is a 40 Watt Power Amplifier (Class-D) with output alternatively at 70V or 100V.
It has 2 stereo inputs (1x3.5mm jack for line in, 2xRCA for L&R), 1 digital input & 1
balanced MIC. It is integrated with powerful functions, including ducking function, EQ
control, MIC mixer etc, and MIC input supports 3 levels with condenser MIC, dynamic
MIC & line audio input.
As for power amplifier we have normally voltages at 70V and 100V for different countries,
but AMV-340 is designed to integrate with both voltages to meet different requirements.
1.2 Features
Mono audio output at 40Watt.
Switchable between 70V and 100V.
Ducking function.
16 ID codes for controlling between different AMV-340 amplifiers.
3-level MIC input, supports condenser microphone, dynamic microphone and
wireless microphone.
MIC port can support balance/unbalance signal, suppress the external noise
effectively.
Two stereo audio inputs and one digital audio input, switchable by button, IR remote
& RS232.
Volume/Bass/Treble controllable by buttons, IR remote & RS232.
Fast switching speed for good performance.
Convection cooler, fan is not needed.
LED indicator, for power and working status.
Antistatic case design to provide good protection for long-term and stable
performance.
40W Power Amplifier
2
1.3 Package List
1 x AMV-340
2 x Mounting Ears
4 x Screws
1 x Pluggable Terminal Block
1 x RS232 Cable
1 x Power Adapter (DC 24V)
1 x Power Cord
4 x Plastic Cushions
1 x User Manual
Note: Ensure the product and the accessories are all included, if not, please contact
with the dealers.
40W Power Amplifier
3
2. Panel Description
2.1 Front Panel
Figure 1 Front Panel
No.
Name
Function
①
Audio Input
Selection
To select the input audio source, after choosing the audio
source, the corresponding LED indicator will be on. No.1 is for
dual mono audio input (2 RCA connectors for L&R), No.2 is
for stereo audio input (3.5mm mini jack), and No.3 is for
digital fiber audio input.
②
Audio
Control
Adjust the volume of the MIC, Line, or the level of Bass and
Treble with this button
③
Volume
Adjustment
To turn up/down or mute the corresponding audio.
▽: Turn down the volume
△: Turn up the volume
MUTE: Mute the output
MIC
LINE
BASS
TREBLE
MUTE
INPUT SEL
1
2
3
1
2 3
40W Power Amplifier
4
2.2 Rear Panel
Figure 2 Rear Panel
No.
Name
Function
①
Power
Indicator
Turns red when power on.
②
Microphon
e input port
3-pole captive screw connector for microphone input, the dial
switch in right side is to select the micro input kind, including
48V (for condenser microphone), MIC (for dynamic
microphone) and LINE (for line audio).
③
Audio
Inputs
3.5mm mini jack for stereo audio input, it can be connected with
audio source device such as DVD player.
④
ID Code
16 codes range from 0 to F (hexadecimal), works together with
the PC control software.
⑤
IR
To connect with the IR receiver, works together with the IR
remote.
⑥
Power Port
To connect with the power adapter (DC24V).
⑦
2 x RCA
Dual-mono audio input, which can be connected with audio
source device such as a PC.
⑧
Digital
Audio Input
Fiber connector for digital audio input (PCM format only), it can
be connected with a device with fiber port, such as blue-ray
player.
⑨
RS232
3-pole captive screw connector for serial control, it can be
connected with PC (Use a 3-pole captive to 9 pin female D
connector and serial control software) to control AMV-340.
⑩
Audio
Output
To connect with audio output devices, such as speakers (To
select 70V or 100V depends on the input voltage of the
speakers). COM is for grounding (GND).
1
6
2
7
3
8
4
9
5
10
40W Power Amplifier
5
3. System Connection
3.1 Usage Precaution
Verify all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets and power cords should be insulated and
safe.
All devices should be connected before power on.
3.2 System Diagram

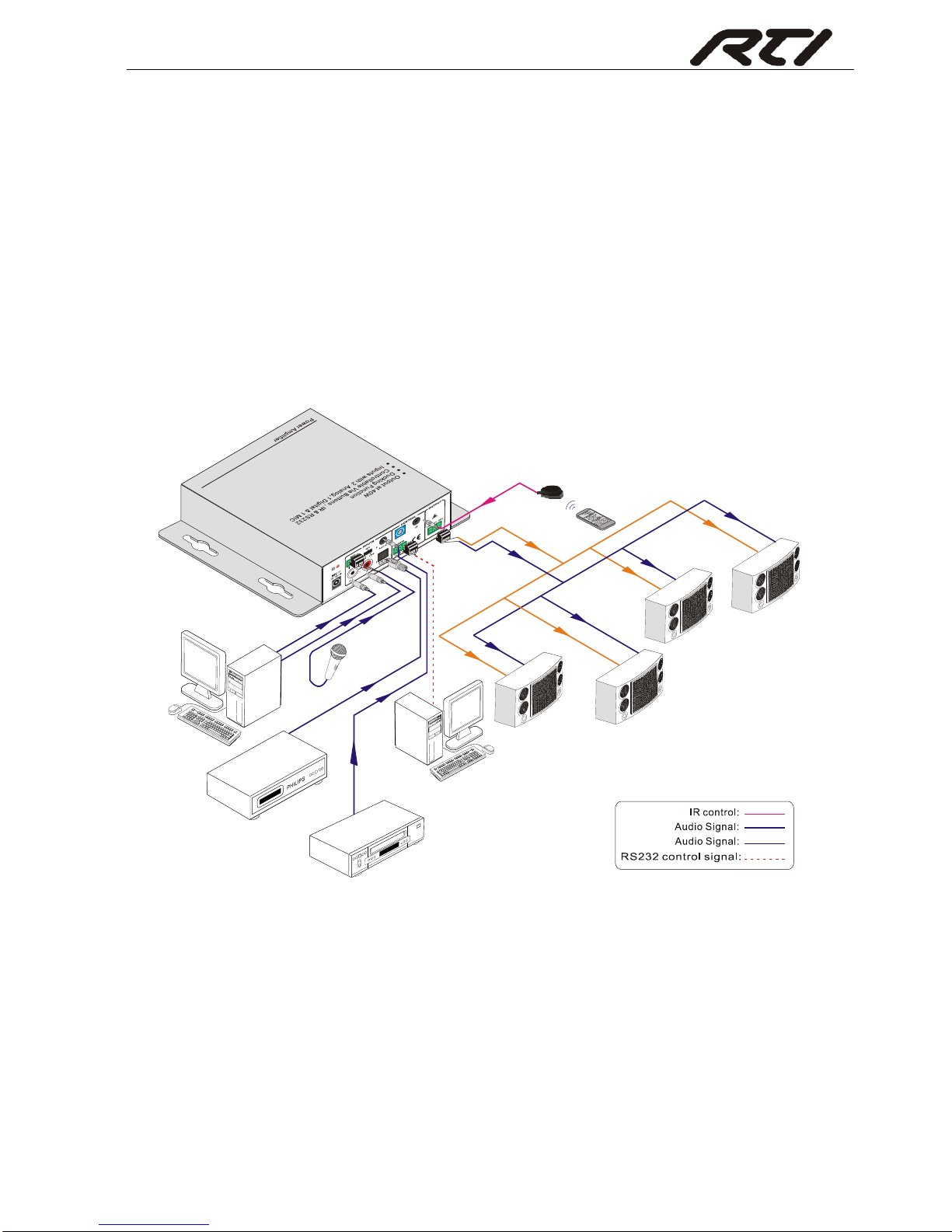

Figure 3 System Diagram
3.3 Audio Signal Connection
3.3.1 Audio Output
AMV-340 supports mono audio output, and the output voltage is 70V or alterative 100V.
With its dual-purpose design, it can be applied in different areas. The end COM is for
grounding. The amplifier to be connected is mono audio output with a rated power at
40Watt, so AMV-340 can be connected with several speakers in parallel connection way
MIC
PC 1
Blu-ray
DVD
Speaker
Speaker
Speaker
Speaker
PC
(100V/10W)
(100V/10W)
(100V/10W)
(100V/10W)
IR Remote
IR Receiver
40W Power Amplifier
6
(Total power mustn’t be more than 40Watt).

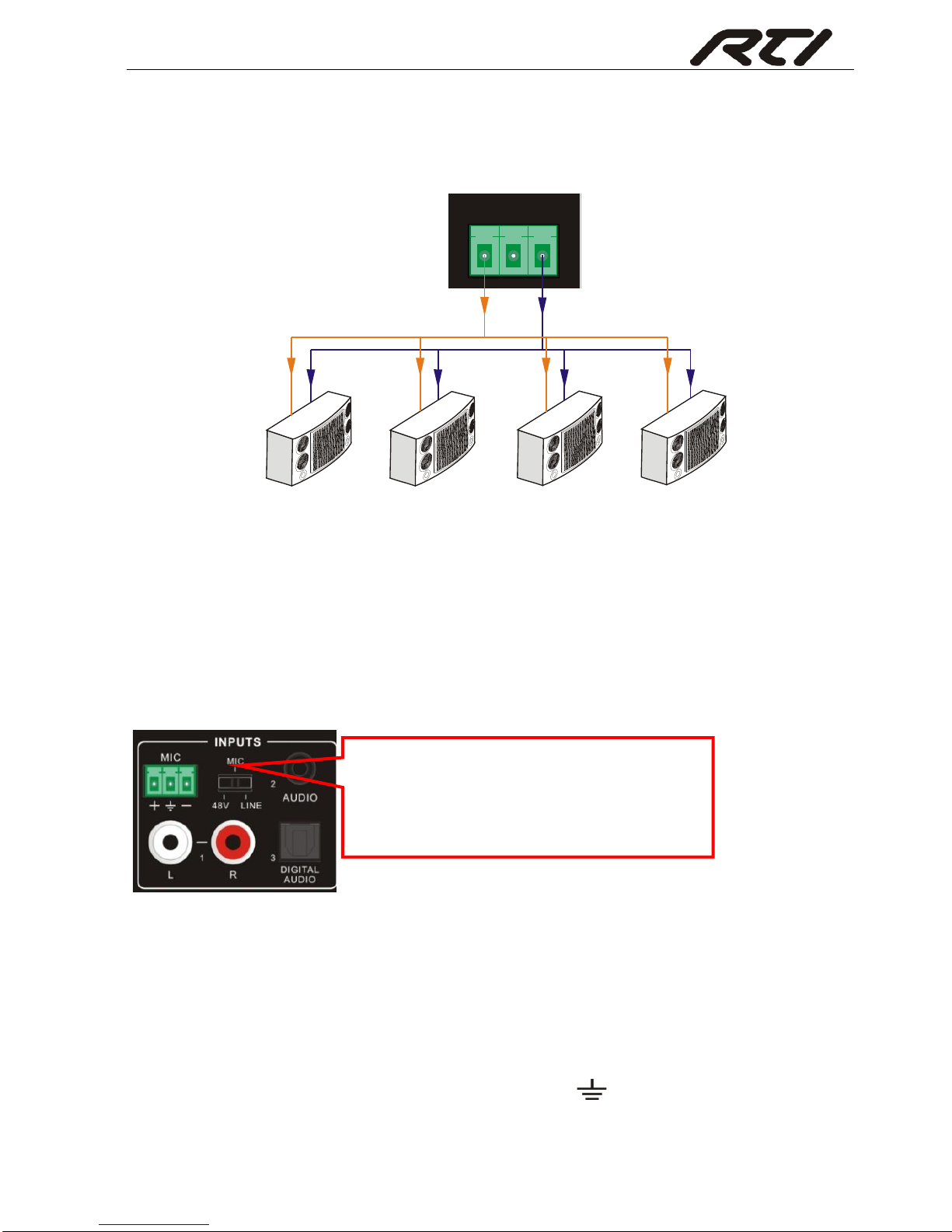

The following figure shows us how to connect with the speakers. Here we take the
100V/10W speakers for each as example.
Figure 4 Audio Output Connection
Note: Speakers to be connected should be with constant pressure.
3.3.2 Audio Input
AMV-340 provides with 2 stereo audio inputs, one microphone input and one digital fiber
audio input. The following figure shows the audio input ports.
Figure 5 Audio Input Ports
48V phantom power input
When the switch turns to “48V” (It has a good frequency characteristic, high input
impedance and high sensitivity in this mode), the MIC input will provide a 48V phantom
power. This is usually used for power supply for condenser microphone, Connection is:
“+” connects to positive, “-” connects to negative and “ ” to ground.
Note: In this mode, only condenser microphone can be connected with.
COM
70V 100V
Speaker
Speaker Speaker
Speaker
(100V/10W)
(100V/10W)
(100V/10W)
(100V/10W)
Dial Switch, to select the MIC input mode,
includes MIC (dynamic microphone), 48V
(condenser microphone) and LINE (normal
audio or wireless microphone).
40W Power Amplifier
7
MIC input
When the switch turns to “MIC” (It has a low frequency characteristics, and wide
frequency response in this mode), the microphone input is used for connecting with
dynamic microphone. There are two different connections:
a) Unbalanced connection:
“+” and “ ” connect to ground, and “-” connects to signal.
“-” and “ ” connect to ground, and “+” connects to signal.
b) Balanced connection: “+” connects to positive, “-” connects to negative and “ ”
connects to ground.
LINE input
When the switch turns to “LINE” (It has a low frequency characteristics, and wide
frequency response in this mode), the microphone input is used for connecting with
normal audio or wireless microphone output. There are two different connections:
a) Unbalanced connection:
“+” and “ ” connect to ground, and “-” connects to signal.
“-” and “ ” connect to ground, and “+” connects to signal.
b) Balanced connection: “+” connects to positive, “-” connects to negative and “ ”
connects to ground.
Digital audio input
The AMV-340 provides with a fiber optical port to connect with digital audio source
device. With the SPF optical fiber, the audio signal can be transmitted faster, more
stable, reliable, and can be transmitted over a long distance without distortion.
Note: This digital audio input can support/decode PCM format signal only. If the
CD/DVD is DTS or AC3 format, please set the player to PCM format output before
connect to AMV-340.
3.4 System Application
AMV-340 can be applied in different occasions, such as classroom, small meeting room,
lecture hall, bar and hotel etc.
40W Power Amplifier
8
4. System Operations
4.1 Operations of Front Panel
The buttons provides the control of volume/EQ control and switching. The LED indicator
will show the connecting status. The following content introduces audio switching and
EQ control in detail.
Operations: Press the corresponding button again for cyclic switching.
4.1.1 Audio Switching
There are three switchable audio inputs, one 2xRCA input, one 3.5mm jack input, and
one digital fiber audio input, switchable through the buttons as below:
Figure 6 Audio Source Selection Button
4.1.2 Volume/EQ Controlling
The line volume and MIC volume can be controlled by the buttons.
The MIC Volume/LINE volume/LINE bass/LINE treble will be selected by the buttons,
and controlled up/down/mute by the function buttons. Please check the picture below:
Figure 7 Audio Mode and Volume Adjustment buttons
For example, to turn up the line volume, you should select the “LINE” first, and then
press the button “ ”.
Audio Source Selection:
1: Dual mono audio
2: Stereo audio
3: Digital fiber audio.
Audio Mode Switching
Volume Adjustment:
▽: Turn down the volume
△: Turn up the volume
MUTE: Mute the output
40W Power Amplifier
9
4.2 Operations of IR Remote
AMV-340 provides with an IR eye, with the IR Receiver and the IR remote, user can
control AMV-340 remotely.
Note: The IR Receiver and the IR remote are all offered for charge.
Figure 8 IR Remote
Figure 9 IR Receiver
IR receiver, works together
with the IR remote. Please
point the IR remote at the IR
receiver when use, to avoid
getting out of control as there
is no signal detected.
3.5mm jack
Insert it into the
specialized PA3
socket (3.5mm), to
connect the IR
receiver with PA3.
Mute Mode:
MIC: Mute the
microphone volume.
LINE: Mute the line
volume.
SPEAKER: Unmute
Use to transmit the
infrared signal send by
the remote controller.
Audio Controlling Modes
MIC: turn up/down the
microphone volume.
LINE: turn up/down the line
volume.
BASS: bass tuning
TREBLE: treble of line
volume.
Audio Source Selection:
1: 2 RCA dual-mono audio
input
2: 1 3.5mm jack
3: 1 Digital fiber audio input
40W Power Amplifier
10
4.3 Operations of Control Software
4.3.1 Connection with Computer
When the amplifier connects to the COM1 or COM2 of the computer with control
software, users can control it by that computer.
To control the amplifier, users should use a 3-pole male captive screw to 9-pin HD
female connector and use the public COM software.
Figure 10 Connection of RS232 Port
4.3.2 RS232 Control Software
Installation
Connect the input source devices and the output device according to the system
diagram.
Copy the RS232 control software to one computer, and then connect the RS232
port of this computer and AMV-340.
Double-click the EXE program to execute the software.
Here we take the software CommWatch.exe as example. The icon is showed as below:
Figure 11 Control Software
Uninstallation
Delete all the control software files in corresponding file path.
4.3.3 Running Environment
While the control software is installed, we can activate the software through the RS232
port and set the parameters, to make it able to send RS232 commands to control
AMV-340.
PC
40W Power Amplifier
11
4.3.4 Function Setting
With the control software, we can easily switch the input channel, mute the output,
check the working status, and adjust the volume etc. Please refer the details in RS232
Communication Commands.
The interface of the control software is showed as below:
Figure 12 Main Interface of Control Software
Parameter Configuration area
Monitoring area, indicates if the
command sent works.
Command Sending area
40W Power Amplifier
12
4.3.5 RS232 Command
Communication Protocol: RS232 Communication Protocol
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
Command
Description
Feedback Example
#RST!
Factory reset.
@RST:OK!
#RAV:[XX]A01!
Route audio input [XX] to output 01. [XX] =01
or 02 or 03.
@RAV:AUDIO 01 TO OUT
01!
#VOL:SRCMUTE!
Mute source audio (01 or 02 or 03).
@VOL:SRC MUTE!
#VOL:SRCUNMUTE!
Unmute source audio (01 or 02).
@VOL:SRC UNMUTE!
#VOL:SRCUP!
Volume up for source audio. XX=00~60
@VOL:SRC 30!
#VOL:SRCDN!
Volume down for source audio. XX=00~60
@VOL:SRC 30!
#VOL:SRC[XX]!
Set volume to [XX] for source audio.
XX=00~60
@VOL:SRC 30!
#VOL:MICMUTE!
Mute microphone audio.
@VOL:MIC MUTE!
#VOL:MICUNMUTE!
Unmute microphone audio.
@VOL:MIC UNMUTE!
#VOL:MICUP!
Volume up for microphone audio. XX=00~60
@VOL:MIC 30!
#VOL:MICDN!
Volume down for microphone audio.
XX=00~60
@VOL:MIC 30!
#VOL:MIC[XX]!
Set volume to [XX] for microphone audio.
@VOL:MIC 30!
#VOL:OUTMUTE!
Mute output audio (Speaker).
@VOL:OUT MUTE!
#VOL:OUTUNMUTE!
Unmute output audio (Speaker).
@VOL:OUT UNMUTE!
#VOL:BASUP!
Volume up for output audio. XX=00~08
@VOL:BAS 00!
#VOL:BASDN!
Volume down for output audio. XX=00~08
@VOL:BAS 00!
#VOL:BAS[XX]!
Set volume to [XX] for output audio.
XX=00~08
@VOL:BAS 00!
#VOL:TREUP!
Volume up for output audio. XX=00~08
@VOL:TRE 00!
#VOL:TREDN!
Volume down for output audio. XX=00~08
@VOL:TRE 00!
#VOL:TRE[XX]!
Set volume to [XX] for output audio.
XX=00~08
@VOL:TRE 00!
#VOL:GATEON!
Gate ON.
@VOL:GATE ON!
#VOL:GATEOFF!
Gate OFF.
@VOL:GATE OFF!
#VOL:DUCKINGON!
DUCKING ON.
@VOL:DUCKING ON!
#VOL:DUCKINGOFF!
DUCKING OFF.
@VOL:DUCKING OFF!
40W Power Amplifier
13
#VOL:DUCKING[XX]!
Set DUCKING level to XX. XX= 00~60.
@VOL:DUCKING 20!
#RPT:STATUS?!
Report status.
@RAV:AUDIO 01 TO OUT
01!
@VOL:OUT UNMUTE!
@VOL:SRC 30!
@VOL:MIC MUTE!
@VOL:MIC 46!
@VOL:BAS 00!
@VOL:TRE 00!
@VOL:GATE OFF!
@VOL:DUCKING ON!
@VOL:DUCKING 20!
Note:
The letter inside bracket [ ] is the variable code, which is changeable.
The bracket [ ] is not included to the RS232 commands.
Any dot “!” after the letters is part of the commands.
Ducking function:
When input with MIC, the volume of the line audio will be automatically turned down
to the preset volume level, if there is no input MIC audio signal after 5 seconds, then
the volume will be automatically turned up to the original one. If you need to disable
or enable the ducking function, just send the command “#VOL:DUCKINGOFF!” or
“#VOL:DUCKINGON!”.
ID coding
The ID codes of AMV-340 ranges from 0 to F (hexadecimal), when sending RS232
commands, please take notice of the address of the ID code.
If the address of the ID code is 0, any RS232 command is available.
If the address is in 1~F, it has one unique ID code (If the ID code is not the same with
the address, no RS232 command will work).
While the ID code is in 1~F, please add “ID/” before sending the command.
For example:
Address = 0, code is “#VOL:OUTUP!”, feedback is “@VOL:OUT 30!”.
Address = 5, code is “#5/VOL:OUTUP!”, feedback is “@5/VOL:OUT 30!”.
40W Power Amplifier
14
5. Specifications
Audio Input
Input
(2) stereo audio; (1) MIC; (1) Digital fiber audio
Input Connector
(2) RCA; (1) 3.5mm jack;
(1) 3-pole 3.81mm captive screw connector;
(1) SPF fiber connector
Input Impedance
>10KΩ
Audio Output
Output
(1) mono amplifier
Output Connector
(1) 3-pole 3.81mm captive screw connector
Output Type
Constant voltage 70V or 100V.
Audio General
Frequency Response
120Hz ~ 20KHz
CMRR
>70dB@20Hz~20KHz
SNR
80dB (Max)
Bandwidth
120Hz ~ 20KHz
Rated Power Output
40Watt
THD + Noise
1%@1KHz, 0.3%@20KHz at nominal level
Voltage Gain
26dB
Control Function
RS232 Control
(1) 3-pole 3.81mm captive screw connector
Front Panel Control
buttons
ID Code Control
16 ID codes for control.
Optional
IR remote & TCP/IP controlled by programmable
interface.
General
Operation Temperature
-10 ~ +40℃
Relative Humidity
10% ~ 90%
Power Supply
DC 24V 2.71A power adapter
Power Consumption
5W (standby mode)
Case Dimension
W130 x H44 x D144mm (1U high)
Net Weight
860g
40W Power Amplifier
15
6. Panel Drawing
Figure 13 Panel Drawing
Power Amplifier
AMR-340
157 mm
130 mm
144 m
m
44 mm
13 mm
108 m
m
40W Power Amplifier
16
7. Troubleshooting and Maintenance
Problems
Potential Causes
Solutions
No output audio
No signal at input/ output
end
Check input/ output
signal by an oscilloscope
or a multimeter.
Failed cable connection
Change for another
cable.
Broken unit
Send it to the dealer for
repairing.
POWER indicator doesn’t
work or no respond to any
operation
Failed power connection
Make sure the power
cord connection is good
Static becomes stronger when
connecting the video
connectors
Bad grounding
Check the grounding and
make sure it is connected
well.
Output audio is interfered
Cannot control the device by
front panel buttons, RS232
port or IR remote
Broken unit
Send it to the dealer for
repairing.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.
40W Power Amplifier
17
8. Customer Service
The return of a product to our Customer Service implies the full agreement of the terms
and conditions hereinafter. There terms and conditions may be changed without prior
notice.
1) Warranty
The limited warranty period of the product is fixed 3 (three) years.
2) Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized distributor only.
3) Warranty Exclusions:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear.
Use of supplies or parts not meeting our specifications.
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized by distributor.
Any other causes which does not relate to a product defect.
Shipping fees, installation or labor charges for installation or setup of the product.
4) Documentation:
Customer Service will accept defective product(s) in the scope of warranty coverage
at the sole condition that the defeat has been clearly defined, and upon reception of
the documents or copy of invoice, indicating the date of purchase, the type of
product, the serial number, and the name of distributor.
Remarks: For further assistance or solutions, please contact your local distributor.
Remote Technologies Incorporated
5775 12th Avenue East, Suite 180
Shakopee, MN 55379
Tel: 952-253-3100
Fax: 952-253-3131
www.rticorp.com
Loading...
