R-TEC Automation RTML25, RTMLQ28, RTML35 Specifications

FEATURES

Wirefree Tubular Motors

RTML25, RTMLQ28, RTML35

Wirefree Tubular Motors - Li-ion battery powered motorized shades are

a perfect retro ﬁt for existing homes or small commercial projects.

Available in three motor sizes, Li-ion powered motors require no electrical wiring, no external battery pack and no complicated installation.

The Leveling Control feature allows for precise positioning of multiple window treatments, ensuring perfect alignment.

2-Way RF

Communication

Adjustable

Speed

Leveling

Control

Preferred

Upper / Lower

Limit Settings

Favorite Position

Quiet

Operation

1

TABLE OF CONTENTS

Technical Data / Pack Contents 3

Installation 3

Safety 4

Wiring 5

Charging Options

Functional Overview 6

P1 Button

Programming / Initial Set Up

7 - 8

Pair Motor with Controller Check Motor Direction Set Limits

Adjusting Limits

9

Adjust Upper Limit Adjust Lower Limit

Adding or Removing Controllers & Creating Group Channels

Using Motor P1 Button Using a Pre-Existing Controller

Favorite Positioning

11

Set a Favorite Position Send Shade to Favorite Position Delete Favorite Position

Step & Roller Mode

12

Enter Step Mode Enter Roller Mode (Default)

10

Adjusting Motor Speed

Increase Motor Speed Decrease Motor Speed

Troubleshooting

13

14

2

COMPLIANCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

TECHNICAL DATA / PACK CONTENTS

PRODUCT SPECIFICATIONS

Parameters Value for 25 mm Value for 28 mm Value for 35 mm

Voltage 12 V DC

Torque 1.1 Nm 2.0 Nm 3.0 Nm

Max. Run Time 10 min.

Speed 40 RPM (Adj. to 30 or 20) 28 RPM (Adj. to 24 or 20) 28 RPM (Adj. to 24 or 20)

Radio Frequency 433.92 MHz

Amps 0.83 A 1.25 A 2.2 A

Sound Level ~46 DB ~44 DB ~53 DB

Limit Switch Type Electronic

Temperature Working Range 32º F - 140º F (0º C - 60º C)

PACK CONTENTS

1. Wirefree Tubular Motor

2. Instruction Manual

RTML25 25 mm 17.625" 0.98" 4.25"

RTMLQ28 28 mm 25.60" 1.13" 5"

RTML35 35 mm 33.41" 1.38" 2.36"

Motor

Size

Motor

Length

Motor

Dia.

Motor Cable

Length

Motor

Diameter

Motor Length

Motor Cable Length

INSTALLATION

Installation Instructions:

3

SAFETY

WARNING

Incorrect installation can lead to serious injury and will void manufacturer's liability and warranty.

CAUTION

• Do not expose to moisture or extreme temperatures.

• Do not allow children to play with this device.

• Use or modiﬁcation outside the scope of this instruction manual will void warranty.

• Installation and programming to be performed by a suitably qualiﬁed installer.

• For use within tubular shades.

• Ensure correct crown and drive adapters are used for the intended system.

• Keep antenna straight and clear from metal objects.

• Do not cut the antenna.

• Use only R-TEC Automation

• Before installation, remove any unnecessary cords and disable any equipment not needed for powered operation.

• Ensure torque and operating time is compatible with end application.

• Do not expose the motor to water or install in humid or damp environments.

• Motor is to be installed in horizontal application only.

• Do not drill into motor body.

• The routing of cable through walls shall be protected by isolating bushes or grommets.

• Ensure power cable and antenna are clear and protected from moving parts.

• If cable or power connector is damaged, do not use.

®

hardware.

IMPORTANT SAFETY INSTRUCTIONS TO BE READ PRIOR TO OPERATION

• It is important for the safety of persons to follow the enclosed instructions. Save these instructions for future reference.

• Persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge should not be allowed to use this product.

• Keep remote controls away from children.

• Frequently inspect for improper operation. Do not use if repair or adjustment is necessary.

• Keep motor away from acid and alkali.

• Do not force the motor drive.

• Keep clear when in operation.

Do no dispose of in general waste.

Please recycle batteries and damaged electrical products appropriately.

4

WIRING

CHARGING OPTIONS

This motor has a 12V built in Li-ion Battery Pack with integrated charge management.

Maximum power input for recharging is 12.6V / 1000mAh.

• Before ﬁrst use, please charge motor for 6 hours using the recommended Battery Charger RTMLBC. Option to use Solar Panel Battery Charger RTMSOLAR2.

• During operation, if the voltage drops to less than 10V, the motor will beep 10 times to prompt it needs to be charged.

• Motor will stop running when the voltage is lower than 7V, and it will resume again when the voltage is greater than 7.5V.

Battery Charger RTMLBC

Solar Panel Battery Charger RTMSOLAR2

IMPORTANT

Ensure cable is kept clear of fabric. Ensure antenna is kept straight and away from metal objects.

5

FUNCTIONAL OVERVIEW

P1 BUTTON

P1 Press Condition

If limit is NOT set None No Action None No Action

Short Press

Activate Pairing Mode

Approx.

Motor Response

If limits are set

If motor is in "Sleep Mode" & limits are set

Function Achieved

Operational control of motor, run to limit. Stop if running

Wake and control

Visual Feedback

Motor runs None

Motor wakes and runs in a direction

Audible Feedback

None

Hold P1.

Function Described

Operational control of motor after pairing and limit setting is completed ﬁrst time

Motor is restored from Sleep Mode and RF control is active

Sleep Mode

Approx.

Motor Response

Reverse Direction

Approx.

Motor Response

Reset to Factory Settings

Approx.

Motor Response

6

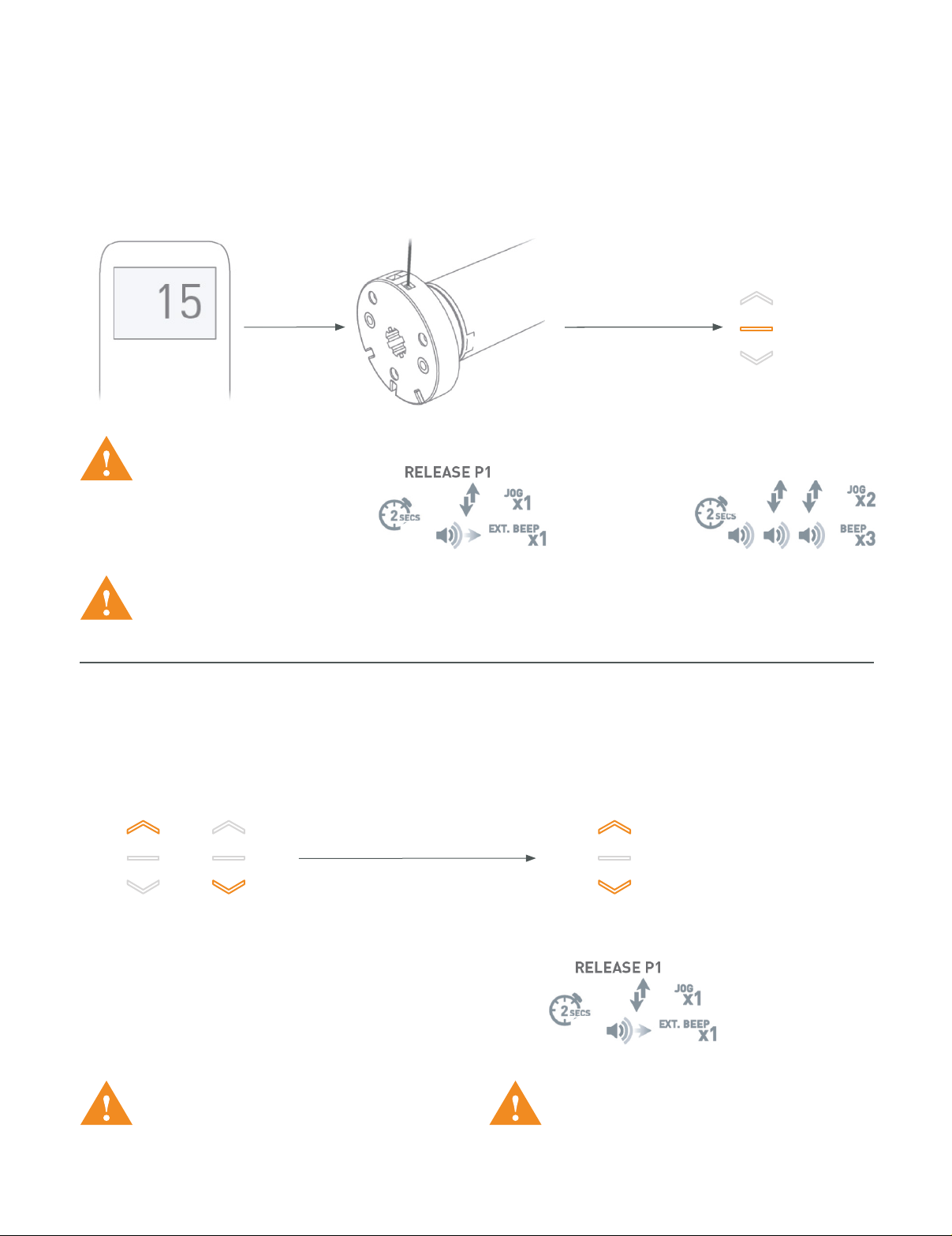

PROGRAMMING / INITIAL SET UP

PAIR MOTOR WITH CONTROLLER

Select a channel (15)

on the controller.

Hold P1 button on motor head.

IMPORTANT

Consult your user manual for information on selecting channel.

Approx.

IMPORTANT

Motor is now in step mode and ready for setting limits.

Motor Response

Hold STOP on switch.

Motor Response

Approx.

CHECK MOTOR DIRECTION

To check travel direction, press

UP or DOWN on controller.

or

Quick Press = Step

Long Press = Continuous Travel

IMPORTANT

Damage to window treatment may occur when operating motor prior to setting limits. Attention should be given.

To reverse travel direction, hold both

UP and DOWN on controller.

Motor Response

Approx.

IMPORTANT

Reversing motor direction using this method is only possible during initial set up.

7

SET LIMITS

Move shade to the desired highest or lowest

position by pressing the UP or DOWN on the controller.

or

IMPORTANT

Cycle shade up and down prior to setting limits to settle fabric

Initial set up is now complete.

To save upper limit, hold UP and STOP.

Motor Response

Approx.

5

IMPORTANT

After setting limits, motor will automatically exit from initial set up mode.

To save lower limit,

hold DOWN and STOP.

8

ADJUSTING LIMITS

ADJUST UPPER LIMIT

Hold UP and STOP

on the controller.

Motor Response

Approx.

5

ADJUST LOWER LIMIT

Move shade to the desired

highest position by pressing

the UP button.

Approx.

To save upper limit, hold UP and STOP.

Motor Response

5

Hold DOWN and STOP

on the controller.

Motor Response

Approx.

5

Move shade to the desired lowest position by pressing

the DOWN button.

Approx.

To save lower limit,

hold DOWN and STOP.

Motor Response

5

9

ADDING OR REMOVING CONTROLLERS & CREATING GROUP CHANNELS

USING MOTOR P1 BUTTON

Hold P1 button on motor head. Hold STOP on switch.

Motor Response

Approx. Approx.

Motor Response

USING PRE-EXISTING CONTROLLER

A = Existing switch or channel (to keep). B = Switch or channel to add or remove.

Press P2 on

existing switch.

Press P2 a second time on

existing switch.

Press P2 on new switch

or remote controller.

IMPORTANT

Consult your user manual for your controller or sensor.

Motor ResponseMotor ResponseMotor Response

10

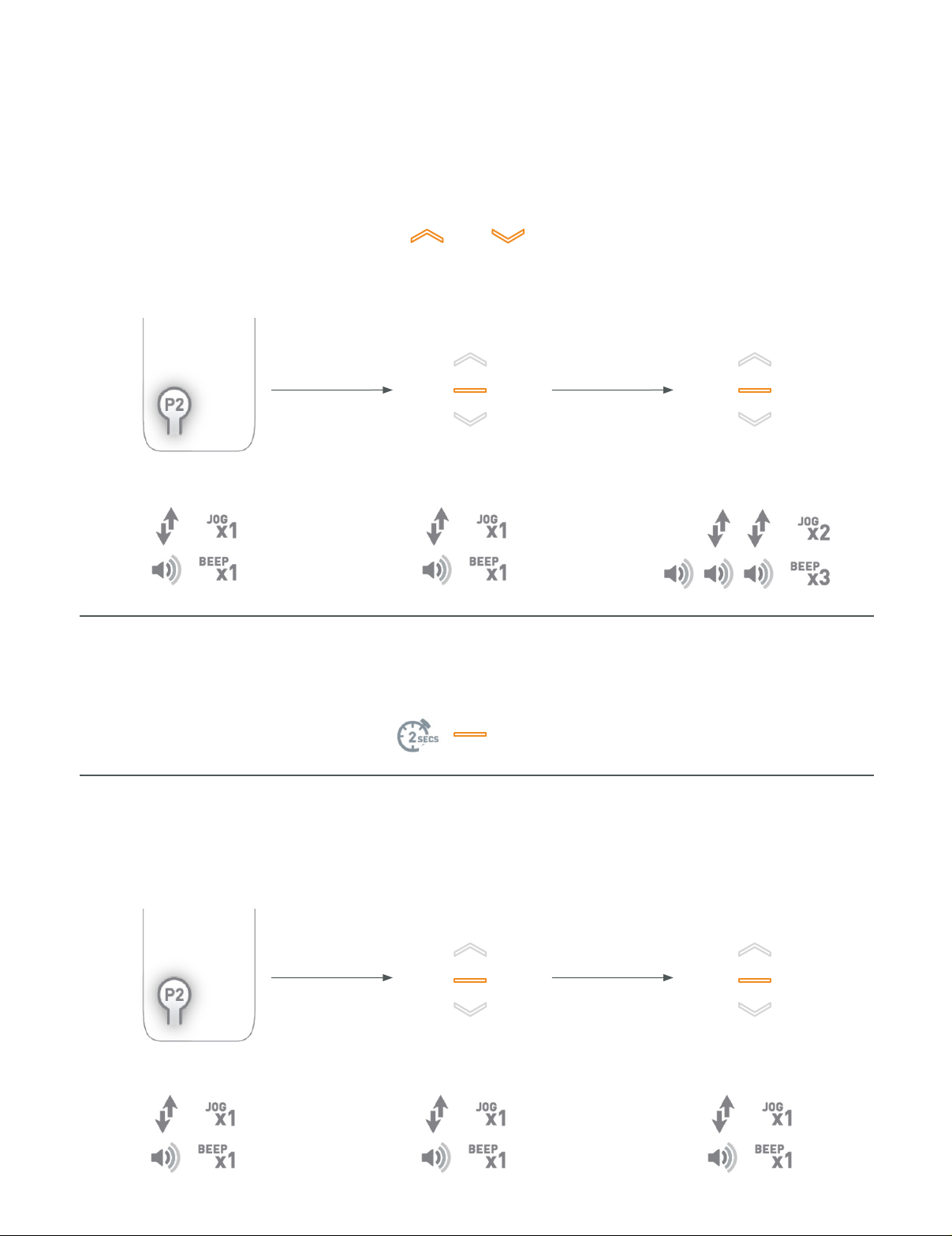

FAVORITE POSITIONING

SET A FAVORITE POSITION

Move shade to the desired position by pressing the UP or DOWN button on the controller.

or

Press STOP on controller. Press STOP on controller.Press P2 on controller.

Motor ResponseMotor Response Motor Response

SEND SHADE TO FAVORITE POSITION

Press STOP on controller for 2 seconds.

Approx.

DELETE A FAVORITE POSITION

Press STOP on controller. Press STOP on controller.Press P2 on controller.

Motor Response

Motor Response Motor Response

11

STEP & ROLLER MODE

IMPORTANT

Note, Step Mode allows you to precisely set stop locations of a shade during the ‘Favorite Position’ step on page 11.

ENTER STEP MODE

Hold UP and DOWN on the controller.

Motor Response

Approx.

5

Press STOP.

Motor Response

ENTER ROLLER MODE (DEFAULT)

Hold UP and DOWN on the controller.

Press STOP.

Approx.

Motor Response

5

Motor Response

12

ADJUSTING MOTOR SPEED

INCREASE MOTOR SPEED

Press P2 on controller. Press UP on controller. Press UP on controller.

Motor Response

IMPORTANT

If motor does not react to speed adjustment, the maximum speed has already been reached.

DECREASE MOTOR SPEED

Press P2 on controller. Press DOWN on controller. Press DOWN on controller.

Motor Response

IMPORTANT

If motor does not react to speed adjustment, the minimum speed has already been reached.

Motor Response

13

TROUBLESHOOTING

Problem Cause Remedy

Motor is not responding

Battery in motor is depleted

Insufﬁcient charging from Solar (PV) Panel

Transmitter battery is discharged Replace battery.

Battery is inserted incorrectly into transmitter

Radio interference / Shielding

Receiver distance is too far from transmitter

Power failure Check power supply to motor is connected and active.

Recharge with compatible AC adapter and check connection and positioning of PV panel.

Check connection and orientation of PV panel.

Check battery polarity.

Ensure transmitter is positioned away from metal objects and that antenna on motor or receiver is kept straight and away from metal.

Move transmitter to a closer position.

Check wiring is connected correctly (refer to motor installation instructions).

Recharge with AC adapter or check connection and positioning of PV panel.

Always reserve an individual channel for programming functions.

SYSTEM BEST PRACTICE - Provide an extra 15 channel remote in your multi motor projects, that provides individual control for each motor for programming purposes.

Place all other motors into sleep mode (see page 6)

Motor beeps 10 times when in use

Cannot program a single Motor (multiple motors respond)

Incorrect wiring

Battery voltage is low / PV (solar) panel issue

Multiple motors are paired to the same channel

Any Questions?

Contact our R-TEC Automation® in-house experts at 866.985.3423. Email us at RTECAutomation@RowleyCompany.com. Please use the Custom Solutions Form when ordering a Custom Solution.

14
