R-TEC Automation RTMHR1C, RTMHR15C Specifications

R-TEC Smart Controls - Handheld Remotes, 1 or 15 CH

RTMHR1C, RTMHR15C

Handheld Remotes with Wall Mounts offer modern features, including LCD

displays, individual, group and all control and precision leveling, giving users complete control.

Available in 1 or 15 channel models, handheld remotes are compatible with all ARC™ motors.

They feature a contemporary design with touch sensitive controls.

FEATURES - 1 CHANNEL

2-Way RF

Communication

Touch

Sensitive

Buttons

Magnetic

Wall Mount

FEATURES - 15 CHANNEL

2-Way RF

Communication

Touch

Sensitive

Buttons

Magnetic

Wall Mount

Slim

Hide Unused

Channels

LCD DisplayLeveling

Control

1

TABLE OF CONTENTS

Technical Data / Pack Contents 3

Safety 4

Installation 5

Wall Mount Holder Remote Battery

Functional Overview 6 - 7

Buttons Leveling Control (15 Channel Remote) Selecting a Channel (15 Channel Remote) Group Control using CH "0" (15 Channel Remote)

Programming

8 - 9

Protocol Selection Hide Unused Channels (15 Channel Remote) Disable Limit Setting Function of Remote

Adding or Removing Controllers & Creating Group Channels

Using Motor P1 Button Using a Pre-Existing Controller

Troubleshooting

11

10

2

COMPLIANCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

TECHNICAL DATA / PACK CONTENTS

PRODUCT SPECIFICATIONS

Parameters Value

Voltage 3 V DC

Battery CR2430

Radio Frequency 433.92 MHz

Transmitting Power 10 milliwatt

Transmission Range 65'

Temperature Working Range 50º F - 122º F (10º C - 50º C)

PACK CONTENTS

1. Handheld Remote with Wall Mount, 1 or 15 Channel

2. Magnetic Holder and Wall Fixing Screws

3. Instruction Manual

4. 3 V - CR2450 Battery

3

SAFETY

WARNING

Any changes or modiﬁcations to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Incorrect installation can lead to serious injury and will void manufacturer’s liability and warranty.

CAUTION

• Do not expose to moisture or extreme temperatures.

• Do not allow children to play with this device.

• Use or modiﬁcation outside the scope of this instruction manual will void warranty.

• Installation and programming to be performed by a suitably qualiﬁed installer.

• Use only R-TEC Automation

• Keep clear when in operation.

• Replace battery with correctly speciﬁed type.

®

hardware.

IMPORTANT SAFETY INSTRUCTIONS TO BE READ PRIOR TO OPERATION

• It is important for the safety of persons to follow the enclosed instructions. Save these instructions for future reference.

• Persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge should not be allowed to use this product.

• Frequently inspect for improper operation. Do not use if repair or adjustment is necessary.

• Keep away from children.

Do no dispose of in general waste.

Please recycle batteries and damaged electrical products appropriately.

4

INSTALLATION

WALL MOUNT HOLDER

Remove cover from base by

prying with ﬂat head screwdriver.

Use supplied fasteners and

anchors to attach the base to wall.

Base

Screws

Cover

Replace cover by pressing

snap latches into place.

REMOTE BATTERY

Remove cover from remote press gently

in and down to disengage cover.

Slide to remove.

Install battery with positive (+)

side facing up.

Remote

Battery

3V (CR2450)

Cover

5

FUNCTIONAL OVERVIEW

BUTTONS

Your multi channel remote can be conﬁgured to have anywhere between 1 or 15 visible channels.

Inactive channels will not be visible when scrolling through the CH selection.

UP

STOP

LEVEL CONTROL

DOWN

CHANNEL

SETTING (P2)

15 Channel 1 Channel

LEVELING CONTROL (15 CHANNEL REMOTE)

The leveling control bar can be used to visualize and accurately set your preferred window treatment position.

When used to control a group of window treatments, they will all perfectly align to the same position.

6

SELECTING A CHANNEL (15 CHANNEL REMOTE)

Press the CH button.

Response

LCD screen will begin to ﬂash

Within 4 seconds press UP or DOWN

to select desired channel.

or

Press CH or STOP to conﬁrm.

or

IMPORTANT

If no button is pressed within 4 seconds, the channel selection will automatically be conﬁrmed.

GROUP CONTROL USING CH "0" (15 CHANNEL REMOTE)

Channel "0" is preset to control all window treatments paired within your multi channel remote.

To create a customized group channel, refer to page 10.

7

PROGRAMMING

IMPORTANT

Please refer to the relevant documentation of your motor model for instructions on adjusting motor settings.

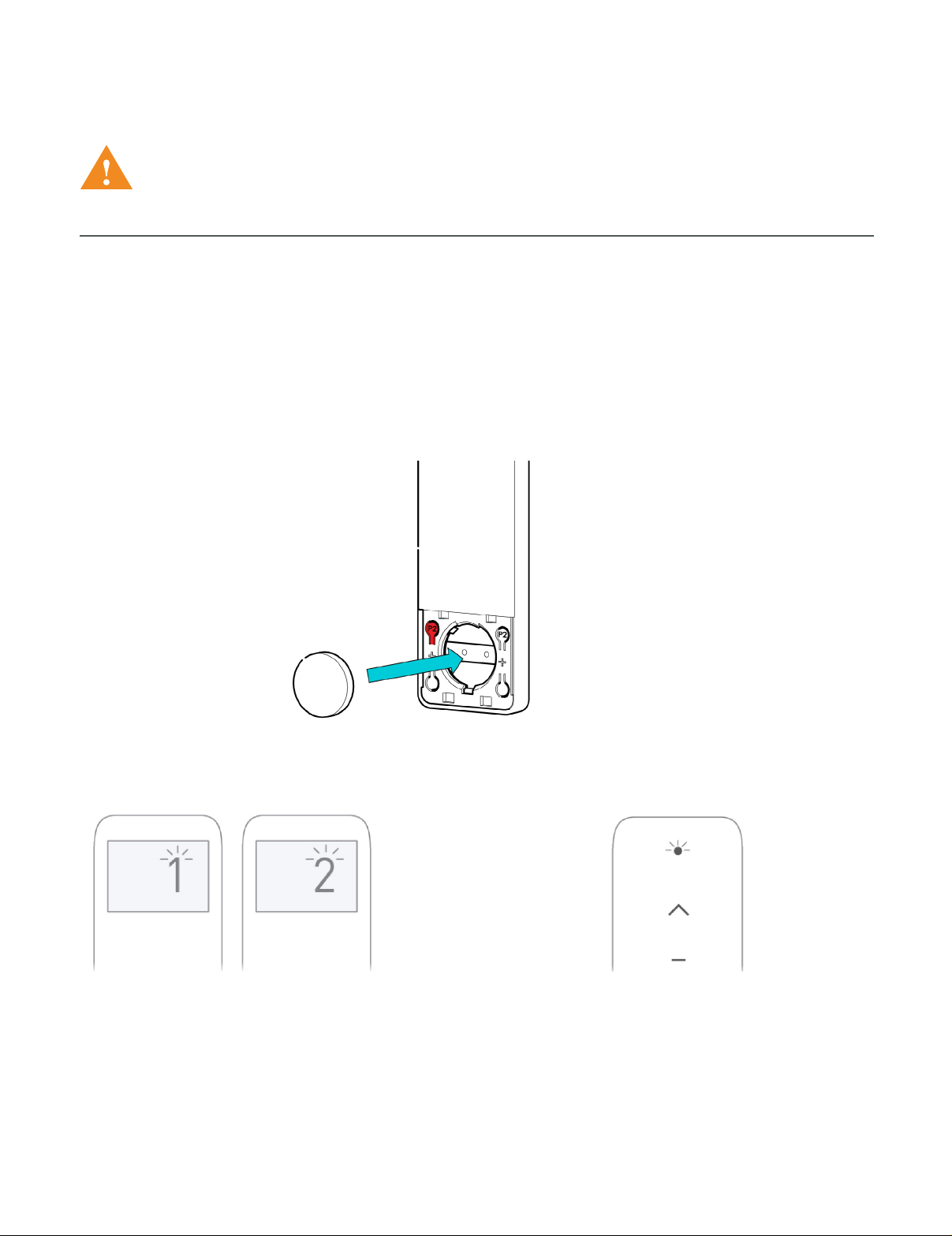

PROTOCOL SELECTION

®

R-TEC Automation

If your remote is in the "EL" mode, to toggle back to the ARC mode follow the steps below.

motors use the default ARC protocol mode.

HOLD P2 while inserting battery

For 15 Channel

Screen ﬂashes X 5

Screen ﬂashes “1” = ARC Mode

*This is the mode needed for your R-TEC Automation

Screen ﬂashes “2” = EL Mode

®

motor to work.

For 1 Channel

1 Flash = ARC Mode

*This is the mode needed for your R-TEC

®

Automation

2 Flashes = EL Mode

motor to work.

8

HIDE UNUSED CHANNELS (15 CHANNEL REMOTE)

Your multi channel remote can be conﬁgured to have anywhere between 1 or 15 visible channels.

Inactive channels will not be visible when scrolling through the CH selection.

Hold STOP and CH.

Response

Channel 15 ﬂashes

Continue holding CH and select required

channel quantity by pressing UP or DOWN.

Continue holding CH

or

Continue holding CH and

press STOP to conﬁrm.

DISABLE LIMIT SETTING FUNCTION OF REMOTE

IMPORTANT

This mode is intended to be used after all window treatment programming is completed. User Mode will prevent accidental or unintended changing of limits.

Response

Flashing stops

right button for 5 Seconds

Pressing the right button for 1 second or less will display the current mode

Response

LCD displays “L” when locked

LCD displays “U” when unlocked

Response

LED solid on when locked

LED blinking when unlocked

IMPORTANT

It is still possible to add or delete channels and perform P2 functions, while the lock function is enabled.

1 Channel15 ChannelTo switch modes hold

9

ADDING OR REMOVING CONTROLLERS & CREATING GROUP CHANNELS

USING MOTOR P1 BUTTON

Hold P1 button on motor head. Hold STOP on switch.

* Internal Tubular

pictured. Refer to

P1 LOCATIONS to right

for speciﬁc devices.

Motor Response

Approx. Approx.

Motor Response

USING PRE-EXISTING CONTROLLER

P1 LOCATIONS

Drapery

Large Tubular

A = Existing switch or channel (to keep). B = Switch or channel to add or remove.

Press P2 on

existing switch.

Press P2 a second time on

existing switch.

Press P2 on new switch

or remote controller.

Motor ResponseMotor ResponseMotor Response

IMPORTANT

Consult your user manual for your controller or sensor.

10

TROUBLESHOOTING

Problem Cause Remedy

Remote battery is discharged Replace battery.

Battery is inserted incorrectly Check battery polarity.

Ensure remote is positioned away from metal objects and

Radio interference / Shielding

Motor is not responding

that aerial on motor or receiver is kept straight and away from metal.

Cannot set limits on a single motor (multiple motors respond)

Receiver distance is too far from remote

Power failure Check power supply to motor is connected and active.

Incorrect wiring

Using “Group” channels to adjust motor limits Red LED is solid

Move remote to a closer position or consider a repeater for improved performance.

Check wiring is connected correctly (refer to motor installation instructions).

Always reserve an individual channel for programming functions.

SYSTEM BEST PRACTICE - Provide an extra 15 channel remote in your multi motor projects, that provides individual control for each motor for programming purposes.

Any Questions?

Contact our R-TEC Automation® in-house experts at 866.985.3423. Email us at RTECAutomation@RowleyCompany.com.

11
