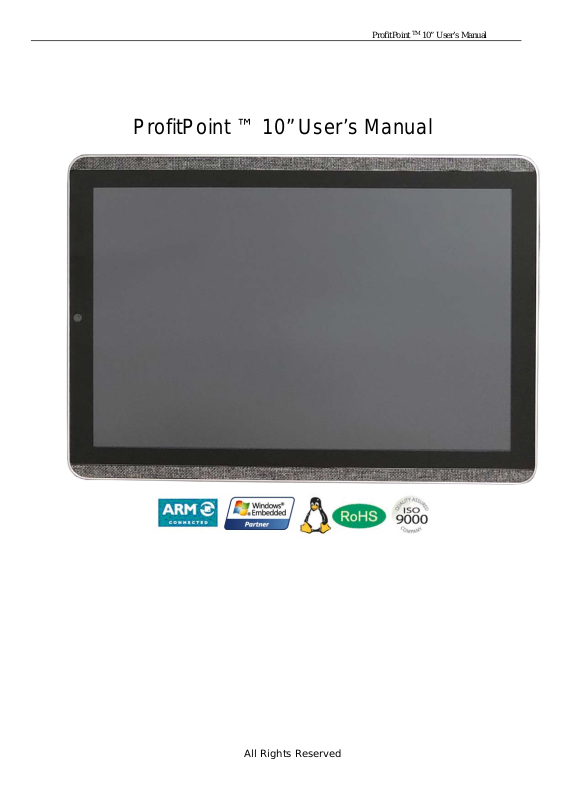

ProfitPoint ™ 10” User’s Manual
TM
10” User’s Manual
All Rights Reserved
ProfitPoint
Contents
CONTENTS ....................................................................................................................................................................... 2
REVISION HISTORY .......................................................................................................................................................... 4
1 FOREWORD ............................................................................................................................................................. 5
1.1 COPYRIGHT NOTICE.............................................................................................................................................................. 5
1.2 NOTES ............................................................................................................................................................................... 5
1.3 STATE MENT ........................................................................................................................................................................ 6
1.4 DISCLAIMER ....................................................................................................................................................................... 6
1.5 LIMITATION OF LIABILITY/NON-WARRANTY ............................................................................................................................... 6
1.6 SAFETY INSTRUCTIONS .......................................................................................................................................................... 6
1.7 PRECAU TIONS ..................................................................................................................................................................... 7
1.8 SAFETY INSTRUCTIONS FOR POWER CABLES AND ACCESSORIES ..................................................................................................... 8
TM
10” User’s Manual
2 OVERVIEW .............................................................................................................................................................. 9
2.1 INTRODUCTION ................................................................................................................................................................... 9
2.2 PRODUCT SERIES ............................................................................................................................................................... 10
2.2.1 Ordering Information .............................................................................................................................................. 10
3 PROFITPOINT HARDWARE INSTRUCTIONS ............................................................................................................ 11
3.1 PRODUCT APPEARANCE ...................................................................................................................................................... 11
3.2 SPECIFICATIONS ................................................................................................................................................................. 12
3.3 INTERFACE INSTRUCTIONS.................................................................................................................................................... 13
3.3.1 Front V iew ............................................................................................................................................................... 13
3.3.2 Back View ................................................................................................................................................................ 13
3.3.3 Side View ................................................................................................................................................................. 14
3.4 DIMENSION ...................................................................................................................................................................... 14
3.5 BUTTONS ......................................................................................................................................................................... 14
3.6 INTERFACE DESCRIPTION ..................................................................................................................................................... 15
3.6.1 12V Adapter Input ................................................................................................................................................... 15
3.6.2 Internal MIC in Interface ......................................................................................................................................... 15
3.6.3 10/100/1000M Ethernet Connector (RJ45) .............................................................................................................. 15
3.6.4 USB OTG (Ty pe-C) .................................................................................................................................................... 15
3.6.5 USB 2.0 HOST (Type-A) ............................................................................................................................................ 15
3.6.6 HDMI ....................................................................................................................................................................... 15
3.7 PACKING LIST .................................................................................................................................................................... 16
4 SOFTWARE INSTRUCTIONS .................................................................................................................................... 17
ProfitPoint
4.1 BRIEF INTRODUCTION ......................................................................................................................................................... 17
5 TIPS ....................................................................................................................................................................... 18
TM
10” User’s Manual
ProfitPoint
TM
User’s Manual
Revision History
No. Version Description Date
1 V1.0 First rel ease 2018/04/10
2 V1.1 Update Description of device 2018/04/13
3 V1.2 Update Description of Function 2018/04/18
4 V1.3 Update FCC, ISED, CE Caution 2019/04/17
4/ 22
ProfitPoint
Caution for latent damage to system or harm to
TM
User’s Manual
1 Foreword
1.1 Copyright Notice
While all information contained herein have been carefully checked to
assure its accuracy in technical details and printing, RTC assumes no
responsibility resulting from any error or features of this manual, or from
improper uses of this manual or the software. Please contact our technical
department for relevant operation solutions if there is any problem that cannot
be solved accordin g to this manual.
RTC reserves all rights of this manual, including the right to change the content,
form, product features, and specifications contained herein at any time without
prior notice. Please contact RTC for further information:
http://www.rtc.com/support
The trademarks and registered trademarks in this manual are properties of
their respective owners. No part of this manual may be copied, reproduced,
translated or sold. No changes or other purposes are permitted without the prior
written consent of RTC.
RTC reserves the right of all publicly-released copies of this manual.
1.2 Notes
Applicable notes are listed in the following table:
Sign Notice Type Description
Notice Important information and regulations
Caution
personnel
5/ 22
ProfitPoint
TM
User’s Manual
1.3 Statement
It is recommended to read and comply with this manual before operating
the ProfitPoint which provides important guidance and helps decreasing the
danger of injury, electric shock, fire, or any damage to the device.
1.4 Disclaimer
RTC assumes no legal liability of accidents resulting from failure of
conforming to the safety instructions.
1.5 Limitation of Liability/Non-warranty
For direct or indirect damage to this device or other devices of RTC
caused by failure of conforming to this manual or the safety instructions on
device label, RTC assumes neither warranty nor legal liability even if the
device is still und e r war ranty.
1.6 Safety Instructions
Keep and comply with all operation instructions, warnings, and
information.
Pay attention to wa rn ings on this device.
Read the following precautions so as to decrease the danger of injury,
electric shock, fire, or any damage to the device.
6/ 22
ProfitPoint
1.7 Precautions
Pay attention to the product labels/safety instructions printed on silk
screens.
Do not try repairing this product un le ss declared in this manual.
Keep away from heat source, such as heater, heat dissipater, or engine
casing.
Do not insert other items into the slot (if any) of this device.
Keep the ventilation slot ventilated for cooling.
System fault may arise if other items are inserted into this device.
Installation: ensure correct installation according to instructions from the
manufacturer with recommended installation tools.
Ensure ventilation and smoothness according to relevant ventilation
TM
User’s Manual
standard.
7/ 22
ProfitPoint
TM
User’s Manual
1.8 Safety Instructions f or Pow er Cables a nd Accessories
Proper power source only
Start only with power source that satisfies voltage label and the voltage
necessary according to this manual. Please contact technical support personnel
of RTC for any uncertainty about the requirements of necessary power source.
Use tested power source
This product still contains a button lithiu m batt e r y as a re al-time clock
after its external power source is removed and therefore should not be
short-circuited during trans portation or placed un der high temperature.
Place cables properly:
Do not place cables at any place with extrusion danger.
Cleaning Instructions
Please power off before cleaning the device.
Do not use spray detergent.
Clean with a damp cloth.
Do not try cleaning exposed electronic components unless with a dust
collector.
Support for special fault: Power off and contact technical support
personnel of RTC in case of the following faults:
The device is damaged.
The temperature is excessively high.
Fault is sti ll not solved after the operation according to the manual.
8/ 22
ProfitPoint
TM
User’s Manual
2 Overview
2.1 Introduction
Thank you for choosing RTC. It is our commitment to provide our valued
customers with the embedded devices equipped with the state-of-the-art
technology and the best product services.
Tablet enables the in teraction between operators/users and applications,
connects industrial control products such as wireless, trans ducer, battery inside ,
storage, etc. Tablet adopts a display fo r d i spl a ying and input units suc h as touch
screen, keyboard, audio, kind of sensors etc. for writing wo rk ing parameters or
inputting operation commands. As a digital device for realizing information
interaction between human and machine, Tablet is composed of hardwar e and
software. Based on its ample function inter fac es and powerful user operational
interface, it is very suitable for control units such as medical device, intelligent
transportation, industrial field, etc.
RTC’s ProfitPoint products are based on the most advanced ARM and
Intel Atom processors and have low-power cons umption and high integration.
The products are designed for applications such as industrials, medicals, and
transportations et c .
9/ 22
ProfitPoint
2.2 Product Series
2.2.1 Product Information
T200111 is the main model number, which will be followed by two letters and two
numbers that indicate color and FLASH Storage Capacity, such as T200111-BK16.
TM
User’s Manual
ProfitPoint ™ 10”
Basic information: 10.1” TFT IPS LCD, 1920x1200 4:3 Wide Screen, RK3399
ARM Dual-Core Coretex-A72 2.0GHz, Quad-core Coretex-A53 1.5GHz, 1000Mbps
Ethernet, POE IEEE 802.3at, USB2.0 HOST, Type-C OTG, WIFI/BT4.2.
10/ 22
ProfitPoint
3 ProfitPoint Hardware Instructions
3.1 Product Appearance
TM
User’s Manual
Front View
Back View
11/ 22
ProfitPoint
Product
ProfitPoint ™ 10”
3.2 Specifications
CPU RK3399, Dual-Core Coretex-A72 2.0GHz, Quad-core Coretex-A53 1.5GHz
10.1” IPS TFT LCD, 1920 x1200, 16.7M color depth, 450cd/m2
TM
User’s Manual
Display
HDMI HDMI Type-A, Pixel up to 4K
RAM DDR3L-1800 2GB
Storage 16GB on board eMMC
Network 1 x Ethernet 10/100/1000Mbps and POE
WLAN 1xWiFi 802.11 a/b/g/n/ac
Bluetooth BT4.2+EDR, with inner antenna
USB 1xUSB2.0 HOST, 1xType-C OTG
Camera Front 5MP, AF, AWB, AE
Audio
RTC Support
Watch Dog Watchdog from RTC Chip
Key-Press 1xReset Button, 1xRecovery Button
TP use 1.1mm thickness Corning Gorilla Glass for good hardness
Multi-point capacitive touch screen, 10 point
Internal Speaker, 2x1W
1x MIC
POE IEEE 802.3at
Power Input 12V/1.5A DC Power Supply
Dimension 244.8x171.3x25.4mm
Weight 617.5g
OS Android 7.1
Temperature
Installation With the VESA mounting Kit
Operation: 0℃ ~ +40℃
12/ 22
ProfitPoint
Camera 5M pixel
Speaker R
Speaker L
MIC
Reset Button
3.3 Interface Instructions
3.3.1 Front View
TM
User’s Manual
3.3.2 Back View
13/ 22
ProfitPoint
HDMI
USB 2.0 HOST
USB Type-C
RJ45 POE
Recovery Button
DC 12V Power Jack
3.3.3 Side View
TM
User’s Manual
3.4 Dimension
Whole device Size: 244.8x171.3x25.4mm
3.5 Buttons
Reset button
You can pr ess reset button with back small hole when you want to reset
the tablet.
Recovery buttons
The tablet will go to recovery mode when recovery button is pressed with
power up. You can update system with recovery mode.
Never apply excessive pressure to a button, because this may
cause damage that is not covered under the warranty .
14/ 22
ProfitPoint
Centre
+12V
Diameter
Ground
3.6 Interface Description
3.6.1 12V Adapter Input
DC 2.1x5.5mm type adapter power Jack
Input Power: DC 12V/1.5A
Structure mark: DC 12V
Pin Description
TM
User’s Manual
3.6.2 Internal MIC in Interface
Front hole is used to the on-board analog MIC input.
3.6.3 10/100/1000M Ethernet Connector (RJ45)
Structure mark: LAN/POE
It is a standard RJ45 port, support 10/100/1000Mbps Ethernet, up to
500Mbps. Support POE IEEE 802.3 at, power up to 30W.
3.6.4 USB OTG (Type-C)
Structure mark: Ty pe C
It is a standard USB T ype-C port, you can connect to PC as USB client to
manage the android device. Or connect a USB device using USB OTG to
HOST adapter cable.
3.6.5 USB 2.0 HOST (Type-A)
Structure mark: USB 2.0
It is a standard USB Type-A port, you can connect to tablet as USB client
to use the USB slave device, as U-disk.
3.6.6 HDMI
Structure mark: Vi de o out
It is a standard HDMI Type-A port.
.
15/ 22
ProfitPoint
No
Part Description
Quantity
Type
1
ProfitPoint ™ 10”
1
2
12V/ 2A Adapter
1 3
5
3.7 Packing List
4
TM
User’s Manual
16/ 22
ProfitPoint
4 Software Instruction s
4.1 Brief Introduction
ProfitPoint has been pre-loaded with Android image, please reference to
SW-UM.
TM
User’s Manual
17/ 22
ProfitPoint
TM
User’s Manual
5 Tips
Waste Disposal
It is recommended to disassemble the device before abandoning it in conformity
with local regulations. Please ensure that the abandoned batteries are disposed according
to local reg ulations on w a ste disposal. Do not throw batteries into fire (explosive) or put
in common waste canister. Product s or product pa ckages wit h the sign of “explosive”
should not be disposed like household waste but delivered to specialized electrical＆
electronic waste recycling/disposal center. Proper disposal of this sort of waste helps
avoiding ha rm and adverse effect upon surroundings and people’s health. Please contact
local organizations or recycling/disposa l center for more recycling/disposal methods of
related products.
Comply with the followi ng safety tips:
Do not use in combustible and explosive environment
Keep away from combusti ble and explosive enviro nment for fear of danger.
Keep away from all energized cir cuits.
Operators s hould not remove enclos ure from the device. Only the group or person
with factory certification is permitted to open the enclosure to adjust a nd replace the
structure and components of the device. Do not cha nge components unless the powe r
cord is removed. In some cases, the device may still have residual voltage even if the
power cord i s removed. Therefore, it is a must to remove and fully disc harge the device
before contact so as to av oid injury.
Unauthorized chan ges to this product or its components ar e prohibite d.
In the aim of avoiding accidents as far as possible, it is not allowed to repla ce the
system or c hange components unless with permission and cer tification. Please conta ct
the technical de pa r tm ent of RTC or local bra nc hes for help.
Pay attention to cau tion signs.
Caution signs in this manual remind of possible danger. Please comply with
relevant safety tips below each sign. Meanwhile, you should strictly conform to all
safety tips f or operation environment.
Notice
18/ 22
ProfitPoint
TM
User’s Manual
Considering that reason able eff orts have b e en made to as sure accuracy of this
manual, RTC assumes no responsibility of possible missing contents and information,
errors in contents, cit a tions, examples, and source programs.
RTC reserves the right to make necessary changes t o this manua l without pr ior
notice. No part of this manual may be r e printed or p ublicly re leased in forms of
photocopy, tape, broadcast, e-document, etc.
FCC RF Exposure Information and Sta tement
This device meets the government's requirements for exposure to radio waves. The
guidelines are based on standards that were developed by ind ependent
scientific organizatio ns thr o ug h per io dic and th or o ugh e val ua ti on of scie n tif ic stu die s.
The standards include a substantial safety margin designed to assure the s afety of all
persons regardless of age or health. The SAR limit of USA (FCC) is 1.6 W/kg
averaged. D ev ice types: Tablet computer (FCC ID: 2ABUA- T200111) has also been
tested agai nst this SAR limit. SAR information on thi s and ot her pa d can be vie wed on
‐line at http://www.fcc.gov/oet/ea/fccid/. Please use the device FCC ID number for
search. Th is de vi ce was tes ted simulation typical 0mm to body. To maintain compliance
with FCC RF exposure requirements, the use of belt clips, holsters and similar
accessories should not contain metallic components in its assembly, the use of
accessories that do not satisfy these requirements may not comply with FCC RF
exposure requirement s, and should be avoided.
FCC Warning
This device complies with Part 15 of the FCC Rule s. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this devic e must accept
any interference received, inclu ding interference that may cause undesired operati o n.
NOTE 1: This equipment has bee n tested and found to comply with the limits for a
Class B digital device, pursuant to pa r t 15 of the FCC Rules. These lim its a re designed
to provide re asonable pr otection a gainst harmful interfer e nce in a res ide n ti al in st al la ti on.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guaran te e that interference will not occur in
a particular installati on. If this e qu ipm e nt d oes ca use harmful interfere nc e to ra dio or
19/ 22
ProfitPoint
TM
User’s Manual
television reception, which can be determined by turning the equipment off and on, the
user is enco uraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase th e separation between t he equipment and receiver.
-Connect the equipment i nto an outlet on a circuit d ifferent from that to which the
receiver is connected.
-Consult the dealer or an e xperience d radio/TV technicia n for help.
NOTE 2: Any changes or modifications t o this unit not e xpressly a pproved by the
party respo nsible for compliance could void the user's authority to operate the
equipment.
IC RF Exposur e Informatio n and Statement
This equipment complies with IC RSS-102 radiation exposure limits se t forth for a n
uncontrolled environment. The guidelines are based on standa r ds that were developed by
independen t scie nt if i c or gan iza t io ns thr o ugh pe riodic and thorough evaluation of
scientific studies. The standards include a substantial safety margin desig ned to assur e
the safety of all persons r egardless of age or health. The SAR limit of IC is 1.6 W/kg
averaged. Dev ice ty pes: Tablet computer (IC: 24893- T200111) has also bee n tes te d
against thi s SAR limit. This device was tested simulation typical 0 mm to body. To
maintain compliance with FCC RF exposure requi rements, the use of belt clips, holsters
and similar accessories should not contain meta llic compone n ts in it s assembly, the use
of accessories tha t do not satisfy these req uirements may not comply with FCC RF
exposure requirement s, and should be avoided.
20/ 22
ProfitPoint
IC WARNING
TM
User’s Manual
This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two condit ions:
(1) This device may not cause interference; and
(2) This device must accept any interf erence, inc luding interference th a t may cause
undesired ope ra ti o n of the devi ce .
Le présent appareil est conforme aux CNR d'Industr ie Canada applicables a ux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes: (1) l'appareil ne doit pas produ i re de brou il la ge, et (2) l'utilisateur de l'appareil
doit accept er tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
CE Caution:
For the foll owing equipment:
Product Name: ProfitPoint ™ 10”
Model: T200111
Brand Name: RTC Industries, Inc.
hereby declar es th at t hi s [Name: ProfitPoi nt ™ 10”, Model: T200111] is in
compliance with the essential requirements an d other relevant provisions of Direc tive
2014/53/EU.
The full test of the EU dec laration of conformity please refer to
www.rtc.com/support
The product shall only be connected to a USB interface of version USB2.0 an d that
the connection to a power USB is allowed.
Only can use Power Adapter: S024AMM1200200 Input: AC 100-240V 50/60Hz
600mA; Output: DC 12V 2000mA
RED Article 10 2
-This produc t c an be used across EU member states
RED Article 10 10
-The product is class 1 product, No restrictions
The RF dista nce between body and product is 20cm
Bluetooth Version: Bluetooth V4.2
21/ 22
ProfitPoint
Frequency Range: 2402-2480MHz
Max.RF Output Power: 5.76dBm (EIRP)
Support Sta n da r ds: 802.11b, 802.11g, 802.11n-HT20
Frequency Range: 2412-2472MHz for 802.11b/g/n(HT20)
Max.RF Output Power: 14.13dBm (EIRP)
Operation F requency: Band 1: 5150-5250MHz,
Support Sta n da r ds: 802.11a, 802.11n-HT20/40, 802.11ac(HT80)
RF Output Power Max. 10.79dBm (EIRP)
Operation F requency: 5725-5850MHz
Support Sta n da r ds: 802.11a, 802.11n(HT20/40); 802.11a c-VTH80
RF Output Power Max. 13.76dBm (EIRP)
TM
User’s Manual
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS.
RTC Industries, Inc.
2800 Golf Road. Rolling Meadows, IL. USA 60008
http://www.rtc.com/support
U.S. 800-949-4190
22/ 22
Loading...
