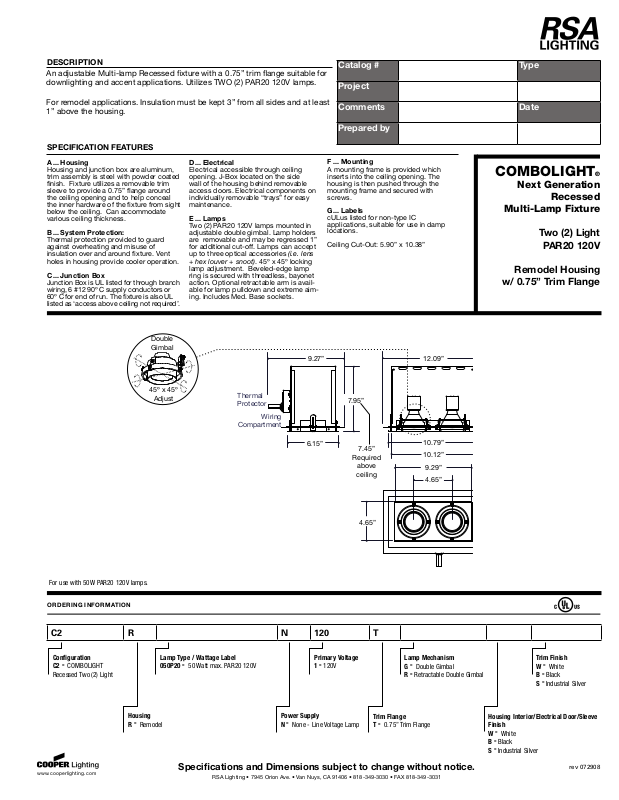

DESCRIPTION

Thermal
Protector

4.65”

9.29”

10.12”

10.79”

12.09”

7.95”

9.27”

6.15”

4.65”

7.45”

Required

above
ceiling

45º x 45º

Adjust

Double
Gimbal

Wiring

Compartment

An adjustable Multi-lamp Recessed fixture with a 0.75” trim flange suitable for
downlighting and accent applications. Utilizes TWO (2) PAR20 120V lamps.

For remodel applications. Insulation must be kept 3” from all sides and at least
1” above the housing.

SPECIFICATION FEATURES

A ... Housing

Housing and junction box are aluminum,
trim assembly is steel with powder coated
finish. Fixture utilizes a removable trim
sleeve to provide a 0.75” flange around
the ceiling opening and to help conceal
the inner hardware of the fixture from sight
below the ceiling. Can accommodate
various ceiling thickness.

B ... System Protection:

Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture. Vent
holes in housing provide cooler operation.

C ... Junction Box

Junction Box is UL listed for through branch
wiring, 6 #12 90º C supply conductors or
60º C for end of run. The fixture is also UL
listed as ‘access above ceiling not required’.

D ... Electrical

Electrical accessible through ceiling
opening. J-Box located on the side
wall of the housing behind removable
access doors. Electrical components on
individually removable “trays” for easy
maintenance.

E ... Lamps

Two (2) PAR20 120V lamps mounted in
adjustable double gimbal. Lamp holders
are removable and may be regressed 1”
for additional cut-off. Lamps can accept
up to three optical accessories (i.e. lens
+ hex louver + snoot). 45º x 45º locking
lamp adjustment. Beveled-edge lamp
ring is secured with threadless, bayonet
action. Optional retractable arm is avail­able for lamp pulldown and extreme aim­ing. Includes Med. Base sockets.

Catalog # Type

Project

Comments Date

Prepared by

F ... Mounting

A mounting frame is provided which
inserts into the ceiling opening. The
housing is then pushed through the
mounting frame and secured with
screws.

G ... Labels

cULus listed for non-type IC
applications, suitable for use in damp
locations.

Ceiling Cut-Out: 5.90” x 10.38”

COMBOLIGHT®

Multi-Lamp Fixture

w/ 0.75” Trim Flange

Next Generation

Recessed

Two (2) Light

PAR20 120V

Remodel Housing

For use with 50W PAR20 120V lamps.

ORDERING INFORMATION

C2 R N 120 T

Configuration

=

C2

COMBOLIGHT

Recessed Two (2) Light

www.cooperlighting.com

Housing
R = Remodel

Lamp Type / Wattage Label
050P20 = 50 Watt max. PAR20 120V

Primary Voltage
1 = 120V

Power Supply
N = None - Line Voltage Lamp

Specifications and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX [phone]

Lamp Mechanism
G = Double Gimbal
R = Retractable Double Gimbal

Trim Flange
T = 0.75” Trim Flange

Trim Finish
W = White
B = Black
S = Industrial Silver

Housing Interior/Electrical Door/Sleeve
Finish
W = White
B = Black
S = Industrial Silver

rev 072908
