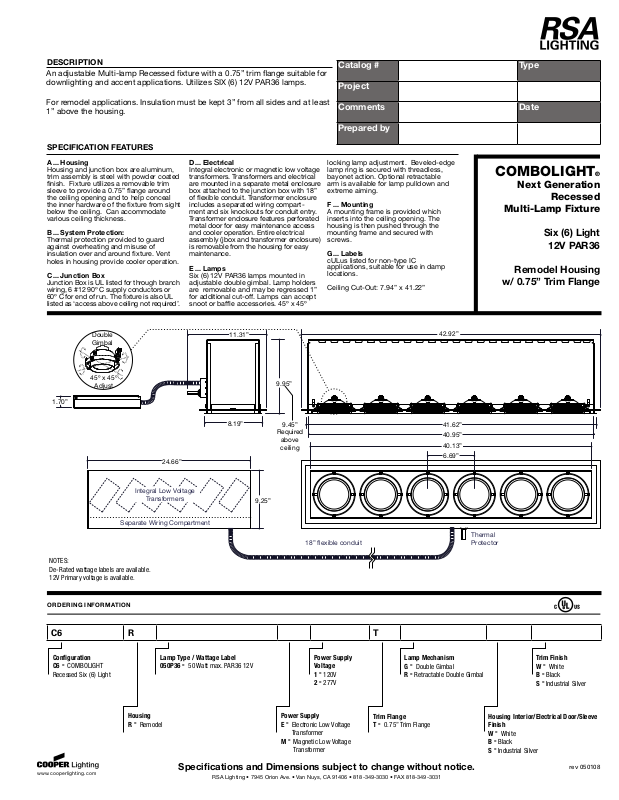

RSA Lighting 150 STD User Manual

DESCRIPTION

Thermal
Protector

18” flexible conduit

40.13”

40.95”

41.62”

42.92”

9.95”

11.31”

8.19”

1.70”

9.45”

Required

above
ceiling

45º x 45º

Adjust

Double
Gimbal

Separate Wiring Compartment

9.25”

24.66”

Integral Low Voltage

Transformers

6.69”

An adjustable Multi-lamp Recessed fixture with a 0.75” trim flange suitable for

downlighting and accent applications. Utilizes SIX (6) 12V PAR36 lamps.

For remodel applications. Insulation must be kept 3” from all sides and at least
1” above the housing.

SPECIFICATION FEATURES

A ... Housing

Housing and junction box are aluminum,
trim assembly is steel with powder coated
finish. Fixture utilizes a removable trim
sleeve to provide a 0.75” flange around
the ceiling opening and to help conceal
the inner hardware of the fixture from sight
below the ceiling. Can accommodate
various ceiling thickness.

B ... System Protection:

Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture. Vent
holes in housing provide cooler operation.

C ... Junction Box

Junction Box is UL listed for through branch
wiring, 6 #12 90º C supply conductors or
60º C for end of run. The fixture is also UL
listed as ‘access above ceiling not required’.

D ... Electrical

Integral electronic or magnetic low voltage
transformers. Transformers and electrical
are mounted in a separate metal enclosure
box attached to the junction box with 18”
of flexible conduit. Transformer enclosure
includes a separated wiring compart­ment and six knockouts for conduit entry.
Transformer enclosure features perforated
metal door for easy maintenance access
and cooler operation. Entire electrical
assembly (jbox and transformer enclosure)
is removable from the housing for easy
maintenance.

E ... Lamps

Six (6) 12V PAR36 lamps mounted in
adjustable double gimbal. Lamp holders
are removable and may be regressed 1”
for additional cut-off. Lamps can accept
snoot or baffle accessories. 45º x 45º

Catalog # Type

Project

Comments Date

Prepared by

locking lamp adjustment. Beveled-edge
lamp ring is secured with threadless,
bayonet action. Optional retractable
arm is available for lamp pulldown and
extreme aiming.

F ... Mounting

A mounting frame is provided which
inserts into the ceiling opening. The
housing is then pushed through the
mounting frame and secured with
screws.

G ... Labels

cULus listed for non-type IC
applications, suitable for use in damp
locations.

Ceiling Cut-Out: 7.94” x 41.22”

COMBOLIGHT®

Multi-Lamp Fixture

w/ 0.75” Trim Flange

Next Generation

Recessed

Six (6) Light

12V PAR36

Remodel Housing

NOTES:
De-Rated wattage labels are available.
12V Primary voltage is available.

ORDERING INFORMATION

C6 R T

Configuration

=

COMBOLIGHT

C6

Recessed Six (6) Light

www.cooperlighting.com

Housing
R = Remodel

Lamp Type / Wattage Label
050P36 = 50 Watt max. PAR36 12V

Specifications and Dimensions subject to change without notice.

Power Supply

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX [phone]

E = Electronic Low Voltage

M = Magnetic Low Voltage

Power Supply
Voltage
1 = 120V
2 = 277V

Transformer

Transformer

Lamp Mechanism
G = Double Gimbal
R = Retractable Double Gimbal

Trim Flange
T = 0.75” Trim Flange

Trim Finish
W = White
B = Black
S = Industrial Silver

Housing Interior/Electrical Door/Sleeve
Finish
W = White
B = Black
S = Industrial Silver

rev 050108
