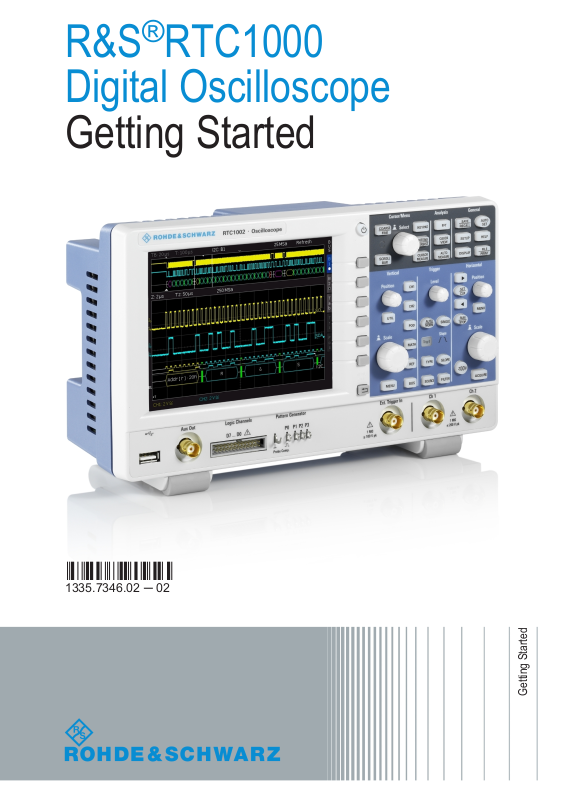

R&S
RTC1000
Digital Oscilloscope
Getting Started
(=S×^2)
1335.7346.02 ─ 02
Getting Started
This manual describes the following R&S®RTC1000 models:
●
R&S®RTC1002 (1335.7500K02)
© 2017 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: +49 89 41 29 - 0
Fax: +49 89 41 29 12 164
Email: info@rohde-schwarz.com
Internet: www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of their owners.
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g.
R&S®RTC1000 is indicated as R&S RTC1000.
R&S®RTC1000
Contents
1 For Your Safety...................................................................... 5
2 Documentation Overview......................................................7
2.1 Manuals and Instrument Help..............................................................7
2.2 Data Sheet and Brochure..................................................................... 8
2.3 Calibration Certificate...........................................................................8
2.4 Release Notes, Open Source Acknowledgment................................ 8
3 Preparing for Use...................................................................9
3.1 Unpacking and Checking the Instrument........................................... 9
Contents
3.2 Positioning the Instrument................................................................ 10
3.3 Starting the Instrument...................................................................... 11
3.3.1 Powering On......................................................................................... 11
3.3.2 Starting Up and Shutting Down.............................................................12
3.3.3 Powering Off......................................................................................... 13
3.4 Replacing the Fuse............................................................................. 14
4 Instrument Tour................................................................... 15
4.1 Front Panel.......................................................................................... 15
4.1.1 Input Connectors...................................................................................16
4.1.2 Other Connectors on the Front Panel................................................... 18
4.2 Rear Panel........................................................................................... 18
3Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Contents
4Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
For Your Safety
1 For Your Safety
The R&S RTC1000 digital oscilloscope is designed for measurements on circuits
that are only indirectly connected to the mains or not connected at all. It is not
rated for any measurement category.
The instrument must be controlled by personnel familiar with the potential risks of
measuring electrical quantities. Applicable local or national safety regulations and
rules for the prevention of accidents must be observed.
Safety information is part of the product documentation. It warns you about the
potential dangers and gives instructions how to prevent personal injury or damage caused by dangerous situations. Safety information is provided as follows:
●
The "Basic Safety Instructions" in different languages are delivered as a printed brochure with the instrument.
●
Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.
Risk of injury
The instrument must be used in an appropriate manner to prevent electric
shock, personal injury, fire, or damage:
●
Do not open the instrument casing.
●
Do not use the instrument if the instrument casing, the display or any
accessory are damaged. If you detect or suspect any damage, have the
instrument or accessory inspected by qualified service personnel.
●
Do not operate the instrument in wet, damp or explosive atmospheres.
Make sure that the instrument, cables and connectors are completely
dry before connecting the inputs.
●
Do not exceed the voltage limits given in Chapter 4.1.1, "Input Connec-
tors", on page 16.
5Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Risk of instrument damage
An unsuitable operating site or test setup can damage the instrument and
connected devices. Ensure the following operating conditions before you
switch on the instrument:
●
Read and observe the "Basic Safety Instructions" brochure and the
safety instructions in the manuals.
●
Observe the operating conditions specified in the data sheet. Note that
the general safety instructions also contain information on operating
conditions.
●
Position the instrument as described in the following sections.
Make sure that all fan openings are unobstructed and the airflow perforations are unimpeded. The minimum distance from the wall is 10 cm.
For Your Safety
●
Signal levels at the input connectors are all within the specified ranges.
●
Signal outputs are correctly connected and are not overloaded.
Instrument damage caused by electrostatic discharge
Electrostatic discharge (ESD) can damage the electronic components of the
instrument and the device under test (DUT). Electrostatic discharge is most
likely to occur when you connect or disconnect a DUT or test fixture to the
instrument's test ports. To prevent electrostatic discharge, use a wrist strap
and cord and connect yourself to the ground, or use a conductive floor mat
and heel strap combination.
Electromagnetic interference (EMI) may affect the measurement results.
To suppress generated electromagnetic interference (EMI):
●
Use suitable shielded cables of high quality. For example, use doubleshielded RF and LAN cables.
●
Always terminate open cable ends.
●
Note the EMC classification in the data sheet.
6Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Documentation Overview
Manuals and Instrument Help
2 Documentation Overview
This section provides an overview of the R&S RTC1000 user documentation.
2.1 Manuals and Instrument Help
You find the manuals on the product page at:
www.rohde-schwarz.com/manual/rtc1000
Getting started manual
Introduces the R&S RTC1000 and describes how to set up the product. A printed
English version is included in the delivery.
User manual
Contains the description of all instrument modes and functions. It also provides
an introduction to remote control, a complete description of the remote control
commands with programming examples, and information on maintenance and
instrument interfaces. Includes the contents of the getting started manual.
The online version of the user manual provides the complete contents for immediate display on the internet.
Instrument help
The help offers quick, context-sensitive access to the functional description
directly on the instrument.
Basic safety instructions
Contains safety instructions, operating conditions and further important information. The printed document is delivered with the instrument.
Instrument security procedures manual
Deals with security issues when working with the R&S RTC1000 in secure areas.
7Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Documentation Overview
Release Notes, Open Source Acknowledgment
Service manual
Describes the performance test for checking the rated specifications, module
replacement and repair, firmware update, troubleshooting and fault elimination,
and contains mechanical drawings and spare part lists. The service manual is
available for registered users on the global Rohde & Schwarz information system
(GLORIS, https://gloris.rohde-schwarz.com).
2.2 Data Sheet and Brochure
The data sheet contains the technical specifications of the R&S RTC1000. It also
lists the options with their order numbers and optional accessories. The brochure
provides an overview of the instrument and deals with the specific characteristics.
See www.rohde-schwarz.com/brochure-datasheet/rtc1000
2.3 Calibration Certificate
The document is available on https://gloris.rohde-schwarz.com/calcert. You need
the device ID of your instrument, which you can find on a label on the rear panel.
2.4 Release Notes, Open Source Acknowledgment
The release notes list new features, improvements and known issues of the current firmware version, and describe the firmware installation. The open source
acknowledgment document provides verbatim license texts of the used open
source software. It can also be read directly on the instrument.
See www.rohde-schwarz.com/firmware/rtc1000.
8Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Preparing for Use
Unpacking and Checking the Instrument
3 Preparing for Use
3.1 Unpacking and Checking the Instrument
1. Inspect the package for damage.
If the packaging material shows any signs of stress, notify the carrier who
delivered the instrument.
2. Carefully unpack the instrument and the accessories.
3. Check the equipment for completeness. See section "Delivery contents"
on page 9.
4. Check the equipment for damage.
If there is damage, or anything is missing, immediately contact the carrier as
well as your distributor. Make sure not to discard the box and packing material.
Packing material
Retain the original packing material. If the instrument needs to be transported or shipped later, you can use the material to protect the control elements and connectors.
Delivery contents
The delivery package contains the following items:
●
R&S RTC1000 digital oscilloscope
●
R&S RT-ZP03 probe probes (2x)
●
Country-specific power cable
●
Printed "Getting Started" manual
●
Printed "Basic Safety Instructions" brochure
9Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Preparing for Use
Positioning the Instrument
3.2 Positioning the Instrument
The instrument is designed for use under laboratory conditions. It can be used in
standalone operation on a bench top or can be installed in a rack.
For standalone operation, place the instrument on a horizontal bench with even,
flat surface. The instrument can be used in horizontal position, or with the support
feet on the bottom extended.
The instrument can be installed in a 19" rack mount using a rack mount kit. The
order number of the rack mount kit is given in the data sheet. The installation
instructions are part of the rack mount kit.
Risk of injury if feet are folded out
The feet can fold in if they are not folded out completely or if the instrument
is shifted. This can cause damage or injury.
●
Fold the feet completely in or out to ensure stability of the instrument.
Never shift the instrument when the feet are folded out.
●
When the feet are folded out, do not work under the instrument or place
anything underneath.
●
The feet can break if they are overloaded. The overall load on the folded-out feet must not exceed 200 N.
F
max
10Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Preparing for Use
Starting the Instrument
Risk of instrument damage due to overheating
An insufficient airflow can cause the R&S RTC1000 to overheat, which can
impair the measurement results, disturb the operation, and even cause
damage.
●
Ensure that all fan openings are unobstructed and that the airflow perforations are unimpeded. The minimum distance to a wall is 10 cm.
●
When placing several instruments side by side, keep a minimum distance of 20 cm between the instruments. Ensure that the instruments do
not draw in the preheated air from their neighbors.
●
When mounting the instrument in a rack, observe the instructions of the
rack manufacturer to ensure sufficient airflow and avoid overheating.
3.3 Starting the Instrument
3.3.1 Powering On
The R&S RTC1000 can be used with different AC power voltages and adapts
itself automatically to it.
The nominal ranges are:
●
100 V to 240 V AC at 50 Hz to 60 Hz, or 100 V to 120 V at 400 Hz
●
max. 25 W
Risk of injury
Connect the instrument only to an outlet that has a ground contact.
Do not use an isolating transformer to connect the instrument to the AC
power supply.
1. Connect the power cable to the AC power connector on the rear panel of the
R&S RTC1000.
11Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Preparing for Use
Starting the Instrument
2. Connect the power cable to the socket outlet.
3. Switch the main power switch at the rear of the instrument to position I.
The ON/OFF key lights up when the instrument is in standby mode. The key is
located next to the upper right corner of the screen.
You can leave the main power switch on to preserve your last instrument settings.
To disconnect from power supply, power off the instrument.
3.3.2 Starting Up and Shutting Down
To start up the instrument
1. Make sure that the R&S RTC1000 is connected to the AC power supply and
the main power switch on the rear panel is in position I.
2. Press the ON/OFF key. The key is located next to the upper right corner of the
screen.
The instrument performs a system check and starts the firmware. If the previous session was terminated regularly, the oscilloscope uses the last settings.
Table 3-1: Colors of the ON/OFF key
Unlit Instrument is on: firmware is working
Red Standby: instrument is off, main power switch is on
Warm-up and prepare the instrument
Make sure that the instrument has been running and warming up before
you start the self-alignment and the measurements. The minimum warm-up
time is about 20 min.
To shut down the instrument to standby state
► Press the ON/OFF key.
All current settings are saved, and the software shuts down. Now it is safe to
power off the instrument.
12Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Preparing for Use
Starting the Instrument
3.3.3 Powering Off
Powering off is required only if the instrument must be disconnected from all
power supplies.
1. If the instrument is running, press the ON/OFF key on the front panel to shut
down the instrument.
2. Switch the main power switch at the rear of the instrument to position 0.
3. Disconnect the AC power cable from the AC power supply.
Risk of losing data
If you switch off the running instrument using the rear panel switch or by
disconnecting the power cord, the instrument loses its current settings. Furthermore, program data can be lost.
Press the ON/OFF key first to shut down the application properly.
13Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Preparing for Use
Replacing the Fuse
3.4 Replacing the Fuse
The instrument is protected by a fuse. You can find it on the rear panel between
the main power switch and AC power supply.
Type of fuse: Size 5x20 mm, 250V~, T2.5H (slow-blow), IEC60127-2/5
Risk of electric shock
The fuse is part of the main power supply. Therefore, handling the fuse
while power is on can lead to electric shock. Before opening the fuse
holder, make sure that the instrument is switched off and disconnected from
all power supplies.
Always use fuses supplied by Rohde & Schwarz as spare parts, or fuses of
the same type and rating.
1. Pull the fuse holder out of its slot on the rear panel.
2. Exchange the fuse.
3. Insert the fuse holder carefully back in its slot until it latches.
14Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Instrument Tour
Front Panel
4 Instrument Tour
4.1 Front Panel
Figure 4-1 shows the front panel of the R&S RTC1000. The function keys are
grouped in functional blocks to the right of the display.
Figure 4-1: Front view of the R&S RTC1000
1 = Touchscreen
2 = Softkeys and menu
3 = ON/OFF key
4 = Cursor/Menu, Analyze and General sections
5 = Vertical, Trigger and Horizontal sections
6 = BNC connectors of the analog channel inputs
7 = BNC connector of the external trigger input
8 = Pattern generator output (option R&S RTC-B6) and probe adjustment output
9 = Connector for the logic probe (option R&S RTC-B1)
10 = Multi-purpose BNC connector AUX OUT
11 = USB connector
15Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Instrument Tour
Front Panel
4.1.1 Input Connectors
BNC inputs (6, 7)
The R&S RTC1000 has two channel inputs (6) to connect the input signals. The
external trigger input (7) is used to control the measurement by an external signal. The trigger level can be set from -5 V to 5 V.
The input impedance of all BNC inputs is 1 MΩ.
Risk of electrical shock - maximum input voltages
The maximum input voltage on channel inputs must not exceed
200 V (peak) and 150 V (RMS).
For the external trigger input, the maximum input voltage is 100 V (peak)
and 70 V (RMS).
Transient overvoltages must not exceed 200 V (peak).
Voltages higher than 30 V (RMS) or 42 V (peak) or 60 V DC are regarded
as hazardous contact voltages. When working with hazardous contact voltages, use appropriate protective measures to preclude direct contact with
the measurement setup:
●
Use only insulated voltage probes, test leads and adapters.
●
Do not touch voltages higher than 30 V (RMS) or 42 V (peak) or
60 V DC.
16Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Risk of injury and instrument damage
The instrument is not rated for any measurement category. When measuring in circuits with transient overvoltages of category II, III or IV circuits,
make sure that no such overvoltages reach the R&S RTC1000 input.
Therefore, use only probes that comply with DIN EN 61010-031. When
measuring in category II, III or IV circuits, always insert a probe that appropriately reduces the voltage so that no transient overvoltages higher than
200 V (peak) are applied to the instrument. For detailed information, refer to
the documentation and safety information of the probe manufacturer.
Explanation: According to section AA.2.4 of EN 61010-2-030, measuring
circuits without any measurement category are intended for measurements
on circuits which are not directly connected to the mains.
Instrument Tour
Front Panel
Logic probe (9)
The connector for logic channels can be used if the Mixed Signal Option
R&S RTC-B1 is installed. The option provides a logical probe with 8 digital channels (D0 to D7).
The maximum input voltage is 40 V (peak) at 100 kΩ input impedance. The maximum input frequency for a signal with the minimum input voltage swing and
medium hysteresis of 800 mV (Vpp) is 300 MHz.
Risk of instrument damage
Use the connector for the active logic probe exclusively for the logic probe
R&S RT-ZL03, which is delivered with option R&S RTC-B1. Connecting
other probe types can demolish the input.
17Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Instrument Tour
Rear Panel
4.1.2 Other Connectors on the Front Panel
PATTERN GENERATOR (8)
Connectors for the pattern generator P0, P1, P2, P3.
PROBE COMP. (8)
Probe compensation terminal to support adjustment of passive probes to the
oscilloscope channel.
Square wave signal for probe compensation.
Ground connector for probes.
AUX OUT (10)
Multi-purpose BNC output that can function as pass/fail and trigger output, output
for component testing, and as function generator output (with option R&S RTCB6).
USB type A (11)
USB 2.0 type A interface to connect a USB flash drive for storing and reloading
instrument settings and measurement data, and to update the firmware.
4.2 Rear Panel
Figure 4-2 shows the rear panel of the R&S RTC1000 with its connectors.
On the back panel of the instrument, you find Ethernet and USB interfaces.
Optional interfaces are not available.
18Getting Started 1335.7346.02 ─ 02
R&S®RTC1000
Instrument Tour
Rear Panel
Figure 4-2: Rear panel view of R&S RTC1000
1 = AC power supply connector and main power switch
2 = USB connector, type B
3 = LAN connector
4 = not used
5 = Kensington lock slot to secure the instrument against theft
AC supply: mains connector and main power switch (1)
The instrument supports a wide range power supply. It automatically adjusts to
the correct range for the applied voltage. There is no line voltage selector.
The AC main power switch disconnects the instrument from the AC power line.
USB type B (2)
USB 2.0 interface of type B (device USB) to connect a printer, or for remote control of the instrument.
Note: Electromagnetic interference (EMI) can affect the measurement results. To
avoid any impact, use only USB connecting cables with a maximum length of
1 m.
LAN (3)
8-pin connector RJ-45 used to connect the instrument to a Local Area Network
(LAN). It supports up to 100 Mbit/s.
19Getting Started 1335.7346.02 ─ 02
Loading...
