Instruction Manual
IVT-10 / IVT-20
Voltage Tester
EN
1
1. Safety
Safety Information
To ensure safe operation and service of the
Tester, follow these instructions.
Failure to observe warnings can result in
severe injury or death.
- Avoid working alone so assistance can be
rendered. If the operators safety can not be
guaranteed, the Tester must be removed
from service and protected against use.
- Prior to usage ensure perfect instrument
function (e.g. on known voltage source)
before and after the test.
- Do not connect the instrument to voltages
higher than 750V.
- Do not open the battery cover before take
off from voltage source.
- The safety can no longer be insured if
the Tester :
• shows obvious damage • does not carry
out the desired measurements • has been
stored for too long under unfavorable
conditions • has been subjected to
mechanical stress (i.e. during transport).
- All relevant statutory safety regulations must
be adhered to when using this instrument.
- The Tester may no longer be used if one
or several functions fail or if no functionality
is indicated or the Tester looks damaged.
- When using this Tester, only the handles
of the probes may be touched do not touch
the probe tips (metal part).
- Do not use the Tester if the Tester is not
operating properly or if it is wet.
- Use the Tester only as specified in the
Instruction card including environmental
conditions and the usage in dry environments
must be followed or the protection by the
Tester might be impaired.
- Use extreme caution when working around
bare conductors or bus bar. Contact with
the conductor could result in an electric
shock.
- Use caution with voltages above 50V AC
rms or 110V DC. These voltages pose a
shock hazard.
2
2. Symbols and Features
Symbols as marked on the Tester
and Instruction manual
Risk of electric shock
See instruction manual
+ or -
+ DC or –DC measurement
Equipment protected by double or
reinforced insulation
Battery
Earth
±
AC measurement
Conforms to EU directives
High Voltage Detection
List of features
– AC Voltage
– DC Voltage
– Continuity
– Resistance (only on IVT-20)
– Single pole phase test
– Phase rotation of a three-phase mains
– Frequency test (only on IVT-20)
– Auto test
– Probe tip torch
– Drop proof 1 meter
– IP 65 Protection
– Auto Power On/Off
– Selectable probe tips 2/4 mm
3
3. AC/DC V Measurements
AC V
DC V
IVT-10 : The safety LED can report a
dangerous voltage> 50 V AC and 120 V DC
IVT-20 : The safety indicator can report a
dangerous voltage > 50 V AC and 120 V DC.
If the tester is used in a noisy
background, you need to ensure that the
soundlevel of the tester is perceptible here.
4

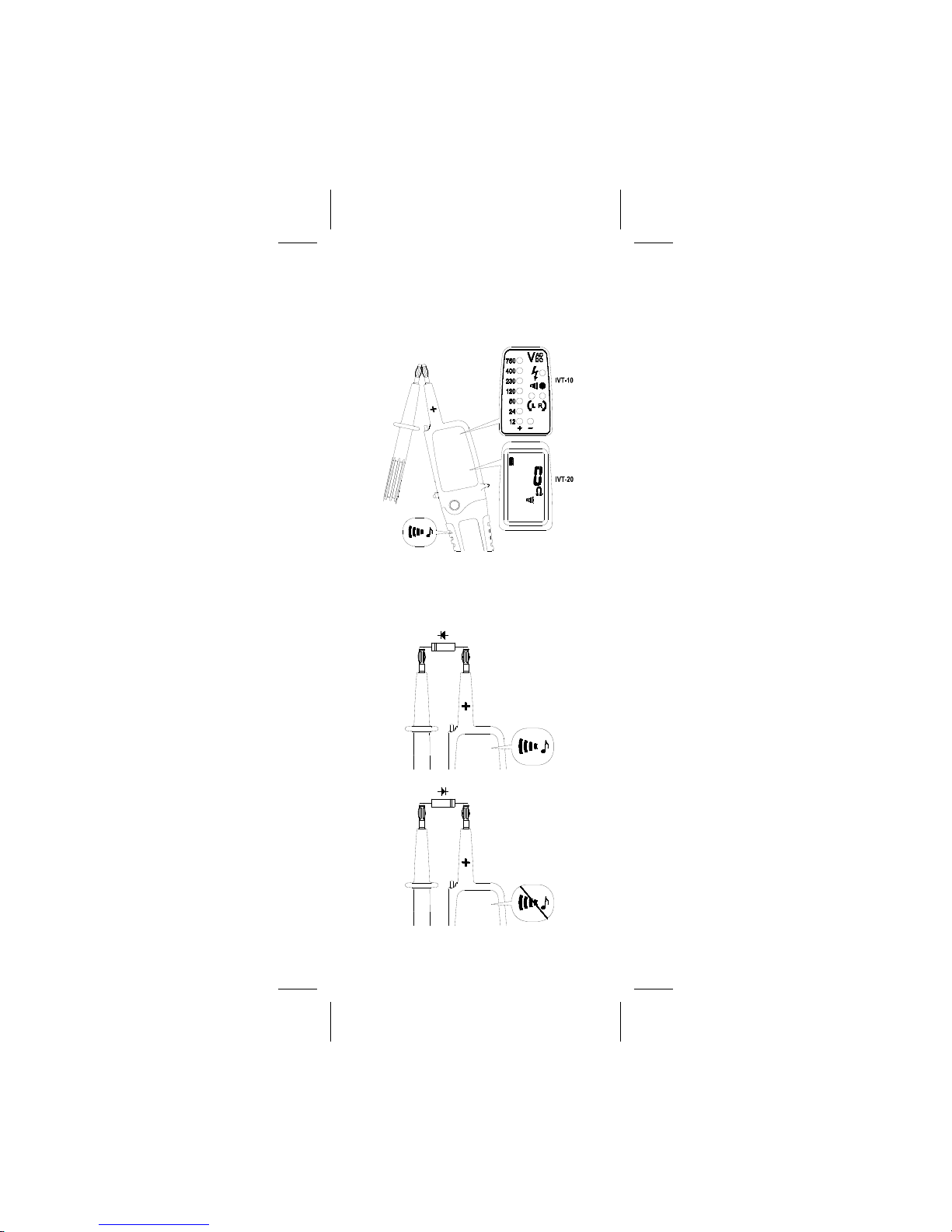

4. Continuity / Diode Test
Continuity Tests
Diode Tests
– IVT-10
5
– IVT-20
The Continuity / test is only possible
when batteries are installed and in good
condition.
6

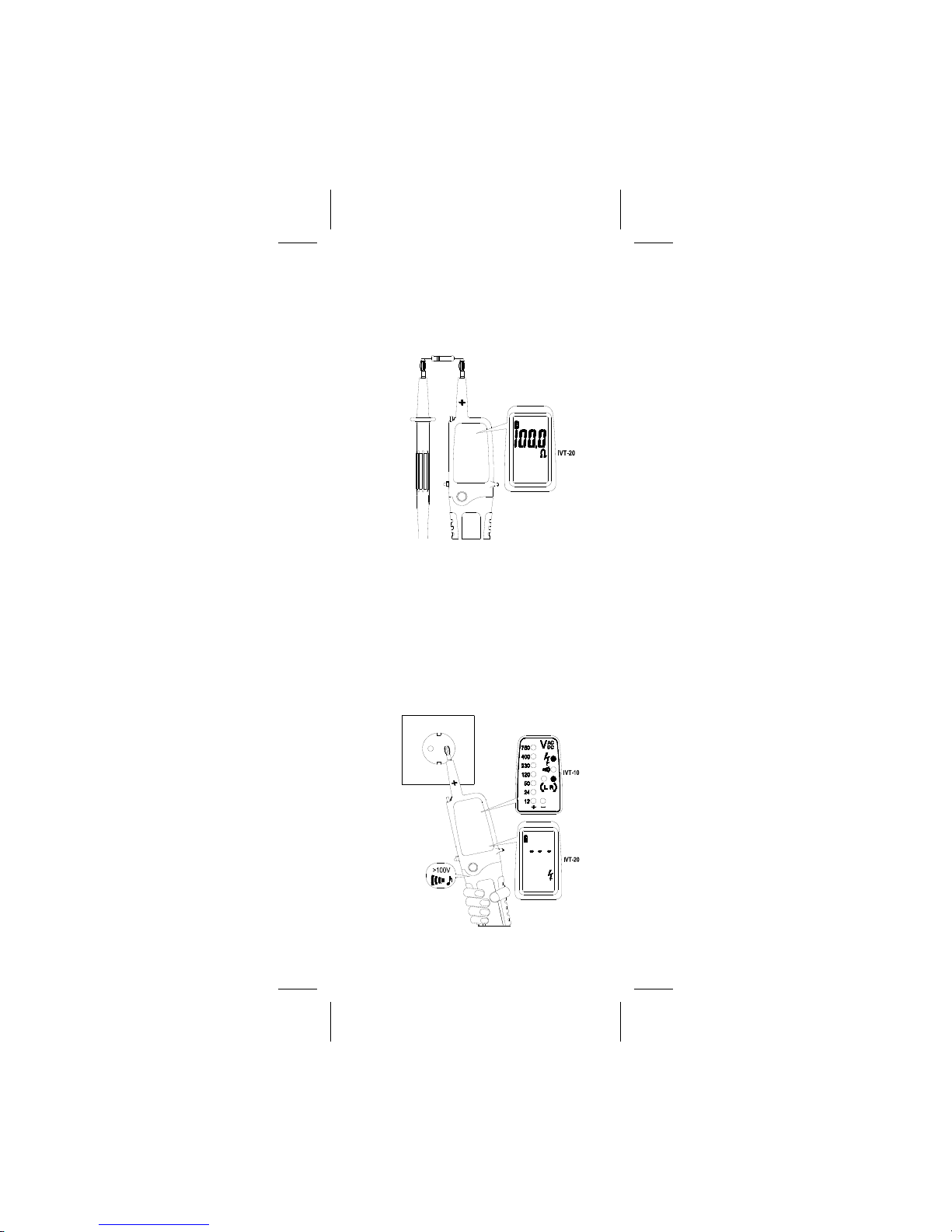

5. Resistance Measurements
Only on IVT-20
The Resistance test is only possible when
batteries are installed and in good condition.

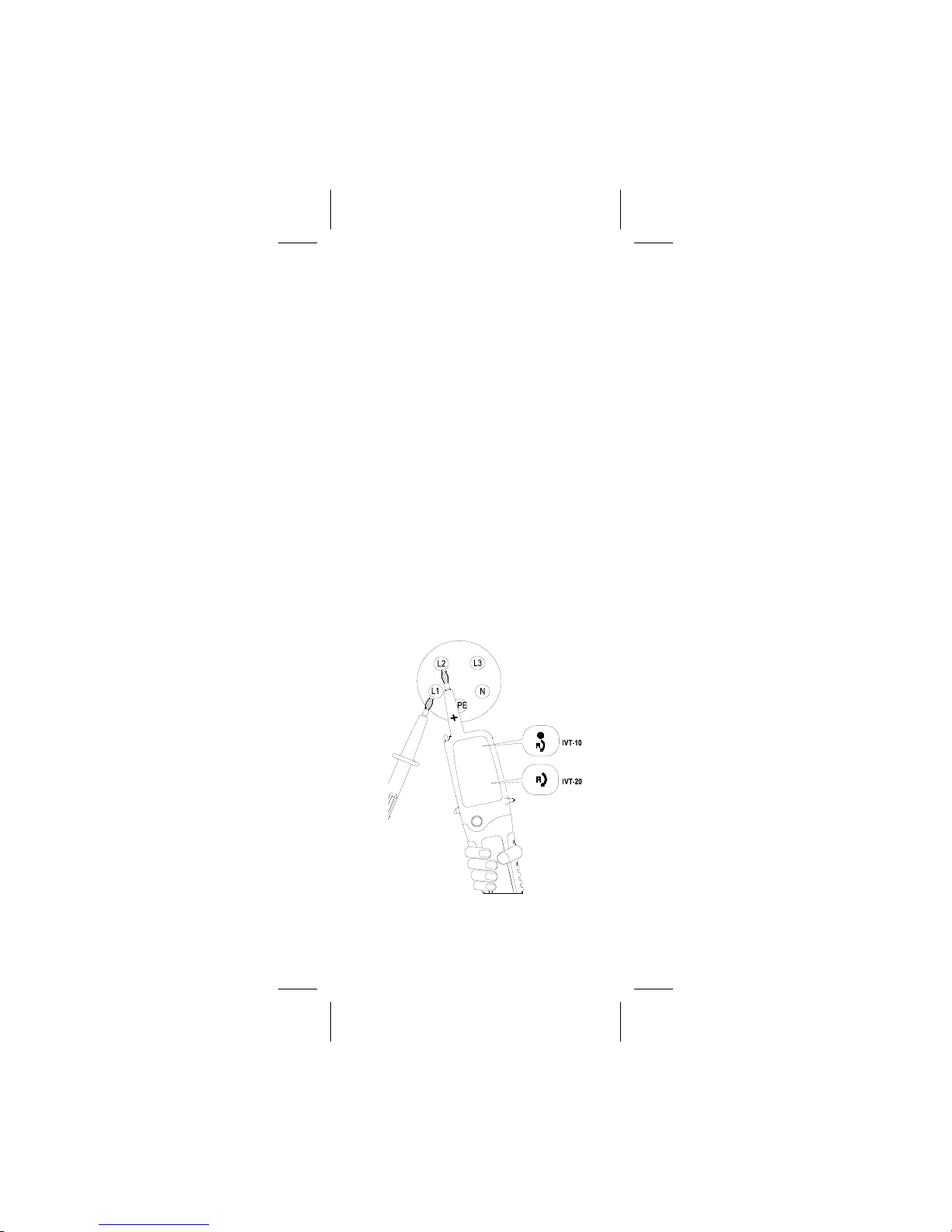

6. Single-Pole Phase Test
Single-Pole Phase
Firmly →
7
The single-pole phase test is only
possible when batteries are installed and
in good condition.
The single-pole phase test is not always
appropriate for testing whether a circuit is
not live. For this purpose, the bipolar test is
required.
To determine external conductors
during phase tests the display function may
be impaired (e.g. for insulating body
protection or insulating sites).
Firmly grasp the insulated grips of the
Tester probe L2 it is better for increase the
sensitivity of single-pole phase test.
7. Phase Rotation Test
Rotary phase of a three-phase mains
Right rotary field
Firmly →
8
Left rotary field
Testing of phase-sequence direction
is possible from 100V AC voltage (phase
to phase) provided the neutral is earthed.
On making contact with both test electrodes
(probe tips) to two phases of the three-phase
power supply which are connected in clock-
wise rotation, a “B” symbol appears in the
LCD Display.
If the rotation is anticlockwise, then a “C”
symbol is displayed. In this case both phases
of the unit should be switched around.
Note :
Testing the phase rotation always requires a
negative phase rotation test!
To ensure a connect test, it is better to test
on a known source.
Firmly →
9
Attention :
Please ensure that the test electrodes (probe
tips) make good contact with two phases of a
three-phase mains while testing the phase
rotation. For absolute determination of a clockwise phase rotation it is necessary to make a
negative phase rotation test after changing the
phases. The indication “B” or “C” can be
affected by unfavorable light conditions, by
protective clothing or in insulated locations.
Firmly grasp the insulated grip of the Tester
probe L2, it is better for the sensitivity of the
phase rotation test.

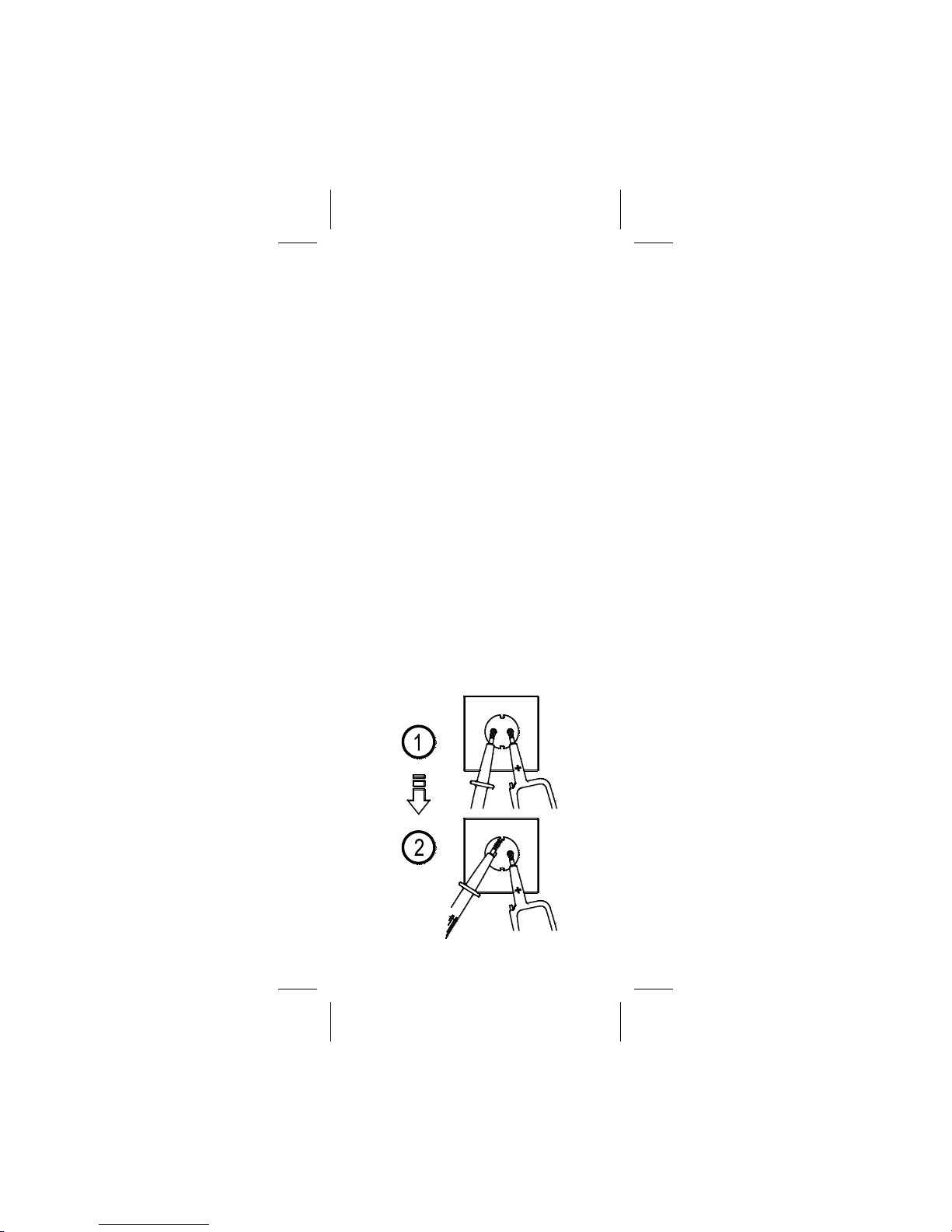

8. RCD Voltage Test
Voltage Test with RCD Trip Test
During voltage tests in systems equipped with
RCD circuit breakers, a RCD switch can be
tripped at a nominal residual current of 10mA
or 30mA by measuring the voltage between L
and PE.
These Testers IVT-10 / IVT-20 are equipped
with an internal load enabling the tripping of
an RCD protection device of 10mA or 30mA.
10
To avoid RCD tripping, a test has to be
carried out between L and N during approx.
5sec. Immediately afterwards, voltage testing
between L and PE can be carried out without
RCD tripping.
9. Illumination
Probe tip torch
11
10. Frequency Tests
Only on IVT-20
11. Auto Tests
If the instrument shows failue, please don’t
use it and send it to our service department for
repair.
12
12. Battery Replacement
If no signal sound is audible (IVT-10) when
short circuiting the test probes, if the symbol
“<” is displayed (IVT-20)
- Completely disconnect IVT-10 /IVT-20 from
the measurement circuit.
- Unscrew the screw by a cross screw driver,
then open the battery cover.
- Remove discharged batteries.
- Replace by new batteries, type 1.5V
IEC LR03 by respecting correct polarity.
- Close the battery cover and re-screw the
screw.
13. 4mm Tips Replacement
13
14. Cleaning
Prior to cleaning, remove the instruments
from all measurement circuits.
If the instruments are dirty after daily usage,
it is advisable to clean them by using a damp
cloth and a mild household detergent. Never
use acid detergents or dissolvent for cleaning. After cleaning, do not use the voltage
tester till it is dried completely.
15. Transport and Storage
In order to avoid instrument damage,
it is advised to remove batteries when not
using the instrument over a longer period.
The tester must be stored in dry and closed
areas. In the case of an instrument being
transported in extreme temperatures, a
recovery time of minimum 2 hours is
required prior to instrument operation.
16. Maintenance
Unauthorized persons shall not disassemble
the tester and the supplementary
equipment.
When using tester IVT-10 /IVT-20 testers in
compliance with the instruction manual, no
particular maintenance is required.
If functional errors occur during normal
operating, our service department will check
your instrument without delay.
14
17. Specification
The Instruments IVT-10 IVT-20
Voltage range 12….750V AC/DC
LED/Bargraph
resolution
± 12,24,50,120,230,400,
750V
LCD voltage range
12V…750V
AC/DC
LCD resolution 1V
Accuracy
AC ±(1.3%+5d)
DC ±(1.0%+2d)
Voltage detection Automatic
Acoustic signal sound
AC 50V
DC 120V
Polarity detection Full range
Range detection Automatic
Response time <0.1s
<0.1s/BAR
<2s/RDG
Frequency range DC, 45…65Hz
Automatic load (RCD) Yes
Peak current Is <0.2A / Is(5s) <3.5mA
Operation time ED (DT)=30s.
Recovery Time 10 min.
Auto Power On >12 VAC / DC
Single-pole Phase Test
Voltage range 100…750V AC
Frequency range 45…65Hz
Resistance Test
Resistance Range
0…2KΩ
Accuracy
±(2%+10d)
Resolution
1Ω
Frequency Test
Frequency range 30Hz~999Hz
Accuracy
±(0.3%+5d)
Resolution 1Hz
Vmin (61Hz~999Hz) 20VAC
15
The Instruments IVT-10 IVT-20
Continuity Test
Threshold
< 200KΩ < 200Ω
Diode Test 0.1~1.0V
Resolution 0.1V
Overvoltage protection 1000V AC/DC
Rotary Field Indication
Voltage range (LEDs) 100…750V
Frequency range 50…60Hz
Measurement
principle
Double-pole and firmly
hold the grip (L2)
Power supply
2 x 1.5V IEC LR03 AAA
size
Power consumption Max. 32mA / approx.
94mΩ
Operating Temperature -15ºC ~ 45ºC
Storage Temperature -20ºC ~ 60ºC
Temperature Coefficient
0.2x(Spec.Accuracy/ºC
<18ºC >28ºC
Humidity Max. 85% relative
humidity
Height above sea level Up to 2000m
Pollution Degree 2
Type of protection IP65
CE
EN61326 :
EN55011 :
Safety
EN61010-1 : 2010
EN61010-031 : 2008
EN61243-3 : 2010
UTE 18-510
EN60529 : 2000/AI2000
GS38
Functionality
EN61243-3 : 2010
EN61557-7 : 2007
EN61557-10 : 2001
EN 61557-1 : 2007
Weight 230g (IVT-10),
240g (IVT-20),
(incl. Batteries)
Dimensions 239x68x29mm
16
Overvoltage category
Overvoltage class CAT III 1000V/CAT IV 600V
CAT. Application field
CAT I
The circuits not connected
to mains.
CAT II
The circuits directly
connected to Low-voltage
Installation.
CAT III The building installation
CAT IV
The source of the Low –
voltage installation.
17
Limited Warranty
This meter is warranted to the original
purchaser against defects in material and
workmanship for 3 years from the date of
purchase. During this warranty period,
RS Components will, at its option, replace or
repair the defective unit, subject to verification
of the defect or malfunction.
This warranty does not cover fuses,
disposable batteries, or damage from abuse,
neglect, accident, unauthorized repair,
alteration, contamination, or abnormal
conditions of operation or handling.
Any implied warranties arising out of the sale
of this product, including but not limited to
implied warranties of merchantability and
fitness for a particular purpose, are limited to
the above. RS Components shall not be
liable for loss of use of the instrument or other
incidental or consequential damages,
expenses, or economic loss, or for any claim
or claims for such damage, expense or
economic loss. Some states or countries laws
vary, so the above limitations or exclusions
may not apply to you. For full terms and
conditions, refer to the RS website.
Africa
RS Components SA
P.O. Box 12182,
Vorna Valley, 1686
20 Indianapolis Street,
Kyalami Business Park,
Kyalami, Midrand
South Africa
www.rs-components.com
Asia
RS Components Pte Ltd.
31 Tech Park Crescent
Singapore 638040
www.rs-components.com
China
RS Components Ltd.
Suite 23 A-C ,
East Sea Business Centre
Phase 2, No. 618 Yan'an Eastern Road
Shanghai, 200001
China
www.rs-components.com
Europe
RS Components Ltd.
PO Box 99, Corby,
Northants.
NN17 9RS
United Kingdom
www.rs-components.com
Japan
RS Components Ltd.
West Tower (12th Floor),
Yokohama Business Park,
134 Godocho, Hodogaya,
Yokohama, Kanagawa 240-0005
Japan
www.rs-components.com
U.S.A
Allied Electronics
7151 Jack Newell Blvd. S.
Fort Worth, Texas 76118
U.S.A.
www.alliedelec.com
South America
RS Componentes Limitada
Av. Pdte. Eduardo Frei M. 6001-71
Centro Empresas El Cortijo
Conchali, Santiago, Chile
www.rs-components.com
Loading...
