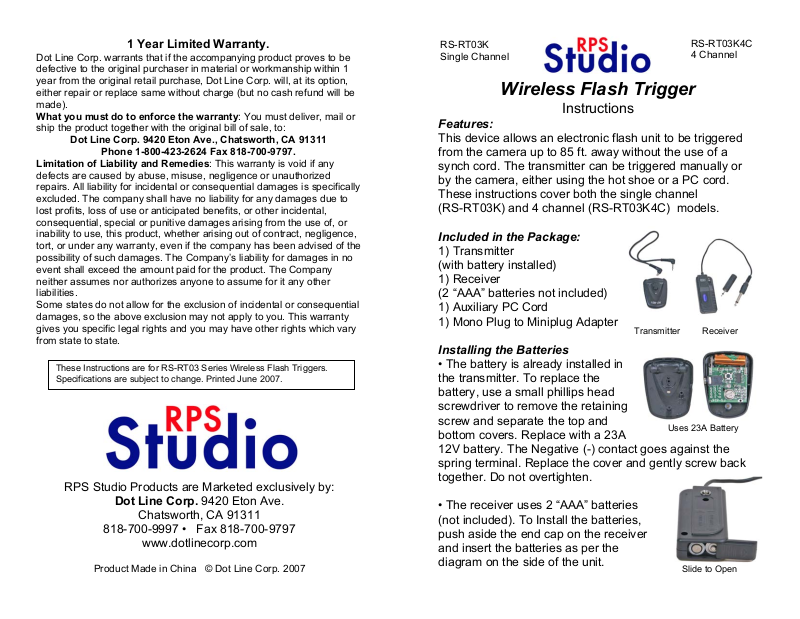

RPS RS-RT03R4C, RS-RT03K4C User manual

Wireless Flash Trigger

Instructions

Features:

This device allows an electronic flash unit to be triggered
from the camera up to 85 ft. away without the use of a
synch cord. The transmitter can be triggered manually or
by the camera, either using the hot shoe or a PC cord.
These instructions cover both the single channel
(RS-RT03K) and 4 channel (RS-RT03K4C) models.

Included in the Package:

1) Transmitter
(with battery installed)

1) Receiver
(2 “AAA” batteries not included)

1) Auxiliary PC Cord

1) Mono Plug to Miniplug Adapter

Installing the Batteries

• The battery is already installed in
the transmitter. To replace the
battery, use a small phillips head
screwdriver to remove the retaining
screw and separate the top and
bottom covers. Replace with a 23A
12V battery. The Negative (-) contact goes against the
spring terminal. Replace the cover and gently screw back
together. Do not overtighten.

• The receiver uses 2 “AAA” batteries
(not included). To Install the batteries,
push aside the end cap on the receiver
and insert the batteries as per the
diagram on the side of the unit.

1 Year Limited Warranty.

Dot Line Corp. warrants that if the accompanying product proves to be
defective to the original purchaser in material or workmanship within 1
year from the original retail purchase, Dot Line Corp. will, at its option,
either repair or replace same without charge (but no cash refund will be
made).
What you must do to enforce the warranty: You must deliver, mail or
ship the product together with the original bill of sale, to:

Dot Line Corp. 9420 Eton Ave., Chatsworth, CA 91311

Phone [phone] Fax [phone].

Limitation of Liability and Remedies: This warranty is void if any

defects are caused by abuse, misuse, negligence or unauthorized
repairs. All liability for incidental or consequential damages is specifically
excluded. The company shall have no liability for any damages due to
lost profits, loss of use or anticipated benefits, or other incidental,
consequential, special or punitive damages arising from the use of, or
inability to use, this product, whether arising out of contract, negligence,
tort, or under any warranty, even if the company has been advised of the
possibility of such damages. The Company’s liability for damages in no
event shall exceed the amount paid for the product. The Company
neither assumes nor authorizes anyone to assume for it any other
liabilities.
Some states do not allow for the exclusion of incidental or consequential
damages, so the above exclusion may not apply to you. This warranty
gives you specific legal rights and you may have other rights which vary
from state to state.

RPS Studio Products are Marketed exclusively by:

Dot Line Corp. 9420 Eton Ave.

Chatsworth, CA 91311

818-700-9997 • Fax [phone]

www.dotlinecorp.com

Product Made in China © Dot Line Corp. 2007

These Instructions are for RS-RT03 Series Wireless Flash Triggers.
Specifications are subject to change. Printed June 2007.

RS-RT03K
Single Channel

Transmitter Receiver

Slide to Open

Uses 23A Battery

RS-RT03K4C
4 Channel

Setting the DIP Switches
(RS-RT03K4C 4 Channel Kit)

• On the 4 channel kit, adjust the
DIP switches on both the transmitter
and receiver to the same position.
Up to 4 channels can be selected.
The factory default position has all 4
switches in the off position. The
adjustment to different channels will
allow this device to be used in the
same area as other transmitters.

Using your Remote Trigger

Transmitter

• Install the transmitter on the
camera accessory shoe. If your
camera has a “hot” shoe, no cord is
needed. Set the proper synch
speed on your camera.

• If your camera does not have a
“hot” shoe, and uses a PC cord, one
is supplied in the kit. Simply insert
the PC cord into the side of the
transmitter, and the other end into
the PC synch outlet on your
camera.

Receiver

• Plug the mono plug into the synch
outlet on the back of the flash unit.
This is the outlet where you would
normally plug in your synch cord.

• Many flash units have sensor cells
which allow the simultaneous firing
of several units. Check your flash
manual for more information.

- 3 -

- 2 -

•Turn on the power for the receiver.

• If your flash unit uses a 3.5
mini-plug, insert the mono-plug to
mini plug adapter onto the cord and
then plug into the synch outlet on the back of the flash. The
flash is now ready to be powered on.

• You can also use this with smaller
flash units which do not have either
a mono plug or mini plug synch
assuming they have a standard PC
cord. Plug the flash unit’s PC cord
into the PC outlet on the back of the
receiver.

• With the transmitter mounted on
the camera and the receiver plugged into the flash unit and
turned on, the wireless trigger will activate your flash with
each exposure you make.

• Test button. If you want to test the flash without taking an
exposure, push the test button on the transmitter.

Range of Use

The wireless transmitter uses RF (Radio Frequency) waves
to transmit a signal to the receiver. As a result the effective
distance can vary greatly depending upon the environmental
conditions, including walls, obstructions, etc. Also, wireless
networks, cell phone towers, and some cordless phone
systems can interfere with the signal. If the effective range is
decreased, try changing the DIP settings or move to another
location. This is not considered a defect. As the batteries
weaken, your effective range may decrease. Try using fresh
batteries.

Deactivating the Unit

• To turn off the power on the receiver, push the on/off switch
to the off position. There is no on/off power switch on the
transmitter.

• If the unit will not be used for some time, remove the
batteries.

Be sure DIP
switches
are the
same

Push

To

Test

Receiver shown with
PC cord attached
