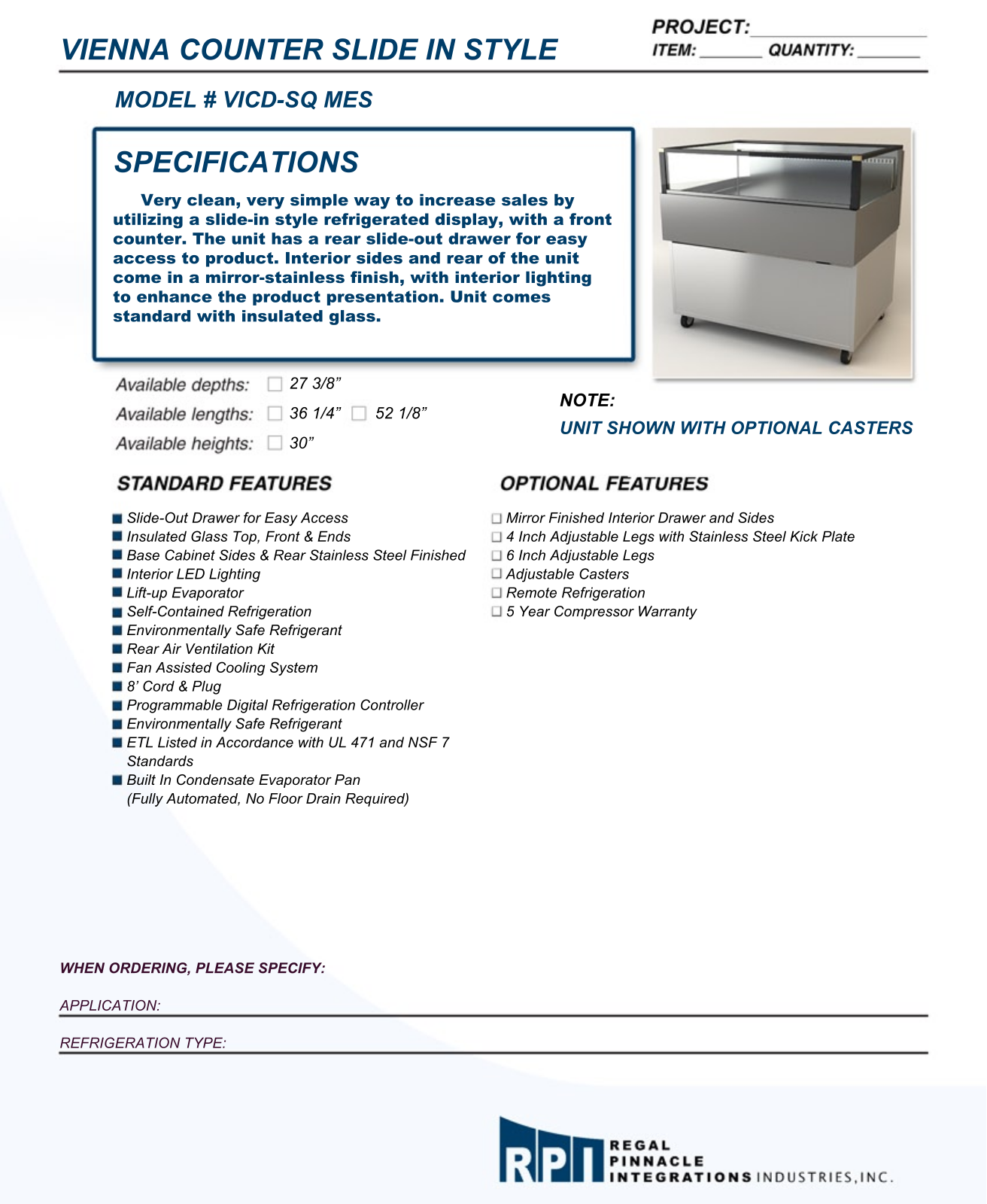

VIENNA COUNTER SLIDE IN STYLE

MODEL # VICD-SQ MES

SPECIFICATIONS

Very clean, very simple way to increase sales by
utilizing a slide-in style refrigerated display, with a front
counter. The unit has a rear slide-out drawer for easy
access to product. Interior sides and rear of the unit
come in a mirror-stainless finish, with interior lighting
to enhance the product presentation. Unit comes to enhance the product presentation. Unit comes
standard with insulated glass.

27 3/8”

36 1/4” 52 1/8”

30”

NOTE:

UNIT SHOWN WITH OPTIONAL CASTERS

Slide-Out Drawer for Easy Access
Insulated Glass Top, Front & Ends
Base Cabinet Sides & Rear Stainless Steel Finished
Interior LED Lighting
Lift-up Evaporator
Self-Contained Refrigeration
Environmentally Safe Refrigerant
Rear Air Ventilation Kit
Fan Assisted Cooling System
8’ Cord & Plug
Programmable Digital Refrigeration Controller
Environmentally Safe Refrigerant
ETL Listed in Accordance with UL 471 and NSF 7
Standards
Built In Condensate Evaporator Pan
(Fully Automated, No Floor Drain Required)

WHEN ORDERING, PLEASE SPECIFY:

Mirror Finished Interior Drawer and Sides
4 Inch Adjustable Legs with Stainless Steel Kick Plate
6 Inch Adjustable Legs
Adjustable Casters
Remote Refrigeration
5 Year Compressor Warranty

APPLICATION:

REFRIGERATION TYPE:

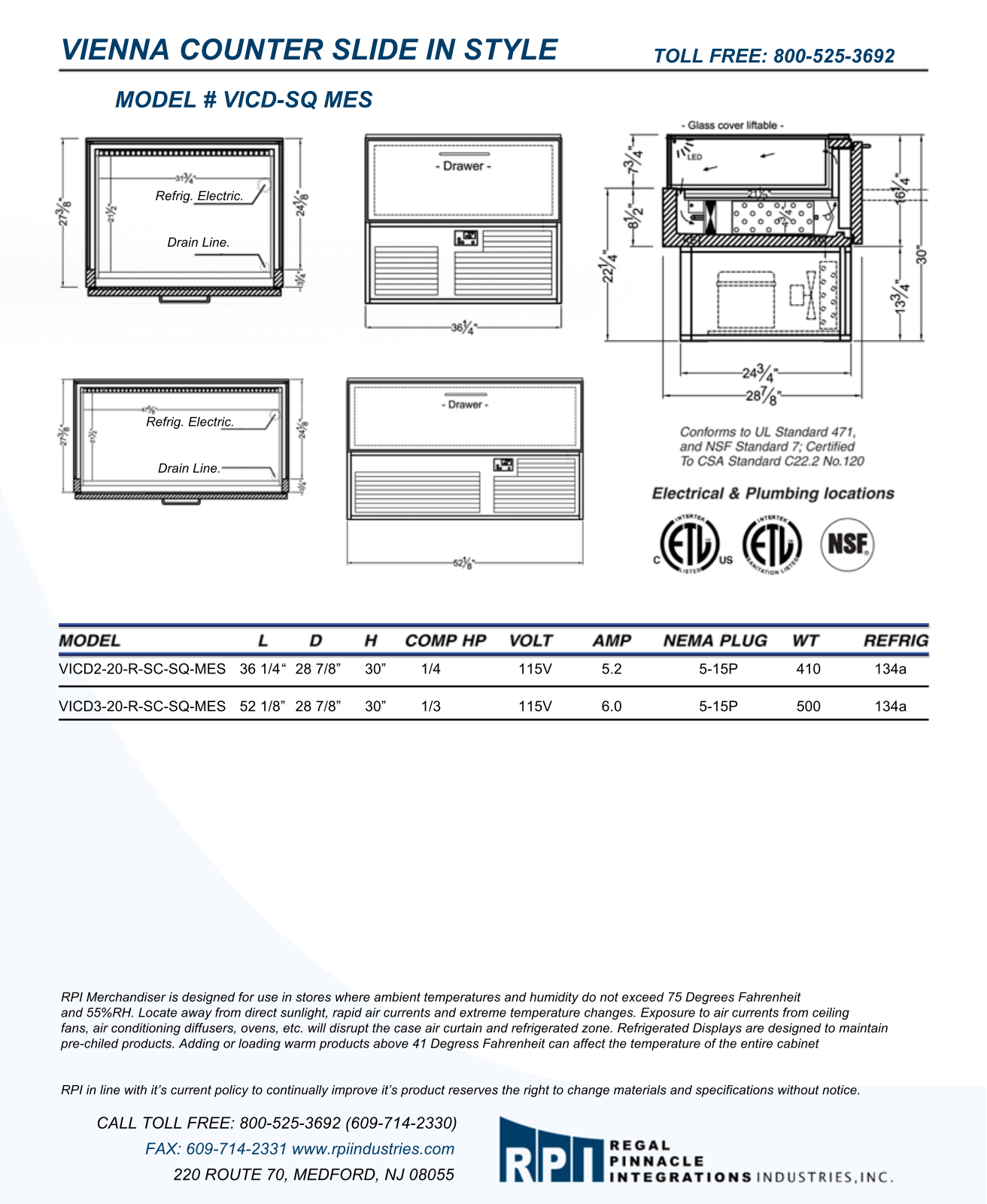

VIENNA COUNTER SLIDE IN STYLE

MODEL # VICD-SQ MES

Refrig. Electric.

Drain Line.

Refrig. Electric.

Drain Line.

TOLL FREE: 800-525-3692

VICD2-20-R-SC-SQ-MES 36 1/4 “ 28 7/8” 30” 1/4 115V 5.2 5-15P 410 134a

VICD3-20-R-SC-SQ-MES 52 1/8” 28 7/8” 30” 1/3 115V 6.0 5-15P 500 134a

RPI Merchandiser is designed for use in stores where ambient temperatures and humidity do not exceed 75 Degrees Fahrenheit
and 55%RH. Locate away from direct sunlight, rapid air currents and extreme temperature changes. Exposure to air currents from ceiling
fans, air conditioning diffusers, ovens, etc. will disrupt the case air curtain and refrigerated zone. Refrigerated Displays are designed to maintain
pre-chiled products. Adding or loading warm products above 41 Degress Fahrenheit can affect the temperature of the entire cabinet

RPI in line with it’s current policy to continually improve it’s product reserves the right to change materials and specifications without notice.

CALL TOLL FREE: 800-525-3692 (609-714-2330)

FAX: [phone] www.rpiindustries.com
