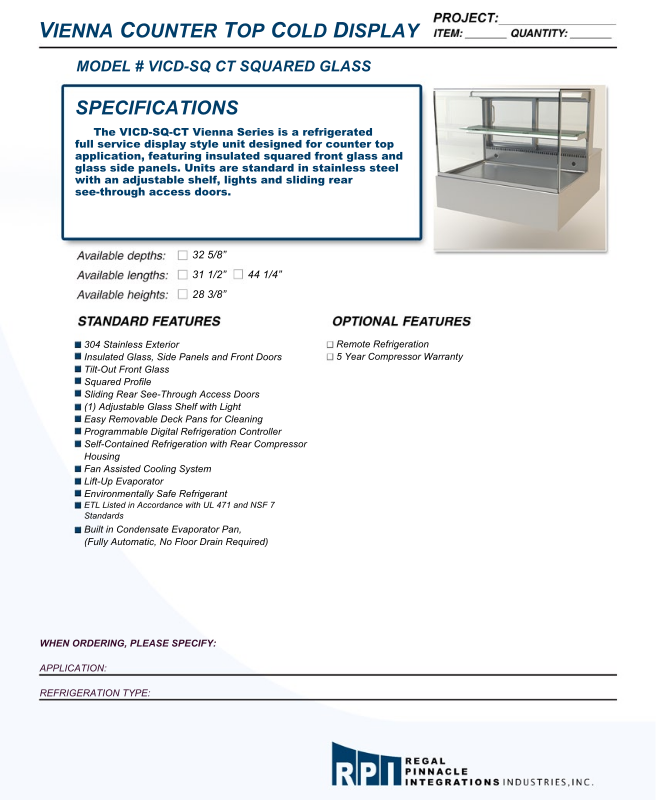

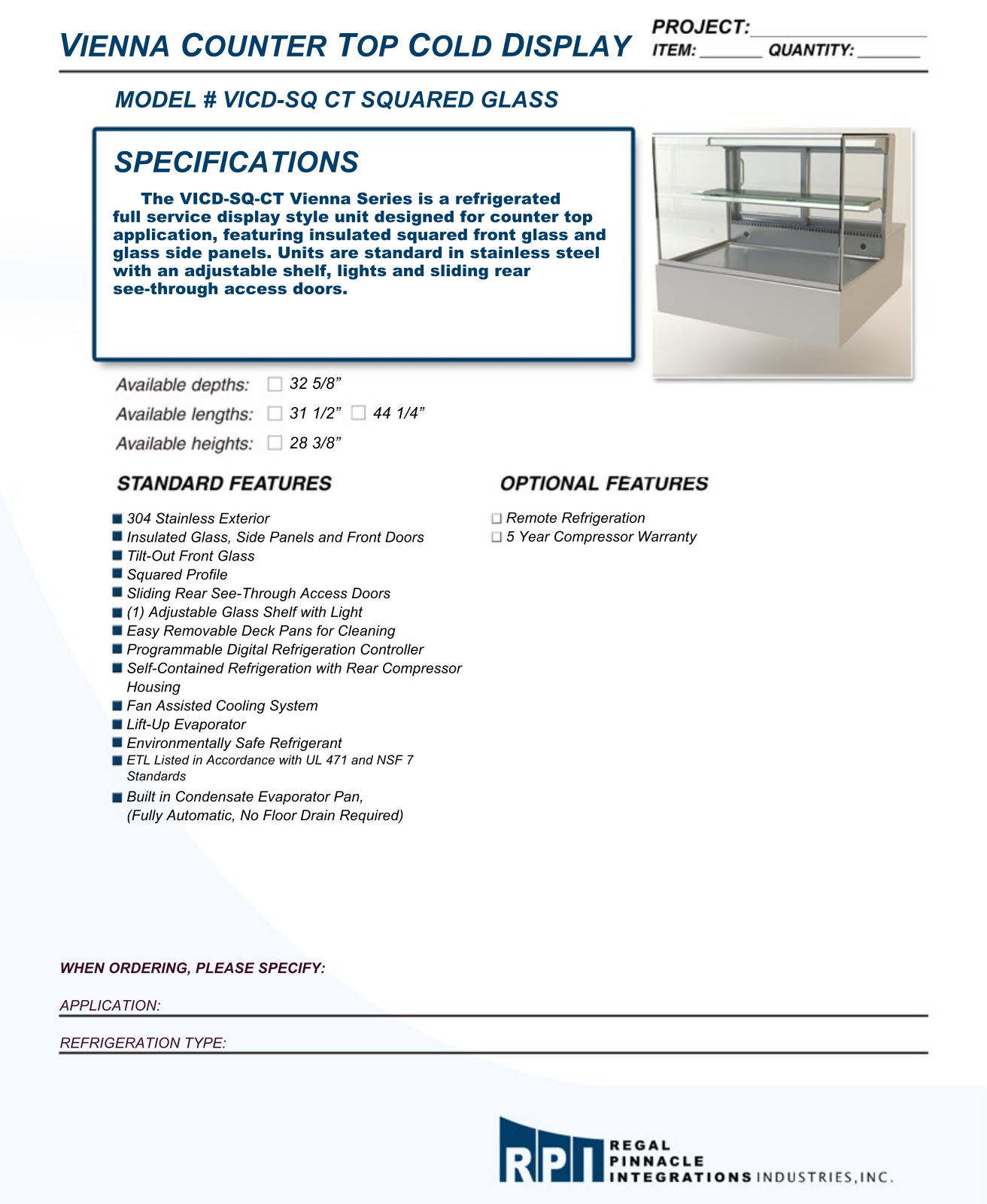

RPI Industries VICD-SQ CT User Manual
IENNA
V
MODEL # VICD-SQ CT SQUARED GLASS
SPECIFICATIONS
The VICD-SQ-CT Vienna Series is a refrigerated
full service display style unit designed for counter top
application, featuring insulated squared front glass and
glass side panels. Units are standard in stainless steel
with an adjustable shelf, lights and sliding rear
see-through access doors.see-through access doors.
OUNTER
C
OP
T
32 5/8”
31 1/2” 44 1/4”
28 3/8”
C
OLD
ISPLAY
D
304 Stainless Exterior
Insulated Glass, Side Panels and Front Doors
Tilt-Out Front Glass
Squared Profile
Sliding Rear See-Through Access Doors
(1) Adjustable Glass Shelf with Light
Easy Removable Deck Pans for Cleaning
Programmable Digital Refrigeration Controller
Self-Contained Refrigeration with Rear Compressor
Housing
Fan Assisted Cooling System
Lift-Up Evaporator
Environmentally Safe Refrigerant
ETL Listed in Accordance with UL 471 and NSF 7
Standards
Built in Condensate Evaporator Pan,
(Fully Automatic, No Floor Drain Required)
WHEN ORDERING, PLEASE SPECIFY:
Remote Refrigeration
5 Year Compressor Warranty
APPLICATION:
REFRIGERATION TYPE:
IENNA
V

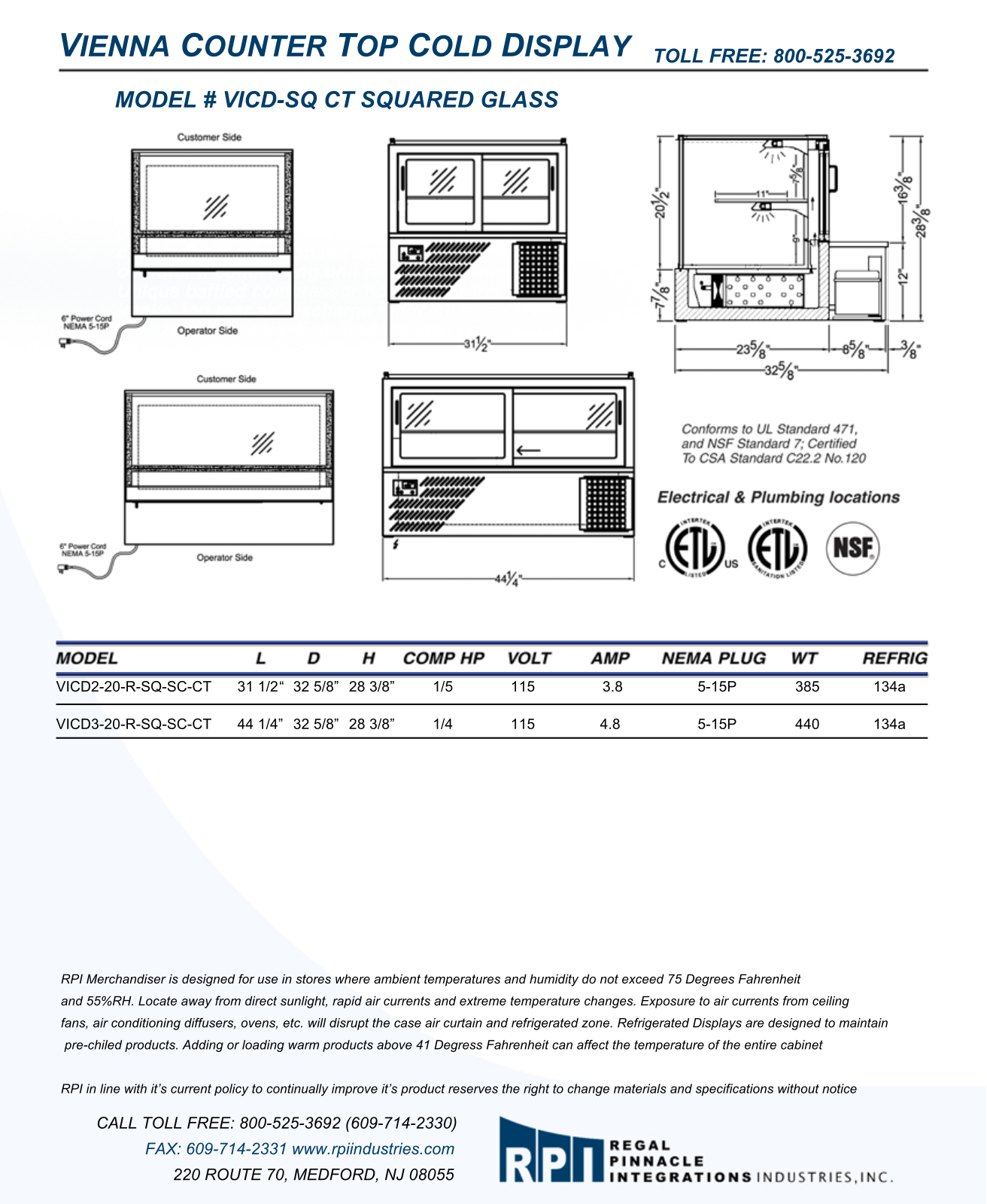

MODEL # VICD-SQ CT SQUARED GLASS
OUNTER
C
T
OP
C
OLD
ISPLAY
D
TOLL FREE: 800-525-3692
VICD2-20-R-SQ-SC-CT 31 1/2 “ 32 5/8” 28 3/8” 1/5 115 3.8 5-15P 385 134a
VICD3-20-R-SQ-SC-CT 44 1/4” 32 5/8” 28 3/8” 1/4 115 4.8 5-15P 440 134a
RPI Merchandiser is designed for use in stores where ambient temperatures and humidity do not exceed 75 Degrees Fahrenheit
and 55%RH. Locate away from direct sunlight, rapid air currents and extreme temperature changes. Exposure to air currents from ceiling
fans, air conditioning diffusers, ovens, etc. will disrupt the case air curtain and refrigerated zone. Refrigerated Displays are designed to maintain
pre-chiled products. Adding or loading warm products above 41 Degress Fahrenheit can affect the temperature of the entire cabinet
RPI in line with it’s current policy to continually improve it’s product reserves the right to change materials and specifications without notice
CALL TOLL FREE: 800-525-3692 (609-714-2330)
FAX: 609-714-2331 www.rpiindustries.com
220 ROUTE 70, MEDFORD, NJ 08055
