RoyalTek RN2_Series
Portable Navigation Device
Reference Manual
1
Legal Notices
Copyright
RoyalTek RN2 Portable Navigation Device User’s Guide Original issue: February 2009
RoyalTek and the RoyalTek logo are registered trademarks of RoyalTek Inc. Other products or system
names appearing in this document are trademarks or registered trademarks of their respective owners.
Further, the © or TM symbols are not used in the text.
Changes may be made periodically to the information in this publication without obligation to notify
any person of such revision or changes. Such changes will be incorporated in new editions of this
User’s Guide or supplementary documents and publications.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form
or by any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written
permission of RoyalTek Inc.
DISCLAIMER AND LIMITATION OF LIABILITY
RoyalTek and its subsidiaries make no representations or warranties, either expressed or implied, with
respect to the contents here of and specifically disclaims the implied warranties of merchantability or
fitness for a particular purpose. RoyalTek and its subsidiaries assume no responsibility for any damage
or loss resulting from the use of this RoyalTek RN2 Portable Navigator.
NOTE：Record the device ID, serial number, purchase date, and place of purchase information in the
space provided below. The serial number is indicated on the label affixed to your RoyalTek device. All
correspondence concerning your unit should include the serial number, device ID, and purchase
information.
Revision: 2.00
February 2009
NOTE:
Information in this manual is subject to change without notice.
2
Warnings and Notices
For your safety, do not operate the controls of the product while driving.
GPS satellite signals cannot typically pass through solid materials (except glass). GPS location
information is not typically available inside buildings, tunnels, or underground parking lots.
A minimum of 4 GPS satellite signals is needed to calculate your GPS position. Signal reception can be
affected by weather events or overhead obstacles (e.g. dense foliage and tall buildings).
Other wireless devices in the vehicle may interfere with the reception of satellite signals and cause the
reception to be unstable.
Adapter
Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is
damaged or exposed to excess moisture.
Do not use the adapter if the cord becomes damaged.
Connect the adapter to the proper power source. The voltage requirements are found on the product
case and/or packaging.
Battery
This unit contains a non-replaceable internal Li-polymer battery. The battery could be bursting or
exploding and releasing hazardous chemicals in case of over battery specification and using in an
abnormal conditions; disassemble, crush, puncture, or dispose of the battery in fire or water. Abnormal
operation could be dangerous to your human body. Please be aware.
Use only the specified charger approved by the manufacturer.
Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to the
instructions.
WARNING: The Lithium-Ion battery in the device must be recycled or disposed of properly.
3
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
The RN2 PND has been tested and found to comply with the limits for a Class B dig ital device in
accordance with the specifications in Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause
undesired operation. This device generates, uses, and can radiate radio-frequency energy. If it is not
installed and used properly, it may cause interference with radio and television reception.
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the
user's authority to operate the equipment.
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE
EQUIPMENT.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provide with antenna installation instructions and
transmitter operating conditions for satisfying RF exposure compliance.
4
Declaration of Conformity(R&TTE directive 1999/5/EC)
The following items were completed and are considered relevant and
sufficient:
‧ Essential requirements as in [Article 3]
‧ Protection requirements for health and safety as in [Article 3.1a]
‧ Testing for electric safety according to [EN 60950]
‧ Protection requirements for electromagnetic compatibility in [Article 3.1b]
‧ Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301]
‧ Testing according to [489-17]
‧ Effective use of the radio spectrum as in [Article 3.2]
‧ Radio test suites according to [EN 300 328]
CE Mark Warning
This is a Class B product, in a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
5
Table of Contents
Cha p t e r 1 Featu r e s a n d S p e c if i c a t i o n s............................................................................8
1.1 RoyalTek RN2 PND features......................................................................8
1.2 RN2 Specifications.......................................................................................8
Cha p t e r 2 Get t i n g S t a r t e d...........................................................................................10
2.1 Hardware overview....................................................................................10
2.1.1
2.1.2
2.1.3

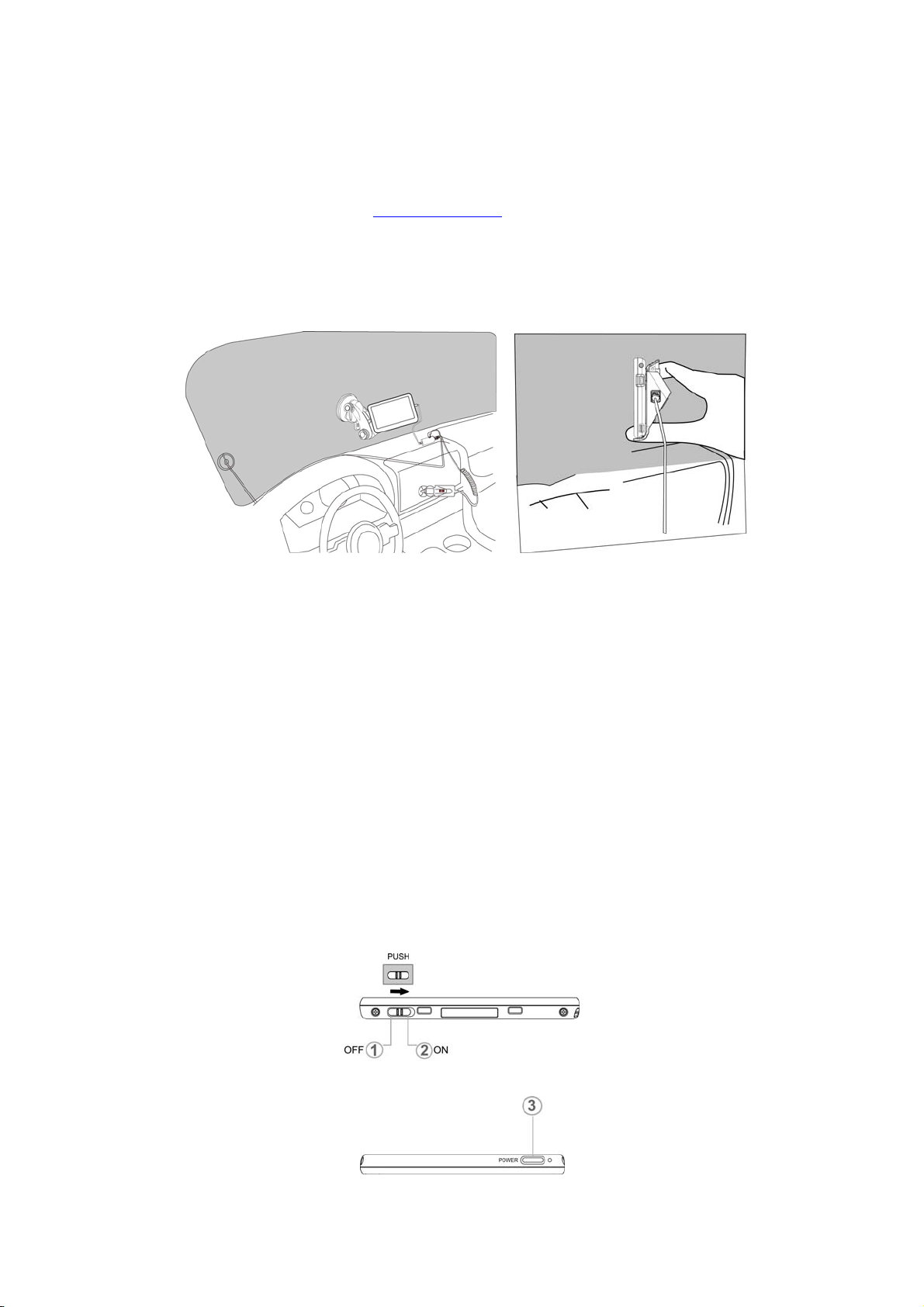

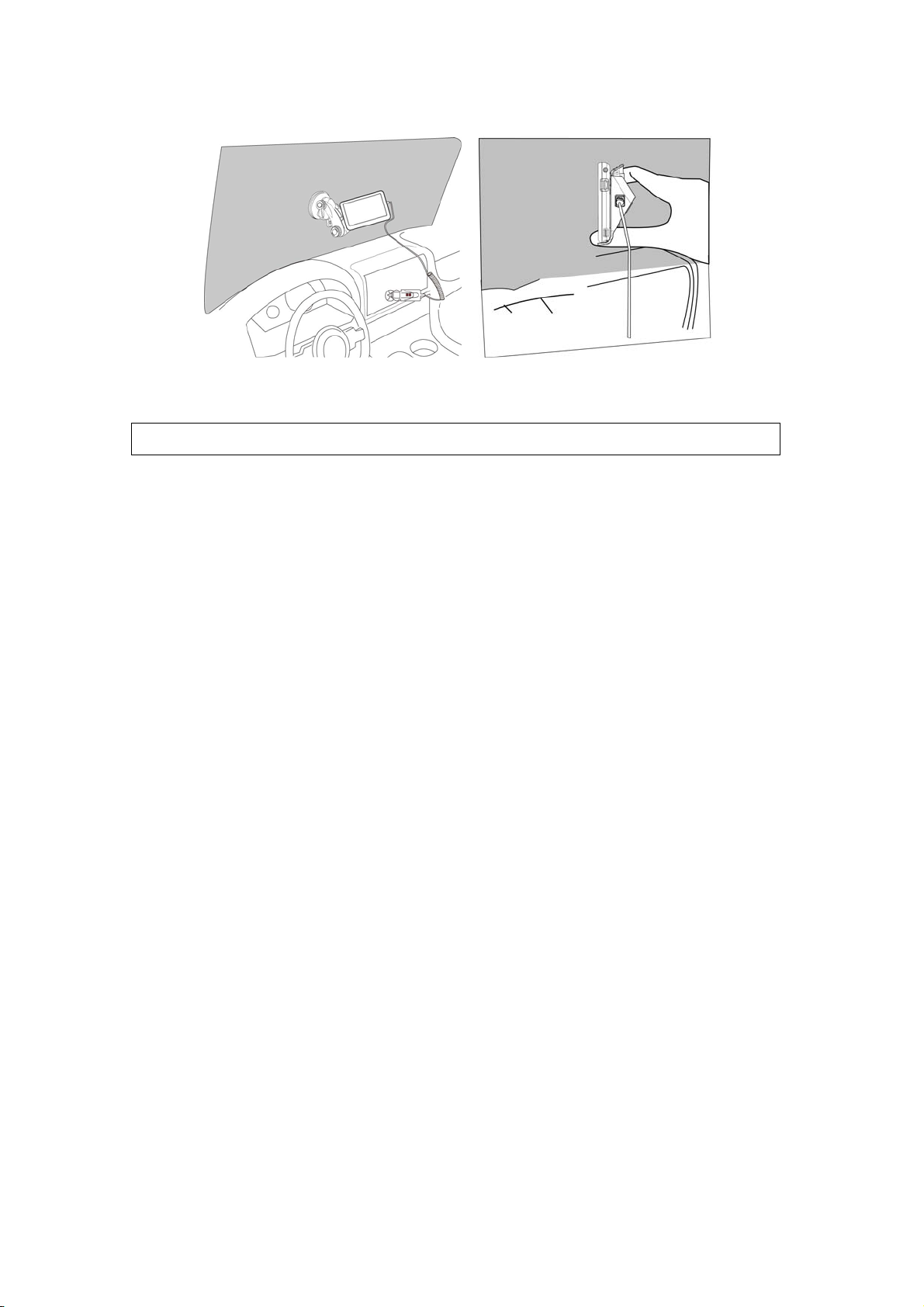

2.2 Using the mounting bracket......................................................................14
2.3 Additional Application with the Optional SKU......................................17
Cha p t e r 3 Using t h e R N 2............................................................................................19
3.1 RN2 Operating Basics................................................................................19

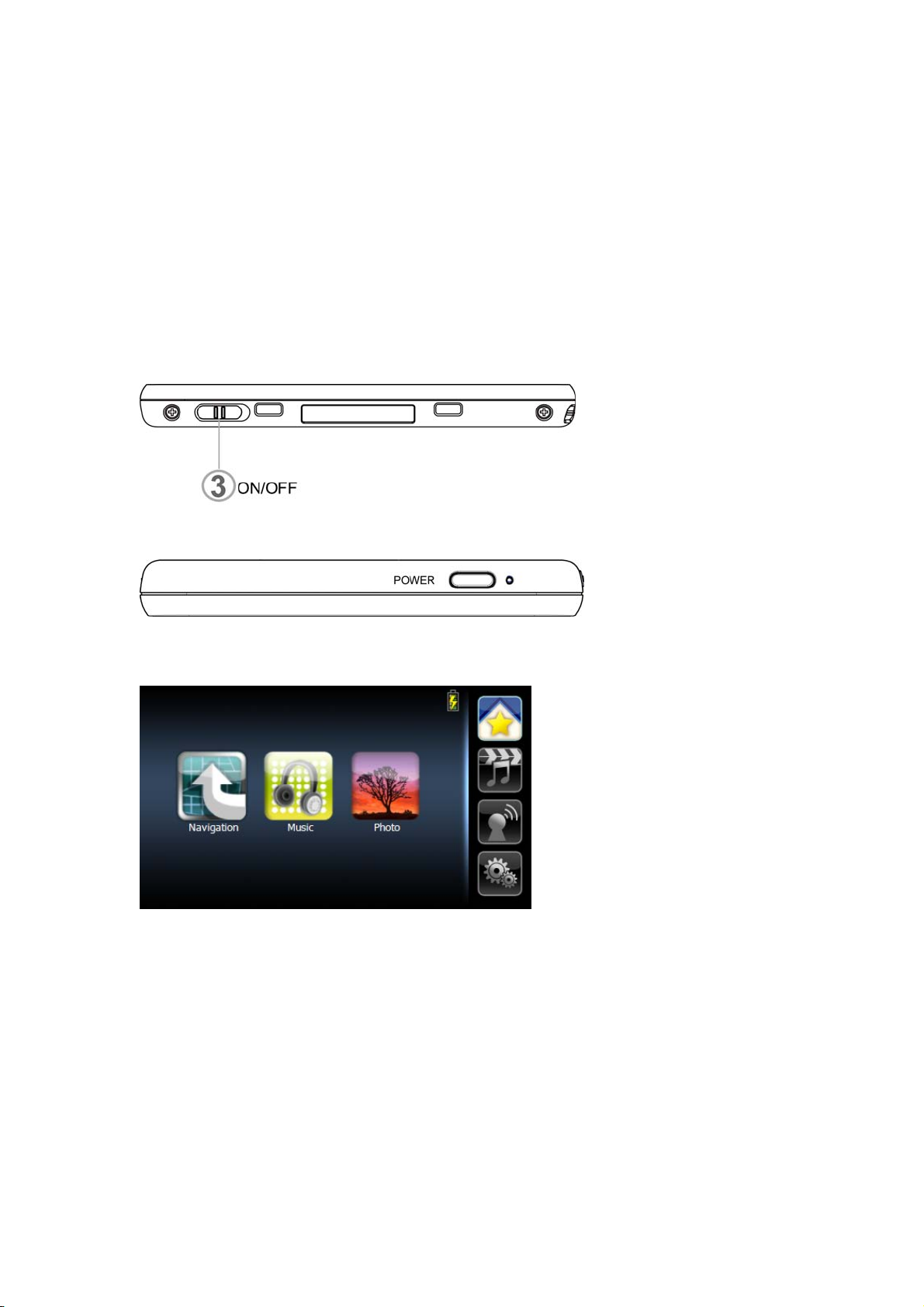

3.2 To turn on the device:................................................................................19

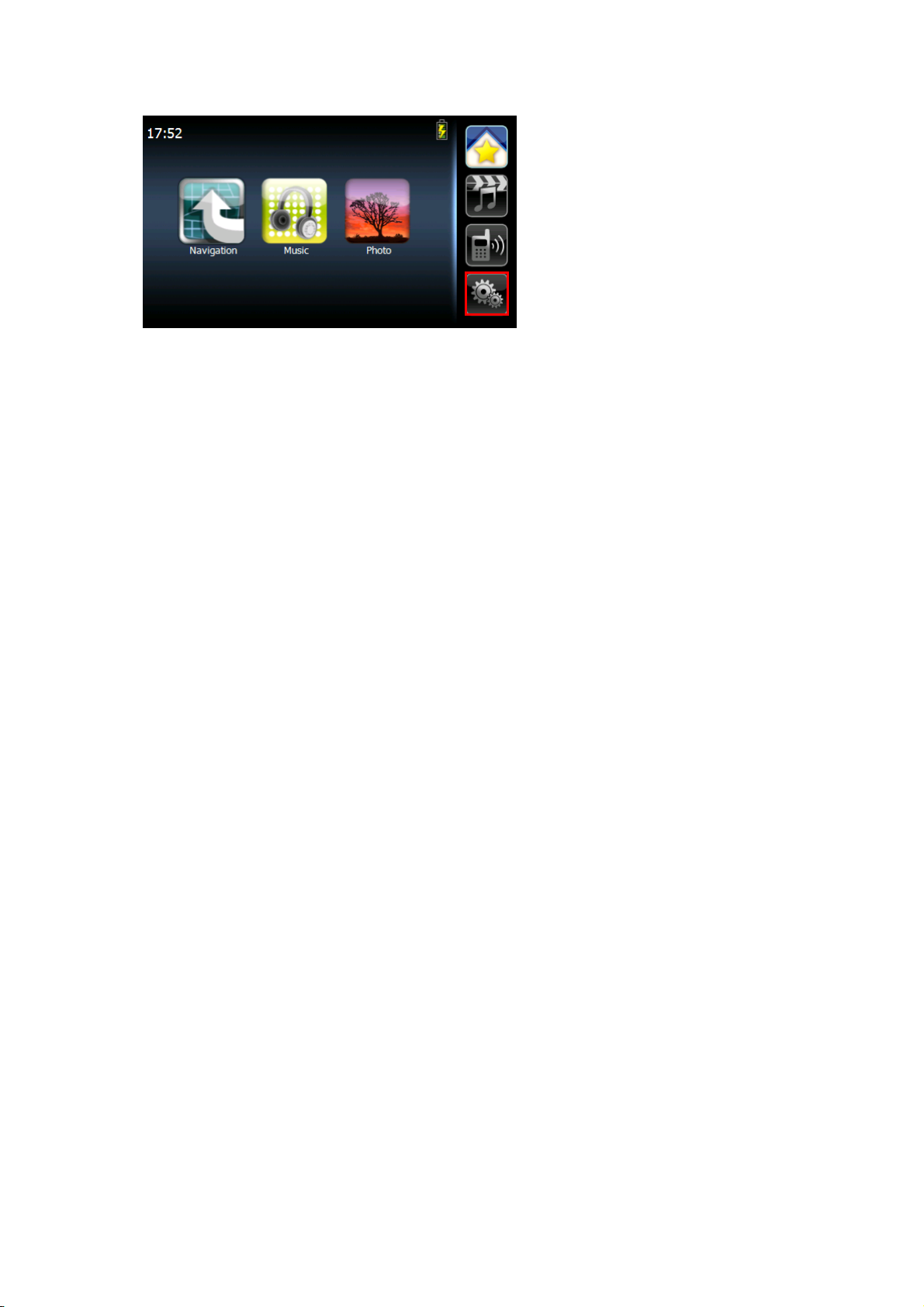

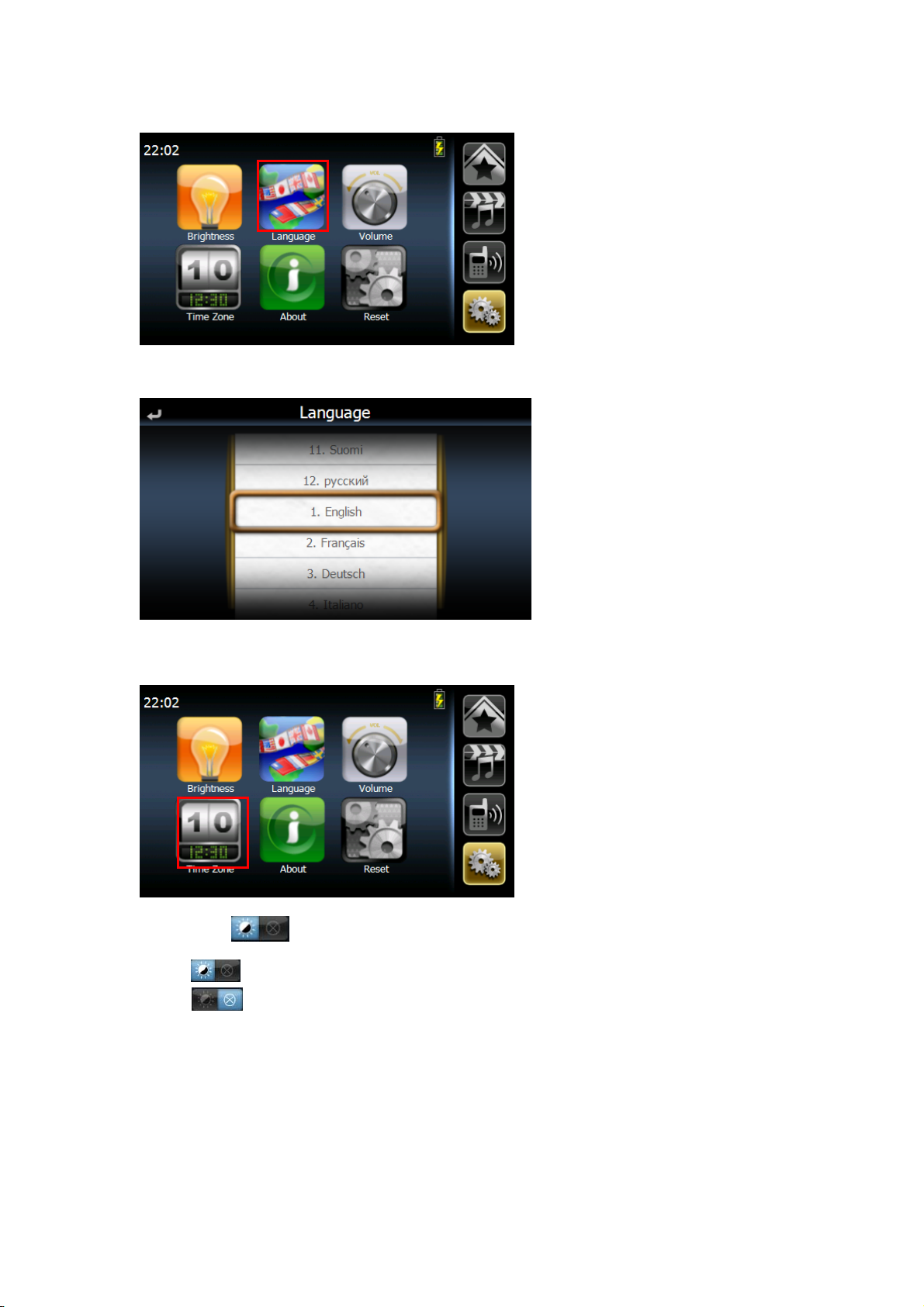

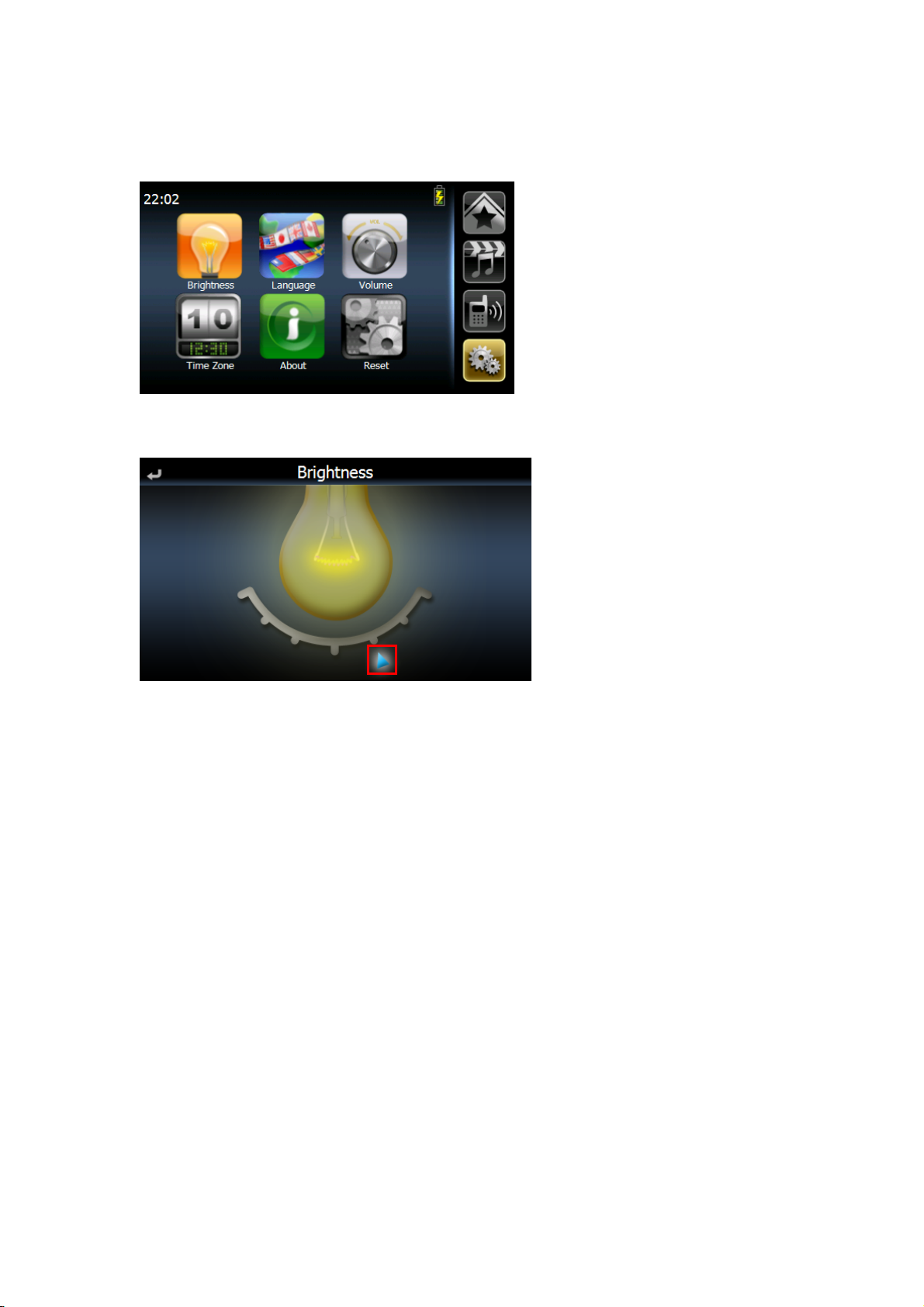

3.3 To configure system settings:....................................................................19

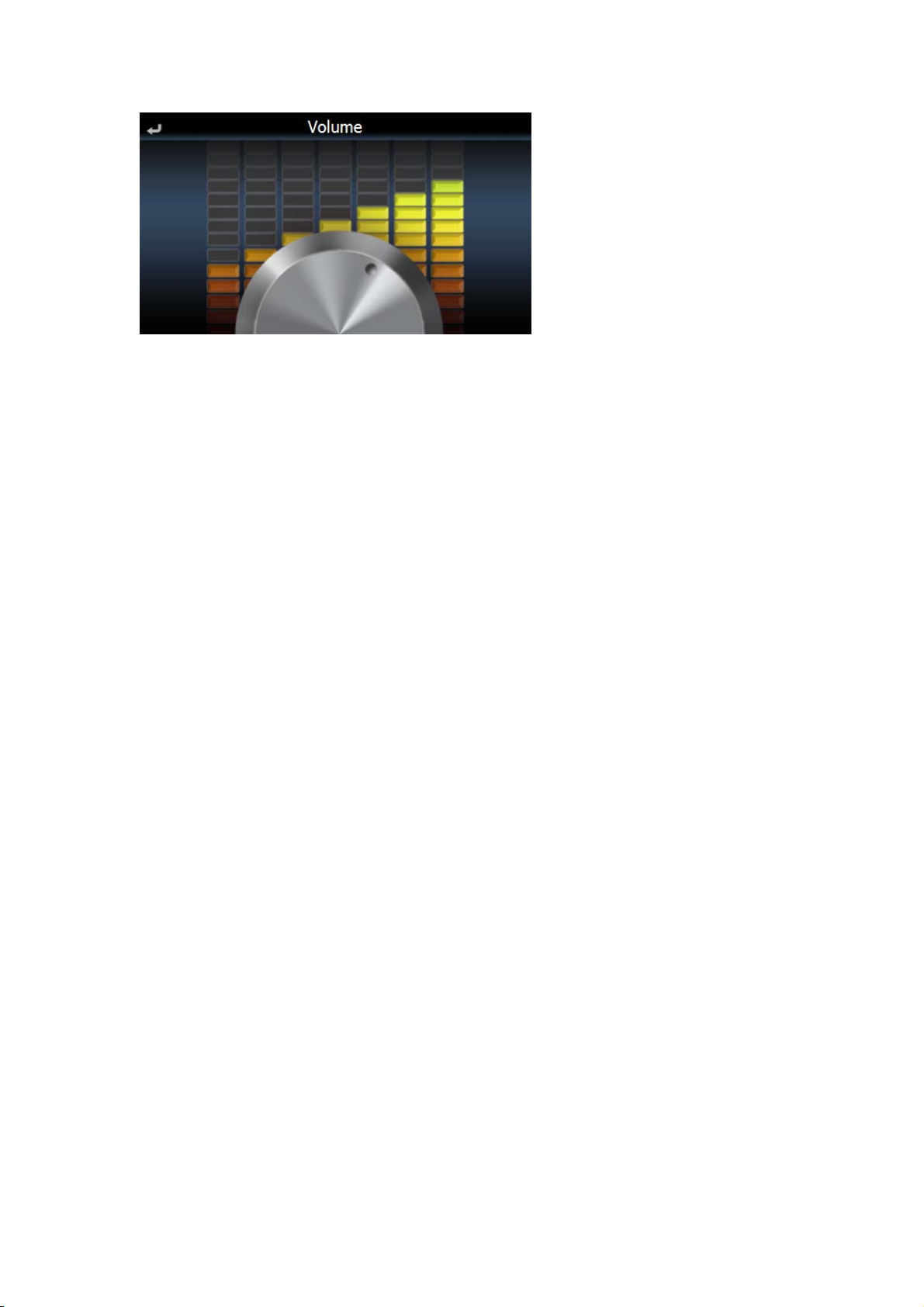

3.4 Additional System settings........................................................................23

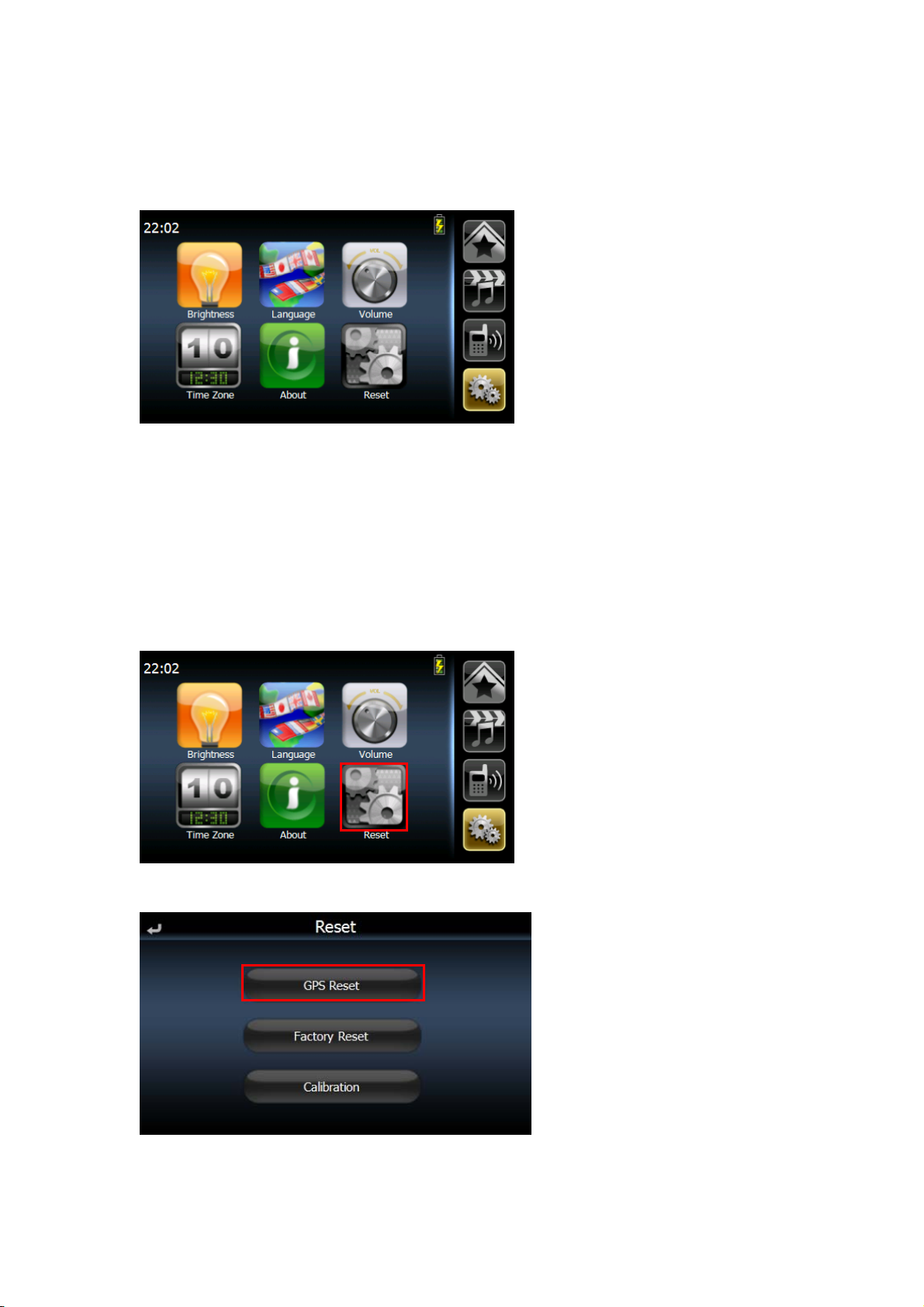

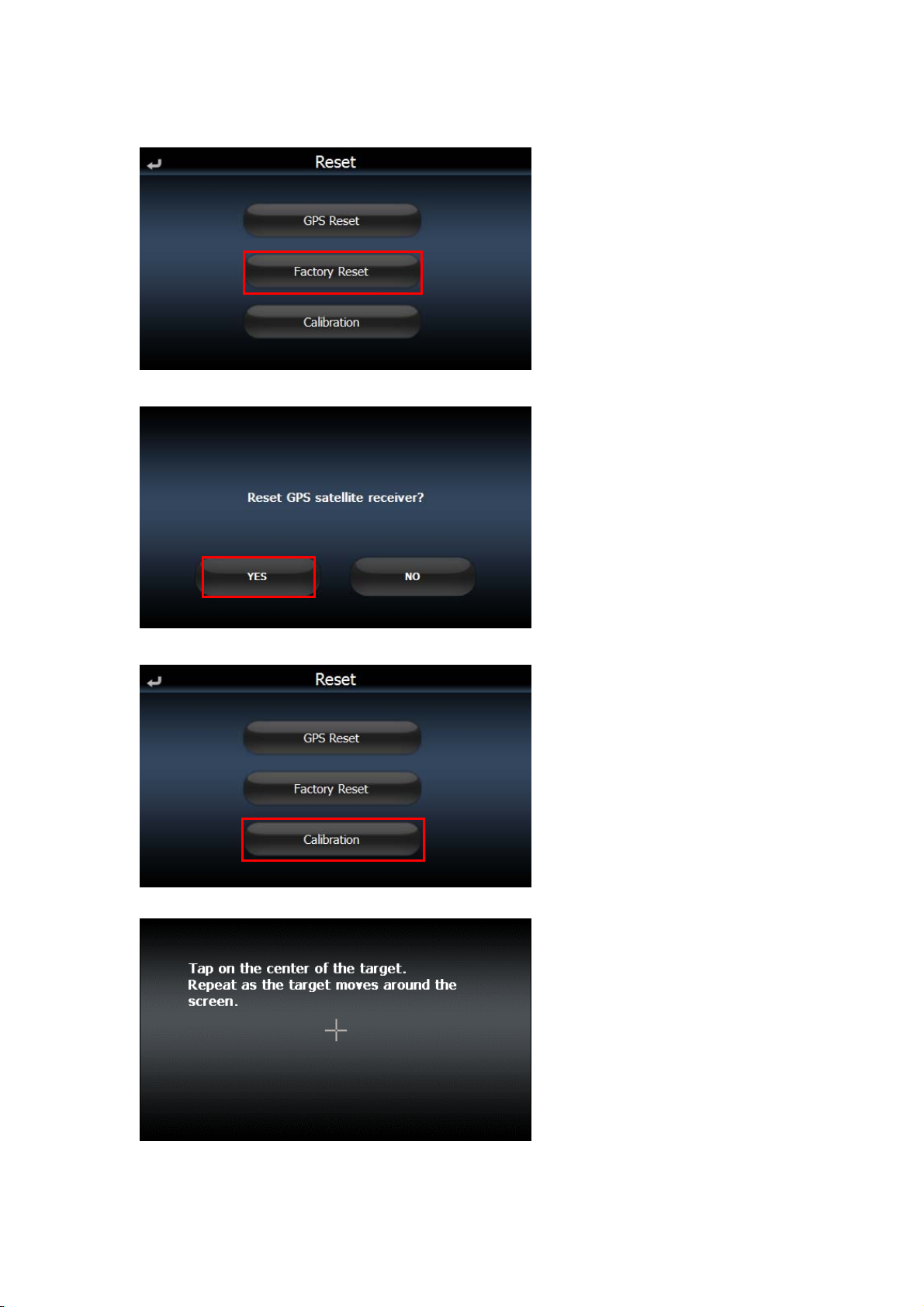

3.5 Reset............................................................................................................23

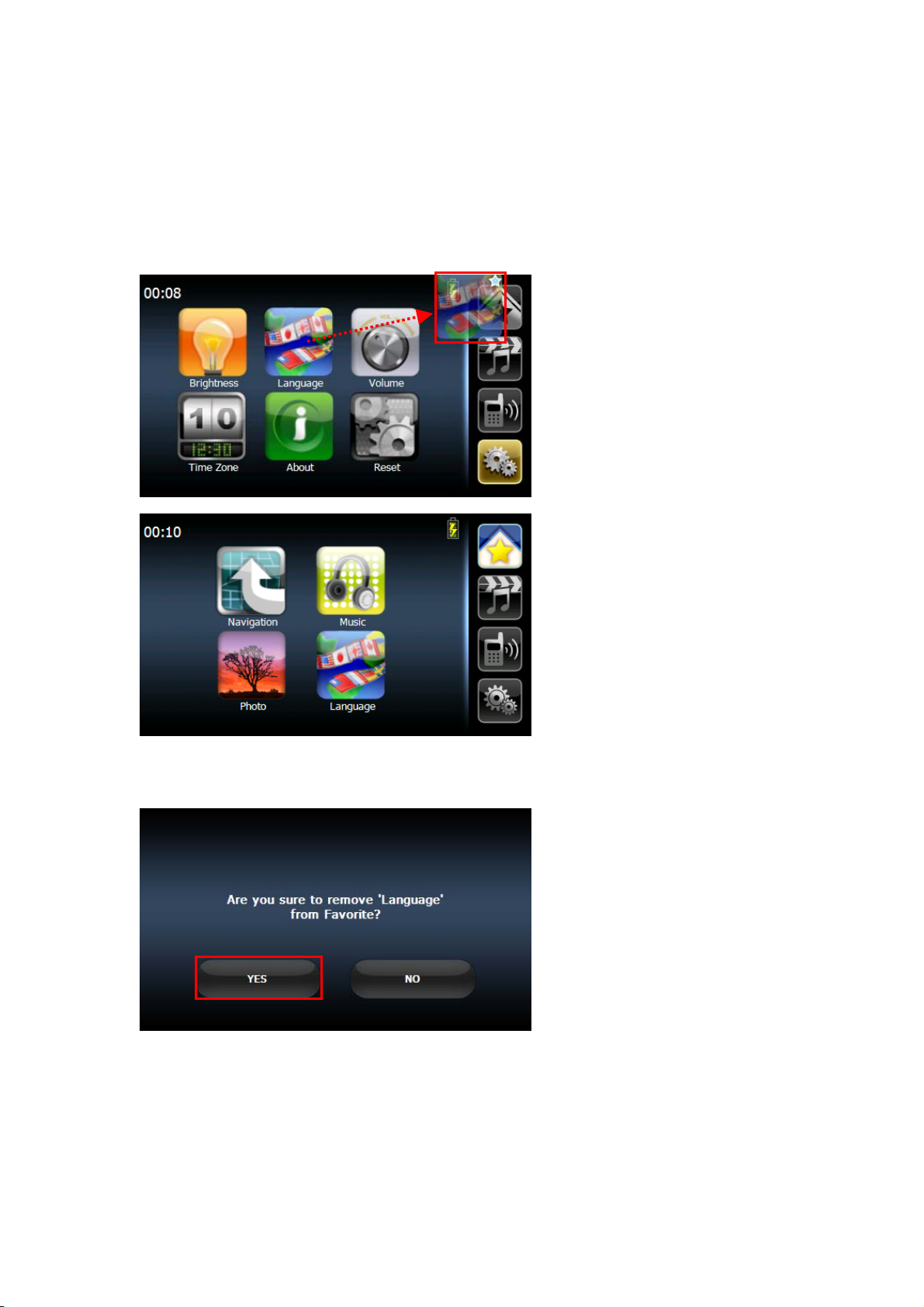

3.9 To set the favorite application category: .................................................29

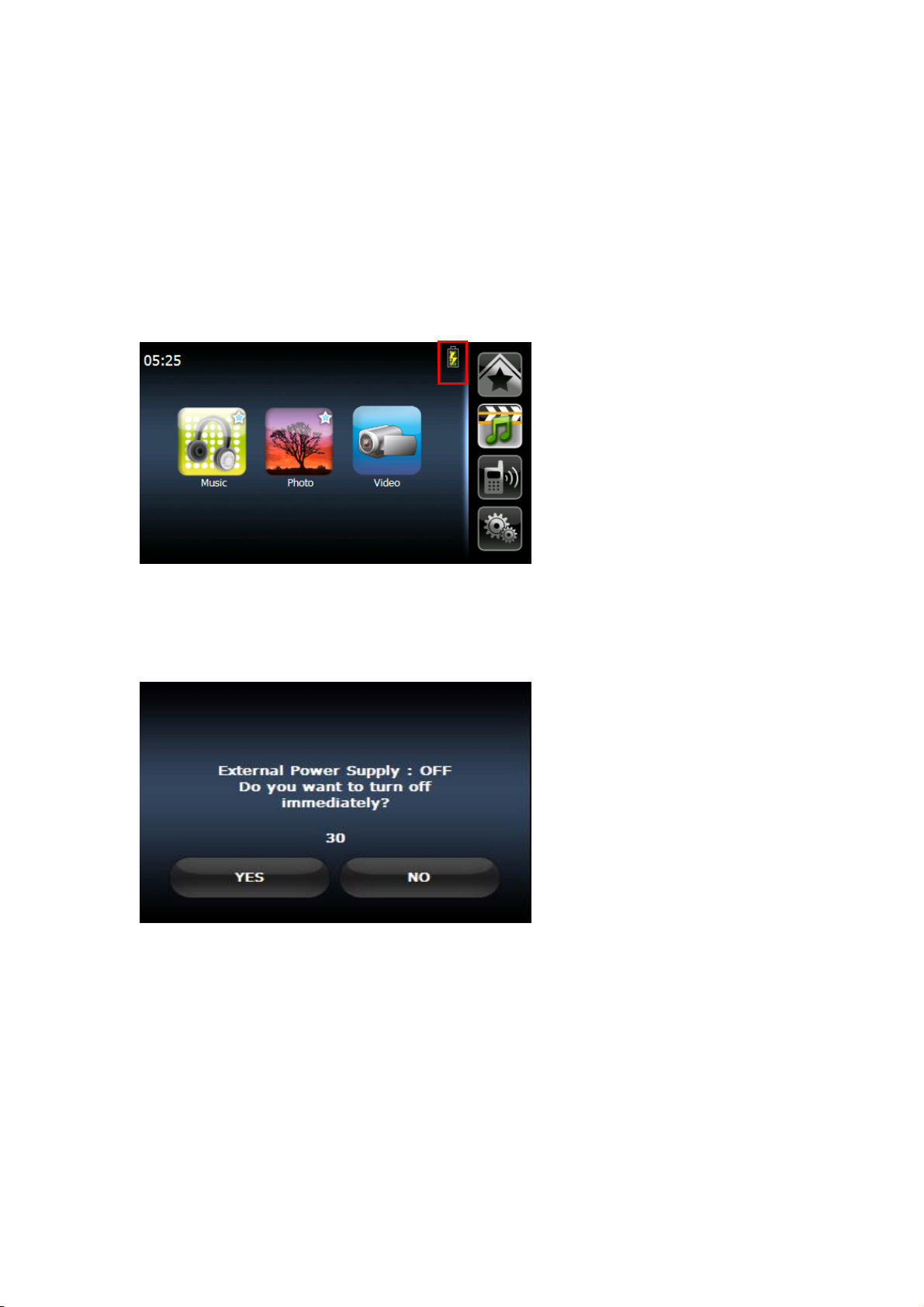

3.10 Power Supply..............................................................................................29
3.11 Charge.........................................................................................................30
Cha p t e r 4 Ent e r t a i n m e n t............................................................................................32
Packing list
Front Panel
Car holder

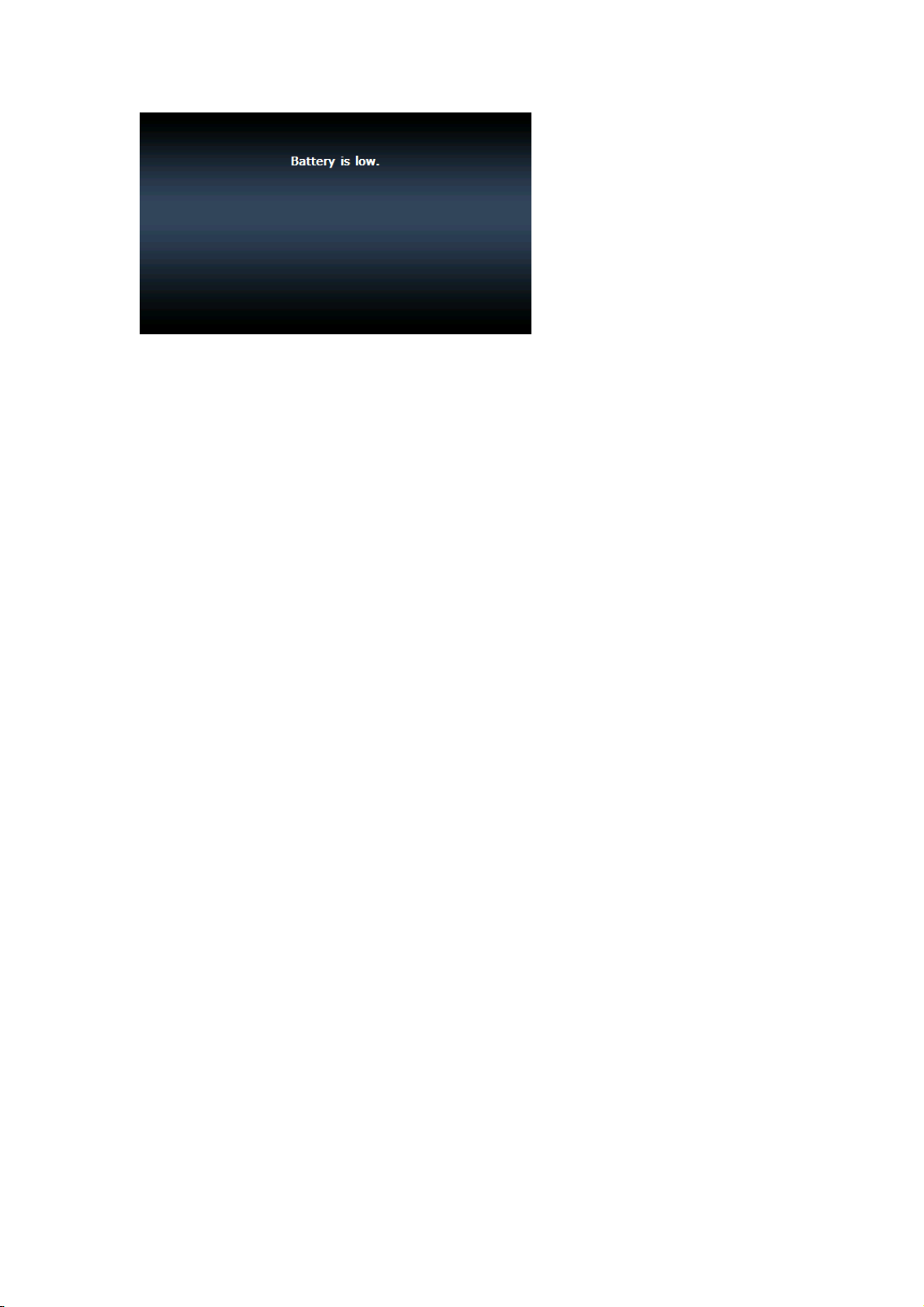

3.11.1 Discharge
3.11.2 Power outage
..........................................................................................10
.........................................................................................12
...........................................................................................13
.....................................................................................30
................................................................................30

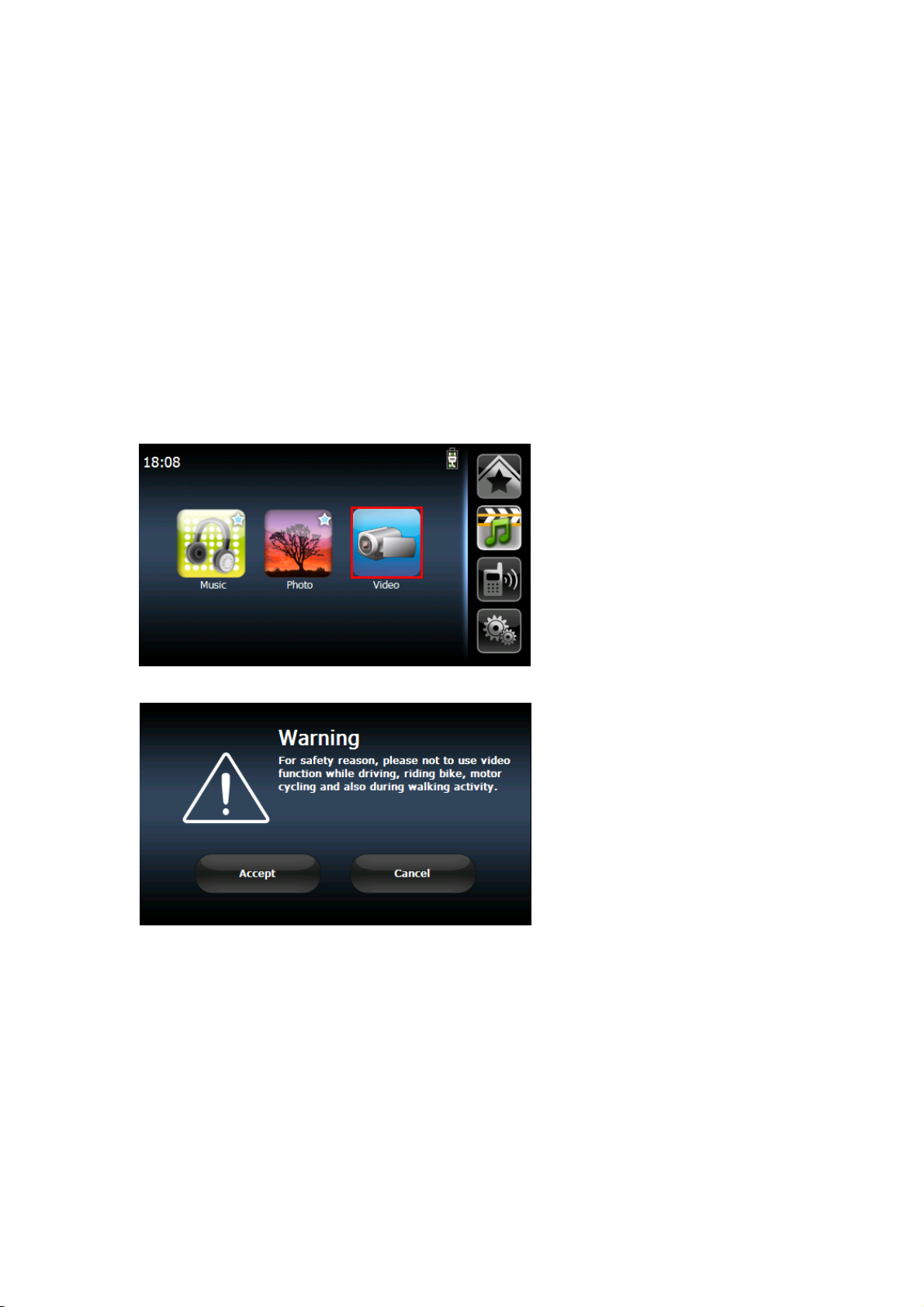

4.1. RN2 Multimedia Player.............................................................................32
4.2. Music player...............................................................................................32
4.2.1.
4.2.2.
4.3. Photo Viewer ..............................................................................................36
4.3.1.
4.3.2.

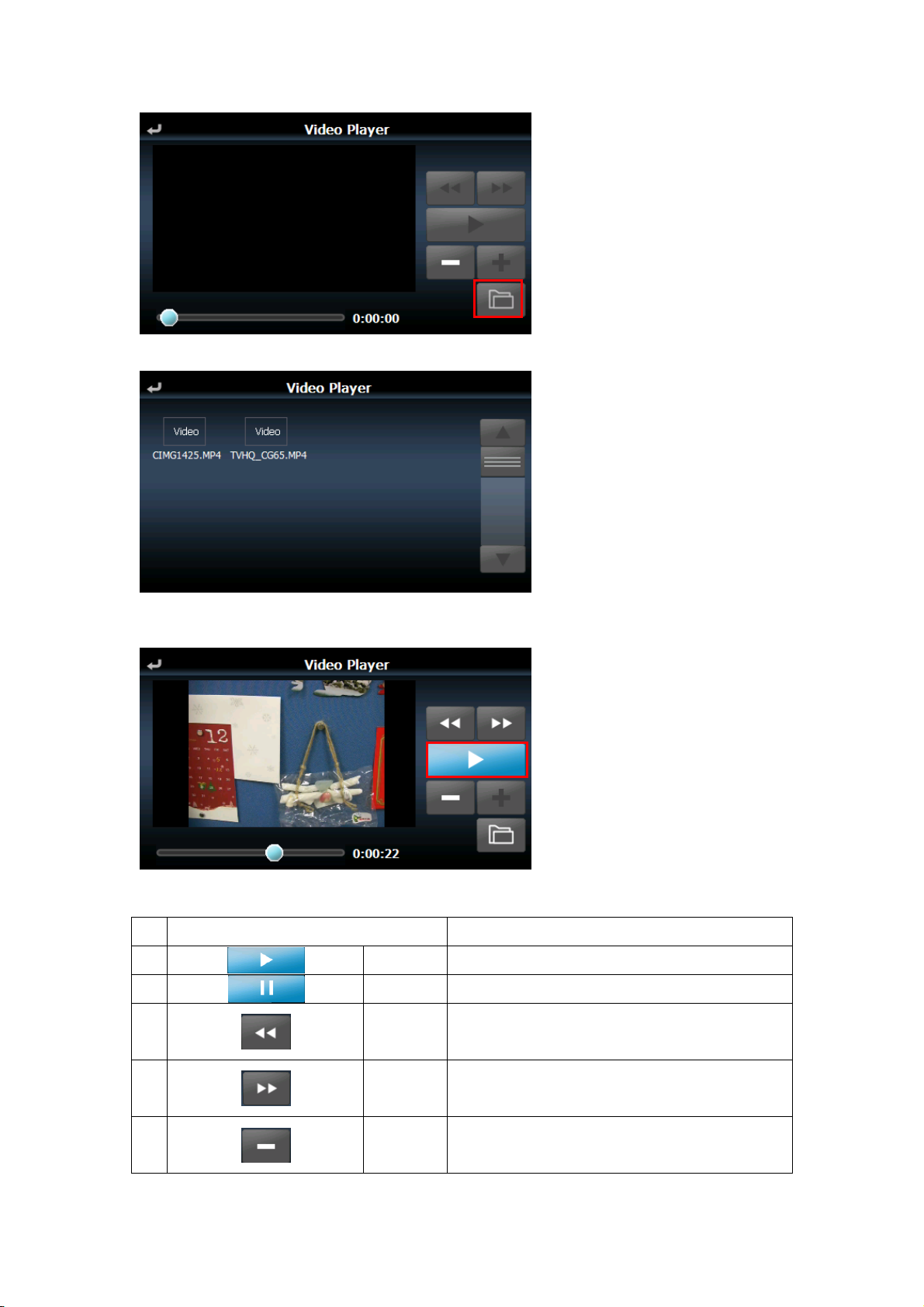

4.4. Video Player ...............................................................................................38
4.4.1. Use Video Player

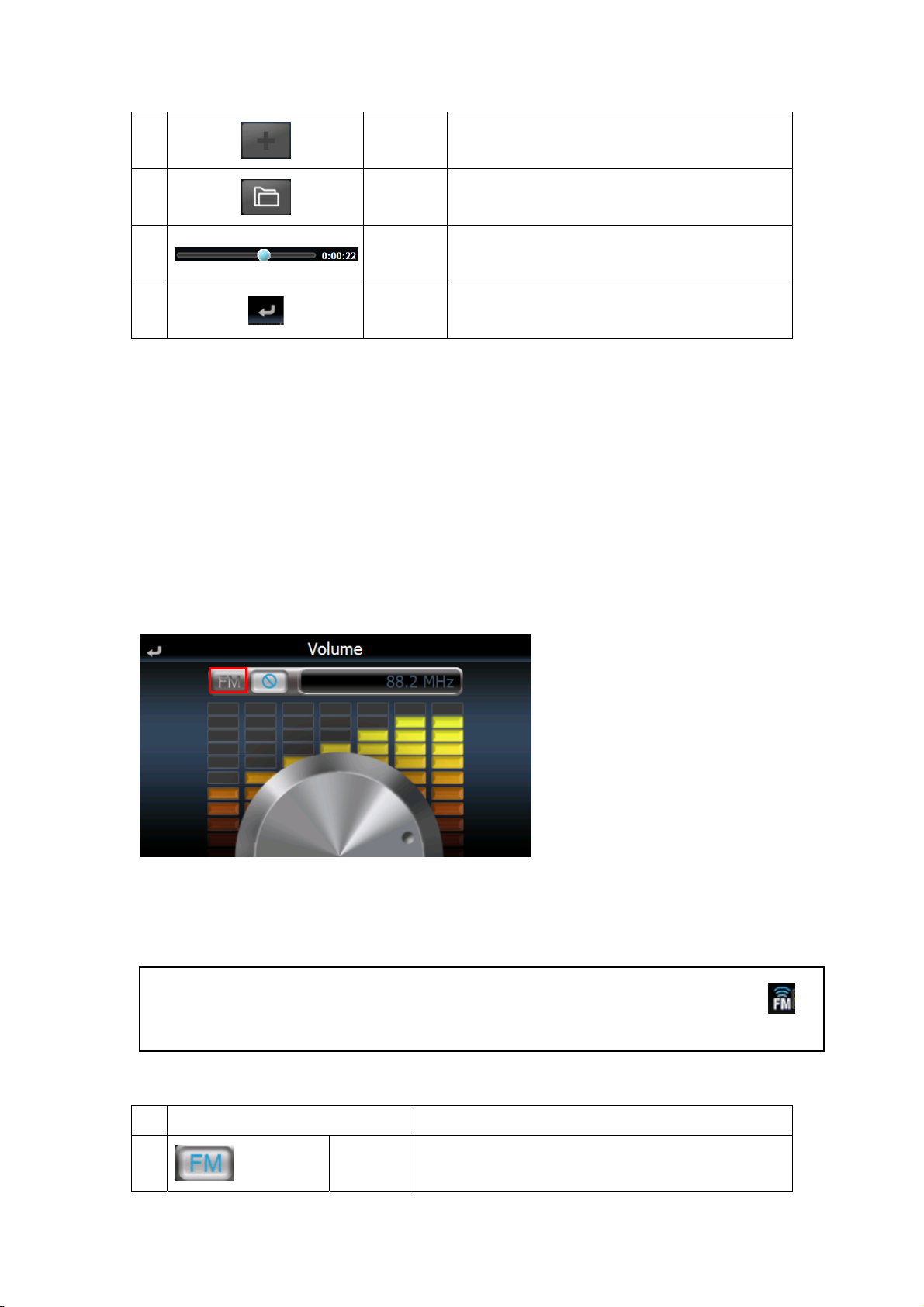

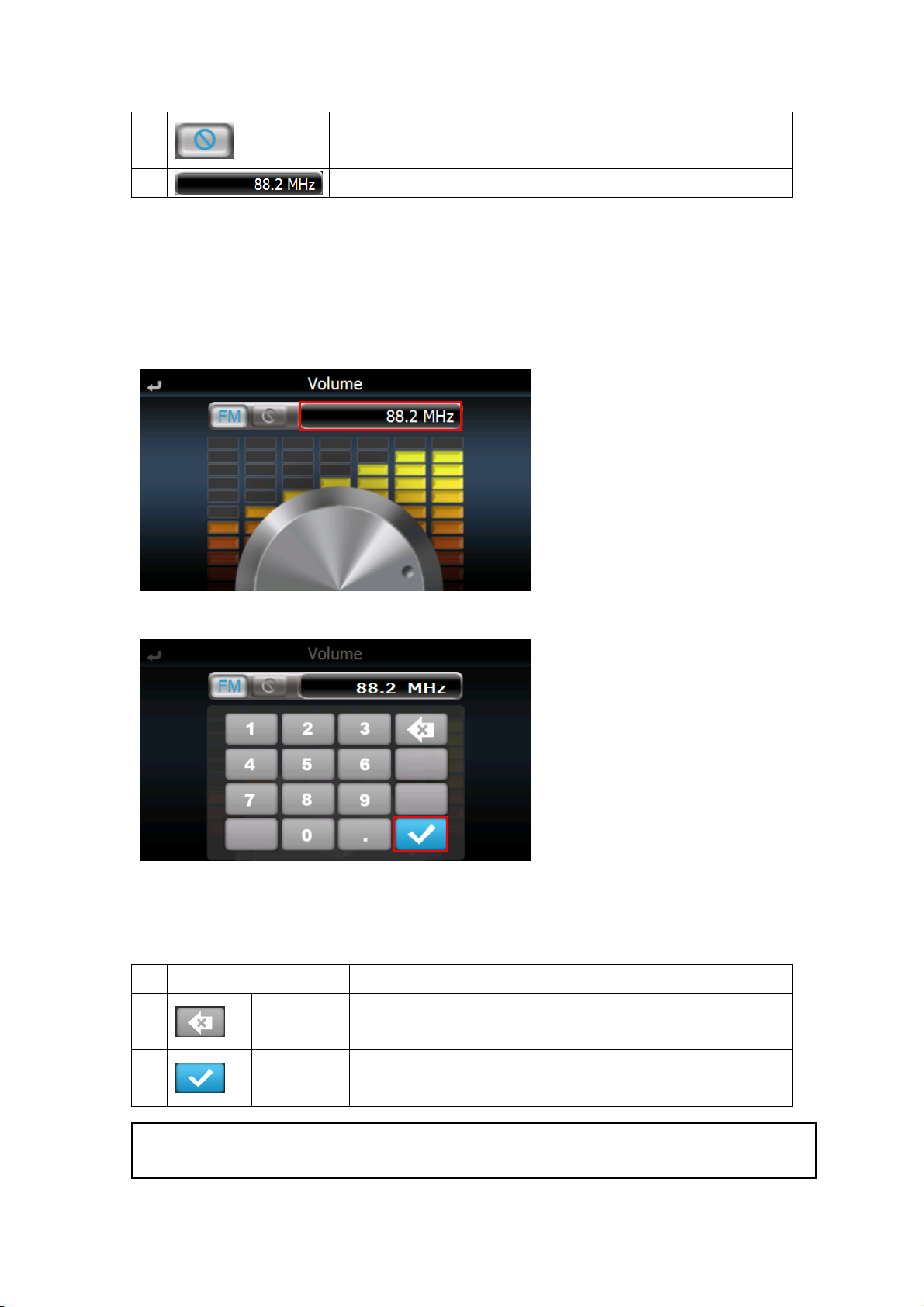

4.5. Listen MP3 via Car Audio/Stereo (FM Transmitter).............................40
Chapter 5 Communications.......................................................................................42

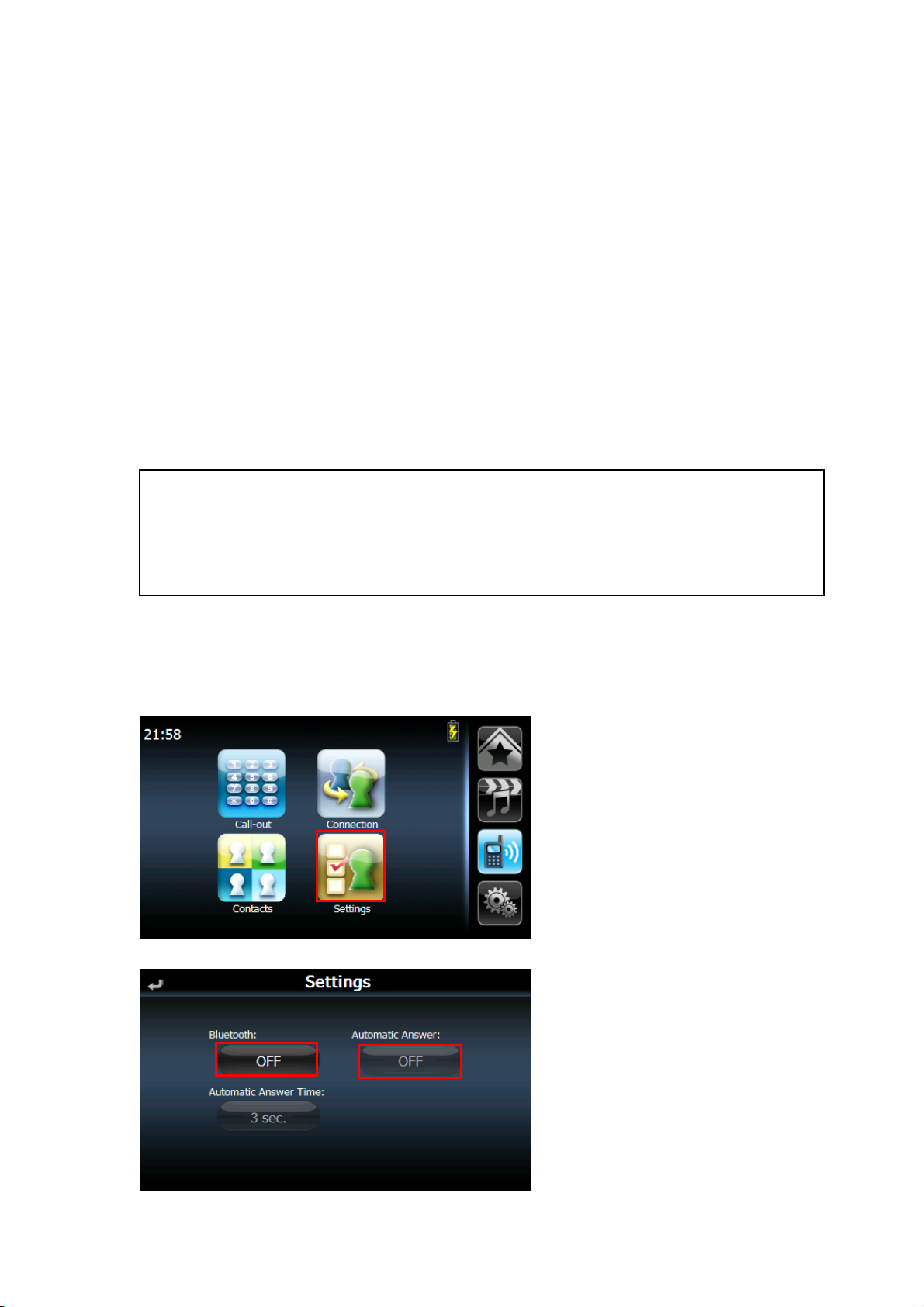

5.1. RN2 Bluetooth (Option function).............................................................42

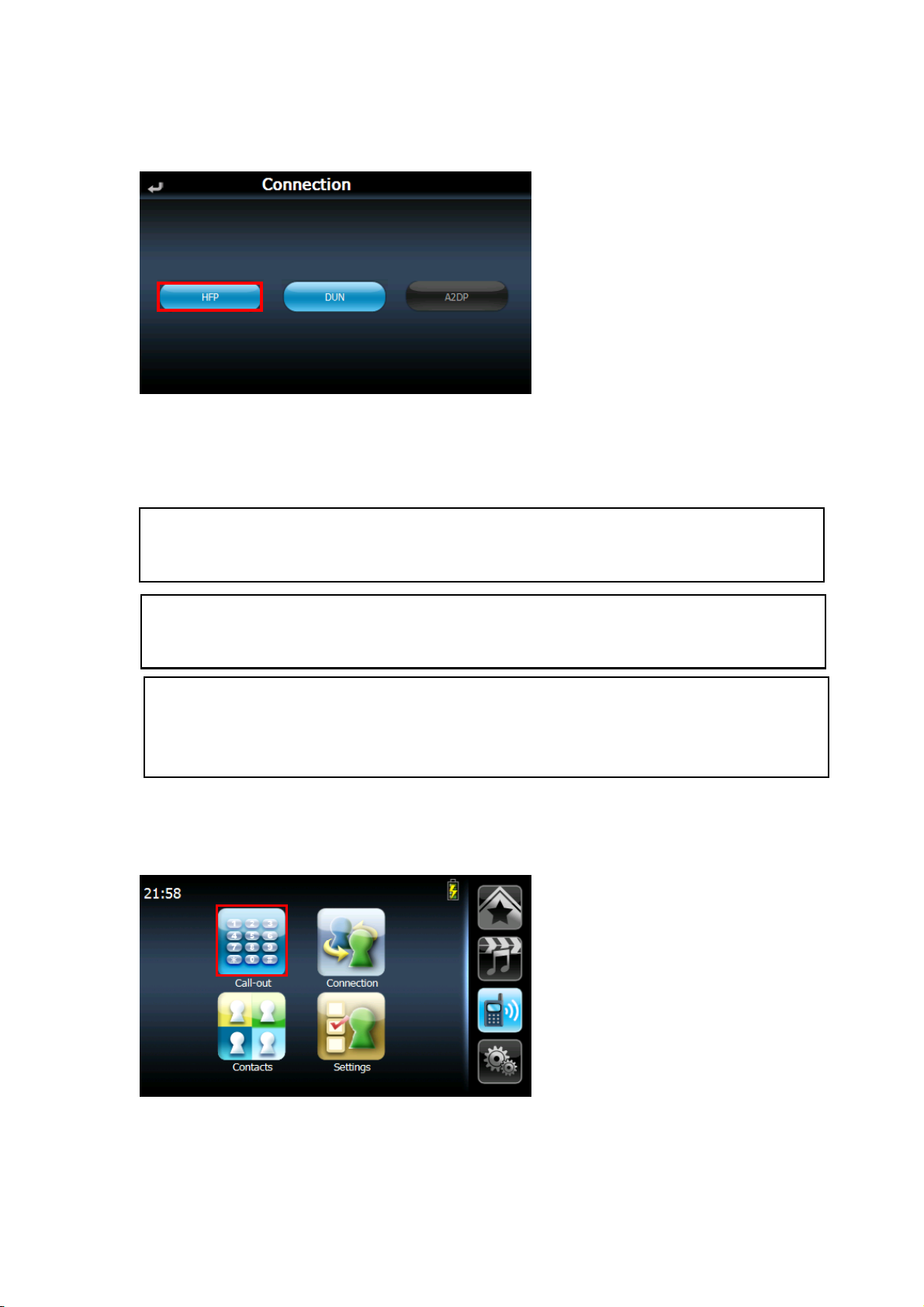

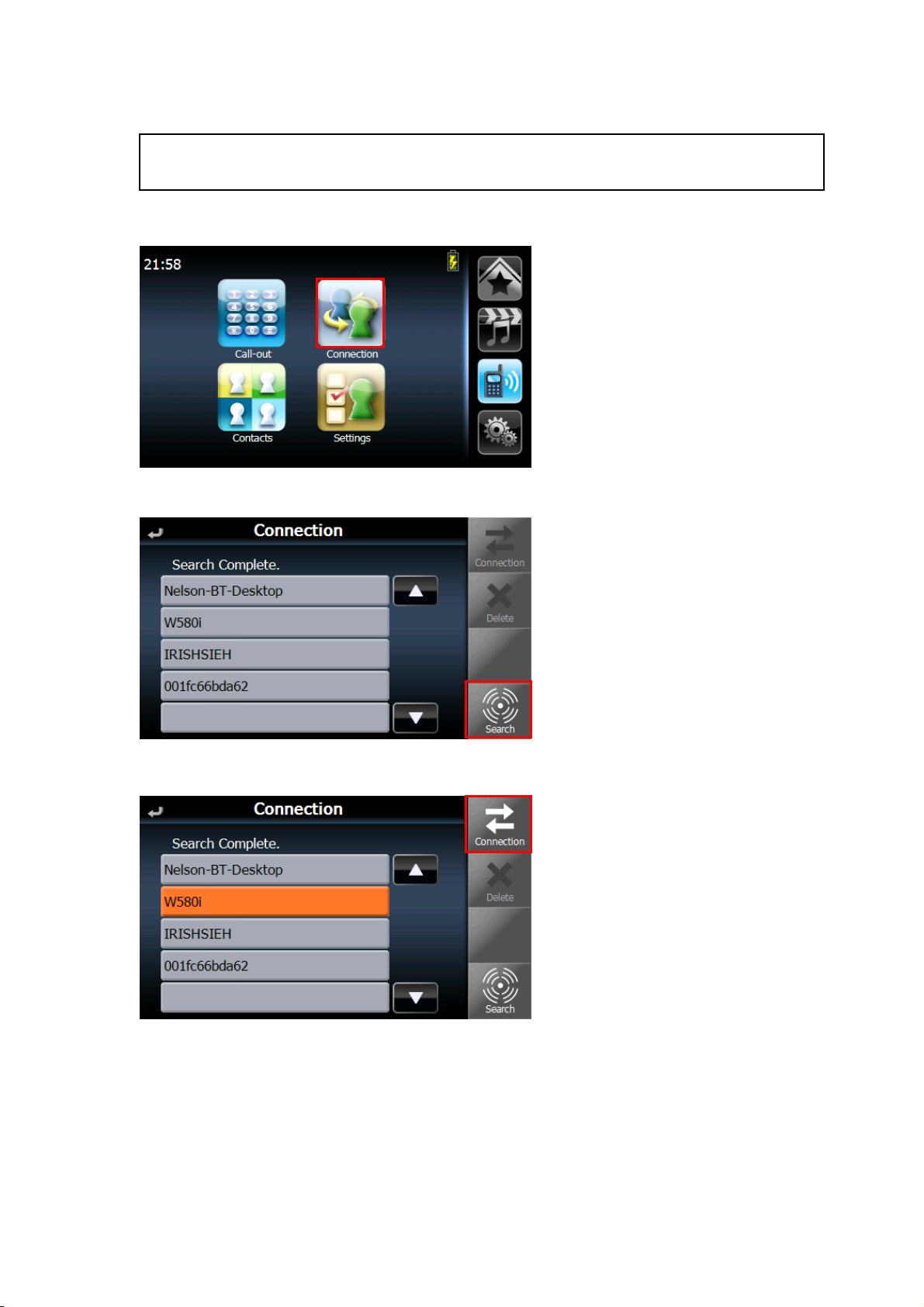

5.2. Connection..................................................................................................42

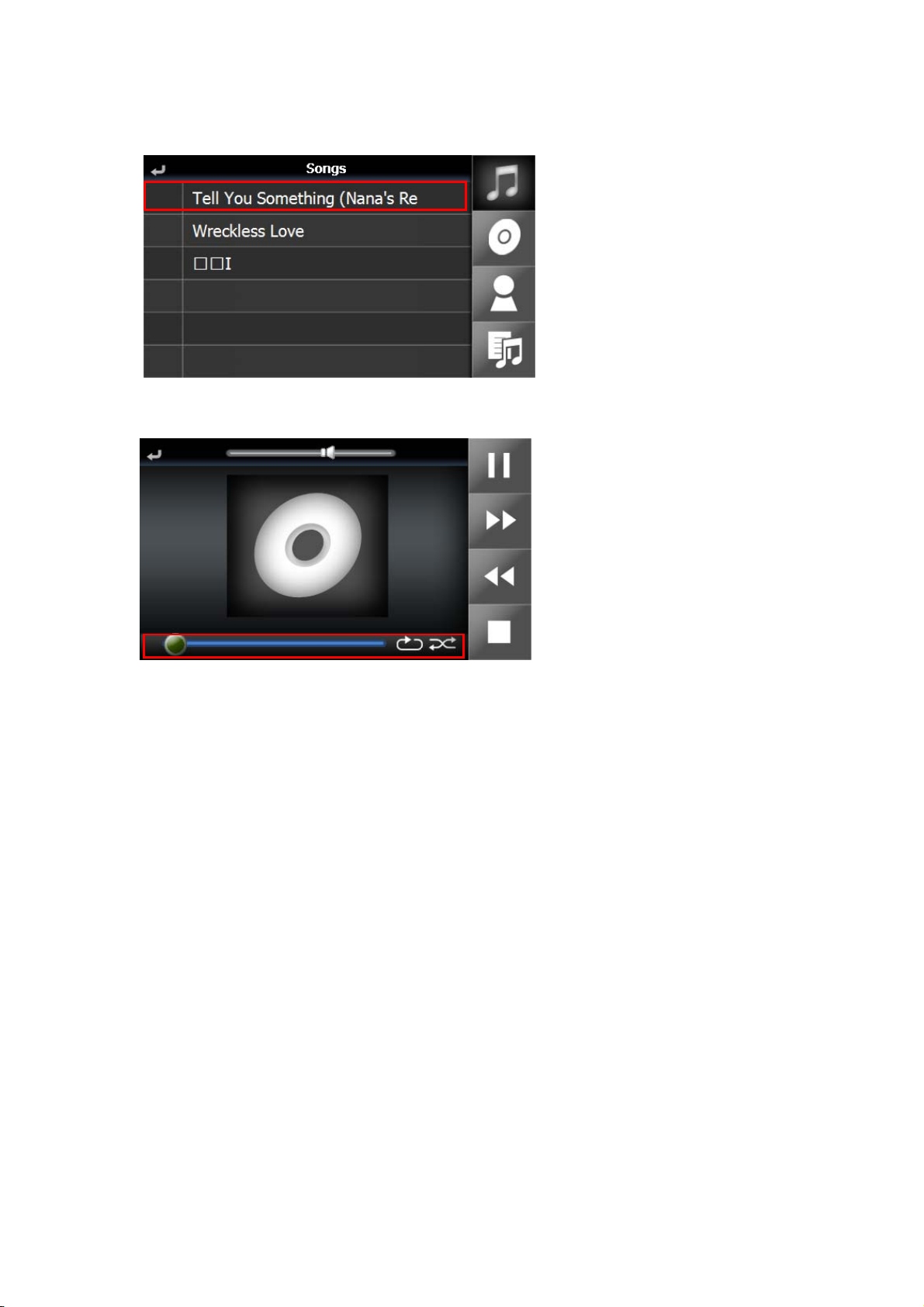

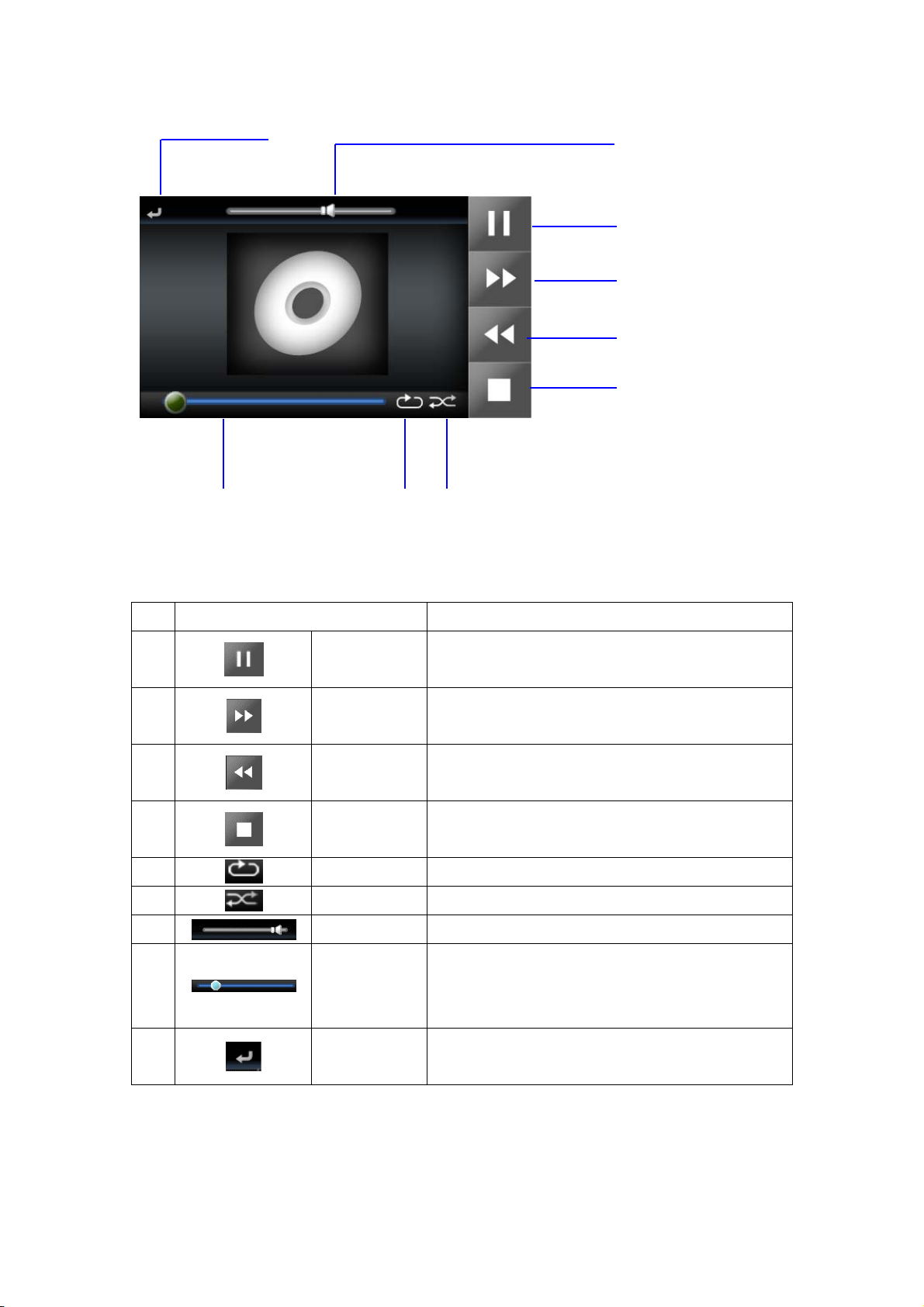

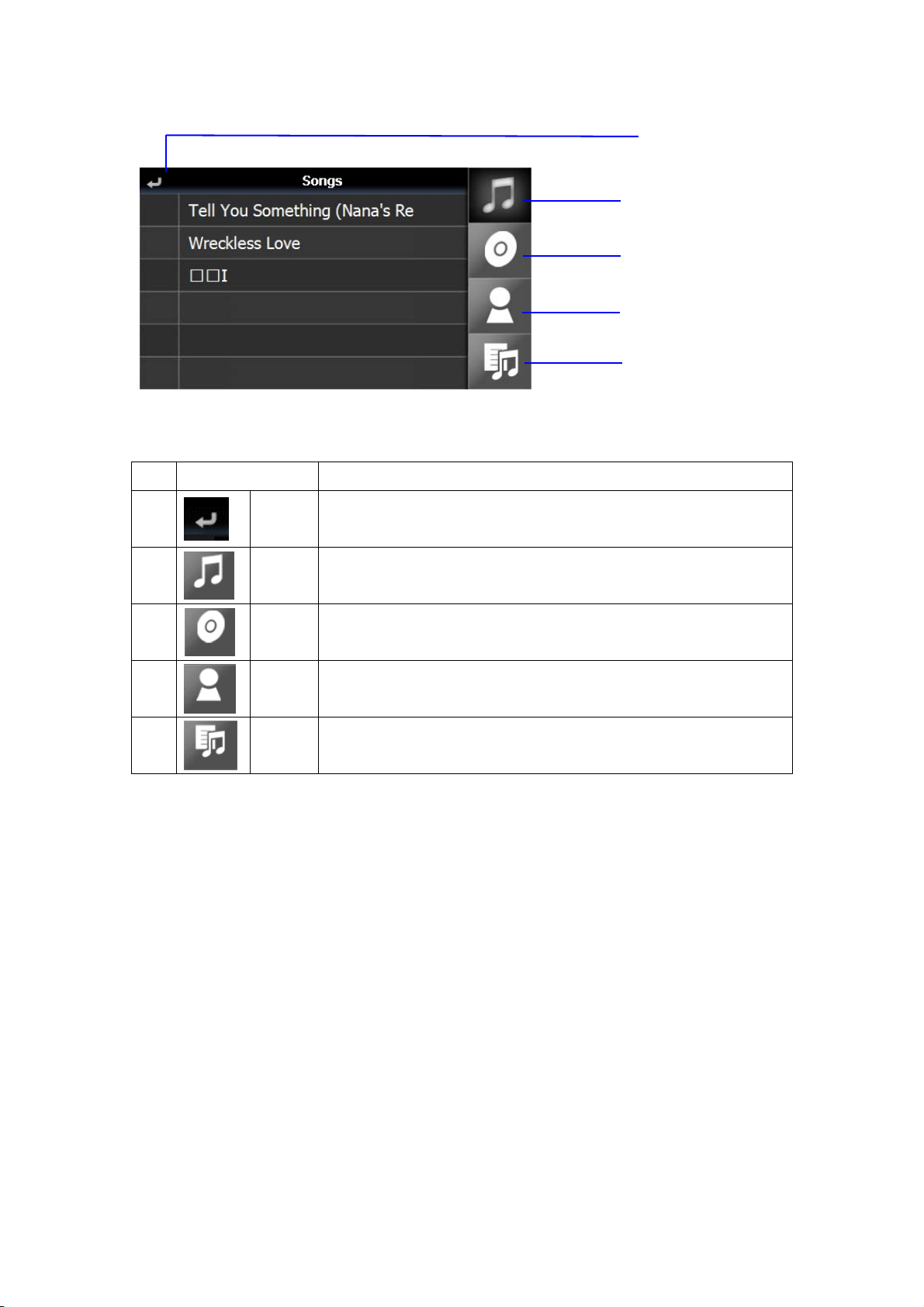

Using the Music player.

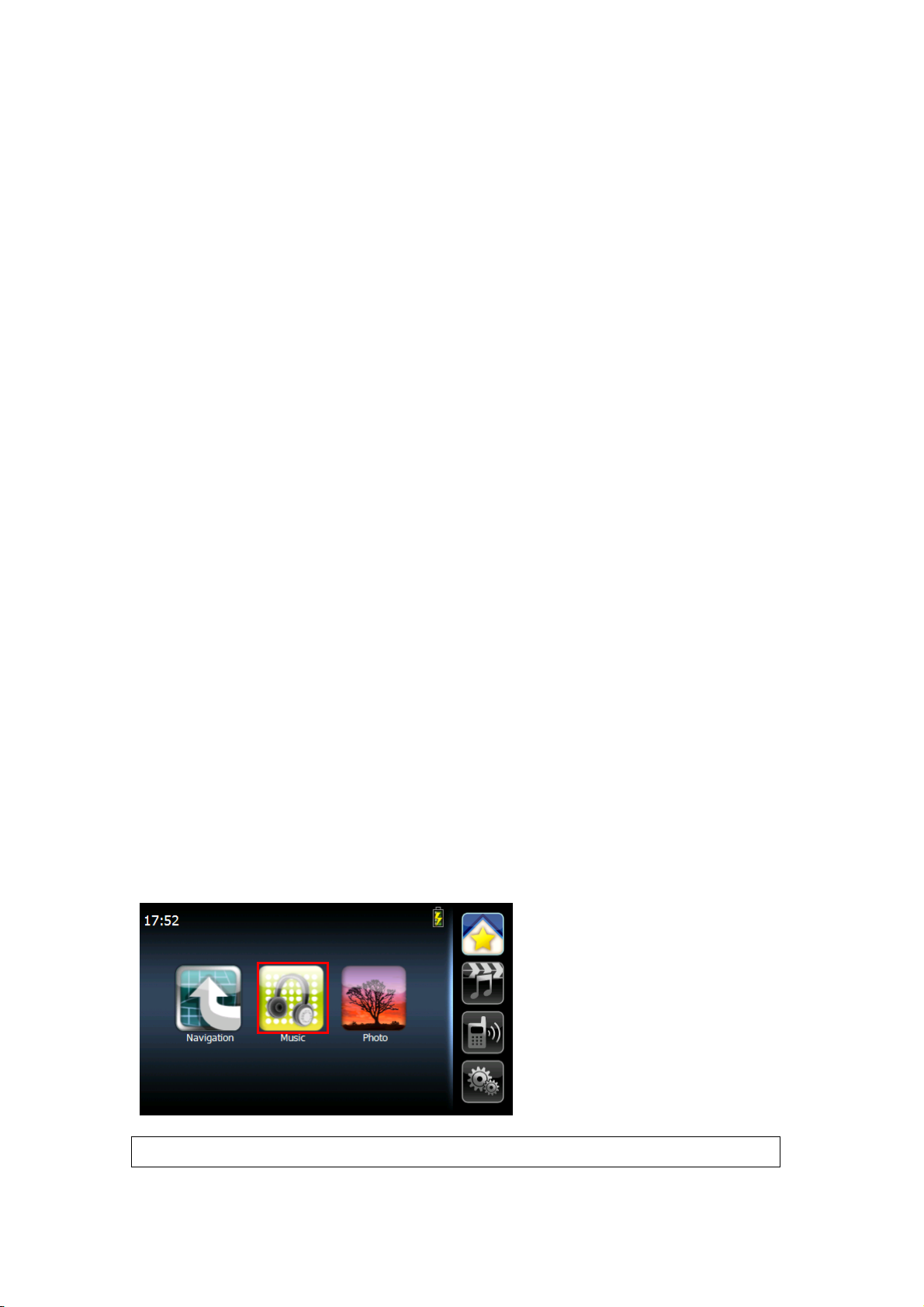

To enter into the different media players.

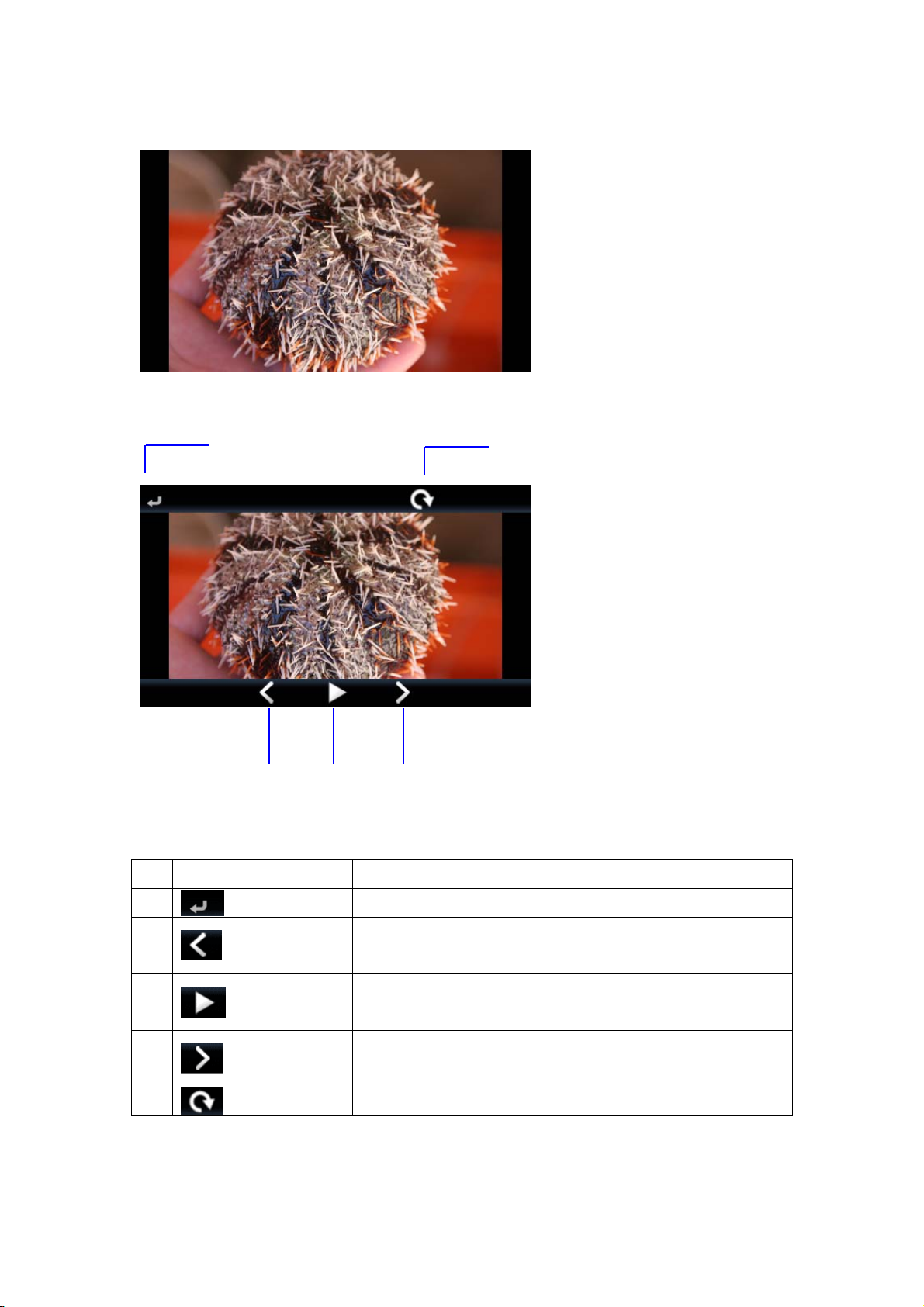

Viewing files in Slide Show mode

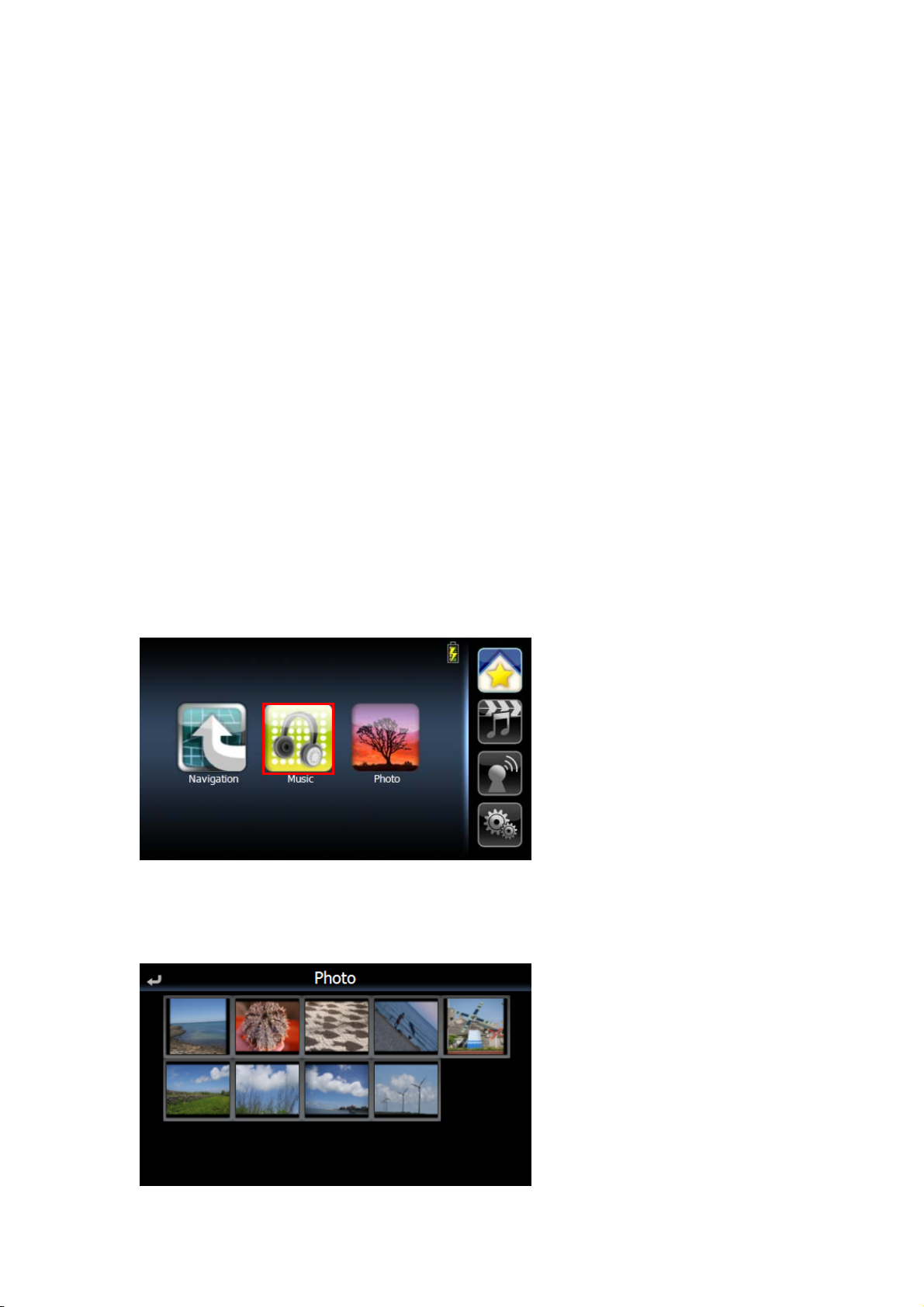

Using the Photo Album
4.5.1 Turn on FM Transmitter frequency
4.5.2 Change FM Transmitter frequency
......................................................................32
........................................32
......................................................36
......................................................................36
.............................................................................38
..................................................40
..................................................41
6
5.3. Mobile phone connection...........................................................................42

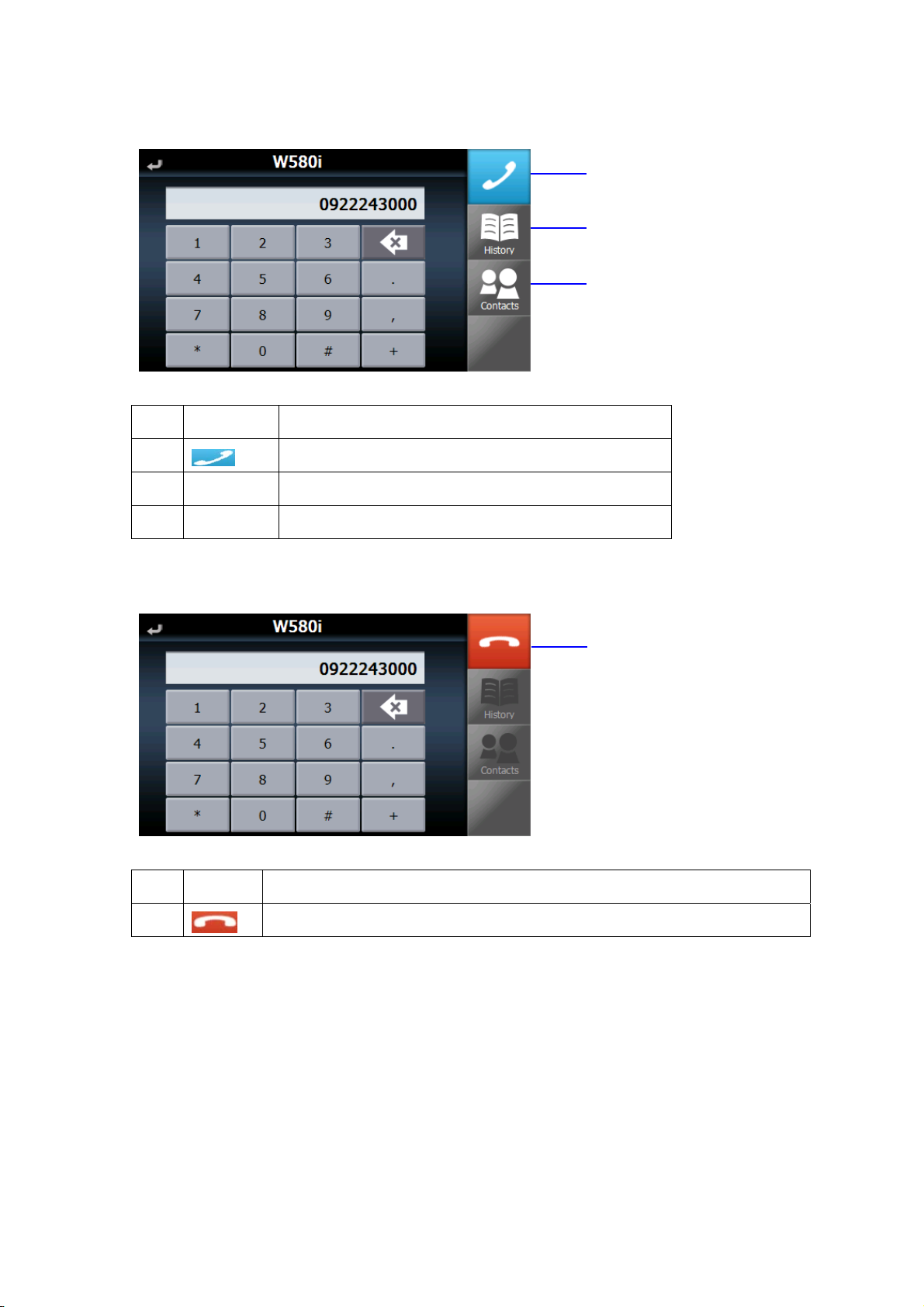

5.4. Call Out (Hands – free Calling)................................................................44

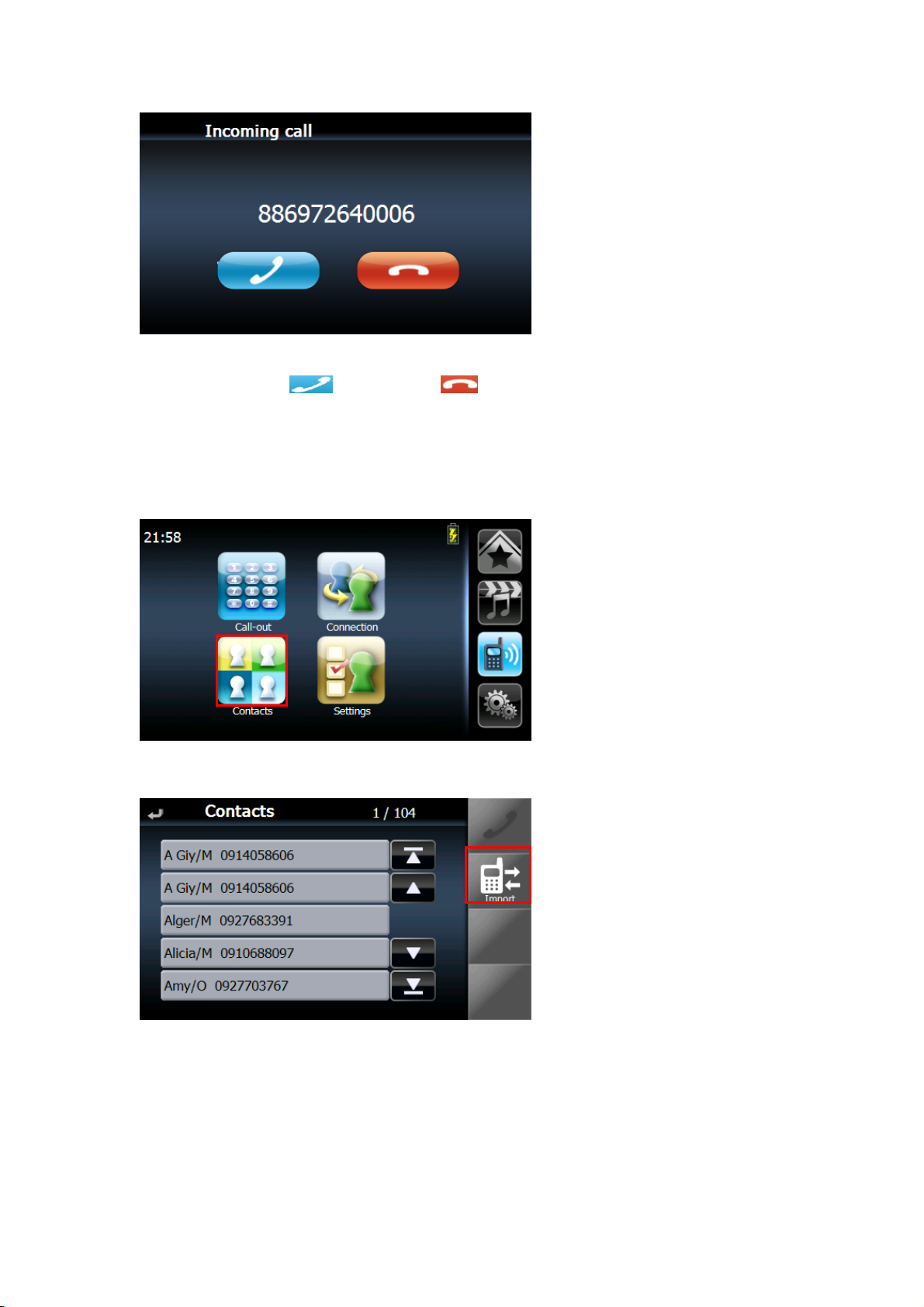

5.5. Contacts (Import phonebooks).................................................................46
Chapter 6 Troubleshooting and Maintenance..............................................................47
6.1. General troubleshooting............................................................................47
6.1.1.
6.1.2.
6.1.3.
6.1.4.
6.1.5.
6.1.6.
6.1.7.
6.1.8.
6.1.9.

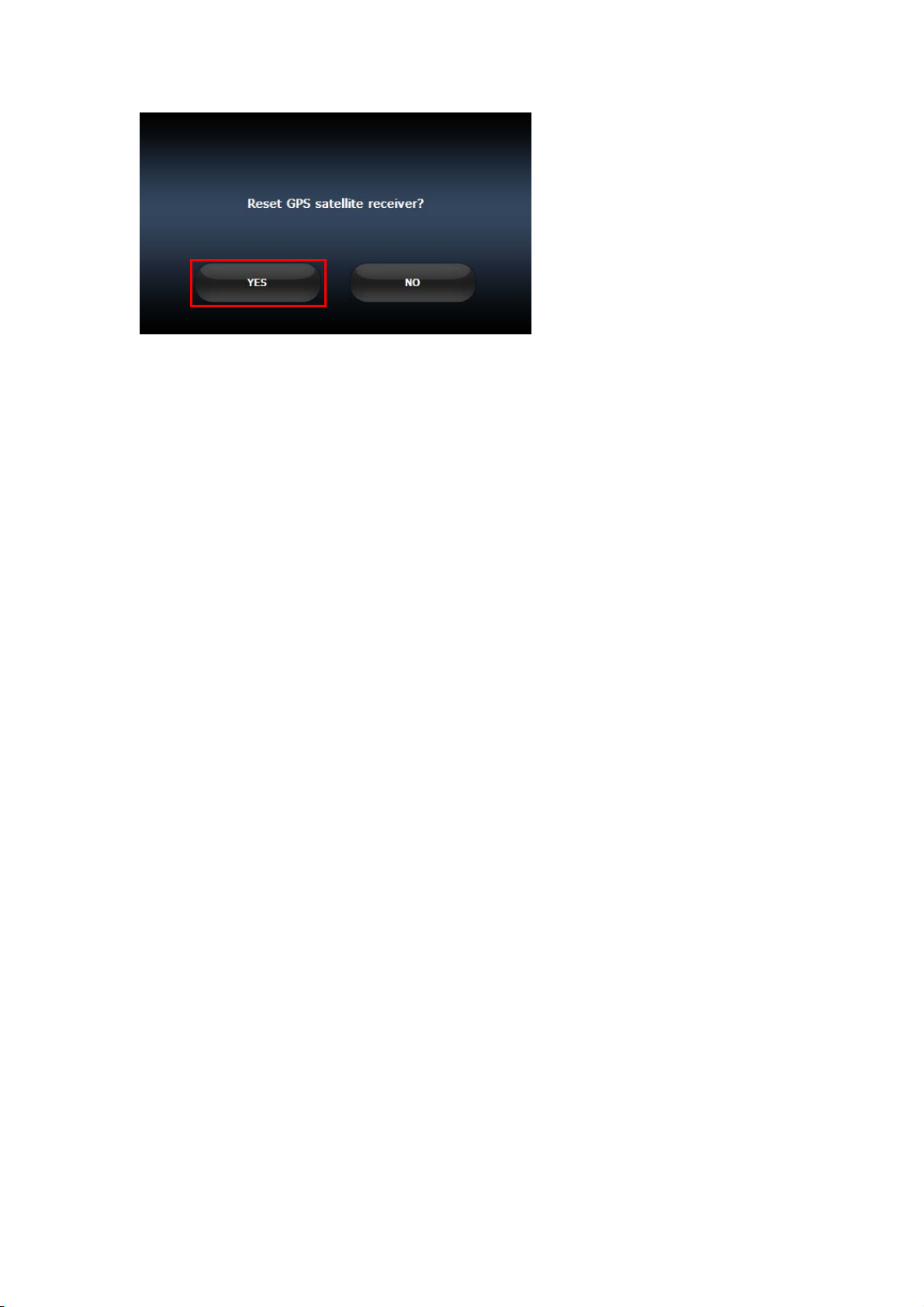

6.1.10. Factory reset does mean a GPS reset.
6.2. Maintenance ...............................................................................................49
6.2.1.
6.2.2.
If your device does not respond, do a “hard reset.”
Users can also perform a “system reset.”
Screen responds slowly
Inaccurate response to taps.
Connection Problems with PC.
No GPS connection
No sound coming from the device.
Can’t I see my photos.
Takes longer than normal time to get a GPS fix.
Storage precautions
Accessories and repair precautions
......................................................................47
..............................................................47
.........................................................47
.............................................................................47
....................................................47
........................................................................48
...............................................48
............................................................................49
..................................................49
........................47
.........................................47
.............................48
7
Chapter 1 Features and Specifications
1.1 RoyalTek RN2 PND features
The RoyalTek RN2 Portable Navigation Device is a powerful multifunction GPS/multimedia navigation
and entertainment device.
• Compact size and lightweight
• Integrated GPS receiver for GPS navigation
• High-resolution color LCD
• 4.3” wide touch screen
• Multimedia functionality with high performance processor
with
320 x 240 x 16 bits
1.2 RN2 Specifications
Table 1: RN2 dimensions and specifications
Category Item
Chassis
Dimension
117mmx77.4mmx11.55mm for 520 mAh
117mmx77.4mmx12.9 mm for 930 mAh
Weight 130g
Specifications
System
OS Windows CE 5.0 Core Version
NAND Flash 1G or 2G I_NAND
SDRAM 64MB Mobile DDR
Display
Screen Type TFT, Touch Panel
Screen Size 4.3”
Resolution 480x272x16bits (WQVGA)
Backlight Yes, brightness with TSP 300 nits typical
Touch Panel Yes, (Finger Tapped)
Operating Temperature: 0 ℃ to +55 ℃
Storage Temperature：-20 ℃ to + 70 ℃
8
Category Item
Battery
General - 520mAhr. Li-Polymer/930 mAhr Li-ion
■520 mAhr
Power ON (Default setting after factory reset)
- Under 4 hours charge from empty to full by AC adapter
- Under 4 hours charge from empty to full by car charger
Power Suspend
- Under 2 hours charge from empty to full by AC adapter
Recharge Time
Audio
Earphone Yes (2.5mm)
Speaker 1.0W mono speaker
Hardware Button\Slot
Micro SD Supports Micro SD
Battery switch Yes (HW reset)
FM Transmitter (Optional)
- Under 2 hours charge from empty to full by car charge r
■930 mAhr
Power ON (Default setting after factory reset)
- Under 6 hours charge from empty to full by AC adapter
- Under 6 hours charge from empty to full by car charger
Power Suspend
- Under 4 hours charge from empty to full by AC adapter
- Under 4 hours charge from empty to full by car charge r
1) 88.2 to 107.8Mhz for EU market.
Frequency
Audio input
Antenna PCB trace
Restriction FM TX will be always off if BT hands free is working
USB
USB solution USB 2.0 device with supporting mass storage( High Speed)
2) 88.2 to 107.8Mhz for US market
3) 76 to 90Mhz for Japan market
4) 88.2 to 107.8Mhz China market
Digital stereo audio for internal audio
Analog stereo audio if there is analog audio input
9
Chapter 2 Getting Started
This chapter describes the hardware interface of the RoyalTek RN2 and its peripherals. Instructions for
setting up the device and some basic system operations are also discussed.
NOTE: Although the RN2 rechargeable Li-Polymer battery comes approximately 30% charged, before
using, it is best to connect the AC adapter (Optional Accessory) or USB cable b y PC c onn ect and plu g to
power socket and fully charge the battery. The ON/OFF button will be orange when charging and green
when change done.
2.1 Hardware overview
This section introduces the RN2 PND external features and hardware components.
2.1.1
The RoyalTek RN2 box contains all of the items listed below：
Packing list
RN2 Portable Navigation Device
Car mount Car holder
Car charger
10
USB cable (Option Accessory) Earphone (Option Accessory)
AC adaptor (Option Accessory) Dashboard (Option Accessory)
TMC Antenna (Optional Accessory). Portable Navigation Device Application Software DVD/CD.
Portable Navigation Device Quick Start Guide. Portable Navigation Device Warranty statement.
11
2.1.2 Front Panel
Figure
1:
Top and Left/Rights side views
2-1:
Table
Top and
Left/Right side
controls
NO Function
1
Power button
Standby mode by pressing the button for sleep/wake.
Indicated the battery charging status.
2
Power status LED
3
Green—fully charged or high battery.
Orange—charging Battery
Red—low Battery
Accepts Micro SD storage cards, allows you use audio, image files stored
Micro SD
4 Earphone
in it for use with internal applications.
Standard stereo headphone jack.
For USB port: connects the device to computer running on the Micros oft
USB port/Docking
5
Windows platform. Also serves as the power connector for charging the
connector
device.
6
Battery Switch To do a hard reset of the device and suspend the battery
12
2.1.3 Car holder
Figure 2: Car
holder side views
Table 2-2: Car holder
No Function
USB Port/Docking
1
connector
For USB port
storage function. Also, it can connect to external TMC module (Option
part). For Docking connector: connects to car mount kit.
：
Only serves as the power connector of charging, but mass
13
2.2 Using the mounting bracket.
The RN2 comes with a car mount kit and a car charger to help install your device in your vehicle. The car
mount kit uses a suction cup on the windshield to offer flexible mounting options for the RN2.
Warning: Some countries prohibit the mounting of any electronic device on the vehicle dashboard.
Be sure to check your local laws for acceptable mounting areas before installing the car mount
bracket.
This section shows how to install the car mount kit in your vehicle’s windshield using the suction cup.
The RN2 uses a snap on mounting cradle to use when the device attaches to the car mount. Below is the
backside view of the RN2 in the cradle.
1.
Clean the mounting surface with a glass cleaner and a clean cotton cloth.
2. If the ambient temperature is below +15°C (60°F), you can warm the mounting area and the
suction cup (e.g. with a hair dryer) to ensure a strong suction bond.
3. Install the car mount on the selected area.
a. Press the suction cup of the car mount firmly against to the windshield. (See Figure 2-3-1)
b. Press down the lever to fix the suction cup in place.
c. Adjust the angles of the arm to your proper viewing position.
Figure 2-3-1
4. Mounting the device holder with your RN2.
a. Fit RN2 down in the device holder first, and then lock it using the plugs on the bottom of the
device holder. (See Figure2-3-2)
b. Firmly dock the RN2 with device holder on the car mount which has been mounted to your
windscreen.(See Figure2-3-3)
14
Figure 2-3-2
5. Charging your RN2 device.
a. Plug the car charger to the 12 V outlet of your car and then connect the charger cable to the Mini
Figure 2-3-3
USB port of the RN2 car holder
Figure 2-3-4)
b. You now can let your RN2 have the continuous power by the car charger.
；
Please make sure the battery switch status in “ON” mode. (See
15
Figure 2-3-4
NOTE: Your car may be required to switch the vehicle ignition into the accessories position to power
the cigarette lighter. Your RN2 will not charge with the ignition off.
6. Starting your RN2
a. Push the battery switch ON.(Default status OFF)
b. Press the power button to turn on your RN2, then the main menu screen appears.
c. Tap Navigation, you will see the map screen displayed.
d. Please read the User’s Guide of Navigation software for the detail setting information.
Please be noted, the first time turning on your RN2 may take some time to obtain a valid GPS fix.
16
2.3 Additional Application with the Optional SKU
1. TMC Accessory (only available in certain areas)
You may use external TMC accessory to perform TMC function when you are in a TMC Traffic
signal available areas
Please connect the TMC accessory to the USB port of RN2 for the TMC application and be placing
the TMC accessory in a place which will not interfere to the driving safe. (See Figure 2-4-1)
Please refer to the User’s Guide of Navigation software for the detail TMC operating information.
. Please visit: www.tmcforum.com for the TMC Coverage information,
Figure 2-4-1
Disclaimer
Please be noted that RoyalTek Company Ltd. and the licensed Navigation Software are not responsible
for any damage caused by an accident due to unreliable TMC radio transmissions by national, regional,
or local broadcasters caused by TMC service restrictions, or by natural and man-made conditions that
prevent real-time information from being delivered to the device. The both companies are not
responsible for the quality or accuracy of the events broadcast.
Resetting the RN2 Device
You should less than seldom need to reset your RN2 under normal circumstances. However, in the
event that a problem cannot be corrected, you may reset the RN2 device by the following way
Hard reset：
• To do a “Hard reset” Disconnect all cables, including the AC adapter, from your device.
By sliding the hard reset switch on the primary ON/OFF switch on the right side of the device from
OFF to ON position then tap the power button.(see Figure 2-4-2)
：
Figure 2-4-2
17
Figure 2-4-3
18
Chapter 3 Using the RN2
3.1 RN2 Operating Basics
After fully charging the RN2 it is ready to be used. You can now turn it on and proceed to system
settings configuration.
3.2 To turn on the device:
1. Sliding the battery switch to “ON”. (Default status OFF)
on
2. Turn
your device by pressing the power button on the top right panel of the device.
After turn on the device,
main page
will
display. This is also referred to the Favorite page.
3.3 To configure system settings:
If you intend to start using your RN2 at once, we recommend that you configure the language and time
settings first. The rest of the user preferences can be set up later.
zone
1. Tap
“System” in the right category bar
19
.
20
2. Tap “Language” on the System page.
3. It will display current language in central area.
4. To drag wheel scroll language tags.
5. To set the system time zone, tap “Time Zone” in System Menu.
6.
Tap the
a.
b.

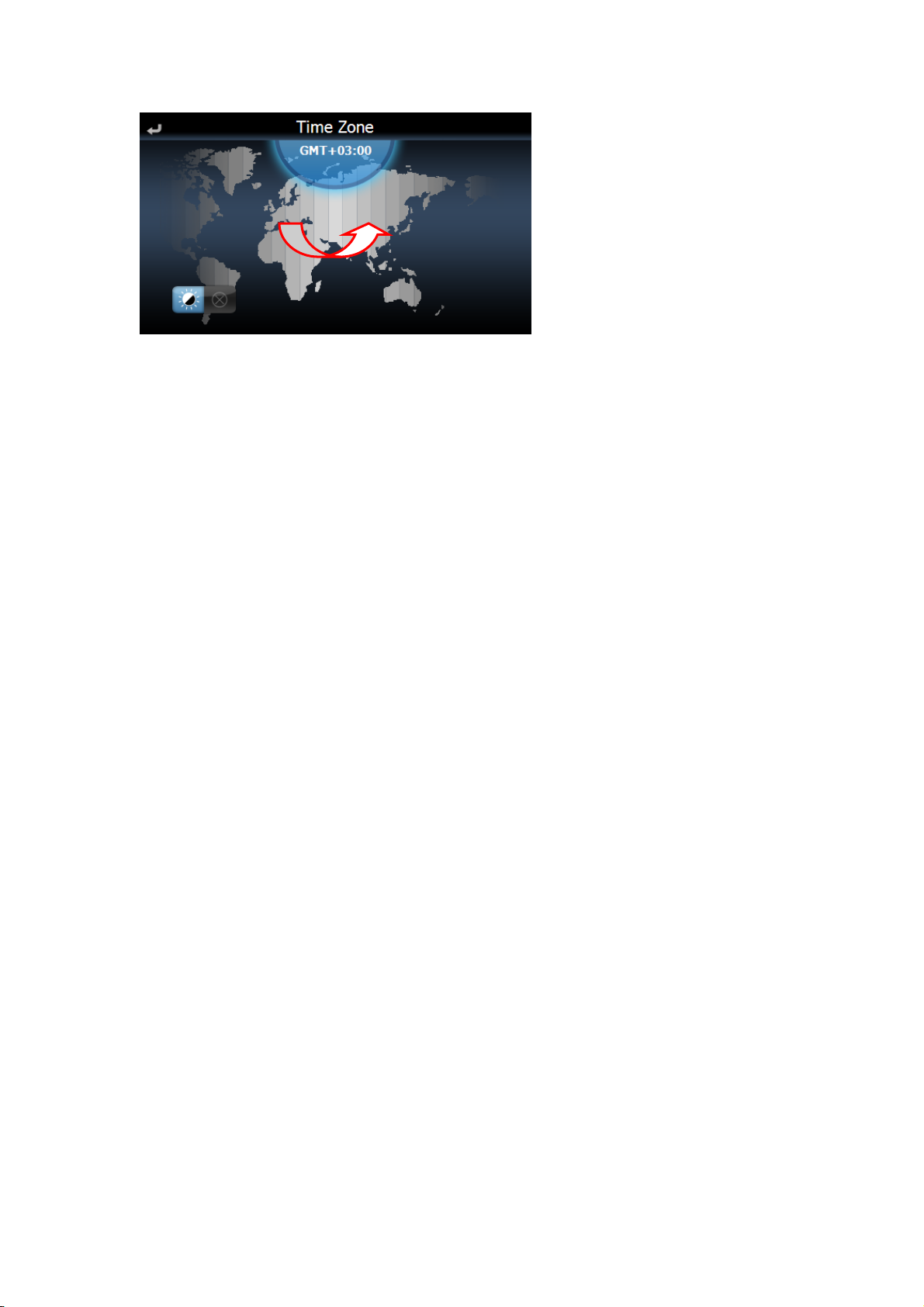

7. Drag the Map to adjust the time zone.
represent enable the fun ction of daylight savings time.
represent disable the function of daylight savings time.
icon to set up the function of daylight saving s time.
21
22
3.4 Additional System settings
Other system settings can be used to view and adjust your device current preferences. Navigate from the
System Menu.
3.5 Reset
GPS Reset:：When user wonder if GPS receiver perform properly o r not .( ex : Change the region)
Factory Reset：The factory reset function not only resets the operating system settings to default factory values, but also
reset the GPS settings.
Calibration：When the touch screen does not respond well, calibrate the screen of your device.
1 Tap the “Reset” icon in the System Menu.
Menu.
Tap the
“GPS
Reset” icon in the Reset
2 Tap
the “YES” to reset the GPS.
.
23
24
3 Tap the
4 Tap the “YES” to do the Factory Reset.
“Factory
Reset” icon in the Reset Menu.
5 Tap the
“Calibration”
icon in the Reset Menu.
6 Tap on the center of the target. Repeat as the target moves around the screen.
25

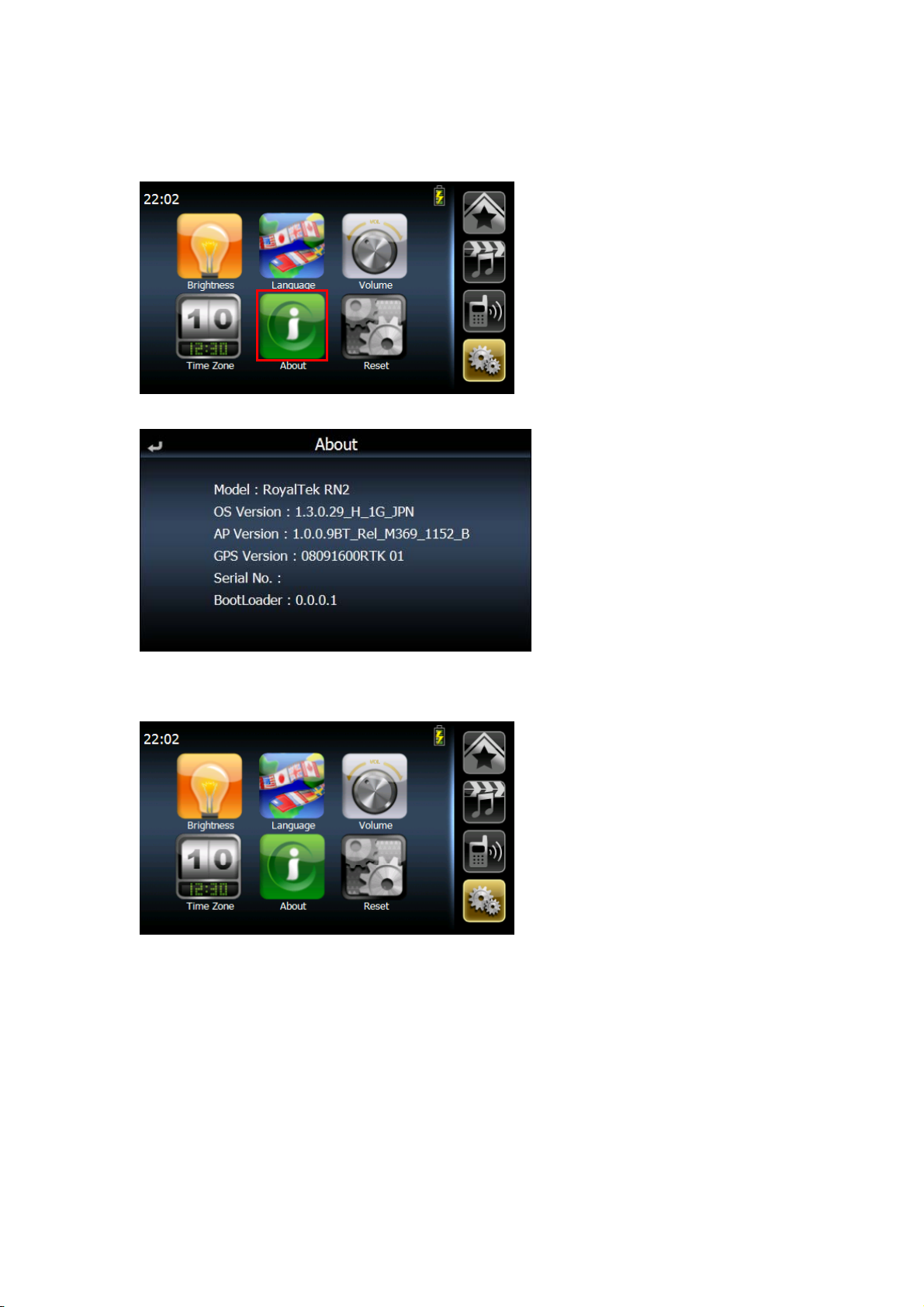

3.6 System Information
1.
Tap the Sys Info. icon in the System Menu.
2. You can view the OS version, GPS firmware version and other system information..
3.7 Volume
1. Tap the Vol ume icon in the System Menu.
3. To adjust the volume by drag the wheel.
4. Drag to left will become silent else will become noisy.
26
27
3.8 Backlight
1. Tap the Backlight icon in the System Menu.
2. Adjust
3. Drag to left will become dark, drag to right will become light.
the Backlight brightness by drag triangle icon.
28
3.9 To set the favorite application category:
Otherwise, provide more organized and friendly application management interface for user organize
their own favorite application category by drag-and-drop, the maximum number of favorite application
shortcut is 6.
Add icon to the favorite page
1. Drag the icon to the category bar of favorite.
2. That will show the icon in favorite page.
Delete icon to the favorite page
1. Drag the icon from Favorite page to category b ar and drop it. Confirm dialog will pop up, just tap “YES” to delete.
3.10 Power Supply
29
RN2 has a completive power management system, and enhances its standby time. In
addition, it can make end-users more convenient to carry it for entertainment purpose,
not only using in cars but also at home, outdoor activities.
3.11 Charge
While end-users use our standard car charger or AC adapter to charge RN2, the main
screen would remind you.
3.11.1 Discharge
While end-users remove out our standard car charger or AC adapter, the main screen
would remind you to turn off RN2 or not.
3.11.2 Power outage
While battery capacity is lower than 20%, the main screen would remind end-users
the following message.
30
31
Chapter 4 Entertainment
4.1. RN2 Multimedia Player
The RN2 is a fully capable multimedia player that can enhance your portable entertainment. In addition to
its navigating function, the RN2 is also a mobile entertainment tool to let you enjoy digital music, view
photos.
These functions make the RN2 a true multimedia device.
To enable access of multimedia files from your device’s
either
of
the following:
mass storage
folder and transfer these files, do
• Using the USB cable to connect the device to your computer, and then use File Explorer to copy
digital music and image files into the device’s MyflashDisk folder.
• Using a compatible card reader, directly copy digital music and image files to the Micro
It is recommended to organize files into subfolders. These folders will make files easier to find and play.
SD
card.
4.2. Music player
Enjoy your favorite music on the road. The program features:
• Support for MP3 files
• Auto-scanning of supported files in the device’s Micro
• Separate volume control enabling you to adjust the playback sound level while retaining the
SD
card
volume level set for system sounds
Each sub directory containing compatible music files is treated as an individual playlist. For a more
organized file search, it is advisable to named sub directories based on genre or listening preferences.
4.2.1.
4.2.2.
1.
NOTE:
The MP3 player window below controls playback.
Using the Music player.
To enter into the different media players.
Tap “Music” icon in the Main Menu.
You can also enter the music player by
right category bar.
32
Table 4-3-2-1: MP3 player functions
NO Function
1
○
○2
○3
○4
5
○
1
2
3
4
5
Return Return to list page
Songs List all song by alphabet
Album List all albums by alphabet.
Artist List all Artists by alphabet
Search Current play list
33
2. Tap the song on the music list.
`
3. Tap bottom information bar will switch to song’s progress.
34
9
○
○8
1
○
○2
○3
○4
○5 ○6○7
Table 4-3-2-2:
NO Function
1
2
3
4
Play sound functions
Play/Pause P/ay/Pause song
Forward Forward to next song.
Previous Reword to previous song
Stop Stop music play.
5
6
7
8
9
Repeat Repeat play songs.
Random Random play songs.
Sound bar To adjust the sound.
No even: This place will scroll song’s name and total play time.
Bottom info. bar
Return Return to list page.
Tap: Tap this bar. Will switch to song’s progress.
35
4.3. Photo Viewer
The RN2 has a great photo viewing option that makes it easy to share and view digital photos anywhere on
the go. The program features:
• Support for JPEG files (Support Max. 500 photos)
• Auto-scanning of supported files in the device’s Micro SD card & Flash disk
• Three viewing modes: Thumbnail, Full Screen, and Slide Show
• Album support based on sub-directory contents
Each subdirectory can hold multiple images and be used as an individual album. For a more organized
file search, it is advisable to sort image files into sub directories based on meaningful name or date. An
example could be “summer vacation pictures” or “New baby” or “2005 Best.”
4.3.1. Viewing files in Slide Show mode
You have the option to view images in a slide show much like viewing a Power- Point presentation in your
computer. Images are adjusted to fit the entire display area and are shown in a 5-second interval.
4.3.2. Using the Photo Album
1.
Tap “Photo” icon in the Main Menu.
2.
Will list all thumbnails in SD card and store in PND mass storage & SD folder.
3.
Drag all screen area will cause photo move to next or previous page
36
4. Tap specific thumbnail will enlarge thumbnail.
5. Ta p the screen will cause control bar display
○1
○5
Table
4-3-4-1: Photo Album Viewer
NO Function
1
2
3
4
5
○2 ○3 ○4
Return Return to thumbnail page
Previous page Display previous photo.
Auto Play mode Auto play all photos.
Next page Display next photo.
Rotate
Rotate photo
37
4.4. Video Player
Video Player is a very unique function in RN2, which can make end-user s enjoy your DIY video
via this device.
The program features:
• Support
VMV/WMA
files (Maximum 500 files)
• Auto-scanning of supported files in the device’s Micro SD card
• Three viewing modes: Thumbnail, Full Screen, and Slide Show
• Album support based on sub-directory contents
4.4.1. Use Video Player
1. Tap “Video” icon in the Main Menu.
2. Tap “Accept” icon to enter Video Player function screen, or tap “Cancel” not to enter into.
3. Tap “File Manager” to choose a file, which you would like to play.
38
4. Tap “Play” to play the file which you choose.
4-4-1-1:
Table
NO Function
1
2
3
4
5
Video Player Display
Play Play a video file
Pause Pause to play a video file
Forward
Downward
Volume
down
Turn down volume
39
6
N
Volume up Turn up volume
7
8
9
File
Manager
Progress
bar
Return Return to the previous page
List video files
Show playing progress (Tap or drag to control playing
progress)
4.5. Listen MP3 via Car Audio/Stereo (FM Transmitter)
RN2 has a great music-player-supported function that makes you play MP3 files via your car
audio/stereo.
• Set FM frequency range from 88.2 to 107.8Mhz
4.5.1 Turn on FM Transmitter frequency
1.
Tap the Volume icon in the System Menu.
2.
Tap “FM”
to open FM Transmitter function
3.
Set FM frequency 88.2 MHz in your car radio.
4. Play “Music Player”, “Video player” or “Navigation”, and audio will be come out from your
car radio.
OTE：there is a sign to remind end-user that FM Transmitter function is open on the main menu.
Table 4-4-1-1:
NO Function Description
1
FM Transmitter Setting
FM
Transmitter
Open FM Transmitter function
40
2
N
Stop Stop FM Transmitter function
3
Frequency Set frequency (Default: 88.2 MHz)
4.5.2 Change FM Transmitter frequency
1.
Tap
frequency entry
2.
Set the frequency number, and tap “Enter”
3.
Set the same frequency number to make your car radio receive audio from RN2.
Table 4-4-2-1: FM Frequency Setting
NO Function Description
1
2
Delete Delete frequency number
Enter Implement this frequency number
OTE：FM Frequency can only set from 88.2 to 107.8Mhz.
41
Chapter 5 Communications
N
5.1. RN2 Bluetooth (Option function)
Once your Bluetooth-enabled mobile phone is paired with your RN2, you can make hands-free
phone calls through your RN2’s integrated micro- phone and speaker. RN2 makes it easy to
make and receive phones calls with ease while
things safe, letting you keep your eyes on the road, while your RN2 integrates seamlessly with
your mobile phone. Easy to connect and use, just follow a few quick steps to enjoy the benefits of
Hands- free calling. (That is option function)
end-users
drive cars. Hands-free calling keeps
5.2. Connection
OTE：Make sure the Bluetooth settings of your mobile phone.
- The Bluetooth switch is set to “ON” or “enable”.
- The visibility is set to “Discoverable”, “Show my phone”, (For more detailed information,
see your phone’s manual.)
5.3. Mobile phone connection
1.
Tap “Settings” to turn on Bluethooth function, and end-users can also turn on “Automatic
Answer” while the mobile phone is ringing.
42
N
OTE：”Automatic Answer Time” can be set three mode “3sec.”, “10sec.”, and “30sec.”
Back to “Communication” screen, and tap “Connection”
1.
2. Tap “Search” to look for Bluetooth on of mobile phones, and
3. Choose one which you want to connect to, and tap “Connection”
43
N
N
N
4. Choose “HFP”
5. The mobile phone will often require you to enter a password to connect the device. Enter
“0000” on the mobile phone in this case.
6. When the connection completes, the name of the connected phone is displayed on the title
bar of the “communications” screen.
OTE：If the connected mobile phone has the Bluetooth auto-accept function, set this function to “NO”
(For more detailed information, see your phone’s manual.
OTE：Bluetooth function has distance limitation. While the mobile phone is away, and make
Bluetooth function disconnect, NS-4102 would try to re-connect within 10 seconds.
OTE： While end-user is turning on FM Transmitter and Bluetooth Hands-free function (connecting
with a cell phone), call conversation would still come out from NS-4102 speaker, not from car
audio/stereo.
5.4. Call Out (Hands – free Calling)
1. Tap “Call-out” screen is as follows:
44
2. Call-out
No. Name Description
○1
2
○
3
○
1
2 History Call-out from the history of the incoming /o ut go in g cal l
3 Contacts Call-out from the contacts. In detail, refer to 4.3.
3. Call-out (in a phone call)
No. Name Description
Start to make a call.
4
○
4
4. Receiving a call
(1) When the connected mobile phone receives a call, the caller’s phone number and two
buttons are displayed on the screen.
Close a phone call.
45
(2) Receive a call, tap
; Quit a call, tap .
5.5. Contacts (Import phonebooks)
1. Tap “Contacts” screen is as follows:
2. Tap “Import” to import the contact information from the connected mobile phone.
46
Chapter 6 Troubleshooting and
Maintenance
6.1. General troubleshooting
6.1.1. If
6.1.2. Users can also perform a “system reset.”
your device does not respond, do a “hard reset.”
To do a “hard reset,” Disconnect all cables, including the AC adapter, from your device.
By sliding the hard reset switch on the primary ON/OFF switch on the right side of the device
form OFF to ON position then tap the power button.
To do a “system reset,” in the Main menu, tap System, then tap System Info. This will allow you to do a factory
6.1.3. Screen responds slowly
reset (restore to default set- tings), reset the GPS and recalibrate the touch screen interface.
Make sure you have enough battery power.
6.1.4. Inaccurate response to taps.
• Recalibrate the touch screen.
6.1.5. Connection Problems with PC.
Make sure that the cable is securely plugged into the USB port on your computer and on the device. Connect the
USB cable directly to your computer—do not run the cable through a USB hub.
Reset your device before connecting the cable. Always disconnect your device before you restart your
computer.
6.1.6. No GPS connection
Make sure that the GPS antenna has a clear view of the sky.
Note that the GPS reception can be affected by:
Bad weather
Dense overhead obstacles (e.g. trees and tall buildings)
Other wireless devices in the car
6.1.7. No sound coming from the device.
Make sure mute is not selected for Volume in system settings. The built-in speaker turns off when the headphone
jack is being used.
47
6.1.8. Can’t I see my photos.
Make sure you are using supported image formats JPG.
6.1.9. Takes longer than normal time to get a GPS fix.
If the previous GPS fix position was more than 500 km or 12 hours apart from your current position and time, it
will also take significantly longer than the standard TTFF time to get a GPS fix. This is due to the nature of the
GPS
algorithm and rotational velocity between the satellites and planet Earth, and deemed
normal.
Perform a GPS reset in the main/system/system info menu to get a faster GPS fix.
6.1.10. Factory reset does mean a GPS reset.
Yes. The Factory Reset function resets t he OS settings to their default factory value s and it will reset the GPS
settings.
48
6.2. Maintenance
• Avoid exposing your device to direct sunlight or str ong ultraviolet light for extended periods of time.
• Do not drop your device or subject it to severe shock.
• Do not subject your device to sudden and severe temperature changes. This could cause moisture condensation
inside the unit, which could damage your device. In the event of moisture condensation, allow the
device
to
dry out completely before use.
• Th e s c r e e n su r f a c e c a n b e ea s i l y s c r a t c h e d. S h a r p o b j e c t s m a y s c r a t c h t he s c r e e n . Y o u ma y u s e non-adhesive
generic screen protectors designed specifically for use on portable devices with LCD panels to
help protect the screen from minor scratches.
Never clean your device with it powered on.
Never use organic solvents such as benzene or paint thinner to clean your device. Use of these solvents can cause
deformation or discoloration.
Use a soft, clean, lint-free cloth to clean the display screen. Moistened
LCD screen wipes could also be used as required.
• Never attempt to disassemble, repair or make any modifications to your device. Disassembly, modification or any
attempt at repair could cause damage to your device and even bodily injury or property damage and will void any
warranty.
6.2.1. Storage precautions
• Do not store your device anywhere it may be exposed to water or in conditions of high humidity.
• When the device is not in use for an extended period of time, bring it indoors and store it in cool dry area.
6.2.2. Accessories and repair precautions
• Only authorized accessories should be use with the device. The use of incompatible accessories could result in bodily
injury and/or damage to the devi ce.
• The use of unauthorized accessories will also void your warranty.
• Never attempt to disassemble, repair or make any modification to your device.
49
Loading...
