1. Overview

RGM-4600 G-Mouse GPS Receiver using SiRF Star IV extreme fast TTFF

GPS engine that has lower power consumption, extremely high sensitivity,

and more rapid time-to-fix. Connecting to the notebook PC or Handheld PC

implementing map or navigation software, RGM-4600 helps you locate one or

multiple objects, conduct personal & vehicle navigation, and/or apply for

geographical surveys.

2. Specification

GPS Receiver

Chipset SiRF Star IV, GSD4e ROM
Frequency L1,1,575.42 MHz
Channels 48 track verification channels
C/A Code 1,023 MHz
Chipset Sensitivity - Tracking Sensitivity -163dBm

- Autonomous Acquisition -148dBm
Chipset Fix time
(Open SKY, typical)

- Reacquisition: less than 1s

- Hot start: less than 1s

- Warm start: less than 35s

- Cold start: less than 35s
Accuracy Position:

within 10m for 90% (24hr static, -130dBm)

Interface Protocol Default 9600bps GGA(1),GSA(1),GSV(5),RMC(1)
Altitude / Velocity 18000 meter maximum ; 515 meter/second maximum

Power

/Connection cable

Voltages DC 5V ± 5%
Current

TTL Mode: Tracking : 60mA(Typical)
HW SKU Optional (RS232 Mode: Tracking :

70mA(Typical))
Interface output TTL or RS232
Connection cable Optional (mini-USB or USB or PS2)
Backup battery Build in 3.3mAh backup battery
Size/Environment
Size (mm) 48.5 x 48.5 x 15.1mm
Weight

≦ 60g

Temperature

- Operating: -20 ~ 60℃

- Storage: -20 ~ 60℃

Humidity

≦

95%

3

RGM-4600 Operational Manual

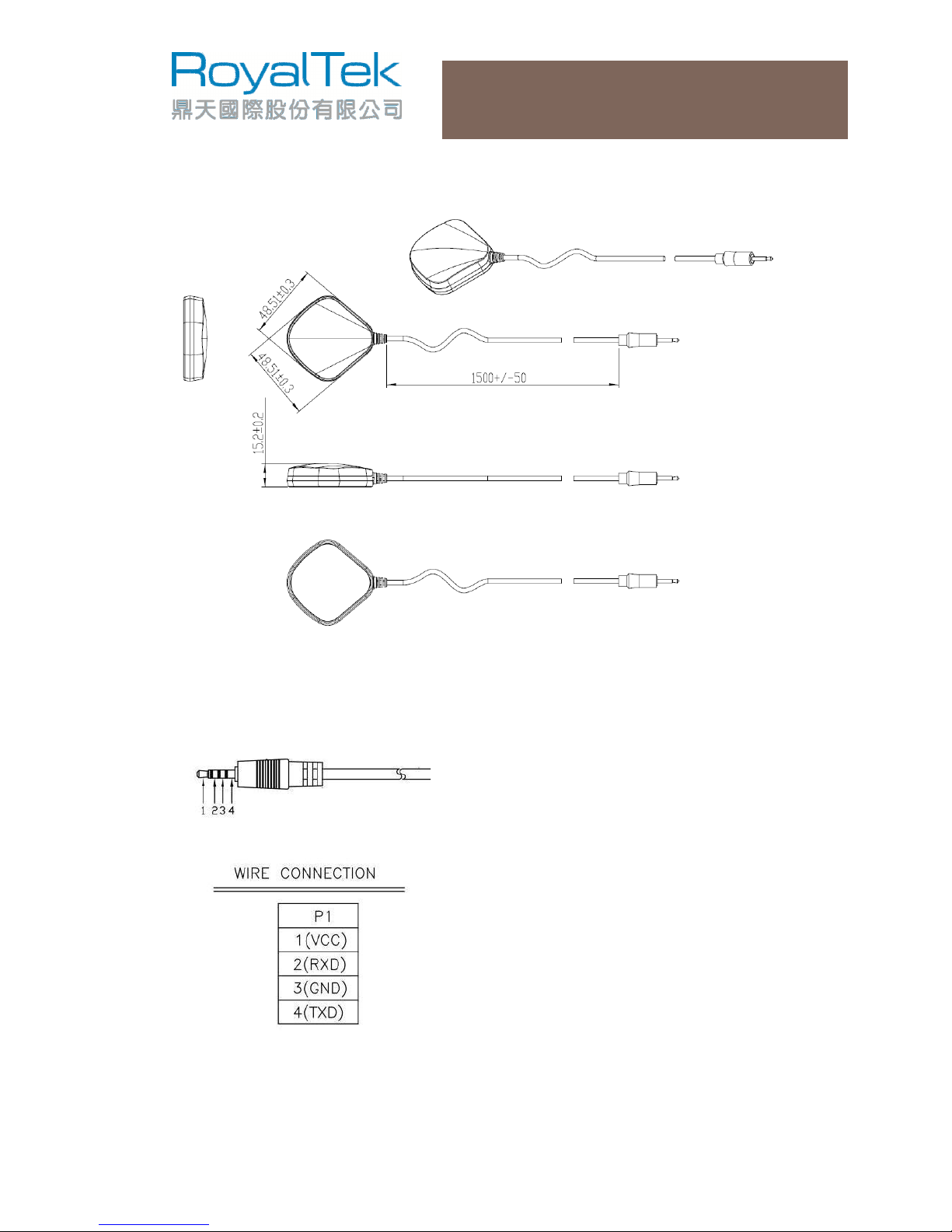

3. Outline dimension

4. Product Pin definition

Pin define: EARPHONE-2.5(1500MM, 4P)

 VCC(5V DC power Input)

This is the main DC power supply input pin. It provides voltage to G-Mouse.

 GND

System Power Ground
