Royal Sovereign 1106EC, ARP-906EC User Manual

Royal Centurian Inc.

ARP-906EC / 1106EC

OWNER’S MANUAL

MANUAL DEL PROPIETARIO

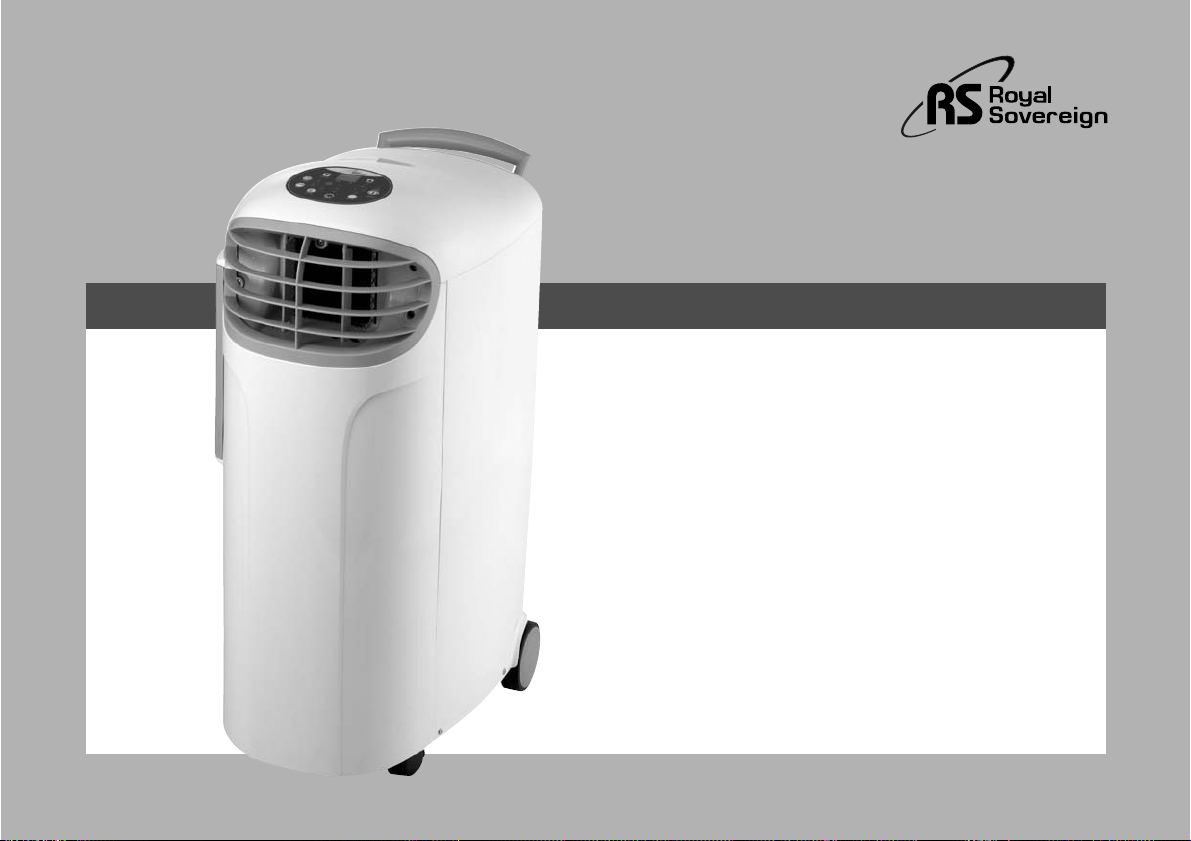

Portable Air Conditioner

Acondicionador de Aire Portátil

Read and retain these instructions for future reference

For any Customer Support needs, please choose

the Support tab on www.royalsovereign.com

Parts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3 Safety Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5 Operation/Functions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 Maintenance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10 Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11 Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12

PORTABLE AIR CONDITIONER

Model ARP-906EC / 1106EC

TABLE OF CONTENTS

ARP-906EC / 1106EC

PARTS

Handle

Control panel

Evaporator Filter

Condenser

Air Outlet

Air Louvers

Rear Casters

Exhaust Air Outlet

Power Cord

Drain Port

Front Casters w/ Lock

Exhaust Hose

BEFORE USE

SAFETY PRECAUTIONS

If unit has been transported on its side, set the machine upright for 2 hrs. before use.

1. Only use in the upright position on a flat, level surface at least 20” (50cm) from any object or water leak may occur.

2. Do not place objects on top or in front of the unit.

3. Closely supervise children and pets while unit is in use.

4. For indoor use only.

5. Turn off and unplug the unit when it is not in use.

6. Do not use in wet environments.

7. Do not pull the unit by the cord.

8. If the power cord is damaged, it must be replaced by an electrician to avoid hazard or injury. Make sure there is a green light on the plug when unit is plugged into power source. If not press reset button on plug until the green LED light on the plug illuminates.

FOR MAXIMUM EFFICIENCY

1. Do not exceed the recommended room size of 300 sq. feet (ARP-906EC) & 400 sq. feet (ARP-1106EC).

2. Keep doors and windows closed.

3. Keep curtains or blinds closed during the sunniest part of the day.

4. Keep filters clean.

5. Once room has reached the desired conditions, reduce the temperature

ARP-906EC / 1106EC

INSTALLATION

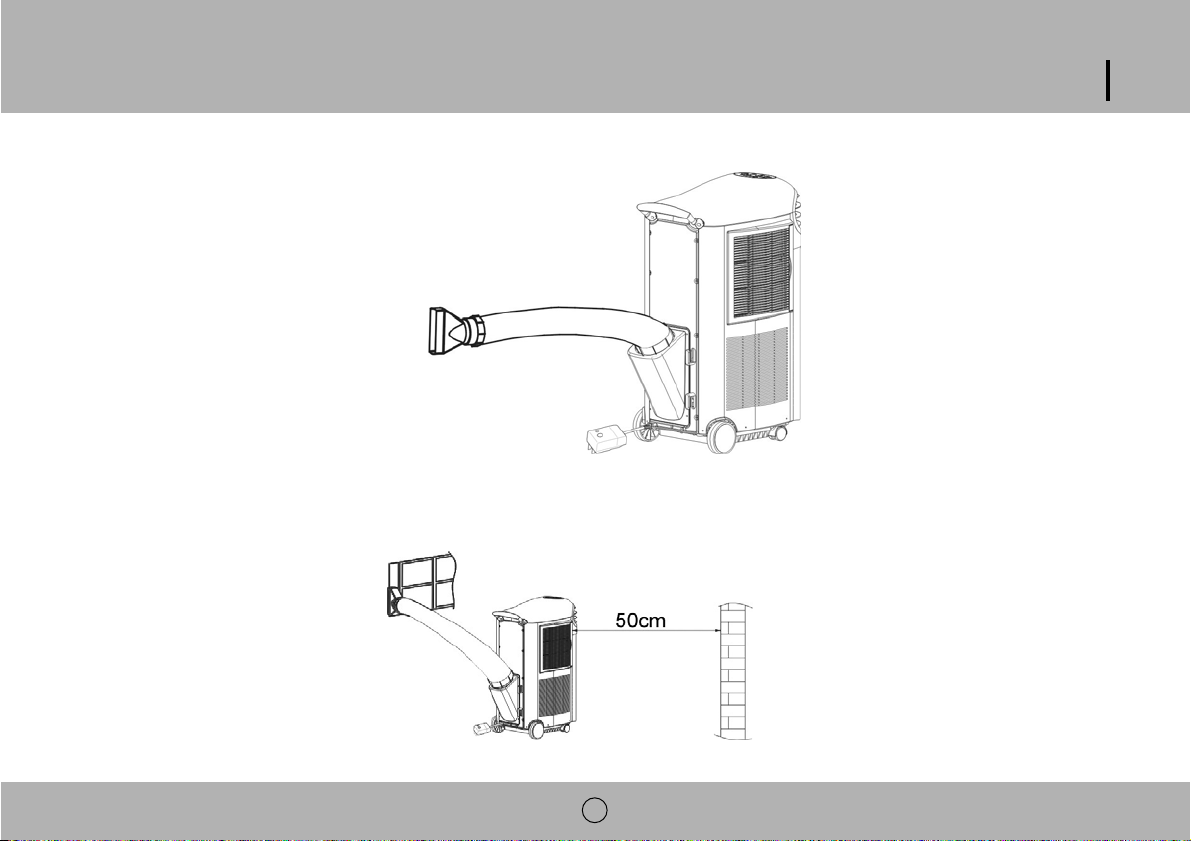

1. Connect the hose to the exhaust air outlet.

2. Insert the exhaust hose into the window spacer. NOTE: The hose may be extended from 1-5 ft (300-1500mm) but for maximum efficiency use the shortest length

possible. For best results do not let the exhaust hose exceed a 45° angle.

OPERATION/FUNCTIONS

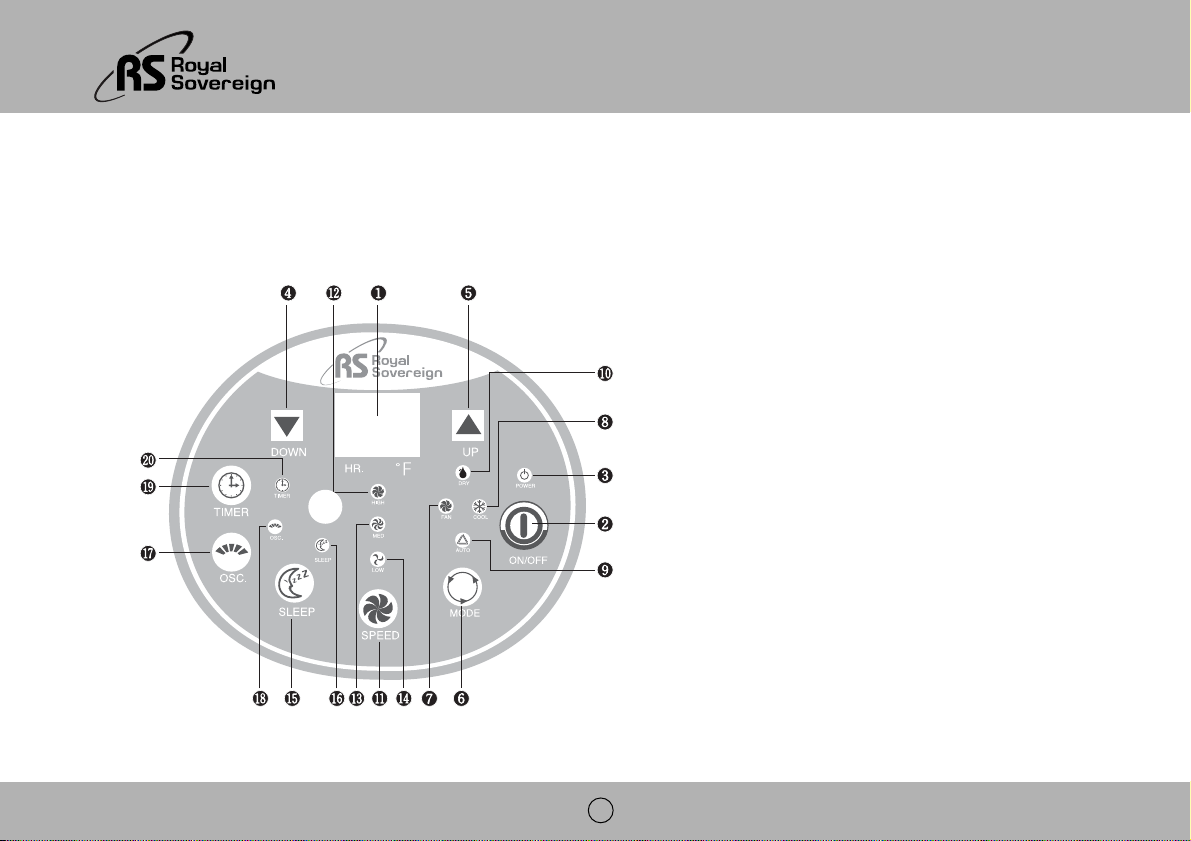

CONTROL PANEL

1. Temperature/Hour LED Display

2. Power button

3. Power light

4. Temperature DOWN button

5. Temperature UP button

6. Mode button (Fan, Cool, Auto, Dry)

7. Fan indicator light

8. Cool indicator light

9. Auto indicator light

10. Dry indicator light (Dehumidifier)

11. Speed button (High, Medium, Low)

12. High indicator light

13. Medium indicator light

14. Low indicator light

15. Sleep button

16. Sleep indicator light

17. Oscillating button

18. Oscillating indicator light

19. Timer button (1-24 hours)

20. Timer indicator light

ARP-906EC / 1106EC

ON/OFF

Press this button to start and stop the unit.

MODE

Press this button to select the Fan, Cool, Auto or Dry (Dehumidifier) mode. The Fan mode will allow you to select a Speed of High, Medium or Low. The Cool mode will allow you to select a Speed of High, Medium or Low or a specific temperature by using the UP/DOWN buttons. The Auto mode will automatically adjust the settings between Fan (High, Low and Medium) and Cool (High, Low and Medium) depending on the current temperature in the room. Press the Auto button and then use the UP/DOWN button to select your desired temperature. If the temperature in the room is at 76°F or above the COOL mode and SPEED will automatically be selected to keep the room at the desired temperature. If the temperature in the room is 75°F or below FAN mode and SPEED will automatically be selected to keep the room at the desired temperature. The Dry mode will allow you to dehumidify the room and remove excess moisture.

SPEED

Press the SPEED button to select a High, Medium or Low setting.

TIMER (1-24 Hours)

The timer button will allow you to turn the unit ON or OFF without being in the room. If the unit is off- Press the TIMER button (Timer indicator light will be lit). Continue pressing the TIMER button until you

select the quantity of hours (1-24) in which you want the unit to turned on. Example- If you want the unit to turn on in 3 hours then Press the button until it shows 3, the unit will automatically turn on in 3 hours.

If the unit is on- Press the TIMER button (Timer indicator light will be lit). Continue pressing the TIMER button until you select the quantity of hours (1-24) in which you want the unit to turned off. Example- If you want the unit to turn off after 4 hours then press the button until it shows 4, the unit will automatically turn off in 4 hours.

SLEEP

By pressing the SLEEP button, the set temperature will increase 2°F (1°C) in the first hour, another 2°F (1°C) in the second hour, and then remains at that temperature.

TANK FULL

When the water tank is full you will hear a beeping noise. At this point you must empty it out by placing a container underneath the drain port, remove the rubber drain plug, and then water will flow out until it is empty.

OSC (OSCILLATING) FEATURE

This feature allows the air to flow in all directions. Press the Oscillating button (OSC indicator will be lit). The air louvers will begin oscillating. Press the OSC button again to turn it off.

REMOTE CONTROL

A - Timer button B - Fan button C - Mode button D - Sleep button E - Oscillating button F - ON/OFF button G - Temperature UP button H - Temperature DOWN button
