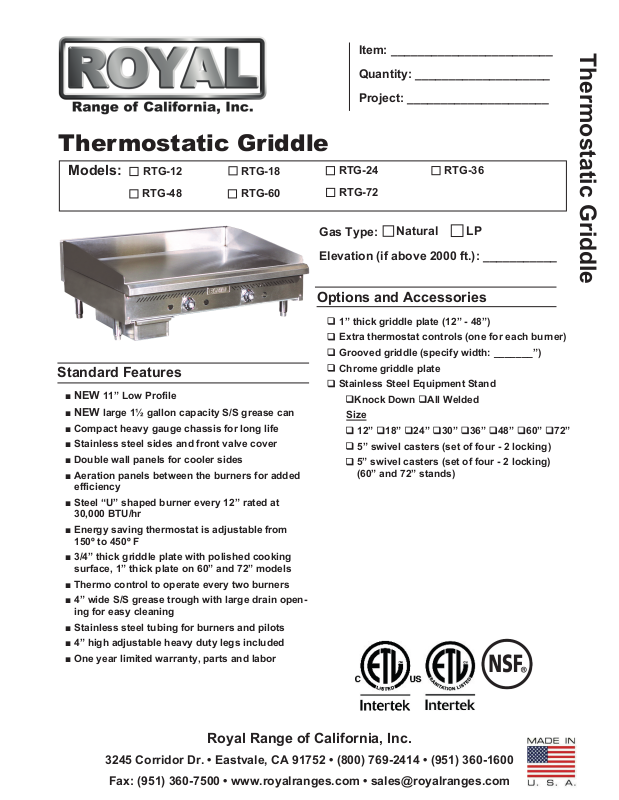

Royal Range RTG-18 User Manual

Thermostatic Griddle

Item: ________________________

Quantity: ____________________

Project: _____________________

Thermostatic Griddle

Models:

RTG-12

RTG-48 RTG-60

RTG-18

Standard Features

■ NEW 11” Low Profile

■ NEW large 1½ gallon capacity S/S grease can

■ Compact heavy gauge chassis for long life

■ Stainless steel sides and front valve cover

■ Double wall panels for cooler sides

■ Aeration panels between the burners for added

efficiency

■ Steel “U” shaped burner every 12” rated at
30,000 BTU/hr

■ Energy saving thermostat is adjustable from
150º to 450º F

■ 3/4” thick griddle plate with polished cooking
surface, 1” thick plate on 60” and 72” models

■ Thermo control to operate every two burners

■ 4” wide S/S grease trough with large drain open-

ing for easy cleaning

■ Stainless steel tubing for burners and pilots

■ 4” high adjustable heavy duty legs included

■ One year limited warranty, parts and labor

RTG-24

RTG-72

Gas Type:

Natural LP

RTG-36

Elevation (if above 2000 ft.): ___________

Options and Accessories

1” thick griddle plate (12” - 48”)

Extra thermostat controls (one for each burner)

Grooved griddle (specify width: _______”)

Chrome griddle plate

Stainless Steel Equipment Stand

Knock Down All Welded

Size

12” 18” 24” 30” 36” 48” 60” 72”

5” swivel casters (set of four - 2 locking)

5” swivel casters (set of four - 2 locking)
(60” and 72” stands)

Royal Range of California, Inc.

3245 Corridor Dr. • Eastvale, CA 91752 • [phone] • [phone]

Fax: [phone] • www.royalranges.com • [e-mail]

Thermostatic Griddle

Model Number

Non-Combustible

Width (A) Number of

Thermostats

RTG-12 12” 1 1 30,000 145 lbs.
RTG-18 18” 1 1 30,000 170 lbs.
RTG-24 24” 1 2 60,000 215 lbs.
RTG-36 36” 2 3 90,000 300 lbs.
RTG-48 48” 2 4 120,000 350 lbs.
RTG-60 60” 3 5 150,000 640 lbs.
RTG-72 72” 3 6 180,000 745 lbs.

Gas Connection:

3/4” NPT on the right hand rear of the appliance.

The pressure regulator (supplied) is to be connected
by the installer.

Number of

Burners

Gas Pressure:

5” W.C. Natural Gas

10” W.C. Propane

Total BTU Ship Weight

Clearances:

Combustible

Rear 6” 0”

Sides 15” 0”

Specify type of gas and altitude, if over 2,000 feet,
when ordering.

Due to continuing product development to ensure best possible performance, these specifications are subject to change without prior notification.
