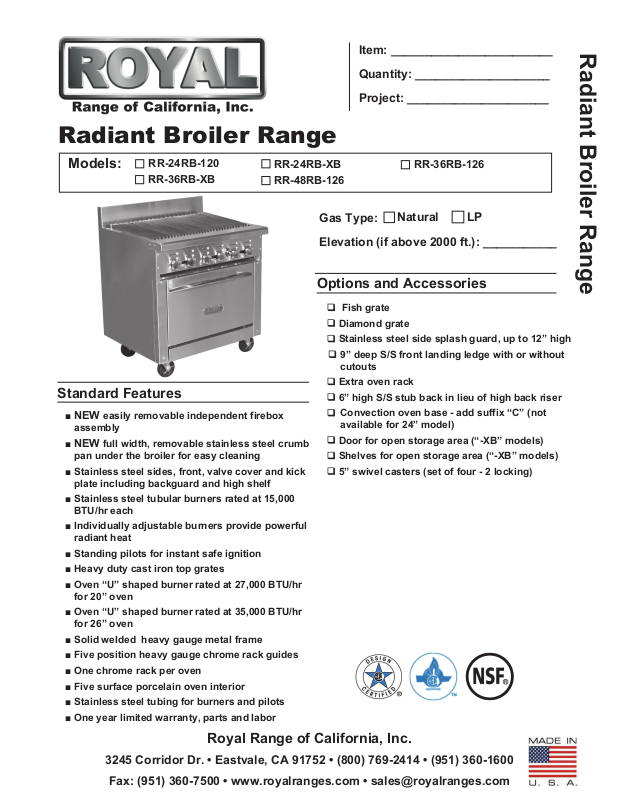

Royal Range RR-24RB-120 User Manual

Radiant Broiler Range

Item: ________________________

Quantity: ____________________

Project: _____________________

Radiant Broiler Range

Models:

RR-24RB-120
RR-36RB-XB

RR-24RB-XB
RR-48RB-126

Standard Features

■ NEW easily removable independent firebox

assembly

■ NEW full width, removable stainless steel crumb

pan under the broiler for easy cleaning

■ Stainless steel sides, front, valve cover and kick
plate including backguard and high shelf

■ Stainless steel tubular burners rated at 15,000
BTU/hr each

■ Individually adjustable burners provide powerful
radiant heat

■ Standing pilots for instant safe ignition

■ Heavy duty cast iron top grates

■ Oven “U” shaped burner rated at 27,000 BTU/hr

for 20” oven

■ Oven “U” shaped burner rated at 35,000 BTU/hr
for 26” oven

■ Solid welded heavy gauge metal frame

■ Five position heavy gauge chrome rack guides

■ One chrome rack per oven

■ Five surface porcelain oven interior

■ Stainless steel tubing for burners and pilots

■ One year limited warranty, parts and labor

RR-36RB-126

Gas Type:

Natural

LP

Elevation (if above 2000 ft.): ___________

Options and Accessories

Fish grate

Diamond grate

Stainless steel side splash guard, up to 12” high

9” deep S/S front landing ledge with or without
cutouts

Extra oven rack

6” high S/S stub back in lieu of high back riser

Convection oven base - add suffix “C” (not
available for 24” model)

Door for open storage area (“-XB” models)

Shelves for open storage area (“-XB” models)

5” swivel casters (set of four - 2 locking)

Royal Range of California, Inc.

3245 Corridor Dr. • Eastvale, CA 91752 • [phone] • [phone]

Fax: [phone] • www.royalranges.com • [e-mail]

Radiant Broiler Range

Non-Combustible

Model Number Width (A) Radiant

Oven Burners Total BTU Ship Weight

Burners

RR-24RB-120 24” 4 1¹ 87,000 515 lbs.

RR-24RB-XB 24” 4 0 60,000 330 lbs.

RR-36RB-126 36” 6 1² 125,000 635 lbs.

RR-36RB-XB 36” 6 0 90,000 440 lbs.

RR-48RB-126 48” 8 1² 155,000 800 lbs.

Notes:

1. 20” wide oven with burner at 27,000 BTU/hr
each (“-120”)

2. 26½” wide oven with burner at 35,000 BTU/hr
each (“-126”)

■ Radiant burners at 15,000 BTU/hr

■ “-XB” is an open storage base

■ Convection Oven with burner at 30,000 BTU/hr

- add suffix “C” and deduct 5,000 BTU/hr

Gas Pressure:

5” W.C. Natural Gas

10” W.C. Propane

Clearances: For installation in non combustible

locations only

Combustible

Rear N/A 0”

Sides N/A 0”

Gas Connection:

3/4” NPT on the right hand rear of the appliance.

The pressure regulator (supplied) is to be connected
by the installer.

Specify type of gas and altitude, if over 2,000 feet,
when ordering.
