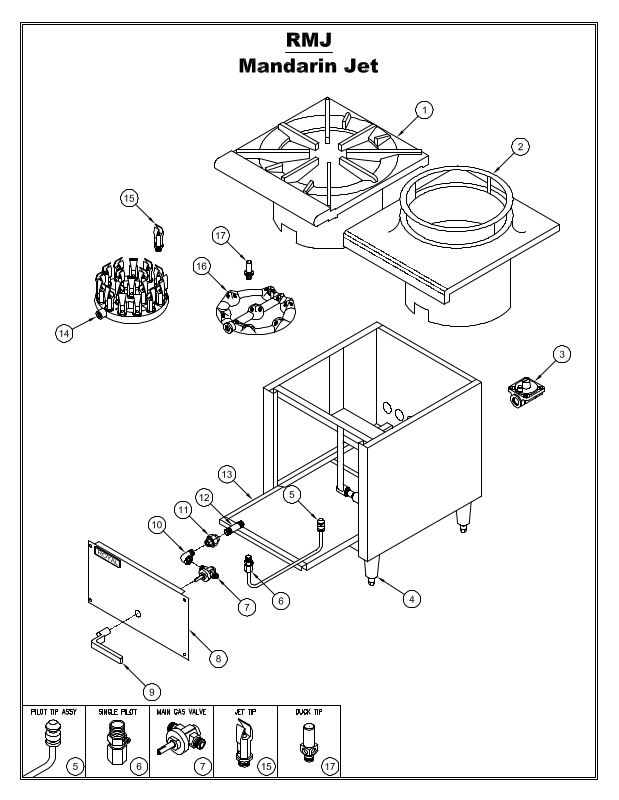

Royal Range RMJ Parts List

RMJ

Mandarin Jet

ITEM

NO.

1 1300 Top grate (cast iron) w/cylinder

2

3

4 1219 Chrome cone leg
5 1313 Pilot tip assembly
6 1120 1/8" NPT x 3/16" CC Adjustable single pilot valve (brass)
7 1314 1/2" NPT x 1/2" NPT Main gas valve (brass)
8 1317 RMJ Valve cover

9 1315 “L” shaped handle for gas control
10 1318 1/2" NPT Street elbow (iron)
11 1319 1/2" NPT Union (iron)
12 1320 1/2" NPT Nipple (iron)
13 1206 Crumb tray

14

15

16

17

PART

NO.

1301-13
1301-15
1618
1619

1302
1303
1304
1305
1308
1309
1310
1311

DESCRIPTION

13" - Wok top ring w/cylinder
15” - Wok top ring w/cylinder

Gas pressure regulator (natural gas)
Gas pressure regulator (propane gas)

18 Tip duck jet burner - 125,000 B.T.U. (natural gas)
18 Tip duck jet burner - 125,000 B.T.U. (propane gas)
Duck jet burner tip only (natural gas)
Duck jet burner tip only (propane gas)
32 Tip jet burner - 100,000 B.T.U. (natural gas)
32 Tip jet burner - 100,000 B.T.U. (propane gas)
Jet burner tip only (natural gas)
Jet burner tip only (propane gas)
