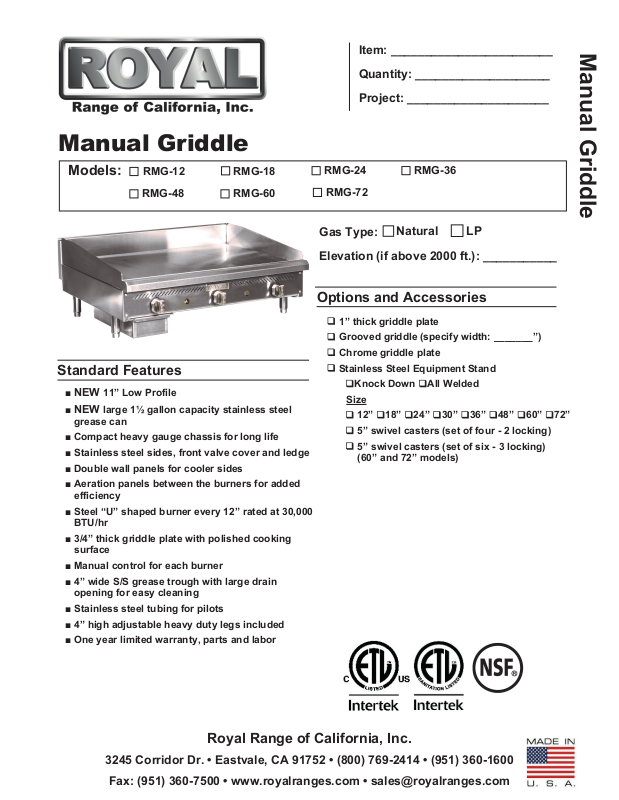

Royal Range RMG-12 User Manual

Manual Griddle

Item: ________________________

Quantity: ____________________

Project: _____________________

Manual Griddle

Models:

RMG-12

RMG-48 RMG-60

RMG-18

Standard Features

■ NEW 11” Low Profile

■ NEW large 1½ gallon capacity stainless steel

grease can

■ Compact heavy gauge chassis for long life

■ Stainless steel sides, front valve cover and ledge

■ Double wall panels for cooler sides

■ Aeration panels between the burners for added

efficiency

■ Steel “U” shaped burner every 12” rated at 30,000
BTU/hr

■ 3/4” thick griddle plate with polished cooking
surface

■ Manual control for each burner

■ 4” wide S/S grease trough with large drain

opening for easy cleaning

■ Stainless steel tubing for pilots

■ 4” high adjustable heavy duty legs included

■ One year limited warranty, parts and labor

RMG-24

RMG-72

Gas Type:

RMG-36

Natural LP

Elevation (if above 2000 ft.): ___________

Options and Accessories

1” thick griddle plate

Grooved griddle (specify width: _______”)

Chrome griddle plate

Stainless Steel Equipment Stand

Knock Down All Welded

Size

12” 18” 24” 30” 36” 48” 60” 72”

5” swivel casters (set of four - 2 locking)

5” swivel casters (set of six - 3 locking)
(60” and 72” models)

Royal Range of California, Inc.

3245 Corridor Dr. • Eastvale, CA 91752 • [phone] • [phone]

Fax: [phone] • www.royalranges.com • [e-mail]

Manual Griddle

Non-Combustible

Model Number Width (A) Number of

Burners

RMG-12 12” 1 30,000 140 lbs.
RMG-18 18” 1 30,000 165 lbs.
RMG-24 24” 2 60,000 210 lbs.
RMG-36 36” 3 90,000 290 lbs.
RMG-48 48” 4 120,000 370 lbs.
RMG-60 60” 5 150,000 460 lbs.
RMG-72 72” 6 180,000 540 lbs.

Gas Connection:

3/4” NPT on the right hand rear of the appliance.

The pressure regulator (supplied) is to be connected
by the installer.

Total BTU Ship Weight

Gas Pressure:

5” W.C. Natural Gas

10” W.C. Propane

Clearances:

Combustible

Rear 6” 0”

Sides 15” 0”

Specify type of gas and altitude, if over 2,000 feet,
when ordering.

Due to continuing product development to ensure best possible performance, these specifications are subject to change without prior notification.

Royal Range of California, Inc.

3245 Corridor Dr. • Eastvale, CA 91752 • [phone] • [phone]
Fax: [phone] • www.royalranges.com • [e-mail]

1/15
