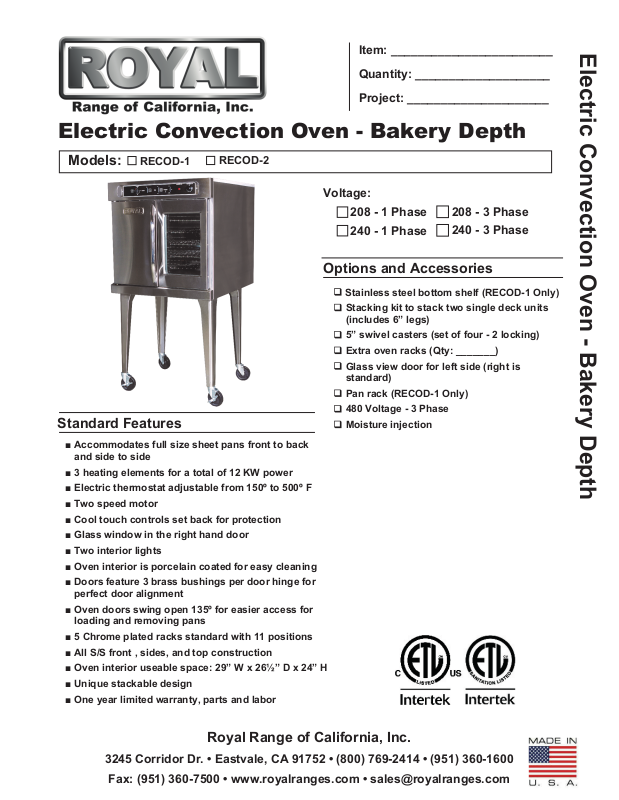

Royal Range RECOD-1 User Manual

Item: ________________________

Quantity: ____________________

Project: _____________________

Electric Convection Oven - Bakery Depth

Electric Convection Oven - Bakery Depth

Models:

RECOD-1

RECOD-2

Standard Features

■ Accommodates full size sheet pans front to back
and side to side

■ 3 heating elements for a total of 12 KW power

■ Electric thermostat adjustable from 150º to 500º F

■ Two speed motor

■ Cool touch controls set back for protection

■ Glass window in the right hand door

■ Two interior lights

■ Oven interior is porcelain coated for easy cleaning

■ Doors feature 3 brass bushings per door hinge for

perfect door alignment

■ Oven doors swing open 135º for easier access for
loading and removing pans

■ 5 Chrome plated racks standard with 11 positions

■ All S/S front , sides, and top construction

■ Oven interior useable space: 29” W x 26½” D x 24” H

■ Unique stackable design

■ One year limited warranty, parts and labor

Voltage:

208 - 1 Phase

240 - 1 Phase

208 - 3 Phase

240 - 3 Phase

Options and Accessories

Stainless steel bottom shelf (RECOD-1 Only)

Stacking kit to stack two single deck units
(includes 6” legs)

5” swivel casters (set of four - 2 locking)

Extra oven racks (Qty: _______)

Glass view door for left side (right is
standard)

Pan rack (RECOD-1 Only)

480 Voltage - 3 Phase

Moisture injection

Royal Range of California, Inc.

3245 Corridor Dr. • Eastvale, CA 91752 • [phone] • [phone]

Fax: [phone] • www.royalranges.com • [e-mail]

Model Number Total KW Ship Weight

Non-Combustible

RECOD-1 12 535 lbs.

RECOD-2 24 1,020 lbs.

Electric Convection Oven - Bakery Depth

Electrical: Two speed motor (1725/1140 rpm) 230 V, 50/60 Hz, ½ HP
Terminal block for power cord connection with ground lug.

Heating Elements:

Voltage (V) Phase Total KW Current (Amps)

208 1 12 60

208 3 12 L1-35, L2-34, L3-34

240 1 12 50

240 3 12 L1-30, L2-29, L3-29

480 3 12 L1-16, L2-15, L3-15

Clearances:

Combustible

Rear 0” 0”

Sides 0” 0”

Due to continuing product development to ensure best possible performance, these specifications are subject to change without prior notification.
