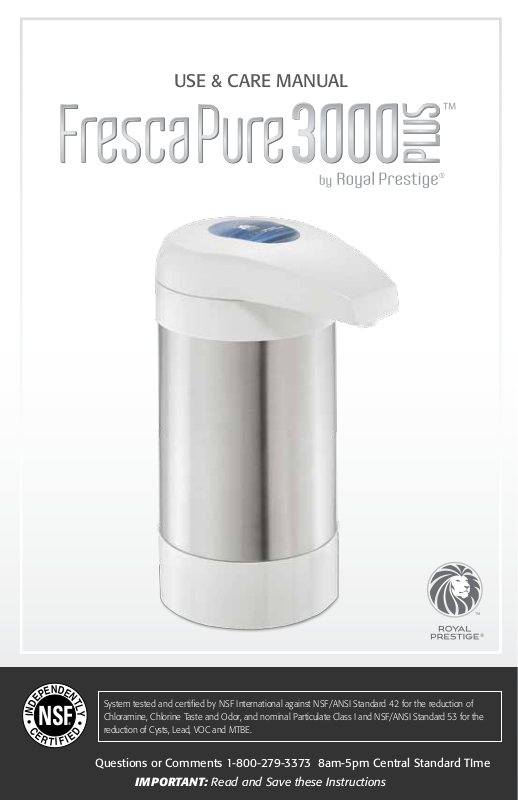

Royal Prestige FP3000 Plus User Manual

USE & CARE MANUAL

D

N

E

E

N

P

T

E

L

D

N

I

•

NSF

C

E

R

T

F

I

Questions or Comments 1-800-279-3373 8am-5pm Central Standard TIme

System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of

Y

Chloramine, Chlorine Taste and Odor, and nominal Particulate Class I and NSF/ANSI Standard 53 for the

®

•

reduction of Cysts, Lead, VOC and MTBE.

D

E

I

IMPORTANT: Read and Save these Instructions

FRESCAPURE

®

1

TABLE OF CONTENTS

INTRODUCTION .................................3

IMPORTANT USE GUIDELINES ......................3

OPERATING SPECIFICATIONS ......................4

REPLACEMENT PARTS DIRECTORY ..................5

SETUP AND INSTALLATION ........................5

REPLACING THE CARTRIDGE.......................7

TROUBLESHOOTING..............................9

WARRANTY ....................................11

2 FRESCAPURE®

INTRODUCTION

Congratulations on the purchase of your new, FrescaPure

®

Drinking Water System!

You have taken an important step toward improving the quality
of your drinking and cooking water. This System takes just a
few minutes to install in your home, cabin, RV, dorm room,
or boat.

This System is designed to serve you reliably for many years to
come when operated and maintained according to the directions
contained in this manual. You have made a wise investment in
providing quality drinking water for you, and your loved ones.
Now, please take a few, additional minutes to insure that you
realize all of the benefits your new system has to offer.

IMPORTANT USE GUIDELINES

1. Replacement cartridges may be purchased from your
Independent, Royal Prestige Representative, for purchase
information you may also call the Royal Prestige Customer
Service Center at 1-800-279-3373.

2. Actual capacity of your Cartridge may vary from the rated
capacity. This may be due to the volume of contaminants
actually present in your water supply. Replace the Cartridge:

• Annually

• The flow rate diminishes

• When rated capacity of the cartridge has been reached

• When you notice a taste or odor recurrence

3. Read this manual completely before attempting to install
or use this product.

4. Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or
after the System.

5. Individuals requiring specific microbiological purity should
consult their physician.

6. For use on cold potable water supplies only.

7. For this System to continue to perform as tested and
represented, use only Genuine, Royal Prestige NSF
Certified Replacement Cartridges (RC-30-FP).

FRESCAPURE

®

3

8. Do not allow System to sit for extended lengths of time

without being used (10 days or more). If System must
be left unused for more than 10 days, drain all water from
the System and remove the Cartridge. Once you return,
re-install Cartridge and continue to use. In the event System
is not used for 10 days or more, the System should be
flushed for fifteen minutes prior to use.

9. This System must be protected from freezing, failure to
do so may result in loss of performance, damage to the
parts and water leakage. If System is exposed to freezing
temperatures, drain water from Filter Housing and
remove Cartridge.

10. Installation of this product must comply with all state and
local laws and regulations. Refer to your local agencies
for details.

11. The contaminants or other substances removed or reduced
by this product are not necessarily in all users’ water.

OPERATING SPECIFICATIONS

FRESCAPURE® Model: FP3000 PLUS

Installation Countertop
EPA Establishment Number 63018-NV-001
Rated Capacity 600 gallons (2271 Liters)
Replacement Cartridge RC-30-FP
Rated Service Flow 0.65 gal/min
Housing Construction Surgical Stainless Steel,

High Impact ABS
Maximum Working Pressure 100 psig (689.5 kPa)
Minimum Working Pressure 30 psig (206.8 kPa)
Maximum Operating Temperature 100º F/38º C
Minimum Operating Temperature 34º F/1º C

4 FRESCAPURE®

REPLACEMENT PARTS DIRECTORY

FRESCAPURE® Model: FP 3000 PLUS

ITEM PART NUMBER DESCRIPTION

1 1215-10-01 Cap Assembly

2 9-904-0066 Cartridge
3 1215-10-02 Housing Assembly
4 9-904-0023 Faucet Adapter Kit (3 piece)
5 0581-03-13 3/8” Diverter Assembly

SET UP AND INSTALLATION

1. Open the shipping carton, remove all System parts
and place them on your kitchen counter.

2. Compare items with the parts shown in this manual
to be certain all items were included.

3. Unthread and remove the aerator from the end of
your kitchen faucet if it has one.

4. Thread the Diverter Valve directly onto your kitchen
faucet. Do NOT over-tighten.

5. If the threads to the Diverter Valve do not directly
attach to your kitchen faucet, use one of the three
Adapters provided.

6. Most kitchen faucets with external threads will
directly attach to the Diverter Valve. In some
instances the Diverter Valve may be smaller than
your kitchen faucet. In this case use the Adapter
with internal threads and thread it directly to your
kitchen faucet. Next, thread the Diverter Valve to
the Adapter.

7. If your kitchen faucet has internal threads, thread
one of the two Adapters with external threads
directly to your kitchen faucet. Next, thread the
Diverter Valve to the Adapter.

8. If your kitchen faucet does not have threads,
measure the inside diameter of the kitchen faucet then
contact your Independent Royal Prestige Representative or
Royal Prestige Customer Service Center 1-800-279-3373.
Be sure to request an Expandable Adapter.

1

2

3

4

5

3

4

6

7

FRESCAPURE

®

5

9. If your kitchen faucet does not fit any of the Adapters
provided, send your threaded aerator to your Independent,
Royal Prestige Representative or to the Royal Prestige
Customer Service Department. Include a note requesting
an adapter that fits your threaded aerator.

10. Determine which side of the sink you want your System:

STEP 1 STEP 2 LEFT Placement

line up
FRONT
of Lid
Assembly
with Hose
Outlet

10A

STEP 1 STEP 2 RIGHT Placement

10B

line up
BACK
of Lid
Assembly
with Hose
Outlet

Spout
facing
into sink

11. Press the elbow fitting on Diverter Valve Assembly

12. With the System placed on the counter, position

11

13. When using your System for the first time, allow

12

Congratulations! Your FrescaPure

To position System on the LEFT side of

your sink: Unthread Lid Assembly from

Spout
facing
into sink

Filter Housing, then orient the Lid Assembly
to Filter Housing as shown. (Fig 10A, Step 1)
Once positioned, thread Lid Assembly
clockwise onto the Filter Housing until
tightened. (Fig. 10A, Step 2)

To position System on the RIGHT side of

your sink: Unthread Lid Assembly from
Filter Housing, then orient the Lid Assembly
to Filter Housing as shown. (Fig 10B, Step 1)
Once positioned, thread Lid Assembly
clockwise onto the Filter Housing until
tightened. (Fig. 10B, Step 2)

into the Filter Base.

Spout so that water will flow into kitchen sink. Turn
the cold water “ON” and rotate the Diverter Lever
90º up towards the front of the faucet. Water will
begin entering the Filter Housing. Check to see
that all hose, clamp and housing connections are
tight and do not leak.

the System to flush into the sink for fifteen (15)
minutes. This will remove any fine, black carbon
particles left over from the manufacturing process,
expel trapped air, and will condition the Cartridge for
normal use. This procedure should be repeated

each time a new Cartridge is installed.

®

Drinking Water

System is now ready for use.

6 FRESCAPURE®

REPLACING THE CARTRIDGE

The most important part of maintaining your FrescaPure

®

Drinking Water System is replacing the Cartridge on a regular
service interval. To insure that your System continues to
perform as stated in the Performance Data Sheet, the
Cartridge should be replaced every twelve (12) months,
when you notice a reduction in flow, when the rated capacity of
the Cartridge has been reached, or when you notice a taste
or odor re-occurrence, whichever comes first.

IMPORTANT: Be sure to insist on Genuine, Royal Prestige NSF
Certified Replacement Cartridges. All Royal Prestige Genuine
Replacement Cartridges can be indentified by the Royal Prestige
Registered Trademark that appears on every Cartridge.

Only Genuine Royal Prestige NSF Listed Replacement Cartridges
have been tested and certified to insure the performance
represented in the Performance Data Sheet. Failure to use
Genuine, Royal Prestige Replacement Cartridges and replacement
components will invalidate your Warranty.

1. Remove the Lid Assembly by turning counterclock­wise until it separates from the Filter Housing. As
you remove the Lid Assembly, the Cartridge will
remain attached to the Lid Assembly.

RECOMMENDATION: Rubber gloves should be worn to
avoid direct contact with the contaminants removed by

the used Cartridge.

2. Hold the Lid Assembly and rotate the Cartridge
counterclockwise to remove. Discard the old
cartridge with your regular refuse.

3. Wash the inside of the Filter Housing and Lid
Assembly with warm water, a mild dish washing
detergent, and a clean cloth.

CAUTION: Do not use abrasive pads or other abrasive materials
to clean the Filter Housing or Lid Assembly.

1

2

®

FRESCAPURE

7

4

STEP 1 STEP 2 LEFT Placement

line up
FRONT
of Lid
Assembly
with Hose
Outlet

5A

STEP 1 STEP 2 RIGHT Placement

5B

line up
BACK
of Lid
Assembly
with Hose
Outlet

Spout
facing
into sink

6

4. Remove the sanitary plastic wrap from the new
Cartridge. Thread the new Cartridge clockwise onto
the threaded post on Lid Assembly until you feel
resistance. Make an additional quarter turn. Do Not

Over-Tighten.

5. Determine which side of the sink you want your
System:

To position System on the LEFT side of

Spout
facing
into sink

your sink: Orient the Lid Assembly to Filter

Housing as shown. (Fig 5A, Step 1) Once
positioned, thread Lid Assembly clockwise
onto the Filter Housing until tightened.

(Fig. 5A, Step 2)

To position System on the RIGHT side of

your sink: Orient the Lid Assembly to Filter

Housing as shown. (Fig 5B, Step 1) Once
positioned, thread Lid Assembly clockwise
onto the Filter Housing until tightened.

(Fig. 5B, Step 2)

6. Position Spout so that water will flow into kitchen
sink. Turn the cold water “ON” and rotate the
Diverter Lever 90º up towards the front of the
faucet. Water will begin filling the Filter Housing.

7. Allow the System to flush into the sink for fifteen
(15) minutes. This will remove any fine, black
carbon particles left over from the manufacturing
process, expel trapped air, and condition the
Cartridge for normal use. This procedure should be

repeated each time a new cartridge is installed.

8 FRESCAPURE®

TROUBLESHOOTING

Condition:

White sediment is in my filtered water.

Reason:

There is a presence of calcium carbonate in your

main water supply. This will occur any time the filtered
water is boiled or frozen and then melts.

Solution:
This condition is normal and no action is required.

Condition:
Ice cubes appear cloudy in the center.

Reason:

Minerals such as calcium and magnesium that are

present in your water supply collect in the center of
the ice cubes when water is frozen. Your System is
designed specifically to leave beneficial trace minerals
in your water.

Solution:
No action is required.

Condition:

Filtered water is flowing slowly from the System.

Reason:
Excessive amounts of particles in the water supply may

have caused pre-mature plugging of the Cartridge.

Solution:

The Cartridge must be replaced due to poor water

quality conditions in your area.

Genuine Royal Prestige® NSF Listed Replacement
Cartridges may be purchased from your Independent
Royal Prestige® Distributor.

For purchase information, you may also call the Royal

®

Prestige

Customer Service Center at 1-800-279-3373.

FRESCAPURE

®

9

NOTES:

10 FRESCAPURE®

LIMITED WARRANTY

For Royal Prestige® Brand Products

Royal Prestige

®

Hy Cite Corporation (“Hy Cite”) provides the following warranties on its Royal Prestige product line to
the original consumer owner of the product, whether obtained by purchase or by gift.

Hy Cite warrants that the Base Assembly, Filter Housing and Spout Assembly of your Royal Prestige
FrescaPure FP3000 PLUS Water Filter will be free from defects in material and workmanship for
15 years from the date of purchase. Hy Cite also warrants that your Water Filter Cartridges will not
become clogged for 90 days from the date of purchase.

Note: Maintenance parts for your Water Filters (including Diverter Valve and Hose Assembly, and
Rubber O-Rings) may need replacement, not because of defects, but because hard water minerals
may clog valves and harsh chemicals in tap water can cause Rubber O-Rings and hoses to become
brittle. Maintenance parts may be replaced at one-half (50%) of the current retail price during the
15 year warranty period.

Limitations on Coverage: The Hy Cite warranties cover only normal household use and shall be void
if your covered product has been damaged by accident, unreasonably used or misused, abused,
neglected, improperly assembled, maintained or serviced, used for commercial purposes, or repaired
by unauthorized persons.

Implied Warranties: ANY IMPLIED WARRANTIES WHICH THE PURCHASER MAY HAVE ARE LIMITED
IN DURATION TO THE SAME DURATION AS THE WRITTEN WARRANTY DESCRIBED ABOVE FOR
YOUR COVERED PRODUCT. Some states do not allow limitations on how long an implied warranty
lasts, accordingly, the above limitation may not apply to you.

Warranty Performance: Should your covered product not comply with our warranty, return it to Hy
Cite postage prepaid and Hy Cite will, at its option, either repair or replace the product. Hy Cite may
replace the product with any equivalent product or with a product incorporating a new technology
or design.

FrescaPure

Model: FP3000 PLUS

®

Return of Product: To obtain warranty service, return the product to our Service Center:

Hy Cite Corporation

Royal Prestige Service Center

2115 Pinehurst Drive
Middleton, WI 53562

1-800-279-3373

Please do not return used cartridges to Royal Prestige unless they become defective or clogged within
the 90-day warranty period.

Damage in Shipment: Hy Cite will replace any covered product damaged in shipment free of charge
if you notify Hy Cite within 30 days after your receipt of the product. Simply contact the Royal Prestige
Service Center. As a condition to replacement, Hy Cite may require you to make the damaged product
available for pick-up at Hy Cite’s expense.

Purchase Option: If your covered product is damaged by fire or storm, or is stolen, you may purchase
new replacement product at one-half (50%) of current retail price. A valid police or fire report is
required for discounted purchase.

Limitation of Remedies: No representative or other person is authorized to assume for Hy Cite any
other liability in connection with the sale of covered products. Repair or replacement, at Hy Cite’s option,
shall be your remedy under this warranty and in no event shall Hy Cite be liable for any incidental or
consequential damages, losses or expenses. Some states do not allow the exclusion or limitation of
incidental or consequential damages, accordingly, the above limitation may not apply to you.

Legal Rights: This warranty gives you specific legal rights, and you may also have other rights which
vary from State to State.

For more information on Hy Cite’s Royal Prestige brand products, visit our website:
www.royalprestige.com.

Legal.388v8 11/08

Due to continuing product development and research,
final specification and/or appearance may vary.

Exclusively distributed by:

ROYAL PRESTIGE

2115 Pinehurst Drive, Middleton, WI 53562-2528

www.RoyalPrestige.com • © 2011 Royal Prestige • Printed in USA

Reproduction of this printed material is prohibited

1-400-0116
