I-RTECOW
R-TEC AUTOMATION® TRACK ONE-WAY DRAW SYSTEM
INSTALLATION INSTRUCTIONS
Please read all instructions before starting
INTRODUCTION:
The R-TEC Automation® Track System is used to electronically
control the drapery using a Slim Drapery Motor and Remote
Control. By using a Remote Control or the R-TEC Automation®
App via a smartphone or tablet, the operator can open and
close the drapery smoothly and precisely.
The maximum width for this system is 19' continuous and
36' spliced. The maximum drapery weight is 110 lbs.
BRACKET ASSEMBLY:
The R-TEC Track can be mounted on the wall or ceiling.
NOTE: The installer
is responsible for
selecting the correct
fastener for attaching
the ceiling mount clip
to the celling.
Wall Mount Assembly Ceiling Mount Assembly
PARTS LIST:
3
6
5
2
13
12
1
8
11
9
Basic Components:
1. R-TEC Automation® Track
2. Slim Drapery Motor
3. Drive Pulley
4. Return Pulley
5. End Hook
6. End Stop
7. Brackets
8. Carriers
9. Master Carrier Body & Arms
10. Drive Belt
11. Drive Belt Clip
12. AC Power Transformer
power option
13. Li-ion Battery power option
7
4
10
ONE-WAY BRACKET PLACEMENT:
It's recommended to use 1 bracket beside each pulley. On the remaining part of the R-TEC Automation® Track, bracket-to-bracket
distances should be no more than 24". Also, 1 bracket should be placed on each side of a splice if used.
24" apart24" apart
3 3/4"
Drive Pulley R-TEC Automation® Track
Slim Drapery Motor
with Li-ion Battery
(110v AC Power Transformer
options available)
1
/4"
Splice
Length of Track 48" 96" 144" 192" 228"
Number of Brackets Included 3 5 7 9 11
*Add 1 bracket for each splice used.
1
/4"
Return Pulley
Bracket
www.RowleyCompany.com | updated 01/01/2021
(for one-way draw track)
2"
1
I-RTECOW
ONE-WAY DRAW TRACK ASSEMBLY:
NOTE: System length does not include decorative additions
such as fascia or finials. Additional measurement required for
these options.
Step 1. Cut the R-TEC Automation® Track to the desired length.
Track Length = System Length - 3 5/8"
Example: 72" System Length - 3 5/8" = 68 3/8" Track Length
Note: The installer is
responsible for cutting the
track straight and removing
all sharp edges.
Calculate:
5
= - 3
Track Length = System Length - 3
/8"
5
/8"
Step 4. Assemble the Drive Belt Clip to the Drive Belt and
leave the cap off.
Drive Belt
Drive Belt Clip
Cap
Step 5. Assemble the Master Carrier Body to the Drive
Belt Clip.
Step 6. Pull the Master Carrier Body through the R-TEC Track.
Step 2. Use a Track Splice if required for length. The R-TEC
Track is available in a continuous length up to 19', and can be
spliced up to a maximum length of 36'.
Step 3. Spray both sides of the R-TEC Track with silicone.
Step 7. Remove the Master Carrier Body and Drive Belt Clip.
Step 8. Install the Drive Belt through the Drive Pulley, then
install the Drive Belt to the Drive Belt Clip.
www.RowleyCompany.com | updated 01/01/2021
2
I-RTECOW
Step 9. Attach half of the Master Carrier Body to the Drive
Belt & Drive Belt Clip
Step 10. Pull the Master Carrier Body through the R-TEC
Track and assemble the Drive Pulley onto the Track.
Step 12. Calculate the amount of Carriers per length of Track.
PINCH PLEAT
# of Pinch Pleat Carriers = System Length / Spacing
Example: 72" / 2" = 36 Carriers
Calculate:
= /
NOTE: Always
round up to an
# PP Carriers = System Length / Spacing
even number
RIPPLEFOLD
# of Ripplefold Carriers = System Length / Spacing
Fullness Spacing
60% 2 5/8"
80% 2 3/8"
100% 2 1/8"
120% 1 7/8"
Example: 72" / 2 1/8" = 33.8 Carriers; round up to 34 Carriers
NOTE: Add 3 Carriers for hardware attachment = 37 Carriers
Step 11. Align the Master Carrier Body half to the end of the
Track. Cut Drive Belt to length: 2 5/8" from end of the Track.
2
5
/
8
"
NOTE: If the Drive Belt is pre-cut, skip this step.
Calculate:
= /
# of Ripplefold Carriers = System Length / Spacing
Round up to an even number:
Carriers
Add 3 Carriers for hardware attachment:
Carriers
www.RowleyCompany.com | updated 01/01/2021
3
I-RTECOW
Step 13. Slide the Drive Pulley off of the R-TEC Track and
install the required number of Carriers.
PINCH PLEAT:
RIPPLEFOLD:
Remove 1 Ripplefold Carriers from the end that's closest to
the Drive Pulley. Leave the cord as shown with the attachment
tab exposed.
Step 15. Run the Drive Belt through the Return Pulley.
Step 16: Install the Belt Clip.
Remove 2 Ripplefold Carriers from the opposite end.
Leave attachment tabs exposed.
NOTE: Carriers can be added or removed with the Drive
Pulley installed.
PINCH PLEAT RIPPLEFOLD
Step 14. Install the End Stop.
Step 17: Attach half of the Master Carrier Body to the Drive
Belt & Drive Belt Clip.
Step 18. Bring both Master Carrier Body halves together and
insert the Master Carrier center metal clip.
NOTE: The Master Carrier
Body should move
freely back and forth.
Metal Clip
PINCH PLEAT
RIPPLEFOLD: Place the cord &
attachment tab under the End
Stop and tighten the fastener.
4
www.RowleyCompany.com | updated 01/01/2021
I-RTECOW

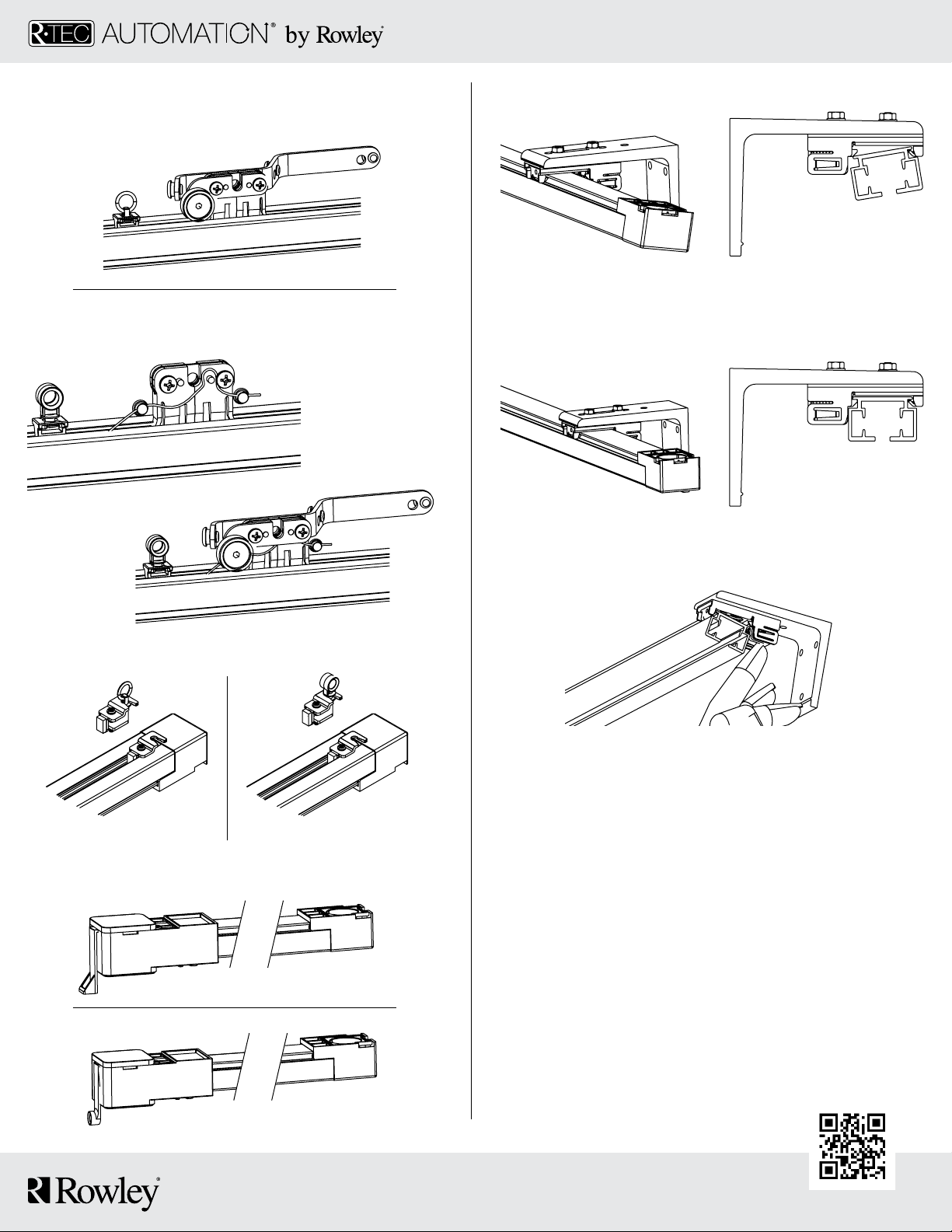

Step 19. Attach Arm to the Master Carrier Body.
PINCH PLEAT: Fasten the Arm to the Master Carrier Body.
RIPPLEFOLD: Wrap the cord around the Master Carrier Body
and fasten the Arm to the Master Carrier Body.
Step 22. Install system at an angle.
Step 23. Push system upward until system clicks in place.
Step 20. Install the End Stop and remove Pendant.
RIPPLEFOLDPINCH PLEAT
Step 21. Install End Hook only on the Drive Pulley side.
PINCH PLEAT
NOTE: To release track, push release lever.
How to get started using your
R-TEC Automation
• Please read all the instructions provided with your
Slim Drapery Motor.
• Your motor will be shipped in “sleep mode” and must be
woken up before using.
• You will need a remote control or a smartphone to set up
and control your Slim Drapery Motor.
• Only use power options for your motor that are available
through Rowley Company.
®
Track System:
RIPPLEFOLD
DOWNLOAD INSTRUCTIONS:
www.RowleyCompany.com | updated 01/01/2021
