www.rowenta.com

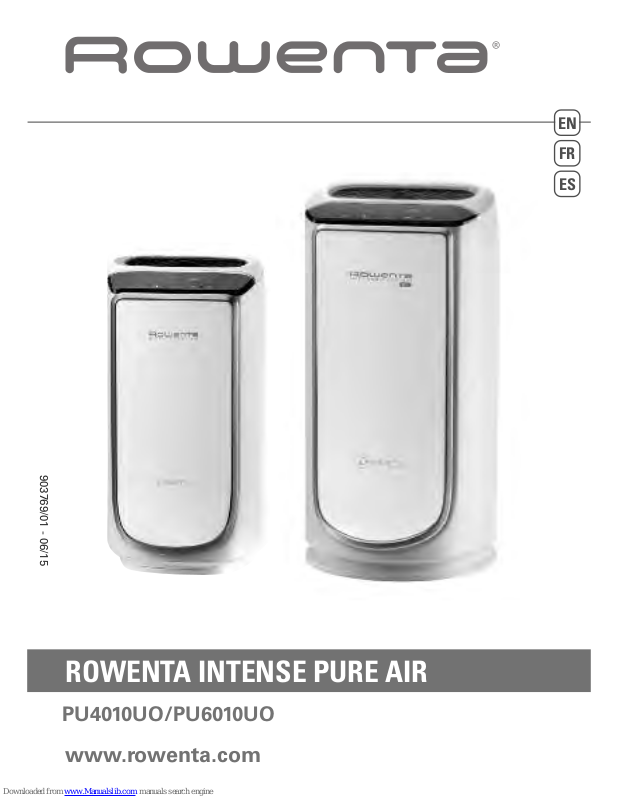

ROWENTA INTENSE PURE AIR
FR
ES
PU4010UO/PU6010UO
903769/01 - 06/15
EN
A
D
E
F
G
F
1
B
C
4 5 6 7 8
2 3
3
1 2 3
6
54
CLICK !
CLICK !CLICK !
CLICK !
CLICK !CLICK !
CLICK !CLICK !CLICK !
7 8 9
DISASSEMBLING/REASSEMBLING FILTERS
Montage/Démontage des Filtres - Instalación/Desmontaje de los filtros
4
DESCRIPTION
Read the instructions for use and safety carefully before use and keep them for future reference.
SAFETY TIPS
It is essential that you read these instructions carefully and observe the following recommendations:
• For your safety, this appliance complies with the applicable
standards and regulations (low voltage, electromagnetic
compatibility, environmental directives, etc.).
• This appliance should not be used by persons (including children)
with reduced physical, sensory or mental capacities or lack of
experience and knowledge, unless they are supervised or have
been given instructions beforehand concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the
appliance.
• The appliance can be used by children aged 8 and over and
persons with a lack of experience or knowledge or reduced
physical, sensory or mental capacities, provided they are
supervised, have been trained on the safe use of the appliance and
are aware of the risks involved. Children must not play with the
appliance.
• If the power cord is damaged, it must be replaced by the
manufacturer, its after-sales service or a similarly qualified person
so as to avoid any danger.
• Children should not clean or perform maintenance on the
appliance without being supervised.
• For maintenance operations, please refer to the "Maintenance"
section.
• Keep the appliance and its power cord out of the reach of children
aged under 8.
• This appliance is designed for domestic use only. It should not be used for industrial purposes.
• The warranty will be invalidated if damage occurs due to incorrect use.
• Do not operate this appliance in a very dusty and/or humid place or in a location with fire hazards.
Product description
A Ambient light
(PU6010 full
size only)
B Adjustable air outlet grid
C Control panel
D Front door
E Handle
F Air inlets
G Power cord outlet
Control panel Lights
1 Filter replacement indicator
2 Filtration speed
3 Timer / delayed start
Control buttons
4 Light
5 Filter reset
6 Start
7 Mode/filtration speed
selection
8 Timer / delayed start set-
ting
5
• Before use, always make sure that the appliance, plug and power cord are in good condition.
• Never insert objects into the appliance (e.g. needles, etc.).
• Do not pull on the power cord or the appliance, even to unplug it from the wall power outlet.
• Unroll the full length of the cord before use.
VERY IMPORTANT
• Do not cover the air inlets or the outlet grid.
• Do not touch the appliance with wet hands.
• Never allow any liquid to enter the appliance.
• Never use the appliance in a humid place.
• Never use the appliance close to a heat source.
• Never place anything on the appliance or insert anything into it.
• Do not use the appliance close to flammable objects or products (curtains, aerosols, solvents, etc.).
• Never use the appliance in an inclined or horizontal position. Place the appliance on a flat, stable
surface.
• In the case of prolonged absence: switch the appliance off using the button (6) and unplug it.
• Switch off and unplug your appliance before moving it.
• Unplug the air purifier during assembly and cleaning.
OPERATING PRINCIPLE
The new Intense Pure Air purifier from Rowenta enables you to breathe up to 99.97% pure air in
your home and protect your health with 4 filtration levels as described below. Each level is essential
and traps specific pollutants:
LEVEL 3:
HEPA FILTER
• Fine particles
(PM2.5)
• Pollen
• Dust mites
• Animal allergens
• Mold
• Bacteria / viruses
LEVEL 4:
NANOCAPTUR
FILTER
• Formaldehyde
Formaldehyde is the
most harmful indoor
air pollutant.*
LEVEL 1:
PRE-FILTER
• Dust
• Hair
• Fur
• Lint
LEVEL 2:
ACTIVE CARBON
FILTER
• Volatile organic
components (VOCs)
• Odors / gases
*Ranking established by the ANSES, French Agency for Food, Environmental and Ocupational Health and Safety, 2010
EN
6
WHERE TO INSTALL THE APPLIANCE
Place the purifier on a flat, stable surface in the room requiring treatment.
To allow the air to circulate freely, avoid placing the appliance behind curtains, below a window, item
of furniture or shelf unit, or close to any other obstacle, and leave at least 50 cm of free space in front
of and on each side of the appliance.
BEFORE USING THE APPLIANCE FOR THE FIRST TIME
Make sure that the plastic packaging protecting the filters has been removed before using the
appliance.
Also make sure that:
• The voltage of your electrical installation corresponds to the one indicated on the appliance.
Your appliance can be used with a power plug without an earth connection. It is a class II appliance
(double electrical insulation),
• The appliance is positioned in the house as described above,
• The air inlet and outlet grids are completely unobstructed,
• Ensure the 4 filters and front panel have been correctly installed (see section « Disassembling /
Reassembling filters »).
This appliance is fitted with a device that automatically prevents it from operating if the front door is
not correctly assembled.
Inserting the filters
This appliance is equipped with 4 types of filters:
NB: For optimum performance of the appliance, only use filters provided by ROWENTA.
To install the filters, follow the instructions in the section « Disassembling/Reassembling filters ».
Please note: certain filters may emit a temporary slight odour, due to the transport and storage conditions.
« HOW TO ACHIEVE CLEANER INDOOR AIR »
In addition to using your Intense Pure Air purifier, here are some tips on how to
improve the quality of your indoor air:
• Ventilate the rooms for at least 10 min. every day, in summer and winter
• Maintain your ventilation system
• Limit the use of household products
• Do not smoke indoors
• Avoid home fragrances, incense sticks, scented candles, etc.
• Ventilate whenever any work is being conducted in your home and for several weeks
afterwards
• Avoid green plants that are allergenic or need frequent watering
Pre-filter Active carbon
filter
NanoCaptur
filter
HEPA filter
7
SWITCHING THE APPLIANCE ON
Connect the power cord and press the start button (6).
When you switch on your appliance, it will be automatically set to speed 2, the optimum operating
speed.
OPERATION
START
Briefly press this button to switch the air purifier on or off.
FILTRATION SPEED SELECTION
This appliance has 4 filtration speeds. You can change these speeds as you wish or according to
the time of day.
- Speed 1 is specially adapted for nighttime operation – for extra-silent air purification.
- Speed 2 is the optimum operating speed, combining performance and silence.
- Speeds 3 and 4 purify the air faster, for times when pollution levels are high.
LIGHT
You can change the light intensity of the appliance as you wish or according to the time of day.
TIMER / DELAYED START
If the appliance is on: you can use the button 8 to define the operating duration. Briefly press the
button to select the number of operating hours desired (1, 2, 4 or 8) and the appliance will
automatically turn off at the end of the selected period.
If the appliance is off:
briefly press the button 8 to set the appliance to turn on in a certain number
of hours (1, 2, 4 or 8).
3D PURE AIR FUNCTION (adjustable grid)
You can adjust the position of the air outlet grid manually, as desired. For an optimum, even flow
of purified air in the room, set the angle to 45°; for optimized well-being, set the angle to 90°.
MAINTENANCE
Always switch the appliance off with the button (6) and unplug it before conducting any
maintenance operation.
You can clean the outer of the appliance with a slightly damp cloth.
IMPORTANT: Never use abrasive products which could damage your appliance’s appearance.
Press
Ambient light
(PU6010 full size only)
Control panel
1 Light up Light up
2 Moderate light Moderate light
3 (PU6010
full size only)
Off Moderate light
EN
