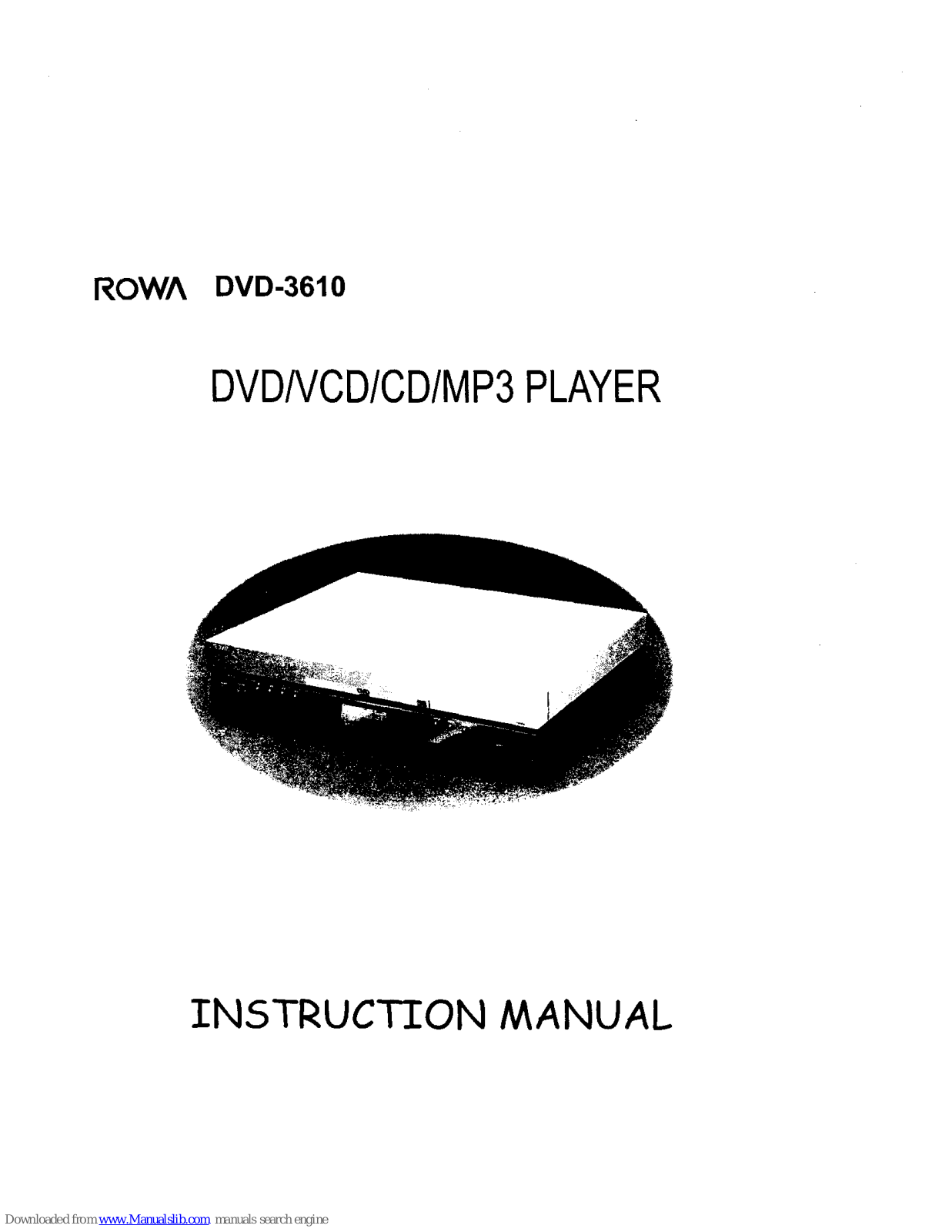

ROWA DVD-3610
DVDNCDICDIMP3PLAYER
INSTRUCTION MANUAL

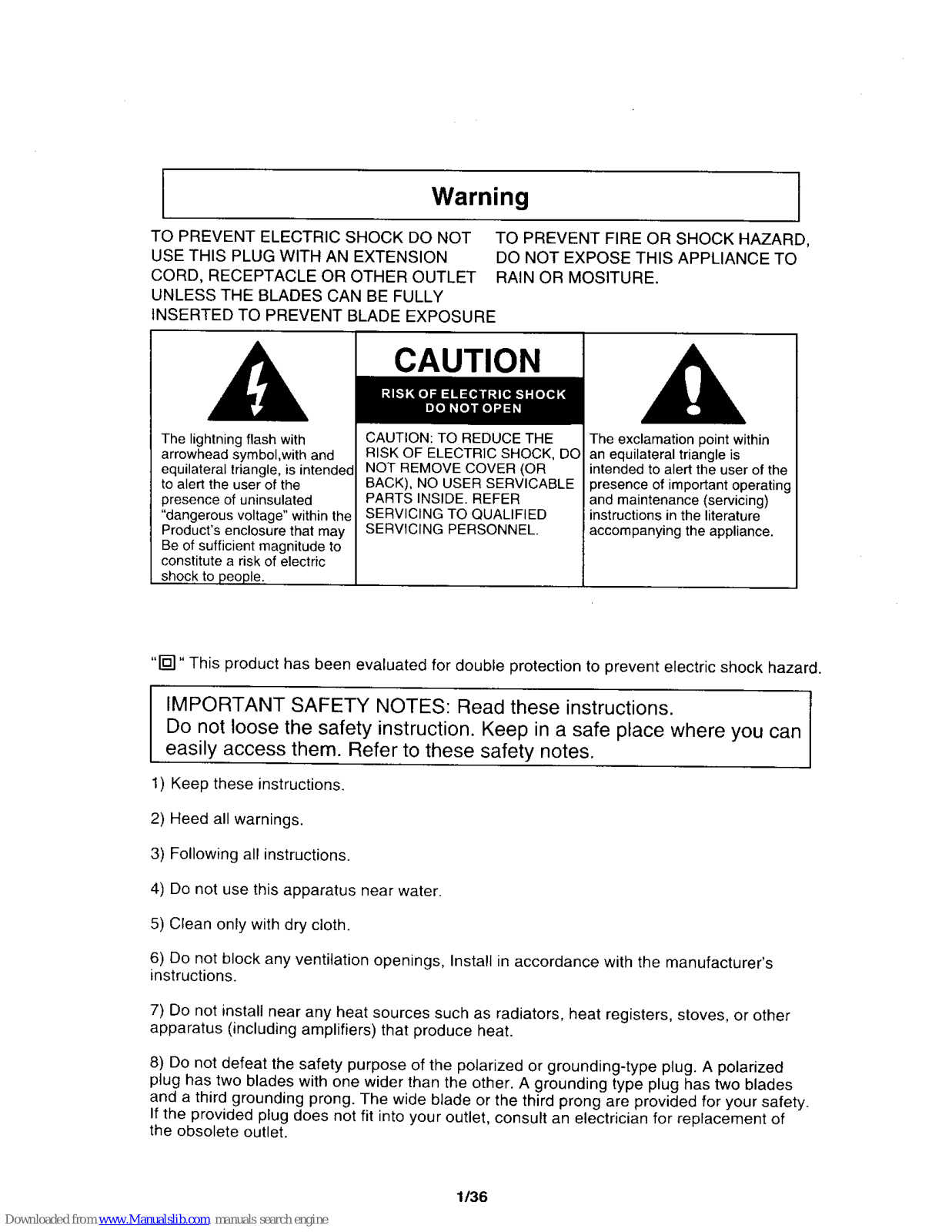

Warning
TO PREVENT ELECTRIC SHOCK DO NOT TO PREVENT FIRE OR SHOCK HAZARD,
USE THIS PLUG WITH AN EXTENSION DO NOT EXPOSE THIS APPLIANCE TO
CORD, RECEPTACLE OR OTHER OUTLET RAIN OR MOSITURE.
UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE
The lightning flash with
arrowhead symbol,with and
equilateral triangle, is
to alert the user of the
presence of uninsulated
"dangerous voltage" within the
Product's enclosure that may
Be of sufficient magnitude to
constitute a risk of electric
shock to people.
CAUTION
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR
BACK), NO USER SERVICABLE
PARTS INSIDE. REFER
SERVICING TO QUALIFIED
SERVICING PERSONNEL.
The exclamation point within
an equilateral triangle is
intended to alert the user of the
)resence of important operatin
and maintenance (servicing)
instructions in the literature
accompanying the appliance.
"FSI" This product has been evaluated for double protection to prevent electric shock hazard.
IMPORTANT SAFETY NOTES: Read these instructions.
Do not loose the safety instruction. Keep in a safe place where you can
easily access them. Refer to these safety notes.
1) Keep these instructions.
2) Heed all warnings.
3) Following all instructions.
4) Do not use this apparatus near water.
5) Clean only with dry cloth.
6) Do not block any ventilation openings, Install in accordance with the manufacturer's
instructions.
7) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
8) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
1/36

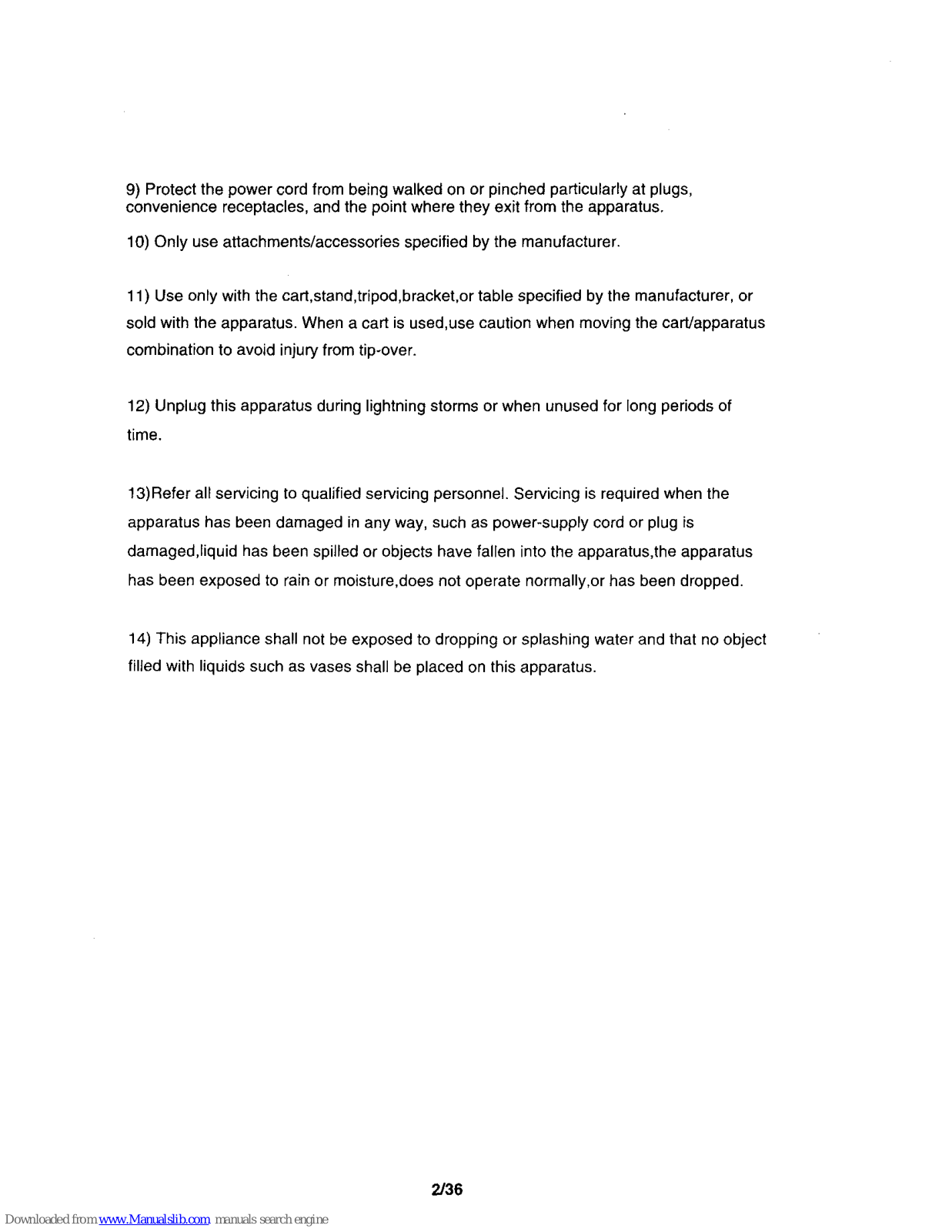

9) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
10) Only use attachments/accessories specified by the manufacturer.
11) Use only with the cart,stand,tripod,bracket,or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
12) Unplug this apparatus during lightning storms or when unused for long periods of
time.
13)Refer all servicing to qualified servicing personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged,liquid has been spilled or objects have fallen into the apparatus,the apparatus
has been exposed to rain or moisture,does not operate normally,or has been dropped.
14) This appliance shall not be exposed to dropping or splashing water and that no object
filled with liquids such as vases shall be placed on this apparatus.
2/36

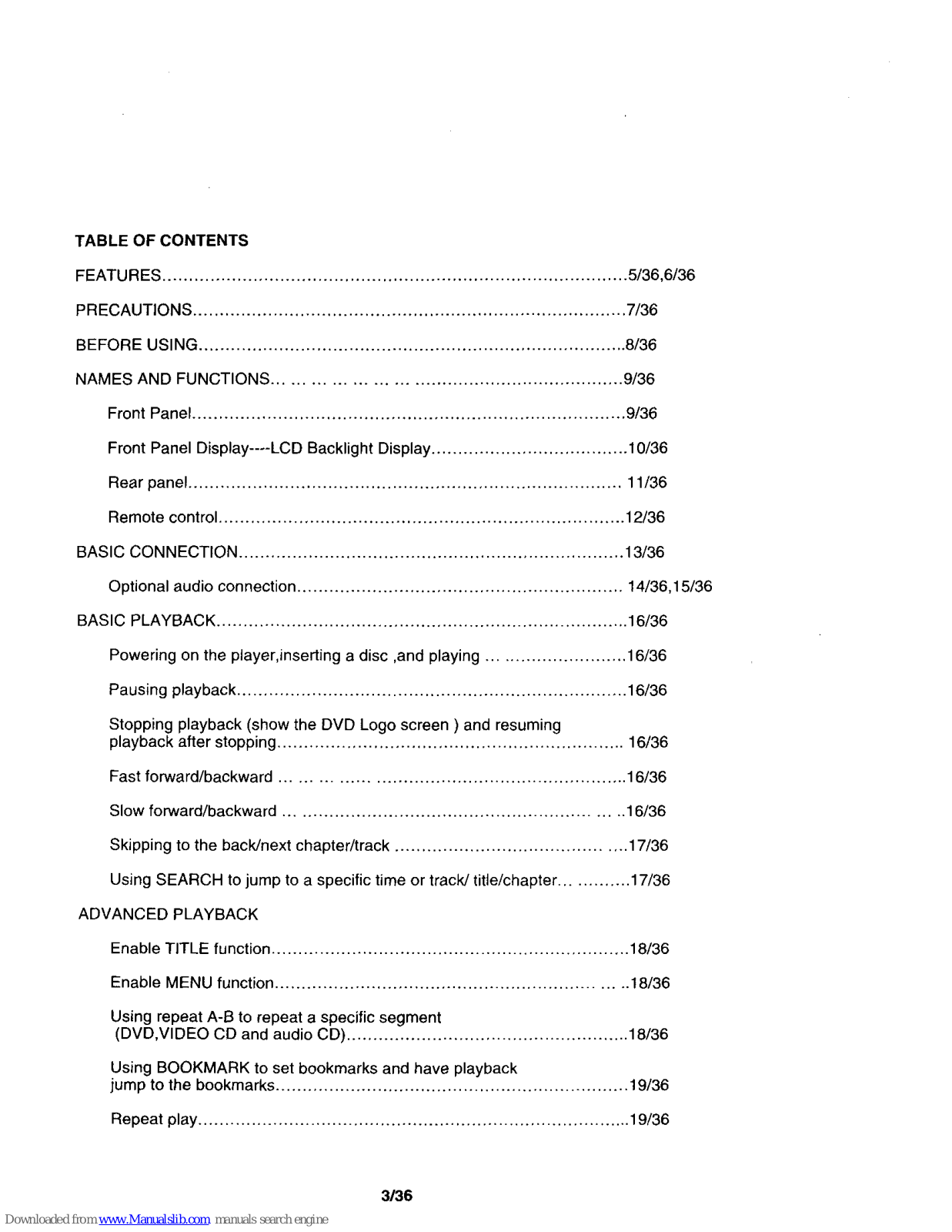

TABLE OF CONTENTS
FEATURES ....................................................................................... 5/36,6/36
PRECAUTIONS ................................................................................. 7/36
BEFORE USING ................................................................................ 8/36
NAMES AND FUNCTIONS ............................................................ 9/36
Front Panel ................................................................................. 9/36

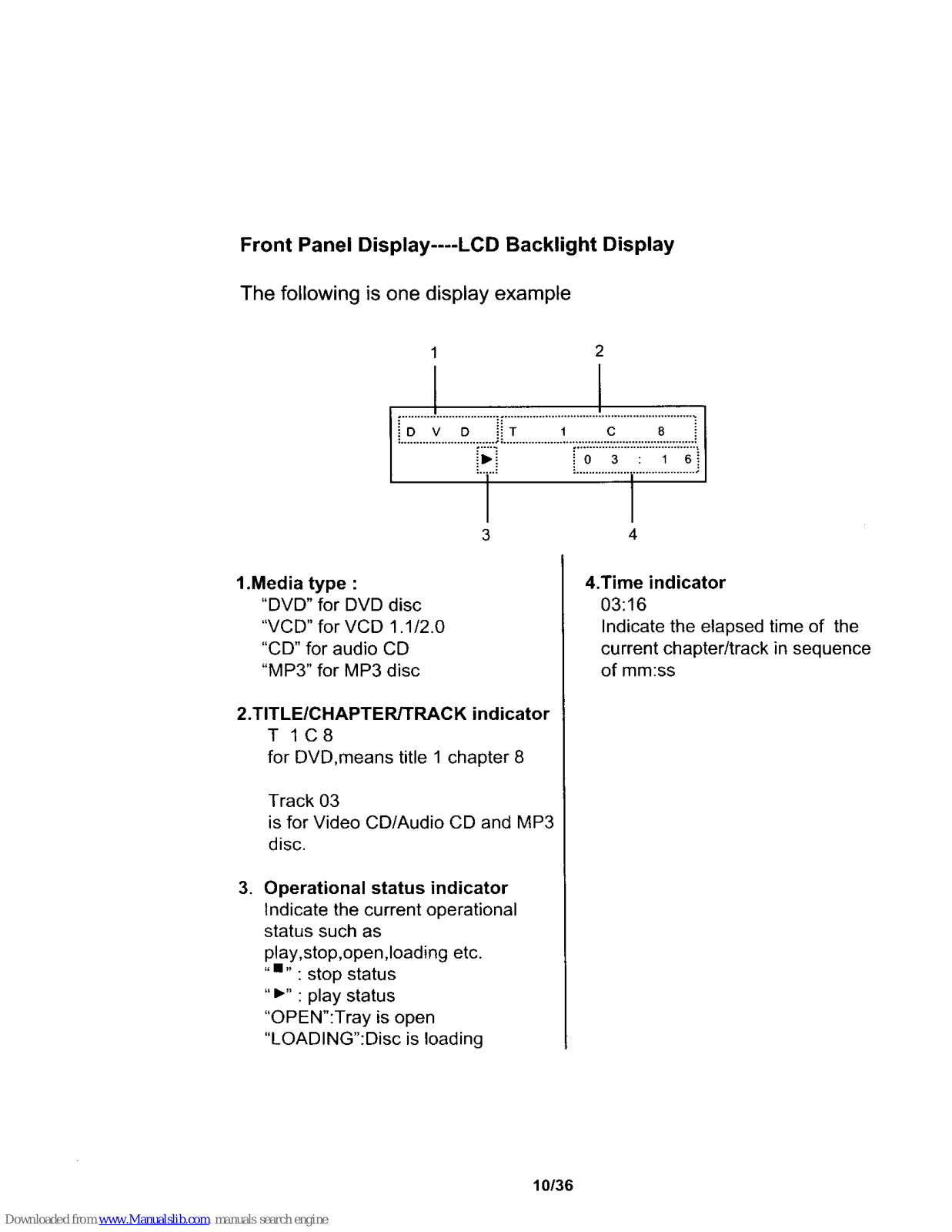

Front Panel Display----LCD Backlight Display ..................................... 10/36

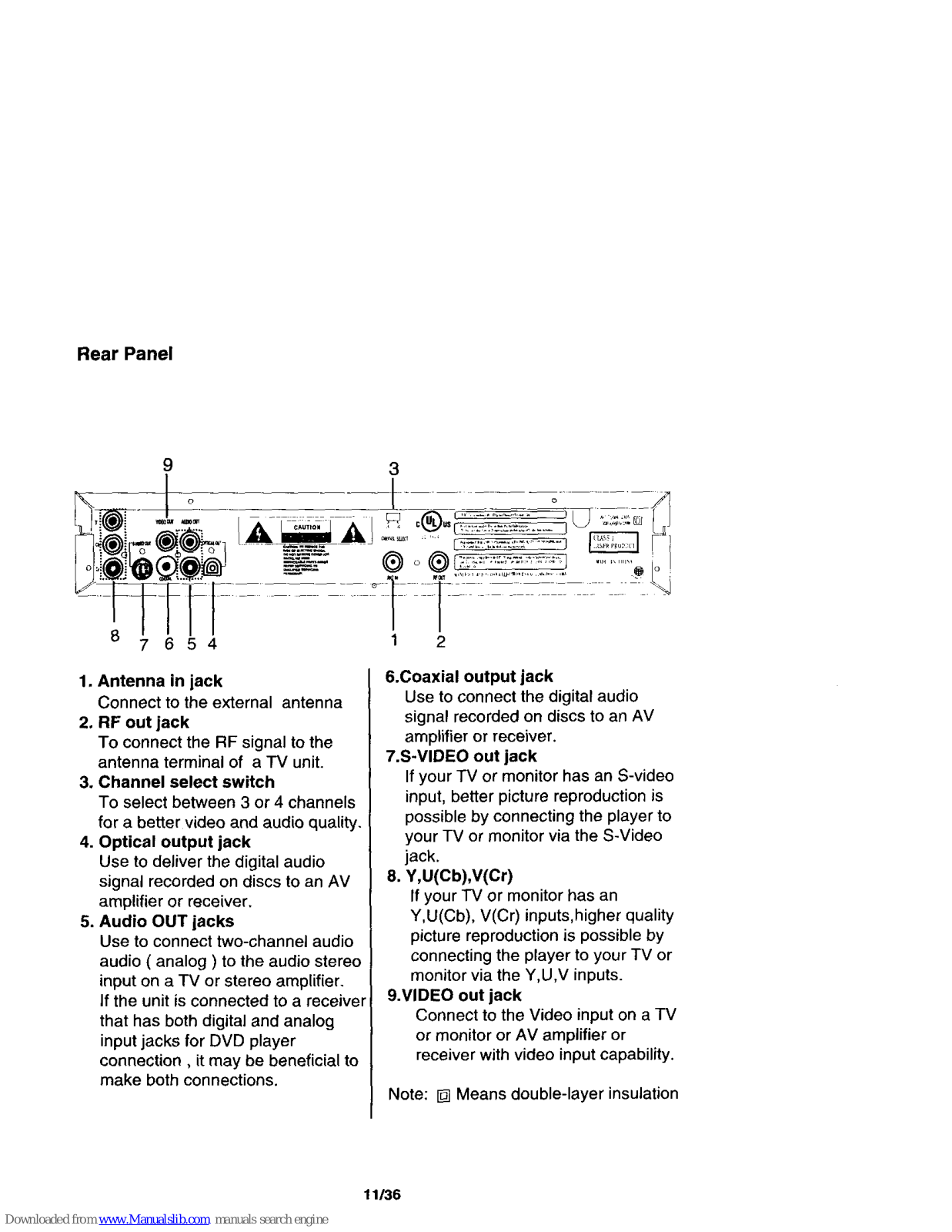

Rear panel ................................................................................. 11/36

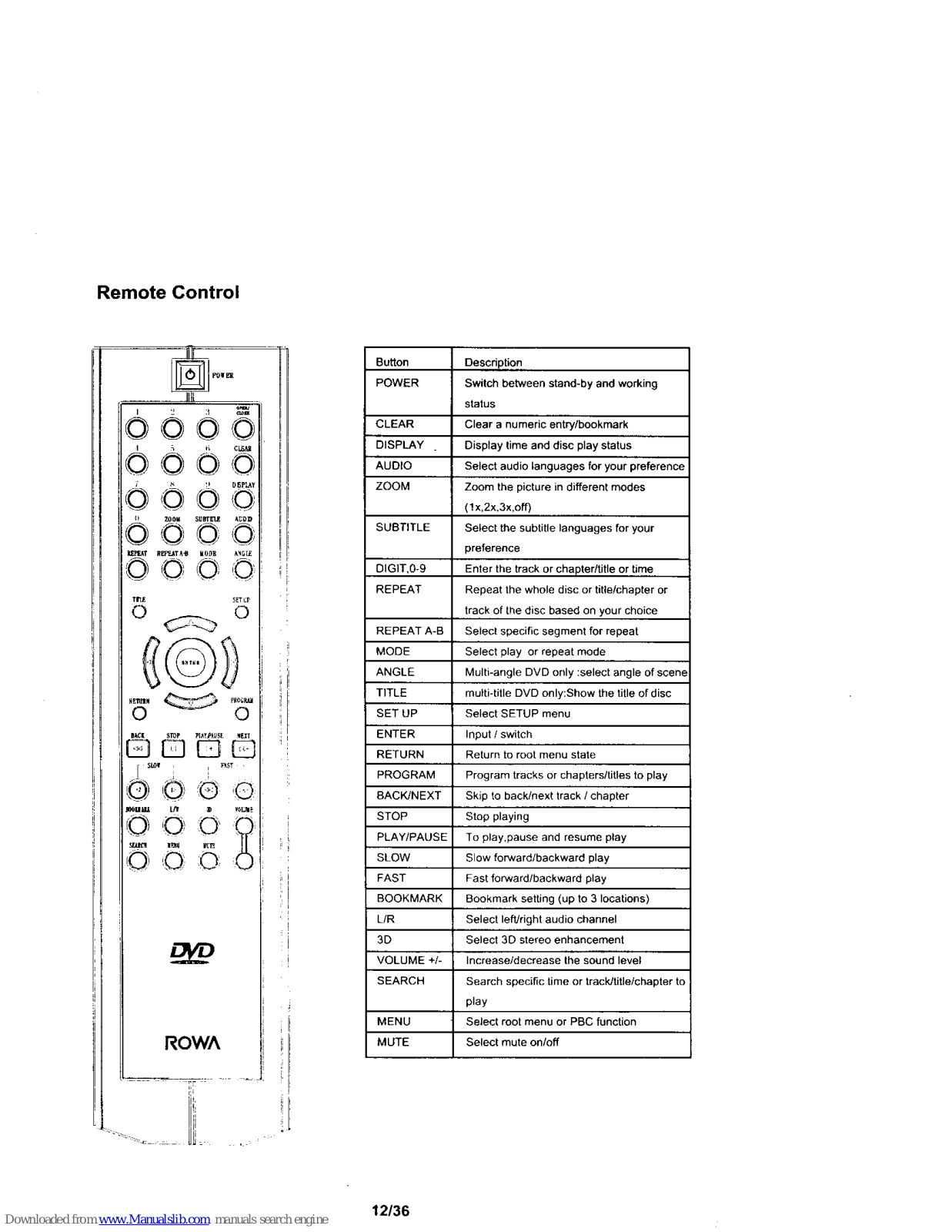

Remote control ............................................................................ 12/36

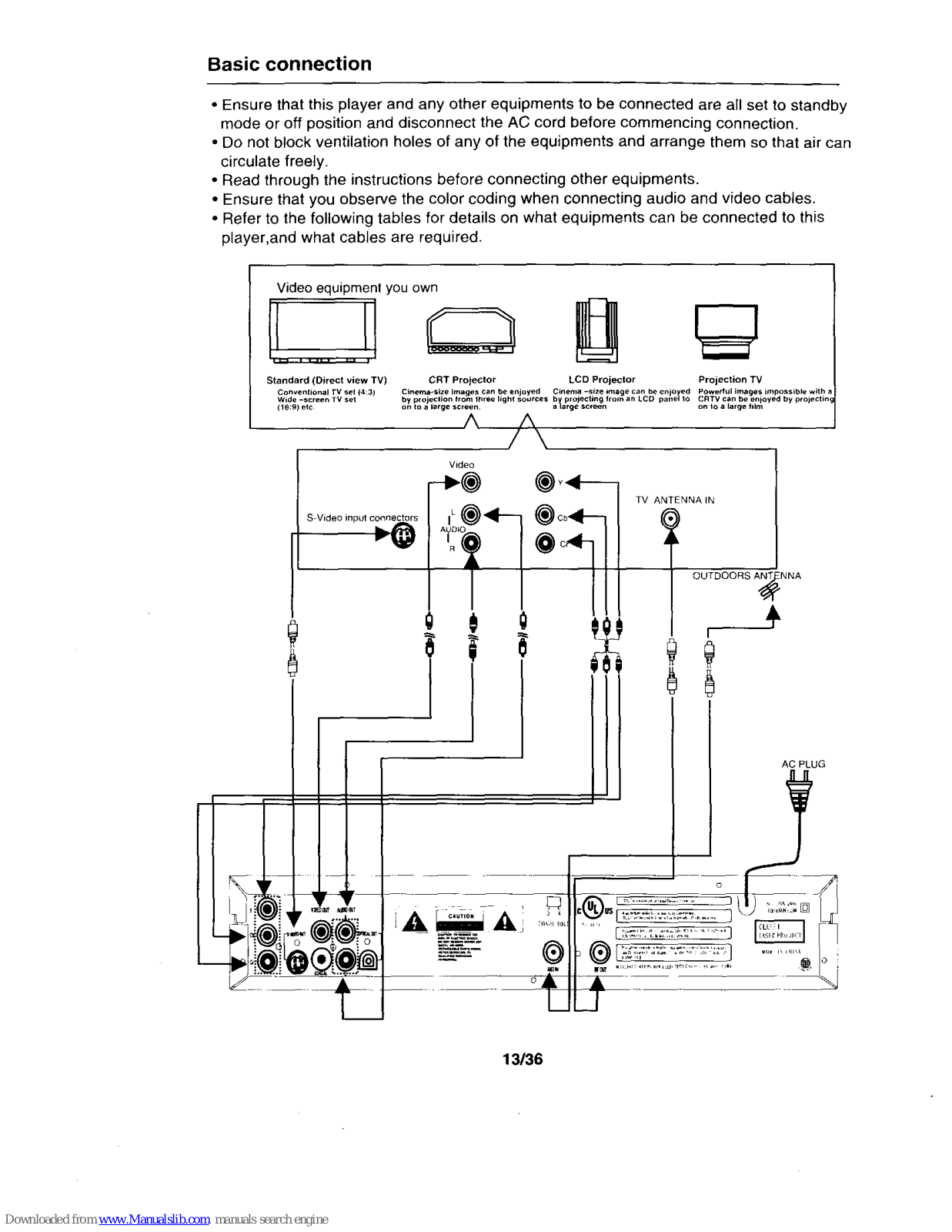

BASIC CONNECTION ........................................................................ 13/36

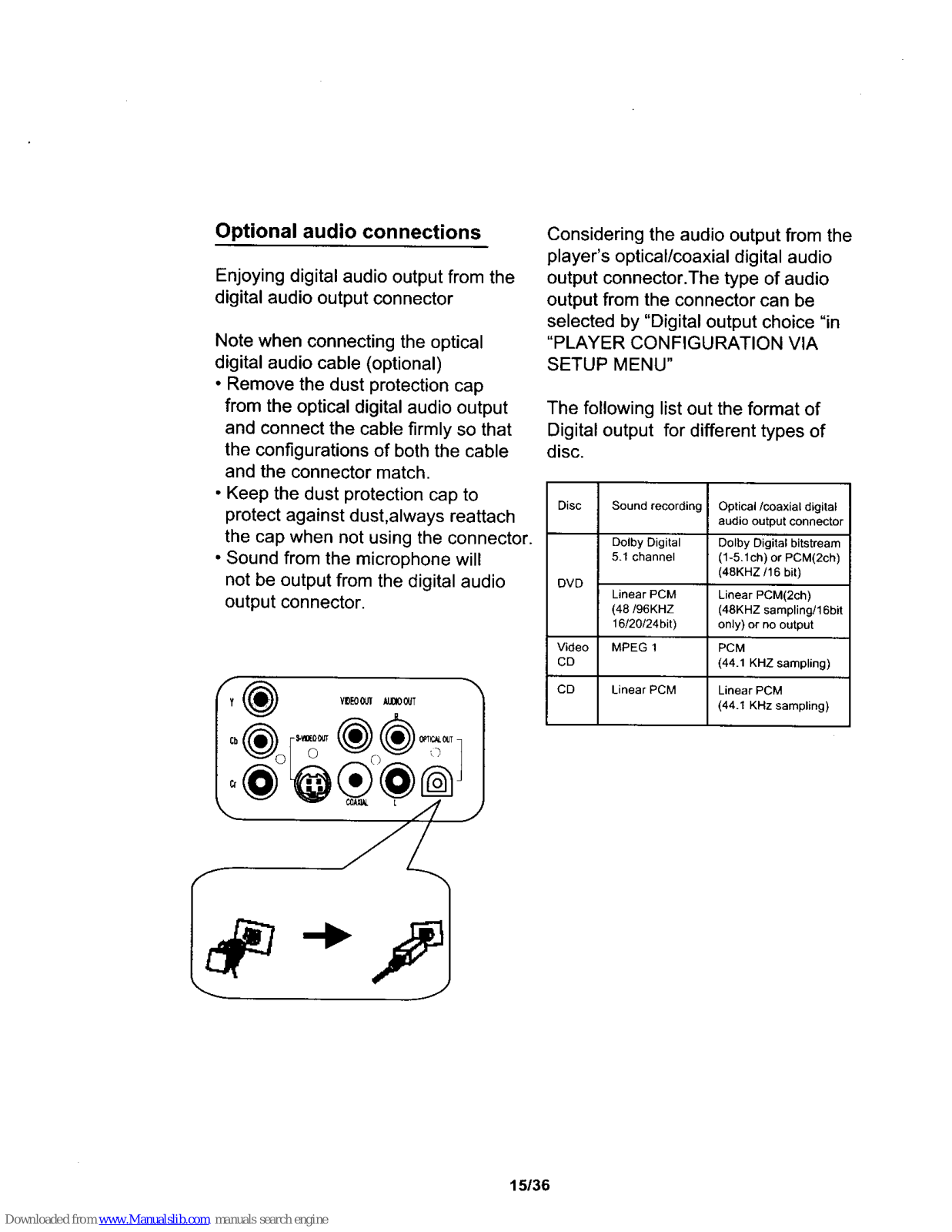

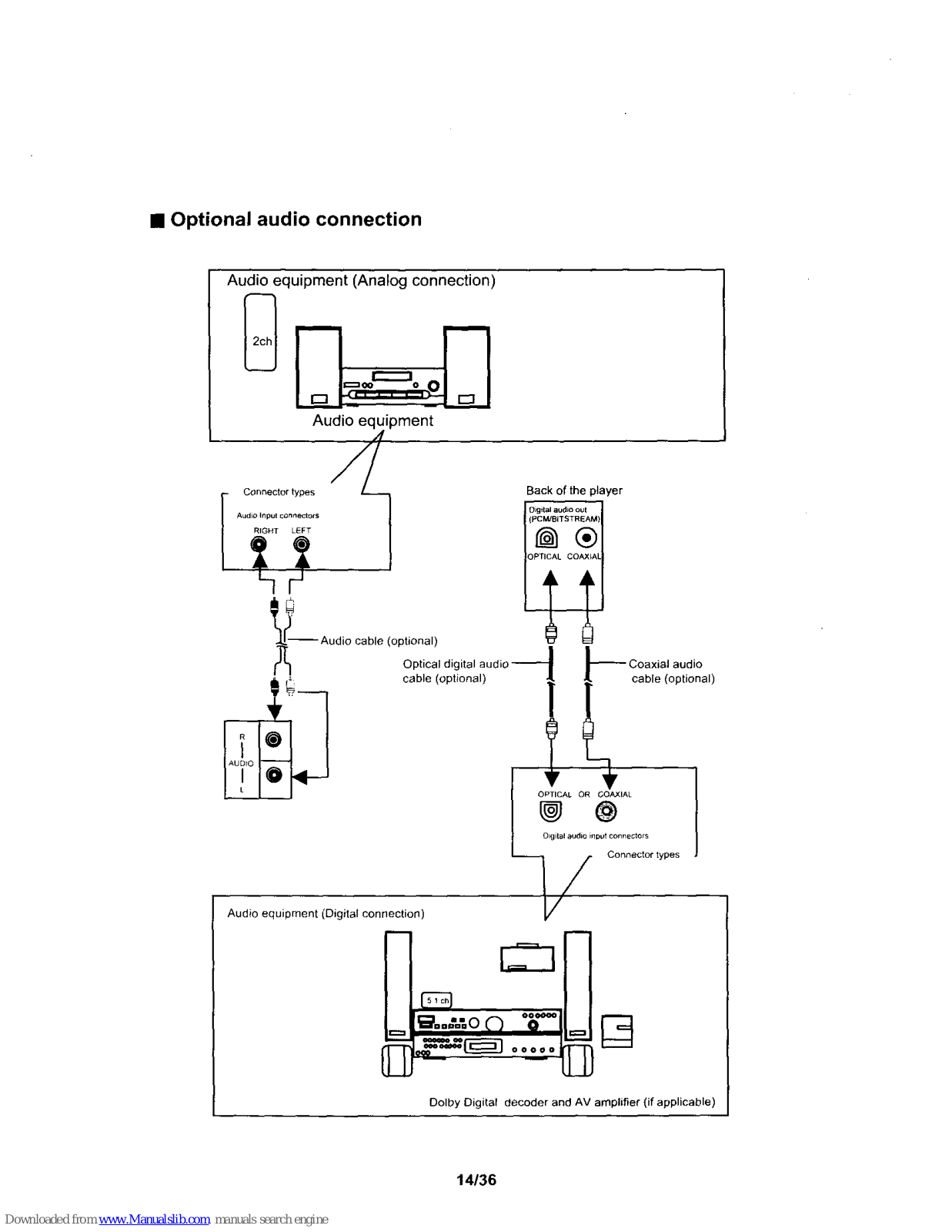

Optional audio connection ............................................................. 14/36,15/36

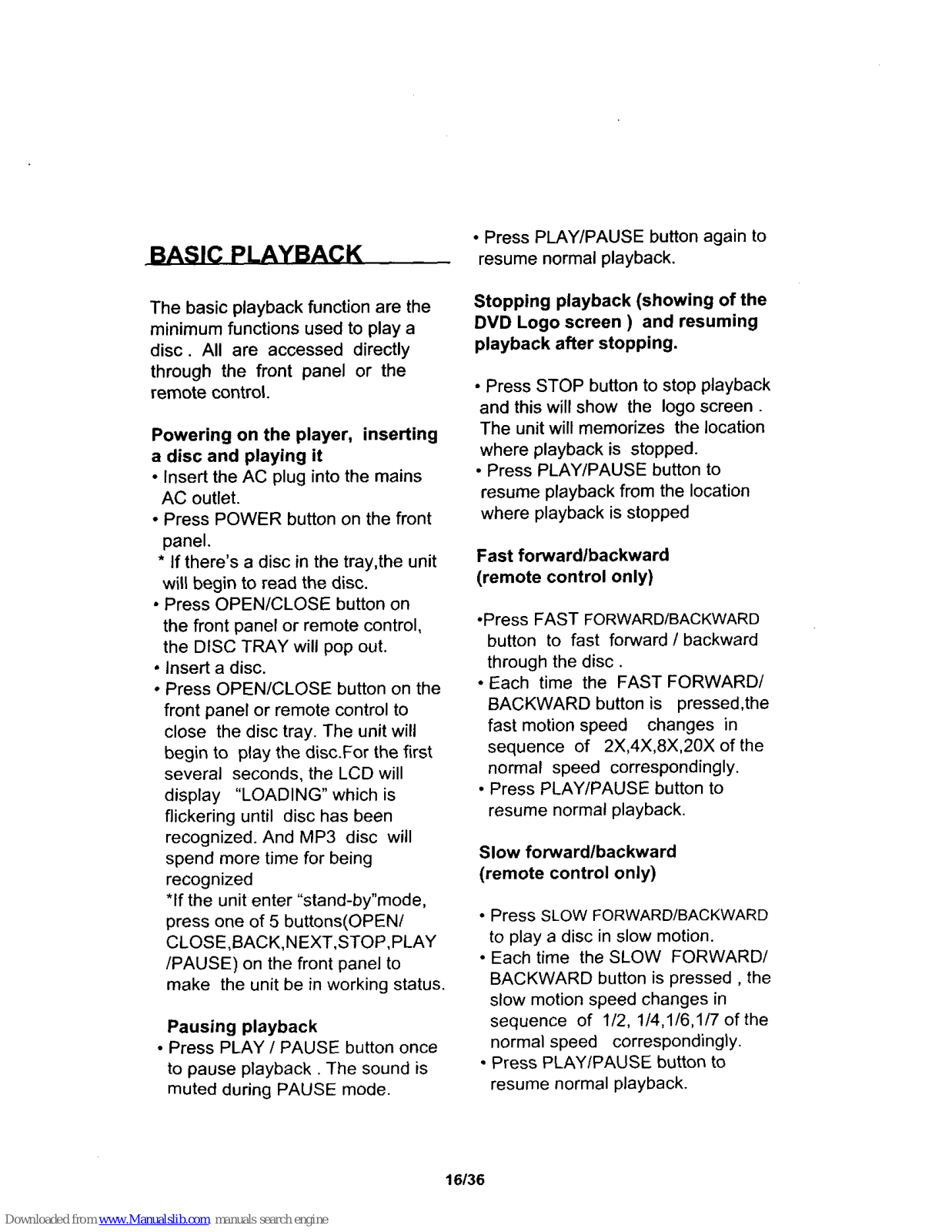

BASIC PLAYBACK ............................................................................. 16/36
Powering on the player,inserting a disc ,and playing .......................... 16/36
Pausing playback ......................................................................... 16/36
Stopping playback (show the DVD Logo screen ) and resuming
playback after stopping ................................................................. 16/36
Fast forward/backward .............................................................. 16/36
Slow forward/backward .............................................................. 16/36

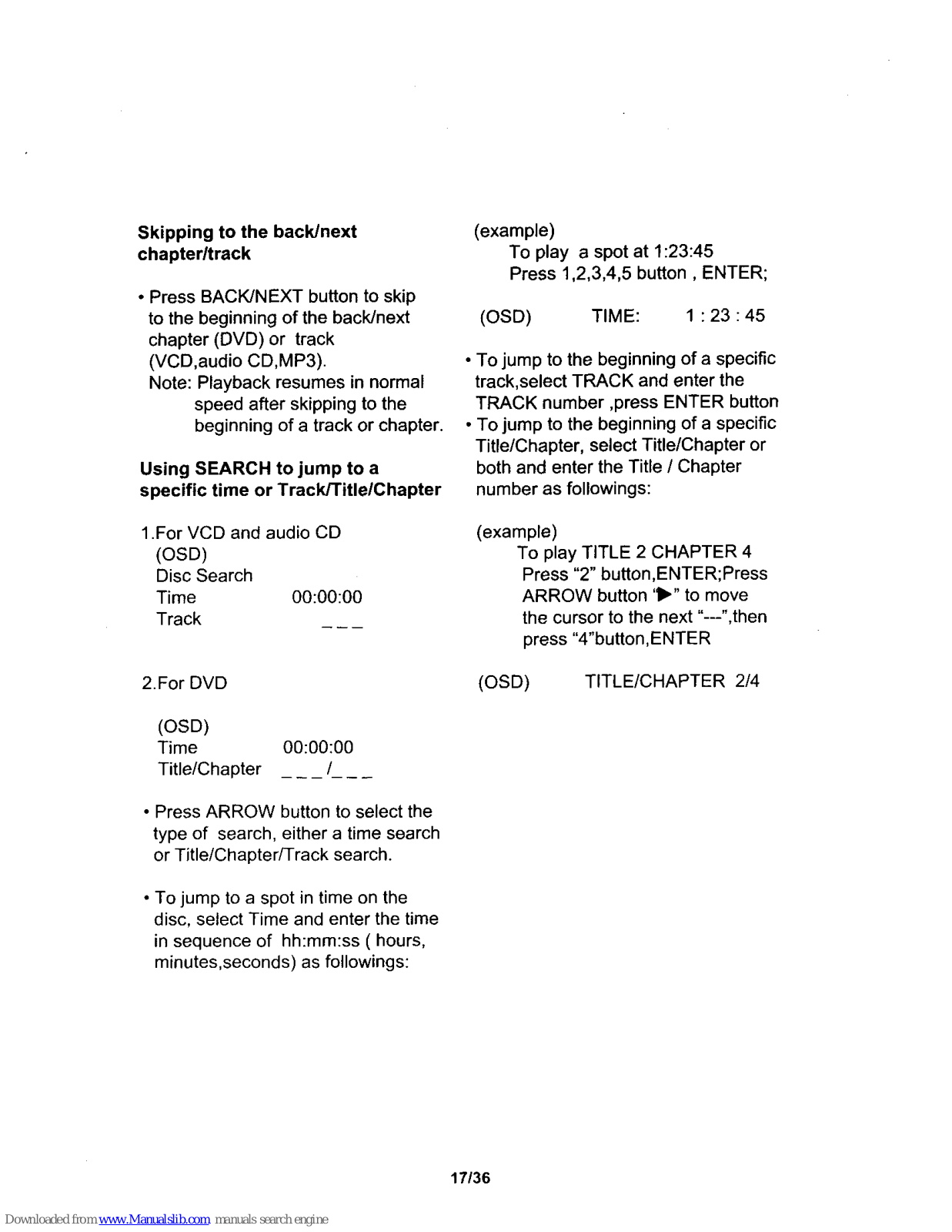

Skipping to the back/next chapter/track ........................................... 17/36
Using SEARCH to jump to a specific time or track/title/chapter ............. 17/36

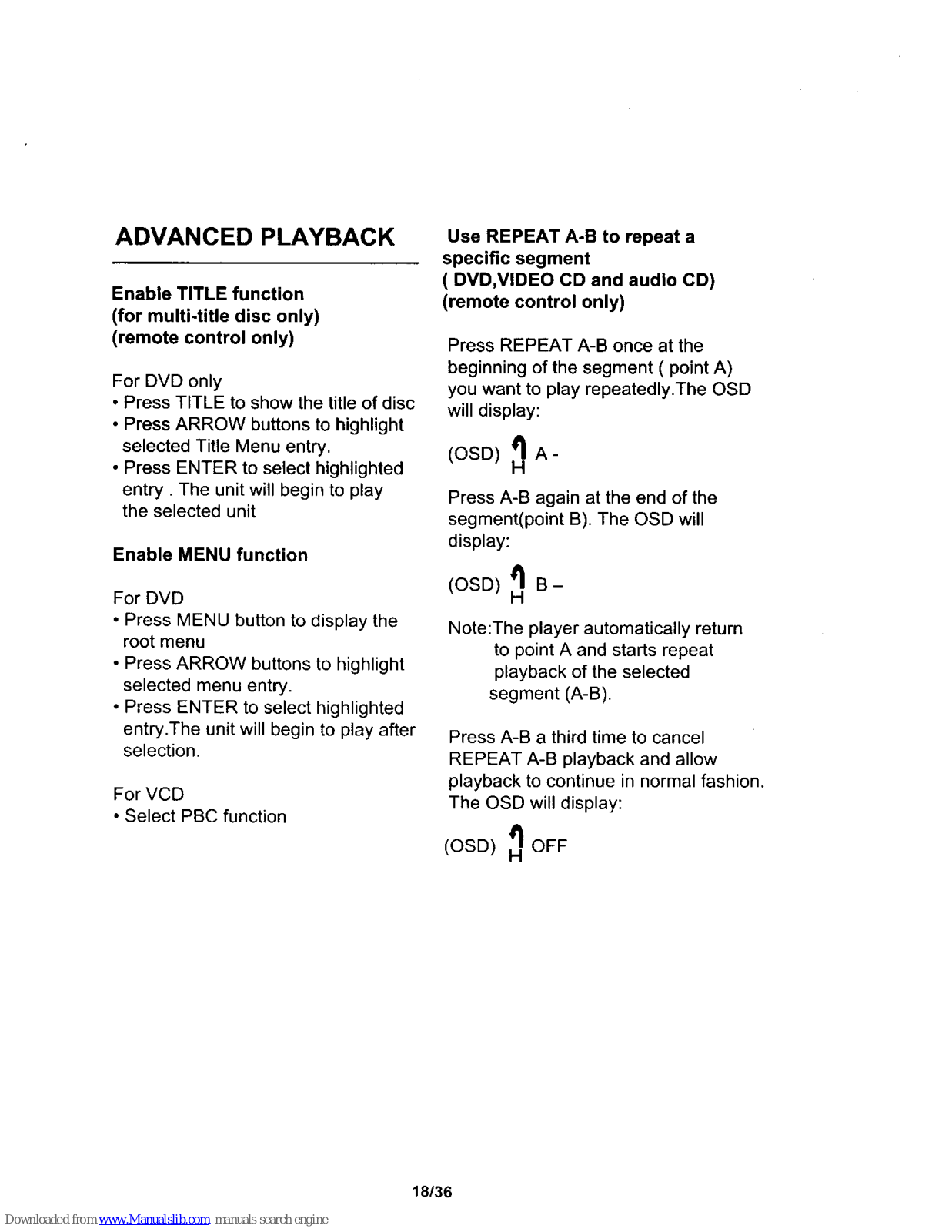

ADVANCED PLAYBACK
Enable TITLE function ................................................................... 18/36
Enable MENU function ................................................................. 18/36
Using repeat A-B to repeat a specific segment
(DVD,VIDEO CD and audio CD) ..................................................... 18/36

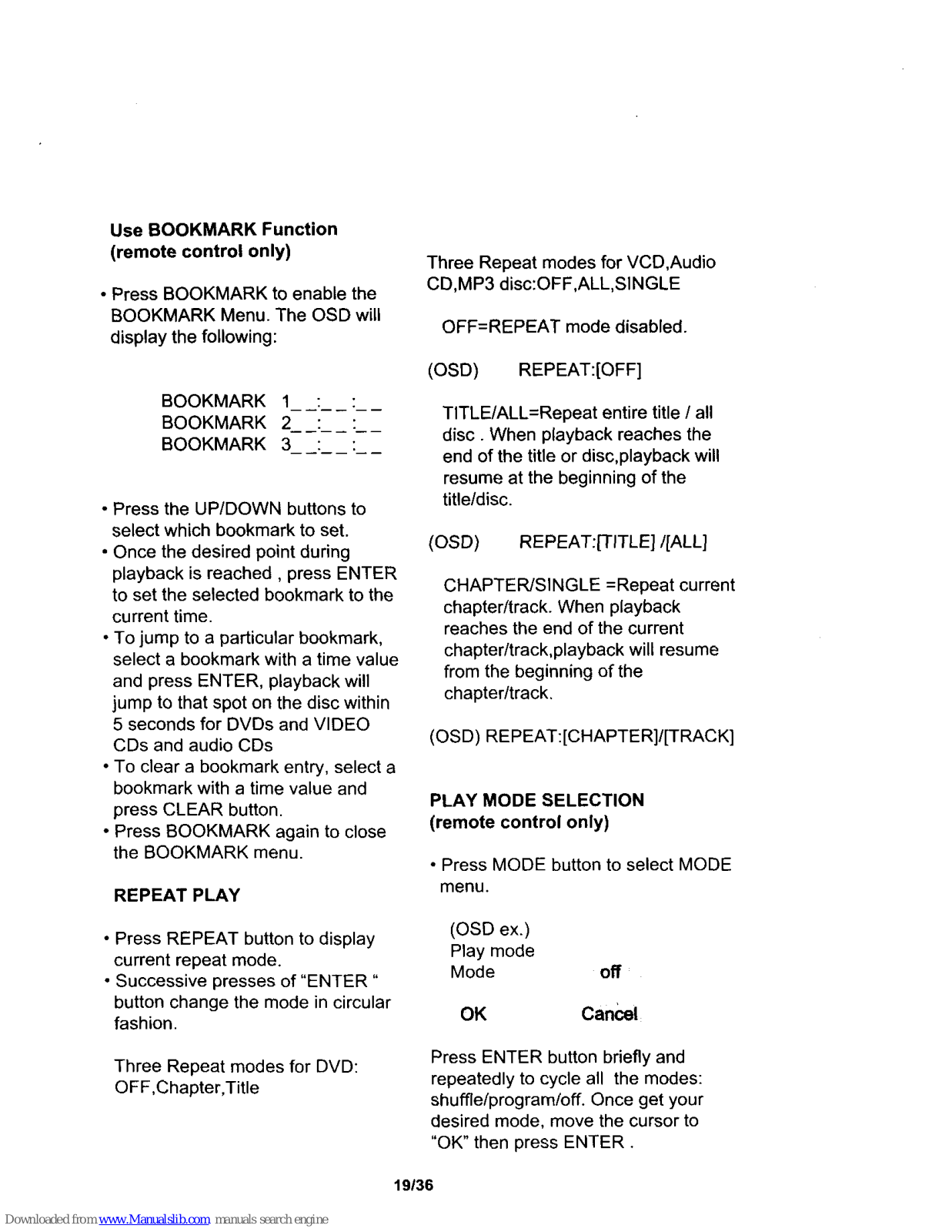

Using BOOKMARK to set bookmarks and have playback
jump to the bookmarks .................................................................. 19/36
Repeat play ................................................................................. 19/36
3/36

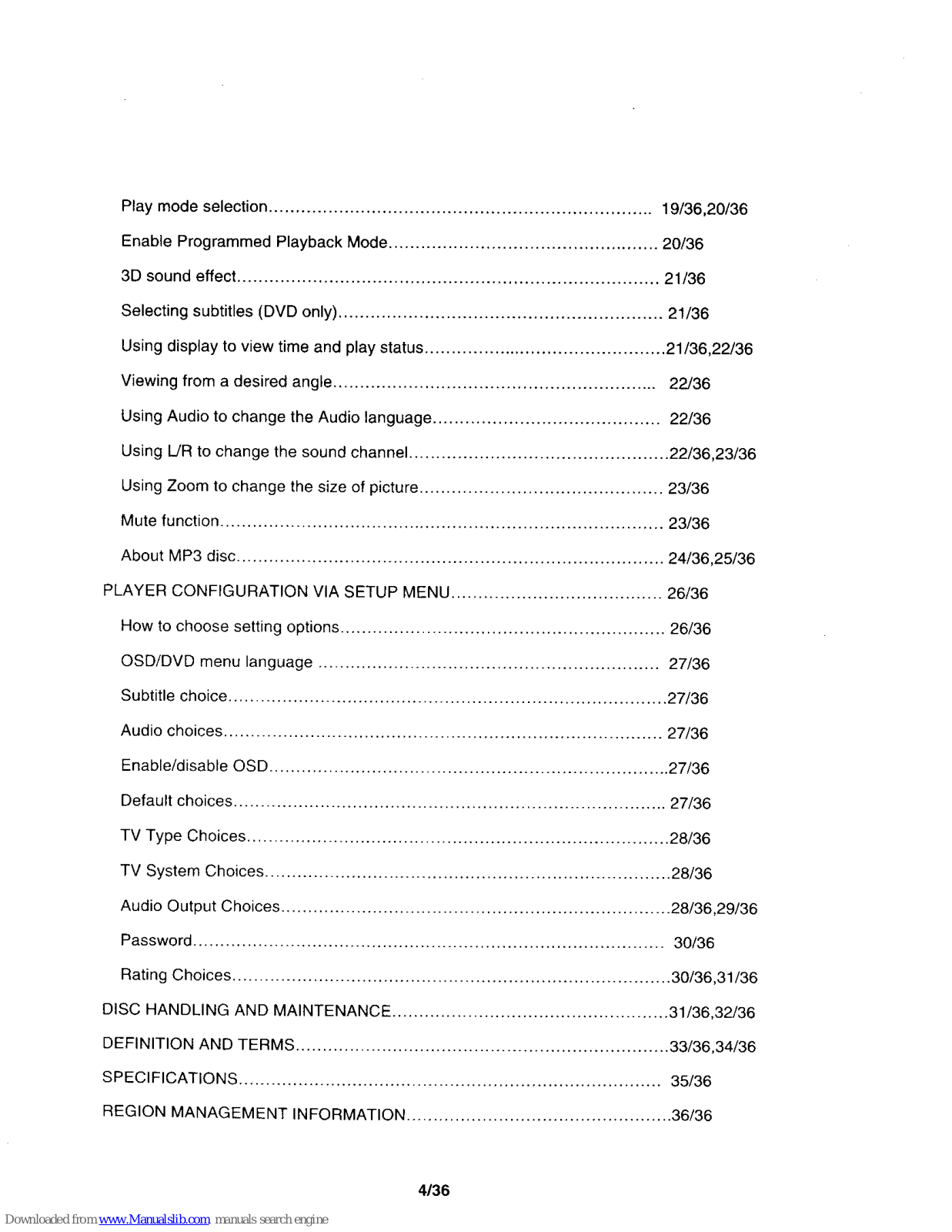

Play mode selection ....................................................................... 19/36,20/36

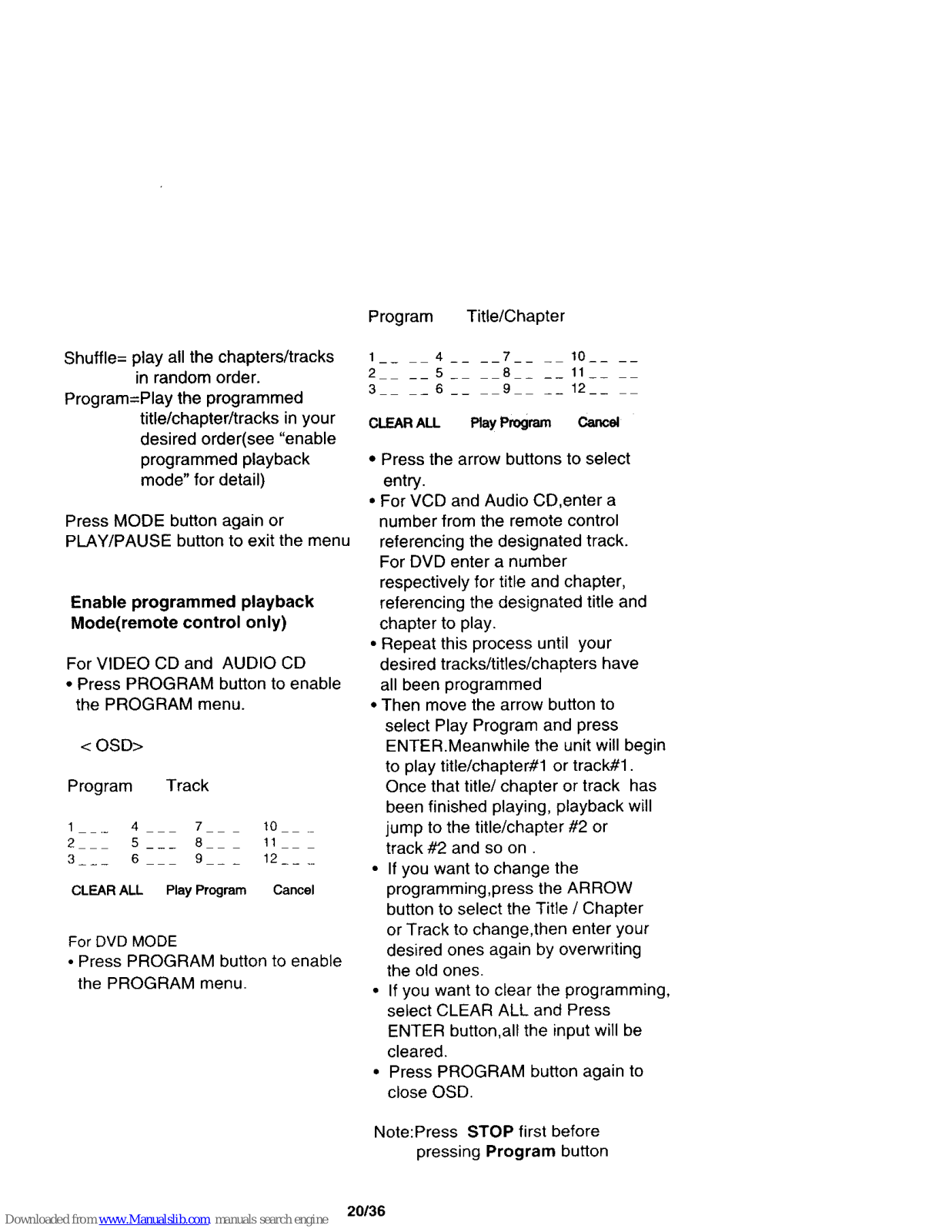

Enable Programmed Playback Mode .................................................. 20/36

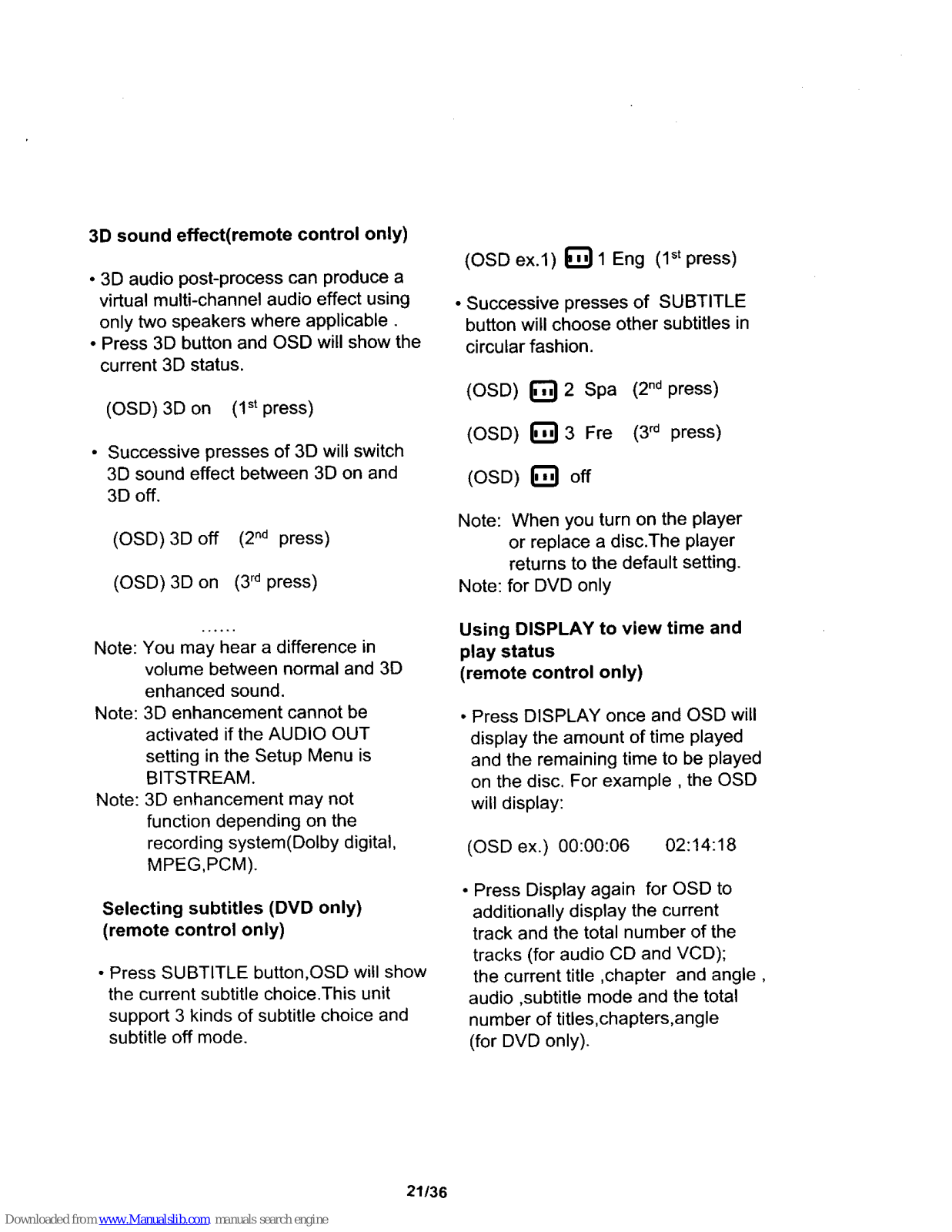

3D sound effect .............................................................................. 21/36
Selecting subtitles (DVD only) ............................................................ 21/36
Using display to view time and play status ............................................. 21/36,22/36

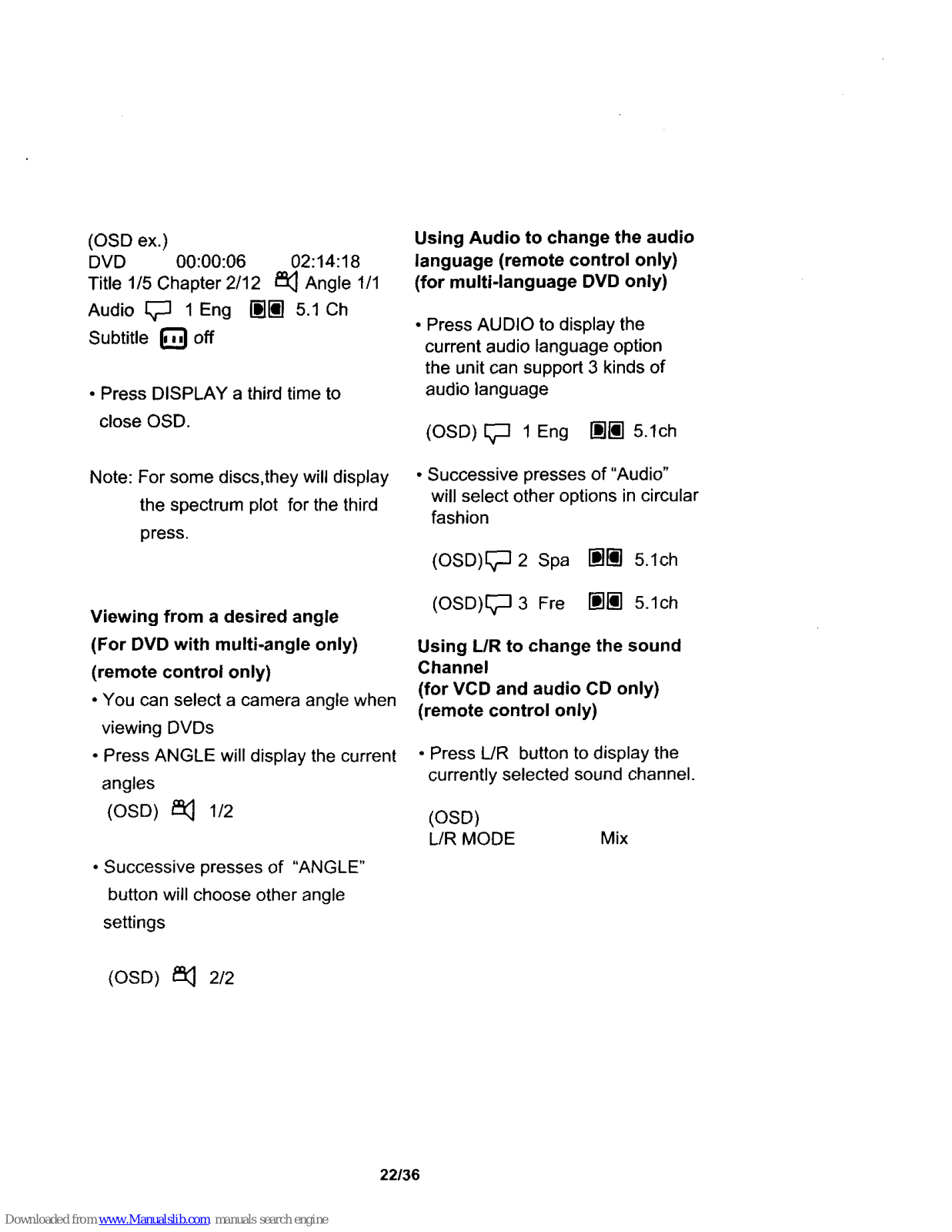

Viewing from a desired angle ............................................................ 22/36
Using Audio to change the Audio language .......................................... 22/36
Using L/R to change the sound channel ................................................ 22/36,23/36

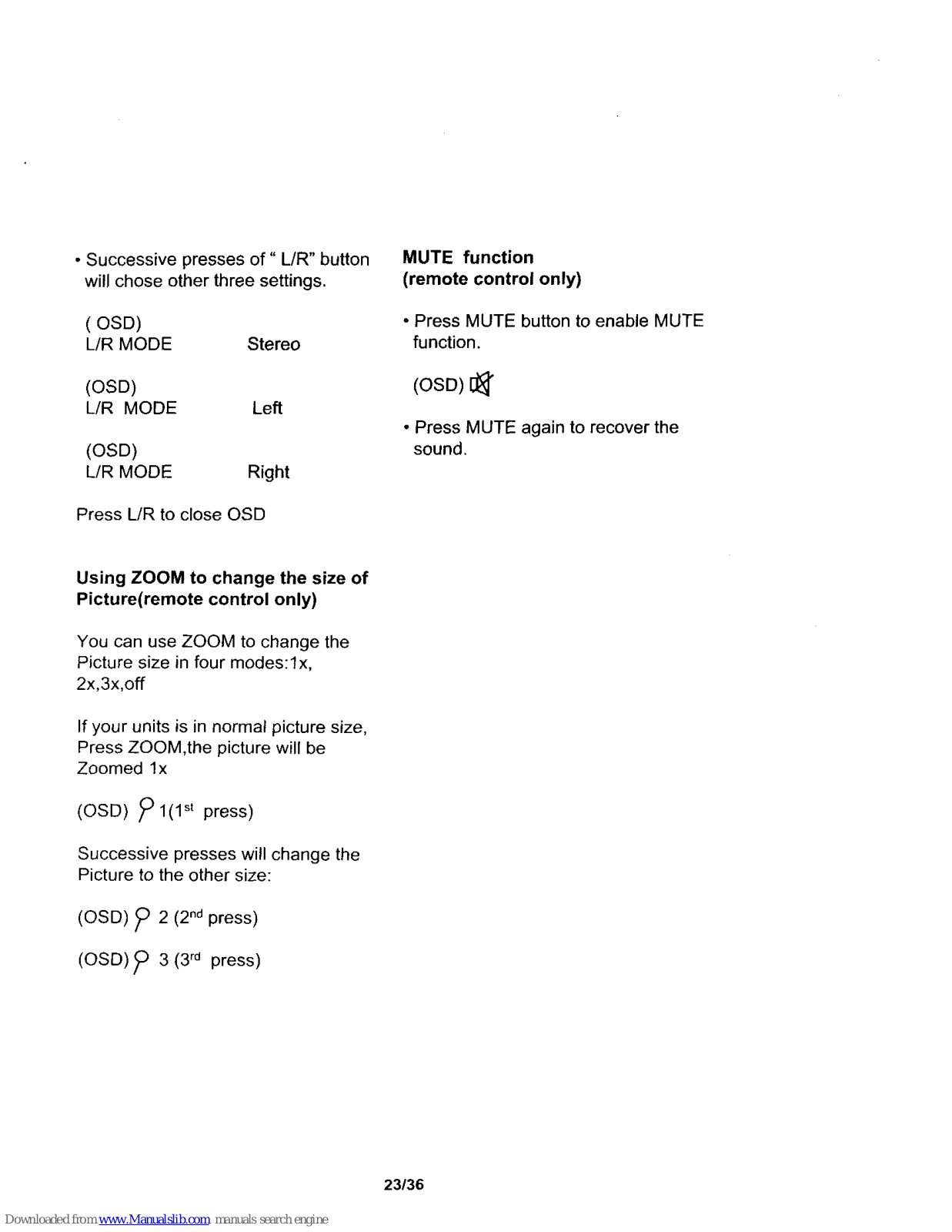

Using Zoom to change the size of picture ............................................. 23/36
Mute function .................................................................................. 23/36

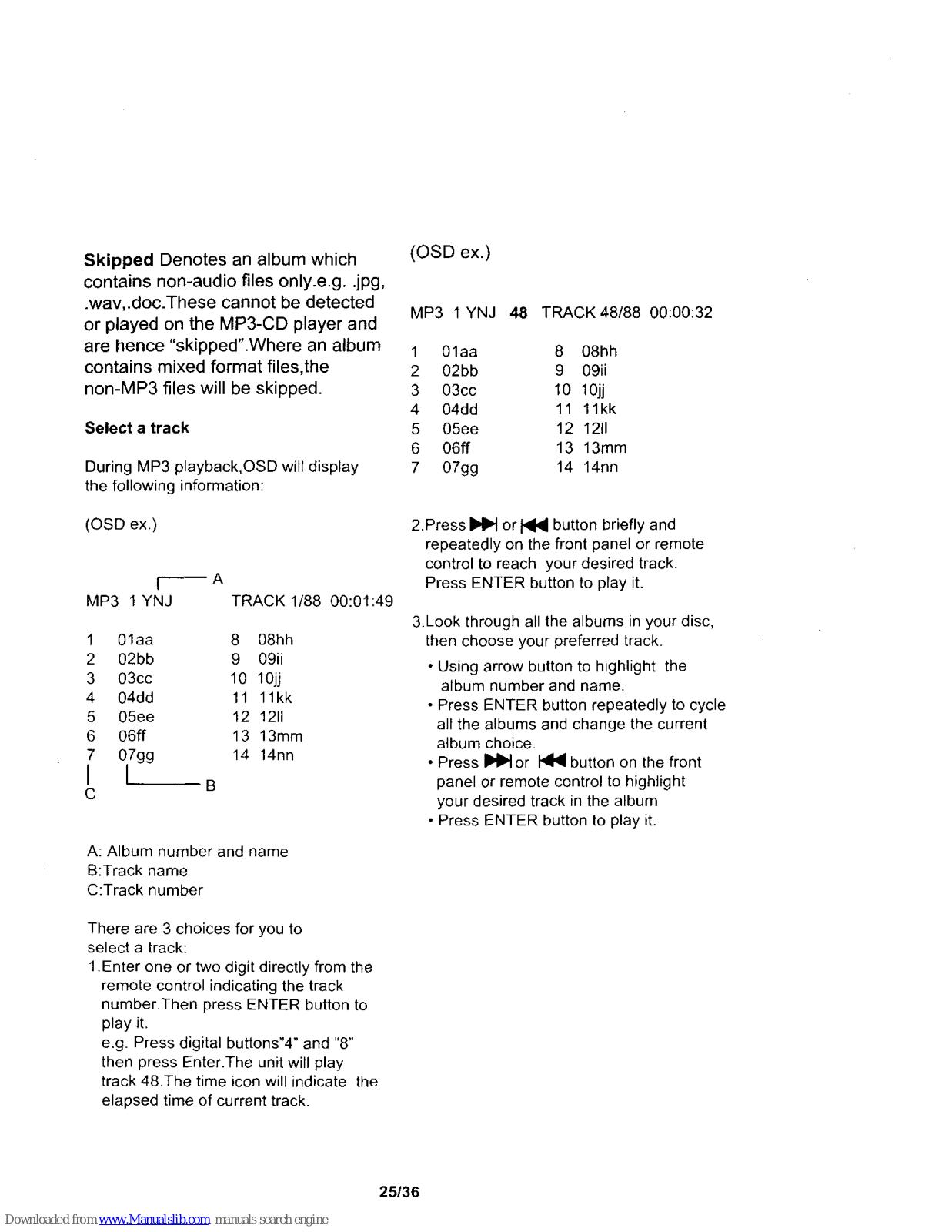

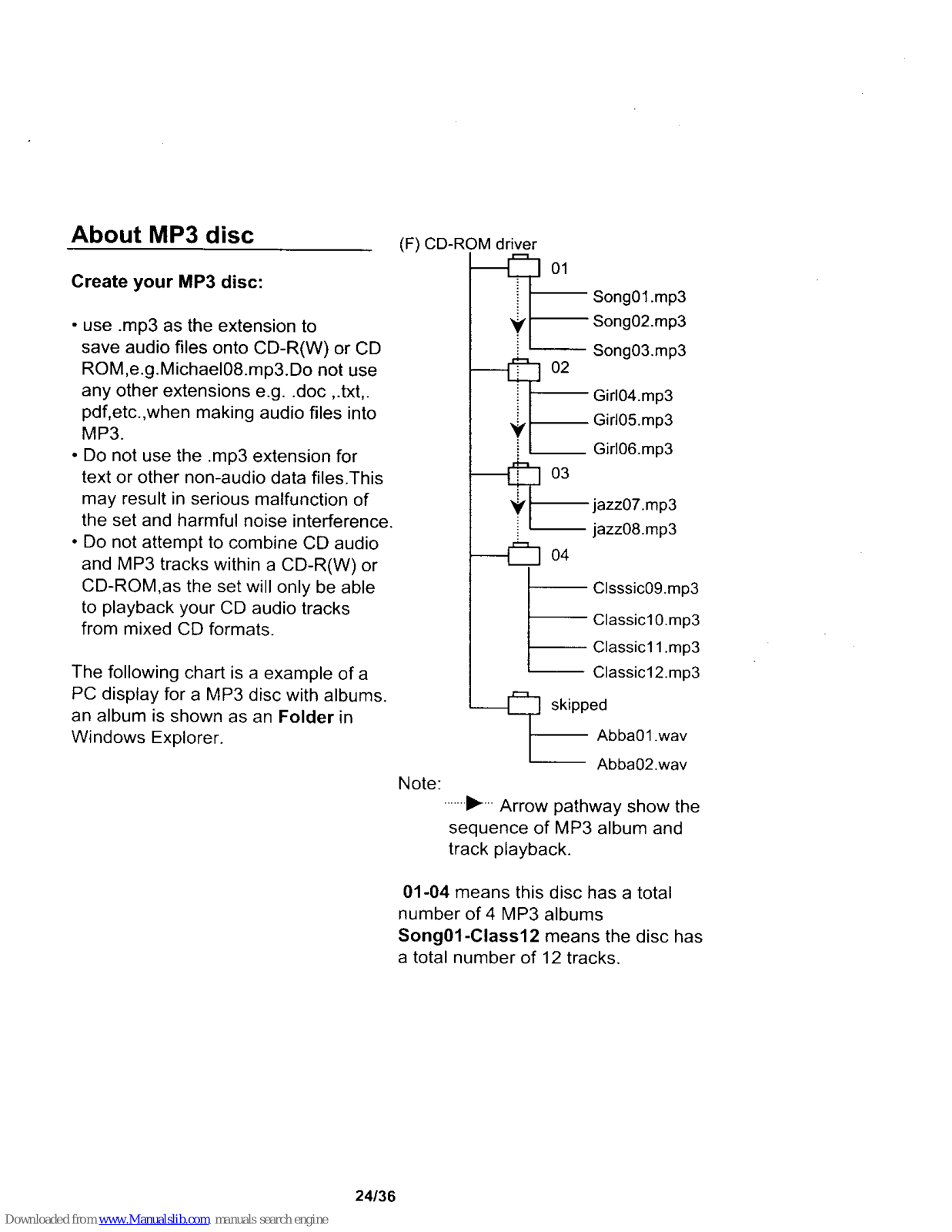

About MP3 disc ............................................................................... 24/36,25/36

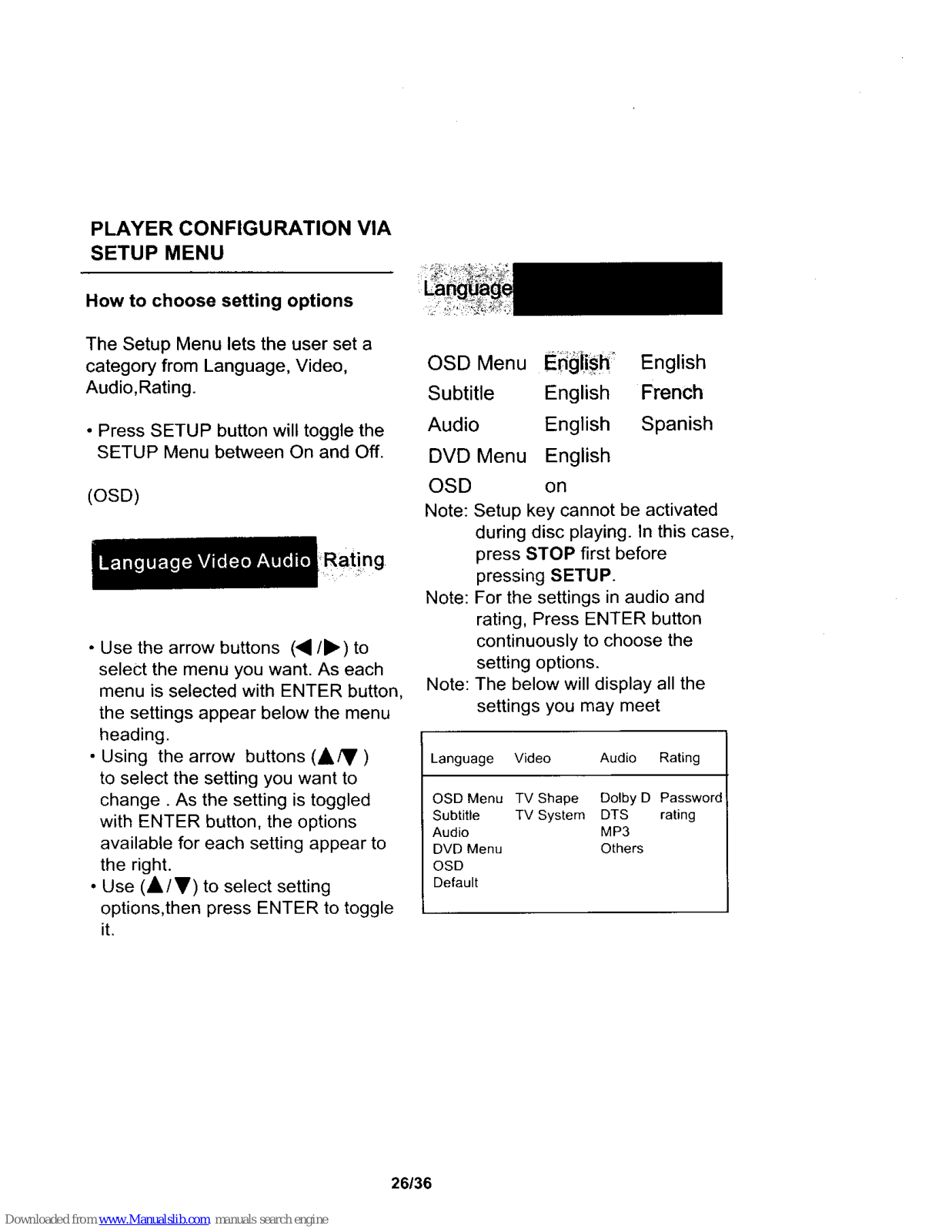

PLAYER CONFIGURATION VIA SETUP MENU ....................................... 26/36
How to choose setting options ............................................................ 26/36

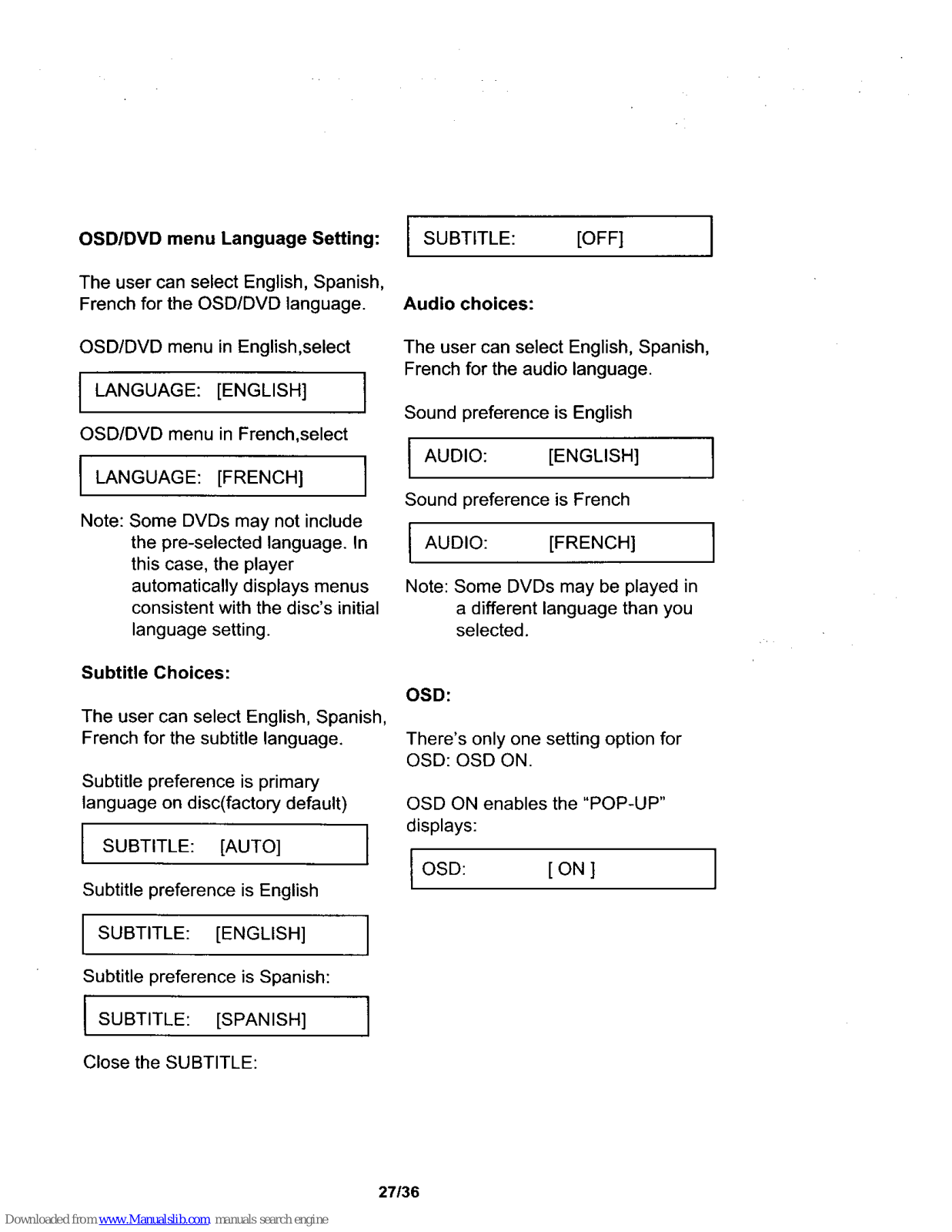

OSD/DVD menu language ............................................................... 27/36
Subtitle choice ................................................................................. 27/36
Audio choices ................................................................................. 27/36
Enable/disable OSD .......................................................................... 27/36

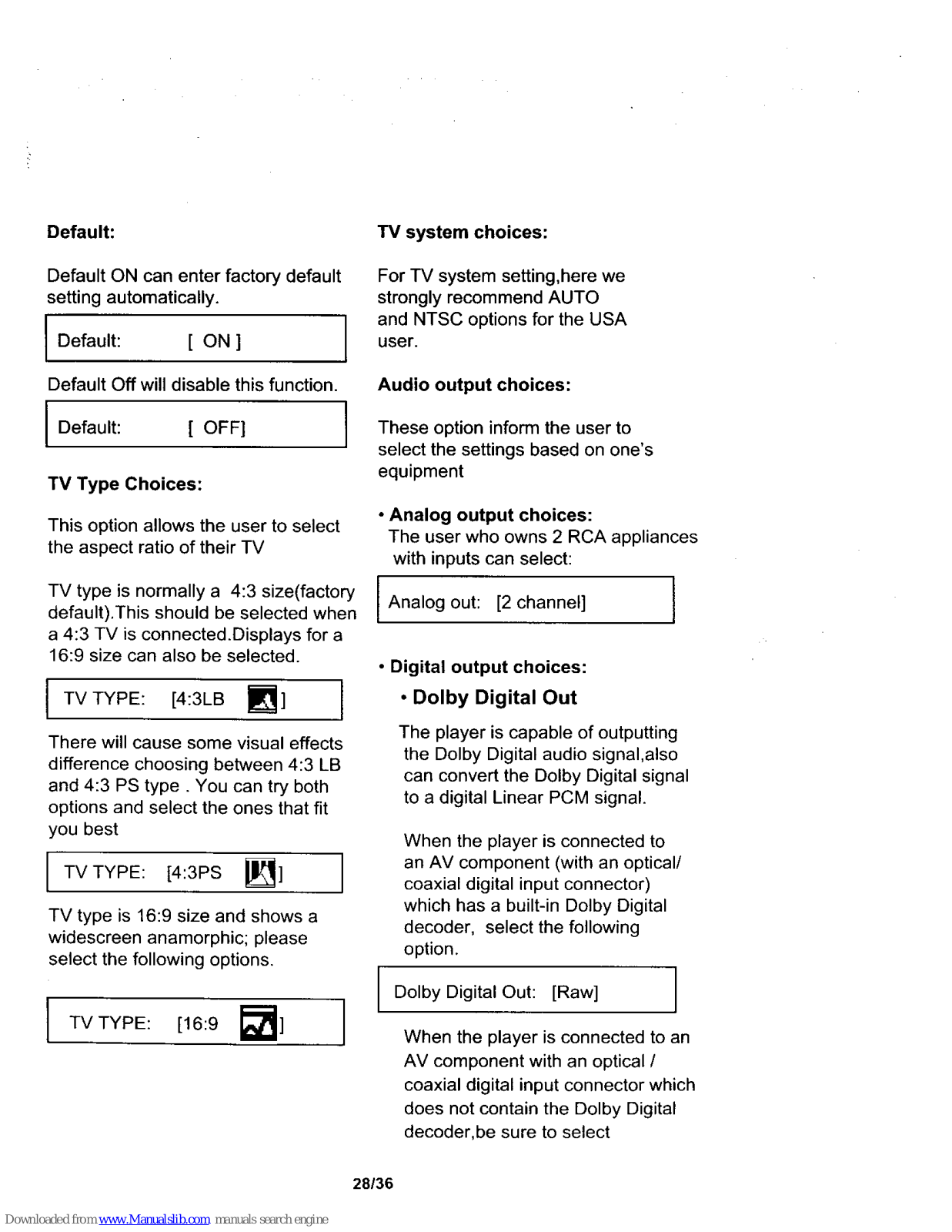

Default choices ................................................................................ 27/36
TV Type Choices .............................................................................. 28/36
TV System Choices ........................................................................... 28/36

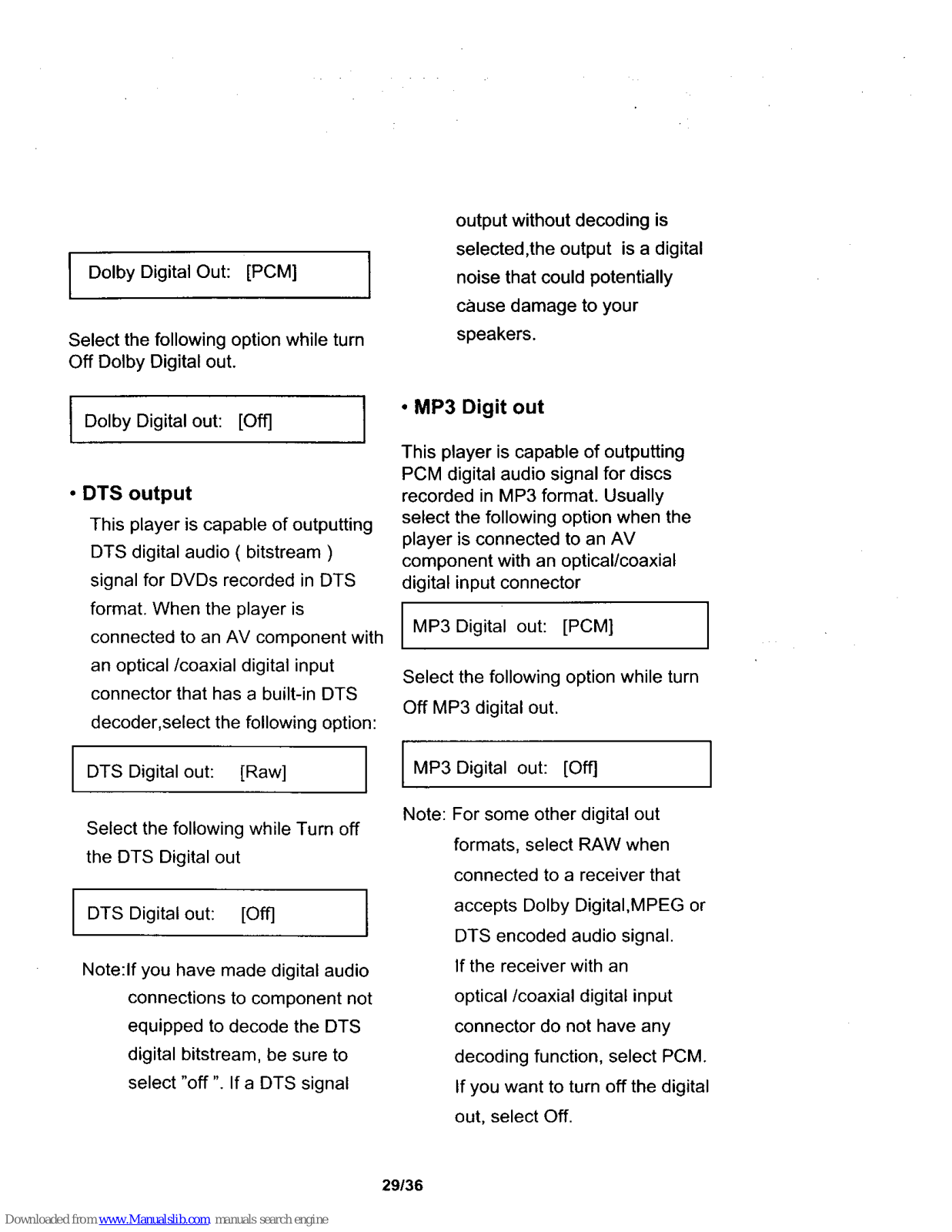

Audio Output Choices ........................................................................ 28/36,29/36

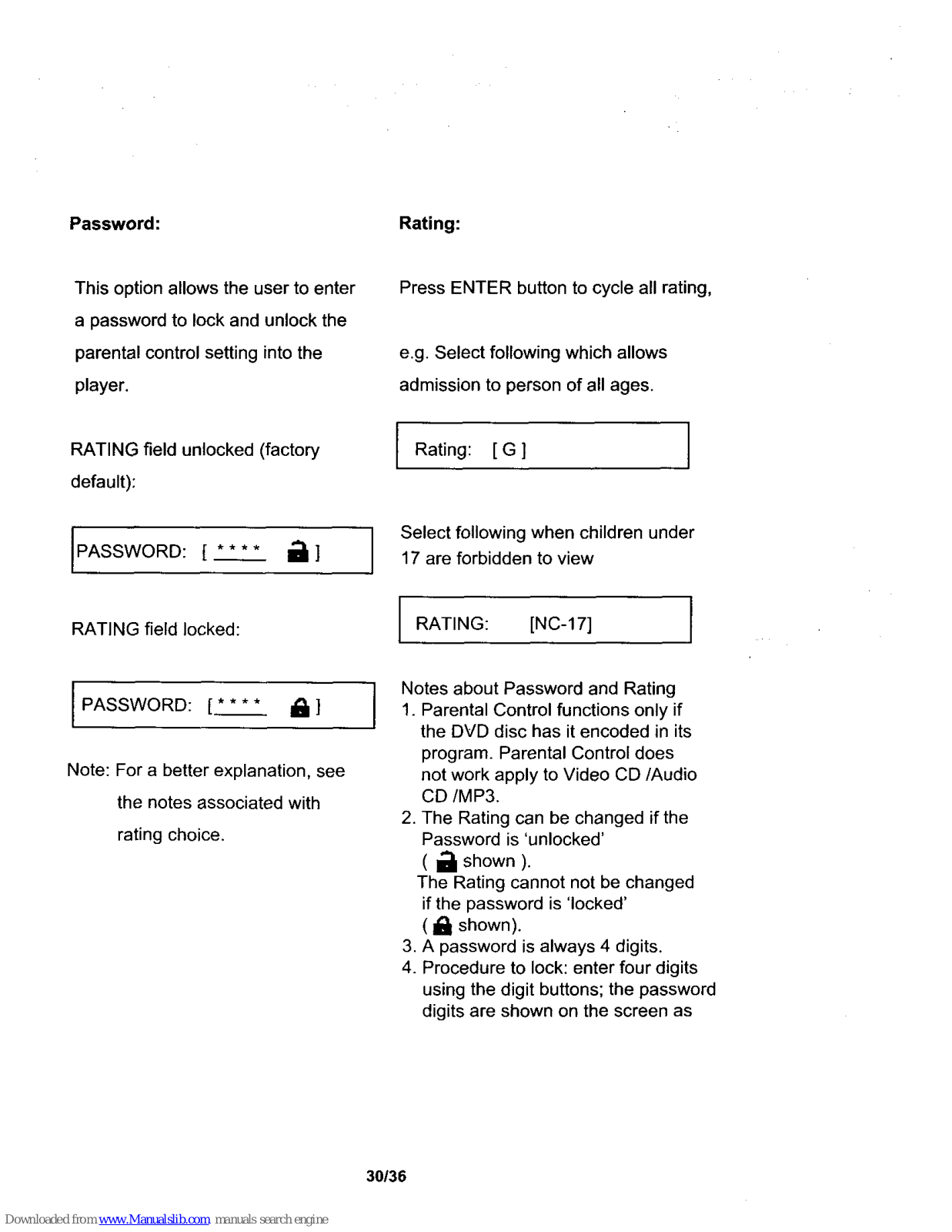

Password ....................................................................................... 30/36
Rating Choices ................................................................................. 30/36,31/36

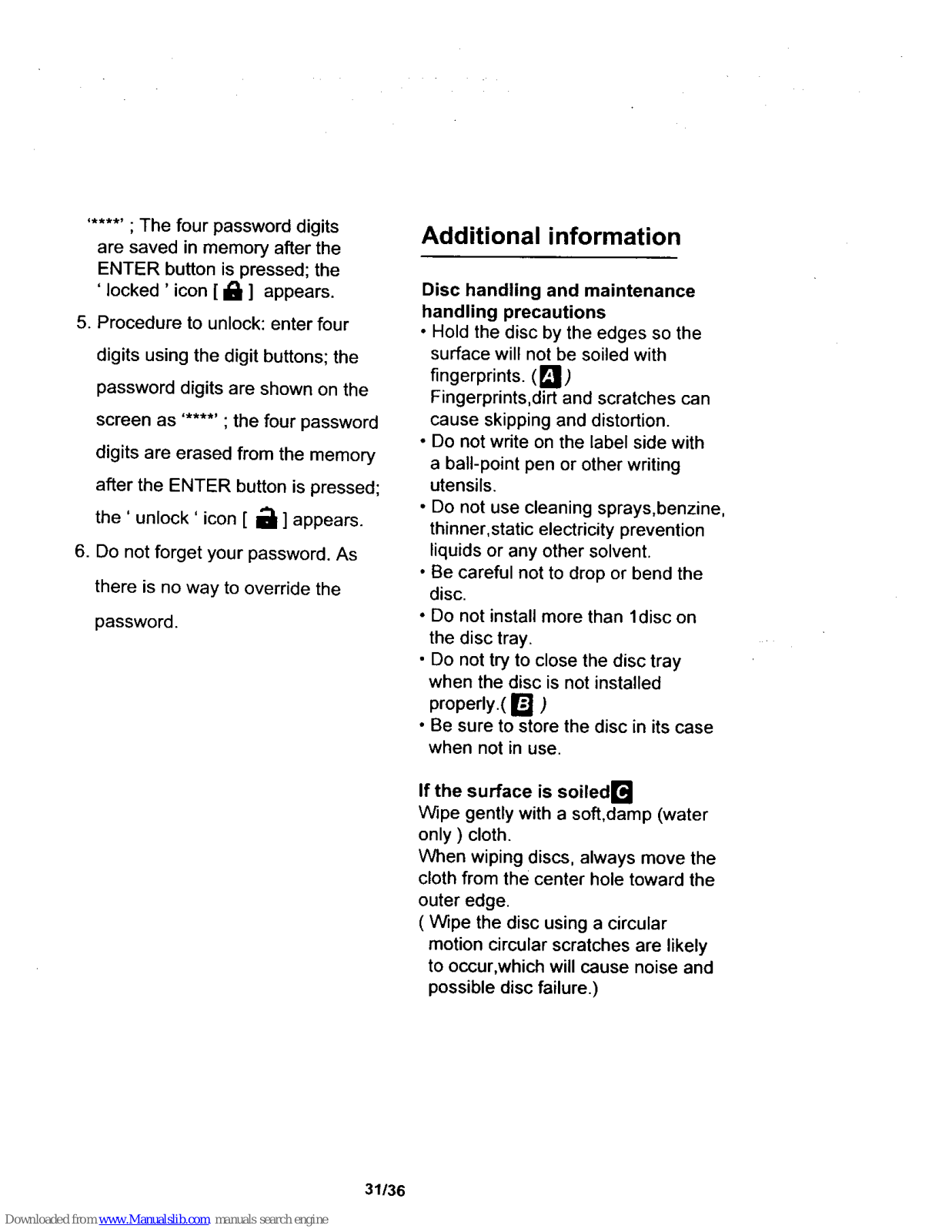

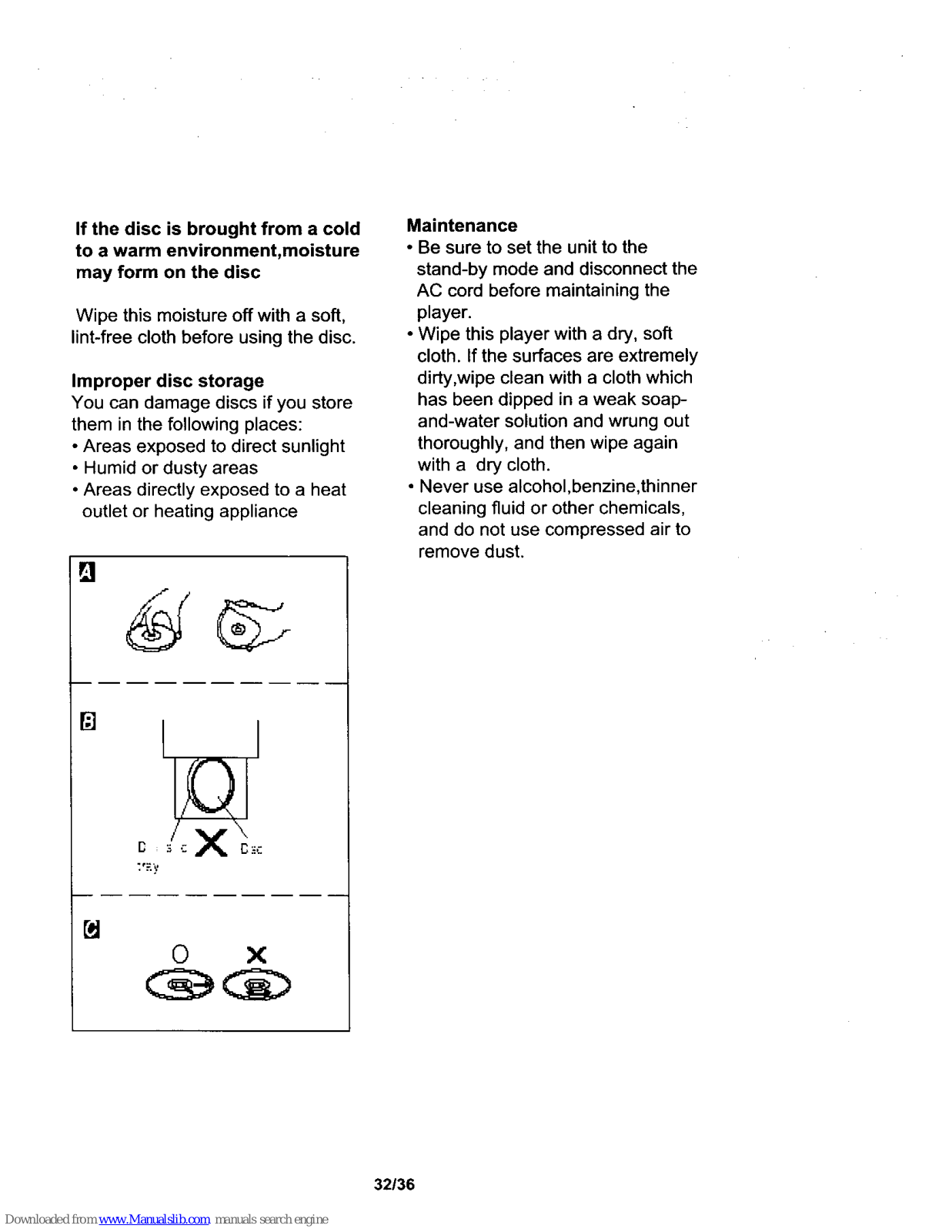

DISC HANDLING AND MAINTENANCE ................................................... 31/36,32/36

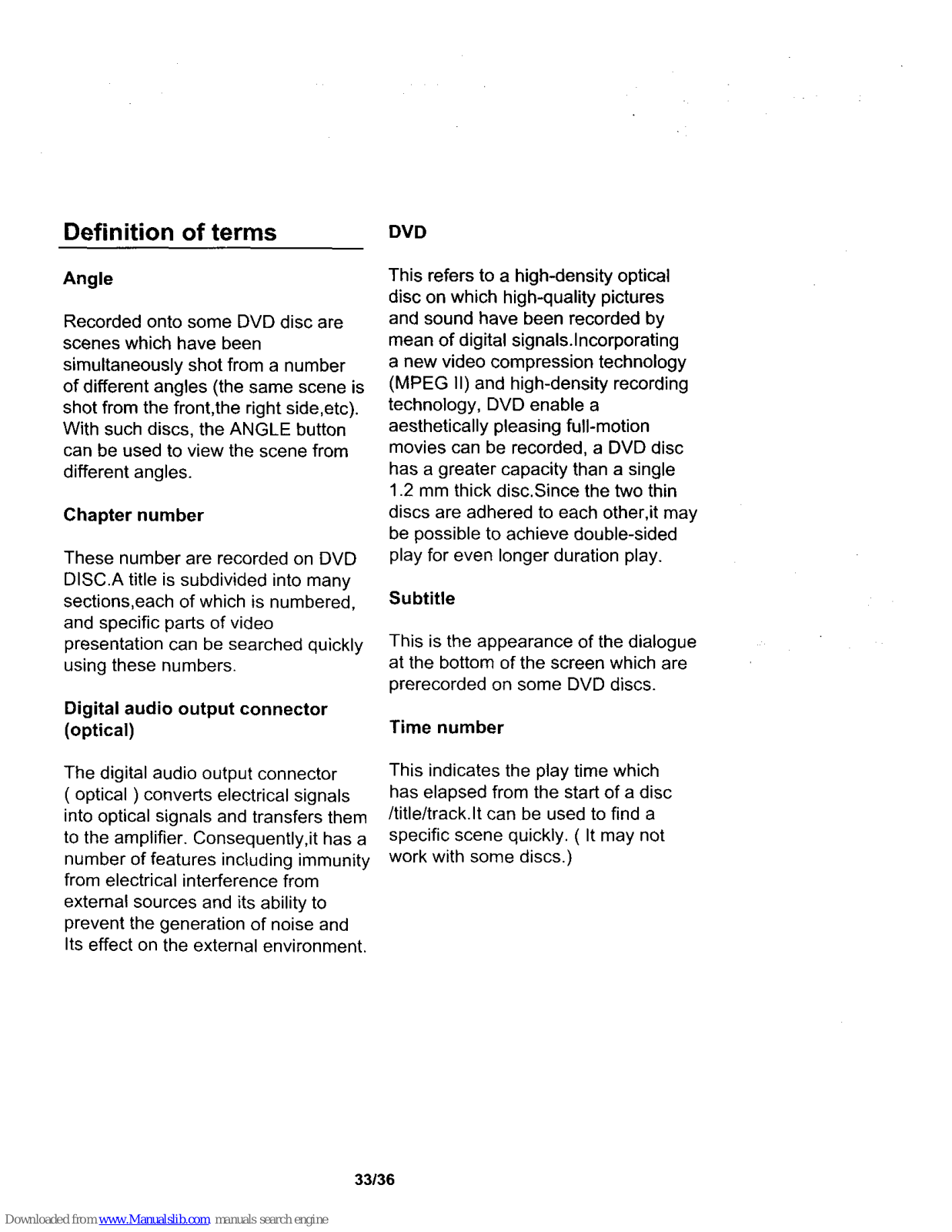

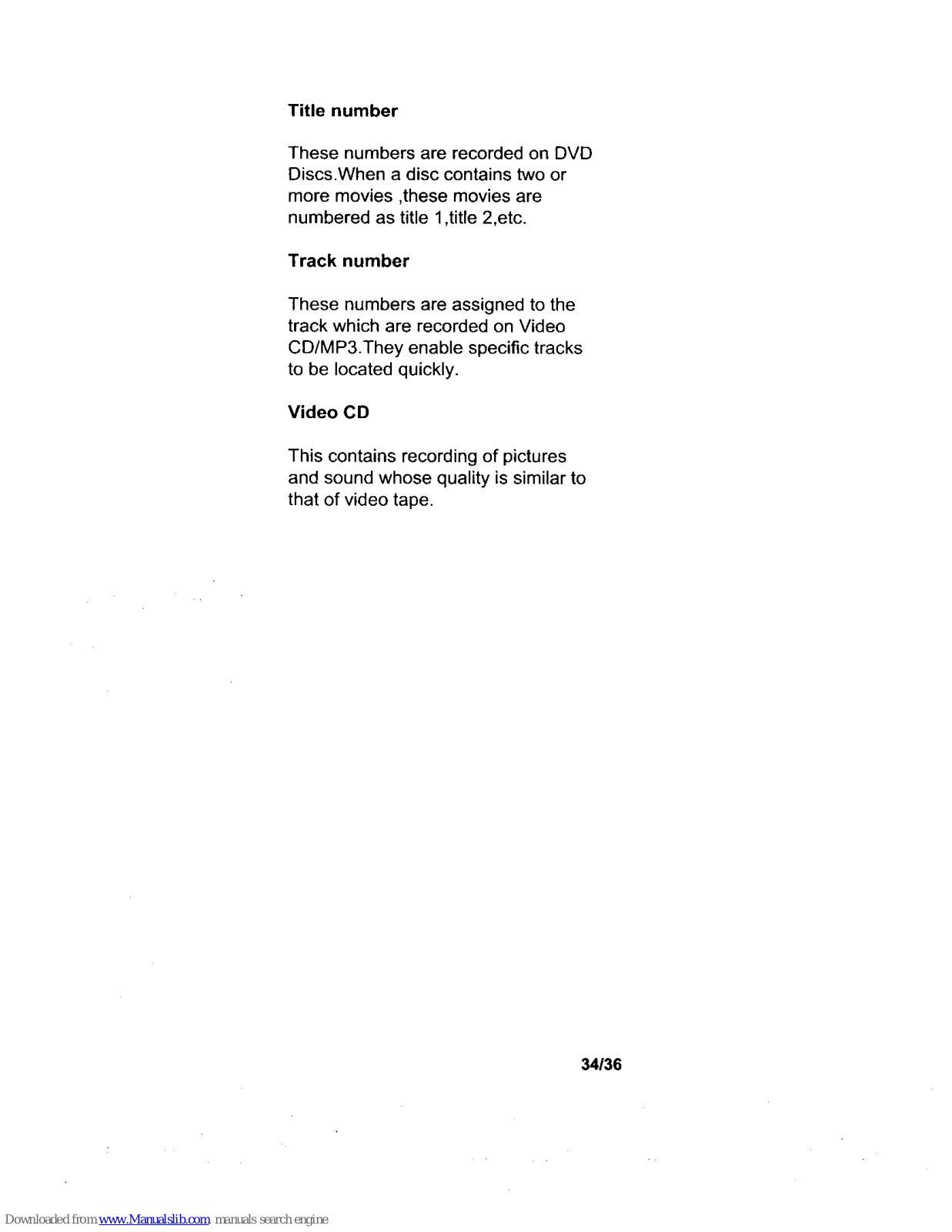

DEFINITION AND TERMS ..................................................................... 33/36,34/36

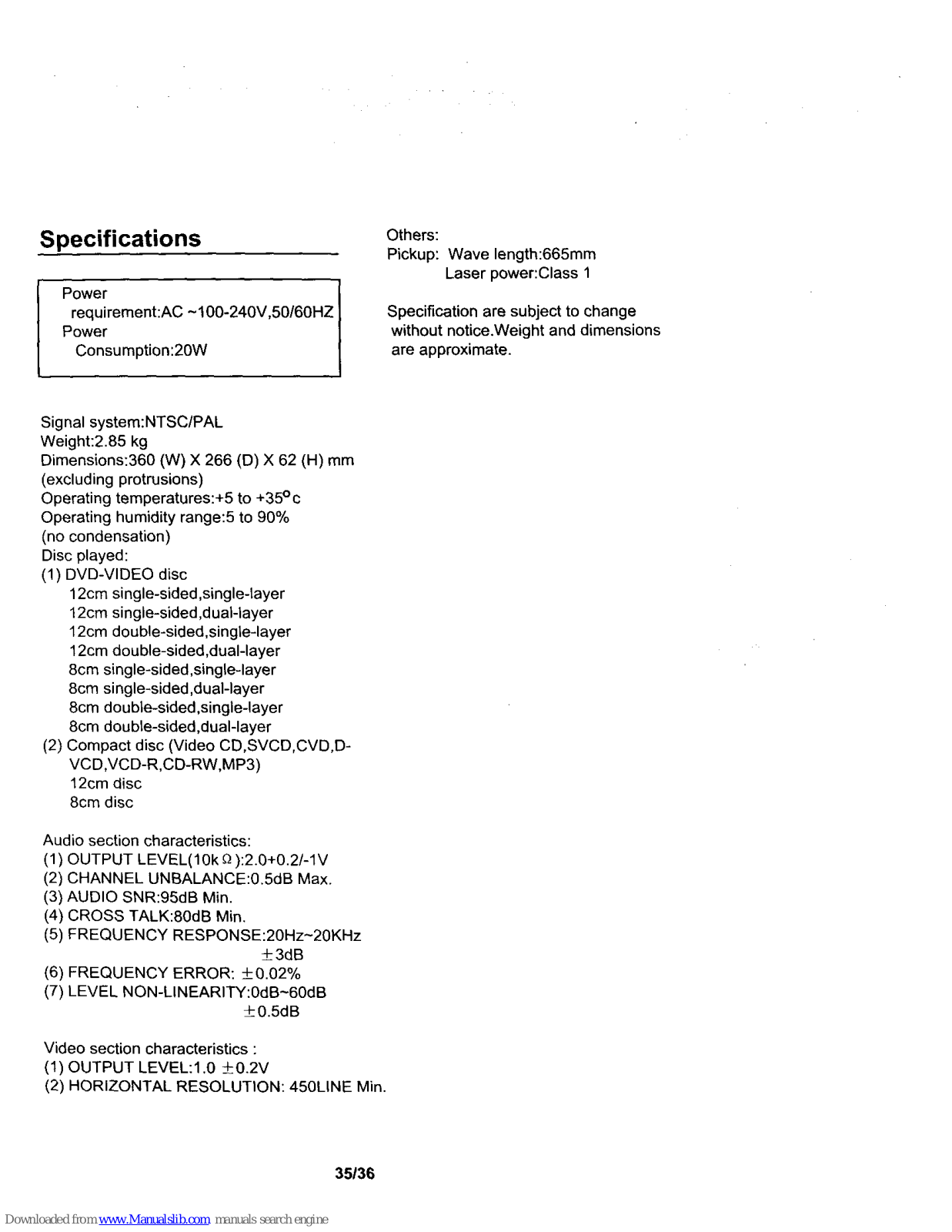

SPECIFICATIONS .............................................................................. 35/36

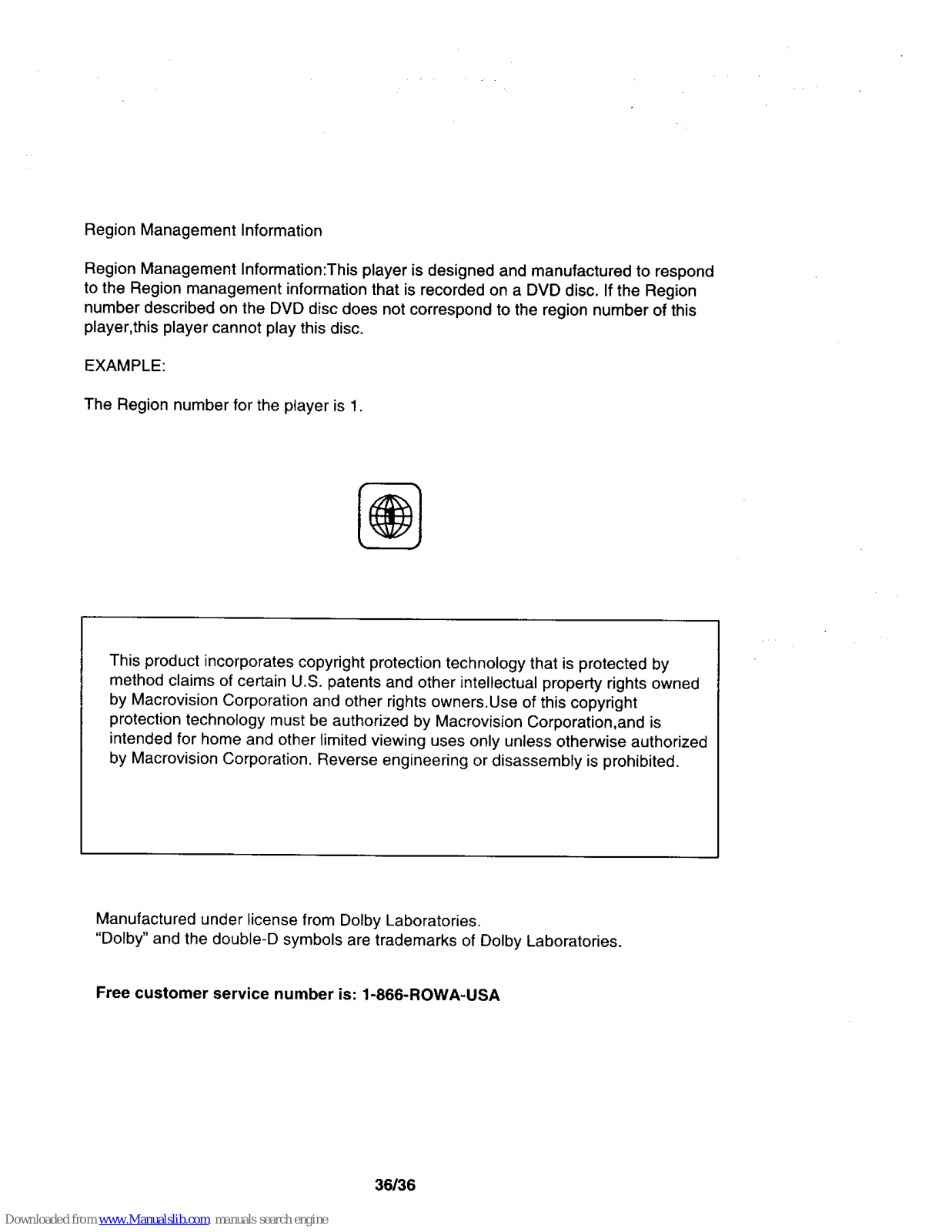

REGION MANAGEMENT INFORMATION ................................................. 36/36
4/36

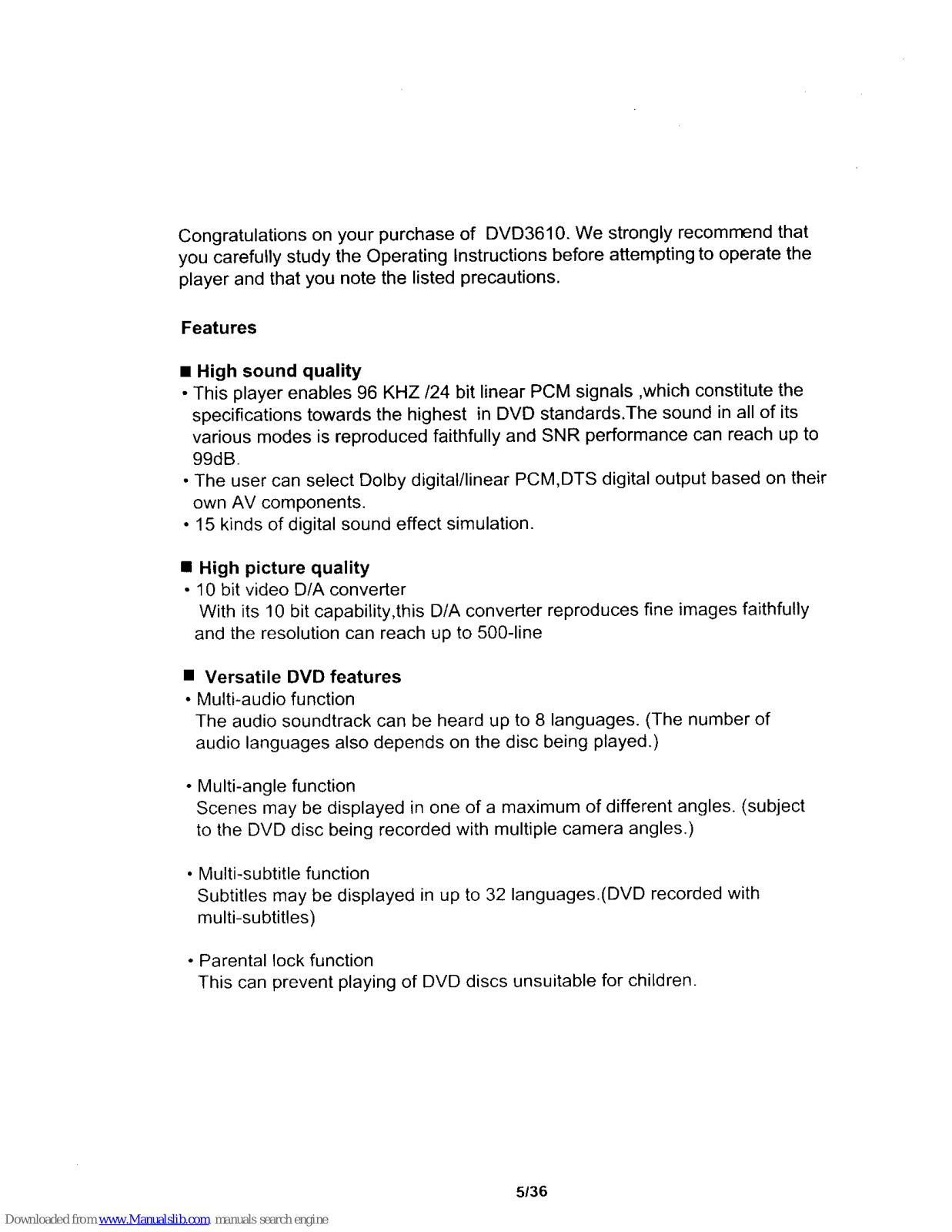

Congratulations on your purchase of DVD3610. We strongly recommend that
you carefully study the Operating Instructions before attempting to operate the
player and that you note the listed precautions.
Features
• High sound quality
• This player enables 96 KHZ/24 bit linear PCM signals ,which constitute the
specifications towards the highest in DVD standards.The sound in all of its
various modes is reproduced faithfully and SNR performance can reach up to
99dB.
• The user can select Dolby digital/linear PCM,DTS digital output based on their
own AV components.
• 15 kinds of digital sound effect simulation.
• High picture quality
• 10 bit video D/A converter
With its 10 bit capability,this D/A converter reproduces fine images faithfully
and the resolution can reach up to 500-line
• Versatile DVD features
• Multi-audio function
The audio soundtrack can be heard up to 8 languages. (The number of
audio languages also depends on the disc being played.)
• Multi-angle function
Scenes may be displayed in one of a maximum of different angles. (subject
to the DVD disc being recorded with multiple camera angles.)
• Multi-subtitle function
Subtitles may be displayed in up to 32 languages.(DVD recorded with
multi-subtitles)
• Parental lock function
This can prevent playing of DVD discs unsuitable for children.
5136

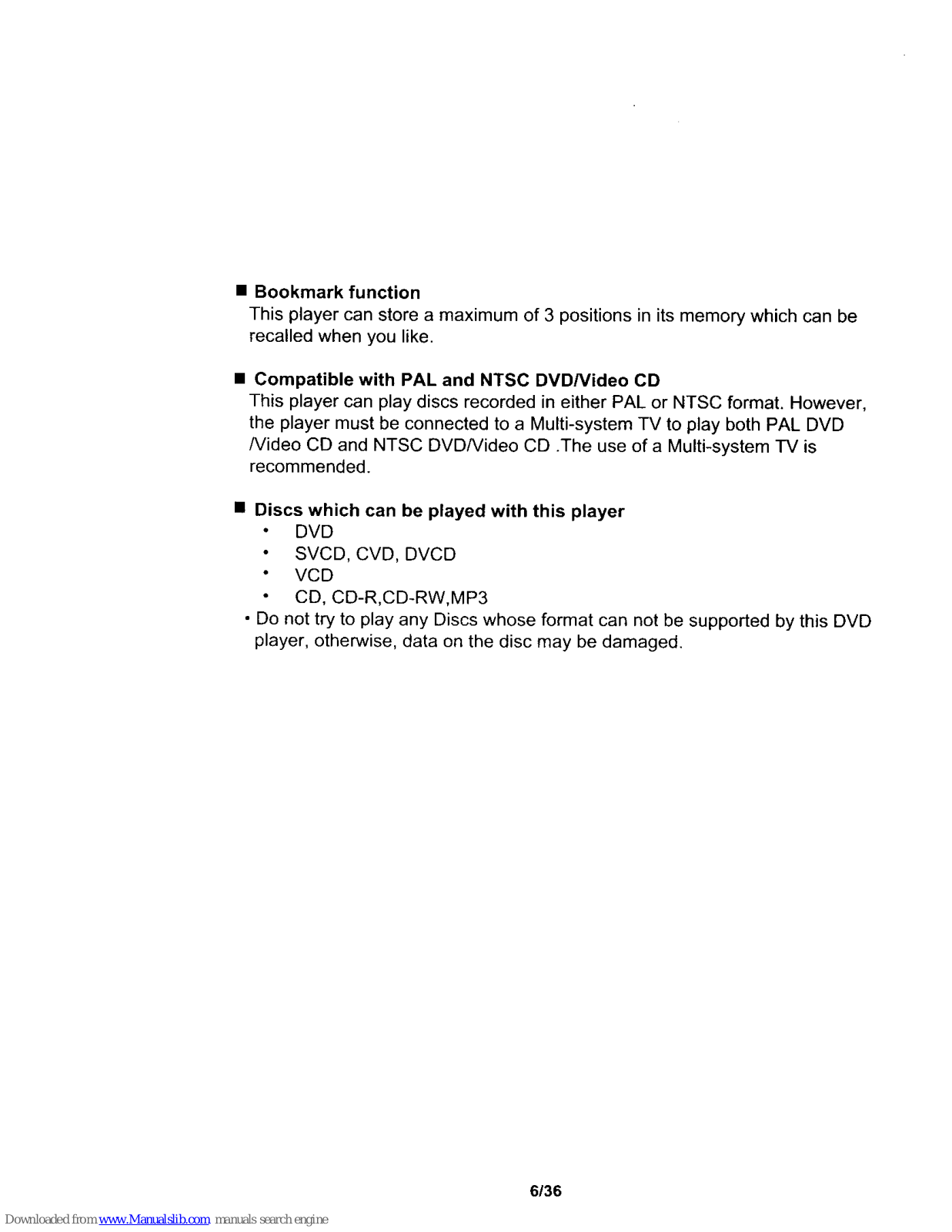

• Bookmark function
This player can store a maximum of 3 positions in its memory which can be
recalled when you like.
• Compatible with PAL and NTSC DVDNideo CD
This player can play discs recorded in either PAL or NTSC format. However,
the player must be connected to a Multi-system TV to play both PAL DVD
/Video CD and NTSC DVD/Video CD .The use of a Multi-system TV is
recommended.
• Discs which can be played with this player
DVD
SVCD, CVD, DVCD
VCD
CD, CD-R,CD-RW,MP3
• Do not try to play any Discs whose format can not be supported by this DVD
player, otherwise, data on the disc may be damaged.
6/36

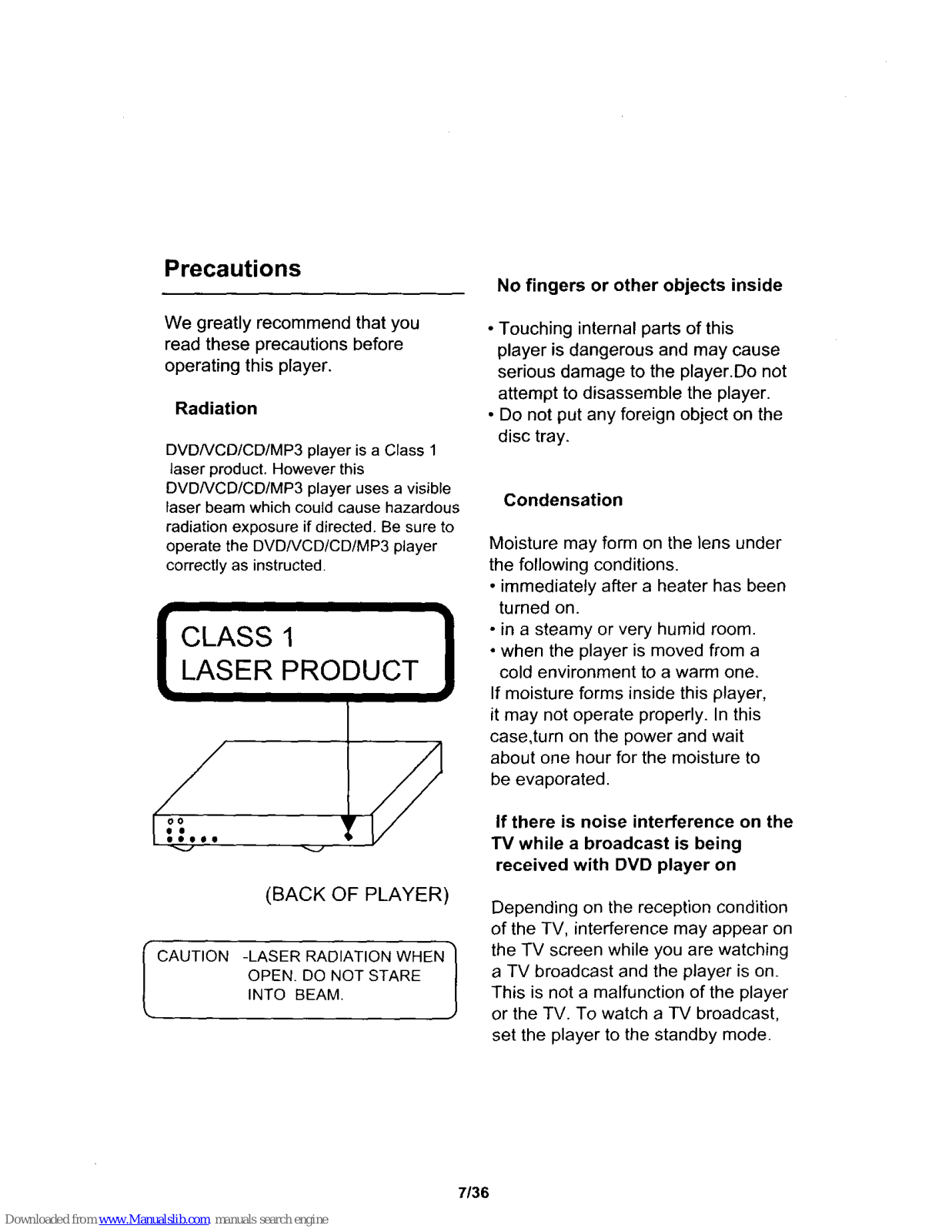

Precautions
We greatly recommend that you
read these precautions before
operating this player.
Radiation
DVD/VCD/CD/MP3 player is a Class 1
laser product. However this
DVDNCDICD/MP3 player uses a visible
laser beam which could cause hazardous
radiation exposure if directed. Be sure to
operate the DVD/VCD/CD/MP3 player
correctly as instructed.
l CLASS 1 }
LASER PRODUCT
(BACK OF PLAYER)
CAUTION -LASER RADIATION WHEN
OPEN. DO NOT STARE
INTO BEAM.
No fingers or other objects inside
• Touching internal parts of this
player is dangerous and may cause
serious damage to the player.Do not
attempt to disassemble the player.
• Do not put any foreign object on the
disc tray.
Condensation
Moisture may form on the lens under
the following conditions.
• immediately after a heater has been
turned on.
• in a steamy or very humid room.
• when the player is moved from a
cold environment to a warm one.
If moisture forms inside this player,
it may not operate properly. In this
case,turn on the power and wait
about one hour for the moisture to
be evaporated.
If there is noise interference on the
TV while a broadcast is being
received with DVD player on
Depending on the reception condition
of the TV, interference may appear on
the TV screen while you are watching
a TV broadcast and the player is on.
This is not a malfunction of the player
or the TV. To watch a TV broadcast,
set the player to the standby mode.
7/36

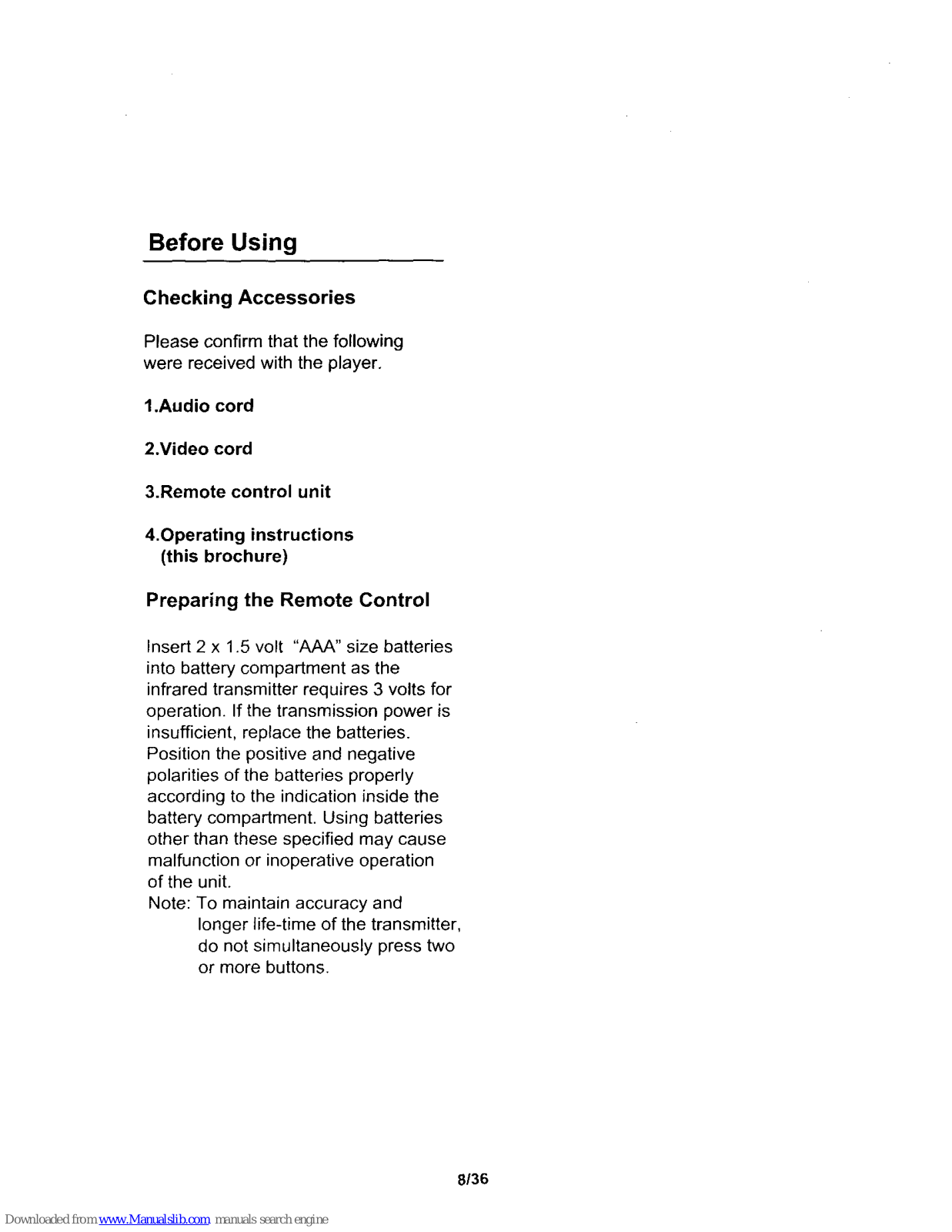

Before Using
Checking Accessories
Please confirm that the following
were received with the player.
1.Audio cord
2.Video cord
3.Remote control unit
4.Operating instructions
(this brochure)
Preparing the Remote Control
Insert 2 x 1.5 volt "AAA" size batteries
into battery compartment as the
infrared transmitter requires 3 volts for
operation. If the transmission power is
insufficient, replace the batteries.
Position the positive and negative
polarities of the batteries properly
according to the indication inside the
battery compartment. Using batteries
other than these specified may cause
malfunction or inoperative operation
of the unit.
Note: To maintain accuracy and
longer life-time of the transmitter,
do not simultaneously press two
or more buttons.
8/36

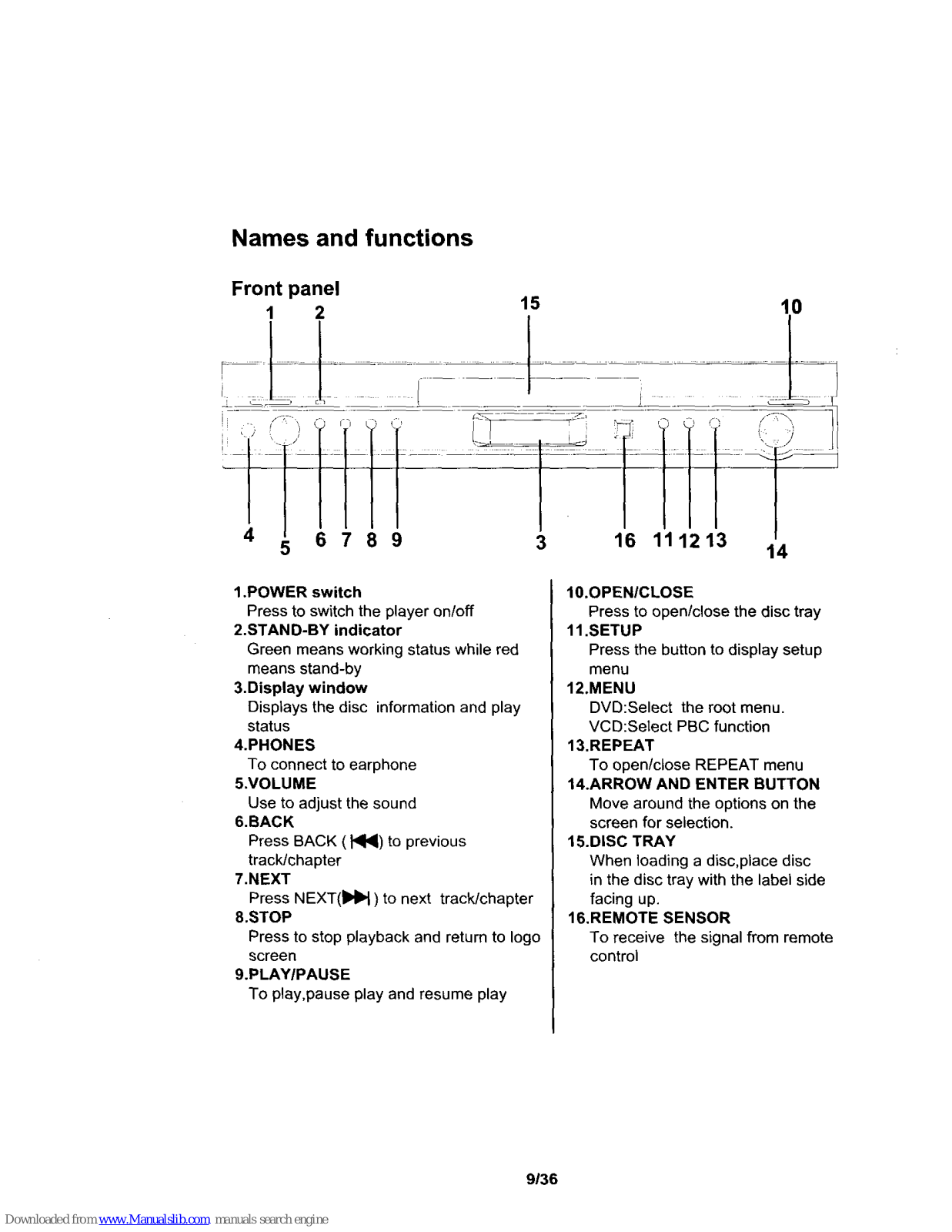

Names and functions
Front panel
1 2 15 10
4 5 6 7 8 9 3 16 111213 t4
1.POWER switch
Press to switch the player on/off
2.STAND-BY indicator
Green means working status while red
means stand-by
3.Display window
Displays the disc information and play
status
4.PHONES
To connect to earphone
5.VOLUME
Use to adjust the sound
6.BACK
Press BACK (_) to previous
track/chapter
7.NEXT
Press NEXT(_ ) to next track/chapter
8.STOP
Press to stop playback and return to logo
screen
9.PLAY/PAUSE
To play,pause play and resume play
10.OPENICLOSE
Press to open/close the disc tray
11.SETUP
Press the button to display setup
menu
12.MENU
DVD:Select the root menu.
VCD:Select PBC function
13.REPEAT
To open/close REPEAT menu
14.ARROW AND ENTER BUTTON
Move around the options on the
screen for selection.
15.DISC TRAY
When loading a disc,place disc
in the disc tray with the label side
facing up.
16.REMOTE SENSOR
To receive the signal from remote
control
9136
Front Panel Display .... LCD Backlight Display
The following is one display example
1
3 4
1.Media type :
"DVD" for DVD disc
"VCD" for VCD 1.1/2.0
"CD" for audio CD
"MP3" for MP3 disc
2.TITLE/CHAPTER/TRACK indicator
T1C8
for DVD,means title 1 chapter 8
Track 03
is for Video CD/Audio CD and MP3
disc.
3. Operational status indicator
Indicate the current operational
status such as
play,stop,open,loading etc.
""" : stop status
"_'" : play status
"OPEN":Tray is open
"LOADING":Disc is loading
4.Time indicator
03:16
Indicate the elapsed time of the
current chapter/track in sequence
of mm:ss
10/36
Rear Panel
9 3
° o
_ J ,:_'_ _,_,Ik_:,: I 4qL CAUTIOM /I= I _ _ _'_:'_--
7 654 2
1. Antenna in jack
Connect to the external antenna
2. RF out jack
To connect the RF signal to the
antenna terminal of a TV unit.
3. Channel select switch
To select between 3 or 4 channels
for a better video and audio quality.
4. Optical output jack
Use to deliver the digital audio
signal recorded on discs to an AV
amplifier or receiver.
5. Audio OUT jacks
Use to connect two-channel audio
audio ( analog ) to the audio stereo
input on a TV or stereo amplifier.
if the unit is connected to a receiver
that has both digital and analog
input jacks for DVD player
connection, it may be beneficial to
make both connections.
6.Coaxial output jack
Use to connect the digital audio
signal recorded on discs to an AV
amplifier or receiver.
7.S-VIDEO out jack
If your TV or monitor has an S-video
input, better picture reproduction is
possible by connecting the player to
your TV or monitor via the S-Video
jack.
8. Y,U(Ob),V(Cr)
If your TV or monitor has an
Y,U(Cb), V(Cr) inputs,higher quality
picture reproduction is possible by
connecting the player to your TV or
monitor via the Y,U,V inputs.
9.VIDEO out jack
Connect to the Video input on a TV
or monitor or AV amplifier or
receiver with video input capability.
Note: [] Means double-layer insulation
11/36
Remote Control
oo0o
0 0 '0<B.
_ Ii rtEpL_y
0 0 0 "_0
6 -",d
0 0 D O
' { j ( ) _ i
QDE_
©, ,:_ ,Q
0,0
, x
i
'0 0:0:
ROWA
i;!
i,
i
Button Descdption
POWER Switch between stand-by and working
status
CLEAR Clear a numeric entry/bookmark
DISPLAY . Display time and disc play status
AUDIO Select audio languages for your preference
ZOOM Zoom the picture in different modes
(lx,2x,3x,off)
SUBTITLE Select the subtitle languages for your
preference
DIGIT,0-9 Enter the track or chapter/title or time
REPEAT Repeat the whole disc or tigetchapter or
track of the disc based on your choice
REPEAT A-B Select specific segment for repeat
MODE Select play or repeat mode
ANGLE Multi-angle DVD only :select angle of scen_
TITLE multi-title DVD only:Show the title of disc
SET UP Select SETUP menu
ENTER Input / switch
RETURN Return to root menu state
PROGRAM Program tracks or chapters/tiges to play
BACK/NEXT Skip to back/next track / chapter
STOP Stop playing
PLAY/PAUSE To play,pause and resume play
SLOW Slow forward/backward play
FAST Fast forward/backward play
BOOKMARK Bookmark setting (up to 3 locations)
L/R Select left/right audio channel
3D Select 3D stereo enhancement
VOLUME +/- Increase/decrease Ihe sound level
SEARCH Search specific time or tracldtitle/chapter te
play
MENU Select root menu or PBC function
MUTE Select mute on/off
12/36
Basic connection
• Ensure that this player and any other equipments to be connected are all set to standby
mode or off position and disconnect the AC cord before commencing connection.
• Do not block ventilation holes of any of the equipments and arrange them so that air can
circulate freely.
• Read through the instructions before connecting other equipments.
• Ensure that you observe the color coding when connecting audio and video cables,
• Refer to the following tables for details on what equipments can be connected to this
player,and what cables are required.
Video equipment you own
Standard (Direct view TV)
Conven{ional TV set t4:3)
Wide -screen TV set
(16:9) etc
CRT Projector LCD Projector Projection TV
Cinema-size images can be en oyed Cinema -size image can be enjo)yed Powerful images impossible with
by projeelion from three ligh_ sources b_ projecting from an LCD panel 1o CRTV can be enjoyed by projectin_
on to a large screen a/arg_ screen on 10 a large film
A /A, x
Video
÷® ®
S Vide° inp#t c;a_ / R t/" C_ I t OUTDOORS A_ NNA
0 $ 0 $00
=-- O
=.-_-.F-.=._.--2
AC PLUG
o
P@
-t
13/36
• Optional audio connection
Audio equipment (Analog connection)
Audio equipment
Connector types
- Audio
Back of the player
cable (optional)
Optical digital audio_
cable (optional) I
Olg t_l @ud Q npu eonnec ors
;/
Audio equipment lDigital connection)
-- Coaxial audio
cable (optional)
Connectortypes
D
Dolby Digital decoder and AV amplifier (if applicable)
14/36
Optional audio connections
Enjoying digital audio output from the
digital audio output connector
Note when connecting the optical
digital audio cable (optional)
• Remove the dust protection cap
from the optical digital audio output
and connect the cable firmly so that
the configurations of both the cable
and the connector match.
• Keep the dust protection cap to
protect against dust,always reattach
the cap when not using the connector.
• Sound from the microphone will
not be output from the digital audio
output connector.
Considering the audio output from the
player's optical/coaxial digital audio
output connector.The type of audio
output from the connector can be
selected by "Digital output choice "in
"PLAYER CONFIGURATION VIA
SETUP MENU"
The following list out the format of
Digital output for different types of
disc.
Disc Sound recording Optical/coaxial digital
audio output connector
Dolby Digital Dolby Digital bitstream
5.1 channel (1-5.1ch) or PCM(2ch)
(48KHZ/16 bit)
DVD
Linear PCM Linear PCM(2ch)
(48 !96KHZ (48KHZ sampling/16bit
16/20/24bit) only) or no output
Video MPEG 1 PCM
CD (44.1 KHZ sampling)
CD Linear PCM Linear PCM
(44.1 KHz sampling)
15/36
BASIC PLAYBACK
The basic playback function are the
minimum functions used to play a
disc. All are accessed directly
through the front panel or the
remote control.
Powering on the player, inserting
a disc and playing it
• Insert the AC plug into the mains
AC outlet.
• Press POWER button on the front
panel.
* If there's a disc in the tray,the unit
will begin to read the disc.
• Press OPEN/CLOSE button on
the front panel or remote control,
the DISC TRAY will pop out.
• Insert a disc.
• Press OPEN/CLOSE button on the
front panel or remote control to
close the disc tray. The unit will
begin to play the disc.For the first
several seconds, the LCD will
display "LOADING" which is
flickering until disc has been
recognized. And MP3 disc will
spend more time for being
recognized
*If the unit enter "stand-by"mode,
press one of 5 buttons(OPEN/
CLOSE,BACK,N EXT,STOP,PLAY
/PAUSE) on the front panel to
make the unit be in working status.
Pausing playback
• Press PLAY / PAUSE button once
to pause playback. The sound is
muted during PAUSE mode.
• Press PLAY/PAUSE button again to
resume normal playback.
Stopping playback (showing of the
DVD Logo screen ) and resuming
playback after stopping.
• Press STOP button to stop playback
and this will show the logo screen.
The unit will memorizes the location
where playback is stopped.
• Press PLAY/PAUSE button to
resume playback from the location
where playback is stopped
Fast forward/backward
(remote control only)
•Press FAST FORWARD/BACKWARD
button to fast forward / backward
through the disc.
• Each time the FAST FORWARD/
BACKWARD button is pressed,the
fast motion speed changes in
sequence of 2X,4X,8X,20X of the
normal speed correspondingly.
• Press PLAY/PAUSE button to
resume normal playback.
Slow forward/backward
(remote control only)
• Press SLOW FORWARD/BACKWARD
to play a disc in slow motion.
• Each time the SLOW FORWARD/
BACKWARD button is pressed, the
slow motion speed changes in
sequence of 1/2, 1/4,1/6,1/7 of the
normal speed correspondingly.
• Press PLAY/PAUSE button to
resume normal playback.
16/36
Skipping to the bacldnext
chapterltrack
• Press BACK/NEXT button to skip
to the beginning of the back/next
chapter (DVD) or track
(VCD,audio CD,MP3).
Note: Playback resumes in normal
speed after skipping to the
beginning of a track or chapter.
Using SEARCH to jump to a
specific time or Track/Title/Chapter
1.For VCD and audio CD
(OSD)
Disc Search
Time 00:00:00
Track
2.For DVD
(example)
To play a spot at 1:23:45
Press 1,2,3,4,5 button, ENTER;
(OSD) TIME: 1 : 23 :45
• To jump to the beginning of a specific
track,select TRACK and enter the
TRACK number ,press ENTER button
• To jump to the beginning of a specific
Title/Chapter, select Title/Chapter or
both and enter the Title / Chapter
number as followings:
(example)
To play TITLE 2 CHAPTER 4
Press "2" button,ENTER;Press
ARROW button '11,,"to move
the cursor to the next "---",then
press "4"button,ENTER
(OSD)
TITLE/CHAPTER 2/4
(OSD)
Time 00:00:00
Title/Chapter /
• Press ARROW button to select the
type of search, either a time search
or Title/Chapter/Track search.
• To jump to a spot in time on the
disc, select Time and enter the time
in sequence of hh:mm:ss ( hours,
minutes,seconds) as followings:
17/36
ADVANCED PLAYBACK
Enable TITLE function
(for multi-title disc only)
(remote control only)
For DVD only
• Press TITLE to show the title of disc
• Press ARROW buttons to highlight
selected Title Menu entry.
• Press ENTER to select highlighted
entry. The unit will begin to play
the selected unit
Enable MENU function
For DVD
• Press MENU button to display the
root menu
• Press ARROW buttons to highlight
selected menu entry.
• Press ENTER to select highlighted
entry.The unit will begin to play after
selection.
For VCD
• Select PBC function
Use REPEAT A-B to repeat a
specific segment
( DVD,VIDEO CD and audio CD)
(remote control only)
Press REPEAT A-B once at the
beginning of the segment ( point A)
you want to play repeatedly.The OSD
will display:
(OSD) H_ A-
Press A-B again at the end of the
segment(point B). The OSD will
display:
(OSD) H_ B-
Note:The player automatically return
to point A and starts repeat
playback of the selected
segment (A-B).
Press A-B a third time to cancel
REPEAT A-B playback and allow
playback to continue in normal fashion.
The OSD will display:
(OSD) H_ OFF
18/36
Use BOOKMARK Function
(remote control only)
• Press BOOKMARK to enable the
BOOKMARK Menu. The OSD will
display the following:
BOOKMARK 1 : :
BOOKMARK 2 : :
BOOKMARK 3 : :
• Press the UP/DOWN buttons to
select which bookmark to set.
• Once the desired point during
playback is reached, press ENTER
to set the selected bookmark to the
current time.
• To jump to a particular bookmark,
select a bookmark with a time value
and press ENTER, playback will
jump to that spot on the disc within
5 seconds for DVDs and VIDEO
CDs and audio CDs
• To clear a bookmark entry, select a
bookmark with a time value and
press CLEAR button.
• Press BOOKMARK again to close
the BOOKMARK menu.
REPEAT PLAY
• Press REPEAT button to display
current repeat mode.
• Successive presses of "ENTER"
button change the mode in circular
fashion.
Three Repeat modes for DVD:
OFF,Chapter,Title
Three Repeat modes for VCD,Audio
CD,MP3 disc:OFF,ALL,SINGLE
OFF=REPEAT mode disabled.
(OSD) REPEAT:[OFF]
TITLE/ALL=Repeat entire title / all
disc. When playback reaches the
end of the title or disc,playback will
resume at the beginning of the
title/disc.
(OSD) REPEAT:[TITLE]//ALL]
CHAPTER/SINGLE =Repeat current
chapter/track. When playback
reaches the end of the current
chapter/track,playback will resume
from the beginning of the
chapter/track.
(OSD) RE PEAT:[CHAPTE R]/[-FRACK]
PLAY MODE SELECTION
(remote control only)
• Press MODE button to select MODE
menu.
(OSD ex.)
Play mode
Mode off
OK Cancel
Press ENTER button briefly and
repeatedly to cycle all the modes:
shuffle/program/off. Once get your
desired mode, move the cursor to
"OK" then press ENTER.
19136
Shuffle= play all the chapters/tracks
in random order.
Program=Play the programmed
title/chapter/tracks in your
desired order(see "enable
programmed playback
mode" for detail)
Press MODE button again or
PLAY/PAUSE button to exit the menu
Enable programmed playback
Mode(remote control only)
For VIDEO CD and AUDIO CD
• Press PROGRAM button to enable
the PROGRAM menu.
< OSD>
Program Track
1 ._ 4 7 10
2 5___ 8 11
3 6 9 __ 12 ......
CLEAR ALL Play Program Cancel
For DVD MODE
• Press PROGRAM button to enable
the PROGRAM menu.
Program Title/Chapter
1 4 7 10
2 5 8 11
3 6 9 12
CLEARALL Play Program Cancel
• Press the arrow buttons to select
entry.
• For VCD and Audio CD,enter a
number from the remote control
referencing the designated track.
For DVD enter a number
respectively for title and chapter,
referencing the designated title and
chapter to play.
• Repeat this process until your
desired tracks/tRies/chapters have
all been programmed
• Then move the arrow button to
select Play Program and press
ENTER.Meanwhile the unit will begin
to play title/chapter#1 or track#1.
Once that title/chapter or track has
been finished playing, playback will
jump to the title/chapter #2 or
track #2 and so on.
• If you want to change the
programming,press the ARROW
button to select the Title / Chapter
or Track to change,then enter your
desired ones again by overwriting
the old ones.
• If you want to clear the programming,
select CLEAR ALL and Press
ENTER button,all the input will be
cleared.
• Press PROGRAM button again to
close OSD.
Note:Press STOP first before
pressing Program button
20/36
3D sound effect(remote control only)
• 3D audio post-process can produce a
virtual multi-channel audio effect using
only two speakers where applicable.
• Press 3D button and OSD will show the
current 3D status.
(OSD) 3D on (1st press)
• Successive presses of 3D will switch
3D sound effect between 3D on and
3D off.
(OSD) 3D off (2nd press)
(OSD) 3D on (3rd press)
Note: You may hear a difference in
volume between normal and 3D
enhanced sound.
Note: 3D enhancement cannot be
activated if the AUDIO OUT
setting in the Setup Menu is
BITSTREAM.
Note: 3D enhancement may not
function depending on the
recording system(Dolby digital,
MPEG,PCM).
Selecting subtitles (DVD only)
(remote control only)
• Press SUBTITLE button,OSD will show
the current subtitle choice.This unit
support 3 kinds of subtitle choice and
subtitle off mode.
(OSD ex.1) _ 1 Eng (1st press)
• Successive presses of SUBTITLE
button will choose other subtitles in
circular fashion.
(OSD) _} 2 Spa
(OSD) _ 3 Fre
(OSD) _ off
(2ndpress)
(3_d press)
Note: When you turn on the player
or replace a disc.The player
returns to the default setting.
Note: for DVD only
Using DISPLAY to view time and
play status
(remote control only)
• Press DISPLAY once and OSD will
display the amount of time played
and the remaining time to be played
on the disc. For example, the OSD
will display:
(OSD ex.) 00:00:06 02:14:18
• Press Display again for OSD to
additionally display the current
track and the total number of the
tracks (for audio CD and VCD);
the current title ,chapter and angle,
audio ,subtitle mode and the total
number of titles,chapters,angle
(for DVD only).
21/36
(OSD ex.)
DVD 00:00:06 02:14:18
Title 1/5 Chapter 2/12 i_ Angle 1/1
Audio 1_ 1 Eng iillil 5.1 Ch
Subtitle _ off
• Press DISPLAY a third time to
close OSD.
Note: For some discs,they will display
the spectrum plot for the third
press.
Viewing from a desired angle
(For DVD with multi-angle only)
(remote control only)
• You can select a camera angle when
viewing DVDs
• Press ANGLE will display the current
angles
(OSD) i_ 1/2
• Successive presses of "ANGLE"
button will choose other angle
settings
Using Audio to change the audio
language (remote control only)
(for multi-language DVD only)
• Press AUDIO to display the
current audio language option
the unit can support 3 kinds of
audio language
(OSD) [_ 1 Eng lilli] 5.1ch
• Successive presses of "Audio"
will select other options in circular
fashion
(OSD)[_ 2 Spa iill_ 5.1ch
(OSD)I_ 3 Fre lillil 5.1ch
Using L/R to change the sound
Channel
(for VCD and audio CD only)
(remote control only)
• Press L/R button to display the
currently selected sound channel.
(OSD)
L/R MODE Mix
(OSD) _(_ 2/2
22/36
• Successive presses of" L/R" button
will chose other three settings.
(OSD)
L/R MODE Stereo
(OSD)
L/R MODE Left
(OSD)
L/R MODE Right
Press L/R to close OSD
MUTE function
(remote control only)
• Press MUTE button to enable MUTE
function.
(OSD) I_
• Press MUTE again to recover the
sound.
Using ZOOM to change the size of
Picture(remote control only)
You can use ZOOM to change the
Picture size in four modes:Ix,
2x,3x,off
If your units is in normal picture size,
Press ZOOM,the picture will be
Zoomed lx
(OSD) ? 1(1 st press)
Successive presses will change the
Picture to the other size:
(OSD) £ 2 (2 nd press)
(OSD)/O 3 (3 rd press)
23/36
About MP3 disc
Create your MP3 disc:
• use .mp3 as the extension to
save audio files onto CD-R(W) or CD
ROM,e.g.Michael08.mp3.Do not use
any other extensions e.g..doc ,.txt,.
pdf,etc.,when making audio files into
MP3.
• Do not use the .mp3 extension for
text or other non-audio data files.This
may result in serious malfunction of
the set and harmful noise interference.
• Do not attempt to combine CD audio
and MP3 tracks within a CD-R(W) or
CD-ROM,as the set will only be able
to playback your CD audio tracks
from mixed CD formats.
The following chart is a example of a
PC display for a MP3 disc with albums.
an album is shown as an Folder in
Windows Explorer.
(F) CD-ROM driver
_ Song0] .mp3
Song02.mp3
Song03.mp3
' 02
_ Girl04.mp3
_ Girl05.mp3
i _ Gid06.mp3
• 03
jazz07rap3
i k________jazz08 rap3
o4
Clsssic09.mp3
Note:
Classicl0.mp3
Classic11 .mp3
-- Classic12.mp3
._ skipped
Abba01.wav
Abba02.wav
.......I_ Arrow pathway show the
sequence of MP3 album and
track playback.
01-04 means this disc has a total
number of 4 MP3 albums
SongOl-Class12 means the disc has
a total number of 12 tracks.
24/36
Skipped Denotes an album which
contains non-audio files only.e.g..jpg,
.wav,.doc.These cannot be detected
or played on the MP3-CD player and
are hence "skipped".Where an album
contains mixed format files,the
non-MP3 files will be skipped.
Select a track
During MP3 playback,OSD will display
the following information:
(OSD ex.)
r--A
MP3 1 YNJ TRACK 1/88 00:01:49
1 01aa 8 08hh
2 02bb 9 09ii
3 03cc 10 l_j
4 04dd 11 11kk
5 05ee 121211
6 06ff 13 13mm
7 07gg 14 14nn
IL B
C
A: Album number and name
B:Track name
C:Track number
There are 3 choices for you to
select a track:
1.Enter one or two digit directly from the
remote control indicating the track
number.Then press ENTER button to
play it.
e.g. Press digital buttons"4" and "8"
then press Enter.The unit will play
track 48.The time icon will indicate the
elapsed time of current track.
(OSD ex.)
MP3 1 YNJ 48 TRACK48/88 00:00:32
1 01aa 8 08hh
2 02bb 9 09ii
3 03cc 10 10jj
4 04dd 11 11kk
5 05ee 12 1211
6 06ff 13 13ram
7 07gg 14 14nn
2.Press _ or _ button briefly and
repeatedly on the front panel or remote
control to reach your desired track.
Press ENTER button to play it.
3.Look through all the albums in your disc,
then choose your preferred track.
• Using arrow button to highlight the
album number and name.
• Press ENTER button repeatedly to cycle
all the albums and change the current
album choice.
• Press _or I_ button on the front
panel or remote control to highlight
your desired track in the album
• Press ENTER button to play it.
25/36
PLAYER CONFIGURATION VIA
SETUP MENU
How to choose setting options
The Setup Menu lets the user set a
category from Language, Video,
Audio,Rating.
• Press SETUP button will toggle the
SETUP Menu between On and Off.
(OSD)
ing
• Use the arrow buttons (_II liD') to
select the menu you want. As each
menu is selected with ENTER button,
the settings appear below the menu
heading.
• Using the arrow buttons (A/V)
to select the setting you want to
change. As the setting is toggled
with ENTER button, the options
available for each setting appear to
the right.
• Use (A/r) to select setting
options,then press ENTER to toggle
it.
OSD Menu English
Subtitle English French
Audio English Spanish
DVD Menu English
OSD
Note:
on
Setup key cannot be activated
during disc playing. In this case,
press STOP first before
pressing SETUP.
Note: For the settings in audio and
rating, Press ENTER button
continuously to choose the
setting options.
Note: The below will display all the
settings you may meet
Language Video Audio Rating
OSD Menu TV Shape Dolby D Password
Subtitle TV System DTS rating
Audio MP3
DVD Menu Others
OSD
Default
26136
OSD/DVD menu Language Setting:
The user can select English, Spanish,
French for the OSD/DVD language.
OSD/DVD menu in English,select
LANGUAGE: [ENGLISH] I
OSD/DVD menu in French,select
[ LANGUAGE: [FRENCH] 1
Note: Some DVDs may not include
the pre-selected language. In
this case, the player
automatically displays menus
consistent with the disc's initial
language setting.
Subtitle Choices:
The user can select English, Spanish,
French for the subtitle language.
Subtitle preference is primary
language on disc(factory default)
I SUBTITLE: [AUTO] I
Subtitle preference is English
[SUBTITLE: [ENGLISH] J
Subtitle preference is Spanish:
l SUBTITLE: [SPANISH] ]
Close the SUBTITLE:
SUBTITLE: [OFF] J
Audio choices:
The user can select English, Spanish,
French for the audio language.
Sound preference is English
[AUDIO: [ENGLISH] I
Sound preference is French
l AUDIO: [FRENCH] 1
Note: Some DVDs may be played in
a different language than you
selected.
OSD:
There's only one setting option for
OSD: OSD ON.
OSD ON enables the "POP-UP"
displays:
I OSD: [ ]
ON
J
27/36
Default:
Default ON can enter factory default
setting automatically.
Default: [ ON ] [
I
Default Off will disable this function.
I Default: [OFF] I
TV Type Choices:
This option allows the user to select
the aspect ratio of their TV
TV type is normally a 4:3 size(factory
default).This should be selected when
a 4:3 TV is connected.Displays for a
16:9 size can also be selected.
I TVTYPE: [4:3LB i_] I
There will cause some visual effects
difference choosing between 4:3 LB
and 4:3 PS type. You can try both
options and select the ones that fit
you best
TVTYPE: [4:3PS []]
TV type is 16:9 size and shows a
widescreen anamorphic; please
select the following options.
I TVTYPE: [16:9 _i_]
TV system choices:
For TV system setting,here we
strongly recommend AUTO
and NTSC options for the USA
user.
Audio output choices:
These option inform the user to
select the settings based on one's
equipment
• Analog output choices:
The user who owns 2 RCA appliances
with inputs can select:
Analog out: [2 channel]
• Digital output choices:
• Dolby Digital Out
The player is capable of outputting
the Dolby Digital audio signal,also
can convert the Dolby Digital signal
to a digital Linear PCM signal.
When the player is connected to
an AV component (with an optical/
coaxial digital input connector)
which has a built-in Dolby Digital
decoder, select the following
option.
Dolby Digital Out: [Raw]
When the player is connected to an
AV component with an optical /
coaxial digital input connector which
does not contain the Dolby Digital
decoder,be sure to select
28/36
I Dolby Digital Out: [PCM]
Select the following option while turn
Off Dolby Digital out.
Dolby Digital out: [Off] I
I
• DTS output
This player is capable of outputting
DTS digital audio ( bitstream )
signal for DVDs recorded in DTS
format. When the player is
connected to an AV component with
an optical/coaxial digital input
connector that has a built-in DTS
decoder,select the following option:
output without decoding is
selected,the output is a digital
noise that could potentially
cause damage to your
speakers.
• MP3 Digit out
This player is capable of outputting
PCM digital audio signal for discs
recorded in MP3 format. Usually
select the following option when the
player is connected to an AV
component with an optical/coaxial
digital input connector
MP3 Digital out: [PCM]
Select the following option while turn
Off MP3 digital out.
MP3 Digital out: [Off]
Note: For some other digital out
formats, select RAW when
connected to a receiver that
accepts Dolby DigitaI,MPEG or
DTS encoded audio signal.
If the receiver with an
optical/coaxial digital input
connector do not have any
decoding function, select PCM
If you want to turn off the digital
DTS Digital out: [Raw]
Select the following while Turn off
the DTS Digital out
DTS Digital out: [Off]
Note:If you have made digital audio
connections to component not
equipped to decode the DTS
digital bitstream, be sure to
select "off ". If a DTS signal
out, select Off.
29/36
Password:
Rating:
This option allows the user to enter
a password to lock and unlock the
parental control setting into the
player.
Press ENTER button to cycle all rating,
e.g. Select following which allows
admission to person of all ages.
RATING field unlocked (factory
default):
Rating: [G]
PASSWORD: [ **** I_]
RATING field locked:
Select following when children under
17 are forbidden to view
I RATING: [NC-17]
I PASSWORD: ** **
[
il
]
Note: For a better explanation, see
the notes associated with
rating choice.
Notes about Password and Rating
1. Parental Control functions only if
the DVD disc has it encoded in its
program. Parental Control does
not work apply to Video CD/Audio
CD/MP3.
2. The Rating can be changed if the
Password is 'unlocked'
,
4.
( _ shown ).
The Rating cannot not be changed
if the password is 'locked'
( I_ shown).
A password is always 4 digits.
Procedure to lock: enter four digits
using the digit buttons; the password
digits are shown on the screen as
30/36
'****' ; The four password digits
are saved in memory after the
ENTER button is pressed; the
' locked ' icon [ _11] appears.
5. Procedure to unlock: enter four
digits using the digit buttons; the
password digits are shown on the
screen as '****' ; the four password
digits are erased from the memory
after the ENTER button is pressed;
the' unlock' icon [ I_ ] appears.
6. Do not forget your password. As
there is no way to override the
password.
Additional information
Disc handling and maintenance
handling precautions
• Hold the disc by the edges so the
surface will not be soiled with
fingerprints. (_1)
Fingerprints,dirt and scratches can
cause skipping and distortion.
• Do not write on the label side with
a ball-point pen or other writing
utensils.
• Do not use cleaning sprays,benzine,
thinner,static electricity prevention
liquids or any other solvent.
• Be careful not to drop or bend the
disc.
• Do not install more than 1disc on
the disc tray.
• Do not try to close the disc tray
when the disc is not installed
properly.( [] )
• Be sure to store the disc in its case
when not in use.
If the surface is soiledrd
W_pe gently with a soft,damp (water
only ) cloth.
When wiping discs, always move the
cloth from the center hole toward the
outer edge.
( Wipe the disc using a circular
motion circular scratches are likely
to occur,which will cause noise and
possible disc failure.)
31/36
If the disc is brought from a cold
to a warm environment,moisture
may form on the disc
Wipe this moisture off with a soft,
lint-free cloth before using the disc.
Improper disc storage
You can damage discs if you store
them in the following places:
• Areas exposed to direct sunlight
• Humid or dusty areas
• Areas directly exposed to a heat
outlet or heating appliance
Maintenance
• Be sure to set the unit to the
stand-by mode and disconnect the
AC cord before maintaining the
player.
• Wipe this player with a dry, soft
cloth. If the surfaces are extremely
dirty,wipe clean with a cloth which
has been dipped in a weak soap-
and-water solution and wrung out
thoroughly, and then wipe again
with a dry cloth.
• Never use alcohol,benzine,thinner
cleaning fluid or other chemicals,
and do not use compressed air to
remove dust.
[]
:,.-".y
0
32/36
Definition of terms
DVD
Angle
Recorded onto some DVD disc are
scenes which have been
simultaneously shot from a number
of different angles (the same scene is
shot from the front,the right side,etc).
With such discs, the ANGLE button
can be used to view the scene from
different angles.
Chapter number
These number are recorded on DVD
DISC.A title is subdivided into many
sections,each of which is numbered,
and specific parts of video
presentation can be searched quickly
using these numbers.
Digital audio output connector
(optical)
The digital audio output connecter
( optical ) converts electrical signals
into optical signals and transfers them
to the amplifier. Consequently,it has a
number of features including immunity
from electrical interference from
external sources and its ability to
prevent the generation of noise and
Its effect on the external environment.
This refers to a high-density optical
disc on which high-quality pictures
and sound have been recorded by
mean of digital signals.Incorporating
a new video compression technology
(MPEG II) and high-density recording
technology, DVD enable a
aesthetically pleasing full-motion
movies can be recorded, a DVD disc
has a greater capacity than a single
1.2 mm thick disc.Since the two thin
discs are adhered to each other,it may
be possible to achieve double-sided
play for even longer duration play.
Subtitle
This is the appearance of the dialogue
at the bottom of the screen which are
prerecorded on some DVD discs.
Time number
This indicates the play time which
has elapsed from the start of a disc
/title/track.It can be used to find a
specific scene quickly. ( It may not
work with some discs.)
33/36
Title number
These numbers are recorded on DVD
Discs.When a disc contains two or
more movies ,these movies are
numbered as title 1,title 2,etc.
Track number
These numbers are assigned to the
track which are recorded on Video
CD/MP3.They enable specific tracks
to be located quickly.
Video CD
This contains recording of pictures
and sound whose quality is similar to
that of video tape.
34136
Specifications
Power
requirement:AC ~100-240V,50/60HZ
Power
Consumption:20W
Others:
Pickup: Wave length:665mm
Laser power:Class 1
Specification are subject to change
without notice.Weight and dimensions
are approximate.
Signal system:NTSC/PAL
Weight:2.85 kg
Dimensions:360 (W) X 266 (D) X 62 (H) mm
(excluding protrusions)
Operating temperatures:+5 to +35°c
Operating humidity range:5 to 90%
(no condensation)
Disc played:
(1) DVD-VIDEO disc
12cm single-sided,single-layer
12cm single-sided,dual-layer
12cm double-sided,single-layer
12cm double-sided,dual-layer
8cm single-sided,single-layer
8cm single-sided,dual-layer
8cm double-sided,single-layer
8cm double-sided,dual-layer
(2) Compact disc (Video CD,SVCD,CVD,D-
VCD,VCD-R,CD-RW,MP3)
12cm disc
8cm disc
Audio section characteristics:
(1) OUTPUT LEVEL(10k _ ):2.0+0.2/-1V
(2) CHANNEL UNBALANCE:0.5dB Max.
(3) AUDIO SNR:95dB Min.
(4) CROSS TALK:80dB Min.
(5) FREQUENCY RESPONSE:20Hz-20KHz
± 3dB
(6) FREQUENCY ERROR: _+0.02%
(7) LEVEL NON-LINEARITY:0dB~60dB
_+0.5dB
Video section characteristics :
(1) OUTPUT LEVEL:1.0 ±0.2V
(2) HORIZONTAL RESOLUTION: 450LINE Min.
35136
Region Management Information
Region Management Information:This player is designed and manufactured to respond
to the Region management information that is recorded on a DVD disc. If the Region
number described on the DVD disc does not correspond to the region number of this
player,this player cannot play this disc.
EXAMPLE:
The Region number for the player is 1.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners.Use of this copyright
protection technology must be authorized by Macrovision Corporation,and is
intended for home and other limited viewing uses only unless otherwise authorized
by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbols are trademarks of Dolby Laboratories.
Free customer service number is: 1-866-ROWA-USA
36/36
Loading...
