Rough Country 1021 User Manual

92102100

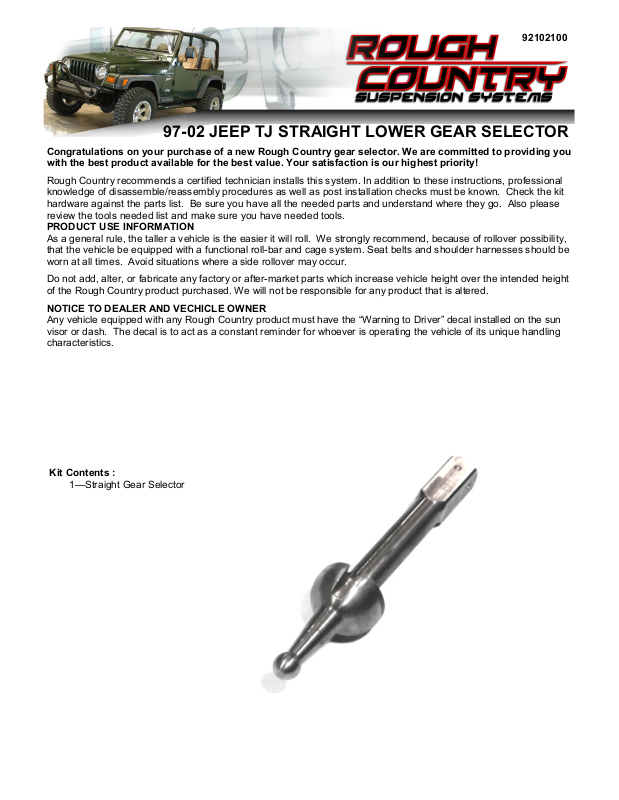

97-02 JEEP TJ STRAIGHT LOWER GEAR SELECTOR

Congratulations on your purchase of a new Rough Country gear selector. We are committed to providing you
with the best product available for the best value. Your satisfaction is our highest priority!

Rough Country recommends a certified technician installs this system. In addition to these instructions, professional
knowledge of disassemble/reassembly procedures as well as post installation checks must be known. Check the kit
hardware against the parts list. Be sure you have all the needed parts and understand where they go. Also please
review the tools needed list and make sure you have needed tools.

PRODUCT USE INFORMATION

As a general rule, the taller a vehicle is the easier it will roll. We strongly recommend, because of rollover possibility,
that the vehicle be equipped with a functional roll-bar and cage system. Seat belts and shoulder harnesses should be
worn at all times. Avoid situations where a side rollover may occur.

Do not add, alter, or fabricate any factory or after-market parts which increase vehicle height over the intended height
of the Rough Country product purchased. We will not be responsible for any product that is altered.

NOTICE TO DEALER AND VECHICLE OWNER

Any vehicle equipped with any Rough Country product must have the “Warning to Driver” decal installed on the sun
visor or dash. The decal is to act as a constant reminder for whoever is operating the vehicle of its unique handling
characteristics.

Kit Contents :

1—Straight Gear Selector

INSTALLATION INSTRUCTIONS

1. Using a 10mm socket remove the bolt from the cup holder See Photo 1, open the center console and remove the
two bolts in the bottom. See Photo 2.

Photo 1

Photo 2

2. Pull up on the shifter boot to gain access to the console mounting bolts. Remove the bolt with a 10mm socket.
See Photo 3.

3. Next pull up the emergency brake and the transfer case shifter, this will allow for the console to be removed.

4. Push the passenger side seat forward to allow the two side bolts to be removed from the console using a 10mm
socket. See Photo 4.

Photo 4 Photo 3

5. You can now pick up on the console and work the console over the shifters. See Photo 5. After the console
clears the shifters you will have to push in the tabs releasing the 12V power supply out of the console. See Photo

6. Next turn the 12V power supply sideways and work it through the hole in the console.

Photo 6 Photo 5
